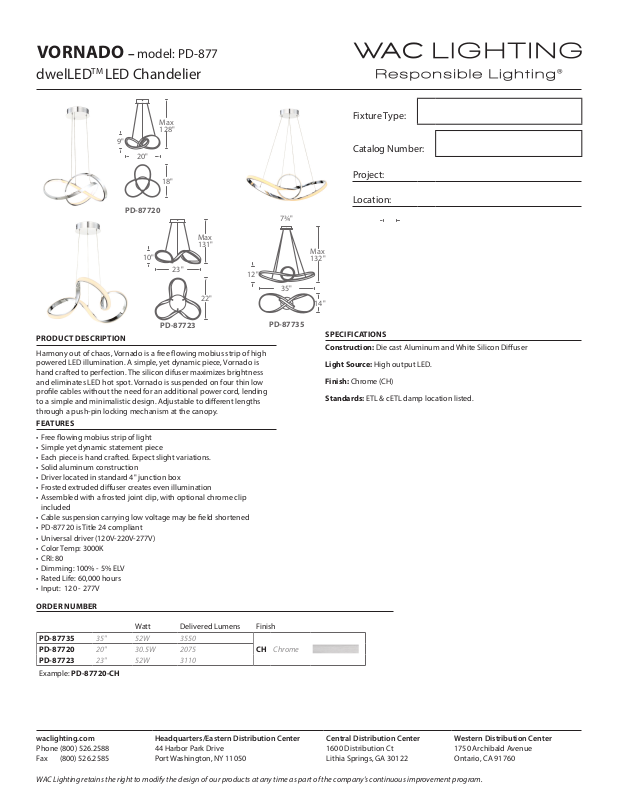

VORNADO – model: PD-877
dwelLED
TM
LED Chandelier
Max
128"
9"
20"
18"
PD-87720
Max
131"
10"
23"
22"
PD-87723
PRODUCT DESCRIPTION
Harmony out of chaos, Vornado is a free owing mobius strip of high
powered LED illumination. A simple, yet dynamic piece, Vornado is
hand crafted to perfection. The silicon difuser maximizes brightness
and eliminates LED hot spot. Vornado is suspended on four thin low
prole cables without the need for an additional power cord, lending
to a simple and minimalistic design. Adjustable to dierent lengths
through a push-pin locking mechanism at the canopy.
FEATURES
• Free owing mobius strip of light
• Simple yet dynamic statement piece
• Each piece is hand crafted. Expect slight variations.
• Solid aluminum construction
• Driver located in standard 4" junction box
• Frosted extruded diuser creates even illumination
• Assembled with a frosted joint clip, with optional chrome clip
included
• Cable suspension carrying low voltage may be eld shortened
• PD-87720 is Title 24 compliant
• Universal driver (120V-220V-277V)
• Color Temp: 3000K
• CRI: 80
• Dimming: 100% - 5% ELV
• Rated Life: 60,000 hours
• Input: 120 - 277V
12"
7¾"
35"
PD-87735
Fixture Type:
Catalog Number:
Project:
Location:
Max
132"
14"
SPECIFICATIONS
Construction: Die cast Aluminum and White Silicon Diuser
Light Source: High output LED.
Finish: Chrome (CH)
Standards: ETL & cETL damp location listed.
ORDER NUMBER
Watt Delivered Lumens Finish
PD-87735 35" 52W 3550
CH ChromePD-87720 20" 30.5W 2075
PD-87723 23" 52W 3110
Example: PD-87720-CH
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program.
