dweLED DWLE1177 Installation & Assembly [en, es, fr]

Download

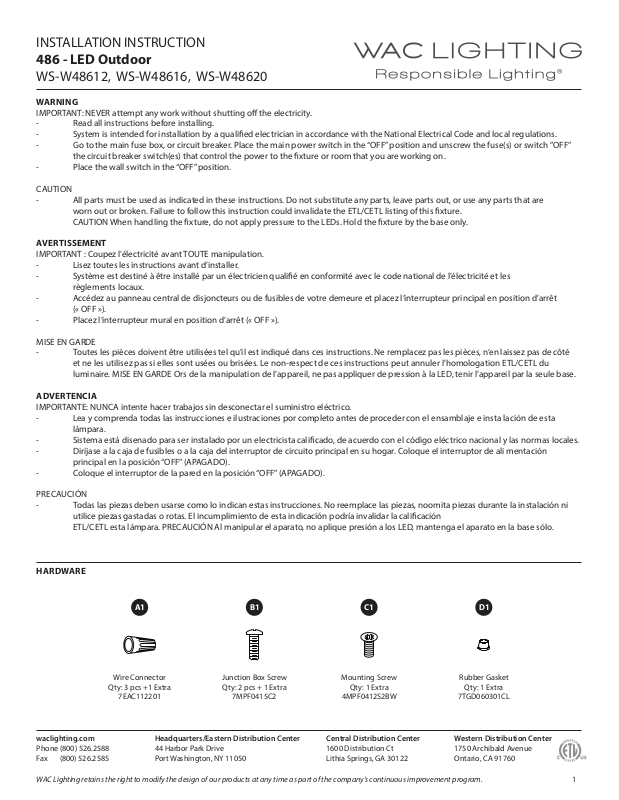

Page 1
INSTALLATION INSTRUCTION
486 - LED Outdoor
WS-W48612, WS-W48616, WS-W48620
WARNING
IMPORTANT: NEVER attempt any work without shutting o the electricity.
- Read all instructions before installing.
- System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local regulations.
- Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or switch ”OFF” the circuit breaker switch(es) that control the power to the xture or room that you are working on.
- Place the wall switch in the “OFF” position.
CAUTION
- All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are worn out or broken. Failure to follow this instruction could invalidate the ETL/CETL listing of this xture. CAUTION When handling the xture, do not apply pressure to the LEDs. Hold the xture by the base only.
AVERTISSEMENT
IMPORTANT : Coupez l’électricité avant TOUTE manipulation.
- Lisez toutes les instructions avant d’installer.
- Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et les règlements locaux.
- Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en position d’arrêt (« OFF »).
- Placez l’interrupteur mural en position d’arrêt (« OFF »).
MISE EN GARDE
- Toutes les pièces doivent être utilisées tel qu’il est indiqué dans ces instructions. Ne remplacez pas les pièces, n’en laissez pas de côté et ne les utilisez pas si elles sont usées ou brisées. Le non-respect de ces instructions peut annuler l’homologation ETL/CETL du luminaire. MISE EN GARDE Ors de la manipulation de l’appareil, ne pas appliquer de pression à la LED, tenir l’appareil par la seule base.
ADVERTENCIA
IMPORTANTE: NUNCA intente hacer trabajos sin desconectar el suministro eléctrico.
- Lea y comprenda todas las instrucciones e ilustraciones por completo antes de proceder con el ensamblaje e insta lación de esta lámpara.
- Sistema está disenado para ser instalado por un electricista calicado, de acuerdo con el código eléctrico nacional y las normas locales.
- Diríjase a la caja de fusibles o a la caja del interruptor de circuito principal en su hogar. Coloque el interruptor de ali mentación principal en la posición “OFF” (APAGADO).
- Coloque el interruptor de la pared en la posición “OFF” (APAGADO).
PRECAUCIÓN
- Todas las piezas deben usarse como lo indican estas instrucciones. No reemplace las piezas, noomita piezas durante la instalación ni utilice piezas gastadas o rotas. El incumplimiento de esta indicación podría invalidar la calicación ETL/CETL esta lámpara. PRECAUCIÓN Al manipular el aparato, no aplique presión a los LED, mantenga el aparato en la base sólo.
HARDWARE
A1 D1C1B1
waclighting.com
Phone (800) 526.2588 Fax (800) 526.2585
Wire Connector
Qty: 3 pcs +1 Extra
7EAC112201
Headquarters/Eastern Distribution Center
44 Harbor Park Drive Port Washington, NY 11050
Junction Box Screw Qty: 2 pcs + 1 Extra
7MPF0415C2
Mounting Screw
Qty: 1 Extra
4MPF0412S2BW
Central Distribution Center
Rubber Gasket
Qty: 1 Extra
7TGD060301CL
Western Distribution Center
1750 Archibald Avenue Ontario, CA 91760
1WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program.
Page 2
INSTALLATION INSTRUCTION
486 - LED Outdoor
WS-W48612, WS-W48616, WS-W48620

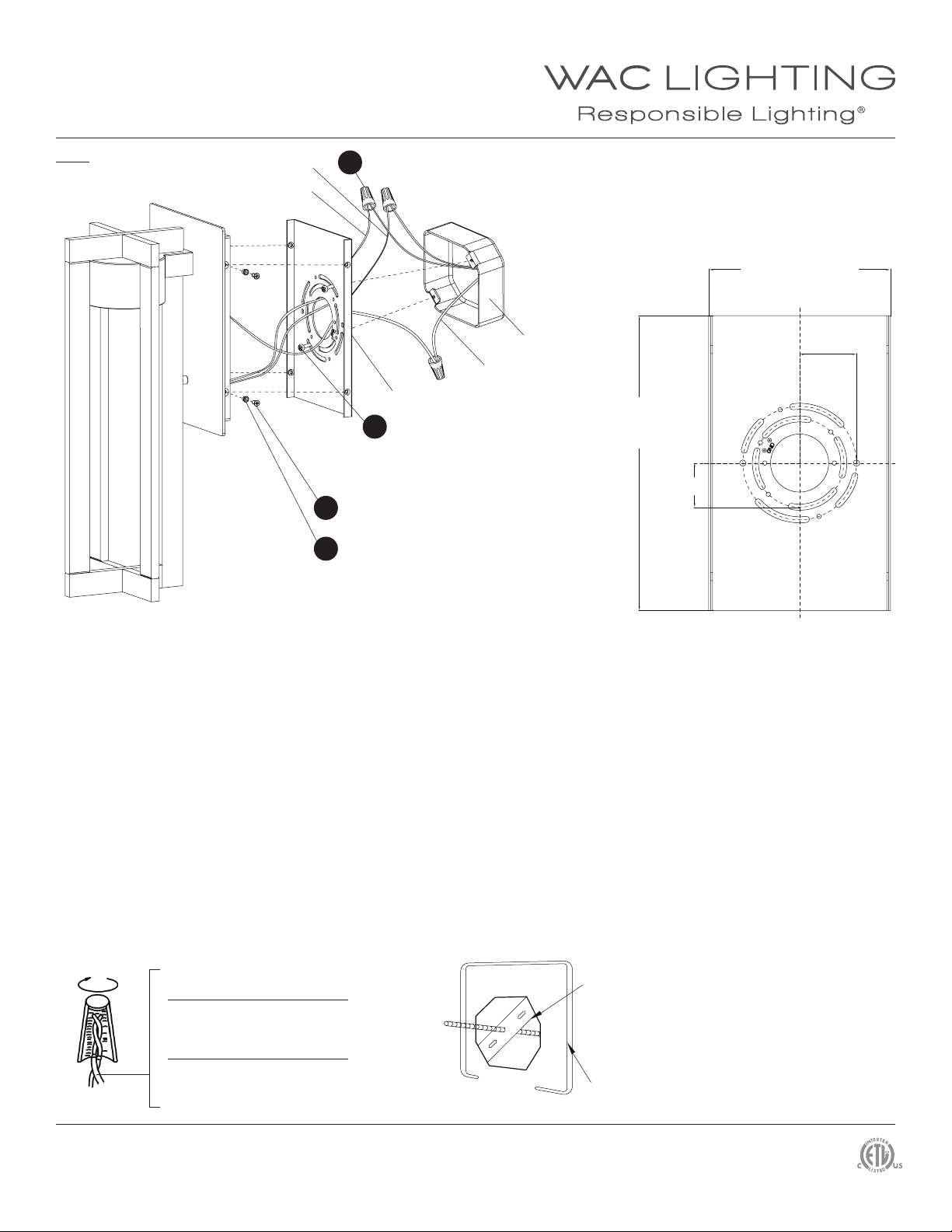

FIG.1
White Wire
Black Wire
A1
Wire Connector
B1
C1
Mounting Screw
D1
Rubber Gasket
Ground Wire
Mounting Back Plate
Junction Box Screw
Junction Box
WS-W48612 5 3/4" WS-W48616 7 5/8" WS-W48620 9 1/4"
Back Plate Dimensions
WS-W48612 4 1/8" WS-W48616 5 1/8" WS-W48620 5 5/8"
1 3/4"
1 3/8"
PREPARATION
1. Shut o the power at the circuit breaker and remove existing xture, including the crossbar.
2. Carefully unpack your new xture and lay out all the parts on a clear area. Be careful not to lose any small parts necessary for installation.
MOUNTING THE FIXTURE (Fig. 1)
3. Remove the mounting screw (C1) and the rubber gasket (D1) from the mounting back plate.
4. Secure the mounting back plate to the junction box using junction box screws (B1). The side of the mounting back plate marked “GND” must face out.
CONNECTING THE WIRES (Fig. 2)
5. Connect the xture’s wires to junction box wires as shown in Fig. 2, making sure that all wire connectors (A1) are secured. If your outlet box has a green or bare copper ground wire, connect the xture’s ground wire to it. Otherwise, connect the xture’s ground wire directly to the back plate using the green screw provided. After wires are connected, tuck them carefully inside the junction box.
COMPLETING THE INSTALLATION (Fig. 1)
6. Secure the xture to the mounting back plate using the mounting screw (C1) and the rubber gasket (D1).
7. To prevent moisture from entering the outlet box and causing a short, use clear caulking (i.e. indoor/outdoor silicone sealant) to outline the outside of xture back plate where it meets the wall. Leave a space at the bottom to allow moisture to escape Fig. 3.
Fig. 2 Wiring
Fixture Wires
Black or Smooth
Fixture Wires
White or Ribbed
Fixture Wires
Bare wire (Ground)
House Wires
Black (Hot)
House Wires
White (Neutral)
House Wires
Green or Bare Copper (Ground)
Fig.3 Sealing
Junction Box
Caulking
waclighting.com
Phone (800) 526.2588 Fax (800) 526.2585
Headquarters/Eastern Distribution Center
44 Harbor Park Drive Port Washington, NY 11050
Central Distribution Center
Western Distribution Center
1750 Archibald Avenue Ontario, CA 91760
2WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program.
Page 3
INSTALLATION INSTRUCTION
waclighting.com
Phone (800) 526.2588 Fax (800) 526.2585
Headquarters/Eastern Distribution Center
44 Harbor Park Drive Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue Ontario, CA 91760
INSTALLATION INSTRUCTION
758 – LED Wall Sconce
WS-75818
HARDWARE
A B C D E
Wire Connector Qty: 3pcs+1 Extra 7EAC112201
Junction Box Screw Qty: 2pcs+1 Extra 7MPF0820C1 #8-32x13/16 Nickel Plating
Wood Screw Qty: 2pcs+1 Extra 7MPF2204J2 Ф4X22
Plastic Anchor Qty: 2pcs+1 Extra 7TDD082401
Mounting Screw Qty: 1 Extra 7MPF0412S1(AL) 5/32-32x1/2 Nickel Plating
WARNING
IMPORTANT: NEVER attempt any work without shutting o the electricity.
- Read all instructions before installing.
- System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local regulations.
- Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or switch ”OFF” the circuit breaker switch(es) that control the power to the xture or room that you are working on.
- Place the wall switch in the “OFF” position.
CAUTION
- All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are worn out or broken. Failure to follow this instruction could invalidate the ETL/CETL listing of this xture. CAUTION When handling the xture, do not apply pressure to the LEDs. Hold the xture by the base only.
AVERTISSEMENT
IMPORTANT : Coupez l’électricité avant TOUTE manipulation.
- Lisez toutes les instructions avant d’installer.
- Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et les règlements locaux.
- Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en position d’arrêt (« OFF »).
- Placez l’interrupteur mural en position d’arrêt (« OFF »).
MISE EN GARDE
- Toutes les pièces doivent être utilisées tel qu’il est indiqué dans ces instructions. Ne remplacez pas les pièces, n’en laissez pas de côté et ne les utilisez pas si elles sont usées ou brisées. Le non-respect de ces instructions peut annuler l’homologation ETL/CETL du luminaire. MISE EN GARDE Ors de la manipulation de l’appareil, ne pas appliquer de pression à la LED, tenir l’appareil par la seule base.
ADVERTENCIA
IMPORTANTE: NUNCA intente hacer trabajos sin desconectar el suministro eléctrico.
- Lea y comprenda todas las instrucciones e ilustraciones por completo antes de proceder con el ensamblaje e insta lación de esta lámpara.
- Sistema está disenado para ser instalado por un electricista calicado, de acuerdo con el código eléctrico nacional y las normas locales.
- Diríjase a la caja de fusibles o a la caja del interruptor de circuito principal en su hogar. Coloque el interruptor de ali mentación principal en la posición “OFF” (APAGADO).
- Coloque el interruptor de la pared en la posición “OFF” (APAGADO).
PRECAUCIÓN
- Todas las piezas deben usarse como lo indican estas instrucciones. No reemplace las piezas, noomita piezas durante la instalación ni utilice piezas gastadas o rotas. El incumplimiento de esta indicación podría invalidar la calicación ETL/CETL esta lámpara. PRECAUCIÓN Al manipular el aparato, no aplique presión a los LED, mantenga el aparato en la base sólo.
486 – LED Outdoor
758 – LED Wall Sconce
877-LED Pendant
278-LED Pendant
PD-87741
PD-27802
WS-75818
WS-W48625/ WS-W48625F
WARNING
IMPORTANT: NEVER attempt any work without shutting o the electricity.
- Read all instructions before installing.
- System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local regulations.
- Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or switch ”OFF”
the circuit breaker switch(es) that control the power to the xture or room that you are working on.
- Place the wall switch in the “OFF” position.
CAUTION
- All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are
worn out or broken. Failure to follow this instruction could invalidate the ETL/CETL listing of this xture. CAUTION When handling the xture, do not apply pressure to the LEDs. Hold the xture by the base only.
AVERTISSEMENT
IMPORTANT : Coupez l’électricité avant TOUTE manipulation.
- Lisez toutes les instructions avant d’installer.
- Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et les
règlements locaux.
- Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en position d’arrêt
(« OFF »).
- Placez l’interrupteur mural en position d’arrêt (« OFF »).
MISE EN GARDE
- Toutes les pièces doivent être utilisées tel qu’il est indiqué dans ces instructions. Ne remplacez pas les pièces, n’en laissez pas de côté
et ne les utilisez pas si elles sont usées ou brisées. Le non-respect de ces instructions peut annuler l’homologation ETL/CETL du luminaire. MISE EN GARDE Ors de la manipulation de l’appareil, ne pas appliquer de pression à la LED, tenir l’appareil par la seule base.
ADVERTENCIA
IMPORTANTE: NUNCA intente hacer trabajos sin desconectar el suministro eléctrico.
- Lea y comprenda todas las instrucciones e ilustraciones por completo antes de proceder con el ensamblaje e insta lación de esta
lámpara.
- Sistema está disenado para ser instalado por un electricista calicado, de acuerdo con el código eléctrico nacional y las normas locales.
- Diríjase a la caja de fusibles o a la caja del interruptor de circuito principal en su hogar. Coloque el interruptor de ali mentación
principal en la posición “OFF” (APAGADO).
- Coloque el interruptor de la pared en la posición “OFF” (APAGADO).
PRECAUCIÓN
- Todas las piezas deben usarse como lo indican estas instrucciones. No reemplace las piezas, noomita piezas durante la instalación ni
utilice piezas gastadas o rotas. El incumplimiento de esta indicación podría invalidar la calicación ETL/CETL esta lámpara. PRECAUCIÓN Al manipular el aparato, no aplique presión a los LED, mantenga el aparato en la base sólo.
HARDWARE
waclighting.com
Phone (800) 526.2588 Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program.
G0
A
A
A B C D E
Qty: 3pcs+1 Extra
A
Wire Connector
Wire Connector
Wire Connector
Qty: 3pcs+1 Extra
Qty: 3pcs+1 Extra
P3
7EAC112201
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program.
Wire Connector
Junction Box Screw
Junction Box Screw
Qty: 3pcs+1 Extra
Qty: 2pcs+1 Extra
Mounting Screw
Qty: 2pcs+1 Extra
Qty:1 Extra
7MPF0820C1
P3
#8-32x13/16 Nickel Plating
Headquarters/Eastern Distribution Center
44 Harbor Park Drive Port Washington, NY 11050
B
B
8#-32×13/16
Nickel Plating
Mounting Screw
Junction Box Screw
Wood Screw
Rubber Gasket
Qty: 2pcs+1 Extra
Qty:1 Extra
7MPF2204J2 Ф4X22
Chrome Plating
B
C
C
Qty:1 Extra
Qty: 2pcs+1 Extra
5/32"-32×1/2
8#-32×13/16
Nickel Plating
Central Distribution Center
1600 Distribution Ct Lithia Springs, GA 30122
D
Screw
Plastic Anchor
Qty:1 Extra
Plastic Anchor
Qty: 2pcs+1 Extra
Qty:2pcs+1 Extra
1/8"-40×1/2
7TDD082401
Chrome Plating
C
D
Mounting Screw
Qty:1 Extra
5/32"-32×1/2
Chrome
Optional Metal Cap
Mounting Screw
Wood Screw
Qty: 1 Extra
Qty: 2pcs+1 Extra
Chrome Plating
7MPF0412S1(AL) 5/32-32x1/2
Plating
Nickel Plating
Western Distribution Center
1750 Archibald Avenue Ontario, CA 91760
E
E
Qty:1 Extra
Page 4
INSTALLATION INSTRUCTION
waclighting.com
Phone (800) 526.2588 Fax (800) 526.2585
Headquarters/Eastern Distribution Center
44 Harbor Park Drive Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue Ontario, CA 91760
INSTALLATION INSTRUCTION
758 – LED Wall Sconce
WS-75818
HARDWARE
A B C D E
Wire Connector Qty: 3pcs+1 Extra 7EAC112201
Junction Box Screw Qty: 2pcs+1 Extra 7MPF0820C1 #8-32x13/16 Nickel Plating
Wood Screw Qty: 2pcs+1 Extra 7MPF2204J2 Ф4X22
Plastic Anchor Qty: 2pcs+1 Extra 7TDD082401
Mounting Screw Qty: 1 Extra 7MPF0412S1(AL) 5/32-32x1/2 Nickel Plating
WARNING
IMPORTANT: NEVER attempt any work without shutting o the electricity.
- Read all instructions before installing.
- System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local regulations.
- Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or switch ”OFF” the circuit breaker switch(es) that control the power to the xture or room that you are working on.
- Place the wall switch in the “OFF” position.
CAUTION
- All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are worn out or broken. Failure to follow this instruction could invalidate the ETL/CETL listing of this xture. CAUTION When handling the xture, do not apply pressure to the LEDs. Hold the xture by the base only.
AVERTISSEMENT
IMPORTANT : Coupez l’électricité avant TOUTE manipulation.
- Lisez toutes les instructions avant d’installer.
- Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et les règlements locaux.
- Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en position d’arrêt (« OFF »).
- Placez l’interrupteur mural en position d’arrêt (« OFF »).
MISE EN GARDE
- Toutes les pièces doivent être utilisées tel qu’il est indiqué dans ces instructions. Ne remplacez pas les pièces, n’en laissez pas de côté et ne les utilisez pas si elles sont usées ou brisées. Le non-respect de ces instructions peut annuler l’homologation ETL/CETL du luminaire. MISE EN GARDE Ors de la manipulation de l’appareil, ne pas appliquer de pression à la LED, tenir l’appareil par la seule base.
ADVERTENCIA
IMPORTANTE: NUNCA intente hacer trabajos sin desconectar el suministro eléctrico.
- Lea y comprenda todas las instrucciones e ilustraciones por completo antes de proceder con el ensamblaje e insta lación de esta lámpara.
- Sistema está disenado para ser instalado por un electricista calicado, de acuerdo con el código eléctrico nacional y las normas locales.
- Diríjase a la caja de fusibles o a la caja del interruptor de circuito principal en su hogar. Coloque el interruptor de ali mentación principal en la posición “OFF” (APAGADO).
- Coloque el interruptor de la pared en la posición “OFF” (APAGADO).
PRECAUCIÓN
- Todas las piezas deben usarse como lo indican estas instrucciones. No reemplace las piezas, noomita piezas durante la instalación ni utilice piezas gastadas o rotas. El incumplimiento de esta indicación podría invalidar la calicación ETL/CETL esta lámpara. PRECAUCIÓN Al manipular el aparato, no aplique presión a los LED, mantenga el aparato en la base sólo.
758 – LED Wall Sconce
877-LED Pendant
278-LED Pendant
486 – LED Outdoor
PD-87741
PD-27802
WS-75818
WS-W48625/ WS-W48625F

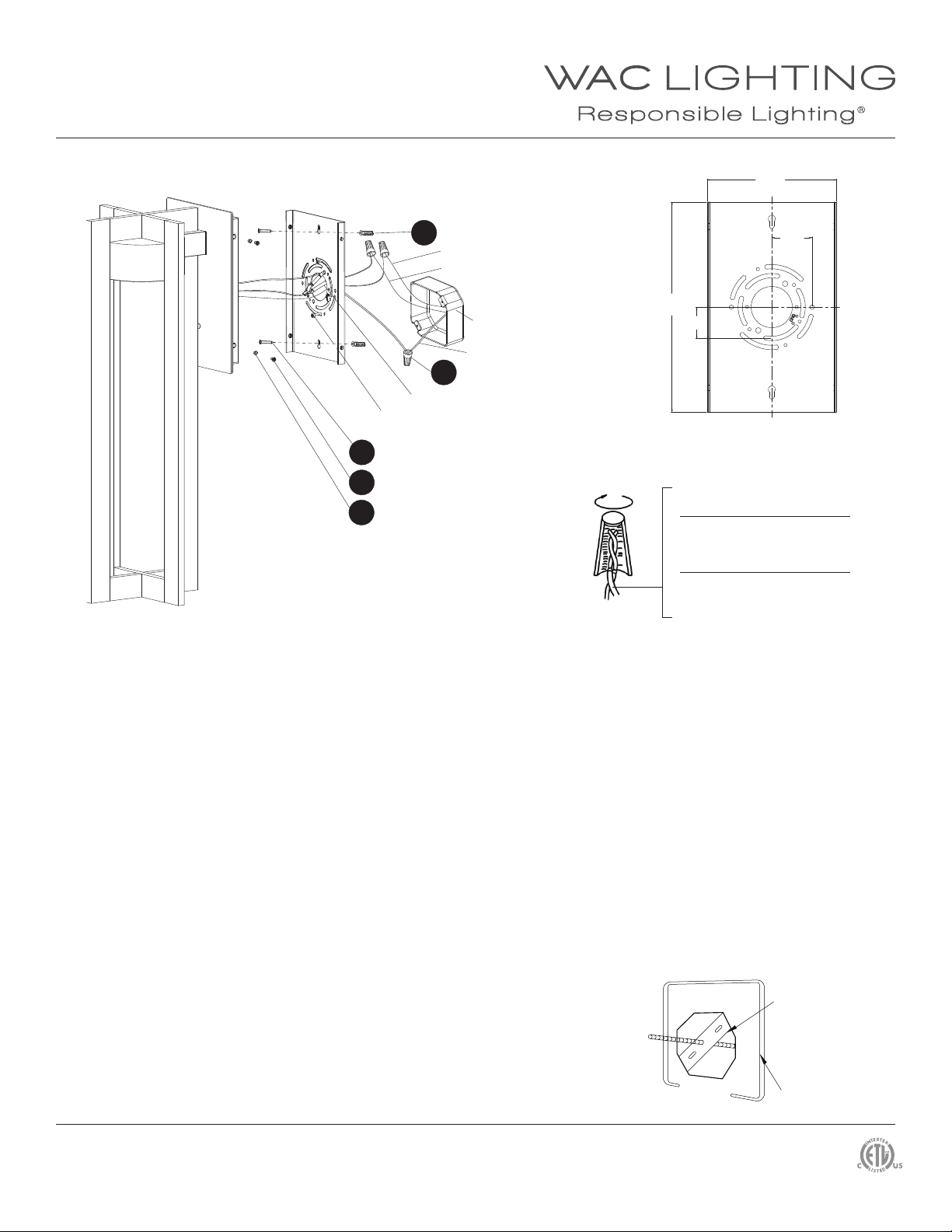

Fig.1
FIG.1
Junction Box Screw
B
Plate
A
A
B
C
B
Plastic
C
3 3/8" L X 2 3/8" W X 1 1/4" H Driver
D
C
E
B
C
Wood Screw
D
Plastic Anchor
Ground Wire Screw
White
Wire
Junction Box
Black
Wire
Ground Wire Screw
3 3/8" L X 2 3/8" W X 1 1/4" H Driver
Safety Cords
Junction Box Screw
Mounting Backplate
Wood Screw
Mounting #BDLPlate
Mounting Screw
Rubber Gasket
Junction Box
Plate
Ground Wire
Wire Connector
A
A
Wire Connector
Driverw-Yw8Yw)
Plastic Anchor
D
PREPARATION
1. Shut o the power at the circuit breaker and remove existing xture, including the crossbar.
2. Carefully unpack your new xture and lay out all the parts on a clear area. Be careful not to lose any small parts necessary for installation.
PREPARATION
MOUNTING THE FIXTURE (Fig. 1)
1. Shut o the power at the circuit breaker and remove existing xture, including the crossbar.
PREPARATION
PREPARATION
2. Carefully unpack your new xture and lay out all the parts on a clear area. Be careful not to lose any small parts necessary for
3. Remove the mounting screw (B) and gasket (C) from the xture, and safety cords from the mounting back plate.
1. Shut off the power at the circuit breaker and remove existing fixture, including the crossbar.
1. Shut off the power at the circuit breaker and remove existing fixture, including the crossbar.
installation.
4. Drill holes in the wall aligned with the key holes located on the back plate, insert the plastic anchor (D).
2. Carefully unpack your new fixture and lay out all the parts on a clear area. Be careful not lose any small parts necessary for installation.
2. Carefully unpack your new fixture and lay out all the parts on a clear area. Be careful not lose any small parts necessary for installation.
5. Secure the mounting back plate to the junction box using standard junction box screws that comes with the junction box. Fasten the back
MOUNTING THE FIXTURE (Fig. 1)
plate to the wall with the plastic anchors using the wood screws(E) provided.
CONNECTING THE WIRES (Fig. 2)
CONNECTING THE WIRES (Fig. 2)
3. Remove the mounting screw (E) from the mounting back plate.
NOTE: The side of the mounting plate marked “GND” must face out.
3. Remove the mounting screw (C) from the fixture.
3. Remove the mounting screw (C) from the canopy.
4. Drill holes in the wall aligned with the key holes located in the mounting back plate, insert the plastic anchors (D).
4. Connect the Driver’s input wires to junction box wires as shown in Fig. 2, making sure that all wire connectors (A) are secured.
4. Adjust the fixture wire length by pushing the cable gripper on the canopy and pulling the wire as desired. Make sure the wires are the
CONNECTING THE WIRES (Fig. 2)
5. Secure the mounting plate to the junction box using junction box screws (B), fasten it to the wall using wood screws (C). The side of
If your outlet box has a green or bare copper ground wire, connect the fixture’s ground wire to it. Otherwise, connect the fixture’s
same length.
the mounting back plate marked “GND” must face out.
ground wire directly to the back plate using the green screw provided. After wires are connected, tuck them carefully inside the junction box.
5. Connect the Driver’s input wires to junction box wires as shown in Fig. 2, making sure that all wire connectors (A) are secured. If your
6. Hook the safety cords to the back plate.
outlet box has a green or bare copper ground wire, connect the fixture’s
7. Connect the
CONNECTING THE WIRES (Fig. 2)
ground wire to it. Otherwise, connect the fixture’s ground wire directly to
MOUNTING THE FIXTURE(Fig.1)
has a green or bare copper ground wire, connect the xture’s ground wire to it. Otherwise, connect the xture’s ground wire directly to the
6. Connect the driver input/output wires to junction box wires as shown in
the back plate using the green screw provided. After wires are connected,
back plate using the green screw provided. After wires are connected, tuck them carefully inside the junction box.
5. Secure the mounting back plate to the junction box using junction box
Fig. 2, making sure that all wire connectors (A) are secured. If your outlet
tuck them carefully inside the junction box.
screws (B).The side of the mounting back plate marked “GND” must face out.
COMPLETING THE INSTALLATION
6. Secure the canopy to the mounting plate using the mounting screw (C).
MOUNTING THE FIXTURE(Fig.1)
8. Secure the xture to the mounting back plate using the mounting screw (B)
7. There is optional metal clip in hardware bag, remove the screw (D) to
and the rubber gasket (C).
6. Secure the mounting back plate to the junction box using junction box
replace the plastic clip, secure the metal clip with screw (D).
9. To prevent moisture from entering the outlet box and causing a short, use
screws (B).The side of the mounting back plate marked “GND” must face out.
clear caulking (i.e. indoor/outdoor silicone sealant) to outline the outside
7. Hook the safety cord to the mounting plate.
of xture back plate where it meets the wall. Leave a space at the bottom
8. Secure the canopy to the mounting plate using the mounting screw (C).
COMPLETING THE INSTALLATION (Fig. 1)
to allow moisture to escape (Fig.3).
7. Secure the xture to the mounting back plate using the mounting screw (E).
waclighting.com
Phone (800) 526.2588 Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program.
G0
box has a green or bare copper ground wire, connect the xture’s ground wire to it. Otherwise, connect the xture’s ground wire directly to the back plate using the green screw provided. After wires are connected, tuck them carefully inside the junction box. * Requires Driver to be recessed within the junction box.
fixture ’s input wires to junction box wires as shown (Fig. 2). Make sure that all wire connectors (A) are secure. If your outlet box
Headquarters/Eastern Distribution Center
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program.
44 Harbor Park Drive Port Washington, NY 11050
Mounting Screw
E
'JYUVSF
4 1/8”
Central Distribution Center
1600 Distribution Ct Lithia Springs, GA 30122
Back Plate Dimensions
10 5/16"
Fig.2 Wiring
Fig.2 Wiring
Fig.2 Wiring
Fig.2 Wiring
Back Plate Dimensions
Back Plate Dimensions
9 1/4”
1 3/8”
5 5/8”
1 3/4"
1 3/4”
b
WS-75818
MOUNTING BACK PLATE
Fixture Wires
Black or Smooth
Fixture Wires
White or Ribbed
Fixture Wires
Bare wire (Ground)
Fixture Wires
Fixture Wires
Fixture Wires
Black or
Black or
Fig. 3 Sealing
Black or
Smooth
Smooth
Smooth
Fixture Wires
Fixture Wires
Fixture Wires
White or
White or
White or
Ribbed
Ribbed
Ribbed
Fixture Wires
Fixture Wires
Fixture Wires
Bare wire
Bare wire
Bare wire
(Ground)
(Ground)
(Ground)
15”
11 3/4”
1 3/4”
Western Distribution Center
1750 Archibald Avenue Ontario, CA 91760
House Wires
Black (Hot)
House Wires
White (Neutral)
1 3/8”
House Wires
Green or Bare Copper (Ground)
House Wires
House Wires
House Wires
Black
Black
Black
(Hot)
(Hot)
(Hot)
Junction Box
House Wires
House Wires
House Wires
White
White
White
(Neutral)
(Neutral)
(Neutral)
House Wires
House Wires
House Wires
Green or Bare Copper
Green or Bare Copper
Green or Bare Copper
(Ground)
(Ground)
(Ground)
Caulking
1 3/8"
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
