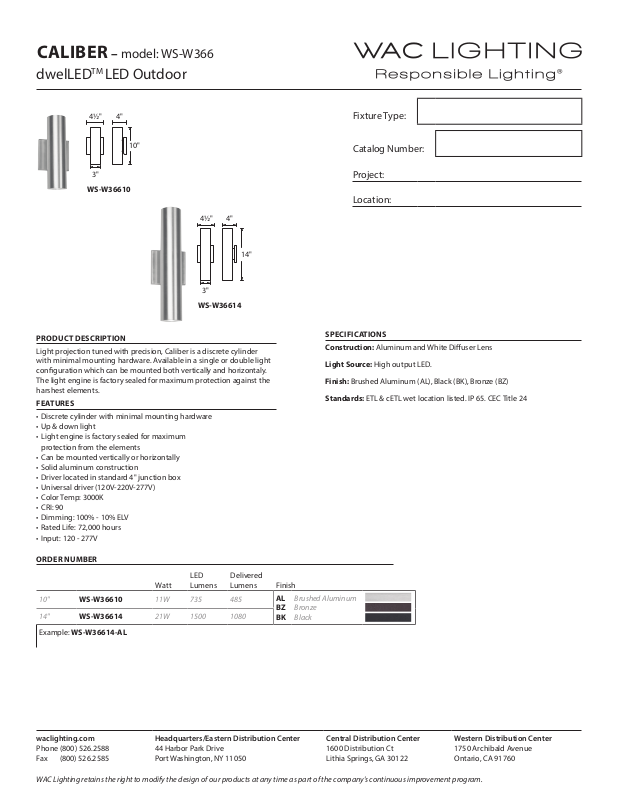

Page 1
CALIBER – model: WS-W366
dwelLED
TM
LED Outdoor
4½"
4"
Fixture Type:
10"
3"
WS-W36610
4½" 4"
14"
3"
WS-W36614
PRODUCT DESCRIPTION
Light projection tuned with precision, Caliber is a discrete cylinder
with minimal mounting hardware. Available in a single or double light
conguration which can be mounted both vertically and horizontaly.
The light engine is factory sealed for maximum protection against the
harshest elements.
FEATURES
• Discrete cylinder with minimal mounting hardware
• Up & down light
• Light engine is factory sealed for maximum
protection from the elements
• Can be mounted vertically or horizontally
• Solid aluminum construction
• Driver located in standard 4" junction box
• Universal driver (120V-220V-277V)
• Color Temp: 3000K
• CRI: 90
• Dimming: 100% - 10% ELV
• Rated Life: 72,000 hours
• Input: 120 - 277V
Catalog Number:
Project:
Location:
SPECIFICATIONS
Construction: Aluminum and White Diuser Lens
Light Source: High output LED.
Finish: Brushed Aluminum (AL), Black (BK), Bronze (BZ)
Standards: ETL & cETL wet location listed. IP 65. CEC Title 24
ORDER NUMBER
Watt
10" WS-W36610 11W 735 485
14" WS-W36614 21W 1500 1080
Example: WS-W36614-AL
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program.
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
LED
Lumens
Delivered
Lumens Finish
AL
BZ
BK
Brushed Aluminum
Bronze
Black
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
