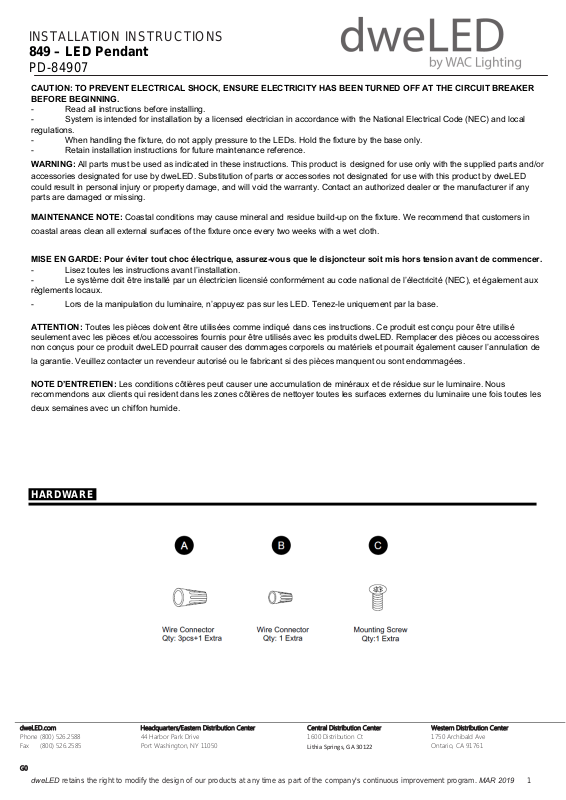

Page 1

INSTALLATION INSTRUCTIONS

849 – LED Pendant

PD-84907

CAUTION: TO PREVENT ELECTRICAL SHOCK, ENSURE ELECTRICITY

HAS BEEN TURNED OFF AT THE CIRCUIT BREAKER

BEFORE BEGINNING.

- Read all instructions before installing.

- System is intended for installation by a licensed electrician in accordance with the National Electrical Code (NEC) and local regulations.

- When handling the fixture, do not apply pressure to the LEDs. Hold the fixture by the base only.

- Retain installation instructions for future maintenance reference. WARNING: All parts must be used as indicated in these instructions. This product is designed for use only with the supplied parts and/or

accessories designated for use by dweLED. Substitution of parts or accessories not designated for use with this product by dweLED could result in personal injury or property damage, and will void the warranty. Contact an authorized dealer or the manufacturer if any parts are damaged or missing.

MAINTENANCE NOTE: Coastal conditions may cause mineral and residue build-up on the fixture. We recommend that customers in

coastal areas clean all external surfaces of the fixture once every two weeks with a wet cloth.

MISE EN GARDE: Pour éviter tout choc électrique, assurez-vous que le disjoncteur soit mis hors tension avant de commencer.

- Lisez toutes les instructions avant l’installation.

- Le système doit être installé par un électricien licensié conformément au code national de l’électricité (NEC), et également aux règlements locaux.

- Lors de la manipulation du luminaire, n’appuyez pas sur les LED. Tenez-le uniquement par la base.

ATTENTION: Toutes les pièces doivent être utilisées comme indiqué dans ces instructions. Ce produit est conçu pour être utilisé seulement avec les pièces et/ou accessoires fournis pour être utilisés avec les produits dweLED. Remplacer des pièces ou accessoires non conçus pour ce produit dweLED pourrait causer des dommages corporels ou matériels et pourrait également causer l’annulation de

la garantie. Veuillez contacter un revendeur autorisé ou le fabricant si des pièces manquent ou sont endommagées.

NOTE D’ENTRETIEN: Les conditions côtières peut causer une accumulation de minéraux et de résidue sur le luminaire. Nous recommendons aux clients qui resident dans les zones côtières de nettoyer toutes les surfaces externes du luminaire une fois toutes les

deux semaines avec un chiffon humide.

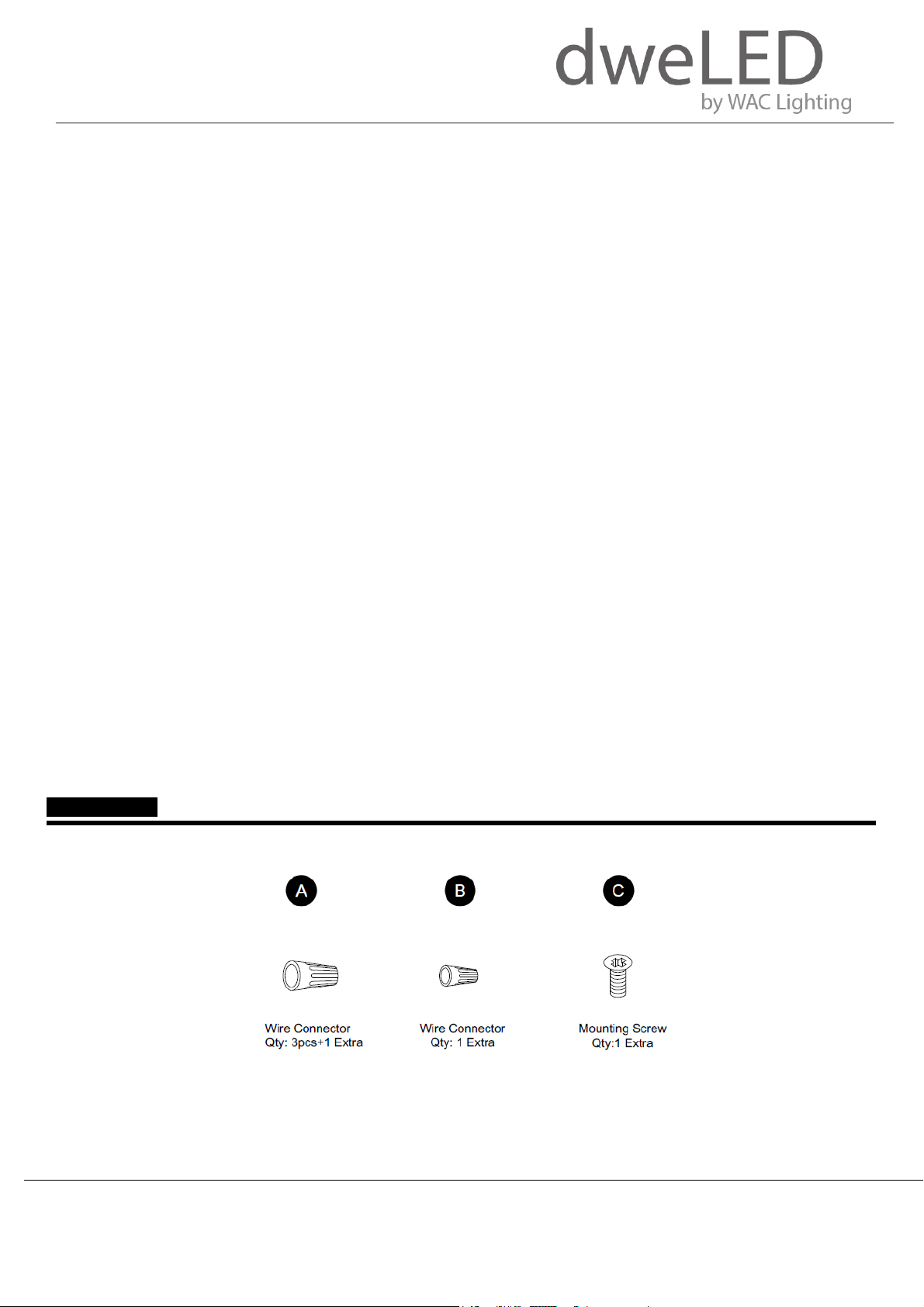

HARDWARE

dweLED.com Phone (800) 526.2588 Fax (800) 526.2585

dweLED retains the right to modify the design of our products at any time as part of the c

Headquarters/Eastern Distribution Center

4 Harbor Park Drive

4 Port Washington, NY 11050

Central Distribution Center 1600 Distribution Ct

LithiaSprings,GA30122

ompany's continuous improvement program. MAR 2019 1

Western Distribution Center 1750 Archibald Ave Ontario, CA 91761

Page 2

INSTALLATION INSTRUCTIONS

849 – LED Pendant

PD-84907

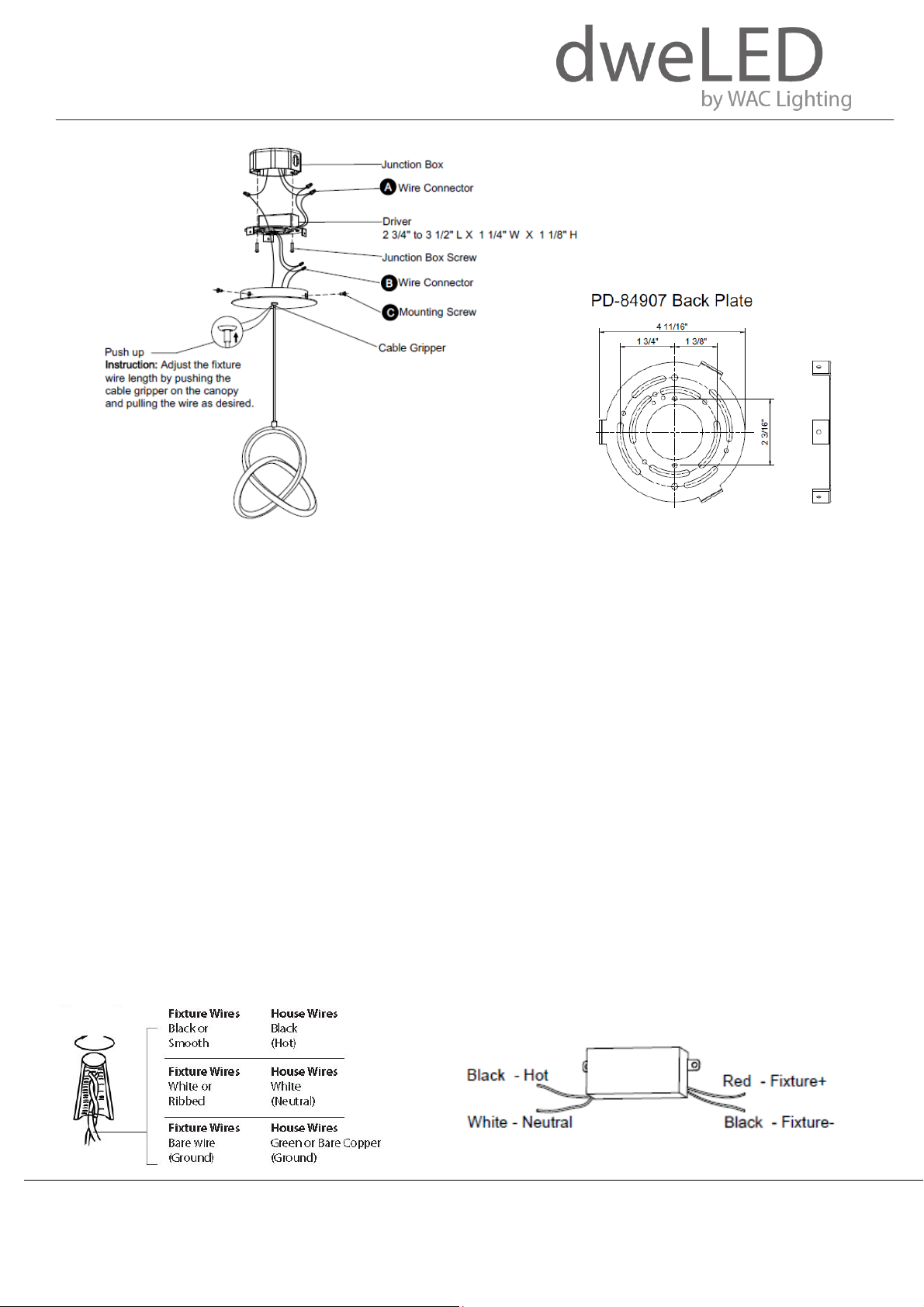

Fig.1

PREPARATION

1. Shut off the power at the circuit breaker and remove existing fixture, including the crossbar.

2. Carefully unpack your new fixture and lay out all the parts on a clear area. Be careful not to lose any small parts necessary for installation.

MOUNTING THE FIXTURE (Fig. 1)

3. Rem

4. Secure the mounting back plate to the junction box using the screws provided with the junction box.

5. NOTE: The side of the mounting plate marked “GND” must face out.

ove the mounting screw (C) from the fixture.

CONNECTING THE WIRES (Fig. 2)

5. Connect the driver your outlet box has a green or bare copper ground wire, connect the fixture’s ground wire to it. Otherwise, connect the fixture’s ground wire directly to the back plate using the green screw provided. After wires are connected, tuck them carefully inside the junction box.

6. This fixture features electronic low voltage (ELV or TRAIC) dimming capabilities. See notes below for specific dimming wiring information.

’s input wires to junction box wires as shown (Fig. 2). Make sure that all wire connectors (A) are secure. If

COMPLETING THE INSTALLATION

7. Secure the fixture to the mounting back plate using the mounting screw (C).

NOTE: DIMMING WIRING INSTRUCTIONS (Fig. 3)

8. To utilize ELV or TRAIC dimming: use black (hot), white (neutral) and bare copper ground wires (ground).

Fig.2Wiring Fig.3

dweLED.com Phone (800) 526.2588 Fax (800) 526.2585

dweLED retains the right to modify the design of our products at any time as part of the c

Headquarters/Eastern Distribution Center

4 Harbor Park Drive

4 Port Washington, NY 11050

Central Distribution Center 1600 Distribution Ct

LithiaSprings,GA30122

ompany's continuous improvement program. MAR 2019 2

Western Distribution Center 1750 Archibald Ave Ontario, CA 91761

Page 3

INSTALLATION INSTRUCTIONS

849 – LED Pendant

PD-84907-T24

CAUTION: To prevent electrical shock, ensure electricity has been turned off at the circuit breaker before beginning.

• Read all instructions before installing.

• System is intended for installation by a licensed electrician in accordance with the National Electrical Code (NEC) and local regulations.

• When handling the fixture, do not apply pressure to the LEDs. Hold the fixture by the base only.

• Retain installation instructions for future maintenance reference.

WARNING: All parts must be used as indicated in these instructions. This product is designed for use only with the supplied parts and/or accessories designated for use by dweLED. Substitution of parts or accessories not designated for use with this product by dweLED could result in personal injury or property damage, and will void the warranty. Contact an authorized dealer or the manufacturer if any parts are damaged or missing.

MAINTENANCE NOTE: Coastal conditions may cause mineral and residue build-up on the fixture. We recommend that customers in coastal areas clean all external surfaces of the fixture once every two weeks with a wet cloth.

MISE EN GARDE: Pour éviter tout choc électrique, assurez-vous que le disjoncteur soit mis hors tension avant de commencer.

• Lisez toutes les instructions avant l’installation.

• Le système doit être installé par un électricien licensié conformément au code national de l’électricité (NEC), et également aux

règlements locaux.

• Lors de la manipulation du luminaire, n’appuyez pas sur les LED. Tenez-le uniquement par la base.

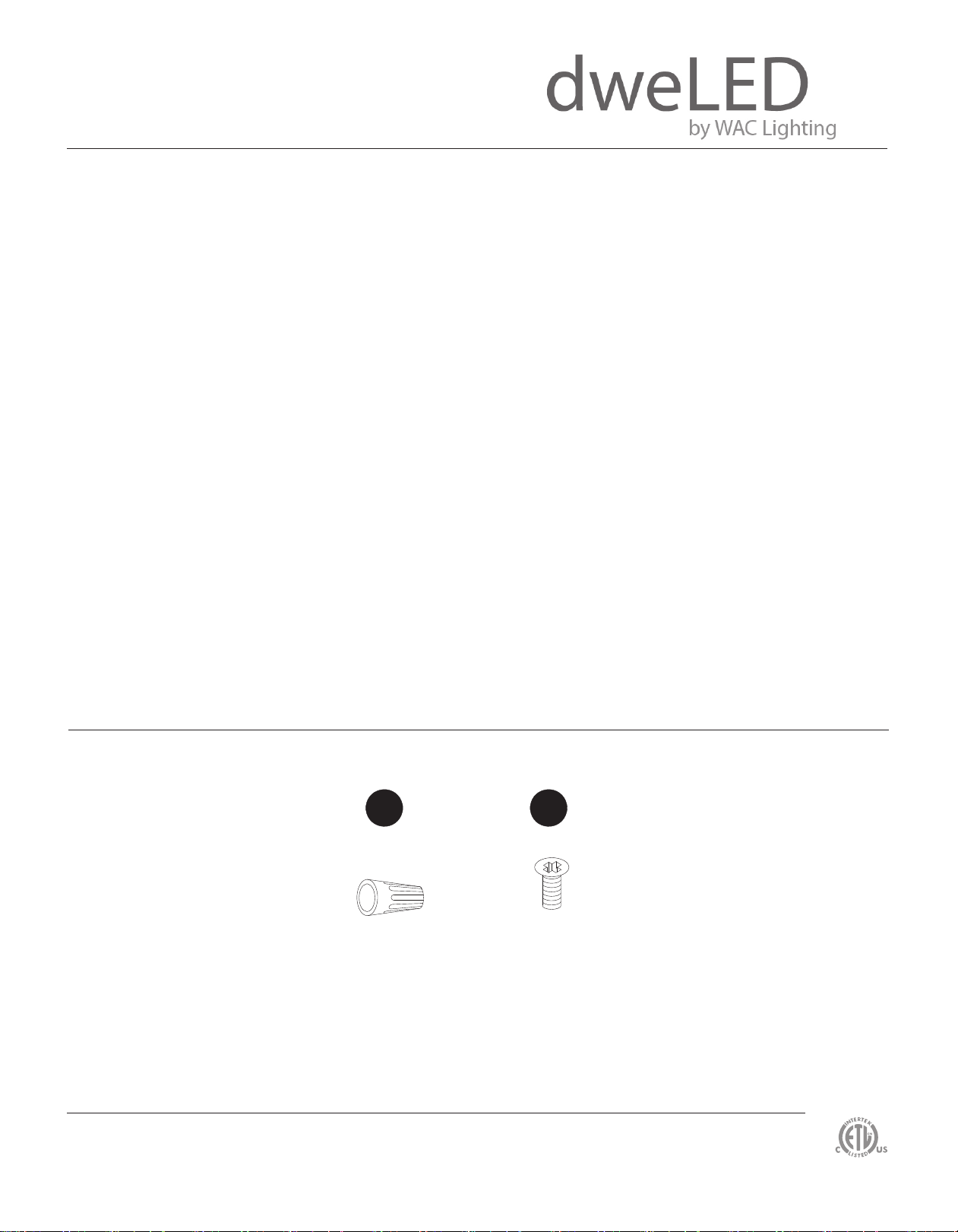

HARDWARE

A B

Wire Connector Qty: 3pcs+1 Extra

Mounting Screw Qty: 1 Extra

dweLED.com

Phone (800) 526.2588 Fax (800) 526.2585

dweLED retains the right to modify the design of our products at any time as part of the company's continuous impro

Headquarters/Eastern Distribution Center

44 Harbor Park Drive Port Washington, NY 11050

Central Distribution Center

1600 Distribution Ct Lithia Springs, GA 30122

Western Distribution Center

1750 Archibald Avenue Ontario, CA 91760

vement program. MAR 2019

Page 4

INSTALLATION INSTRUCTIONS

849 – LED Pendant

PD-84907-T24

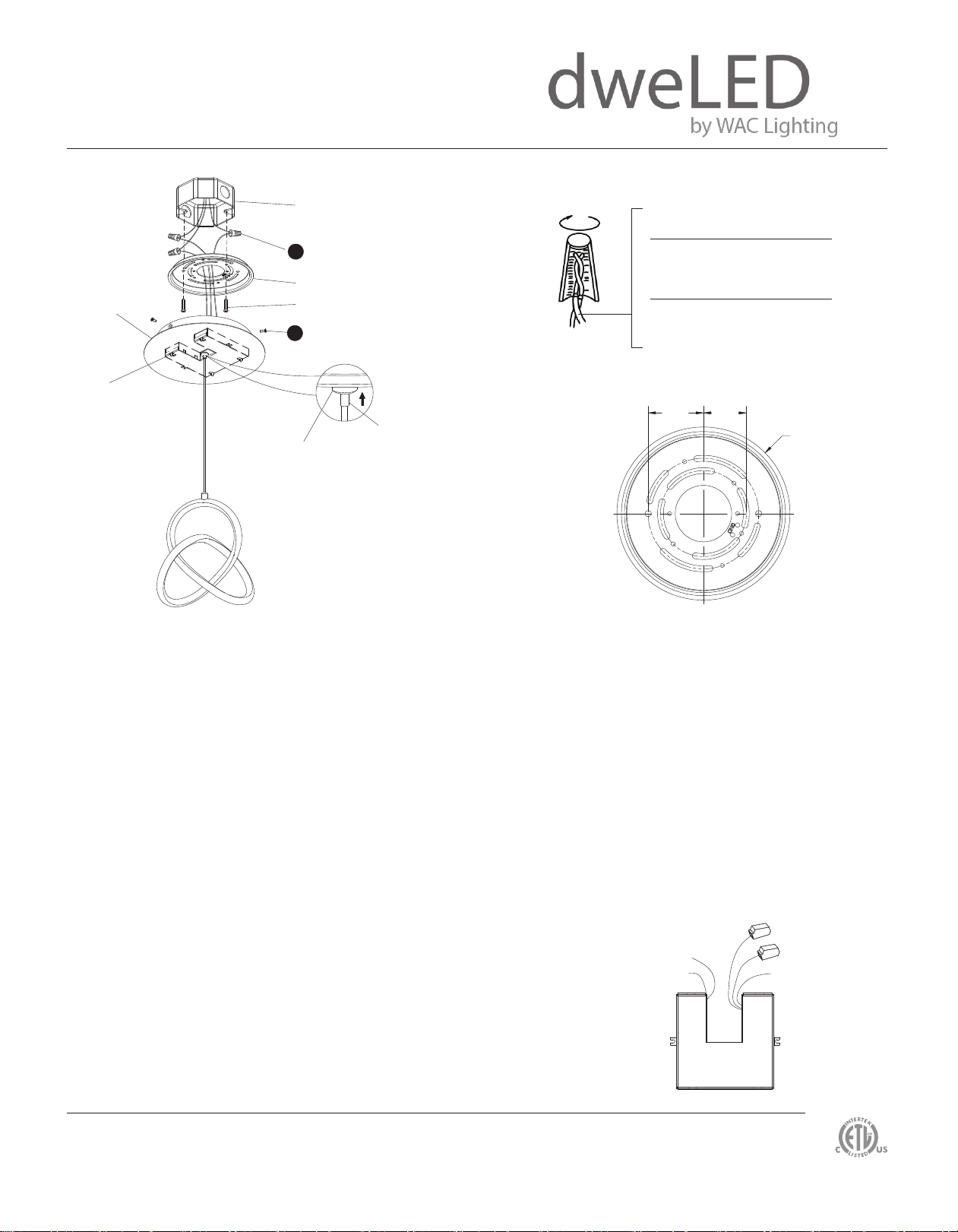

FIG.1

anopy

Driver

Junction Box

Wire Connector

Mounting Plate

Junction Box Screw

Mounting Screw

Cable-gripper Instruction: Adjust the fixture wire length by pushing the cable gripper on the canopy and pulling the wire as desired.

Push up

FIG. 2 Wiring

Fixture Wires

Black or Smooth

Fixture Wires

White or Ribbed

Fixture Wires

Bare wire (Ground)

Back Plate Dimensions

1 3/8"1 3/4"

House Wires

Black (Hot)

House Wires

White (Neutral)

House Wires

Green or Bare Copper (Ground)

∅5 1/2"

PREPARATION

1. Shut off the power at the circuit breaker and remove existing fixture, including the crossbar.

2. Carefully unpack your new fixture and lay out all the parts on a clear area. Be careful not to lose any small parts necessary for installation.

MOUNTING THE FIXTURE (Fig. 1)

3. Remove the mounting screw (B) from the fixture.

4. Secure the mounting back plate to the junction box using the screws provided with the junction box.

NOTE: The side of the mounting plate marked “GND” must face out.

CONNECTING THE WIRES (Fig. 2)

5. Connect the driver’s input wires to junction box wires as shown (Fig. 2). Make sure that all wire connectors (A) are secure.

If your outlet box has a green or bare copper ground wire, connect the fixture’s ground wire to it. Otherwise, connect the fixture’s ground wire directly to the back plate using the green screw provided. After wires are connected, tuck them carefully inside the junction box.

NOTE: This fixture features electronic low voltage (ELV or TRAIC) dimming capabilities. See notes below for specific dimming wiring information.

COMPLETING THE INSTALLATION

6. S

ecure the fixture to the mounting back plate using the mounting screw (B).

DIMMING WIRING INSTRUCTIONS (Fig. 3)

7. To utilize ELV or TRAIC dimming: use black (hot), white (neutral) and bare copper ground wires (ground).

FIG. 3

Black - Hot

White - Neutral

Purple - Dim+

Gray - Dim-

Red - Fixture+

Black - Fixture-

8. To utilize 0-10V dimming: use purple (dim+), gray (dim-),black (hot), white (neutral) and bare copper ground wires (ground). NOTE:

Make sure to connect 0-10V prior to power-up the fixture in order to

allow the 0-10V dimming to function properly.
