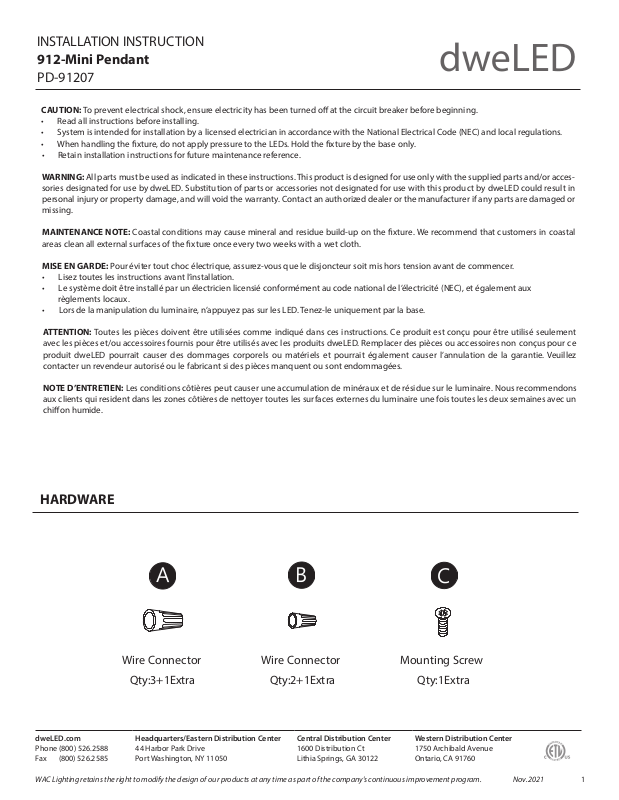

Page 1
INSTALLATION INSTRUCTION
912-Mini Pendant
PD-91207
CAUTION: To prevent electrical shock, ensure electricity has been turned o at the circuit breaker before beginning.
• Read all instructions before installing.
• System is intended for installation by a licensed electrician in accordance with the National Electrical Code (NEC) and local regulations.
• When handling the xture, do not apply pressure to the LEDs. Hold the xture by the base only.
• Retain installation instructions for future maintenance reference.
WARNING: All parts must be used as indicated in these instructions. This product is designed for use only with the supplied parts and/or accessories designated for use by dweLED. Substitution of parts or accessories not designated for use with this product by dweLED could result in
personal injury or property damage, and will void the warranty. Contact an authorized dealer or the manufacturer if any parts are damaged or
missing.
MAINTENANCE NOTE: Coastal conditions may cause mineral and residue build-up on the xture. We recommend that customers in coastal
areas clean all external surfaces of the xture once every two weeks with a wet cloth.
MISE EN GARDE: Pour éviter tout choc électrique, assurez-vous que le disjoncteur soit mis hors tension avant de commencer.
• Lisez toutes les instructions avant l’installation.
• Le système doit être installé par un électricien licensié conformément au code national de l’électricité (NEC), et également aux
règlements locaux.
• Lors de la manipulation du luminaire, n’appuyez pas sur les LED. Tenez-le uniquement par la base.
ATTENTION: Toutes les pièces doivent être utilisées comme indiqué dans ces instructions. Ce produit est conçu pour être utilisé seulement
avec les pièces et/ou accessoires fournis pour être utilisés avec les produits dweLED. Remplacer des pièces ou accessoires non conçus pour ce
produit dweLED pourrait causer des dommages corporels ou matériels et pourrait également causer l’annulation de la garantie. Veuillez
contacter un revendeur autorisé ou le fabricant si des pièces manquent ou sont endommagées.
NOTE D’ENTRETIEN: Les conditions côtières peut causer une accumulation de minéraux et de résidue sur le luminaire. Nous recommendons
aux clients qui resident dans les zones côtières de nettoyer toutes les surfaces externes du luminaire une fois toutes les deux semaines avec un
chion humide.
HARDWARE
A
Wire Connector
Qty:3+1Extra
Wire Connector
Qty:2+1Extra
B
C
Mounting Screw
Qty:1Extra
dweLED.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program.
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
Nov.2021
1
Page 2
ALLATION INSTRUCTION
INST
912-Mini Pendant
PD-91207
PREPARATION
1. Shut o the power at the circuit breaker and remove existing xture,
including the crossbar.
2. Carefully unpack your new xture and lay out all the parts on a clear area.
Be careful not to lose any small parts necessary for installation.
MOUNTING THE FIXTURE (Fig. 1)
3. Loosen the mounting screw (C) from the xture, and remove the mounting
back plate.
4. Secure the mounting back plate to the junction box using standard junction
box screws that comes with the junction box.
Note: (i) Using any other non-original-manufacturer provided junction box
screw may result in safety issue;
(ii) The side of the mounting plate marked “GND” must face out.
5. Adjust the xture wire length by pushing the cable gripper on the canopy
and pulling the wire as desired.
a) Before securing the canopy in place, it is recommended to retract or
extend the wire within the canopy to a desirable length.
b) Due to limited space within the canopy, shorten the cable as necessary
to make the installation easier. Make sure to identify and label all the
wiring properly before any trimming/shortening (Fig. 3).
CONNECTING THE WIRES (Fig. 2 / Fig. 3)
6. Connect the driver’s output wires to center cable as shown in Fig. 3, red to the
center, and black to the bare, make sure that wire connectors (B) are secured.
Then tuck them inside the canopy.
7. Connect the driver’s input wires to junction box wires as shown in Fig. 2, make
sure that all wire connectors (A) are secured. If your outlet box has a green or
bare copper ground wire, connect the xture’s ground wire to it. Otherwise,
connect the xture’s ground wire directly to the back plate using the screw
provided. After wires are connected, tuck them carefully inside the junction box.
8. Secure the xture by mounting the canopy to the ring of the backplate. Turn
and rotate the canopy in the direction of the arrow until it stops. Fasten the
canopy to the mounting backplate using the mounting screw (C).
9. Rotate the glass into the xture.
FIG. 1
Wire Connectors
A
Wire Connectors
B
Mounting Screw
Junction Box
Mounting
Backplate
Junction box
Screw
Driver
Ground Wire
C
Push up
Cable-gripper
FIG. 2 Wiring
Fixture Wires
Black or
Smooth
Fixture Wires
White or
Ribbed
Fixture Wires
Bare wire
(Ground)
dweLED.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. Nov. 2021
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
House Wires
Black
(Hot)
House Wires
White
(Neutral)
House Wires
Green or Bare Copper
(Ground)
Fig.3 Driver Wiring
White - Neutral
Black - Hot
Center +
Bare -
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Red +
Black -
Canopy
Input
Output
Driver
Mounting Backplate Dimensions
3
1
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
3
"
1
4
"
8
Ø4
5
"
8
2
