IMPORTANT SAFETY INSTRUCTIONS
1) Read these instructions;
2) Keep these instructions;
3) Heed all warnings;
4) Follow all instructions;
5) Do not use this apparatus near water;
6) Clean only with dry cloth;
7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions;
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers)
produce heat;
9) Do not defeat the safety purpose of the polarized or ground-type plug. A polarized plug has two blades with one wider tha
other. A grounding type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety. If the provided plug does not t into your outlet, cons
electrician for replacement of the obsolete outlet;
10) Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point wher
they exit from the apparatus
11) Only use attachments/accessories specied by the manufacturer;
12) Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from the tip-over (and Fig 2
Tipping Cart Symbol).
13) Unplug this apparatus during lightning storms or when unused for long periods of time;
14) Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, su
power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus h
exposed to rain or moisture, does not operate normally, or has been dropped;
15) “WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE AND
OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHOULD NOT BE PLACED ON THIS APPARATUS”.
16) TO COMPLETELY DISCONNECT THIS APPARATUS FROM THE AC MAINS, DISCONNECT THE POWER SUPPLY CORD PLUG FROM THE
AC RECEPTACLE;
17) THE MAINS PLUG OF THE POWER SUPPLY CORD SHALL REAMIN READILY ACCESSIBLE.
18) In case of voltage selector make sure the switch on the rear panel is on the correct voltage before connecting it to the AC
and the fuse is the right value for that voltage (This selector is not available on the 100V version).
Please change the voltage/fuse values label located near the voltage selector matching the voltage/fuse values when you
to change the voltage of the apparatus.
19) “WARNING: THIS APPARATUS MUST BE SECURELY ATTACHED TO THE FLOOR OR WALL IN ACCORDANCE WITH INSTALLATION
ISTRUCTION. TIPPING, SHAKING, OR ROCKING THE MACHINE MAY CAUSE INJURY OR DEATH.”
20) “CAUTION: THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF
ELECTRIC SHOCK DO NOT PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN TEH OPERATING INSTRUCTIONS UNLESS
YOU ARE QUALIFIED TO DO SO”
PRÉCAUTIONS D’EMPLOI
produit de
ises de
lessure du
accorder à
RISQUE DE CHOC ÉLECTRIQUE NE PAS EFFECTUER TOUT ENTRETIEN AUTRE QUE CELLES CONTENUES DANS TEH MODE D'EMPLOI
SAFETY INSTRUCTIONS
that
n the
ult an
1 DU
as been
power,
need
1) Lire ces instructions;
2) Conserver ces instructions;
3) Suivre tous les conseils d’utilisations;
4) Suivre toutes les instructions;
5) Ne pas utiliser cet appareil au bord de l’eau;
6) Nettoyer uniquement avec un chion humide;
7) Ne pas bloquer le système de ventilation. Installer conformément aux instructions du fabricant;
8) Ne pas installer l’appareil près d’une source de chaleur tel qu’un radiateur, un fourneau, ou bien un autre appareil qui
la chaleur;
9) Ne pas modier le système de sécurité de la che polarisée ou de de la che pour les prises de terre. Une che polarisée a deux
broches, l’une étant plus distante de l’autre. Une che pour prise de terre a deux broches et une pointe pour la masse.
La broche plus distante et la pointe pour la masse ont été installées pour votre sécurité. Si la che fournie de rentre pas dans
votre prise de courant consulter un électricien pour la substitution;
10) Protéger le cordon d’alimentation an qu’il ne soit pas piétiné ou écrasé tout particulièrement au niveau des ches, des pr
e
courant femelles, et des parties qui sortent de l’appareil;
11) Utiliser uniquement les accessoires recommendés par le fabricant;
12) Utilisez uniquement avec le chariot, le socle, le trépied, le support ou la table spéciés par le fabricant ou vendu avec l’appareil.
Lorsque vous utilisez un chariot, soyez prudent lorsque vous déplacez l’ensemble chariot / appareil pour éviter toute b
renversement (et la gure 21 DU Tipping panier Symbol).
13) Ne pas branché l’appareil en cas d’orage accompagné d’éclairs. Le débrancher en cas de non utilisation prolongée;
14) S’adresser à un service assistance agréé si l’appareil a subi des dommages, si le cordon d’alimentation ou la che a été
ch as
endommagé, si un liquide a été renversé sur l’appareil ou bien si un object est tombé dans l’appareil, si ce dernier a été exposé à
la pluie ou à l’humidité, s’il ne fonctionne pas correctement ou s’il est tombé;
15) “AVERTISSANT: POUR RÉDUIRE LE RISQUE DU FEU OU DE DÉCHARGE ÉLECTRIQUE, N’EXPOSEZ PAS CET APPAREIL À LA PLUIE OU
L’HUMIDITÉ ET LES OBJETS REMPLIS DE LIQUIDES; TELS QUE DES VASES, NE DEVRAIENT PAS ÊTRE PLACÉS SUR CET APPAREIL”;
16) POUR DÉCONNECTER COMPLETEMEN L’APPAREIL DU RESEAU D’ALIMENTATION, DÉCONNECTER LE CORDON D’ALIMENTATION
DE LA PRISE MURALE;
17) LA PRISE DU RESEAU D’ALIMENTATION DOIT DEMEURER AISEMENT ACCESSIBLE.
18) En cas de sélecteur de tension s'assurer que l'interrupteur sur le panneau arrière est sur la bonne tension avant de le r
l'alimentation secteur et le fusible est la bonne valeur pour que la tension (Ce sélecteur n'est pas disponible sur la version 100V).
S'il vous plaît changer la tension / valeurs de fusibles étiquette située près du sélecteur de tension correspondant aux valeurs /
fusibles de tension lorsque vous avez besoin de changer la tension de l'appareil.
19) “AVERTISSEMENT: CET APPAREIL DOIT ÊTRE ASSUJETTI AU PLANCHER OU AU MUR CONFORMÉMENT AUX INSTRUCTIONS
D’INSTALLATION. LE FAIT DE L’INCLINER, DE LE BALANCER OU DE L’AGITER PEUT CAUSER DES BLESSURES OU LA MORT.”
20) “ATTENTION: CES INSTRUCTIONS D'ENTRETIEN SONT DESTINÉES PAR PERSONNEL QUALIFIÉ SEULEMENT . POUR REDUIRE LE
SAUF SI VOUS ÊTES QUALIFIÉ POUR LE FAIRE”
bass.it). For more technical information, please visit us at www.markbass.it and ll out the form on the
2
“The Lightning Flash with arrowhead symbol
within an equilateral triangle, is intended
to alert the user to the presence of uninsulated
“dangerous voltage” within the product enclosure
that may be of suf�icient magnitude to constitute
“The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the product.”
“To be used only
with altitude
not exceeding 2000 m”
“To be used only
where the climate
is not tropical”
Page 3
MARK VISION
A Word from Marco De Virgiliis
Thank you for choosing the DV MICRO head!
In the years i made Markbass a world leader brand in the bass amps segment, using technology to better serve bass players needs: great tone, reliability,
versatility/flexibility and light weight. all those elements made their lives way easier!
Now it’s guitar players turn… with the new DV MICRO heads I created an exciting new chapter in guitar amplification history, being the first to introduce such
a kind of guitar products design that marked a new standard for ultra-portable and great sounding amps, offering to guitar players plenty of
power and serious headroom.
This amp also feature a Dual Voltage Switch 120V/240V (not available on the 100V version manufactured for Japan) to use the amp in countries with different
voltages, without having to carry an external converter!
At DV Mark, we invested a lot of resouces in R&D to develope a proprietary power amp, designed to respect and glorify the tone of your instrument.
So enjoy my amps, and I invite you to contact us any time with your comments and questions, at [email protected].
Thanks again, and good music!
Marco De Virgiliis
OVERVIEW
DV MICRO 60
This upgrade version of our DV Micro 50 best seller head, features the FX Loop and a new designed Lead Channel together with
Aux In and Headphone connections as for its predecessor, plus an MPT optimized power amp section.
DV MICRO 60 CMT
Ciro Manna is a highly respected Italian guitar hero playing with icons like Richard Bona, Frank Gambale, Alain Caron, Andy
Timmons and many others. He signed this tube driven DV Micro 60 CMT. A 6205 mini tube in the preamp section gives this head
a different voice, a warm sound and a pleasant overdriven tone while increasing Level even on the Clean Channel.
3
Page 4

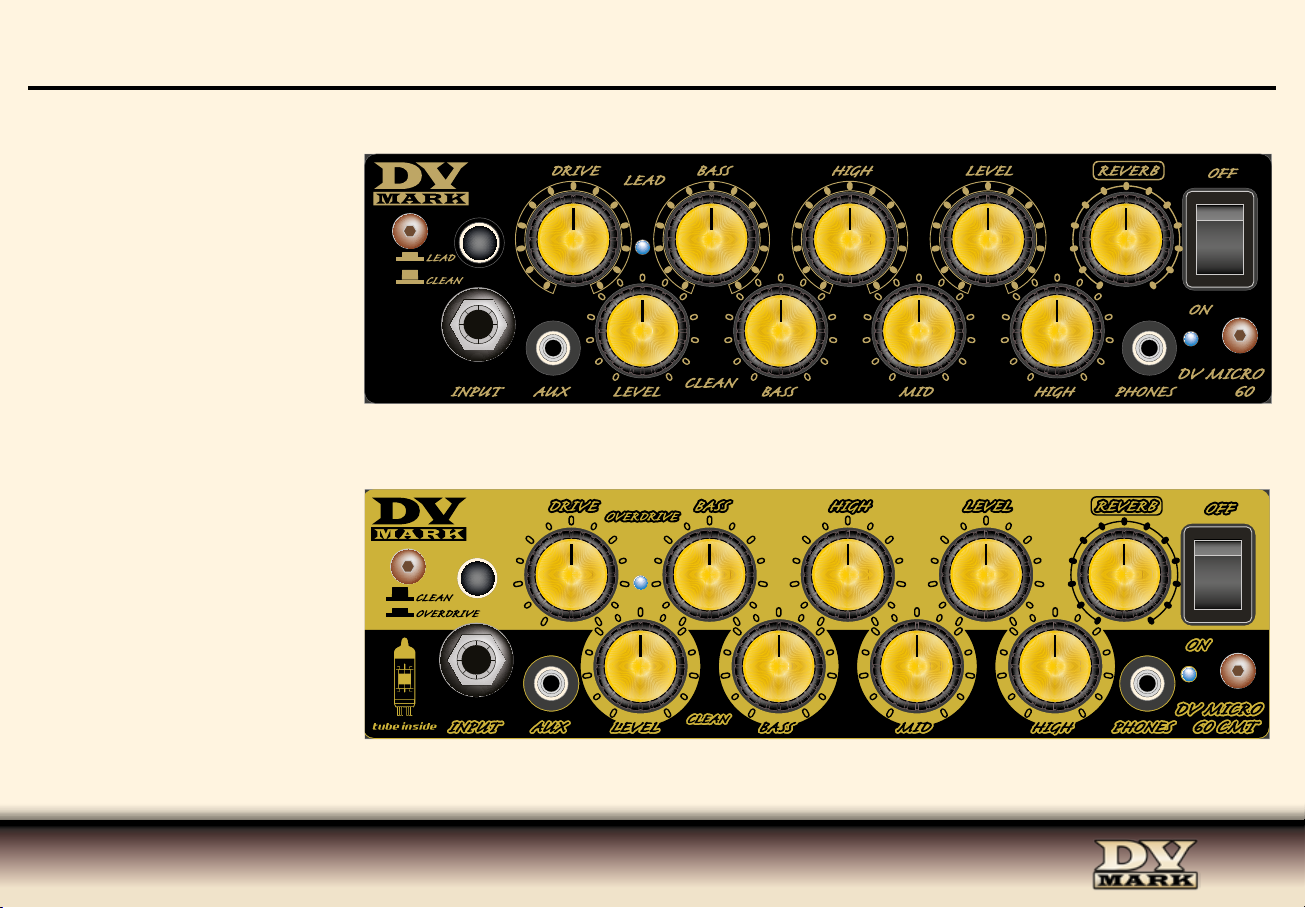

FRONT PANEL - DV MICRO 60 - DV MICRO 60 CMT
INPUT Connect your guitar to this input using a standard ¼” shielded instrument cable. It’s also designed to perfectly interface with all the effects most
used by guitarists.
LEVEL This knob sets the input level, turn it up gradually until you reach your desidered volume.
BASS This knob controls the amount of low frequencies in your sound.
MID The Middle control regulates the midrange frequencies and it is an important part of your tone shaping.
HIGH The High knob controls the amount of high frequencies in your sound.
DRIVE (LEAD CHANNEL) Adjusts the amount of distortion on CH2, ranging from crunch to overdrive sounds.
BASS This knob controls the amount of low frequencies in your sound.
HIGH The High knob controls the amount of high frequencies in your sound.
LEVEL (LEAD CHANNEL) This knob sets the input level, turn it up gradually until you reach your desidered volume.
REVERB Level control for the onboard reverb. This amp features a last generation of digital reverb, it’s sweet-sounding, warm and natural.
AUX Use this input to plug in an iPod, CD or MP3 player using a mini plug 1/8”. This signal mixes in evenly with your instrument input.
CLEAN/LEAD SWITCH This channel selector switches between the Clean and Lead channels.
Channel-switching can also be controlled by a footswitch that can be plugged into the amp’s rear panel (20).
PHONES For quiet practing plug headphones into this mini plug 1/8” input. You can practice anywhere and anytime you like.
ON/OFF SWITCH This switch delivers AC power to the amp.
4
Page 5
FRONT PANEL - DV MICRO 60 - DV MICRO 60 CMT
DV MICRO 60
DV MICRO 60 CMT
5
Page 6

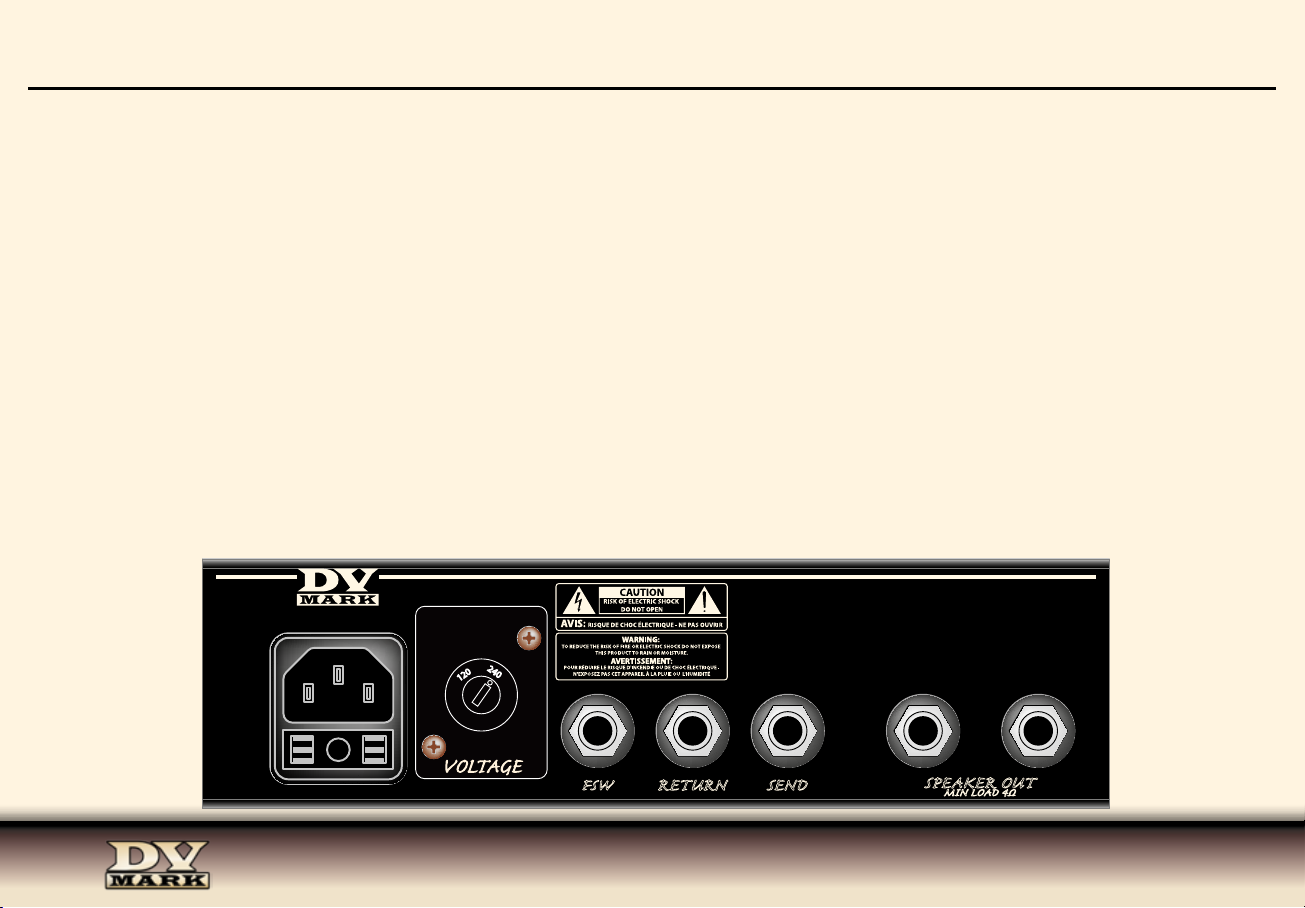

REAR PANEL - DV MICRO 60 - DV MICRO 60 CMT
AC POWER SOCKET Make sure the unit is grounded; all three terminals of the AC power plug must be connected to avoid any injury to the user or
damage to the unit
.
VOLTAGE SELECTOR The DV MICRO heads feature a 120V/240V Voltage Selector to use the amp in countries with different voltages, so
make sure the switch on the rear panel is on the correct voltage before connecting it to the AC power, and the fuse is the right value for that
voltage (not available on the 100V version manufactured for Japan).
Please change the voltage/fuse values label located near the voltage selector matching the voltage/fuse values when you need to change the
voltage of the unit.
FSW 1/4” MONO jack for connecting a SINGLE footswitch to switch between Clean and Lead channels.
SEND/RETURN The send/returncan be used for connecting with outboard effect processors or pedals. Simply connect the Send out to your processor’s
input, and connect the output of your processor to the Return in.
SPEAKER OUT The two speaker ouputs provided for speaker cabinet connections are wired in parallel and total minimum impedance load for the amp
is 4 ohms, so you can connect one or two 8 ohms speakers or only one 4 ohms speaker.
Use speaker cable (not instrument cable).
240
120
CLASS 2 WIRING
6
FSW
RETURN SEND
SPEAKER OUT
MIN LOAD 4Ω
Page 7
TECHNICAL SPECS - DV MICRO 60 - DV MICRO 60 CMT
Headphones
Channels: Two (clean / lead)

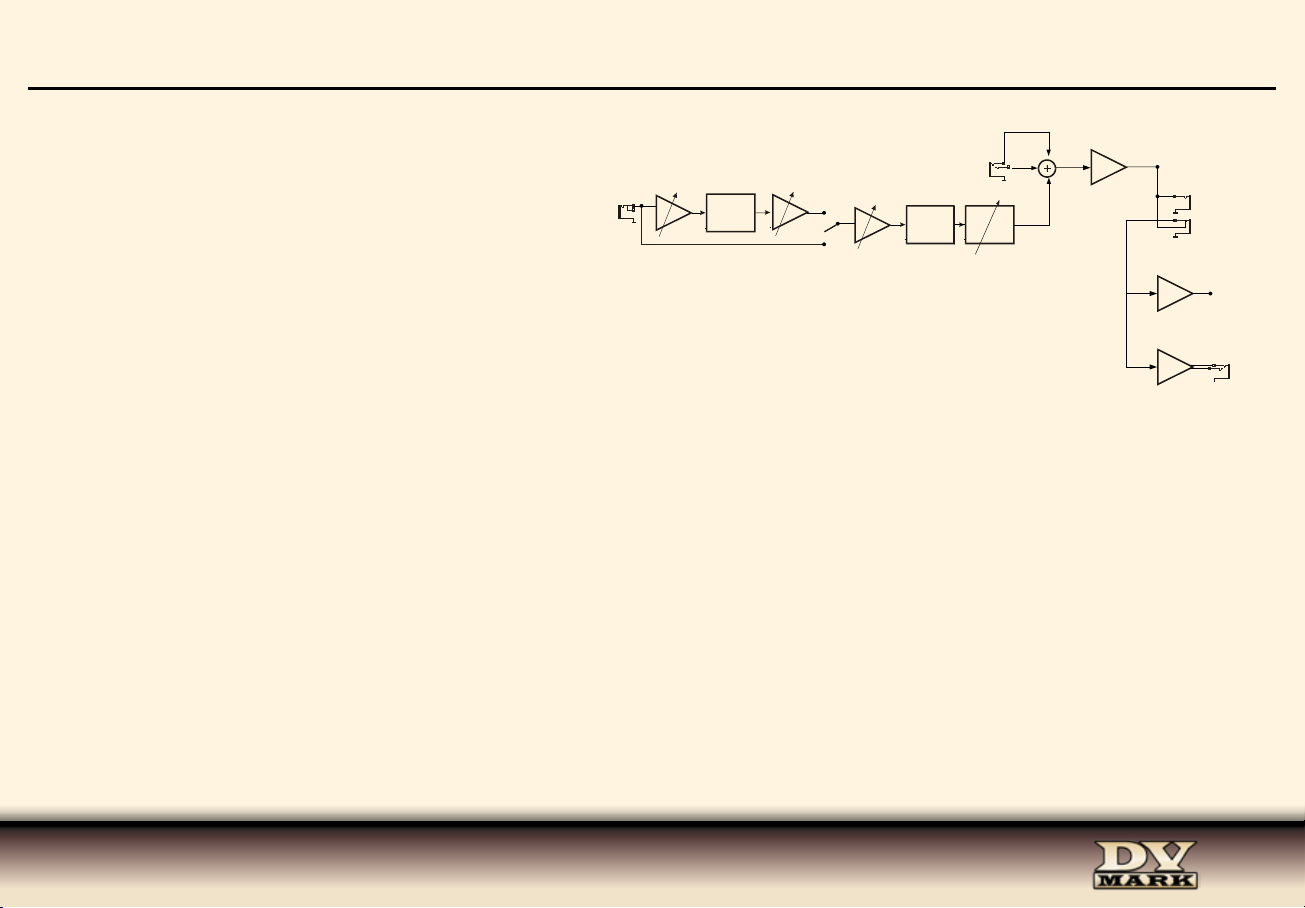

BLOCK DIAGRAM
Controls: Level (clean ch)
Drive / Level (lead ch)
EQ Controls: Bass - Mid - High (clean ch)
Input
TONES
Drive
Level
Bass - High (lead ch)
Speaker Outputs: Two ¼” Jacks mono out 8 ohm
Power Output: 60W @ 4ohm / 50W @ 8ohm
Other Features: Footswitch input for channels switch
AUX IN
Headphones OUT
XLR Line OUT with GND Lift
Dual Voltage selector 120V/240V
(not available on the 100V version manufactured for Japan)
Dimensions: 200 x 64 x 221 mm / 7.87” x 2.51” x 8.7”
Weight: 1,9 kg / 4.19 lbs
Power Requirement: 120V; 230V; 240V - 50/60Hz
100V - 50/60Hz (version manufactured for Japan)
Level TONES
AUX
REVERB
Power
Phones
Send
Return
Power
Out
Out
Fuses: T 2A 250V for 100V/120V setting;
T 1A 250V for 230V/240V setting
7
Page 8
Product specications are subject to change without notice
www.markbass.it
Parsek srl - Italy - 66020 San Giovanni Teatino CH - Via Po, 52
Tel: +39 0854407764 / 0854465705 - Fax: +39 0854407764 / 0854407399 - www.dvmark.it - [email protected]
