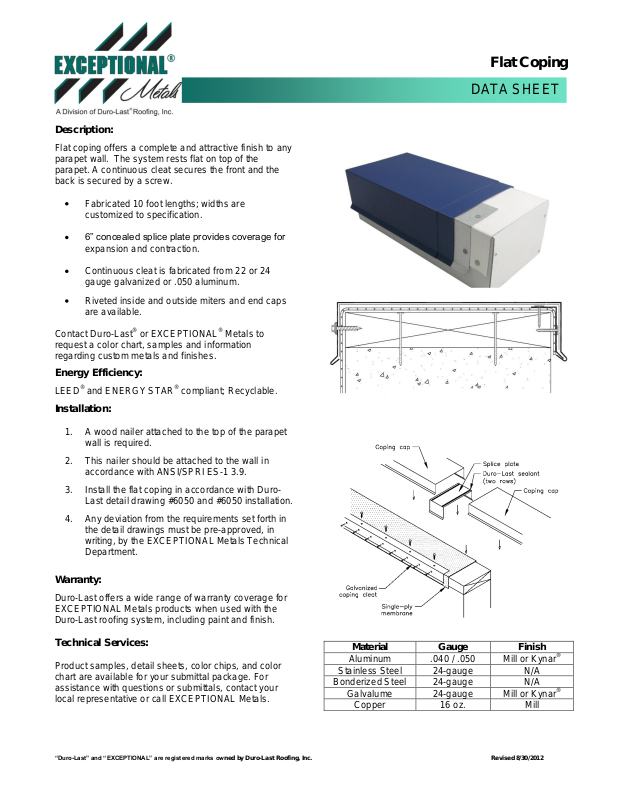

Duro-Last Flat Coping User Manual

DATA SHEET

Material

Gauge

Finish

Aluminum

.040 / .050

Mill or Kynar®

Stainless Steel

24-gauge

N/A

Bonderized Steel

24-gauge

N/A

Galvalume

24-gauge

Mill or Kynar®

Copper

16 oz.

Mill

Flat Coping

Description:

Flat coping offers a complete and attractive finish to any
parapet wall. The system rests flat on top of the
parapet. A continuous cleat secures the front and the
back is secured by a screw.

Fabricated 10 foot lengths; widths are

customized to specification.

6” concealed splice plate provides coverage for

expansion and contraction.

Continuous cleat is fabricated from 22 or 24

gauge galvanized or .050 aluminum.

Riveted inside and outside miters and end caps

are available.

Contact Duro-Last® or EXCEPTIONAL® Metals to
request a color chart, samples and information
regarding custom metals and finishes.

Energy Efficiency:

LEED® and ENERGY STAR® compliant; Recyclable.

Installation:

1. A wood nailer attached to the top of the parapet
wall is required.

2. This nailer should be attached to the wall in
accordance with ANSI/SPRI ES-1 3.9.

3. Install the flat coping in accordance with Duro­Last detail drawing #6050 and #6050 installation.

4. Any deviation from the requirements set forth in
the detail drawings must be pre-approved, in
writing, by the EXCEPTIONAL Metals Technical
Department.

Warranty:

Duro-Last offers a wide range of warranty coverage for
EXCEPTIONAL Metals products when used with the
Duro-Last roofing system, including paint and finish.

Technical Services:

Product samples, detail sheets, color chips, and color
chart are available for your submittal package. For
assistance with questions or submittals, contact your
local representative or call EXCEPTIONAL Metals.

“Duro-Last” and “EXCEPTIONAL” are registered marks owned by Duro-Last Roofing, Inc. Revised 8/30/2012
