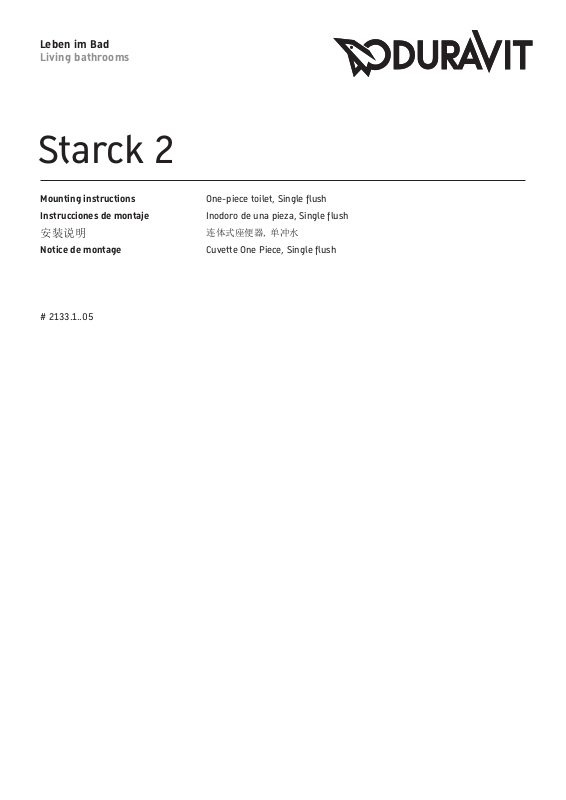

Leben im Bad
Living bathrooms
Starck 2
Mounting instructions |
One-piece toilet, Single flush |
Instrucciones de montaje |
Inodoro de una pieza, Single flush |
|
, |
Notice de montage |
Cuvette One Piece, Single flush |
# 2133.1..05
2 MAL_53979/17.04.3
Important information
Información importante
Remarques importantes
4
5
6
7
fr zh es en

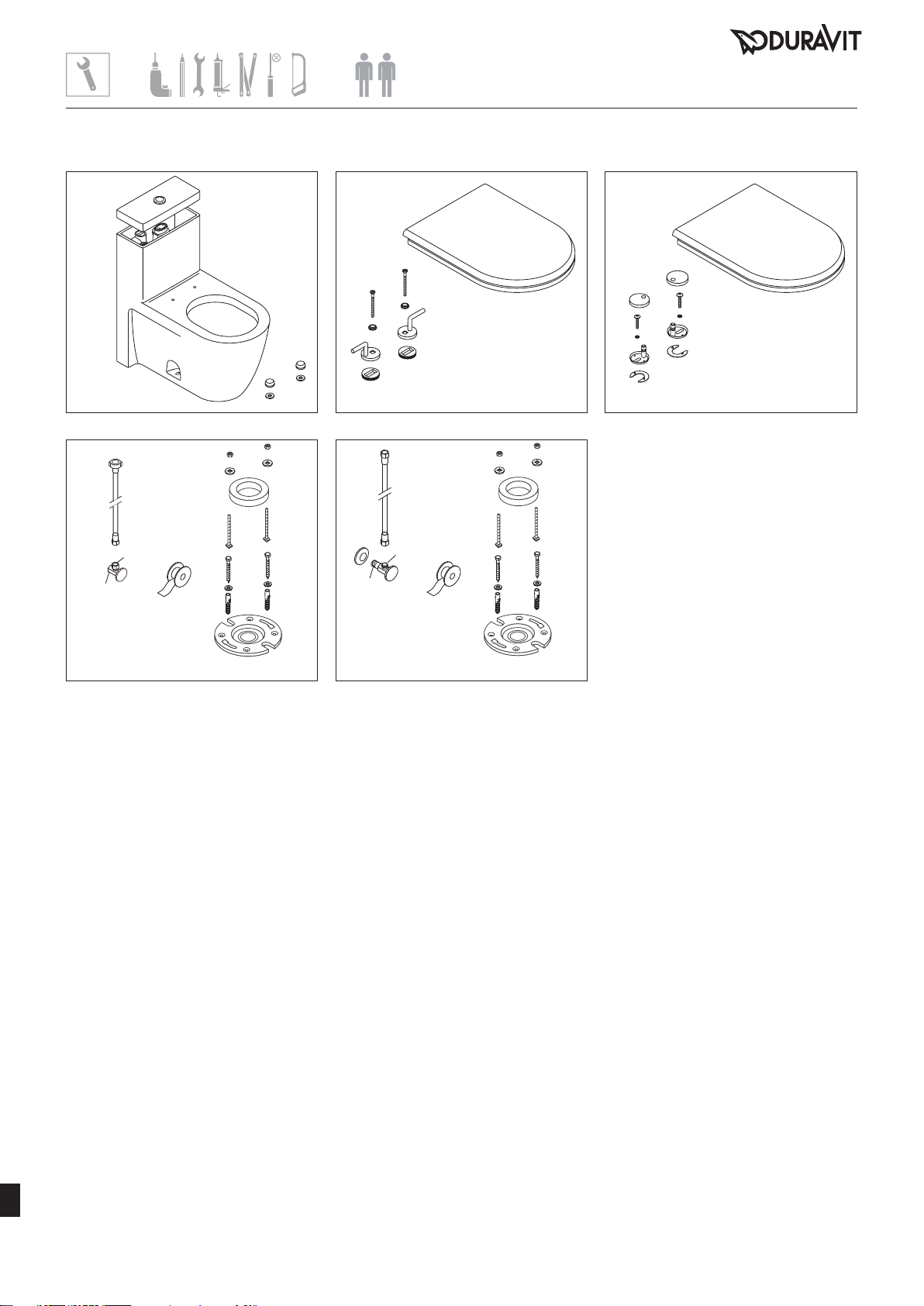

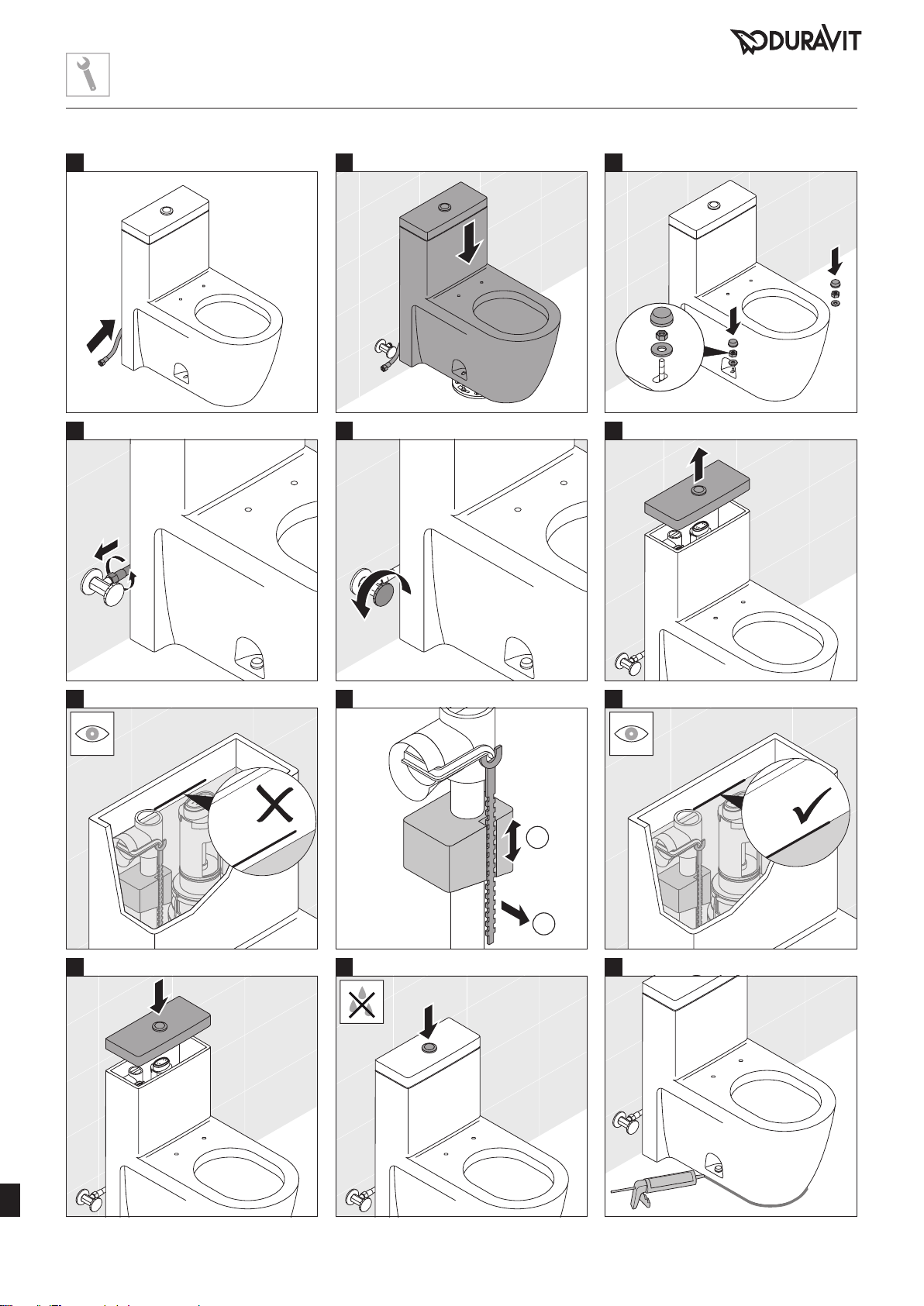

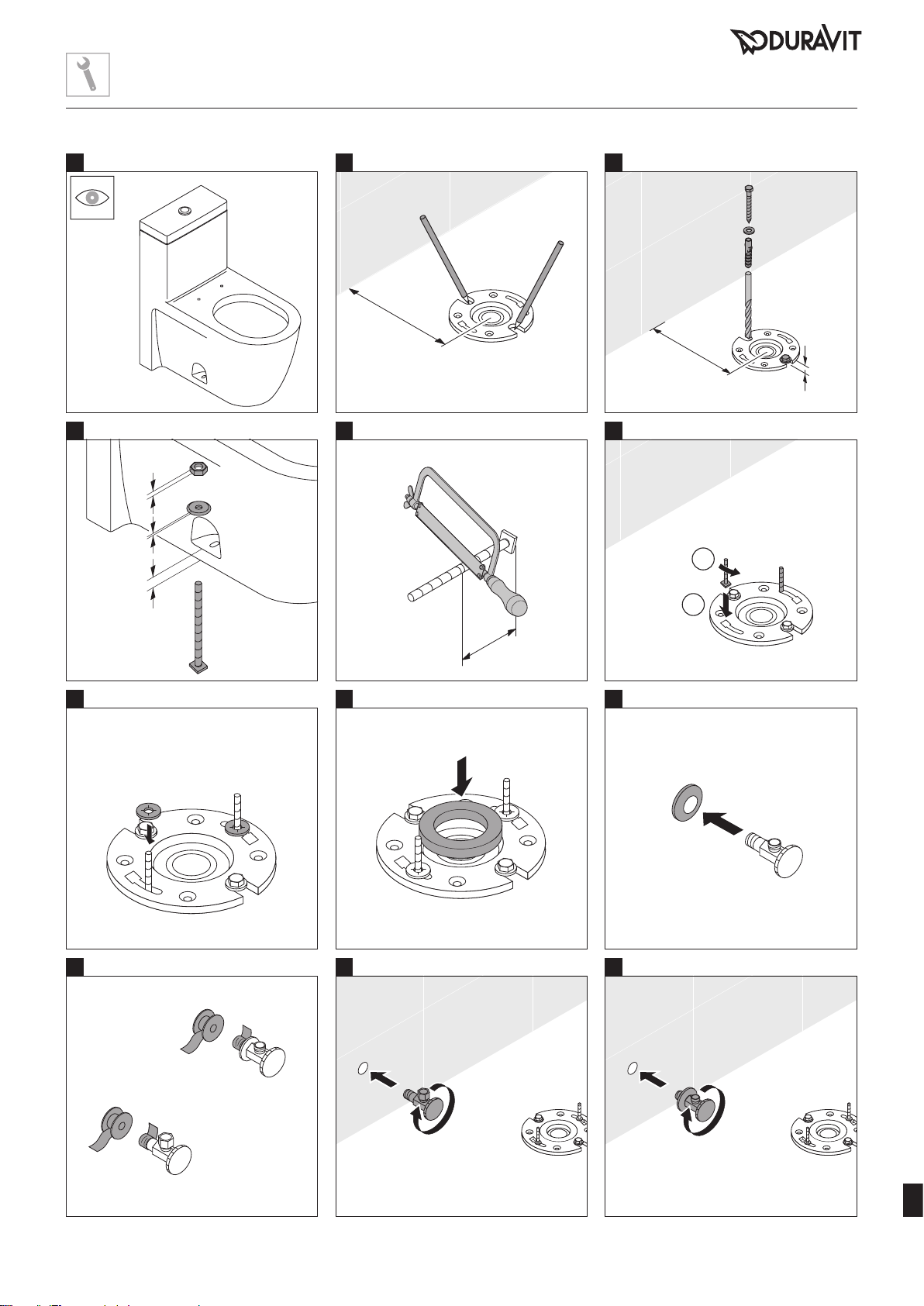

Installation, Montaje, , Montage |
8 |
|
|
|
|
|
|
MAL_53979/17.04.3 3
en
Important information
Regarding the mounting instructions
These mounting instructions come as part of the Duravit product and should be read carefully prior to installation.
Explanation of the key words and symbols
|
Indicates a hazardous situation which, |
|
CAUTION |
||
if not avoided, could result in minor |
||
|
or moderate injury. |
|
|
Is used to address practices not |
|
NOTICE |
||
related to physical injury. |
||
|
Water installation
HET (high efficiency toilet):
• with single flush: 1.28 gpf / 4.8 lpf
Operation pressure:
Recommended: 20 – 80 psi / 140 – 550 kPA
Installation information
Please read pre-installation datasheets prior to the installation. These are available to download on the Internet at www.duravit.com.
Inspection (e.g. for scratches)
Check for leaks and leak-tightness
Target readership and qualifications
The toilet must be installed by certified plumber.
|
Risk of physical injury, product |
|
CAUTION |
||
damage or potential damage! |
||
|
>>Local installation regulations and any country-specific standards must be observed at all times.
Safety information |
|
|
|
|
Risk of personal injury or breakage |
CAUTION |
|
|
|
through fragile product! |
|
|
|
|
>>2 people are recommended of handling.
>>Handle with care.
NOTICE |
Risk of product damage! |
|
>>Overtightening may cause breakage or chipping of vitreous china.
>>Handle with care.
NOTICE |
Risk of external leakage! |
|
>>Do not lift or rock the toilet after placement.
>>If you break the watertight seal, you must install a new wax seal.
4 MAL_53979/17.04.3
