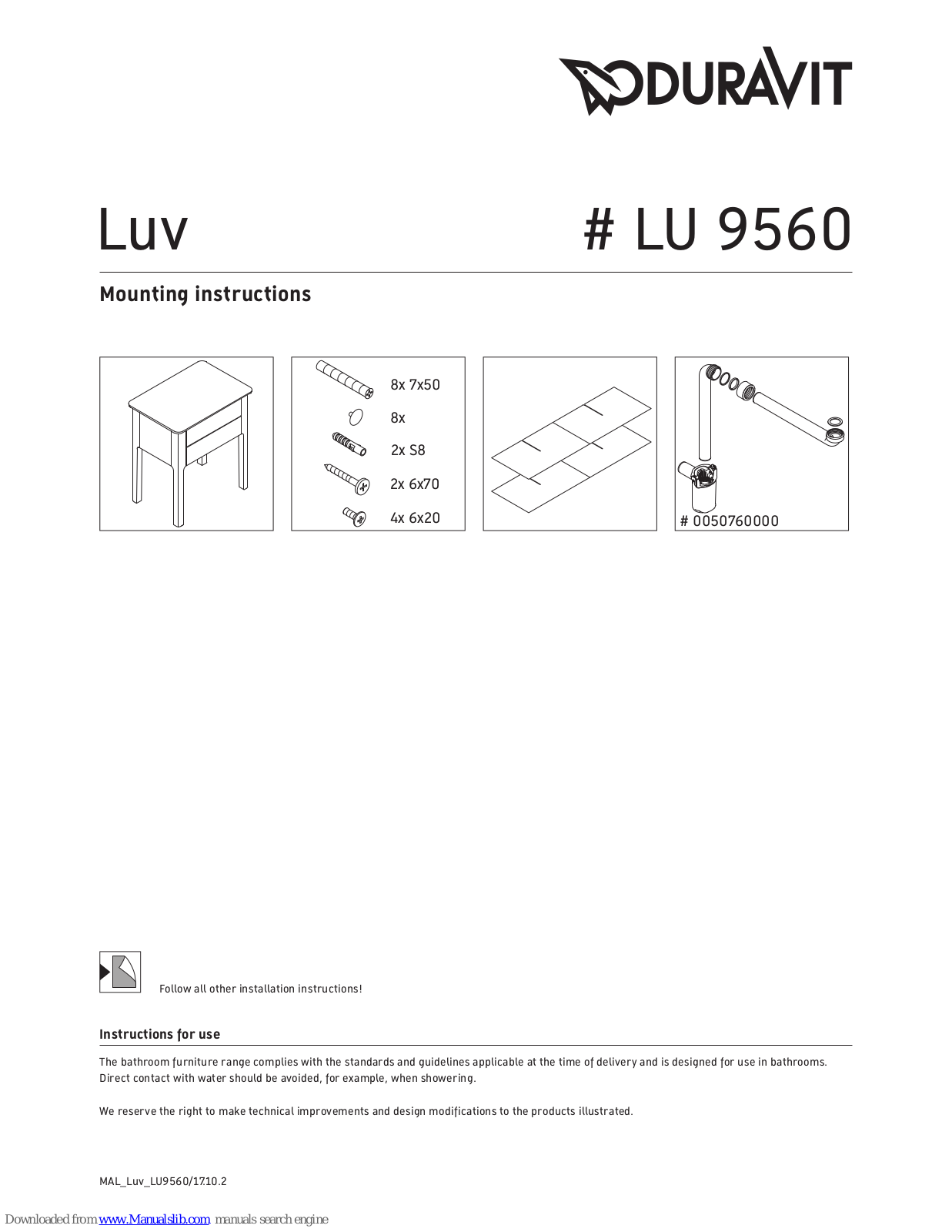

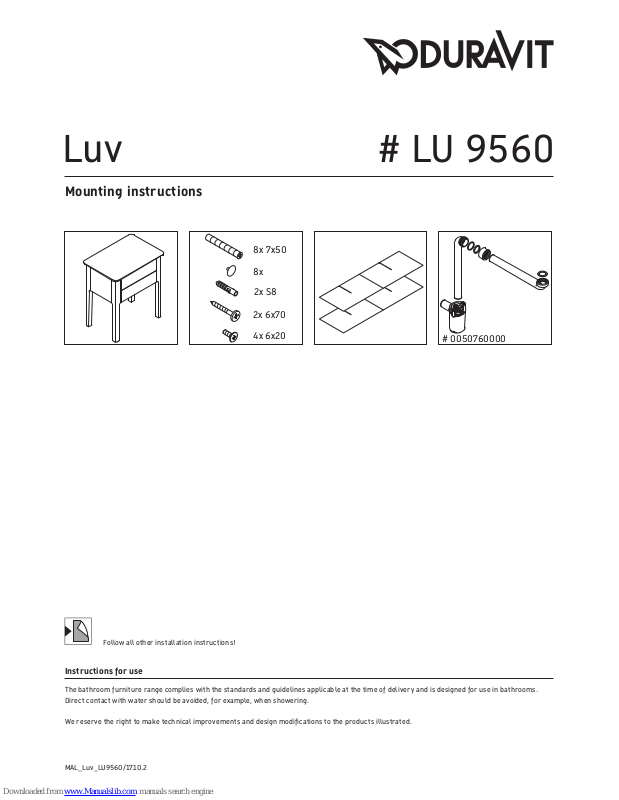

DURAVIT Luv LU 9560 Mounting Instructions
8x 7x50
8x
4x 6x20
2x S8
2x 6x70
Instructions for use
The bathroom furniture range complies with the standards and guidelines applicable at the time of deliver y and is designed for use in bathrooms.
Direct contact with water should be avoided, for example, when showering.
We reserve the right to make technical improvements and design modifications to the products illustrated.
Mounting instructions
Follow all other installation instructions!
MAL_Luv_LU9560/17.10.2
# 0050760000
Luv # LU 9560

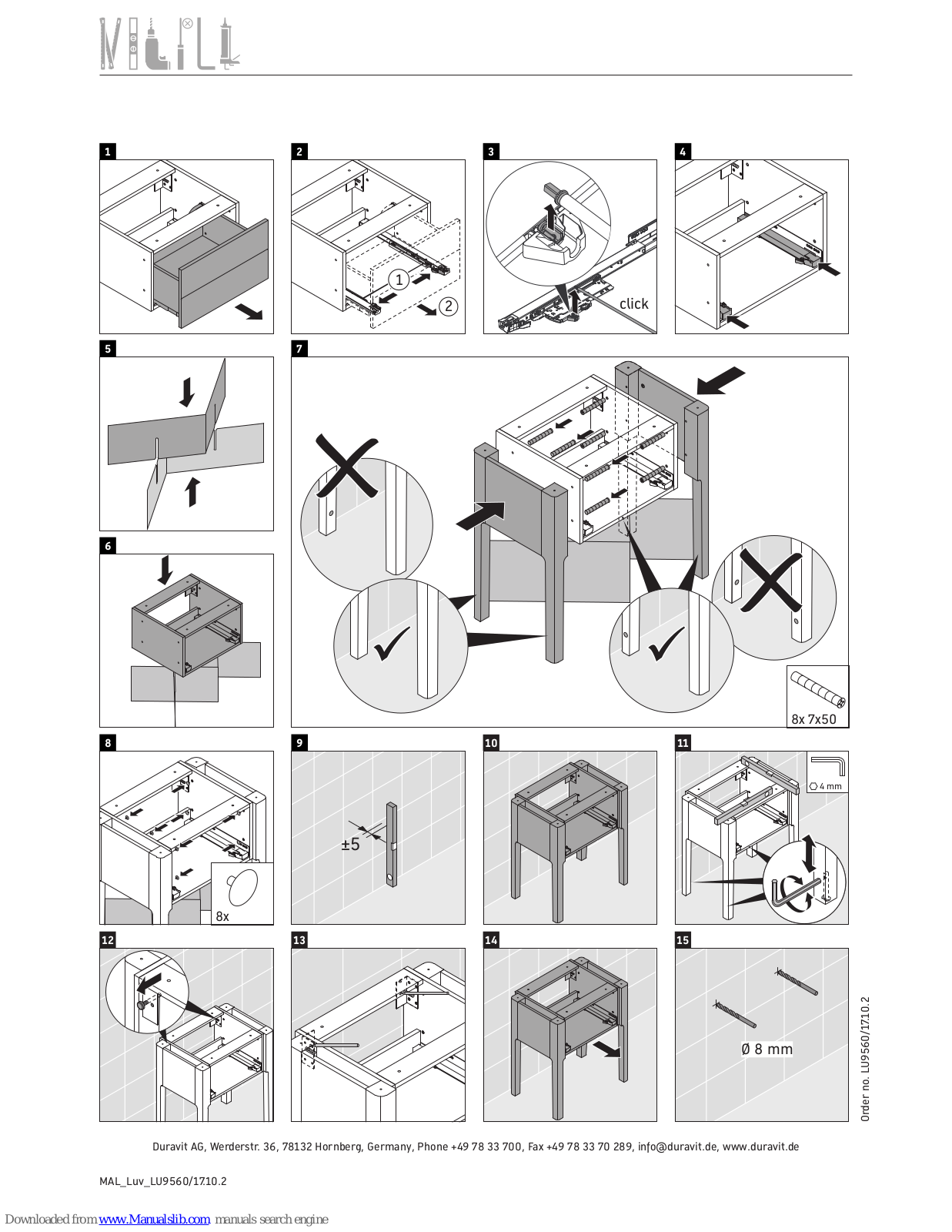

2
1
click
±5
4 mm
Ø 8 mm
8x
8x 7x50
Order no. LU9560/17.10.2
MAL_Luv_LU9560/17.10.2
Duravit AG, Werderstr. 36, 78132 Hornberg, Germany, Phone +49 78 33 700, Fax +49 78 33 70 289, info@duravit.de, www.duravit.de
1 2 3 4
5
15
141312
1110
98
7
6
