Duraflame illuma 64000 User Manual
22” Bio-ethanol Indoor/Outdoor Fireplace
Model # 64000
Distributed by:
Duraame, Inc., Stockton, CA 95201
For questions about Assembly and Operating instructions or Warranty Claims
contact Duraame, Inc. Consumer Affairs
info@duraame.com
1 (866) 552-3015
www.duraame.com/illuma
Patents Pending
WARNING: If the information in this manual is not followed exactly, a re or explosion may
result, causing property damage, personal injury, or loss of life.
Do not store or use gasoline or other ammable vapors and liquids in the vicinity of this or any
other appliance.
WHAT TO DO IN THE EVENT OF AN ALCOHOL SPILL: DO NOT light the burner. Extinguish any
open ame near the spill. Wipe up the spill, and wait several minutes for the residue to evaporate.
WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause injury
or property damage. Refer to this manual for correct installation and operational procedures.
WARNING: This appliance is designed for installation only in a solid-fuel-burning masonry replace,
a UL127 factory-built replace, or in an ANSI Z21.91 ventless rebox, or on a table or cabinet.
There are no other standards for this type of appliance for other installations, thus be very careful
and follow all directions for such installations.
This appliance may be installed in a replace or rebox approved for aftermarket, permanently
located, manufactured (mobile) homes, where not prohibited by local codes.
This appliance is for use only with duraame® illuma-fuel® or types of fuel indicated on the
rating plate. This appliance is not convertible for use with other fuels, nor should you use
illuma-fuel
®
with any product other than duraame® illuma® replaces.
Save this manual for future reference.
-1-
TABLE OF CONTENTS
page
I. Safety Information ........................................................................ 3
II. Setup ............................................................................................ 5
III. Minimum Firebox Dimensions ......................................................7
IV. Clearances ....................................................................................7
V. Installing Damper Stop .................................................................7
VI. Installation ....................................................................................7
VII. Installing the Fuel Canister ......................................................... 10
VIII. Operation .................................................................................... 10
IX. Refueling .....................................................................................12
X. Adjustments ................................................................................13
XI. Maintenance ...............................................................................13
XII. Troubleshooting ..........................................................................15
XIII. Parts List .....................................................................................16
Warranty ..................................................................................... 17
-2-
I. SAFETY INFORMATION
IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble,
operate, or service this appliance. Improper use of this appliance or failure to comply with the
safety rules can cause serious injury or death from burns, re, explosion, or carbon monoxide
poisoning. Keep this manual. It should be read by all users of the appliance.
DANGER: Carbon monoxide poisoning may lead to death!
Carbon Monoxide Poisoning: Early signs of carbon monoxide poisoning resemble the u, with
headaches, dizziness, or nausea. If you have these signs, the appliance may not be working
properly, and/or you do not have an adequately vented room. Extinguish the appliance and get
fresh air at once! Some people are more affected by carbon monoxide poisoning than others.
These include pregnant women, people with heart or lung disease or anemia, those under the
inuence of alcohol, and those at high altitudes.
WARNING: This appliance is designed to be placed in a variety of different locations inside
and outside your house. Please follow the following instructions carefully to avoid any spilling
of the fuel especially when the fuel is burning! Spilling burning fuel on our near combustible
surface could cause a re.
a- Do not place the appliance on the ground or oor. The appliance should be located on a
sturdy table or non-combustible piece of furniture, with proper clearances away from other
combustible materials.
b- When placed on a table or any other moveable furniture, make sure the furniture is sturdy
and will not move if bumped by a person or a pet. Also, make sure it is placed away from
curtains, clothing or any other combustible material.
c- When placed inside a replace make sure it is installed per instructions in this manual.
Never move this appliance while it is in operation or when there is still a ame in the burner (no
matter how small the ame is). Moving the appliance while burning may cause spilling of fuel
inside or outside the appliance which could result in a re. Make sure the appliance has cooled
down for at least 30 minutes after the ame is extinguished before moving.
WARNING: Any modications to this appliance or its controls could be dangerous.
WARNING: Do not place this appliance on a combustible surface or on a surface that gets
damaged by any ethanol that may drip out of the canister or this appliance.
WARNING: Do not allow fans to blow directly into the replace or onto this appliance. Avoid
any drafts that alter burner ame patterns. (Ceiling fans could create such drafts.) Altered
ame patterns could cause sooting.
WARNING: Do not use a blower insert, heat exchanger insert, or other accessory not approved
for use with this appliance.
WARNING: Risk of explosion. Never use any fuel other than the fuels specically identied for
use in the appliance. Never use gasoline. Never use this appliance in areas where ammable
vapors or gas may be present. Never store or transport the fuel in anything other than the
original container that it came in. Store fuel in a cool and dry place away from heat sources.
WARNING: Risk of indoor air pollution. Use this appliance only in well-ventilated areas. People
with breathing problems should consult a physician before using the appliance.
WARNING: Do not use this appliance to heat or boil water or use as a cooking appliance. Do
not burn trash or any other material in or on the appliance.
-3-
Due to high temperatures, this appliance should be installed and used only in an approved
replace or rebox away from ammable objects (curtains, clothing, rugs, furniture, etc.).
Flammable objects should not come into contact with the appliance or the ames. Keep them
at least three feet away. Never place any objects on the appliance or inside the burner.
The appliance becomes very hot when in operation. Keep children and adults (and pets) away
from ames and hot surfaces to avoid burns or clothing ignition. The appliance will remain hot
for a time after shutdown. Allow the appliance to cool for at least 30 minutes before touching
it. Carefully follow instructions for refueling while appliance is in use.
Never leave children unattended and carefully supervise young children when they are in the
room where this appliance is in use.
When installed in a replace, you must operate this appliance with a replace screen in place.
Make sure the replace screen is closed while running the appliance.
Keep the appliance area clear and free from combustible materials, gasoline, and other
ammable vapors and liquids.
This appliance is for decorative purposes only and should not be used as a heater.
®
Do not store the duraame illuma-fuel
canisters near the appliance. Store illuma-fuel tightly closed in
its original canister in a dry, cool place, out of direct sunlight and away from heat sources, ammable
objects and open res, and out of the reach of children. If swallowed, seek medical attention immediately.
In case of contact with eyes, ush immediately with cool water for 15 minutes and seek medical
attention. For contact with skin, rinse well with cool water. If irritation develops, see your doctor.
Do not remove a duraame illuma-fuel canister from the appliance until the canister is completely empty.
WHAT TO DO IN THE EVENT OF A FUEL SPILL OR FUEL LEAK: DO NOT light the burner.
Extinguish any open ame near the spill. Wipe up the spill, and wait at least 5 minutes for the
residue to evaporate. In addition to the potential for re, spilled duraame illuma-fuel can damage
some surfaces like wood and leather. Wipe up any spills immediately.
Install this appliance in compliance with the laws of your local jurisdiction. This appliance shall
not be installed in a bedroom or bathroom, unless installed as a vented appliance inside a vented
replace. Do not install this appliance in trailers, boats or vehicles.
If a gas line has been run to your replace, all gas connections must be disconnected by a
qualied service technician prior to installing this appliance.
The appliance must be set on a level surface in your replace rebox or table.
This appliance has not been tested for use with replace glass doors. To reduce the risk of re
or injury, do not install or use glass doors with this appliance when installed in a replace. If the
replace has glass doors, never operate the appliance with the glass doors closed. Heat buildup
within the replace could cause the glass doors to break or burst, or cause the release of harmful
combustion products into the living area.
If the replace has vents at the bottom, the vents must be opened before running the appliance.
This appliance is designed to be smokeless. If the unit emits smoke, extinguish the appliance (by
turning the knob on the side – see Section VIII. OPERATION), wait for the appliance to cool down
for at least 30 minutes, and check for any debris that may be causing the smoke. Note: During
initial operation, slight smoking might occur due to the burning off of manufacturing residues. This
is a normal condition.
Do not use cleaning materials or agents such as furniture polish, wax, carpet cleaner, or similar
products in the room where the appliance is located while the appliance is in use. If heated,
-4-
the vapors from these products can create a white powdery residue within the burner box or on
adjacent walls or furniture.
Do not operate this appliance where ammable liquids or vapors are used or stored, or in a dusty
environment.
If water has entered the burner reservoir of the appliance, ensure that the water has been
emptied from the appliance before use. Water can dilute the duraame illuma-fuel and affect the
performance of the appliance.
Do not use the appliance if there is visible damage. If you see damage, contact the store where
purchased or Duraame’s customer service. Do not attempt to repair the appliance yourself. Do
not use your appliance if it has been modied in any way.
Turn off the appliance and let it cool before servicing or repairing it.
An open re is always a potential hazard. You must have a Class B re extinguisher near the
replace in case of re.
Do not dismantle the burner. Do not insert any other fuel canister into the burner.
This appliance must be operated using only authorized accessories and equipment.
Do not move the appliance while it is burning. This could cause burning fuel to spill and result in
injury or a re.
Do not put anything into the ames of the appliance. This could cause sooting and the creation of
harmful combustion products.
Do not put your head over the burner while lighting it. Keep all body parts safely away from the
device while igniting and while the appliance is in use.
Do not leave the appliance burning unattended. Extinguish the ames before you leave the house,
go to bed, or leave the room for an extended period of time. Never leave children unattended near
the appliance while it is in use.
Extinguish the ames by rotating the knob on the side – this will close the burner cover and
extinguish the ames. Do not attempt to blow out the ames. Never use water to extinguish the
ames. This could cause an explosion. The cover will be extremely hot. Do not obstruct the sliding
cover of the snuffer device in any way as this could interfere with your ability to extinguish the ames.
Keep packing materials away from children, as they could be a choking or suffocation hazard.
In case of burns, seek treatment from your doctor or hospital.
Duraame accepts no responsibility for any damage that might result if this appliance is improperly
installed, incorrectly operated, used for purposes other than that for which it is intended, or if it is
repaired by unqualied persons.
II. SETUP
CAUTION: Do not remove the metal data plate (rating plate) that is attached to the inside of the
door of the appliance. It contains important product information.
WARNING: Before installing this appliance in a solid-fuel-burning replace, the chimney ue
and rebox must be cleaned of soot, creosote, ashes, and loose paint by a qualied chimney
cleaner. Creosote will ignite if highly heated. Inspect the chimney ue for damage. If
damaged, operate the appliance with the ue damper closed.
-5-
WARNING: Seal any fresh air vent or ash clean-out doors located on the oor or walls of the
replace. Failure to do so may result in drafts that could cause sooting. Use a heat-resistant
sealant. Do not seal the chimney ue damper.
WARNING: Never install this appliance in a bedroom or bathroom unless installed as a vented
appliance in a recreational vehicle where curtains, furniture, clothing, or other ammable
objects are less than 42 inches from the front, top, or sides of the appliance or in high trafc
areas or in windy or drafty areas.
CAUTION: This appliance creates warm air currents that heat the wall surfaces next to
the appliance. Installing the appliance next to vinyl or cloth wall coverings or furniture, or
operating the appliance where impurities in the air (such as tobacco smoke, aromatic candles,
cleaning uids, oil or kerosene lamps, etc.) exist, may discolor the walls and furniture.

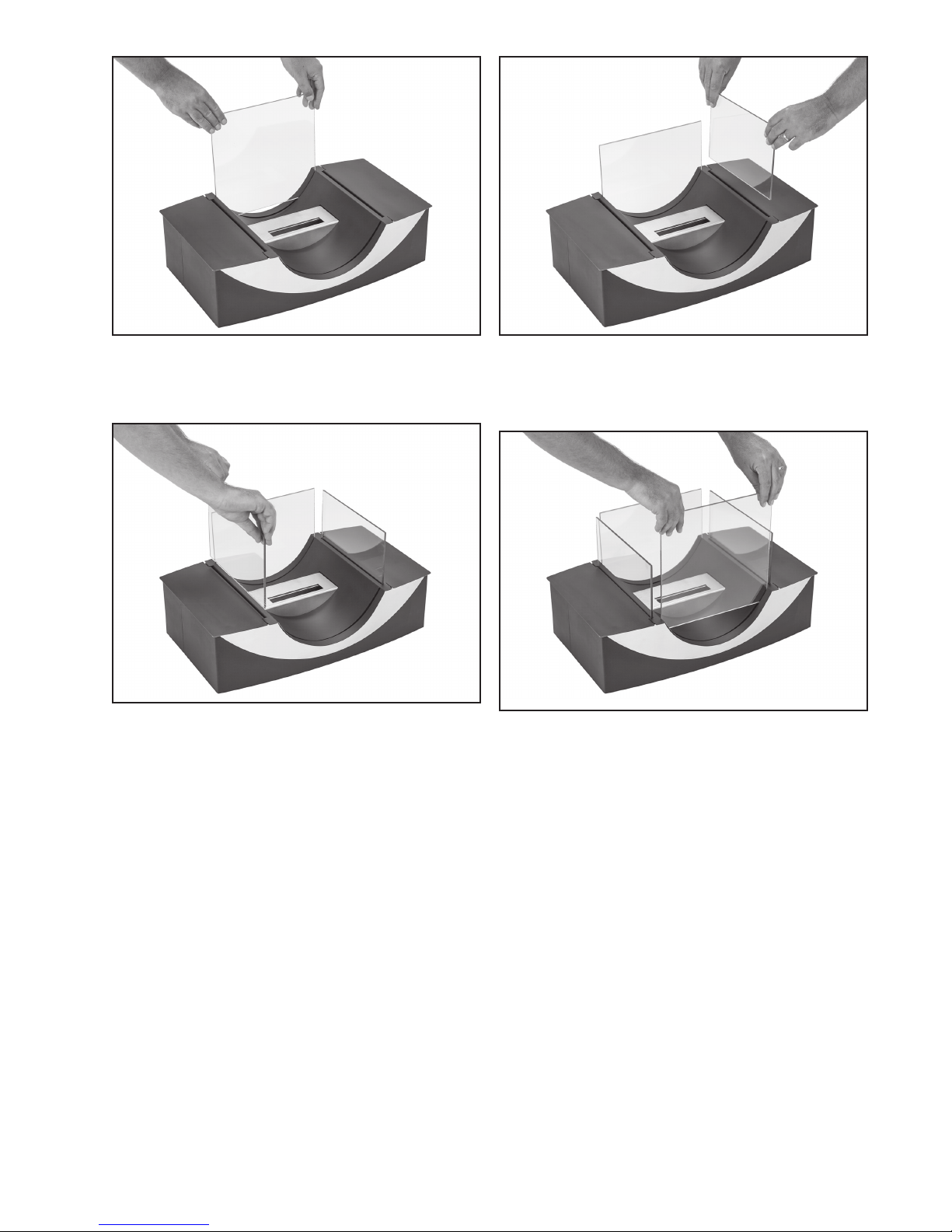

Glass Panels
Burner
Canister Door
Knob &
Igniter
Figure 1
Appliance Overview
Install this appliance in compliance with all local building codes. In the absence of local codes,
use the latest edition of The National Fuel Gas Code (ANSZ223.1, also known as NFPA54),
available from:
American National Standards Institute National Fire Protection Association, Inc.
25 West 43rd Street, 4th oor OR 1 Batterymarch Park
New York, NY 10036 Quincy, Massachusetts USA 02169-7471
This appliance is designed to burn with very low emissions, so that it requires no outside venting
(“ventless” or “vent-free” operation). It can be installed and used in a replace with the ue
damper closed, as long as the room in which it is installed is adequately ventilated (see Section II,
Air for Ventilation and Combustion). State and local codes in some areas prohibit the use of ventfree heaters. Check the building codes in your jurisdiction before installation. This appliance also
may be operated as a vented decorative product by opening the ue damper of the replace.
IMPORTANT: Vent-free appliances add moisture to the air. Although this is benecial, installing the
appliance in rooms without enough ventilation may cause mildew to form from too much moisture
(see Section II, Air for Ventilation and Combustion).
-6-
Loading...
