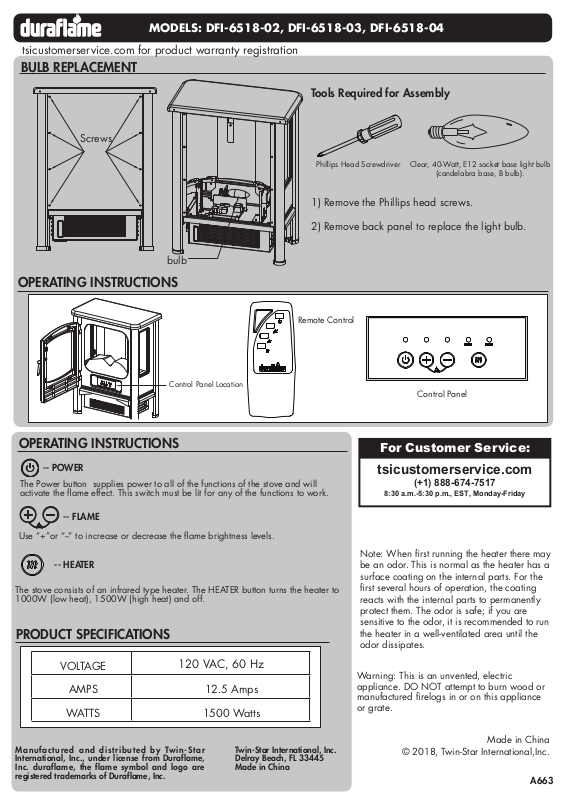

MODELS: DFI-6518-02, DFI-6518-03, DFI-6518-04
tsicustomerservice.com for product warranty registration
BULB REPLACEMENT
Screws |
bulb
Tools Required for Assembly
Phillips Head Screwdriver Clear, 40-Watt, E12 socket base light bulb (candelabra base, B bulb).
1)Remove the Phillips head screws.
2)Remove back panel to replace the light bulb.
OPERATING INSTRUCTIONS
Remote Control
Control Panel Location
Control Panel
OPERATING INSTRUCTIONS
-- POWER
The Power button supplies power to all of the functions of the stove and will activate the flame effect. This switch must be lit for any of the functions to work.
-- FLAME
Use “+”or “--” to increase or decrease the flame brightness levels.
-- HEATER
The stove consists of an infrared type heater. The HEATER button turns the heater to 1000W (low heat), 1500W (high heat) and off.
PRODUCT SPECIFICATIONS
|
|
|
|
|
|
|
|
|
|
VOLTAGE |
|
120 VAC, 60 Hz |
|
|
|
|
|
|
|
|
|
|
|
|
|
AMPS |
|
12.5 Amps |
|
|
|
|
|
WATTS |
|
1500 Watts |
|
|
|
|
|
|
|
|
|
|
|
Manufactured and distributed by Twin-Star |
Twin-Star International, Inc. |
||||||
International, Inc., under license from Duraflame, |
Delray Beach, FL 33445 |
||||||
Inc. duraflame, the flame symbol and logo are |
Made in China |
||||||
registered trademarks of Duraflame, Inc. |
|
|
|
|
|||
For Customer Service:
tsicustomerservice.com
(+1) 888-674-7517
8:30 a.m.-5:30 p.m., EST, Monday-Friday
Note: When first running the heater there may be an odor. This is normal as the heater has a surface coating on the internal parts. For the first several hours of operation, the coating reacts with the internal parts to permanently protect them. The odor is safe; if you are sensitive to the odor, it is recommended to run the heater in a well-ventilated area until the odor dissipates.
Warning: This is an unvented, electric appliance. DO NOT attempt to burn wood or manufactured firelogs in or on this appliance or grate.
Made in China
© 2018, Twin-Star International,Inc.
A663
IMPORTANT INSTRUCTIONS
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock, and injury to persons including the following:
1.Read all instructions before using this appliance.
2.This appliance is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving this appliance. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at least 3 feet (0.9 m) from the front of this appliance and keep away from the sides and the rear.
WARNING: In order to avoid overheating, do not cover the heater.
3.CAUTION: Never leave the heater operating unattended. Extreme caution is necessary if unsupervised children or invalids are nearby.
4.The appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
5.Always unplug this appliance when not in use.
6.Do not operate any heater with a damaged cord or plug or after the appliance malfunctions, or if it has been dropped or damaged in any manner.
7.If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
8.Do not use outdoors.
9.This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never locate this appliance where it may fall into a bathtub or other water container.
10.Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
Battery Replacement
11.To disconnect this appliance, turn controls to the off position, then remove plug from outlet.
12.Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the appliance.
13.To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where opening may become blocked.
14.This appliance has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint or flammable liquids are used or stored. This stove should not be used as a drying rack for clothing. Christmas stockings or decorations should not be hung in the area of it.
15.Use this appliance only as described in the manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons.
16.This product is equipped with a polarized plug (one blade is wider than the other blade). To reduce the risk of electrical shock, this plug will fit into a polarized outlet only one way. This is a safety feature. If you are unable to insert the plug into the electrical outlet, try reversing the plug. If the plug still does not fit, contact a qualified electrician.
Note:
Battery disposal
Please always dispose of batteries at a suitable recycling point.
AAA1.5V
AAA1.5V
1.The battery compartment is located on the back end of the remote control.
2.Press and slide the battery door open and remove the old battery.
3.Insert 2 AAA batteries, checking that the + and - sides of the battery match inside the battery compartment.
4.Replace the battery compartment door.
Caution:
•For best results, use 2pcs AAA alkaline batteries.
•Install only new batteries of the same type in your product.
•Failure to insert batteries in the correct polarity, as indicated in the battery compartment, may shorten the life of the batteries or cause batteries to leak.
•Do not mix old and new batteries.
•Do not mix Alkaline, Standard (Carbon-Zinc) or Rechargeable (Nickel Cadmium) or (Nickel Metal Hydride) batteries.
•Danger of explosion if battery is incorrectly replaced.
•Do not ingest batteries.
Batteries should be recycled or disposed of as per state and local guidelines.
DISPOSAL OF USED BATTERIES
Battery may contain hazardous substances which could endanger the environment and human health. Used batteries shall not be treated as municipal waste, but left at the appropriate collection point for recycling. For more information about collection and recycling of used batteries, please contact your local municipality or waste disposal service.
1-YEAR LIMITED WARRANTY
The manufacturer warrants that your new Electric Stove is free from manufacturing and material defects for a period of one year from date of purchase, subject to the following conditions and limitations.
1.Install and operate this Electric Stove in accordance with the installation and operating instructions furnished with the product at all times. Any unauthorized repair, alteration, willful abuse, accident, or misuse of the product shall nullify this warranty.
2.This warranty is non-transferable, and is made to the original owner, provided that the purchase was made through an authorized supplier of the product.
3.The warranty is limited to the repair or replacement of part(s) found to be defective in material or workmanship, provided that such part(s) have been subjected to normal conditions of use and service, after said defect is confirmed by the manufacturer’s inspection.
4.The manufacturer may, at its discretion, fully discharge all obligations with respect to this warranty by refunding the wholesale price of the defective part(s).
5.Any installation, labor, construction, transportation, or other related costs/expenses arising from defective part(s), repair, replacement, or otherwise of same, will not be covered by this warranty, nor shall the manufacturer assume responsibility for same.
6.The owner/user assumes all other risks, if any, including the risk of any direct, indirect or consequential loss or damage arising out of the use, or inability to use the product, except as provided by law.
7.All other warranties – expressed or implied –with respect to the product, its components and accessories, or any obligations/liabilities on the part of the manufacturer are hereby expressly excluded.
8.The manufacturer neither assumes, nor authorizes any third party to assume on its behalf, any other liabilities with respect to the sale of the product.
9.The warranties as outlined within this document do not apply to non accessories used in conjunction with the installation of this product.
10.This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. This warranty is void if:
a.The fireplace is subjected to prolonged periods of dampness or condensation.
b.Any unauthorized alteration, willful abuse, accident, or misuse of the product.
c.You do not have the original receipt of purchase.
IF WARRANTY SERVICE IS NEEDED
Contact the manufacturer by calling customer service department at 1-888-674-7517, 7 days a week 24 hours a day at our toll-free help line. Our Consumer Service department is available Monday – Friday 8:30 am – 5:30 pm EST. Make sure you have your warranty, your sales receipt, location of purchase and the model/serial number of
your product.
SAVE THESE INSTRUCTIONS
A663
