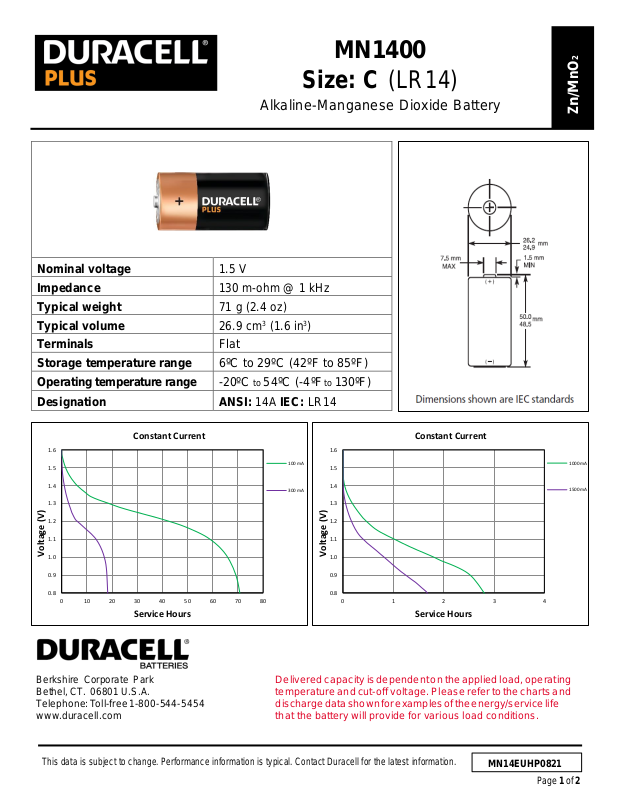

DURACELL DURA PLUS C2 Datasheet
MN1400
Size: C
(LR14)
Alkaline-Manganese Dioxide Battery
This data is subject to change. Performance information is typical. Contact Duracell for the latest information.
MN14EUHP0821
Page 1 of 2
Z
n/M
nO2
Berkshire Corporate Park
Bethel, CT. 06801 U.S.A.
Telephone: Toll-free 1-800-544-5454
www.duracell.com
Delivered capacity is dependent on the applied load, operating
temperature and cut-off voltage. Please refer to the charts and
discharge data shown for examples of the energy/service life
that the battery will provide for various load conditions.
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.5
1.6
0 10 20 30 40 50 60 70 80
Voltage (V)
Service Hours
Constant Current
100 mA
300 mA
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.5
1.6
0 1 2 3 4
Voltage (V)
Service Hours
Constant Current
1000 mA
1500 mA
Nominal voltage
1.5 V
Impedance
130 m-ohm @ 1 kHz
Typical weight
71 g (2.4 oz)
Typical volume
26.9 cm
3
(1.6 in3)
Terminals
Flat
Storage temperature range
6ºC to 29ºC (42ºF to 85ºF)
Operating temperature range
-20ºC
to
54ºC (-4ºF
to
130ºF)
Designation
ANSI: 14A IEC: LR14
This data is subject to change. Performance information is typical. Contact Duracell for the latest information.
MN14EUHP0821
Page 2 of 2
MN1400
Size: C
(LR14)
Alkaline-Manganese Dioxide Battery
Z
n/M
nO2
Berkshire Corporate Park
Bethel, CT. 06801 U.S.A.
Telephone: Toll-free 1-800-544-5454
www.duracell.com
Delivered capacity is dependent on the applied load, operating
temperature and cut-off voltage. Please refer to the charts and
discharge data shown for examples of the energy/service life
that the battery will provide for various load conditions.
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.5
1.6
0 20 40 60 80 100
Voltage (V)
Service Hours
Constant Power
100 mW
250 mW
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.5
1.6
0 2 4 6 8 10 12 14 16
Voltage (V)
Service Hours
Constant Resistance
0.8 Ohm
2.2 Ohm
3 Ohm
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.5
1.6
0 1 2 3 4
Voltage (V)
Service Hours
Constant Power
1000 mW
1500 mW
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.5
1.6
0 5 10 15 20 25
Voltage (V)
Service Hours
Constant Temperature at 250 mA
-10°C/14°F
0°C/32°F
21°C/70°F
