SERVICE MANUAL

Sec. 1: Main Section

I Specifications I Preparation for Servicing I Adjustment Procedures I Schematic Diagrams I CBA’s I Exploded views I Parts List

14" COLOR TV/VCR COMBINATION

T6605VF

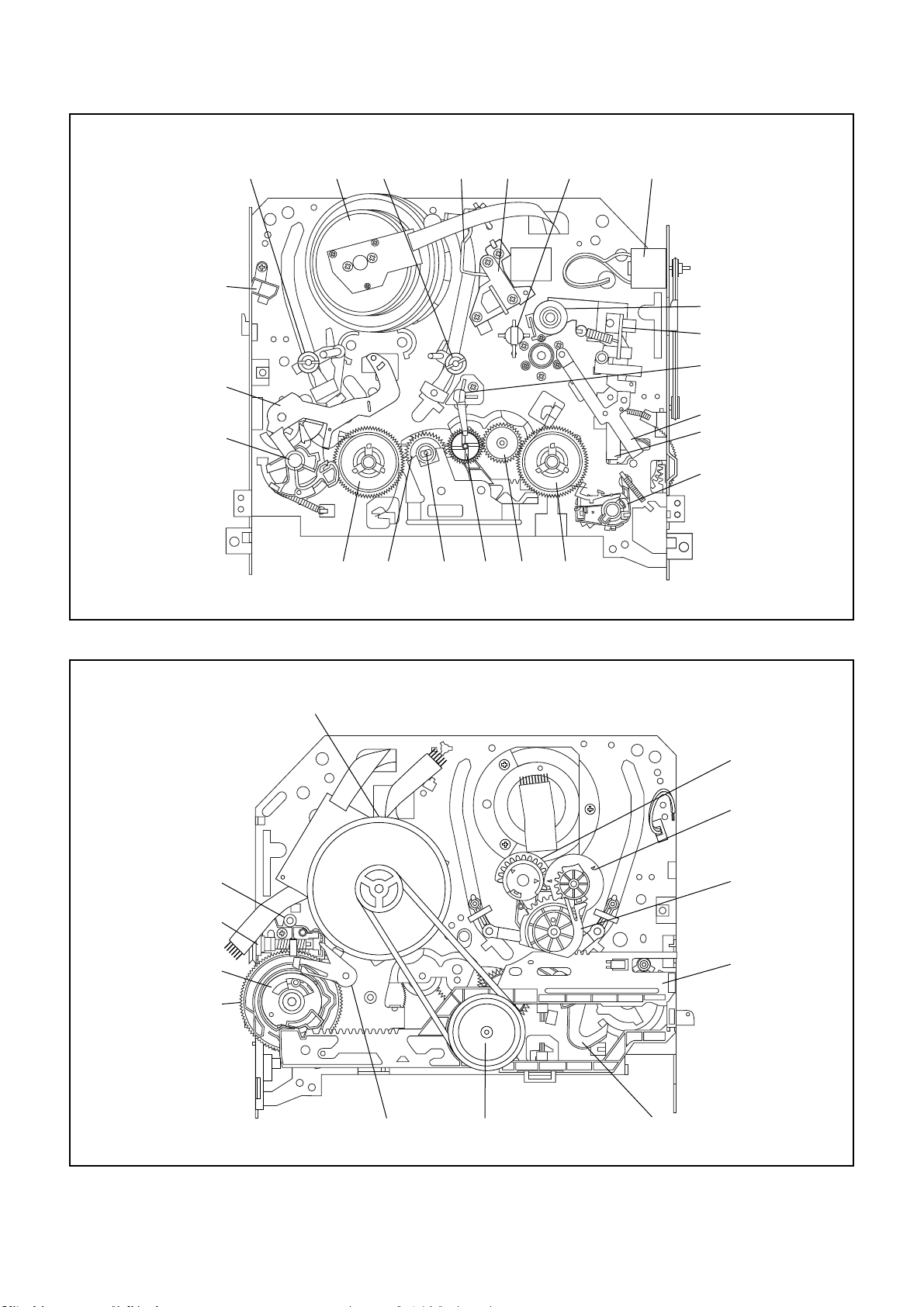

Sec. 2: Deck Mechanism Section

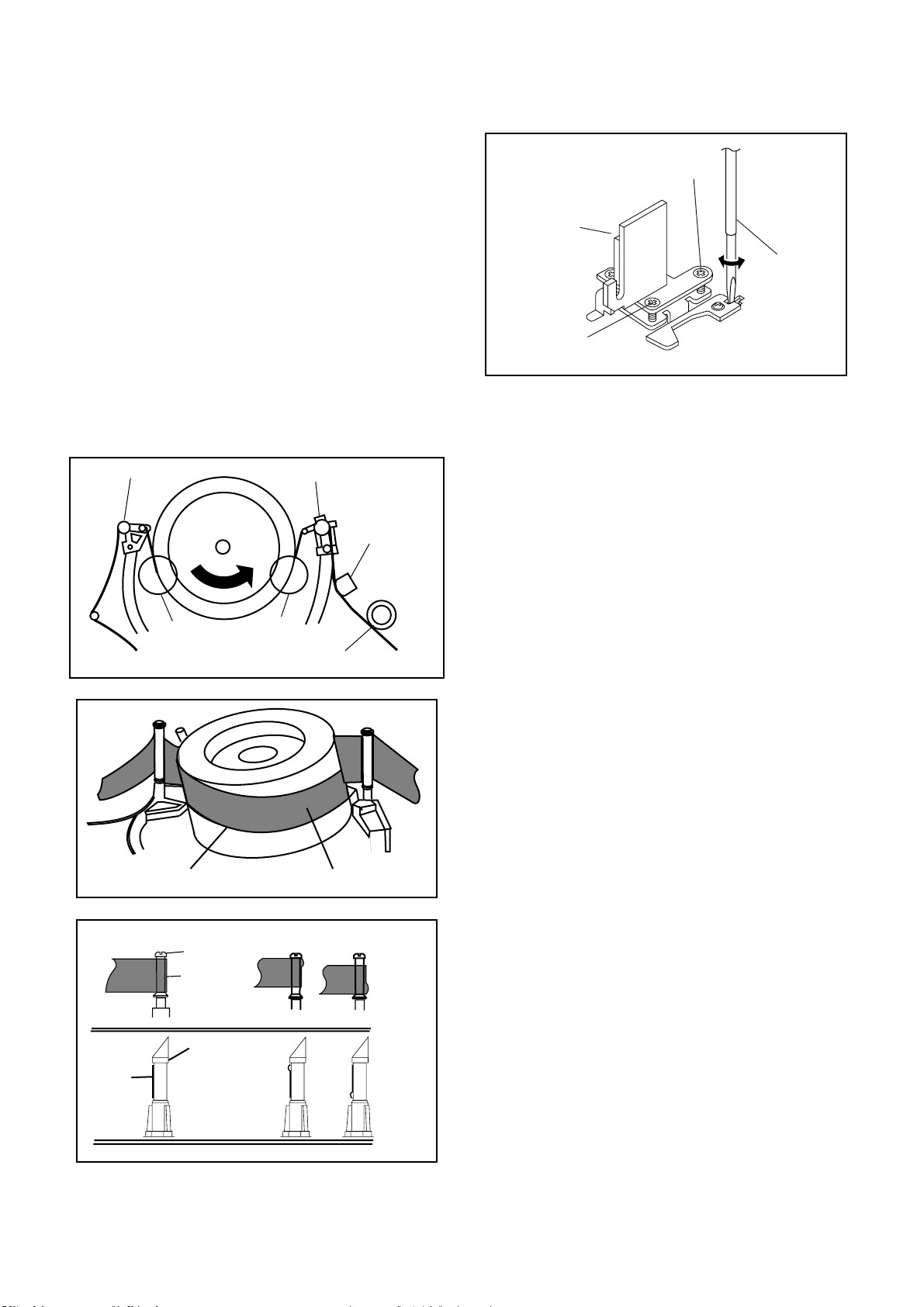

I Standard Maintenance I Alignment for Mechanism I Disassembly/Assembly of Mechanism I Alignment Procedures of Mechanism I Deck Exploded Views I Deck Parts List

21" COLOR TV/VCR COMBINATION

T6705VF

PAL

MAIN SECTION

14"/21" COLOR TV/VCR COMBINATION

T6605VF/T6705VF

Sec. 1: Main Section

I Specifications I Preparation for Servicing I Adjustment Procedures I Schematic Diagrams I CBA’s I Exploded Views I Par ts L ist

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1-1

Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3-1

Preparation for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4-1

Cabinet Disassembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5-1

Electrical Adjustment Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6-1

Block Diagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7-1

Mechanical T rouble Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7-7

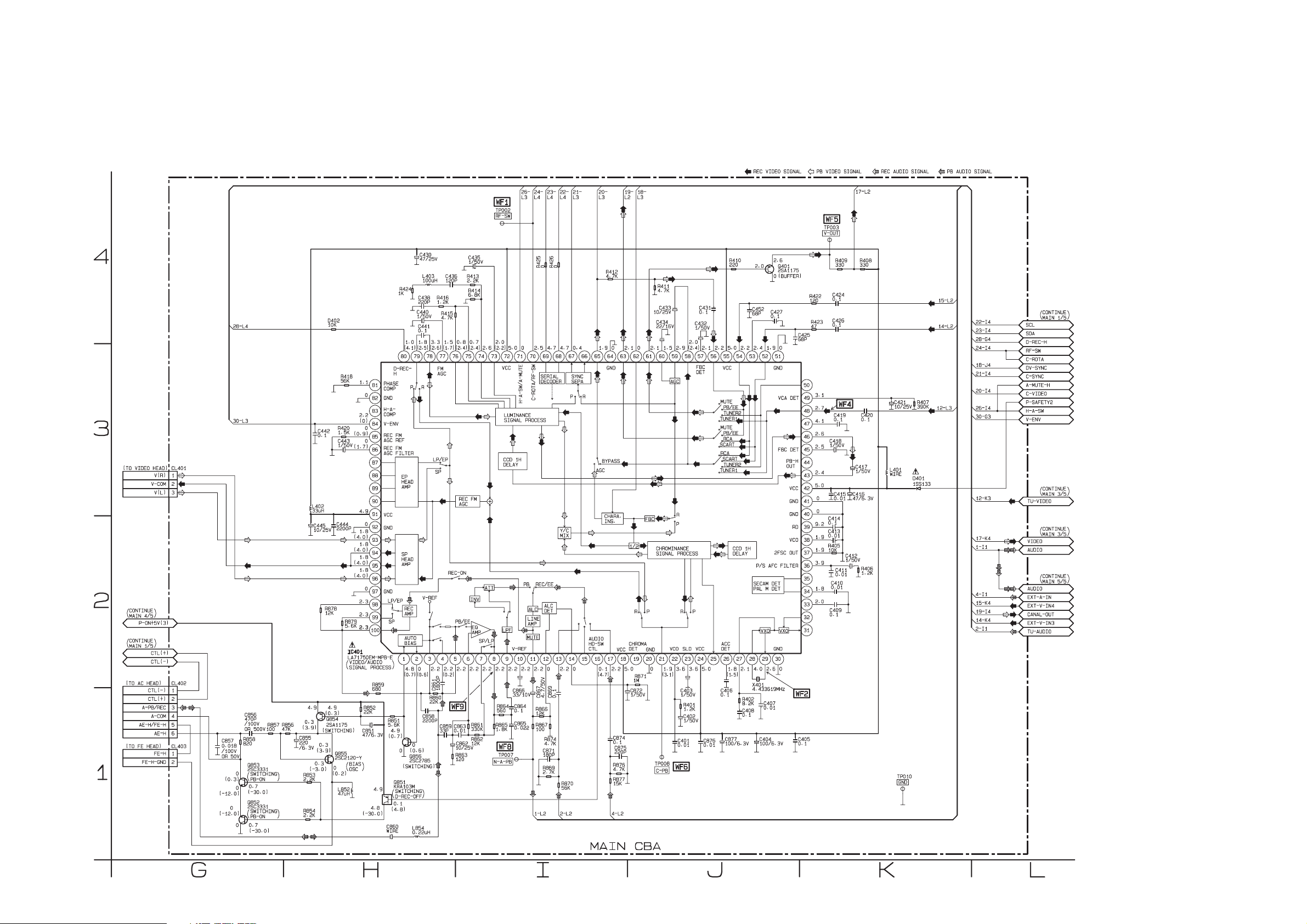

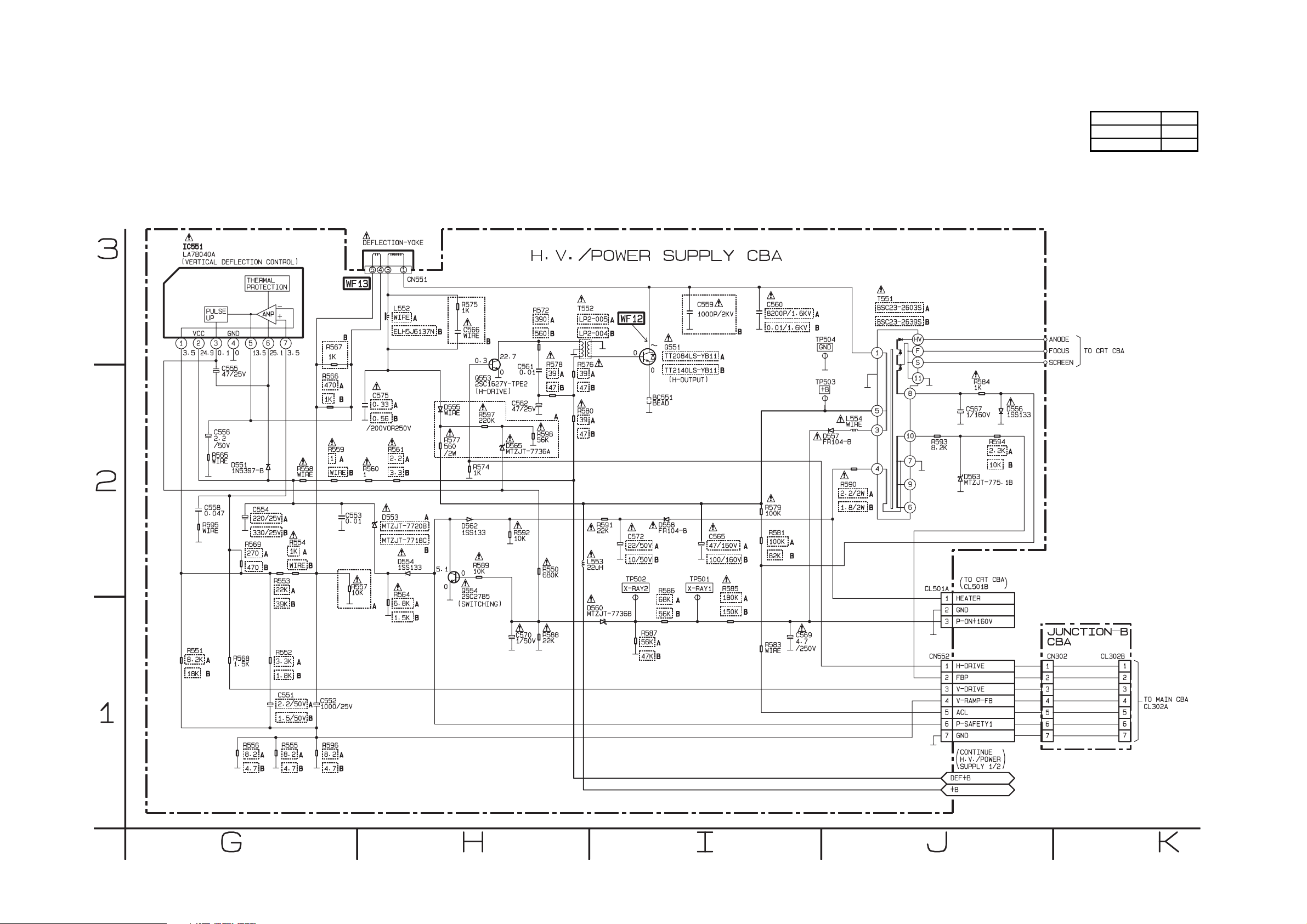

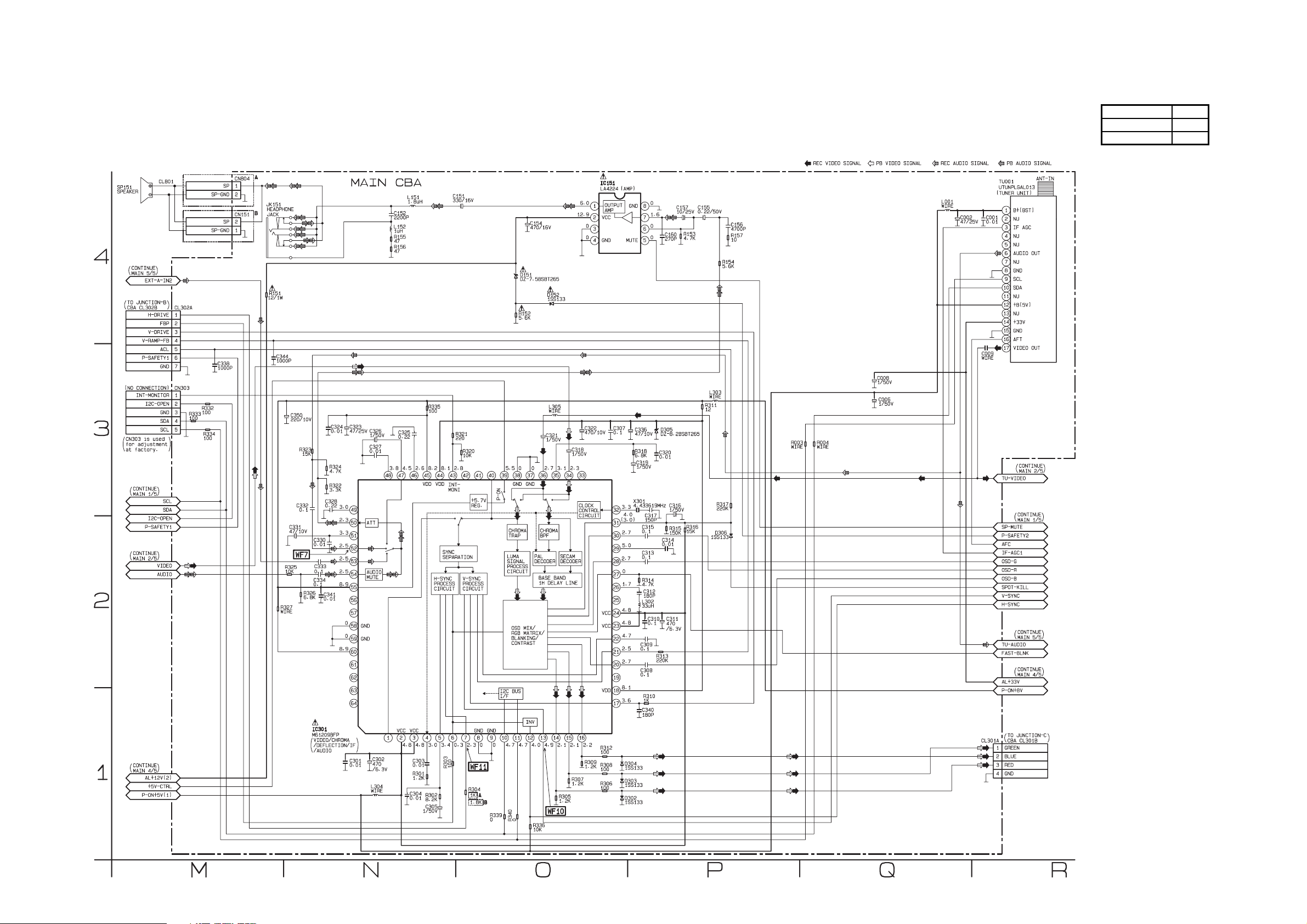

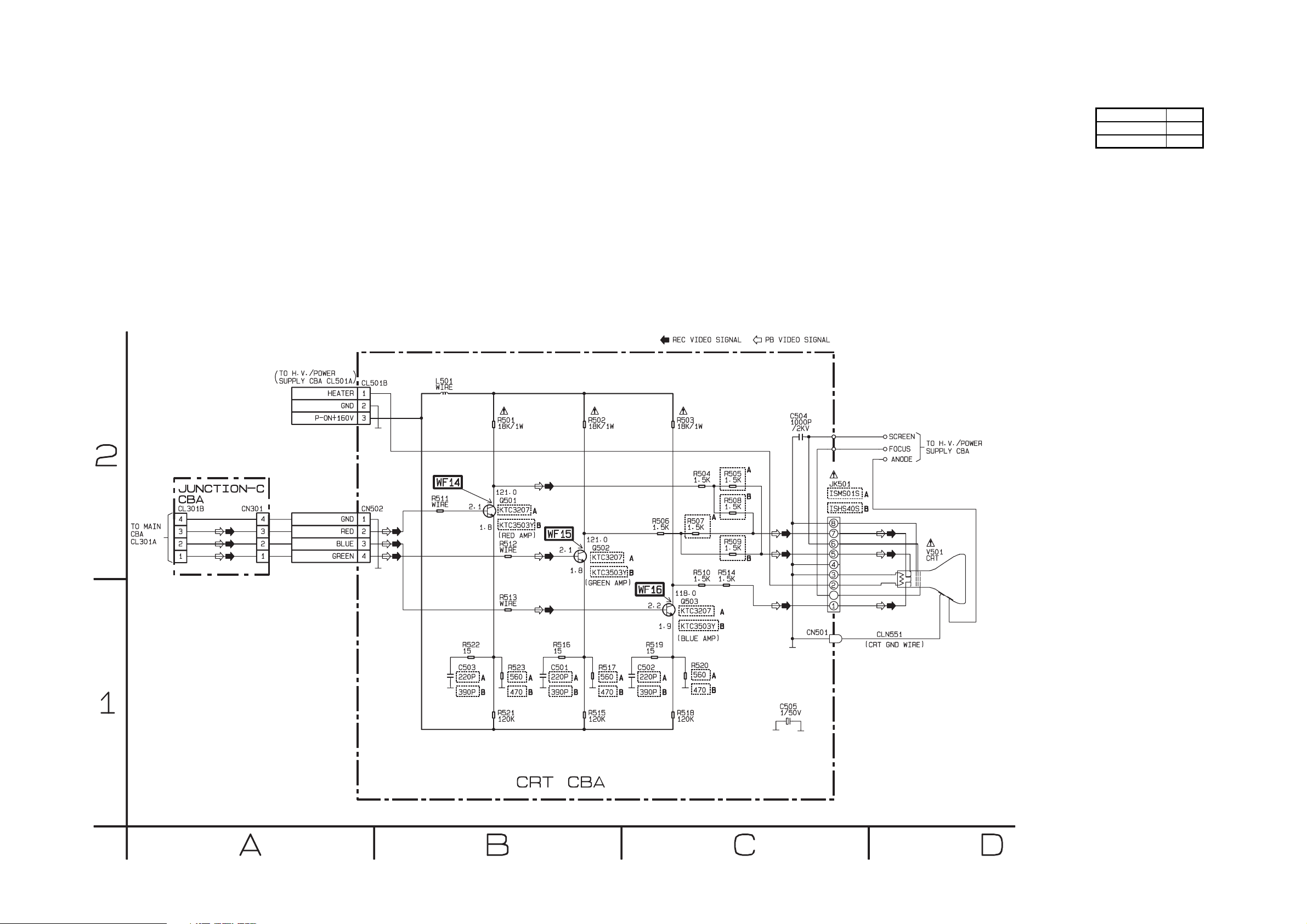

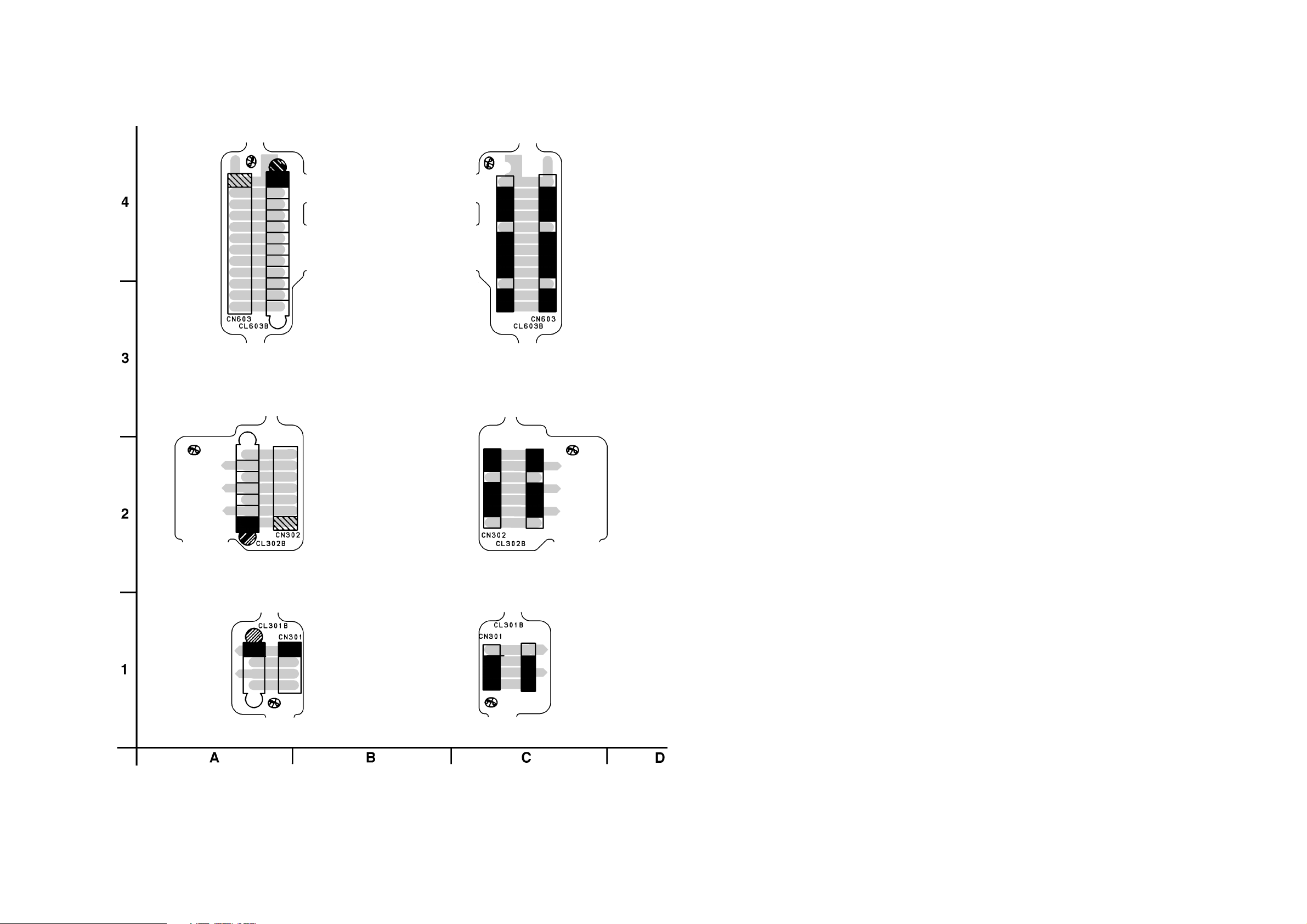

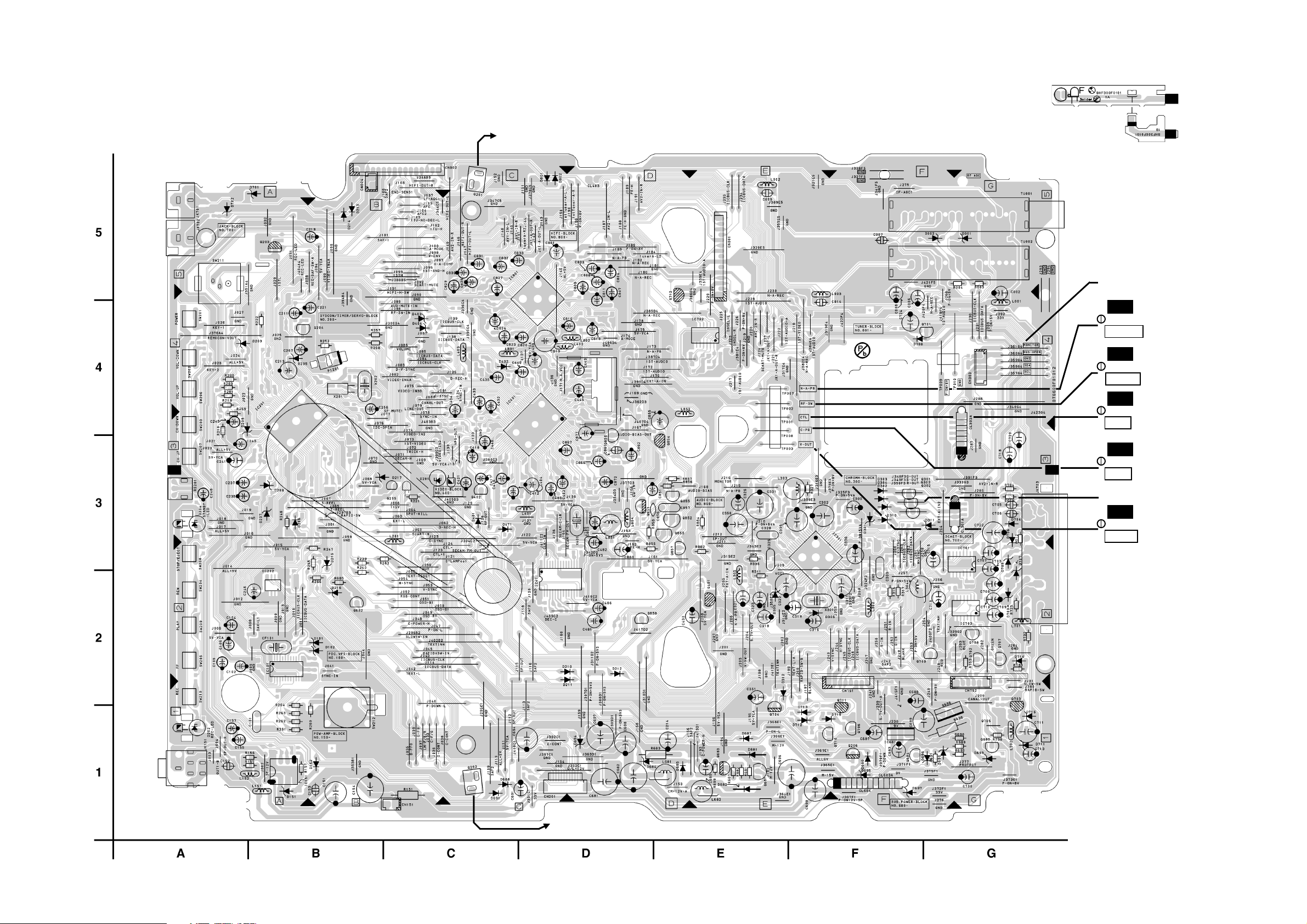

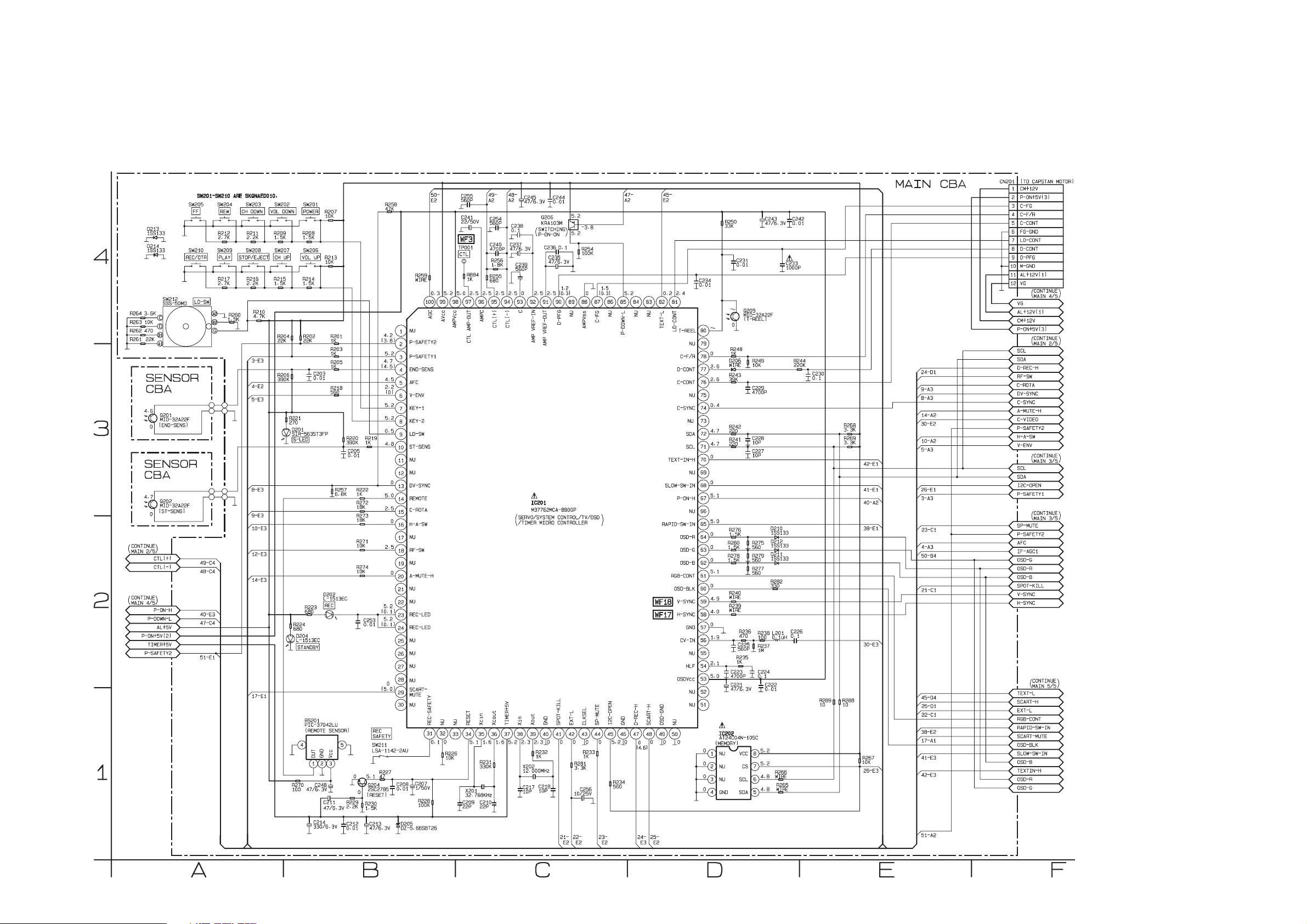

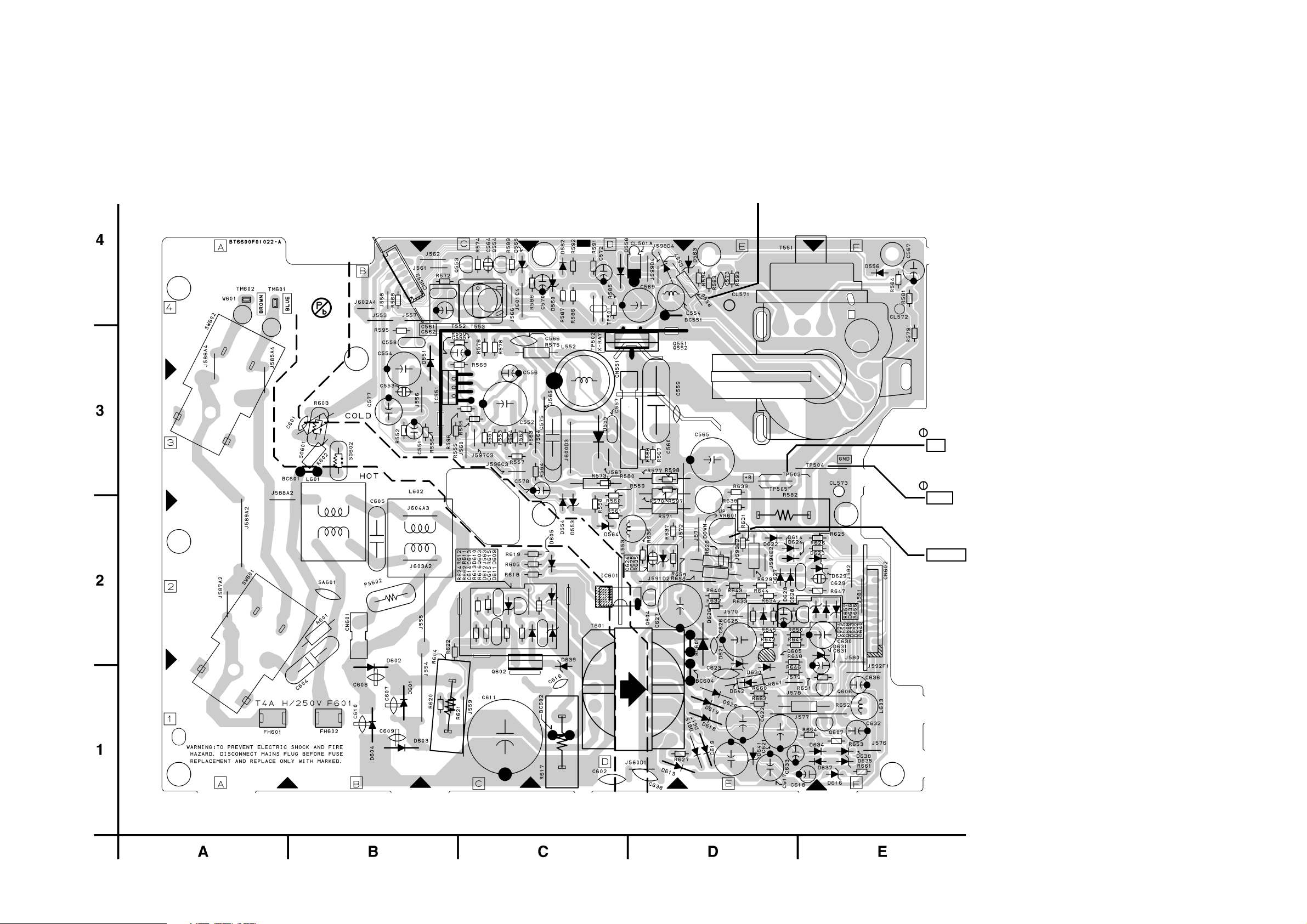

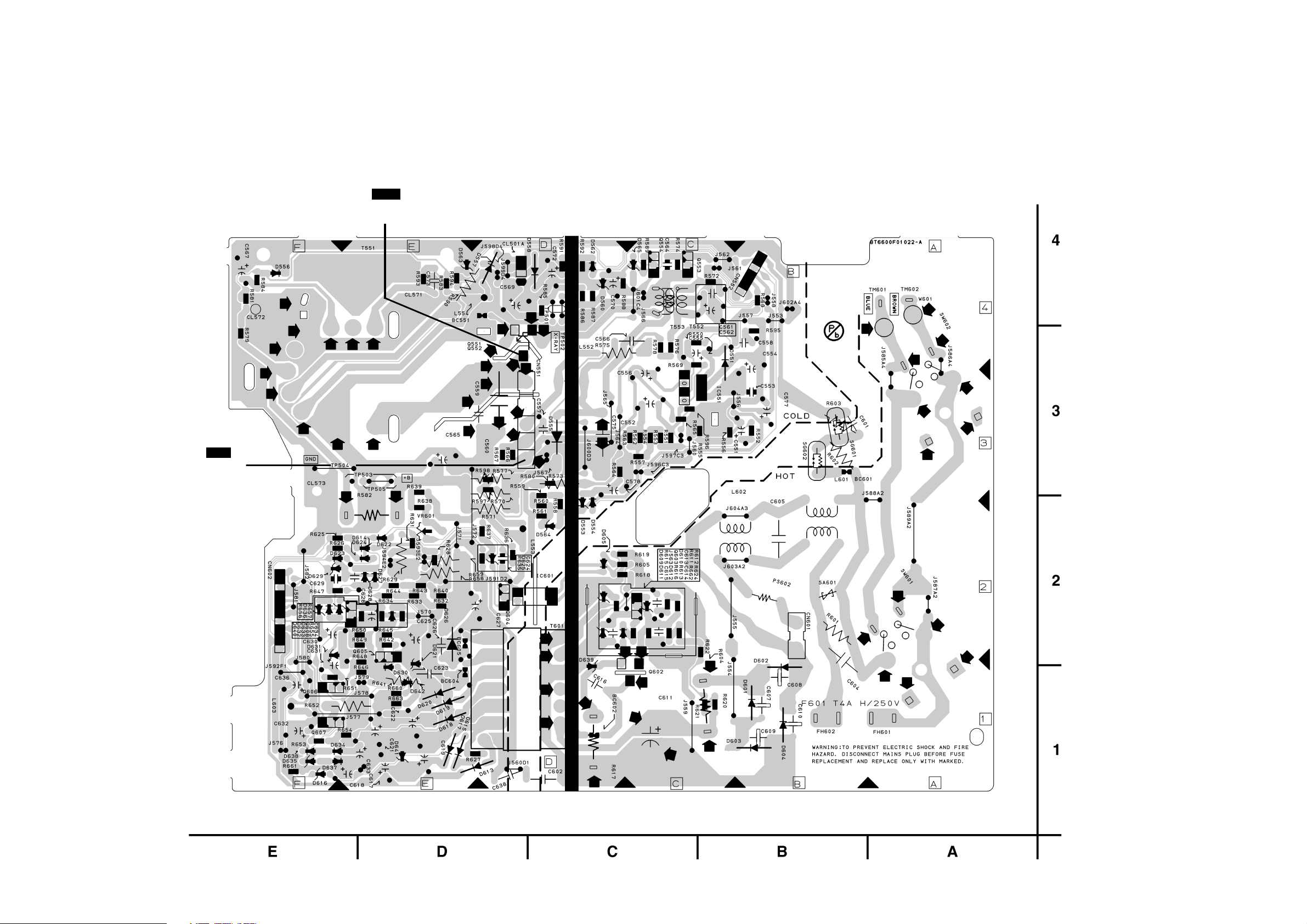

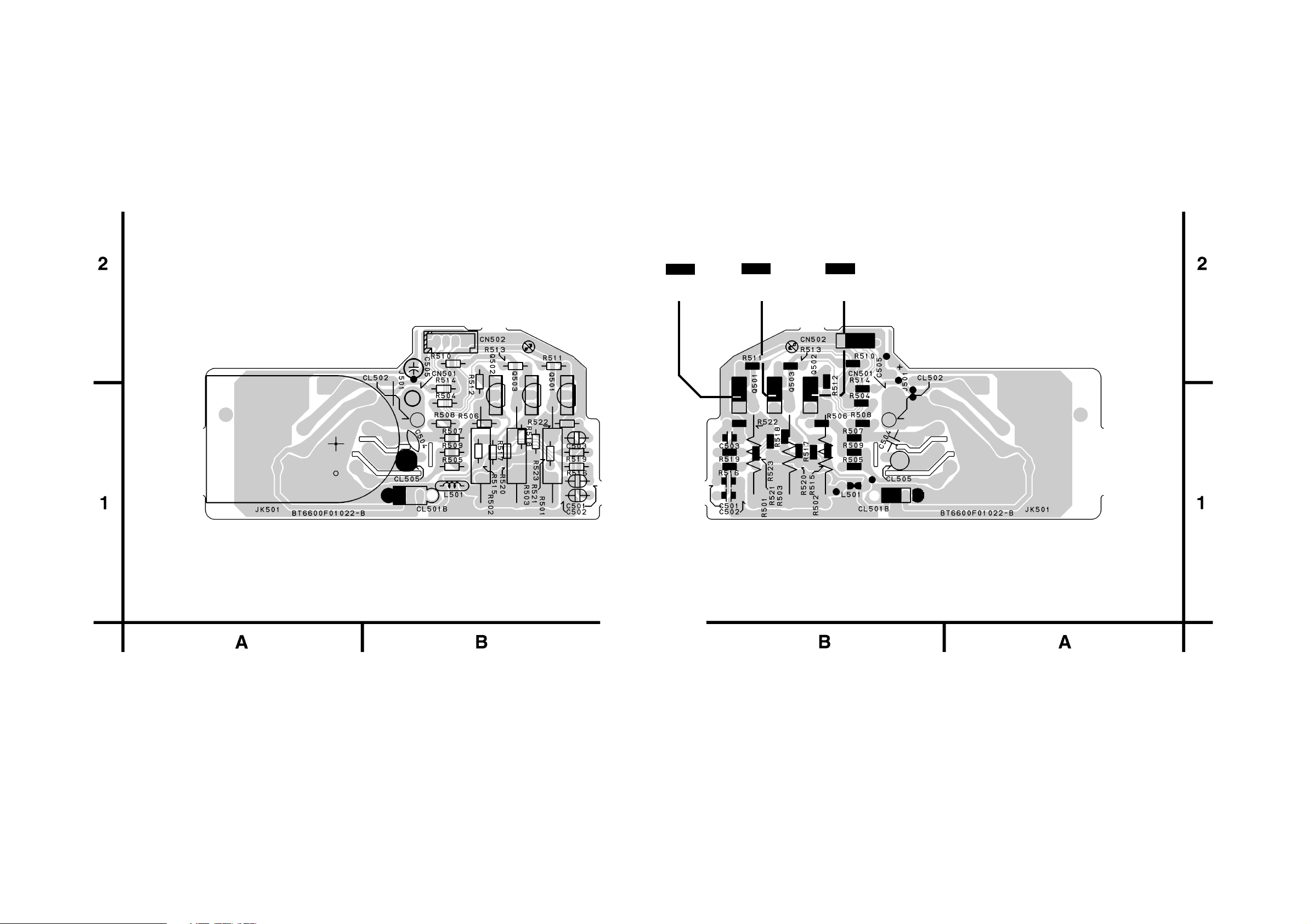

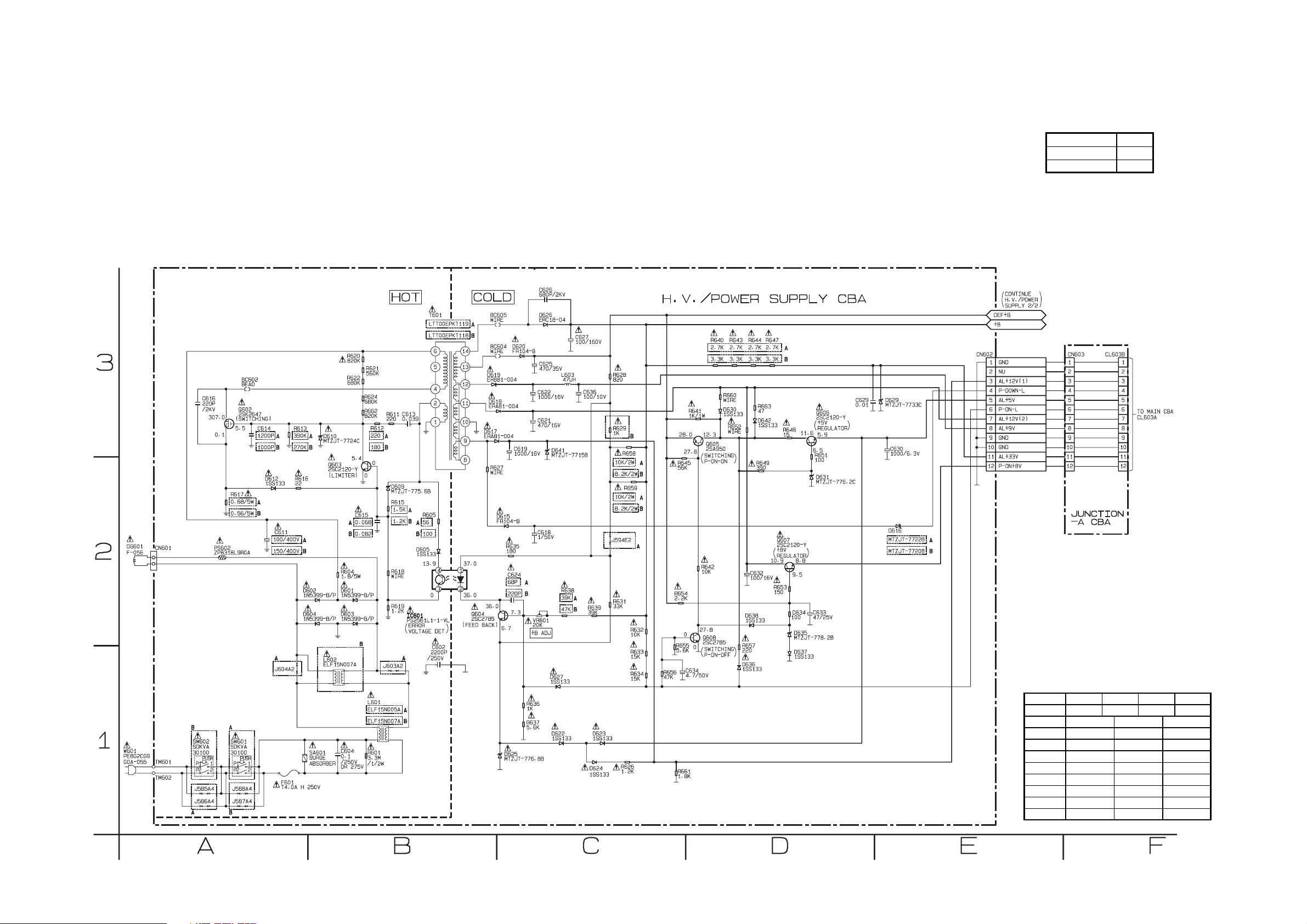

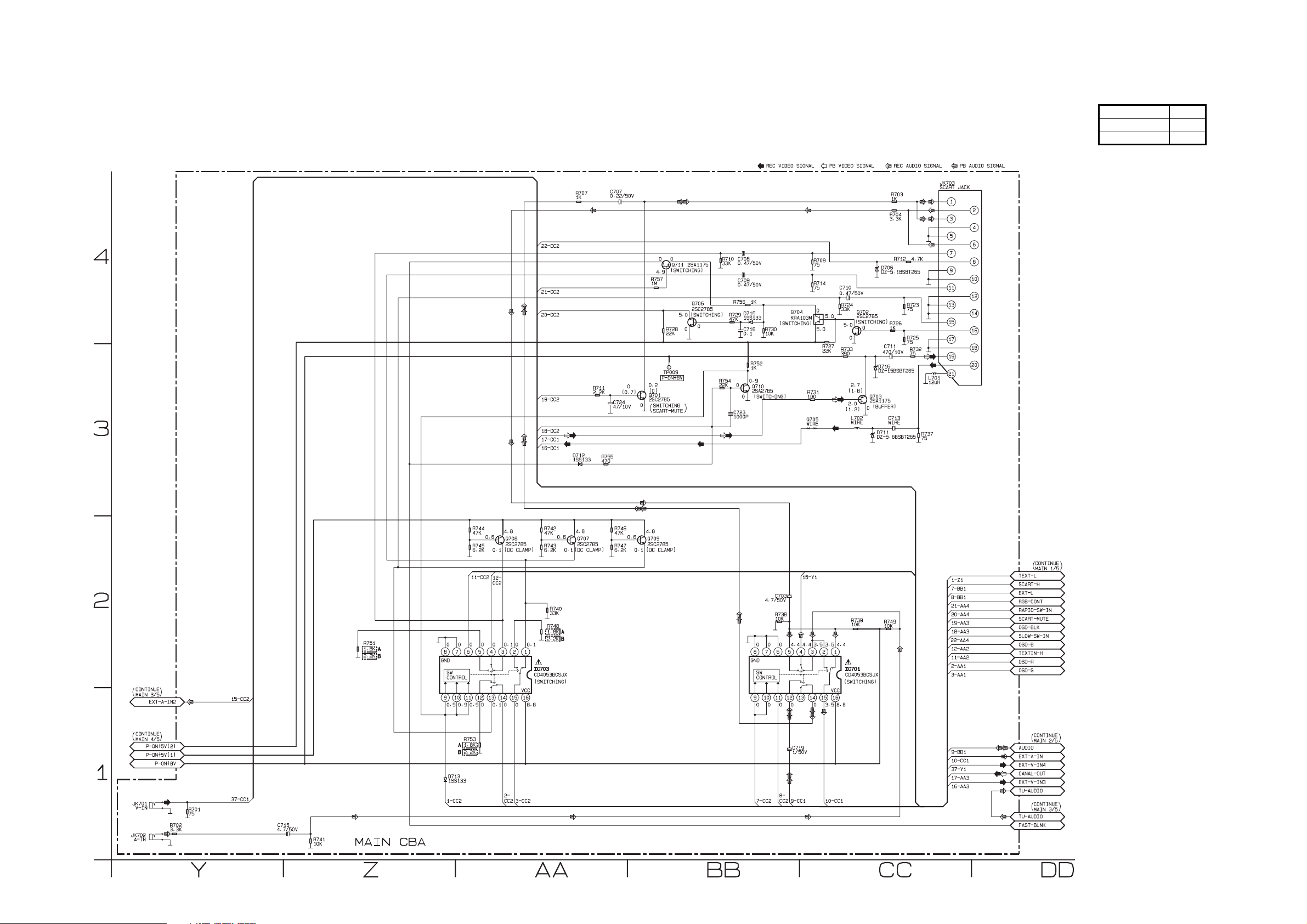

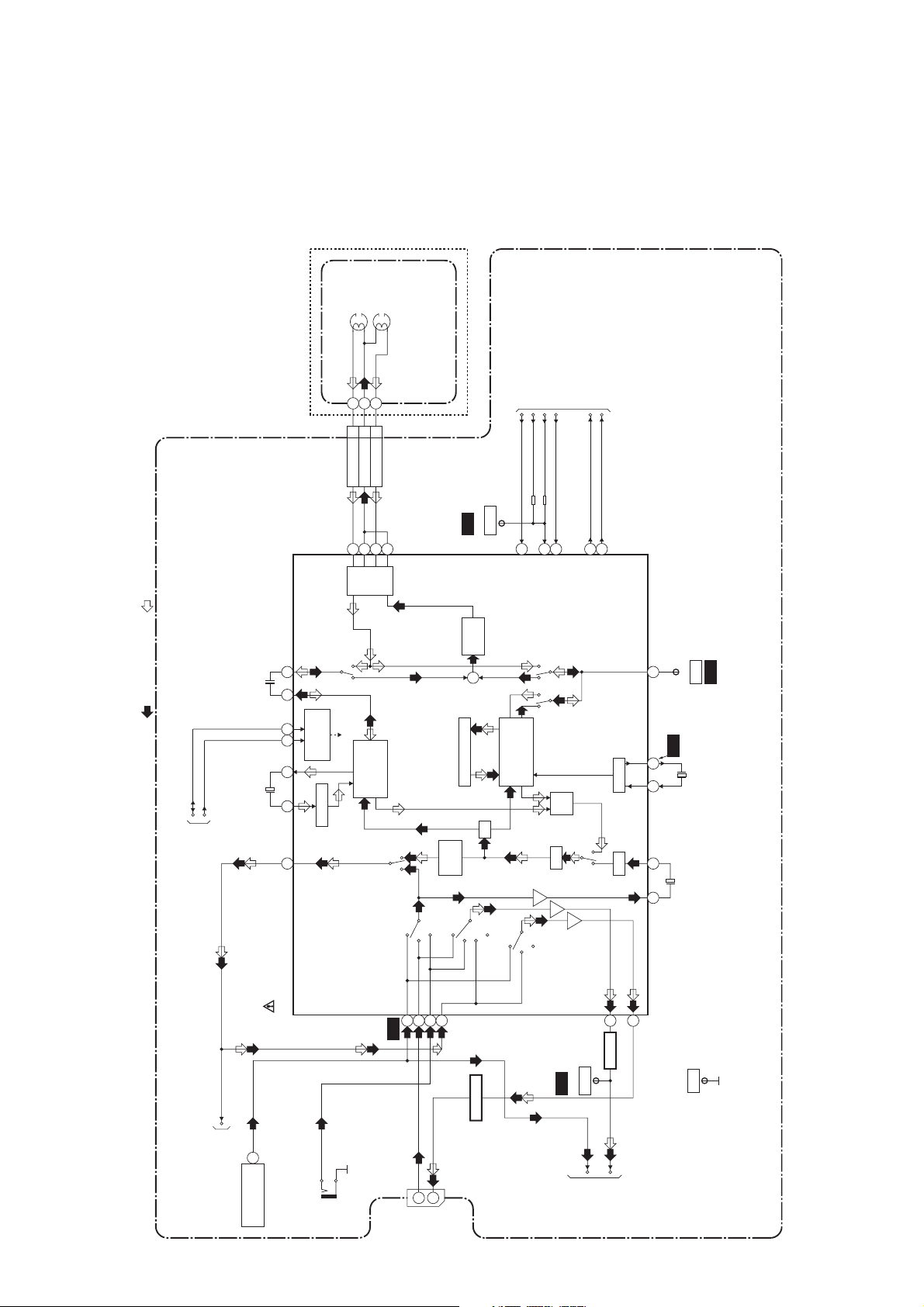

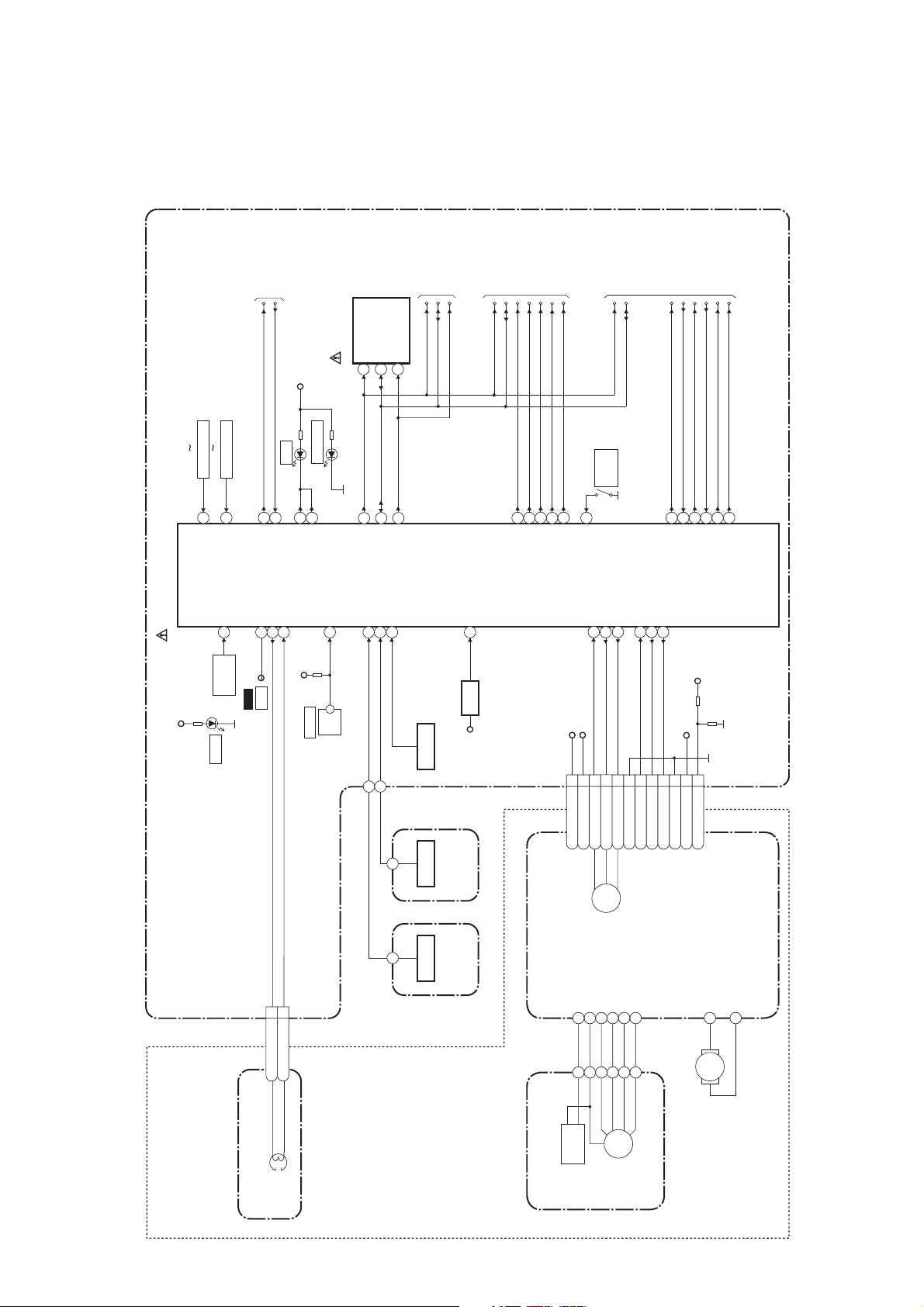

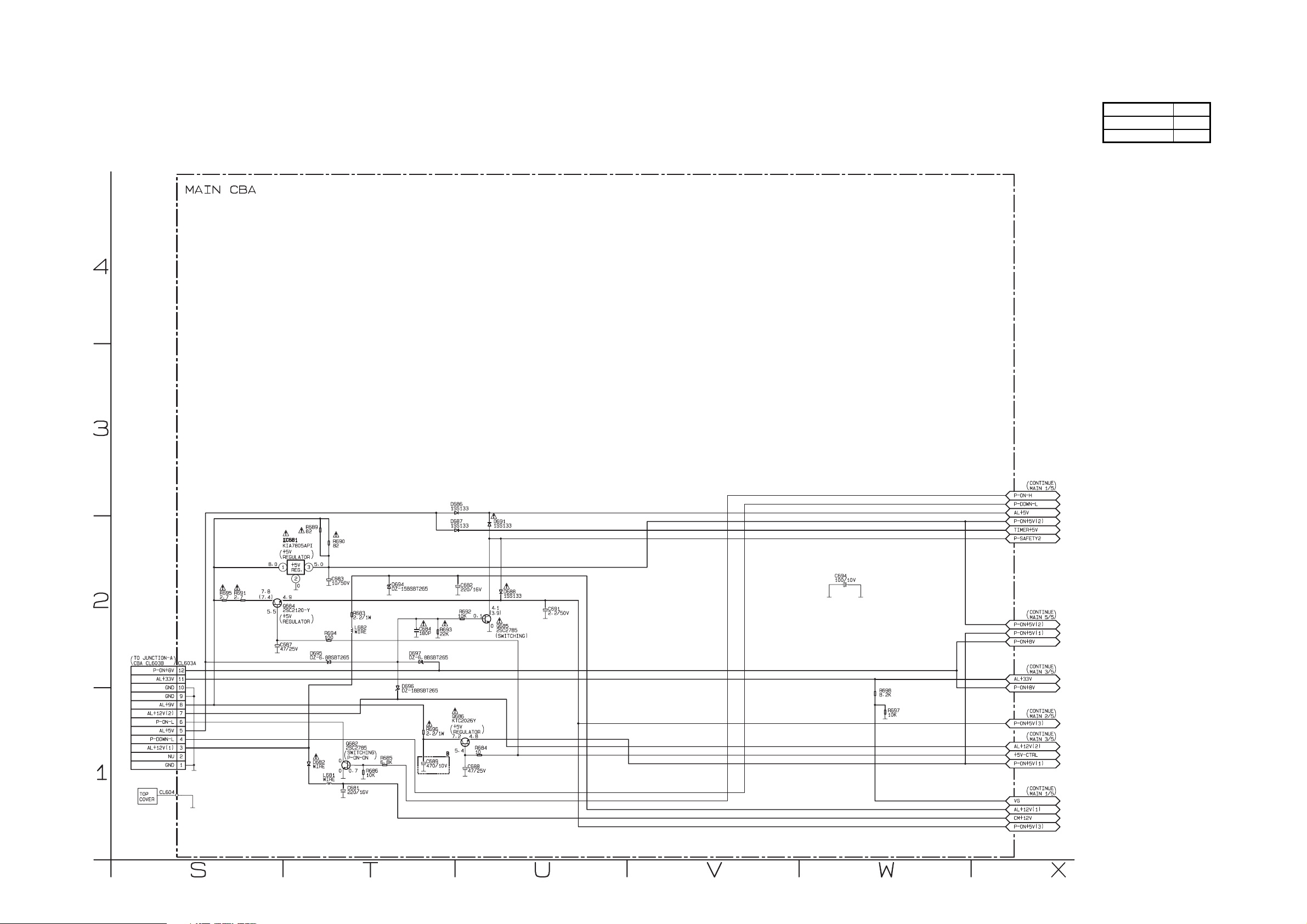

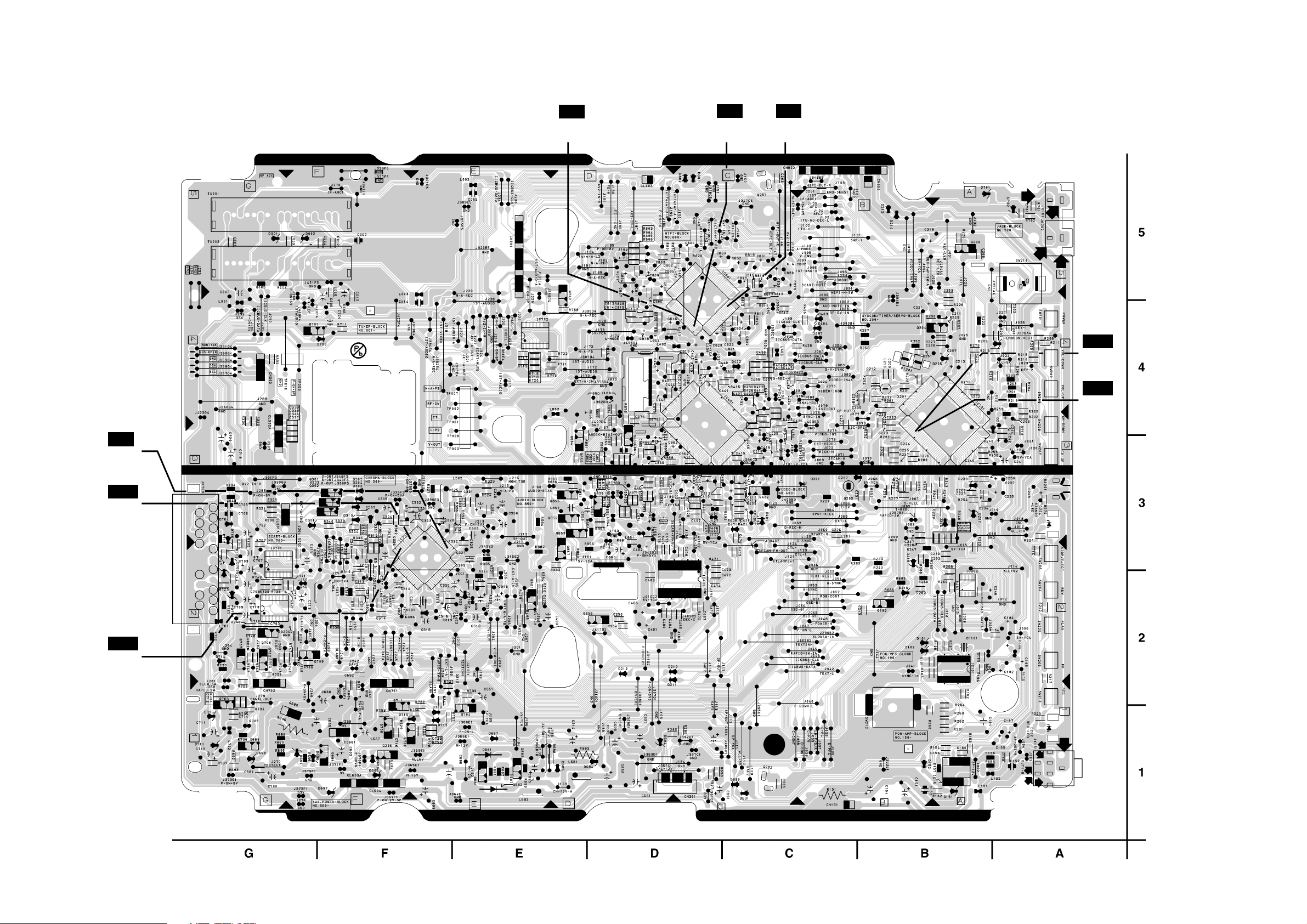

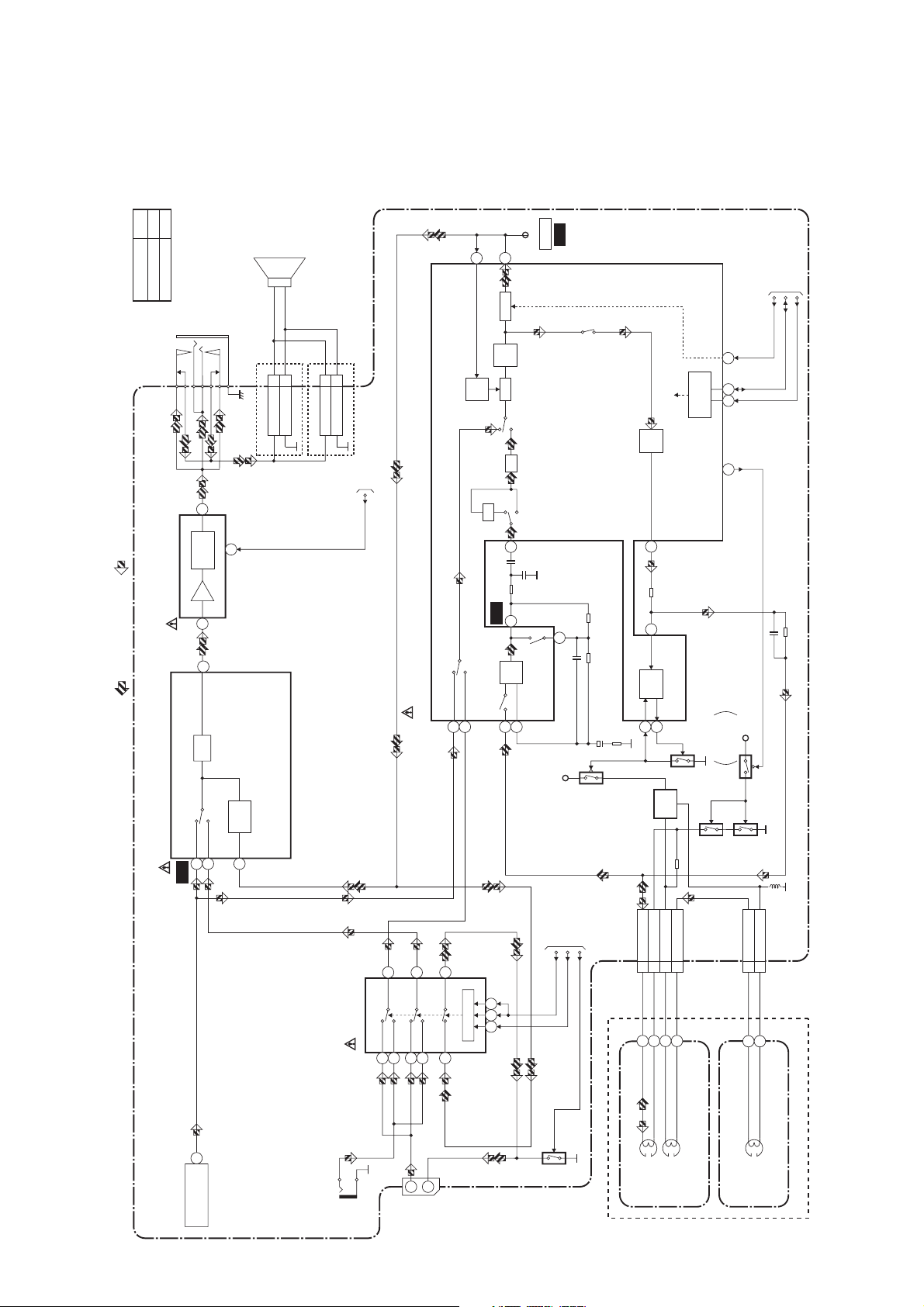

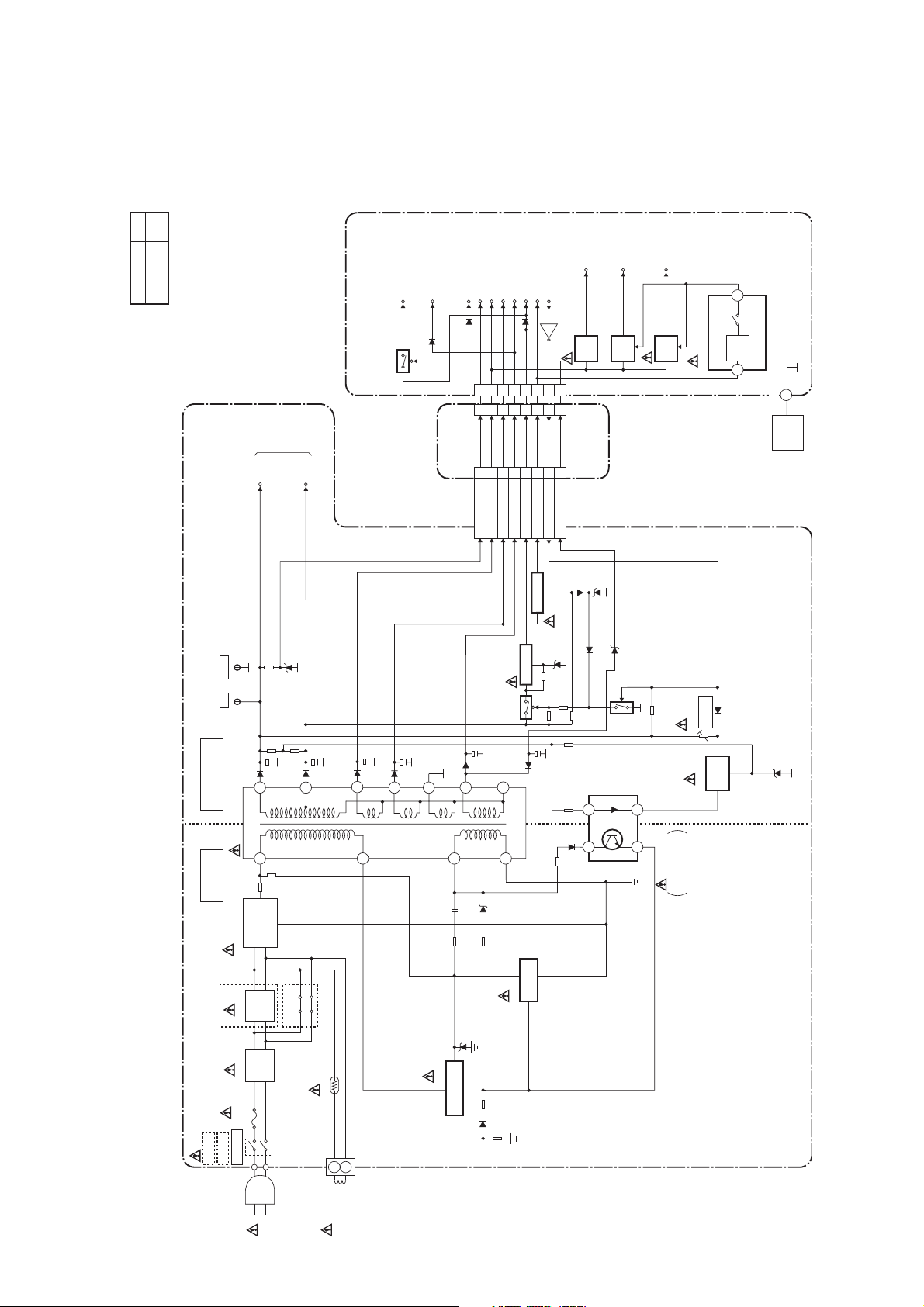

Schematic Diagrams / CBA’s and Test Points. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8-1

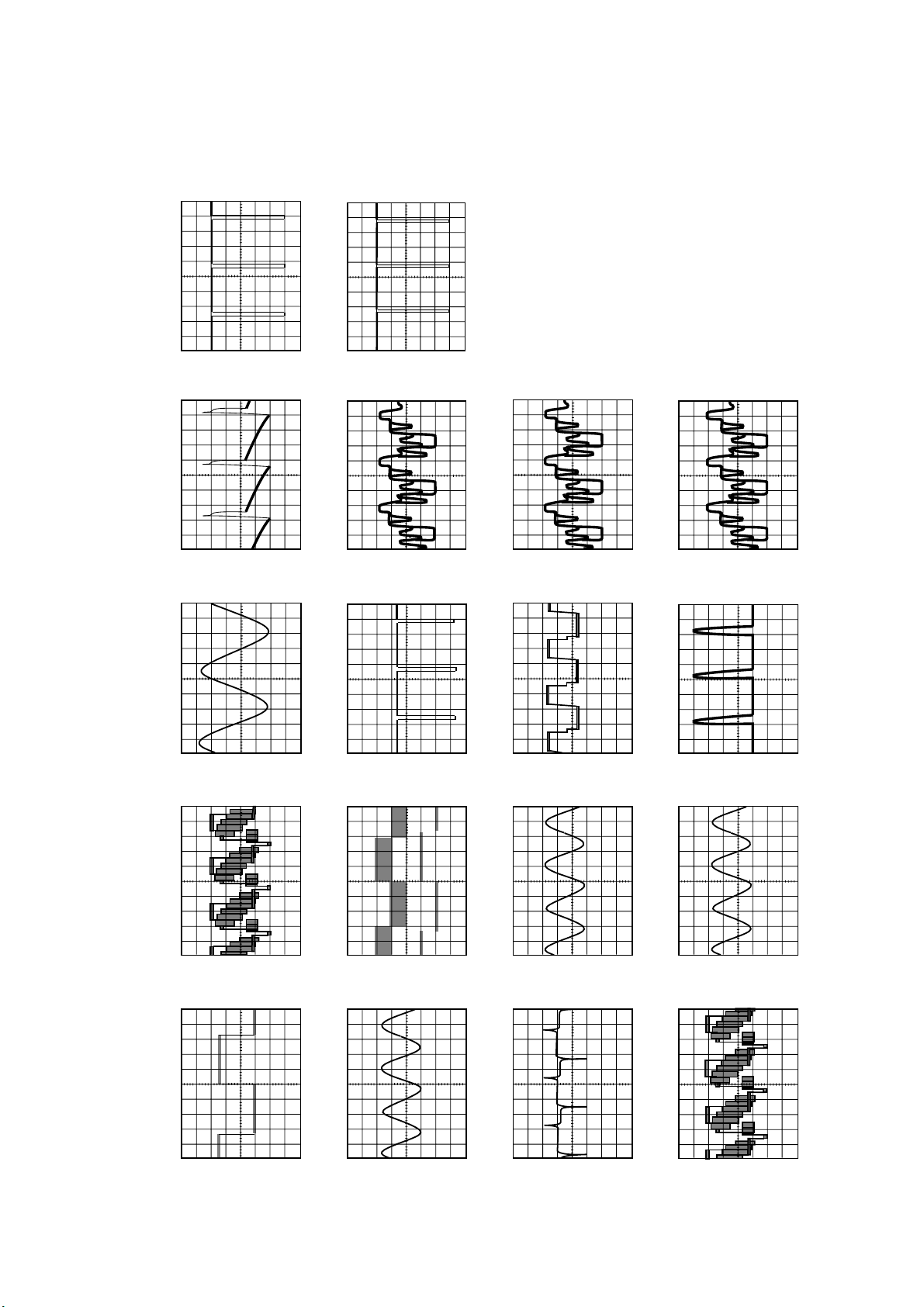

Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9-1

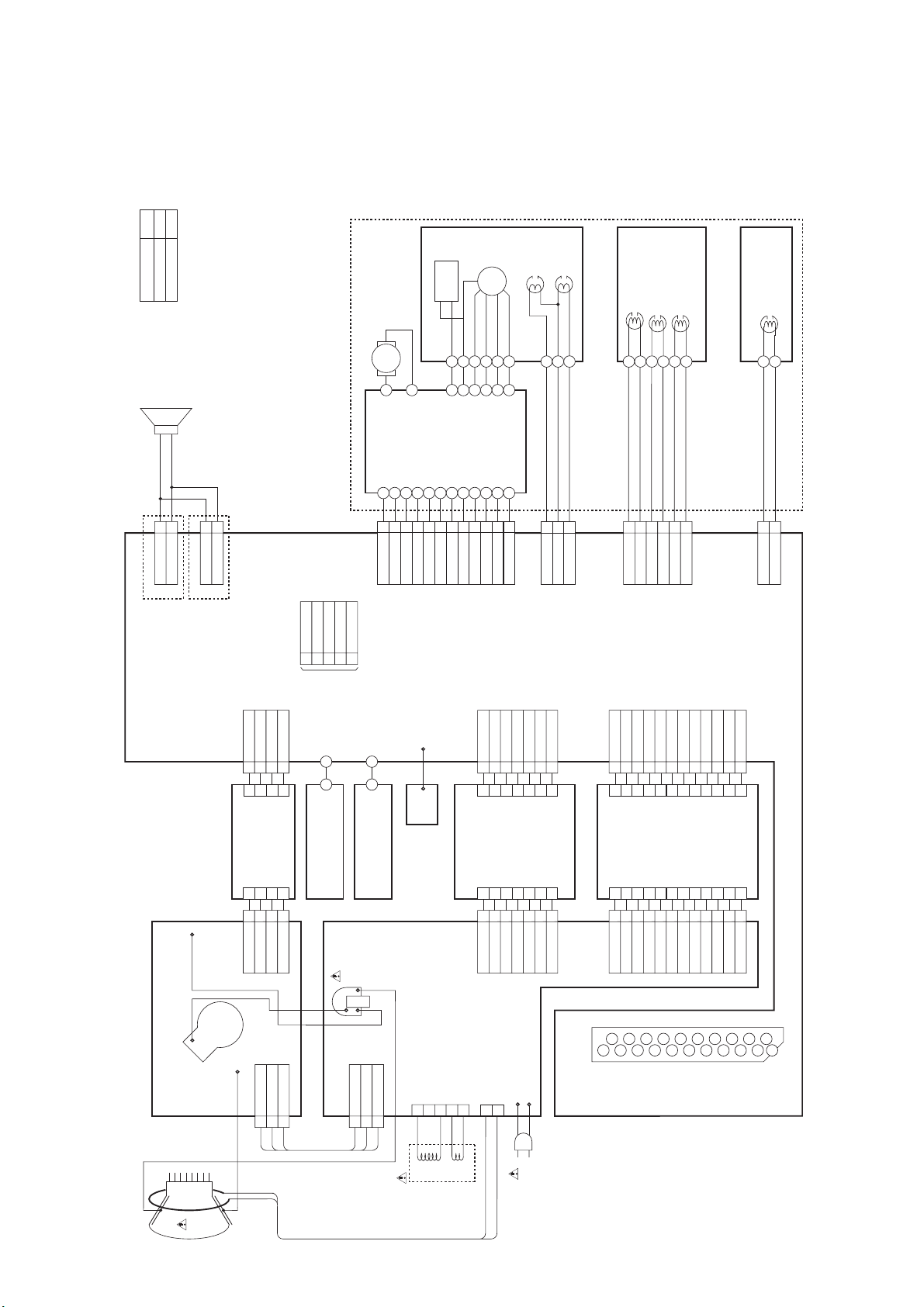

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10-1

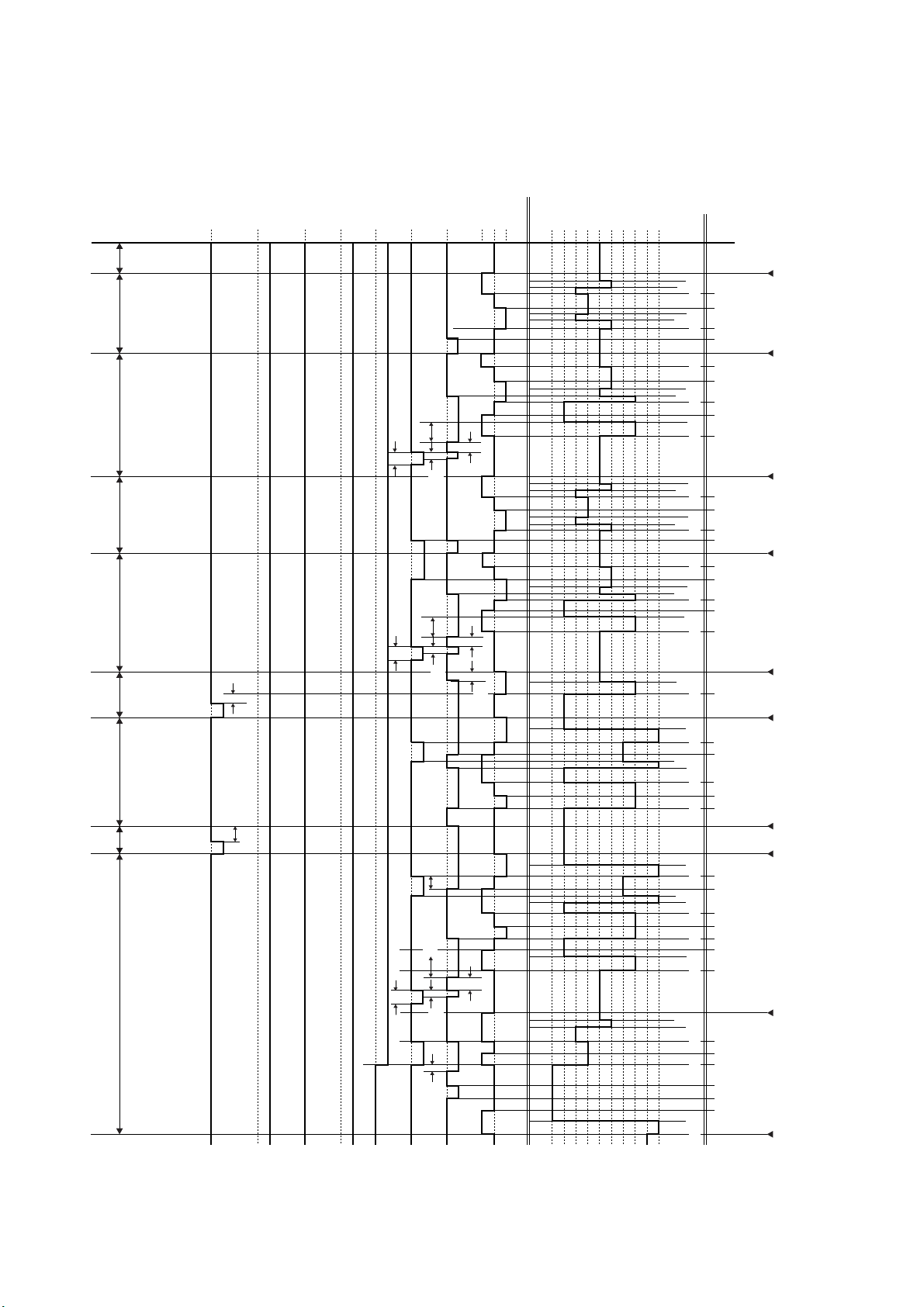

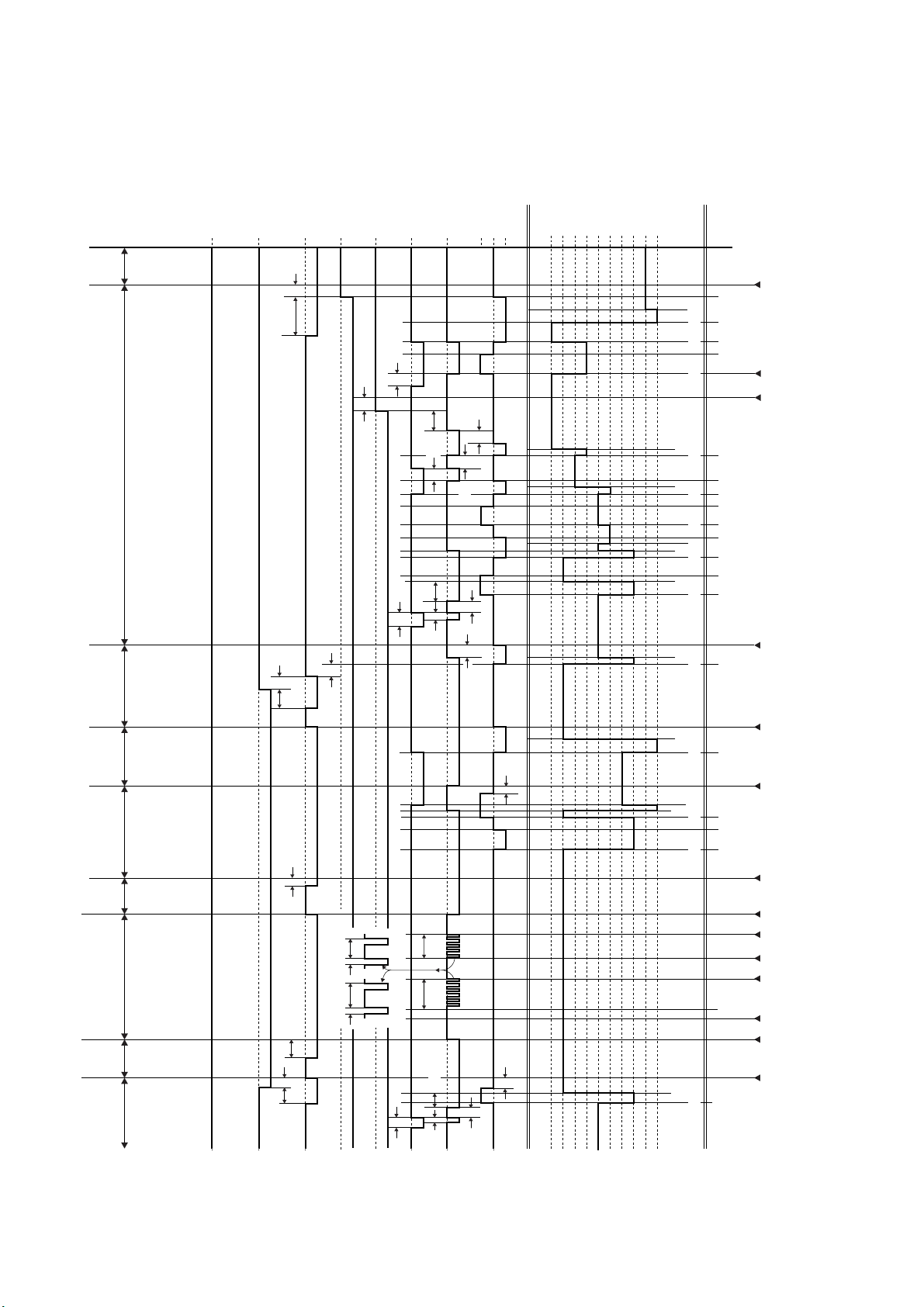

System Control Timing Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11-1

IC Pin Function Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12-1

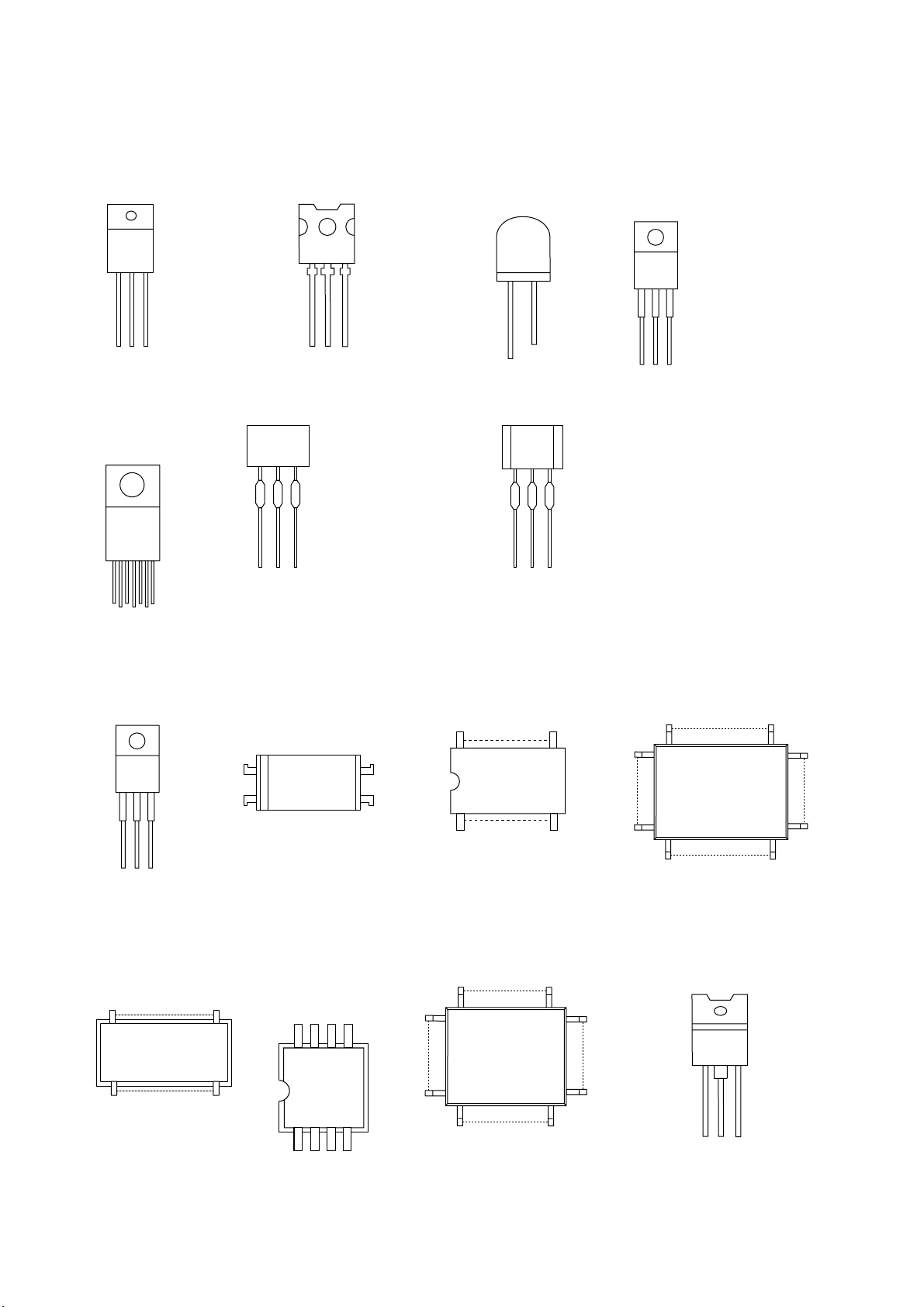

Lead Identifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13-1

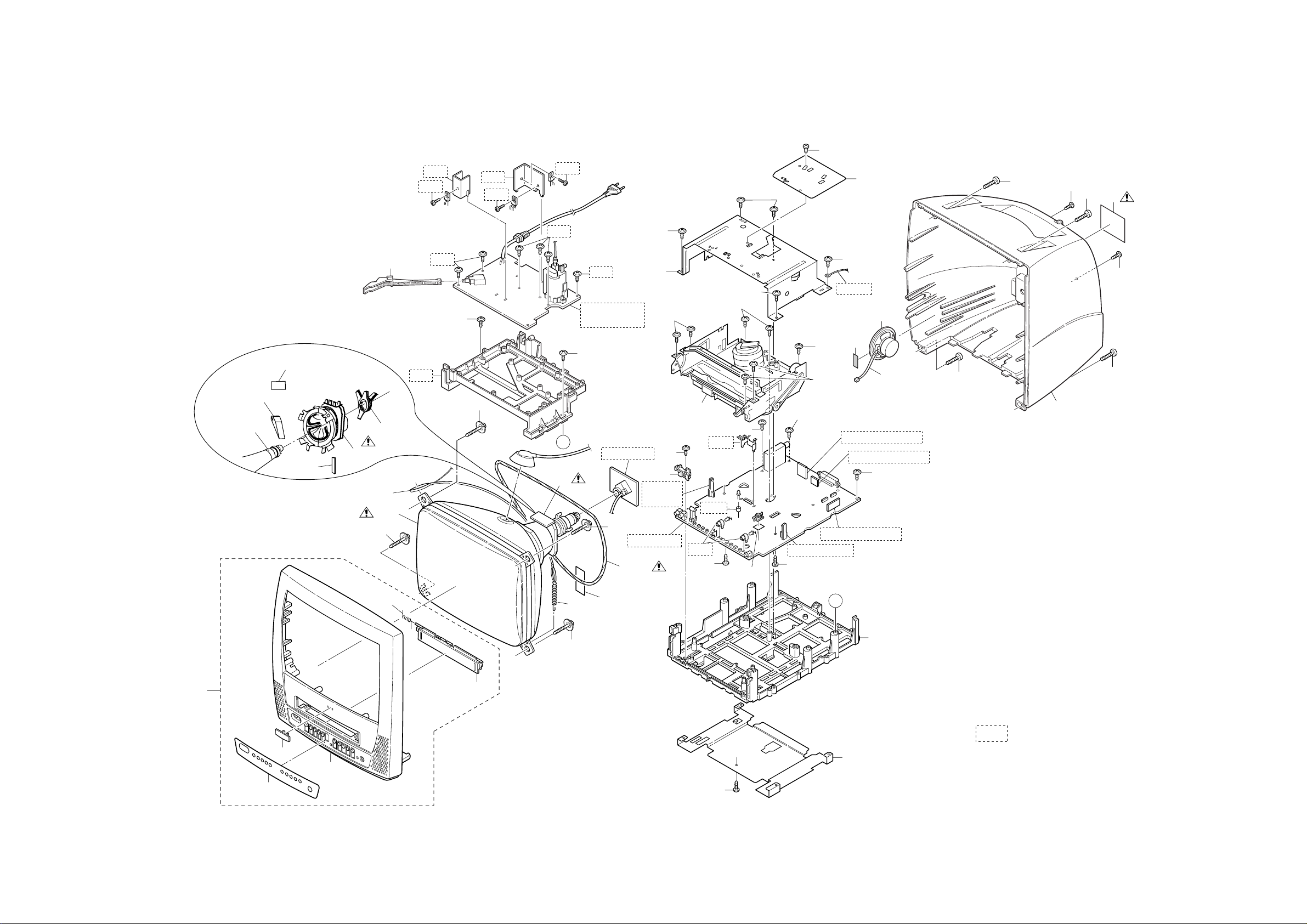

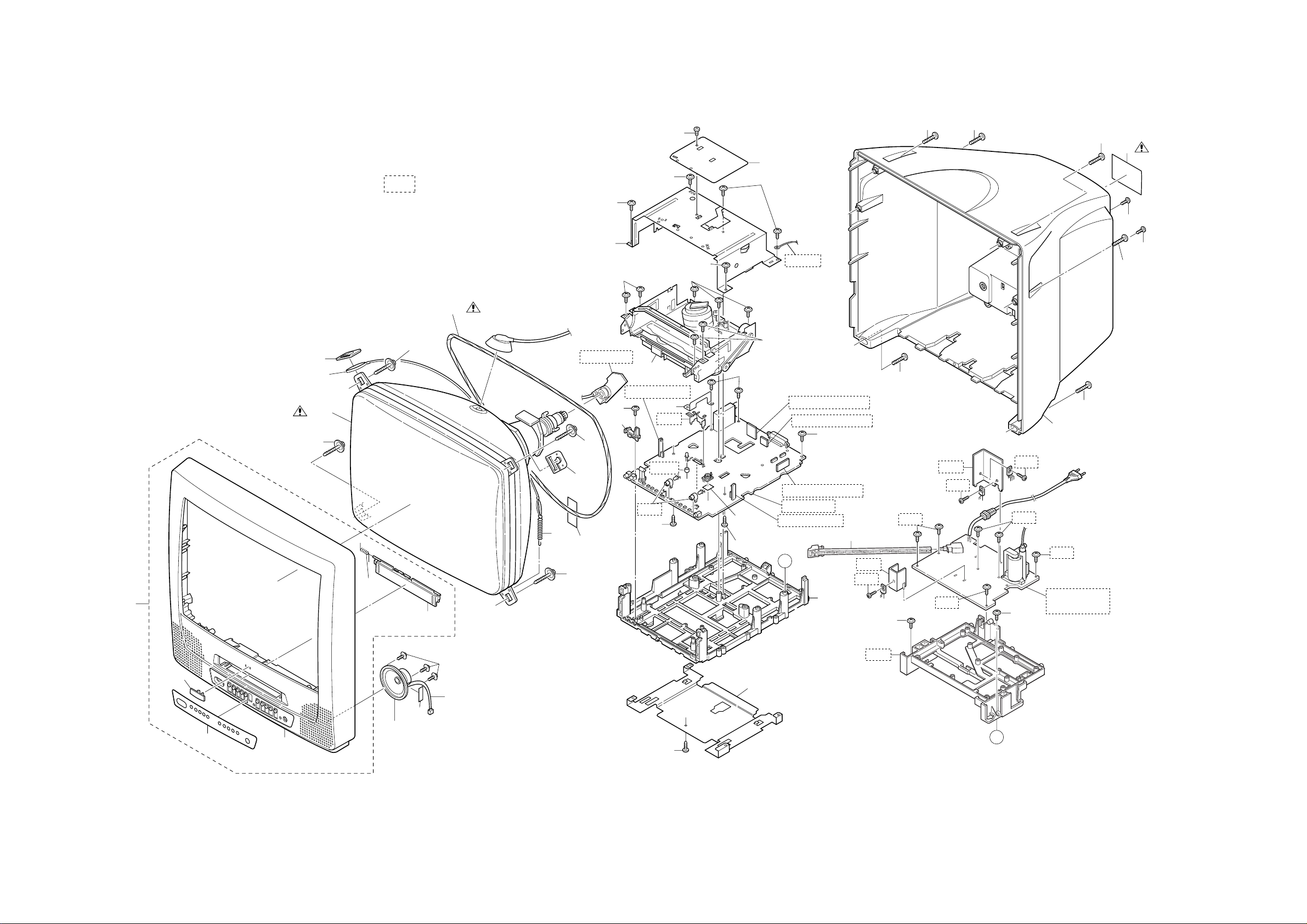

Cabinet Exploded Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14-1

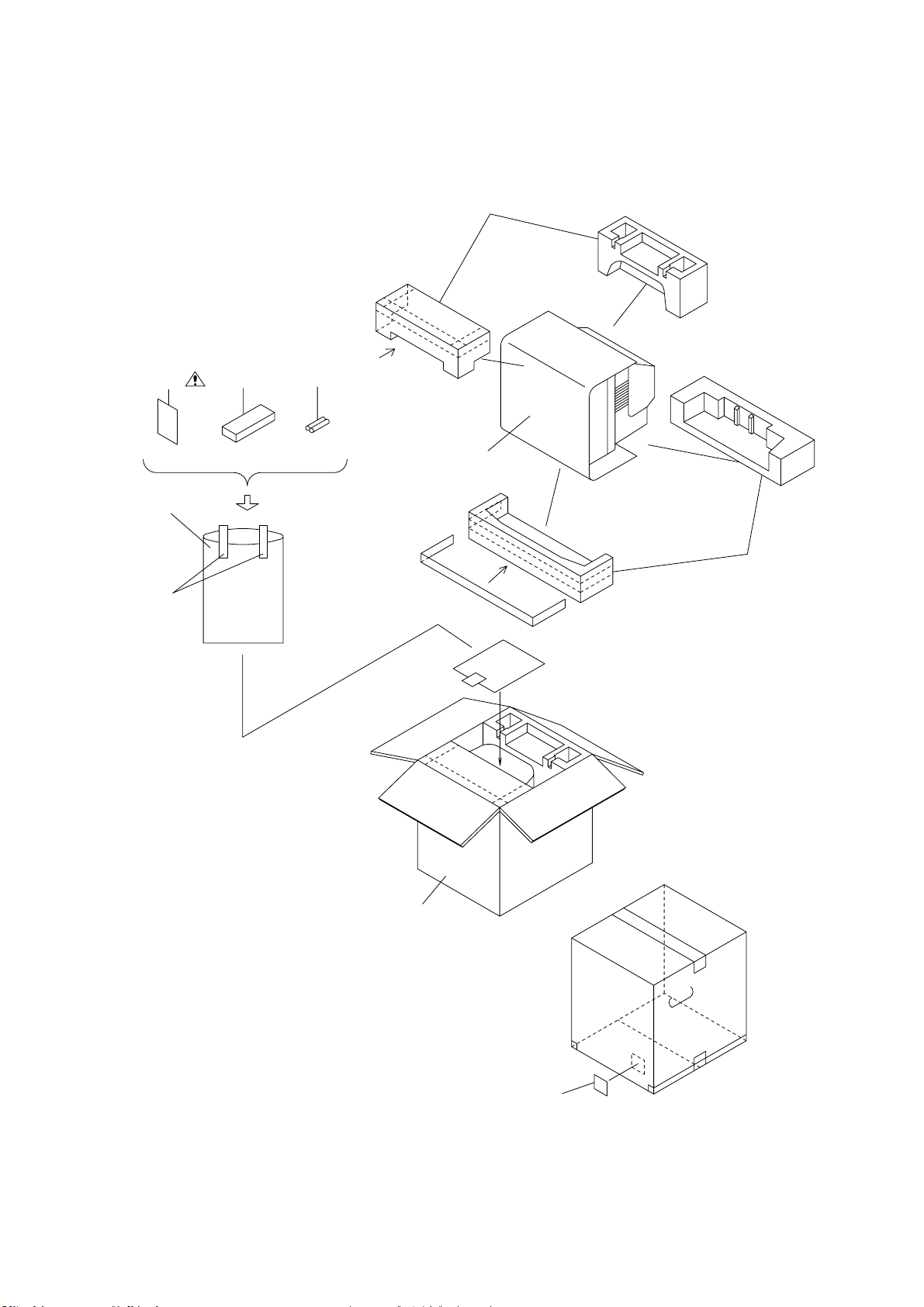

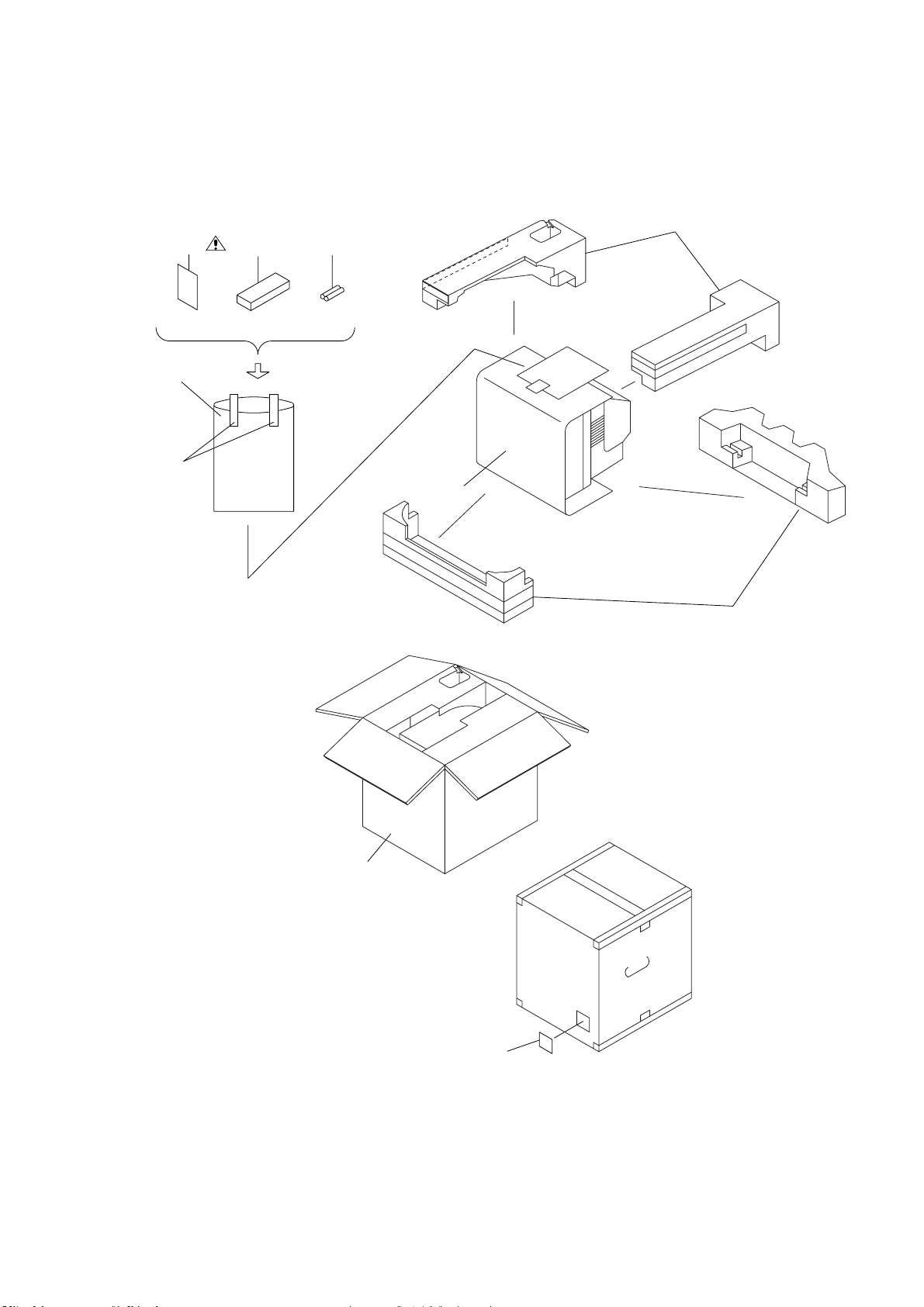

Packing Exploded Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14-5

Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15-1

Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16-1

SPECIFICATIONS

*ˆMode---------SP mode unless otherwise specified *Test input terminal

<Except Tuner>-------------Video input (1Vp-p) Audio input (-10dB) <Tuner>-----------------------Ant. input (80dBµV) Video: 87.5% mod.(BG/DK), 80.0% mod.(I) Audio: 30kHz div (1kHz Sin)

<DEFLECTION> [ T6605VF ]

Description Condition Unit Nominal Limit

1. Over Scan — % 90 85/95

2. Linearity Horizontal % — ±15 Vertical % — ±10

3. High Voltage — kV 22 —

[ T6705VF ]

Description Condition Unit Nominal Limit

1. Over Scan — % 90 85/95

2. Linearity Horizontal % — ±15 Vertical % — ±10

3. High Voltage — kV 25 —

<VIDEO & CHROMA> [ T6605VF ]

Description Condition Unit Nominal Limit

1. Misconvergence Center m/m — 0.6

Corner m/m — 2.0

Side m/m — 1.5

2. Contra st Control Range — dB — 6

3. Brightness APL 100% ft-L 55 40

4. Color Temperature — K 8500 —

[ T6705VF ]

Description Condition Unit Nominal Limit

1. Misconvergence Center m/m — 0.6

Corner m/m — 2.5

Side m/m — 1.8

2. Contra st Control Range — dB — 6

3. Brightness APL 100% ft-L 35 24

4. Color Temperature — K 8500 —

1-1-1 T6605SP

<VCR>

Description Condition Unit Nominal Limit

1. Horizontal Resolution (R/P) Line 230 200

2. Jitter (Low) (R/P) µS 0.05 0.2

3. S/N Chroma AM(SP) (R/P) dB 38 33

PM(SP) (R/P) dB 36 33

4. Wow & Flutter (RMS) (R/P) % 0.25 0.5

<TUNER>

Description Condition Unit Nominal Limit

1. Video S/N — dB 45 40

2. Audio S/N (W/LPF) — dB 43 40

<AUDIO>

All items are measured across 8Ω resistor at speaker output terminal.

Description Condition Unit Nominal Limit

1. Audio Output Power (Max.) (R/P) W 1.0 0.8

2. Audio S/N (W/LPF) (R/P) dB 40 36

3. Audio Distortion (W/LPF) (R/P) % 3.0 5.0

4. Audio Freq. Respon se

(-20dB Ref. 1kHz)

Note: Nominal specificati ons represent the design speci fications. All units should be able to app roximate these. Some will exceed and some may drop slightly b elow these spec ificatio ns. Limit specif ications repr esent the absolute worst conditi on that still might be c onsidered a cceptable. In no cas e should a unit fail to meet limit speci fications.

200Hz (R/P)

6kHz (R/P)

dB dB

— —

5.0/-10

TV Norm Tuner Sensivity Receptive TV Channels

PAL-B/G

NOM: VHF 46dBµV / UHF 47dBµV MAX: VHF 53dBµV / UHF 56dBµV

E2 - E12, IA - IH, E21 - E69, S01 - S03, Z+1, Z+2, S1 - S41, gap2

1-1-2 T6605SP

IMPORTANT SAFETY PRECAUTIONS

Prior to shipment from the factory , our pro ducts are strictl y insp ected for re cogni zed product safety and elec trical codes of the countries in which they are to be sold. Howev er, in order to ma intain such c ompliance, it is equally important to implement the following precautions when a set is being serviced.

Safety Precautions for TV Circuit

1. Before returning an instrument to the custom-

er, always make a saf ety check of the entire instru-

ment, including, but not limited to, the following items:

a. Be sure that no built-in protective devices are de-

fective and have been defeated during servicing. (1) Protective shields ar e p rovid ed o n thi s ch ass i s to protect both the technician and the customer. Correctly replace all missing protective shields, including any removed for servicing convenience. (2) When reinstalli ng the cha ssis and/o r other as sembly in the cabinet, be sure to put back in place all protective devices, including but not lim ited to, nonmetallic control knobs, insulating fishpapers, adjustment and com part ment covers/shields, and isolation resistor/capacitor networks. Do not oper-

ate this instrument or permit it to be operated without all protective devices correctly installed and functioning. Servicers who defeat safety features or fail to perform safety checks may be liable for any resulting damage.

b. Be sure that there are no cabinet openings through

which an adult or child might be able to insert their fingers and contact a hazardous voltage. Such openings include, but are no t limited to, (1) spacing between the picture tube and the cabinet mask, (2) excessively wide cabinet ventilation slots, and (3) an improperly fitted and/or incorrectly secured cabinet back cover.

c. Antenna Cold Check - With the instrument AC

plug removed from any AC source, connect an electrical jumper acr oss the two AC plug prongs. Place the instrumen t AC switch in the on position. Connect one lead of an ohmmeter to the AC plug prongs tied together and to uch the other ohmme ter lead in turn to each tuner antenna input exposed terminal screw and, if applicable, to the coaxial connector. If the measured resistance is less than 1.0 meg ohm or greater than 5. 2 megohm, an abnorm ality exists that must be correct ed before the instrument is re tur ned to the cust omer. Repeat this test with t he instrument AC switch in the off position.

d. Leakage Current Hot Check - With the instru-

ment completely reassembled, plug the AC line cord directly into a 120V AC outlet. (Do not use an isolation transformer dur ing thi s test.) Use a leak-

age current teste r or a me tering system tha t c om plies with American National Standards Institute (ANSI) C101.1 Leakage Current for Appliances and Underwriters Lab oratories (UL) 1410, (50.7). With the instrument AC switch first in the on po sition and then in the o ff position, measure from a known earth ground (metal water pipe, conduit, etc.) to all exposed metal par ts of the instr ument (antennas, handle brackets, metal cabinet, scr ew heads, metallic overlays, control shafts, etc.), especially any exposed metal parts that offer an electrical return path to the chassis. Any current measured must not exceed 0.5 milli-ampere. Reverse the instrument power cord plug i n the out let and repeat the test.

READING SHOULD NOT BE ABOVE 0.5 mA

LEAKAGE

DEVICE

BEING

TESTED

TEST ALL EXPOSED

METAL SURFACES

ALSO TEST WITH PLUG REVERSED USING AC ADAPTER PLUG

AS REQUIRED

CURRENT

TESTER

EARTH GROUND

ANY MEASUREMENTS NO T WITHIN THE LIMITS SPECIFIED HEREIN INDICATE A POTENTIAL SHOCK HAZARD THAT MUST BE ELIMINATED BEFORE RETURNING THE INSTRUMENT TO THE CUSTOMER OR BEFORE CONNECTING THE ANTENNA OR ACCESSORIES.

e. X-Radiation and High Voltage Limits - Because

the picture tube i s the prim ary potentia l source of X-radiatio n in solid- state TV receiver s, it is s pecially constructed to prohibit X-radiation emissions. For continued X-radiation pr otection, the replacement picture tube must be the same type as the original. Also, because the picture tube shields and mounting hardware perform an X-radiation protection function, they must be correctly in place. High voltage must be mea su re d ea ch tim e s er vic -

1-2-1 T6600SFTY

ing is performed that inv olves B+, horizontal deflection or high voltage. Correct operation of t he X-radiation protection c ircu its a ls o m ust b e rec on firmed each time they are serviced. (X-radiation protection circuits also may be called "horiz ontal disable" or "hold do wn.") R ead a nd a ppl y th e hi gh voltage limits a nd, if the chassis is so e quipped, the X-radiation protection circuit specifications given on instrument labe ls and i n the P roduct S afety & X-Radiation Warning note on the service data chassis schematic. High voltage is maintained within specified limits by close tolerance safety-related components/adjus tme nts in th e hig h-vo lta ge circuit. If high voltage exceeds specified limits, check each component specified on the chassis schematic and take corrective action.

2. Read and comply with all caution and safety-related notes on or inside th e receiver cabi net, on the receiver chassis, or on the picture tube.

3. Design Alteration Warning - Do not alter or add to the mechanical or electrical design of this TV receiver. Design alterations and additions, including, but not limited to circuit modificatio ns and the addition of items such as auxiliary audio and/or video output connections, mig ht alter the safety ch aracteristics of this receiver and create a hazard to the user. Any design alter ations or addition s will void the manufacturer's warr anty and may make you, the servicer, responsible for personal injury or property damage resulting therefrom.

4. Picture Tube Implosion Protection Warning -

The picture tube in this receiver employs integral implosion protection. For continued implosion protection, replace the pic ture tube only with one of the same type numbe r. Do not rem ove, install , or otherwise handle the picture tube in any ma nner without first putting on shatterproof goggles equipped with side shields. People not so equipped must be ke pt safely away while p icture tubes are handled. Keep the picture tube away from your body. Do not handl e the pictur e tu be b y its neck. Some "in-line" picture tubes are equipped with a permanently at tached deflection yoke ; because of potential hazard, do not try to remove such "permanently attached" yokes from the picture tube.

5. Hot Chassis Warning -

a. Some TV receiver chassis are electrically connect-

ed directly to one conduc tor of th e AC powe r cor d and maybe safety-serviced without an isolation transformer only i f the AC power plug i s inserted so that the chassis is connected to the ground side of the AC power source. To confi rm that the AC power plug is ins erted correctly, with an AC voltmeter, measure between the chassis and a known

earth ground. If a voltage reading in excess of 1.0V is obtained, remove and reinsert the AC power plug in the opposite polarity and again measure the voltage potential between the chassis and a known earth ground.

b. Some TV receiver chassis normally have 85V

AC(RMS) between ch assis and earth ground regardless of the AC plug polarity. This chassis can be safety-serviced only with an isolation transformer inserted in the power line between the receiver and the AC power so urce , for both pers onnel and test equipment protection.

c. Some TV receiver chassis have a secondary

ground system in addition to the main chassis ground. This se conda ry gro und s ystem is no t iso lated from the AC power line. The two ground systems are electrically separated by insulation material that must not be defeated or altered.

6. Observe original lead dress. Take extra care to assure correct lead dres s in the following areas: a. near sharp edge s, b. near thermal ly hot parts-be sure that leads and components do not touch thermally hot parts, c. the AC su pply, d. high volta ge, and e. antenna wiring. Alway s inspe ct in all ar eas for pinched, out of plac e, or frayed wiring. C heck AC power cord for damage.

7. Components, parts, and/or wiring that appear to have overheated or are otherwise damaged should be replaced with components, parts, or wiring that meet origin al specifications. Additiona lly, determine the cause of ov erheating and/or damage and, if necess ary, take corrective action to remove any potential safety hazard.

8. Product Safety Notice - Some electrical and mechanical parts have s pecia l safety- relat ed char acteristics which are often not evident from visual inspection, nor can the protection they give necessarily be obtained by replaci ng them with components rated for higher voltage, wattage, etc.. Parts that have special safety characteristics are identified by a ( ! ) on schematics and in parts lists. Use of a substitute replacement that does not have the same safety characteristics as the recommended replacement part might create sh ock, fire, and/or other hazards. The Product's Safety is under review continuously and new instructions are issued whenever appropriate . Prior to shi pment from the factory, our products are strictly inspected to confirm with the recognized product safety and electrical codes of the countrie s in which they ar e to be sold. However, in order to maintain such compliance, it is equal ly important to imp lement the following precautions when a set is being serviced.

1-2-2 T6600SFTY

Precautions during Servicing

A. Parts identified by th e ( ! ) symbol are critical for

safety. Replace only with part number specified.

B. In addition to safety , other parts and assemblies

are specified for confo rmanc e wit h reg ul ati ons applying to spurious radiation. These must also be replaced only with specified replacements.

Examples: RF converters, RF cables, noise blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors. E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of wires securely about the terminal s before soldering.

F. Observe that the wires do not contact heat produc-

ing parts (heatsinks, oxide metal film resistors, fusible resistors, etc .)

G. Check that replaced wires do not contact sharp

edged or pointed parts.

H. When a power cord has been replaced, check that

5~6 kg of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations. J. Use care that foreign objects (screws, solder drop-

lets, etc.) do not remain inside the set.

K. Crimp type wire connector

When replacing the power transformer in sets where the connections between the power cord and power tr an s fo rm e r pr im ar y le a d w i res are performed using crimp type connectors, in order to prevent shock ha za rd s, pe rfo rm c arefully and precisely the following steps.

Replacement procedure

1) Remove the old connector by cutting the wires at a point close to the connector.

Important: Do not re-use a connector (discard it).

2) Strip about 15 mm of the insulation from the ends of the wires. If the wires are stranded, twist the strands to avoid frayed conductors.

3) Align the lengths of the wires to be connected. Insert the wires fully into the connector.

4) Use the crimping tool to crimp the metal sleeve at the center position. Be sure to crimp fully to the complete closure of the tool.

L. When connecting or dis connecting the VCR con-

nectors, first, disconnect the AC plug from AC supply socket.

1-2-3 T6600SFTY

Safety Check after Servicing

Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts and wires have been returned to original positions. Afterwards, perform the following tests and confirm the specified values in order to verify compliance with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm specified clearance distance (d) and ( d') between so ldered terminals, and between terminals and surrounding metallic parts. (See Fig. 1)

Table 1 : Ratings for selected area

AC Line Voltage Clearance Distance (d), (d’)

220 to 240 V

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

2. Leakage Current Test

Confirm the specified (or lower) leakage current between B (earth ground, power cord plug prongs) and externally exposed accessible parts (RF terminals, antenna termina ls, video and audio input and output terminals, microphone jacks, earphone jacks, etc.).

≥ 3mm(d)

≥ 6 mm(d’)

Chassis or Secondary Conductor

Primary Circuit Terminals

dd’

Exposed Accessible Part

AC Voltmeter (High Impedance)

Fig. 1

Measuring Method : (Power ON)

Insert load Z between B (earth ground, power cord plug prongs) and exposed accessible parts. Use an AC voltmeter to measure across both terminals of load Z. See Fig. 2 and following table.

Table 2: Leakage current ratings for selected areas

AC Line Voltage Load Z Leakage Current (i)

2kΩ RES.

Connected in

220 to 240 V

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

parallel

50kΩ RES.

Connected in

parallel

i≤0.7mA AC Peak

i≤2mA DC

i≤0.7mA AC Peak

i≤2mA DC

One side of

Power Cord Plug Prongs

One side of power cord plug

prongs (B) to:

RF or

Antenna terminals

A/V Input, Output

Fig. 2

1-2-4 T6600SFTY

STANDARD NOTES FOR SERVICING

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is indicated as sho wn:

Top View

Out

2. For other ICs, pin 1 and every 5th pin is ind icated as shown:

Pin 1

3. The 1st pi n of every pin c onnec tor are i ndicated as shown:

Input

Bottom View

How to Read t he Values of th e R ect angular Type Chip Components

Example: (a) Resistor

473

= 473 = 47 [kΩ]

(b) Capacitor

= Not Shown

Caution:

Once chip parts (Resistors, Capacitors, Transistors, etc.) are removed, they must not be reused. Always use a new part.

(Top View)

Pin 1

Instructions for Connectors

1. Whe n you connect or disconnect FFC cable (connector), be sure to disconnect the AC cord.

2. FFC cable (connector) should be i nserted parallel into the connector, not at an angle.

FFC Cable

Connector

CBA

* Be careful to avoid a short circuit.

[ CBA= Circuit Board Assembly ]

Pb (Lead) Free Solder

Pb free mark will be found on PCBs used Pb free solder. (Refer to figure.) For PCBs with Pb free mark, be sure to use Pb free solder. For PCBs without Pb free mark, use standard solder.

Pb free mark

Replacement Procedures for Leadless (Chip) Components

The Following Procedures are Recommended for the Replacement of the Leadless Components Used in this Unit.

1. Preparation for replacement

1.1. Pb free solder

a. Soldering Iron

Use a soldering iron for Pb free solder.

b. Solder

Be sure to use Pb free solder.

c. Soldering time

Do not apply heat for more than 4 seconds.

d. Preheating

Leadless capacitor must be preheated before installation. (130°C~150°C, for about two minutes.)

1-3-1 T6600STA

1.2. Standard solder

e. Solder i ng Iron

Use a pencil-type soldering iron (less than 30 watts).

f. Solder

Eutectic solder (Tin 63%, Lead 37%) is recommended.

g. Solder i ng tim e

Do not apply heat for more than 4 seconds.

h. Preheating

Leadless capacitor must be preheated before installation. (130°C~150°C, for about two minutes.)

Notes:

a. Leadless components must not be reused after

removal.

b. Excessive mechanical stress and rubbing for the

component electrode must be avoided.

2. Removing the leadless component

Grasp the leadless component body with tweezers and alternately apply heat to both electrodes. When the solder on both electrodes has melted, remove leadless component with a twisting motion.

Notes:

a. Do not attem pt to lift the component off the boa rd

until the component is completely disconnected from the board by the twisting action.

b. Take care not to br eak t he c opper f oi l on t he p rinte d

board

3. Installing the leadless component

a. Presolder the contact points of the circuit board. b. Press t he par t d ownward with tweezers an d solder

both electrodes as shown below.

Note:

Do not glue the replacement leadless component to the circuit board.

Tweezers

Chip

Soldering Iron

Tweezers

Soldering Iron

Solder

Soldering Iron

Presolder

How to Remove / Install Flat Pack IC

Caution:

1. The Flat Pack-IC shape may differ by models. Use an appropriate hot-air flat pack-IC desoldering machine, whose shape matches that of the Flat PackIC.

2. Do not apply the hot air to the chip parts around the

Flat Pack-IC for over 6 seconds as damage may occur to the chip par ts. Put Masking Tap e around the Flat Pack-IC to protect other par ts from damage. (Fig. S-1-2)

3. The Flat Pack-IC on the CBA is affixed with glue, so

be careful not to break or damage the foil of each pin or solder lands under the IC when removing it.

1. Removal

With Hot - Air Flat Pack - IC Desoldering Machine:

a. Prepare the Hot - Air Flat Pack - IC Desoldering

Machine, then apply hot air to Flat Pack - IC (about 5~6 seconds). (Fig. S-1-1)

b. Remove the Flat Pack- IC with tweezers while

applying the hot air.

With Soldering Iron:

a. Using desoldering braid, remove the solder from all

pins of the Flat Pack - IC. When you use solder flux which is applied to all pins of the Flat Pack - IC, you can remove it easily. (Fig. S-1-3)

b. Lift eac h lead of the Flat Pack - IC upward one by

one, using a shar p pin or wire to which solde r will not adhere (iron wire). When heatin g the pins, use a fine tip soldering iron or a hot air Desoldering Machine. (Fig. S-1-4)

With Iron Wire:

a. Using desoldering braid, remove the solder from all

pins of the Flat Pack - IC. When you use solder flux which is applied to all pins of the Flat Pack - IC, you can remove it easily. (Fig. S-1-3)

1-3-2 T6600STA

b. Affix the wire to a workbench or solid mounting

point, as shown in Fig. S-1-5.

c. Pull up on the wire as the s older melt s so as to lift

the IC leads from the CBA contact pads, while heating the pins using a fine tip soldering iron or hot air blower.

Note:

When using a solder ing iron, care must be taken to ensure that the F lat Pack - IC is not being held by glue, or when it is removed from the CBA, it may be damaged if force is used.

2. Installation

a. Using desoldering braid, remove the solder from

the foil of each pin of the Flat Pack - IC on the CBA, so you can install a replacement Flat Pack - IC more easily.

b. The " I" mar k on the Fla t Pack - IC indicates pin 1

(See Fig. S-1-6). Ma ke sure this mar k m atches the 1 on the CBA when positioning for installation. Then pre - solder the four corne rs of the Flat PackIC (See Fig. S-1-7).

c. Solder all pins of the Flat Pack - IC. Make sure that

none of the pins have solder bridges.

Flat Pack-IC

Fine Tip Soldering Iron

Desoldering Braid

Soldering Iron

Fig. S-1-3

Sharp Pin

Fig. S-1-4

CBA

Fig. S-1-1

Hot-air Flat Pack-IC Desoldering Machine

Hot Air Blower

Iron Wire

Soldering Iron

To Solid Mounting Point

Fig. S-1-5

Example :

Masking Tape

Tweezers

Flat Pack-IC

Fig. S-1-2

Pin 1 of the Flat Pack-IC is indicated by a " " mark.

1-3-3 T6600STA

Fig. S-1-6

Presolder

Grounding Band

1MΩ

CBA

Flat Pack-IC

CBA

Fig. S-1-7

Instructions for Handling Semiconductors

Electrostatic breakdown of the semiconductors may occur due to a potential di fference caused by electrostatic charge during unpacking or repair work.

Ground for Human Body

Be sure to wear a groun ding band (1M Ω) that is properly grounded to re move any static electr ici ty that may be charged on the body.

Ground for Work Bench

Be sure to plac e a conductive sheet or copper plate with proper grounding (1MΩ) on the work bench or other surface, where the semiconductors are to be placed. Because the static electricity charge on the clothing will not escape through the body grounding band, be careful to avoid contacting semiconductors to clothing.

1MΩ

Conductive Sheet or Copper Plate

CBA

1-3-4 T6600STA

PREPARATION FOR SERVICING

How to Enter the Service Mode

Caution: 1

1. Optical sensors system are used for Tape Start and End Sensor on this equipment. Read this page carefully and prepare as described on this page before startin g to service; otherwise, the unit may operate unexpectedly.

Preparing: 1

1. Cover Q202 (START SENSOR) and Q201 (END SENSOR) with Insulati on Tape or enter the service mode to activate Sensor Inhibition automatically.

Note: Avoid playing, rewinding or fast forwarding the tape to its begin ning or end, because both Tape End Sensors are not active.

How to Enter the Service Mode

1. Turn the power on. (Use main power on the TV unit.)

2. Press [STANDBY/ON], [2], [7], [1], and [MUTE] buttons on the remote control unit in that order within 5 seconds. When entering the service mode, “4” will display at corners of the screen.

3. During the service mode, electrical adjustment mode can be selected by remote control key.

Details are as follows.

Key Adjustment Mode

6 No need to use. 7 No need to use.

Caution: 2

1. The de ck mechanism assembly is mount ed on the Main CBA directly, and SW211 (REC-SAFETY SW) is mounted on the Main CBA. When deck mechanism assembly is removed from the Main CBA due to serv icing, this switch can not be operated automatically.

H. Shift adjustment mode: See adjustment instructions page 1-6-4.

V.size/V. shift adjustment: See adjustment instructions page 1-6-4.

Preparing: 2

1. To eject the tape, press the STOP/EJECT button on the unit (or Remote Control).

2. When you want to re co rd during the Ser v ic e mo de, press the Rec button while depressing SW211 (REC-SAFETY SW) on the Main CBA.

Q201 (END SENSOR)

Q202 (START SENSOR)

Key Adjustment Mode

Picture adjustment mode: Press the MENU button to change from BRT (Bright), *CNT (Contrast), *COL

VOL-

0 1 No need to use. 2

(Color), *TNT(Tint) and SHP(SHARP). Press PROG+/PROG- key to adjust Initial Value. *Marked items are not necessary to adjust normally.

SECAM Black Level adjustment mode: See adjustment instructions page 1-6-3. Cut-Off adjustment mode: See adjustment instructions page 1-6-4. White Balance adjustment mode: See adjustment instructions page 1-6-5.

C-Trap adjustment mode: See adjustment instructions page 1-6-3.

H adjustment mode: See adjustment instructions page 1-6-2.

Head switching point adjustment mode (Auto adjustment): See adjustment instructions page 1-6-7.

Auto record mode: Perform recording (15 Sec.)-->Stop-->Rewind (Zero return) automat ic al ly.

Head switching point adjustment mode (Manual adjustment): See adjustment instructions page 1-6-7.

SW211

(REC-SAFETY SW)

MAIN CBA

1-4-1 T6600PFS

CABINET DISASSEMBLY INSTRUCTIONS

[ T6605VF ]

1. Disassembly Flowchart

This flowchar t indicates the disass embly steps for the cabinet par ts, and the CBA in order to ga in access to item(s) to be ser viced. Whe n reassembling, follow the steps in reverse order. Bend, route and dress the cables as they we re.

Caution !!

When removing the CRT, be sure to discharge the Anode Lead of the CRT with the CRT Ground Wire before removing the Anode Cap.

[1] Rear Cabinet

[2] Power Unit and Tray Chassis Unit

[3] Power Unit[5] H.V./Power

Supply CBA

[4] Tray Chassis Unit

[6] T op Cover

[7] Bottom Plate

[8] Deck Unit

[9] Main CBA

[10] CRT

2. Disassembly Method

REMOVAL

ID/

LOC.

No.

[8] Deck Unit 3, 5

[9] Main CBA 3 4(S-9) 8

[10] CRT 4 4(S-10) 9

↓

(1)

(1): Order of steps in Procedure. Whe n reassembling,

(2): Parts to be removed or installed. (3): Fig. No. showing Procedure of Part Location. (4): Identification of part to be removed, unhooked,

(5): Refer to the following "Reference Notes in the

PART

↓

(2)

follow the steps in reverse order.These numbers are also used as the identi fication (loca tion) No. of parts in Figures.

unlocked, released, unplugged, unclamped, or desoldered. S=Screw, P=Spring, L=Locking Tab, CN=Connector, *=Unhook, Unlock, Release, Unplug, or Desolder

2(S-2) = two Screw (S-2)

Table."

REMOVE/ *UNHOOK/

Fig.

UNLOCK/RELEASE/

No.

UNPLUG/ DESOLDER

7(S-6), (S-7), (S-8), Desolder *(CN201, CL401, CL402, CL403)

↓

(3)

↓

(4)

Note

↓

(5)

REMOVAL

ID/

LOC.

No.

[1]

[2]

[3] Power Unit 3,5

[4]

[5]

[6] Top Cover 3 5(S-4) , CL604 5 [7]

PART

Rear Cabinet

Power Unit and Tray Chassis Unit

Tray Chassis Unit

H.V./Power Supply CBA

Bottom Plate

REMOVE/ *UNHOOK/

Fig.

UNLOCK/RELEASE/

No.

UNPLUG/ DESOLDER

1,2,5

3,4,5

3 ---------- -

36(S-3) 4

3(S-5) 6

4(S-1), 2(S-2), *CN151

Anode Cap, *CN501, *CN551, *CN601, CRT CBA, Power Knob

*CN502, *CN552, *CN602

Note

Reference Notes in the Table

1. Removal of the Rear Cabinet. Remove four screws (S-1) and two screws (S-2). Disconnect connector CN151 and remove the Rear Cabinet.

Caution !!

Discharge the Anode Lead of the CRT with the CRT Ground Wire before removing the Anode Cap.

2. Removal of the Power Unit and Tray Chassis Unit. Discharge the Anode Lead of the CRT with the CRT Ground before removing the Anode Cap. Disconnect the following: Anode Cap, CN501, CN551, CN601, CRT CBA, and Power Button. Then pull the Power Unit and Tray Chassis Unit out backward.

3. Removal of the Power Unit. Disconnect connectors CN502, CN552, and CN602. Then slide the Power Unit out.

4. Removal of the H.V./Power Supply CBA. Remove six screws (S-3) and pull up the H.V./ Powe r Supply CBA.

5. Removal of the Top Cover. Remove five screws (S-4) and CL604, and remove the Top Cover.

1-5-1 T6605DC

6. Removal of the Bottom Plate. Remove a screw (S-5). Then slide the Bottom Plate out front.

7. Removal of the Deck Unit. Remove seven screws (S-6), screw (S-7) and screw (S-8). Then, desolder connectors (CN201, CL401, CL402, CL403) and lift up the Deck Unit.

(S-2)

8. Removal of the Main CBA. Remove four screws (S-9) and pull up the Main CBA.

9. Removal of the CRT. Remove four screws (S-10) and pull the CRT backward.

(S-1)

[1] REAR CABINET

(S-2)

(S-1)

[1] REAR CABINET

Fig. 1

(S-2)

(S-1)

(S-2)

(S-1)

Fig. 2

1-5-2 T6605DC

(S-4)

[4] T ray Chassis Unit

(S-4)

(S-6)

[8] Deck Unit

(S-9)

(S-7)

(S-6)

(S-9)

(S-4)

[6] T op Cover

(S-6)

(S-9)

[9] Main CBA

(S-8)

CL604

(S-9)

Power Button

(S-3)

[2] Power Unit and Tray Chassis Unit

(S-3)

(S-5)

[5] H.V./Power Supply CBA

[7] Bottom Plate

[3] Power Unit

Fig. 3

1-5-3 T6605DC

(S-10)

[10] CRT

Anode Cap

CRT CBA

(S-10)

Fig. 4

1-5-4 T6605DC

ANODE

CRT

GND

CRT CBA

CN501B

SCREEN

CN502

H.V./POWER SUPPLY CBA

CN552

CL501A

FOCUS

CN501

CN551

MAIN CBA

CN151

CN601 TO DEGAUSS COIL

CL403

CL401

CL402

CN201

CN602

CL302A

CL301A

CL603A

TO SPEAKER

CYLINDER ASSEMBLY

FE HEAD

CAPSTAN

ACE HEAD ASSEMBLY

MOTOR

TO T OP COVER

DECK UNIT

CL604

1-5-5 T6605DC

Fig. 5

[ T6607VF ]

1. Disassembly Flowchart

Caution !!

When removing the CRT, be sure to discharge the Anode Lead of the CRT with the CRT Ground Wire before removing the Anode Cap.

[1] Rear Cabinet

[2] Power Unit and Tray Chassis Unit

[3] Power Unit[5] H.V./Power

Supply CBA

[4] Tray Chassis Unit

[6] T op Cover

[7] Bottom Plate

[8] Deck Unit

[9] Main CBA

[10] CRT

2. Disassembly Method

REMOVAL

ID/

LOC.

No.

[8] Deck Unit 3, 5

[9] Main CBA 3 4(S-9) 8

[10] CRT 4 4(S-10) 9

↓

(1)

(1): Order of steps in Procedure. Whe n reassembling,

(2): Parts to be removed or installed. (3): Fig. No. showing Procedure of Part Location. (4): Identification of part to be removed, unhooked,

(5): Refer to the following "Reference Notes in the

PART

↓

(2)

follow the steps in reverse order.These numbers are also used as the identi fication (loca tion) No. of parts in Figures.

unlocked, released, unplugged, unclamped, or desoldered. S=Screw, P=Spring, L=Locking Tab, CN=Connector, *=Unhook, Unlock, Release, Unplug, or Desolder

2(S-2) = two Screw (S-2)

Table."

REMOVE/ *UNHOOK/

Fig.

UNLOCK/RELEASE/

No.

UNPLUG/ DESOLDER

7(S-6), (S-7), (S-8), Desolder *(CN201, CL401, CL402, CL403)

↓

(3)

↓

(4)

Note

↓

(5)

REMOVAL

ID/

LOC.

No.

[1]

[2]

[3] Power Unit 3,5

[4]

[5]

[6] Top Cover 3 5(S-4) , CL604 5 [7]

PART

Rear Cabinet

Power Unit and Tray Chassis Unit

Tray Chassis Unit

H.V./Power Supply CBA

Bottom Plate

REMOVE/ *UNHOOK/

Fig.

UNLOCK/RELEASE/

No.

UNPLUG/ DESOLDER

1,2,5

3,4,5

3 ---------- -

36(S-3) 4

3(S-5) 6

6(S-1), 2(S-2), *CN151

Anode Cap, *CN501, *CN551, *CN601, CRT CBA, Power Knob

*CN502, *CN552, *CN602

Note

Reference Notes in the Table

1. Removal of the Rear Cabinet. Remove six screws (S-1) and two screws (S-2). Disconnect connector CN151 and remove the Rear Cabinet.

Caution !!

Discharge the Anode Lead of the CRT with the CRT Ground Wire before removing the Anode Cap.

3. Removal of the Power Unit. Disconnect connectors CN502, CN552, and CN602. Then slide the Power Unit out.

4. Removal of the H.V./Power Supply CBA. Remove six screws (S-3) and pull up the H.V./ Powe r Supply CBA.

5. Removal of the Top Cover. Remove five screws (S-4) and CL604, and remove the Top Cover.

1-5-6 T6705DC

6. Removal of the Bottom Plate. Remove a screw (S-5). Then slide the Bottom Plate out front.

7. Removal of the Deck Unit. Remove seven screws (S-6), screw (S-7) and screw (S-8). Then, desolder connectors (CN201, CL401, CL402, CL403) and lift up the Deck Unit.

8. Removal of the Main CBA. Remove four screws (S-9) and pull up the Main CBA.

9. Removal of the CRT. Remove four screws (S-10) and pull the CRT backward.

(S-1)

(S-2)

(S-1)

[1] REAR CABINET

(S-2)

(S-1)

Fig. 1

(S-1)

(S-2)

(S-1)

[1] REAR CABINET

(S-1)

Fig. 2

1-5-7 T6705DC

(S-4)

[4] T ray Chassis Unit

(S-4)

(S-6)

[8] Deck Unit

(S-9)

(S-7)

(S-4)

(S-9)

(S-6)

[6] T op Cover

(S-6)

(S-9)

(S-8)

CL604

(S-9)

[9] Main CBA

Power Button

[2] Power Unit and Tray Chassis Unit

(S-3)

(S-5)

[7] Bottom Plate

[5] H.V./Power

(S-3)

Supply CBA

[3] Power Unit

1-5-8 T6705DC

Fig. 3

(S-10)

[10] CRT

Anode Cap

CRT CBA

(S-10)

Fig. 4

1-5-9 T6705DC

ANODE

CRT

GND

CRT CBA

CN501B

SCREEN

CN502

H.V./POWER SUPPLY CBA

CN552

CL501A

FOCUS

CN501

CN551

MAIN CBA

CN151

CN601 TO DEGAUSS COIL

CL403

CL401

CL402

CN201

CN602

CL302A

CL301A

CL603A

TO SPEAKER

CYLINDER ASSEMBLY

FE HEAD

CAPSTAN

ACE HEAD ASSEMBLY

MOTOR

TO T OP COVER

DECK UNIT

CL604

1-5-10 T6705DC

Fig. 5

ELECTRICAL ADJUSTMENT INSTRUCTIONS

General Note: "CBA" is abbreviation for "Circuit Board

Assembly."

NOTE:

Electrical adjus tments are r equired after replacing circuit components and certain mechanical parts. It is impor tant to perform these adjustments only after all repairs and repla ce men ts have been completed. Also, do not attempt these adjustments unles s the proper equipment is available.

Test Equipment Required

1. PAL Pattern Generator (Color Bar, Monoscope, Black Raster, White Raster, Sympte)

2. SECAM Pattern Generator (Gray Scale)

3. AC Milli Voltmeter (RMS)

4. Alignment Tape (FL6A), Blank Tape (E180)

5. DC Voltmeter

6. Oscilloscope: Dual-trace with 10:1 probe,

V-Range: 0.001~50V/Div, F-Range: DC~AC-60MHz

7. Frequency Counter

8. Plastic Tip Driver

9. RF input (at each broadcasting system) Receiving Channel : VHF Low Input level : 80dBµV

10.Ext.input FRONT VIDEO-IN JACK or REAR SCART JACK

How to set up the option code

1. Enter the Service mode.

2. Press the [STATUS] button on the remote control unit. The option code appears on the display.

3. If neede d, inpu t the opti on co de (01 30) usin g number buttons on the remote control unit.

4. To reset the software, press [PAUSE] and [5] buttons on the remote control unit. The option code is changed.

How to Set up the Service mode:

NOTE:

After replacing the IC2 02 (Memor y) or Main CBA, the set value in IC202 (Me mory) wi ll be lost. S o it is necessary to set up or adjust in the Service mode after its replacement.

Service Mode:

1. Turn the power on. (Use main power on the TV unit.)

2. Press [STANDBY/ON], [2], [7], [1], and [MUTE] buttons on the remote control unit in that order within 5 seconds.

- To cancel the service mode, pr ess [STANDBY/ON] button on the remote control.

1-6-1 T6605EA

[ T6605VF ]

2. H Adjustment

1. DC 105V (+B) Adjustment

Purpose: To obtain correct operation. Symptom of Misadjustment: The picture is dar k and

unit does not operate correctly.

Test point Adj. Point Mode Input

TP503

(+B), TP504 (GND)

Tape M. EQ. Spec.

---

Note: TP503(+B), TP504(GND), VR601 --- H.V./Power Supply CBA

1. Connect the unit to AC Power Outlet. (exact AC230V)

2. Input a c olor bar s ignal from RF (or Ext.) inpu t and leave it for at least 20 minutes.

3. Connect DC Volt Meter to TP503(+B) and TP504(GND).

4. Adjust VR601 so that the voltage of TP503(+B) becomes +105±0.5V DC.

VR601

DC Voltmeter,

Plastic Tip Driver

(or Ext.)

+105±0.5V DC

Color

Bar

[ T6705VF ]

Purpose: To get correct horizontal position and size of

screen image. Symptom of Misadjustment: Horizontal position and

size of screen image may not be properly displayed.

Test point Adj. Point Mode Input

R590

Tape M. EQ. Spec.

--- Frequency Counter 15.625kHz±250Hz

Note: R590 --- H.V./Power Supply CBA

1. Connect Frequency Counter to R590.

2. Set the unit to the Ext. mode and no input is necessary. Enter the Service mode. (See page 1-6-1.)

3. Operate the unit for at least 20 minutes.

4. Press [2] button on the remote control unit and select H-Adj mode.

5. Press [PROG+/PROG-] buttons on the remote control unit so that the display will change [0] to [7.] At this moment, choos e display [0] to [7] when the Frequency counter display is closest to

15.625kHz±250Hz.

6. Turn the power off and on again.

PROG+/PROG-

buttons

Ext. ---

1. DC 114V (+B) Adjustment

Purpose: To obtain correct operation. Symptom of Misadjustment: The picture is dar k and

unit does not operate correctly.

Test point Adj. Point Mode Input

TP503

(+B), TP504 (GND)

Tape M. EQ. Spec.

---

Note: TP503(+B), TP504(GND), VR601 --- H.V./Power Supply CBA

1. Connect the unit to AC Power Outlet. (exact AC230V)

2. Input a c olor bar s ignal from RF (or Ext.) inpu t and leave it for at least 20 minutes.

3. Connect DC Volt Meter to TP503(+B) and TP504(GND).

4. Adjust VR601 so that the voltage of TP503(+B) becomes +114±0.5V DC.

VR601

DC Voltmeter,

Plastic Tip Driver

(or Ext.)

+114±0.5V DC

Color

Bar

1-6-2 T6605EA

3. C-Trap Adjustment

4. SECAM Black Level Adjustment

Purpose: To get minimum leakage of th e color signal

carrier. Symptom of Misadjustment: If C-Trap Adjustment is

incorrect, stripes will appear on the screen.

Test point Adj. Point Mode Input

J349F3

(B-OUT)

Tape M. EQ. Spec.

---

minimum

Note: J349F3 (B-Out)--- Main CBA

1. Connect Oscilloscope to J349F3.

2. Input a color bar signal from RF (or Ext.) input. Enter the Service mode. (See page 1-6-1.)

3. Press [0] button on the remote control unit and select C-TRAP mode.

4. Press [PROG+/PROG-] buttons on the remote control unit so that the carrier leakage B-Out (4.43MHz) value becomes mini mum on t he os cill oscope.

5. Turn the power off and on again.

PROG+/PROG-

buttons

Oscilloscope,

Pattern Generator

Figure

(or Ext.)

200mVp-p Max.

Color Bar

Fig. 1

Purpose: To set Black Level of the SE CAM signal R-

Y/B-Y to Ref. level. Symptom of Misadjustment: If Black Level of the

SECAM signal R-Y/B-Y is incorrect, the picture is bluish or reddish in grayscale compared with PAL signal.

Test

point

J361G4

Tape M. EQ. Spec.

---

Analog Oscilloscope (unus-

able Digital Oscilloscope)

1. Degaus s the CRT and allow CRT to operate for 20 minutes before starting the alignment.

2. Input the SECAM Gray Scale signal from Ext. input.

3. Enter the service mode. (See page 1-6-1.)

4. To enter the C/D/S mode, press [VOL-] on the remote control unit.

5. To select SBR (SECAM Black Level R-Y), press [6] button on the remote control unit.

6. Press [PROG+/PROG-] buttons to adjust Y signal to the black ref. level.

7. To select SBB (SECAM Black Level B-Y), press [7] button on the remote control unit.

8. Press [PROG+/PROG-] buttons to adjust Y signal to the black ref. level.

Y Signal

Adj. Point Mode Input

PROG+/PROG-

buttons

Pattern Generator,

Ext.

SECAM

Gray

Scale

---

Black REF. Level

1-6-3 T6605EA

5mV/Div (10:1 Prove)

Fig. 4

5. V. Size Adjustment

7. H. Shift Adjustment

Purpose: To obtain correct vertical height of screen

image. Symptom of Misadjustment: If V. Size is incorrect,

vertical height of image on the screen may not be properly displayed.

Test point Adj. Point Mode Input

Screen

Tape M. EQ. Spec.

--- Pattern Generator 90±5%

1. Enter the Service mode. (See page 1-6-1.) Press [9] button on the remote control unit and select V-S mode. (Press [9] button then dis play will change to V-P and V-S).

2. Input monoscope pattern and leave it for at least 20 minutes.

3. Press [PROG+/PROG-] buttons on the remote control unit so that the monoscope pattern is 90±5% of display size and the circle is round.

PROG+/PROG-

buttons

(or Ext.)

Monoscope

6. V. Shift Adjustment

Purpose: To obtain cor rect vertic al position of screen

image. Symptom of Misadjustment: If V. position is incor-

rect, vertica l position of image on the screen may not be properly displayed.

Purpose: To obtain correct horizontal position and size of screen image.

Symptom of Misadjustment: Horizontal position and size of screen image may not be properly displayed.

Test point Adj. Point Mode Input

Screen

Tape M. EQ. Spec.

--- Pattern Generator 90±5%

1. Enter the Service mode. (See page 1-6-1.) Press [8] button on the remote control unit and select H-P mode.

2. Input monoscope pattern and leave it for at least 20 minutes.

3. Press [PROG+/PROG-] buttons on the remote control unit so that the left and r ight side of the monoscope pattern are equal to each other.

4. Turn the power off and on again.

PROG+/PROG-

buttons

(or Ext.)

Monoscope

8. Cut-off Adjustment

Purpose: To adjust the beam c urrent of R, G, B, and

screen voltage. Symptom of Misadjustment: White color may be

reddish, greenish or bluish.

Test point Adj. Point Mode Input

Screen

Tape M. EQ. Spec.

--- Pattern Generator 90±5%

1. Enter the Service mode. (See page 1-6-1.) Press [9] button on the remote control unit and select V-P mode. (Press [9] button then dis play will change to V-P and V-S).

2. Input monoscope pattern and leave it for at least 20 minutes.

3. Press [PROG+/PROG-] buttons on the remote control unit so that the top and bottom of the monoscope pattern are equal to each other.

PROG+/PROG-

buttons

(or Ext.)

Monoscope

Screen-Control,

Screen

Tape M. EQ. Spec.

--- Pattern Generator

Notes:

Screen Control (FBT) --- H.V./Power Supply CBA FBT= Fly Back Transformer Use the Remote Control Unit

1. Degaus s the CRT and allow CRT to operate for 20 minutes before starting the alignment.

2. Set the s creen control to minimum position. Inp ut the Black raster signal from RF (or Ext.) input.

3. Enter the service mode. (See page 1-6-1.) Dimmed horizontal line appears on the CRT.

4. To enter the C/D/S mode, press the [VOL-] button on the remote control unit.

5. To enter the CUT OFF (R) mode, press [1] button on the remote control unit.

6. Turn the screen control up u ntil dimmed ho rizontal line appears.

PROG+/PROG-

buttons

(or Ext.)

Black Ras-

See Reference

Notes below

ter

1-6-4 T6605EA

7. Press t he [PROG+/PROG-] buttons until the horizontal line becomes white.

8. To enter the CUT OFF (G) mode, press [2] button on the remote control unit.

9. Press t he [PROG+/PROG-] buttons until the horizontal line becomes white.

10.To enter the CUT OFF (B) mode, press [3] button on the remote control unit.

11.Press the [PROG+/PROG-] buttons until the horizontal line becomes white.

12.Turn the sc reen control so that the hori zontal line adjusted white looks lightly.

13.Turn the power off and on again.

9. White Balance Adjustment

Purpose: To mix red, green and blue beams corr ectly

for pure white. Symptom of Misadjustment: White becomes bluish

or reddish.

Test point Adj. Point Mode Input

Screen-Control,

Screen

Tape M. EQ. Spec.

---

PROG+/PROG-

buttons

Pattern Generator,

Color analyzer

Figure

(or Ext.)

See below

White

Raster

(APL 100%)

Color Ajalyzer

Note: Use remote control unit

1. Operate the unit more than 20 minutes.

2. Face the unit to east. D ega uss the CRT using Degaussing Coil.

3. Input the White Raster (APL 100%).

4. Set the color analyze r to the CHROM A mode and after zero point calibration, bring the optical receptor to the center on the tube surface (CRT).

5. Enter t he Service mode. Press [VOL-] button on the remote control.

6. Press [4] button on the remote cont rol unit for Red adjustment. Pre ss [5] button on the remote con trol unit for Blue adjust me nt .

7. In each color mode, Press [PROG +/PROG-] buttons to adjust the values of color.

8. Adjust ing Red and Bl ue co lo r so that the tem per ature becomes 8500K (x : 290 / y : 300) ±3%.

9. At this time, Re-check that Horizontal line is white. If not, Re-adjust Cut-off Adju stment until th e Horizontal Line becomes pure white.

10. Turn off and on a gain to return to normal mode. Receive APL 100% white signal and Check Chroma temperatures become 8500K (x : 290 / y : 300) ±3%.

Note: Confirm that Cut Off Adj. is correct after this adjustment, and att empt Cu t Off Adj. if ne eded.

Fig. 5

1-6-5 T6605EA

10. Sub-Brightness Adjustment

Purpose: To get proper brightness. Symptom of Misadjustment: If Sub-Brightness is

incorrect, proper brightness cannot be obtained by adjusting the Brightness Control.

Test point Adj. Point Mode Input

Screen

Tape M. EQ. Spec.

---

White

Note: Bar (A) in Fig. 7 --- 0 IRE

1. Enter the service mode. (See page 1-6-1.) Then input SYMP TE signal from RF (or Ext.) i nput and leave it for at least 20 minutes.

2. Press [M ENU] button. (Each time [MENU] button is pressed, display will chan ge BRT, CN T, COL, TN T, and SHP in that order.) Select BRT and press [PROG+/PROG-] buttons so that the bar (A) in Fig. 6 is just visible.

3. Turn the power off and on again.

PROG+/PROG-

buttons

Pattern

Generator

Figure

(or Ext.)

See below

ABC

SYMPTE

Black

This bar (A) just visible

Fig. 6

11. Setting for CONTRAST, COLOR, TINT and SHARP Data Values

General

1. Enter the Service mode. (See page 1-6-1)

2. Press [MENU] button. (Each time [MENU] button is pressed, display will change BRT, CNT , COL, TNT, and SHP in that order.)

CONTRAST (CNT)

1. Press [MENU] button on t he remote control unit. Then select CNT display.

2. Press [PROG+/PROG-] buttons on the remote control unit so that the value of "CONTRAST" (CNT) becomes 83.

COLOR (COL)

1. Press [MENU] button on t he remote control unit. Then select "COLOR" (COL) display.

2. Press [PROG+/PROG-] buttons on the remote control unit so that the value of "COLOR " (COL) becomes 65.

TINT (TNT)

1. Press [MENU] button on t he remote control unit. Then select "TINT" (TNT) display.

2. Press [PROG+/PROG-] buttons on the remote control unit so that the va lue of "TINT" (TNT) becomes 68.

SHARP (SHP)

[ T6605VF ]

1. Press [MENU] button on t he remote control unit. Then select "SHARP" (SHP) display.

2. Press [PROG+/PROG-] buttons on the remote control unit and select "1."

[ T6705VF ]

1. Press [MENU] button on t he remote control unit. Then select "SHARP" (SHP) display.

2. Press [PROG+/PROG-] buttons on the remote control unit and select "0."

1-6-6 T6605EA

12. Focus Adjustment

13. Head Switching Position Adjustment

Purpose: Set the optimum Focus. Symptom of Misadjustment: If Focus Adjus tment is

incorrect, blurred images are shown on the display.

Test point Adj. Point Mode Input

Screen Focus Control

Tape M. EQ. Spec.

--- Pattern Generator See below.

Note: Focus VR (FBT) --- H.V./Power Supply CBA FBT= Fly Back Transformer

1. Operate the unit more than 30 minutes.

2. Face the unit to the East and degauss the CRT using a Degaussing Coil.

3. Input the monoscope pattern.

4. Adjust the F o cu s Co nt ro l on th e F B T t o ob t a in cl ear picture.

(or Ext.)

Monoscope

Purpose: Determine the Head Switching Position during Playback.

Symptom of Misadjustment: May cause Head Switching Noise or Vertical Jitter in the picture.

Note: Unit reads Head Switching Position automatically and displays it on the screen (Upper Left Corner).

Manual Adjustme nt

1. Enter the service mode. (See page 1-6-1.)

2. Playback the test tape (FL6A).

3. Press the number [5] button on the remote control unit.

4. The Head Switching position will display on the screen; if adjustment is necessary follow step 4.

7.0H (448µs) is preferable.

5. Press [PROG+/PROG-] buttons on the remote control unit if necessar y. T he value will be changed in

0.5H steps up or down. Adjusta ble range is up to

9.5H. If the value is beyond adjustable range, the display will change as:

Lower out of range: 0.0H Upper out of range: -.-H

6. Turn the power off and on again.

Auto Adjustment

1. Load the test tape (FL6A) that have been recorded the Head Switching Position Value.

2. Enter the service mode.

3. Press [3] button on the remote control unit in the tape stop mode. The uni t playback and adjust the Head Switching Position automatically.

4. The adjusting report app ears on upper left cor ner of the screen with blueback. In case of adjusting cor rectly: the Head Switching Position Val ue recorded in the test tape (FL6A) is indicated with green. In case of ad justing incorrectly: "NG" (red) is in dicated with ejecting tape.

TVCR TVCR

7.0H

Correct

1-6-7 T6605EA

Incorrect

Fig. 7

BLOCK DIAGRAMS

Servo/System Control Block Diagram

TO POWER

SUPPLY BLOCK

TV BLOCK

AUDIO BLOCK

VIDEO BLOCK

KEY SWITCH

SW206 SW210

SW201 SW205

KEY-2

KEY-1

RS201

D201

REMOTE

S-LED

SENSOR

WF3

TP001

IC201

(SERVO/SYSTEM CONTROL)

AL+5V

P-ON-H

P-DOWN-L

D202 REC

P-ON-H

P-DOWN-L

CTL AMP-OUT

CTL(-)

CTL(+)

CTL

AL+5V

D204 STANDBY

REC-LED

AL+5V

LD-SW

SW212

LD-SW9

(MEMORY)

SCL

IC202

SCL

ST-SENS.

10480

SDA

CS7

SDA

C-OPEN

T-REEL

END-SENS.

SCL

T-REEL

SDA

C-OPEN

Q204

SCL

RESET

TIMER+5V

SDA

SP-MUTE

A-MUTE-H

SP-MUTE

A-MUTE-H

EXT-L

SCART-H

424829

EXT-L

SCART-H

SCART-MUTE

SW211

REC-SAFETY

SCART-MUTE

C-FG

CM+12V

P-ON+5V(3)

1CM+12V

2P-ON+5V(3)

3C-FG

CN201

REC

C-F/R

4C-F/R

SCL

SDA

SAFETY

C-CONT

LD-CONT81D-CONT

6FG-GND

7LD-CONT

D-REC-H

D-PFG

8D-CONT

C-SYNC

DV-SYNC

C-SYNC

D-REC-H

AL+12V(1)

10M-GND

11AL+12V(1)

V-ENV

C-ROTA

V-ENV

C-ROTA

DV-SYNC

+33V

12VG

RF-SW

MAIN CBA

)

ASSEMBLY

(DECK

CL402

2CTL(+)

1CTL(-)

AC HEAD ASSEMBLY

CONTROL

HEAD

END-SENS.

ST-SENS.

Q202 Q205Q201

SENSOR CBA

(END-SENSOR)

SENSOR CBA

(ST-SENSOR)

1-7-1

C-CONT

CAPSTAN

SENSOR

MOTOR

DRUM

MOTOR

CAPSTAN MOTOR

CYLINDER ASSEMBLY

D-PFG

MOTOR

T6605BLS

Video Block Diagram

VIDEO (L)

HEAD

VIDEO (R)

HEAD

CYLINDER ASSEMBLY

(DECK ASSEMBLY)

123

V(L)

V(R)

CL401

V-COM

969593

WF1

RF-SW

TP002

RF-SW

D-REC-H

C-ROTA

TO SERVO/SYSTEM

CONTROL BLOCK

V-ENV

C-SYNC

DV-SYNC

HEAD

AMP

SERIAL

DECORDER

Y. DELAY

LUMINANCE

SIGNAL

PROCESS

7978

REC-VIDEO SIGNAL PB-VIDEO SIGNAL MODE: SP/REC

69684643

SDA

SCL

SERVO/SYSTEM

CONTROL BLOCK

IC401

(VIDEO/AUDIO SIGNAL PROCESS)

WF4

AGC

BYPASS

TUNER

SCART

485254

LINE

CHARA.

SCART

INS.

LINE

REC FM

AGC

CCD 1H DELAY

CHROMINANCE

1/2

MUTE

PB/EE

TUNER

D-REC-H

RPRP

SIGNAL

PROCESS

MUTE

PB/EE

V-ENV

DV-SYNC

RF-SW/C-ROTA

Y/C

MIX

FBC

C-SYNC

AGC VXO

2928

58 59

WF2

TP008

X401

WF6

C-PB

4.43MHz

C-VIDEO

MAIN CBA

TV BLOCK

TU001

VIDEO OUT

JK701

V-IN

JK703

V-IN

V-OUT

1-7-2

BUFFER

Q703

WF5

TP003

Q401

V-OUT

TU-VIDEO

TV BLOCK

BUFFER

VIDEO

GND

TP010

T6605BLV

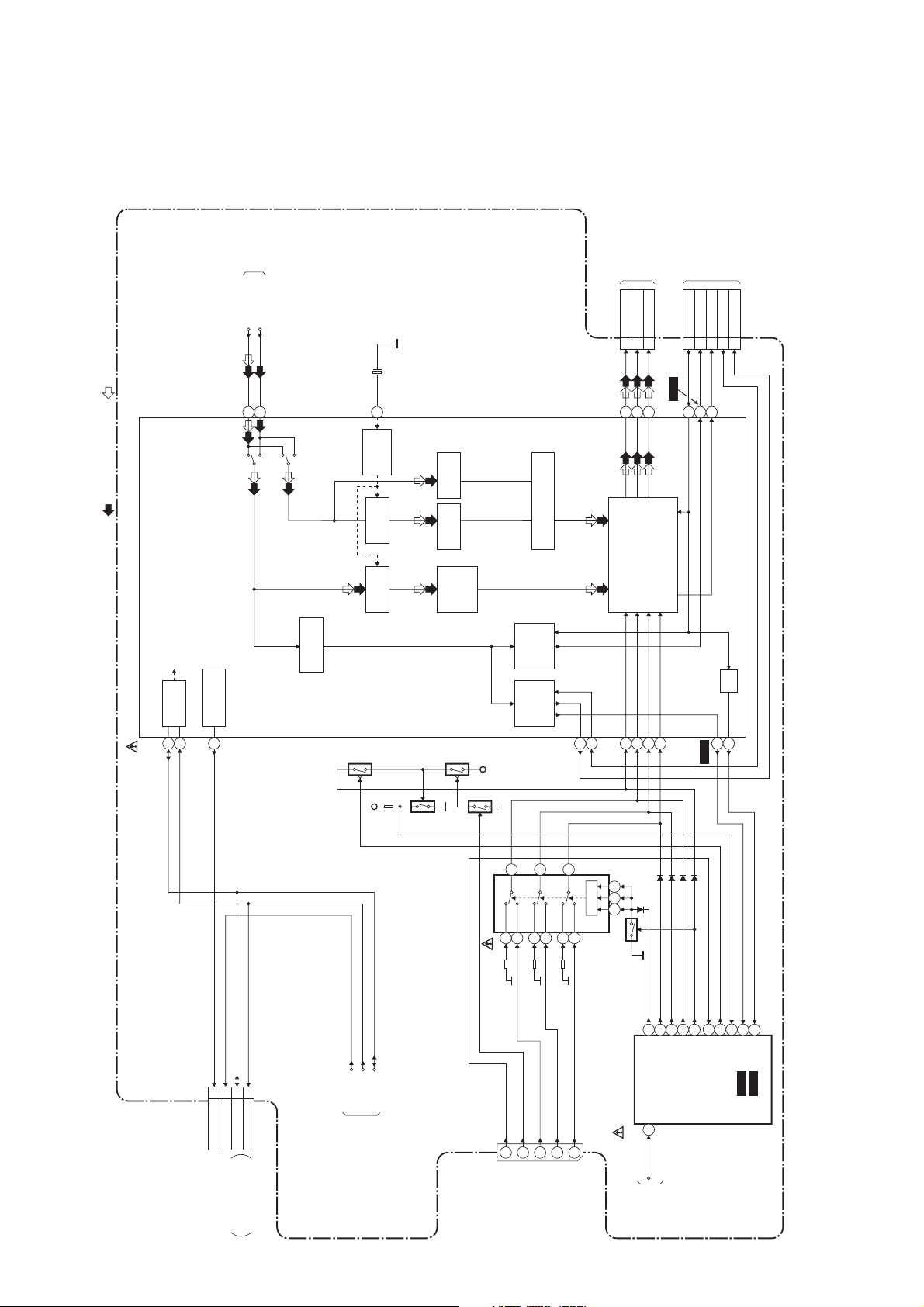

Audio Block Diagram

SP151

SPEAKER

Model Mark

T6605VF

T6705VF

Comparison Chart of

Models & Marks

CL801

CN804

SP1SP-GND 2

Mode : SP/REC

JK151

HEADPHONE JACK

AMP

OUTPUT

MUTE

CN151

SP2SP-GND 1

SERVO/SYSTEM

SP-MUTE

CONTROL BLOCK

ALC

WF8

N-A-PB

TP007

SERVO/SYSTEM

CONTROL BLOCK

DET

INV

LINE

MUTE

AMP

ALC

ATT

SERIAL

DECODER

AUDIO HD-SW

68 69

CONTROL

REC-ON

REC

AMP

100

SCL

SDA

A-MUTE-H

IC151 (AMP)

MAIN CBA

PB-AUDIO SIGNAL REC-AUDIO SIGNAL

(VIDEO/AUDIO/CHROMA/DEFLECTION/IF)

TUNER

IC301

WF7

ATT

LINE

AUDI O

MUTE

IC701 (SW)

WF9

AMP

SP/LP-ON

LINE

SW CTL

PB-ON

1011 9

+5V

Q854

TO SERVO

/SYSTEM

CONTROL

BLOCK

EXT-L

SCART-H

SCART-MUTE

TUNER

IC401

(AUDIO SIGNAL PROCESS)

SCART

LINE

SCART

LINE

2155

CL402

3 A-PB/REC

AUTO

Q855

BIAS

4 A-COM

OSC

6 AE-H

5 AE-H/FE-H

Q856

Q853(PB=ON)

+5V

SWITCHING

D-REC-OFF

Q851

CL403

1 FE-H

Q852(PB=ON)

2 FE-H-GND

TU001

AUDIO OUT

JK702

A-IN

JK703

A-IN

A-OUT

1-7-3

Q701

AUDI O

HEAD

AUDI O

ERASE

HEAD

(DECK ASSEMBLY)

FE HEAD

ACE HEAD ASSEMBLY

FULL

ERASE

HEAD

T6605BLA

TV Block Diagram

Mode : SP/REC

REC VIDEO SIGNAL PB VIDEO SIGNAL

VIDEO

LINE/PB

VIDEO BLOCK

TU-VIDEO

TUNER

LINE/PB

TUNER

X301

4.43MHz

CLOCK

CONTROL

CIRCUIT

CHROMA

BPF

SECAM

DECODER

PAL

DECODER

BASE BAND

1H DELAY LINE

BLUE2

CL301A

CRT/H.V. BLOCK

CL301B

GREEN1

RED 3

143115

CL302A

WF11

FBP2

CRT/H.V. BLOCK

H-DRIVE1

CL302B

ACL5

V-RAMP-FB4

V-DRIVE3

SERIAL

I/F

IC301 (VIDEO/AUDIO/CHROMA/DEFLECTION/IF)

MAIN CBA

INTELLIGENT

MONITORING

SYNC

SEPARATION

Q711

+5V

CHROMA

TRAP

Q706

LUMA

SIGNAL

PROCESS

Q704

Q702

CIRCUIT

IC703 (SW)

+5V

OSD MIX/RBG MATRIX/

BLANKING

H-SYNC

PROCESS

CIRCUIT

INV

V-SYNC

PROCESS

CIRCUIT

SW CTL

342

109 11

Q710

WF10

616568

CN303

C-OPEN 2

INT.MONITOR

SDA 4

SCL 5

(NO CONNECTION)

CN303 is used for

adjustment at factory

C-OPEN

SERVO/SYSTEM

SCL

SDA

CONTROL BLOCK

1-7-4

JK703

SLOW-SW

16811

OSD-B

RAPID-SW

OSD-G

OSD-R

IC201

(SYSTEM CONTROL/OSD)

OSD-R

TEXT-L

C-VIDEO

VIDEO

BLOCK

OSD-B

OSD-G

OSD-BLK

SLOW-SW-IN

V-SYNC

RGB-CONT

RAPID-SW-IN

WF18

H-SYNC

WF17

T6605BLT

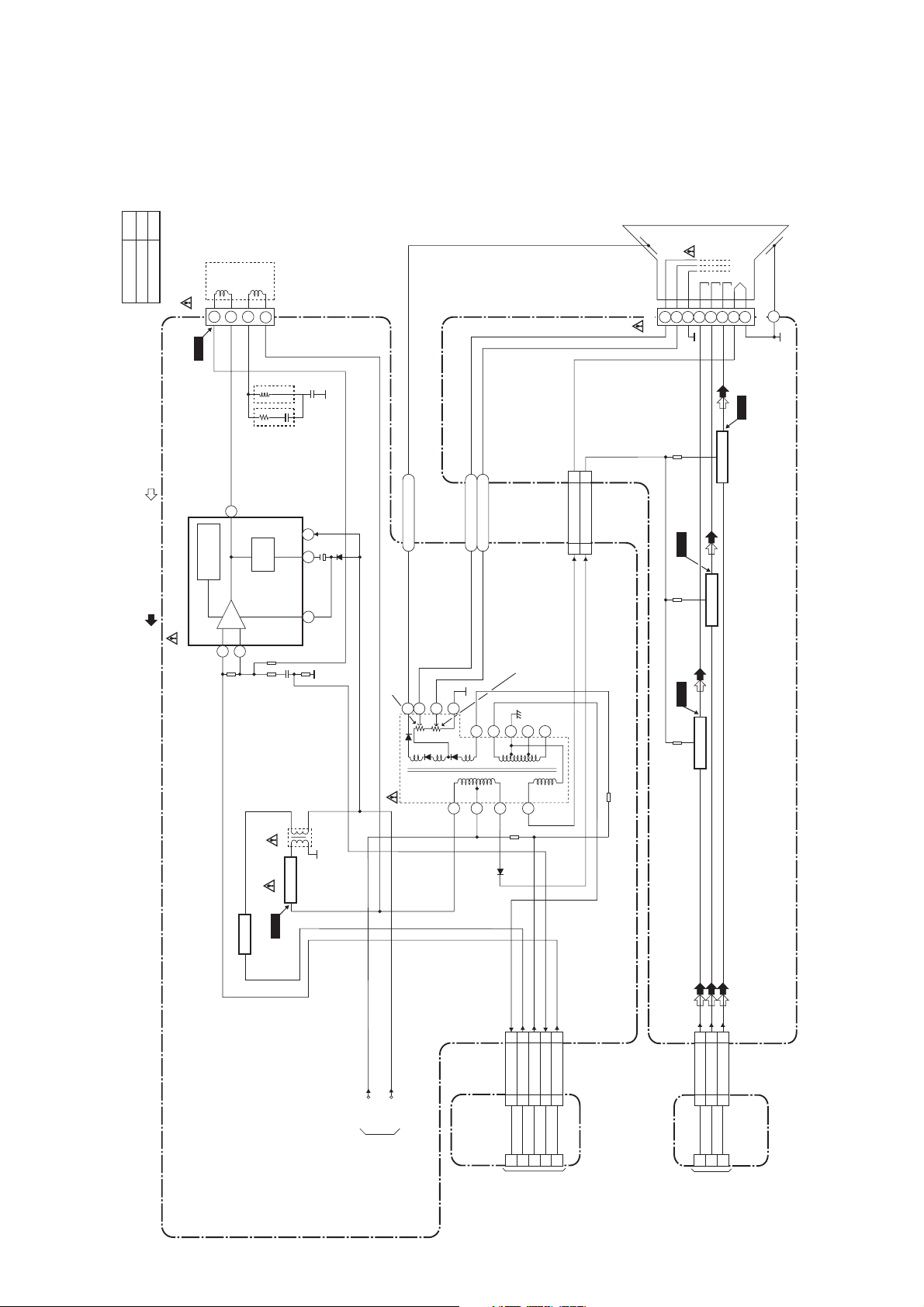

CRT/H.V. Block Diagram

Model Mark

T6605VF

T6705VF

Comparison Chart of

Models & Marks

Mode : SP/REC

DEFLECTION-YOKE

WF13

V-

DRIVEH-DRIVE

543

CN551

ANODE

JK501

FOCUS

SCREEN

GND

V501

CRT

RGB

HEATER

WF16

GND

CN501

REC VIDEO SIGNAL PB VIDEO SIGNAL

IC551 (V-DEFLECTION CONTROL)

THERMAL

PROTECTION

AMP

WF15WF14

Q501

Q502

RED AMP

BLUE AMP

Q503

GREEN AMP

CRT CBA

CL501BCL501A

VCC

T552

Q551

H.OUTPUT

PUMP

ANODE

FOCUS VR

T551 F.B.T.

FOCUS

SCREEN

SCREEN VR

810796

HEATER 11

P-ON+160V 33

WF12

Q533

H.DRIVE

CN552

33V-DRIVE

11H-DRIVE

22FBP

55ACL

44V-RAMP-FB

H.V./POWER SUPPLY CBA

DEF+B

POWER SUPPLY

BLOCK

CN302CL302B

JUNCTION-B

CBA

125

TO TV

BLOCK

CL302A

1-7-5

CN502

32RED

CN301CL301B

321

TO TV

14GREEN

23BLUE

BLOCK

CL301A

JUNCTION-C

CBA

T6605BLCRT

Power Supply Block Diagram

Model Mark

T6605VF

T6705VF

Comparison Chart of

Models & Marks

CRT/H.V.

BLOCK

DEF+B

NOTE :

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

P-DOWN-L

(TO PIN85 OF IC201)

CM+12V

Q206

AL+33V

AL+9V

TIMER+5V

CL603A

CL603BCN603

AL+9V

AL+33V

CN602

AL+12V(1)

AL+12V(2)

AL+5V

546

AL+12V(2)

AL+5V

AL+12V(1)3

546

P-ON+8V

P-ON-H

(TO PIN67 OF IC201)

IC681

Q682

P-ON+8V

P-ON-L

P-DOWN-L

P-ON+5V(3)

P-ON+5V(2)

+5V

REG.

+5V

REG.

Q684

JUNCTION-A

CBA

Q686

+5V

P-ON+5V(1)

REG.

IC301

3955

P-ON-ON

+5.7V

REG.

CL604

TOP

MAIN CBA

COVER

GND

TP504

TP503

CAUTION

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,

REPLACE ONLY WITH THE SAME TYPE T4A/250V FUSE.

T601

HOT COLD

BRIDGE

RECTIFIER

D601 - D604

L602

LINE

FILTER

J603A2

J604A2

+8V REG.

Q607

Q606

+5V REG.

Q605

+B ADJ.

IC601

ERROR

VR601

Q604

VOLTAGE DET

FEED

H.V./POWER SUPPLY CBA

BACK

Q608

LIMITER

Q603

4 1

3 2

L601

F601

POWER

SW601

SW602

CAUTION !

Fixed voltage power supply circuit is used in this unit.

If Main Fuse (F601) is blown, check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

LINE

FILTER

T4A/250V

W601

PS602

CN601

DG601

DEGAUSSING

COIL

Q602

SWITCHING

1-7-6

T6605BLP

MECHANICAL TROUBLE INDICATOR

1, Each Malfunction Indication

If the MONITOR is turned O N right after the M echanical Malfunction occurs or POWER SAFETY/X-RAY is turned ON, display the following character to show Malfunction after the EJECT display.

Immediately preceding

Malfunction REEL Malfunction R DRUM Malfunction D CASSETTE LOADING Mal-

function TAPE LOADING Malfunction T P-SAFETY 1 1 P-SAFETY 2 2 X-RA Y X

Example: If REEL Malfunction

EJECT R

Display character

2, Each Malfunction evaluation method

POWER SAFETY

1) POWER SAFETY 1 If P-SAFETY 1 por t beco mes continuous ly 2.5V or

less for 120 msec. (4 times 40 msec. interval) when MONITOR is ON, the unit shall be assumed to be the Power Malfunction 1 and immediately turn OFF the POWER/MONITOR and switch over the Mechanical Malfunction mode with POWER OFF.

(To return from this mode shall become possible only by POWER Key as in the case of the Mechanical Malfunction).

* However the POWER SAFETY 1 function shall be disabled during 500 msec. right after the MONITOR turns ON.

2) POWER SAFETY 2 If P-SAFETY 2 por t beco mes continuous ly 2.5V or

less for 120 msec. (4 times 40 msec. interval) when P-ON-H port is ON, the unit shall be assumed to be the Power Malfunction 2 and immediately turn OFF the POWER/MONITOR and switch over the Mechanical Malfunction mode with POWER OFF.

(To return from this mode shall become possible only by POWER Key as in the case of the Mechanical Malfunction).

* However the POWER SAFETY 2 function shall be disabled during 500 msec. r ight after the P-ON-H port turns ON.

X-RAY protect

If X-RAY port becom es continuously 2.5V or mor e for 120 msec. (4 time s 40 msec. interval), the unit shall immediately turn OFF the POWER/MONITOR and switch over to the Mechanical Malfunctio n mode with POWER OFF.

(To retur n from this mode shall become possible only by POWER Key as in the case of the Mec hani cal Malfunction).

1-7-7 T6550MTI

Mechanical Malfunction determination

1) REEL Malfunction detection Countermeasure for REEL and CAPSTAN motor

rotation malfunction (Except CASSETTE LOADING function)

After the Malfunction detection with REEL/CAPSTAN sensor, the unit shall switch over to STOP (B) and be REEL Mechanical Malfunction.

a) If the T-REEL pulse is not impressed a fter a lapse

of 7 sec. at SP, 14 sec. at LP, or more in the REEL Rotation Mode like PLAY/REC, FS/RS Mode, and the T-REEL or S-RE EL pu lse is n ot impres s afte r a lapse of 4 sec. or mor e in REEL Rotation M ode of FF/REW, it shall be assumed to stop the rotation and switch over to STOP (B) position, then POWER be turned OFF and the unit be REEL Mechanical Malf unction. (T-REEL and S-REEL for the models on S -REEL and only T-REEL for other models)

b) If the C-FG pulse is not impressed for a lapse of 1

sec. or more during the CAPSTAN MOTOR rotation, it shall be MOTOR Rotation Malfunction (REEL Malfunction).

2) DRUM Malfunction detection Detect the DRUM rotation at the D-FG input ter mi-

nal. If the variation of D-FG in put level is not detected

for a lapse of 1 sec. or more when D-CONT is "H", it shall be assumed to be Rotation Malfunction and be DRUM Malfunction.

When detect Drum Malfunction, POWER shall be turned OFF after the unit switches over to STOP (B) Mode.

3) Countermeasure for TAPE LOADING Malfunction Detect the Malfunction with the LOADING Switch.

a) TAPE LOADING Malfunction

If LD-SW does n ot go to the established position after a lapse of 7 sec. o r more from TAPE LOADING or TAPE UNLOADING start, the LOADING function shall immediately be stopped and POWER be turned OFF, and inform the Timer about the LOADING Mechanical Malfunction.

b) LD-S W Position Malfunction at each mode

When the unit operates at each mode, eve n if the LD-SW position c hanges from the established one in its mode, it keeps the function according to its mode.

4) Countermeasure for CASSETTE LOADING Malfunction

a) CASSETTE IN operating Malfunction

If LD-SW does not go to SB positio n after a lapse of 5 sec. or more from the CASSETTE insertion start, the unit starts the CASSETTE OUT operation.

After switch over to CASSETTE OUT operation and then a laps of 5 s ec. or mo re from th e CASSET TE OUT operation star t, if LD-SW does not go to the EJ position or if START Sensor and END Sensor does not turn "ON" at the EJ position, the unit starts again to insert CASSETTE.

(However in S-INH state, the START/E ND Sensor shall be disabled).

b) CASSETTE OUT operating Malfu nc tio n

After a lapse of 5 sec. or more from CASSETTE OUT operation star t, if LD-SW does not go to the EJ position or if START Sensor and END Sensor does not turn "ON" at the EJ position, the unit starts to insert CASSETTE.

(However in S-INH state, the START/E ND Sensor shall be disabled).

When the unit switches over to CASSETTE insertion at CASSETTE IN or CASSETTE OUT Malfunction, if LD-SW does not go to the SB position after a lapse of 5 sec. or more from CASSETTE insertion start, the function shall immediately be stopped and POWER be turned OFF, and the unit be CASSETTE LOADING Malfunction.

c) Wh en POWER is turned ON, if the C L position or

GC position cannot be detected after 5 sec. LDREV operation and 5 sec. LD -FWD operation, the function shall immediately be stopped and POWER be turned OFF, and the unit be CASSET TE LOADING Malfunction.

d) When POWER is turned ON without CASSETTE

(EJ position) and LD-SW is monitored all the time, if the CL or GC position is detected continuously for 1 sec. or more, the POWER shall be turned OFF and the unit be CASSETTE LOADING Malfunction.

Countermeasure for Mechanical Malfunction

If the unit detects Mechanical Malfunction, turn the POWER OFF. If the unit is Mechanical Malfunction, Key input except POWER key shall be disabled and CASSETTE insertion disabled. When POWER Key is entered, the POWER is turned ON and the unit switches over the EJECT Mode. (Return with POWER ON)

1-7-8 T6550MTI

SCHEMATIC DIAG RAMS / CBA’S AND TEST POINTS

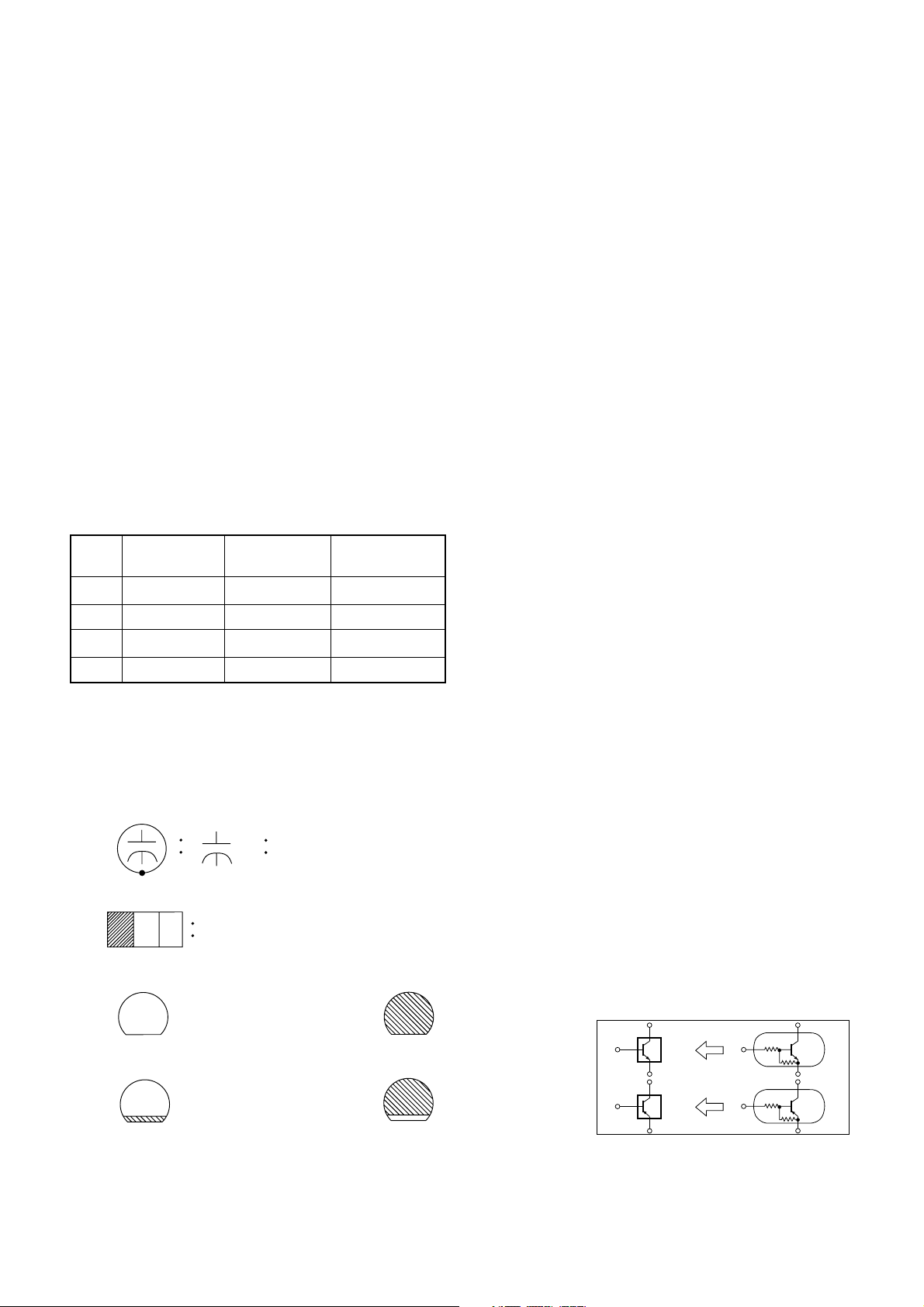

Standard Notes

Warning

Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement par ts that have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by the mark " ! " in the schematic diagram and the parts list. Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacemen t par ts that do not have the same safety characteristi cs as specified in the par ts list may create shock, fire, or other hazards.

Capacitor Temperature Markings

Mark

Capacity

change rate

Standard

temperature

Temperature

range

Note:

1. Do not use the par t number shown on th ese drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since these drawings were prepared.

2. All r esi st ance values are indicated in ohms (K=10

M=10

3. Resistor wattages are 1/4W or 1/6W unless othe rwise specified.

4. All capacitance values are indicated in µF

-6

(P=10

5. All voltages are DC voltages unless otherwise specified.

µF).

(B) (F) +30 -80% 20°C -25~+85°C

(SR)

(Z) +30 -80% 20°C -10~+70°C

Capacitors and transistors are r epresented by the following symbols.

±10%

±15%

20°C -25~+85°C

CBA Symbols

(Top View) (Bottom View)

Electrolytic Capacitor

(Bottom View)

Transistor or Digital Transistor

E C B

(Top View)

NPN Transistor

(Top View)

PNP Transistor

Schematic Diagram Symbols

Digital Transistor

E C B

(Top View)

E C B

NPN Digital Transistor

E C B

(Top View)

PNP Digital Transistor

E C B

1-8-1 SC_1

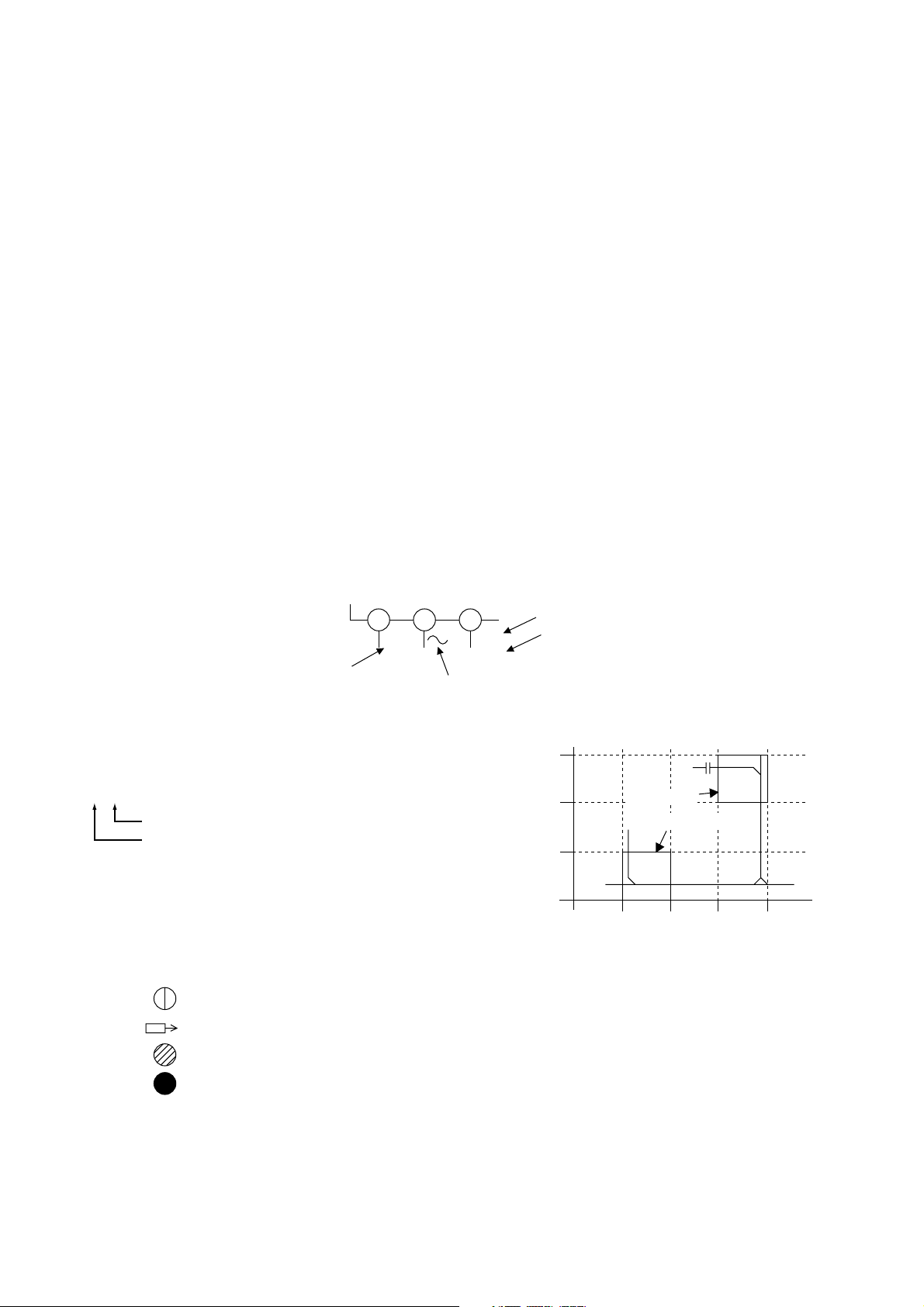

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING PAGES:

1. CAUTION: FOR CONTINUED PROTECTION A GAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE FUSE.

2. CAUTION: Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F601) is blown, first check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power suppl y. Otherwise it may cau se some components in the power supply circuit to fail.

3. Note:

(1)D o not use the par t number shown on the drawings for ordering. The correc t part number is shown in the parts

list, and may be slightly different or amended since the drawings were prepared.

(2)To maintain original function and reliability of repaired units, use only original replacement parts which are listed

with their part numbers in the parts list section of the service manual.

4. Wire Connectors

(1)Prefix symbol "CN" means "connector" (can disconnect and reconnect). (2)Prefix symbol "CL" means "wire-solder holes of the PCB" (wire is soldered directly).

5. Mode: SP/REC

6. Voltage indications for PLAY and REC modes on the schematics are as shown below:

PLAY mode REC mode

ABCD

AREA D3

1-D3

The same voltage for both PLAY & REC modes

7. How to read converged lines

1-D3

Distinction Area Line Number (1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to area "D3".

2. "1-B1" means that line number "1" goes to area "B1".

8. Test Point Information

5.0

231

5.0 (2.5)

Indicates that the voltage is not consistent here.

Unit: Volts

1-B1

AREA B1

: Indicates a test point with a jumper wire across a hole in the PCB. : Used to indicate a test point with a component lead on foil side. : Used to indicate a test point with no test pin. : Used to indicate a test point with a test pin.

1-8-2 SC_2

Main 1/5 Schematic Diagram

1-8-3

1-8-4

T6605SCM1

Main 2/5 Schematic Diagram

1-8-5

1-8-6

T6605SCM2

Main 3/5 Schematic Diagram

Comparison Chart of

MODEL MARK

T6605VF A T6705VF B

Models and Marks

1-8-7

1-8-8

T6605SCM3

Main 4/5 Schematic Diagram

Comparison Chart of

MODEL MARK

T6605VF A T6705VF B

Models and Marks

1-8-9 1-8-10

T6605SCM4

Main 5/5 Schematic Diagram

Comparison Chart of

MODEL MARK

T6605VF A T6705VF B

Models and Marks

1-8-11

1-8-12

T6605SCM5

H.V./Power Supply 1/2 Schematic Diagram

Ref. No.

IC601

Ref. No.

Q602

Ref. No.

Q603

Q604

Q605

Q606

Q607

Q608

1234

1.2

5.5

0.1 0.7

12.0

10.3

9.7

9.6

6.5

7.36.7

10.3

5.9

1.2

ECB

00.21.8

SDG

1.80304.0

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit. If Main Fuse (F601) is blown, check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

CAUTION

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,

REPLACE ONLY WITH THE SAME TYPE FUSE.

NOTE : The voltage for parts in hot circuit is measured using hot GND as a common terminal.

Comparison Chart of Models and Marks

MODEL MARK

T6605VF A T6705VF B

1-8-13

1-8-14

VOLTAGE CHART (Power off mode)

13.1 12.1 0.2 1.6

T6605SCP1

H.V./Power Supply 2/2 Schematic Diagram

Comparison Chart of

MODEL MARK

T6605VF A T6705VF B

Models and Marks

1-8-15 1-8-16

T6605SCP2

CRT Schematic Diagram

Comparison Chart of

MODEL MARK

T6605VF A T6705VF B

Models and Marks

1-8-17

1-8-18 T6605SCCRT

Main CBA Top View

TO SENSOR CBA (END-SENSOR)

Sensor CBA Top View

BHF300F01011-A

BHF300F01011-B

J361G4 (SECAM Black Level Adjustment)

WF8

TP007 N-A-PB

WF1

TP002 RF-SW

WF3

TP001 CTL

WF6

TP008

C-PB

J349F3 (C-Trap Adjustment)

WF5

TP003

V-OUT

1-8-19

TO SENSOR CBA (START-SENSOR)

1-8-20

BT6600F01012

Main CBA Bottom View

WF9

PIN 8 OF IC401

WF2

PIN 29 OF IC401

WF4

PIN 48 OF IC401

WF17

PIN 58 OF IC201

WF18

PIN 59 OF IC201

WF7

PIN 52 OF IC301

WF11

PIN 7 OF IC301

WF10

PIN 13 OF IC301

1-8-21

1-8-22

BT6600F01012

H.V./Power Supply CBA Top View

CAUTION !

CAUTION

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,

REPLACE ONLY WITH THE SAME TYPE FUSE.

NOTE : The voltage for parts in hot circuit is measured using hot GND as a common terminal.

R590

(H Adjustment)

BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER

SUPPLY CIRCUIT, AN ISOLATION TRANSFORMER MUST BE USED.

ALSO, IN ORDER TO HAVE THE ABILITY TO INCREASE THE INPUT

SLOWLY, WHEN TROUBLESHOOTING THIS TYPE POWER SUPPLY

CIRCUIT, A VARIABLE ISOLATION TRANSFORMER IS REQUIRED.

TP503 +B

TP504 GND

VR601 +B ADJ

1-8-23

1-8-24

BT6600F01022-A

H.V./Power Supply CBA Bottom View

CAUTION !

WF12

Q551 Collector

CAUTION

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,

REPLACE ONLY WITH THE SAME TYPE FUSE.

NOTE : The voltage for parts in hot circuit is measured using hot GND as a common terminal.

BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER

SUPPLY CIRCUIT, AN ISOLATION TRANSFORMER MUST BE USED.

ALSO, IN ORDER TO HAVE THE ABILITY TO INCREASE THE INPUT

SLOWLY, WHEN TROUBLESHOOTING THIS TYPE POWER SUPPLY

CIRCUIT, A VARIABLE ISOLATION TRANSFORMER IS REQUIRED.

WF13

PIN 5 OF CN551

1-8-25

1-8-26

BT6600F01022-A

CRT CBA Top View CRT CBA Bottom View

WF14

Q501 Collector

WF16

Q503 Collector

WF15

Q502 Collector

1-8-27

1-8-28

BT6600F01022-B

Junction-A CBA Top View

Junction-A CBA Bottom View

Junction-B CBA Top View Junction-B CBA Bottom View

Junction-C CBA Top View Junction-C CBA Bottom View

BT6600F01012

1-8-29

1-8-30

µs

1DIV: 1V 20

IC201 PIN 58

WAVEFORMS

1DIV: 1V 5ms

IC201 PIN 59

WAVEFORM NOTES

INPUT: COLOR BAR SIGNAL

OTHER CONTROLS: CENTER POSITION

VOLTAGES SHOWN ARE RANGE OF

OSCILLOSCOPE SETTING

WF17

1DIV: 10V 5ms

CN551 PIN 5

WF13

1DIV: 0.5V 0.5ms

IC401 PIN 8

WF9

WF18

µs

1DIV: 20V 20

Q501 COLLECTOR

WF14

1DIV: 2V 5ms

IC301 PIN 13

WF10

µs

1DIV: 20V 20

Q502 COLLECTOR

WF15

µs

1DIV: 1V 20

IC301 PIN7

WF11

µs

1DIV: 20V 20

Q503 COLLECTOR

WF16

µs

1DIV: 200V 20

Q551 COLLECTOR

WF12

µs

1DIV: 0.5V 20

TP003 V-OUT

WF5

1DIV: 2V 5ms

TP002 RF-SW

WF1

1DIV: 0.2V 2DIV: 5V 5ms

TP008 C-PB

Upper: WF6 Lower: WF1

µs

1DIV: 0.2V 0.1

IC401 PIN 29

WF2

1-9-1

1DIV: 0.2V 0.5ms

IC301 PIN 52

WF7

1DIV: 1V 10ms

TP001 CTL

WF3

1DIV: 0.5V 0.5ms

TP007 N-A-PB

WF8

µs

1DIV: 0.25V 20

IC401 PIN 48

WF4

Z13PWF

Model Mark

T6605VF

T6705VF

Comparison Chart of

Models & Marks

SP151

SPEAKER

CL801

WIRING DIAGRAM

DRUM

MOTOR

VIDEO

(R)

HEAD

VIDEO

(L)

HEAD

AUDIO HEAD

CONTROL HEAD

AUDIO ERASE

HEAD

AC HEAD ASSEMBLY

FULL ERASE HEAD

FE HEAD

SENSOR

MOTOR

CYLINDER ASSEMBLY

CAPSTAN MOTOR

WIRING DIAGRAM FOR SECTION 2 (DECK MECHANISM)

CN804

SP-GND

CN151

SCREEN

SP-GND

CL301A

GREEN1

123

CL301B

CN301

123

CN502

GREEN 4

JUNCTION-C CBA

CN303

BLUE2

RED3

GND4

BT6600F01012

BLUE 3

RED 2

GND 1

C-OPEN2

INT.MONITOR1I

GND3

SDA4

SCL5

(NO CONNECTION)

CN303 IS USED FOR

ADJUSTMENT AT

FAC TORY

SENSOR CBA

(END-SENSOR)

BHF300F01011-A,B

T551

FBT

CN201

C-FG

P-ON+5V(3)

CM+12V

SENSOR CBA

(ST-SENSOR)

BHF300F01011-A,B

C-F/R

CL604

TOP

COVER

C-CONT

FG-GND

D-PFG 9

D-CONT 8

LD-CONT

CL302A

CL302BCN302

CN552

AL+12V(1)

M-GND

H-DRIVE1

FBP2

V-DRIVE3

V-RAMP-FB4

12345

JUNCTION-B CBA

12345

H-DRIVE 1

FBP 2

V-DRIVE 3

V-RAMP-FB 4

CL401

V(L)

V-COM

V(R)

MAIN CBA

ACL5

P-SAFETY16

GND7GND 7

BT6600F01012

ACL 5

P-SAFETY1 6

CL402

CTL(-) 1

BT6600F01012

CL603A

GND1

NU2

123456789

CL603B

CN603

123456789

CN602

GND 1

NU 2

CL403

FE-H 1

CTL(+) 2

A-PB/REC 3

A-COM 4

AE-H/FE-H 5

AE-H 6

AL+12V(1)3

P-DOWN-L4

AL+5V5

P-ON-L6

AL+12V(2)7

AL+9V8

GND9

GND10

101112

JUNCTION-A CBA

BT6600F01012

101112

AL+12V(1) 3

P-DOWN-L 4

AL+5V 5

P-ON-L 6

AL+12V(2) 7

AL+9V 8

GND 9

GND 10

FE-H-GND 2

AL+33V11

P-ON+8V12

AL+33V 11

P-ON+8V 12

ANODE

FOCUS

CRT CBA

BT6600F01022-B

CRT

CN501

GND

CL501B

HEATER1

GND2P-ON+160V3

CL501A

HEATER1

GND2P-ON+160V3

H.V. / POWER SUPPLY CBA

BT6600F01022-A

CN551

D.Y.

1-10-1

123456789

JK703

CN601

W601

1011121314151617181920

T6605WI

Chart 1

DISPLAY

SYSTEM CONTROL TIMING CHARTS

LD-CONT

44 D-REC-H

D-PB-H

65 A-MUTE-H

31 P-ON

ROTATION

DRUM

66 C-F/R

C-DRIVE

CL/SS

LD-SW

PIN NO.

1. EJECT (POWER OFF) -> CASSETTE IN (POWER ON) -> STOP(B) -> STOP(A) -> PLAY -> RS -> FS -> PLAY -> STILL(N-CANCEL) -> PLAY -> STOP(A)

-OFF

POWER

STOP

PLAY RS

0.2S

after channel setting

+620mS(PAL)

+100mS(NTSC)

0.2S

0.3S

0.8S

0.2S

40mS

1.2S

0.2S

0.4S

20mS

"Z"

0.2S

CLEJ SB

TL SB

SMSF AL AL RS AU AL SM

EJECT

CASS.LOAD LD-FWD

0.2S LD-REV

STOP(B)

LD-FWD

0.4S LD-FWD

0.2S LD-REV

0.2S LD-FWD

0.5S LD-REV

STOP(A)

LD-FWD

PLAY

ST-S "OFF"

REC SFT-SW

POWER

PLAY

LD-FWD

0.3S

1.0S

PLAY STILL STOPPLAY

SP MODE

>5.0S 5.0S

6mS 6mS160mS80mSPAL

6mS 6mS240mS80mSNTSC

1.0S

0.12S

0.8S

LP/SLP MODE

40mS

20mS0.4S

0.3S

0.2S

RS1(RS2)

LD-REV

AL AU

0.2S LD-FWD

FS1(FS2)

PLAY

STILL

NOISE CANCEL

STILL

NOISE CANCEL

STILL

PLAY

LD-REV

STOP(A)

REW

PLAY

PAUSE PAUSE

ON PAUSE

OFF PAUSE

PAUSE OFF

PLAY

STOP /EJECT

1-11-1 T6550TI

Chart 2

DISPLAY

44 D-REC-H

D-PB-H

65 A-MUTE-H

31 P-ON

ROTATION

DRUM

66 C-F/R

C-DRIVE

LD-CONT

PIN NO.

LD-SW

CL/SS

2. STOP(A) -> FF -> STOP(A) -> REW -> STOP(A) -> REC -> PAUSE -> PAUSE or REC -> STOP(A) -> EJECT

STOP

STOPFF

REW STOP

REC

RECREC PAUSE STOP

1.0S

1.2S

40mS

0.4S

20mS

0.4S

20mS

1.5S(NTSC)

1.0S(PAL)

0.4S

"Z"

0.2S

SM SF FB SM AU AU SS

FB SF AU AUFB SF

TL TL SMSM SF SFAL AL SM AL AL ALAU AU SM TL SB EJRS RSSM

SF FB SM

SS SS SF

AL AL AUSS FB CL

STOP(A)

LD-REV

0.2S LD-FWD

0.2S FF

REV

1.0S LD-FWD

0.5S LD-REV

STOP(A)

LD-REV

0.2S LD-FWD

0.2S REW LD-REV

1.0S LD-FWD

0.5S LD-REV

STOP(A)

LD-FWD

REC

LD-FWD

2.5S Short REV LD-REV

0.2S LD-FWD

REC PAUSE REC

LD-FWD

1.5S LD-REV

0.2S LD-FWD

0.5S LD-REV

STOP /EJECT

REW

STOP /EJECT

REC

PAUSE

REC or PAUSE

STOP /EJECT

20mS

0.1S

0.2S

STOP(A)

LD-REV

0.2S LD-REV

0.5S

0.2S

0.5S CASS. UNLD EJECT

STOP /EJECT

ST-S "ON"

1-11-2 T6550TI

IC PIN FUNCTION DESCRIPTIONS

Comparison Chart of Models and Marks

Model Mark

T6605VF A T6705VF B

IC 201 (TV/VCR Micro Control ler )

“H” ≥ 4.5V, “L” ≤ 1.0V

IN/

No.

OUT

12IN

3IN 4IN

IN AFC

5 6IN

7IN 8IN

9IN 10 IN 11 12 -

IN/

OUT

14 IN 15 OUT

OUT

16 17 18 OUT 19 -

OUT A-MUTE-H

20 21 -

22 -

IN/

OUT

IN/

OUT 25 26 27 28 -

Signal

Name

NU Not Used P-SAFETY 2

P-SAFETY 1 END-SENS End-Sensor

V-ENV Video Envelope Input KEY-1 Key 1 Input KEY-2 Key 2 Input LD-SW Loading Switch Input ST-SENS Start-Sensor NU Not Used NU Not Used

DV SYNC Artificial V-Sync Output REMOTE Remote Signal Input C-ROTA

H-A-SW NU Not Used RF-SW NU Not Used

NU Not Used NU Not Used

REC-LED

REC-LED NU Not Used

NU Not Used NU Not Used NU Not Used

Power Supply Failure Detection 2

Power Supply Failure Detection 1

Automatic Frequency Control Signal

Color Phase Rotary Changeover SIgnal

Video Head Amp Switching Pulse

Video Head Switching Pulse

Audio Mute Control Signal (Mute = “H”)

Recording LED Control Signal

Function

IN/

No.

OUT

29 OUT 30 31 IN 32 -

33 34 IN 35 IN

36 OUT 37 38 IN 39 OUT 40 -

41 OUT

42 OUT 43 IN

44 OUT

IN/

OUT

46 -

OUT D-REC-H Delayed Record Signal

48 OUT

49 50 51 52 -

- OSDVcc OSDVcc

53 54 55 56 IN 57 58 IN 59 IN

60 OUT 61 OUT

62 OUT 63 OUT

Signal

Name

SCART-MUTE NU Not Used REC-SAFETY NU Not Used

NU Not Used RESET XCIN Sub Clock 32 kHz

XCOUT Sub Clock 32 kHz TIMER+5V Vcc XIN Main Clock Input XOUT Main Clock Output GND GND

SPOT-KILL

EXT-L CLKSEL Clock Select (GND)

SP-MUTE Speaker Mute Signal I2C-OPEN GND GND

SCART-H

OSD-GND OSD GND NU Not Used NU Not Used NU Not Used

HLF HLF NU Not Used CV-IN Video Signal Input GND GND H-SYNC H-SYNC Input V-SYNC V-SYNC Input

OSD-BLK RGB-CONT RGB Control Signal

OSD-B Blue Output OSD-G Green Output

RAPID-Switch Input Signal from Scart Jack

Record Protection Tab Detection

System Reset Signal (Reset=”L”)

Counter-measure for Spot

External Input or Playback = Output

White Balance Adjust Mode Judgment

Switching Signal of Scart Jack and RCA Jack

Output for Picture Cut off

Function

1-12-1 T6605PIN

IN/

No.

OUT

64 OUT 65 IN 66 67 OUT

68 IN 69 70 OUT

71 OUT

IN/

OUT 73 -

74 IN 75 -

76 OUT

77 OUT

OUT C-F/R

79 -

IN/

OUT

IN/

OUT 82 OUT 83 84 -

85 IN 86 -

87 IN

88 89 -

IN D-PFG

91 OUT 92 IN

Signal

Name

OSD-R Red Output RAPIT-SW-IN NU Not Used P-ON-H

SLOW-SW-IN NU Not Used TEXT-IN-H

SCL

SDA

NU Not Used C-SYNC C -S ync Input NU Not Used

C-CONT

D-CONT

NU Not Used T-REEL

LD-CONT TEXT-L Teletext Control Signal

NU Not Used NU Not Used

P-DOWN-L NU Not Used

C-FG

- AMPVss AMPVss (GND) NU Not Used

AMP VREFOUT

AMP VREF- IN Standard Voltage Input

- C C Terminal

RAPID-Switch Input Signal

Power On Signal at High

Slow Switch Input Signal

Tele Text Input Signal at High

E2PROM/CHR OMA IC Tuner Communication Clock

E2PROM/CHR OMA IC Tuner Communication Data

Capstan Motor Control Signal

Drum Motor Control Signal

Capstan Motor FWD/ REV Control Signal (FWD=”L”/REV=”H”)

Take Up Reel Rotation Signal

Loading Motor Control Signal

Power Voltage Down Detector Signal at Low

Capstan Motor Rotation Detection Pulse

Drum Motor Phase/ Frequency Generator

Standard Voltage Output

Function

IN/

No.

OUT

IN/

OUT

IN/

OUT 96 97 OUT

- AMPVcc AMPVcc

-AVcc

IN AGC Tuner IF Output Signal

100

Signal

Name

CTL (-) CTL (-)

CTL (+) CTL (+) AMPC AMPC

CTL AMP- OUT Control Amp Output

A/D Converter Power Input/ Standard Voltage Input

Function

1-12-2 T6605PIN

LEAD IDENTIFICATIONS

2SK2647

S D G

LA78040A

IN G OUT

S: Souce D: Drain G: Gate

E C B

2SC3619 KTC3503Y

E: Emitter C: Collector B: Base

E C B

2SA1346 2SC1815-GR(TPE2) 2SC2120-O(TPE2) 2SC2120-Y(TPE2) 2SC3331(T,U) KRA103M KTA1266(GR) KTC3203(Y) KTC3207

MID-32A22F PT204-6B-12

E C B

2SC5884000RF 2SD1913(R) KTC2026Y TT2084LS-YB11 TT2138LS-YB11 2SD2627LS-FEC-YB11

B C E

2SA1015-GR(TPE2) 2SA1175(F) 2SA950(Y,O) 2SC1627Y-TPE2 2SC2482 TPE6 2SC2785(F,H,J) 2SC3468(D,E)-AE BN1F4M-T KTA1267(GR) KTA1271(Y) KTC3198(GR) KTC3199(GR)

KA7805A KIA7805API

IN G OUT

LA4224

CD4053BCSJX CD4053BNSR

TC4053BF(N) PS2561L1-1-VL PS2561L1-1-VW

AT24C04N-10SC BR24C04F BR24C04F-W BR24L04F-WE2 CAT24WC04JI

M24C04-MN6 M24C04-WMN6

M61209BFP

LA71750EM-MPB-E M37762MCA-BB0GP

100

2SC5885000RF TT2140LS-YB11

B C E

1-13-1 T6605LE

Cabinet [ T6605VF ]

EXPLODED VIEWS

Details for L551 and surrounding parts

V501-2

SHINWHA TAPE SGT-730 (WHITE)

SHINWHA TAPE SGT-730 (BLACK)

V501-3

A12

V501-1

L551

CLN551

V501 B2

PB1

PB5

PL2

PL1

PB4

PL2

PL1

L551

PL1

H.V./Power Supply CBA

CRT CBA

DG601

TL1

TB2

TL1

TB10

Sensor CBA

Main CBA

1B1

TB3

TB21

TB7 TL14

Scotch T ape

TL1

Sensor CBA

TL18

TL1

CL604

SP151

B10

TL1

Junction B CBA

Junction C CBA

TL1

Junction A CBA

CL801

A1X

A1-2

A1-5

A1-4

Scotch Tape #880

TB1

See Electrical Parts List for parts with this mark.

A1-3

A1-1

TL14

TB23

Some Ref. Numbers are not in sequence.

1-14-1 1-14-2 T6605CEX

[ T6705VF ]

A1X

CLN551

V501

A1-5

See Electrical Parts List for parts with this mark.

Some Ref. Numbers are not in sequence.

DG601

A1-4

Scotch Tape #880

TL1

TB2

CRT CBA

TL1

TB10

TL1

1B1

Sensor CBA

TB7

TL14

TL1

TB33

TB3

TB21

TL1

Scotch Tape

TL18

TL1

CL604

TL1

Junction B CBA

Junction C CBA

Junction A CBA Main CBA

Sensor CBA

TL1

TB1

A12

PB5

PL2

PL1

L1 L1

PB4

PL2

PL1

PL2

PL1

H.V./Power Supply CBA

A1-3

A1-2

PB1

A1-1

TB23

CL801

B10

SP151

TL14

1-14-3 1-14-4 T6605CEX

Packing [ T6605VF ]

X2-3

TAPE

FRONT

1-14-5 T6605PEX

[ T6705VF ]

X2-3

TAPE

FRONT

1-14-6 T6605PEX

MECHANICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a !

have special characteristics important to safety. B efore replacing any of these comp onents, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned par t numbers (---------) ar e not available.

Comparison Chart of Models and Marks

Model Mark

T6605VF A T6705VF B

Ref. No. Mark Description Part No.

A1X A FRONT CABINET ASSEMBLY T6605VF 0EM101475 A1X B FRONT CABINET ASSEMBLY T6705VF 0EM101476 A1-1 A FRONT CABINET T6605VF 0EM000936 A1-1 B FRONT CABINET T6705VF 0EM000937 A1-2 A CONTROL PLA TE T6 605VF 0EM201851 A1-2 B CONTROL PLA TE T6 705VF 0EM201852 A1-3 BRAND BADGE TD006CGDURABRAND 0EM301865 A1-4 CASSETTE DOOR T6600EA 0EM408804 A1-5 SPRING DOOR(Z10) T5200UA 0EM406687 A2 A REAR CABINET REAR CABINET 0EM101490 A2 B REAR CABINET REAR CABINET 0EM000956 A3! A RATING LABEL T6605VF ---------A3! B RATING LABEL T6705VF ---------A12 A POWER BUTTON POWER B UTT ON 0EM302129 A12 B POWER BUTTON POWER B UTT ON 0EM302130 CL801 WIRE ASSEMBL Y (SPEAKER) 2P/20 0 WX1T6300-002 CLN551 A CRT GND WIRE CRT GND WX1L7720-001 CLN551 B CRT WIRE WX1T7180-005 WX1T7180-005 DG601! A DEGAUSSING COIL F-056 LLBH00ZTM056 DG601! B DEGAUSSING COIL F-057 LLBH00ZTM057 L1 SCREW, P-TIG HT 4X18 BIND HEAD + GBMP4180 L2 SCREW, P -TIGHT M4X12 BIND HEAD+ GBUP4120 L4 B SCREW, ASSEMBLED 12:M3X12 0EM406746 L8 FLAT HEA D SCREW T4 000U A 0EM404793 L9 SCREW, S -TIGHT 3X4 BIND HEAD+ GBMS3040 L551! A DEFLECTION YOKE LLBY00ZSY005 or LLBY00ZSY005 ! A DEFLECTION YOKE KDY3GDA82X LLBY00ZMS011 1B1 DECK ASSEMBLY CZD013/VM2326 N2326FT B1 SPRING TENSION B0080B0:EM40808 26WH006 B2 A M5 CRT SCREW(B) B4000UA 0VM403923 B2 B SCREW M7 CRT(D22) T7205UF 0EM406573 B3 A SHIELD PLA TE (PAL 14V) T6600EA 0EM408803 B3 B SHIELD PLA TE (PAL 21V) T6500RA 0EM407921 B4 B DEGAUSS HOLDER T7100UA 0EM405476 B10 CLOTH(10X30 XT0.5 ) B 5900UA 0EM404486 SP151 SPEAKER S08F02B or DSD0808XQ010

SPEAKER J-F097-C5 DSD0808DCP01 TB1 TRA Y CHASSIS T6400RA 0EM000697 TB2 TOP CO V ER T6300R A 0EM 101155

Ref. No. Mark Description Part No.

TB10 A RCA HOLDER T6400RA 0EM407753 TB10 B RCA HOLDER(B) T6500RA 0EM407833 TB23 BOTTOM PLA TE T6300RA 0EM101156 TB33 B EARTH HOLDER(TU) T6310EZ 0EM406959 TL1 SCREW , P-TIGHT 3X12 W AS HER HEAD+ GCMP3120 TL14 SCREW, B-TIGHT M3X8 BIND HEAD+ GBMB3080 TL18 SCREW, P-TIGHT M3X8 BIND HEAD+ GBCP3080 V501! A CRT A34AGT13X TCRT190CP036 V501! B CRT A51AEZ90X25 K TCRT190CP047 V501-1 A C.P .MAGNET JH225-FN-00 XM04000BV003 V501-2 A WEDGE FT - 0011 0W o r XV 10000 T400 1

A WEDGE DB25SR XV10000D9001

V501-3 A RUBBER MAGNET 20X10X1.2 XM05000BV001

PACKING

S1 A CARTON T6605VF 0EM409176 S1 B CARTON T6705VF 0EM409180 S2 A STYROFOAM TOP ASSEMBLY T6600EA 0EM409185 S2 B STYROFOAM TOP ASSEMBLY T6700EA 0EM409187 S3 A STYROFOAM BOTTOM ASSEM BLY

S3 B STYROFOAM BOTTOM ASSEM BLY

S4 A SERIAL NO. LABEL T6605VF ---------S4 B SERIAL NO. LABEL T6705VF ---------S6 A SET SHEET B5506UG:800X1500 0EM402369 S6 B SET SHEET B7500UA:1000X1700 0EM402178

T6600EA

T6700EA

0EM409186

0EM409188

ACCESSORIES

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420 X2-3! OWNER'S MANUAL T6605VF:DE 0EMN02496 X3 REMOTE CONTROL 512/ERC001/

X4 DRY BATTERY R6P UM3 or XB0M451GH001

NE136RD

DRY BATTERY R6P(AR)2PX or XB0M451HU002 DRY BATTERY R6P(AR)2P X ICI or XB0M451HU003 DRY BATTERY(SUNRISE) R6SSE/2S or XB0M451MS002 DRY BATTERY R6P/2S XB0M451T0001

NE136RD

20040322 1-15-1 T6605CA

ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a !

NOTES:

1. Parts th at are not assigned par t numbers (---------) are not available.

2. Tolerance of Capacitors and Resistors are noted with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

Comparison Chart of Models and Marks

Model Mark

T6605VF A T6705VF B

MMA CBA

Ref. No. Mark Description Part No.

A MMA CBA 0ESA06014 B MMA CBA 0ESA06027

Consists of the following MAIN CBA -----------JUNCTION A CBA -----------JUNCTION B CBA -----------JUNCTION C CBA -----------SENSER CBA 0ESA06133

MAIN CBA

Ref. No. Mark Description Part No.

MAIN CBA

Consists of the following

CAPACITORS

C001 CHIP CERAMIC CAP.(MELF) F Z 0.01µF/

C002 ELECTROLYTIC CAP. 47µF/25V M or CE1EMASDL470

C006 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL010

C008 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL010

C009 PCB JUMPER D0.6-P5.0 JW5.0T C151 ELECTROLYTIC CAP. 330µF/16V M or CE1CMASDL331

C152 CERAMIC CAP.(AX) X M 2200pF/16V CCA1CMT0X222 C154 ELECTROLYTIC CAP. 470µF/16V M or CE1CMASDL471

16V or CHIP CERAMIC CAP . (MELF) F Z 0.01µF/

16V

ELECTROLYTIC CAP. 47µF/25V M CE1EMASTL470

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0 ELECTROLYTIC CAP. 1µF/50V M CE1JMASTL1R0

ELECTROLYTIC CAP. 330µF/16V M CE1CMASTL331

------------

CZM1CZ30F103

CZM1CZB0F103

Ref. No. Mark Description Part No.

ELECTROLYTIC CAP . 470 µF/ 16V M CE1CMASTL471 C155 ELECTROLYTIC CAP . 0.22µF/50V M H7 CE1JMA V SLR2 2 C156 CHIP CERAMIC CAP.(1608) B K 4700pF/

C157 ELECTROLYTIC CAP . 10µF/25V M H7 CE1EMAVSL100 C160 CHIP CERAMIC CAP.(1608) CH J 270pF/

C203 CHIP CERAMIC CAP.(MELF) F Z 0.01µF/

C205 CHIP CERAMIC CAP.(MELF) F Z 0.01µF/

C207 ELECTROLYTIC CAP . 1µF/ 50V M H7 CE1JMAVSL1R0 C208 CHIP CERAMIC CAP.(MELF) F Z 0.01µF/

C209 CHIP CERAMIC CAP.(1608) CH J 22pF/

C210 CHIP CERAMIC CAP.(1608) CH J 22pF/

C211 ELECTROLYTIC CAP . 47µF/6.3V M H7 CE0KMAVSL470 C212 CHIP CERAMIC CAP.(MELF) F Z 0.01µF/

C213 ELECTROLYTIC CAP . 47µF/6.3V M H7 CE0KMAVSL470 C214 ELECTROLYTIC CAP . 330µF/6.3V M or CE0KMA SDL331

C217 CHIP CERAMIC CAP . CH D 10pF/50V or CHD1JD3CH100

C218 CHIP CERAMIC CAP . CH D 10pF/50V or CHD1JD3CH100

C221 ELECTROLYTIC CAP . 47µF/6.3V M H7 CE0KMAVSL470 C222 CHIP CERAMIC CAP.(MELF) F Z 0.01µF/

C223 CHIP CERAMIC CAP.(MELF) Y K 4700pF/

C224 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V orCHD1EZ30F104

C225 CHIP CERAMIC CAP. CH J 560pF/50V or CHD1JJ3CH561

C226 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V orCHD1EZ30F104

C227 CHIP CERAMIC CAP . CH D 10pF/50V or CHD1JD3CH100

50V or

CHIP CERAMIC CAP. B K 4700pF/50V CHD1JKB0B472

50V or

CHIP CERAMIC CAP . CH J 270pF/50V CHD1JJBCH271

16V or

CHIP CERAMIC CAP.(MELF) F Z 0.01µF/

16V

16V or

CHIP CERAMIC CAP.(MELF) F Z 0.01µF/

16V

16V or

CHIP CERAMIC CAP.(MELF) F Z 0.01µF/

16V

50V or

CHIP CERAMIC CAP . CH J 22pF/50V CHD1JJBCH220

50V or

CHIP CERAMIC CAP . CH J 22pF/50V CHD1JJBCH220

16V or

CHIP CERAMIC CAP.(MELF) F Z 0.01µF/

16V

ELECTROLYTIC CAP . 330 µF/6.3V M CE0KMASTL331

CHIP CERAMIC CAP . CH D 10pF/50V CHD1JDBCH100

16V or

CHIP CERAMIC CAP.(MELF) F Z 0.01µF/

16V

16V or

CHIP CERAMIC CAP.(MELF) Y K 4700pF/

16V

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V orCHD1JZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104

CHIP CERAMIC CAP . CH J 560pF/50V CHD1JJBCH561

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V orCHD1JZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104

CHIP CERAMIC CAP . CH D 10pF/50V CHD1JDBCH100

CHD1JK30B472

CHD1JJ3CH271

CZM1CZ30F103

CZM1CZB 0F 10 3

CZM1CZ30F103

CZM1CZB 0F 10 3

CZM1CZ30F103

CZM1CZB 0F 10 3

CHD1JJ3CH220

CZM1CZ30F103

CZM1CZB 0F 10 3

CZM1CZ30F103

CZM1CZB 0F 10 3

CZM1CK3 0Y 47 2

CZM1CKB0Y472

20040322 1-16-1 T6605EL

Ref. No. Mark Description Part No.

C228 CHIP CERAMIC CAP. CH D 10pF/50V or CHD1JD3CH100

CHIP CERAMIC CAP. CH D 10pF/50V CHD1JDBCH100

C229 CHIP CERAMIC CAP.(MELF) Y K 4700pF/

C230 CHIP CERAMIC CAP . (1608) F Z 0.1µF/25V orCHD1EZ30F104

C231 CHIP CERAMIC CAP.(MELF) F Z 0.01µF/

C233! CHIP CERAMIC CAP.(MELF) Y K 1000pF/

! CHIP CERAMIC CAP.(MELF) Y K 1000pF/

C234 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C235 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470 C236 CHIP CERAMIC CAP . (1608) F Z 0.1µF/25V orCHD1EZ30F104

C237 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470 C238 CHIP CERAMIC CAP . (1608) F Z 0.1µF/25V orCHD1EZ30F104

C239 CHIP CERAMIC CAP. CH J 560pF/50V or CHD1JJ3CH561

C240 CHIP CERAMIC CAP.(MELF) Y K 4700pF/

C241 ELECTROLYTIC CAP. 22µF/50V M or CE1JMASD L220

C242 CHIP CERAMIC CAP.(MELF) F Z 0.01µF/

C243 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470 C244 CHIP CERAMIC CAP.(MELF) F Z 0.01µF/

C245 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470 C248 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470 C253 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C254 CHIP CERAMIC CAP. CH J 560pF/50V or CHD1JJ3CH561

C255 CHIP CERAMIC CAP. CH J 560pF/50V or CHD1JJ3CH561

C256 ELECTROLYTIC CAP. 10µF/25V M H7 CE1EMAVSL100 C301 CHIP CERAMIC CAP.(MELF) F Z 0.01µF/

C302 ELECTROLYTIC CAP. 470µF/6.3V M or CE0KMASDL471

16V or CHIP CERAMIC CAP.(MELF) Y K 4700pF/

16V

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104 CHIP CERAMIC CAP . (1608) F Z 0.1µF/50V orCHD1JZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104

16V or CHIP CERAMIC CAP . (MELF) F Z 0.01µF/

16V

35V or

35V

50V or CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104 CHIP CERAMIC CAP . (1608) F Z 0.1µF/50V orCHD1JZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104 CHIP CERAMIC CAP . (1608) F Z 0.1µF/50V orCHD1JZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104

CHIP CERAMIC CAP. CH J 560pF/50V CHD1JJBCH561

16V or CHIP CERAMIC CAP.(MELF) Y K 4700pF/

16V

ELECTROLYTIC CAP. 22µF/50V M CE1JMASTL220

16V or CHIP CERAMIC CAP . (MELF) F Z 0.01µF/

16V

16V or CHIP CERAMIC CAP . (MELF) F Z 0.01µF/

16V

50V or CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103

CHIP CERAMIC CAP. CH J 560pF/50V CHD1JJBCH561

16V or CHIP CERAMIC CAP . (MELF) F Z 0.01µF/

16V

CZM1CK30Y472

CZM1CKB0Y472

CZM1CZ30F103

CZM1CZB0F103

CZM1GK30Y1 02

CZM1GKB0Y102

CHD1JK30B103

CZM1CK30Y472

CZM1CKB0Y472

CZM1CZ30F103

CZM1CZB0F103

CZM1CZ30F103

CZM1CZB0F103

CHD1JK30B103

CZM1CZ30F103

CZM1CZB0F103

Ref. No. Mark Description Part No.

ELECTROLYTIC CAP . 470 µF/6.3V M CE0KMASTL471 C303 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C304 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C305 ELECTROLYTIC CAP . 1µF/ 50V M or CE1JMASDL 010

C307 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V orCHD1EZ30F104

C308 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V orCHD1EZ30F104

C309 FILM CAP.(P) 0.1µF/50V J or CA1J104MS029

C310 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V orCHD1EZ30F104

C311 ELECTROLYTIC CAP . 470µF/6.3V M or CE0KMA SDL471

C312 CHIP CERAMIC CAP.(MELF) B K 180pF/

C313 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V orCHD1EZ30F104

C314 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C315 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V orCHD1EZ30F104

C316 ELECTROLYTIC CAP . 1µF/ 50V M or CE1JMASDL 010

C317 CHIP CERAMIC CAP. CH J 150pF/50V or CHD1JJ3CH151

C318 ELECTROLYTIC CAP . 1µF/ 50V M or CE1JMASDL 010

C319 ELECTROLYTIC CAP . 1µF/ 50V M or CE1JMASDL 010

C320 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C321 ELECTROLYTIC CAP . 1µF/ 50V M or CE1JMASDL 010

50V or

CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103

50V or

CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103

ELECTROLYTIC CAP . 1 µF/ 50V M or CE1JMASDL 1R0

ELECTROLYTIC CAP . 1 µF/ 50V M CE1JMASTL1R0

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V orCHD1JZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V orCHD1JZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104

FILM CAP.(P) 0.1µF/50V J CMA1JJS00104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V orCHD1JZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104

ELECTROLYTIC CAP . 470 µF/6.3V M CE0KMASTL471

50V or

CHIP CERAMIC CAP.(MELF) B K 180pF/

50V

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V orCHD1JZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104

50V or

CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V orCHD1JZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104

ELECTROLYTIC CAP . 1 µF/ 50V M or CE1JMASDL 1R0

ELECTROLYTIC CAP . 1 µF/ 50V M CE1JMASTL1R0

CHIP CERAMIC CAP . CH J 150pF/50V CHD1JJBCH151

ELECTROLYTIC CAP . 1 µF/ 50V M or CE1JMASDL 1R0

ELECTROLYTIC CAP . 1 µF/ 50V M CE1JMASTL1R0

ELECTROLYTIC CAP . 1 µF/ 50V M or CE1JMASDL 1R0

ELECTROLYTIC CAP . 1 µF/ 50V M CE1JMASTL1R0

50V or

CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103

CHD1JK30B103

CZM1JK3 0B 18 1

CZM1JKB0B181

CHD1JK30B103

20040322 1-16-2 T6605EL

Ref. No. Mark Description Part No.

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0 ELECTROLYTIC CAP. 1µF/50V M CE1JMASTL1R0

C322 ELECTROLYTIC CAP. 470µF/10V M or CE1AMASDL471

ELECTROLYTIC CAP. 470µF/10V M CE1AMASTL471

C323 ELECTROLYTIC CAP. 47µF/25V M or CE1EMASDL470

ELECTROLYTIC CAP. 47µF/25V M CE1EMASTL470

C324 CHIP CERAMIC CAP.(MELF) F Z 0.01µF/

C325 FILM CAP .(P) 0.22µF/50V J or CA1J224MS029

C326 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL010

C327 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C328 FILM CAP .(P) 0.22µF/50V J or CA1J224MS029

C330 CHIP CERAMIC CAP.(MELF) F Z 0.01µF/

C331 ELECTROLYTIC CAP. 47µF/10V M or CE1AMASDL470

C332 CHIP CERAMIC CAP . (1608) F Z 0.1µF/25V orCHD1EZ30F104

C333 CHIP CERAMIC CAP . (1608) F Z 0.1µF/25V orCHD1EZ30F104

C334 CHIP CERAMIC CAP . (1608) F Z 0.1µF/25V orCHD1EZ30F104

16V or CHIP CERAMIC CAP . (MELF) F Z 0.01µF/

16V

MYLAR CAP . 0.22µF/50V J or CMA1JJS00224 TF CAP. 0.22µF/50 V J CT1J224MS045

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0 ELECTROLYTIC CAP. 1µF/50V M CE1JMASTL1R0

50V or CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103

MYLAR CAP . 0.22µF/50V J or CMA1JJS00224 TF CAP. 0.22µF/50 V J CT1J224MS045

16V or CHIP CERAMIC CAP . (MELF) F Z 0.01µF/

16V

ELECTROLYTIC CAP. 47µF/10V M CE1AMASTL470

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104 CHIP CERAMIC CAP . (1608) F Z 0.1µF/50V orCHD1JZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104 CHIP CERAMIC CAP . (1608) F Z 0.1µF/50V orCHD1JZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104

CZM1CZ30F103

CZM1CZB0F103

CHD1JK30B103

CZM1CZ30F103

CZM1CZB0F103

Ref. No. Mark Description Part No.

CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103 C402 ELECTROLYTIC CAP . 1µF/ 50V M H7 CE1JMAVSL1R0 C403 ELECTROLYTIC CAP . 1µF/ 50V M H7 CE1JMAVSL1R0 C404 ELECTROLYTIC CAP . 100µF/6.3V H7 CE0KMAVSL101 C405 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V orCHD1EZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V orCHD1JZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104 C406 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V orCHD1EZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V orCHD1JZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104 C407 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C408 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V orCHD1EZ30F104

C409 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V orCHD1EZ30F104

C410 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C411 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C412 ELECTROLYTIC CAP . 1µF/ 50V M H7 CE1JMAVSL1R0 C413 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C414 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V orCHD1EZ30F104

50V or

CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V orCHD1JZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V orCHD1JZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104

50V or

CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103

50V or

CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103

50V or

CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103

CHD1JK30B103

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104 CHIP CERAMIC CAP . (1608) F Z 0.1µF/50V orCHD1JZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104

C336 ELECTROLYTIC CAP. 47µF/10V M or CE1AMASDL470

ELECTROLYTIC CAP. 47µF/10V M CE1AMASTL470

C338 CHIP CERAMIC CAP.(MELF) Y K 1000pF/

C340 CHIP CERAMIC CAP.(MELF) B K 180pF/

C341 CHIP CERAMIC CAP.(MELF) F Z 0.01µF/

C344 CHIP CERAMIC CAP.(MELF) Y K 1000pF/

C350 ELECTROLYTIC CAP. 220µF/10V M or CE1AMASDL221

C401 CHIP CERAMIC CAP.(1608) B K 0.01µF/

35V or CHIP CERAMIC CAP.(MELF) Y K 1000pF/

35V

50V or CHIP CERAMIC CAP.(MELF) B K 180pF/

50V

16V or CHIP CERAMIC CAP . (MELF) F Z 0.01µF/

16V

35V or CHIP CERAMIC CAP.(MELF) Y K 1000pF/

35V

ELECTROLYTIC CAP. 220µF/10V M CE1AMASTL221

50V or

CZM1GK30Y1 02

CZM1GKB0Y102

CZM1JK30B181

CZM1JKB0B181

CZM1CZ30F103

CZM1CZB0F103

CZM1GK30Y1 02

CZM1GKB0Y102

CHD1JK30B103

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V orCHD1JZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104 C415 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C416 ELECTROLYTIC CAP . 47µF/6.3V M H7 CE0KMAVSL470 C417 ELECTROLYTIC CAP . 1µF/ 50V M H7 CE1JMAVSL1R0 C418 ELECTROLYTIC CAP . 1µF/ 50V M H7 CE1JMAVSL1R0 C419 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V orCHD1EZ30F104

C420 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V orCHD1EZ30F104

C421 ELECTROLYTIC CAP . 10µF/25V M H7 CE1EMAVSL100 C424 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V orCHD1EZ30F104

50V or

CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V orCHD1JZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V orCHD1JZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104

CHD1JK30B103

20040322 1-16-3 T6605EL

Ref. No. Mark Description Part No.

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104 CHIP CERAMIC CAP . (1608) F Z 0.1µF/50V orCHD1JZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104

C425 CHIP CERAMIC CAP. CH J 68pF/50V or CHD1JJ3CH680

CHIP CERAMIC CAP. CH J 68pF/50V CHD1JJBCH680

C426 CHIP CERAMIC CAP . (1608) F Z 0.1µF/25V orCHD1EZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104 CHIP CERAMIC CAP . (1608) F Z 0.1µF/50V orCHD1JZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104

C427 CHIP CERAMIC CAP . (1608) F Z 0.1µF/25V orCHD1EZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104 CHIP CERAMIC CAP . (1608) F Z 0.1µF/50V orCHD1JZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104

C430 ELECTROLYTIC CAP. 47µF/25V M or CE1EMASDL470

ELECTROLYTIC CAP. 47µF/25V M CE1EMASTL470

C431 CHIP CERAMIC CAP . (1608) F Z 0.1µF/25V orCHD1EZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104 CHIP CERAMIC CAP . (1608) F Z 0.1µF/50V orCHD1JZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104 C432 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0 C433 ELECTROLYTIC CAP. 10µF/25V M H7 CE1EMAVSL100 C434 ELECTROLYTIC CAP. 22µF/16V M H7 CE1CMAVSL220 C435 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0 C436 CHIP CERAMIC CAP. CH J 120pF/50V or CHD1JJ3CH121

CHIP CERAMIC CAP. CH J 120pF/50V CHD1JJBCH121 C438 CHIP CERAMIC CAP. CH J 220pF/50V or CHD1JJ3CH221

CHIP CERAMIC CAP. CH J 220pF/50V CHD1JJBCH221 C440 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0 C441 CHIP CERAMIC CAP . (1608) F Z 0.1µF/25V orCHD1EZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP . (1608) F Z 0.1µF/50V orCHD1JZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104 C442 CHIP CERAMIC CAP . (1608) F Z 0.1µF/25V orCHD1EZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP . (1608) F Z 0.1µF/50V orCHD1JZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104 C443 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0 C444 CHIP CERAMIC CAP. B K 2200pF/50V or CHD1JK30B222

CHIP CERAMIC CAP. B K 2200pF/50V CHD1JKB0B222 C445 ELECTROLYTIC CAP. 10µF/25V M H7 CE1EMAVSL100 C452 CHIP CERAMIC CAP. CH J 68pF/50V or CHD1JJ3CH680

CHIP CERAMIC CAP. CH J 68pF/50V CHD1JJBCH680 C681 ELECTROLYTIC CAP. 220µF/16V M or CE1CMASDL221

ELECTROLYTIC CAP. 220µF/16V M CE1CMASTL221 C682 ELECTROLYTIC CAP. 220µF/16V M or CE1CMASDL221

ELECTROLYTIC CAP. 220µF/16V M CE1CMASTL221 C683 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASD L100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASTL100 C684! CHIP CERAMIC CAP.(MELF) B K 180pF/

! CHIP CERAMIC CAP.(MELF) B K 180pF/

C687 ELECTROLYTIC CAP. 47µF/25V M or CE1EMASDL470

50V or

50V

ELECTROLYTIC CAP. 47µF/25V M CE1EMASTL470

CZM1JK30B181

CZM1JKB0B181

Ref. No. Mark Description Part No.

C688 ELECTROLYTIC CAP . 47µF /25V M o r CE1EMASD L470

ELECTROLYTIC CAP . 47 µF/25V M CE1EMASTL470

C689 B ELECTROLYTIC CAP. 470µF/10V M or CE1AMASDL4 71

B ELECTROL YTIC CAP. 470µF/10V M CE1AMASTL471

C691 ELECTROLYTIC CAP . 2.2µF/50V M or CE1JMASDL2R2

ELECTROLYTIC CAP . 2.2 µF/ 50V M CE1JMASTL2R2

C694 ELECTROLYTIC CAP . 100µF/10V M or CE1AMASDL101

ELECTROLYTIC CAP . 100 µF/ 10V M CE1AMASTL101

C703 ELECTROLYTIC CAP . 4.7µF/50V M or CE1JMASDL4R7

ELECTROLYTIC CAP . 4.7 µF/ 50V M CE1JMASTL4R7

C707 ELECTROLYTIC CAP . 0.22µF/50V M or CE1JMASDL R22

ELECTROLYTIC CAP . 0.2 2µF/50V M CE1JMASTLR22

C708 ELECTROLYTIC CAP . 0.47µF/50V M or CE1JMASDL R47

ELECTROLYTIC CAP . 0.4 7µF/50V M CE1JMASTLR47

C709 ELECTROLYTIC CAP . 0.47µF/50V M or CE1JMASDL R47

ELECTROLYTIC CAP . 0.4 7µF/50V M CE1JMASTLR47

C710 ELECTROLYTIC CAP . 0.47µF/50V M or CE1JMASDL R47

ELECTROLYTIC CAP . 0.4 7µF/50V M CE1JMASTLR47

C711 ELECTROLYTIC CAP . 470µF/10V M or CE1AMASDL471

ELECTROLYTIC CAP . 470 µF/ 10V M CE1AMASTL471 C713 PCB JUMPER D0.6-P5.0 JW5.0T C715 ELECTROLYTIC CAP . 4.7µF/50V M or CE1JMASDL4R7

ELECTROLYTIC CAP . 4.7 µF/ 50V M CE1JMASTL4R7 C716 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V orCHD1EZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V orCHD1JZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104 C719 ELECTROLYTIC CAP . 1µF/ 50V M or CE1JMASDL 010

ELECTROLYTIC CAP . 1 µF/ 50V M or CE1JMASDL 1R0

ELECTROLYTIC CAP . 1 µF/ 50V M CE1JMASTL1R0 C723 CHIP CERAMIC CAP.(MELF) Y K 1000pF/

C724 ELECTROLYTIC CAP . 47µF /10V M o r CE1AMASD L470

C851 ELECTROLYTIC CAP . 47µF/6.3V M H7 CE0KMAVSL470 C855 ELECTROLYTIC CAP . 220µF/6.3V M H7 CE0KMAVSL221 C856 CERAMIC CAP. B K 470pF/100V or CCD2AKS0B471

C857 FILM CAP.(P) 0.018µF/50V J or CA1J183MS029

C858 CHIP CERAMIC CAP. B K 2200pF/50V or CHD1JK30B222

C859 CHIP CERAMIC CAP.(MELF) SL J 33pF/

C860 PCB JUMPER D0.6-P5.0 JW5.0T C861 CERAMIC CAP.(AX) X M 1800pF/16V CCA1CMT0X182 C862 ELECTROLYTIC CAP . 10µF/25V M H7 CE1EMAVSL100 C863 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C864 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V orCHD1EZ30F104

C865 CHIP CERAMIC CAP.(1608) B K 0.022µF/

35V or

CHIP CERAMIC CAP.(MELF) Y K 1000pF/

35V

ELECTROLYTIC CAP . 47 µF/10V M CE1AMASTL470

CERAMIC CAP. B K 470pF/500V CCD2JKS0B471

FILM CAP.(P) 0.018µF/100V J CMA2AJS00183

CHIP CERAMIC CAP. B K 2200pF/50V CHD1JKB0B222

50V or

CHIP CERAMIC CAP.(MELF) SL J 33pF/

50V

50V or

CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V orCHD1JZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104

25V or

CZM1GK30Y102

CZM1GKB0Y102

CZM1JJ3SL330

CZM1JJBSL330

CHD1JK30B103

CHD1EK30B223

20040322 1-16-4 T6605EL

Ref. No. Mark Description Part No.

CHIP CERAMIC CAP. B K 0.022µF/25V or CHD1EKB0B223 CHIP CERAMIC CAP.(1608) B K 0.022µF/

50V or

CHIP CERAMIC CAP. B K 0.022µF/50V CHD1JKB0B223 C866 ELECTROLYTIC CAP. 33µF/10V H7 CE1AMA VSL330 C867 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7 C869 CHIP CERAMIC CAP . (1608) F Z 0.1µF/25V orCHD1EZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP . (1608) F Z 0.1µF/50V orCHD1JZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104 C871 CHIP CERAMIC CAP.(MELF) B K 180pF/

C872 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0 C874 CHIP CERAMIC CAP . (1608) F Z 0.1µF/25V orCHD1EZ30F104

C875 CHIP CERAMIC CAP. CH J 220pF/50V or CHD1JJ3CH221

C876 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C877 ELECTROLYTIC CAP. 100µF/6.3V H7 CE0KMAVSL101

50V or

CHIP CERAMIC CAP.(MELF) B K 180pF/

50V

CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZB0F104

CHIP CERAMIC CAP . (1608) F Z 0.1µF/50V orCHD1JZ30F104

CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104

CHIP CERAMIC CAP. CH J 220pF/50V CHD1JJBCH221

50V or

CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103

CHD1JK30B223

CZM1JK30B181

CZM1JKB0B181

CHD1JK30B103

CONNECTORS

CN151 B STRAIGHT PIN HEADER, 2P 173981-2 or 1770258

B STRAIGHT CONNECTOR BASE 00 8283

0212 00 000 CN201 FFC/FPC CONNECTOR, 12P 04 6232 112

CN303 CONNECTOR BASE, 5P TUC-P05P-B1 J3TUA05TG001 CN804 A STRAIGHT PIN HEADER, 2P 173981-2 or 1770258

103 800

A STRAIGHT CONNECTOR BASE 00 8283

0212 00 000

J383C02UG002

JC62D12TM003

J383C02UG002

DIODES

D151! ZENER DIODE DZ-7.5BSBT265 or NDTB0DZ7R5BS ! ZENER DIODE MTZJT-777.5B QDTB0MTZJ7R5 D152! SWITCHING DIODE 1N4148 or NDTZ001N4148 ! SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D201 LED SIR-563ST3F P or QPQPS1R563ST

LED SIR-563ST3F Q QPQQS1R563ST D202 LED(RED) L-1513EC NPQZ0L1513EC D204 LED(RED) L-1513EC NPQZ0L1513EC D205 ZENER DIODE DZ-5.6BSBT265 or NDTB0DZ5 R6BS

ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6 D206 PCB JUMPER D0.6-P5.0 JW5.0T D210 SWITCHING DIODE 1N4148 or NDTZ001N4148

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D211 SWITCHING DIODE 1N4148 or NDTZ001N4148

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D212 SWITCHING DIODE 1N4148 or NDTZ001N4148

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D213 SWITCHING DIODE 1N4148 or NDTZ001N4148

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D214 SWITCHING DIODE 1N4148 or NDTZ001N4148

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D302 SWITCHING DIODE 1N4148 or NDTZ001N4148

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D303 SWITCHING DIODE 1N4148 or NDTZ001N4148

Ref. No. Mark Description Part No.

SWITCHING DIODE 1SS133(T -77) QDTZ001SS133

D304 SWITCHING DIODE 1N4148 or NDTZ001N4148

SWITCHING DIODE 1SS133(T -77) QDTZ001SS133

D305 ZENER DIODE DZ-8.2BSBT265 or NDTB0DZ8R2BS

ZENER DIODE MTZJT -778.2B QDTB0MTZJ8R2

D306 SWITCHING DIODE 1N4148 or NDTZ001N4148

SWITCHING DIODE 1SS133(T -77) QDTZ001SS133 D401! SWITCHING DIODE 1N4148 or NDTZ001N4148 ! SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D402 CARBON RES. 1/4W J 10k Ω RCX4JA TZ01 03 D682! PCB JUMPER D0.6-P10.0 JW10.0T D686 SWITCHING DIODE 1N4148 or NDTZ001N4148

SWITCHING DIODE 1SS133(T -77) QDTZ001SS133 D687 SWITCHING DIODE 1N4148 or NDTZ001N4148

SWITCHING DIODE 1SS133(T -77) QDTZ001SS133 D688! SWITCHING DIODE 1N4148 or NDTZ001N4148 ! SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D691! SWITCHING DIODE 1N4148 or NDTZ001N4148 ! SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D694 ZENER DIODE DZ-15BSBT265 or NDTB00DZ15BS

ZENER DIODE MTZJT -7715B QDTB00MTZJ15 D695 ZENER DIODE DZ-6.8BSBT265 or NDTB0DZ6R8BS

ZENER DIODE MTZJT -776.8B QDTB0MTZJ6R8 D696 ZENER DIODE DZ-18BSBT265 or NDTB00DZ18BS

ZENER DIODE MTZJT -7718B QDTB00MTZJ18 D697 ZENER DIODE DZ-9.1BSBT265 or NDTB0DZ9R1BS

ZENER DIODE MTZJT -779.1B QDTB0MTZJ9R1 D706 ZENER DIODE DZ-5.1BSBT265 or NDTB0DZ5R1BS

ZENER DIODE MTZJT -775.1B QDTB0MTZJ5R1 D711 ZENER DIODE DZ-5.6BSBT265 or NDTB0DZ5R6BS

ZENER DIODE MTZJT -775.6B QDTB0MTZJ5R6 D712 SWITCHING DIODE 1N4148 or NDTZ001N4148

SWITCHING DIODE 1SS133(T -77) QDTZ001SS133 D713 SWITCHING DIODE 1N4148 or NDTZ001N4148

SWITCHING DIODE 1SS133(T -77) QDTZ001SS133 D715 SWITCHING DIODE 1N4148 or NDTZ001N4148

SWITCHING DIODE 1SS133(T -77) QDTZ001SS133 D716 ZENER DIODE MTZJT -7715B or QDTB00MTZJ15

ZENER DIODE DZ-15BSBT265 NDTB00DZ15BS

ICS

IC151! AUDIO AMP LA4224 QSZAA0SSY005 IC201! MICRO COMPUTER M37762MCA-BB0GP QSZAA0RHT016 IC202! IC:MEMORY AT24C04N-10SC or NSMMA0SAZ013

! IC(EEPROM) M24C04-MN6 or NSMMA0SSS029 ! IC(EEP-ROM) M24C04-WMN6 or NSZAA0SSS005 ! IC:EEPROM CAT24WC04JI or NSZBA0SBG002 ! IC:MEMORY BR24C04F-W or QSMBA0SRM004 ! IC:MEMORY BR24C04F or QSMMA0SRM004 ! IC:EEPROM(4K) BR24L04F-WE2 QSZBA0TRM066

IC301! IC:CHROMA/IF 1 CHIP M61209BFP QSZBA0RMB017 IC401! IC:Y/C/A LA71750EM-MPB-E QSZBA0RSY020 IC681! VOL TAGE REGULATOR KIA7805API or NSBBA0SJY011 ! VOLTAGE REGULA T OR KA7805A NSZBA0SF3052 IC701! IC:ANALOG MUL TIPLEXERS

! IC:ANALOG MUL TIPLEXER CD4053BNSR orNSZBA0TTY093

! IC:SWITCH TC4053BF(N) QSMBA0STS002 IC703! IC:ANALOG MUL TIPLEXERS

! IC:ANALOG MUL TIPLEXER CD4053BNSR orNSZBA0TTY093

CD4053BCSJX or

NSZBA0TF3071

20040322 1-16-5 T6605EL

Ref. No. Mark Description Part No.

! IC:SWITCH TC4053BF(N) QSMBA0STS002

COILS

L001 PCB JUMPER D0.6-P5.0 JW5.0T L151 INDUCTOR 1.8µH-J-26T or LLAXJATTU1R8

INDUCTOR 1.8µH-K-26T LLAXKDTKA1R8

L152 INDUCTOR 1.0µH-J-26T or LLAXJATTU010

INDUCTOR 1.0µH-K-26T LLAXKDTKA1R0

L201 INDUCTOR 0.10µH-K-26T or LLAXKATTUR10

INDUCTOR 0.1µH-M-26T LLAXMDTKAR10

L302 INDUCTOR 33µH-J-26T or LLAXJATTU330

INDUCTOR 33µH-K-26T LLAXKDTKA330 L303 PCB JUMPER D0.6-P7.5 JW7.5T L304 PCB JUMPER D0.6-P7.5 JW7.5T L305 PCB JUMPER D0.6-P5.0 JW5.0T L401 PCB JUMPER D0.6-P5.0 JW5.0T L402 INDUCTOR 33µH-J-26T or LLAXJATTU330

INDUCTOR 33µH-K-26T LLAXKDTKA330 L403 INDUCTOR 100µH-J-26T or LLAXJA TTU101

INDUCTOR 100µH-K-26T LLAXKDTKA101 L681 PCB JUMPER D0.6-P7.5 JW7.5T L682 PCB JUMPER D0.6-P7.5 JW7.5T L701 INDUCTOR 12µH-J-26T or LLAXJATTU120

INDUCTOR 12µH-K-26T LLAXKDTKA120 L702 PCB JUMPER D0.6-P5.0 JW5.0T L852 INDUCTOR 47µH-K-5FT or LLARKBSTU470

INDUCTOR 47µH-K-5FT LLARKDSKA470 L854 INDUCTOR 0.22µH-K-26T or LLAXKATTUR22

INDUCTOR 0.22µH-M-26T LLAXMDTKAR22

TRANSISTORS

Q204 TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC1815-GR(TPE2) or QQS102SC1815

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) QQSJ02SC2785 Q205 PHOTO TRANSISTOR M ID-32A22F or NPWZ1D32A22F

PHOTO T RANSIST OR PT204- 6B-12 NPWZT2046B12 Q206 RES. BUILT-IN TRANSISTOR 2SA1346 or 2SA1346Z

RES. BUIL T-IN TRANSISTOR KRA103M or NQSZ0KRA103M

RES. BUIL T-IN TRANSISTOR BN1F4M-T QQSZ00BN1F4M Q401 TRANSISTOR KTA1267(GR) or NQS10KTA1267

TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1015-GR(TPE2) o r QQS102SA1015

TRANSISTOR 2SA1175(F) QQSF02SA1175 Q682 TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC1815-GR(TPE2) or QQS102SC1815

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) QQSJ02SC2785 Q684 TRANSISTOR KTC3203(Y) or NQSY0KTC3203

TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

TRANSISTOR 2SC2120-Y(TPE2) QQSY02SC2120 Q685! TRANSISTOR KTC3199(GR) or NQS10KTC3199

! TRANSISTOR KTC3198(GR) or NQS40KTC3198 ! TRANSISTOR 2SC1815-GR(TPE2) or QQS102SC1815 ! TRANSISTOR 2SC2785(F) or QQSF02SC2785 ! TRANSISTOR 2SC2785(H) or QQSH02SC2785 ! TRANSISTOR 2SC2785(J) QQSJ02SC2785 Q686! TRANSISTOR KTC2026Y or NQWY0KTC2026

Ref. No. Mark Description Part No.

! TRANSISTOR 2SD1913( R) Q2SD1913R*** Q701 TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198 TRANSISTOR 2SC1815-GR(TPE2) or QQS102SC1815 TRANSISTOR 2SC2785(F) or QQSF02SC2785 TRANSISTOR 2SC2785(H) or QQSH02SC2785 TRANSIST OR 2SC2 785(J ) QQSJ02SC2785

Q702 TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198 TRANSISTOR 2SC1815-GR(TPE2) or QQS102SC1815 TRANSISTOR 2SC2785(F) or QQSF02SC2785 TRANSISTOR 2SC2785(H) or QQSH02SC2785 TRANSIST OR 2SC2 785(J ) QQSJ02SC2785

Q703 TRANSISTOR KT A1267(GR) or NQS10KTA1267

TRANSISTOR KTA1266(GR) or NQS40KTA1266 TRANSISTOR 2SA1015-GR(TPE2) or QQS102SA1015 TRANSISTOR 2SA1175(F) QQSF02SA1175

Q704 RES. BUILT-IN TRANSISTOR 2SA1346 or 2SA1346Z

RES. BUIL T-IN TRANSISTOR KRA103M or NQSZ0KRA103M

RES. BUIL T-IN TRANSISTOR BN1F4M-T QQSZ00BN1F4M Q705 PCB JUMPER D0.6-P5.0 JW5.0T Q706 TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC1815-GR(TPE2) or QQS102SC1815

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSIST OR 2SC2 785(J ) QQSJ02SC2785 Q707 TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC1815-GR(TPE2) or QQS102SC1815

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSIST OR 2SC2 785(J ) QQSJ02SC2785 Q708 TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC1815-GR(TPE2) or QQS102SC1815

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSIST OR 2SC2 785(J ) QQSJ02SC2785 Q709 TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC1815-GR(TPE2) or QQS102SC1815

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSIST OR 2SC2 785(J ) QQSJ02SC2785 Q710 TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC1815-GR(TPE2) or QQS102SC1815

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSIST OR 2SC2 785(J ) QQSJ02SC2785 Q711 TRANSISTOR KT A1267(GR) or NQS10KTA1267

TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1015-GR(TPE2) or QQS102SA1015

TRANSISTOR 2SA1175(F) QQSF02SA1175 Q851 RES. BUILT-IN TRANSISTOR 2SA1346 or 2SA1346Z

RES. BUIL T-IN TRANSISTOR KRA103M or NQSZ0KRA103M

RES. BUIL T-IN TRANSISTOR BN1F4M-T QQSZ00BN1F4M Q852 TRANSISTOR 2SC1815-GR(TPE2) or QQS102SC1815

TRANSIST OR 2SC3 331(T) or QSC3331TNPAA

TRANSIST OR 2SC3 331(U ) QSC3331UNPAA

20040322 1-16-6 T6605EL

Ref. No. Mark Description Part No.

Q853 TRANSISTOR 2SC1815-GR(TPE2) or QQS102SC1815

TRANSISTOR 2SC3331(T) or QSC3331TNPAA TRANSISTOR 2SC3331(U) QSC3331UNPAA

Q854 TRANSISTOR KTA1267(GR) or NQS10KTA1267

TRANSISTOR KTA1266(GR) or NQS40KTA1266 TRANSISTOR 2SA1015-GR(TPE2) o r QQS102SA1015 TRANSISTOR 2SA1175(F) QQSF02SA1175

Q855 TRANSISTOR KTC3203(Y) or NQSY0KTC3203

TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120 TRANSISTOR 2SC2120-Y(TPE2) QQSY02SC2120

Q856 TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198 TRANSISTOR 2SC1815-GR(TPE2) or QQS102SC1815 TRANSISTOR 2SC2785(F) or QQSF02SC2785 TRANSISTOR 2SC2785(H) or QQSH02SC2785 TRANSISTOR 2SC2785(J) QQSJ02SC2785

RESISTORS

R003 PCB JUMPER D0.6-P5.0 JW5.0T R004 PCB JUMPER D0.6-P5.0 JW5.0T R151! METAL O XIDE FILM RES. 1W J 12 Ω or RN01JZLZ0120 ! FIXED METAL OXIDE FILM RES. 1W J 12 ΩRN01JZPZ0120

R152! CHIP RES. (1608) 1/10W J 5 .6k Ω or RRXAJB5Z0562 ! CHIP RES. (1608) 1/10W J 5 .6k Ω RRXAJR5Z0562 R153 CHIP RES.(1608) 1/10 W J 4.7k Ω o r RRXAJB5Z0472

CHIP RES.(1 608) 1/ 10W J 4.7 k Ω RRXAJR5Z0472

R154 CHIP RES.(1608) 1/10 W J 5.6k Ω o r RRXAJB5Z0562

CHIP RES.(1 608) 1/ 10W J 5.6 k Ω RRXAJR5Z0562 R155 CARBON RES. 1/4W J 47 Ω RCX4JAT Z047 0 R156 CARBON RES. 1/4W J 47 Ω RCX4JAT Z047 0 R157 CARBON RES. 1/4W J 10 Ω RCX4JAT Z010 0 R201 CARBON RES. 1/4W J 1k Ω RCX4J ATZ0102 R202 CHIP RES.(1608) 1/10 W J 22k Ω or RRXAJB5Z0223

CHIP RES.(1 608) 1/ 10W J 22 k Ω RRXAJR5Z0223 R203 CARBON RES. 1/4W J 1k Ω RCX4J ATZ0102 R204 CHIP RES.(1608) 1/10 W J 22k Ω or RRXAJB5Z0223

CHIP RES.(1 608) 1/ 10W J 22 k Ω RRXAJR5Z0223 R205 CARBON RES. 1/4W J 1k Ω RCX4J ATZ0102 R206 CHIP RES.(1608) 1/10 W J 390k Ω o r RRXAJB5Z0394

CHIP RES.(1 608) 1/ 10W J 39 0k Ω RRXAJR5Z0394 R207 CHIP RES.(1608) 1/10 W J 10k Ω or RRXAJB5Z0103

CHIP RES.(1 608) 1/ 10W J 10 k Ω RRXAJR5Z0103 R208 CHIP RES.(1608) 1/10 W J 1.5k Ω o r RRXAJB5Z0152

CHIP RES.(1 608) 1/ 10W J 1.5 k Ω RRXAJR5Z0152 R209 CHIP RES.(1608) 1/10 W J 1.5k Ω o r RRXAJB5Z0152

CHIP RES.(1 608) 1/ 10W J 1.5 k Ω RRXAJR5Z0152 R210 CARBON RES. 1/4W G 4.7k Ω or RCX4GATZ0472

CARBON RES. 1/6W G 4.7k Ω RCX6GATZ0472 R211 CHIP RES.(1608) 1/10 W J 2.2k Ω o r RRXAJB5Z0222

CHIP RES.(1 608) 1/ 10W J 2.2 k Ω RRXAJR5Z0222 R212 CHIP RES.(1608) 1/10 W J 2.7k Ω o r RRXAJB5Z0272

CHIP RES.(1 608) 1/ 10W J 2.7 k Ω RRXAJR5Z0272 R213 CHIP RES.(1608) 1/10 W J 10k Ω or RRXAJB5Z0103

CHIP RES.(1 608) 1/ 10W J 10 k Ω RRXAJR5Z0103 R214 CHIP RES.(1608) 1/10 W J 1.5k Ω o r RRXAJB5Z0152

CHIP RES.(1 608) 1/ 10W J 1.5 k Ω RRXAJR5Z0152 R215 CHIP RES.(1608) 1/10 W J 1.5k Ω o r RRXAJB5Z0152

CHIP RES.(1 608) 1/ 10W J 1.5 k Ω RRXAJR5Z0152 R216 CHIP RES.(1608) 1/10 W J 2.2k Ω o r RRXAJB5Z0222

CHIP RES.(1 608) 1/ 10W J 2.2 k Ω RRXAJR5Z0222 R217 CHIP RES.(1608) 1/10 W J 2.7k Ω o r RRXAJB5Z0272

Ref. No. Mark Description Part No.

CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJR5Z0272

R218 CHIP RES.(1608) 1/10W J 560 Ω or RRXAJB5Z0561

CHIP RES.(1608) 1/10W J 560 Ω RRXAJR5Z0561 R219 CARBON RES. 1/4W J 1k Ω RCX4J ATZ0102 R220 CHIP RES.(1608) 1/10W J 390k Ω or RRXAJB5Z0394

CHIP RES.(1608) 1/10W J 390k Ω RRXAJR5Z0394 R221 CARBON RES. 1/4W J 270 Ω RCX4JATZ0271 R222 CARBON RES. 1/4W J 1k Ω RCX4J ATZ0102 R223 CHIP RES.(1608) 1/10W J 680 Ω or RRXAJB5Z0681

CHIP RES.(1608) 1/10W J 680 Ω RRXAJR5Z0681 R224 CHIP RES.(1608) 1/10W J 680 Ω or RRXAJB5Z0681

CHIP RES.(1608) 1/10W J 680 Ω RRXAJR5Z0681 R226 CHIP RES.(1608) 1/10W J 10k Ω or RRXAJB5 Z0103

CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R227 CHIP RES.(1608) 1/10W J 47 Ω or RRXAJB5Z0470

CHIP RES.(1608) 1/10W J 47 Ω RRXAJR5Z0470 R228 CHIP RES.(1608) 1/10W J 100k Ω or RRXAJB5Z0104

CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104 R229 CHIP RES.(1608) 1/10W J 2.2k Ω or RRXAJB5Z0222

CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222 R230 CHIP RES.(1608) 1/10W J 1.5k Ω or RRXAJB5Z0152

CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJR5Z0152 R231 CHIP RES.(1608) 1/10W J 330k Ω or RRXAJB5Z0334

CHIP RES.(1608) 1/10W J 330k Ω RRXAJR5Z0334 R232 CHIP RES.(1608) 1/10W J 1k Ω or RRXAJB5Z0102

CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102 R233 CHIP RES.(1608) 1/10W J 1k Ω or RRXAJB5Z0102

CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102 R234 CHIP RES.(1608) 1/10W J 560 Ω or RRXAJB5Z0561

CHIP RES.(1608) 1/10W J 560 Ω RRXAJR5Z0561 R235 CHIP RES.(1608) 1/10W J 1k Ω or RRXAJB5Z0102

CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102 R236 CHIP RES.(1608) 1/10W J 470 Ω or RRXAJB5Z0471

CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471 R237 CHIP RES.(1608) 1/10W J 1M Ω or RRXAJB5Z0105

CHIP RES.(1608) 1/10W J 1M Ω RRXAJR5Z0105 R238 CHIP RES.(1608) 1/10W J 100 Ω or RRXAJB5Z0101

CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101 R239 PCB JUMPER D0.6-P5.0 JW5.0T R240 PCB JUMPER D0.6-P5.0 JW5.0T R241 CHIP RES.(1608) 1/10W J 220 Ω or RRXAJB5Z0221

CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221 R242 CHIP RES.(1608) 1/10W J 220 Ω or RRXAJB5Z0221

CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221 R243 CHIP RES.(1608) 1/10W J 39k Ω or RRXAJB5 Z0393

CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393 R244 CHIP RES.(1608) 1/10W J 220k Ω or RRXAJB5Z0224

CHIP RES.(1608) 1/10W J 220k Ω RRXAJR5Z0224 R248 CARBON RES. 1/4W J 1k Ω RCX4J ATZ0102 R249 CHIP RES.(1608) 1/10W J 10k Ω or RRXAJB5 Z0103

CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R250 CHIP RES.(1608) 1/10W J 33k Ω or RRXAJB5 Z0333

CHIP RES.(1608) 1/10W J 33k Ω RRXAJR5Z0333 R254 CHIP RES.(1608) 1/10W J 100k Ω or RRXAJB5Z0104

CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104 R255 CHIP RES.(1608) 1/10W J 680 Ω or RRXAJB5Z0681

CHIP RES.(1608) 1/10W J 680 Ω RRXAJR5Z0681 R256 CHIP RES.(1608) 1/10W J 1.8k Ω or RRXAJB5Z0182

CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJR5Z0182 R257 CARBON RES. 1/4W J 6.8k Ω RCX4JA TZ 0682 R258 CARBON RES. 1/4W J 47k Ω RCX4JA TZ04 73

20040322 1-16-7 T6605EL

Ref. No. Mark Description Part No.

R259 PCB JUMPER D0.6-P5.0 JW5.0T R260 CARBON RES. 1/4W G 1.5k Ω or RCX4GATZ0152

CARBON RES. 1/6W G 1.5k Ω RCX6GATZ0152

R261 CARBON RES. 1/4W G 22k Ω or RCX4GATZ0223

CARBON RES. 1/6W G 22k Ω RCX6GATZ0223

R262 CARBON RES. 1/4W G 470 Ω or RCX4GATZ0471

CARBON RES. 1/6W G 470 Ω RCX6GATZ0471

R263 CARBON RES. 1/4W G 10k Ω or RCX4GATZ0103

CARBON RES. 1/6W G 10k Ω RCX6GATZ0103

R264 CARBON RES. 1/4W G 3.6k Ω or RCX4GATZ0362

CARBON RES. 1/6W G 3.6k Ω RCX6GATZ0362 R265 PCB JUMPER D0.6-P5.0 JW5.0T R266 PCB JUMPER D0.6-P5.0 JW5.0T R267 CHIP RES.(1608) 1/10 W J 10k Ω or RRXAJB5Z0103

CHIP RES.(1 608) 1/ 10W J 10 k Ω RRXAJR5Z0103 R268 CHIP RES.(1608) 1/10 W J 3.3k Ω o r RRXAJB5Z0332

CHIP RES.(1 608) 1/ 10W J 3.3 k Ω RRXAJR5Z0332 R269 CHIP RES.(1608) 1/10 W J 3.3k Ω o r RRXAJB5Z0332

CHIP RES.(1 608) 1/ 10W J 3.3 k Ω RRXAJR5Z0332 R270 CHIP RES.(1608) 1/10 W J 100 Ω or RRXAJB5Z0101

CHIP RES.(1 608) 1/ 10W J 10 0 Ω RRXAJR5Z0101 R271 CHIP RES.(1608) 1/10 W J 10k Ω or RRXAJB5Z0103

CHIP RES.(1 608) 1/ 10W J 10 k Ω RRXAJR5Z0103 R272 CHIP RES.(1608) 1/10 W J 18k Ω or RRXAJB5Z0183

CHIP RES.(1 608) 1/ 10W J 18 k Ω RRXAJR5Z0183 R273 CHIP RES.(1608) 1/10 W J 18k Ω or RRXAJB5Z0183

CHIP RES.(1 608) 1/ 10W J 18 k Ω RRXAJR5Z0183 R274 CHIP RES.(1608) 1/10 W J 10k Ω or RRXAJB5Z0103

CHIP RES.(1 608) 1/ 10W J 10 k Ω RRXAJR5Z0103 R275 CHIP RES.(1608) 1/10 W J 560 Ω or RRXAJB5Z0561

CHIP RES.(1 608) 1/ 10W J 56 0 Ω RRXAJR5Z0561 R276 CHIP RES.(1608) 1/10 W J 1.5k Ω o r RRXAJB5Z0152

CHIP RES.(1 608) 1/ 10W J 1.5 k Ω RRXAJR5Z0152 R277 CHIP RES.(1608) 1/10 W J 560 Ω or RRXAJB5Z0561

CHIP RES.(1 608) 1/ 10W J 56 0 Ω RRXAJR5Z0561 R278 CHIP RES.(1608) 1/10 W J 1.5k Ω o r RRXAJB5Z0152

CHIP RES.(1 608) 1/ 10W J 1.5 k Ω RRXAJR5Z0152 R279 CHIP RES.(1608) 1/10 W J 560 Ω or RRXAJB5Z0561

CHIP RES.(1 608) 1/ 10W J 56 0 Ω RRXAJR5Z0561 R280 CHIP RES.(1608) 1/10 W J 1.5k Ω o r RRXAJB5Z0152

CHIP RES.(1 608) 1/ 10W J 1.5 k Ω RRXAJR5Z0152 R281 CHIP RES.(1608) 1/10 W J 3.3k Ω o r RRXAJB5Z0332

CHIP RES.(1 608) 1/ 10W J 3.3 k Ω RRXAJR5Z0332 R282 CARBON RES. 1/4W J 330 Ω RCX4JATZ0331 R288 CHIP RES.(1608) 1/10 W J 10 Ω or RRXAJB5Z0100

CHIP RES.(1 608) 1/ 10W J 10 Ω RRXAJR5Z0100 R289 CHIP RES.(1608) 1/10 W J 10 Ω or RRXAJB5Z0100

CHIP RES.(1 608) 1/ 10W J 10 Ω RRXAJR5Z0100 R301 CHIP RES.(1608) 1/10 W J 1.2k Ω o r RRXAJB5Z0122

CHIP RES.(1 608) 1/ 10W J 1.2 k Ω RRXAJR5Z0122 R302 CHIP RES.(1608) 1/10 W J 8.2k Ω o r RRXAJB5Z0822

CHIP RES.(1 608) 1/ 10W J 8.2 k Ω RRXAJR5Z0822 R303 CHIP RES.(1608) 1/10 W J 100 Ω or RRXAJB5Z0101

CHIP RES.(1 608) 1/ 10W J 10 0 Ω RRXAJR5Z0101 R304 A CHIP RES.(1608) 1/10W J 1k Ω or RRXAJB5Z0102

A CHIP RES.(160 8) 1/10 W J 1k Ω RRXAJR5Z0102

R304 B CHIP RES.(1608) 1/10W J 1.8k Ω or RRXAJB5Z0182

B CHIP RES.(160 8) 1/10 W J 1.8 k Ω RRXAJR5Z0182

R305 CHIP RES.(1608) 1/10 W J 1.2k Ω o r RRXAJB5Z0122

CHIP RES.(1 608) 1/ 10W J 1.2 k Ω RRXAJR5Z0122 R306 CHIP RES.(1608) 1/10 W J 100 Ω or RRXAJB5Z0101

Ref. No. Mark Description Part No.

CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101

R307 CHIP RES.(1608) 1/10W J 1.2k Ω or RRXAJB5Z0122

CHIP RES.(1608) 1/10W J 1.2k Ω RRXAJR5Z0122

R308 CHIP RES.(1608) 1/10W J 100 Ω or RRXAJB5Z0101

CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101

R309 CHIP RES.(1608) 1/10W J 1.2k Ω or RRXAJB5Z0122

CHIP RES.(1608) 1/10W J 1.2k Ω RRXAJR5Z0122

R310 CHIP RES.(1608) 1/10W J 1k Ω or RRXAJB5Z0102

CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102 R311 CARBON RES. 1/4W J 12 Ω RCX4JA TZ0120 R312 CHIP RES.(1608) 1/10W J 100 Ω or RRXAJB5Z0101

CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101 R313 CHIP RES.(1608) 1/10W J 220k Ω or RRXAJB5Z0224

CHIP RES.(1608) 1/10W J 220k Ω RRXAJR5Z0224 R314 CHIP RES.(1608) 1/10W J 4.7k Ω or RRXAJB5Z0472

CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472 R315 CHIP RES.(1608) 1/10W J 150k Ω or RRXAJB5Z0154

CHIP RES.(1608) 1/10W J 150k Ω RRXAJR5Z0154 R316 CARBON RES. 1/4W J 15k Ω RCX4JA TZ01 53 R317 CARBON RES. 1/4W J 220k Ω RCX4JATZ0224 R318 CHIP RES.(1608) 1/10W J 6.8k Ω or RRXAJB5Z0682

CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJR5Z0682 R320 CHIP RES.(1608) 1/10W J 10k Ω or RRXAJB5 Z0103

CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R321 CHIP RES.(1608) 1/10W J 220 Ω or RRXAJB5Z0221

CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221 R322 CHIP RES.(1608) 1/10W J 3.3k Ω or RRXAJB5Z0332

CHIP RES.(1608) 1/10W J 3.3k Ω RRXAJR5Z0332 R323 CHIP RES.(1608) 1/10W J 15k Ω or RRXAJB5 Z0153

CHIP RES.(1608) 1/10W J 15k Ω RRXAJR5Z0153 R324 CHIP RES.(1608) 1/10W J 4.7k Ω or RRXAJB5Z0472

CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472 R325 CHIP RES.(1608) 1/10W J 10k Ω or RRXAJB5 Z0103

CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R326 CHIP RES.(1608) 1/10W J 6.8k Ω or RRXAJB5Z0682

CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJR5Z0682 R327 PCB JUMPER D0.6-P5.0 JW5.0T R332 CHIP RES.(1608) 1/10W J 100 Ω or RRXAJB5Z0101

CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101 R333 CHIP RES.(1608) 1/10W J 100 Ω or RRXAJB5Z0101

CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101 R334 CHIP RES.(1608) 1/10W J 100 Ω or RRXAJB5Z0101

CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101 R335 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R336 CHIP RES.(1608) 1/10W J 10k Ω or RRXAJB5 Z0103

CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R339 CHIP RES.(1608) 1/10W 0 Ω or RRXAZB5Z0000

CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R340 CHIP RES.(1608) 1/10W 0 Ω or RRXAZB5Z0000

CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R401 CHIP RES.(1608) 1/10W J 1.2k Ω or RRXAJB5Z0122

CHIP RES.(1608) 1/10W J 1.2k Ω RRXAJR5Z0122 R402 CHIP RES.(1608) 1/10W J 8.2k Ω or RRXAJB5Z0822

CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJR5Z0822 R405 CHIP RES.(1608) 1/10W J 10k Ω or RRXAJB5 Z0103

CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R406 CHIP RES.(1608) 1/10W J 1.2k Ω or RRXAJB5Z0122

CHIP RES.(1608) 1/10W J 1.2k Ω RRXAJR5Z0122 R407 CHIP RES.(1608) 1/10W J 390k Ω or RRXAJB5Z0394

CHIP RES.(1608) 1/10W J 390k Ω RRXAJR5Z0394 R408 CHIP RES.(1608) 1/10W J 330 Ω or RRXAJB5Z0331

20040322 1-16-8 T6605EL

Ref. No. Mark Description Part No.

CHIP RES.(1 608) 1/ 10W J 33 0 Ω RRXAJR5Z0331

R409 CHIP RES.(1608) 1/10 W J 330 Ω or RRXAJB5Z0331

CHIP RES.(1 608) 1/ 10W J 33 0 Ω RRXAJR5Z0331

R410 CHIP RES.(1608) 1/10 W J 220 Ω or RRXAJB5Z0221

CHIP RES.(1 608) 1/ 10W J 22 0 Ω RRXAJR5Z0221

R411 CHIP RES.(1608) 1/10 W J 4.7k Ω o r RRXAJB5Z0472

CHIP RES.(1 608) 1/ 10W J 4.7 k Ω RRXAJR5Z0472

R412 CHIP RES.(1608) 1/10 W J 4.7k Ω o r RRXAJB5Z0472

CHIP RES.(1 608) 1/ 10W J 4.7 k Ω RRXAJR5Z0472

R413 CHIP RES.(1608) 1/10 W J 2.2k Ω o r RRXAJB5Z0222

CHIP RES.(1 608) 1/ 10W J 2.2 k Ω RRXAJR5Z0222

R414 CHIP RES.(1608) 1/10 W J 6.8k Ω o r RRXAJB5Z0682

CHIP RES.(1 608) 1/ 10W J 6.8 k Ω RRXAJR5Z0682

R415 CHIP RES.(1608) 1/10 W J 4.7k Ω o r RRXAJB5Z0472

CHIP RES.(1 608) 1/ 10W J 4.7 k Ω RRXAJR5Z0472

R416 CHIP RES.(1608) 1/10 W J 1.2k Ω o r RRXAJB5Z0122

CHIP RES.(1 608) 1/ 10W J 1.2 k Ω RRXAJR5Z0122

R418 CHIP RES.(1608) 1/10 W J 56k Ω or RRXAJB5Z0563

CHIP RES.(1 608) 1/ 10W J 56 k Ω RRXAJR5Z0563

R420 CHIP RES.(1608) 1/10 W J 1.5k Ω o r RRXAJB5Z0152

CHIP RES.(1 608) 1/ 10W J 1.5 k Ω RRXAJR5Z0152

R422 CHIP RES.(1608) 1/10 W J 120 Ω or RRXAJB5Z0121

CHIP RES.(1 608) 1/ 10W J 12 0 Ω RRXAJR5Z0121

R423 CHIP RES.(1608) 1/10 W J 47 Ω or RRXAJB5Z0470

CHIP RES.(1 608) 1/ 10W J 47 Ω RRXAJR5Z0470

R424 CHIP RES.(1608) 1/10 W J 1k Ω or RRXAJB5Z0102

CHIP RES.(1 608) 1/ 10W J 1k Ω RRXAJR5Z0102

R425 CHIP RES.(1608) 1/10W 0 Ω or RRXAZB5Z0000

CHIP RES.(1 608) 1/ 10W 0 Ω RRXAZR5Z0000

R426 CHIP RES.(1608) 1/10W 0 Ω or RRXAZB5Z0000

CHIP RES.(1 608) 1/ 10W 0 Ω RRXAZR5Z0000

R683 METAL O XIDE FILM RES. 1W J 2.2 Ω or RN012R2DP003

METAL O XIDE FILM RES. 1W J 2.2 Ω RN012R2ZU001

R684 CHIP RES.(1608) 1/10 W J 10 Ω or RRXAJB5Z0100

CHIP RES.(1 608) 1/ 10W J 10 Ω RRXAJR5Z0100 R685 CARBON RES. 1/4W J 6.8k Ω RCX4JA T Z0682 R686 CHIP RES.(1608) 1/10 W J 10k Ω or RRXAJB5Z0103

CHIP RES.(1 608) 1/ 10W J 10 k Ω RRXAJR5Z0103 R689! CARBON RES. 1/4W J 82 Ω RCX4JA T Z0820 R690! CARBON RES. 1/4W J 82 Ω RCX4JA T Z0820 R691! CARBON RES. 1/4W J 2.7 Ω RCX4JATZ02R7 R692 CHIP RES.(1608) 1/10 W J 10k Ω or RRXAJB5Z0103

CHIP RES.(1 608) 1/ 10W J 10 k Ω RRXAJR5Z0103 R693! CHIP RES. (1608) 1/10W J 2 2k Ω or RRXAJB5Z0223 ! CHIP RES. (1608) 1/10W J 2 2k Ω RRXAJR5Z0223 R694 CHIP RES.(1608) 1/10 W J 100 Ω or RRXAJB5Z0101

CHIP RES.(1 608) 1/ 10W J 10 0 Ω RRXAJR5Z0101 R695! CARBON RES. 1/4W J 2.7 Ω RCX4JATZ02R7 R696! METAL O XIDE FILM RES. 1W J 2.2 Ω or RN012R2DP003 ! METAL O XIDE FILM RES. 1W J 2.2 Ω RN012R2ZU001 R697 CHIP RES.(1608) 1/10 W J 10k Ω or RRXAJB5Z0103

CHIP RES.(1 608) 1/ 10W J 10 k Ω RRXAJR5Z0103 R698 CHIP RES.(1608) 1/10 W J 8.2k Ω o r RRXAJB5Z0822

CHIP RES.(1 608) 1/ 10W J 8.2 k Ω RRXAJR5Z0822 R701 CHIP RES.(1608) 1/10 W J 75 Ω or RRXAJB5Z0750

CHIP RES.(1 608) 1/ 10W J 75 Ω RRXAJR5Z0750 R702 CHIP RES.(1608) 1/10 W J 3.3k Ω o r RRXAJB5Z0332

CHIP RES.(1 608) 1/ 10W J 3.3 k Ω RRXAJR5Z0332 R703 CARBON RES. 1/4W J 1k Ω RCX4J ATZ0102 R704 CARBON RES. 1/4W J 3.3k Ω RCX4JA T Z0332 R707 CHIP RES.(1608) 1/10 W J 1k Ω or RRXAJB5Z0102

Ref. No. Mark Description Part No.

CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102

R709 CHIP RES.(1608) 1/10W J 75 Ω or RRXAJB5Z0750

CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750

R710 CHIP RES.(1608) 1/10W J 33k Ω or RRXAJB5 Z0333

CHIP RES.(1608) 1/10W J 33k Ω RRXAJR5Z0333

R711 CHIP RES.(1608) 1/10W J 2.2k Ω or RRXAJB5Z0222

CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222 R712 CARBON RES. 1/4W J 4.7k Ω RCX4JA TZ 0472 R714 CHIP RES.(1608) 1/10W J 75 Ω or RRXAJB5Z0750

CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750 R723 CHIP RES.(1608) 1/10W J 75 Ω or RRXAJB5Z0750

CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750 R724 CHIP RES.(1608) 1/10W J 33k Ω or RRXAJB5 Z0333

CHIP RES.(1608) 1/10W J 33k Ω RRXAJR5Z0333 R725 CARBON RES. 1/4W J 75 Ω RCX4JA TZ0750 R726 CHIP RES.(1608) 1/10W J 1k Ω or RRXAJB5Z0102

CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102 R727 CHIP RES.(1608) 1/10W J 22k Ω or RRXAJB5 Z0223

CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R728 CHIP RES.(1608) 1/10W J 22k Ω or RRXAJB5 Z0223

CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R729 CHIP RES.(1608) 1/10W J 47k Ω or RRXAJB5 Z0473

CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473 R730 CHIP RES.(1608) 1/10W J 10k Ω or RRXAJB5 Z0103

CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R731 CHIP RES.(1608) 1/10W J 100 Ω or RRXAJB5Z0101

CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101 R732 CARBON RES. 1/4W J 75 Ω RCX4JA TZ0750 R733 CARBON RES. 1/4W J 390 Ω RCX4JATZ0391 R737 CHIP RES.(1608) 1/10W J 75 Ω or RRXAJB5Z0750

CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750 R738 CHIP RES.(1608) 1/10W J 10k Ω or RRXAJB5 Z0103

CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R739 CHIP RES.(1608) 1/10W J 10k Ω or RRXAJB5 Z0103

CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R740 CHIP RES.(1608) 1/10W J 33k Ω or RRXAJB5 Z0333

CHIP RES.(1608) 1/10W J 33k Ω RRXAJR5Z0333 R741 CHIP RES.(1608) 1/10W J 10k Ω or RRXAJB5 Z0103

CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R742 CHIP RES.(1608) 1/10W J 47k Ω or RRXAJB5 Z0473

CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473 R743 CHIP RES.(1608) 1/10W J 6.2k Ω or RRXAJB5Z0622

CHIP RES.(1608) 1/10W J 6.2k Ω RRXAJR5Z0622 R744 CHIP RES.(1608) 1/10W J 47k Ω or RRXAJB5 Z0473

CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473 R745 CHIP RES.(1608) 1/10W J 6.2k Ω or RRXAJB5Z0622

CHIP RES.(1608) 1/10W J 6.2k Ω RRXAJR5Z0622 R746 CHIP RES.(1608) 1/10W J 47k Ω or RRXAJB5 Z0473

CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473 R747 CHIP RES.(1608) 1/10W J 6.2k Ω or RRXAJB5Z0622

CHIP RES.(1608) 1/10W J 6.2k Ω RRXAJR5Z0622 R748 A CHIP RES.(1608) 1/10W J 1.8k Ω or RRXAJB5Z0182

A CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJR5Z0182

R748 B CHIP RES.(1608) 1/10W J 2.2k Ω or RRXAJB5Z0222

B CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222

R749 CHIP RES.(1608) 1/10W J 10k Ω or RRXAJB5 Z0103

CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R751 A CHIP RES.(1608) 1/10W J 1.8k Ω or RRXAJB5Z0182

A CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJR5Z0182

R751 B CHIP RES.(1608) 1/10W J 2.2k Ω or RRXAJB5Z0222

B CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222

20040322 1-16-9 T6605EL

Ref. No. Mark Description Part No.

R752 CHIP RES.(1608) 1/10 W J 1k Ω or RRXAJB5Z0102

CHIP RES.(1 608) 1/ 10W J 1k Ω RRXAJR5Z0102 R753 A CARBON RES. 1/4W J 1.8k Ω RCX4JATZ0182 R753 B CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222 R754 CHIP RES.(1608) 1/10 W J 22k Ω or RRXAJB5Z0223

CHIP RES.(1 608) 1/ 10W J 22 k Ω RRXAJR5Z0223 R755 CHIP RES.(1608) 1/10 W J 470 Ω or RRXAJB5Z0471

CHIP RES.(1 608) 1/ 10W J 47 0 Ω RRXAJR5Z0471 R756 CHIP RES.(1608) 1/10 W J 1k Ω or RRXAJB5Z0102

CHIP RES.(1 608) 1/ 10W J 1k Ω RRXAJR5Z0102 R757 CHIP RES.(1608) 1/10 W J 1M Ω or RRXAJB5Z0105

CHIP RES.(1 608) 1/ 10W J 1M Ω RRXAJR5Z0105 R851 CHIP RES.(1608) 1/10 W J 5.6k Ω o r RRXAJB5Z0562

CHIP RES.(1 608) 1/ 10W J 5.6 k Ω RRXAJR5Z0562 R852 CHIP RES.(1608) 1/10 W J 22k Ω or RRXAJB5Z0223

CHIP RES.(1 608) 1/ 10W J 22 k Ω RRXAJR5Z0223 R853 CHIP RES.(1608) 1/10 W J 2.2k Ω o r RRXAJB5Z0222

CHIP RES.(1 608) 1/ 10W J 2.2 k Ω RRXAJR5Z0222 R854 CHIP RES.(1608) 1/10 W J 2.2k Ω o r RRXAJB5Z0222

CHIP RES.(1 608) 1/ 10W J 2.2 k Ω RRXAJR5Z0222 R856 CARBON RES. 1/4W J 47k Ω RCX4JA TZ047 3 R857 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R858 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821 R859 CHIP RES.(1608) 1/10 W J 680 Ω or RRXAJB5Z0681

CHIP RES.(1 608) 1/ 10W J 68 0 Ω RRXAJR5Z0681 R860 CHIP RES.(1608) 1/10 W J 22k Ω or RRXAJB5Z0223

CHIP RES.(1 608) 1/ 10W J 22 k Ω RRXAJR5Z0223 R861 CHIP RES.(1608) 1/10 W J 330k Ω o r RRXAJB5Z0334

CHIP RES.(1 608) 1/ 10W J 33 0k Ω RRXAJR5Z0334 R862 CHIP RES.(1608) 1/10 W J 12k Ω or RRXAJB5Z0123

CHIP RES.(1 608) 1/ 10W J 12 k Ω RRXAJR5Z0123 R863 CHIP RES.(1608) 1/10 W J 120 Ω or RRXAJB5Z0121

CHIP RES.(1 608) 1/ 10W J 12 0 Ω RRXAJR5Z0121 R864 CHIP RES.(1608) 1/10 W J 560 Ω or RRXAJB5Z0561

CHIP RES.(1 608) 1/ 10W J 56 0 Ω RRXAJR5Z0561 R865 CHIP RES.(1608) 1/10 W J 1.8k Ω o r RRXAJB5Z0182

CHIP RES.(1 608) 1/ 10W J 1.8 k Ω RRXAJR5Z0182 R866 CHIP RES.(1608) 1/10 W J 12k Ω or RRXAJB5Z0123

CHIP RES.(1 608) 1/ 10W J 12 k Ω RRXAJR5Z0123 R867 CHIP RES.(1608) 1/10 W J 100 Ω or RRXAJB5Z0101

CHIP RES.(1 608) 1/ 10W J 10 0 Ω RRXAJR5Z0101 R869 CHIP RES.(1608) 1/10 W J 2.7k Ω o r RRXAJB5Z0272

CHIP RES.(1 608) 1/ 10W J 2.7 k Ω RRXAJR5Z0272 R870 CHIP RES.(1608) 1/10 W J 56k Ω or RRXAJB5Z0563

CHIP RES.(1 608) 1/ 10W J 56 k Ω RRXAJR5Z0563 R871 CHIP RES.(1608) 1/10 W J 1M Ω or RRXAJB5Z0105

CHIP RES.(1 608) 1/ 10W J 1M Ω RRXAJR5Z0105 R874 CHIP RES.(1608) 1/10 W J 4.7k Ω o r RRXAJB5Z0472

CHIP RES.(1 608) 1/ 10W J 4.7 k Ω RRXAJR5Z0472 R876 CHIP RES.(1608) 1/10 W J 4.7k Ω o r RRXAJB5Z0472

CHIP RES.(1 608) 1/ 10W J 4.7 k Ω RRXAJR5Z0472 R877 CHIP RES.(1608) 1/10 W J 15k Ω or RRXAJB5Z0153

CHIP RES.(1 608) 1/ 10W J 15 k Ω RRXAJR5Z0153 R878 CHIP RES.(1608) 1/10 W J 12k Ω or RRXAJB5Z0123

CHIP RES.(1 608) 1/ 10W J 12 k Ω RRXAJR5Z0123 R879 CHIP RES.(1608) 1/10 W J 5.6k Ω o r RRXAJB5Z0562

CHIP RES.(1 608) 1/ 10W J 5.6 k Ω RRXAJR5Z0562 R884 CARBON RES. 1/4W J 1k Ω RCX4J ATZ0102

SWITCHES

SW201 TAC T SWITCH SKQNAED010 or SST0101AL055

Ref. No. Mark Description Part No.

T A CTILE SWI TCH KSHG612BT SST0101HH027

SW202 TAC T SWITCH SKQNAED010 or SST0101AL055

T A CTILE SWI TCH KSHG612BT SST0101HH027

SW203 TAC T SWITCH SKQNAED010 or SST0101AL055

T A CTILE SWI TCH KSHG612BT SST0101HH027

SW204 TAC T SWITCH SKQNAED010 or SST0101AL055

T A CTILE SWI TCH KSHG612BT SST0101HH027

SW205 TAC T SWITCH SKQNAED010 or SST0101AL055

T A CTILE SWI TCH KSHG612BT SST0101HH027

SW206 TAC T SWITCH SKQNAED010 or SST0101AL055

T A CTILE SWI TCH KSHG612BT SST0101HH027

SW207 TAC T SWITCH SKQNAED010 or SST0101AL055

T A CTILE SWI TCH KSHG612BT SST0101HH027

SW208 TAC T SWITCH SKQNAED010 or SST0101AL055

T A CTILE SWI TCH KSHG612BT SST0101HH027

SW209 TAC T SWITCH SKQNAED010 or SST0101AL055

T A CTILE SWI TCH KSHG612BT SST0101HH027

SW210 TAC T SWITCH SKQNAED010 or SST0101AL055

T A CTILE SWI TCH KSHG612BT SST0101HH027

SW211 LEAF SWITCH LSA-1142-2AU or SSC0101KB014

LEAF SWITCH MXS00052MPP0 or SSC0101MCE01 LEAF SWITCH MXS00981MPP0 SSC0101MCE02

SW212 ROT AR Y MODE SWITCH SSS-50MD or SSR0106KB002

ROTARY MODE SWITC H R81002 45 SSR0106U3002

MISCELLANEOUS

CL301A A LEAD WIRE 4P/300 WX1T6300-102 CL301A B LEAD WIRE 4P/450 WX1T6500-104 CL302A A LEAD WIRE 7P/190 WX1T6450-103 CL302A B LEAD WIRE 7P/280 WX1T6700-102 CL603A LEAD WIRE 12P/190 WX1T6450-102 CL604 WIRE ASSEMBLY 1P/45 WX1T6400-001 RS201 REMOTE RECEIVER PIC-37042LU USESJRSKK033 JK151 HEADPHONE JACK MSJ-035-10A B or JYSL020LY002

HEADPHONE JACK DP3-26-7-001 JYSL020RP001

JK701 A RCA JACK(YELLO W) MSP-281V4-B or JXRL010LY003

A RCA JACK( YELLO W) A V1-15 -3 JXRL010RP0 13

JK701 B RCA JACK(YELL OW) MTJ-03 2-05B -20 or JXRL010LY038

B RCA JACK 1 P:YEL LO W D A1-05A 3N0S0 01 JXRL010R P036

JK702 A RCA JACK(WHITE) MSP-281V1-B or JXRL010L Y005

A RCA JACK(WHITE) AV1-15-4 JXRL010RP014

JK702 B RCA JACK(WHIT E) MTJ -032-0 5B-22 or JXRL010LY039

B RCA JACK 1 P : WHIT E D A1-05 A4N0S 001 JXRL010RP0 37

JK703 SKIRT JACK 2 1P MRC- 021-02 or JXGL210L Y0 01

SKIRT JACK 21P MRC-021V-02 3.4 ABS or JXGL210LY005 SKIRT JACK 21P HRC-21V-02P or JXGL210RP001

SKIRT JACK 21P DSS1020NPC001 JXGL210RP002 TB3 HEAD SHIELD S T6400RA 0EM301753 TB7 LED HOLDER T6 400RA 0EM407754 TB21 BUSH, LED(F) H3700UD 0VM40 9508 TP001 PCB JUMPER D0.6-P12.5 JW12.5T TP002 PCB JUMPER D0.6-P12.5 JW12.5T TP003 PCB JUMPER D0.6-P12.5 JW12.5T TP007 PCB JUMPER D0.6-P10.0 JW10.0T TP008 PCB JUMPER D0.6-P12.5 JW12.5T TP009 PCB JUMPER D0.6-P12.5 JW12.5T TP010 PCB JUMPER D0.6-P22.5 JW22.5T TU001 TUNER UNIT TMQZ2-303A UTUNPLGAL013 X201 X'T AL 32.768 kHz(20 PPM) or FXC323LCT001

X'T A L 32.7 68kHz( 20PPM ) or FXC323LDS002

X'T A L 32.7 68kHz( 20PPM ) or FXC323LJNY01

20040322 1-16-10 T6605EL

Ref. No. Mark Description Part No.

X'T AL 32.768kHz(20PPM) FXC323LQUA01 X202 X'T AL 12.000MHz FXD126LDS001 X301 X'T AL 4.433619MHz or FXB445LCHE01

X'TAL 4.433619MHz or FXB445LDS002

X'TAL 4.433619MHz FXB445LNL001 X401 X'T AL 4.433619MHz or 1811388

X'TAL 4.433619MHz FXC445LLN001

JUNCTION A CBA

Ref. No. Mark Description Part No.

JUNCTION A CBA

Consists of the following

----------

CONNECTOR

CN603 CONNECTOR 12P TUC-P12X-B1 JCTUS12TG001

JUNCTION B CBA

Ref. No. Mark Description Part No.

JUNCTION B CBA

Consists of the following

----------

CONNECTOR

CN302 CONNECTOR , 7P TU C-P07 X- B1 JCTUS07TG001

JUNCTION C CBA

Ref. No. Mark Description Part No.

JUNCTION C CBA

Consists of the following

----------

CONNECTOR

CN301 CONNECTOR 4P TUC-P04X-B1 JCTUS04TG001

SENSOR CBA

Ref. No. Mark Description Part No.

SENSOR CBA

Consists of the following

0ESA06133

TRANSISTORS

Q201 PHOTO TRANSISTOR MID-32A22 F or NPWZ1D32A22F

PHOTO TR ANSIST OR PT204-6B-12 NPWZT2046B12 Q202 PHOTO TRANSISTOR MID-32A22 F or NPWZ1D32A22F

PHOTO TR ANSIST OR PT204-6B-12 NPWZT2046B12

POWER CBA

Ref. No. Mark Description Part No.

A POWER CBA 0ESA06011 B POWER CBA 0ESA06024

Consists of the following

H.V ./POW ER SUPPLY CBA ----------

CRT CBA ----------

H.V./POWER SUPPLY CBA

Ref. No. Mark Description Part No.

H.V ./POW ER SUPPLY CBA

Consists of the following

CAPACITORS

C551 A ELECTROLYTIC CAP . 2.2µF/50V LL or CE1JMASLH2R2

A ELECTROL YTIC CAP. 2.2µF/50V M LL CE1JMASLL2R 2

C551 B ELECTROLYTIC CAP . 1.5µF/50V LL or CE1JMASLH1R5

----------

Ref. No. Mark Description Part No.

B ELECTROL YTIC CAP. 1.5µF/50V M LL CE1JMASLL1R5

C552 ELECTROLYTIC CAP . 1000µF/25V M or CE1EMZPDL102

ELECTROLYTIC CAP . 1000 µF/25V M CE1EMZPTL102 C553 CERAMIC CAP.(AX) B K 0.01µF/50V CA1J103TU011 C554 A ELECTROLYTIC CAP. 220µF/25V M or CE1EMASDL221

A ELECTROL YTIC CAP. 220µF/25V M CE1EMASTL221

C554 B ELECTROLYTIC CAP. 330µF/25V M or CE1EMASDL331

B ELECTROL YTIC CAP. 330µF/25V M CE1EMASTL331

C555 ELECTROLYTIC CAP . 47µF/25V M or CE1EMASDL470

ELECTROLYTIC CAP . 47 µF /25V M CE1EMASTL470 C556 ELECTROLYTIC CAP . 2.2µF/ 50V M or CE1JMASDL2R2

ELECTROLYTIC CAP . 2.2 µF/ 50V M CE1JMASTL2R2 C558 FILM CAP.(P) 0.047µF/50V J or CA1J473MS029

FILM CAP.(P) 0.047µF/50V J CMA1JJS00473 C559! B CERAMIC CAP. 1000pF/2 KV or CA3D102PAN04

! B CERAMIC CAP RB 1000pF/2KV or CA3D102TE006 ! B CERAMIC CAP. BN 1000pF/2KV or CCD3DKA0B102 ! B CERAMIC CAP. R K 1000pF/2KV CCD3DKA0R102 C560! A P .P. CAP 0.0082µF/1.6K J or CA3C822VC010 ! A PP CAP . 0.0082µF/ 1.6K V J or CBH3CJQ00822 ! A METALLIZE D FILM CAP. 0.0082µF/1.6KV J orCT3C822F7004

! A PP CAP . 0.0082µF/ 1.6K V J CT3C822MS039 C560! B P .P. CAP 0.01µF/1.6K J or CA3C103VC010 ! B PP CAP. 0.01µF/1.6KV J or CBH3CJQ00103 ! B METALLIZED FILM CAP. 0.01µF/1.6KV J or CT3C103F7004 ! B PP CAP. 0.01µF/1.6KV J C T3C10 3MS03 9

C561 FILM CAP.(P) 0.01µF/50V J or CA1J103MS029

FILM CAP.(P) 0.01µF/50V J CMA1JJS00103 C562 ELECTROLYTIC CAP . 47µF/25V M or CE1EMASDL470

ELECTROLYTIC CAP . 47 µF /25V M CE1EMASTL470 C565! A ELECTROL YTIC CAP. 47µF/160V M W/F or CE2CMZPDL470 ! A ELECTROLYTIC CAP . 47µF/160V M CE2CMZPTL470 C565! B ELECTROL YTIC CAP. 100µF/160V M or CE2CMZPDL101 ! B ELECTROLYTIC CAP . 100µF/160V M CE2CMZPTL101 C566! B PCB JUMPER D0.6-P10.0 JW10.0T C567 ELECTROLYTIC CAP . 1µF/ 160V M or CE2CMASDL1 R0

ELECTROLYTIC CAP . 1 µF/ 160V M CE2CMASTL010 C569! ELECTROL YTIC CAP. 4.7µF/250 V M CE2EMASDL4R7 C570! ELECTROL YTIC CAP. 1µF/50 V M or CE1JMASDL010

! ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0 ! ELECTROLYTIC CAP. 1µF/50V M CE1JMASTL1R0 C572! A ELECTROL YTIC CAP. 22µF/50V M or CE1JMASD L220 ! A ELECTROLYTIC CAP . 22µF/50V M CE1JMASTL220 C572! B ELECTROL YTIC CAP. 10µF/50V M or CE1JMASD L100 ! B ELECTROLYTIC CAP . 10µF/50V M CE1JMASTL100 C575! A P .P. CAP 0.33µF/200V J or CA2D334VC013 ! A METALLIZED FILM CAP. 0.33µF/200V J or CT2D334F7003 ! A PP CAP. 0.33µF/250V J CT2E334MS04 1 C575! B P .P. CAP 0.56µF/200V J or CA2D564VC013 ! B METALLIZED FILM CAP. 0.56µF/200V J or CT2D564F7003 ! B PP CAP. 0.56µF/250V J CT2E564MS04 1

C602! SAFETY CAP. 2200pF/250V KX CA2E222MR050 C604! FILM CAP.(MP) 0.1µF/250V K or CT2E104DC011

! LINE ACROSS CAP . 0.1U/275V or CT2E104DC016 ! METALLIZE D FI LM C AP. 0. 1µF/275V K or CT2E104HJE 06 ! METALLIZE D FI LM C AP. 0. 1µF/250V CT2E104MS037

C611 A ELECTROLYTIC CAP. 100µF/400V M or CA2H101S6016

A ELECTROL YTIC CAP. 100µF/400V M CE2HMZPTL101

C611 B ELECTROLYTIC CAP. 150µF/400V(LQ

TYPE)

CA2H151NC050

20040322 1-16-11 T6605EL

Ref. No. Mark Description Part No.

C613 FILM CAP .(P) 0.039µF/50V J o r CA1J393MS029

FILM CAP .(P) 0.039µF/50V J CMA1JJS00393

C614 A FILM CAP.(P) 0.0012µF/50V J or CA1J12 2MS02 9

A FILM CAP .(P) 0.0012µF/50V J CMA1JJS00122

C614 B FILM CAP.(P) 0.001µF/50V J o r CA1J102MS029

B FILM CAP .(P) 0.001µF/50V J CMA1JJS00102 C615! A FILM CAP.(P) 0.068µF/50V J or CA1J683MS029 ! A FILM CAP.(P) 0.068µF/50V J CMA1JJS00683 C615! B FILM CAP.(P) 0.082µF/50V J or CA1J823MS029 ! B FILM CAP.(P) 0.082µF/50V J CMA1JJS00823 C616 CERAMIC CAP. 220pF/2KV or CA3D221PAN04

CERAMIC CAP. RB 220pF/ 2KV or CA3D221TE006 CERAMIC CAP. BN J 220pF/2KV or CCD3DKA0B221 CERAMIC CAP. R K 220pF/2KV(HR) CCD3DKA0R221

C618 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL010

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0 ELECTROLYTIC CAP. 1µF/50V M CE1JMASTL1R0

C619 ELECTROLYTIC CAP. 1000µF/16V M or CE1CMZPDL102

ELECTROLYTIC CAP. 1000µF/16V M CE1CMZPTL102

C621 ELECTROLYTIC CAP. 470µF/16V M or CE1CMASDL471

ELECTROLYTIC CAP. 470µF/16V M CE1CMASTL471

C622 ELECTROLYTIC CAP. 1000µF/16V M or CE1CMZPDL102

ELECTROLYTIC CAP. 1000µF/16V M CE1CMZPTL102 C624! A CERAMIC CAP .(AX) SL J 68pF/50V CCA1JJTSL680 C624! B CERAMIC CAP .(AX) B J 220pF/50V CCA1JJT0B221 C625 ELECTROLYTIC CAP. 470µF/35V M or CE1GMZPDL471

ELECTROLYTIC CAP. 470µF/35V M CE1GMZPTL471 C626 CERAMIC CAP. 680pF/2KV or CA3D681PAN04

CERAMIC CAP. RB 680pF/ 2KV or CA3D681TE006

CERAMIC CAP. BN 680pF/2KV or CCD3DKA0B681

CERAMIC CAP. R K 680pF/2KV(HR) CCD3DKA0R681 C627! ELECTROLYTIC CAP. 100µF/160V M or CE2CMZPDL101 ! ELECTROLYTIC CAP. 100µF/160V M CE2CMZPTL101 C629 CERAMIC CAP.(AX) B K 0.01µF/50V CA1J103TU011 C630 ELECTROLYTIC CAP. 1000µF/6.3V M or CE0KMASDL102

ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASTL102 C632 ELECTROLYTIC CAP. 100µF/16V M or CE1CMASDL101

ELECTROLYTIC CAP. 100µF/16V M CE1CMASTL101 C633 ELECTROLYTIC CAP. 47µF/25V M or CE1EMASDL470

ELECTROLYTIC CAP. 47µF/25V M CE1EMASTL470 C634 ELECTROLYTIC CAP. 4.7µF/50V M or CE1JMASDL4R7

ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASTL4R7 C636 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASDL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASTL101

CONNECTORS

CN551 CONNECTOR BASE, 5P RTB-1.5-5P or J3RTC05JG001

CONNECTOR BASE, 5P TV -50P-05-V3 J3TVC05TG002 CN552 CONNECTOR BASE, 7P TUC-P07P-B1 J3TUA07TG001 CN601 CONNECTOR BASE, 2P RTB-1.5-2P or J3RTC02JG001

CONNECTOR BASE, 2P TV -50P-02-V3 J3TVC02TG002 CN602 CONNECTOR BASE 12P TUC-P12P-B1 J3TUA12TG001

DIODES

D551 DIODE 1N5397-B or NDLZ001N5397

RECTIFIE R DIODE ERB12- 06 QDQZ0ERB1 206 D553! A ZENER DIODE DZ-20BSBT265 or NDTB00DZ20BS ! A ZENER DIODE MTZJT-7720B QDTB00MTZJ20 D553! B ZENER DIODE DZ-18BSCT265 or NDTC00DZ18BS ! B ZENER DIODE MTZJT-7718C QDTC00MTZJ18 D554! SWITCHING DIODE 1N4148 or NDTZ001N4148 ! SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

Ref. No. Mark Description Part No.

D555 A PCB JUMPER D0.6-P12.5 JW12.5T D556! SWITCHING DIODE 1N4148 or NDTZ001N4148 ! SWITCHING DIODE 1SS133(T -77) QDTZ001SS133 D557! DIODE FR104-B or NDLZ000FR104

! RECTIFIER DIODE ERA22-02 or QDPZ0ERA2202 ! RECTIFIER DIODE 10ELS2 QDQZ0010ELS2 D558! DIODE FR104-B or NDLZ000FR104 ! RECTIFIER DIODE ERA22-02 or QDPZ0ERA2202 ! RECTIFIER DIODE 10ELS2 QDQZ0010ELS2 D560! ZENER DIODE DZ-36BSBT265 or NDTB00DZ36BS ! ZENER DIODE MTZJT -7736B QDTB00MTZJ36

D562 SWITCHING DIODE 1N4148 or NDTZ001N4148

SWITCHING DIODE 1SS133(T -77) QDTZ001SS133

D563 ZENER DIODE DZ-5.1BSBT265 or NDTB0DZ5R1BS

ZENER DIODE MTZJT-775.1B QDTB0MTZJ5R1 D565! A ZENER DIODE DZ-36BSAT2 65 or NDT A00DZ36BS ! A ZENER DIODE MTZJT - 7736A QDTA00MTZJ36 D601! DIODE 1N5399-B/P NDLZ001N5399 D602! DIODE 1N5399-B/P NDLZ001N5399 D603! DIODE 1N5399-B/P NDLZ001N5399 D604! DIODE 1N5399-B/P NDLZ001N5399 D605 SWITCHING DIODE 1N4148 or NDTZ001N4148

SWITCHING DIODE 1SS133(T -77) QDTZ001SS133 D609 ZENER DIODE DZ-5.6BSBT265 or NDTB0DZ5R6BS

ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6 D610! ZENER DIODE DZ-24BSCT265 or NDTC00DZ24BS ! ZENER DIODE MTZJT -7724C QDTC00MTZJ24 D612! SWITCHING DIODE 1N4148 or NDTZ001N4148 ! SWITCHING DIODE 1SS133(T -77) QDTZ001SS133 D615! DIODE FR104-B or NDLZ000FR104

! RECTIFIER DIODE ERA22-02 or QDPZ0ERA2202 ! RECTIFIER DIODE 10ELS2 QDQZ0010ELS2

D616 A ZENER DIODE DZ-22BSBT265 or NDTB00DZ22BS

A ZENER DIODE MTZJT -7722B QDTB00MTZJ22

D616 B ZENER DIODE DZ-20BSBT265 or NDTB00DZ20BS

B ZENER DIODE MTZJT -7720B QDTB00MTZJ20

D617! SCHOTTKY BARRIER DIODE 11EQS04 orQD4Z011EQS04

! SCHOTTKY BARRIER DIODE ERA81-004 QDPZERA81004 D618! SCHOTTKY BARRIER DIODE 11EQS04 orQD4Z011EQS04

! SCHOTTKY BARRIER DIODE ERA81-004 QDPZERA81004 D619! SCHOTTKY BARRIER DIODE ERB81-004 orAERB81004***

! SCHOTTKY BARRIER DIODE 21DQ04 QDQZ0021DQ04 D620! DIODE FR104-B or NDLZ000FR104

! RECTIFIER DIODE ERA22-02 or QDPZ0ERA2202 ! RECTIFIER DIODE 10ELS2 QDQZ0010ELS2 D622! SWITCHING DIODE 1N4148 or NDTZ001N4148 ! SWITCHING DIODE 1SS133(T -77) QDTZ001SS133 D623! SWITCHING DIODE 1N4148 or NDTZ001N4148 ! SWITCHING DIODE 1SS133(T -77) QDTZ001SS133 D624! SWITCHING DIODE 1N4148 or NDTZ001N4148 ! SWITCHING DIODE 1SS133(T -77) QDTZ001SS133 D625! ZENER DIODE DZ-6.8BSBT265 or NDTB0DZ6R8BS ! ZENER DIODE MTZJT -776. 8B QDTB0MTZJ6R8

D626 FAST RECOVERY DIODE CA201-4 or QDWZ00CA2014

RECOVERY DIODE ERC18-04 QDZZ0ERC1804 D627! SWITCHING DIODE 1N4148 or NDTZ001N4148 ! SWITCHING DIODE 1SS133(T -77) QDTZ001SS133 D629 ZENER DIODE DZ-33BSCT265 or NDTC00DZ33BS

ZENER DIODE MTZJT -7733C QDTC00MTZJ33

20040322 1-16-12 T6605EL

Ref. No. Mark Description Part No.

D630 SWITCHING DIODE 1N4148 or NDTZ001N4148

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D631 ZENER DIODE DZ-6.2BSCT265 or NDTC0DZ6R2BS

ZENER DIODE MTZJT-776.2C QDTC0MTZJ6R2 D634 CARBON RES. 1/4W J 100 Ω RCX4JA TZ0101 D635 ZENER DIODE DZ-8.2BSBT265 or NDTB0DZ8R2BS

ZENER DIODE MTZJT-778.2B QDTB0MTZJ8R2 D636! SWITCHING DIODE 1N4148 or NDTZ001N4148 ! SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D637 SWITCHING DIODE 1N4148 or NDTZ001N4148

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D638 SWITCHING DIODE 1N4148 or NDTZ001N4148

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D641 ZENER DIODE DZ-15BSBT265 or NDTB00DZ15BS

ZENER DIODE MTZJT-7715B QDTB00MTZJ15 D642 SWITCHING DIODE 1N4148 or NDTZ001N4148

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

ICS

IC551! VERT ICAL OUTPUT IC LA78040A QSBBA0SSY003 IC601! PHOTOCOUPLER PS2561L1-1-VL or QPEL2561L11V ! PHOTOCOUPLER PS2561L1-1-VW QPEW2561L11V

COILS

L552 A PCB JUMPER D0.6 -P7. 5 JW7.5T L552 B LINEALITY COIL ELH5J6137N LLBD00PMS009 L553! CHOKE COIL 22µH-K LLBD00PKV006 L554! PCB JUMPER D0.6-P7.5 JW7.5T L601! A LINE FILTER LF-048 or LLBG00ZKV008 ! A LINE FILTER ELF15N005A LLBG00ZMS039 L601! B LINE FILTER 10MH LF-046 or LLBG00ZKV006 ! B LINE FILTER ELF15N007A LLBG00ZMS041 L602! B LINE FILTER 10MH LF-046 or LLBG00ZKV006 ! B LINE FILTER ELF15N007A LLBG00ZMS041 L603 CHOKE COI L 47µH-K or LLBD00PKV005

CHOKE COIL 47µH-K LLBD00PKV007

TRANSISTORS

Q551! A TRANSISTOR TT2084LS-YB11 or QQZZ00TT2084 ! A TRANSISTOR TT2138LS-YB11 or QQZZ00TT2138 ! A TRANSISTOR 2SC5884000RF QQZZ02SC5884 Q551! B TRANSISTOR TT2140LS-YB11 or QQZZ00TT2140 ! B TRANSISTOR 2SC5885000RF or QQZZ02SC5885 ! B TRANSISTOR 2SD2627LS-FEC-YB11 QQZZ02SD2627

Q553 TRANSISTOR 2SC1627Y - TPE2 QQSY02SC1627 Q554! TRANSISTOR KTC3199(GR) or NQS10KTC3199

! TRANSISTOR KTC3198(GR) or NQS40KTC3198 ! TRANSISTOR 2SC1815 -GR( TPE2 ) or QQS102SC1815 ! TRANSISTOR 2SC2785(F) or QQSF02SC2785 ! TRANSISTOR 2SC2785(H) or QQSH02SC2785 ! TRANSISTOR 2SC2785(J) QQSJ02SC2785

Q602! MOS FET 2SK2647 QFWZ02SK2647 Q603! TRANSISTOR KTC3203(Y) or NQSY0KTC3203

! TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120 ! TRANSISTOR 2SC2120-Y(TPE2) QQSY02SC2120 Q604! TRANSISTOR KTC3199(GR) or NQS10KTC3199 ! TRANSISTOR KTC3198(GR) or NQS40KTC3198 ! TRANSISTOR 2SC1815 -GR( TPE2 ) or QQS102SC1815 ! TRANSISTOR 2SC2785(F) or QQSF02SC2785 ! TRANSISTOR 2SC2785(H) or QQSH02SC2785 ! TRANSISTOR 2SC2785(J) QQSJ02SC2785

Q605 TRANSISTOR KT A1271( Y) or NQSY0KT A1 271

TRANSISTOR 2SA950(O) or Q2SA9500TPE2

Ref. No. Mark Description Part No.

TRANSISTOR 2SA950(Y) Q2SA950YTPE2

Q606! TRANSISTOR KTC3203(Y) or NQSY0KTC3203

! TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120 ! TRANSISTOR 2SC2120-Y(TPE2) QQSY02SC2120 Q607! TRANSISTOR KTC3203(Y) or NQSY0KTC3203 ! TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120 ! TRANSISTOR 2SC2120-Y(TPE2) QQSY02SC2120

Q608 TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198 TRANSISTOR 2SC1815-GR(TPE2) or QQS102SC1815 TRANSIST OR 2SC2 785(F) or QQSF02SC2785 TRANSISTOR 2SC2785(H) or QQSH02SC2785 TRANSISTOR 2SC2785(J) QQSJ02SC2785

RESISTORS

R550! CARBON RES. 1/4W J 680k Ω RCX4JATZ0684 R551 A CARBON RES. 1/4 W J 8.2k Ω RCX4JATZ0822 R551 B CARBON RES. 1/4 W J 18k Ω RCX4JA TZ0183 R552 A CARBON RES. 1/4 W J 3.3k Ω RCX4JATZ0332 R552 B CARBON RES. 1/4 W J 1.8k Ω RCX4JATZ0182 R553 A CARBON RES. 1/4 W J 22k Ω RCX4JA TZ0223 R553 B CARBON RES. 1/4 W J 39k Ω RCX4JA TZ0393 R554! A CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R554! B PCB JUMPER D0.6-P5.0 JW5.0T R555 A CARBON RES. 1/4 W J 8.2 Ω RCX4JA TZ08R2 R555 B CARBON RES. 1/4 W J 4.7 Ω RCX4JA TZ04R7 R556 A CARBON RES. 1/4 W J 8.2 Ω RCX4JA TZ08R2 R556 B CARBON RES. 1/4 W J 4.7 Ω RCX4JA TZ04R7 R557 A CARBON RES. 1/4 W J 10k Ω RCX4JA TZ0103 R558! PCB JUMPER D0.6-P5.0 JW5.0T R559! A CARBON RES. 1/4W J 1 Ω RCX4JA T Z01R0 R559! B PCB JUMPER D0.6-P5.0 JW5.0T R560! CARBON RES. 1/4W J 1 Ω RCX4JA T Z01R0 R561! A CARBON RES. 1/4 W J 2.2 Ω RCX4JA TZ02R2 R561! B CARBON RES. 1/4 W J 3.3 Ω RCX4JA TZ03R3 R564! A CARBON RES. 1/4 W J 6.8k Ω RCX4JATZ0682 R564! B CARBON RES. 1/4 W J 1.5k Ω RCX4JATZ0152 R565 PCB JUMPER D0.6-P5.0 JW5.0T R566 A CARBON RES. 1/4 W J 470 Ω RCX4JATZ0471 R566 B CARBON RES. 1/4 W J 1k Ω RCX4JAT Z0102 R567 B CARBON RES. 1/4 W J 1k Ω RCX4JAT Z0102 R568 CARBON RES. 1/4W J 1.5k Ω RCX4JA TZ0152 R569 A CARBON RES. 1/4 W J 270 Ω RCX4JATZ0271 R569 B CARBON RES. 1/4 W J 470 Ω RCX4JATZ0471 R572 A CARBON RES. 1/4 W J 390 Ω RCX4JATZ0391 R572 B CARBON RES. 1/4 W J 560 Ω RCX4JATZ0561 R574 CARBON RES. 1/4W J 1k Ω RCX4JA TZ0102 R575 B METAL O XIDE FILM RES. 1W J 1k Ω or RN01102DP003

B MET AL O XIDE FILM RES. 1W J 1k Ω RN01102ZU001 R576! A CARBON RES. 1/4W J 39 Ω RCX4JATZ0390 R576! B CARBON RES. 1/4W J 47 Ω RCX4JATZ0470 R577! A METAL O XID E FILM RES. 2W J 560 Ω or RN02561DP004 ! A MET AL O XIDE FI LM RES. 2W J 560 Ω RN02561ZU001 R578! A CARBON RES. 1/4W J 39 Ω RCX4JATZ0390 R578! B CARBON RES. 1/4W J 47 Ω RCX4JATZ0470 R579! CARBON RES. 1/4W J 100k Ω RCX4JATZ0104 R580! A CARBON RES. 1/4W J 39 Ω RCX4JATZ0390 R580! B CARBON RES. 1/4W J 47 Ω RCX4JATZ0470 R581 A CARBON RES. 1/4 W J 100k Ω RCX4JATZ0104 R581 B CARBON RES. 1/4 W J 82k Ω RCX4JA TZ0823 R583 PCB JUMPER D0.6-P5.0 JW5.0T

20040322 1-16-13 T6605EL

Ref. No. Mark Description Part No.

R584! CARBON RES. 1/4W J 1k Ω RCX4JA TZ0102 R585! A CARBON RES. 1/4W J 180k Ω RCX4JATZ0184 R585! B CARBON RES. 1/4W J 150k Ω RCX4JATZ0154 R586! A CARBON RES. 1/4W J 68k Ω RCX4JA TZ0683 R586! B CARBON RES. 1/4W J 56k Ω RCX4JA TZ0563 R587! A CARBON RES. 1/4W J 56k Ω RCX4JA TZ0563 R587! B CARBON RES. 1/4W J 47k Ω RCX4JA TZ0473 R588! CARBON RES. 1/4W J 22k Ω RCX4JA TZ0223 R589! CARBON RES. 1/4W J 10k Ω RCX4JA TZ0103 R590! A METAL O XIDE FILM RES. 2W J 2.2 Ω or RN022R2DP004 ! A MET AL O XIDE FILM RES. 2W J 2.2 Ω RN022R2ZU001 R590! B METAL O XIDE FILM RES. 2W J 1.8 Ω or RN021R8DP004 ! B MET AL O XIDE FILM RES. 2W J 1.8 Ω RN021R8ZU001 R591! CARBON RES. 1/4W J 22k Ω RCX4JA TZ0223 R592! CARBON RES. 1/4W J 10k Ω RCX4JA TZ0103 R593 CARBON RES. 1/4W J 8.2k Ω RCX4JATZ0822 R594 A CARBON RES. 1/4W J 2.2k Ω RCX4JA TZ0222 R594 B CARBON RES. 1/4W J 10k Ω RCX4JA TZ0103 R595 PCB JUMPER D0.6-P5.0 JW5.0T R596 A CARBON RES. 1/4W J 8.2 Ω RCX4JATZ08R2 R596 B CARBON RES. 1/4W J 4.7 Ω RCX4JATZ04R7 R597 A CARBON RES. 1/4W J 220k Ω RCX4JA TZ0224 R598 A CARBON RES. 1/4W J 56k Ω RCX4JA TZ0563 R601! CARBON RES. 1/2W J 3.3M Ω or RCX2335DP001

! CARBON RES. 1/2W K 3.3M Ω or RCX2335FS001 ! ANTI-SURGE RESISTOR 1/2W J 3.3M Ω orRMX2335KA011

! GLASS GLAZE RES. 1/2W J 3.3M Ω RXX2JZLZ0335 R604! CEMENT RESISTOR 5W J 1.8 Ω or RW051R8P AK10 ! CEMENT RES. 5W K 1.8 Ω or RW051R8DP005 ! CEMENT RESISTOR 5W K 1.8 Ω RW051R8PG001

R605 A CARBON RES. 1/4W J 56 Ω RCX4JATZ0560 R605 B CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R611 CARBON RES. 1/4W J 220 Ω RCX4JA TZ0221 R612 A CARBON RES. 1/4W J 220 Ω RCX4JATZ0221 R612 B CARBON RES. 1/4W J 180 Ω RCX4JATZ0181 R613 A CARBON RES. 1/4W J 390k Ω RCX4JA TZ0394 R613 B CARBON RES. 1/4W J 270k Ω RCX4JA TZ0274 R615 A CARBON RES. 1/4W J 1.5k Ω RCX4JA TZ0152 R615 B CARBON RES. 1/4W J 1.2k Ω RCX4JA TZ0122 R616! CARBON RES. 1/4W J 22 Ω RCX4JATZ0220 R617! A CEMENT RESISTOR 5W J 0.68 Ω or RW05R68PAK10

! A CEMENT RES. 5W K 0.68 Ω or RW05R68DP005 ! A CEMENT RESISTOR 5W K 0.68 Ω RW05R68PG001 R617! B CEMENT RESISTOR 5W J 0.56 Ω or RW05R56PAK10 ! B CEMENT RES. 5W K 0.56 Ω or RW05R56DP005 ! B CEMENT RES. 5W K 0.56 Ω RW05R56PG001

R618 PCB JUMPER D0.6-P5.0 JW5.0T R619 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122 R620 CARBON RES. 1/4W J 820k Ω RCX4JATZ0824 R621 CARBON RES. 1/4W J 560k Ω RCX4JATZ0564 R622 CARBON RES. 1/4W J 680k Ω RCX4JATZ0684 R624 CARBON RES. 1/4W J 680k Ω RCX4JATZ0684 R626! CARBON RES. 1/4W J 1.2k Ω RCX4JA TZ0122 R627 PCB JUMPER D0.6-P5.0 JW5.0T R628! CARBON RES. 1/4W J 820 Ω RCX4JATZ0821 R629! B CARBON RES. 1/2W J 1k Ω or RCX2102KA013 ! B CARBON RES. 1/2W J 1k Ω RCX2JZQ Z0102 R631! CARBON RES. 1/4W J 33k Ω RCX4JA TZ0333 R632! CARBON RES. 1/4W J 10k Ω RCX4JA TZ0103 R633! CARBON RES. 1/4W J 15k Ω RCX4JA TZ0153

Ref. No. Mark Description Part No.

R634! CARBON RES. 1/4W J 15k Ω RCX4JA TZ0153 R635! CARBON RES. 1/4W J 180 Ω RCX4JATZ0181 R636! CARBON RES. 1/4W G 1k Ω or RCX4GATZ0102 ! CARBON RES. 1/6W G 1k Ω RCX6GATZ0102 R637! CARBON RES. 1/4W G 5.6k Ω or RCX4GATZ0562 ! CARBON RES. 1/6W G 5.6k Ω RCX6GATZ0562 R638! A CARBON RES. 1/4W G 39k Ω or RCX4GATZ0393 ! A CARBON RES. 1/6W G 39k Ω RCX6GA TZ0393 R638! B CARBON RES. 1/4W G 47k Ω or RCX4GATZ0473 ! B CARBON RES. 1/6W G 47k Ω RCX6GA TZ0473 R639! CARBON RES. 1/4W G 39k Ω or RCX4GATZ0393 ! CARBON RES. 1/6W G 39k Ω RCX6GATZ0393 R640! A CARBON RES. 1/4 W J 2.7k Ω RCX4JATZ0272 R640! B CARBON RES. 1/4 W J 3.3k Ω RCX4JATZ0332 R641! METAL OXIDE FILM RES. 1W J 1k Ω or RN01102DP003 ! METAL O XID E FILM RES . 1W J 1k Ω RN01102ZU001 R642! CARBON RES. 1/4W J 10k Ω RCX4JA TZ0103 R643! A CARBON RES. 1/4 W J 2.7k Ω RCX4JATZ0272 R643! B CARBON RES. 1/4 W J 3.3k Ω RCX4JATZ0332 R644! A CARBON RES. 1/4 W J 2.7k Ω RCX4JATZ0272 R644! B CARBON RES. 1/4 W J 3.3k Ω RCX4JATZ0332 R645! CARBON RES. 1/4W J 56k Ω RCX4JA TZ0563 R646! CARBON RES. 1/4W J 15 Ω RCX4JATZ0150 R647! A CARBON RES. 1/4 W J 2.7k Ω RCX4JATZ0272 R647! B CARBON RES. 1/4 W J 3.3k Ω RCX4JATZ0332 R649! CARBON RES. 1/4W J 390 Ω RCX4JATZ0391 R651 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R652! PCB JUMPER D0.6-P15.0 JW15.0T R653! CARBON RES. 1/4W J 150 Ω RCX4JATZ0151 R654! CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222 R655 CARBON RES. 1/4W J 5.6k Ω RCX4JA TZ0562 R656 CARBON RES. 1/4W J 47k Ω RCX4JAT Z0473 R657! CARBON RES. 1/4W J 220 Ω RCX4JATZ0221 R658! A METAL O XID E FILM RES. 2W J 10k Ω or RN02103DP004 ! A MET AL O XIDE FI LM RES. 2W J 10k Ω RN02103ZU001 R658! B METAL O XID E FILM RES. 2W J 8.2k Ω or RN02822DP004 ! B MET AL O XIDE FI LM RES. 2W J 8.2k Ω RN02822ZU001 R659! A METAL O XID E FILM RES. 2W J 10k Ω or RN02103DP004 ! A MET AL O XIDE FI LM RES. 2W J 10k Ω RN02103ZU001 R659! B METAL O XID E FILM RES. 2W J 8.2k Ω or RN02822DP004 ! B MET AL O XIDE FI LM RES. 2W J 8.2k Ω RN02822ZU001 R660 PCB JUMPER D0.6-P5.0 JW5.0T R661 CARBON RES. 1/4W J 1.8k Ω RCX4JA TZ0182 R662 CARBON RES. 1/4W J 820k Ω RCX4JA TZ0824 R663 CARBON RES. 1/4W J 47 Ω RCX4JATZ0470

SWITCHES

SW601! A POWER SWITCH AAPY2211 or SPP0AAZMS003 ! A POWER SWITCH SDKVA30100 SPP0AZZAL001 SW602! B POWER SWITCH AAPY2211 or SPP0AAZMS003 ! B POWER SWITCH SDKVA30100 SPP0AZZAL001

MISCELLANEOUS

BC551 BEAD INDUCTORS FBA04HA600VB-00 LLBF00STU026 BC602 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021 BC604 PCB JUMPER D0.6-P5.0 JW5.0T BC605 PCB JUMPER D0.6-P5.0 JW5.0T F601! FU SE 4A/2 50V 2150 04 PAGF20BAG4 02 FH601 FUSE HOLDER FH-V -03078 or XH01Z00DK001

FUSE HOLDER MSF-015 XH01Z00L Y001

FH602 FUSE HOLDER FH-V -03078 or XH01Z00DK001

FUSE HOLDER MSF-015 XH01Z00L Y001

20040322 1-16-14 T6605EL

Ref. No. Mark Description Part No.

PB1 A POWER PCB HOLDER T6400RA 0EM000696A PB1 B POWER PCB HOLDER T6500RA 0EM000722 PB4 A 13V POW HEAT SINK PAL PHKT 6400RA 0EM407687 PB4 B 21V POW HEAT SINK P AL PHLT6500RA 0EM407688 PB5 13V P H/S PAL PHM ASSEMBLY T6400RA 0EM407691 PL1 SCREW, P-TIGHT 3X12 W ASHER HEAD+ GCMP3120 PL2 SCREW, B-TIGHT M3X8 BIND HEAD+ GBMB3080 PS602! THERMISTOR ZPB31BL9R0A QNWZ31BL9R0A SA601! SURGE ABSORBER 470V+-10PER NVQZ10D471KB T551! A FLYBACK TRANS BSC23-2603S or LT F00CPS2054 ! A FL YBA CK TRANSFORMER JF0501-

T551! B FLYBACK TRANS BSC23-2639S or LT F00CPS2058

! B FL YBA CK TRANSFORMER JF0501-

! B FLYBACK TRANSFORMER JF0501-3240 L TF00CPXB045

T552 A H0RIZONTAL DRIVE TR ANS L P2- 005 LT H00 CPA5005 T552 B H0RIZONTAL DRIVE TR ANS L P2- 004 LT H00 CPA5004 T601! A SWITCHING TRANS 04705 LTT00EPKT119 T601! B SWITCHING TRANS 04704 LTT00EPKT118 TP501 PCB JUMPER D0.6-P7.5 JW7.5T TP502 PCB JUMPER D0.6-P7.5 JW7.5T TP503 PCB JUMPER D0.6-P15.0 JW15.0T TP504 PCB JUMPER D0.6-P15.0 JW15.0T VR601! CARBON P .O .T. 20k Ω B or VRCB203HH014 ! CARBON P .O .T. 20k Ω B VRCB203KA011 W601! AC CORD PE8G2CG9G0A-055 WAE0162LW001

3101B

19198A or

L TF00CPXB0 39

L TF00CPXB0 43

CRT CBA

Ref. No. Mark Description Part No.

CRT CBA Consists of the following

CAPACITORS

C501 A CERAMIC CAP .(AX) B K 220pF/50V CCA1JKT0B221 C501 B CERAMIC CAP .(AX) B K 390pF/50V CCA1JKT0B391 C502 A CERAMIC CAP .(AX) B K 220pF/50V CCA1JKT0B221 C502 B CERAMIC CAP .(AX) B K 390pF/50V CCA1JKT0B391 C503 A CERAMIC CAP .(AX) B K 220pF/50V CCA1JKT0B221 C503 B CERAMIC CAP .(AX) B K 390pF/50V CCA1JKT0B391 C504 CERAMIC CAP. B K 1000pF/2KV or CA3D102MR030

CERAMIC CAP. B K 1000pF/2KV or CCD3DKD0B102 CERAMIC CAP. B K 1000pF/2KV CCD3DKP0B102

C505 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0

CONNECTORS

CN501 CONNECTOR PIN, 1P LV or 1700576

CONNECTOR PIN, 1P RT-01N-2.3A or 1730688 PIN CONNECTOR 005P-5100 JTEA001TG001

CN502 CONNECTOR BASE, 4P TUC-P04P-B1 J3TUA04TG001

COIL

L501 PCB JUMPER D0.6-P5.0 JW5.0T

TRANSISTORS

Q501 A TRANSISTOR KTC3207 or NQSZ0KTC3207

A TRANSISTOR 2SC3468(D)-AE or QQSD02SC3468 A TRANSISTOR 2SC3468(E)-AE or QQSE02SC3468 A TRANSISTOR 2SC2482 TPE6 QQSZ02SC2482

Q501 B TRANSISTOR KTC3503Y or NQWY0KTC3503

B TRANSISTOR 2SC3619 QQ9Z02SC3619

Q502 A TRANSISTOR KTC3207 or NQSZ0KTC3207

A TRANSISTOR 2SC3468(D)-AE or QQSD02SC3468 A TRANSISTOR 2SC3468(E)-AE or QQSE02SC3468

----------

Ref. No. Mark Description Part No.

A TRANSIST OR 2SC248 2 TPE6 QQSZ02SC2482 Q502 B TRANSISTOR KTC3503Y or NQWY0KTC3503

B TRANSISTOR 2SC3619 QQ9Z02SC3619 Q503 A TRANSISTOR KTC3207 or NQSZ0KTC3207

A TRANSISTOR 2SC3468(D)-AE or QQSD02SC3468

A TRANSISTOR 2SC3468(E)-AE or QQSE02SC3468

A TRANSIST OR 2SC248 2 TPE6 QQSZ02SC2482 Q503 B TRANSISTOR KTC3503Y or NQWY0KTC3503

B TRANSISTOR 2SC3619 QQ9Z02SC3619

RESISTORS

R501! METAL OXIDE FILM RES. 1W J 18k Ω or RN01183DP003 ! METAL O XID E FILM RES . 1W J 18k Ω RN01183ZU001 R502! METAL OXIDE FILM RES. 1W J 18k Ω or RN01183DP003 ! METAL O XID E FILM RES . 1W J 18k Ω RN01183ZU001 R503! METAL OXIDE FILM RES. 1W J 18k Ω or RN01183DP003 ! METAL O XID E FILM RES . 1W J 18k Ω RN01183ZU001

R504 CARBON RES. 1/4W J 1.5k Ω RCX4JA TZ0152 R505 A CARBON RES. 1/4 W J 1.5k Ω RCX4JATZ0152 R506 CARBON RES. 1/4W J 1.5k Ω RCX4JA TZ0152 R507 A CARBON RES. 1/4 W J 1.5k Ω RCX4JATZ0152 R508 B CARBON RES. 1/4 W J 1.5k Ω RCX4JATZ0152 R509 B CARBON RES. 1/4 W J 1.5k Ω RCX4JATZ0152 R510 CARBON RES. 1/4W J 1.5k Ω RCX4JA TZ0152 R511 PCB JUMPER D0.6-P5.0 JW5.0T R512 PCB JUMPER D0.6-P5.0 JW5.0T R513 PCB JUMPER D0.6-P5.0 JW5.0T R514 CARBON RES. 1/4W J 1.5k Ω RCX4JA TZ0152 R515 CARBON RES. 1/4W J 120k Ω RCX4JA TZ0124 R516 CARBON RES. 1/4W J 15 Ω RCX4JATZ0150 R517 A CARBON RES. 1/4 W J 560 Ω RCX4JATZ0561 R517 B CARBON RES. 1/4 W J 470 Ω RCX4JATZ0471 R518 CARBON RES. 1/4W J 120k Ω RCX4JA TZ0124 R519 CARBON RES. 1/4W J 15 Ω RCX4JATZ0150 R520 A CARBON RES. 1/4 W J 560 Ω RCX4JATZ0561 R520 B CARBON RES. 1/4 W J 470 Ω RCX4JATZ0471 R521 CARBON RES. 1/4W J 120k Ω RCX4JA TZ0124 R522 CARBON RES. 1/4W J 15 Ω RCX4JATZ0150 R523 A CARBON RES. 1/4 W J 560 Ω RCX4JATZ0561 R523 B CARBON RES. 1/4 W J 470 Ω RCX4JATZ0471

MISCELLANEOUS

CL501A A LEAD WIRE 3P/230 WX1T6400-10 1 CL501A B LEAD WIRE 3P/260 WX1T6500-10 3 JK501! A CRT SOCKET ISMS01S JSCC220PK007 JK501! B CRT SOCKET ISHS40S JSCC290PK004

20040322 1-16-15 T6605EL

DECK MECHANISM SECTION

14"/21" COLOR TV/VCR COMBINATION

T6605VF/T6705VF

Sec. 2: Deck Mechanism Section

I Standard Maintenance I Mechanism Alignment Procedures I Disassembly / Assembly of Mechanism I Deck Exploded Views I Deck Parts List

TABLE OF CONTENTS

Standard Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1-1

Service Fixture and Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2-1

Mechanical Alignment Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3-1

Disassembly / Assembly Procedures of Deck Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4-1

Alignment Procedures of Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5-1

Deck Exploded Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6-1

Deck Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7-1

STANDARD MAINTENANCE

Service Schedule of Components

This maintenance chart shows you the standard of replacement and cleaning time for each part. Because those may change depending on environment and purpose for use, use the chart for reference.

H: Hours : Cleaning I: Change

Deck Periodic Service Schedule

Ref.No. Part Name 1,000 H 2,000 H 3,000 H 4,000 H

B2 B3 B8 Pulley Assembly I

B587

B31

B573, B574 Reel (SP)(D2), Reel (TU)(D2)

B37 B52 B73 FE Head

B133, B134

B410 B414 M Brake (SP) Assembly II B416 B525

Cylinder Assembly Loading Motor Assembly

Tension Lever Assembly ACE Head Assembly

Capstan Motor Cap Belt

Idler Gear, Idler Arm Pinch Arm(A) Assembly

M Brake (TU) Assembly LDG Belt

B569

(2 head only)

B593

(4 head,

4 head HiFi

only)

Notes:

1.Clean all parts for the tape transport (Upper Drum with Video Head / Pinch Roller / ACE Head / FE Head) using 90% lsopropyl Alcohol.

2.After cleaning the parts, do all DECK ADJUSTMENTS.

3.For the reference numbers listed above, refer to Deck Exploded Views.

Cam Holder

Cam Holder Assembly

2-1-1 U29PMEN

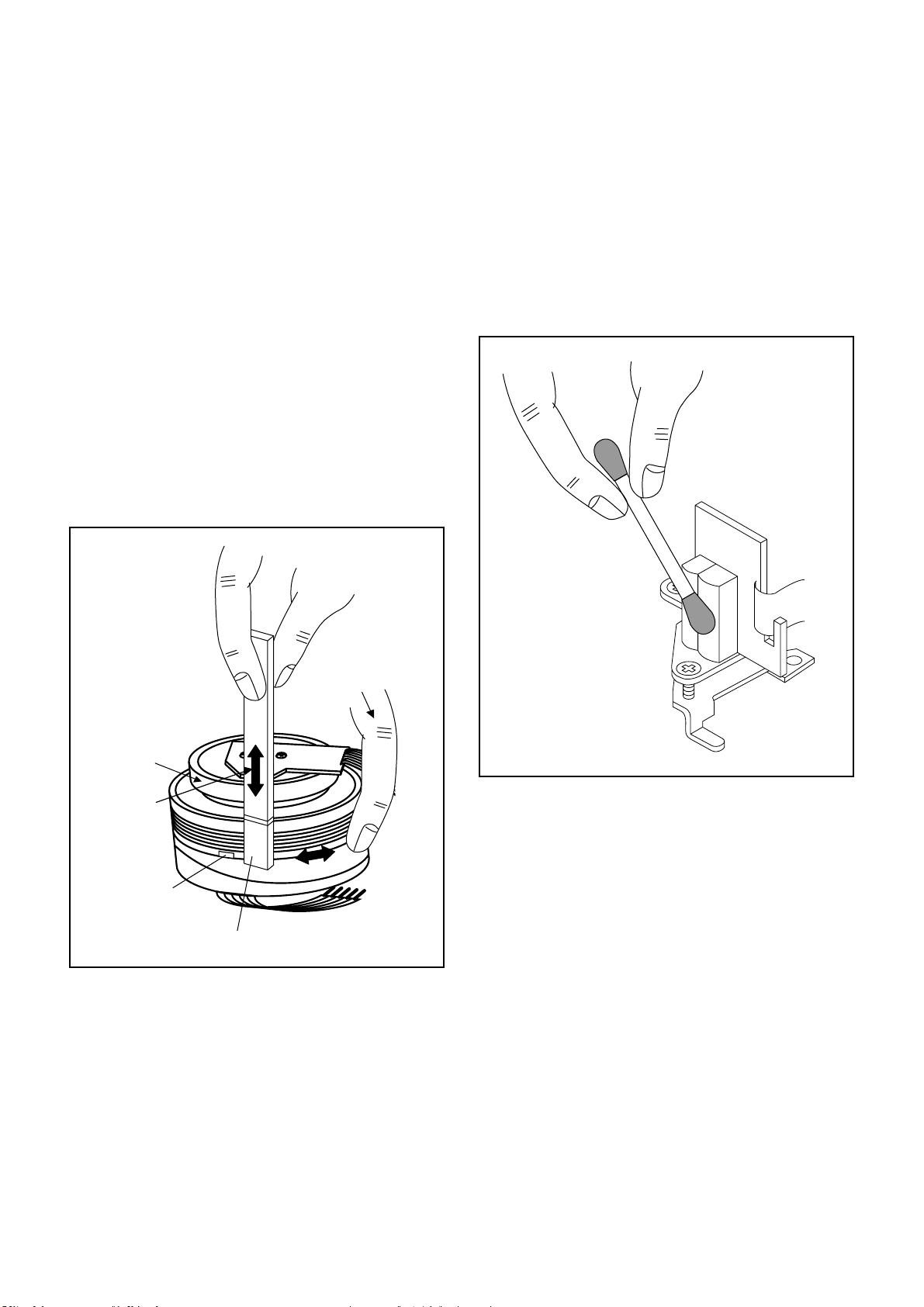

Cleaning

Cleaning of Video Head

Clean the head with a head cle aning stick or chamois cloth.

Procedure

1.Remove the top cabinet.

2.Put on a glove (thin type) to avoid touching the upper and lower drum with your bare hand.

3.Put a few drops of 90% Isopropyl alcohol on the head cleaning stick or o n the chamois cloth and, by slightly pressing i t a gai ns t th e h ead ti p, tur n the upper drum to the right and to the left.

Notes:

1.The video head surface is made of very hard material, but sin ce it is very t hin, avoid cleaning it vertically.

2.Wait for the cleaned part to dr y thoroughly before operating the unit.

3.Do not reuse a stained head cleaning stick or a stained chamois cloth.

Cleaning of ACE Head

Clean the head with a cotton swab.

Procedure

1.Remove the top cabinet.

2.Dip the cotton swab in 90% isopr opyl alcohol and clean the ACE Head. Be careful not to damage the upper drum and other tape running parts.

Notes:

1.Avoid cleaning the ACE Head vertically.

2.Wait for the cleaned par t to dry thoroughly before operating the unit or damage may occur.

ACE Head

Upper Cylinder

Do Not !

Video Head

Do Not touch with your bare hand!

Cleaning Stick

2-1-2 U29PMEN

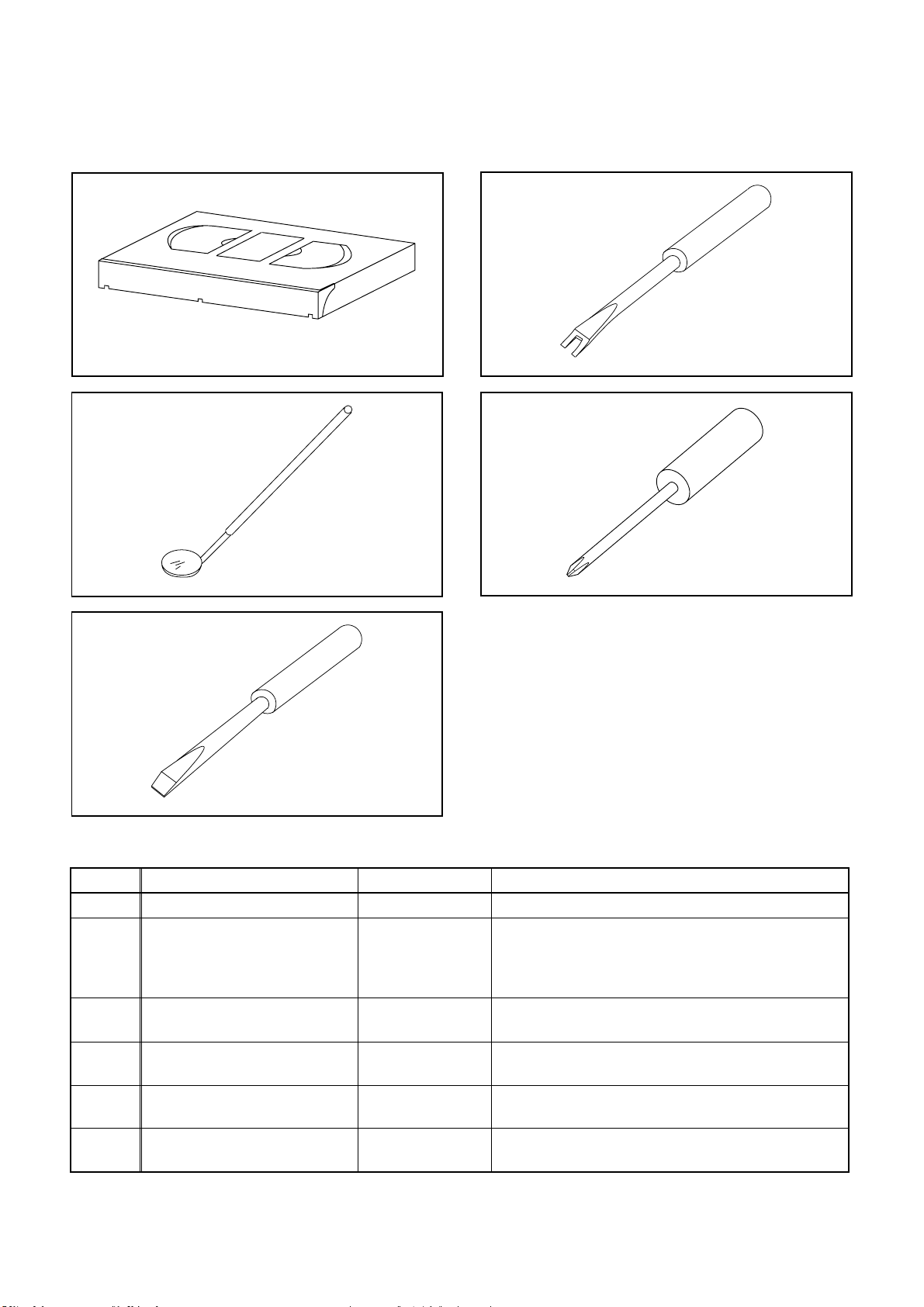

SERVICE FIXTURE AND TOOLS

J-1-1, J-1-2

J-3

J-5

J-2

J-4

Ref. No. Name Part No. Adjustment

J-1-1 Alignment Tape FL6A Head Adjustment of ACE Head J-1-2 Alignment Tape FL6N8

(2 Head model) FL6NS8 (4 Head model)

J-2 Guide Roller Adj. Screwdriver Available

Locally

J-3 Mirror Available

Locally

J-4 Azimuth Adj. Screwdriver + Available

Locally

J-5 Flat Screwdriver - Available

Locally

2-2-1 U29PFIX

Azimuth and X Value Adjustment of ACE Head / Adjustment of Envelope Waveform

Guide Roller

Tape Transportation Check

ACE Head Height

X Value

MECHANICAL ALIGNMENT PROCEDURES

Explanation of alignm ent for the tape to correctly run starts on the next page. Refer to the information below on this page if a tape gets stuck, for example, in the mechanism due to some electrical trouble of the unit.

Service Information

A. Method for Manual Tape Loading/Unloading

To load a cassette tape manually:

1. Disconnect the AC plug.

2. Remove the Top Case and Front Assembly.

3. Inser t a cassette tape. Thou gh the tape wil l not be automatically l oaded, make sure that the cass ette tape is all the way in at the inlet of the Cassette Holder. To confirm this, lightly push the cassette tape fur ther in and se e if the tape co mes back out, by a spring motion, just as much as you have pushed in.

4. Turn the LDG Belt in the appropriate direction shown in Fig. M1 for a minute or t wo to complete this task.

To unload a cassette tape manually:

1. Disconnect the AC plug.

2. Remove the Top Case and Front Assembly.

3. Make sure that the Moving guide preparations are in the Eject Position.

4. Turn the LDG Belt in the appropriate direction shown in Fig. M1 until the Moving guide preparations come to the Eject Position. Stop turning when the preparations begin clicking or can not be moved further. However, the tape will be left wound around the cylinder.

5. Turn the LDG B elt in the app ropri ate directio n continuously, and the cassette tape will be ejected. Allow a minute or two to complete this task.

B. Method to place the Cassette Holder in the tape-

loaded position without a cassette tape

1. Disconnect the AC Plug.

2. Remove the Top Case and Front Assembly.

3. Turn the LDG Belt in the appropriate direction shown in Fig. M1. Release the locking tabs shown in Fig. M1 and continue tur ning the LDG Belt unti l the Cassette Holder comes to the tape-loaded position. Allow a minute or two to complete this task.

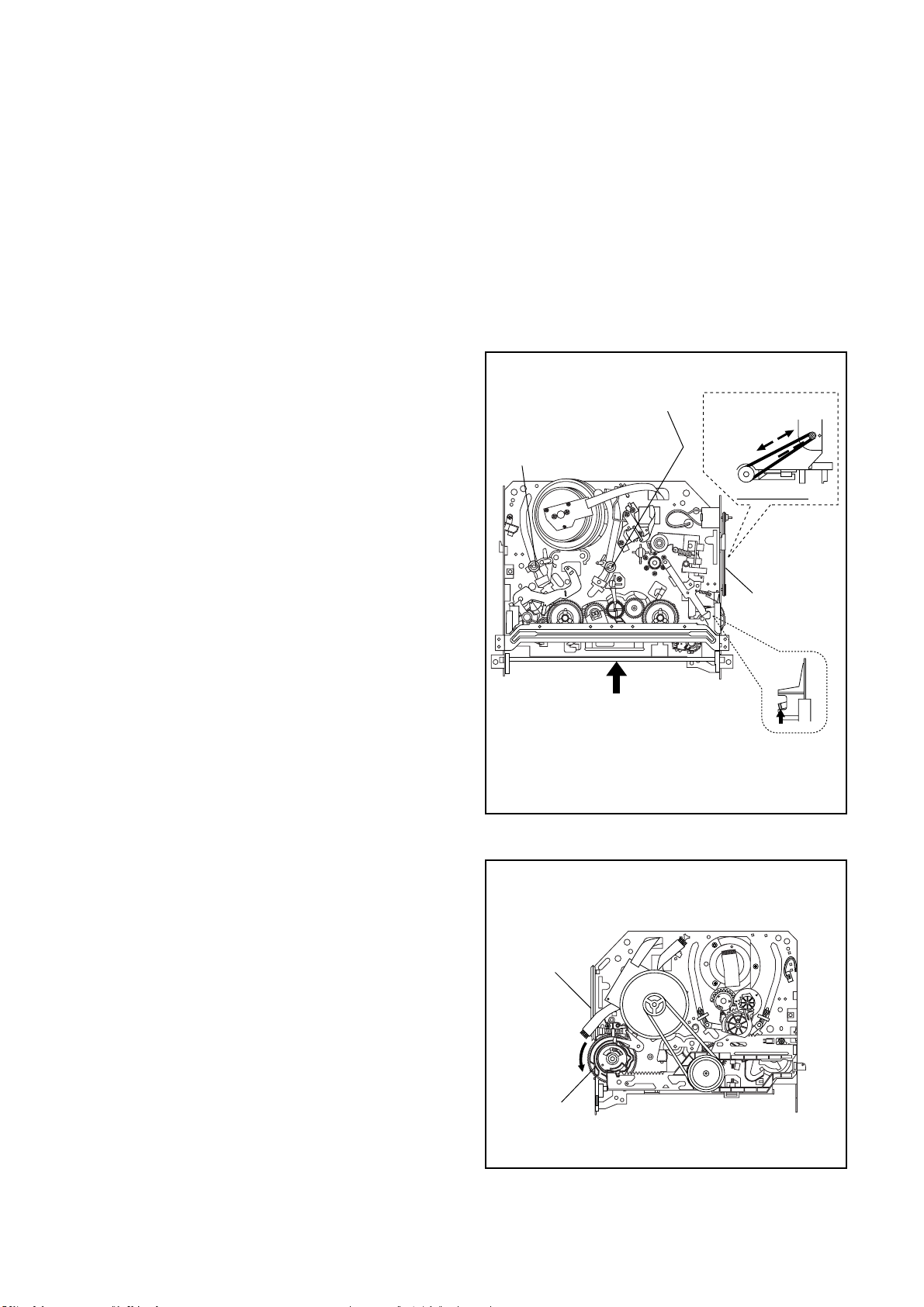

T op View

Moving guide T preparation (Eject Position)

Moving guide S preparation (Eject Position)

Push the tape to load it.

Push the locking tab gently to unlock when loading without a cassette.

UNLOAD /EJECT

LOAD

Side View

LDG Belt

Fig. M1

Bottom View

LDG Belt (B)

UNLOAD /EJECT

Cam Gear

Fig. M2

2-3-1 Z13P2HMA

1. Tape Interchangeability Alignment

Note: To do th ese alignment proce dures, m ake s ure t hat the Tracking Control Circuit is set to the preset position every time a tape is loaded or unloaded. (Refer to page 2-3-4, procedure 1-C, step 2.)

Equipment required:

Dual Trace Oscilloscope VHS Alignment Tape (FL6N8) Guide Roller Adj. Screwdriver Flat Screwdriver (Purchase Locally)

Note: Before starting this Mechanical Alignment, do all Electrical Adjustment procedures.

Flowchart of Alignment for tape traveling

Loading (Use a blank tape.)

Adjust the height of the Guide Rollers (Supply side and take-up side). (Use a blank tape.) (Page 2-3-3)

1-A

Not good

Check to see that the tape is not creasing and that there is no slack on the supply and take-up side Guide Rollers. (Use a blank tape.)

Adjust the X Value for maximum envelope. (Page 2-3-3) (Use Alignment Tape.)

Adjust the envelope. (Page 2-3-4)

Check the envelope.

Adjust the Audio Section. (Azimuth Alignment) (Page 2-3-4)

Check the audio output.

Check the following:

1. X Value (Page 2-3-3)

2. Envelope (Page 2-3-4) OK

1-A

1-B

1-C

1-D

1-B, 1-C

Not good

Do the final tape-traveling test to see that the tape runs normally in play mode without creasing or slacking.

Completion

Adjust the X value and envelope.

1-A

1-B, 1-C

2-3-2 Z13P2HMA

1-A. Preliminary/Final Checking and

Alignment of Tape Path

Purpose:

To make sure that the tape path is well stabilized.

Symptom of Misalignment:

If the tape path is unstable, the tape will be damaged. Note: Do not use an Alignment Tape for this proce-

dure. If the unit is not correctly aligned, the tape may be damaged.

1. Playback a blank cassette ta pe and check to see that the tape runs without creasing at Guide Rollers [2] and [3], and at points A and B on the lead surface. (Refer to Fig. M3 and M4.)

2. If creasing is apparent, align the height of the guide rollers by turnin g the top of Guide Rollers [2] and [3] with a Guide Roller Adj. Screwdriver. (Refer to Fig. M3 and M5.)

Guide Roller [2]

Guide Roller [3]

ACE Head

4. If creasing or snaking is apparent, adjust the Tilt Adj. Screw of the ACE Head. (Fig. M6)

Azimuth Adj. Screw

ACE Head

Flat Screwdriver

Tilt Adj. Screw

Fig. M6

1-B. X Value Alignment

Purpose:

To obtain maximum PB FM envelope signal at the preset position of the Tracking Control Circuit, align the Horizontal Position of the ACE Head.

Symptom of Misalignment:

If the Horizontal Position of the ACE Head is not properly aligned, maximum PB FM envelope cannot be obtained at the preset positi on of the Tracking Control Circuit.

Take-up Guide Post [4]

Lead Surface of Cylinder

Correct

Guide Roller

Tape

Take-up Guide Post

Tape

Incorrect

Fig. M3

Fig. M4

1. Connect the oscilloscope to TP008 (C-PB) and TP001 (CTL) on the Main CBA. Use TP002 (RFSW) as a trigger.

2. Playback the Gray Scale of the Alignment Tape (FL6N8) and confirm that the PB FM signal is present.

3. Set the Tracking Control Circuit to the preset position by pressing CH UP button on the remote control unit then “PLAY” button on the unit. (Refer to note on bottom of page 2-3-4.)

4. Use the F lat Screwdriver so that the PB FM si gnal at TP008 (C-PB) is maximum. (Fig. M6)

Fig. M5

3. Check to see tha t the ta pe runs without creasi ng at Take-up Guide Post [4] or wi tho ut s na king bet ween Guide Roller [3] and ACE Head. (Fig. M3 and M5)

2-3-3 Z13P2HMA

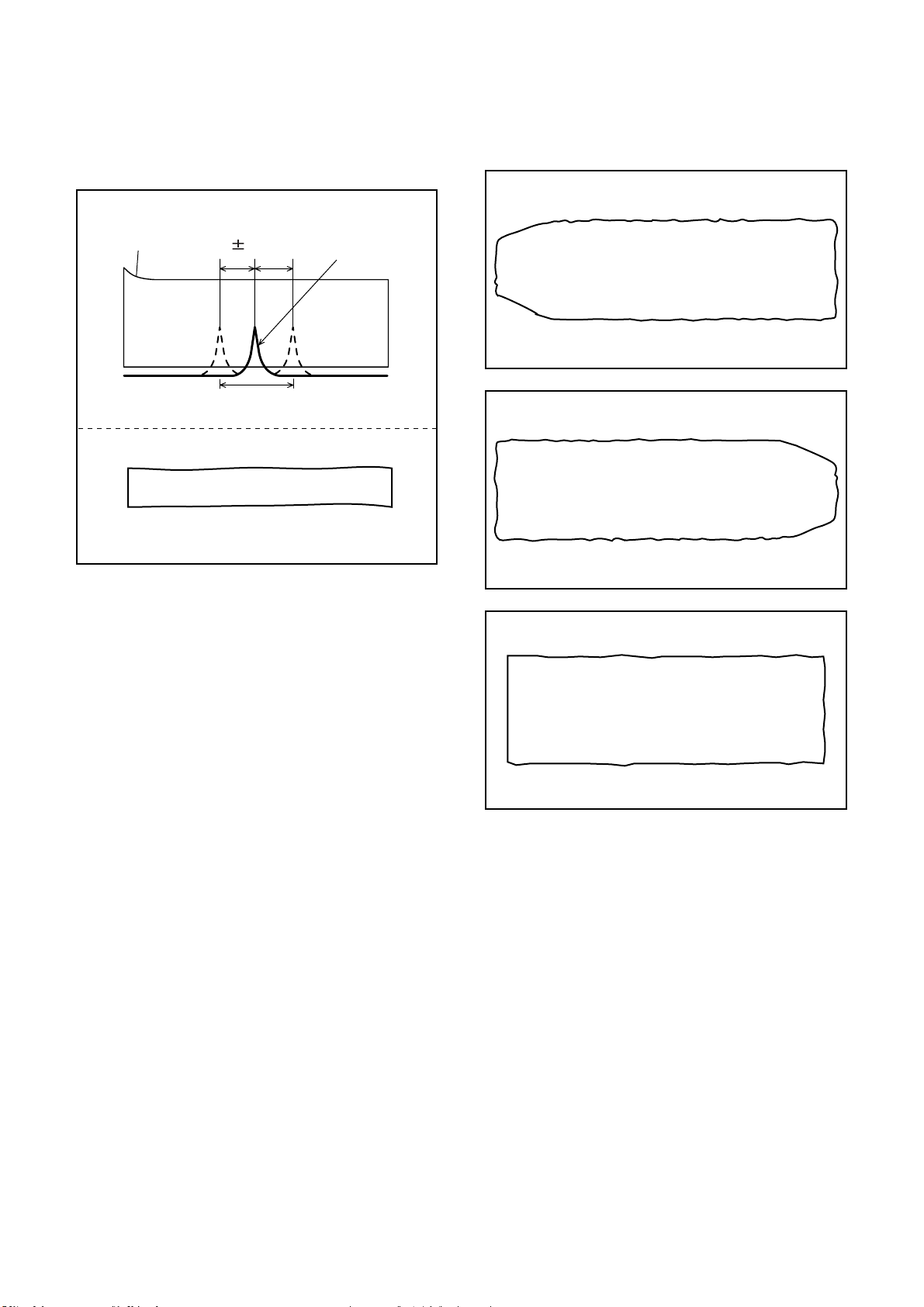

5. To shift the CTL waveform, press CH UP or CH DOWN button on the remote control unit. Then make sure that the m aximum outp ut pos ition of PB FM envelope signal become withi n set position.

±2ms from pre-

Good

FM envelope signal

2ms

Center Position

5. When G uide Rollers [2] and [3] (Refer to Fig. M3) are aligned properly, there is no envelope drop either at the beginni ng or end of track as shown in Fig. M9.

Dropping envelope level at the beginning of track.

Fig. M8

FM envelope output signal is adjusted at maximum.

CTL signal

No Good

FM envelope output signal is low.

Fig. M7

6. Set the Tracking Control Circuit to the pr eset position by pressing CH UP button on the remote co ntrol unit. and then “PLAY” button.

1-C. Checking/Adjustment of Envelope

Waveform

Purpose:

To achieve a satisfactory picture, adjust the PB FM envelope becomes as flat as possible.

Symptom of Misalignment:

If the envelope output is poor, noise will appear in the picture. The tracking will then lose precision and the playback picture will be distor ted by any slight variation of the Tracking Control Circuit.

1. Connect the oscilloscope to TP008 (C-PB) on the Main CBA. Use TP002 (RF-SW) as a trigger.

2. Playback the Gray Scale on the Alignment Tape (FL6N8). Set the Tracking Control Circuit to the preset position by pres sing CH UP button and then “PLAY” button on the unit. Adjust the height of Guide Rollers [2] and [3] (Fig. M3, Page 2-3-3) watching the oscillosc ope display so that the envelope becomes as flat as poss ible. To do this adjustment, turn the top of the Guide Roller with the Guide Roller Adj. Screwdriver.

3. If the envelope is as shown in Fig. M7, adjust the height of Guide Ro ller [2 ] ( Refer to Fi g. M3) s o tha t the waveform looks like the one shown in Fig. M9.

4. If the envelope is as shown in Fig. M8, adjust the height of Guide Ro ller [3 ] ( Refer to Fi g. M3) s o tha t the waveform looks like the one shown in Fig. M9.

Dropping envelope level at the end of track.

Fig. M9

Envelope is adjusted properly. (No envelope drop)

Fig. M10

Note: Upon completion of the adjustment of Guide Rollers [2] and [3] (Refer to Fig. M3), check the X Value by pushing the CH UP or DOWN buttons alternately, to check the s ymmetr y of the envelope. Check the number of pushes to ensure preset position. The number of pushes CH UP button to achieve 1/2 level of envelope should match the number of pushes CH DOWN button from center. If required, redo the “X Value Alignment.”

2-3-4 Z13P2HMA

1-D. Azimuth Alignment of Audio/Con-

trol/ Erase Head

Purpose:

To correct the Azimuth alignment so that the Audio/ Control/Erase Head meets tape tracks properly.

Symptom of Misalignment:

If the position of the Audio/Con trol/Erase Head is not properly aligned, the Audio S/N Ratio or Frequency Response will be poor.

1. Connect the oscilloscope to the audio o utput jack on the rear side of the deck.

2. Playback the align ment tape (FL6N8) and confi rm that the audio signal output level is 8kHz.

3. Adjust Azimuth Adj. Screw so that the output level on the AC Voltmeter or the waveform on the oscilloscope is at maximum. (Fig. M6)

Note: Upon completion of the adj ustment of Azimuth Adj. Screw, check the X Value by pushing the C H UP or DOWN buttons alternately, to check the symmetry of the envelope. Check the number of pushes to ensure preset posi tion. The number of p ushes C H UP button to achieve 1/2 level of envelope should match the number of pushes CH DOWN button from center. If required, redo the “X Value Alignment.”

2-3-5 Z13P2HMA

DISASSEMBLY/ASSEMBLY PROCEDURES

OF DECK MECHANISM

Before following the procedures described below, be sure to remove the deck assembly from the cabinet. (Refer to CABINET DISASSEMBLY INSTRUCTIONS on page 1-5-1 of Main Section.) All the following procedures, in cluding those for adjustment and replaceme nt of parts, should be done in Eject mode; see the positions of [41] and [42] in Fig. DM1 on page 2-4-3. When reassembling, follow the steps in reverse order.

STEP /LOC.

No.

[10] [2] [11] [10] C Door Opener T DM1, DM8-1 (S-4A), *(L-4) [12] [11] Pinch Arm (B) T

[13] [12] Pinch Arm (A) Assembly T [14] [14] FE Head T D M1, DM9 (S-5)

[15] [15] Prism T DM1, DM9 (S-6) [16] [2],[15] Sensor Gear T DM1, DM9 [17] [2] Slider Shaft T DM10 *(L-5) [18] [17] C Drive Lever (SP) T DM10 [19] [17] C Drive Lever (TU) T DM10 (S-7), *(P-4)

[20] [21] [21] Clutch Assembly B DM2, DM12 (C-1)

[22] [22] Cam Holder Assembly B DM2, DM12 *(L-6) [23] [23] Cam Gear (B) B DM2, DM12 (C-2), *(P-5) [24] [24] Mode Gear B DM2, DM13-1 (C-3)

[25] [26] [22] Worm Holder B DM2, DM13-1 (S-9), *(L-9), *(L-10)

[27] [26] Pulley Assembly B DM2, DM13-1 [28] [25],[26] Cam Gear (A) B [29] [25] Idler Gear B DM1, DM14

[30] [29] Idler Arm B DM1, DM14 *(L-11) [31] [25] BT Arm B DM2, DM14 *(P-6)

START-

ING

No.

[1] [1] Guide Holder A T DM3 2(S-1) [2] [1] [3] [2] Slider (SP) T DM5 (S-1A), *(L-1)

[4] [2] Slider (TU) T DM5 *(L-2) [5] [4] Lock Lever T DM5 *(L-3), *(P-1) [6] [2] Cassette Plate T DM5 [7] [7] Cyli nde r Asse mbly T DM1, DM6 Desolder, 3(S-2)

[8] [8] Loading Motor Assembly T DM1, DM7 [9] [9] ACE Head Assembly T DM1, DM7 (S-4)

[7],[8],

[10]

[21],[23],

[24]

Cassette Holder Assembly

Tape Guide Arm Assembly

Capstan Motor B DM2, DM11 3(S-8), Cap Belt

Mode Lever B

PART

Fig. No.

T DM4 (S-10)

TDM1, DM8-1 *(P-2)

DM1, DM8-1, DM8-2

DM2, DM13-1, DM13-2

REMOVAL INSTALLATION

REMOVE/*UNHOOK/ UNLOCK/RELEASE/ UNPLUG/DESOLDER

Desolder, LDG Belt, 2(S-3)

*(P-3)

(C-4), *(L-8)

ADJUSTMENT

CONDITION

2-4-1 Z13PDA

STEP /LOC.

No.

[32] [25]

[33] [34] [2],[25] M Brake (TU) Assembly T DM1, DM15 *(P-7), Brake Belt

[35] [2],[25] M Brake (SP) Assembly T DM1, DM15 *(P-8) [36] [35] Tension Lever Assembly T DM1, DM15 [37] [36] T Lever Holder T DM15 *(L-12) [38] [34] Reel (TU)(D2) T DM1, DM15 [39] [38] M Gear T DM1, DM15 [40] [36] Reel (SP)(D2) T DM1, DM15

[41] [32],[36]

[42] [33] [43] [19] TG Post Assembly T DM1, DM16 *(L-13) [44] [28] Rack Assembly R DM17 *(P-9) [45] [44] F Door Opener R DM17

[46] [46] Cleaner Assembly T DM1, DM6 [47] [46] CL Post T DM6 *(L-14)

↓

(1)

START-

ING

No.

[32]

↓

(2)

PART

Loading Arm (SP) Assembly

Loading Arm (TU) Assembly

Moving Guide S Preparation

Moving Guide T Preparation

↓

(3)

Fig. No.

BDM2, DM14

TDM1, DM16

↓

(4)

↓

(5)

REMOVAL INSTALLATION

REMOVE/*UNHOOK/ UNLOCK/RELEASE/ UNPLUG/DESOLDER

↓

(6)

ADJUSTMENT

CONDITION

(+)Refer to Alignment Sec.Page 2-5-1

↓

(7)

(1): Follow steps in sequence. When reassembling, follow the steps in reverse order.

These numbers are also used as identification (location) No. of parts in the figures. (2): Indicates the part to start disassembling with in order to disassemble the part in column (1). (3):Name of the part (4): Location of the part: T=Top B=Bottom R=Right L=Left (5):Figure Number (6): Identification of parts to be removed, unhooked, unlocked, released, unplugged, unclamped, or desoldered.

P=Spring, W=Washer, C=Cut Washer, S=Screw, *=Unhook, Unlock, Release, Unplug, or Desolder

e.g., 2(L-2) = two Locking Tabs (L-2). (7): Adjustment Information for Installation

(+):Refer to Deck Exploded Views for lubrication.

2-4-2 Z13PDA

T op View

[14]

[36]

[35]

[7] [8]

[42][41] [43][9]

[46]

[13] [11]

[15]

[10] [12]

[34]

Bottom View

[26]

[27]

[23] [28]

[20]

[29]

[30][40] [16] [39] [38]

Fig. DM1

[33]

[32]

[24]

[25]

[31][21][22]

Fig. DM2

2-4-3 Z13PDA

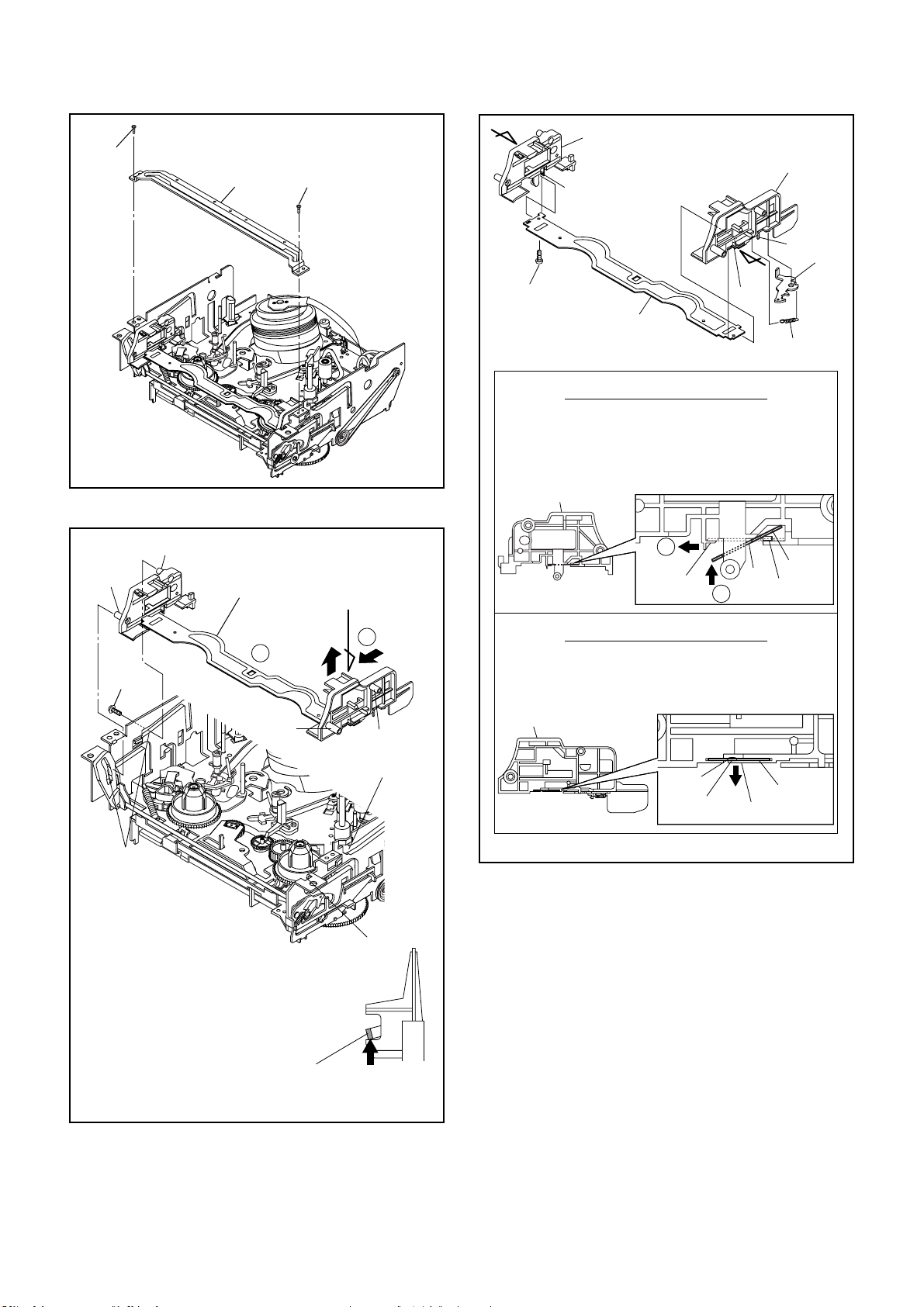

(S-1)

[1]

(S-1)

Fig. DM3

(S-1A)

[3]

[4]

(L-1)

(L-3)

[5]

(L-2)

[6]

(P-1)

Installation of [3] and [6]

First, insert [6] diagonally in [3] as shown below. Then, install [6] in [3] while pushing (L-1) in a direction of arrow. After installing [6] in [3], confirm that pin A of [3] enters hole A of [6] properly.

[3]

Pin D

Pin C

(S-10)

Slots B

First, while pushing the locking tab as shown at right, slide and pull up the right side on [2] to release Pin A and Pin B from the slots A. Then, remove Pin C and Pin D on [2] from the slots B as shown.

[2]

Pull up

Pin A

Slide

Pin B

Slot A

Hole A

[6]

Pin A

View for A

(L-1)

Installation of [4] and [6]

Install [6] in [4] while pulling (L-2) in a direction of arrow. After installing [6] in [4], confirm that pin B of [4] enters hole B of [6] properly.

[4]

View for B

Hole B

Pin B

[6]

(L-2)

Fig. DM5

Locking tab

View for A

Fig. DM4

2-4-4 Z13PDA

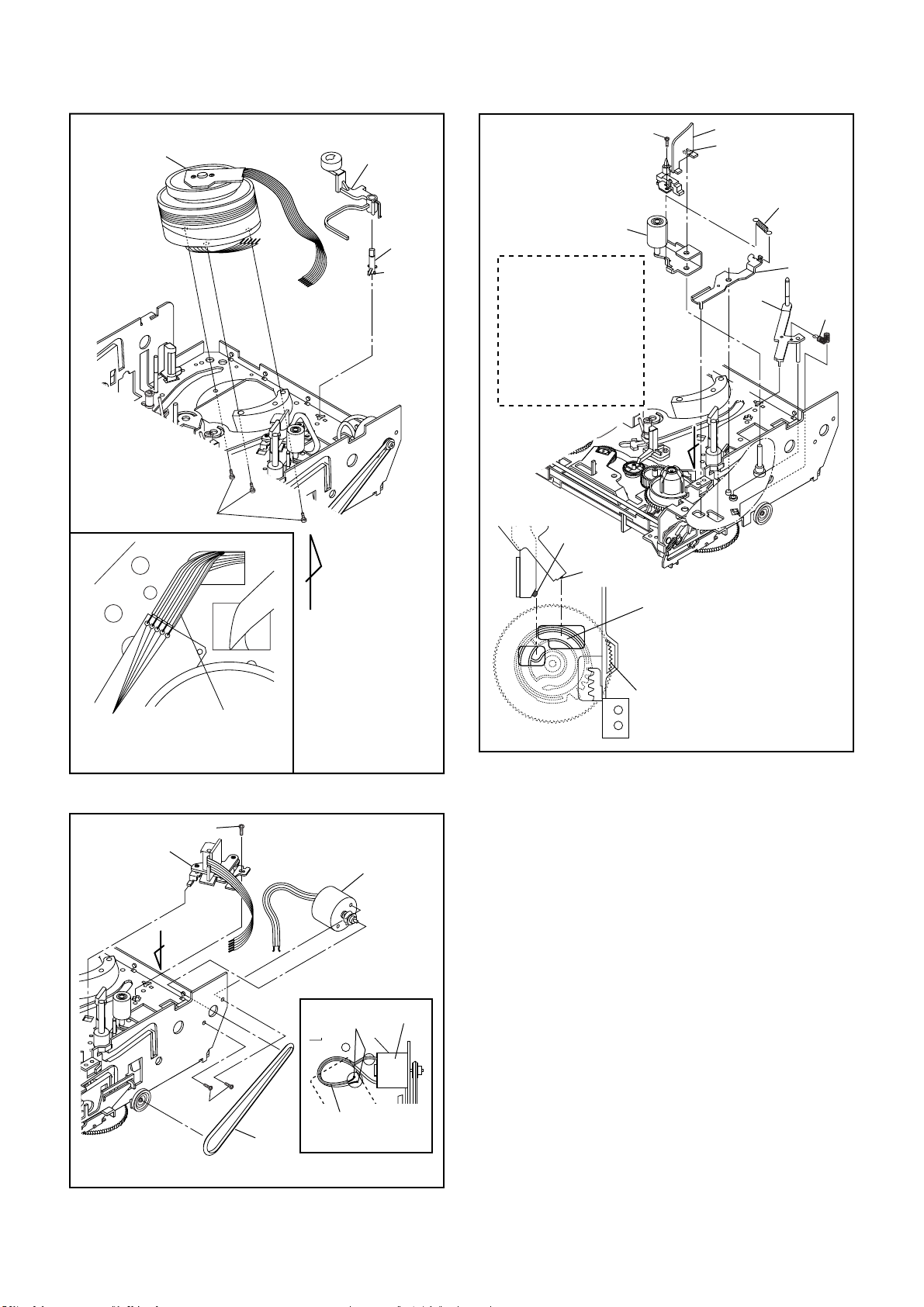

[7]

[46]

(S-4A)

[11]

(L-4)

(P-3)

Desolder from bottom

(S-2)

View for A

Lead with Red Stripe

[47]

(L-14)

Fig. DM6

[13]

Removal of [11]

1) Remove screw (S-4A).

2) Unhook spring (P-2).

3) Release (L-4) while

holding [12] with a finger.

4) Loosen a finger

holding [12] and remove [11].

Pin of [12]

Pin of [10]

View for A

[10]

Groove of [28]

When reassembling [10] and [12], confirm that pin of [10] and pin of [12] are in the

[28]

groove of [28] as shown.

Fig. DM8-1

[12]

(P-2)

[9]

(S-4)

[8]

(S-3)

Desolder from bottom

Lead with White Stripe

LDG Belt

View for A

[8]

Fig. DM7

2-4-5 Z13PDA

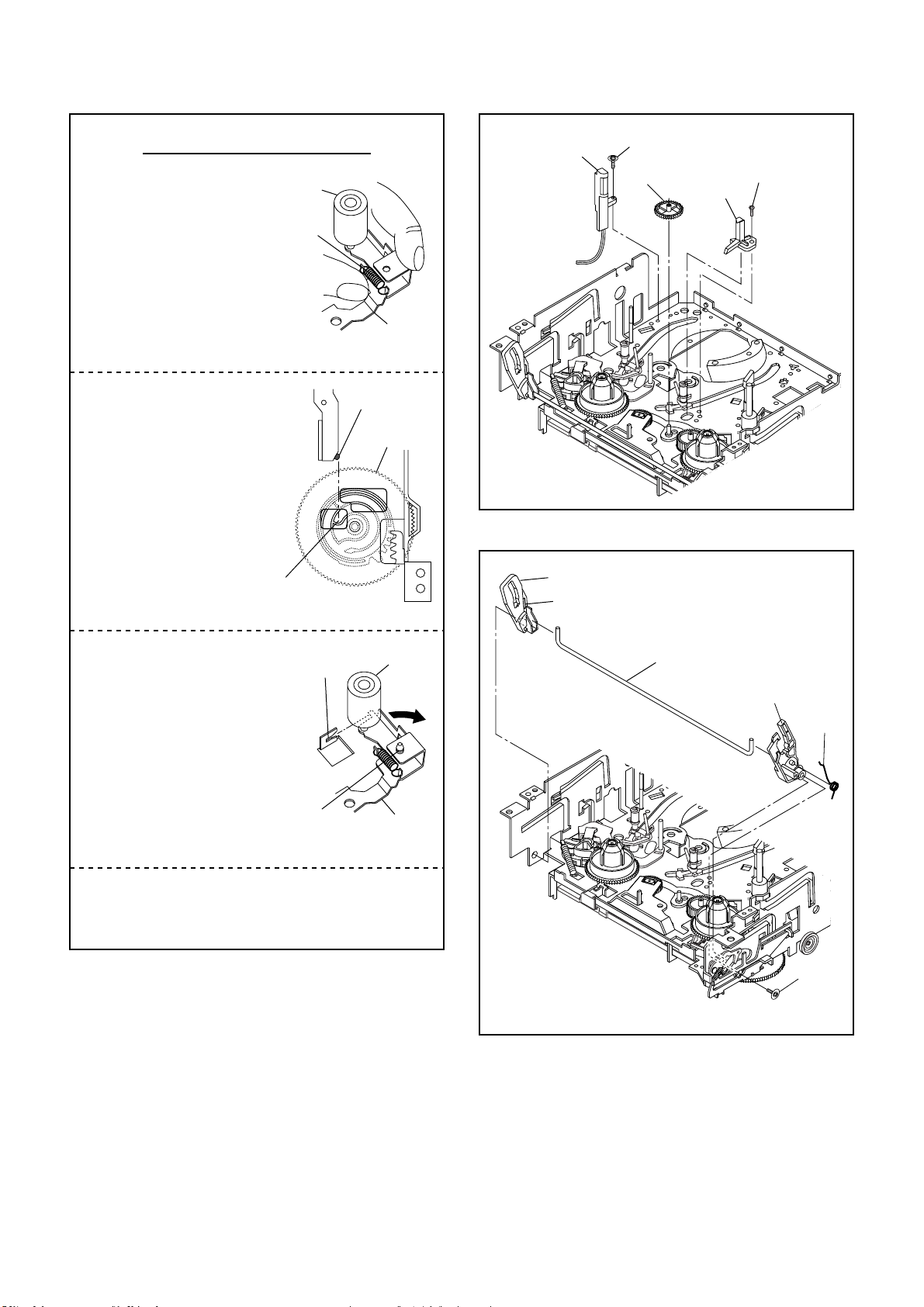

Installation of [13] and [12]

[14]

(S-5)

Hook spring (P-3) up to [12] and [13], then install then to the specified position so that [12] will be floated slightly while holding [12] and [13]. (Refer to Fig. A.)

Install pin of [12] in groove of [28]. (Refer to Fig. B.)

Groove of [28]

(P-3)

[13]

Fig. A

Pin of [12]

[28]

Fig. B (Top view)

[12]

[18]

(L-5)

[16]

(S-6)

[15]

Fig. DM9

Notch of

Hold [12] and [13] till groove of pin of chassis looks and fit [13] in notch of chassis. Then, turn a few [13] while holding [12]. (Refer to Fig. C.)

Install [11] and [10] while holding [12]. (Refer to Fig. DM8-1.)

chassis

Groove of pin of chassis

[13]

turn

[12]

Fig. C

Fig. DM8-2

[17]

[19]

(P-4)

(S-7)

Fig. DM10

2-4-6 Z13PDA

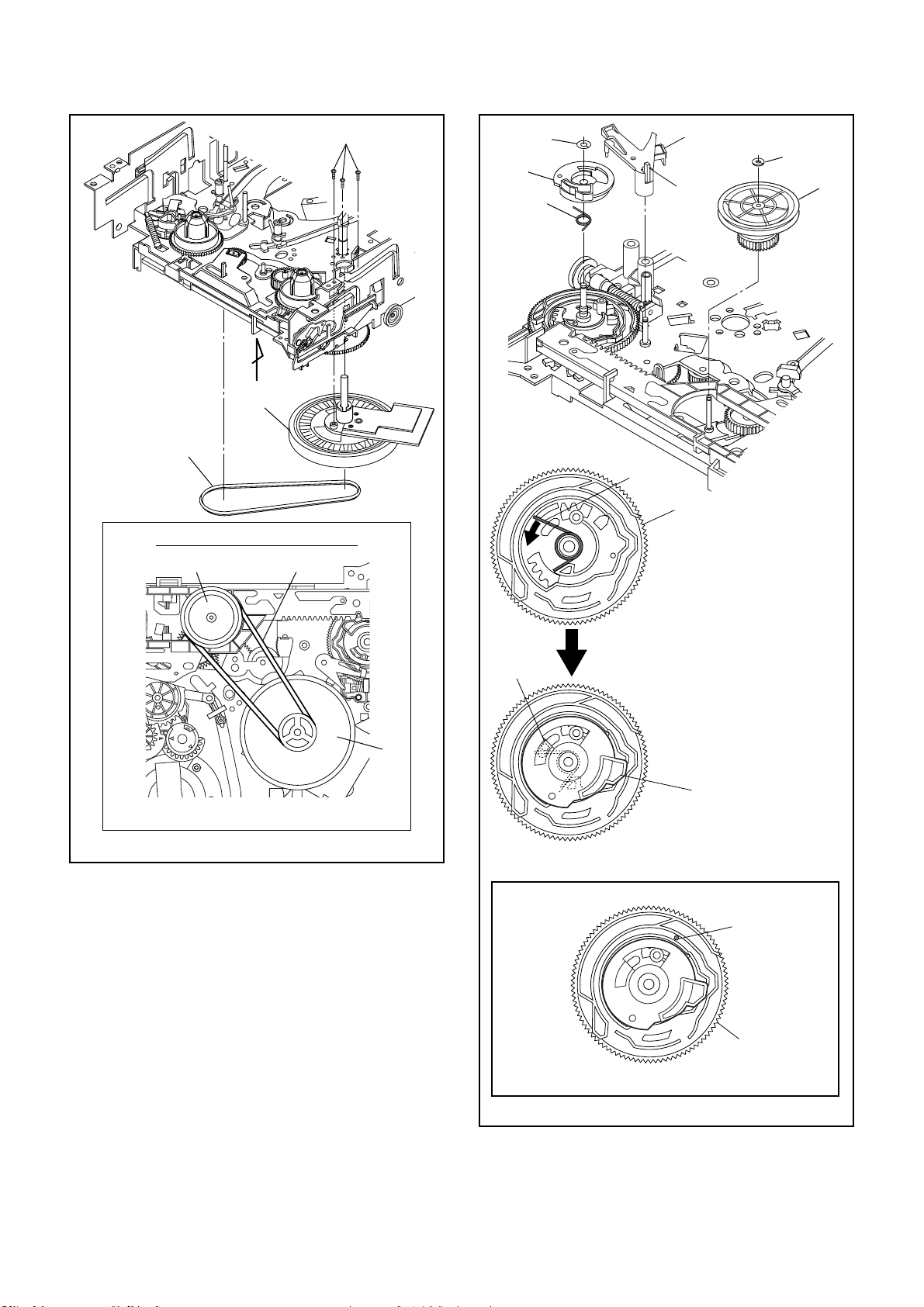

[20]

Cap Belt

Installation position of Cap Belt

[21] Cap Belt

(S-8)

[20]

(C-2)

[23]

(P-5)

Pin on bottom of [23]

[22]

(L-6)

(P-5)

[28]

When installing [23], install the spring (P-5) to [28] as shown in the left figure, and then install [23] while pressing the spring (P-5) to the direction of the arrow in the left figure and confirming that the position of the spring (P-5) is placed as shown in the left figure.

(C-1)

[21]

View for A

Fig. DM11

[23]

T op Vie w

Pin on [22]

[28]

Position of pin on [22]

Fig. DM12

2-4-7 Z13PDA

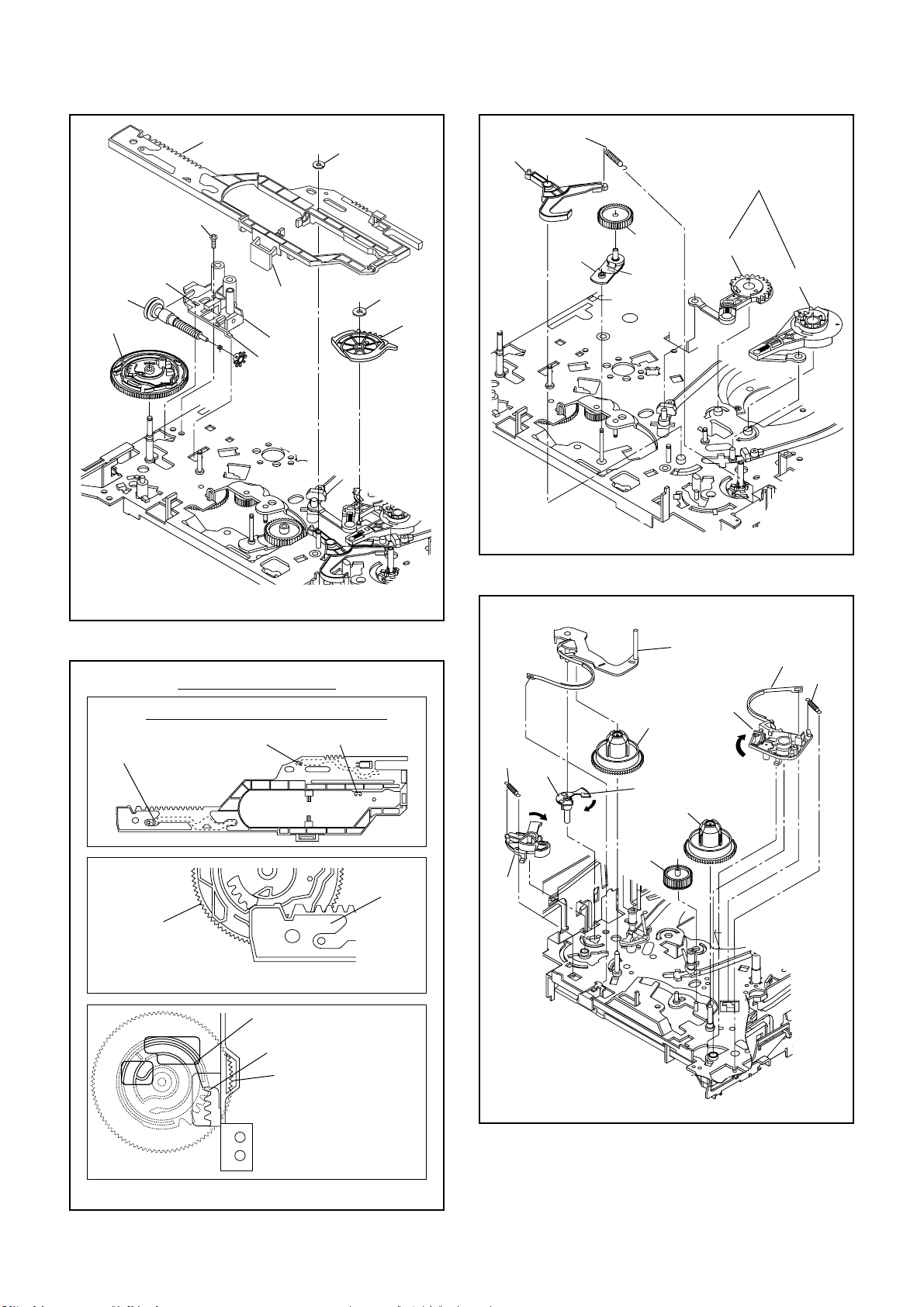

[27]

[28]

(L-10)

(S-9)

[25]

(L-8)

[26]

(L-9)

(C-4)

(C-3)

[24]

[31]

(P-6)

[30]

[29]

(L-11)

Refer to the Alignment Section, Page 2-5-1.

[33]

[32]

Fig. DM14

Position of Mode Lever when installed

Pin of [34]

Bottom View

[28]

Installation of [25]

Pin of [31]

Align [25] and [28] as shown.

First groove on [28]

Pin of [35]

First tooth on [44]

[28]

Fig. DM13-1

[25]

(P-8)

[35]

[37]

turn

[40]

(L-12)

[39]

[38]

[36]

Break belt

(P-7)

[34]

turn

T op Vie w

When reassembling [28], align the first groove on [28] to the first tooth on [44] as shown.

Fig. DM13-2

Fig. DM15

2-4-8 Z13PDA

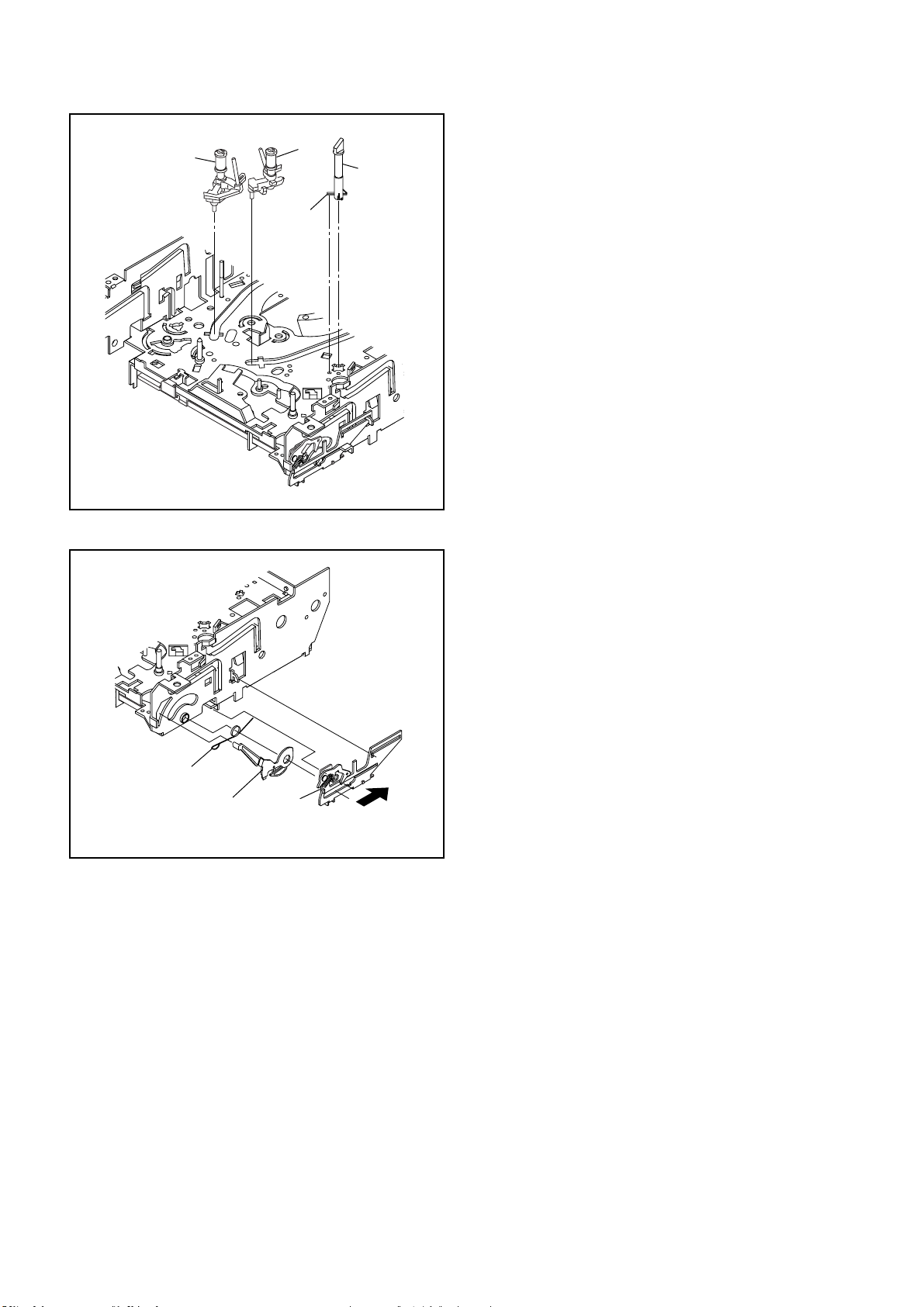

[41]

[42]

[43]

(L-13)

Fig. DM16

(P-9)

[45]

[44]

Slide

Fig. DM17

2-4-9 Z13PDA

ALIGNMENT PROCEDURES OF MECHANISM

The following procedures describe how to align the individual gears and levers that make up the tape loading/unloading mechanism. Since information about the state of the mechanism is provided to the System Control Circuit only through the Mode Switch, it is essential that th e correct relatio nship bet ween indi vidual gears and levers be maintained.

All alignments are to be performed with the mechanism in Eject mode, in the sequence given. Each

procedure assumes that all previous procedur es have been completed.

IMPORTANT:

If any one of these alignments is not performed properly, even if off by only one tooth, the unit will unload or stop and it may result in damage to the mechanical or electr i c al parts.

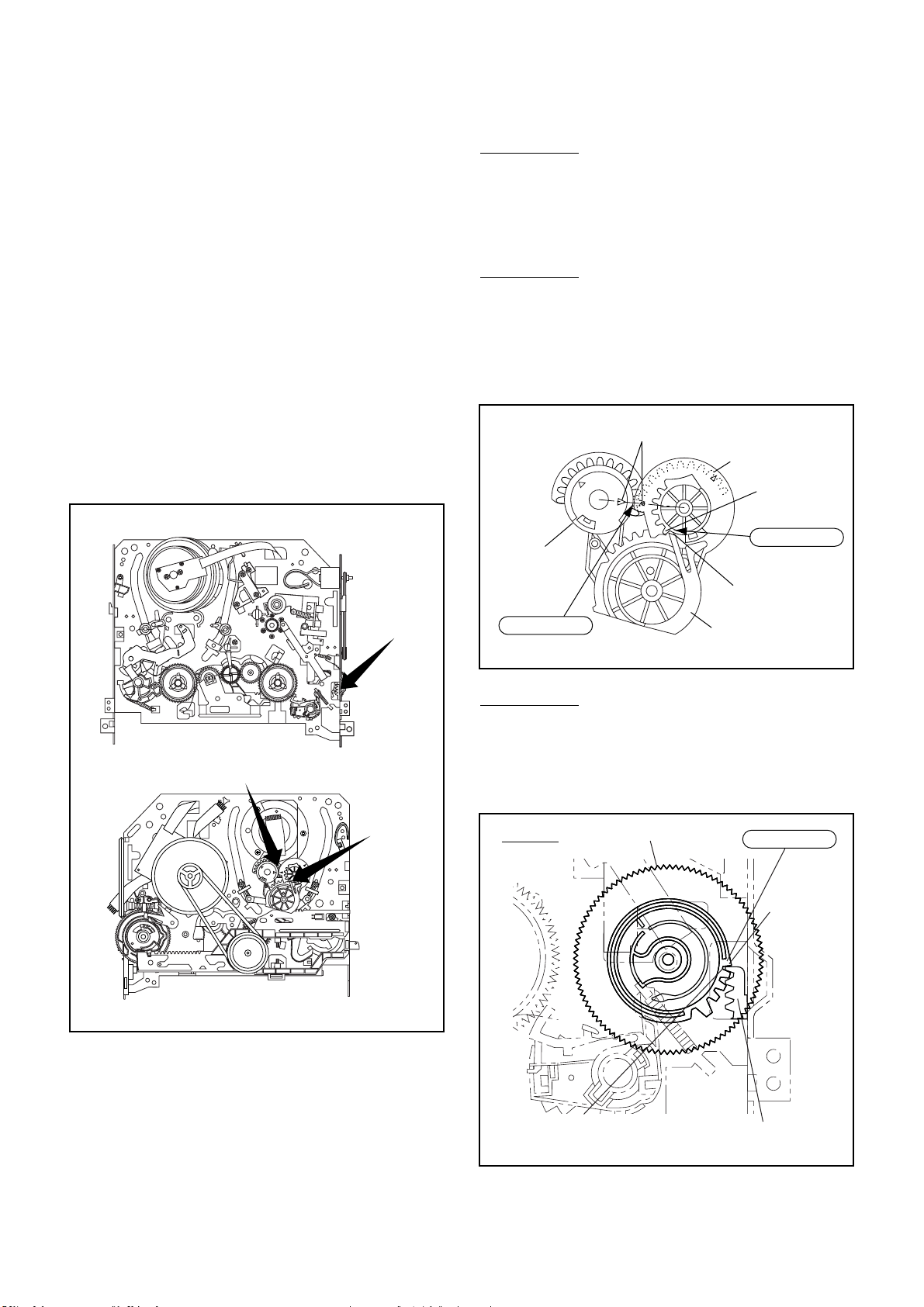

Alignment points in Eject Position

T op View

Alignment 3

Alignment 1

Loading Arm (SP) and (TU) Assembly

Install Loading Arm (SP) and (TU) Assembly so that their triangle marks point to each other as shown in Fig. AL2.

Alignment 2

Mode Gear

Keeping the two triangles pointing at each other,

install the Loading A rm ( SP) Ass embly so that the last tooth of the gear meets the most inside teeth of the Mode Gear. See Fig. AL2.

Triangle Marks

Loading Arm (SP) Assembly

Last T ooth

Alignment 2

Loading Arm (TU) Assembly

Most inside teeth of Mode Gear

Alignment 1

Mode Gear

Bottom View

Alignment 1

Alignment 2

Fig. AL1

Fig. AL2

Alignment 3

Cam Gear (A), Rack Assembly

Install the Rack As se mbly s o tha t t he fir s t toot h o n the gear of the Rack Assembly meets the first groove on the Cam Gear (A) as shown in Fig. AL3.

T op Vie w

Cam Gear (A)

Alignment 3

First tooth

First groove on the Cam Gear (A)

Gear on Rack Assembly

Fig. AL3

2-5-1 U29PAPM

Duraband t6605vf schematic

Specifications and Main Features

Frequently Asked Questions

User Manual

MAIN SECTION

SPECIFICATIONS

IMPORTANT SAFETY PRECAUTIONS

STANDARD NOTES FOR SERVICING

PREPARATION FOR SERVICING

CABINET DISASSEMBLY INSTRUCTIONS

ELECTRICAL ADJUSTMENT INSTRUCTIONS

BLOCK DIAGRAMS

MECHANICAL TROUBLE INDICATOR

SCHEMATIC DIAG RAMS / CBA’S AND TEST POINTS

WAVEFORMS

WIRING DIAGRAM

SYSTEM CONTROL TIMING CHARTS

IC PIN FUNCTION DESCRIPTIONS

LEAD IDENTIFICATIONS

MECHANICAL PARTS LIST

ELECTRICAL PARTS LIST

DECK MECHANISM SECTION

STANDARD MAINTENANCE

SERVICE FIXTURE AND TOOLS

MECHANICAL ALIGNMENT PROCEDURES

ALIGNMENT PROCEDURES OF MECHANISM
