Page 1

SERVICE MANUAL

32" COLOR TELEVISION

DCT3203

Page 2

IMPORTANT SAFETY NOTICE

Proper service and repair is important to the safe, reliable operation of all Funai Equipment. The service procedures recommended by Fun ai and described in this service manual are effective methods of performing service operations. Some of these service special tools should be used when and as recommended.

It is important to note that this service manual contains various CAUTIONS and NOTICES which should be carefully read in order to minimize the risk of personal injury to service personnel. The possibility exists that improper service methods may damage the equipment. It also is impo rtant to understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. Funai could not possibly know, evaluate and advice the service trade of all conceivable ways in which service might be done or of the possible hazardous consequences of each way. Consequently, Funai has not undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not recommended by Funai must first use all precautions thoroughly so that neither his safety nor the safe operation of the equipment will be jeopardized by the service method selected.

TABLE OF CONTENTS

Specifications........................................................ 1-1

Important Safety Precautions................................ 2-1

Standard Notes for Servicing................................ 3-1

Disassembly Instructions ...................................... 4-1

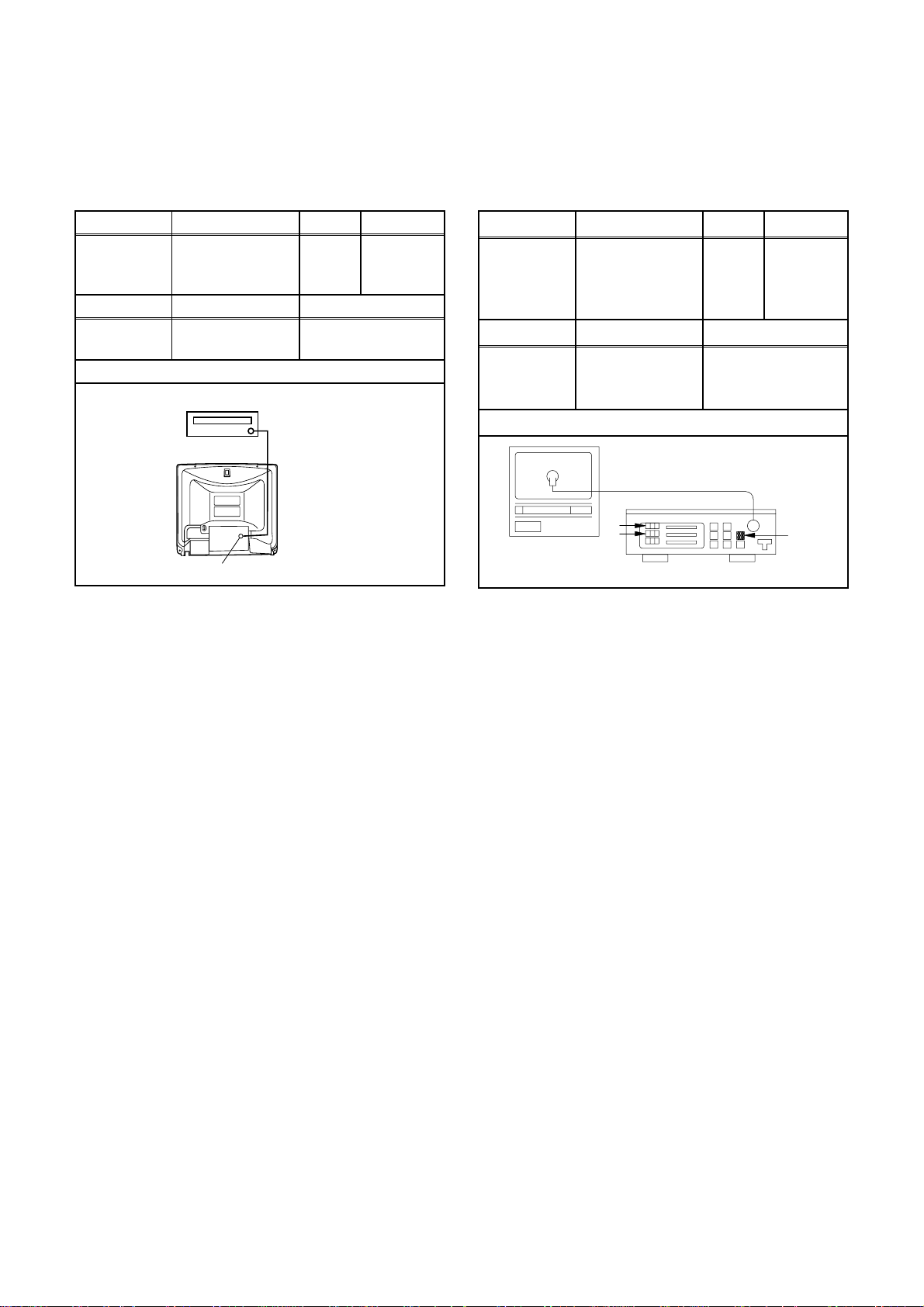

Electrical Adjustment Instructions......................... 5-1

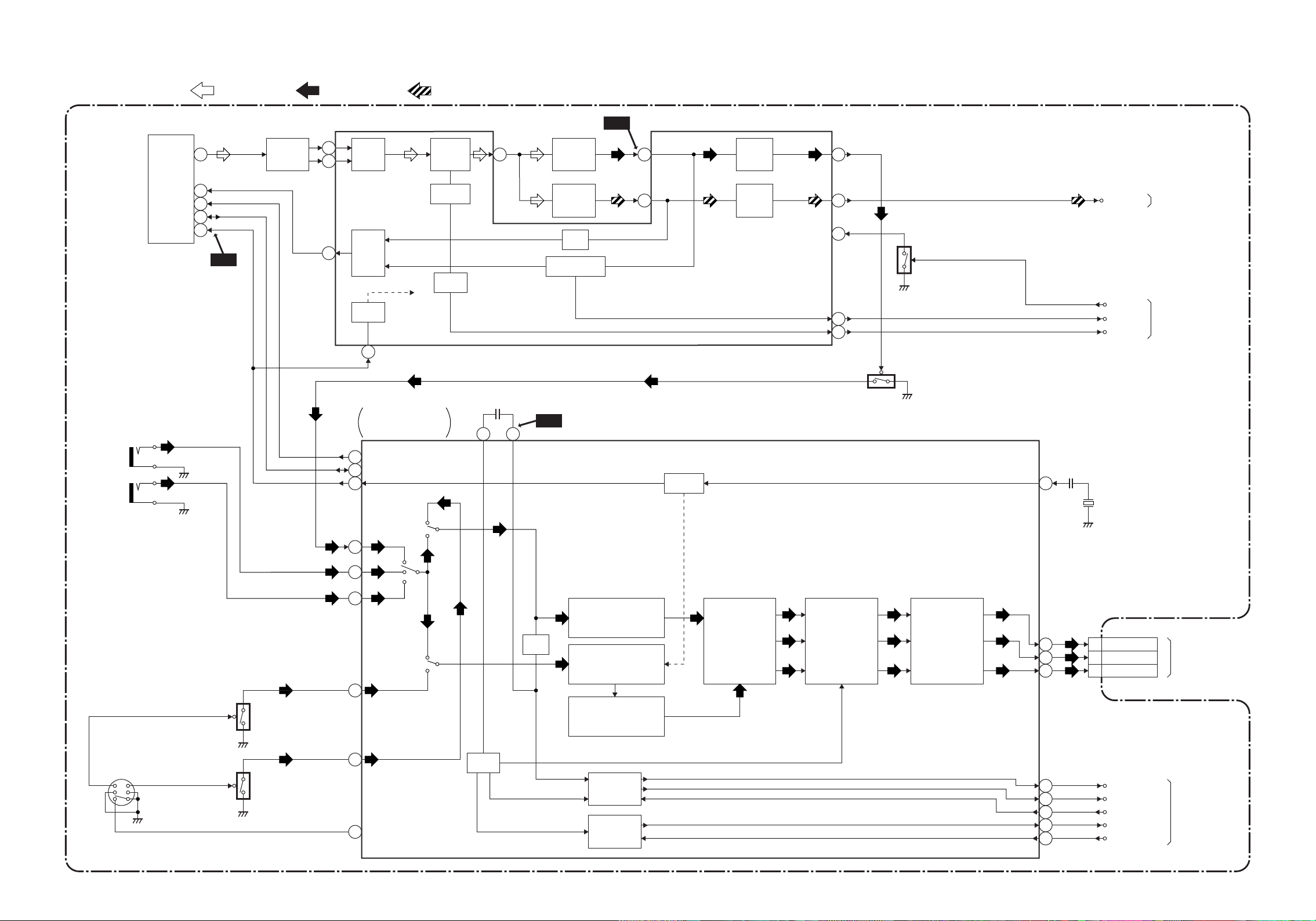

Block Diagram....................................................... 6-1

Schematic Diagram / CBA's and Test Points ....... 7-1

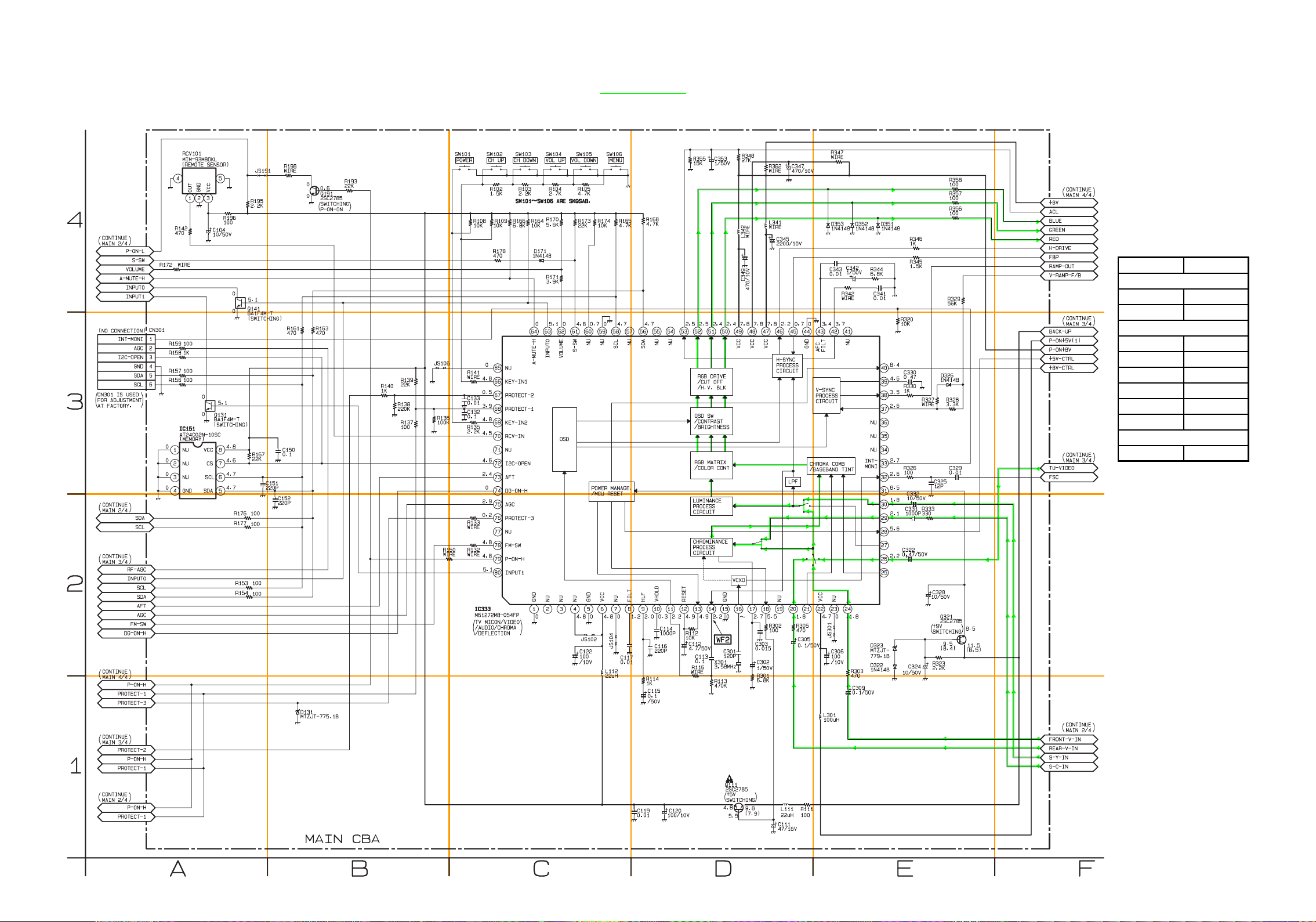

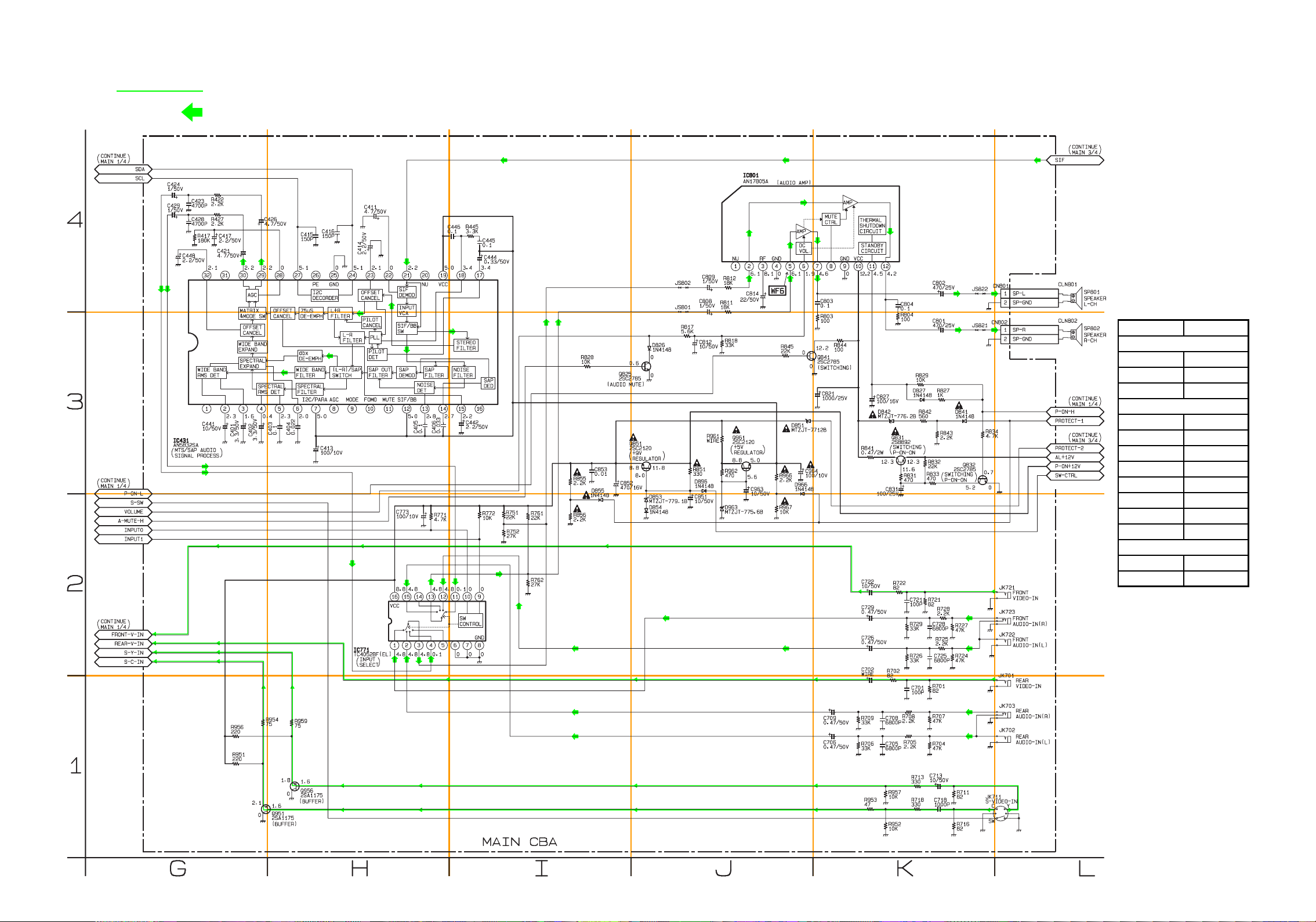

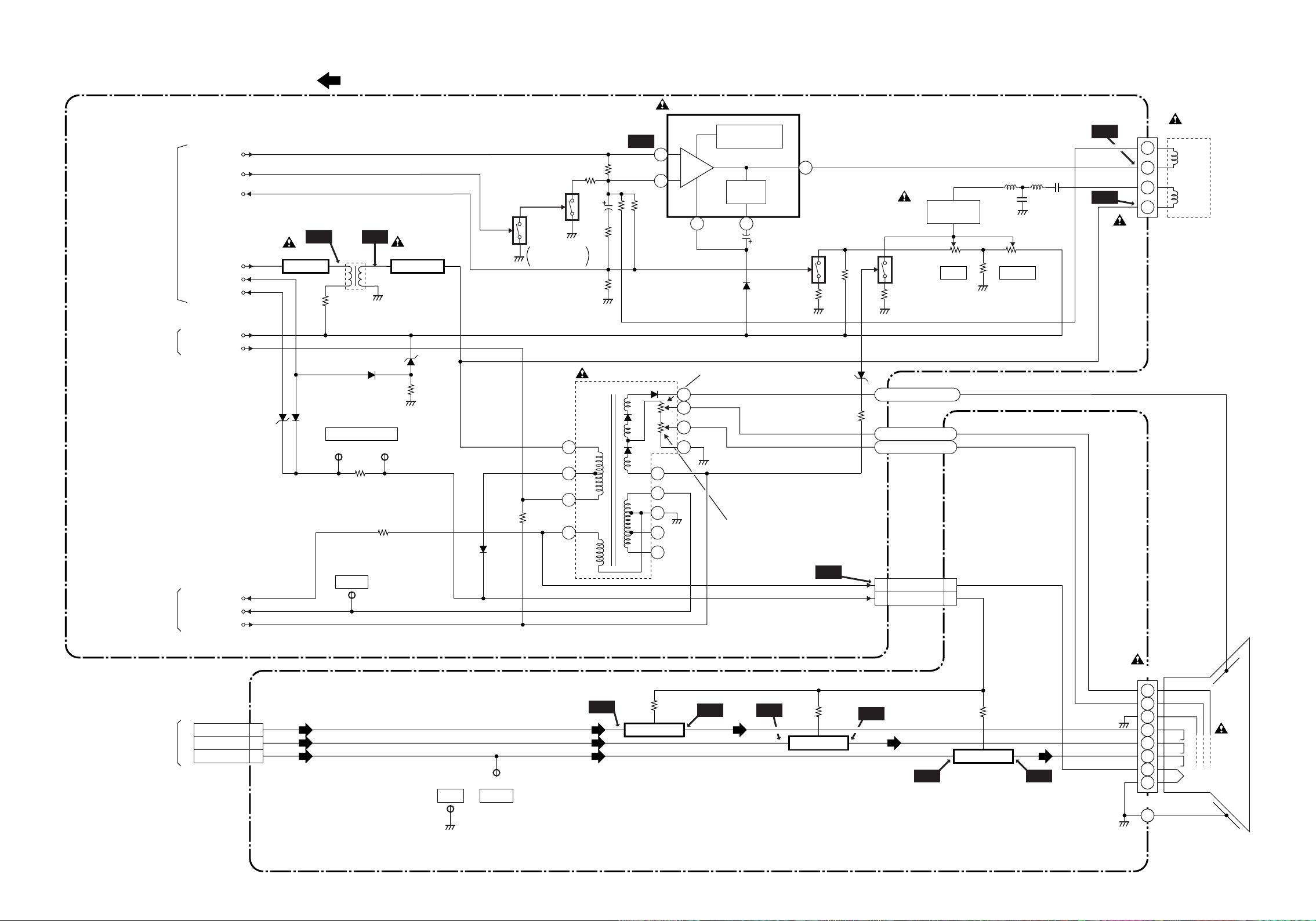

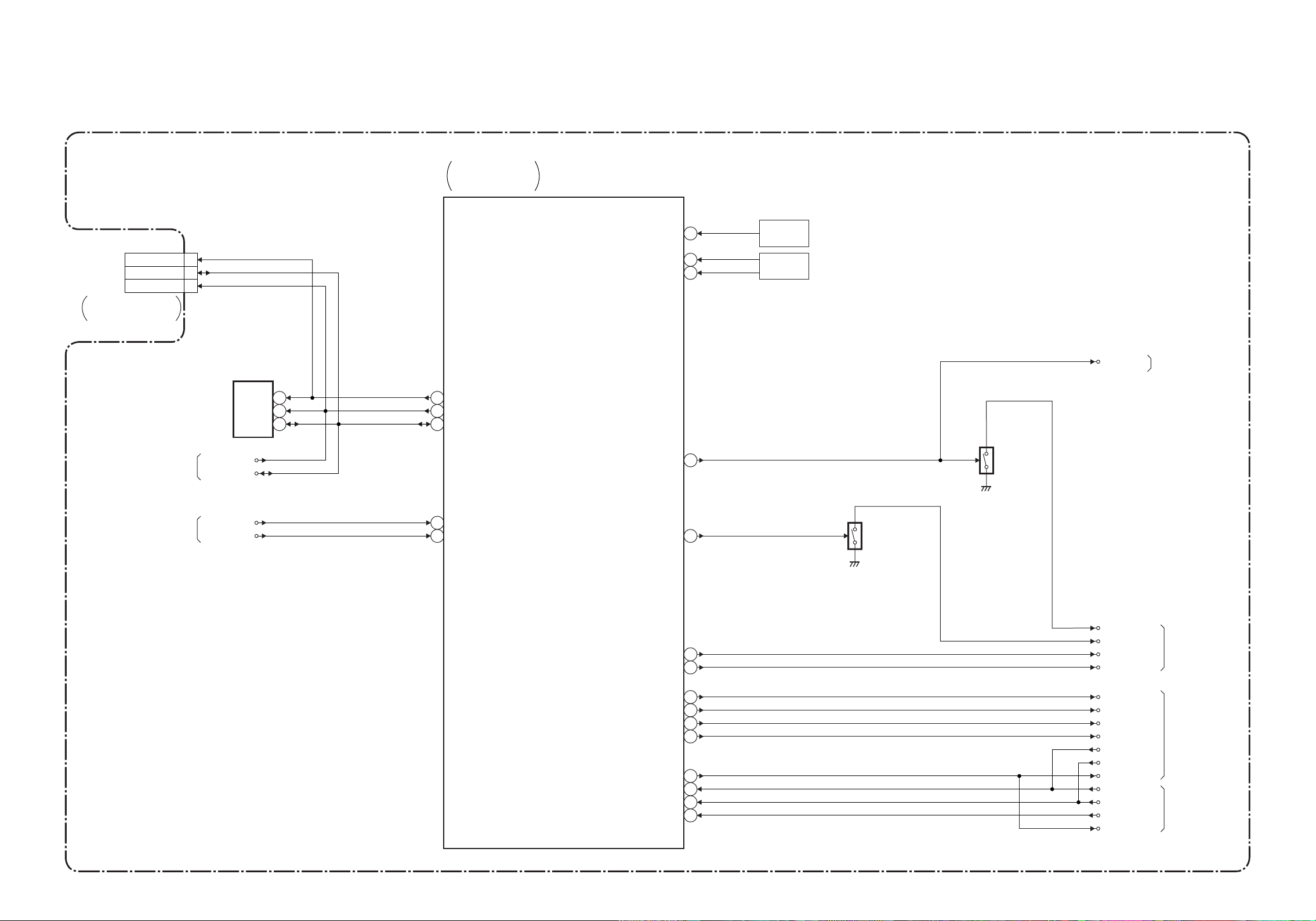

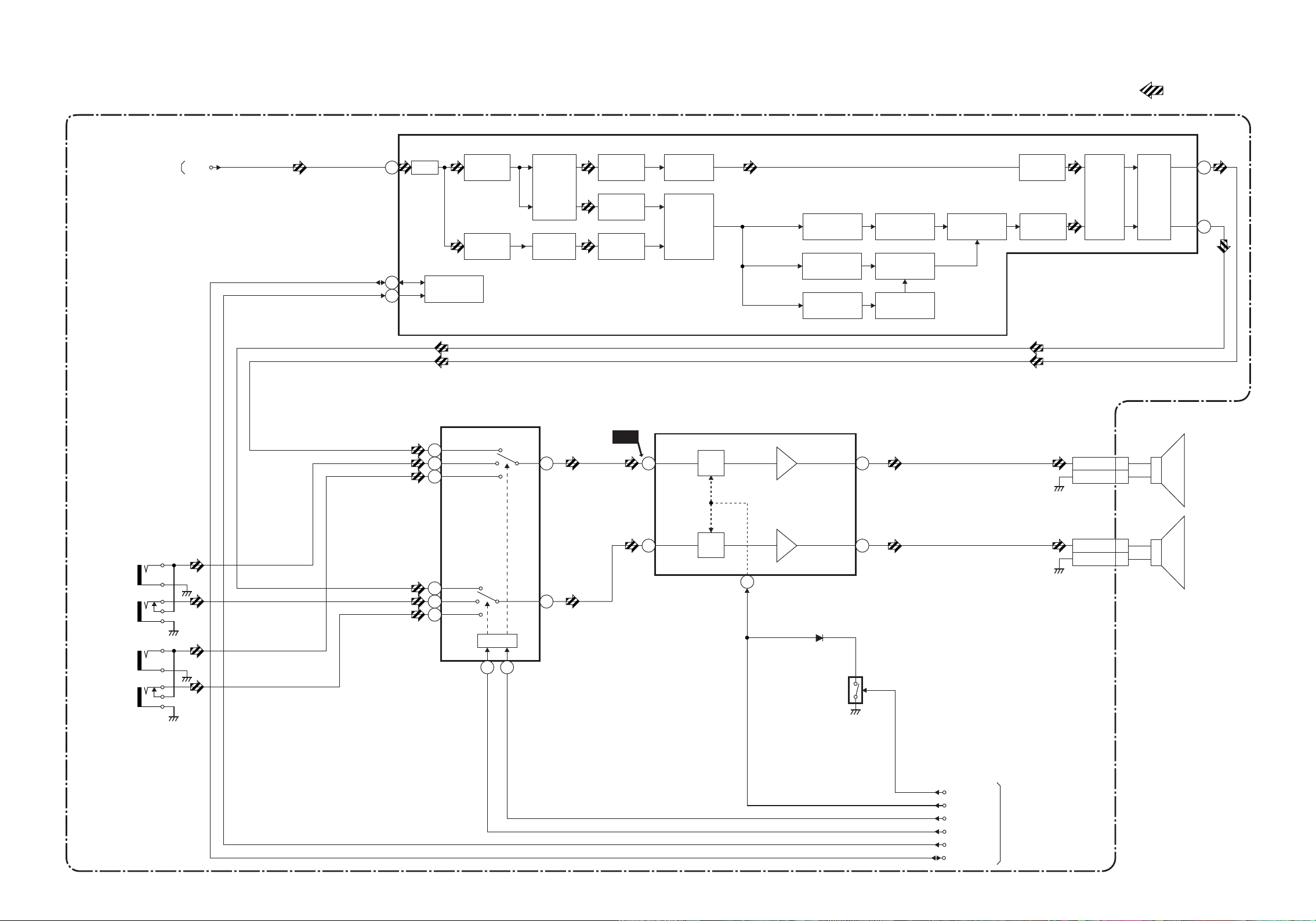

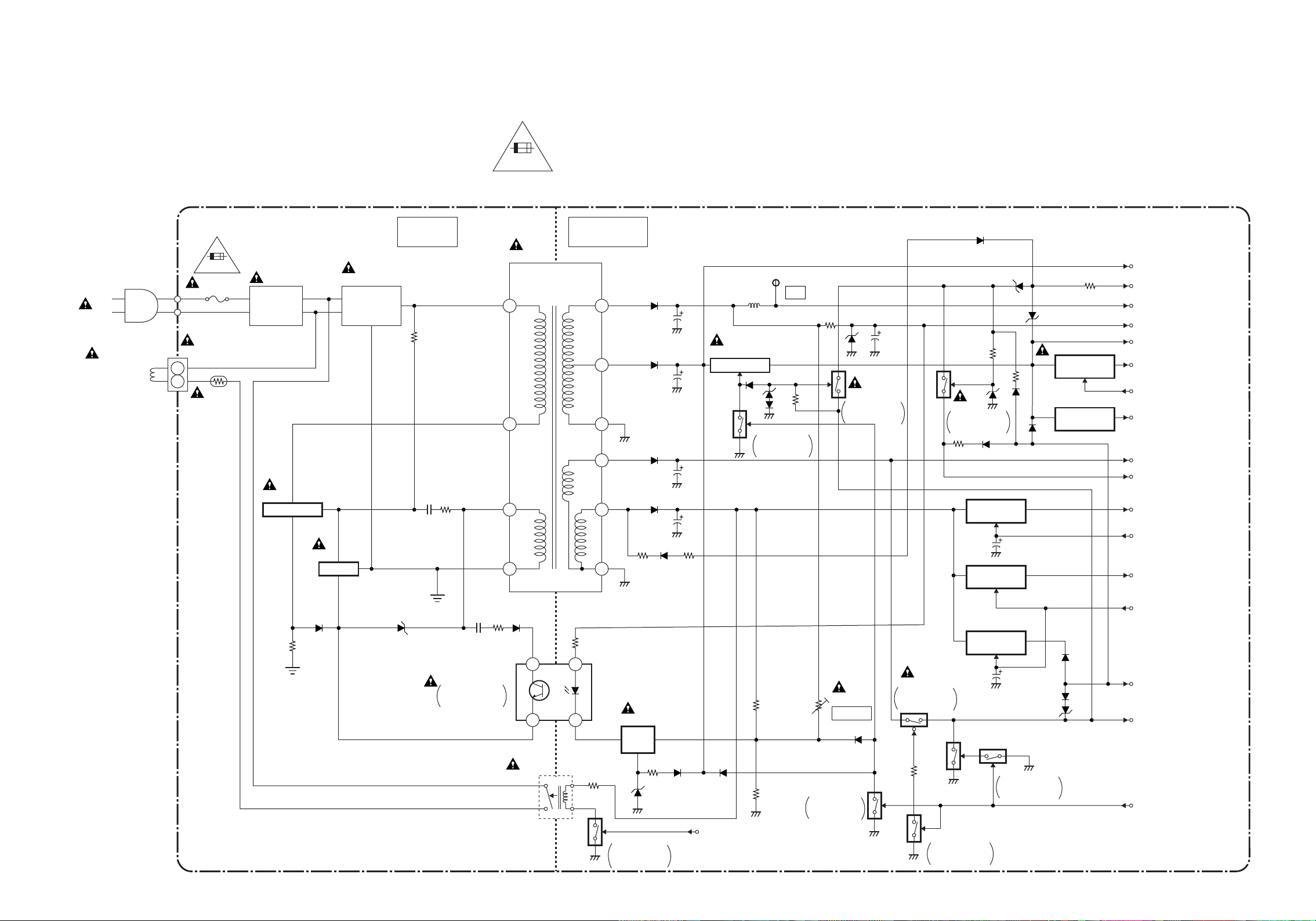

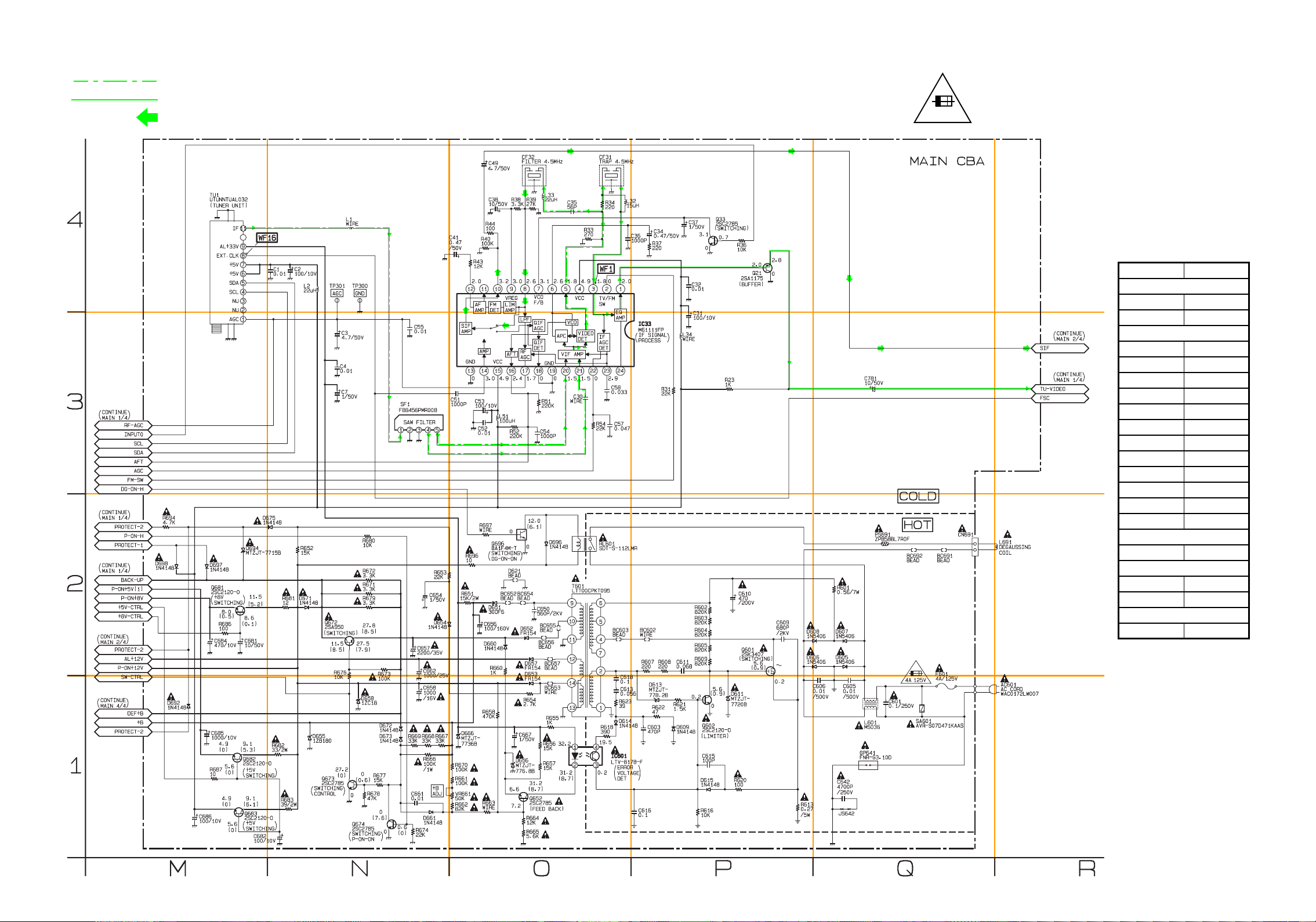

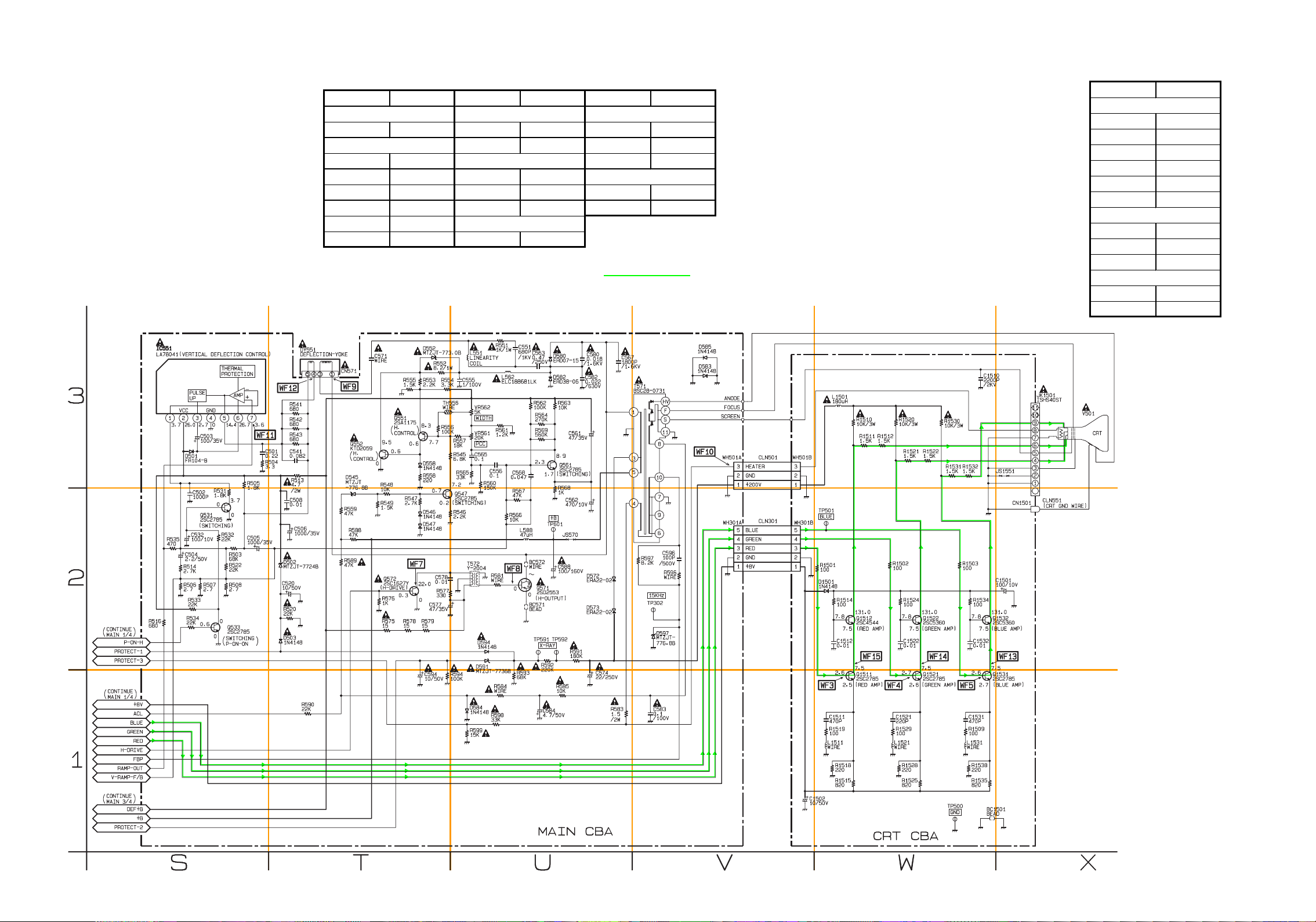

Schematic Diagram .............................................. 7-3

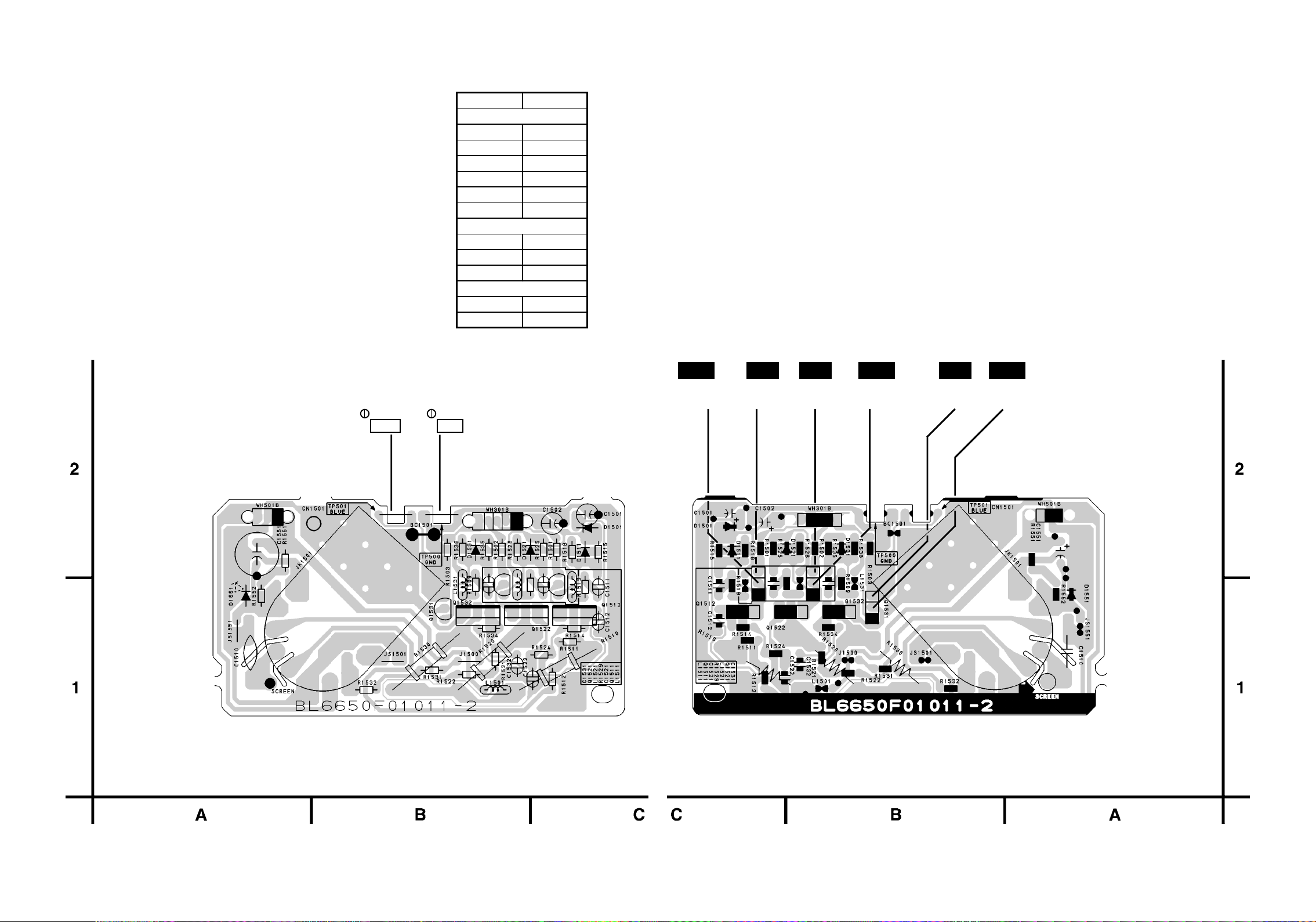

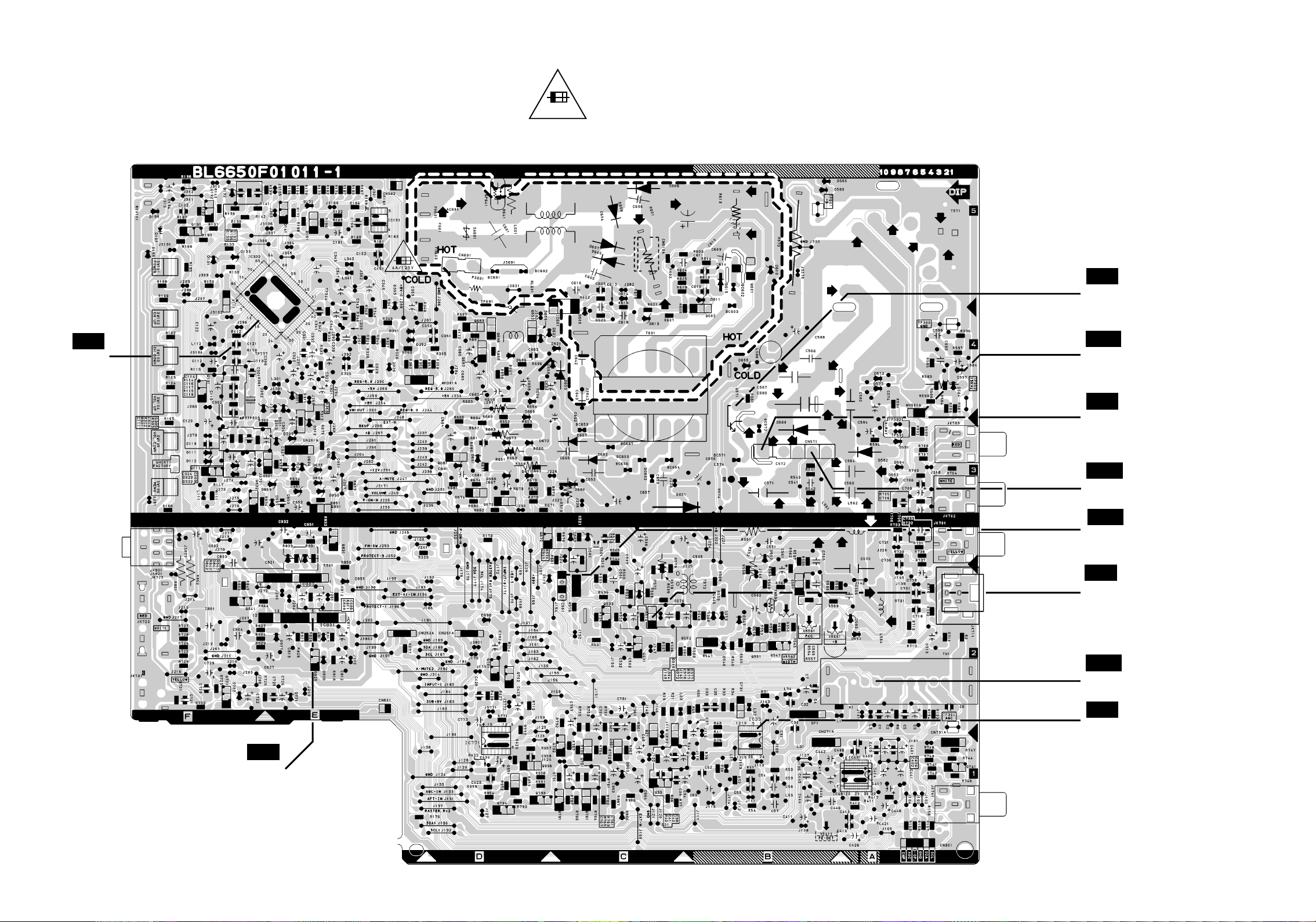

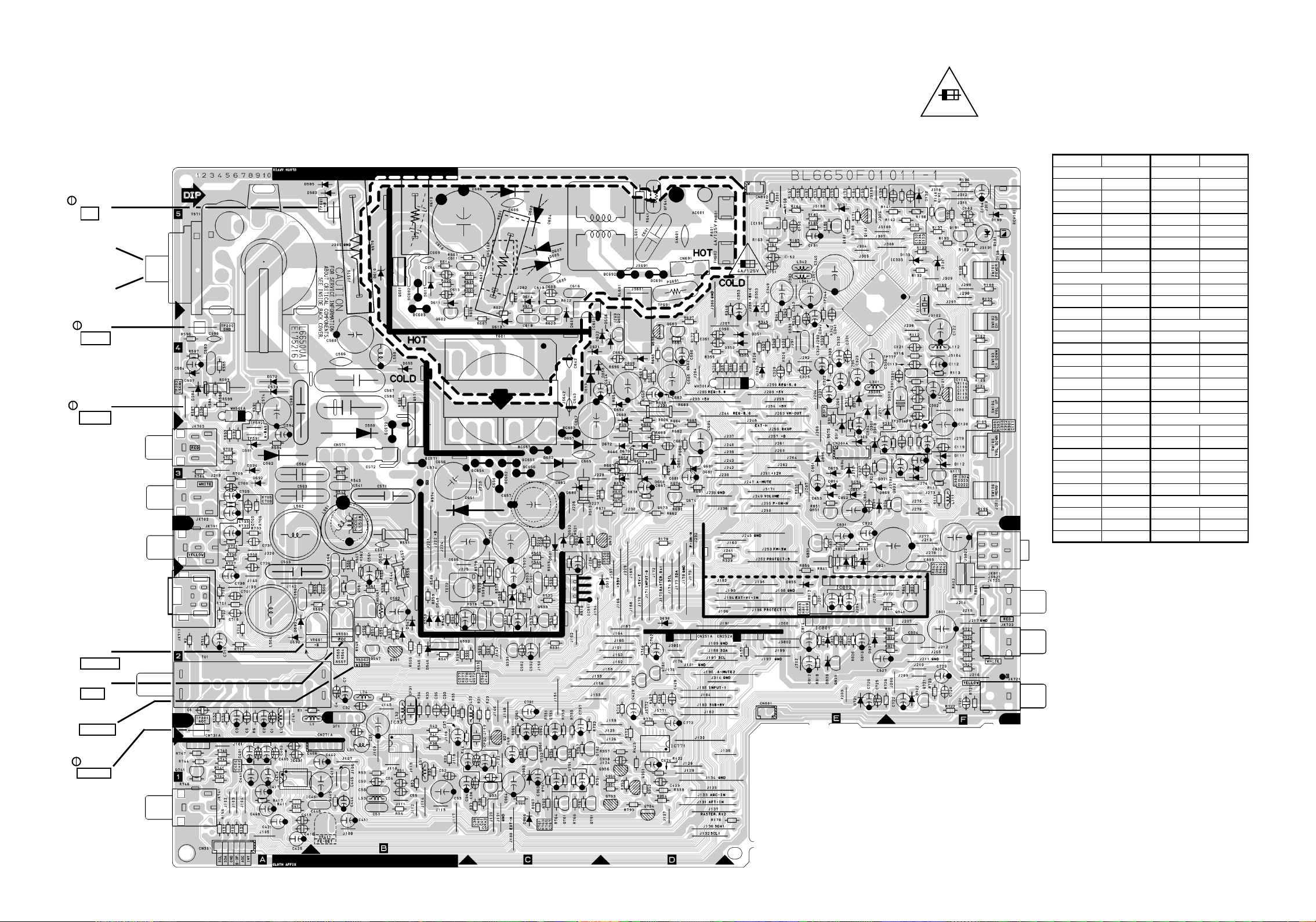

CBA Views and Test Points..................................7-11

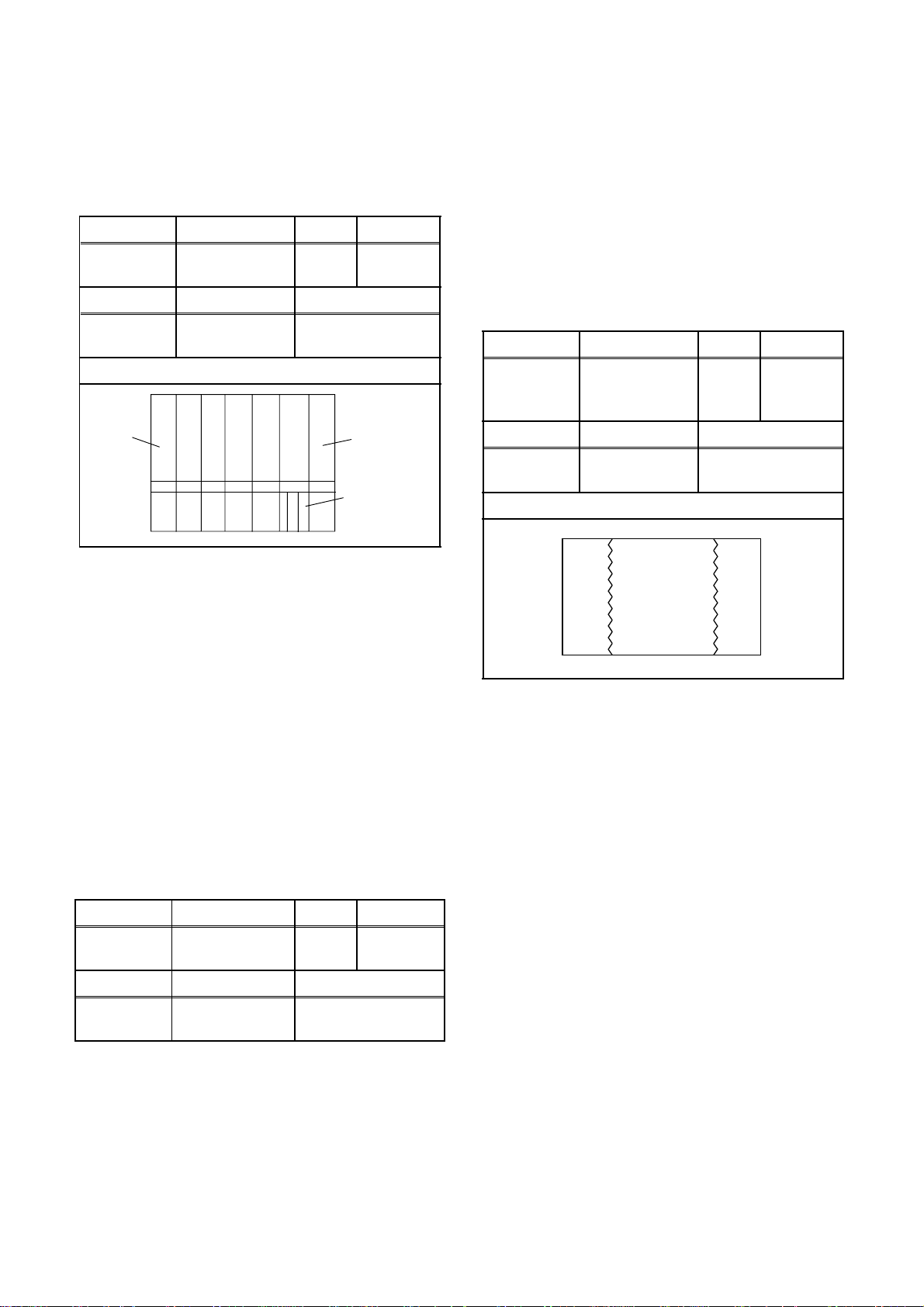

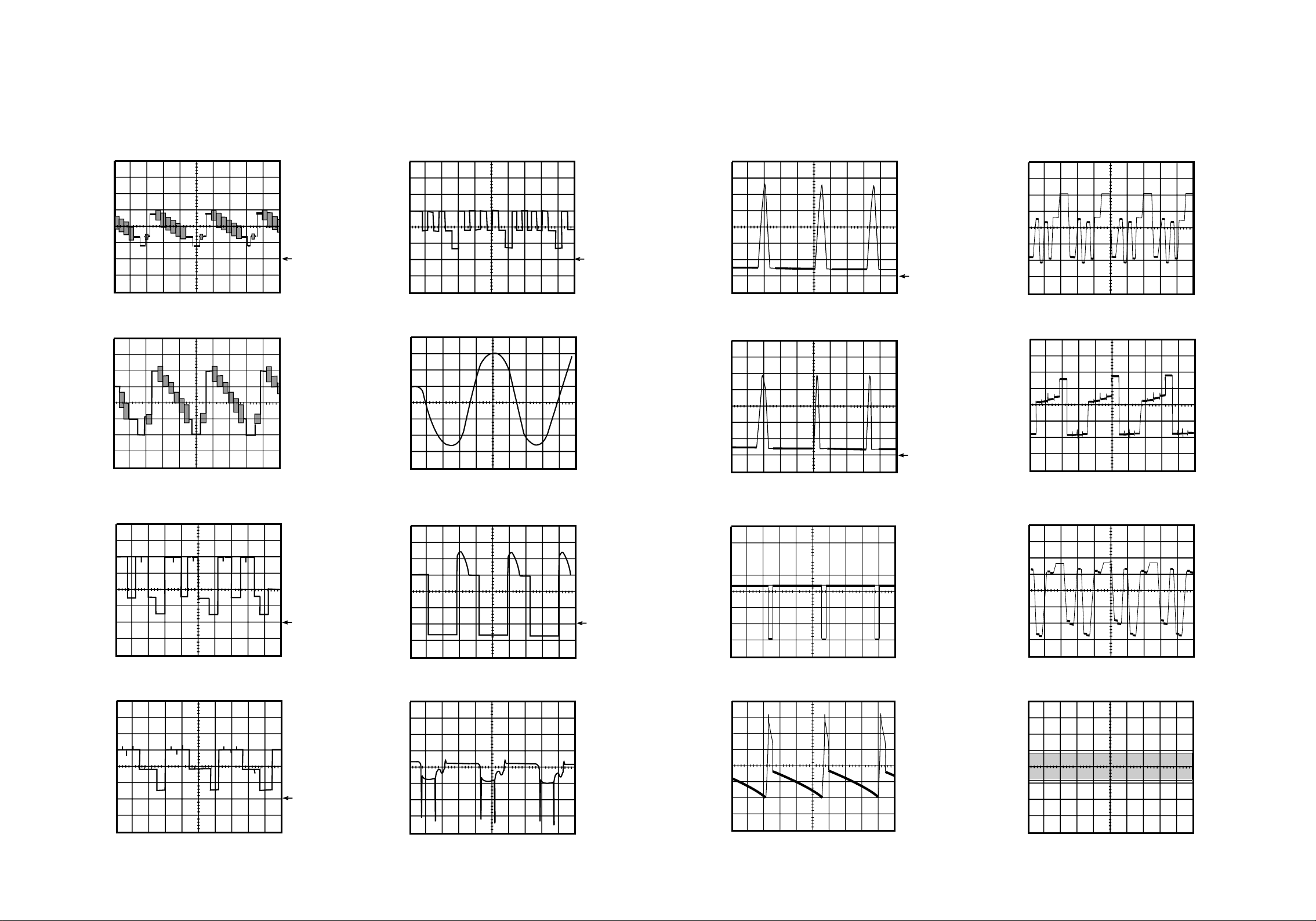

Wave Forms.......................................................... 8-1

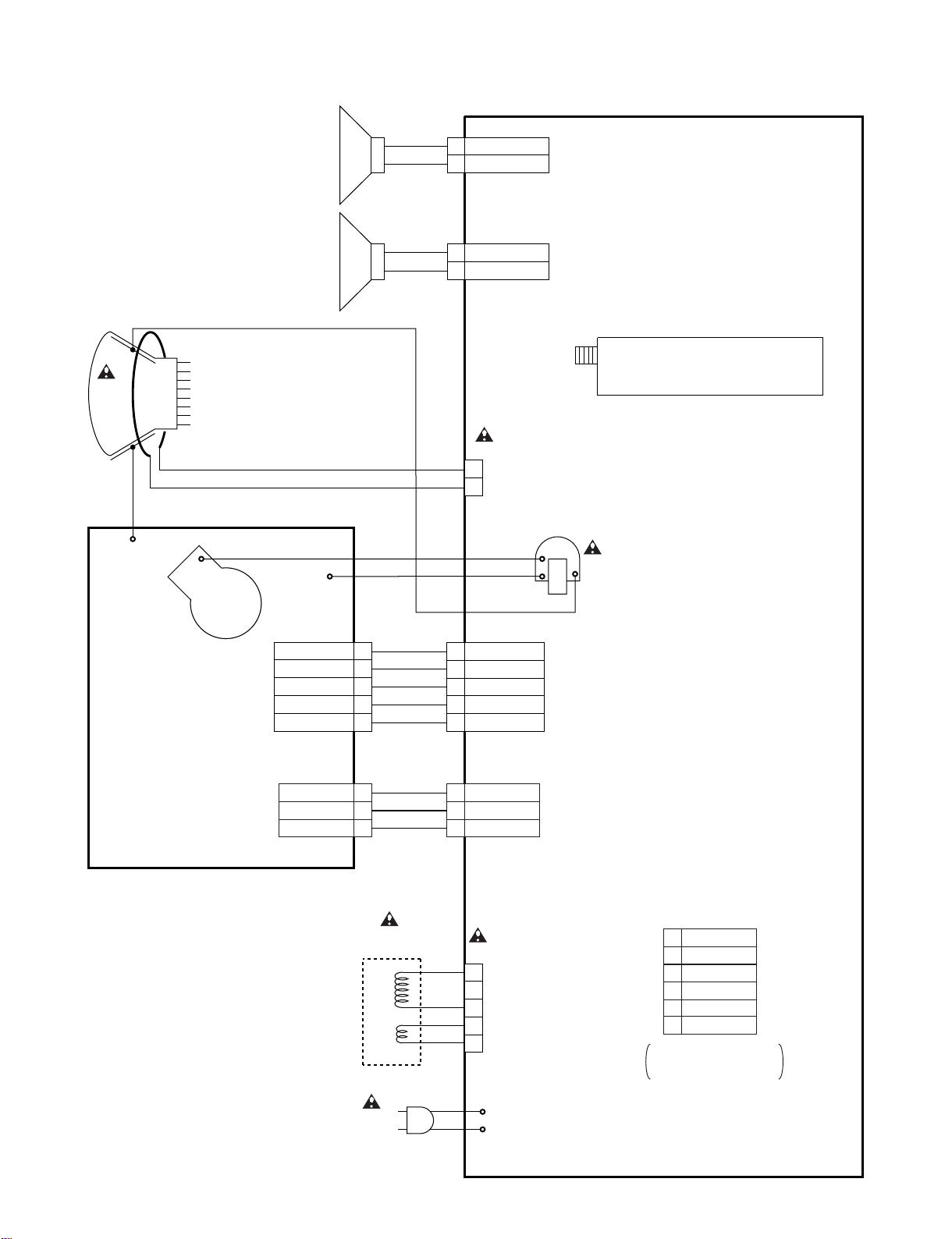

Wiring Diagram...................................................... 9-1

IC Pin Function.................................................... 10-1

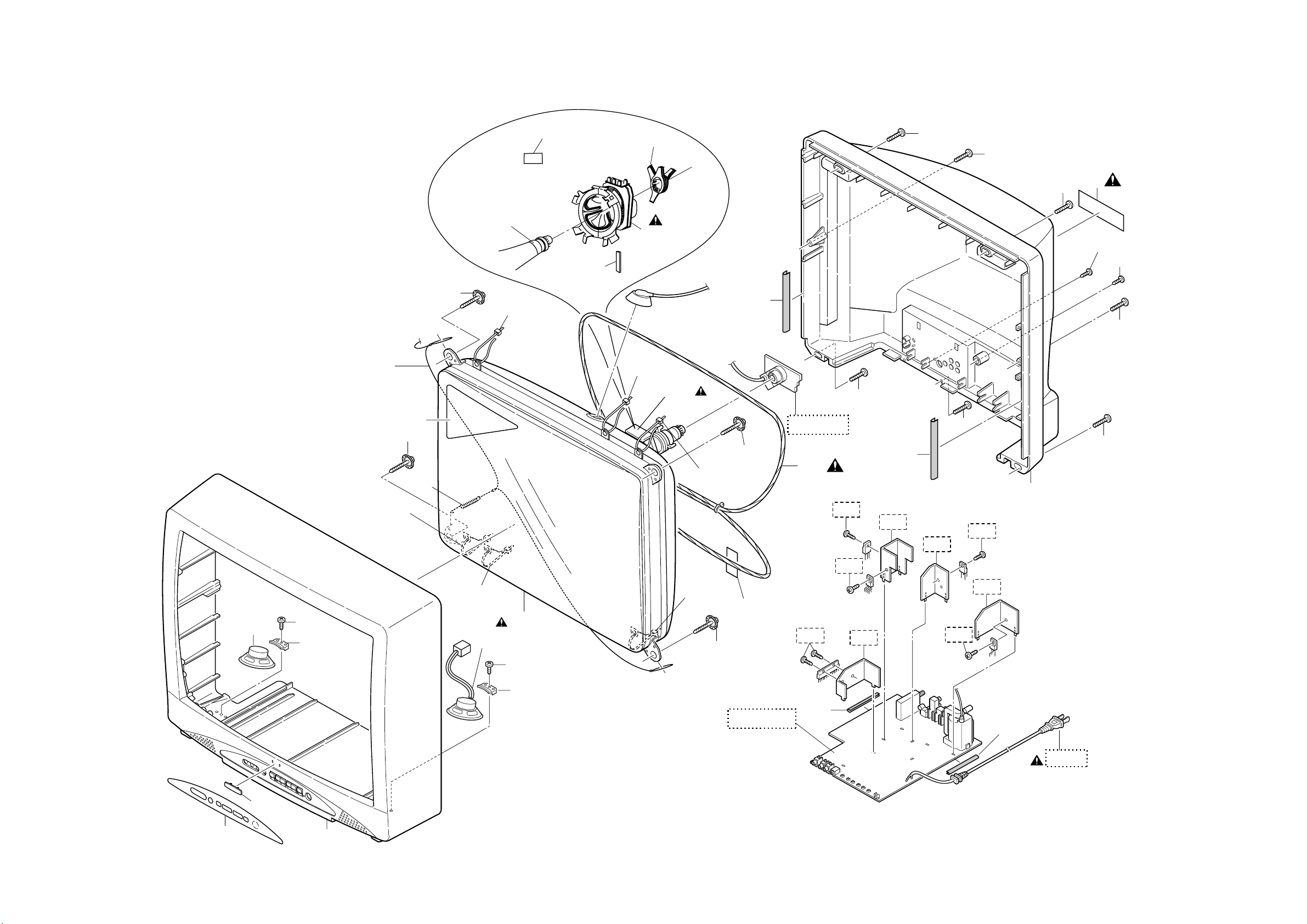

Cabinet Exploded View ....................................... 11-1

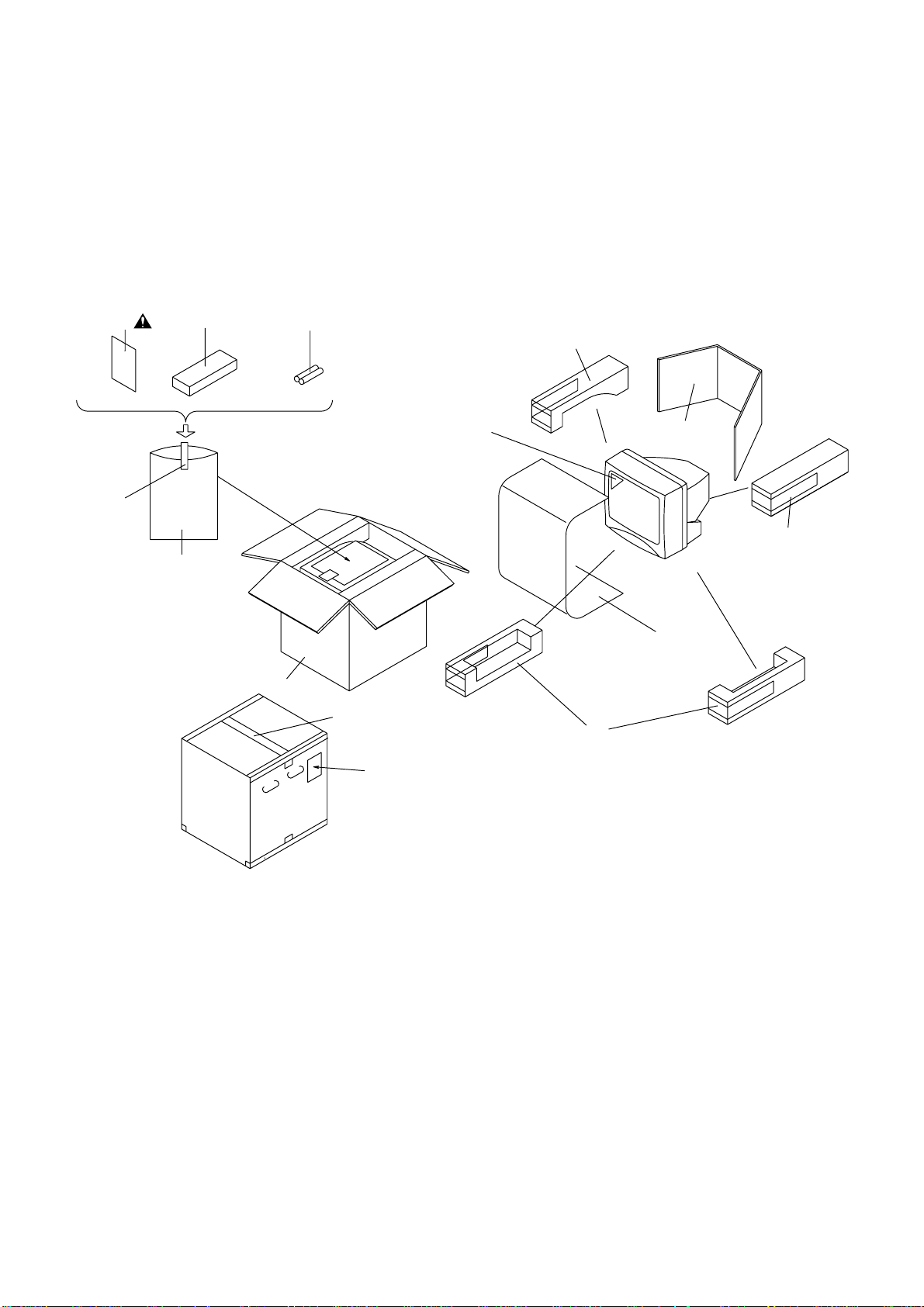

Packing Exploded View....................................... 11-3

Mechanical Parts List .......................................... 12-1

Electrical Parts List.............................................. 13-1

Page 3

SPECIFICATIONS

<TUNER> ANT. Input ------------------- 75ohm Unbal., F type

Reference Level ----------- 20Vp-p (CRT Green Cathode) Test Input Signal ---------- 400Hz 30% modulation

Description Condition Unit Nominal Limit

1. Intermediate Freq. Picture Sound

MHz MHz

45.75

41.25

2. Peak Picture Sens VHF

CATV

UHF

3. AFT Pull In Range (10mV input)

Description Condition Unit Nominal Limit

1. Deflection Freq. Horizontal

Vertical

2. Linearity Horizontal

Vertical

3. Over Scan

4. High Voltage

Description Condition Unit Nominal Limit

1. Misconvergence Center

Side

Corner

dBµV dBµV dBµV

MHz ±2.2 ±0.7

KHz

% %

%10

KV 29

mm mm mm

15 15 15

15.734 60

30 30 40

±15 ±10

0.4

1.5

2.1

2. Brightness APL 100% Ft-L 20 15

3. Color Temperature

4. Resolution Horizontal

<AUDIO>

Description Condition Unit Nominal Limit

1. Audio Output Power 10% THD W 3 2.4

2. Audio Distortion (w/LPF) 500mW % 1.0 7

3. Audio Freq. Response -3dB Hz 90~11K

Note:

Nominal specifications represent the design specifications. All units should be able to approximate these. Some will exceed and some may drop slightly below these specifications. Limit specifications represent the absolute worst condition that still might be considered acceptable. In no case should a unit fail to meet limit specifications.

All items are measured across 8Ω load at speaker output terminal.

Vertical

°K 9200°K

Line Line

250 300

1-1 L6650SP

Page 4

IMPORTANT SAFETY PRECAUTIONS

Prior to shipment from the fact ory, our products are stri ctly insp ected for recogni zed pr oduct sa fety and elec trical codes of the countries in which they are to be sold. Howev er, in order to ma intain such c ompliance, it is equally important to implement the following precautions when a set is being serviced.

Safety Precautions for TV Circuit

1. Before returning an instrument to the custom -

er, alwa ys make a safety check of the entire instru-

ment, including, but not limited to, the following items:

a. Be sure that no built-in protective devices are de-

fective and have been defeated during servicing. (1) Protective shields ar e p rovid ed o n thi s ch ass i s to protect both the technician and the customer. Correctly replace all missing protective shields, including any removed for servicing convenience. (2) When reinstalli ng the cha ssis and/o r other as sembly in the cabinet, be sure to put back in place all protective devices, including but not lim ited to, nonmetallic control knobs, insulating fishpapers, adjustment and com part ment covers/shields, and isolation resistor/capacitor networks. Do not oper-

ate this instrument or permit it to be operated without all protective devices correctly installed and functioning. Servicers who defeat safety features or fail to perform safety checks may be liable for any resulting damage.

b. Be sure that there are no cabinet openings through

which an adult or child might be able to insert their fingers and contact a hazardous voltage. Such openings include, but are not limited to, (1 ) spacing between the picture tube and the cabinet mask, (2) excessively wide cabinet ventilation slots, and (3) an improperly fitted and/or incorrectly secured cabinet back cover.

c. Antenna Cold Check - With the instrument AC

plug removed from any AC source, connect an electrical jumper acr oss the two AC plug prongs. Place the instrument AC switch in the o n position. Connect one lead of an oh mmeter to the A C plug prongs tied together and to uch the other ohmme ter lead in turn to each tuner antenna input exposed terminal screw and, if applicable, to the coaxial connector. If the measured resistance is less than 1.0 mego hm or greater than 5 .2 megohm, an abnormality exists that must be corrected before the instrument is r eturne d to the cu stomer . Repeat this test with the ins trument AC switch in the off position.

d. Leakage Current Hot Check - With the instru-

ment completely reassembled, plug the AC line cord directly into a 120V AC outlet. (Do not use an isolation transformer d uring thi s test.) Use a leak-

age current tester or a me tering sy stem tha t complies with American National Standards Institute (ANSI) C101.1 Leakage Current for Appliances and Underwriters Laborat ories (UL) 1410, (50.7). With the instrument AC switc h first in the on posi tion and then in the o ff position, measure from a known earth ground (metal water pipe, conduit, etc.) to all exposed metal parts of the instrument (antennas, handle br ackets, metal cabi net, screw heads, metallic overlay s, control shafts, etc.), es pecially any exposed metal parts that offer an electrical return path to the chassis. Any current measured must not excee d 0.5 milli-ampere. Re verse the instrument power cord plug in the outlet and repeat the test.

READING SHOULD NOT BE ABOVE 0.5 mA

LEAKAGE

DEVICE

BEING

TESTED

TEST ALL EXPOSED

METAL SURFACES

ALSO TEST WITH PLUG REVERSED USING AC ADAPTER PLUG AS REQUIRED

ANY MEASUREMENTS NO T WITHIN THE LIMITS SPECIFIED HEREIN INDICATE A POTENTIAL SHOCK HAZARD THAT MUST BE ELIMINATED BEFORE RETURNING THE INSTRUMENT TO THE CUSTOMER OR BEFORE CONNECTING THE ANTENNA OR ACCESSORIES.

e. X-Radiation and High Voltage Limits - Because

the picture tube i s the prim ary potentia l source of X-radiatio n in solid- state TV receiver s, it is s pecially constructed to prohibit X-radiation emissions. For continued X-radiation pr otection, the replacement picture tube must be the same type as the original. Also, because the picture tube shields and mounting hardware perform an X-radiation protection function, they must be correctly in place. High voltage must be mea su re d ea ch tim e s er vic -

CURRENT

TESTER

EARTH GROUND

2-1 L6115IMP

Page 5

ing is performed that inv olves B+, horizontal deflection or high voltage. Correct operation of the Xradiation protection circuits also must be reconfirmed each time they are serviced. (X-radiation protection circuits also may be called "horiz ontal disable" or "hold do wn.") R ead a nd a ppl y th e hi gh voltage limits a nd, if the chassis is so e quipped, the X-radiation protection circuit specifications given on instrument labe ls and i n the P roduct S afety & X-Radiation Warning note on the service data chassis schematic. High voltage is maintained within specified limits by close tolerance safety-related components/adjus tme nts in th e hig h-vo lta ge circuit. If high voltage exceeds specified limits, check each component specified on the chassis schematic and take corrective action.

2. Read and comply with all caution and safety-related notes on or inside th e receiver cabi net, on the receiver chassis, or on the picture tube.

3. Design Alteration Warning - Do not alter or add to the mechanical or electrical design of this TV receiver. Design alterations and additions, including, but not limited to circuit modificatio ns and the addition of items such as auxiliary audio and/or video output connections, mig ht alter the safety ch aracteristics of this receiver and create a hazard to the user. Any design alter ations or addition s will void the manufacturer's warr anty and may make you, the servicer, responsible for personal injury or property damage resulting therefrom.

4. Picture Tube Implosion Protection Warning - The picture tube in this receiver employs integral implosion protection. For continued implosion protection, replace the pic ture tube only with one of the same type numbe r. Do not rem ove, install , or otherwise handle the picture tube in any ma nner without first putting on shatterproof goggles equipped with side shields. People not so equipped must be ke pt safely away while p icture tubes are handled. Keep the picture tube away from your body. Do not handl e the pictur e tu be b y its neck. Some "in-line" picture tubes are equipped with a permanently at tached deflection yoke ; because of potential hazard, do not try to remove such "permanently attached" yokes from the picture tube.

5. Hot Chassis Warning -

a. Some TV receiver chassis are electrically connect-

ed directly to one conduc tor of th e AC powe r cor d and maybe safety-serviced without an isolation transformer only i f the AC power plug i s inserted so that the chassis is connected to the ground side of the AC power source. To confi rm that the AC power plug is ins erted correctly, with an AC voltmeter, measure between the chassis and a known

earth ground. If a voltage reading in excess of 1.0V is obtained, remove and reinsert the AC power plug in the opposite polarity and again measure the voltage potential between the chassis and a known earth ground.

b. Some TV receiver chassis normally have 85V

AC(RMS) between ch assis and earth ground regardless of the AC plug polarity. This chassis can be safety-serviced only with an isolation transformer inserted in the power line between the receiver and the AC power so urce , for both pers onnel and test equipment protection.

c. Some TV receiver chassis have a secondary

ground system in addition to the main chassis ground. This se conda ry gro und s ystem is no t iso lated from the AC power line. The two ground systems are electrically separated by insulation material that must not be defeated or altered.

6. Observe original lead dress. Take extra care to assure correct lead dress in the following areas:a. near sharp edges,b. near thermally hot parts-be sure that leads and components do not touch thermally hot parts, c. the AC supply,d. high voltage, and,e. antenna wir ing. Always insp ect in all ar eas for pinched, out of plac e, or frayed wiring. C heck AC power cord for damage.

7. Components, parts, and/or wiring that appear to have overheated or are otherwise damaged should be replaced with components, parts, or wiring that meet origin al specifications. Additiona lly, determine the cause of ov erheating and/or damage and, if nece ss ar y, ta ke corre ct i ve ac ti o n to remove any potential safety hazard.

8. Product Safety Notice - Some electrical and mechanical parts have s pecia l safety- relat ed char acteristics which are often not evident from visual inspection, nor can the protection they give necessarily be obtained by replaci ng them with components rated for higher voltage, wattage, etc.. Parts that have special safety characteristics are identified by a ( # ) on schematics and in parts lists. Use of a substitute replacement that does not have the same safety characteristics as the recommended replacement part might create sh ock, fire, and/or other hazards. The product's safety is under review continuously and new instructions are issued whenever appropriate . Prior to shi pment from the factory, our products are strictly inspected to confirm they comply with the recognized product safety and electrical codes of the countries in which they are to be sold. Howev er, in orde r to mai ntain such compliance , it is equally i mportant to imple ment the following precautions when a set is being serviced.

2-2 L6115IMP

Page 6

Precautions during Servicing

A. Parts identified b y the ( # ) symbo l are c ritica l for

safety. Replace only with part number specified.

B. In addition to safety, othe r parts and assemblies

are specified for conformance with regulations applying to spurious radiati on. These must also be replaced only with specified replacements.

Examples: RF converters, RF cables, noise blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors. E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of wires securely abo ut the terminals before so ldering.

F. Observe that the wires do not contact heat produc-

ing parts (heatsinks, oxide metal film resistors, fusible resistor s, etc.)

G. Check that replaced wires do not contact sharp

edged or pointed parts.

H. When a power cord has been replaced, check that

5~6 kg of force in any direction will not loosen it. I. Also check areas surrounding repaired locations. J. Use care that foreign objects (screws, solder drop-

lets, etc.) do not remain inside the set. K. Crimp type wire connector

The power transform er uses crimp type connec-

tors which connect the power cord and the primary

side of the transformer. When replacing the trans-

former, follow these step s carefully and precis ely

to prevent shock hazards.

Replacement procedure

1) Remove the old connector by cutti ng the wires at

a point close to the connector.

Important: Do not re-use a connector (discard it).

2) Strip about 15 mm of the insulation fro m the end s

of the wires. If the wires are stranded, twist the

strands to avoid frayed conductors.

3) Align the lengths of the wires to be connected. Insert the wires fully into the connector.

4) Use the crimping tool to crimp the metal sleeve at the center position . Be sure to crimp fully to the complete closure of the tool.

L. When connecting or disconnecting the internal

connectors, first, discon nect the AC plug from the AC supply outlet.

2-3 L6115IMP

Page 7

Safety Check after Servicing

Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts and wires have been returned to original positions. Afterwards, perform the following tests and confirm the spec ified values in or der to verify comp liance with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm specified clearance distance (d) and ( d') between sol dered terminals, and between terminals and surrounding metallic parts. (See Fig. 1)

Table 1 : Ratings for selected area

AC Line Voltage Region

110 to 130 V

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

USA or

CANADA

Clearance

Distance (d) (d')

≥ 3.2 mm

(0.126 inches)

2. Leakage Current Test

Confirm the specified (or lower) leakage current between B (earth ground, power cord plu g prongs) and externally exposed accessible parts (RF terminals, antenna termina ls, video and au dio in put and output te rminals, microphone jacks, earphone jacks, etc.) is lower than or equal to the spe cified value in the table below.

Measuring Method : (Power ON)

Insert load Z between B (earth ground, power cord plug prongs) and exposed accessible parts. Use an AC voltmeter to measure across both terminals of load Z. See Fig. 2 and following table.

1.5kΩ

Chassis or Secondary Conductor

Primary Circuit Terminals

dd'

Exposed Accessible Part

AC Voltmeter

0.15µF

Earth Ground

Power Cord Plug Prongs

(High Impedance)

Fig. 1

Fig. 2

Table 2 : Leakage current ratings for selected areas

AC Line Voltage Region Load Z Leakage Current (i) Earth Ground (B) to:

0.15µF CAP. & 1.5kΩ

110 to 130 V USA

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

RES. connected in

parallel

2-4 L6115IMP

i≤0.5mA rms

Exposed accessible

parts

Page 8

STANDARD NOTES FOR SERVICING

Circuit Board Indications

a. The output pin of the 3 pin Regulator ICs is indicat-

ed as shown.

Top View

Out

b. For other IC s, pin 1 and every fifth pin are in dic at -

ed as shown.

Pin 1

c. The 1st pin of every male connector is indicated as

shown.

Pin 1

Input

Bottom View

(2) Remove the flat pack-IC with tweez ers while ap-

plying the hot air.

(3) Bottom of the flat pack -IC is fix ed with glu e to the

CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

(4) Release the flat pack-IC from the CBA using twee-

zers. (Fig. S-1-6)

Caution:

1. Do no t supply hot air to the ch ip parts aroun d the flat pack-IC for over 6 seconds because damage to the chip parts may occur. Put masking tape around the flat pack-IC to protec t other par ts from damage. (F ig. S-1-2)

2. The flat pack-IC on the CBA is affixed with glue, so be careful not to br eak or d amage the foi l of ea ch pin or the solder lands u nder the IC when rem oving it.

Hot-air Flat Pack-IC Desoldering Machine

CBA

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

(1) Prepare the hot-air flat pack-IC desoldering ma-

chine, then apply hot air to the Flat Pack-IC (about 5 to 6 seconds). (Fig. S-1-1)

Fig. S-1-1

Masking Tape

Tweezers

Flat Pack-IC

Fig. S-1-2

3-1 L6115STA

Page 9

With Soldering Iron:

(1) Using desolderin g braid, remove the solder from

all pins of the flat pac k-IC. When you use solde r flux which is appl ied to all pins of the flat pack- IC, you can remove it easily. (Fig. S-1-3)

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

(2) Lift each lead of the flat pac k-IC upward one by

one, using a sharp pin or wire to which solder will not adhere (iron wire). When heating the pins, use a fine tip soldering iron or a hot air desoldering machine.(Fig. S-1-4)

soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

(5) Release the flat pack-IC from the CBA using twee-

zers. (Fig. S-1-6)

Note:

When using a soldering iron, care must be taken to ensure that the flat pack- IC is not being held by glue. When the flat pack-IC is removed from the CBA, handle it gently because it may be damaged if force is applied.

Hot Air Blower

Iron Wire

Soldering Iron

To Solid Mounting Point

Fig. S-1-5

Sharp Pin

Fine Tip Soldering Iron

Fig. S-1-4

(3) Bottom of the flat pack-IC is fi xed with g lue to the

CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

(4) Release the flat pack-IC from the CBA using twee-

zers. (Fig. S-1-6)

With Iron Wire:

(1) Using desolderin g braid, remove the solder from

all pins of the flat pac k-IC. When you use solde r flux which is appl ied to all pins of the flat pack- IC, you can remove it easily. (Fig. S-1-3)

(2) Affix the wire to a workbench or solid mounting

point, as shown in Fig. S-1-5.

(3) While heating the pins using a fine tip soldering

iron or hot air blower, pull up the wire as the solder melts so as to lift the IC leads from the CBA contact pads as shown in Fig. S-1-5.

(4) Bottom of the flat pack-IC is fi xed with g lue to the

CBA; when removing entire flat pack-IC, first apply

CBA

Tweezers

Fine Tip Soldering Iron

Flat Pack-IC

Fig. S-1-6

3-2 L6115STA

Page 10

2. Installation

(1) Using desolderin g braid, remove the solder from

the foil of each pin of th e flat pac k-IC on the CBA so you can install a replacement flat pack-IC more easily.

(2) The "I" mark on the flat pack-IC indi cates pin 1.

(See Fig. S-1-7.) Be sure this mark matches the 1 on the PCB when positioning for installation. Then pre- solder the four corners of the flat pack-IC. (See Fig. S-1-8.)

(3) Solder all pins of the flat pack-IC. Be sure that

none of the pins have solder bridges.

Example :

Pin 1 of the Flat Pack-IC is indicated by a " " mark.

Fig. S-1-7

Instructions for Handling Semiconductors

Electrostatic breakdown of the semiconductors may occur due to a potential difference c aused by electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1MΩ) tha t is properly grounded to rem ove any static electr ic i ty th at may be charged on the body.

2. Ground for Workbench

Be sure to place a conducti ve shee t o r copper plate with proper grounding (1MΩ) on the workbench or other surface, where the semiconductors are to be placed. Because the static electr icity charge on clothing will not escape through the body grounding band, be careful to avoid contacting semiconductors with your clothing.

CBA

Presolder

Flat Pack-IC

Fig. S-1-8

1MΩ

CBA

Grounding Band

1MΩ

CBA

Conductive Sheet or Copper Plate

3-3 L6115STA

Page 11

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the cabinet par ts, and the CBA in order to gain ac cess to item(s) to be se r vic ed. W hen r eass embling, follow the steps in reverse order. Bend, route and dress the cables as they were.

Caution !

When removing the CRT, be sure to discharge the Anode Lead of the CRT with the CRT Ground Wire before removing the Anode Cap.

[1] Rear Cabinet

[2] CRT CBA

[3] Main CBA

[4] CRT

2. Disassembly Method

Removal

Step/

Loc. No.

[1]

[2] CRT CBA 4,5 CN1501 2

[3] Main CBA 3,5

[4] CRT 4 4(S-3) 4

Part

Rear Cabinet

Fig.

1,2

Remove/*unlock/

release/unplug/

unclamp/desolder

7(S-1), 1(S-2), 3(S-4)

CN571, CN801, CN802, CN691, Anode Cap

Note

Note:

(1) Order of steps in procedu re. When reas sembli ng,

follow the steps in reverse order.These number s are also used as the Identification (location) No. of parts in figures.

(2) Parts to be removed or installed. (3) Fig. No. showing procedure of part location (4) Identification of part to be removed, unhooked, un-

locked, released, unplugged, unclamped, or desoldered.

S=Screw, P=Spring, L=Locking Tab, CN=Connector, *=Unhook, Unlock, Release, Unplug, or Desolder

2(S-2) = two Screws (S-2)

(5) Refer to the following "Reference Notes in the

Table."

Reference Notes in the Table

1. Removal of the Rear Cabinet. Remove screws 7(S-1), 1(S-2) and 3(S-4) then slide the Rear Cabinet backward.

2. Removal of the CRT CBA. Disconnect CN1501 then pull the CRT CBA backward.

Caution !

Discharge the Anode Lead o f the CRT with the CRT Ground Wire before removing the Anode Cap.

3. Removal of the Main CBA. First, disconnect CN571, CN801, CN802, and CN691 on the Main CBA. Second, remo ve Anode Ca p. then sli de the Main CBA backward.

4. Removal of the CRT. Remove screws 4(S-3) then slide the CRT backward.

↓↓↓↓↓

(1) (2) (3) (4) (5)

4-1 L6655DC

Page 12

S-1

S-2

S-4

S-1

[1] Rear Cabinet

S-1

Fig. 1

S-1

S-3

[3] Main CBA

Fig. 3

Anode Cap

S-1

[1] Rear Cabinet

S-4

S-1

Fig. 2

S-2

S-3

S-1

[4] CRT

4-2 L6655DC

S-3

Fig. 4

Page 13

TV Cable Wiring Diagram

L691 DEGAUSSING COIL

SP802

CN802

CN691

FLYBACK TRANSFORMER

CLN802

MAIN CBA

WH301A

CN571

SP801

CLN801

CN801

TU1 TUNER

AC601 AC CORD

T571

FOCUS

SCREEN

ANODE

WH501A

JK1501

CN1501

TO CRT GROUND

WH301B

WH501B

Fig. 5

4-3 L6655DC

Page 14

ELECTRICAL ADJUSTMENT INSTRUCTIONS

General No te : "CBA" is abbreviation for "Circuit Board Assembly."

NOTE:

Electrical adjustm ent s ar e required after replacing circuit components a nd certain mechanic al parts. It is important to perform these adjustm ents only after all repairs and replacements have been completed. Also, do not attempt these adjustments unless the proper equipment is available.

Test Equipment Required

1. NTSC Pattern Generator (Color Bar W/White Window, Red Color, Dot Pattern, Gray Scale, Monoscope, Multi-Burst)

2. DC Voltmeter

3. Oscilloscope: Dual-trace with 10:1 probe, V-Range:0.001~50V/Div, F-Range: DC~AC-60MHz

4. Plastic Tip Driver

5. Remote control unit: Part No. N0 138UD or N0139UD

6. DC power supply 13.2V/5A

How to make Service remo te control unit:

Prepare normal remote control unit. (Part No. N0138UD or N0139UD) Remove 3 Screws from the back lid. (Fig. 1-1)

2. Added J1 (Jumper Wire) to the re mote control CBA. (Fig. 1-2)

How to set up the service mode:

Service mode:

1. Use the service remote control unit.

2. Turn the power on. (Use main power on the TV unit.)

3. Press "SLEEP" button on the service remote control unit. Version of m icro co mpu ter wi ll dis pl ay on the CRT. (Ex: 054-0.05)

4. Check the display on the lower left is "2915" and if it is not "2915," set it at "2915" according to "2. Initial Setting."

1. +B Adjustment

Purpose: To obtain correct operation. Symptom of Misadjustment: The picture is dark and

the unit does not operate correctly.

Test Point Adj. Point Mode Input

TP601(+B)

TP300(GND)

Tape M. EQ. Spec.

--- DC Voltmeter +134±0.5V DC.

Note:TP601, TP300(GND), VR661 --- Main CBA

1. Connect D C Volt M ete r t o TP6 01 an d TP300 (GN D).

2. Adjust VR661 so th at the voltage o f TP60 1 becomes +134±0.5V DC.

VR661 --- ---

SCREWS

REMOTE CONTROL UNIT

J 1

REMOTE CONTROL CBA

Notes:

1. The service remote control unit that be made in above method is usable in the electrical adjustment of the following models. SRT2313/2319, SRT2213B/2219B, SRT2227X, SRT2223X, SRT2223B, SRT2232X, SRT2220P SRT4127P

2. The att ached remote control unit can not be used as service remote control unit.

Fig. 1-1

Fig. 1-2

5-1 L6655EA

Page 15

2. Initial Setting

3. AV Memory Setting data

General

1. Enter the Service mode. (See page 5-1)

2. Press "VOL p" button on the service remote control

unit. Display changes "C/D," "7F," "LANGUAGE," "ACCESS CODE," "SOUND TYPE," "VIDEO TONE," "FM MODE," "V-OUT," "VIDEO," "AV MEMO," "STABLE SOUND," "FILTER," "300," and "YUV MEMORY" cyclically when "VOL p" button is pressed.

3. To set the following each data value, press "CH o

/ p" buttons on the service remote control unit.

7F --- Set to "FF." LANGUAGE --- Set to "FPA." ACCESS CODE --- Set to "OFF ." SOUND TYPE --- Set to "MTS." VIDEO TONE --- Set to "ON." FM-MODE --- Set to "OFF." V-OUT --- Set to "OFF." VIDEO --- Set to "V1/V2." AV MEMO --- Set to "ON."

General

1. Enter the Service mode. (See page 5-1)

2. When “AV MEMORY” setting to “ON” (refer to “2. Initial Sett ing”), press "VOL o" butto n on the service remote control unit. Display changes "SPORT CNT," "SPORT CLR," "SPORT SRP," "NEWS CNT," "NEWS CLR," "NEWS SRP," "MOVIE CNT," "MOVIE CLR," and "MOVIE SRP" cyclically when "VOL o" button is pressed.

3. To set the following each data value, press "CH o / p" buttons on the service remote control unit.

SPORT CNT--- Set to "48." SPORT CLR--- Set to "30." SPORT SRP--- Set to "34." NEWS CNT--- Set to "39." NEWS CLR--- Set to "30." NEWS SRP--- Set to "28." MOVIE CNT--- Set to "43." MOVIE CLR--- Set to "26." MOVIE SRP--- Set to "24."

STABLE SOUND --- Set to "OFF." FILTER --- Set to "ON." Adjusting the monitoring time --- Set to "500." YUV MEMORY --- Set to "OFF."

5-2 L6655EA

Page 16

4. Setting for BRIGHT, CONTRAST, COLOR, TINT and SHARPNESS data Values

General

1. Enter the Service mode. (See page 5-1)

2. Press "MENU" button on the service remote control

unit. Display changes "BRT," "CNT," "CLR," "SCLR," "TNT," "V-TNT," "S-TNT," "SHARP,"and "S-SRP" cyclically when "MENU" button is pressed.

CNT

1. Press "MENU" button on the service remote control

unit. Then select "CONTRAST" (CNT) display.

2. Press "CH o/p" buttons on the service remote

control unit so that the value of "CONTRAS" (CNT) becomes 84.

CLR

1. Press "MENU" button on the service remote con-

trol unit. Then select "COLOR" (CLR) display.

2. Press "CH o/p" buttons on the service remote

control unit so that th e value of "COLOR" (CLR) becomes 56.

S-TNT

1. Press "MENU" button on the service remote control unit. Then select "S-TINT" (S-TNT) display.

2. Press "CH o/p" buttons on the service remote control unit so that the value of "S- TINT" (S-TNT ) becomes 59.

SHARP

1. Press "MENU" button on the service re mote control unit. Then select "SHARPNESS" (SHARP) display.

2. Press "CH o/p " buttons on the service remote control unit and select "47."

S-SRP

1. Press "MENU" button on the service re mote control unit. Then select "S-SHARPNESS" (S-SRP) display.

2. Press "CH o/p " buttons on the service remote control unit and select "47."

Note: BRIGHT data value does not need to be adjust-

ed at this moment.

S-CLR

1. Press "MENU" button on the service remote control unit. Then select "S-COLOR" (S-CLR) display.

2. Press "CH o/p" buttons on the service remote control unit so that the value of "S-COLOR" (SCLR) becomes 56.

TNT

1. Press "MENU" button on the service remote control unit. Then select "TINT" (TNT) display.

2. Press "CH o/p" buttons on the service remote control unit so that the valu e of "TINT" (TNT) becomes 62.

V-TNT

1. Press "MENU" button on the service remote control unit. Then select "V-TINT" (V-TNT) display.

2. Press "CH o/p" buttons on the service remote control unit so that the value of "V -TINT" (V-TNT) becomes 62.

5-3 L6655EA

Page 17

5. Black Stretch Control Adjustment

Purpose: To show the fine black color. Symptom of Misadjustment: Black color will not

appear correctly. Note: Use service remote control unit.

1. Enter the Service mode. (See page 5-1)

2. Press "6" button on the service remote control unit. "B-S" is indicated.

3. Press "CH o / p" bu ttons on the service remote con trol unit so that display will change "OFF," "0," and "1." Then choose "B-S OFF."

4. Press "6" button on the service remote control unit. "B-S2" is indicated.

5. Press "CH o / p" buttons on the service remote control unit so that display will change "0" and "1." Then choose "B-S2 0."

6. Turn the power off and on again, using the mai n power button on the TV unit.

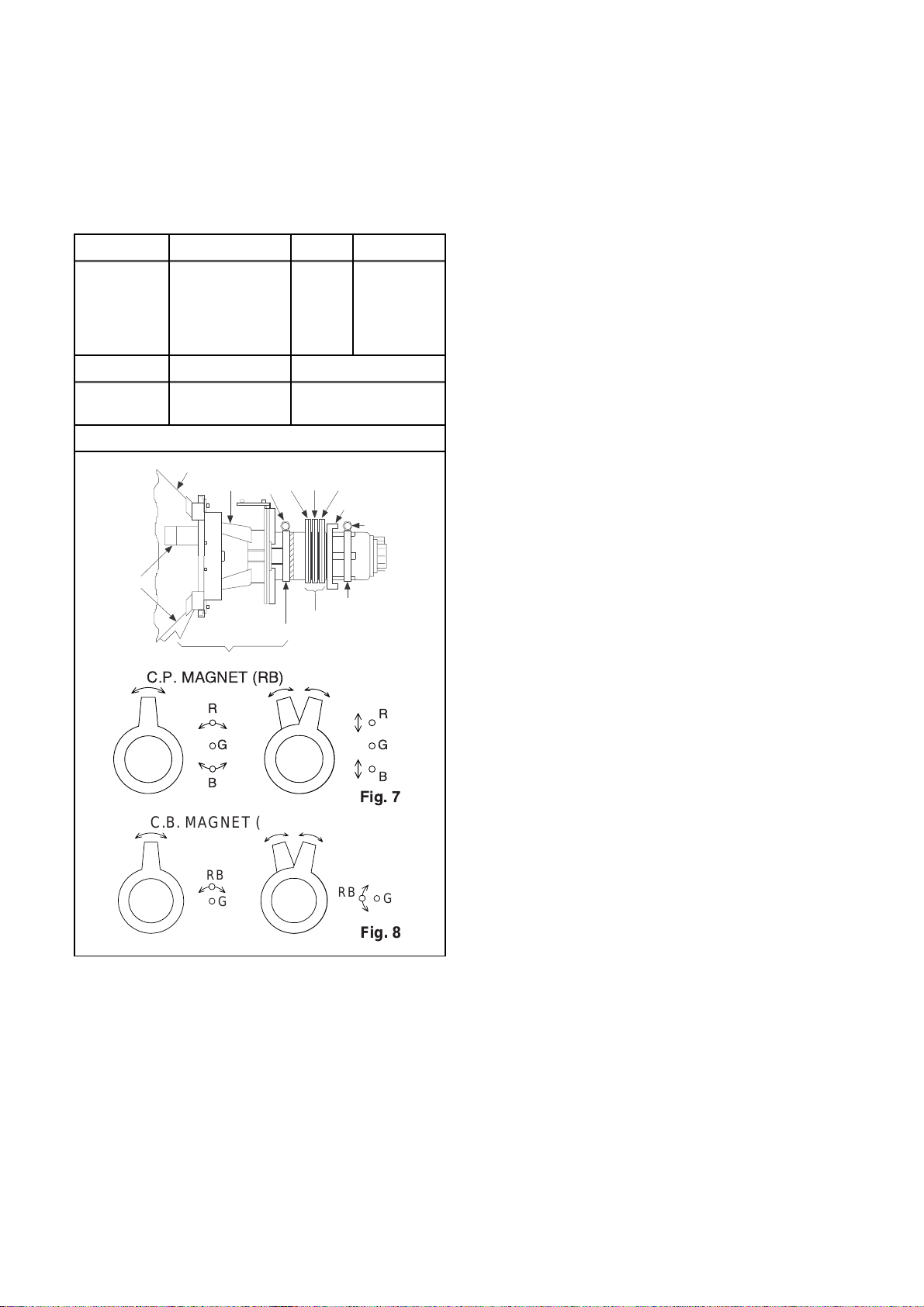

6. Purity Check

1. Enter the Service mode. (See page 5-1)

2. Press "7" button o n the remote control uni t. Each time pressing 7" button on the remote control unit, display changes Red mode, Green mode, Blue mode, and White mode cyclically.

3. Select White mode.

4. Turn the power off and on again. (Main power button on the TV unit.)

7. SD Check Mode

1. Enter the Service mode. (See page 5-1)

2. Press "1" button on the remote control un it. The unit enter the SD-Check mode.

3. The unit starts selecting the added channe l from first channel according to the memorized CH ADD/ DELL data and CATV/TV data in RAM.

SD Check mode (Factory mode)

Press "1" buton.

7 Please wait

OSD color: Magenta

13 Please wait

There are SD in all channel.

When SD-Check starting, there is no ADD channel.

OSD color: Magenta

26 OK

OSD color: Magenta

ADD nothing

OSD color: Magenta

There is no SD after selecting channel.

30 NG

OSD color: Magenta

5-4 L6655EA

Page 18

8. H. Position Adjustment

Purpose: To obtain correct horizontal position of

screen image. Symptom of Misadjustment: If H. Position is incor-

rect, horizontal posit ion of image on the screen may not be properly displayed.

10. V. Position Adjustment

Purpose: To obtain correct vertical width of screen

image. Symptom of misadjustment: If V. Position is incor-

rect, vertical height of image on the screen may not be properly displayed.

Test Point Adj. Point Mode Input

---

Tape M. EQ. Spec.

--- Monoscope 90±5%

Note: Use service remote control unit

1. Operate the unit for at least 20 minutes.

2. Enter the Service mode. (See page 5-1)

3. Receive the monoscope pattern.

4. Press "8" button on the remote control unit. "H-P" is indicated.

5. Press "CH o/p" buttons on the service remote control unit so that the m onoscope pattern will be 90±5% of display size and the circle is round.

6. Turn the power off and on again. (Main power button on the TV unit.)

CH o / p

buttons

Mono-

scope

9. V. Size Adjustment

Purpose: To obtain correct vertical width of screen image. Symptom of Misadjustment: If V. Size is incorrect, vertical

size of image on the screen may not be properly displayed.

Test Point Adj. Point Mode Input

---

Tape M. EQ. Spec.

--- Monoscope 90±5%

Note: Use service remote control unit.

1. Operate the unit for at least 20 minutes.

2. Enter the Service mode. (See page 5-1)

3. Receive the monoscope pattern.

4. Press " 9" butto n on the ser vice re mote cont rol uni t and select "V-S" mode. (Display changes "V-S" and "V-P" cyclically wh en "9" butt on is pre sse d).

5. Press "CH o/p" buttons on the service remote control unit so that the m onoscope pattern will be 90±5% of display size and the circle is round.

6. Turn the power off and on again. (Main power button on the TV unit.)

CH o / p

buttons

Mono-

scope

Test Point Adj. Point Mode Input

---

Tape M. EQ. Spec.

--- Monoscope See below.

Note: Use service remote control unit

1. Operate the unit for at least 20 minutes.

2. Enter the Service Mode. (See page 5-1)

3. Receive the monoscope pattern.

4. Press "9" b utton on the serv ice rem ote cont rol un it and select "V -P" mo de. ( Dis play ch an ge "V -S" a nd "V-P" cyclically when "9" button is pressed).

5. Press "CH o/p " buttons on the service remote control unit so that the top and bottom of the monoscope pattern will be equal of each other.

6. Turn the power off and on again. (Main power button on the TV unit.)

CH o / p

buttons

Mono-

scope

11. U-Pedestal Adjustment

1. In VIDEO mode of V1, V2, or YUV, press "3" button on the service remote control unit and select "UPED" mode. (Display changes "U-PED" and "VPED" cyclically wh en "3" button is pressed).

2. Switch the VI DEO mode t o YUV. (Refer to “2. Initial Setting.”)

3. To select one appropriate value in "0" to "15," press "CH o / p" buttons on the remote control unit.

4. Switch the VIDEO mode to previou s mo de .

5. Turn the power off and on again. (Main power button on the TV unit.)

5-5 L6655EA

Page 19

12. V-Pedestal Adjustment

1. In VIDEO mode of V1, V2, or YUV, press "3" button on the service remote control unit and select "VPED" mode. (Display changes "U-PED" and "VPED" cyclically w hen "3 " bu tto n is pr esse d ).

2. Switch the VID EO mode to YUV. (Refer to “2. Initial Setting.”)

3. To select one appropriate value in "0" to "15," press "CH o / p" buttons on the r emote control unit.

4. Switch the input mode to previous mode.

5. Turn the power off and on again. (Main power button on the TV unit.)

13. Software Reset

To reset so ftware, press “ 5” button on th e remo te c on trol unit for at least 5 seconds after pressing “CH RETURN” button on the remote control unit.

14. H. Size Adjustment

Purpose: To obtain correct horizontal size of screen

image. Symptom of Misadjustment: If H. Size is incorrect, horizontal size of image on the screen may not be properly displayed.

15. PIN Cushion Adjustment

Purpose : To obtain correct straight vertical line of

screen image. Symptom of Misadjustment: If H.Pin cushion is incorrect, vertical lin e of image on the screen may not be properly displayed.

Test Point Adj. Point Mode Input

--- VR561 RF

Tape M. EQ. Spec.

--- Cross hatch

Note: Use service remote control unit

1. Operate the unit for at least 20 minutes.

2. Receive the Cross hatch Pattern.

3. Adjust V R561 so that the cross hatch patter n will be straight line of display.

4. Turn the Power off and on again. (Main power button on the TV unit.)

Cross

hatch

Test Point Adj. Point Mode Input

--- VR562 RF

Tape M. EQ. Spec.

--- Monoscope 90±5%

Note: Use service remote control unit

1. Operate the unit for at least 20 minutes.

2. Receive the Monoscope Pattern.

3. Adjus t VR562 so that the monosc ope pattern will be 90±5% of display size and circle is round.

4. Turn the Power off and on again. (Main power button on the TV unit.)

Mono-

scope

5-6 L6655EA

Page 20

16. Cut-off Adjustment

Purpose: To ad just the beam curre nt of R, G, B, and

screen voltage. Symptom of Misadjustment: White color may be reddish, greenish or bluish.

17. White Balance Adjustment

Purpose: To mix red, green and blue beams cor rectly

for pure white. Symptom of Misadjustment: White becomes bluish

or reddish.

Test Point Adj. Point Mode Input

Screen-Control

---

Tape M. EQ. Spec.

---

Note: Screen Control FBT --- Main CBA

F.B.T= Fly Back Transformer Use service remote control unit

1. Degauss the CRT and allow CRT to operate for 20 minutes before starting the alignment.

2. Input the Black Raster Signal from RF Input.

3. Enter the Service mode. (See page 5-1)

4. Press "VOL p" button on the service remote control unit and select "C/D " mode. (Displ ay change s "C/D," "7F," "LANGUAGE," "ACCESS CODE," "SOUND TYPE," "VIDEO TONE," "FM MODE," "V-OUT," "VIDEO," "AV MEMO," "STABLE SOUND," "FILTER," "500," and "YUV MEMORY" cyclically when "VOL p button is pressed.) then press "1." The display will momentarily show "CUT OFF R" (R= Red). Now there should be a horizontal line across the center of the picture tube. If needed gradually turn the screen control on the flyback, clockwise unt il the horizontal line appears. Adjust the Red Cut off by pr essing the "C H o/p" buttons. Proceed to Step 5 w hen the Red Cut off adjustment is done.

5. Press the "2" button. The display will momentarily show "CUT OFF G" (G=Green). Adjust the Green Cut off by pressing the "CH o/p" buttons. Proceed to step 6 when the Green Cut of f adjustment is done.

6. Press the "3" but ton. The disp la y will mom ent arily show "CUT OFF B" (B= Blue). Adjust th e Blue cut off by pressing the "CH o/p" buttons. When done with steps 4, 5 and 6 the hor i zon tal l ine s hou ld be pure white if not, then attempt the Cut off adjustment again.

CH o / p

buttons

Pattern

Generator

Figure

PATTERN GENERATOR

EXT. INPUT

See Reference

Notes below.

Fig. 2

Black

Raster

Test Point Adj. Point Mode Input

White

Screen

Tape M. EQ. Spec.

---

Note: Use service remote control unit

1. Operate the unit more than 20 minutes.

2. Face the unit to east. Degauss the CRT using Degaussing Coil.

3. Input the White Raster (APL 100%).

4. Set the color analyzer to the CHROMA mode and after zero point calibration, bring the optical receptor to the center on the tube surface (CRT).

5. Enter the Service mode. Press "VOL p" button on the service remote control unit and sele ct "C/D" mode. (Display changes "C/ D, " " 7 F, " " L AN GU A GE ," " AC CESS CODE," "SOUND TYPE," "VIDEO TONE," "FM MODE," "V-OUT," "VIDEO," "AV MEMO," "STABLE SOUND," "FILTER," "500," and "YUV MEMORY" cyclically when "VOL p" button is pressed.) then Press N o. 8 b utton on the s er vice remote control Unit.

6. Press No. 4 b utton on the service r emote control unit for Red adjustment. Press N0. 5 button on the service remote control unit for Blue adjustment.

7. In each color mode, Press "CH o/p" button to adjust the values of color.

8. Adjusting Red and Blue color so that the temperature becomes 9200K (x: 286 / y: 294)±3%.

9. At this time, Re-check that Horizontal line is white. If not, Re-adjust Cut-off Adjustment unti l the Horizontal Line becomes pure white.

10. Turn off and on again to return to n or mal mo de. Receive APL 100% white signal and Check Chroma temperatures become 9200K (x: 286 / y: 294)±3%.

Note: Confirm that Cut Off Adj. is correct after this adjustment, and attemp t Cut Off Adj. if neede d.

CH o / p

buttons

Pattern

Generator,

Color analyzer

Figure

Color Analyzer

Raster

(APL

100%)

See below

Fig. 3

5-7 L6655EA

Page 21

18. Sub-Brightness Adjustment

Purpose: To get proper brightness. Symptom of Misadjustment: If Sub-Brightness is

incorrect, proper brightness cannot be obtained by adjusting the Brightness Control.

4. Adjust the Focus Control on the FBT to obtain clear picture.

The following adjustments normally are not attempted in the field. Only when replacing the CRT then adjust as a preparation.

Test Point Adj. Point Mode Input

---

Tape M. EQ. Spec.

---

White

Note: IQW Setup level --- 7.5 IRE

Use service remote control unit

1. Enter the Service mode. (See page 5-1) Then input IQW signal from RF Input.

2. Press "MENU" button on the service remote control unit and Select "BRT" mode. (Display changes "BRT," "CNT," "CLR," "S -CLR," "TNT ," "V-TNT," "STNT," "SHARP," and "S-SRP" cyclically when "MENU" button is pressed). Press "CH o/p" buttons so that the bar is jus t visible (Se e abo ve fig ure) .

3. Turn the power off and on again. (Main power button on the TV unit.)

CH o / p

buttons

Pattern

Generator

Figure

RF IQW

See below

Black

This bar just visible

Fig. 4

19. Focus Adjustment

Purpose: Set the optimum Focus. Symptom of Misadjustment: If Focus Adjustment is

incorrect, blurred images are shown on the display.

Test Point Adj. Point Mode Input

--- Focus Control ---

Tape M. EQ. Spec.

---

Pattern

Generator

Mono-

scope

See below

20. Purity Adjustment

Purpose: To obtain pure color. Symptom of Misadjustment: If Color Purity Adjust-

ment is incorrect, large areas of color may not be properly displayed.

Test Point Adj. Point Mode Input

Deflection

---

Tape M. EQ. Spec.

---

GREEN RED BLUE

1. Set the unit facing east.

2. Operate the unit for over 30 minutes before adjusting.

3. Fully degauss the uni t us ing an extern al de gaus s ing coil.

4. Loosen the screw on the Deflection Yoke Clamper and pull the Deflection Yo ke back away from the screen. (See Fig. 6)

5. Lo osen the Ring Lock and a djust the Purit y Magnets so that a red fi eld is obtained at the cent er of the screen. Tighten Ring Lock. (See Fig. 5,6)

6. Slowly push the Deflection Yoke toward bell of CRT and set it where a uniform red field is obtained.

7. Tighten the clamp screw on the Deflection Yoke.

Yoke Purity

Magnet

Pattern

Generator

Figure

---

See below.

Red

Color

Fig. 5

Note:Focus VR (FBT) - Main CBA,

FBT=Fly Back Transformer

1. Operate the unit more than 30 minutes.

2. Face the unit to the East and Degauss the CRT using Degaussing Coil.

3. Input the Monoscope Pattern.

5-8 L6655EA

Page 22

21. Convergence Adjustment

Purpose: To o btain p roper convergence of re d, green

and blue beams. Symptom of Misadjustment: If Convergence Adjust-

ment is incorrect, the edge of white letters may have color edges.

Test Point Adj. Point Mode Input

C.P. Magnet

Dot Pattern

Crosshatch

---

(RB),

C.P. Magnet

(RB-G),

---

Deflection Yoke

Tape M. EQ. Spec.

---

Pattern

Generator

See below.

Figures

CRT

RB-GRB

RING LOCK

SCREW

C.P. MAGNET CLAMPER

C.P. MAGNET

Fig. 6

DY WEDGE

COIL

SCREW

COIL CLAMPER

DEFLECTION YOKE

PURITY

  











 

C.B. MAGNET (RB-G)

Fig. 8

1. Loosen the Ring Lock and align red with blue dots or Crosshatch at the center of the screen by rotating (RB) C.P. Magnets. (See Fig. 7)

2. Align red / blue with green dots at the center of the screen by rotating (RB-G) C.P. Magnet. (See Fig. 8)

3. Paintlock the C.P. Magnets after adjustment.

4. Rem ove the DY Wedges and slightly tilt the Deflection Yoke horizontally and vertically t o obtain the best overall convergence.

5. Fix the Deflection Yoke by carefully inserting the DY Wedges between CRT and Deflection Yoke.

5-9 L6655EA

Page 23

System Control Block Diagram

(NO CONNECTION)

I2C-OPEN 3 SDA 5 SCL 6

CN301 is used for adjustment at factory

CN301

IC333

TV MICON/VIDEO /AUDIO/CHROMA /DEFLECTION

BLOCK DIAGRAMS

RCV-IN

KEY-IN1 KEY-IN2

66 69

RCV101

REMOTE SENSOR

KEY SWITCH

FROM/TO AUDIO BLOCK

FROM IF/VIDEO BLOCK

IC151

(MEMORY)

CS SCL SDA 5

SCL SDA

AFT

AGC

INPUT0

7 6

72 I2C-OPEN 58

SCL

SDA

AFT

AGC

INPUT0

INPUT1

VOLUME

62 64A-MUTE-H

Q141

Q131

INPUT0 INPUT1 VOLUME A-MUTE-H

TO IF/VIDEO BLOCK

TO AUDIO BLOCK

MAIN CBA

DG-ON-H

+5V CTRL

+5V CTRL2

+8V CTRL

P-ON-H PROTECT-1 PROTECT-2 PROTECT-3

74 28 18 40

79 68 67 76

6-1 6-2

DG-ON-H +5V CTRL +5V CTRL2 +8V CTRL PROTECT-1 PROTECT-2 P-ON-H PROTECT-1 PROTECT-2 PROTECT-3 P-ON-H

FROM/TO POWER SUPPLY BLOCK

FROM/TO CRT/H.V. BLOCK

L6655BLS

Page 24

IF/Video Block Diagram

JK721 VIDEO-IN (FRONT)

JK701 VIDEO-IN (REAR)

TU1

AGC

SCL SDA

EXT.CLK

VIDEO SIGNALRF/IF SIGNAL

SF1

1 4 5 8

WF16

SAW FILTER

IC33 (IF SIGNAL PROCESS)

VIF AMP

AGC

AMP

IC333

TV MICON/VIDEO /AUDIO/CHROMA /DEFLECTION

SCL

SDA

AUDIO SIGNAL

VIDEO DET

VCO

AFT

CF31

4.5MHz TRAP

CF32

4.5MHz FILTER

LPF

IF AGC DET

WF2

WF1

MAIN CBA

VCXO

EQ AMP

SIF AMP

VCO F/B

22 16

SIF

Q21

Q33

INPUT0

AGC

AFT

X301

3.58MHz

TO AUDIO BLOCK

FROM/TO SYSTEM CONTROL BLOCK

JK711 S-VIDEO-IN

C Y

Q951

Q956

S-SW

OSD

LPF

LUMINANCE PROCESS CIRCUIT

CHROMINANCE PROCESS CIRCUIT

CHROMA COMB BASEBAND TINT

H-SYNC PROCESS CIRCUIT

V-SYNC PROCESS CIRCUIT

RGB MATRIX /COLOR CONT

OSD SW CONTRAST BRIGHTNESS

RGB DRIVE /CUT OFF /H.V. BLK

52 51 50

53 46 45 38 37

WH301A

BLUE5 GREEN4 RED3

ACL H-DRIVE FBP RAMP-OUT V-RAMP-F/B

TO CRT/H.V. BLOCK WH301B

FROM/TO CRT/H.V. BLOCK

L6655BLIF6-3 6-4

Page 25

Audio Block Diagram

AUDIO SIGNAL

MAIN CBA

FROM IF/VIDEO BLOCK

SIF

IC431 (MTS/SAP AUDIO SIGNAL PROCESS)

24 27

VCA

I2C DECORDER

11 15 12

STEREO FILTER

SAP FILTER

IC771 (INPUT SELECT)

TUNER REAR FRONT

(L-CH)

OFFSET CANCEL

SAP DEMOD

L+R FILTER

L-R FILTER

SAP OUT FILTER

WF6

IC801

75uS DE-EMPH

(L-R)/SAP SW

(AUDIO AMP)

DC VOL.

WIDE BAND FILTER

dBX DE-EMPH

SPECTRAL FILTER

WIDE BAND RMS DET

SPECTRAL EXPAND

SPECTRAL RMS DET

WIDE BAND EXPAND

OFFSET CANCEL

MATRIX AGC

CN801

SP-L 1

SP-GND 2

L-CH

R-CH

SP801 SPEAKER L-CH

JK702 AUDIO-IN(L) (REAR)

JK703

AUDIO-IN(R) (REAR)

JK722

AUDIO-IN(L) (FRONT)

JK723

AUDIO-IN(R) (FRONT)

4 2 1

(R-CH)

TUNER REAR FRONT

SW CTL

9 10

DC VOL.

Q825

A-MUTE-H VOLUME INPUT 0 INPUT 1 SCL SDA

FROM/TO SYSTEM CONTROL BLOCK

CN802

SP-R 1

SP-GND 2

SP802 SPEAKER R-CH

6-5 6-6 L6655BLA

Page 26

CRT/H.V. Block Diagram

RAMP-OUT

P-ON-H

V-RAMP-F/B

FROM/TO IF/VIDEO BLOCK

H-DRIVE PROTECT-1 PROTECT-2

VIDEO SIGNAL

MAIN CBA

WF7 WF8

Q572 Q571

H.DRIVE

T572

H.OUTPUT

Q531

(SWITCHING)

Q533

SWITCHING P-ON-ON

WF11

IC551 (V-DEFLECTION CONTROL)

THERMAL PROTECTION

AMP

6 3

PULSE UP

Q561

(SWITCHING)

DY551 D.Y.

VDRIVE

HDRIVE

WF12

Q551,

Q552

CONTROL

Q547

(SWITCHING)

PCC WIDTH

VR562VR561

WF9

CN551

FROM POWER SUPPLY BLOCK

FROM/TO SYSTEM CONTROL BLOCK

FROM IF/VIDEO BLOCK

DEF+B

PROTECT-3

FBP ACL

RED

GREEN 4

BLUE 5

T571 F.B.T. FOCUS VR

WF15

SCREEN VR

WF4

WF10

Q1521, Q1522

GREEN AMP

WF14

X-RAY CHECK

TP591 TP592

TP302 15kHz

WH301BTO WH301A

TP500

GND

TP501

BLUE

WF3

Q1511, Q1512

RED AMP

ANODE

FOCUS SCREEN

HEATER3 3

1 1

+200V

WF5 WF13

WH501BWH501A

BLUE AMP

Q1531, Q1532

JK1501

7 4 8

6 11 10

CN1501

ANODE

FOCUS SCREEN GND

R G B

HEATER

GND

V501 CRT

CRT CBA

6-7 6-8

L6655BLCRT

Page 27

Power Supply Block Diagram

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit. If Main Fuse (F601) is blown, check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

HOT CIRCUIT. BE CAREFUL.

HOT COLD

4A/125V

CAUTION:

FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 4 A, 125V FUSE.

ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE 4A, 125V.

NOTE : The voltage for parts in hot circuit is measured using hot GND as a common terminal.

AC601 AC CORD

L691 DEGAUSSING

COIL

CN691

4A/125V

F601 4A/125V

PS691

L601

LINE FILTER

Q601

SWITCHING

Q602

LIMITER

D605 - D608

BRIDGE RECTIFIER

T601

1 13

DEF +B

TP601

Q672

SWITCHING

Q673 SWITCHING

CONTROL

Q851

+9V REGULATOR

Q961 +5V

REGULATOR

Q681

+8V SWITCHING

Q682

+5V SWITCHING

Q111

+5V SWITCHING

Q321

+9V SWITCHING

PROTECT-2 (TO PIN 67 OF IC333)

AL+33V BACK-UP

P-ON+5V

+5V CTRL2 (FROM PIN 18 OF IC333)

AL+9V

AL+12V P-ON+5V

P-ON+8V

+8V CTRL (FROM PIN40 OF IC333)

P-ON+5V

Q683

+5V SWITCHING

IC601

ERROR VOLTAGE DET

RL601

Q831

VR661

Q652

FEED BACK

Q696

SWITCHING DG-ON-ON

DG-ON-H (FROM PIN74 OF IC333)

+B ADJ

Q674 SWITCHING

P-ON-ON

SWITCHING P-ON-ON

Q841 (SWITCHING)

Q191

SWITCHING P-ON-ON

Q832

SWITCHING P-ON-ON

6-9 6-10

MAIN CBA

+5V CTRL (FROM PIN28 OF IC333)

PROTECT-1 (TO PIN68 OF IC333)

P-ON+12V

P-ON-H (FROM PIN79 OF IC333)

L6655BLP

Page 28

SCHEMATIC DIAGRAMS / CBA'S AND TEST POINTS

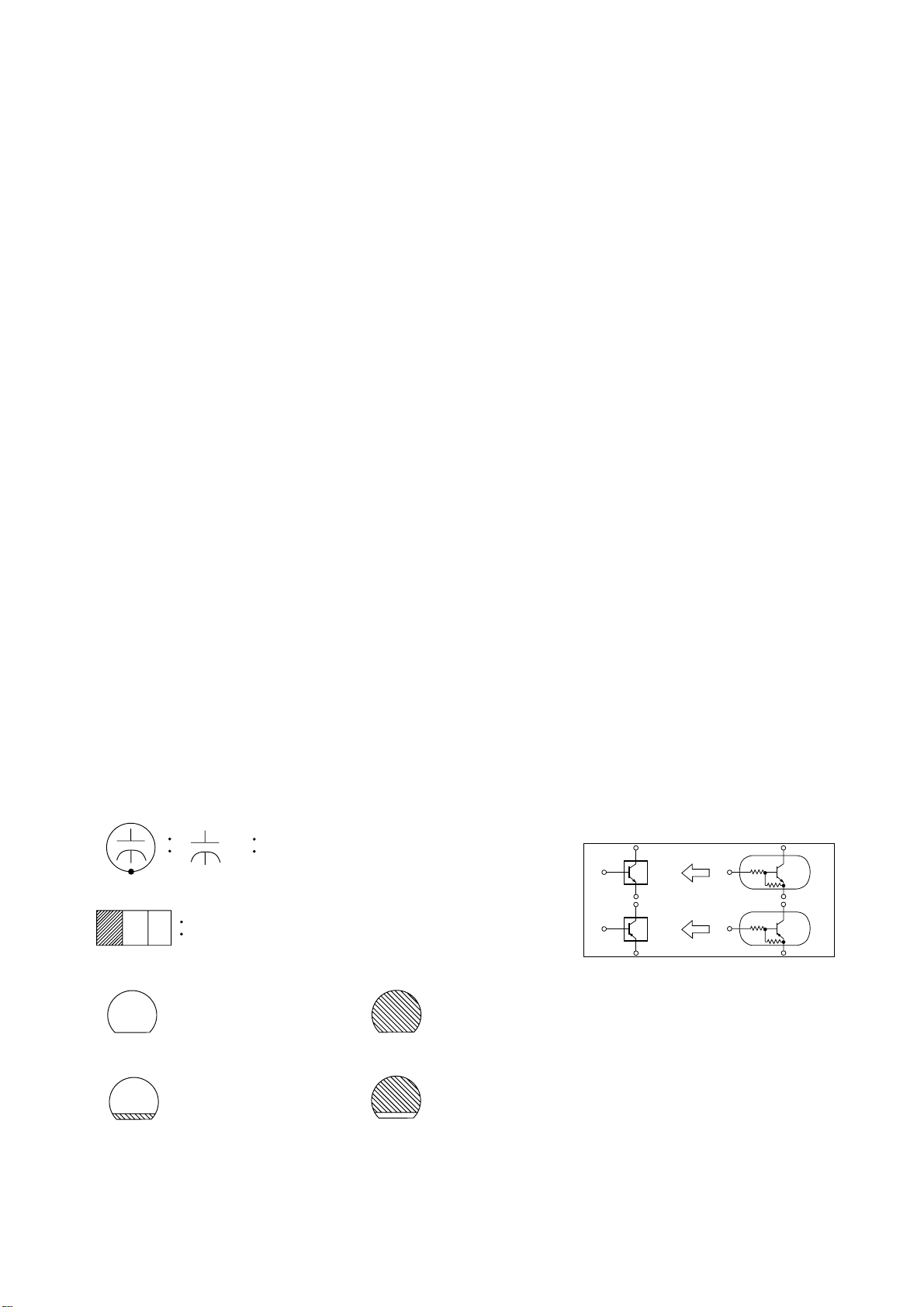

Standard Notes

Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts that have these special safety character ist ics are identified in this ma nual and its supplements; electr ical components having such features are ident ified by the mark " # " in the schematic diagram and the parts list. Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts that do not have the same safety characteristics as specified in the parts list may create shock, fire, or other hazards.

Note:

1. Do not use the part number show n on these drawings for orderi ng. The correct part numbe r is shown in the parts list, and may be slightly different or amended since these drawings were prepared.

2. All resistance values are indicated in ohms (K=10

3. Resistor wattages are 1/4W or 1/6W unless otherwise specified.

4. All capacitance values are indicated in µF (P=10

5. All voltages are DC voltages unless otherwise specified.

Note of Capacitors:

ML --- Mylar Cap. PP --- Metallized Film Cap. SC --- Semiconductor Cap. L --- Low Leakage type

, M=106).

-6

µF).

Temperature Characteristics of Capacitors are noted with the following:

B --- ±10% CH --- 0±60ppm/°C CSL --- +350~-1000ppm/°C

Tolerance of Capacitors are noted with the following:

Z --- +80~-20%

Note of Resistors:

CEM --- Cement Res. MTL --- Metal Res. F --- Fuse Res.

Capacitors and transistors are represented by the following symbols.

CBA Symbols

(Top View) (Bottom View)

(Bottom View)

Transistor or Digital Transistor

E C B

(Top View)

NPN Transistor

Electrolytic Capacitor

(Top View)

PNP Transistor

Schematic Diagram Symbols

Digital Transistor

E C B

(Top View)

E C B

NPN Digital Transistor

E C B

(Top View)

PNP Digital Transistor

E C B

7-1 L13SC

Page 29

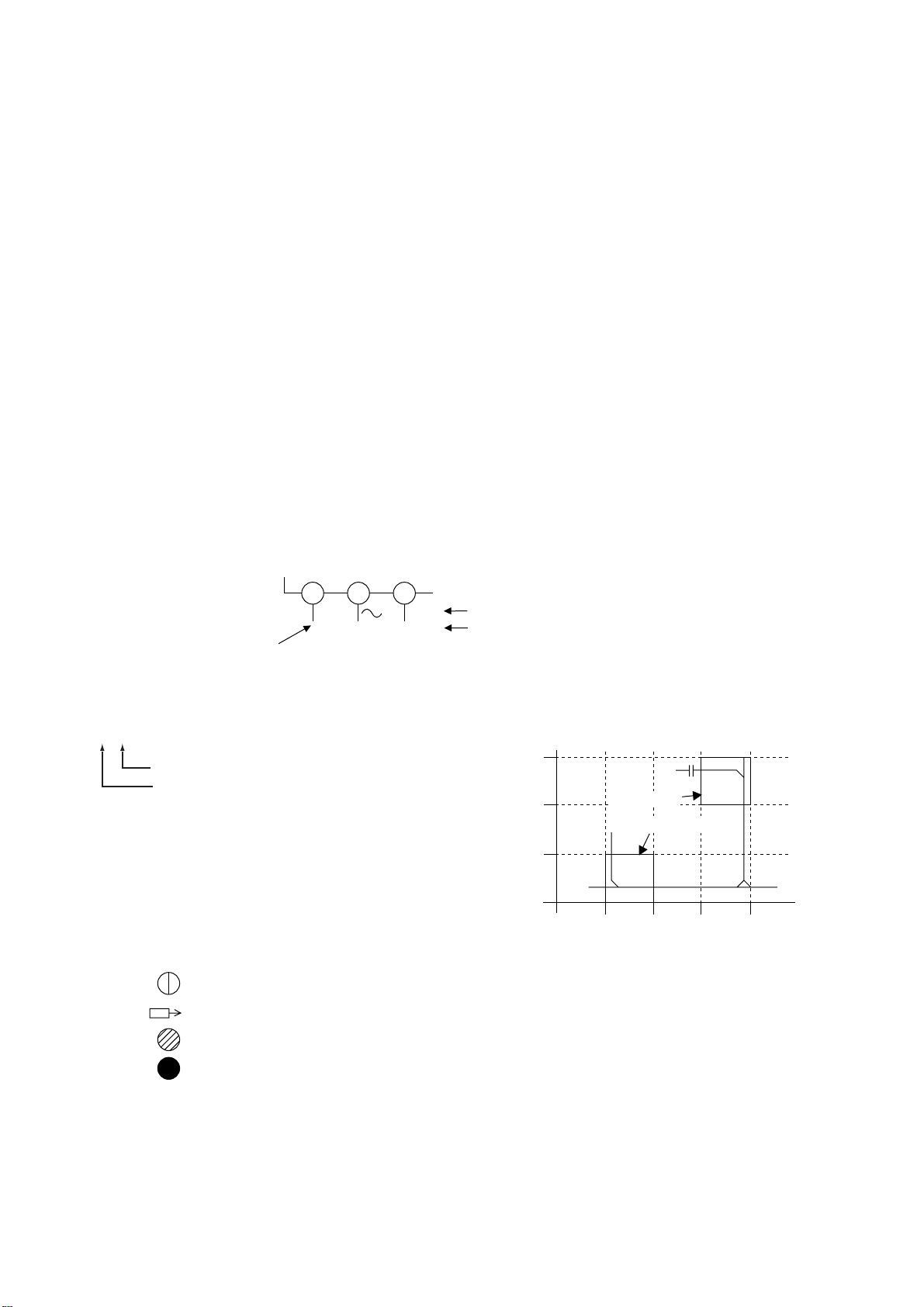

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING PAGES:

1. CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME

TYPE_A,_V FUSE. ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE_A,_V.

2. CAUTION: Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F601) is blown, first check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

3. Note:

(1) Do not use the part number shown on the drawings for ordering. The corr ect part number is shown in the

parts list, and may be slightly different or amended since the drawings were prepared.

(2) To maintain ori ginal func tion and reli ability of repaired u nits, use only origin al replacem ent parts which are

listed with their part numbers in the parts list section of the service manual.

4. Wire Connectors

(1) Prefix symbol "CN" means "connector" (can disconnect and reconnect). (2) Prefix symbol "CL" means "wire-solder holes of the PCB" (wire is soldered directly).

5. Note: Mark "I" is a leadless (chip) component.

6. Voltage indications on the sch em at ics are as sho wn belo w: Plug the TV power cord into a standard AC outlet.:

Voltage

7. How to read converged lines

1-D3

Distinction Area Line Number (1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to area "D3".

2. "1-B1" means that line number "1" goes to area "B1".

8. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB. : Used to indicate a test point with a component lead on foil side. : Used to indicate a test point with no test pin.

5.0

(3.0)

231

5.0 (3.0)

Indicates that the voltage is not consistent here.

Power on mode

Power off mode

Unit: Volts

AREA D3

ABCD

AREA B1

1-D3

1-B1

: Used to indicate a test point with a test pin.

7-2 L13SC

Page 30

Main 1/4 Schematic Diagram

VIDEO SIGNAL

MAIN 1/4

Ref No. Position

ICS IC151 IC333

TR ANSIST ORS Q111 D-1 Q131 A-3 Q141 A-4 Q191 B-4 Q192 B-4 Q321 E-2

CONNECTO R

CN301 A-3

A-3

C-2

7-3 7-4

L6655SCM1

Page 31

Main 2/4 Schematic Diagram

VIDEO SIGNAL AUDIO SIGNAL

MAIN 2/4

Ref No. Position

ICS IC431 IC771 IC801

TR ANSIST ORS Q825 J-3 Q831 K-3 Q832 K-3 Q841 K-3 Q851 J-3 Q951 Q956 H-1 Q961

CONNECTO RS

CN801 L-4 CN802 L-3

G-3 H-2

J-4

H-1

J-3

7-5

7-6

L6655SCM2

Page 32

Main 3/4 Schematic Diagram

IF SIGNAL VIDEO SIGNAL AUDIO SIGNAL

CAUTION !

NOTE : The voltage for parts in hot circuit is measured using hot GND as a common terminal.

4A/125V

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 4A, 125V FUSE. ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE 4A, 125V.

MAIN 3/4

Ref No. Posit i o n

ICS

IC33

IC601

TR AN SISTO RS

Q21 P-4 Q33

Q601 P-2 Q602 Q652 Q672 Q673 Q674 Q681 Q682 Q683 Q696

CONNECTO R

CN691 Q-2

TEST PO INTS TP300 TP301

VARIABLE R ESISTO R

VR661 O -1

P-3

O-1

P-4

P-1 O-1 N-2 N-1 N-1 M-2 M-1 M-1 O-2

N-4 N-4

7-7

7-8

L6655SCM3

Page 33

Main 4/4 & CRT Schematic Diagram

MAIN 4/4

Ref No. Position Ref No. Position Ref No. Position

IC551

TR AN SISTO RS Q531 Q533 Q547

Q551 T-3 WH501A V-3 VR562 U-3 Q552

Q561 U-3 TP302 V-2

S-3

S-2 S-2

U-2 WH301A V-2 VR561 U-3

T-3

TR AN SISTO RS TEST POINTS Q571 Q572

CONNECTO RS

CN571

TEST PO INTS

U-2

T-2 TP592 U-2

T-3

TP591

TP601

VARIABLE R ESISTO R S

U-2

VIDEO SIGNAL

CRT

Ref No. Posi ti o n

TR ANSISTO RS

Q1511 Q1512 W-2

Q1521 Q1522 Q1531 W-1 Q1532

CONNECTO RS

CN1501 X-2 WH301B V-2 WH501B V-3

TEST PO IN TS

TP500 TP501 W-2

W-1

W-1 W-2

W-2

W-1

7-9

7-10

L6655SCM4

Page 34

Main CBA Top View

CAUTION !

NOTE : The voltage for parts in hot circuit is measured using hot GND as a common terminal.

TP601

FOCUS-VR (UPPER SIDE)

SCREEN-VR (LOWER SIDE)

TP300

GND

TP302

15kHz

BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER SUPPLY CIRCUIT, AN ISOLATION TRANSFORMER MUST BE USED. ALSO, IN ORDER TO HAVE THE ABILITY TO INCREASE THE INPUT SLOWL Y , WHEN TROUBLESHOO TING THIS TYPE POWER SUPPL Y CIRCUIT, A VARIABLE ISOLATION TRANSFORMER IS REQUIRED.

4A/125V

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 4A, 125V FUSE. ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE 4A, 125V.

MAIN CBA

Ref No . Posit i o n Ref No. Position

ICS

IC33 IC151 IC333 IC431 IC551 IC601 IC771 IC801 E-2

TR AN SISTO R S Q21 C-1 Q951 D-1 Q33

Q111 F -3 Q961 C-1 Q131 F -4 Q141 E-5 Q191 F -5 Q192 F -5 Q321 E-3 Q531 C-2 Q533 C-2 WH301A D-4 Q547 B-2 WH501A A-4 Q551 Q552 Q561 Q571 Q572 Q601 Q602 Q652 Q672 Q673 Q674 D-3 VR661 B-2

B-2 E-5 F-5 A-1 C-2 C-4 D-1

C-1 Q956 D-1

B-2 B-2 B-2 B-4 TP30 2 A- 4 C-2 TP5 9 1 A- 3 B-1 TP59 2 A- 3 B-4 D-4 D-3 D-3

TR AN SISTO R S Q681 Q682 Q683 Q696 Q825 Q831 Q832 Q841 Q851

CONNECTORS

CN301 CN571 CN691 CN801 CN802

TEST POINTS TP300 TP301

TP601

VARIABL E R ESISTO R S

VR561 VR562

D-3 D-4 D-4 D-4 E-2 E-3 F-3 F-2 E-3

A-1 B-3 D-5 E-2 E-5

A-4 A-2

B-5

B-2 B-2

VR661

+B ADJ

VR561

PCC

VR562

WIDTH

TP301

AGC

7-11

7-12

BL6650F01011-1

Page 35

Main CBA Bottom View

CAUTION !

4A/125V

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 4A, 125V FUSE. ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE 4A, 125V.

NOTE : The voltage for parts in hot circuit is measured using hot GND as a common terminal.

WF8

Q571 Base

WF2

PIN 14 OF IC333

WF10

PIN 3 OF WH501A

WF9

PIN 1 OF CN571

WF12

PIN 4 OF CN571

WF11

PIN 7 OF IC551

WF7

Q572 Collector

WF16

PIN 8 OF TU1

WF1

PIN 3 OF IC33

WF6

PIN 5 OF IC801

7-13 7-14

BL6650F01011-1

Page 36

CRT CBA Top View CRT CBA Bottom View

CRT CBA

Ref No. Posi ti o n

TR AN SISTO RS Q1511 C-1 Q1512 C-1 Q1521 Q1522 Q1531 Q1532

CONNECTO RS

CN1501 A-2 WH301B B-2 WH501B A-2

TEST PO INTS TP500 B-2 TP501 B-2

C-1 C-1 B-1 B-1

TP501

BLUE

TP500

GND

WF15

Q1511 Collector

WF3 WF14

Q1511 Base

WF4 WF13

Q1521 Base

Q1521 Collector

WF5

Q1531 Base

Q1531 Collector

7-15 BL6650F01011-2

7-16

Page 37

WF1 ~ WF16 = Waveforms to be observed at   Waveform check points.   (Shown in Schematic Diagram.)

WAVEFORMS

Input:  NTSC Color Bar Signal (with 1kHz Audio Signal) INITIAL POSITION: Unplug unit from AC outlet for at least 5 minutes.

reconnect to AC outlet and then turn power on.

(Brightness---Center Color---Center Tint --- Center Contrast---Approx 70%)

WF1

WF2

1DIV: 0.5V 20µsec IC 33 Pin 3

1DIV: 0.5V 20µsec IC 333 Pin 14

GND

WF5

WF6

1DIV: 2V 20µsec Q 1531 Base

1DIV: 0.2V 20msec IC 801 Pin 5

GND

WF9

WF10

1DIV: 200V 20µsec CN 571 Pin 1

1DIV: 5V 20µsec WH501A Pin 3

GND

WF13

WF14

1DIV: 20V 20µsec Q 1531 Collector

1DIV: 20V 20µsec Q 1521 Collector

WF3

WF4

1DIV: 2V 20µsec Q 1511 Base

1DIV: 2V 20µsec Q 1521 Base

GND

WF7

1DIV: 10V 20µsec Q 572 Collector

GND

WF8

1DIV: 5V 20µsec Q 571 Base

8-1 8-2

GND

WF11

1DIV: 2V 5msec IC 551 Pin 7

10 V 5 ms

WF12

1DIV: 10V 5msec CN 571 Pin 4

WF15

WF16

1DIV: 20V 20µsec Q 1511 Collector

1DIV: 0.2V 20µsec TU 1 Pin 8

L6650WF

Page 38

WIRING DIAGRAM

V501

CRT

GND

CN1501

ANODE

FOCUS

SP801 SPEAKER

L-CH

SP802 SPEAKER

R-CH

SCREEN

CLN801

CLN802

CN801

SP-L

SP-GND

CN802

SP-R

SP-GND

CN691

1 2

TU1 TUNER UNIT

MAIN CBA BL6650F01011-1

T571 FBT

CRT CBA BL6650F01011-2

WH301B

BLUE

GREEN

RED GND

+8V

HEATER 3

GND 2

+200V 1

5 4 3 2 1

CLN301

CLN501

DY551 D.Y.

5 4 3 2 1

WH301A

BLUE GREEN RED GND +8V

WH501AWH501B

HEATER3 GND2 +200V1

CN571

1 2 3 4 5

(NO CONNECTION)

CN301 1

INT-MONI AGC2 I2C-OPEN3

GND SDA5

SCL

CN301 IS USED FOR

ADJUSTMENT AT

FACTORY.

AC601

9-1 L6655WI

Page 39

IC PIN FUNCTIONS

IC333 (TV Micro Computer)

Signal Name Function

No.

1GND GND 2 N.U. Not Used 3 N.U. Not Used 4 N.U. Not Used 5GND GND 6VCC AL+5V 7 N.U. Not Used 8 FILT FILT

9 HLF Filter for CCD 10 VHOLD VHOLD 11 CVIN Input for Video Signal 12 RESET RESET

MCU RESET

OUT 14 Y-SW OUT Composite Signal Output 15 GND GND 16 3.58 X'TAL 3.58MHz Crystal 17 C-APC CHROMINANCE APC

MCU 5.7REG

OUT 19 N.U. Not Used 20 CVBS IN 3 Composite Signal Input 3 21 N.U. Not Used 22 VCC VCC 23 N.U. (GND) 24 CVBS IN2 Composite Signal Input 2 25 N.U. Not Used 26 CVBS IN1 Composite Signal Input 1 27 N.U. Not Used 28 5.7V REG OUT 5.7V Output 29 C(Y/C) IN Chrominance Signal Input 30 Y(Y/C) IN Luminance Signal Input 31 V REG VCC DC 8.7V Input 32 FSC OUT Clock Output 3.58MHz 33 MONITOR OUT Monitor Out 34 N.U. Not Used

RESET Signal Output

Micro controller Control Voltage Output

Signal Name Function

No.

35 N.U. Not Used 36 N.U. Not Used 37 V RAMP F/B V Ramp Feed Back 38 V RAMP OUT Vertical Output 39 V RAMP CAP V Ramp OSC Capacitor 40 8.7 VREG OUT DC 8.7V Output 41 N.U. Not Used 42 H VCO F/B H Vco Feed Back 43 AFC FILT Horizontal AFC Filter 44 GND GND 45 FBP IN Flyback Pulse Input 46 H-OUT H Pulse Output 47 VCC Vcc 48 VCC Vcc 49 VCC Vcc 50 R OUT Red Output 51 G OUT Green Output 52 B OUT Blue Output 53 ACL IB-Input 54 N.U. Not Used 55 A-O-MUTE Mute Signal of Audio Output

56 SDA 57 N.U. Not Used 58 SCL 59 N.U. (GND)

60 N.U. Not Used 61 S-SW 62 VOLUME Volume

63 INPUTO Input Select 0 64 A-MUTE-H Audio Mute 65 N.U. Not Used 66 KEY-IN 1 Key Input 1 (Main) 67 PROTECT-2 Po wer Supply Protection 68 PROTECT-1 Po wer Supply Protection 69 KEY-IN 2 Key Input 2 (Main)

I2C-BUS Controller Interface (Data)

I2C-BUS Controller Interface (Clock)

Detecting S-VIDEO Jack Connection

10-1 L6650PIN

Page 40

Signal Name Function

No.

70 RCV-IN Input For Remote Control 71 N.U. Not Used

72 I2C OPEN 73 AFT AFT Voltage Input

74 DG-ON-H Degaussing Coil Control 75 AGC AGC Voltage Input 76 PROTECT 3 Power Supply Protection 77 N.U. Not Used 78 FM-SW Switching IF IC VCO 79 P-ON-H Output for P-ON-H 80 INPU T 1 Input Select 1

White Balance Adjustm ent Judgement

10-2 L6650PIN

Page 41

Cabinet

Details for DY551 and surrounding parts

SHINWHA TAPE SGT-730 (WHITE)

EXPLODED VIEWS

SHINWHA TAPE SGT-730 (BLACK)

V501-2

V501-1

DY551

SP801

CLN551

Lead Clamper

V501

SP802

Lead Clamper

DY551

Lead Clamper

CRT CBA

L691

Scotch Tape #880

L-1

B-9

B-8

L-1

B-7

B-6

L-1

MAIN CBA

PB6

AC601

11-1 11-2 L6250CEX

Page 42

Packing

TAPE

X4X3

PACKING TAPE

POP LABEL

FRONT

11-3 L6250PEX

Page 43

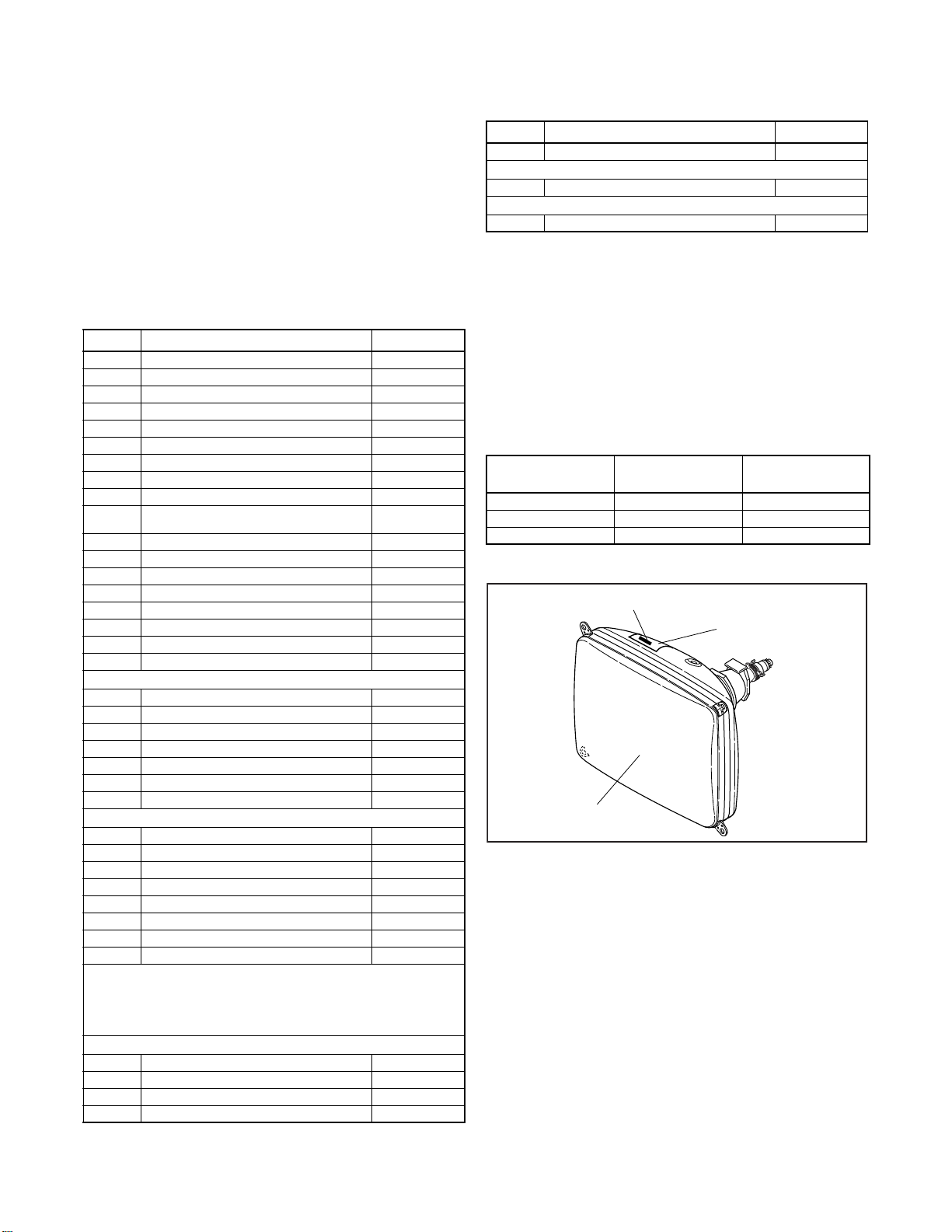

MECHANICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a #

have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned part numbers (---------) are not available.

Ref. No. Description Part No.

A1 FRONT CABINET L6655CF 0EM101330

A2 CONTROL PLATE L6655CF 0EM301900

A3 BRAND PLATE T5405CFDURABRAND 0EM408189

A4 REAR CABINET L6652UC 0EM101271

A5# RATING LABEL L6655CF ----------

B1 TENSION SPRING B0080B0:EM40808 26WH006

B2 M7 CRT SCREW(D22) T7205UF 0EM406573

B4 SPEAKER HOLDER L1200UA 0EM405691

B5 CLOTH 190X15XT0.5 TS7623

B7# CRITICAL PARTS WARNING LABEL

CLN551 CRT GND WIRE CRT GND WIRE WX1L6250-005

SP801 SPEAKER S08F16-J DSD0808XQ009

SP802 SPEAKER S08F26-J DSD0808XQ008

L1 SCREW, P-TIGHT 3X12 BIND HEAD+ GBMP3120

L2 SCREW, P-TIGHT 4X18 BIND HEAD + GBMP4180

L3 SCREW TAPPING M4X14 DBU14140

L4 SCREW, P-TIGHT 3X10 BIND HEAD+ GBKP3100

L691# DEGAUSSING COIL F-047 LLBH00ZTM047

S1 CARTON L6655CF 0EM408289

S2 STYROFOAM TOP ASSEMBLY L6250UA 0EM407000

S3 STYROFOAM BOTTOM ASSEMBLY L6250UA 0EM407001

S4 SET SHEET PCEC:003502019816 0EM403887

S5 SERIAL NO. LABEL L6655CF ----------

S6 HOLD PAD L6250UA 0EM407005

S7 LABEL, EAS(H3761UD) MAKER NO.ZLLFNSLE1 ----------

X1 POLYETHYLENE BAG 250X380XT0.03 Z325380

X2# OWNER'S MANUAL L6655CF 0EMN02198

X3 REMOTE CONTROL 130/ERC001/N0160UD N0160UD

X4 DRY BATTERY R6P UM3 or XB0M451GH001

Note:

1. V501 (CRT) HAS COUPLE OF SUBSTITUTIONAL PARTS AND EACH PARTS ALSO HAS MATCHING COMBINATION WITH DY551. PLEASE SEE TABLE 1 FOR DETAILS OF MATCHING COMBINATION.

2. DY551 (DEFLECTION YOKE) HAS MATCHING COMBINATION WITH V501. PLEASE SEE TABLE 1 FOR DETAILS OF MATCHING COMBINATION.

DY5 5 1# DEFLECTION YOKE 6150Z-1050M LLBY00ZGS006

V501# CRT A80QCF340X TCRT190GS041

V501-1 PCM 325LT-022 XM04000BV014

V501-2 WEDGE FT-00110W or XV10000T4001

B8007C3:EM41210

PAC KI NG

ACCESSORIES

DRY BATTERY R6P/2S or XB0M451T0001

DRY BATTERY(SUNRISE) R6SSE/2S or XB0M451MS002

DRY BATTERY R6P(AR)2PX or XB0M451HU002

DRY BATTERY R6P(AR)2P X ICI XB0M451HU003

CRT TYPE A

----------

Ref. No. Description Part No.

WEDGE DB25SR XV10000D9001

CRT TYPE B

V501# CRT A80QCF340X33 TCRT190GS042

CRT TYPE C

V501# CRT A80LJF30X11(CT) TCRT190SEG01

Table 1 (V501 and DY551 Combination)

Note 1: Purity and Convergence Adjustments must be

performed following CRT replacement. Refer to Electrical Adjustment Instructions. Note 2: Please confirm CRT Type No. on the CRT Warning Label which is located on the CRT. Then See the Table 1 for V501 and DY551 combination chart. Please refer this CRT, Deflection Yoke combination chart for parts order.

V501: CRT Type No. V501: CRT Part No.

A80QCF340X TCRT190GS041 LLBY00ZGS006

A80QCF340X33 TCRT190GS042 --------------------

A80LJF30X11(CT) TCRT190SEG01 --------------------

DY551: Deflection

Yoke Par t N o .

CRT Warning Label Location

CRT Type No.

CRT Warning Label

CRT

20030408 12-1 L6655CA

Page 44

ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTES:

1. Parts that are not assigned part numbers (---------) are not available.

2. Tolerance of Capacitors and Resistors are noted with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

MMA-413 CBA

Ref. No. Description Part No.

MMA-413 CBA 0ESA05474

Consists of the following

MAIN CBA --------------

CRT CBA --------------

MAIN CBA

Ref. No. Description Part No.

MAIN CBA

Consists of the following

CAPACITORS

C1 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103

C2 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C3 ELECTROLYTIC CAP. 4.7µF/50V M or CE1JMASTL4R7

ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7

C4 CERAMIC CAP.(AX) F Z 0.01µF/50V CA1J103TU014

C7 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL010

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010

C30 PCB JUMPER D0.6-P5.0 JW5.0T

C31 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C32 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103

C34 ELECTROLYTIC CAP. 0.47µF/50V M or CE1JMASTLR47

ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47

C35 CERAMIC CAP.(AX) CH J 56pF/50V CA1J560TU008

C36 CERAMIC CAP.(AX) B K 1000pF/50V CCA1JKT0B102

C37 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL010

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010

C38 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C41 ELECTROLYTIC CAP. 0.47µF/50V M or CE1JMASTLR47

------------

Ref. No. Description Part No.

ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47

C49 ELECTROLYTIC CAP. 4.7µF/50V M or CE1JMASTL4R7

ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7

C51 CERAMIC CAP.(AX) B K 1000pF/50V CCA1JKT0B102

C52 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103

C53 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C54 CERAMIC CAP.(AX) B K 1000pF/50V CCA1JKT0B102

C55 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103

C57 FILM CAP.(P) 0.047µF/50V J or CMA1JJS00473

FILM CAP.(P) 0.047µF/50V J or CA1J473MS029

FILM CAP.(P) 0.047µF/50V J TV or CMB1JJS00473

MYLAR CAP. 0.047µF/50V K 2250473S

C58 FILM CAP.(P) 0.033µF/50V J or CMA1JJS00333

FILM CAP.(P) 0.033µF/50V J or CA1J333MS029

FILM CAP.(P) 0.033µF/50V J TV CMB1JJS00333

C104 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C111 ELECTROLYTIC CAP. 47µF/16V M or CE1CMASTL470

ELECTROLYTIC CAP. 47µF/16V M CE1CMASDL470

C112 ELECTROLYTIC CAP. 4.7µF/50V M or CE1JMASTL4R7

ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7

C113 CERAMIC CAP. F Z 0.1µF/25V CDA1EZT0F104

C114 FILM CAP.(P) 0.001µF/50V J or CMA1JJS00102

FILM CAP.(P) 0.001µF/50V J or CA1J102MS029

FILM CAP.(P) 0.001µF/50V J TV or CMB1JJS00102

MYLAR CAP. 0.001µF/50V K 2250102S

C115 ELECTROLYTIC CAP. 0.1µF/50V M or CE1JMASTLR10

ELECTROLYTIC CAP. 0.1µF/50V M CE1JMASDLR10

C116 CERAMIC CAP.(AX) B K 220pF/50V CCA1JKT0B221

C117 CERAMIC CAP.(AX) Y K 0.01µF/16V CDA1CKT0Y103

C119 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103

C120 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C122 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C132 CERAMIC CAP. F Z 0.1µF/25V CDA1EZT0F104

C133 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103

C150 CERAMIC CAP. F Z 0.1µF/25V CDA1EZT0F104

C151 CERAMIC CAP.(AX) B K 220pF/50V CCA1JKT0B221

C152 CERAMIC CAP.(AX) B K 220pF/50V CCA1JKT0B221

C301 CERAMIC CAP.(AX) CH J 120pF/50V CA1J121TU008

C302 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL010

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010

C303 CERAMIC CAP.(AX) B K 0.015µF/50V CA1J153TU011

C305 ELECTROLYTIC CAP. 0.1µF/50V M or CE1JMASTLR10

ELECTROLYTIC CAP. 0.1µF/50V M CE1JMASDLR10

C306 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C309 ELECTROLYTIC CAP. 0.1µF/50V M or CE1JMASTLR10

ELECTROLYTIC CAP. 0.1µF/50V M CE1JMASDLR10

C322 ELECTROLYTIC CAP. 0.47µF/50V M or CE1JMASTLR47

ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47

C324 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

20030408 13-1 L6655EL

Page 45

Ref. No. Description Part No.

C325 CERAMIC CAP.(AX) SL J 12pF/50V CCA1JJTSL120

C328 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C329 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103

C330 STACKED FILM CAP. 0.47µF/50V J CMA1JJS00474

C331 CERAMIC CAP.(AX) B K 1000pF/50V CCA1JKT0B102

C332 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C341 CERAMIC CAP.(AX) B K 0.01µF/50V CA1J103TU011

C342 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL010

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010

C343 CERAMIC CAP.(AX) B K 0.01µF/50V CA1J103TU011

C345 ELECTROLYTIC CAP. 2200µF/10V M or CE1AMZNTL222

ELECTROLYTIC CAP. 2200µF/10V M CE1AMZNDL222

C347 ELECTROLYTIC CAP. 470µF/10V M or CE1AMASTL471

ELECTROLYTIC CAP. 470µF/10V M CE1AMASDL471

C349 ELECTROLYTIC CAP. 470µF/10V M or CE1AMASTL471

ELECTROLYTIC CAP. 470µF/10V M CE1AMASDL471

C353 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL010

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010

C401 ELECTROLYTIC CAP. 3.3µF/50V M or CE1JMASTL3R3

ELECTROLYTIC CAP. 3.3µF/50V M CE1JMASDL3R3

C402 ELECTROLYTIC CAP. 3.3µF/50V M or CE1JMASTL3R3

ELECTROLYTIC CAP. 3.3µF/50V M CE1JMASDL3R3

C403 CERAMIC CAP.(AX) F Z 0.1µF/50V or CA1J104TU014

CERAMIC CAP.(AX) F Z 0.1µF/50V CCA1JZT0F104

C404 CERAMIC CAP.(AX) B K 0.022µF/50V CA1J223TU011

C405 CERAMIC CAP. F Z 0.1µF/25V CDA1EZT0F104

C406 CERAMIC CAP.(AX) B K 0.033µF/50V CA1J333TU011

C411 ELECTROLYTIC CAP. 4.7µF/50V M or CE1JMASTL4R7

ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7

C413 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C414 ELECTROLYTIC CAP. 2.2µF/50V M or CE1JMASTL2R2

ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2

C415 CERAMIC CAP.(AX) B K 150pF/50V CCA1JKT0B151

C416 CERAMIC CAP.(AX) B K 150pF/50V CCA1JKT0B151

C417 ELECTROLYTIC CAP. 2.2µF/50V M or CE1JMASTL2R2

ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2

C421 ELECTROLYTIC CAP. 4.7µF/50V M or CE1JMASTL4R7

ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7

C423 CERAMIC CAP.(AX) X K 4700pF/16V CDA1CKT0X472

C424 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL010

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010

C426 ELECTROLYTIC CAP. 4.7µF/50V M or CE1JMASTL4R7

ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7

C428 CERAMIC CAP.(AX) X K 4700pF/16V CDA1CKT0X472

C429 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL010

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010

C441 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C442 ELECTROLYTIC CAP. 2.2µF/50V M or CE1JMASTL2R2

ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2

Ref. No. Description Part No.

C444 ELECTROLYTIC CAP. 0.33µF/50V M or CE1JMASTLR33

ELECTROLYTIC CAP. 0.33µF/50V M CE1JMASDLR33

C445 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J or CA1J104MS029

FILM CAP.(P) 0.1µF/50V J TV or CMB1JJS00104

MYLAR CAP. 0.1µF/50V K 2250104S

C446 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J or CA1J104MS029

FILM CAP.(P) 0.1µF/50V J TV or CMB1JJS00104

MYLAR CAP. 0.1µF/50V K 2250104S

C448 ELECTROLYTIC CAP. 2.2µF/50V M or CE1JMASTL2R2

ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2

C501 FILM CAP. 0.22µF/50V J or 122Z313S

TF CAP. 0.22µF/50V J CT1J224MS045

C502 CERAMIC CAP.(AX) B K 1000pF/50V CCA1JKT0B102

C503 ELECTROLYTIC CAP. 100µF/35V M or CE1GMASTL101

ELECTROLYTIC CAP. 100µF/35V M CE1GMASDL101

C504 ELECTROLYTIC CAP. 2.2µF/50V M LL or CE1JMASLL2R2

ELECTROLYTIC CAP. 2.2µF/50V LL CE1JMASLH2R2

C505 ELECTROLYTIC CAP. 1000µF/35V M or CE1GMZNTL102

ELECTROLYTIC CAP. 1000µF/35V M or CE1GMZNDL102

ELECTROLYTIC CAP. 1000µF/35V M CE1GMZADL102

C506 ELECTROLYTIC CAP. 1000µF/35V M or CE1GMZNTL102

ELECTROLYTIC CAP. 1000µF/35V M or CE1GMZNDL102

ELECTROLYTIC CAP. 1000µF/35V M CE1GMZADL102

C508 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103

C520 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C532 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C541 FILM CAP.(P) 0.082µF/50V J or CMA1JJS00823

FILM CAP.(P) 0.082µF/50V J CA1J823MS029

C551 CERAMIC CAP. B K 680pF/1KV or CCD3AKD0B681

CERAMIC CAP. B K 680pF/1KV or CCD3AKP0B681

CERAMIC CAP. B K 680pF/1KV CA3A681MR028

C555 METALIZED PLYESTER CAP. 1µF/100V J CT2A105MS065

C556 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J or CA1J104MS029

FILM CAP.(P) 0.1µF/50V J TV or CMB1JJS00104

MYLAR CAP. 0.1µF/50V K 2250104S

C561 ELECTROLYTIC CAP. 47µF/35V M or CE1GMASTL470

ELECTROLYTIC CAP. 47µF/35V M CE1GMASDL470

C562 ELECTROLYTIC CAP. 470µF/10V M or CE1AMASTL471

ELECTROLYTIC CAP. 470µF/10V M CE1AMASDL471

C563# P. P. CA P 0 .4 7 µF/200 J or CA2D474VC012

# PP CAP. 0.47µF/250V J CT2E474MS041

C565 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J or CA1J104MS029

FILM CAP.(P) 0.1µF/50V J TV or CMB1JJS00104

MYLAR CAP. 0.1µF/50V K 2250104S

C567# PP CAP. 0.0018µF/1.6KV J or CA3C182VC010

# PP CAP. 0.0018µF/1.6KV J CT3C182MS039

C568 FILM CAP.(P) 0.047µF/50V J or CMA1JJS00473

FILM CAP.(P) 0.047µF/50V J or CA1J473MS029

FILM CAP.(P) 0.047µF/50V J TV or CMB1JJS00473

MYLAR CAP. 0.047µF/50V K 2250473S

C571# PCB JUMPER D0.6-P10.0 JW10.0T

C574# ELECTROLYTIC CAP. 22µF/250V M or CE2EMZPTL220

# ELECTROLYTIC CAP. 22µF/250V M CE2EMZNDL220

C577 ELECTROLYTIC CAP. 47µF/35V M or CE1GMASTL470

ELECTROLYTIC CAP. 47µF/35V M CE1GMASDL470

20030408 13-2 L6655EL

Page 46

Ref. No. Description Part No.

C578 FILM CAP.(P) 0.01µF/50V J or CMA1JJS00103

FILM CAP.(P) 0.01µF/50V J or CA1J103MS029

FILM CAP.(P) 0.01µF/50V J TV or CMB1JJS00103

MYLAR CAP. 0.01µF/50V K 2250103S

C580# PP CAP. 0.018µF/1.6KV J or CA3C183VC010

# PP CAP. 0.018µF/1.6KV J CT3C183MS039

C582# P.P. CAPACITOR 0.022µF/630V J or CBP2KJD00223

# P.P. CAPACITOR 0.022µF/630V J or CT2K223KF011

# P.P. CAPACITOR 0.022µF/630V J CBP2KKD00223

C583# FILM CAP.(P) 0.1µF/100V J or CMA2AJS00104

# FILM CAP.(P) 0.1µF/100V J TV CMB2AJS00104

C584# ELECTROLYTIC CAP. 4.7µF/50V M or CE1JMASTL4R7

# ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7

C588# ELECTROLYTIC CAP. 100µF/160V M W/F or CE2CMZNTL101

# ELECTROLYTIC CAP. 100µF/160V M CE2CMZPDL101

C594# ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

# ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C596 CERAMIC CAP. B K 100pF/500V CCD2JKS0B101

C601# METALLIZED FILM CAP. 0.1µF/250V or CT2E104MS037

# METALLIZED FILM CAP. 0.1µF/275V K or CT2E104HJE06

# FILM CAP.(MP) 0.1µF/250V K or CT2E104DC011

# METALLIZED FILM CAP. 0.1µF/275V K CT2E104HJE06

C603 CERAMIC CAP.(AX) B K 470pF/50V CCA1JKT0B471

C605 CERAMIC CAP. F Z 0.01µF/500V or CCD2JZP0F103

CERAMIC CAP. 0.01µF/AC250V CCD2EZA0F103

C606 CERAMIC CAP. F Z 0.01µF/500V or CCD2JZP0F103

CERAMIC CAP. 0.01µF/AC250V CCD2EZA0F103

C609 CERAMIC CAP. B K 680pF/2KV or CCD3DKD0B681

CERAMIC CAP. B K 680pF/2KV CCD3DKP0B681

C610# ELECTROLYTIC CAP. 470µF/200V M or CE2DMZNTL471

# ELECTROLYTIC CAP. 470µF/200V M or CE2DMZNDL471

# ELECTROLYTIC CAP. 470µF/200V CA2D471NC013

C611 FILM CAP.(P) 0.068µF/50V J or CMA1JJS00683

FILM CAP.(P) 0.068µF/50V J or CA1J683MS029

FILM CAP.(P) 0.068µF/50V J TV or CMB1JJS00683

MYLAR CAP. 0.068µF/50V K 2250683S

C613 FILM CAP.(P) 0.056µF/50V J or CMA1JJS00563

FILM CAP.(P) 0.056µF/50V J or CA1J563MS029

FILM CAP.(P) 0.056µF/50V J TV or CMB1JJS00563

MYLAR CAP. 0.056µF/50V KT 2250563S

C615 CERAMIC CAP.(AX) B K 100pF/50V CCA1JKT0B101

C616 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J or CA1J104MS029

FILM CAP.(P) 0.1µF/50V J TV or CMB1JJS00104

MYLAR CAP. 0.1µF/50V K 2250104S

C618 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J or CA1J104MS029

FILM CAP.(P) 0.1µF/50V J TV or CMB1JJS00104

MYLAR CAP. 0.1µF/50V K 2250104S

C642# SAFETY CAP. 4700pF/250V or CCG2EMA0F472

# SAFETY CAP. E M 4700pF/250V KH or CCG2EMP0E472

# CERAMIC CAP. 0.0047µF F CS CCG2HMN0F472

C650 CERAMIC CAP. LB 560pF/2KV or CA3D561KG004

CERAMIC CAP. BN 560pF/2KV or CCD3DKA0B561

CERAMIC CAP. 560pF/2KV CA3D561PAN04

C654 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL010

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010

C656 ELECTROLYTIC CAP. 100µF/160V M W/F or CE2CMZNTL101

ELECTROLYTIC CAP. 100µF/160V M CE2CMZPDL101

Ref. No. Description Part No.

C657# ELECTROLYTIC CAP. 2200µF/35V M or CE1GMZNTL222

# ELECTROLYTIC CAP. 2200µF/35V M CE1GMZNDL222

C658# ELECTROLYTIC CAP. 1000µF/16V M(VR/HC) or CE1CMZNTL102

# ELECTROLYTIC CAP. 1000µF/16V M or CE1CMZNDL102

# ELECTROLYTIC CAP. 1000µF/16V M CE1CMZADL102

C661 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103

C662# ELECTROLYTIC CAP. 1000µF/25V M or CE1EMZNTL102

# ELECTROLYTIC CAP. 1000µF/25V M CE1EMZPDL102

C667 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL010

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010

C681 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C682 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C684 ELECTROLYTIC CAP. 470µF/10V M or CE1AMASTL471

ELECTROLYTIC CAP. 470µF/10V M CE1AMASDL471

C685 ELECTROLYTIC CAP. 1000µF/10V M or CE1AMASTL102

ELECTROLYTIC CAP. 1000µF/10V M CE1AMASDL102

C686 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C701 CERAMIC CAP.(AX) B K 100pF/50V CCA1JKT0B101

C702 PCB JUMPER D0.6-P5.0 JW5.0T

C705 CERAMIC CAP.(AX) X K 6800pF/16V CDA1CKT0X682

C706 ELECTROLYTIC CAP. 0.47µF/50V M or CE1JMASTLR47

ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47

C708 CERAMIC CAP.(AX) X K 6800pF/16V CDA1CKT0X682

C709 ELECTROLYTIC CAP. 0.47µF/50V M or CE1JMASTLR47

ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47

C713 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C718 CERAMIC CAP.(AX) B K 1000pF/50V CCA1JKT0B102

C721 CERAMIC CAP.(AX) B K 100pF/50V CCA1JKT0B101

C722 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C725 CERAMIC CAP.(AX) X K 6800pF/16V CDA1CKT0X682

C726 ELECTROLYTIC CAP. 0.47µF/50V M or CE1JMASTLR47

ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47

C728 CERAMIC CAP.(AX) X K 6800pF/16V CDA1CKT0X682

C729 ELECTROLYTIC CAP. 0.47µF/50V M or CE1JMASTLR47

ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47

C773 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C781 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C801 ELECTROLYTIC CAP. 470µF/25V M or CE1EMASTL471

ELECTROLYTIC CAP. 470µF/25V M CE1EMASDL471

C802 ELECTROLYTIC CAP. 470µF/25V M or CE1EMASTL471

ELECTROLYTIC CAP. 470µF/25V M CE1EMASDL471

C803 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J or CA1J104MS029

FILM CAP.(P) 0.1µF/50V J TV or CMB1JJS00104

MYLAR CAP. 0.1µF/50V K 2250104S

C804 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J or CA1J104MS029

FILM CAP.(P) 0.1µF/50V J TV or CMB1JJS00104

MYLAR CAP. 0.1µF/50V K 2250104S

C808 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL010

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

20030408 13-3 L6655EL

Page 47

Ref. No. Description Part No.

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010

C809 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL010

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010

C812 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C814 ELECTROLYTIC CAP. 22µF/50V M or CE1JMASTL220

ELECTROLYTIC CAP. 22µF/50V M CE1JMASDL220

C821 ELECTROLYTIC CAP. 1000µF/25V M or CE1EMZNTL102

ELECTROLYTIC CAP. 1000µF/25V M CE1EMZPDL102

C827 ELECTROLYTIC CAP. 100µF/16V M or CE1CMASTL101

ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101

C831 ELECTROLYTIC CAP. 100µF/25V M or CE1EMASTL101

ELECTROLYTIC CAP. 100µF/25V M CE1EMASDL101

C851 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C852 ELECTROLYTIC CAP. 470µF/16V M or CE1CMASTL471

ELECTROLYTIC CAP. 470µF/16V M CE1CMASDL471

C853 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103

C963 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C964# ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

# ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

CONNECTORS

CN301 CONNECTOR BASE, 6P TUC-P06P-B1 J3TUA06TG001

CN571# CONNECTOR BASE, 5P TV-50P-05-V3 or J3TVC05TG002

# CONNECTOR BASE, 5P RTB-1.5-5P or J3RTC05JG001

# CONNECTOR BASE, 5P W-P3005-02 1730812

CN691# CONNECTOR BASE, 2P TV-50P-02-V3 or J3TVC02TG002

# CONNECTOR BASE, 2P RTB-1.5-2P J3RTC02JG001

CN801 STRAIGHT CONNECTOR BASE 00 8283 0212 00

CN802 STRAIGHT CONNECTOR BASE 00 8283 0212 00

000 or

STRAIGHT PIN HEADER, 2P 173981-2 1770258

000 or

STRAIGHT PIN HEADER, 2P 173981-2 1770258

J383C02UG002

DIODES

D131 ZENER DIODE MTZJT-775.1B or QDTB0MTZJ5R1

ZENER DIODE DZ-5.1BSBT265 NDTB0DZ5R1BS

D171 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D322 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D323 ZENER DIODE MTZJT-779.1B or QDTB0MTZJ9R1

ZENER DIODE DZ-9.1BSBT265 NDTB0DZ9R1BS

D326 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D351 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D352 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D353 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D501 DIODE FR104-B or NDLZ000FR104

Ref. No. Description Part No.

RECTIFIER DIODE ERA22-02 or QDPZ0ERA2202

RECTIFIER DIODE 10ELS2 QDQZ0010ELS2

D502# ZENER DIODE MTZJT-7724B or QDTB00MTZJ24

# ZENER DIODE DZ-24BSBT265 NDTB00DZ24BS

D503# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

# SWITCHING DIODE 1N4148 or NDTZ001N4148

# DIODE 1SS176TPA7 1SS176T

D545 ZENER DIODE MTZJT-776.8B or QDTB0MTZJ6R8

ZENER DIODE DZ-6.8BSBT265 NDTB0DZ6R8BS

D546 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D547 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D552# ZENER DIODE MTZJT-773.0B or QDTB0MTZJ3R0

# ZENER DIODE DZ-3.0BSBT265 NDTB0DZ3R0BS

D558 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D572 RECTIFIER DIODE ERA22-02 or QDPZ0ERA2202

RECTIFIER DIODE 10ELS2 QDQZ0010ELS2

D573 RECTIFIER DIODE ERA22-02 or QDPZ0ERA2202

RECTIFIER DIODE 10ELS2 QDQZ0010ELS2

D580# DIODE ERD07-15 QDLZ0ERD0715

D582 FAST RECOVERY DIODE ERD38-06 QDQZ0ERD3806

D583 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D584# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

# SWITCHING DIODE 1N4148 or NDTZ001N4148

# DIODE 1SS176TPA7 1SS176T

D585 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D591# ZENER DIODE MTZJT-7736B or QDTB00MTZJ36

# ZENER DIODE DZ-36BSBT265 NDTB00DZ36BS

D594# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

# SWITCHING DIODE 1N4148 or NDTZ001N4148

# DIODE 1SS176TPA7 1SS176T

D597 ZENER DIODE MTZJT-776.8B or QDTB0MTZJ6R8

ZENER DIODE DZ-6.8BSBT265 NDTB0DZ6R8BS

D605# DIODE 1N5406 NDLZ001N5406

D606# DIODE 1N5406 NDLZ001N5406

D607# DIODE 1N5406 NDLZ001N5406

D608# DIODE 1N5406 NDLZ001N5406

D609 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D611# ZENER DIODE MTZJT-7720B or QDTB00MTZJ20

# ZENER DIODE DZ-20BSBT265 NDTB00DZ20BS

D613 ZENER DIODE MTZJT-778.2B or QDTB0MTZJ8R2

ZENER DIODE DZ-8.2BSBT265 NDTB0DZ8R2BS

D614 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D615 SWITCHING DIODE 1N4148 T-77 QDTZ001N4148

D621 BEAD INDUCTORS FBA04HA600VB-00 LLBF00STU026

D651# FAST RECOVERY DIODE 30DF6 or QDWZ00030DF6

# DIODE ERD29-06J or QD4Z0ERD2906

# FAST RECOVERY DIODE FE201-6 QDLZ00FE2016

20030408 13-4 L6655EL

Page 48

Ref. No. Description Part No.

D652# DIODE FR154 or NDLZ000FR154

# FAST RECOVERY DIODE ERB44-02 QDPZ0ERB4402

D653# DIODE FR154 or NDLZ000FR154

# FAST RECOVERY DIODE ERB44-02 QDPZ0ERB4402

D654# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

# SWITCHING DIODE 1N4148 or NDTZ001N4148

# DIODE 1SS176TPA7 1SS176T

D655 ZENER DIODE 1ZB180 QDQZ001ZB180

D656# ZENER DIODE MTZJT-776.8B or QDTB0MTZJ6R8

# ZENER DIODE DZ-6.8BSBT265 NDTB0DZ6R8BS

D657# DIODE FR154 or NDLZ000FR154

# FAST RECOVERY DIODE ERB44-02 QDPZ0ERB4402

D658# DIODE 1ZC18 or QDQZ0001ZC18

# ZENER DIODE RD18F QDQZ000RD18F

D660 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D661 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D666 ZENER DIODE MTZJT-7736B or QDTB00MTZJ36

ZENER DIODE DZ-36BSBT265 NDTB00DZ36BS

D671# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

# SWITCHING DIODE 1N4148 or NDTZ001N4148

# DIODE 1SS176TPA7 1SS176T

D672 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D673 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D675# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

# SWITCHING DIODE 1N4148 or NDTZ001N4148

# DIODE 1SS176TPA7 1SS176T

D692# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

# SWITCHING DIODE 1N4148 or NDTZ001N4148

# DIODE 1SS176TPA7 1SS176T

D694# ZENER DIODE MTZJT-7715B or QDTB00MTZJ15

# ZENER DIODE DZ-15BSBT265 NDTB00DZ15BS

D696 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D697# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

# SWITCHING DIODE 1N4148 or NDTZ001N4148

# DIODE 1SS176TPA7 1SS176T

D698# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

# SWITCHING DIODE 1N4148 or NDTZ001N4148

# DIODE 1SS176TPA7 1SS176T

D826 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D827 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D841# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

# SWITCHING DIODE 1N4148 or NDTZ001N4148

# DIODE 1SS176TPA7 1SS176T

D842# ZENER DIODE MTZJT-776.2B or QDTB0MTZJ6R2

# ZENER DIODE DZ-6.2BSBT265 NDTB0DZ6R2BS

D851# ZENER DIODE MTZJT-7712B or QDTB00MTZJ12

# ZENER DIODE DZ-12BSBT265 NDTB00DZ12BS

Ref. No. Description Part No.

D853 ZENER DIODE MTZJT-779.1B or QDTB0MTZJ9R1

ZENER DIODE DZ-9.1BSBT265 NDTB0DZ9R1BS

D854 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D855# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

# SWITCHING DIODE 1N4148 or NDTZ001N4148

# DIODE 1SS176TPA7 1SS176T

D896 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

D963 ZENER DIODE MTZJT-775.6B or QDTB0MTZJ5R6

ZENER DIODE DZ-5.6BSBT265 NDTB0DZ5R6BS

D966 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

ICS

IC33 IC:VIF/SIF DETECTOR M61111FP QSZBA0SMB010

IC151 IC:MEMORY AT24C02N-10SC or NSMMA0SAZ012

IC(EEPROM) M24C02-MN6 or NSMMA0SSS028

IC:MEMORY BR24C02F-W or QSMBA0SRM003

IC:MEMORY BR24C02F or QSMMA0SRM003

IC:MEMORY S524C20D21 or NSZBA0SSM028

IC(EEP-ROM) M24C02-WMN6 NSZAA0SSS004

IC333 IC M61272M8-054FP QSZAA0RMB130

IC431 IC:MTS DECORDER AN5832SA QSZBA0TMS003

IC551# IC:VERTICAL OUTPUT LA78041 QSZBA0SSY006

IC601# PHOTOCOUPLER LTV-817B-F or NPEB0LTV817F

# PHOTOCOUPLER LTV-817C-F NPEC0LTV817F

IC771 IC:SWITCHING TC4052BF(EL) or QSZBA0TTS096

IC:SWITCHING CD4052BCSJX NSZBA0TF3079

IC801 AUDIO POWER IC AN17805A QSZBA0SMS007

COILS

L1 PCB JUMPER D0.6-P5.0 JW5.0T

L2 INDUCTOR 22µH-K-5FT or LLARKBSTU220

INDUCTOR 22µH-K LLARKDQKA220

L32 INDUCTOR 15µH-J-26T or LLAXJATTU150

INDUCTOR 15µH-K-26T LLAXKDTKA150

L33 INDUCTOR 22µH-J-26T or LLAXJATTU220

INDUCTOR 22µH-K-26T LLAXKDTKA220

L34 PCB JUMPER D0.6-P5.0 JW5.0T

L51 INDUCTOR 100µH-J-5FT or LLARJCSTU101

INDUCTOR 100µH-K LLARKDQKA101

L111 INDUCTOR 22µH-K-5FT or LLARKBSTU220

INDUCTOR 22µH-K LLARKDQKA220

L112 INDUCTOR 22µH-K-5FT or LLARKBSTU220

INDUCTOR 22µH-K LLARKDQKA220

L301 INDUCTOR 100µH-J-5FT or LLARJCSTU101

INDUCTOR 100µH-K LLARKDQKA101

L341 PCB JUMPER D0.6-P5.0 JW5.0T

L342 PCB JUMPER D0.6-P5.0 JW5.0T

L551# LINEARITY COIL ELH5L6136N LLBD00PMS008

L562# CHOKE COIL ELC18B681LK or LLC681KMS001

# CHOKE COIL CSA-LF057 LLBD00ZSA001

L588 CHOKE COIL 47µH-K or LLBD00PKV007

POT COIL 47µH K LLBD**DMM001

L601# LINE FILTER MS036 or LLBG00ZY2009

# LINE FILTER JLB2808 LLBG00ZXB004

TRANSISTORS

Q21 TRANSISTOR 2SA1175(F) or QQSF02SA1175

20030408 13-5 L6655EL

Page 49

Ref. No. Description Part No.

TRANSISTOR KTA1267(GR) or NQS10KTA1267

TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1318(T)-AANP or 2SA1318TZ

TRANSISTOR 2SA1318(U)-AANP or 2SA1318UZ

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

Q33 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q111# TRANSISTOR 2SC2785(F) or QQSF02SC2785

# TRANSISTOR 2SC2785(H) or QQSH02SC2785

# TRANSISTOR 2SC2785(J) or QQSJ02SC2785

# TRANSISTOR KTC3199(GR) or NQS10KTC3199

# TRANSISTOR KTC3198(GR) or NQS40KTC3198

# TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

# TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

# TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q131 RES. BUILT-IN TRANSISTOR BA1F4M-T or QQSZ00BA1F4M

RES. BUILT-IN TRANSISTOR KRC103M NQSZ0KRC103M

Q141 RES. BUILT-IN TRANSISTOR BA1F4M-T or QQSZ00BA1F4M

RES. BUILT-IN TRANSISTOR KRC103M NQSZ0KRC103M

Q191 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q321 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q531 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q533 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q547 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

Ref. No. Description Part No.

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q551# TRANSISTOR 2SA1175(F) or QQSF02SA1175

# TRANSISTOR KTA1267(GR) or NQS10KTA1267

# TRANSISTOR KTA1266(GR) or NQS40KTA1266

# TRANSISTOR 2SA1318(T)-AANP or 2SA1318TZ

# TRANSISTOR 2SA1318(U)-AANP or 2SA1318UZ

# TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

Q552# TRANSISTOR KTD2059(O) or NQ400KTD2059

# TRANSISTOR KTD2059(Y) or NQ4Y0KTD2059

# TRANSISTOR 2SD1666S QQES02SD1666

Q561 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q571# TRANSISTOR 2SD2553 or QQWZ02SD2553

# TRANSISTOR 2SC5902 QQWZ02SC5902

Q572# TRANSISTOR 2SC1627Y-TPE2 QQSY02SC1627

Q601# FET 2SK3407 QFFZ02SK3407

Q602# TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

# TRANSISTOR 2SC2120-Y(TPE2) QQSY02SC2120

Q652# TRANSISTOR 2SC2785(F) or QQSF02SC2785

# TRANSISTOR 2SC2785(H) or QQSH02SC2785

# TRANSISTOR 2SC2785(J) or QQSJ02SC2785

# TRANSISTOR KTC3199(GR) or NQS10KTC3199

# TRANSISTOR KTC3198(GR) or NQS40KTC3198

# TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

# TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

# TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q672# TRANSISTOR 2SA950(O) Q2SA9500TPE2

Q673 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q674 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q681 TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120

TRANSISTOR KTC3203(Y) NQSY0KTC3203

Q682 TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120

TRANSISTOR KTC3203(Y) NQSY0KTC3203

Q683 TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120

TRANSISTOR KTC3203(Y) NQSY0KTC3203

20030408 13-6 L6655EL

Page 50

Ref. No. Description Part No.

Q696 RES. BUILT-IN TRANSISTOR BA1F4M-T or QQSZ00BA1F4M

RES. BUILT-IN TRANSISTOR KRC103M NQSZ0KRC103M

Q825 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q831# TRANSISTOR 2SB892(S) or QQSS002SB892

# TRANSISTOR 2SB892(T) QQST002SB892

Q832 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q841 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q851# TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

# TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120

# TRANSISTOR KTC3203(Y) NQSY0KTC3203

Q951 TRANSISTOR 2SA1175(F) or QQSF02SA1175

TRANSISTOR KTA1267(GR) or NQS10KTA1267

TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1318(T)-AANP or 2SA1318TZ

TRANSISTOR 2SA1318(U)-AANP or 2SA1318UZ

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

Q956 TRANSISTOR 2SA1175(F) or QQSF02SA1175

TRANSISTOR KTA1267(GR) or NQS10KTA1267

TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1318(T)-AANP or 2SA1318TZ

TRANSISTOR 2SA1318(U)-AANP or 2SA1318UZ

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

Q961# TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

# TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120

# TRANSISTOR KTC3203(Y) NQSY0KTC3203

RESISTORS

R23 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102

R31 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223

R33 CARBON RES. 1/4W J 270 Ω or RCX4JATZ0271

CARBON RES. 1/6W J 270 Ω RCX6JATZ0271

R34 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221

R36 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

R37 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221

R38 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332

R39 CARBON RES. 1/4W J 27k Ω RCX4JATZ0273

R40 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104

Ref. No. Description Part No.

R43 CARBON RES. 1/4W J 12k Ω RCX4JATZ0123

R44 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R51 CARBON RES. 1/4W J 220k Ω RCX4JATZ0224

R52 CARBON RES. 1/4W J 220k Ω RCX4JATZ0224

R54 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223

R102 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152

R103 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222

R104 CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272

R105 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472

R108 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

R109 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

R111 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R112 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

R113 CARBON RES. 1/4W J 470k Ω RCX4JATZ0474

R114 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102

R116 PCB JUMPER D0.6-P5.0 JW5.0T

R132 PCB JUMPER D0.6-P5.0 JW5.0T

R133 PCB JUMPER D0.6-P5.0 JW5.0T

R135 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222

R136 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104

R137 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R138 CARBON RES. 1/4W J 220k Ω RCX4JATZ0224

R139 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223

R140 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102

R141 PCB JUMPER D0.6-P5.0 JW5.0T

R142 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471

R150 PCB JUMPER D0.6-P5.0 JW5.0T

R153 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R154 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R156 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R157 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R158 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102

R159 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R161 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471

R163 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471

R164 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

R165 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472

R166 CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682

R167 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223

R168 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472

R170 CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0562

R171 CARBON RES. 1/4W J 3.9k Ω RCX4JATZ0392

R172 PCB JUMPER D0.6-P5.0 JW5.0T

R173 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223

R174 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

R176 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

20030408 13-7 L6655EL

Page 51

Ref. No. Description Part No.

R177 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R178 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471

R193 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223

R195 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222

R196 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R198 PCB JUMPER D0.6-P5.0 JW5.0T

R301 CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682

R302 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R303 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471

R305 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471

R320 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

R323 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222

R326 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R327 PCB JUMPER D0.6-P5.0 JW5.0T

R328 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332

R329 CARBON RES. 1/4W J 56k Ω RCX4JATZ0563

R330 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102

R333 CARBON RES. 1/4W J 330 Ω or RCX4JATZ0331

CARBON RES. 1/6W J 330 Ω RCX6JATZ0331

R342 PCB JUMPER D0.6-P5.0 JW5.0T

R344 CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682

R345 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152

R346 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102

R347 PCB JUMPER D0.6-P5.0 JW5.0T

R348 CARBON RES. 1/4W J 27k Ω RCX4JATZ0273

R355 CARBON RES. 1/4W J 15k Ω RCX4JATZ0153

R356 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R357 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R358 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R362 PCB JUMPER D0.6-P5.0 JW5.0T

R417 CARBON RES. 1/4W J 180k Ω RCX4JATZ0184

R422 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222

R427 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222

R445 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332

R503 CARBON RES. 1/4W J 68k Ω RCX4JATZ0683

R504 CARBON RES. 1/4W J 3.3 Ω or RCX4JATZ03R3

CARBON RES. 1/6W J 3.3 Ω RCX6JATZ03R3

R505 CARBON RES. 1/4W J 1.8k Ω RCX4JATZ0182

R506 CARBON RES. 1/4W J 2.7 Ω or RCX4JATZ02R7

CARBON RES. 1/6W J 2.7 Ω RCX6JATZ02R7

R507 CARBON RES. 1/4W J 2.7 Ω or RCX4JATZ02R7

CARBON RES. 1/6W J 2.7 Ω RCX6JATZ02R7

R508 CARBON RES. 1/4W J 2.7 Ω or RCX4JATZ02R7

CARBON RES. 1/6W J 2.7 Ω RCX6JATZ02R7

R513# METAL OXIDE FILM RES. 2W J 4.7 Ω or RN024R7ZU001

# METAL OXIDE FILM RES. 2W J 4.7 Ω RN024R7DP004

R514 CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272

R516 CARBON RES. 1/4W J 680 Ω or RCX4JATZ0681

CARBON RES. 1/6W J 680 Ω RCX6JATZ0681

Ref. No. Description Part No.

R520# CARBON RES. 1/4W J 22k Ω RCX4JATZ0223

R522 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223

R531 CARBON RES. 1/4W J 1.8k Ω RCX4JATZ0182

R532 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223

R533 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223

R534 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223

R535 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471

R541 CARBON RES. 1/4W J 680 Ω or RCX4JATZ0681

CARBON RES. 1/6W J 680 Ω RCX6JATZ0681

R542 CARBON RES. 1/4W J 680 Ω or RCX4JATZ0681

CARBON RES. 1/6W J 680 Ω RCX6JATZ0681

R543 CARBON RES. 1/4W J 680 Ω or RCX4JATZ0681

CARBON RES. 1/6W J 680 Ω RCX6JATZ0681

R545 CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682

R546 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222

R547 CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272

R548 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

R549 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152

R551# METAL OXIDE FILM RES. 1W J 1k Ω or RN01102ZU001

# METAL OXIDE FILM RES. 1W J 1k Ω RN01102DP003

R552# METAL OXIDE FILM RES. 1W J 8.2 Ω or RN018R2ZU001

# METAL OXIDE FILM RES. 1W J 8.2 Ω RN018R2DP003

R553 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222

R554 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332

R555 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152

R556 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104

R557 CARBON RES. 1/4W J 18k Ω RCX4JATZ0183

R558 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221

R559 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473

R560 CARBON RES. 1/4W J 150k Ω RCX4JATZ0154

R561 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122

R562 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104

R563 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

R564 CARBON RES. 1/4W J 270k Ω RCX4JATZ0274

R565 CARBON RES. 1/4W J 33k Ω RCX4JATZ0333

R566 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

R567 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473

R568 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102

R569 CARBON RES. 1/4W J 560k Ω RCX4JATZ0564

R575# CARBON RES. 1/4W J 15 Ω or RCX4JATZ0150

# CARBON RES. 1/6W J 15 Ω RCX6JATZ0150

R576 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102

R577 CARBON RES. 1/4W J 330 Ω or RCX4JATZ0331

CARBON RES. 1/6W J 330 Ω RCX6JATZ0331

R578 CARBON RES. 1/4W J 15 Ω or RCX4JATZ0150

CARBON RES. 1/6W J 15 Ω RCX6JATZ0150

R579 CARBON RES. 1/4W J 15 Ω or RCX4JATZ0150

CARBON RES. 1/6W J 15 Ω RCX6JATZ0150

R581 PCB JUMPER D0.6-P5.0 JW5.0T

R583# METAL OXIDE FILM RES. 2W J 1.5 Ω or RN021R5ZU001

# METAL OXIDE FILM RES. 2W J 1.5 Ω RN021R5DP004

R584# PCB JUMPER D0.6-P5.0 JW5.0T

R585# CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

R588 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473

R589# CARBON RES. 1/4W J 47k Ω RCX4JATZ0473

R590 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223

R591# CARBON RES. 1/4W J 180k Ω RCX4JATZ0184

20030408 13-8 L6655EL

Page 52

Ref. No. Description Part No.

R592# CARBON RES. 1/4W J 220k Ω RCX4JATZ0224

R593# CARBON RES. 1/4W J 68k Ω RCX4JATZ0683

R594# CARBON RES. 1/4W J 100k Ω RCX4JATZ0104

R596 PCB JUMPER D0.6-P5.0 JW5.0T

R597 CARBON RES. 1/4W J 8.2k Ω RCX4JATZ0822

R598# CARBON RES. 1/4W J 33k Ω RCX4JATZ0333

R599# CARBON RES. 1/4W J 15k Ω RCX4JATZ0153

R601# CEMENT RES. 7W K 0.56 Ω or RW07R56DP007

# CEMENT RESISTOR 7W K 0.56 Ω H=10MM RW07R56PG001

R602 CARBON RES. 1/4W J 820k Ω RCX4JATZ0824

R603 CARBON RES. 1/4W J 820k Ω RCX4JATZ0824

R604 CARBON RES. 1/4W J 820k Ω RCX4JATZ0824

R605 CARBON RES. 1/4W J 820k Ω RCX4JATZ0824

R607 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221

R608 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221

R609 CARBON RES. 1/4W J 820k Ω RCX4JATZ0824

R613# CEMENT RES. 5W K 0.27 Ω or RW05R27DP005

# CEMENT RESISTOR 5W K 0.27 Ω RW05R27PG001

R616 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

R618 CARBON RES. 1/4W J 390 Ω or RCX4JATZ0391

CARBON RES. 1/6W J 390 Ω RCX6JATZ0391

R620# CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

# CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R621 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152

R622 CARBON RES. 1/4W J 47 Ω or RCX4JATZ0470

CARBON RES. 1/6W J 47 Ω RCX6JATZ0470

R623 CARBON RES. 1/4W J 39 Ω or RCX4JATZ0390

CARBON RES. 1/6W J 39 Ω RCX6JATZ0390

R651# METAL OXIDE FILM RES. 2W J 15k Ω or RN02153ZU001

# METAL OXIDE FILM RES. 2W J 15k Ω RN02153DP004

R652 CARBON RES. 1/4W J 15k Ω RCX4JATZ0153

R653 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223

R654# CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272

R655 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102

R656# CARBON RES. 1/4W J 15k Ω RCX4JATZ0153

R657 CARBON RES. 1/4W J 15k Ω RCX4JATZ0153

R658 CARBON RES. 1/4W J 470k Ω RCX4JATZ0474

R660 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102

R661# CARBON RES. 1/4W J 100k Ω RCX4JATZ0104

R662# CARBON RES. 1/4W J 82k Ω RCX4JATZ0823

R663# PCB JUMPER D0.6-P5.0 JW5.0T

R664# CARBON RES. 1/4W J 12k Ω RCX4JATZ0123

R665# CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0562

R666# METAL OXIDE FILM RES. 1W J 100k Ω or RN01104ZU001

# METAL OXIDE FILM RES. 1W J 100k Ω RN01104DP003

R667# CARBON RES. 1/4W J 33k Ω RCX4JATZ0333

R668# CARBON RES. 1/4W J 33k Ω RCX4JATZ0333

R669# CARBON RES. 1/4W J 33k Ω RCX4JATZ0333

R670# CARBON RES. 1/4W J 100k Ω RCX4JATZ0104

R671# CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332

R672# CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332

R673# CARBON RES. 1/4W J 100k Ω RCX4JATZ0104

R674 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223

R676 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

R677 CARBON RES. 1/4W J 15k Ω RCX4JATZ0153

R678 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473

R679# CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332

Ref. No. Description Part No.

R680 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

R681# CARBON RES. 1/4W J 12 Ω or RCX4JATZ0120

# CARBON RES. 1/6W J 12 Ω RCX6JATZ0120

R682# METAL OXIDE FILM RES. 2W J 33 Ω or RN02330ZU001

# METAL OXIDE FILM RES. 2W J 33 Ω RN02330DP004

R683# METAL RESISTOR 2W J 39 Ω or RN02390ZU001

# METAL OXIDE FILM RES. 2W J 39 Ω RN02390DP004

R686 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R687 CARBON RES. 1/4W J 10 Ω or RCX4JATZ0100

CARBON RES. 1/6W J 10 Ω RCX6JATZ0100

R694# CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472

R696# CARBON RES. 1/4W J 10 Ω or RCX4JATZ0100

# CARBON RES. 1/6W J 10 Ω RCX6JATZ0100

R697 PCB JUMPER D0.6-P5.0 JW5.0T

R701 CARBON RES. 1/4W J 82 Ω or RCX4JATZ0820

CARBON RES. 1/6W J 82 Ω RCX6JATZ0820

R702 CARBON RES. 1/4W J 82 Ω or RCX4JATZ0820

CARBON RES. 1/6W J 82 Ω RCX6JATZ0820

R704 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473

R705 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222

R706 CARBON RES. 1/4W J 33k Ω RCX4JATZ0333

R707 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473

R708 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222

R709 CARBON RES. 1/4W J 33k Ω RCX4JATZ0333

R711 CARBON RES. 1/4W J 82 Ω or RCX4JATZ0820

CARBON RES. 1/6W J 82 Ω RCX6JATZ0820

R713 CARBON RES. 1/4W J 330 Ω or RCX4JATZ0331

CARBON RES. 1/6W J 330 Ω RCX6JATZ0331

R716 CARBON RES. 1/4W J 82 Ω or RCX4JATZ0820

CARBON RES. 1/6W J 82 Ω RCX6JATZ0820

R718 CARBON RES. 1/4W J 330 Ω or RCX4JATZ0331

CARBON RES. 1/6W J 330 Ω RCX6JATZ0331

R721 CARBON RES. 1/4W J 82 Ω or RCX4JATZ0820

CARBON RES. 1/6W J 82 Ω RCX6JATZ0820

R722 CARBON RES. 1/4W J 82 Ω or RCX4JATZ0820

CARBON RES. 1/6W J 82 Ω RCX6JATZ0820

R724 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473

R725 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222

R726 CARBON RES. 1/4W J 33k Ω RCX4JATZ0333

R727 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473

R728 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222

R729 CARBON RES. 1/4W J 33k Ω RCX4JATZ0333

R751 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223

R752 CARBON RES. 1/4W J 27k Ω RCX4JATZ0273

R761 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223

R762 CARBON RES. 1/4W J 27k Ω RCX4JATZ0273

R771 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472

R772 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

R803 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R804 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R811 CARBON RES. 1/4W J 18k Ω RCX4JATZ0183

R812 CARBON RES. 1/4W J 18k Ω RCX4JATZ0183

R817 CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0562

R818 CARBON RES. 1/4W J 33k Ω RCX4JATZ0333

R827 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102

R828 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

R829 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

20030408 13-9 L6655EL

Page 53

Ref. No. Description Part No.

R831 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471

R832 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223

R833 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471

R834 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472

R841 METAL OXIDE FILM RES. 2W J 0.47 Ω or RN02R47ZU001

METAL OXIDE FILM RES. 2W J 0.47 Ω RN02R47DP004

R842 CARBON RES. 1/4W J 560 Ω or RCX4JATZ0561

CARBON RES. 1/6W J 560 Ω RCX6JATZ0561

R843 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222

R844 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R845 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223

R851# CARBON RES. 1/4W J 330 Ω or RCX4JATZ0331

# CARBON RES. 1/6W J 330 Ω RCX6JATZ0331

R855# CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222

R856# CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222

R951 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221

R952 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

R953 CARBON RES. 1/4W J 47 Ω or RCX4JATZ0470

CARBON RES. 1/6W J 47 Ω RCX6JATZ0470

R954 CARBON RES. 1/4W J 75 Ω or RCX4JATZ0750

CARBON RES. 1/6W J 75 Ω RCX6JATZ0750

R956 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221

R957 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

R959 CARBON RES. 1/4W J 75 Ω or RCX4JATZ0750

CARBON RES. 1/6W J 75 Ω RCX6JATZ0750

R961 PCB JUMPER D0.6-P5.0 JW5.0T

R962 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471

R966# CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222

R967# CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

SWITCHES

SW101 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKHHAM SST0101AL029

SW102 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKHHAM SST0101AL029

SW103 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKHHAM SST0101AL029

SW104 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKHHAM SST0101AL029

SW105 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKHHAM SST0101AL029

SW106 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKHHAM SST0101AL029

MISCELLANEOUS

AC601# AC CORD LA-2413 WAC0172LW007

B-6 HEAT SINK(PGM)ASSEMBLY L6250UA 0EM407156

B-7 HEAT SINK(PFN)ASSEMBLY L1520UZ 0EM406353

B-8 HEAT SINK(PGN)ASSEMBLY L6250UA 0EM407158

B-9 HEAT SINK(PGO) L6250UA 0EM407159

Ref. No. Description Part No.

BC571 BEAD INDUCTORS FBA04HA600VB-00 LLBF00STU026

BC572 PCB JUMPER D0.6-P5.0 JW5.0T

BC602 PCB JUMPER D0.6-P5.0 JW5.0T

BC603 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021

BC652 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021

BC653 PCB JUMPER D0.6-P5.0 JW5.0T

BC654 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021

BC655 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021

BC656 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021

BC657 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021

BC691 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021

BC692 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021

CF31 CERAMIC TRAP 4.5MHz or FBE455PMR003

CERAMIC TRAP 4.5MHz FBE455PMS001

CF32 CERAMIC FILTER SFSRA4M50CF00-B0 or FBB455PMR004

CERAMIC FILTER 4.5MHz FBB455PMS001

CLN1 LEAD WIRE UL1007 AWG22 BLACK 140MM WX3001A2FF14

CLN301 WIRE ASSEMBLY WX1L1520-103 WX1L1520-103

CLN501 WIRE ASSEMBLY WX1L1520-101 WX1L1520-101

F601# FUSE 4A/125V 237 TYPE or PAGJ20CAG402

# FUSE TDS4A125VU/C or PAGD20CW3402

# FUSE STC4A125V U/CT or PAGE20CW3402

# FUSE 4.00A/125V PAGG20CNG402

FH601 FUSE HOLDER MSF-015 or XH01Z00LY001

FUSE HOLDER FH-V-03078 or XH01Z00DK001

HOLDER, FUSE CNT41-0014 1790424

FH602 FUSE HOLDER MSF-015 or XH01Z00LY001

FUSE HOLDER FH-V-03078 or XH01Z00DK001

HOLDER, FUSE CNT41-0014 1790424

GP641# GAP. FNR-G3.10D FAZ000LD6005

JK701 RCA JACK(YELLOW) MSP-281V4-B JXRL010LY003

JK702 RCA JACK(WHITE) MSP-281V1-B JXRL010LY005

JK703 RCA JACK(RED) MSP-281V3-A JYRL010LY002

JK711 Y/C JACK 1P(SW) MDC-070V1-A JYEL040LY002

JK721 RCA JACK(YELLOW) MTJ-032-06B-20 or JXRL010LY050

RCA JACK 1P AV-8.4-9Y JXRL010RP010

JK722 RCA JACK(WHITE) MTJ-032-06B-22 or JXRL010LY052

RCA JACK 1P AV-8.4-9W JXRL010RP011

JK723 RCA JACK(RED) MTJ-032-06A-21 or JYRL010LY014

RCA JACK 1P(RED)WITH SW ITCH AV1-09S-2 JYRL010RP008

JS102 PCB JUMPER D0.6-P5.0 JW5.0T

JS104 PCB JUMPER D0.6-P5.0 JW5.0T

JS106 PCB JUMPER D0.6-P5.0 JW5.0T

JS171 PCB JUMPER D0.6-P15.0 JW15.0T

JS191 PCB JUMPER D0.6-P5.0 JW5.0T

JS301 PCB JUMPER D0.6-P5.0 JW5.0T

JS570 PCB JUMPER D0.6-P5.0 JW5.0T

JS642 PCB JUMPER D0.6-P10.0 JW10.0T

JS801 PCB JUMPER D0.6-P5.0 JW5.0T

JS802 PCB JUMPER D0.6-P10.0 JW10.0T

JS821 PCB JUMPER D0.6-P5.0 JW5.0T

JS822 PCB JUMPER D0.6-P7.5 JW7.5T

L-1 SCREW, B-TIGHT M3X8 BIND HEAD+ GBMB3080

PB6 CLOTH(65) L7735TR:65X10X0.5T 0EM402149

PS691# THERMISTOR ZPB58BL7R0F QNQZ58BL7R0F

RCV101 REMOCON RECEIVE UNIT MIM-93M8DKL or USESJRSUNT02

REMOCON RECEIVE UNIT PIC-37042SR or USESJRSKK034

REMOCON RECEIVE UNIT PIC-26042SR-2 USESJRSKK032

RL601 POWER RELAY SDT-S-112LMR MRNDC12QN014

RL601# POWER RELAY RPEF-12-901 or MRNDC12KB002

# RELAY DG12D1-O(M)-II or MRNDC12DEC02

20030408 13-10 L6655EL

Page 54

Ref. No. Description Part No.

# RELAY ALKS321 MRNDC12MS013

SA601# SURGE ABSORBER AVR-S07D471KAAS or QVQZ0AVRS07D

# SURGE ABSORBER JVR-07N471K or NVQZVR07N471

# SURGE ABSORBER CNR-10D471K or NVQZR10D471K

# SURGE ABSORBER CNR-07D471K or NVQZR07D471K

# SURGE ABSORBER PVR-07D471KB NVQZ07D471KB

SF1 SAW FILTER SAFGM45M7VHHZC0B03 FBB456PMR008

T571# FLYBACK TRANS BSC28-0731 or LTF00CPP1019

# FLYBACK TRANSFORMER JF0501-2189 LTF00CPXB038

T572 HORIZONTAL DRAIVE TRANS Y2004 or LTH00CPY2004

HORIZONTAL DRAIVE TRANS CSA-LF044 LTH00CPSA002

T601# SWITCHING TRANS KD-02707 LTT00CPKT095

TH556 PCB JUMPER D0.6-P5.0 JW5.0T

TP300 PCB JUMPER D0.6-P10.0 JW10.0T

TP301 PCB JUMPER D0.6-P7.5 JW7.5T

TP302 PCB JUMPER D0.6-P7.5 JW7.5T

TP500 PCB JUMPER D0.6-P7.5 JW7.5T

TP501 PCB JUMPER D0.6-P7.5 JW7.5T

TP591 PCB JUMPER D0.6-P5.0 JW5.0T

TP592 PCB JUMPER D0.6-P5.0 JW5.0T

TP601 PCB JUMPER D0.6-P7.5 JW7.5T

TU1 TUNER UNIT TEQH9-001A UTUNNTUAL032

VR561 CARBON P.O.T. 20k Ω B or VRCB203KA011

CARBON P.O.T. 20k Ω B VRCB203HH014

VR562 CARBON P.O.T. 5k Ω B or VRCB502KA011

CARBON P.O.T. 5k Ω B VRCB502HH014

VR661# CARBON P.O.T. 50k Ω B or VRCB503KA011

# CARBON P.O.T. 50k Ω B VRCB503HH014

X301 X'TAL 3.579545 MHz FXD355LLN003

CRT CBA

Ref. No. Description Part No.

CRT CBA

Consists of the following

CAPACITORS

C1501 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C1502 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C1510 CERAMIC CAP. B K 2200pF/2KV or CCD3DKD0B222

CERAMIC CAP. B K 2200pF/2KV or CCD3DKP0B222

CERAMIC CAP. B K 2200pF/2KV CA3D222MR030

C1511 CERAMIC CAP.(AX) B K 470pF/50V CCA1JKT0B471

C1512 CERAMIC CAP.(AX) B K 0.01µF/50V CA1J103TU011

C1521 CERAMIC CAP.(AX) B K 220pF/50V CCA1JKT0B221

C1522 CERAMIC CAP.(AX) B K 0.01µF/50V CA1J103TU011

C1531 CERAMIC CAP.(AX) B K 470pF/50V CCA1JKT0B471

C1532 CERAMIC CAP.(AX) B K 0.01µF/50V CA1J103TU011

CONNECTOR

CN1501 PIN CONNECTOR 005P-5100 JTEA001TG001

DIODES

D1501 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

COILS

L1501# INDUCTOR 180µH-J-5FT or LLARJCSTU181

# INDUCTOR 180µH-K-5FT LLARKDSKA181

L1511 PCB JUMPER D0.6-P5.0 JW5.0T

L1521 PCB JUMPER D0.6-P5.0 JW5.0T

------------

Ref. No. Description Part No.

L1531 PCB JUMPER D0.6-P5.0 JW5.0T

TRANSISTORS

Q1511 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q1512 TRANSISTOR 2SC5360 or QQ9Z02SC5360

TRANSISTOR 2SC4544 or QQ9Z02SC4544

TRANSISTOR KTC3229 NQ5Z0KTC3229

Q1521 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q1522 TRANSISTOR 2SC5360 or QQ9Z02SC5360

TRANSISTOR 2SC4544 or QQ9Z02SC4544

TRANSISTOR KTC3229 NQ5Z0KTC3229

Q1531 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q1532 TRANSISTOR 2SC5360 or QQ9Z02SC5360

TRANSISTOR 2SC4544 or QQ9Z02SC4544

TRANSISTOR KTC3229 NQ5Z0KTC3229

RESISTORS

R1501 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R1502 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R1503 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R1509 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R1510# METAL RESISTOR 3W J 10k Ω or RN03103ZU001

# FIXED METAL OXIDE FILM RES. 3W J 10k Ω RN03103DP005

R1511 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152

R1512 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152

R1514 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R1515 CARBON RES. 1/4W J 820 Ω or RCX4JATZ0821

CARBON RES. 1/6W J 820 Ω RCX6JATZ0821

R1518 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221

R1519 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R1520# METAL RESISTOR 3W J 10k Ω or RN03103ZU001

# FIXED METAL OXIDE FILM RES. 3W J 10k Ω RN03103DP005

R1521 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152

R1522 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152

20030408 13-11 L6655EL

Page 55

Ref. No. Description Part No.

R1524 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R1525 CARBON RES. 1/4W J 820 Ω or RCX4JATZ0821

CARBON RES. 1/6W J 820 Ω RCX6JATZ0821

R1528 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221

R1529 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R1530# METAL RESISTOR 3W J 10k Ω or RN03103ZU001

# FIXED METAL OXIDE FILM RES. 3W J 10k Ω RN03103DP005

R1531 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152

R1532 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152

R1534 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R1535 CARBON RES. 1/4W J 820 Ω or RCX4JATZ0821

CARBON RES. 1/6W J 820 Ω RCX6JATZ0821

R1538 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221

MISCELLANEOUS

BC1501 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021

JK1501# CRT SOCKET ISHS40ST or JSCC290PK006

# CRT SOCKET HPS0521-012212 JSCC290HD012

JS1551 PCB JUMPER D0.6-P5.0 JW5.0T

20030408 13-12 L6655EL

Page 56

DCT3203 L6655CF
