Duplo DC-646 Parts Catalog

SLITTER/CUTTER/CREASER

DC-646

Sep. 2013

DUPLO DC-646 W5-Y1040

Revision 0

Disposal of Old Electrical & Electronic Equipment

This symbol (the symbol of the crossed out wheeled bin) indicates that in European

countries this

product should not be disposed of as household waste.

Please recycle where facilities exist by checking with your local authority or supplier for

recycling

advice.

By ensuring this product is disposed of correctly through proper treatment, recovery and recycling,
you will help prevent potential negative effects on the environment and human health.

En

Entsorgung von alten elektrischen und elektronischen Ausrüstungsteilen

Dieses Symbol (das Symbol mit dem durchgekreuzten fahrbaren Müllbehälter) zeigt an, dass dieses
Produkt in europäischen Länden nicht als Haushaltsmüll entsorgt werden darf. Bitte informieren
Sie sich bei Ihren örtlichen Behörden oder bei Ihrem Händler hinsichtlich einer Empfehlung für die
Entsorgung und führen Sie die betreffenden Teile dort, wo solche Einrichtungen vorhanden sind,
einem Recycling-Prozess zu.

Indem sie sicherstellen, dass das betreffende Produkt durch richtige Behandlung, Rückführung und
Recycling entsorgt wird, tragen Sie dazu bei, möglichen negativen Auswirkungen auf die Umwelt und
die menschliche Gesundheit vorzubeugen.

Ge

Elimination du matériel électronique et électrique usagé

Ce symbole (une poubelle marquée d’une croix) indique que dans les pays européens, ce produit ne
doit pas être éliminé comme des ordures ménagères.

Recyclez-le dans les sites adaptés qui vous seront indiqués par les autorités locales ou renseignez­vous auprès de votre fournisseur.

En veillant à ce que ce produit soit éliminé correctement avec un traitement, une collecte et un
recyclage adaptés, vous contribuez à éviter son action nocive potentielle sur l’ environnement et la
santé humaine.

Fr

Smaltimento di attrezzature elettriche ed elettroniche consumate

Questo simbolo (il simbolo della pattumiera con rotelle barrata) indica che nei paesi europei questo
prodotto non deve essere buttato nei rifi uti domestici.

Per favore smaltire in luogo addetto al riciclo, dove esistente, chiedendo informazioni alle autorità
locali o a chi fornisce consulenza a proposito.

Garantendo uno smaltimento adeguato di questo prodotto (trattamento, recupero e riciclo corretto),
aiuterete a prevenire effetti negativi sull’ambiente e sulla salute dell’uomo.

Eliminación de residuos de aparatos eléctricos y electrónicos

Este símbolo (un cubo de basura tachado) indica que en los países europeos este producto no
deberá eliminarse como si se tratara de un residuo doméstico. Solicite asesoramiento sobre reciclaje
a las autoridades locales o a su distribuidor, y siga la normativa en materia de gestión medioambiental
y reciclaje de este tipo de residuos.

Si toma las medidas pertinentes para que este producto se elimine mediante un tratamiento,
recuperación y reciclaje adecuados, contribuirá a evitar posibles efectos negativos en el medio
ambiente y la salud humana.

Sp

It

Table of Contents

1. Outer Cover 1 : Paper Feed Side 1

2. Outer Cover 2 2

3. Outer Cover 3 3

4A. Outer Cover 4 4

4B. Outer Cover 4 : UK 5

5. Control Panel Section 6

6. Feeder Top Cover Section 7

7. Top Covers 1 8

8. Top Covers 2 9

9. PC Arm Mount 10

10. Stopper Base Section 11

11. Paper Ejection Section 1 12

12. Paper Ejection Section 2 13

13. Suction Section 1 14

14. Suction Section 2 15

15. Saparator Section 16

16. Blower Section 1 17

17. Blower Section 2 18

18. Blower Section 3 19

19. Paper Feed Tray Section 1 20

20. Paper Feed Tray Section 2 21

21. Paper Feed Tray Section 3 22

22. Paper Shift Section 23

23. Level Detection Section 24

24. Sub-frame Section 1 25

25. Sub-frame Section 2 26

26. Paper Skew Ccorrection Section 1 27

27. Paper Skew Ccorrection Section 2 28

28. Double Feed Detection Section 29

29. Jump Motor Drive Section 30

30A. CCD Section 31

30B. CCD Section : UK 32

31. Reject Section 33

32. Reject 1 Transportation Section 1 34

33. Reject 1 Transportation Section 2 35

34. Reject Slider Section 36

35. Slitter Frame Section 1 37

36. Slitter Frame Section 2 38

37. Slitter Slide Section 39

38. Margin Slitter Section 40

38-1. Unit/Assy 41

39. Transportation Section 42

40. Rotary Tool Module 1 (Frame 1) 43

41. Rotary Tool Module 2 (Frame 2) 44

1 PARTS LIST

0-2

42. Rotary Tool Module 3 (Jump) 45

43. Rotary Tool Module 4 (Drive) 46

44. Rotary Tool Module 5 (Housing 1) 47

44-1. Unit/Assy 49

45. Rotary Tool Module 6 (Housing 2) 50

46. Center Slitter Frame Section 1 51

47. Center Slitter Guide Section 1 52

48. Center Slitter Slide Section 1 53

49. Center Slitter Section 1 54

49-1. Unit/Assy 56

50. Center Slitter Frame Section 2 57

51. Center Slitter Guide Section 2 58

52. Center Slitter Slide Section 2 59

53. Center Slitter Section 2 60

53-1. Unit/Assy 62

54. Gutter Deflector Section 1 63

55. Gutter Deflector Section 2 64

56. Cutter Section 1 65

57. Cutter Section 2 66

58. Cutter Section 3 67

59. Creaser fixation Section 68

60. Creaser Section 1 69

61. Creaser Section 2 70

62. Creaser Section 3 71

63. Creaser Driving Section 72

64. Under Creaser Section 73

65. Driving Section 1 74

66. Driving Section 2 75

67. Driving Section 3 76

68. Driving Section 4 77

69. Driving Section 5 78

70. Driving Section 6 79

71. Driving Section 7 80

72. Driving Section 8 81

73. Driving Section 9 82

74. Driving Section 10 83

75. Frame Section 1 85

76. Frame Section 2 86

77. Frame Section 3 87

78. Frame Section 4 88

79. Frame Section 5 89

80. Frame Section 6 90

81. Frame Section 7 91

82. Frame Section 8 92

83. Frame Section 9 93

84. Frame Section 10 94

85. Waste Box Section 1 95

86. Waste Box Section 2 96

87. Table Section 1 97

0-3

88. Table Section 2 98

89. Table Section 3 99

90. Table Section 4 100

91. Table Section 5 101

92. Safety Labels 102

93. Labels 103

94. Electrical Parts 1 (Switch) 105

95. Electrical Parts 2 (Sensor PPS) 106

96. Electrical Parts 3 (Sensor 1) 107

97. Electrical Parts 4 (Sensor 2) 108

98. Electrical Parts 5 (Sensor 3) 109

99. Electrical Parts 6 (Sensor 4) O.P 110

100. Electrical Parts 7 (Motor 1) 111

101. Electrical Parts 8 (Motor 2) O.P 112

102. Electrical Parts 9 (Solenoid) 113

103. Electrical Parts 10 (Fan Motor) 114

104. Electrical Parts 11 (PCB, etc.) 115

105. Electrical Parts 12 (PCB, etc.) 116

106. Electrical Parts 13 (PCB, etc.) 117

107. Wiring 1 (Power Supply 1) 118

108. Wiring 2 (Power Supply 2) 119

109. Wiring 3 (Inter Lock / Communication) 120

110. Wiring 4 (Main PCB 1) 121

111. Wiring 5 (Main PCB 2) 122

112. Wiring 6 (Main PCB 3) 123

113. Wiring 7 (Drive PCB) 124

114. Wiring 8 (Slitter Drive PCB) 125

115. Wiring 9 (Cutter/Crease) 126

116. Wiring 10 (Rotary Tool/Cross Perforation) 127

117A. Accessories：UK 128

117B. Accessories：USA 129

118. Cross Perforation Module 1 130

119. Cross Perforation Module 2 131

120. Cross Perforation Module 3 132

121. Cross Perforation Module 4 133

122. Cross Perforation Module 5 134

123. Cross Perforation Module 6 135

123-1. Unit/Assy 137

124. Cross Perforation Module 7 138

RECOMMEND PARTS LIST 140
INDEX 148

0-4

M E M O

0-5

W5-Y1040-0

2013.09

Getting the most out of this catalog

Finding the parts

Open the section page with the part you are looking for.

●The actual product is at hand, or you know the installing position :

refer to the "Main part layout drawing" refer to the "Section page".

●You know the part number: refer to the "INDEX" refer to the "Section page".

●Time-change parts (for maintenance): refer to the "RECOMMEND PARTS LIST" refer to the "Section page".

Find the component parts of the unit/assembly on the "Unit/Assy page" behind the "Section page".

Using the Illustration

2
1

7

Item No.

Each part in the illustration is numbered.

●For the section that has different installation depending on the models, it is specifi ed with an alphabet attached

●" # " is shown after the item No. for the models with great change and without interchangeability.

Item name

The section name specifi ed in the item.

In case the item is optional, (O.P) is attached after the item name.

43. Master Clamp Section

5

20333222-

6

Fig. 60 - 8

4

after the item No.

(The number attached after " # ", if any, describes the revision order)

2

7

3

4

6

MODEL DP-S550/S520
MODEL DP-S650/S620
MODEL DP-S850/S820

R8L101

6

1

5

3

MODEL

The Model name applied for the item.

KEY No.

The KEY No. in the illustration helps fi nding the part names in the list.

Circled KEY No.

Shows a unit/assembly part. Indicates the relation of unit/assembly and component part. When there is a circled

KEY No. in the illustration, the component parts are as follows:

●Component parts are specifi ed in a circled display.

●Unit/Assy page (component parts) are described in the next item.

Virtual illustration

If the part introduced in other item is attached, its Item No., KEY No., or the Item No. is indicated.

(Displays for the main frame, etc. are omitted.)

Machine No.

Shown in case the mechanism is greatly changed and are no longer interchangeable from that machine number.

vi

Using the Parts list

1 2 3 4 5 6 7

KEY No.

A

PARTS No. DESCRIPTION REMARKS I/C

1
2

3
4
5

R8-S0100
R8-T1100
R8-T3100
R8-K1230
R8-T3010
R8-K1250

Cover assy 1
Label , paper size 1
Label , paper size 1
Cover A 1
Label , WARNING 1
Inner cover 1

Q'TY

ABS

ABS

EA
EI
SET(3,4)
SET(3,4)

000111222- N=0

KEY No.

KEY No. in the illustration helps fi nding the part names in the list.

The circled KEY No. is a unit/assembly part.

The blank means that the KEY No. is the same as the KEY No. above. (Blank is used when there are

A

differences in the specifi cation, such as different model or shipping area, etc. or change in parts. Please refer to

the "REMARKS" columns.)

Using the Unit/Assy page

A unit/assembly part is marked with a circled number, and the number following " - " indicates a component

part.

Example : 1 ----- Unit/assembly part

-1----- Component part

PARTS No.

●Clearly specify this "PARTS No." when ordering parts.

●The parts with "NPN" in the "PARTS No." column cannot be supplied.

Using the Unit/Assy page

The last digit of the PARTS No. indicates the design change. When the part is partially changed for the purpose

of modification, etc., this design change digit may be changed. These changes are informed as Technical

Information. Read it with care.

Example : R8-A1001

Design change digit

DESCRIPTION

●Clearly specify this Description when ordering parts.

Q'TY

●The number of parts used in the section illustrated.

●In the Unit/Assy page, the number of parts used per 1 unit or assembly is mentioned.

WEEE

Part material and so on are shown. ( refer to the "WEEE information".)

REMARKS

The part with these columns blank is applicable to all the machines.

●The model name is mentioned only when the part is exclusively designed for a certain model.

●In case there are differences in the specifi cations depending on the shipping area, they are marked with codes.

Examples of the code:

EA : English specifi cation (A/B type paper)

120V : 120 V specifi cations

EI : English specifi cation (Inch type paper)

230V : 230 V specifi cations

O.P : Optional

vii

Using the Parts list

When there is SET display:

Interchangeable when used with a set of related parts. Not interchangeable when used as a single item.

Example :

SET(8, 9, 12) Parts of the KEY No. 8, 9 and 12 are interchangeable when used as a set.

Due to the design change, etc. the new parts and the old parts may not be interchangeable.

In this case, the applicable machine number (9 digits) is shown.

Examples :

- 000111111 Machine number (applicable from the initial lot to the machine number specifi ed.)

000111111 - Machine number (applicable from the machine number specifi ed.)

000000101- 000111111 Machine number (applicable within the range of the machine numbers specifi ed.)

●Parts without these indications are applicable to all the machines.

(I/C) Interchangeability

If the parts are changed, the following interchangeability codes are indicated on the new parts (N).

Examples : (N: new part, O: old part)

N = O : Interchangeable to both new part and old part

N ≠ O : Not interchangeable to either new part or old part

+ : Newly added part

- : Abolished part

Using the RECOMMEND PARTS LIST

1 2 3 4 5

PARTS No. DESCRIPTION Q'TY

CA022

CA022
CA022
E1-99990

PARTS No.

Replacement for main parts are shown in the ascending order of the "PARTS No.".

DESCRIPTION

Q'TY

The number of the part used within the item.

PAGE

The corresponding section page of the part.

Photo microsensor
Photo microsensor
Photo microsensor

O-ring

10
14
26
2

KEY No.

8
12
22

1

- 6

PAGE

1
1
1
2

KEY No.

The KEY No. of the item using the part.

The circled KEY No. is the unit/assembly part.

The unit/assembly part is marked with a circled number.

The component parts are marked with numbers after " - ".

viii

Using the INDEX

1 2 3 4 5

REMARKS

D
EA,EI
D
EA,EI

PARTS No.

E1-11110

E1-22220
E1-33330
E1-44440
F1-Q0100
F1-Q0040

18
18
26
2
1
1

KEY No.

8
12
22

1

- 6
2
3

PARTS No.

01-11110

02-11110
11-11100
99-99990
A1-Q0100
A1-Q0140

PARTS No.

The PARTS No. from the "PARTS LIST" listed in the ascending order.

(Nothing is mentioned for the ones without the PARTS No., or the ones with NPN.)

The blank means that the PARTS No. is the same as the above.

SECTION

The Item No. (SECTION No.) using the part.

PAGE

The corresponding section page of the part.

KEY No.

The KEY No. of the item using the part.

The circled KEY No. is the unit/assembly part.

The unit/assembly part is marked with a circled number.

The component parts are marked with numbers after " - ".

SECTION

15
15
22
2
1
1

PAGE

SECTION

10
20
30
40
31
8

PAGE

10
14
26
2
27
8

KEY No.

8
12
22

1

- 2
2
3

REMARKS

●The model name is mentioned only when the part is exclusively designed for a certain model.

●In case there are differences in the specifi cations depending on the shipping area, they are marked with codes.

ix

WEEE information (for Europe)

WEEE (Waste Electrical and Electronic Equipment)

As a minimum the following substances, preparations and components have to be removed from any separately

collected WEEE (Waste Electrical and Electronic Equipment).

In this parts catalog, these WEEE symbols are appended to corresponding parts in the parts list.

WEEE Symbol Meaning

Battery Batteries

PCBA PCB’s over 10 square centimeters in size.

Bromides Plastics containing bromides.

LCD LCD displays

Cables Electric cables

In consideration of separate collection, plastics are subdivided into the following categories.

In this parts catalog, these abbreviations are appended to corresponding parts in the parts list.

If the material contains bromides, the abbreviation is postfi xed with an asterisk (*).

Example :

ABS* acrylonitrile-butadiene styrene plastic (containing bromides)

Abbreviation Category

ABS acrylonitrile-butadiene styrene plastic
AS acrylonitrile-styrene
BR butadiene rubber
CR chloroprene rubber
EPDM ethylene propylene rubber
GF glass fi ber
MMA methyl methacrylate
NBR nitrile rubber
NR natural rubber
PA polyamide
PA6 polyamide6
PA66 polyamide66
PBT poly (butylene terephthalate)
PC polycarbonate
PE polyethylene
PET poly (ethylene terephthalate)
PF phenol-formaldehyde resin
PMMA polymethylmethacrylate
POM poly (oxymethylene); polyacetal;
PP polypropylene
PPE poly (phenylene ether)
PPOX poly (propylene oxide)
PPS polyphenilen sulfi de
PTFE polyterafl uoroethylene
PUR polyurethane
PVC poly (vinyl chloride)
SBR styrene butadiene rubber
U urethane rubber
VMQ silicon rubber

x

1. Outer Cover 1 : Paper Feed Side

MODEL DC-646 USA

MODEL DC-646 UK

MODEL DC-646 UKPRO

W5M300

6

7

4

5

7

2

3

1

KEY No.

4

PARTS No. DESCRIPTION REMARKS

P9-T1170
W5-M3021
W5-M3051
W5-M3111
W5-M3130
W5-M3140
W5-M3150

LABEL1 1
COVER L UNIT2 1
COVER R UNIT3 1
SPONGE4 2
SPONGE5 1
SPONGE6 1
SPONGE7 2

Q'TY

PP

EPDM
EPDM
EPDM
EPDM

-1-

2013.09W5-Y1040-0

2. Outer Cover 2

2

MODEL DC-646 USA

MODEL DC-646 UK

MODEL DC-646 UKPRO

W5M310

5

1

9

8

6

2

11

7

2

3

1

4

2

KEY No.

10

PARTS No. DESCRIPTION REMARKS

DA311
K9-T1390
U7-T1070
W5-M3061
W5-M3071
W5-M3081
W5-M3121
W5-M3161
W5-T1081
W5-T1130

019-57716

WASHER(TM-147-2V)1 6
WARNING LABEL2 3
LABEL3 1
FRAME COVER L4 1
FRAME COVER R5 1
SUPPORTING PLATE6 1
STOPPER PLATE7 1
SPACER8 1
SCALE9 1
LABEL10 1
EMBLEM:90MM11 1

Q'TY

PA

PP

PC
PP

-2-

2013.09W5-Y1040-0

3. Outer Cover 3

MODEL DC-646 USA

MODEL DC-646 UK

MODEL DC-646 UKPRO

W5M320

10

6

2

KEY No.

5

4

PARTS No. DESCRIPTION REMARKS

U7-T1020
W5-T1140
DA059
DA308
W5-M2101
W5-M2441
NPN
W5-M2721
W5-M2731
W5-M2741

CAUTION LABEL UKPRO/UK1 1
LABEL2 1
MAGNET CATCH(CA0029)3 2
HANDLE(THA-241-1-1.2)4 1
COVER UNIT5 1
SHAFT6 2
COVER7 1
ANGLE8 1
BRACKET9 2
ANGLE10 1

8

6

1

3

9

7

1

0 3 0 1 T - 7 U

Q'TY

PP

ABS

-3-

2013.09W5-Y1040-0

4A. Outer Cover 4

MODEL DC-646 USA

MODEL DC-646 UKPRO

W5M301

2

3

1

KEY No.

PARTS No. DESCRIPTION REMARKS

U7-T1020
W5-M2351
W5-M2361

CAUTION LABEL UKPRO1 1
COVER2 1
COVER3 1

Q'TY

PP

1

0 3 0 1 T - 7 U

-4-

2013.09W5-Y1040-0

4B. Outer Cover 4 : UK

MODEL DC-646 UK

MODEL

W5M302

2

4

3

1

KEY No.

PARTS No. DESCRIPTION REMARKS

U7-T1020
W5-M2351
W5-M2361
W5-M2391

CAUTION LABEL UK1 1
COVER2 1
COVER3 1
PLATE UK4 1

Q'TY

PP

1

0 3 0 1 T - 7 U

-5-

2013.09W5-Y1040-0

5. Control Panel Section

14

MODEL DC-646 USA

MODEL DC-646 UK

MODEL DC-646 UKPRO

W5M501

KEY No.

13

10

12

2

PARTS No. DESCRIPTION REMARKS

9

6

1

15

4

11

1

6

1

16

3

7

5

8

Q'TY

J3-K5211
J3-K5271
L1-K5120
L8-H1140
L8-H1150
N5-K5131
S2-M5071
S2-M5081
S2-M5091
S2-M5101
S2-M5111
U7-V5401
W5-M5032
W5-T1061
W5-V5001
XC019

KEY TOP1 6
KEY TOP2 2
KEY TOP3 1
KEY TOP4 1
KEY TOP5 1
KEY TOP6 13
SPACER7 1
SPACER8 1
PLATE9 1
SPONGE10 1
SPACER11 1
LED PCB12 1
PANEL UNIT13 1
LABEL(PANEL)14 1
PANEL PCB UNIT15 1
CORD CLAMP(EHP-6U)16 1

ABS
ABS
ABS
ABS
ABS
ABS
POM
POM
PC

POM
Bromide

PET
Bromide
PA66

-6-

2013.09W5-Y1040-0

6. Feeder Top Cover Section

4

10

6

MODEL DC-646 USA

MODEL DC-646 UK

MODEL DC-646 UKPRO

W5M800E

7

2

9

3

5

8

3

5

1

1

KEY No.

Fig.24-16

PARTS No. DESCRIPTION REMARKS

DA517
LA051
J2-B2210
P9-F3280
W5-M6061
W5-M8011
W5-M8021
W5-M8071
W5-M8081
26-57300

HINGE(HG-TS07)1 2
MICRO SWITCH(VX-012-1A3) SW008,9,102 3
WASHER3 4
HINGE4 1
PLATE5 2
BRACKET6 1
TOP COVER7 1
ANGLE 28 1
SWITCH ANGLE9 1
WASHER10 3

Q'TY

PC

-7-

2013.09W5-Y1040-0

7. Top Covers 1

MODEL DC-646 USA

MODEL DC-646 UK

MODEL DC-646 UKPRO

W5M600

5

3

6

4

8

7

4

11

1

8

1

10

2

9

KEY No.

PARTS No. DESCRIPTION REMARKS

DA517
LD011
LZ034
J2-B2210
P9-F3280
W5-M6021
W5-M6031
W5-M6061
W5-M6081
NPN
26-57300

HINGE(HG-TS07)1 2
SWITCH(D4NS-2DF) SW0112 1
ACTUATOR3 1
WASHER4 4
HINGE5 1
COVER L6 1
BRACKET7 1
PLATE8 2
BRACKET9 1
REINFORCING PLATE10 1
WASHER11 3

Q'TY

PC

-8-

2013.09W5-Y1040-0

8. Top Covers 2

MODEL DC-646 USA

MODEL DC-646 UK

MODEL DC-646 UKPRO

W5M610

3

7

5

10

8

1

4

2

9

6

KEY No.

PARTS No. DESCRIPTION REMARKS

DA517
LD011
LZ034
J2-B2210
P9-F3280
W5-M6011
W5-M6031
W5-M6061
W5-M6081
26-57300

HINGE(HG-TS07)1 2
SWITCH(D4NS-2DF) SW0122 1
ACTUATOR3 1
WASHER4 4
HINGE5 1
COVER R6 1
BRACKET7 1
PLATE8 2
BRACKET9 1
WASHER10 3

Q'TY

PC

-9-

2013.09W5-Y1040-0

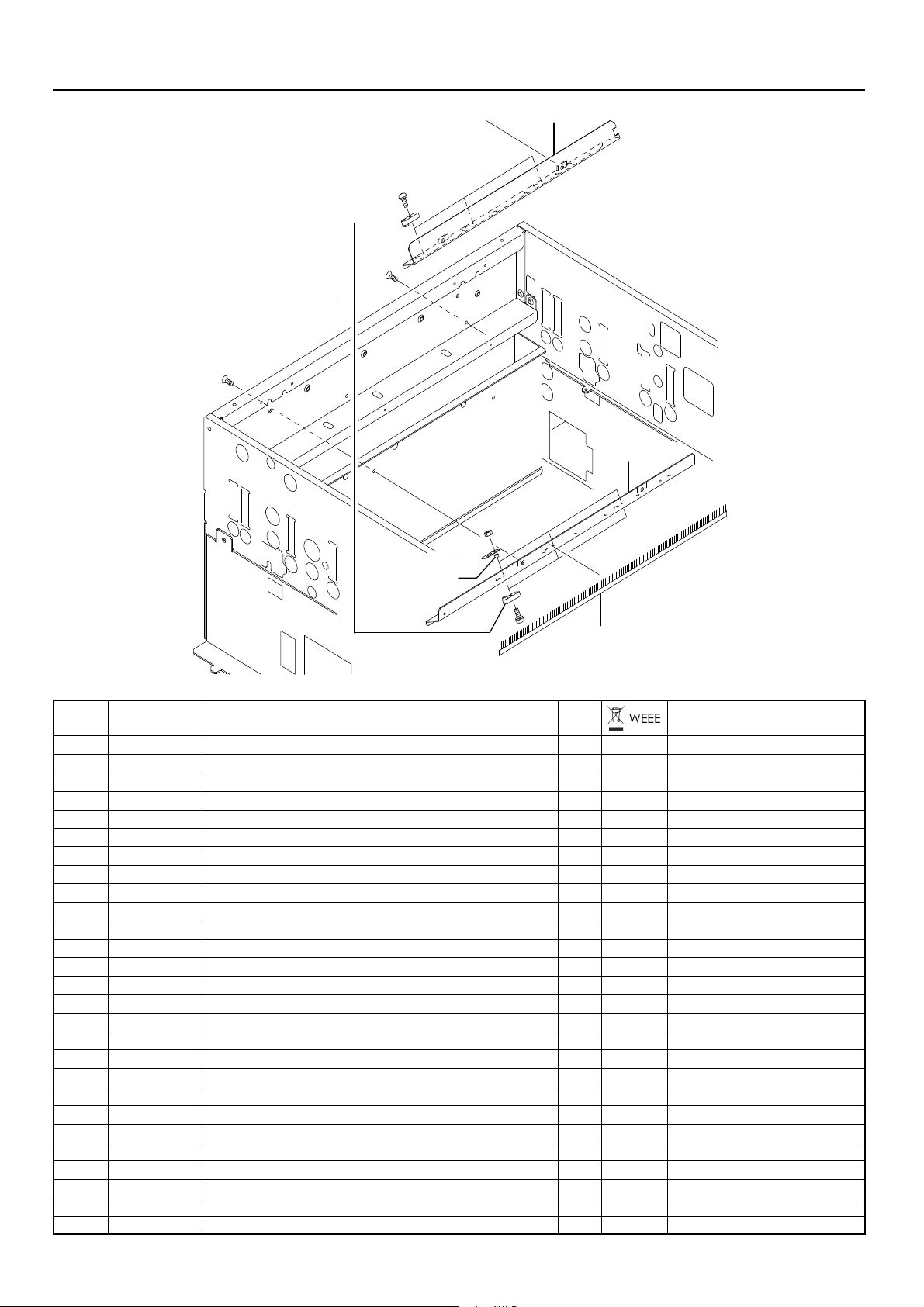

9. PC Arm Mount

)

MODEL DC-646 USA

MODEL DC-646 UK (OP

MODEL DC-646 UKPRO

W5M700

2

3

1

KEY No.

PARTS No. DESCRIPTION REMARKS

U7-M7221
U7-M7830
W5-M2871

PLATE UK(OP)1 1
BROCK UK(OP)2 1
POLE UNIT UK(OP)3 1

Q'TY

-10-

2013.09W5-Y1040-0

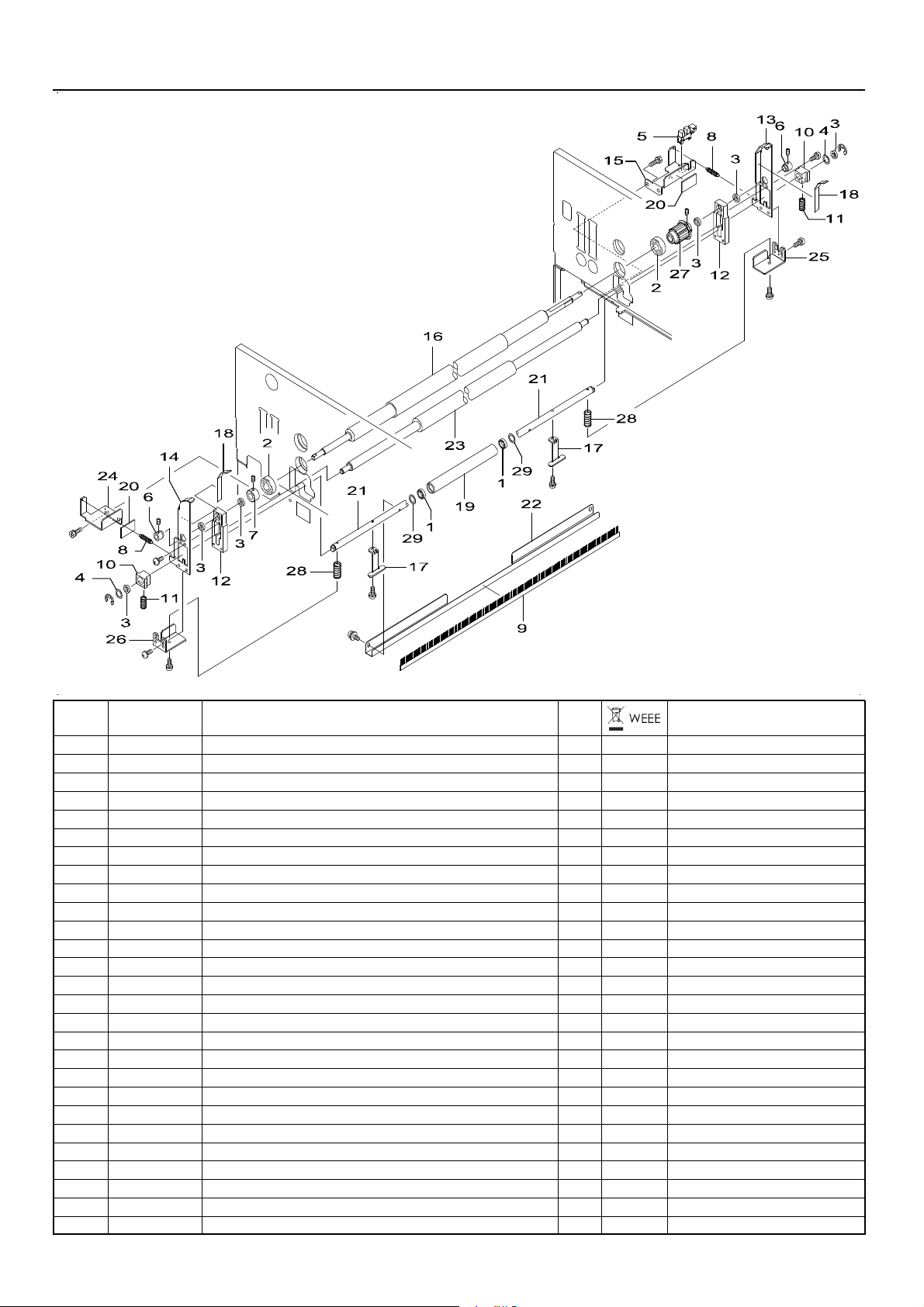

10. Stopper Base Section

)

MODEL DC-646 USA

MODEL DC-646 UK (OP

MODEL DC-646 UKPRO

W5L200E

10

4

3

9

7

4

3

8

Fig.12-5

8

2

11

9

1

1

3

8

5

1

6

KEY No.

PARTS No. DESCRIPTION REMARKS

E1-49830
P9-L2050
W5-L2081
W5-L2171
W5-L2221
W5-L2241
W5-L2251
W5-L2260
W5-L2280
W5-L2290
W5-L2301

GUIDE PLATE UK(OP)1 7
RUBBER MAGNET UK(OP)2 1
SIDE GUIDE UK(OP)3 7
BRACKET UK(OP)4 6
STOCKER FRAME UK(OP)5 1
ANGLE UK(OP)6 1
GUIDE PLATE UK(OP)7 4
SLIDE PLATE UK(OP)8 14
SHEET UK(OP)9 6
STOPPER UK(OP)10 1
SHEET UK(OP)11 1

Q'TY

PET
PET

PET

-11-

2013.09W5-Y1040-0

11. Paper Ejection Section 1

1

3

MODEL DC-646 USA

MODEL DC-646 UK

MODEL DC-646 UKPRO

W5L110E

2

KEY No.

2

4

Fig.12-5

PARTS No. DESCRIPTION REMARKS

P9-L1150
P9-L1160
P9-L1170
P9-L1180

BACK GUIDE1 1
SIDE GUIDE2 2
RUBBER MAGNET3 1
RUBBER MAGNET4 2

Q'TY

4

-12-

2013.09W5-Y1040-0

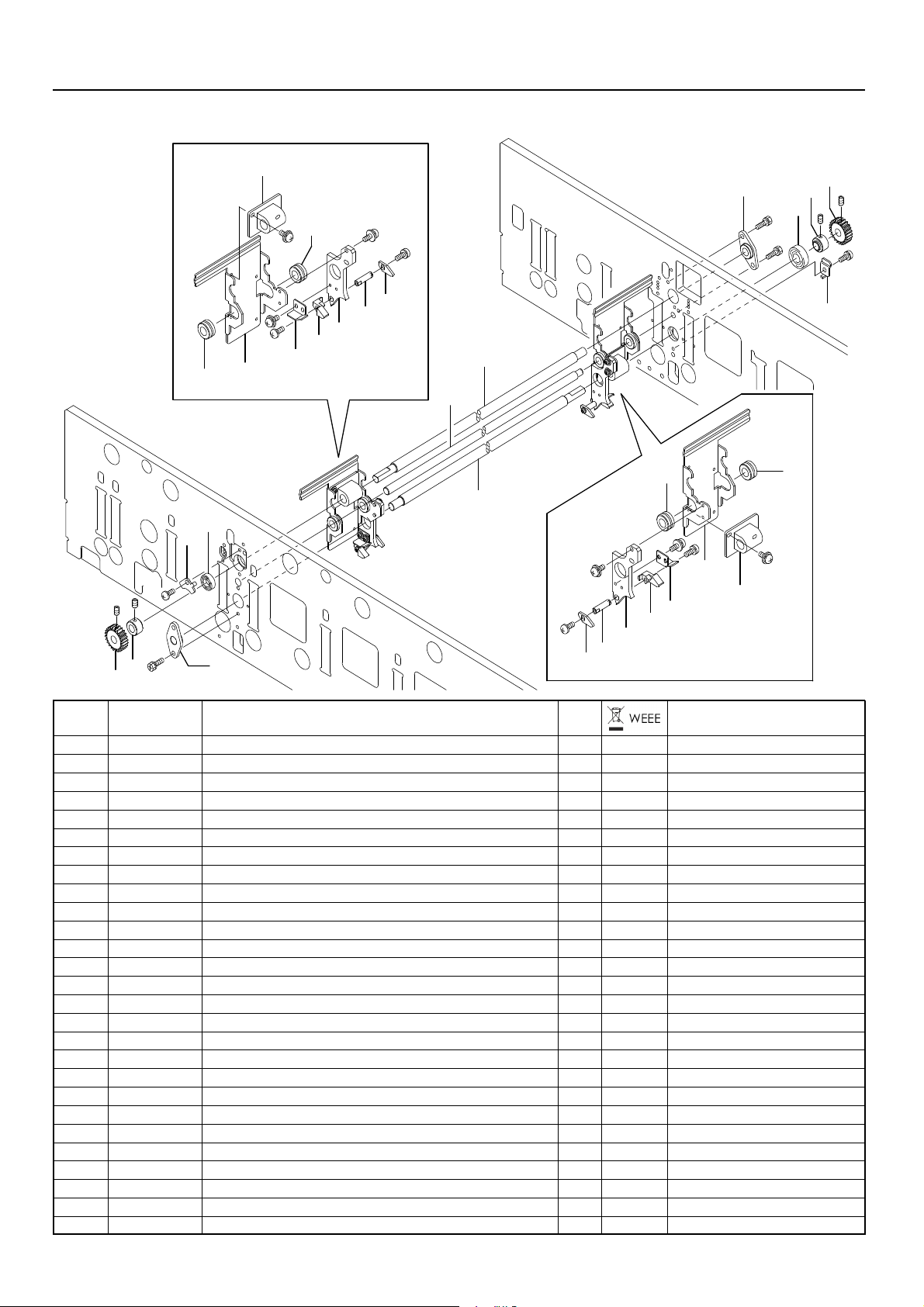

12. Paper Ejection Section 2

1

MODEL DC-646 USA

MODEL DC-646 UK

MODEL DC-646 UKPRO

W5L100

5

3

8

2

9

6

1

KEY No.

2

9

PARTS No. DESCRIPTION REMARKS

H5-23370
J6-B1690
W5-L1011
W5-L1061
W5-L1111
W5-L1121
W5-L1181
W5-L1190
N5-D1130

COLLAR1 2
WASHER2 2
SHAFT3 1
SHAFT4 1
TRAY5 1
BRACKET6 2
SHAFT7 1
COLLAR8 1
COLLAR9 2

4

7

6

Q'TY

-13-

2013.09W5-Y1040-0

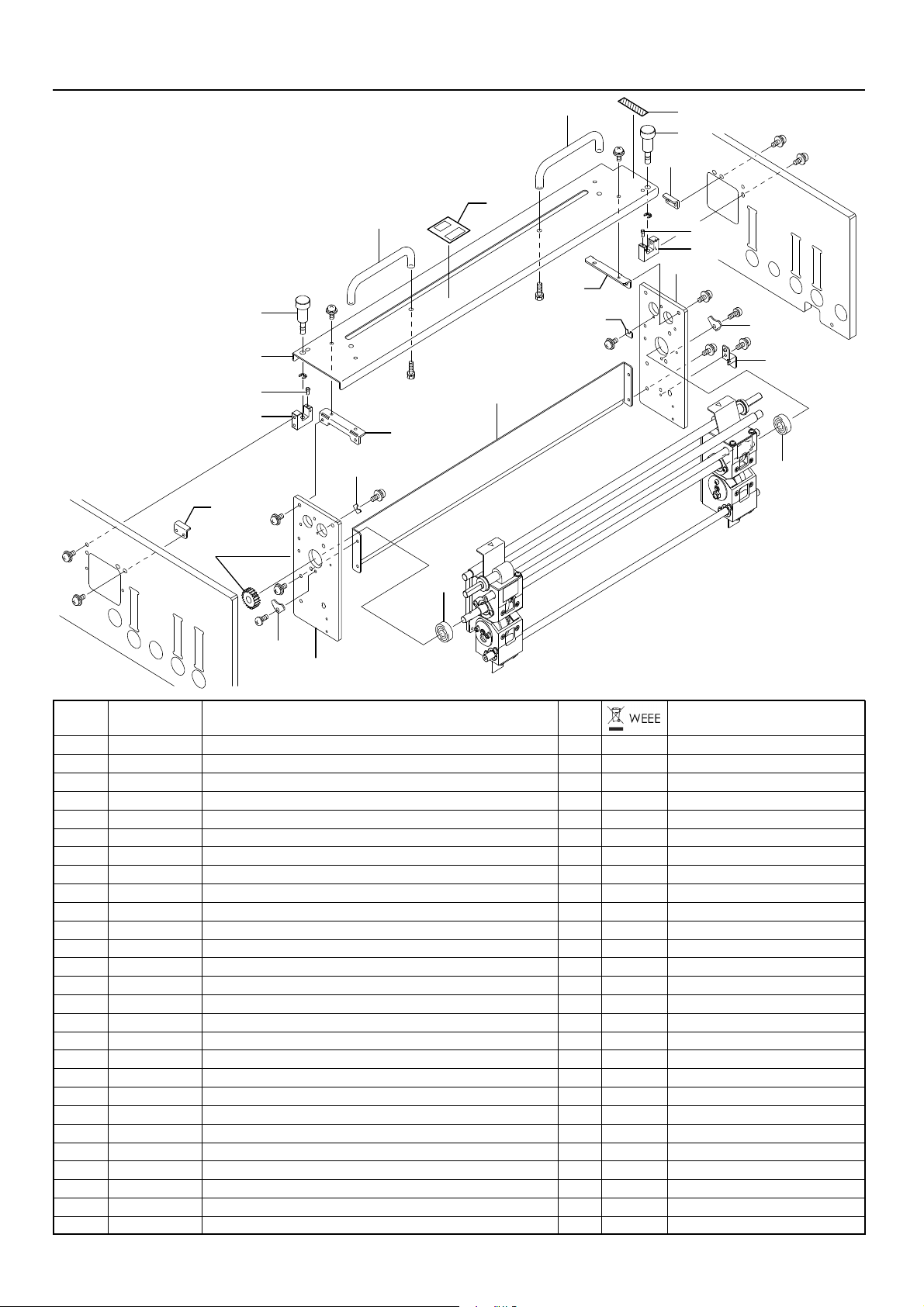

13. Suction Section 1

14

2

13

MODEL DC-646 USA

MODEL DC-646 UK

MODEL DC-646 UKPRO

2

6

7

14

8

1

4

5

3

W5A100E

15

KEY No.

Fig.14

10

15

11

PARTS No. DESCRIPTION REMARKS

AA014
AA103
P9-A1020
P9-A1030
P9-A1040
P9-A1290
W5-A1011
W5-A1021
W5-A1031
W5-A1041
W5-A1151
W5-A1191
W5-A1221
W5-A1251

0Z4-08022

BALL BEARING (688ZZ-NR)1 2
BALL BEARING(LF-1910ZZ)2 2
ROLLER3 1
BEARING HOLDER4 2
ANGLE5 2
BELT:SP6 8
ROLLER7 1
AIR BOX8 1
LID 19 1
LID 210 1
ANGLE11 1
ANGLE12 1
GEAR13 1
HOLDER14 2
Z COLLAR15 2

5

4

1

12

9

Q'TY

EPDM

-14-

2013.09W5-Y1040-0

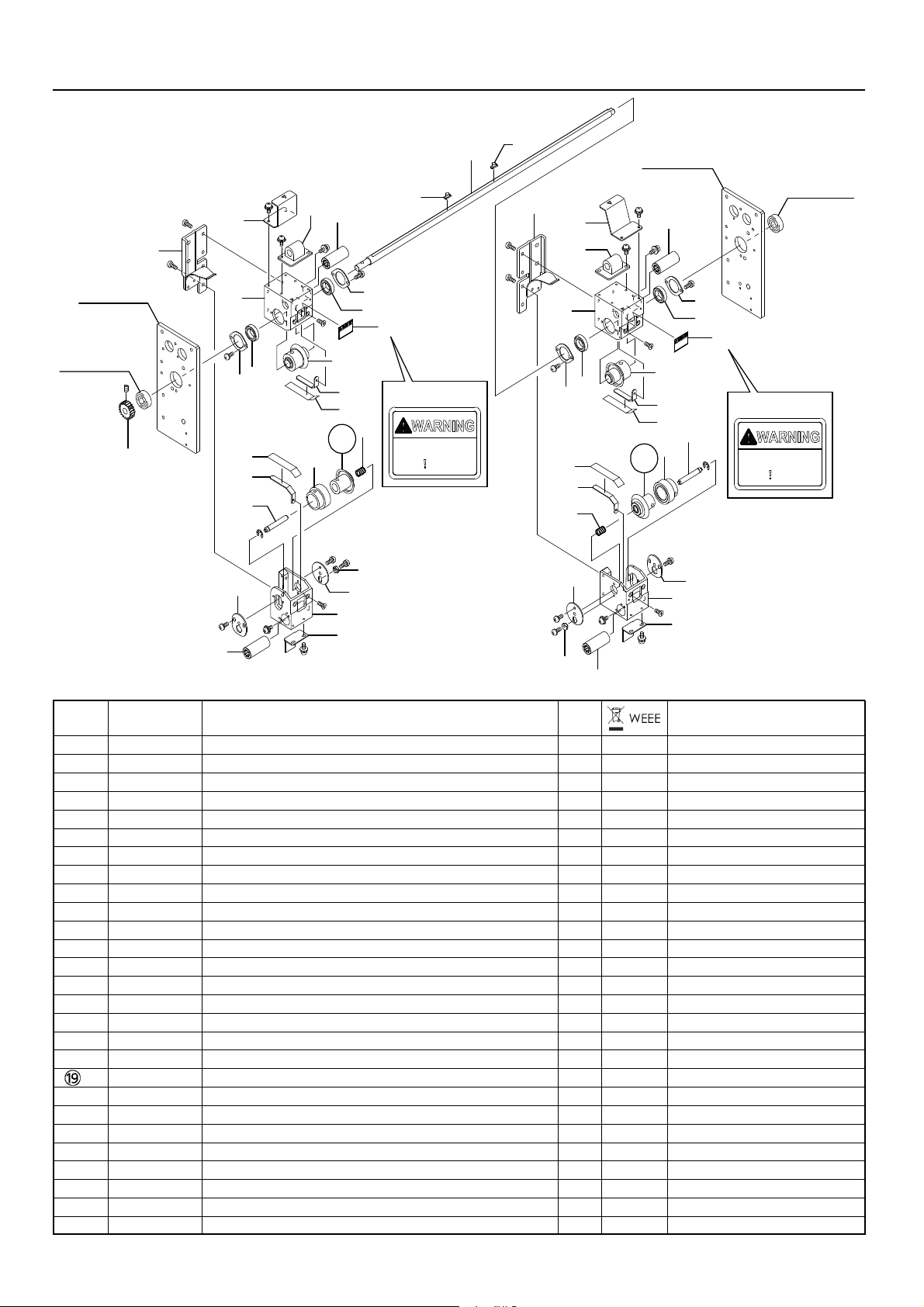

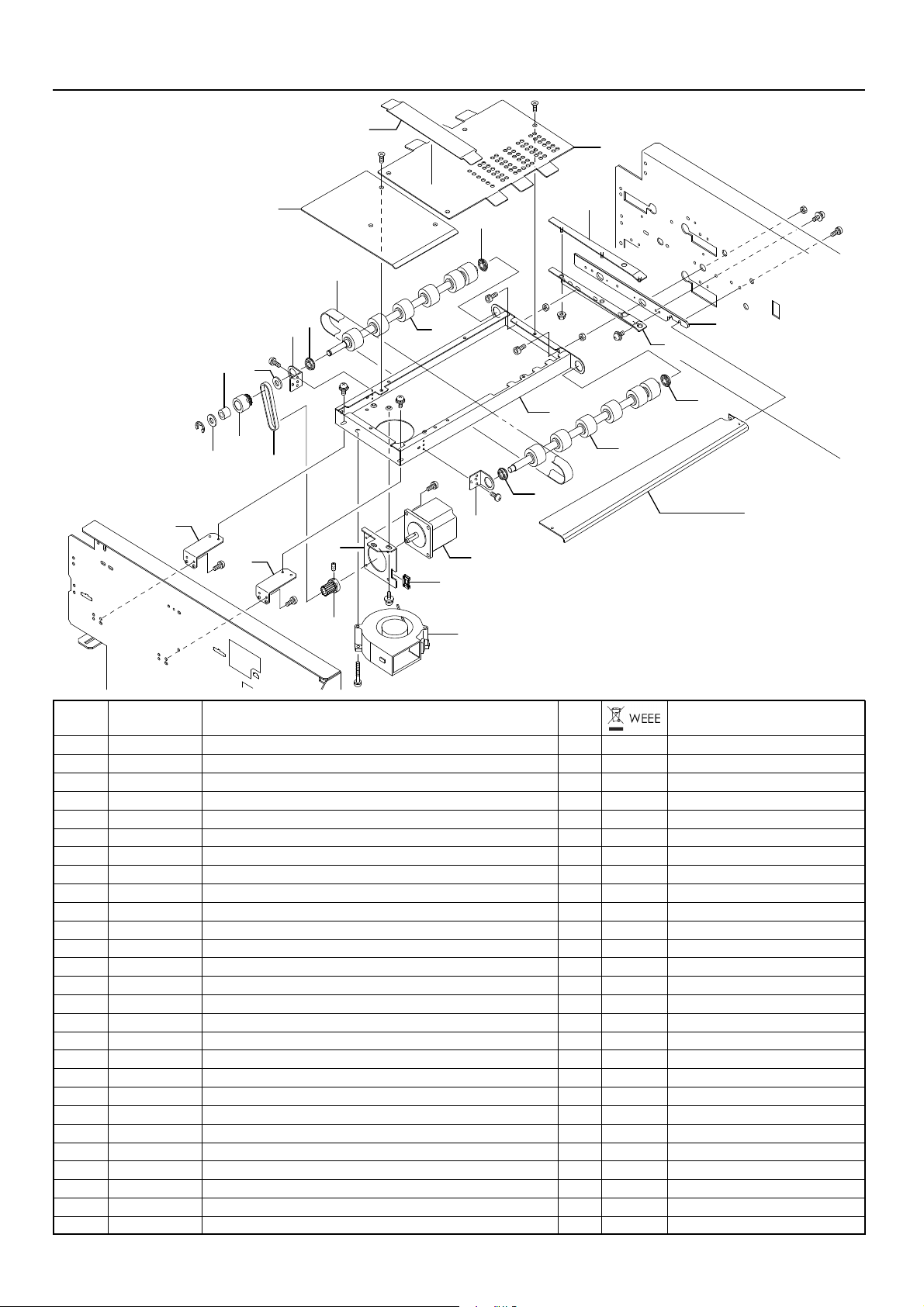

14. Suction Section 2

11

MODEL DC-646 USA

MODEL DC-646 UK

MODEL DC-646 UKPRO

W5A110

15

KEY No.

16

10

13

20

20

17

7

12

1

PARTS No. DESCRIPTION REMARKS

CA021
W5-A1051
W5-A1061
W5-A1071
W5-A1121
W5-A1131
W5-A1161
W5-A1171
W5-A1181
W5-A1271
W5-A1301
W5-A1311
W5-A1321
W5-A1330
W5-X1020
W5-X1050
W5-X1070

0Z3-06013

0Z3-06018

XC019

PHOTO MICROSENSOR(EE-SX4235A-P2-S1) SN0031 1
PLATE2 1
BRACKET3 1
BRACKET4 1
REVERSE SPRING5 1
ACTUATOR6 1
SENSOR BRACKET7 1
BRACKET8 1
LINK9 1
GEAR10 1
COVER11 1
BRACKET12 1
BRACKET13 1
SPONGE14 4
STEPPING MOTOR(KV4239-T2B009) MT00215 1
DC BLOW(E1033H24BAAZ-C4) FM00116 1
DC SOLENOID(SDC-1250(12H)) SL00117 1
Z COLLAR18 2
Z COLLAR19 2
CORD CLAMP(EHP-6U)20 2

18

6

Q'TY

4

EPDM

PA66

19

5

8

14

14

2

3

19

9

18

14

14

-15-

2013.09W5-Y1040-0

15. Saparator Section

MODEL DC-646 USA

MODEL DC-646 UK

MODEL DC-646 UKPRO

W5A700

1

2

2

1

3

KEY No.

PARTS No. DESCRIPTION REMARKS

N4-K2110
N4-K2122
U7-A2241

SEPARATOR BASE1 2
SEPARATOR PLATE2 2
SLIDE PLATE3 1

Q'TY

POM
U

-16-

2013.09W5-Y1040-0

16. Blower Section 1

17

MODEL DC-646 USA

MODEL DC-646 UK

MODEL DC-646 UKPRO

14

6

10

W5A202E

8

1

18

1

13

12

16

16

5

4

18

7

9

3

18

11

15

Fig.15

2

KEY No.

PARTS No. DESCRIPTION REMARKS

P6-B9150
P6-X1020
P9-A2230
P9-A2240
P9-A2250
P9-A2390
U7-A2211
U7-A2222
U7-A2251
U7-A2261
U7-A2571
W5-A2091
W5-A2111
W5-A2121
W5-A2131
W5-X1050

0Z3-06013

0Z3-06018

COLLAR1 2
DC SOLENOID(SDC-1260/24V100%) SL0022 1
PILLAR3 1
LINK4 1
LINK5 1
SPRING T6 1
ANGLE7 1
SLIDE PLATE 28 1
PILLAR9 1
SHAFT10 1
SOLENOID BRACKET11 1
LID12 1
SLIDE SHUTTER13 1
DUCT14 1
DUCT15 1
DC BLOW(E1033H24BAAZ-C4) FM002,316 2
Z COLLAR17 2
Z COLLAR18 3

Q'TY

-17-

2013.09W5-Y1040-0

17. Blower Section 2

11

8

2

2

MODEL DC-646 USA

MODEL DC-646 UK

MODEL DC-646 UKPRO

W5A212E

Fig.16

KEY No.

5

12

12

7

6

6

4

1

3

3

PARTS No. DESCRIPTION REMARKS

LA048
P6-B9130
P6-B9370
P9-A2400
U7-A2291
W5-A2031
W5-A2071
W5-A2081
XZ026
XZ031

0Z3-06018

72-25210

MICRO SWITCH(VX-52-1A3) SW0021 1
GEAR2 2
SPRING3 2
SWITCH ANGLE4 1
LUCK 25 1
SHAFT B6 2
BRACKET7 1
LUCK8 1
CAP9 2
KNOB10 2
Z COLLAR11 2
BEARING12 2

10

10

Q'TY

9

9

PA6
PA6

-18-

2013.09W5-Y1040-0

18. Blower Section 3

4

MODEL DC-646 USA

MODEL DC-646 UK

MODEL DC-646 UKPRO

W5A222

3

1

2

6

KEY No.

5

7

1

PARTS No. DESCRIPTION REMARKS

DA315
S2-P1200
S2-P1210
U7-A2581
U7-A2591
W5-A2140
W5-A2150

TUBE FITTING(MLELL8-1-B)1 2
SIDE NOZLE2 1
ANGLE3 1
FRONT NOZZLE4 1
FRONT NOZZLE5 1
TUBE 16 1
TUBE 27 1

Q'TY

POM

POM
POM
PUR
PUR

-19-

2013.09W5-Y1040-0
