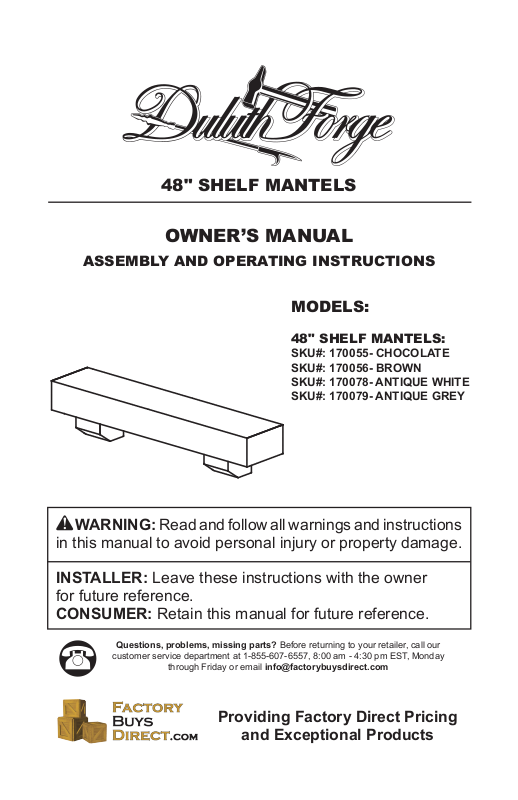

Page 1
48" SHELF MANTELS
OWNER’S MANUAL
ASSEMBLY AND OPERATING INSTRUCTIONS
MODELS:
48" SHELF MANTELS:
SKU#: 170055- CHOCOLATE
SKU#: 170056- BROWN
SKU#: 170078- ANTIQUE WHITE
SKU#: 170079- ANTIQUE GREY
WARNING: Read and follow all warnings and instructions
in this manual to avoid personal injury or property damage.
INSTALLER: Leave these instructions with the owner
for future reference.
CONSUMER: Retain this manual for future reference.
Questions, problems, missing parts? Before returning to your retailer, call our
customer service department at 1-855-607-6557, 8:00 am - 4:30 pm EST, Monday
through Friday or email [email protected]
Providing Factory Direct Pricing
and Exceptional Products
Page 2
ASSEMBLY INSTRUCTIONS
48" SHELF MANTELS
SKU#: 170055, 170056, 170078, 170079
WARNING: WOOD AND MDF ARE CONSIDERED COMBUSTIBLE MATERIALS. MANUFACTURER’S
RECOMMENDED HEAT CLEARANCES MUST BE FOLLOWED. BEFORE INSTALLING, CHECK YOUR
LOCAL BUILDING CODES AND THE MANUFACTURER’S INSTRUCTIONS FOR YOUR SPECIFIC
FIREPLACE INSERT OR STOVE.
COMPONENT LIST
PART DESCRIPTION
A
B
C
Shelf Mantel
Wooden
Mounting Strip
Corbel
(optional)
QTY#
1 pc
1 pc
2 pcs
STEP 1
NOTE: THE USE OF THE CORBEL IS OPTIONAL.
If the customer decides not to use the corbels, move to Step 2.
A
HARDWARE LIST
3
Washer
O 8 x 19 x 1 mm
Flat Washer
O 8 x 16 x 1 mm
Allen Bolt
O 5/16" x 38 mm
Allen Key
4 mm
Screw
O 8 x 55 mm
Wood Plug
O 10 x 10 mm
4
2
4 pcs
4 pcs
4 pcs
1 pc
6 pcs
4 pcs
1
2
3
4
5
6
C
www.factorybuysdirect.com
1
C
HSE-MAN-001 Rev A2
Page 3
ASSEMBLY INSTRUCTIONS CONT'D
STEP 2
NOTE: If the customer decides not to use the corbels, please use
wood plugs to cover the holes at the bottom of the shelf mantel.
6
STEP 3
5
NOTE: For hanging your mantel or shelf, we suggest using
the wooden mounting strip that is included. If you are
mounting the wooden mounting strip on standard drywall
over stud construction, make sure the wooden mounting
strip is screwed into the wood studs for strength. If you are
installing into any other materials, i.e. brick, stone, drywall,
etc., please consult a professional for advice on the proper
hardware. Additional hardware is not included.
B
WALL
www.factorybuysdirect.com
STEP 4
NOTE: Install shelf mantel over wooden mounting strip
and slide down until shelf mantel is tight against the wall.
B
WALL
3HSE-MAN-001 Rev A
Page 4
WARRANTY
KEEP THIS WARRANTY
Model _______________________________
Serial No. ____________________________
Date Purchased _______________________
REGISTER YOUR PRODUCT AT WWW.FACTORYBUYSDIRECT.COM
FACTORY BUYS DIRECT LIMITED WARRANTIES
Standard Warranty: Factory Buys Direct warrants this new product and any parts thereof to be free from
authorized dealer provided the product has been installed, maintained and operated in accordance with
Factory Buys Direct’s warnings and instructions.
For products purchased for commercial, industrial or rental usage, this warranty is limited to 90 days from
New Products
Limited Warranty: Factory Buys Direct warrants factory reconditioned products and any parts thereof to be free
dealer provided the product has been installed, maintained and operated in accordance with Factory Buys
Direct’s warnings and instructions. No return will be authorized. Parts will be provided to repair the product.
Terms Common to All Warranties
The following terms apply to all of the above warranties:
Always specify model number and serial number when contacting the manufacturer. To make a claim under
this warranty, the bill of sale or other proof of purchase must be presented.
This warranty is extended only to the original retail purchaser when purchased from an authorized dealer,
with this product.
This warranty covers the cost of part(s) required to restore this product to proper operating condition and
an allowance for labor when provided by a Factory Buys Direct Authorized Service Center or a provider approved by Factory Buys Direct. Warranty parts must be obtained through authorized dealers of this product
and/or Factory Buys Direct who will provide original factory replacement parts. Failure to use original factory
replacement parts will void this warranty.
Traveling, handling, transportation, diagnostic, material, labor and incidental costs associated with warranty
repairs, unless expressly covered by this warranty, are not reimbursable under this warranty and are the
responsibility of the owner.
Excluded from this warranty are products or parts that fail or become damaged due to misuse, accidents,
improper installation, lack of proper maintenance, tampering or alteration(s).
This is Factory Buys Direct’s exclusive warranty, and to the full extent allowed by law; this express warranty
excludes any and all other warranties, express or implied, written or verbal and limits the duration of any
Factory Buys Direct makes no other warranties regarding this product.
Factory Buys Direct’s liability is limited to the purchase price of the product and Factory Buys Direct shall not
be liable for any other damages whatsoever under any circumstances including direct, indirect, incidental,
or consequential damages.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of
incidental or consequential damages, so the above limitation or exclusion may not apply to you.
Factory Reconditioned Products
Factory Buys Direct
500 Brown Industrial Parkway
Canton, GA 30114
1-855-607-6557
www.factorybuysdirect.com
HSE-MAN-001 Rev A4
