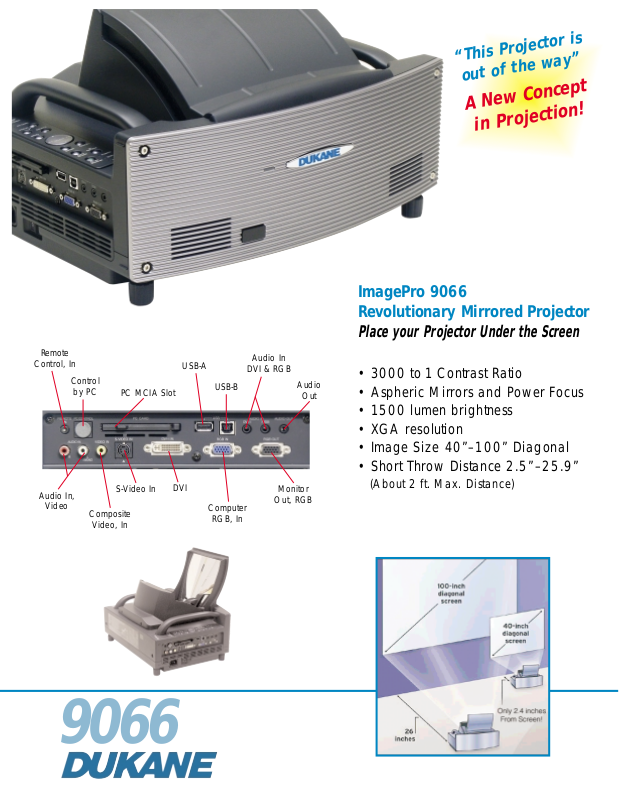

Dukane 9066 Product Sheet
“This Projector is
out of the way”
A New Concept
in Projection!
ImagePro 9066
Revolutionary Mirrored Projector
Place your Projector Under the Screen
Remote
Control, In
Audio In,
Video
Control
by PC
Composite
S-Video In
Video, In
PC MCIA Slot
DVI
USB-A
USB-B
Computer
RGB, In
Audio In
DVI & RGB
Monitor
Out, RGB
Audio
Out
• 3000 to 1 Contrast Ratio
• Aspheric Mirrors and Power Focus
• 1500 lumen brightness
• XGA resolution
• Image Size 40”–100” Diagonal
• Short Throw Distance 2.5”–2 5.9”
(About 2 ft. Max. Distance)
9066
ImagePro 9066
Short Throw Multi-Media LCD projector
Great Data and Super Video Images
The ImagePro 9066 mirrored projector features
aspheric mirrors instead of a traditional projection lens.
This exclusive technology provides the shortest throw distance imaginable. Achieve a 40" diagonal image while
only 3" from the screen or an image of up to 100" from
less than 26" away. It is perfect for retail environments
where space is limited or in classrooms and conference
rooms, offering the presenter
the freedom to utilize the full
area without fear of blocking
the projected image.
Featuring enhanced keystone
correction, automatic color correction, and single touch
adjustment technologies, your
images will be sharp and
clear. Also, through the wireless/wired LAN capabilities,
you will be able to present in real time as well as control
and monitor the projector remotely and receive updates
via e-mail on vital projector functions.
5
°
5
B
D
C
Distance chart for 4:3 screen sizes
Image Size (4:3)
Diagonal Width(H) Height(V)
inches inches inches inches inches inches
40 32 24 26.0 2.5 14.0
60 48 36 37.0 10.3 19.0
67 53.6 40.2 40.8 13.1 20.7
72 57.6 43.2 43.6 15.0 22.0
84 67.2 50.4 50.2 19.7 25.0
90 72 54 53.5 22.0 26.5
100 80 60 59.0 25.9 29.0
Audio Visual Products
2900 Dukane Drive
St. Charles, Illinois 60174
www.dukcorp.com/av
BCD
Toll-free: 800-676-2485
Fax: 630-584-5156
E-mail: avsales@dukcorp.com
ImagePro is a registered trademark of Dukane Corporation
Specifications
9066
Image Element Single chip 12 degree DMD
Brightness 1500 ANSI lumens (1200 eco-mode)
Resolution 1024 x 768 XGA (H X V) up to
UXGA with Advanced Compression
Contrast 3000 to 1
Scanning Frequency 15–100 kHz Horizontal
50– 120 kHz Vertical
Optical System Four Curved Mirrors, Power Focus
Throw Distance Image above mirrors and very large
Distance 2.5” to 26”
Keystone Correction Full correction ± 5° Horz -5° Vert
Aspect Ratio Selectable
Computer Compatibility SVGA, VGA, XGA, plus SXGA to
UXGA Compressed, Mac 13” and
Mac 16”
Video Compatibility NTSC, NTSC 4.43, PAL,PAL-M, PAL-N,
PAL60, SECAM, HDTV 1080i,
720p, 480p, 480i
Component Video, Component, Y/Cb/Cr, 800 TV lines
Image Control Freeze function, electronic
magnification and pan
Projection Modes Front/rear/ceiling
Pixel clock Frequency 135 MHz
Color Reproduction 24 bit (16.7 million)
Lamp 220W NSH
Lamp Life 2000 hours (typical)
3000 hours Eco-Mode
Audio 2 speakers x 1 watt
Inputs (1) DVI-I, 24 pin
(1) RGB, 15 pin Mini D-Sub with
Component Option
(1) S-Video, 4 pin Mini DIN
(1) Video,Composite, RCA
(1) PC Card Solt, PCMCIA
(2) Stereo Mini Audio for DVI & RGB
(1) RCA Audio x 2 for Video or S-Video
Outputs (1) RGB, 15 pin for Monitor
(1) Stereo Mini, Audio out
Outputs,other (1) USB for Mouse control, Type B
(1) Remote Control In, Mini Jack
(1) PC Control of Projector, DIN 8 Pin
(1) USB, TypeA, for Projector Control
by Mouse
Operating Range 41° to 95° F / 5 to 35 deg. C
Security Password Access Control
Fan Level 37dB, normal, 32db Eco-Mode
Power AC 100-120V, AC200-240V
50/60 Hz, 290 watt, 0.6 watt idle
Size (WxHxD) 15” x 12.3” x 12.3”
Weight 13 lbs.
Shipping Weight 21.4 lbs.
Carton Size 18.5” x 13" x 19”
Accessories Included User’s manual, wired/wireless remote
control, VGA D-sub signal cable,
DVI-D signal cable, DVI-A - D-sub
signal cable, audio cable, USB A-B
cable, power cable, set up guide
Safety UL, 1950 FCC Class B, CSA 950 (C-UL)
Accessories Lamp 456-9066; Soft Case 128-57
Three (3) year limited warranty on parts and labor in North America,
lamp excluded (for other locations, local warranties apply).Includes
Dukane’s FREE 1 year
Peace-of-Mind Loaner Program
#11621-B-05
.
