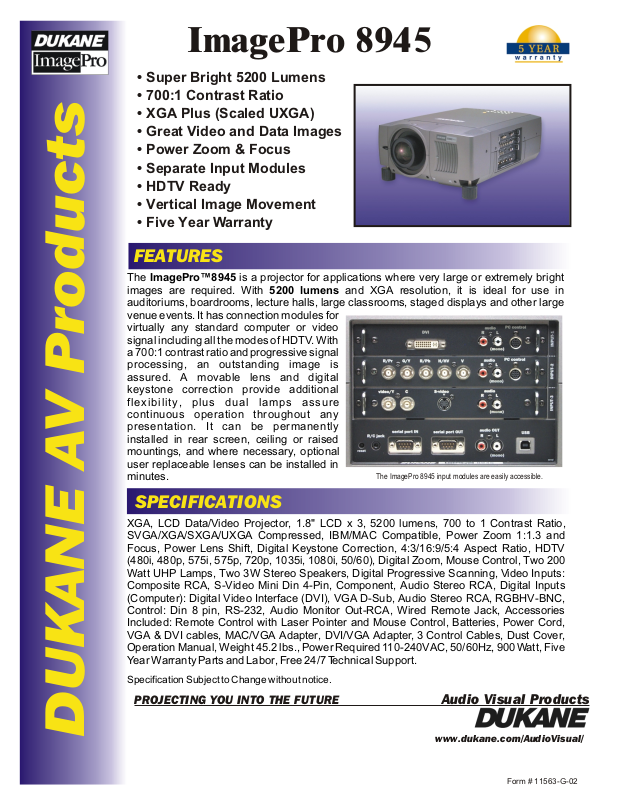

Dukane 8945 User Manual

ImagePro 8945
• Super Bright 5200 Lumens
• 700:1 Contrast Ratio
• XGA Plus (Scaled UXGA)
• Great Video and Data Images
• Power Zoom & Focus
• Separate Input Modules
• HDTV Ready
• Vertical Image Movement
• Five Year Warranty
FEATURES
The ImagePro 8945 input modules are easily accessible.
DUKANE AV Products
SPECIFICATIONS
XGA, LCD Data/Video Projector, 1.8" LCD x 3, 5200 lumens, 700 to 1 Contrast Ratio, SVGA/XGA/SXGA/UXGA Compressed, IBM/MAC Compatible, Power Zoom 1:1.3 and Focus, Power Lens Shift, Digital Keystone Correction, 4:3/16:9/5:4 Aspect Ratio, HDTV (480i, 480p, 575i, 575p, 720p, 1035i, 1080i, 50/60), Digital Zoom, Mouse Control, Two 200 Watt UHP Lamps, Two 3W Stereo Speakers, Digital Progressive Scanning, Video Inputs: Composite RCA, S-Video Mini Din 4-Pin, Component, Audio Stereo RCA, Digital Inputs (Computer): Digital Video Interface (DVI), VGA D-Sub, Audio Stereo RCA, RGBHV-BNC, Control: Din 8 pin, RS-232, Audio Monitor Out-RCA, Wired Remote Jack, Accessories Included: Remote Control with Laser Pointer and Mouse Control, Batteries, Power Cord, VGA & DVI cables, MAC/VGA Adapter, DVI/VGA Adapter, 3 Control Cables, Dust Cover, Operation Manual, Weight 45.2 lbs., Power Required 110-240VAC, 50/60Hz, 900 Watt, Five Year Warranty Parts and Labor, Free 24/7 Technical Support.
Specification Subject to Change without notice.
PROJECTING YOU INTO THE FUTURE
Audio Visual Products
www.dukane.com/AudioVisual/
Form # 11563-G-02
ImagePro 8945 Data/V ideo Projector Model 28A8945
Specifications (Specifications are subject to change without notice)
FF
AST FAST F
F
AST F
FF
AST FAST F
AXAX
AX
AXAX
LCD T ype 1.8” polysilicon active- Brightness 5200 ANSI Lumens
Resolution 1024 x 768 pixels (H X V), XGA Contrast 700:1 Lens Power Zoom (F2.0-2.3), Ratio
Keystone Correction Motorized Lens Shift, +/- 100% Aspect Ratio 4:3/5:4/16:9 modes
Computer SVGA, VGA, XGA, SXGA, UXGA Compatibility Compressed, Mac, 13”, Mac 16” Video Compatibility NTSC, PAL, M-PAL, N-P AL,
Image Control Front/Rear/Ceiling Mouse Control (remote) USB, PS/2, Serial Color Reproduction 24 bit (16.7 million) Lamp 200W UHP x 2 Lamp Life 2000 hours (typical) Audio Speaker 2 x 3 watt, stereo Throw Distance 64” to 400” (5.3 to 34 ft.) Screen Size 40” - 600” (diagonal) Inputs
Module 1: DVI; Audio L & R, RCA; Control DIN 8 pin Module 2: R/Pr, G/Y , B/Pb, H/HV and V, BNCx5; Audio
Module 3: Video composite, Y,C, BNCx2; Audio L&R,
Control RS-232 (DB9); USB port, Output Audio monitor, L&R, RCA; Wired Frequency Range fh 15-120 kHz, fv 50-120 hz
Dot Clock 230 MHz Fan Level 45dBA, quiet. Power AC 100-120 V / AC220-240V
(WxHxD)
Size Weight 45.2 lbs Shipping Weight 70 lbs. Carton Size 26” x 20.5” x 32.5” Accessories Included Remote control with laser
Operating Temperature 41° to 95°F (5° to 35°C) Safety UL/C-UL, CE, FCC Class A Optional Accessories Lamps 456-230
FIVE (5) year Limited Warranty on Parts and Labor in North America, lamp excluded (for other locations,local warranties apply.) Includes Dukane’s FREE 24/7-hour service support for the warranty period.
L&R, RCA; Control DIN 8 pin RCA; S-video, 4 pin DIN
matrix TFT x 3 (2600 ANSI lumens in one
lamp Mode)
1:1.3, Power Focus, f =76-97mm, throw ratio 2.0-2.6:1
Digital +/- 30 degrees
PAL60, SECAM, 480i, 575i, 480p, 1080i, 720p, 1035i, HDTV
Mouse control Remote Jack
50/60 Hz, 900 watt
17.3" x 9" x 23.8"
pointer, Batteries, Power cord, wired remote cable, VGA cable, MAC adapter, Mouse control cable, DVI cable, VGA/DVI adapter, audio, S-video, Composite video cables, dust cover, RCA to BNC adapters, operators manual.
ImagePro 8945 Overview
The ImagePro™ 8945 is a high light output, 5200 lumens, full featured LCD projector for applications in auditoriums, board or conference rooms, churches, stage events, or wherever a bright large data/video image is required. It has the flexibility for computer or video image display with multiple inputs and various control methods. The image resolution of 1024 x 768 pixels with a 700 to 1 contrast ratio provides an outstanding picture on the screen.
Easy set up and adjustment is possible with the power zoom and focus of the lens. Also, a power motorized lens shift per­mits perfect keystone correction by lens movement up or down. The image can be reversed or inverted for rear screen or ceil­ing mounting of the projector.
With three separate input modules any signal source can be displayed. This includes various computer output signals such as, VGA, SVGA, XGA, SXGA, UXGA, in forms like DVI, standard VGA, and RGB. Also, video signals such as composite, S­video, and all types of high definition TV (HDTV) can be dis­played. Each of the modules also has stereo audio inputs, which are automatically switched to the internal 3-watt speak­ers or routed to an external sound system.
To assure continuous operation without interruption during a presentation the projector has two lamps. Both operating pro­vide the maximum light output, however, the projection can continue with a single lamp. It is also possible to select a single lamp operation if desired to conserve lamp usage.
The ImagePro 8945 is built to last and provide dependable operation. It’s larger size and moderate weight permit secure installation while it can be still moved on a cart and quickly become operational. With the numerous signal inputs and control features this projector can handle your requirements far into the future.
Audio Visual Products
Dukane Corporation Audio Visual Products Division 2900 Dukane Drive St. Charles, IL 60174 Toll Free (800) 676-2485 or 2486 Fax (630) 584-5156 e-mail: avsales@dukane.com
DUK DUK
Image Pro® is a registered trademark of
ANEANE
DUK
ANE Corporation.
DUK DUK
ANEANE
Form # 11563-G-02
