Dukane 8945WU User Manual

Download

Page 1

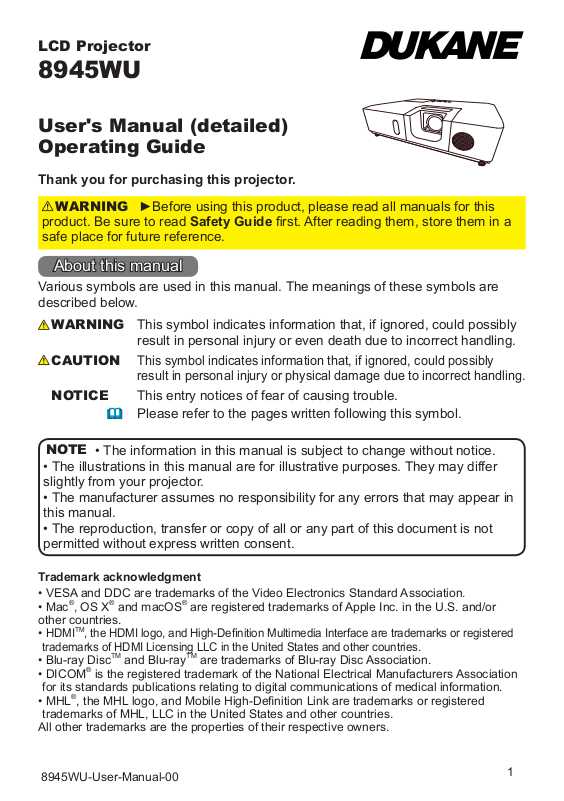

LCD Projector

8945WU

User's Manual (detailed) Operating Guide

Th a n k y o u f o r p u r c h a s i n g t h i s p r o j e c t o r .

WARNING

►Before using this product, please read all manuals for this product. Be sure to read S a f e t y G u i d e rst. After reading them, store them in a safe place for future reference.

About this manual

Various symbols are used in this manual. The meanings of these symbols are described below.

WARNING

CAUTION

NOTICE This entry notices of fear of causing trouble.

NOTE

• The information in this manual is subject to change without notice.

• The illustrations in this manual are for illustrative purposes. They may differ slightly from your projector.

• The manufacturer assumes no responsibility for any errors that may appear in this manual.

• The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent.

Tr a d e m a r k a c k n o w l e d g m e n t

• VESA and DDC are trademarks of the Video Electronics Standard Association.

• Mac

, OS X® and macOS® are registered trademarks of Apple Inc. in the U.S. and/or

other countries.

•

HDMITM, the HDMI logo, and High-Denition Multimedia Interface are trademarks or registered

trademarks of HDMI Licensing LLC in the United States and other countries.

• Blu-ray DiscTM and Blu-rayTM are trademarks of Blu-ray Disc Association.

• DICOM for its standards publications relating to digital communications of medical information.

• trademarks of MHL, LLC in the United States and other countries.

All other trademarks are the properties of their respective owners.

is the registered trademark of the National Electrical Manufacturers Association

MHL®, the MHL logo, and Mobile High-Denition Link are trademarks or registered

This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling.

This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling.

Please refer to the pages written following this symbol.



8945WU-User-anual-00

Page 2

Contents



Introduction ............... 3

Features ......................3

Checking the contents of package

Part names ....................4

Projector, Control panel, Ports, Remote control

Setting up ................. 7

Arrangement ...................7

Connecting with your devices Connecting to a power supply Fastening the cable

.............1 5

Fastening the adapter cover ......

Using the security bar and slot ....1 6

Remote control ............ 17

Installing the batteries ...........1 7

About the remote control signal ...1 8 Changing the frequency of remote

control signal ..................1 8

Using as a simple PC mouse & keyboard

Power on/off .............. 20

Turning on the power ...........2 0

Turning off the power ...........2 1

Operating ................ 22

Adjusting the volume ............2 2

Temporarily muting the sound .....2 2

Selecting an input signal .........2 3

Selecting an aspect ratio .........2 3

Adjusting the projector's elevator

Adjusting the zoom and focus .....2 4

Using the automatic adjustment feature

Correcting the distortion ......... 2 6

Using the magnify feature ........2 9

Temporarily freezing the screen ...3 0 Temporarily blanking the screen ...3 0

Using the menu function .........3 1

Indication in OSD, Containing items of each menu

EASY MENU. . . . . . . . . . . . . . . 34

PICTURE menu ............ 36

IMAGE menu .............. 40

INPUT menu .............. 42

SETUP menu .............. 46

AUDIO menu .............. 52

SCREEN menu ............. 53

OPTION menu ............. 59

....3

.....1 0

.....1 5

1 6

. . 1 9

....2 4

. . 2 5



NETWORK menu ........... 72

SECURITY menu ........... 73

Presentation tools ......... 79

PC-LESS Presentation. .........7 9

Maintenance .............. 88

Replacing the lamp .............8 8

Cleaning and replacing the air lter . . 9 0 Replacing the internal clock battery

. .

.92

Other care ....................9 3

Troubleshooting ........... 94

Related messages .............9 4

Regarding the indicator lamps ....9 6

Resetting all settings ............9 8

Phenomena that may be easy to be mistaken for machine defects

...9 9

Specications ............ 104

Page 3

Introduction

Features

The projector provides you with the broad use by the following features. ü This projector has a variety of I/O ports that supposedly cover for any

business scene. An HDMITM port can support various image equipment which have digital interface to get clearer pictures on a screen. This model has two HDMITM ports.

ü If you insert a USB storage device, such as a USB memory, into the US B

TY PE A port and select the port as the input source, you can view images

stored in the device.

ü This projector can be controlled and monitored via LAN connection.

Furthermore, you can use the designated USB wireless adapter (optional) to establish wireless LAN connection.

ü The built-in 16W speaker can deliver sufcient sound volume in a large space

like a classroom without external speakers.

ü Has an HDCR and an ACCENTUALIZER features which are original image

stabilizer for a clearer image.

ü Equipped with IMAGE OPTIMIZER which is original function to maintain

visibility by automatic image correction in accordance with lamp deterioration.

Checking the contents of package

Please see the C o n t e n t s o f p a c k a g e section in the Us e r ’ s M a n u a l ( c o n c i s e ) which is a book. Your projector should come with the items shown there. Require of your dealer immediately if any items are missing.

WARNING

not to put in the mouth. If swallowed, consult a physician immediately for emergency treatment.

NOTE

to use the original packing materials when moving the projector. Use special caution for the lens.

• The projector may make a rattling sound when tilted, moved or shaken, since a ap to control the air ow inside of the projector has moved. Be aware that this is not a failure or malfunction.

• Keep the original packing materials, for future reshipment. Be sure

►Keep small parts away from children and pets. Take care

Page 4

Introduction

Part names

Projector

(1) Lamp cover (98)

The lamp unit is inside. (2) Speaker (22, 55) (3) Filter cover (100)

The air lter and intake vent are inside. (4) Elevator feet (x2) (25) (5) Elevator button (25) (6) Remote sensor (18) (7) Lens (103) (8) Lens cover (9) Intake vents (10) Control panel (5) (11) F O C US ring (25) (12) Z O O M ring (25) (13) A C (AC inlet) (15) (14) Exhaust vent (15) Ports (5)

(8)

(4)

(10)

(15)

(6)

(11)

(13)

(7)

(12)

(9)

(2)

(3)

(9)

(4)(5)

(5)

(1)

(14)

WARNING

►Do not open or remove any portion of the product, unless the manuals direct it. ►Do not subject the projector to unstable conditions. ►Do not apply a shock or pressure to this product. ►Do not look into the lens and the openings on the projector while the lamp is on, since the projection ray may cause a trouble on your eyes. ►Keep any object away from concentrated projection light beam. Blocking the beam by something causes high temperature and could result in re or smoke.

CAUTION

►Do not touch around the lamp cover and the exhaust vents during use or just after use, since it is too hot. ►Do not attach anything onto the lens because it could damage the lens, such as melting the lens. ►Do not attach anything onto the lens except the lens cover of this projector because it could damage the lens, such as melting the lens.

(continued on next page)

Page 5

Part names (continued)

Control panel

(1) S TA ND B Y / O N button (

20) (2) INPUT button (23) (3) M E NU button (32) (4) L A M P indicator (106) (5) TE M P indicator (106) (6) PO W E R indicator (106)

Introduction

(4)(5)

(1) (3)(2) (6)

Ports(

10 ~ 14)

(1) L A N port (2) US B TY PE A port (x2) (3) US B TY PE B port (4) H D M I1 port (5) H D M I2 / M H L port (6) A UD IO IN1 port (7) A UD IO IN2 port (8) A UD IO IN3 (R , L ) ports (9) A UD IO O UT port (10) C O M PUTE R IN1 port

(1)

(11) C O M PUTE R IN2 / M O NITO R O UT port (12) C O NTR O L port (13) V ID E O port (14) Security slot (

16)

(15) Security bar (16)

(3)(2)

(4)

(5)

(10)

(11)

(9)

(14)

(continued on next page)

(12)

(8)

(13)

(6)

(7)

(15)

Page 6

Introduction

Part names (continued)

Remote control

(1) INPUT button (23) (2) M Y B UTTO N- 1 button ( (3) M Y B UTTO N- 2 button ( (4) S TA ND B Y / O N button ( (5) A S PE C T button (

64, 65) 64, 65)

20)

24)

(6) Pb y P button * (7) A UTO button

(26)

(8) F R E E Z E button (31) (9) M A G NIF Y O N button (

30) (10) F O C US + button * (11) Z O O M + button * (12) V O L UM E + button ( (13) M A G NIF Y O F F

22)

button

(30) (14) F O C US - button * (15) Z O O M - button * (16) V O L UM E - button ( (17) PA G E UP button ( (18) G E O M E TR Y button (

22)

19)

27)

(19) PIC TUR E button (20) M UTE button ( (21) PA G E D O W N button (

22)

19)

(22) INTE R A C TIV E button * (23) NE TW O R K button (24) B L A NK button ( (25) E S C button ( (26) M E NU button ( (27) E NTE R button (

31)

19)

32)

(28) O S D M S G button (29) R E S E T button (

32) (30) ▲/▼/◄/►cursor buttons ( (31) Battery cover (

17)

32)

(2) (1) (6) (5)

(10)

(9)

(14) (13)

(17) (18) (21) (22) (25) (30) (28)

MYBUTTON

INPUT

1 2

AUTO

ASPECT

PbyP

MAGNIFY

FOCUS

ZOOM

OFF

GEOMETRY PICTURE MUTE

INTERACTIVE

DOWN

NETWORK

ENTER

PAGE

ESC MENU

OSD MSG

FREEZE

VOLUME

BLANK

RESET

(3) (4) (7) (8) (11)

(12) (15)

(16) (20) (19) (24) (23) (26) (27) (29)

(31)

NOTE

Back of

the remote control

• Any button marked with “*” is not supported on this projector (105).

Page 7

Setting up

Install the projector according to the environment and manner the projector will be used in.

For the case of installation in a special state such as ceiling mount, the specied mounting accessories ( service may be required. Before installing the projector, consult your dealer about your installation.

Specications in the Us e r ’ s M a n u a l ( c o n c i s e ) ) and

Arrangement

Refer to tables T- 1 to T- 3 and gures F - 1 and F - 2 at the end of User’s Manual (concise) to determine the screen size and projection distance. The values shown in the table are calculated for a full size screen.

a Screen size (diagonal) b Projection distance (±10%, from the projector’s end) c1 , c2 Screen height (±10%)

• If the projector is used at an altitude of about 1600 m (5250 feet) or higher, set ALTITUDE of the SERVICE item in the OPTION menu to HIGH ( Otherwise, set it to NORMAL. If the projector is used with a wrong setting, it may cause damage to the projector itself or the parts inside.

NOTE

suspended from the ceiling or other location due to the exibility of the plastic projector body. If readjustment is necessary, consult with your dealer or service personnel.

(continued on next page)

• The screen position may shift after installation if the projector is

69).

Page 8

Setting up

Arrangement (continued)

WARNING

►In s t a l l t h e p r o j e c t o r w h e r e y o u c a n a c c e s s t h e p o w e r

o u t l e t e a s i l y . If an abnormality should occur, unplug the projector urgently.

Otherwise it could cause a re or electric shock. ►D o n o t s u b j e c t t h e p r o j e c t o r t o u n s t a b l e c o n d i t i o n s . If the projector falls or topples over, it could result in injury or damage to the projector and the surrounding things. Using a damaged projector could result in a re and an electric shock.

• Do not place the projector in unstable places, such as an inclined surface, places subject to vibration, on top of a wobbly table or cart, or a surface that is smaller than the projector.

• Do not put the projector on its side, front or rear position.

• Do not attach nor place anything on the projector unless otherwise specied in the manual.

• Do not use any mounting accessories except the accessories specied by the manufacturer. Read and keep the manuals of the accessories used.

• For special installation such as ceiling mounting, be sure to consult your dealer beforehand.

Do not install the projector near thermally conductive or ammable

► t h i n g s . Such things when heated by the projector could result in a re and burns.

• Do not place the projector on a metal stand.

►D o n o t p l a c e t h e p r o j e c t o r w h e r e a n y o i l s , s u c h a s c o o k i n g o r m a c h i n e o i l , a r e u s e d . Oil may harm the product, resulting in malfunction, or falling from the mounted position. Do not use adhesive such as threadlocker, lubricant and so on. ►D o n o t p l a c e t h e p r o j e c t o r i n a p l a c e w h e r e i t m a y g e t w e t . Getting the projector wet or inserting liquid into the projector could cause a re and an electric shock, and damage the projector.

• Do not place the projector near water, such as in a bathroom, kitchen, or poolside.

• Do not place the projector outdoors or by the window.

• Do not place anything containing liquid near the projector.

(continued on next page)

Page 9

Arrangement (continued)

Setting up

CAUTION

►Place the projector in a cool place with sufcient v e n t i l a t i o n . The projector may shutdown automatically or may malfunction if its internal temperature is too high. Using a damaged projector could result in a re and an electric shock.

• Do not place the projector in direct sunlight or near hot objects such as heaters.

• Do not place the projector where the air from an air conditioner or similar unit

will blow on it directly.

• Keep a space of 30 cm or more between a side of the projector and other

objects such as walls.

• Do not place the projector on carpet, cushions or bedding.

• Do not stop up, block nor cover the projector's vent holes. Do not place

anything around the projector that could be sucked in or stuck to the projector's intake vents.

• Do not place the projector at places that are exposed to magnetic elds, doing

so can cause the cooling fans inside the projector to malfunction. ►A v o i d p l a c i n g t h e p r o j e c t o r i n s m o k y , h u m i d o r d u s t y p l a c e . Placing the projector in such places could cause a re, an electric shock and malfunction of the projector.

• Do not place the projector near humidiers. Especially for an ultrasonic

humidier, chlorine and minerals contained in tap water are atomized and could

be deposited in the projector causing image degradation or other problems.

NOTICE

• Do not place the projector in a smoking area, kitchen, passageway

or by the window.

• Position the projector to prevent light from directly hitting the projector's remote sensor.

• Positional deviation or distortion of a projected image, or shift of the focus may occur due to ambient conditions, and so on. They tend to occur until the operation becomes stable, especially within about 30 minutes after the lamp is turned on. Check and readjust them as necessary.

• Do not place the product in a place where radio interference may be caused.

• Check and correct the setting for ALTITUDE of SERVICE in the OPTION menu according to the usage environment (

69). If the projector is used with a wrong

setting, it may cause damage to the projector itself or the parts inside.

• Keep heat-sensitive things away from the projector. Otherwise, they may be damaged by the heat from the projector.

Page 10

Setting up

Connecting with your devices

Before connecting the projector to a device, consult the manual of the device to conrm that the device is suitable for connecting with this projector and prepare the required accessories, such as a cable in accord with the signal of the device. Consult your dealer when the required accessory did not come with the product or the accessory is damaged. After making sure that the projector and the devices are turned off, perform the connection, according to the following instructions. Refer to the gures in subsequent pages. Before connecting the projector to a network system, be sure to read Ne t w o r k G u i d e too.

WARNING

cause a re or damage the projector and devices.

• Use only the accessories specied or recommended by the projector’s

manufacturer. It may be regulated under some standard.

• Neither disassemble nor modify the projector and the accessories.

• Do not use the damaged accessory. Be careful not to damage the accessories.

Route a cable so that it is neither stepped on nor pinched out.

CAUTION

w i t h t h e c o r e t o t h e p r o j e c t o r . That may be required by EMI regulations.

►Us e o n l y t h e a p p r o p r i a t e a c c e s s o r i e s . Otherwise it could

►F o r a c a b l e w i t h a c o r e a t o n l y o n e e n d , c o n n e c t t h e e n d

NOTE

• Do not turn on or off the projector while connected to a device in operation, unless that is directed in the manual of the device. Otherwise it may cause malfunction in the device or projector.

• The function of some input ports can be selected according to your usage requirements. Check the reference page indicated beside each port in the following illustration.

• Be careful not to mistakenly connect a connector to a wrong port. Otherwise it may cause malfunction in the device or projector.

- When connecting a connector to a port, make sure that the shape of the

connector ts the port.

- Tighten the screws to connect a connector equipped with screws to a port.

- Use the cables with straight plugs, not L-shaped ones, as the input ports of

the projector are recessed.

About Plug-and-Play capability

• Plug-and-Play is a system composed of a computer, its operating system and peripheral equipment (i.e. display devices). This projector is VESA DDC 2B compatible. Plug-and-Play can be used by connecting this projector to a computer that is VESA DDC (display data channel) compatible.

- Take advantage of this feature by connecting a computer cable to the

C O M PUTE R IN 1 port (DDC 2B compatible). Plug-and-Play may not work properly if any other type of connection is attempted.

- Please use the standard drivers in your computer as this projector is a Plug-

and-Play monitor.

(continued on next page)

1 0

Page 11

Connecting with your devices (continued)

C o m p u t e r

Setting up

NOTE

• Before connecting the projector to a computer, consult the computer’s manual and check the compatibility of the signal level, the synchronization methods and the display resolution output to the projector.

- Some signal may need an adapter to input this projector.

- Some computers have multiple screen display modes that may include some

signals which are not supported by this projector.

- Although the projector can display signals with a resolution up to UXGA

(1600x1200) or up to W-UXGA (1920x1200), the signal will be converted to the projector’s panel resolution before being displayed. The best display performance will be achieved if the resolutions of the input signal and the projector panel are identical.

• If you connect this projector and a notebook computer, you need output the display to an external monitor, or output simultaneously to the internal display and an external monitor. Consult the computer's manual for the setting.

• Depending on the input signal, the automatic adjustment function of this projector may take some time and not function correctly.

- Note that a composite sync signal or sync-on-green signal may confuse the

automatic adjustment function of this projector (25).

- If the automatic adjustment function does not work correctly, you may not see

the dialog to set the display resolution. In such a case, use an external display device. You may be able to see the dialog and set an appropriate display resolution.

(continued on next page)

1 1

Page 12

Setting up

Connecting with your devices (continued)

US B

w i r e l e s s

a d a p t e r

(optional)

CAUTION

C o m p u t e r

A c c e s s

p o i n t

US B

s t o r a g e

d e v i c e

► Before connecting the projector to a network system be sure

E x t e r n a l d e v i c e

to obtain the consent of the administrator of the network. ►Do not connect the L A N port to any network that might have the excessive voltage. ►The designated USB wireless adapter that is sold as an option is required to use the wireless network function of this projector. ►Before removing the USB storage device from the port of the projector, be sure to use the REMOVE USB function on the thumbnail screen to secure your data (82). ►Do not use any extension cable or device when connecting the adapter to the projector. Before you insert or pull out the USB wireless adapter from the projector, turn off the power of the projector and pull out the power cord’s plug from the outlet. Do not touch the USB wireless adapter while the projector is receiving AC power. ►To connect both the LAN cable and USB device to the projector, use a LAN cable that is  at on the side where the plug’s wire is visible. Otherwise, both of them cannot be connected correctly, or the wire may break (malfunction).

NOTE

• If an oversized USB storage device blocks the L A N port, use a USB extension cable to connect the USB storage device.

(continued on next page)

1 2

Page 13

Connecting with your devices (continued)

V C R / D V D / B l u - r a y D i s cTM p l a y e r

Setting up

NOTE

• The HDMITM port of this model is compatible with HDCP (Highbandwidth Digital Content Protection) and therefore capable of displaying a video signal from HDCP compatible DVD players or the like.

- The HDMITM port supports the following signals.

Video signal : 480i@60, 480p@60, 576i@50, 576p@50, 720p@50/60,

1080i@50/60, 1080p@50/60

Audio signal : Format Linear PCM

Sampling frequency 48kHz / 44.1kHz / 32kHz

- This projector can be connected with another equipment that has HDMITM

connector, but with some equipment the projector may not work properly, something like no video.

- Be sure to use an HDMITM cable that has the HDMITM logo.

- Use a Category 2-certi ed HDMITM cable to input 1080p@50/60 signal to the

projector.

- When the projector is connected with a device having DVI connector, use a

DVI to HDMITM cable to connect with the HDMITM input.

- The MHL supports the following signals. For Video signals, refer to User’s

Manual (detailed) Operating Guide –Technical. Audio signal : Format Linear PCM

Sampling frequency 48kHz / 44.1kHz / 32kHz

- Be sure to use an MHL® cable that has the MHL logo.

(continued on next page)

1 3

Page 14

Setting up

Connecting with your devices (continued)

S p e a k e r s

(with an ampli er)

M o n i t o r

RGB IN

Note: The Dukane model described in this document is manufactured by Hitachi

and uses the same rmware, software programs, control code, and accessory parts. The equivalent Dukane to Hitachi models is 8945WU (CP-EU4501WN) and 8950W (CP-EW5001WN).

1 4

Page 15

Connecting to a power supply

Put the connector of the power cord into the

A C (AC inlet) of the projector. Firmly plug the power cord’s plug into the

outlet. In a couple of seconds after the power supply connection, the PO W E R indicator will light up in steady orange.

Please remember that when the DIRECT POWER ON function activated (63), the connection of the power supply make the projector turn on.

Setting up

A C

Po w e r c o r d

WARNING

incorrect or faulty connections may result in re and/or electrical shock.

• Do not touch the power cord with a wet hand.

• Only use the power cord that came with the projector. If it is damaged, consult your dealer to get a new one. Never modify the power cord.

• Only plug the power cord into an outlet whose voltage is matched to the power cord. The power outlet should be close to the projector and easily accessible. Remove the power cord for complete separation.

• Do not distribute the power supply to multiple devices. Doing so may overload the outlet and connectors, loosen the connection, or result in re, electric shock or other accidents.

• Connect the ground terminal for the AC inlet of this unit to the ground terminal of the building using an appropriate power cord (bundled).

NOTICE

phase voltage of 220 to 240 V.

►Please use extra caution when connecting the power cord, as

►This product is also designed for IT power systems with a phase-to-

Fastening the cable

Use the supplied cable tie to fasten the cable.

C a b l e t i e

1 5

Page 16

Setting up

Fastening the adapter cover

Use the supplied adapter cover to prevent the USB wireless adapter from coming off easily.

Loosen the screw (marked with

triangle) on the bottom left of the

US B TY PE A port.

Insert the tab of the cover into the

hole at the upper right of the US B TY PE A port in the direction of the arrow.

Align the screw holes on the projector

and the cover. Then insert the screw removed from the projector into the hole and tighten the screw.

Tab

WARNING

to put in the mouth. Heat may build up in the USB wireless adapter, to avoid possible burns disconnect the projector power cord for more than 10 minutes before touching it.

Using the security bar and slot

A commercially available anti-theft chain or wire can be attached to the security bar on the projector. Refer to the  gure to choose an anti-theft chain or wire. Also this product has the security slot for the Kensington lock. For details, see the manual of the security tool.

WARNING

from falling down, since it is not designed for it.

CAUTION

It may become too hot.

NOTE

measures. It is intended to be used as supplemental theft prevention measure.

• The security bar and slot is not comprehensive theft prevention

►Keep small parts away from children and pets. Take care not

S e c u r i t y s l o t

1 2 . 2 m m

1 8 . 6 m m

1 8 . 0 m m

A n t i - t h e f t

c h a i n o r w i r e

►Do not use the security bar and slot to prevent the projector

►Do not place anti-theft chain or wire near the exhaust vents.

S e c u r i t y b a r

1 6

Page 17

Remote control

Installing the batteries

Please insert the batteries into the remote control before using it. If the remote control starts to malfunction, try to replace the batteries. If you will not use the remote control for long period, remove the batteries from the remote control and store them in a safe place.

Remove the battery cover.

Align and insert the two AA batteries

according to their plus and minus terminals as indicated in the remote control. (Use the appropriate AA carbon-zinc or alkaline batteries (non-rechargeable) in accordance with laws and regulations.)

Put the battery cover back to the former state.

WARNING

directed. Improper use may result in battery explosion, cracking or leakage, which could result in re, injury and/or pollution of the surrounding environment.

• Be sure to use only the batteries specied. Do not use batteries of different types at the same time. Do not mix a new battery with used one.

• Make sure the plus and minus terminals are correctly aligned when loading a battery.

• Keep a battery away from children and pets.

• Do not recharge, short circuit, solder or disassemble a battery.

• Do not place a battery in a re or water. Keep batteries in a dark, cool and dry place.

• If you observe battery leakage, wipe out the leakage and then replace a battery. If the leakage adheres to your body or clothes, rinse well with water immediately.

• Obey the local laws on disposing the battery.

►Always handle the batteries with care and use them only as

1 7

Page 18

Remote control

About the remote control signal

The remote control works with the projector’s remote sensor. This projector has a remote sensor on the front. The sensor senses the signal within the following range when the sensor is active:

60 degrees (30 degrees to the left and right of the sensor) within 3 meters about.

(approx.)

NOTE

•

The remote control signal re ected in the screen or the like may be available.

If it is dif cult to send the signal to the sensor directly, attempt to make the signal re ect.

• The remote control uses infrared light to send signals to the projector (Class 1 LED), so be sure to use the remote control in an area free from obstacles that could block the remote control’s signal to the projector.

•

The remote control may not work correctly if strong light (such as direct sun light) or light from an extremely close range (such as from an inverter  uorescent lamp) shines on the remote sensor of the projector. Adjust the position of projector avoiding those lights.

Changing the frequency of remote control signal

The accessory remote control has the two choices on signal frequency Mode 1:NORMAL and Mode 2:HIGH. If the remote control does not function properly, attempt to change the signal frequency. In order to set the Mode, please keep pressing the combination of two buttons listed below simultaneously for about 3 seconds.

(1) Set to Mode 1:NORMAL

V O L UM E - and R E S E T buttons

(2) Set to Mode 2:HIGH

M A G NIF Y O F F and E S C buttons

M A G NIF Y

O F F button

E S C

button

Please remember that the REMOTE FREQ. in the SERVICE item of the OPTION menu

(

68) of the projector to be

controlled should be set to the same mode as the remote control.

(2)

MYBUTTON

INPUT

1 2

ASPECT

PbyP

MAGNIFY

FOCUS

OFF

PAGE

GEOMETRY PICTURE MUTE

INTERACTIVE

DOWN

ESC MENU

ENTER

OSD MSG

AUTO

FREEZE

(1)

VOLUME

ZOOM

V O L UM E -

NETWORK

button

BLANK

R E S E T

RESET

button

1 8

Page 19

Using as a simple PC mouse & keyboard

The accessory remote control works as a simple mouse and keyboard of the computer, when the projector’s US B TY PE B port and the computer’s type A USB port are connected.

Remote control

(1) PA G E UP k e y : Press PA G E UP button. (2) PA G E D O W N k e y : Press PA G E D O W N button. (3) M o u s e l e f t b u t t o n : Press E NTE R button. (4) M o v e p o i n t e r : Use the cursor buttons ▲, ▼, ◄ and ►. (5) E S C k e y : Press E S C button. (6) M o u s e r i g h t b u t t o n : Press R E S E T button.

NOTICE

►Improper use of the simple mouse & keyboard function could damage your equipment. While using this function, please connect this product only to a computer. Be

US B TY PE B port

(1) (2)

(5)

(3)

MYBUTTON

INPUT

1 2

AUTO

ASPECT

PbyP

MAGNIFY

FOCUS

ZOOM

OFF

PAGE

GEOMETRY PICTURE MUTE

NETWORK

INTERACTIVE

DOWN

ESC MENU

ENTER

OSD MSG

FREEZE

VOLUME

BLANK

RESET

sure to check your computer’s manuals before connecting this product to the computer.

NOTE

When the simple mouse & keyboard function of this product does not work

correctly, please check the following.

• When a USB cable connects this projector with a computer having a built-in pointing device (e.g. track ball) like a laptop computer, open BIOS setup menu, then select the external mouse and disable the built-in pointing device, because the built-in pointing device may have priority to this function.

Windows Vista® or higher is required for this function. And also this function may not work

• depending on the computer’s congurations and mouse drivers. This function can work with the computer which can operate general USB mouse or keyboard.

• You cannot do things like press two buttons at once (for instance, pressing two buttons at the same time to move the mouse pointer diagonally).

This function is activated only when the projector is working properly. This function is not

• available in any of the following cases:

- While the lamp is warming up. (The PO W E R indicator blinks in green.)

- When US B TY PE A port is selected.

- While displaying BLANK

, TEMPLATE

(57)

or MY IMAGE screen.

(53)

- When any menu is displayed on the screen. While using the cursor buttons to operate the sound or screen functions such as adjusting the

sound volume, correcting the keystone, correcting the picture position and magnifying the screen.

(4)

(6)

1 9

Page 20

Power on/off

Turning on the power

Make sure that the power cord is

rmly and correctly connected to the

S TA ND B Y / O N button

PO W E R indicator

projector and the outlet.

Make sure that the PO W E R indicator is

lighted in steady orange (96). Then remove the lens cover.

Press the S TA ND B Y / O N button on the

projector or the remote control.

MYBUTTON

INPUT

1 2

ASPECT

PbyP

MAGNIFY

FOCUS

OFF

PAGE

GEOMETRY PICTURE MUTE

INTERACTIVE

DOWN

ESC MENU

ENTER

OSD MSG

FREEZE

AUTO

VOLUME

ZOOM

NETWORK

BLANK

RESET

The projection lamp will light up and PO W E R indicator will begin blinking in green. When the power is completely on, the indicator will stop blinking and light in steady green (96).

To display the picture, select an input signal according to the section S e l e c t i n g a n i n p u t s i g n a l (

23).

The INITIAL SETTING Menu will be displayed by factory default upon startup. Once the INITIAL SETTING Menu is set, it will not appear until FACTORY RESET (71) is executed. If you wish to change the settings, refer to the LANGUAGE (53) and ALTITUDE (67) menu.

(1) LANGUAGE: Use the ▲/▼/◄/►buttons to

select the desired language and press the

E NTE R button of the remote control or the INPUT button of the projector to execute.

(2) ALTITUDE: Use the ▲/▼ buttons to select

NORMAL for altitude below 1600 m (5250 feet), otherwise select HIGH and press the E NTE R button of the remote control or the INPUT button of the projector to execute.

(continued on next page)

2 0

Page 21

Power on/off

Turning off the power

Press the S TA ND B Y / O N button on the projector or the remote control.

The message “Power off?” will appear on the screen for about 5 seconds.

Press the S TA ND B Y / O N button again while the message appears.

The projector lamp will go off, and the PO W E R indicator will begin blinking in orange. Then the PO W E R indicator will stop blinking and light in steady orange when the lamp cooling is completed (96).

Attach the lens cover, after the PO W E R indicator turns to steady orange.

Do not turn the projector on for about 10 minutes or more after turning it off. Also, do not turn the projector off shortly after turning it on. Such operations might cause the lamp to malfunction or shorten the lifetime of some parts including the lamp.

WARNING

Do not look into the lens of the projector or look inside of the projector through any of the projector’s openings since the projection ray may cause a trouble on your eyes. ►Keep any object away from concentrated projection light beam. Blocking the beam by something causes high temperature and could result in re or smoke. ►Do not touch around the lamp cover and the exhaust vents during use or just after use, since it is too hot.

NOTE

prior to the connected devices.

• This projector has the function that can make the projector automatically turn

on/off. Please refer to the DIRECT POWER ON (60), AUTO POWER ON (60) and AUTO POWER OFF (60) items of the OPTION menu.

• Turn the power on/off in right order. Please power on the projector

►A strong light is emitted when the projector’s power is on.

2 1

Page 22

Operating

FREEZE

VOLUME

Operating

Adjusting the volume

Use the V O L UM E + / - buttons to adjust the volume. A dialog will appear on the screen to aid you in adjusting the volume. If you do not do anything, the dialog will automatically disappear after a few seconds.

INPUT

ASPECT

PbyP

MAGNIFY

FOCUS

OFF

PAGE

GEOMETRY PICTURE MUTE

INTERACTIVE

DOWN

ESC MENU

OSD MSG

VOLUME

MYBUTTON

1 2

AUTO

ZOOM

NETWORK

ENTER

FREEZE

VOLUME

BLANK

RESET

V O L UM E

buttons

+ / -

NOTE

When is selected for current picture input port, the volume

•

adjustment is disabled. Please see AUDIO SOURCE item of AUDIO menu (52).

• Even if the projector is in the standby mode, the volume is adjustable when

both of the following conditions are true:

- An option other than is selected for AUDIO OUT in the STANDBY

OUTPUT item of the SETUP menu (51).

- NORMAL is selected in the STANDBY

MODE item of the SETUP menu

(49).

Temporarily muting the sound

Press M UTE button on the remote control. A dialog will appear on the screen indicating that you have muted the sound. To restore the sound, press the M UTE , V O L UM E + or V O L UM E - button. Even if you do not do anything, the dialog will automatically disappear after a few seconds.

NOTE

• When is selected for current picture input port, the sound is always muted. Please see AUDIO SOURCE item of AUDIO menu (52).

• C.C. (Closed Caption) is automatically activated when sound is muted and an input signal containing C.C. is received. This function is available only when the signal is NTSC for V ID E O or 480i@60 for C O M PUTE R IN1 or C O M PUTE R IN2 , and when AUTO is selected for DISPLAY in the C.C. menu under the SCREEN menu (58).

INPUT

1 2

ASPECT

PbyP

MAGNIFY

FOCUS

OFF

PAGE

GEOMETRY PICTURE MUTE

INTERACTIVE

DOWN

ESC MENU

OSD MSG

MYBUTTON

FREEZE

AUTO

VOLUME

ZOOM

MUTE

NETWORK

BLANK

ENTER

RESET

M UTE button

2 2

Page 23

Operating

MYBUTTON

1 2

AUTO

FREEZE

INPUT

MYBUTTON

1 2

PbyP

Selecting an input signal

INPUT

Press INPUT button on the projector or the

remote control. Select a desirable input referring

button

to the displayed input list.

MYBUTTON

1 2

INPUT

FREEZE

AUTO

PbyP

ASPECT

INPUT

button

VOLUME

ZOOM

FOCUS

MAGNIFY

OFF

PAGE

GEOMETRY PICTURE MUTE

BLANK

NETWORK

INTERACTIVE

DOWN

ESC MENU

ENTER

RESET

OSD MSG

● While ON is selected for AUTO SEARCH item in OPTION menu (59), the projector will keep checking the ports in above order repeatedly till an input signal is detected.

Selecting an aspect ratio

Press A S PE C T button on the remote control. Each time you press the button, the projector switches the mode for aspect ratio in turn.

NORMAL  4:3  16:9  16:10  14:9  ZOOM  NATIVE

NOTE

• A S PE C T button does not work when no proper signal is input.

• NORMAL mode keeps the original aspect ratio setting.

INPUT

1 2

ASPECT

PbyP

MAGNIFY

FOCUS

OFF

PAGE

GEOMETRY PICTURE MUTE

INTERACTIVE

DOWN

ESC MENU

OSD MSG

ASPECT

MYBUTTON

AUTO

FREEZE

BLANK

RESET

A S PE C T button

VOLUME

ZOOM

NETWORK

ENTER

2 3

Page 24

Operating

Adjusting the projector’s elevator

When the place to put the projector is slightly uneven to the left or right, use the elevator feet to place the projector horizontally. Using the feet can also tilt the projector in order to project at a

suitable angle to the screen, elevating the front side of the projector within 11 degrees.

This projector has 2 elevator feet and 2 elevator buttons. An elevator foot is adjustable while pushing the elevator button on the same side as it.

Holding the projector, push the elevator buttons to loose the elevator feet.

Position the front side of the projector to the desired height.

Release the elevator buttons in order to lock the elevator feet.

After making sure that the elevator feet are locked, put the projector down

gently.

If necessary, the elevator feet can be manually twisted to make more precise

adjustments. Hold the projector when twisting the feet.

1 1

To loose an elevator foot, push the elevator button on the same side as it.

CAUTION ►Do not handle the elevator buttons without holding the projector, since the projector may drop down. ►Do not tilt the projector other than elevating its front within 11 degrees using the adjuster feet. A tilt of the projector exceeding the restriction could cause malfunction or shortening the lifetime of consumables, or the projector itself.

Adjusting the zoom and focus

Use the Z O O M ring to adjust the screen size.

Use the F O C US ring to focus the picture.

2 4

To  nely adjust, twist the foot.

Z O O M ring F O C US ring

Page 25

Using the automatic adjustment feature

FREEZE

Press A UTO button on the remote control. Pressing this button performs the following.

 F o r a c o m p u t e r s i g n a l

The vertical position, the horizontal position and the horizontal phase will be automatically adjusted.

INPUT

ASPECT

MAGNIFY

OFF

PAGE UP

DOWN

ESC MENU

OSD MSG

Make sure that the application window is set to its maximum size prior to attempting to use this feature. A dark picture may still be incorrectly adjusted. Use a bright picture when adjusting.

 F o r a v i d e o s i g n a l

The video format best suited for the respective input signal will be selected automatically. This function is available only when the AUTO is selected for

42).

the VIDEO FORMAT item in the INPUT menu (

The vertical position and

horizontal position will be automatically set to the default.

 F o r a c o m p o n e n t v i d e o s i g n a l

The vertical position and horizontal position will be automatically set to the default. The horizontal phase will be automatically adjusted.

MYBUTTON

1 2

PbyP

FOCUS

GEOMETRY PICTURE MUTE

INTERACTIVE

AUTO

FREEZE

VOLUME

ZOOM

NETWORK

BLANK

ENTER

RESET

A UTO button

Operating

NOTE

• The automatic adjustment operation requires approx. 10 seconds. Also

please note that it may not function correctly with some input.

• When this function is performed for a video signal, a certain extra such as a line may appear outside a picture.

• When this function is performed for a computer signal, a black frame may be displayed on the edge of the screen, depending on the computer model.

The items adjusted by this function may vary when the FINE or DISABLE is selected

• for the AUTO ADJUST item of the SERVICE item in the OPTION menu (

67).

2 5

Page 26

Operating

AUTO

FREEZE

FOCUS

ZOOM

MYBUTTON

1 2

PbyP

VOLUME

PICTURE MUTE

Correcting the distortion

To correct the distortion of projected screen, you can select either KEYSTONE or PERFECT FIT. First press the G E O M E TR Y button to display the GEOMETRY CORRECTION menu, and point at one of the items with the ▲/▼ buttons.

MYBUTTON

INPUT

1 2

AUTO

FREEZE

ASPECT

PbyP

MAGNIFY

VOLUME

FOCUS

ZOOM

GEOMETRY

OFF

KEYSTONE: allows you to adjust the vertical and

horizontal keystone.

PERFECT FIT:

allows you to adjust each of the screen

PAGE

GEOMETRY PICTURE MUTE

INTERACTIVE

DOWN

ESC MENU

OSD MSG

NETWORK

BLANK

ENTER

RESET

corners and sides to correct the distortion.

Use KEYSTONE / PERFECT FIT for adjustment. When one of them is selected, the other item is not available.

Then follow the procedure shown below for the item you selected.

G E O M E TR Y

button

NOTE

• The menu or dialog will automatically disappear after several seconds of inactivity. Press the G E O M E TR Y button again, or point the cursor at EXIT in the dialog and press the ►or E NTE R button to end the operation and close the menu or dialog.

K E Y S TO NE :



When KEYSTONE is pointed at, pressing the ► or E NTE R button displays the KEYSTONE dialog.

Select MANUAL with the ▲/▼ buttons and press

the ► or E NTE R button.

Select the vertical or horizontal keystone (

/ ) with the ▲/▼ buttons

and adjust the keystone distortion with the ◄/► buttons.

(continued on next page)

2 6

Page 27

Correcting the distortion (continued)

Select AUTO with the ▲/▼ buttons and press the ► or E NTE R button.

Select EXECUTE with the ▲/▼ buttons and press the ► button for

2.1

automatic keystone distortion correction. Projector automatically corrects vertical keystone distortion due to the (forward/backward) setup angle by itself.This function will be executed only once when selected in the menu. When the slant of the projector is changed, execute this function again.

Select ON/OFF with the ▲/▼ buttons and press the ► or E NTE R button.

2.2

ON: Automatic keystone distortion correction will be executed whenever

changing the slant of the projector.

This function is disabled. Please execute the AUTO

OFF:

automatic keystone distortion correction.

(27)

Operating

for

NOTE

• When REAR / CEILING or FRONT / CEILING is selected for the INSTALLATION item in the SETUP menu, the automatic vertical keystone correction function may not work correctly if the projector screen is slanted or tilted downwards.

• When the zoom adjustment is set to the TELE (telephoto focus), this function may be excessive. This function should be used when the zoom adjustment is set to the full WIDE (wide-angle focus) whenever possible.

• When the projector is placed on the level (about ±4°), the automatic keystone distortion correction may not work.

• When the projector is inclined to near ±30 degree or over, this function may not work well.

• This function will be unavailable when the TRANSITION DETECTOR is on (

76

• The display will be dark for a split second while switching the KEYSTONE, but this is not a malfunction.



When PERFECT FIT is pointed at, pressing the ► or E NTE R button displays the PERFECT FIT dialog.

This projector is equipped with a test pattern for PERFECT FIT. Select PATTERN with the buttons, then press the pattern.

• The adjustable range of this function will vary among inputs. For

some input,this function may not work well.

PE R F E C T F IT:

▲/▼

◄/►

buttons to select

(continued on next page)

2 7

Page 28

Operating

Correcting the distortion (continued)

Select SETUP with the ▲/▼ buttons and press the ► or E NTE R button.

Select one of the corners or sides to be adjusted with the ▲/▼/◄/►

buttons and press the E NTE R or button.

Adjust the selected part as below.

● For adjusting a corner, use the ▲/▼/◄/► buttons to adjust the position of the corner.

● For adjusting the upper or lower side, use the ▲/▼ buttons to adjust the distortion of the side.

● For adjusting the left or right side, use the ◄/► buttons to adjust the distortion of the side.

● To adjust another corner or side, press the E NTE R or the procedure from step 2.

This projector is equipped with a memory feature for PERFECT FIT

adjustment. Up to 3 sets of adjustments can be stored.

● S A V E :

To store the current PERFECT FIT adjustment, select one of the "SAVE" options numbered 1 to 3 (number of the memory) with the ▲/▼ buttons and press the ►, E NTE R or Remember that the current data being stored of a memory will be lost by saving new data into the memory.

● L O A D :

To recall stored adjustments, select one of the "LOAD" options numbered 1 to 3 (number of the memory) with the ▲/▼ buttons and press the ►, E NTE R or Remember that the current adjusted condition will be lost by loading data. If you want to keep the current adjustment, please save it before performing a LOAD function.

button.

button and follow

NOTE

• There may be some noise and the screen may icker for a moment when loading data. This is not malfunction.

2 8

• The LOAD functions whose linked memory has no data are skipped.

Page 29

Using the magnify feature

ASPECT

AUTO

FREEZE

FOCUS

ZOOM

INPUT

MYBUTTON

1 2

PbyP

VOLUME

MAGNIFY

Press the M A G NIF Y O N button on the remote

control. The picture will be magnied, and the MAGNIFY dialog will appear on the screen. When the

INPUT

ASPECT

MAGNIFY

OFF

PAGE

DOWN

ESC MENU

OSD MSG

M A G NIF Y O N button is pressed for the rst time after the projector is turned on, the picture will be zoomed by 1.5 times. On the dialog, triangle marks to show each direction will be displayed.

The display magnication of the projector switches in order

with every press of the M A G NIF Y O N button.

1.5 times  2 times  3 times  4 times  1 time

While the triangles are displayed on the dialog, use the ▲/▼/◄/► cursor

buttons to shift the magnifying area.

Press the M A G NIF Y O F F button on the remote control to exit magnication.

MYBUTTON

1 2

PbyP

FOCUS

GEOMETRY PICTURE MUTE

INTERACTIVE

ENTER

AUTO

FREEZE

ZOOM

VOLUME

NETWORK

BLANK

RESET

M A G NIF Y O N/ O F F

OFF

button

Operating

NOTE

• The MAGNIFY dialog will automatically disappear in several seconds with no operation. The dialog will appear again if the M A G NIF Y O N button is pressed when the dialog has automatically disappeared.

• The magnication is automatically disabled when the displaying signal or its display condition is changed.

• While the magnication is active, the keystone distortion condition may vary. It will be restored when the magnication is disabled.

• Some horizontal stripes might be visible on the image while magnication is active.

• This function is not available in the following cases:

- A sync signal in the range not supported is input.

- There is no input signal.

2 9

Page 30

Operating

FREEZE

VOLUME

Temporarily freezing the screen

Press the F R E E Z E button on the remote control. The “FREEZE” indication will appear on the screen (however, the indication will not appear when SILENT is selected for the OSD MESSAGE item in the SETUP (51)), and the projector will go into the

INPUT

ASPECT

PbyP

MAGNIFY

FOCUS

OFF

PAGE

GEOMETRY PICTURE MUTE

INTERACTIVE

DOWN

ESC MENU

OSD MSG

MYBUTTON

1 2

AUTO

ZOOM

NETWORK

ENTER

FREEZE

VOLUME

BLANK

RESET

F R E E Z E

button

FREEZE mode, which the picture is frozen. To exit the FREEZE mode and restore the screen to normal, press the F R E E Z E button again.

NOTE

• The projector automatically exits from the FREEZE mode when some control buttons are pressed.

• If the projector continues projecting a still image for a long time, the LCD panel might possibly be burned in. Do not leave the projector in the FREEZE mode for too long.

• Images might appear degraded when this function is operated, but it is not a malfunction.

Temporarily blanking the screen

Press B L A NK button on the remote control. The BLANK screen will be displayed instead of the screen of input signal. Please refer to BLANK item in SCREEN menu (53). To exit from the BLANK screen and return to the input signal screen, press B L A NK button again.

INPUT

ASPECT

PbyP

FOCUS

MAGNIFY

OFF

PAGE

GEOMETRY PICTURE MUTE

INTERACTIVE

DOWN

ESC MENU

OSD MSG

MYBUTTON

1 2

AUTO

FREEZE

ZOOM

VOLUME

NETWORK

ENTER

BLANK

RESET

B L A NK

button

• The projector automatically exits from the BLANK mode when some control

buttons are pressed.

CAUTION

►If you wish to have a blank screen while the projector's lamp is on, use the BLANK function above. Taking any other action may cause the damage on the projector.

NOTE

• The sound is not connected with the BLANK screen function. If

necessary, set the volume or mute rst.

3 0

Page 31

Operating

ASPECT

BLANK

ESC MENU

AUTO

PAGE

DOWN

OFF

FREEZE

FOCUS

ZOOM

INPUT

INTERACTIVE

MYBUTTON

1 2

PbyP

MAGNIFY

VOLUME

GEOMETRY PICTURE MUTE

NETWORK

Using the menu function

This projector has the following menus: PICTURE, IMAGE, INPUT, SETUP, AUDIO, SCREEN, OPTION, NETWORK, SECURITY and EASY MENU. EASY MENU consists of functions often used, and the other menus are classied into each purpose and brought together as the ADVANCED MENU. Each of these menus is operated using the same methods. While the projector is displaying any menu, the M E NU button on the projector works as the cursor buttons. The basic operations of these menus are as follows.

INPUT

1 2

ASPECT

PbyP

MAGNIFY

FOCUS

OFF

PAGE

GEOMETRY PICTURE MUTE

INTERACTIVE

DOWN

ESC MENU

OSD MSG

M E NU button

MYBUTTON

AUTO

FREEZE

VOLUME

ZOOM

NETWORK

BLANK

ENTER

RESET

ENTER

OSD MSG

Cursor buttons

RESET

INPUT button

E NTE R button

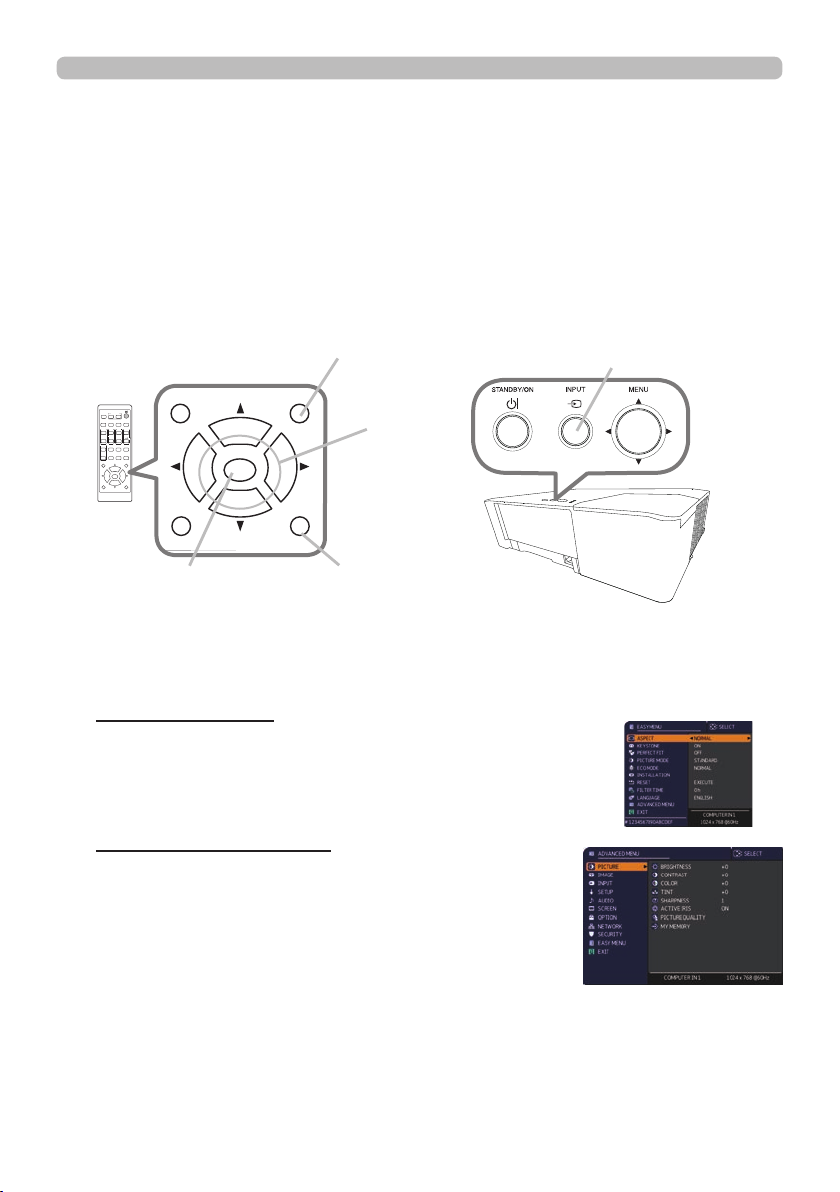

To start the MENU, press the M E NU button. The MENU you last used (EASY

or ADVANCED) will appear. EASY MENU has priority to appear just after powered on.

In t h e E A S Y M E NU

(1) Use the ▲/▼ cursor buttons to select an item to

operate. If you want to change it to the ADVANCED MENU, select the ADVANCED MENU.

(2) Use the ◄/► cursor buttons to operate the item.

In t h e A D V A NC E D M E NU

(1) Use the ▲/▼ cursor buttons to select a menu.

If you want to change it to the EASY MENU, select the EASY MENU. The items in the menu appear on the right side.

(2) Press the ► cursor button or E NTE R button to

move the cursor to the right side. Then use the ▲/▼ cursor buttons to select an item to operate and press the ► cursor button or E NTE R button to progress. The operation menu or dialog of the selected item will appear.

(3) Use the buttons as instructed in the OSD to operate the item.

(continued on next page)

R E S E T button

3 1

Page 32

Operating

Using the menu function (continued)

To close the MENU, press the M E NU button again or select EXIT and press

the ◄ cursor button or E NTE R button. Even if you do not do anything, the dialog will automatically disappear after about 30 seconds.

NOTE

selected, or when a certain input signal is displayed.

• When you want to reset the operation, press R E S E T button on the remote control during the operation. Note that some items (ex. LANGUAGE, VOLUME) cannot be reset.

• In the ADVANCED MENU, when you want to return to the previous display, press the ◄ cursor button on the remote control.

• Some functions cannot be performed when a certain input port is

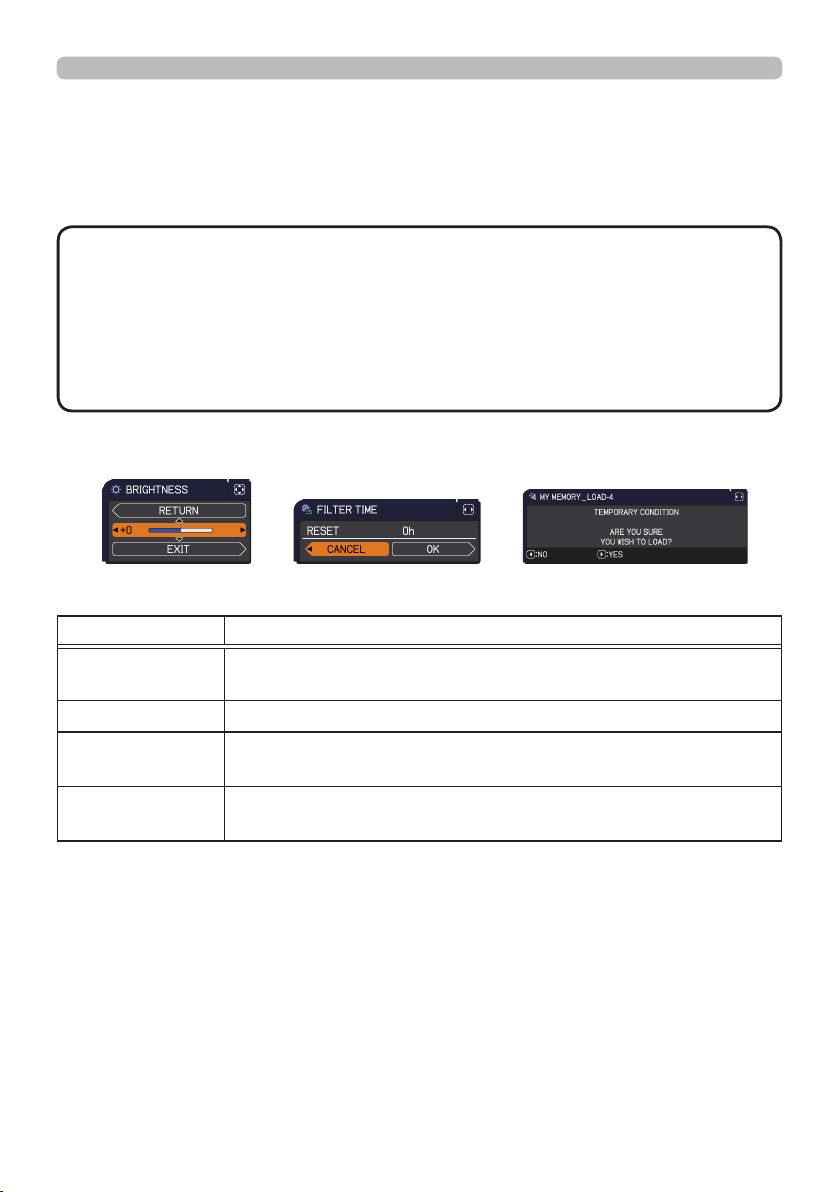

Indication in OSD (On Screen Display)

The meanings of the general words on the OSD are as follows.

In d i c a t i o n M e a n i n g

EXIT

RETURN Selecting this word returns the menu to the previous menu.

CANCEL or NO

OK or YES

Selecting this word nishes the OSD menu. It's the same as pressing the M E NU button.

Selecting this word cancels the operation in the present menu and returns to the previous menu.

Selecting this word executes the prepared function or shifts the menu to the next menu.

3 2

Page 33

Using the menu function (continued)

Containing items of each menu

The items contained in the menus are as below;

M e n u It e m s

ASPECT, KEYSTONE, PERFECT FIT, PICTURE MODE,

34)

E A S Y M E NU (

PIC TUR E (

IM A G E (

INPUT (

S E TUP (



40)

42)

46)



36)

ECO MODE, INSTALLATION, RESET, FILTER TIME, LANGUAGE, ADVANCED MENU, EXIT

BRIGHTNESS, CONTRAST, COLOR, TINT, SHARPNESS, ACTIVE IRIS, PICTURE QUALITY, MY MEMORY

ASPECT, OVER SCAN, V POSITION, H POSITION, H PHASE, H SIZE, AUTO ADJUST EXECUTE

PROGRESSIVE, VIDEO NR, COLOR SPACE, VIDEO FORMAT, DIGITAL RANGE,COMPUTER IN, FRAME LOCK, RESOLUTION,MHL STANDBY PWR.

GEOMETRY CORRECTION, LAMP & FILTER, IMAGE OPTIMIZER, INSTALLATION, STANDBY MODE,OSD MESSAGE, STANDBY OUTPUT

Operating

A UD IO (

S C R E E N(

O PTIO N (

NE TW O R K (

S E C UR ITY (



52) VOLUME, SPEAKER, AUDIO SOURCE LANGUAGE, MENU POSITION, BLANK, AUTO BLANK,

53)

59)



START UP, MyScreen, MyScreen Lock, SOURCE NAME, TEMPLATE, C.C.

SEARCH SKIP, AUTO SEARCH, DIRECT POWER ON, AUTO POWER ON, AUTO POWER OFF, MY BUTTON, SCHEDULE, SERVICE

NETWORK INFORMATION, WIRELESS NETWORK,

72)

NETWORK SETUP, MY IMAGE, EXTERNAL CONTROL, OTHER OPERATION

ENTER PASSWORD, SECURITY PASSWORD CHANGE,

73)

MyScreen PASSWORD, PIN LOCK, TRANSITION DETECTOR, MY TEXT PASSWORD, MY TEXT DISPLAY, MY TEXT WRITING,

3 3

Page 34

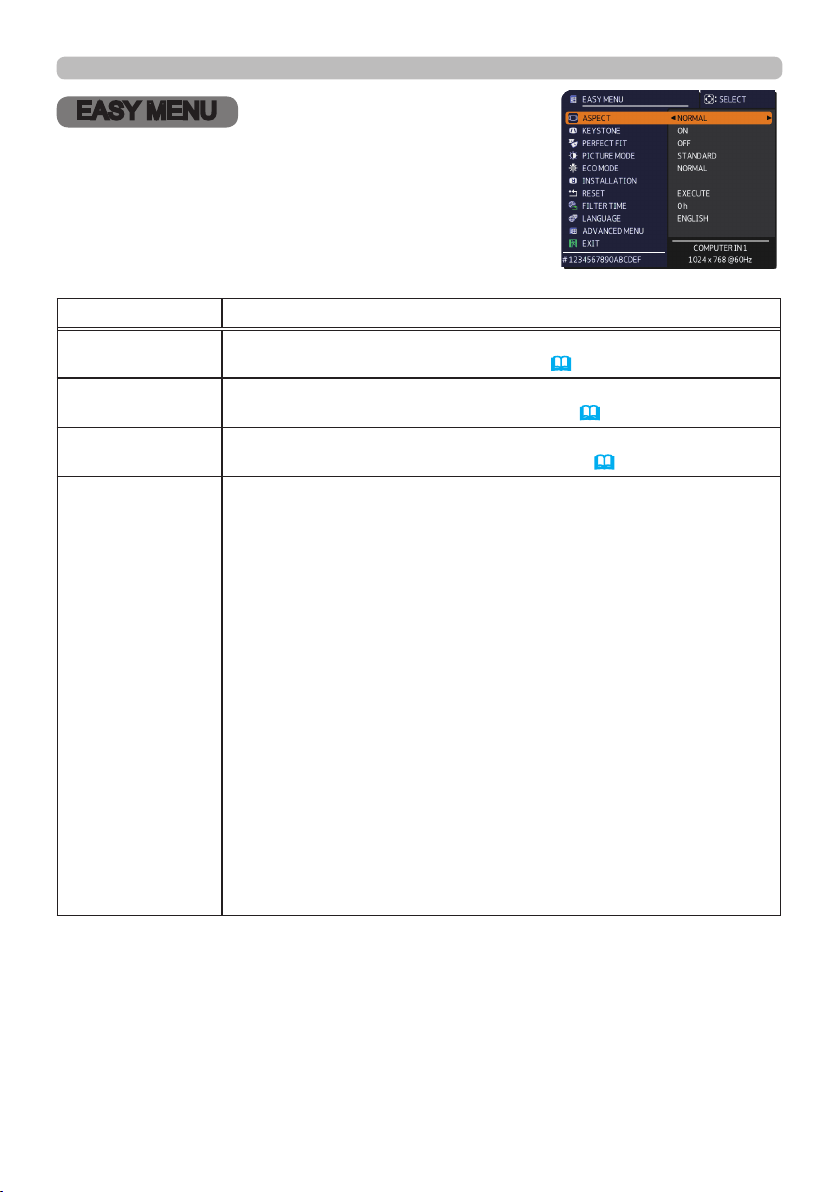

EASY MENU

From the EASY MENU, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons. Then perform it according to the following table.

It e m D e s c r i p t i o n

A S PE C T

K E Y S TO NE

PE R F E C T F IT

PIC TUR E M O D E

Using the ◄/► buttons switches the mode for aspect ratio. See the ASPECT item in IMAGE menu (

Pressing the ► button displays the KEYSTONE dialog. See the KEYSTONE item in SETUP menu (

Pressing the ► button displays the PERFECT FIT dialog. See the

Using the ◄/► buttons switches the picture mode. The picture modes are combinations of GAMMA and COLOR TEMP settings. Choose a suitable mode according to the projected source.

• Lines or other noise might appear on the screen when this function is operated, but it is not a malfunction.

• DICOM SIM. is the projector's DICOM Communication in Medicine") simulation mode. This mode simulates the DICOM standard, which is a standard applicable to digital communications in medicine, and can be useful for displaying medical images, such as X-rays photos. This projector is not a medical device and is not compliant to the DICOM standard, and neither the projector nor the DICOM SIM. mode should be used for medical diagnosis.

PERFECT FIT

STANDARD ó NATURAL ó CINEMA ó DYNAMIC 

USER-3 BOARD(BLACK)



USER-2 BOARD(GREEN)



USER-1 ó DICOM SIM. ó DAYTIME ó WHITEBOARD

item in SETUP menu (

40).



46).



46).





("Digital Imaging and

(continued on next page)

3 4

Page 35

It e m D e s c r i p t i o n

E C O M O D E

INS TA L L A TIO N

Using the ◄/► buttons turns off/on the Eco mode. See the ECO MODE item in SETUP menu (

Pressing the ► button displays the INSTALLATION dialog. See the INSTALLATION item in SETUP menu (

Performing this item resets all of the EASY MENU items except the

R E S E T

FILTER TIME and LANGUAGE. A dialog is displayed for conrmation. Selecting the OK using the ► button performs resetting.

The usage time of the air lter is shown in the menu. Performing this item resets the lter time which counts usage time

F IL TE R TIM E

of the air lter. A dialog is displayed for conrmation. Selecting the OK using the ► button performs resetting. See the FILTER TIME item in SETUP menu (

L A NG UA G E

Using the ◄/► buttons changes the display language. See the LANGUAGE item in SCREEN menu (

Press the ► or E NTE R button to use the menu of PICTURE,

A D V A NC E D M E NU

IMAGE, INPUT, SETUP, AUDIO, SCREEN, OPTION, NETWORK or SECURITY.

E X IT Press the ◄ or E NTE R button to nish the OSD menu.



47).



48).

49).

53).

EASY MENU

3 5

Page 36

PICTURE menu

From the PICTURE menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or E NTE R button to execute the item. Then perform it according to the following table.

It e m D e s c r i p t i o n

◄/►

B R IG H TNE S S

C O NTR A S T

Using the

Dark ó Light

Using the

Weak ó Strong

buttons adjusts the brightness.

◄/►

buttons adjusts the contrast.

C O L O R

TINT

S H A R PNE S S

(continued on next page)

Using the ◄/► buttons adjusts the strength of whole color.

Using the ◄/► buttons adjusts the tint.

Using the ◄/► buttons adjusts the sharpness.

• There may be some noise and/or the screen may icker for a moment when an adjustment is made. This is not a malfunction.

Weak ó Strong

Reddish ó Greenish

Weak ó Strong

3 6

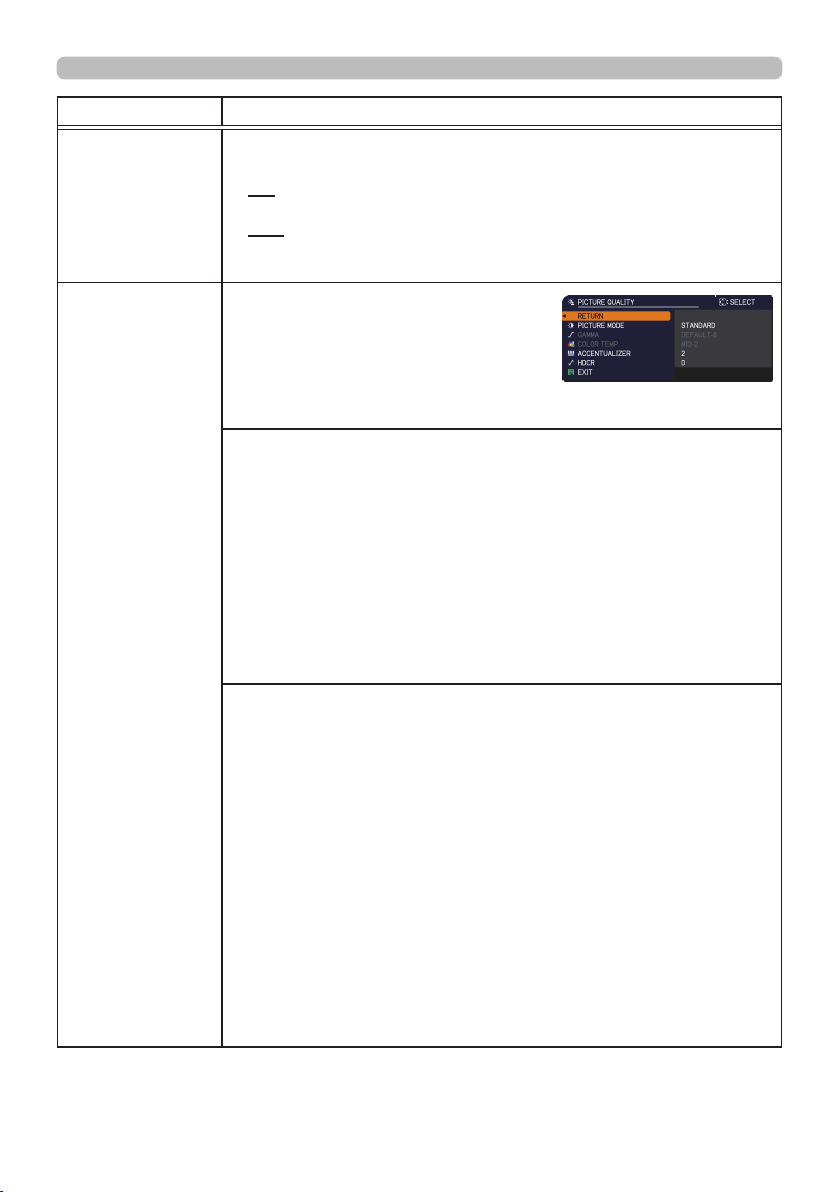

Page 37

It e m D e s c r i p t i o n

Using the ▲/▼ cursor buttons changes the active iris control mode.

A C TIV E IR IS

• The screen may icker when the the ON mode is selected. If this occurs select OFF.

Selecting this item displays the PICTURE QUALITY menu.

Select an item using the ▲/▼ buttons, and press the ► button or the E NTE R

button on the remote control to execute the item.

PIC TUR E M O D E

USER-1 ó DICOM SIM. ó DAYTIME ó WHITEBOARD After selecting USER-1 / USER-2 / USER-3, the following features

PIC TUR E Q UA L ITY

are adjustable. Gamma, Color Temp

G A M M A

This feature is only available when USER-1 / USER-2 / USER-3 is selected.

Using the ▲/▼ buttons switches the gamma mode.

(continued on next page)

PICTURE menu

ON ó OFF ON : The active iris displays the best presentation image for both

bright and dark scenes.

OFF : The active iris is always open.

STANDARD ó NATURAL ó CINEMA ó DYNAMIC 



USER-3 BOARD(BLACK)



USER-2 BOARD(GREEN)



DEFAULT-1 ó CUSTOM-1 ó DEFAULT-2 ó CUSTOM-2 



CUSTOM-8 DEFAULT-3



DEFAULT-8 CUSTOM-3



CUSTOM-7 DEFAULT-4



DEFAULT-7 CUSTOM-4



CUSTOM-6 ó DEFAULT-6 ó CUSTOM-5 ó DEFAULT-5

3 7

Page 38

PICTURE menu

It e m D e s c r i p t i o n

G A M M A ( c o n t i n u e d )

Selecting a mode whose name includes CUSTOM and then pressing the ► button or the E NTE R button displays a dialog to aid you in adjusting the mode. This function is useful when you want to change the brightness of particular tones. Choose an item using the ◄/► buttons, and adjust the level using the ▲/▼ buttons.

• Lines or other noise might appear on the screen when this function is operated, but it is not a malfunction.

C O L O R TE M P

This feature is only available when USER-1 / USER-2 / USER-3 is selected.

Using the ▲/▼ buttons switches the color temperature mode.

PIC TUR E Q UA L ITY

( c o n t i n u e d )

Selecting a mode whose name includes CUSTOM and then pressing the ► button or the E NTE R button displays a dialog to aid you in adjusting the OFFSET and GAIN of the selected mode. OFFSET adjustments change the color intensity on the whole tones. GAIN adjustments mainly affect color intensity on the brighter tones. Choose an item using the ◄/► buttons, and adjust the level using the ▲/▼ buttons.

• Lines or other noise might appear on the screen when this function is operated, but it is not a malfunction.

(continued on next page)

HIGH ó CUSTOM-1 ó MID-1 ó CUSTOM-2 



CUSTOM-7 MID-2



Hi-BRIGHT-3 CUSTOM-3



CUSTOM-6 LOW



Hi-BRIGHT-2 ó CUSTOM-5 ó Hi-BRIGHT-1 ó CUSTOM-4

3 8

Page 39

It e m D e s c r i p t i o n

A C C E NTUA L IZ E R

ACCENTUALIZER is a function to improve the legibility. Using the ◄/► buttons adjusts the sharpness.

Weak ó Strong

• There may be some noise and/or the screen may icker for a

PIC TUR E

Q UA L ITY

( c o n t i n u e d )

moment when an adjustment is made. This is not a malfunction.

•

This function may not work properly when IMAGE OPTIMIZER is

enabled.

H D C R

A function to show a clear picture in a bright room. Using the◄/► buttons adjusts the contrast.

•

This function may not work properly when IMAGE OPTIMIZER is

enabled. This projector has 4 memories for adjustment data (for all the items

of the PICTURE menu). Selecting a function using the ▲/▼ buttons and pressing the ► or E NTE R button performs each function.

LOAD-1 ó LOAD-2 ó LOAD-3 ó LOAD-4 SAVE-4 ó SAVE-3 ó SAVE-2 ó SAVE-1

LOAD-1, LOAD-2, LOAD-3, LOAD-4 Performing a LOAD function loads the data from the memory linked in the number included in the function’s name, and adjusts the picture automatically depending on the data.

• The LOAD functions whose linked memory has no data are

M Y M E M O R Y

skipped.

• Remember that the current adjusted condition will be lost by loading data. If you want to keep the current adjustment, please save it before performing a LOAD function.

• There may be some noise and the screen may icker for a moment when loading data. This is not malfunction.

• You can perform the LOAD function using M Y B UTTO N. Please see MY BUTTON item in OPTION menu (

SAVE-1, SAVE-2, SAVE-3, SAVE-4 Performing a SAVE function saves the current adjustment data into the memory linked in the number included in the function’s name.

• Remember that the current data being stored of a memory will be lost by saving new data into the memory.



PICTURE menu

61).

3 9

Page 40

IMAGE menu

From the IMAGE menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or E NTE R button to execute the item. Then perform it according to the following table for selected port.

It e m D e s c r i p t i o n

Using the ▲/▼ buttons switches the mode for aspect ratio.

A S PE C T

O V E R S C A N

V PO S ITIO N

H PO S ITIO N

NORMAL ó 4:3 ó 16:9 ó 16:10 ó 14:9 ó ZOOM ó NATIVE

• The NORMAL mode keeps the original aspect ratio of the signal. Using the ◄/► buttons adjusts the over-scan ratio.

Small (It magnies picture) ó Large (It reduces picture)

Using the ◄/► buttons adjusts the vertical position.

Down ó Up

• Over-adjusting the vertical position may cause noise to appear on the screen. If this occurs, please reset the vertical position to the default setting. Pressing the R E S E T button when the V POSITION is selected will reset the V POSITION to the default setting.

• When this function is performed on a video signal, the range of this adjustment depends on OVER SCAN ( possible to adjust when OVER SCAN is set to 10.

Using the ◄/► buttons adjusts the horizontal position.

Right ó Left

Over-adjusting the horizontal position may cause noise to appear on

• the screen. If this occurs, please reset the horizontal position to the default setting. Pressing the R E S E T button when the H POSITION is selected will reset the H POSITION to the default setting.

• When this function is performed on a video signal, the range of this adjustment depends on OVER SCAN ( possible to adjust when OVER SCAN is set to 10.

above) setting. It is not



above) setting. It is not



(continued on next page)

4 0

Page 41

It e m D e s c r i p t i o n

H PH A S E

Using the

Right ó Left

◄/►

buttons adjusts the horizontal phase to eliminate icker.

Using the ◄/► buttons adjusts the horizontal size.

Small ó Large

• When this adjustment is excessive, the picture may not be

H S IZ E

displayed correctly. In such a case, please reset the adjustment by pressing the R E S E T button on the remote control during this operation.

• Images might appear degraded when this function is operated, but it is not a malfunction.

Selecting this item performs the automatic adjustment feature.

F o r a c o m p u t e r s i g n a l

The vertical position, the horizontal position and the horizontal phase will be automatically adjusted. Make sure that the application window is set to its maximum size prior to attempting to use this feature. A dark picture may still be incorrectly adjusted. Use a bright picture when adjusting.

F o r a v i d e o s i g n a l

The video format best suited for the respective input signal will be selected automatically. This function is available only when

A UTO A D J US T

E X E C UTE

the AUTO is selected for the VIDEO FORMAT item in the INPUT menu (

42). The vertical position and horizontal position will be



automatically set to the default.

• The automatic adjustment operation requires approx. 10 seconds. Also please note that it may not function correctly with some input.

• When this function is performed for a video signal, a certain extra such as a line may appear outside a picture.

• When this function is performed for a computer signal, a black frame may be displayed on the edge of the screen, depending on the computer model.

• The items adjusted by this function may vary when the FINE or DISABLE is selected for the AUTO ADJUST item of the SERVICE item in the OPTION menu (



IMAGE menu

67).

4 1

Page 42

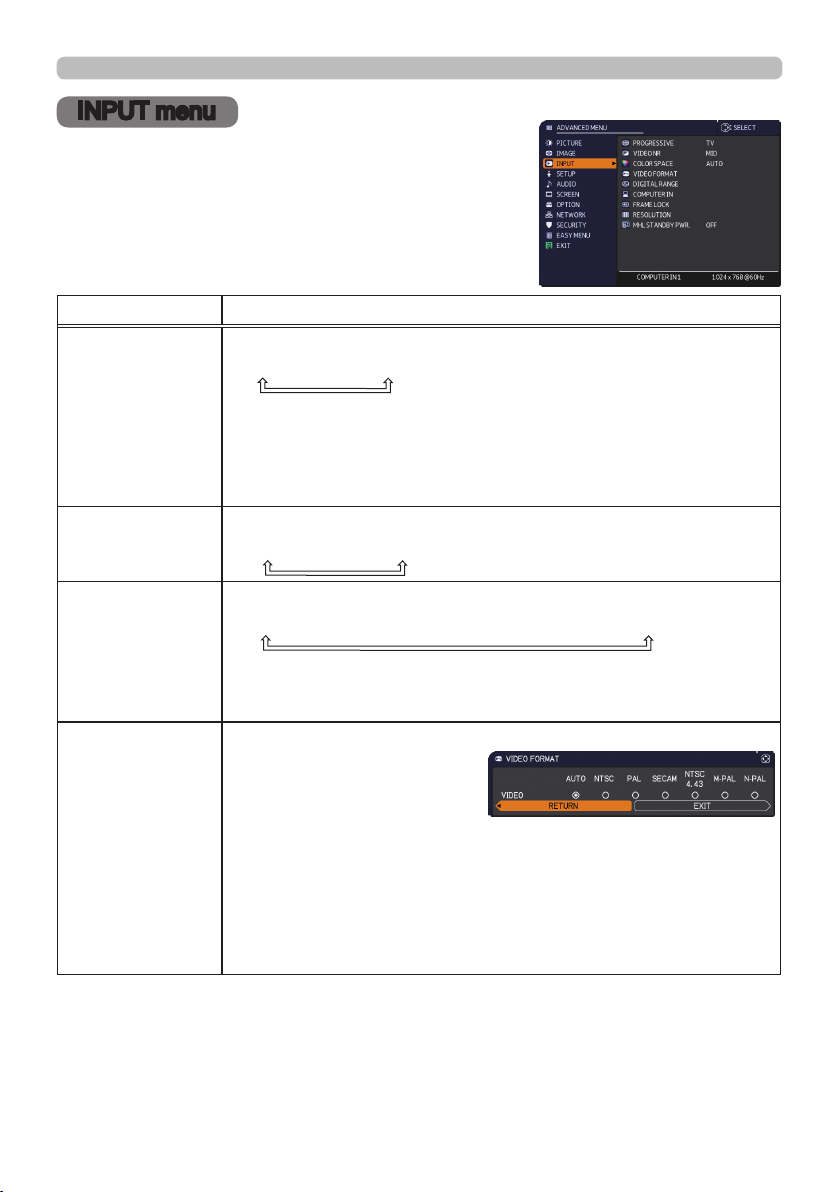

INPUT menu

From the INPUT menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or E NTE R button to execute the item. Then perform it according to the following table.

It e m D e s c r i p t i o n

Using the ▲/▼ buttons switches the progress mode.

TV ó FILM ó OFF

PR O G R E S S IV E

V ID E O NR

C O L O R S PA C E

V ID E O F O R M A T

• When TV or FILM is selected, the screen image will be sharp. FILM adapts to the 2-3 Pull-Down conversion system. But these may cause a certain defect (for example, jagged line) of the picture for a quick moving object. In such a case, please select OFF, even though the screen image may lose sharpness.

Using the ▲/▼ buttons switches the noise reduction mode.

HIGH ó MID ó LOW

Using the ▲/▼ buttons switches the mode for color space.

AUTO ó RGB ó SMPTE240 ó REC709 ó REC601

• The AUTO mode automatically selects the optimum mode.

• The AUTO operation may not work well at some signals. In such a case, it might be good to select a suitable mode except AUTO.

The video format for V ID E O port can be set. Using the ◄/► buttons

switches the mode for video format.

AUTO ó NTSC ó PAL ó SECAM N-PAL ó M-PAL ó NTSC4.43

• This item is performed only for a video signal from the V ID E O port.

• The AUTO mode automatically selects the optimum mode.

• The AUTO operation may not work well for some signals. If the picture becomes unstable (e.g. an irregular picture, lack of color), please select the mode according to the input signal.

(continued on next page)

4 2

Page 43

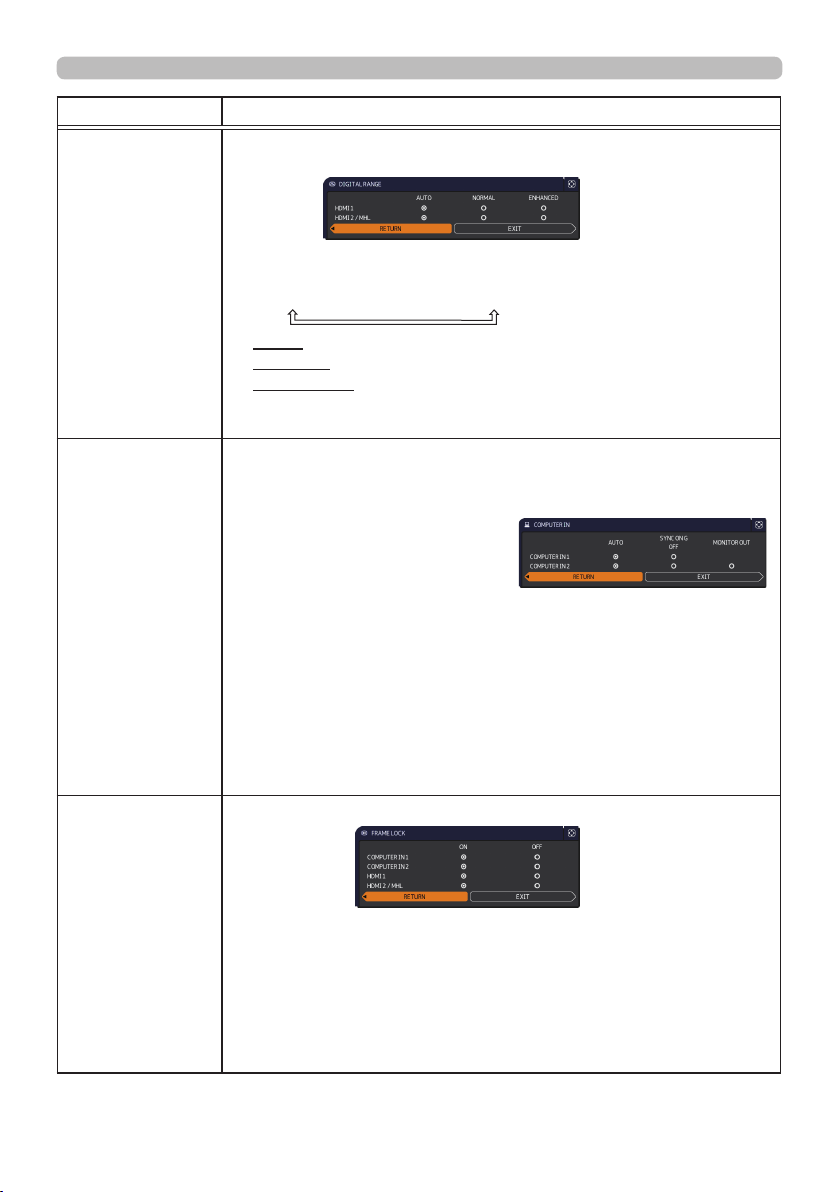

It e m D e s c r i p t i o n

The digital range of HDMITM/MHL input signals from the H D M I 1 and H D M I 2 /M H L ports can be set.

(1) Use the ▲/▼ buttons to select the port to be set.

D IG ITA L R A NG E

(2) Use the ◄/►buttons to select the digital range.

AUTO ó NORMAL ó ENHANCED

AUTO: automatically sets the optimum mode. NORMAL: sets the suitable mode for DVD signals. (16-235) ENHANCED: sets the suitable mode for computer signals. (0-255)

• If the contrast of the screen image is too strong or too weak, try nding a more suitable mode.

The computer input signal type for C O M PUTE R IN1 and IN2 ports can be set.

(1)

Use the ▲/▼ buttons to select the C O M PUTE R IN port to be set.

(2) Use the ◄/► buttons to select

the computer input signal type. (COMPUTER IN1)

AUTO ó SYNC ON G OFF

C O M PUTE R IN

(COMPUTER IN2) AUTO ó SYNC ON G OFF ó MONITOR OUT

• Selecting the AUTO mode allows you to input a sync on G signal or component video signal from the port.

• In the AUTO mode, the picture may be distorted with certain input signals. In such a case, remove the signal connector so that no signal is received and select the SYNC ON G OFF, and then reconnect the signal.

Set the frame lock function on/off for each port.

INPUT menu

F R A M E L O C K

(1) Use the ▲/▼ buttons to select the input ports. (2) Use the ◄/► buttons to turn the frame lock function on/off .

• This item can be performed only on a signal with a vertical frequency of 49 to 51Hz, 59 to 61 Hz.

• When ON is selected, moving pictures are displayed more smoothly.

(continued on next page)

ON ó OFF

4 3

Page 44

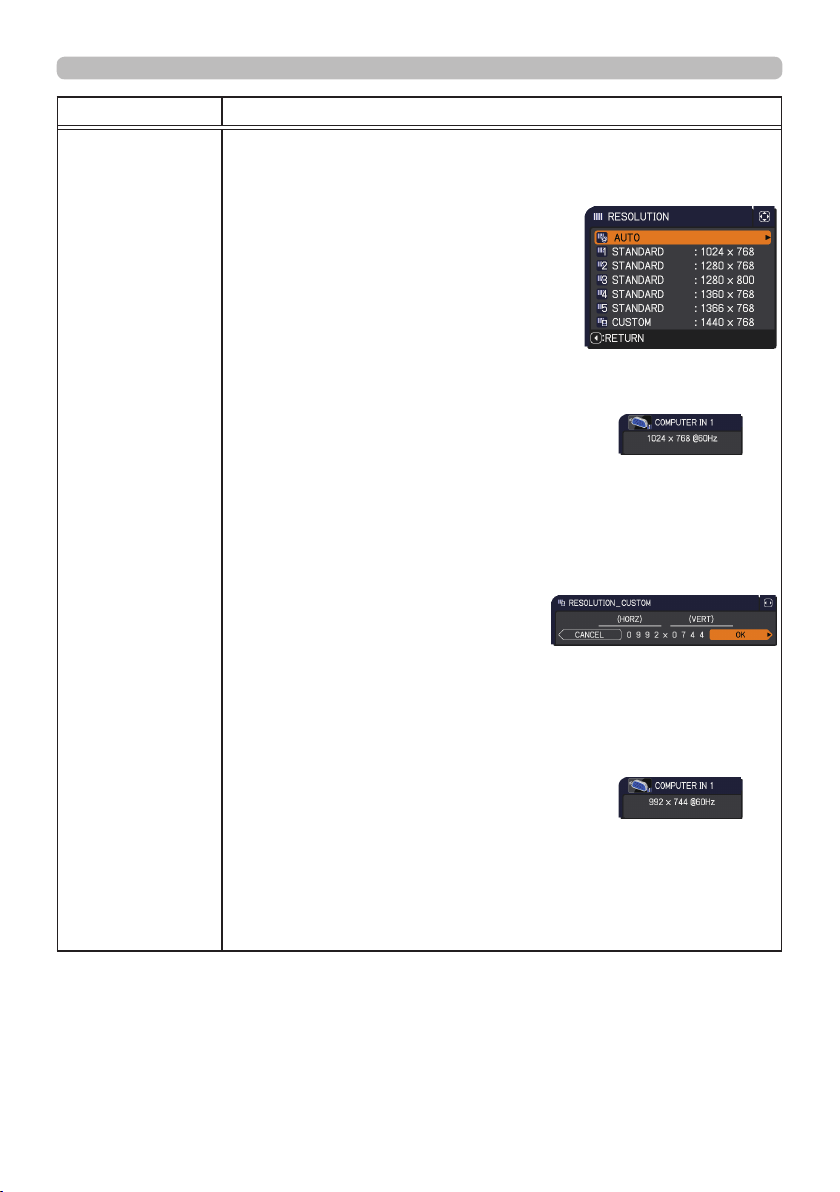

INPUT menu

It e m D e s c r i p t i o n

The resolution for the C O M PUTE R IN1 and C O M PUTE R IN2 input signal can be set on this projector.

(1) In the INPUT menu select the RESOLUTION using the ▲/▼

buttons and press the ► button. The RESOLUTION menu will be displayed.

(2) In the RESOLUTION menu select the

resolution you wish to display using the ▲/▼ buttons. Selecting AUTO will set a resolution appropriate to the input signal.

(3) Pressing the ► or E NTE R button when

selecting a STANDARD resolution will automatically adjust the horizontal and vertical positions, clock phase and horizontal size.

The INPUT_INFORMATION dialog will be displayed.

(4) To set a custom resolution use the ▲/▼ buttons to select

R E S O L UTIO N

the CUSTOM and the RESOLUTION_CUSTOM box will be displayed.

Set the (HORZ) and (VERT) resolutions using the ▲/▼/◄/► buttons. This function may not support all resolutions.

(5) Move the cursor to OK on screen and press the ► or E NTE R

button. The message "ARE YOU SURE YOU WISH TO CHANGE RESOLUTION?" appears. To save the setting, press the ► button. The horizontal and vertical positions, clock phase and horizontal size will be automatically adjusted.

The INPUT_INFORMATION dialog will be displayed.

(6) To revert back to the previous resolution without saving changes,

move the cursor to CANCEL on screen and press the ◄ or E NTE R button. The screen will then return to the RESOLUTION menu displaying the previous resolution.

• For some pictures, this function may not work well.

(continued on next page)

STANDARD

↓

CUSTOM

↓

4 4

Page 45

It e m D e s c r i p t i o n

Using the ▲/▼ buttons switches the MHL STANDBY PWR. ON/ OFF.

ON ó OFF

• When the MHL STANDBY PWR. is set to OFF, MHL power feeding

M H L S TA ND B Y

PW R .

is unavailable with standby mode.

• When the MHL STANDBY PWR. is set to OFF, MHL audio is unavailable.

• When the STANDBY MODE is set to SAVING/NETWORK(WOL), the MHL STANDBY PWR. menu cannot be operated and MHL power feeding is unavailable with standby mode (

• When the MHL STANDBY PWR. is set to ON, there may be some noise with standby mode. This is not malfunction.

INPUT menu



4 5

Page 46

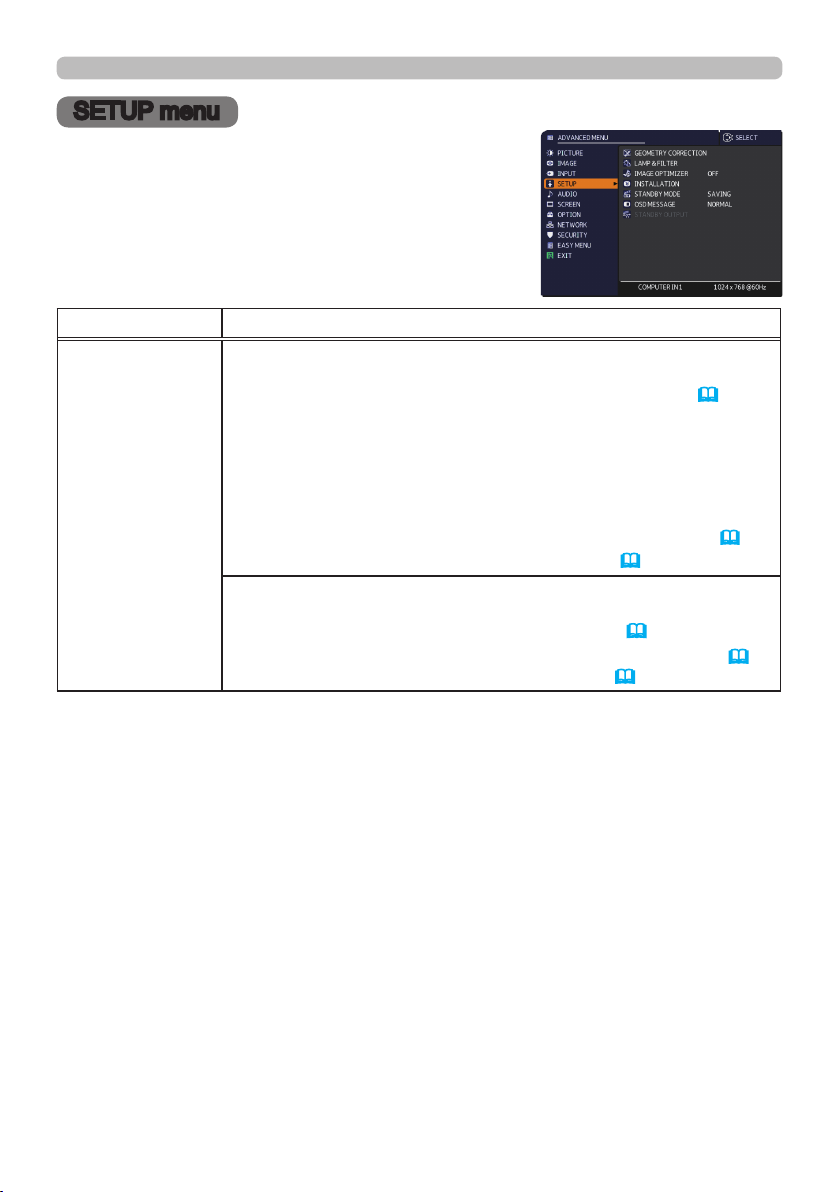

SETUP menu

From the SETUP menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or E NTE R button to execute the item. Then perform it according to the following table.

It e m D e s c r i p t i o n

K E Y S TO NE

Selecting this item displays the KEYSTONE dialog. For details, see KEYSTONE in C o r r e c t i n g t h e d i s t o r t i o n (

• The adjustable range of this function will vary among inputs. For some inputs, this function may not work well.

• When the zoom adjustment is set to the TELE (telephoto focus), this function may be excessive. This function should be used when

G E O M E TR Y

C O R R E C TIO N

the zoom adjustment is set to the full WIDE (wide-angle focus) whenever possible.

•

This function is unavailable when TRANSITION DETECTOR (

is ON or the screen is adjusted by PERFECT FIT (

PE R F E C T F IT

Selecting this item displays the PERFECT FIT dialog. For details, see PERFECT FIT in C o r r e c t i n g t h e d i s t o r t i o n (

• This function is unavailable when TRANSITION DETECTOR ( is ON or the screen is adjusted by KEYSTONE (



26).

27).



)



)

76)



(continued on next page)

4 6

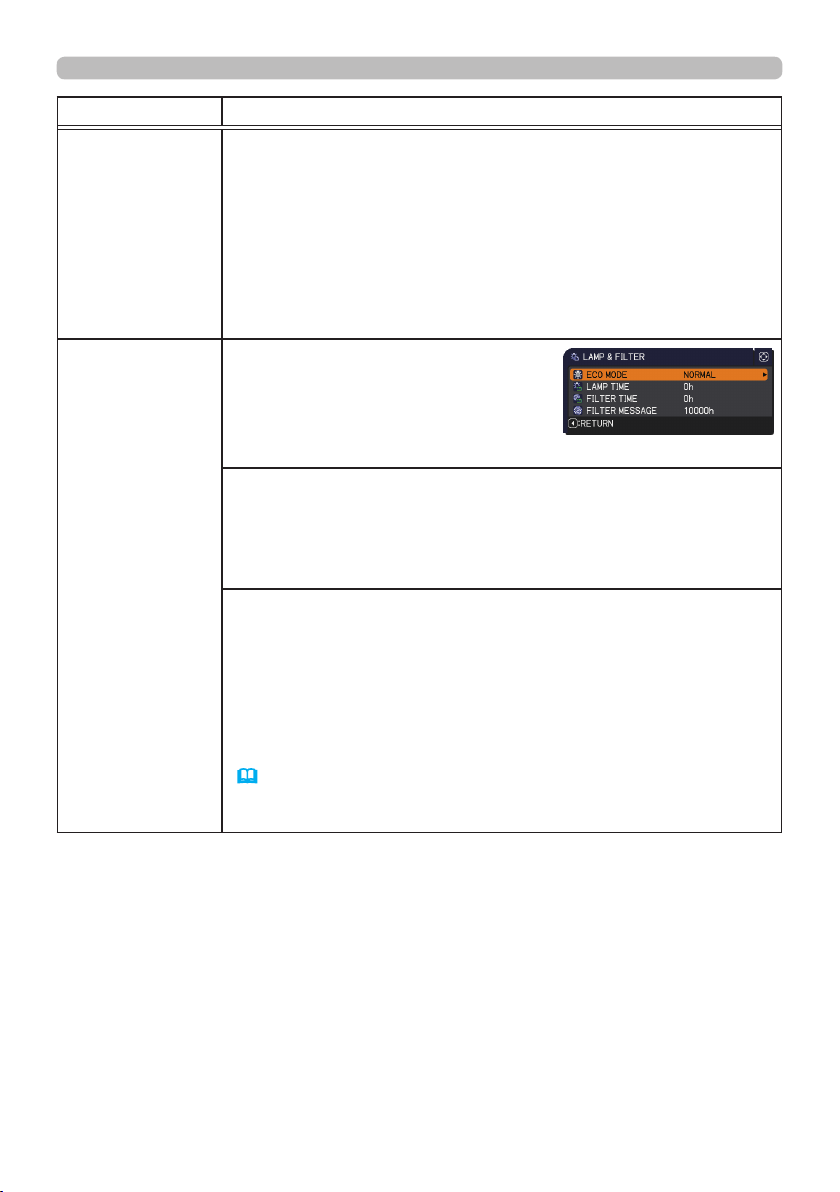

Page 47

It e m D e s c r i p t i o n

PA TTE R N

Select PATTERN with ▲/▼ buttons. Displayed pattern [Off/1/2/3/4/5/6] can be switched with ◄/► buttons.

G E O M E TR Y

C O R R E C TIO N

( c o n t i n u e d )

L A M P & F IL TE R

PATTERN 1: Frame PATTERN 2: Red Grid PATTERN 3: Green Grid PATTERN 4: Blue Grid PATTERN 5: Vertical 9 steps PATTERN 6: Horizontal 9 steps OFF: Displays the input signal.

Selecting this item displays the LAMP & FILTER menu. Select an item using the ▲/▼ buttons, and press the ► button or the E NTE R button on the remote control to execute the item.

E C O M O D E

Using the ▲/▼ buttons switches the Eco mode.

NORMAL ó ECO

• When the ECO is selected, acoustic noise and screen brightness are reduced.

L A M P TIM E

The lamp time is the usage time of the lamp, counted after the last resetting. It is shown in the LAMP & FILTER menu. Pressing the R E S E T button on the remote control or the ► button of the projector displays a dialog. To reset the lamp time, select the OK using the ► button.

CANCEL  OK

• For the lamp replacement, see the section R e p l a c i n g t h e l a m p (



• The IMAGE OPTIMIZER function does not work properly unless LAMP TIME is initialized when replacing a lamp.

SETUP menu

(continued on next page)

4 7

Page 48

SETUP menu

It e m D e s c r i p t i o n

F IL TE R TIM E

The lter time is the usage time of the air lter, counted after the last resetting. It is shown in the L A M P & F IL TE R menu. Pressing the R E S E T button on the remote control or the ► button of the projector displays a dialog. To reset the lter time, select the OK using the ► button.

CANCEL  OK

• Please reset the lter time only when you have cleaned or replaced the air lter, for a suitable indication about the air lter.

• For the air lter cleaning, see the section Cleaning and replacing

L A M P & F IL TE R

( c o n t i n u e d )

IM A G E

O PTIM IZ E R

the air lter (

F IL TE R M E S S A G E

Use the ▲/▼ button to set the timer for notifying by the message when to replace the lter unit

After choosing an item except OFF, the message “REMINDER ***

HRS PASSED ....” will appear after the timer reaches the interval

time set by this feature. When the OFF is chosen, the message will not appear. Utilize this feature to keep the air lter clean, setting the suitable time according to your environment of this projector.

• Please take care of the lter unit periodically, even if there is no message. If the air lter becomes to be blocked by dust or other matter, the internal temperature will rise, which could cause malfunction, or reduce the lifetime of the projector.

• Please be careful with the operating environment of the projector and the condition of the lter unit.

When this function is enabled, automatic image correction is performed to maintain visibility in accordance with lamp deterioration.

•

This function may not work properly when HDCR/ACCENTUALIZER

is set to other than 0.

• T

his function does not work properly unless LAMP TIME is initialized

when replacing a lamp.



1000h ó· · · · · · · · ·

30000h ó OFF

(continued on next page)

4 8

Page 49

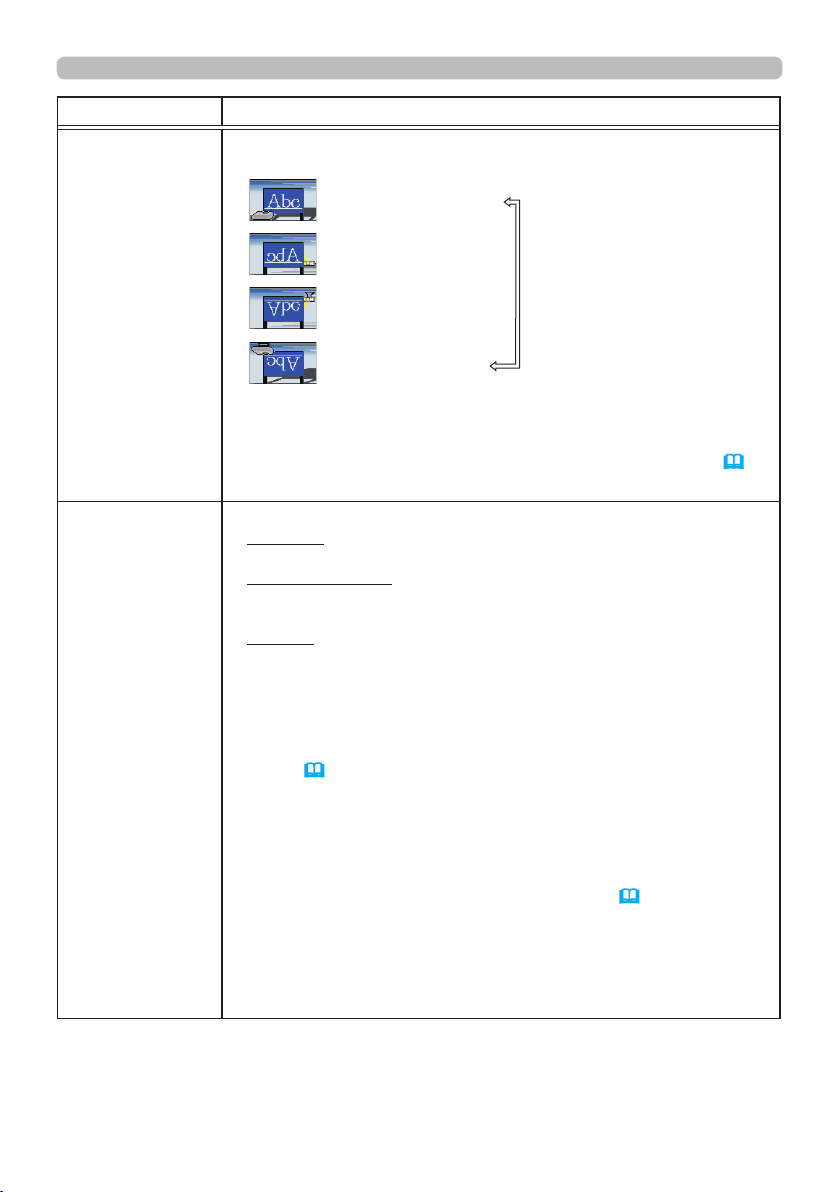

It e m D e s c r i p t i o n

Pressing the ►button displays the dialog for changing the INSTALLATION setting.

FRONT / DESKTOP  REAR / DESKTOP 

INS TA L L A TIO N

S TA ND B Y M O D E

REAR / CEILING

FRONT / CEILING

Use the ▲/▼ buttons to select the desired setting on the INSTALLATION dialog, and press the E NTE R button of the remote control or the INPUT button of the projector to execute. This function is unavailable when TRANSITION DETECTOR ( is ON.

Using ▲/▼ buttons switches the standby mode setting.

NORMAL : For using communication functions in the standby

NETWORK(WOL) : For using Wake on LAN (WOL) function

SAVING : Reduces power consumption minimally.

• When NETWORK (WOL) or SAVING is selected, the following restrictions apply.

- The RS-232C communication control except to turn the projector on are disabled while the projector is in the standby mode. If the COMMUNICATION TYPE in the COMMUNICATION menu is set to NETWORK BRIDGE, all of the RS-232C commands are disabled(

- STANDBY OUTPUT is invalid.

- The Projector control via HDMI function is disabled while the projector is in the standby mode.

- SCHEDULE function (Ex. POWER-ON) in the standby mode will not be operated.

- The MHL STANDBY PWR. menu cannot be operated and MHL power feeding is unavailable with standby mode(45).

- It takes a while until the projector is available after starting up.

- The USB connection is disabled while the projector is in standby mode.

• When NETWORK (WOL) is selected, only Wake on LAN (WOL) on wired LAN is accepted while the projector is in the standby mode.





mode.

on wired network while reducing power consumption.

69).

SETUP menu



)

(continued on next page)

4 9

Page 50

SETUP menu

Wake-On LAN (WOL) function

If you select NETWORK(WOL) in SETUP menu > STANDBY MODE, you can use the Wake-On LAN(WOL) function of wired network while saving power consumption in standby state.

O p e r a t i o n

Various communication functions can be used after the projector goes into NORMAL standby mode by receiving WOL Magic packet in standby state. However, the projector automatically goes back to NETWORK(WOL) standby mode with less power consumption if 10 minutes have passed after the projector goes into NORMAL standby mode by WOL Magic packet. It takes about 1 minute on a wired network or about 2 minutes on a wireless network until communication functions are available after WOL Magic packet has been received.

WOL Magic packet

Item Specications Network Wired network only Protocol UDP Destination address Broadcast address Destination port number Arbitrary WOL Magic packet A packet using MAC address of wired LAN of the projector

(FF:FF:FF:FF:FF:FF(6 bytes)) followed by 102-byte data with MAC Address(6 bytes) repeated 16 times

(Example) WOL Magic packet for MAC Address: 01:02:03:04:05:06 FF:FF:FF:FF:FF:FF: 01:02:03:04:05:06: 01:02:03:04:05:06: 01:02:03:04:05:06: 01:02:03:04:05:06: 01:02:03:04:05:06: 01:02:03:04:05:06: 01:02:03:04:05:06: 01:02:03:04:05:06: 01:02:03:04:05:06: 01:02:03:04:05:06: 01:02:03:04:05:06: 01:02:03:04:05:06: 01:02:03:04:05:06: 01:02:03:04:05:06: 01:02:03:04:05:06: 01:02:03:04:05:06:

NOTICE Supported WOL Magic packet is a packet to be sent to broadcast address. General routers may not forward a packet of broadcast address to a device with a different network address by default. If you use a router like this, WOL function cannot be used for the projector that is not in the same network address. Consult with your network administrator about router settings. This function is available only in wired network and is not supported in wireless network.

(continued on next page)

5 0

Page 51

It e m D e s c r i p t i o n

Using the ▲/▼ buttons turns on/off the message function.

• To change this function, follow the steps below.

1. Press the O S D M S G button on the remote control for 3 sec.

2. The INHIBIT OSD will be displayed. While this OSD is displayed, press the O S D M S G button again on the remote control.

3. Toggle and change the function.

NORMAL ó SILENT ó INHIBIT

SETUP menu

O S D M E S S A G E

S TA ND B Y

O UTPUT

■SILENT

: The following message functions do not work.

“AUTO IN PROGRESS” while automatically adjusting. “NO INPUT IS DETECTED” “SYNC IS OUT OF RANGE” “INVALID SCAN FREQ.” “NOT AVAILABLE” “Searching….” while searching for the input. “Detecting….” while an input signal is detected. The indication of the input signal displayed by changing. The indication of the aspect ratio displayed by changing. The indication of the PICTURE MODE displayed by changing. The indication of the ACTIVE IRIS displayed by changing. The indication of the MY MEMORY displayed by changing. The indication of “FREEZE” and “II” while freezing the screen by pressing the F R E E Z E button. The indication of the TEMPLATE displayed by changing. The indication of the ECO MODE displayed by changing.

■INHIBIT

: All message functions do not work.

The only buttons will function are as below. STANDBY, ON

AUDIO OUT To select the sound output in the standby mode.

• When the STANDBY MODE is set to NETWORK(WOL) or SAVING, the STANDBY OUTPUT menu cannot be operated.

• When the MHL STANDBY PWR. (

45) is set to OFF, MHL audio



is unavailable in the standby mode.

5 1

Page 52

AUDIO menu

From the AUDIO menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or the E NTE R button to execute the item. Then perform it according to the following table.

It e m D e s c r i p t i o n

V O L UM E

S PE A K E R

Using the ◄/► buttons adjusts the volume of the audio output.

Low ó High

Using the ▲/▼ buttons turns on/off the built-in speaker.

ON ó OFF

When OFF is selected, the built-in speaker does not work. While the image signal from the input port chosen in step (1) is

projected, the audio signal from the input port selected in step (2) is output to both the A UD IO O UT port and built-in speaker of this projector. However, the built-in speaker does not work when SPEAKER is set to OFF.

A UD IO S O UR C E

5 2

(1) Choose a picture input port using the ▲/▼ buttons.

Select an audio input port or the mute icon using the ◄/► buttons.

(2)

The icons indicate the following;

No.1: A UD IO IN1 port No.2: A UD IO IN2 port

No.3: A UD IO IN3 port No.4: H D M I 1 port No.5: H D M I 2 / M H L port No.6: L A N port

: mutes the sound

• C.C. (Closed Caption) is automatically activated when and an input signal containing C.C. is received. This function is available only when the signal is NTSC for V ID E O or 480i@60 for C O M PUTE R IN 1 or C O M PUTE R IN 2 , and when AUTO is selected for DISPLAY in the C.C. menu under the SCREEN menu (

• For the setting of AUDIO OUT, refer to AUDIO OUT of STANDBY OUTPUT in the SETUP menu.

is selected

58).



Page 53

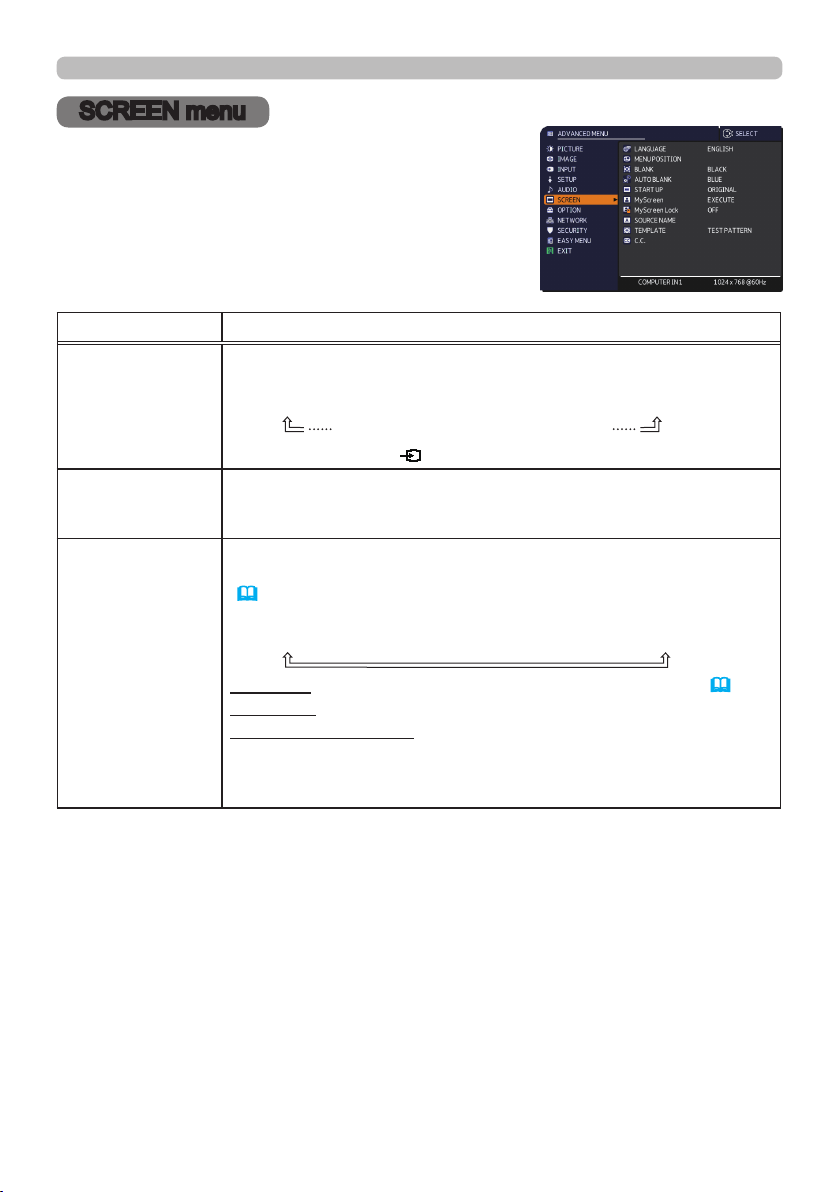

SCREEN menu

From the SCREEN menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or E NTE R button to execute the item. Then perform it according to the following table.

It e m D e s c r i p t i o n

Using the ▲/▼/◄/► buttons switches the OSD (On Screen Display) language.

L A NG UA G E

M E NU PO S ITIO N

B L A NK

ENGLISH ó FRANÇAIS ó DEUTSCH ó ESPAÑOL

(shown in the LANGUAGE dialog) Press the E NTE R or button to save the language setting. Using the ▲/▼/◄/► buttons adjusts the menu position.

To quit the operation, press the M E NU button on the remote control or keep no operation for about 10 seconds.

Using the ▲/▼ buttons switches the mode for the blank screen. The blank screen is a screen for the temporarily blanking feature (

30). It is displayed by pressing the B L A NK button on the remote



control.

MyScreen ó ORIGINAL ó BLUE ó WHITE ó BLACK

MyScreen : ORIGINAL : Screen preset as the standard screen. BLUE, WHITE, BLACK : Plain screens in each color.

• To avoid remaining as an afterimage, the MyScreen or ORIGINAL screen will change to the AUTO BLANK screen after several minutes.

Screen can be registered by the MyScreen item (

SCREEN menu



55).

(continued on next page)

5 3

Page 54

SCREEN menu

It e m D e s c r i p t i o n

Using the ▲/▼ buttons switches the mode for the AUTO BLANK screen.

A UTO B L A NK

• To avoid remaining as an afterimage, displayed image will change to the designated blank color screen by AUTO BLANK after several minutes at the following conditions.

- When MyScreen or ORIGINAL is displayed as BLANK screen.

- When start-up screen is displayed. Using the ▲/▼ buttons switches the mode for the start-up screen.

The start-up screen is a screen displayed when no signal or an unsuitable signal is detected.

S TA R T UP

MyScreen : ORIGINAL : Screen preset as the standard screen. OFF : Plain black screen.

• To avoid remaining as an afterimage, the START UP screen will change to the AUTO BLANK screen after several minutes.

• When the ON is selected to the MyScreen PASSWORD item in the SECURITY menu (

(continued on next page)

BLUE ó WHITE ó BLACK

MyScreen ó ORIGINAL ó OFF

Screen can be registered by the MyScreen item (

74), the START UP is fixed to MyScreen.



55).

5 4

Page 55

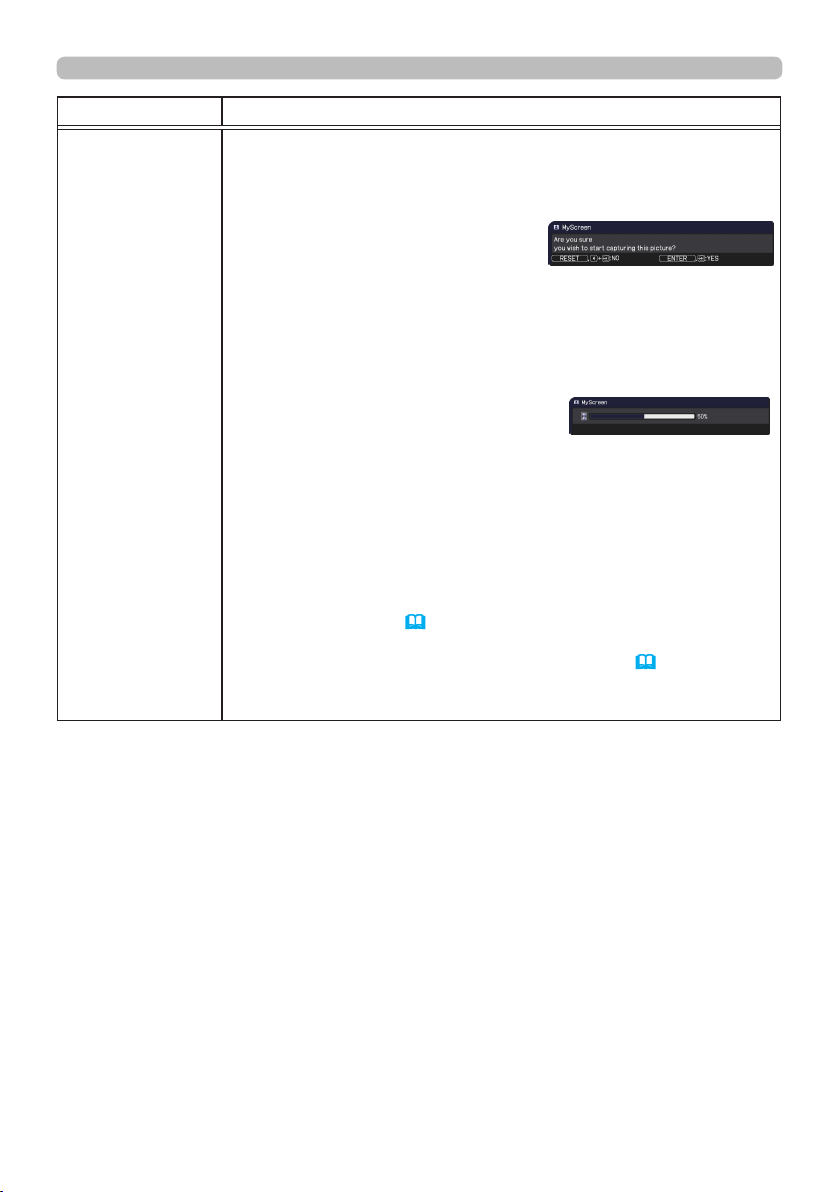

It e m D e s c r i p t i o n

This item allows you to capture an image for use as a MyScreen image which can be used as the BLANK screen and START UP screen. Display the image you want to capture before executing the following procedure.

Selecting this item displays a dialog titled “MyScreen”. It will ask you if you start capturing an image from the current screen. Please wait for the target image to be displayed, and press the E NTE R or INPUT button to start registration.

To restore the screen and return to the previous dialog, press the R E S E T

M y S c r e e n

button on the remote control. Registration may take several minutes. When the registration is completed, the registered screen and the following message is displayed for several seconds:

“MyScreen registration is nished.”

If the registration failed, the following message is displayed:

“A capturing error has occurred. Please try again.”

• This function cannot be selected when the ON is selected to the MyScreen Lock item (



56).

• This function cannot be selected when the ON is selected to the MyScreen PASSWORD item in SECURITY menu (

•

This function is unavailable for a signal from the L A N, US B TY PE A ,

H D M I1 or H D M I2 / M H L port.

SCREEN menu

74).



(continued on next page)

5 5

Page 56

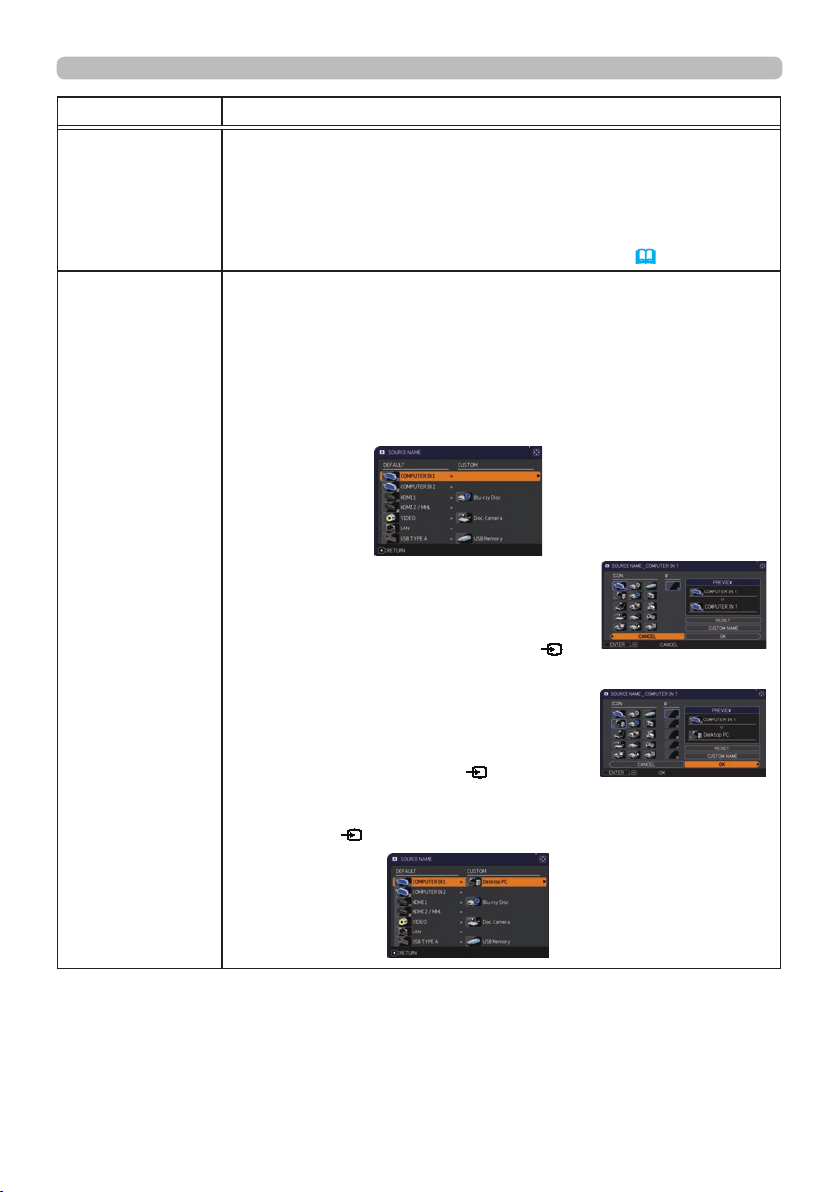

SCREEN menu

It e m D e s c r i p t i o n

Using the ▲/▼ buttons turns on/off the MyScreen lock function.

ON ó OFF

M y S c r e e n L o c k

When the ON is selected, the item MyScreen is locked. Use this function for protecting the current MyScreen.

• This function cannot be selected when the ON is selected to the MyScreen PASSWORD item in SECURITY menu (

Each input port for this projector can have a name applied to it. (1) Use the ▲/▼ buttons on the SCREEN menu to select SOURCE

NAME and press the ► or E NTE R button. The SOURCE NAME menu will be displayed.

(2) Use the ▲/▼ buttons on the SOURCE NAME menu to select

the port to be named and press the ► button. The SOURCE NAME dialog will be displayed. Right side of the menu is blank until a name is specied.

(3) Select an icon you would like to assign to

the port in the SOURCE NAME dialog.

S O UR C E NA M E

The name assigned to the port will also be automatically switched according to your icon selection. Press the E NTE R or button to determine your icon selection.

(4) Select a number you would like to assign

to the port along with the icon. You can select the number either from blank (no number assigned), 1, 2, 3, or 4. Then press the E NTE R or

(5) If you would like to modify the name

assigned to the port, select CUSTOM NAME and press the E NTE R or

button.

74).



(continued on next page)

5 6

Page 57

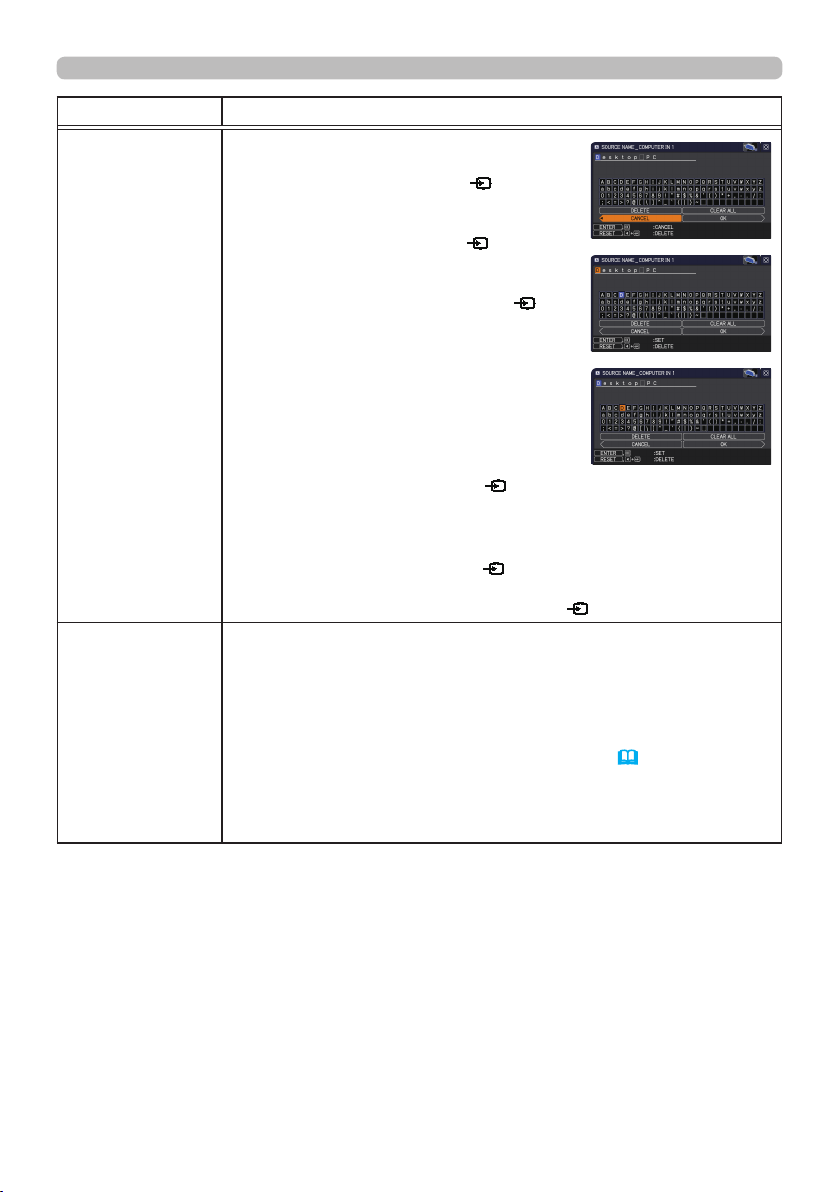

It e m D e s c r i p t i o n

(6) The current name will be displayed

on the rst line. Use the ▲/▼/◄/► buttons and the E NTE R or select and enter characters. To erase 1 character at one time, press the R E S E T button or press the ◄ and at the same time. Also if you move the cursor to DELETE or CLEAR ALL on screen and press the E NTE R or button, 1 character or all characters will be erased. The name can be a maximum

S O UR C E NA M E

(c o n t i n u e d )

of 16 characters.

(7) To change an already inserted character,

press the ▲ button to move the cursor to the rst line, and use the ◄/► buttons to move the cursor on the character to be

changed. After pressing the E NTE R or Then, follow the same procedure as described at the item (6) above.

(8) To nish entering text, move the cursor to the OK on screen

and press the ►, E NTE R or

name without saving changes, move the cursor to the CANCEL

on screen and press the ◄, E NTE R or

Using the ▲/▼ cursor buttons switches the mode for the template screen. Press the ► cursor (or the E NTE R ) button to display the selected template, and press the ◄ cursor button to close the displayed

TE M PL A TE

screen. The last selected template is displayed when the M Y B UTTO N allocated to the TEMPLATE function is pressed (

TEST PATTERN ó DOT-LINE1 ó DOT-LINE2



DOT-LINE4 ó DOT-LINE3

SCREEN menu

button to

button

button, the character is selected.

button. To revert to the previous

button.

57).





(continued on next page)

5 7

Page 58

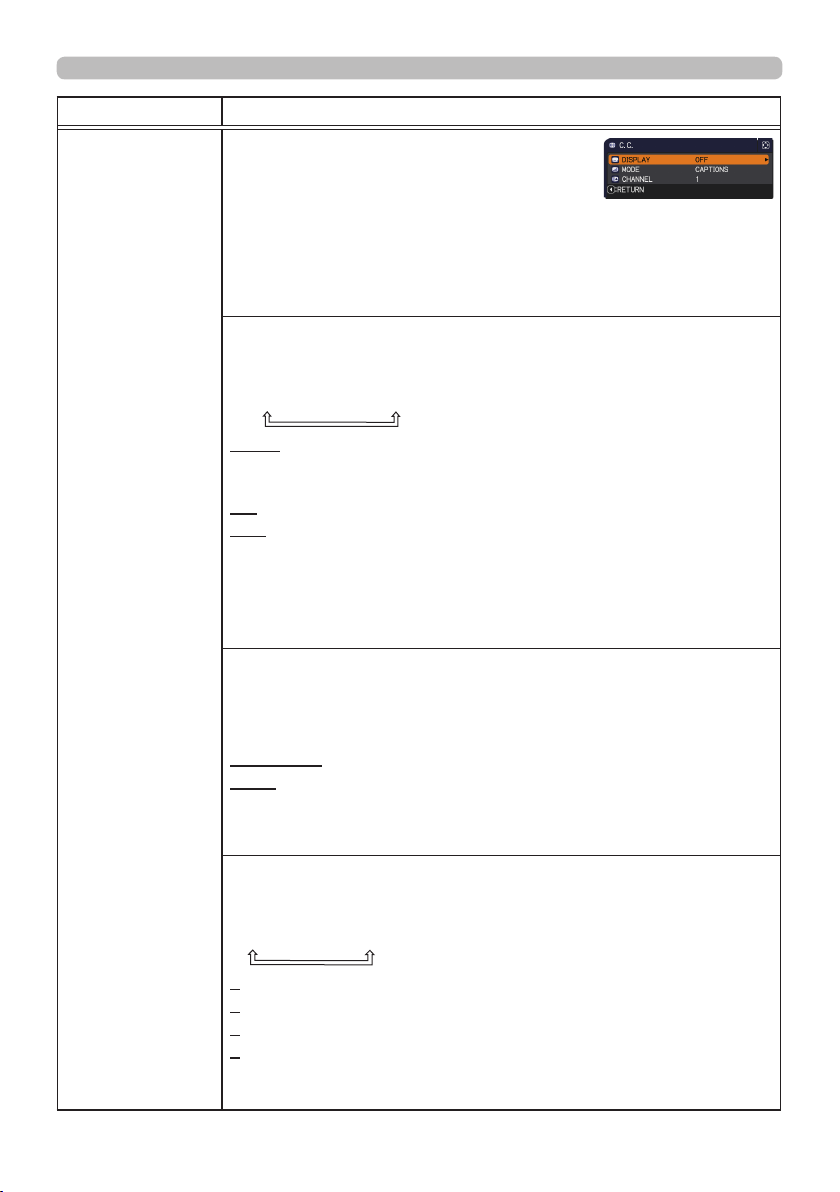

SCREEN menu

It e m D e s c r i p t i o n

The C.C. is the function that displays a transcript or dialog of the audio portion of a video, les or other presentation or other relevant sounds. It is required to have NTSC format video or 480i@60 format component video source supporting C.C. feature to utilize this function. It may not work properly, depending on equipment or signal source. In this case, please turn off the Closed Caption.

D IS PL A Y

Select Closed Caption DISPLAY setting from following options using ▲/▼ buttons.

AUTO ó ON ó OFF

AUTO : Closed Caption automatically appears when the input signal

(C.C. compatible) from the port with the mute icon set at

AUDIO SOURCE is selected. ON : Closed Caption is on. OFF : Closed Caption is off.

• The caption is not displayed when the OSD menu is active.

• The Closed Caption is the function to display the dialogue,

C . C .

( C l o s e d C a p t i o n )

narration, and / or sound effects of a television program or other video sources. The Closed Caption availability is depending upon broadcaster and/or content.

M O D E

Select Closed Caption MODE setting from following options using ▲/▼ buttons.

CAPTIONS ó TEXT

CAPTIONS : Display Closed Caption. TEXT : Display Text data, which is for additional information such as

news reports or a TV program guide. The information covers the entire screen. Not all of the C.C. program has Text information.

C H A NNE L

Select Closed Caption CHANNEL from following options using ▲/▼ buttons.

1 ó 2 ó 3 ó 4

1 : Channel 1, primary channel / language 2 : Channel 2 3 : Channel 3 4 : Channel 4

The channel data may vary, depending on the content. Some channel might be used for secondary language or empty.

5 8

Page 59

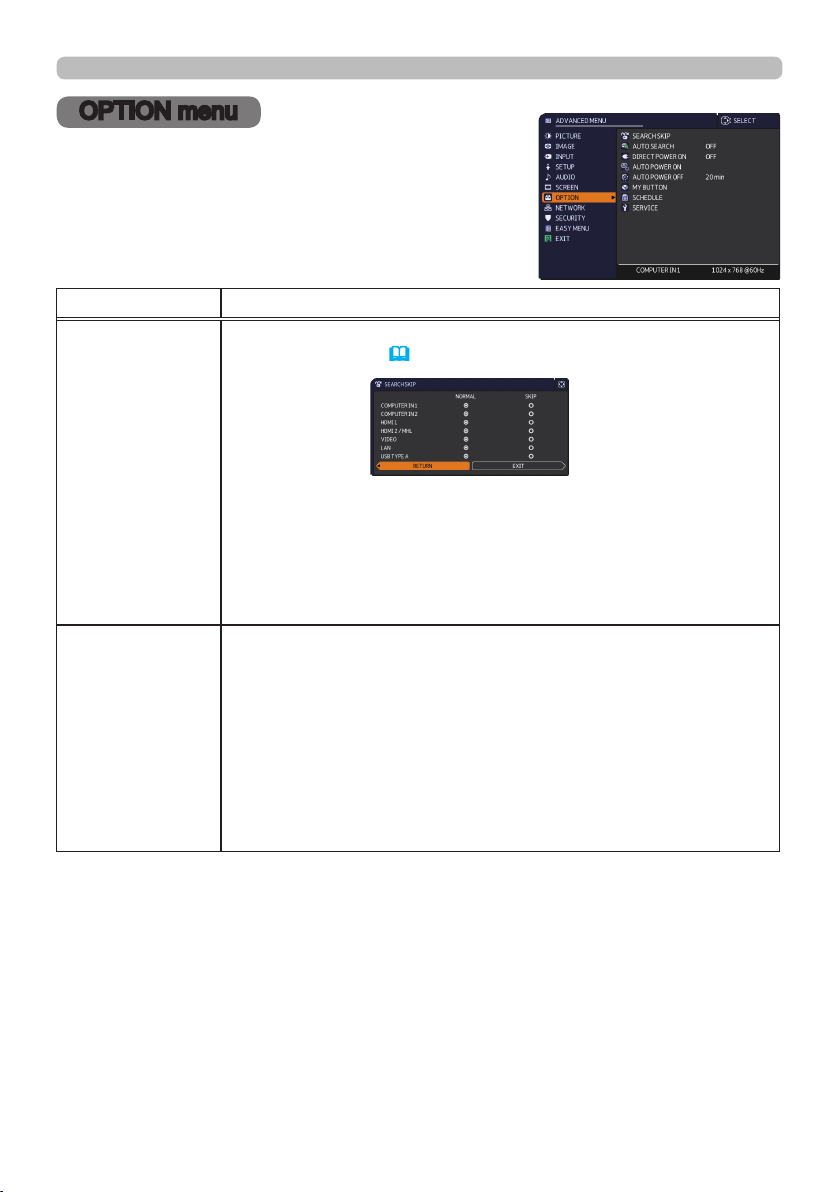

OPTION menu

From the OPTION menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or E NTE R button to execute the item. Then perform it according to the following table.

It e m D e s c r i p t i o n

S E A R C H S K IP

A UTO S E A R C H

The ports can be set to be ignored in searching by the AUTO SEARCH function. (

(1) Choose a picture input port using the ▲/▼ buttons. (2) Using the ◄/►buttons turns on/off the SEARCH SKIP function.

NORMAL ó SKIP

The port that is set to SKIP will be ignored.

• It is not possible to set SKIP to all ports at the same time. Using the ▲/▼ buttons turns on/off the automatic signal search

function.

ON ó OFF

When the ON is selected, detecting no signal automatically cycles through input ports in the following order. The search is started from the current port. Then when an input is found, the projector will stop searching and display the image.

LAN   VIDEO ï HDMI 2 / MHL ï HDMI 1 ï



below)



USB TYPE A



COMPUTER IN1

COMPUTER IN

OPTION menu

(continued on next page)

5 9

Page 60

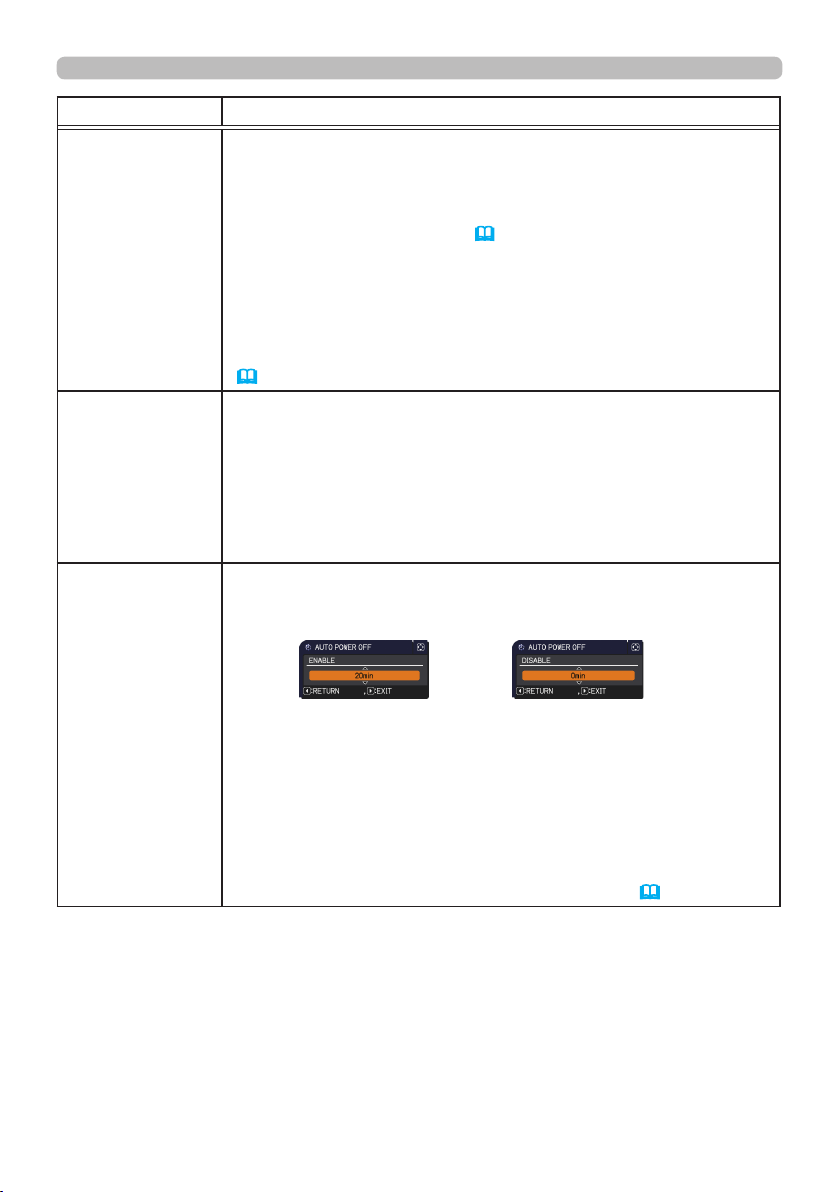

OPTION menu

It e m D e s c r i p t i o n

Using the ▲/▼ buttons turns on/off the DIRECT POWER ON function.

ON ó OFF

When set to the ON, the lamp in projector will be automatically turned

D IR E C T PO W E R

O N

on without the usual procedure ( supplied with the power after the power was cut while the lamp was on.

• This function does not work as long as the power has been supplied to the projector while the lamp is off.

• After turning the lamp on by the DIRECT POWER ON function, if neither input nor operation is detected for about 30 minutes, the projector is turned off, even though the AUTO POWER OFF function (

below) is disabled.



When the projector is in the standby mode and detects the video signal input from external device, this function starts up the projector to display the image automatically on the screen.This function can

A UTO PO W E R

O N

be enabled by selecting an input referring to the displayed list.

• This function is unavailable when STANDBY MODE is set to NETWORK(WOL) or SAVING.

• This function may work unintentionally by connected external device.

Using the ▲/▼ buttons adjusts the time to count down to automatically turn the projector off.

Long (max. 99 minutes) ó Short (min. 0 minute = DISABLE)

20), only when the projector is



A UTO PO W E R

O F F

When the time is set to 0, the projector is not turned off automatically. When the time is set to 1 to 99, and when the passed time with no-signal or an unsuitable signal reaches at the set time, the projector lamp will be turned off. If one of the projector's buttons or the remote control buttons is pressed or one of the commands (except get commands) is transmitted to the C O NTR O L port during the corresponding time, projector will not be turned off. Please refer to the section Tu r n i n g o f f t h e p o w e r (

(continued on next page)

6 0



21).

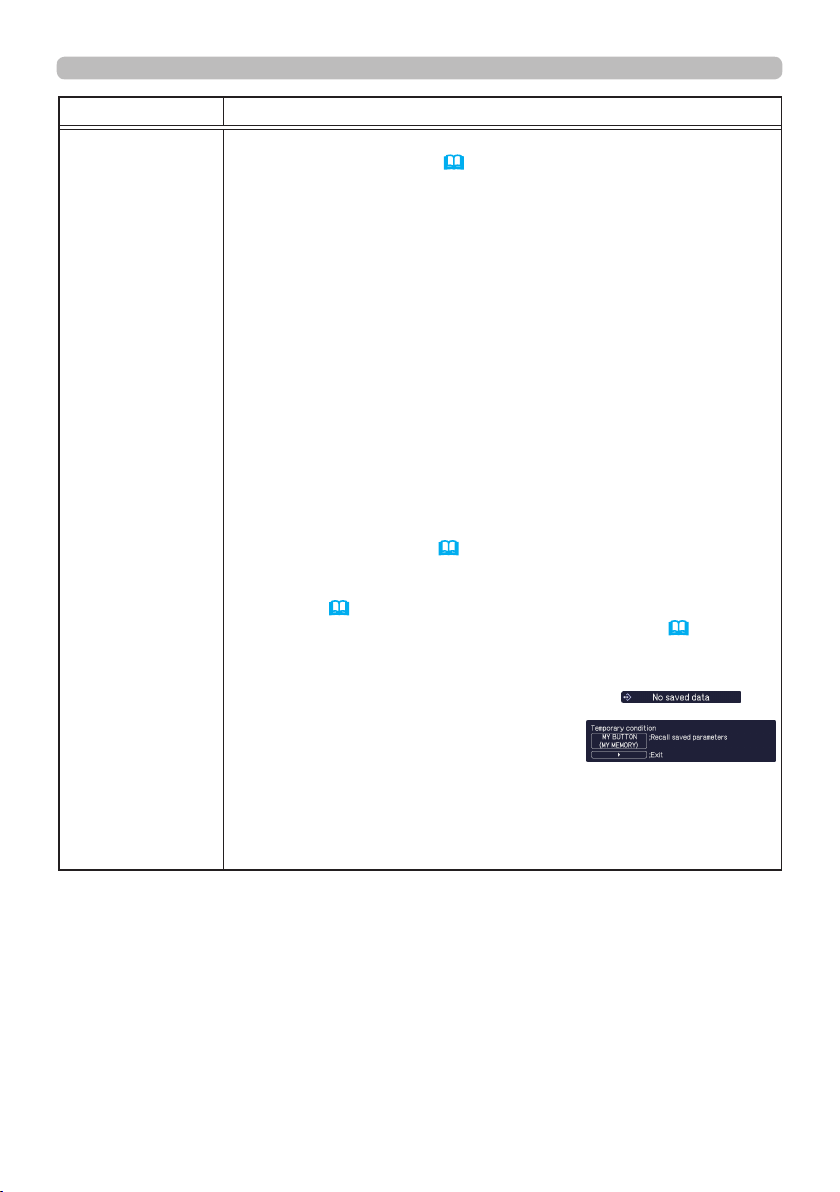

Page 61

It e m D e s c r i p t i o n

This item is to assign one of the following functions to M Y B UTTO N 1 / 2 on the remote control (



(1) Use the ▲/▼ buttons on the MY BUTTON menu to select a MY

BUTTON - (1/2).

(2) Then using the ◄/► buttons sets one of the following functions

to the chosen button.

• COMPUTER IN1: Selects the input from C O M PUTE R IN1 port.

• COMPUTER IN2: Selects the input from C O M PUTE R IN2 port.

• LAN: Selects input from L A N port.

• USB TYPE A: Selects input from US B TY PE A port.

• HDMI1: Selects input from H D M I1 port.

• HDMI2/MHL: Selects input from H D M I2 / M H L port.

• VIDEO: Selects the input from V ID E O port.

•

SLIDESHOW: Selects the input from US B TY PE A , and starts a Slideshow.

• MY IMAGE: Displays the MY IMAGE menu.

• MESSENGER:

Turns the messenger text displayed on the screen on/off

(M e s s e n g e r F u n c t i o n in the Ne t w o r k G u i d e ).

M Y B UTTO N

When there is no transferred text data to display, the message ”NO MESSENGER DATA" appears.

• INFORMATION: Displays SYSTEM_INFORMATION, INPUT_INFORMATION (



WIRED INFORMATION or nothing.

• AUTO KEYSTONE : Performs automatic keystone distortion correction (



27).

• MY MEMORY: Loads one of adjustment data stored ( When more than one data are saved, the adjustment changes every time the M Y B UTTO N is pressed.

When no data is saved in memory, the dialog "No saved data" appears. When the current adjustment is not saved to memory, the dialog as shown in the right appears. If you want to keep the current adjustment, please press the ► button to exit. Otherwise loading a data will overwrite the current adjusted condition.

(continued on next page)

OPTION menu

6).

71), WIRELESS INFORMATION,

39).



(continued on next page)

6 1

Page 62

OPTION menu

It e m D e s c r i p t i o n

• ACTIVE IRIS: Changes the active iris mode.

• PICTURE MODE: Changes the PICTURE MODE (

•

• TEMPLATE: Makes the template pattern selected to the

M Y B UTTO N

(C o n t i n u e d )

TEMPLATE item (

• AV MUTE: Turns the picture and audio on/off.

• RESOLUTION: Turns on/off the RESOLUTION dialog (

• ECO MODE: Changes the ECO MODE (

• HDCR:Turns on/off the HDCR dialog (

•

• MY BUTTON:Turn on/off the MY BUTTON dialog (

(continued on next page)

34).



FILTER RESET: Displays the lter time reset conrmation dialogue

57) appear or disappear.



47).



39).



ACCENTUALIZER:Turn on/off the ACCENTUALIZER dialog

61).



(

44).

(



48).

39).

6 2

Page 63

It e m D e s c r i p t i o n

■ H o w t o s e t u p t h e i t e m

1. Use the ▲/▼/◄/► cursor buttons to select or adjust. 2 Select OK to nish the settings.

S C H E D UL E

■ Setting procedure

① Determine the current date/time as reference in DATE AND

② Make a schedule of what event to execute at what time of the

③ Select the date (one specic day: SPECIFIC DATE or the days of

Switch the screen of the days of the week and SPECIFIC DATE by vertical scroll.

(Page 1 of 2: Days of the week, Page 2 of 2: SPECIFIC DATE)

(continued on next page)

OPTION menu

NOTE

•Please refer to the actual on-screen display(OSD) for appropriate operation.

It e m D e s c r i p t i o n

D A TE A ND TIM E

S PE C IF IC D A TE

PR O G R A M E D IT

TIME.

day in PROGRAM EDIT.

the week: every week) to be scheduled, then select a program.

Inputs the current date (year/month/day) and the time (24-hour clock) to set a reference time in the projector.

Species the date (month/day) if you execute only one specic day. You can set 10 different schedules from SPECIFIC DATE-1 to SPECIFIC DATE-10.

Sets what event to execute at what time of the day. One program can be set in one day, and up to 16 programs can be set. Up to 20 events can be set in one program.

6 3

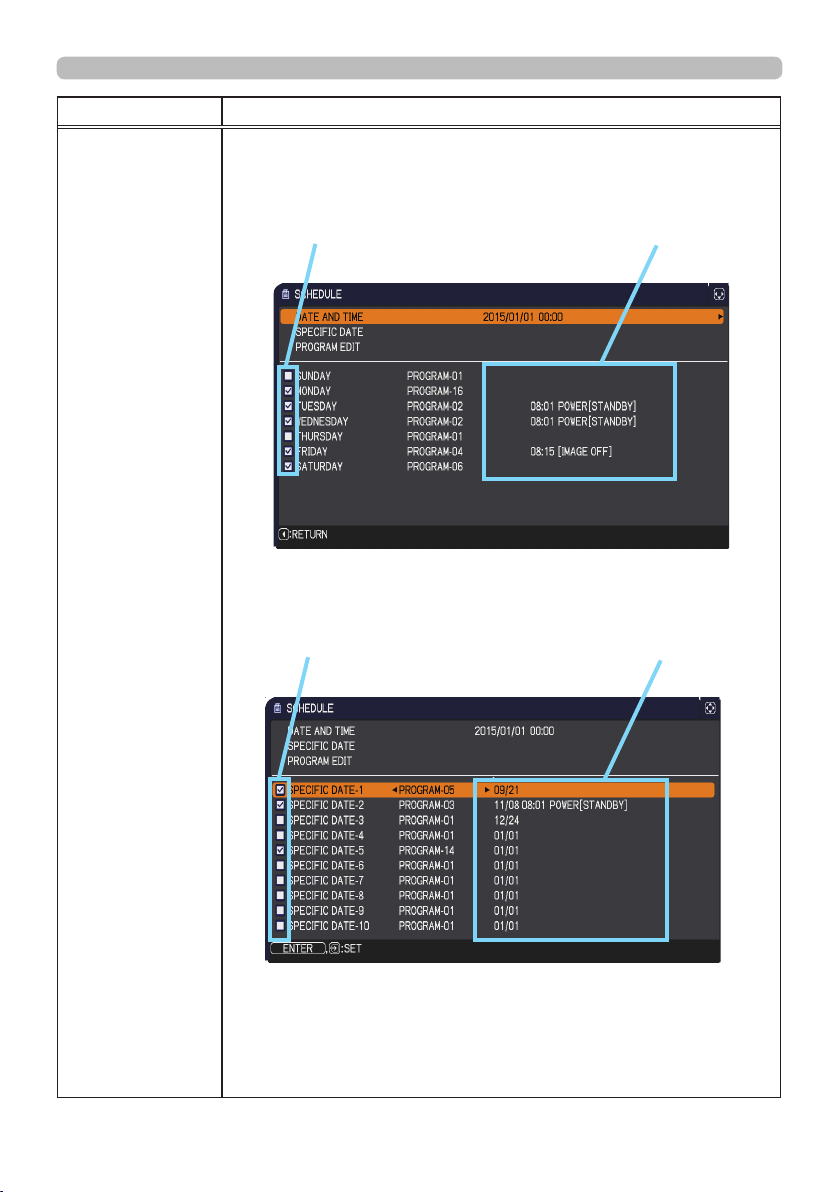

Page 64

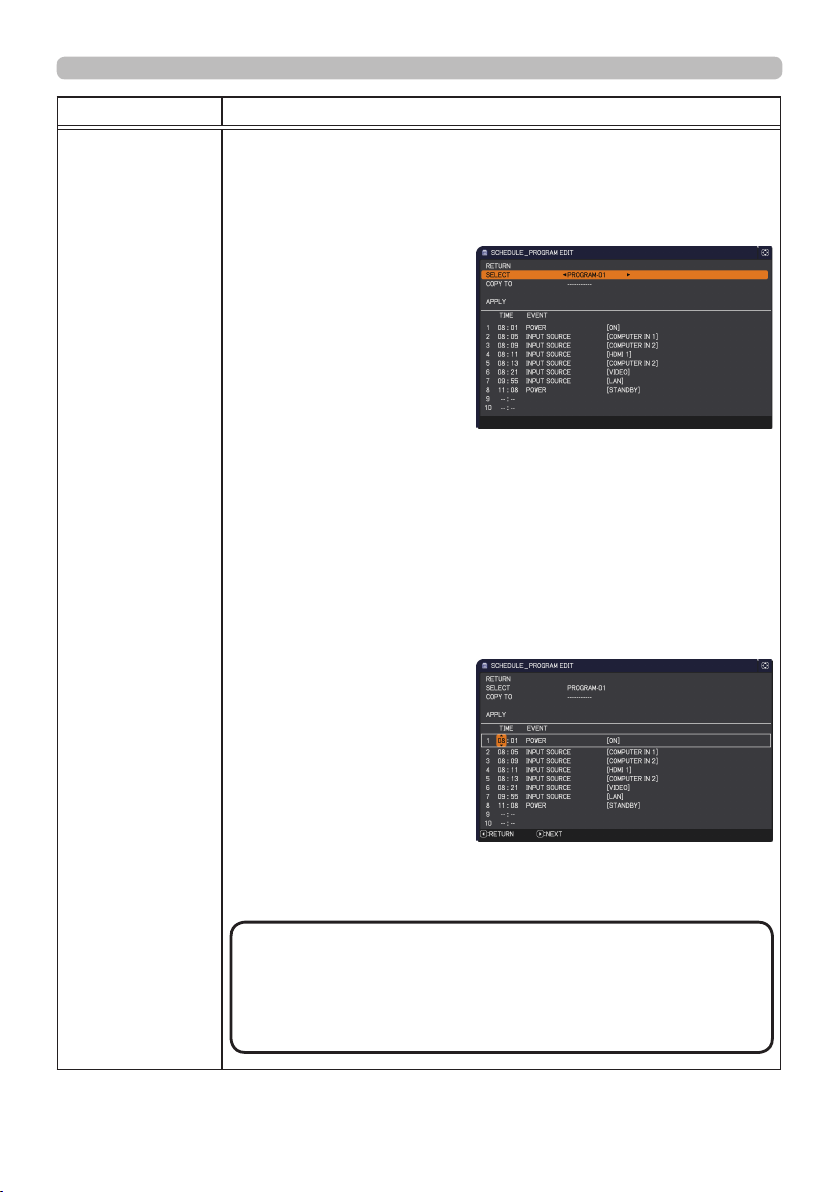

OPTION menu

It e m D e s c r i p t i o n

■ H o w t o a c t i v a t e ( D A TE A ND TIM E / S PE C IF IC D A TE )

Place a check mark in the box.

Check mark in the box

1/2 page (Set the DATE(Year/Month/Date) and Time(24-hour scale).)

S C H E D UL E

(C o n t i n u e d )

Check mark in the box

Date and rst setup info could be seen with the check mark.

Press the ▼ cursor button to move from 1/2 page to 2/2 page with the state of selecting "SATURDAY".

(continued on next page)

6 4

2/2 page (Set specic date from 1 to 10.)

Page 65

It e m D e s c r i p t i o n

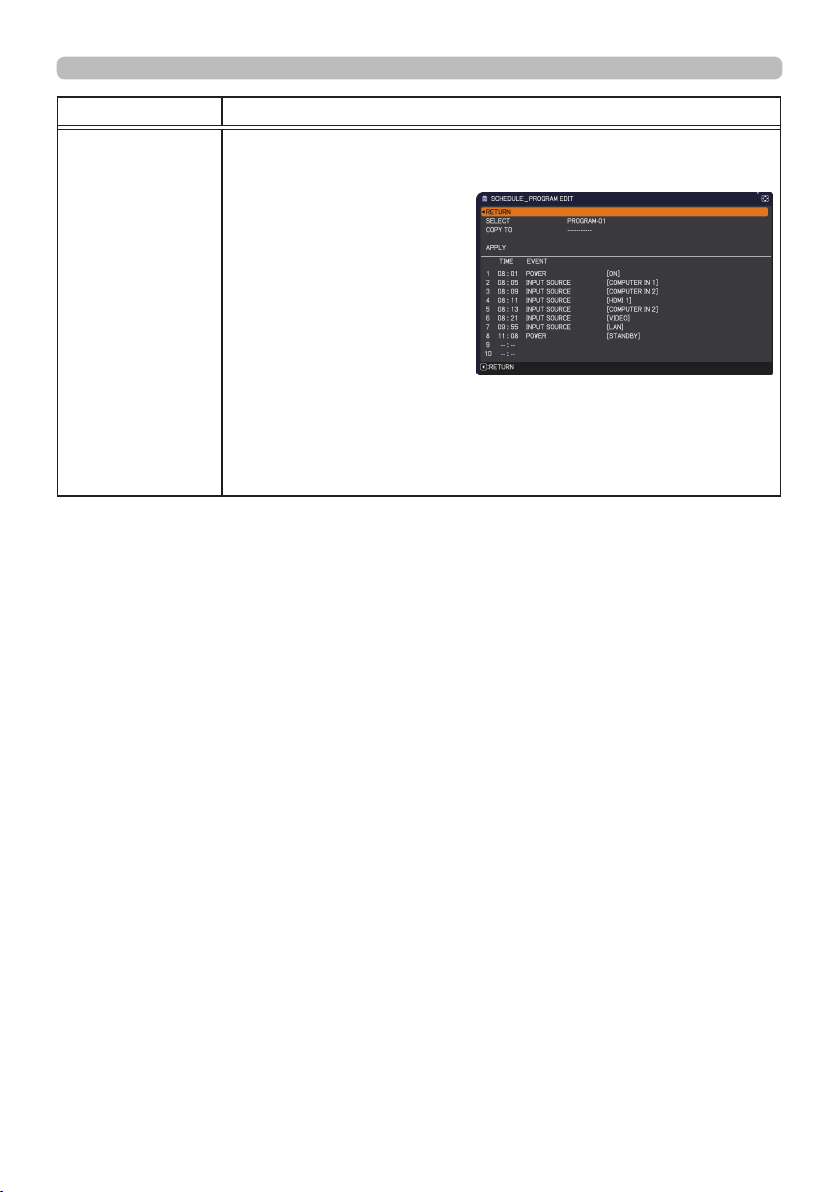

■ PR O G R A M E D IT

The TIME and EVENT for Program 1 to 16 can be editted.

S C H E D UL E

(C o n t i n u e d )

(continued on next page)

OPTION menu

• R E TUR N

Select this to go back to the top menu of the SCHEDULE.

• S E L E C T

Select from PROGRAM-01 to 16 to edit. Up to 20 events can be set in each program.

• C O PY TO

The selected program (with the settings of TIME and EVENT) can be copied to other program.

• A PPL Y

Select this to apply and save all adjustments and settings.

6 5

Page 66

OPTION menu

It e m D e s c r i p t i o n

■ H o w t o e d i t t h e s e l e c t e d PR O G R A M

1. Select from 1 to 20 events. Use the ▲/▼ cursor buttons to select. Press ► cursor button to set the TIME and EVENT.

2. Use the ◄/► cursor

buttons to select.

3. Use the ▲/▼ cursor

buttons to adjust.

EVENT can be selected as listed below.

◦ POWER − ON, STANDBY ◦ INPUT SOURCE − "input source" channel ◦ MY IMAGE − IMAGE-1 to 4, IMAGE OFF ◦ MESSENGER − TEXT-1 to 12, TEXT OFF

S C H E D UL E ( c o n t i n u e d )

◦ ECO MODE − NORMAL, ECO ◦ BLANK − ON, OFF ◦ SLIDESHOW - START, STOP

4. Press ► cursor button to finish the settings.

5. Select APPLY to save the settings.

(continued on next page)

6 6

NOTE

• Please refer to the actual on-screen display(OSD)

for appropriate operation.

•

When the STANDBY MODE is set to NETWORK(WOL) or SAVING, SCHEDULE function (Ex:POWER-ON) in the standby mode will not be operated.

Page 67

It e m D e s c r i p t i o n

Selecting this item displays the SERVICE menu. Select an item using the ▲/▼ buttons, and press the ► button or the E NTE R button on the remote control to execute the item.

A L TITUD E

Using the ▲/▼ buttons switches the rotation speed of the cooling fans. If the projector is used at an altitude of about 1600 m or higher, select HIGH. Otherwise, select NORMAL. Note that the projector is noisier when the HIGH is selected.

HIGH ó NORMAL

A UTO A D J US T

S E R V IC E

Using the ▲/▼ buttons to select one of the mode. When the DISABLE is selected, the automatic adjustment feature is disabled.

FINE ó FAST ó DISABLE

FINE: Finer tuning including H.SIZE adjustment. FAST: Faster tuning, setting H.SIZE to prearranged data for the

input signal.

• Depending on conditions, such as input image, signal cable to the projector, environment around the projector, etc., the automatic adjustment may not work correctly. In such a case, please choose DISABLE to disable the automatic adjustment, and make adjustment manually.

OPTION menu

G H O S T

Adjust the settings using the ▲/▼ buttons to eliminate ghosting.

(continued on next page)

6 7

Page 68

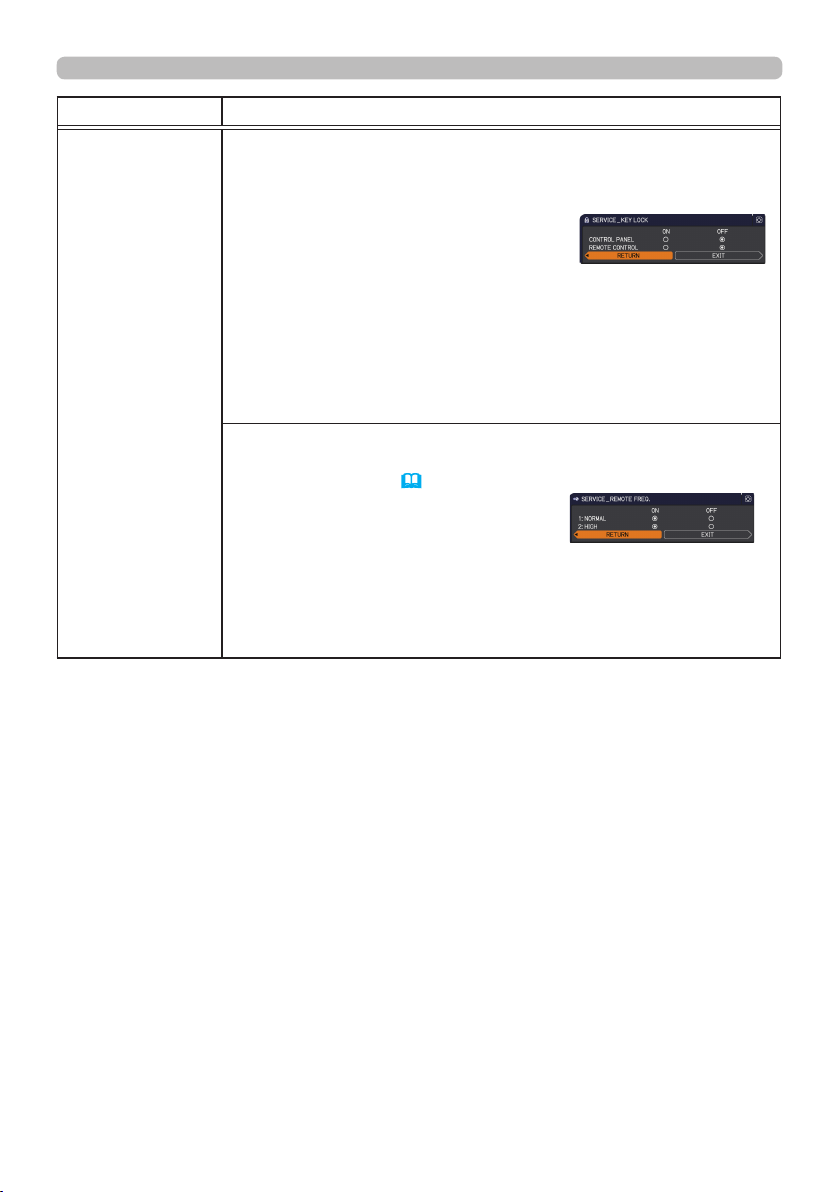

OPTION menu

It e m D e s c r i p t i o n

K E Y L O C K

(1) Use the ▲/▼ buttons to choose the operations control.

(2) Use the ◄/► buttons to select ON or

Selecting ON in Step 2 locks the buttons except S TA ND B Y / O N on the operations control selected in Step 1. Selecting OFF releases the locked buttons on the operations control selected in Step 1.

S E R V IC E

( c o n t i n u e d )

• Please use this function to prevent tampering or accidental operation.

• It's not possible to disable both options at the same time.

R E M O TE F R E Q .

(1) Use the ▲/▼ button to change the projector's remote sensor

(2) Use the ◄/► button to change the

If the remote control does not function correctly, disable either of them.

• It's not possible to disable both options at the same time.

(continued on next page)

CONTROL PANEL ó REMOTE CONTROL

OFF.

ON ó OFF

frequency setting (



4, 18).

1:NORMAL ó 2:HIGH

projector's remote sensor on or off.

ON ó OFF

6 8

Page 69

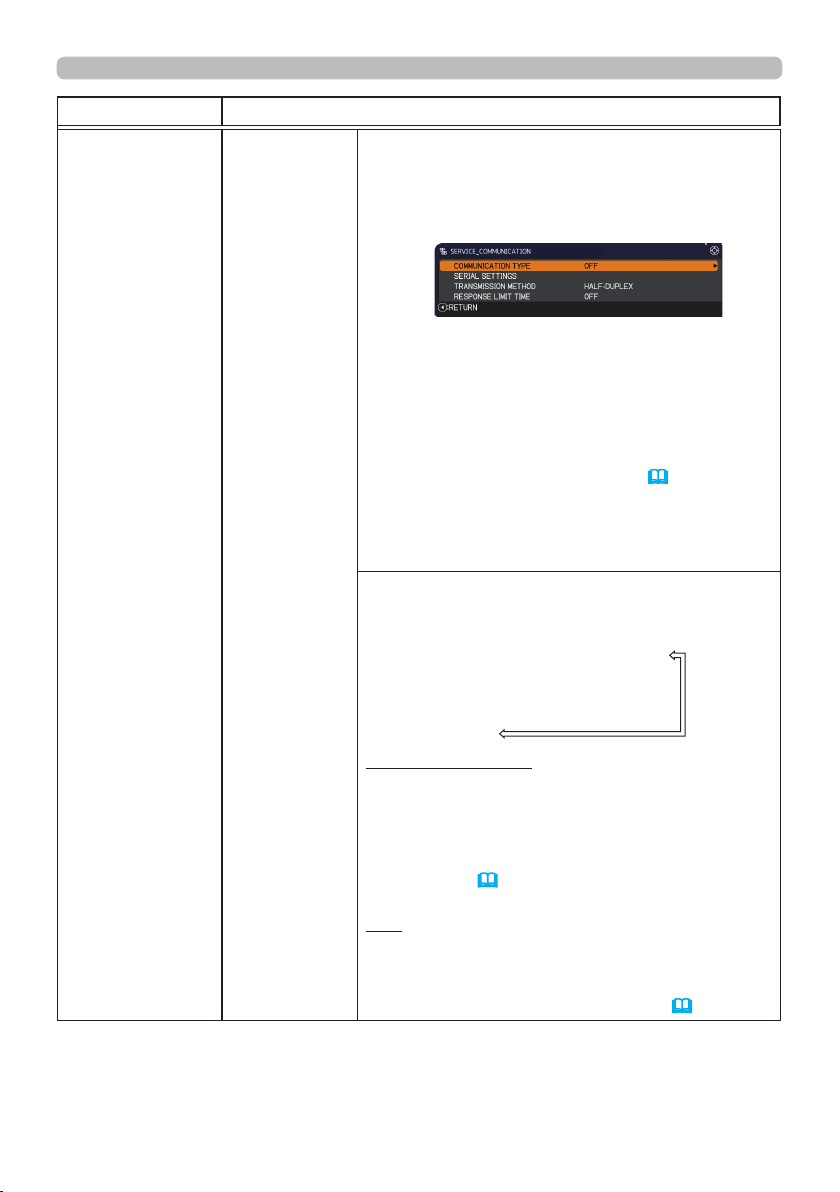

It e m D e s c r i p t i o n

Selecting this item displays COMMUNICATION menu. In this menu, you can congure the serial communication settings of the projector using the C O NTR O L port.

• Select an item using the cursor buttons ▲/▼. Then pressing the ► button opens the submenu for the setting item you selected. Or, pressing the ◄ button instead of the ► button makes the menu back to the previous one without changing the setup. Each submenu can be operated as described above.

• When COMMUNICATION TYPE ( set to OFF, the other items in COMMUNICATION menu are invalid.

• For the function of serial communication, refer to

S E R V IC E

( c o n t i n u e d )

C O M M UNIC A TIO N

the Ne t w o r k G u i d e .

C O M M UNIC A TIO N TY PE

Select the communication type for transmission via the C O NTR O L port.

NETWORK BRIDGE (WIRELESS)



NETWORK BRIDGE (WIRED)



OFF

NETWORK BRIDGE: Select this type, if it is

required to control an external device as a network terminal, via this projector from the computer. Select WIRELESS or WIRED as your network connection mode. The C O NTR O L port does not accept RS-232C commands ( the Ne t w o r k G u i d e ).

OFF: Select this mode to receive RS-232C

commands using the C O NTR O L port.

• OFF is selected as the default setting.

• When you select the NETWORK BRIDGE, check the item, TRANSMISSION METHOD (

OPTION menu

below) is



7 . Ne t w o r k B r i d g e F u n c t i o n in



70).



(continued on next page)

6 9

Page 70

OPTION menu

It e m D e s c r i p t i o n

S E R IA L S E TTING S

Select the serial communication condition for the C O NTR O L port. Select settings of BAUD RATE and PARITY depending on your environment.

TR A NS M IS S IO N M E TH O D

Select the transmission method for communication by the NETWORK BRIDGE from the C O NTR O L port.

HALF-DUPLEX ó FULL-DUPLEX

HALF-DUPLEX: This method lets the projector

make two way communication, but only one direction, either transmitting or receiving data, is allowed at a time.

FULL-DUPLEX: This method lets the projector

make two way communication, transmitting and receiving data at the same time.

• HALF-DUPLEX is selected as the default setting.

• If you select HALF-DUPLEX, check the setting of the item RESPONSE LIMIT TIME (

S E R V IC E

( c o n t i n u e d )

C O M M UNIC A TIO N

( c o n t i n u e d )

R E S PO NS E L IM IT TIM E

Select the time period to wait for receiving response data from other device communicating by the NETWORK BRIDGE and the HALF-DUPLEX through the C O NTR O L port.

OFF ó 1s ó 2s ó 3s

OFF: Select this mode if it is not required to check

the responses from the device that the projector sends data to. In this mode, the projector can send out data from the computer continuously.

1s /2s /3s: Select the time period to keep the

projector waiting for response from the device that the projector sends data to. While waiting the response, the projector does not send out any data from the C O NTR O L port.

• This menu is available only when the NETWORK BRIDGE is selected for the COMMUNICATION TYPE and the HALF-DUPLEX is selected for the TRANSMISSION METHOD (

• OFF is selected as the default setting.



above).

below).

(continued on next page)

7 0

Page 71

It e m D e s c r i p t i o n

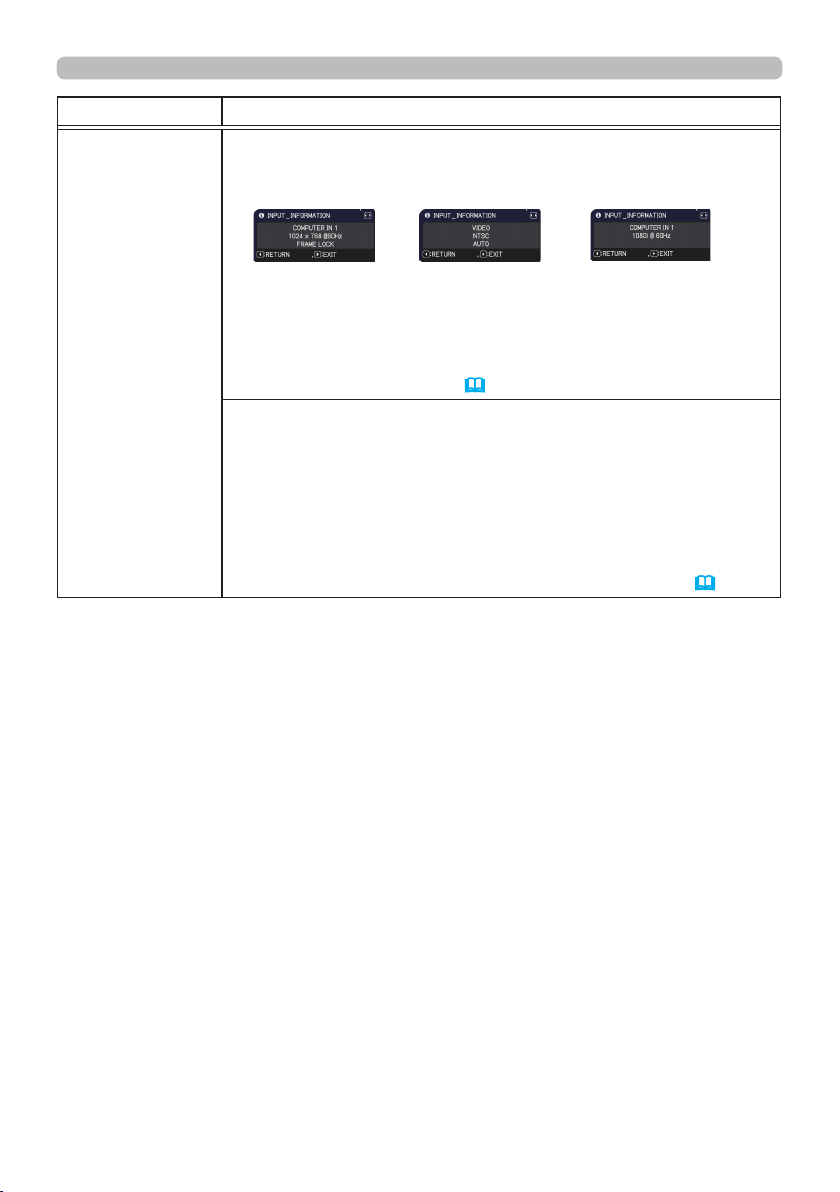

INF O R M A TIO N

Selecting this item displays a dialog titled “INPUT_INFORMATION”. It shows the information about the current input.

• The “FRAME LOCK” message on the dialog means the frame lock function is working.

• This item cannot be selected for no signal and sync out.

S E R V IC E

( c o n t i n u e d )

• When the MY TEXT DISPLAY is set to ON, the MY TEXT is displayed together with the input information in the INPUT_INFORMATION box (

F A C TO R Y R E S E T

Selecting OK using the ► button performs this function. By this function, all the items in all of menus will collectively return to the initial setting. Note that the items LAMP TIME, FILTER TIME, LANGUAGE, AUTO BLANK, FILTER MESSAGE, STANDBY MODE, COMMUNICATION, NETWORK and SECURITY settings are not reset.

CANCEL  OK Be sure to set ALTITUDE after resetting all the settings (



78).

OPTION menu

67).



7 1

Page 72

NETWORK menu

See the Ne t w o r k G u i d e for details of NETWORK operation. Remember that incorrect network settings on this projector may cause trouble on the network. Be sure to consult with your network administrator before connecting to an existing access point on your network.

7 2

Page 73

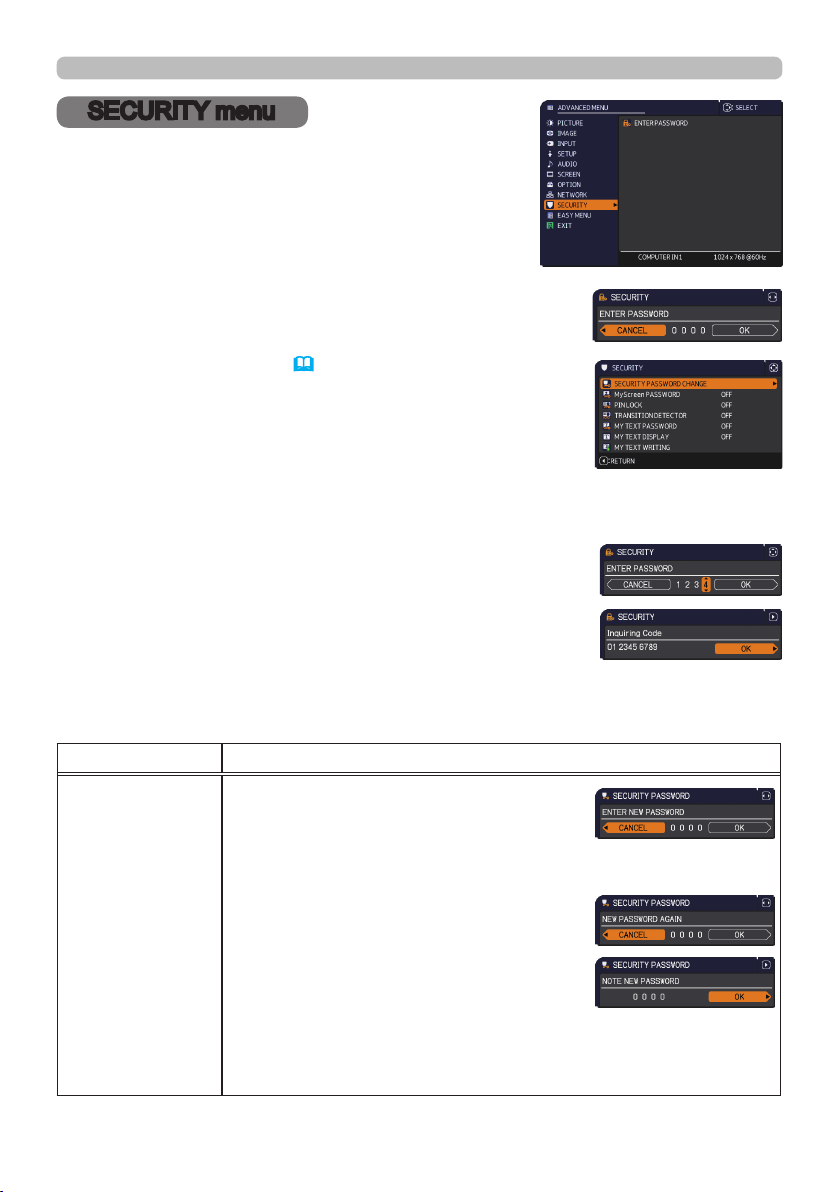

SECURITY menu

This projector is equipped with security functions. From the SECURITY menu, items shown in the table below can be performed. To use SECURITY menu: User registration is required before using the security functions.

E n t e r t o t h e S E C UR ITY m e n u

1. Press the ► button. The ENTER PASSWORD box will be displayed. . Use the ▲/▼/◄/► buttons to enter the registered password. The

factory default password is as follows. 8945WU : 8312 This password can be changed right side of the ENTER PASSWORD box and press the ► button to display the SECURITY menu.

• It is strongly recommended the factory default password to be changed as soon as possible.

• If an incorrect password is input, the ENTER PASSWORD box will be displayed again. If incorrect password is input 3 times, the projector will turn off. Afterwards the projector will turn off every time an incorrect password is input.

. Items shown in the table below can be performed.

(below)

If y o u h a v e f o r g o t t e n y o u r p a s s w o r d

(1) While the ENTER PASSWORD box is displayed, press and hold the

R E S E T button on the remote control for about 3 seconds or press and hold the INPUT button for 3 seconds while pressing the ► button on the projector.

(2) The 10 digit Inquiring Code will be displayed. Contact your dealer

with the 10 digit Inquiring Code. Your password will be sent after your user registration information is conrmed.

• If there is no key input for about 55 seconds while the Inquiring Code is displayed, the menu will close. If necessary, repeat the process from (1).

. Move the cursor to the

It e m D e s c r i p t i o n

(1) Use the ▲/▼ buttons on the SECURITY menu

(2) Use the ▲/▼/◄/► buttons to enter the new password. (3) Move the cursor to the right side of the ENTER

S E C UR ITY

PA S S W O R D

C H A NG E

(4)

• Please do not forget your password.

(continued on next page)

to select SECURITY PASSWORD CHANGE and press the ► button to display the ENTER NEW PASSWORD box.

NEW PASSWORD box and press the ► button to display the NEW PASSWORD AGAIN box, enter the same password again.

Move the cursor to the right side of the NEW

PASSWORD AGAIN box and press the ► button and the NOTE NEW PASSWORD box will be displayed for about 30 seconds, please make note of the password during this time.

Pressing the E NTE R button on the remote control or ► button on the projector will close the NOTE NEW PASSWORD box.

7 3

Page 74

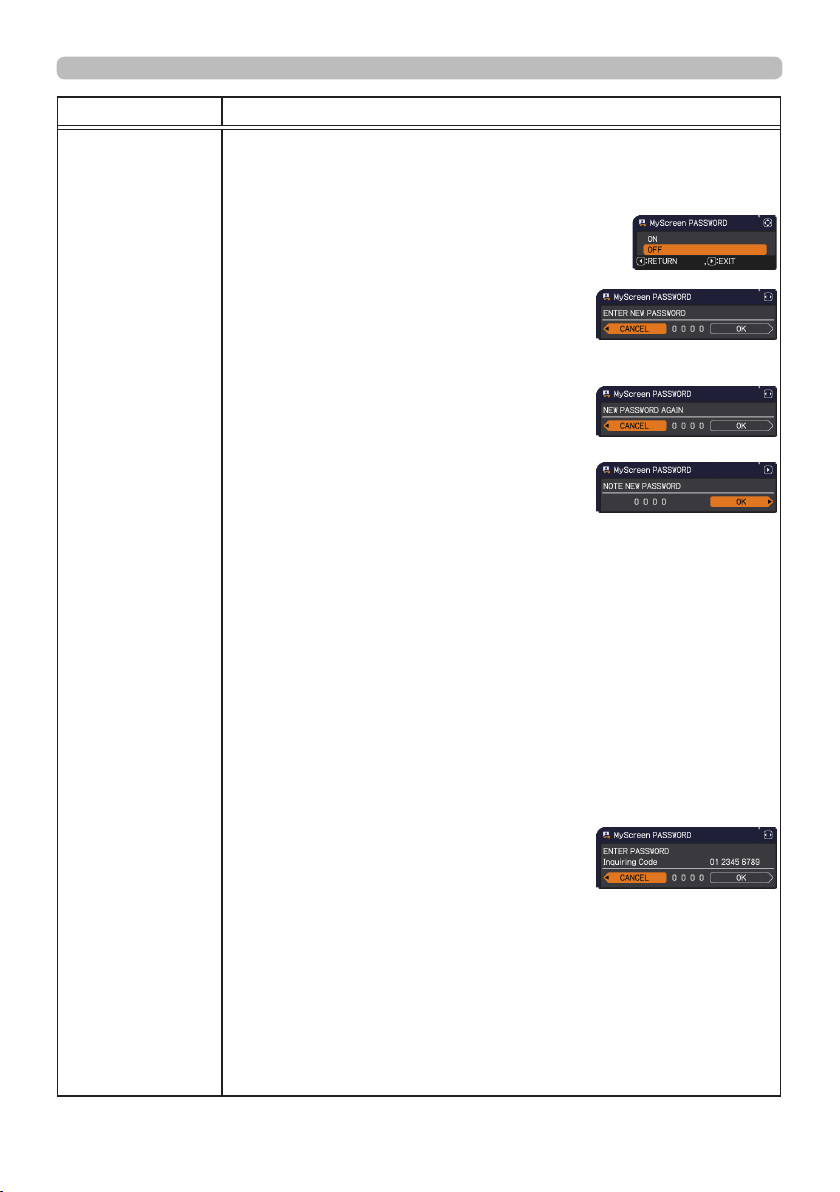

SECURITY menu

It e m D e s c r i p t i o n

The MyScreen PASSWORD function can be used to prohibit access to the MyScreen function and prevent the currently registered MyScreen image from being overwritten.

1 Tu r n i n g o n t h e M y S c r e e n PA S S W O R D

1-1 Use the ▲/▼ buttons on the SECURITY menu to

select MyScreen PASSWORD and press the ► button to display the MyScreen PASSWORD on/ off menu.

1-2 Use the ▲/▼ buttons on the MyScreen

PASSWORD on/off menu to select ON. The ENTER NEW PASSWORD box (small) will be displayed.

1-3 Use the ▲/▼/◄/► buttons to enter the

password. Move the cursor to the right side of the ENTER NEW PASSWORD box (small) and press the ► button to display the NEW PASSWORD AGAIN box, enter the same PASSWORD again.

1-4 Move the cursor to the right side of the

NEW PASSWORD AGAIN box and press the ► button to display the NOTE NEW PASSWORD box for about 30 seconds, please make note of the password during this time.

Pressing the E NTE R button on the remote control or ► button on the

M y S c r e e n

PA S S W O R D

projector will return to MyScreen PASSWORD on/off menu.

When a password is set for MyScreen:

The MyScreen registration function (and menu) will be unavailable.

•

The MyScreen Lock menu will be unavailable.

•

The START UP setting will be locked on MyScreen (and the menu will be

•

unavailable). Turning the MyScreen PASSWORD off will allow normal operation of these functions.

Please do not forget your MyScreen PASSWORD.

•

2 Tu r n i n g o f f t h e M y S c r e e n PA S S W O R D

2-1 Follow the procedure in 1-1 to display the MyScreen PASSWORD on/off

menu.

2-2

Select OFF to display the ENTER PASSWORD box (large). Enter the registered password and the screen will return to the MyScreen PASSWORD on/off menu.

If an incorrect PASSWORD is input, the menu will close. If necessary, repeat the process from 2-1.

3 If y o u h a v e f o r g o t t e n y o u r p a s s w o r d

3-1 Follow the procedure in 1-1 to display the MyScreen PASSWORD on/off

menu.

3-2 Select OFF to display the ENTER PASSWORD box (large). The 10 digit

Inquiring Code will be displayed inside the box.

3-3 Contact your dealer with the 10 digit Inquiring Code. Your password will

be sent after your user registration information is conrmed.

ENTER NEW PASSWORD

box (small)

ENTER PASSWORD box

(large)

(continued on next page)

7 4

Page 75

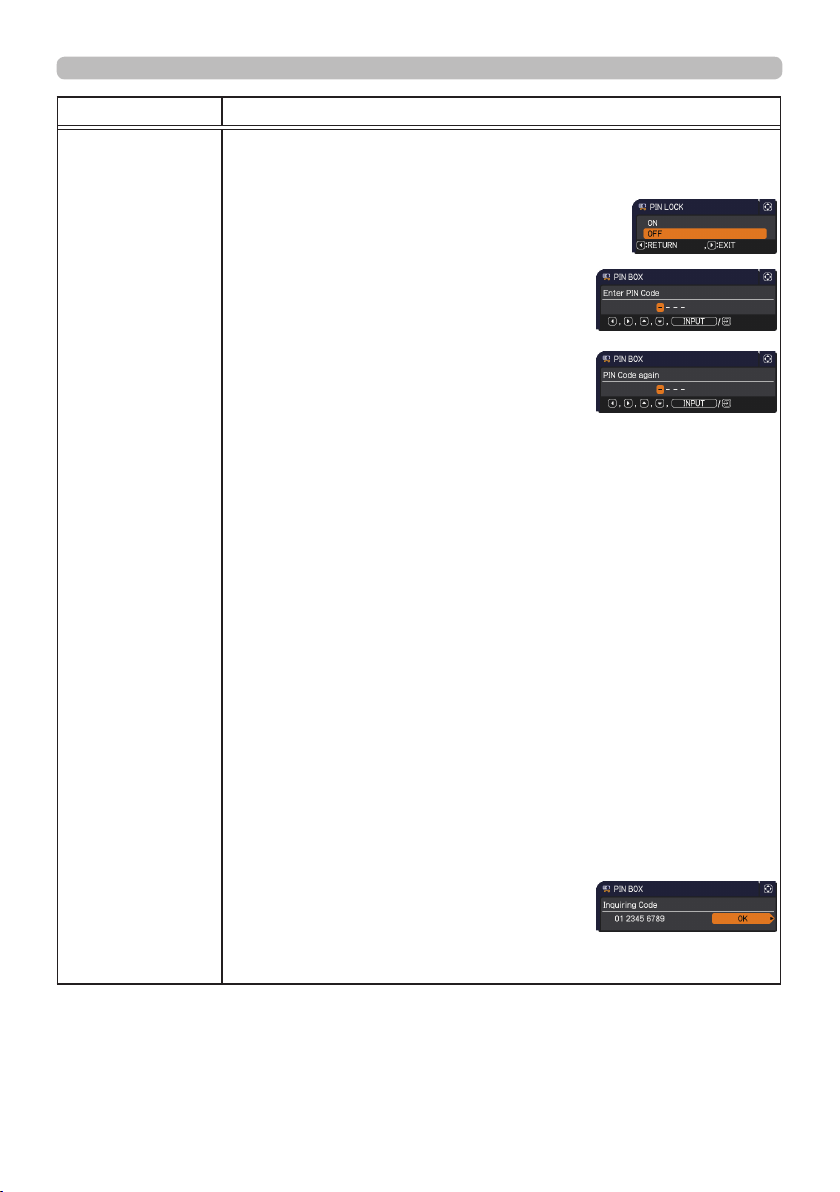

It e m D e s c r i p t i o n

PIN LOCK is a function which prevents the projector from being used unless a registered Code is input.

1 Tu r n i n g o n t h e PIN L O C K

1-1 Use the ▲/▼ buttons on the SECURITY menu

to select PIN LOCK and press the ► button or the E NTE R button to display the PIN LOCK on/off menu.

1-2 Use the ▲/▼ buttons on the PIN LOCK on/

off menu to select ON and the Enter PIN Code box will be displayed.

1-3 Input a 4 part PIN code using the ▲/▼/◄/►

or INPUT button. The PIN Code again box will appear. Reenter the same PIN code. This will complete the PIN code registration.

If there is no key input for about 55 seconds

•

while the Enter PIN Code box or the PIN Code again box is displayed, the menu will close. If necessary, repeat the process from 1-1.

Afterwards, anytime the projector is restarted after AC power is turned off the Enter PIN Code box will be displayed. Enter the registered PIN code. The projector can be used after entering the registered PIN code. If an incorrect PIN code is input, the Enter PIN code box will be displayed again.

PIN L O C K

If an incorrect PIN code is input 3 times, the projector will turn off. Afterwards the projector will turn off every time an incorrect PIN code is input. The projector will also turn off if there is no key input for about 5 minutes while the Enter PIN code box is displayed. This function will activate only when the projector is started after AC power is turned off.

Please do not forget your PIN code.

•

2 Tu r n i n g o f f t h e PIN L O C K

2-1 Follow the procedure in 1-1 to display the PIN LOCK on/off menu. 2-2 Use the ▲/▼ buttons to select OFF and the Enter PIN Code box will be

displayed. Enter the registered PIN code to turn the PIN LOCK function off.

If an incorrect PIN code is input 3 times, the projector will turn off.

3 If y o u h a v e f o r g o t t e n y o u r PIN c o d e

3-1 While the Enter PIN code box is displayed, press and hold the R E S E T

button for three seconds or press and hold the INPUT button for 3 seconds while pressing the ► button on the projector. The 10 digit Inquiring Code will be displayed.

If there is no key input for about 5 minutes

•

while the Inquiring Code is displayed, the projector will turn off.

3-2 Contact your dealer with the 10 digit Inquiring Code. Your PIN code will

be sent after your user registration information is conrmed.

SECURITY menu

(continued on next page)

7 5

Page 76

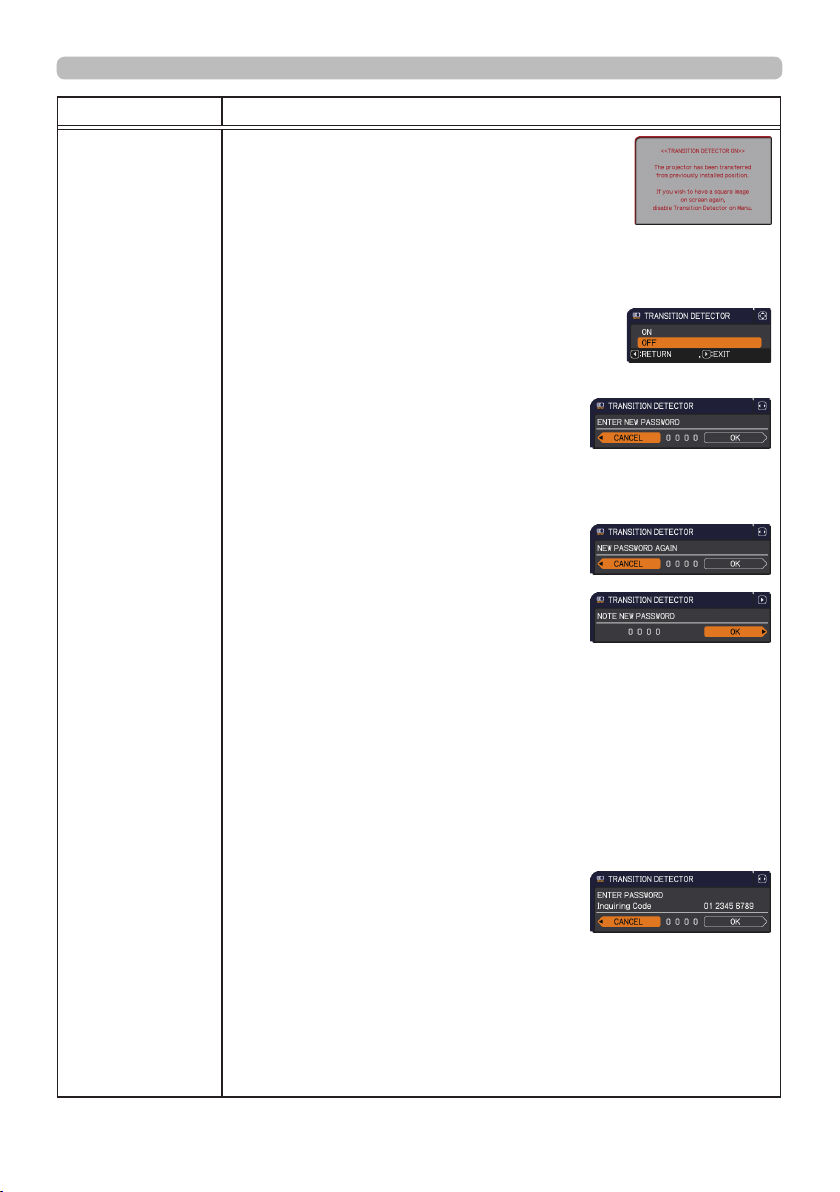

SECURITY menu

It e m D e s c r i p t i o n

If this function is set to ON and the vertical angle of the projector or the INSTALLATION setting is different from the previous recorded setting, the TRANSITION DETECTOR ON alarm will be displayed and the input signal will not be displayed.

• To display the signal again, set this function OFF.

• After about 5 minutes of displaying the TRANSITION DETECTOR ON alarm, the lamp will turn off.

1 Tu r n i n g o n t h e TR A NS ITIO N D E TE C TO R

1-1 Use the ▲/▼ buttons on the SECURITY menu to

1-2

1-3 Use the ▲/▼/◄/► buttons to enter a

TR A NS ITIO N

1-4 Move the cursor to the right side of the

D E TE C TO R

• Please do not forget your TRANSITION DETECTOR password.

• This function will activate only when the projector is started after turning off the AC power.

• This feature may not function properly if the projector is not in a stable position when ON is selected.

2 Tu r n i n g o f f t h e TR A NS ITIO N D E TE C TO R

2-1 2-2

If an incorrect password is input, the menu will close. If necessary, repeat the process from 2-1.

3 If y o u h a v e f o r g o t t e n y o u r p a s s w o r d

3-1 3-2 Select OFF to display the ENTER PASSWORD box (large). The 10 digit

3-3 Contact your dealer with the 10 digit Inquiring Code. Your password will

(continued on next page)

select TRANSITION DETECTOR and press the ► or the E NTE R button to display the TRANSITION DETECTOR on/off menu.

Use the ▲/▼ buttons on the TRANSITION DETECTOR on/off menu to select ON. Selecting ON will save the setting of the current angle and the INSTALLATION setting. The ENTER NEW PASSWORD box (small) will be displayed.

password. Move the cursor to the right side of the ENTER NEW PASSWORD box (small) and press the ► button to display the NEW PASSWORD AGAIN box, enter the same password again.

NEW PASSWORD AGAIN box and press the ► button to display the NOTE NEW PASSWORD box for about 30 seconds, please make note of the password during this time.

Pressing the E NTE R button on the remote control or the ► button on the projector will return to the TRANSITION DETECTOR on/off menu.

Follow the procedure in 1-1 to display the TRANSITION DETECTOR on/off menu.

Select OFF to display the ENTER PASSWORD box (large). Enter the registered password and the screen will return to the TRANSITION DETECTOR on/off menu.

Follow the procedure in 1-1 to display the TRANSITION DETECTOR on/off menu.

Inquiring Code will be displayed inside the box.

be sent after your user registration information is conrmed.

ENTER NEW PASSWORD

box (small)

ENTER PASSWORD box

(large)

7 6

Page 77

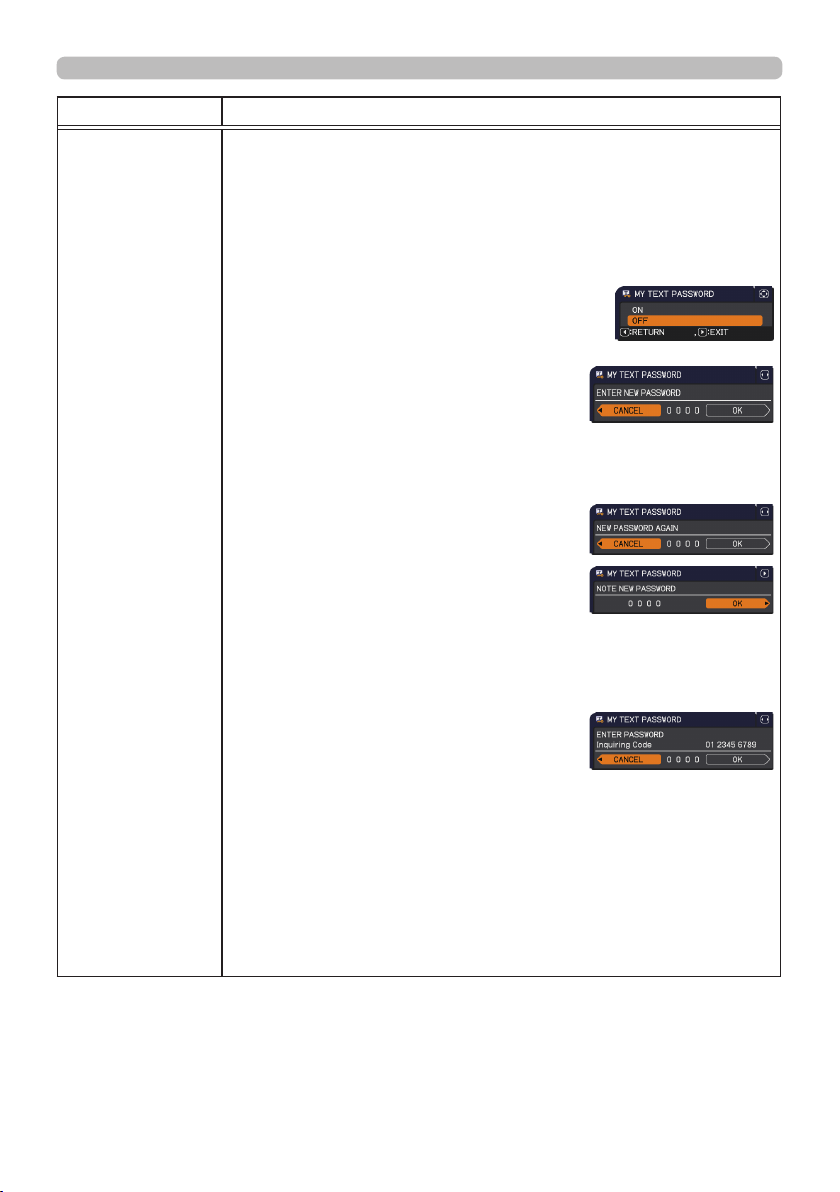

It e m D e s c r i p t i o n

The MY TEXT PASSWORD function can prevent the MY TEXT from being overwritten. When the password is set for the MY TEXT;

• The MY TEXT DISPLAY menu will be unavailable, which can prohibit changing the DISPLAY setting.

• The MY TEXT WRITING menu will be unavailable, which can prevent the MY TEXT from being overwritten.

1 Tu r n i n g o n t h e M Y TE X T PA S S W O R D

1-1 Use the ▲/▼ buttons on the SECURITY menu to

select the MY TEXT PASSWORD and press the ► button to display the MY TEXT PASSWORD on/off menu.

1-2 Use the ▲/▼ buttons on the MY TEXT

PASSWORD on/off menu to select ON. The ENTER NEW PASSWORD box (small) will be displayed.

1-3 Use the ▲/▼/◄/► buttons to enter the

password. Move the cursor to the right side of the ENTER NEW PASSWORD box (small) and press the ► button to display the NEW PASSWORD AGAIN box, and then enter the same password again.

M Y TE X T

PA S S W O R D

1-4 Move the cursor to the right side of the NEW

PASSWORD AGAIN box and press ► button to display the NOTE NEW PASSWORD box for about 30 seconds, then please make note of the password during this time.

Pressing the E NTE R button on the remote control or ► button on the projector will return to the MY TEXT PASSWORD on/off menu.

2 Tu r n i n g o f f t h e M Y TE X T PA S S W O R D

2-1 Follow the procedure in 1-1 to display

the MY TEXT PASSWORD on/off menu.

2-2 Select OFF to display the ENTER

PASSWORD box (large). Enter the registered password and the screen will return to the MY TEXT PASSWORD on/off menu.

If an incorrect password is input, the menu will close. If necessary, repeat the process from 2-1

3 If y o u h a v e f o r g o t t e n y o u r p a s s w o r d

3-1 Follow the procedure in 1-1 to display the MY TEXT PASSWORD on/off

menu.

3-2 Select OFF to display the ENTER PASSWORD box (large). The 10 digit

inquiring code will be displayed inside the box.

3-3 Contact your dealer with the 10 digit inquiring code. Your password will

be sent after your user registration information is conrmed.

SECURITY menu

ENTER NEW PASSWORD

box (small)

ENTER PASSWORD box

(large)

(continued on next page)

7 7

Page 78

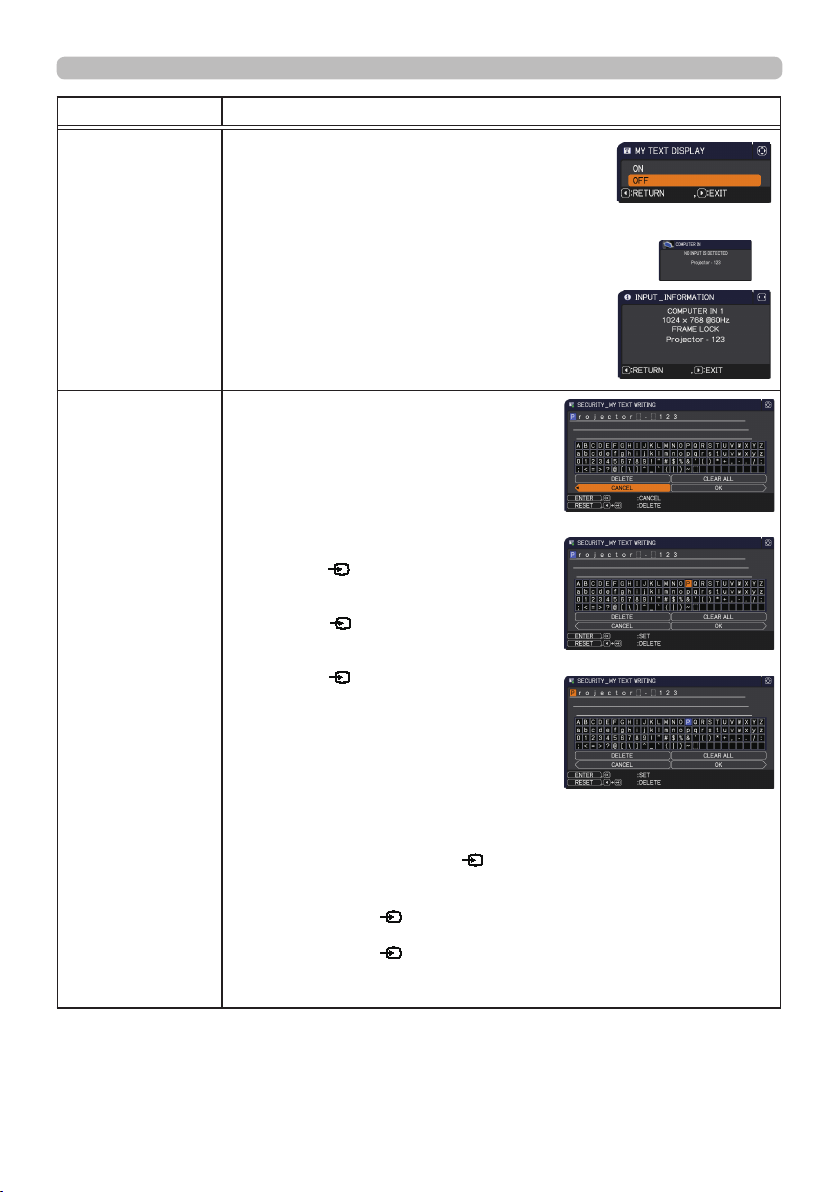

SECURITY menu

It e m D e s c r i p t i o n

(1) Use the ▲/▼ buttons on the SECURITY menu to

select the MY TEXT DISPLAY and press the ► or E NTE R button to display the MY TEXT DISPLAY on/off menu.

(2) Use the ▲/▼ buttons on the MY TEXT DISPLAY

M Y TE X T D IS PL A Y

M Y TE X T W R ITING

on/off menu to select on or off.

ON ó OFF

When it is set ON, the MY TEXT will be displayed on the START UP screen and the INPUT_ INFORMATION when the INFORMATION on the SERVICE menu is chosen.

• This function is available only when the MY TEXT PASSWORD function is set to the OFF.

(1) Use the ▲/▼ buttons on the

SECURITY menu to select the MY TEXT WRITING and press the ► button. The MY TEXT WRITING dialog will be displayed.

(2) The current MY TEXT will be displayed

on the rst 3 lines. If not yet written, the lines will be blank. Use the ▲/▼/◄/► buttons and the E NTE R or characters. To erase 1 character at one time, press the R E S E T button or press the ◄ and button at the same time. Also if you move the cursor to DELETE or CLEAR ALL on screen and press the E NTE R or button, 1 character or all characters will be erased. The MY TEXT can be input up to 26 characters on each line.

(3) To change an already inserted

character, press the ▲/▼ button to move the cursor to one of the rst 3 lines, and use the ◄/► buttons to move the cursor on the character to be changed.

After pressing the E NTE R or follow the same procedure as described at the item (2) above.

(4) To nish entering text, move the cursor to the OK on screen and press

the ►, E NTE R or saving changes, move the cursor to the CANCEL on screen and press the ◄, E NTE R or button.

The MY TEXT WRITING function is available only when the MY TEXT

•

PASSWORD function is set to OFF.

button to select and enter

button. To revert to the previous MY TEXT without

button, the character is selected. Then,

7 8

Page 79

Presentation tools

The projector has the following convenient tools that enable on-screen presentations easily and quickly:

- PC-LESS Presentation (

- Drawing function Drawing function enables you to draw on the projector’s screen with USB mouse or tablets connected to the US B TY PE A ports. For details, refer to the manual for peripheral equipment.

below)

PC-LESS Presentation

The PC-LESS Presentation reads image and audio data from the storage media inserted into the US B TY PE A port and displays the image in the following modes. The PC-LESS Presentation can be started by selecting the US B TY PE A port as the input source. This feature allows you to make your presentations without using your computer.

- Thumbnail mode (80)

- Full Screen mode (84)

- Slideshow mode (85)

[ S u p p o r t e d s t o r a g e m e d i a ]

• USB memory (USB memory type, USB hard disk and USB card reader type)

NOTE

work (if the adapter is acknowledged as multiple devices connected).

• USB devices with security software may not work.

• Be careful when inserting or removing a USB device. (12, 82)

[ S u p p o r t e d f o r m a t ]

• FAT12, FAT16 and FAT32

• USB readers (adapters) that have more than one USB slot may not

• NTFS is not supported.NOTE

7 9

Page 80

Presentation tools

PC-LESS Presentation (continued)

[Supported le format and its extension]

• JPEG (.jpeg, .jpg)

• Bitmap (.bmp) * 16bit mode and compressed bitmap is not supported.

• PNG (.png) * Interlace PNG is not supported.

• GIF (.gif)

NOTE

• Files with a resolution larger than the following are not supported. 8945WU: 1920 x 1200 (Still) (* Some computers may not support 1280 x 800.)

• Files with a resolution smaller than 36 x 36 are not supported.

• Files with a resolution smaller than 100 x 100 may not be displayed.

• Some supported les may not be displayed.

• Only a frame appears when the content of image data cannot be displayed in the Thumbnail mode.

• Even with the le format combinations described above, playback of some les may fail.

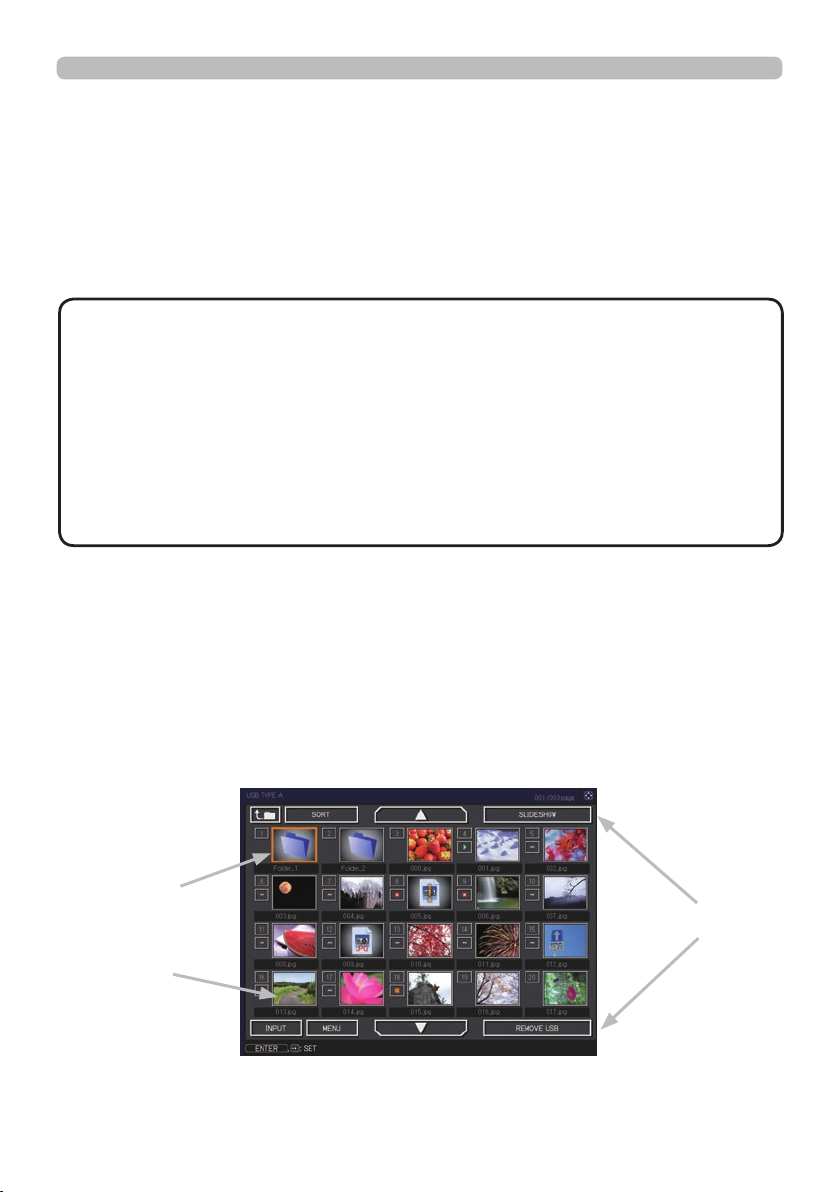

Thumbnail mode

The Thumbnail mode displays the images stored in a USB storage device on the Thumbnail screen. Maximum 20 images are displayed in a screen. If you wish, you can jump into the Full Screen mode or Slideshow mode, after you select some images in the Thumbnail mode. The Thumbnail mode will be started as the primary function of the PC-LESS Presentation after selecting the US B TY PE A port as the input source.

Selected image

Thumbnail images

8 0

Thumbnail menu

Page 81

Presentation tools

PC-LESS Presentation (continued)

O p e r a t i n g b y b u t t o n s o r k e y s

You can control the images on the Thumbnail screen with the remote control, control panel or Web Remote Control. The following functions can be supported while the Thumbnail is displayed.

B u t t o n o p e r a t i o n

The remote control

▲/▼/◄/► ▲/▼/◄/► [▲]/[▼]/[◄]/[►] Move cursor

PA G E UP PA G E D O W N

E NTE R INPUT [E NTE R ]

Control panel

Web Remote Control

[PA G E UP] [PA G E D O W N]

Switches pages

• Displays the selected image on the Full Screen mode when a cursor is on a thumbnail image.

• Displays the SETUP menu (

below) for the selected image



when a cursor is on a thumbnail image number.

F u n c t i o n s

Th e S E TUP m e n u f o r t h e s e l e c t e d i m a g e

It e m F u n c t i o n s

SETUP

RETURN Press the ► cursor button or E NTE R to return to the Thumbnail screen.

START

STOP

SKIP

DELETE

Use the ◄/► cursor buttons to switch each setting or use the ► cursor button to execute the functions as follows.

Switch to ON to set the selected image as the rst image in the Slideshow. This setting information will be saved in the “playlist.txt” le (

87).

Switch to ON to set the selected image as the last image in the Slideshow. This setting information will be saved in the “playlist.txt” le (

87).

Switch to ON to skip the selected image in the Slideshow. This setting information will be saved in the “playlist.txt” le (

Press the ► cursor or E NTE R button to delete selected image. After executing delete, renew the image number displayed Thumbnail menu. If rst or end image in the Slideshow is deleted, renew the setting of start/stop.

87).

8 1

Page 82

Presentation tools

PC-LESS Presentation (continued)

O p e r a t i n g b y t h e m e n u o n t h e Th u m b n a i l s c r e e n

You can also control the images by using the menu on the Thumbnail screen.

It e m F u n c t i o n s

Moves to an upper folder.

SORT Allows you to sort les and folders as following.

RETURN

NAME UP Sorts in ascending order by le name. NAME DOWN Sorts in descending order by le name. DATE UP Sorts in ascending order by le date.

DATE DOWN Sorts in descending order.by le date. ▲/▼ Go to previous / next page. SLIDESHOW Congures and starts the Slideshow (

RETURN

PLAY Press the ► cursor button or E NTE R to start the Slideshow.

START Sets the beginning number of the Slideshow.

STOP Sets the end number of the Slideshow.

INTERVAL

PLAY MODE Selects the Slideshow mode. INPUT Switches the input port. MENU Displays the menu.

REMOVE USB

Press the ► cursor button or E NTE R to return to the Thumbnail screen.

85).



Press the ► cursor button or E NTE R to return to the Thumbnail screen.

Sets the interval time for displaying still images during the Slideshow.

Be sure to use this function before removing USB storage device from the projector. After that, the projector will not recognize a USB storage device until you insert it again into the US B TY PE A input port.

8 2

Page 83

PC-LESS Presentation (continued)

Presentation tools

NOTE

•

These operations are not accessible while the projector OSD is displayed.

• The Thumbnail mode is able to display up to 20 les in one page.

• It is not possible to change the input port by using the INPUT button when the Thumbnail screen, Slideshow, or Full Screen is displayed.

• Some error icons will be displayed in the Thumbnail.

This le seems to be broken or not supported format.

A le that cannot be displayed on the thumbnail screen is indicated by a le format icon.

8 3

Page 84

Presentation tools

PC-LESS Presentation (continued)

Full Screen Mode

The Full Screen mode shows a full display image. To display in Full Screen mode, select an image in the Thumbnail screen. Then press the E NTE R button on the remote control, the INPUT button on the control panel or click [E NTE R ] on the Web Remote Control.

Full screen display

O p e r a t i o n s f o r s t i l l i m a g e s

The following operations are enabled in the Full Screen mode while a still image is displayed.

B u t t o n o p e r a t i o n

The remote control

▼ ► or

PA G E D O W N

▲ ◄ or

PA G E UP E NTE R INPUT [E NTE R ] Displays Thumbnail.

8 4

Control panel

▼ or ►

▲ or ◄

Web Remote Control

[▼] [►] or [PA G E D O W N]

[▲] [◄] or [PA G E UP]

Shows the next le.

Shows the previous le.

F u n c t i o n s

Page 85

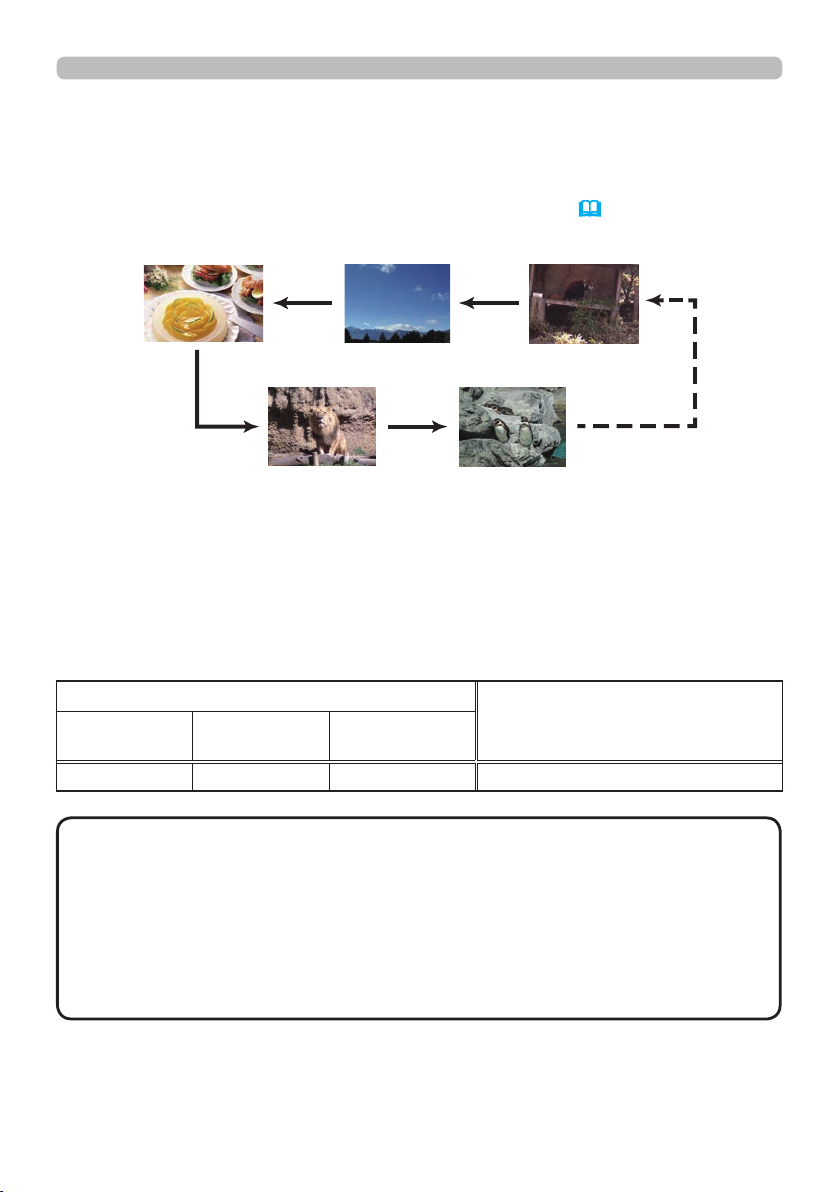

Presentation tools

PC-LESS Presentation (continued)

Slideshow mode

The Slideshow mode displays images in full screen and switches the images at intervals set in INTERVAL on the Thumbnail screen menu (82).

You can start this function from the Slideshow menu. To display the Slideshow menu, select the SLIDESHOW button in the Thumbnail mode and press the

E NTE R button on the remote control, INPUT button on the control panel, or click [ E NTE R ] on the Web Remote Control.

While the Slideshow is displayed, the following button operations are enabled when still images are displayed, and the same button operations in the Full Screen mode are enabled when movies are displayed.

B u t t o n o p e r a t i o n

The remote control

E NTE R INPUT [E NTE R ] Displays thumbnail

NOTE

• These operations are not accessible while the projector OSD is

Control panel

Web Remote Control

F u n c t i o n s

displayed.

• It is not possible to change the input port by using the INPUT button when the Thumbnail screen, Slideshow, or Full Screen is displayed.

• When the Slideshow mode is set to ONE TIME and the last le is a still image, the last slide of the presentation will remain displayed until the E NTE R button on the remote control or Web Remote Control, or the INPUT button on the control panel is pressed.

8 5

Page 86

Presentation tools

PC-LESS Presentation (continued)

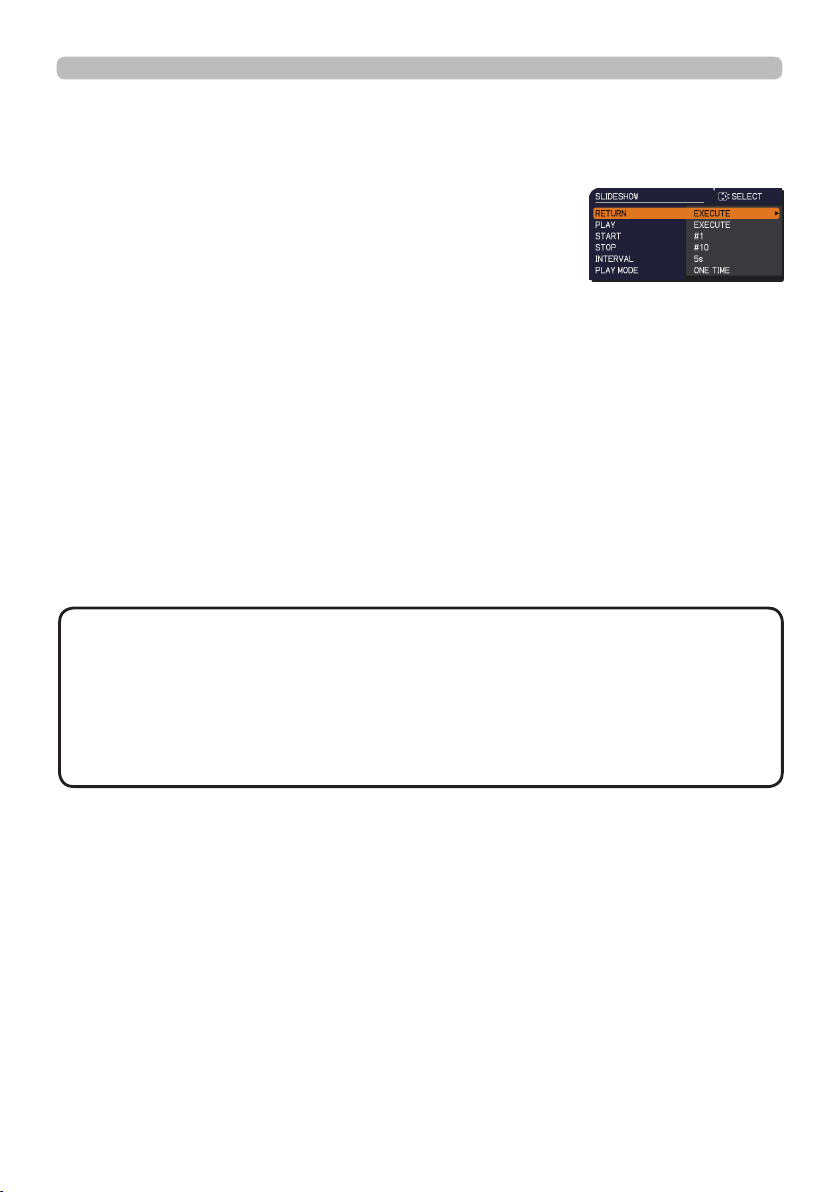

You can play the Slideshow at your desired conguration. Congure the Slideshow items in the Thumbnail.

1) RETURN :

Returns to the thumbnail mode.

2) PLAY : Play the Slideshow.

3) START :

Set the beginning number of the

Slideshow.

4) STOP : Set the end number of the Slideshow.

5) INTERVAL : Sets the interval time for displaying still images during the Slideshow. It is not recommend to set the interval time very short something like several seconds, because it may take more than several seconds to read and display an image le if it is stored in very deep layer directory or if so many les are stored in the same directory.

6) PLAY MODE : Select the Slideshow mode. ONE TIME : Play the Slideshow one time. ENDLESS : Play the Slideshow endless.

NOTE

• The settings of the Slideshow are saved to the “playlist.txt” le that is stored in the storage media. If the le is not existed, it is generated automatically.

• The settings for the START, STOP, INTERVAL, and PLAY MODE are saved to the Playlist.

• If the storage media is under the write protection or the “playlist.txt” is the read only type le, it is impossible to change the settings of the Slideshow.

8 6

Page 87

Presentation tools

PC-LESS Presentation (continued)

Playlist

The Playlist is a DOS format text le, which decides the order of displayed still image les in the Thumbnail or Slideshow. The playlist le name is “playlist.txt” and it can be edited on a computer. It is created in the folder that contains the selected image les when the PC-LESS Presentation is started or the Slideshow is congured.

[ E x a m p l e o f “p l a y l i s t . t x t ” les] START setting : STOP setting : INTERVAL setting : PLAY MODE setting : img001.jpg: : : : img002.jpg:600: : : img003.jpg:700:rot1: : img004.jpg: : :SKIP: img005.jpg:1000:rot2:SKIP:

The “playlist.txt” le contains the following information. Each piece of information requires to be separated by “:”, and “:” at the end of each line. 1st line: START, STOP, INTERVAL and PLAY MODE settings (86). 2nd line and after: le name, interval time, rotation setting and skip setting.

interval time: rotation setting

skip setting: “SKIP” means that the image will not be displayed in the

It can be set from 0 to 999900 (ms) with an increment of 100 (ms).

: “rot1” means a rotation at 90 degrees clockwise; “rot2” and

“rot3” increase another 90 degrees in order.

Slideshow.

•

NOTE

The maximum length in a line on the "playlist.txt" le is 255 characters

including linefeed. If any line exceeds the limit, the "playlist.txt" le becomes invalid.

•

Up to 999 les can be registered to the Playlist. However, if some folders exist in the same directory the limit number is decreased by the number of folders. Any les over the limit will not be shown in the Slideshow.

•

If the storage device is protected or does not have sufcient space, the “playlist.txt” le cannot be created.

• For the Slideshow settings, refer to the section S l i d e s h o w m o d e (85).

8 7

Page 88

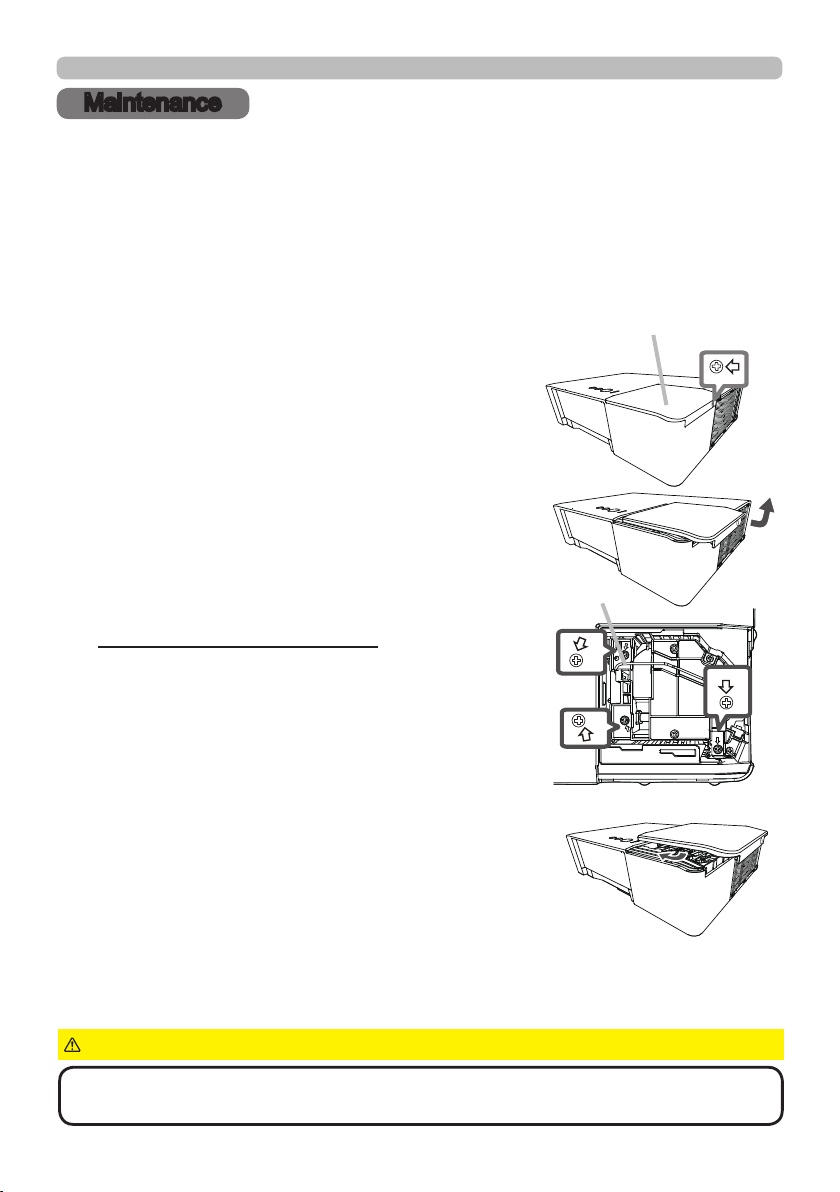

Maintenance

Replacing the lamp

A lamp has nite product life. Using the lamp for long periods of time could cause the pictures darker or the color tone poor. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them. Preparation of a new lamp and early replacement are recommended. To prepare a new lamp, make contact with your dealer and tell the lamp type number.

Ty p e n u m b e r : D T0 2 0 6 1

Replacing the lamp

Turn the projector off, and unplug the power cord.

Allow the projector to cool for at least 45 minutes. Prepare a new lamp. If the projector is mounted on

a ceiling, or if the lamp has broken, also ask the dealer to replace the lamp.

In c a s e o f r e p l a c e m e n t b y y o u r s e l f , f o l l o w t h e f o l l o w i n g p r o c e d u r e .

Loosen the screw (marked by arrow) of the lamp

cover and then slide and lift the lamp cover to the side to remove it.

Loosen the 3 screws (marked by arrow) of the

lamp, and slowly pick up the lamp by the handle. Never loosen any other screws.

Insert the new lamp, and retighten rmly the

3 screws of the lamp that are loosened in the previous process to lock it in place.

While putting the interlocking parts of the lamp cover

and the projector together, slide the lamp cover back in place. Then rmly fasten the screw of the lamp cover.

Turn the projector on and reset the lamp time using

the LAMP TIME item in the SETUP menu. (1) Press the M E NU button to display a menu. (2) Point at the ADVANCED MENU in the menu

using the ▼/▲ button, then press the ► button.

(3) Point at the SETUP in the left column of the menu

using the ▼/▲button, then press the ► button.

(4) Point at the LAMP & FILTER using the ▼/▲ button, then press the ► button. (5)

Point at the LAMP TIME using the ▼/▲ button, then press the ► button. A dialog will appear.

(6)

Press the ► button to select “OK” on the dialog. It performs resetting the lamp time.

Handle

Lamp cover

CAUTION

NOTE

for a suitable indication about the lamp.

8 8

►

Do not touch any inner space of the projector, while the lamp is taken out.

• Please reset the lamp time only when you have replaced the lamp,

Page 89

Maintenance

Replacing the lamp (continued)

Lamp warning

H IG H V O L TA G E

WARNING

►

The projector uses a high-pressure mercury glass lamp. The lamp

H IG H TE M PE R A TUR E

can break with a loud bang, or burn out, if jolted or scratched, handled while hot, or worn over time. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them. In addition, if the bulb bursts, it is possible for shards of glass to y into the lamp housing, and for gas containing mercury and dust containing ne particles of glass to escape from the projector’s vent holes. ►A b o u t d i s p o s a l o f a l a m p : This product contains a mercury lamp; do not put it in a trash. Dispose of it in accordance with environmental laws.

• For lamp recycling, go to www.lamprecycle.org (in the US).

• For product disposal, consult your local government agency or www.eiae.org (in the US) or www.epsc.ca (in Canada).

For more information, call your dealer.

• If the lamp should break (it will make a loud bang when it does), unplug the power cord from the outlet, and make sure to request a replacement lamp from your local dealer. Note that shards of glass could damage the projector’s internals, or cause injury during handling, so please do not try to clean the projector or replace the lamp yourself.

•

Disconnect

the plug

from the

power

outlet

If the lamp should break (it will make a loud bang when it does), ventilate the room well, and make sure not to inhale the gas or ne particles that come out from the projector's vent holes, and not to get them into your eyes or mouth.

• Before replacing the lamp, turn the projector off and unplug the power cord, then wait at least 45 minutes for the lamp to cool sufficiently. Handling the lamp while hot can cause burns, as well as damaging the lamp.

• Never unscrew except the appointed (marked by an arrow) screws.

• Do not open the lamp cover while the projector is suspended from a ceiling. This is dangerous, since if the lamp’s bulb has broken, the shards will fall out when the cover is opened. In addition, working in high places is dangerous, so ask your local dealer to have the lamp replaced even if the bulb is not broken.

• Do not use the projector with the lamp cover removed. At the lamp replacing, make sure that the screws are screwed in firmly. Loose screws could result in damage or injury.

• Use only the lamp of the specified type. Use of a lamp that does not meet the lamp specications for this model could cause a re, damage or shorten the life of this product.

• If the lamp breaks soon after the first time it is used, it is possible that there are electrical problems elsewhere besides the lamp. If this happens, consult your local dealer or a service representative.

•

Handle with care: jolting or scratching could cause the lamp bulb to burst during use.

•

Using the lamp for long periods of time, could cause it dark, not to light up or to burst. When the pictures appear dark, or when the color tone is poor, please replace the lamp as soon as possible. Do not use old (used) lamps; this is a cause of breakage.

H IG H PR E S S UR E

8 9

Page 90

Maintenance

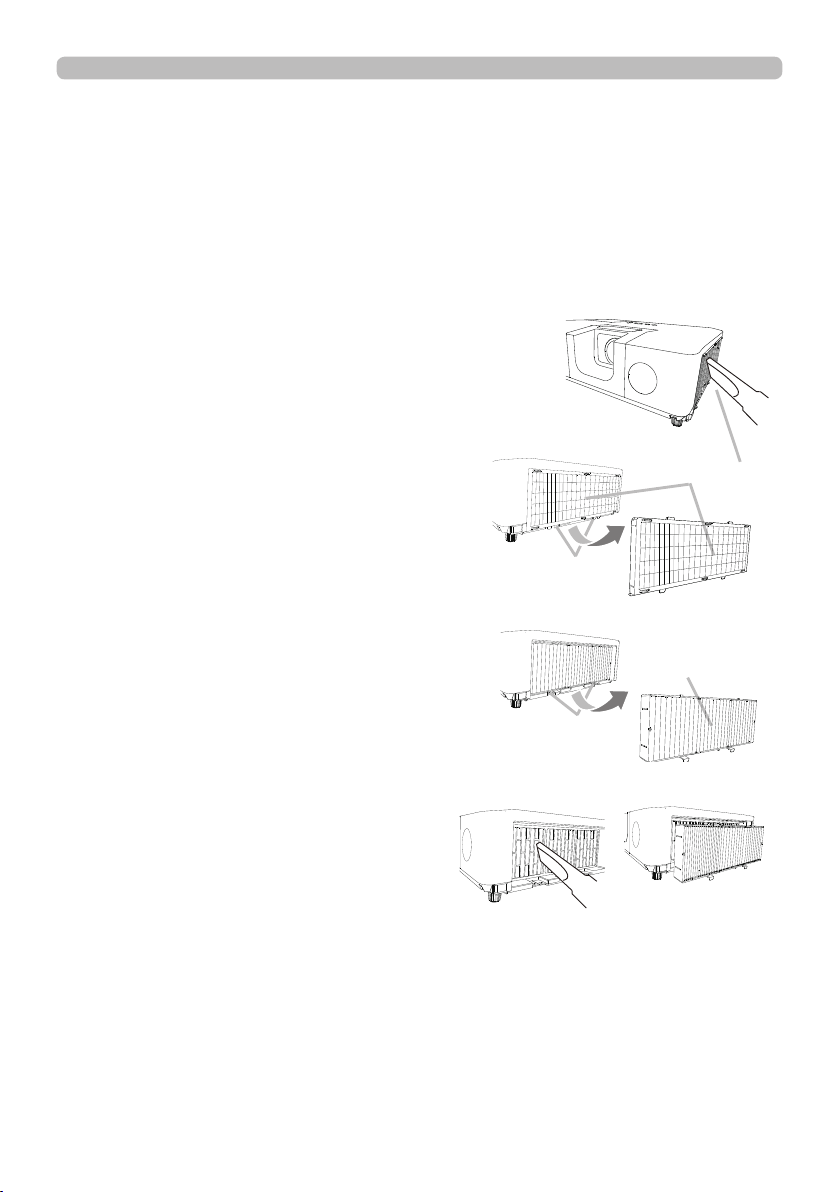

Cleaning and replacing the air lter

Please check and clean the air lter periodically. When the indicators or a message prompts you to clean the air lter, comply with it as soon as possible. In addition, the extra air lter is attached to inner side of the lter cover. If one of the lters is damaged or heavily soiled, replace whole lter set with a new one. Request for a lter set with the following type number from your dealer when purchasing a new one.

Ty p e n u m b e r : UX 4 1 1 6 1

4 , 5

Filter cover

Filter cover knobs

Filter unit

Filter unit knobs

Turn the projector off, and unplug the power

cord. Allow the projector to sufciently cool down.

Use a vacuum cleaner on and around the

lter cover. Pick and pull up the lter cover knobs to

take it off. Press up slightly the bottom side knobs

to unlock the bottom side of the lter unit. Pull the center knob to take the lter unit off.

Use a vacuum cleaner for the lter vent

of the projector and the outer side of the

lter unit.

Use a vacuum cleaner for the inner side

of each part of the lter unit to clean them up. If the lters are damaged or heavily soiled, replace them with the new ones.

Put the lter unit back in an upright state

into the projector. Put the lter cover back into the place.

(continued on next page)

9 0

Page 91

Maintenance

Cleaning and replacing the air lter (continued)

Turn the projector on and reset the lter time using the FILTER TIME item in

the EASY MENU. (1) Press the M E NU button to display a menu.

(2) Point at the FILTER TIME using the ▼/▲ button, then press the ► button.

A dialog will appear.

(3) Press the ► button to select “OK” on the dialog. It performs resetting the

lter time.

WARNING

not plugged in, then allow the projector to cool sufciently. Taking care of the air lter in a high temperature state of the projector could cause an electric shock, a burn or malfunction to the projector. ►Use only the air lter of the specied type. Do not use the projector without the air lter or the lter cover. It could result in a re or malfunction to the projector. ►Clean the air lter periodically. If the air lter becomes clogged by dust or the like, internal temperatures rise and could cause a re, a burn or malfunction to the projector.

NOTE

• When you replace the projection lamp, please replace the air lter. An air lter of specied type will come together with a replacement lamp for this projector.

• Please reset the lter time only when you have cleaned or replaced the air lter, for a suitable indication about the air lter.

• The projector may display the message such as “CHECK THE AIR FLOW” or turn off the projector, to prevent the internal heat level rising.

• Please replace the air lter when it is damaged or heavily soiled.

►Before taking care of the air lter, make sure the power cord is

9 1

Page 92

Maintenance

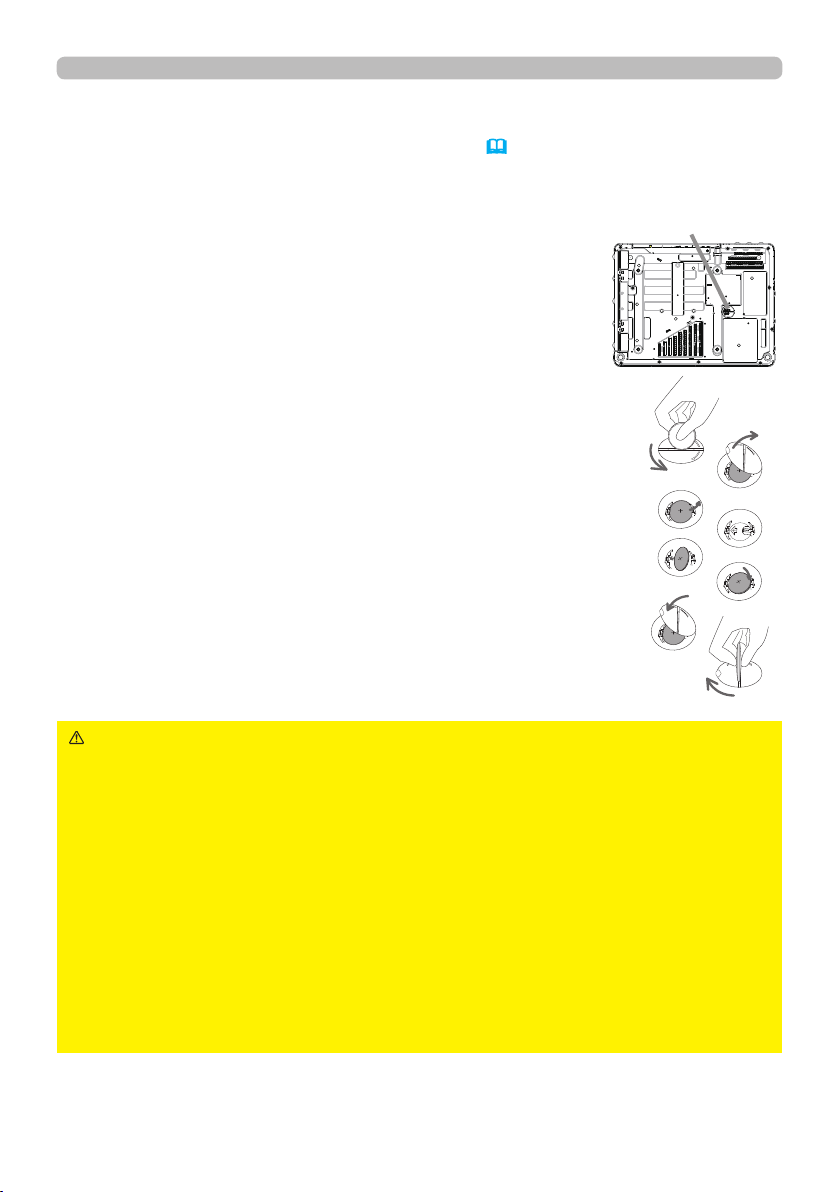

Replacing the internal clock battery

Installing the battery is required in some cases. (Event Scheduling in the User's Manual - Network Guide) A battery is not contained at the time of factory shipment. Please replace a battery according to the following procedure.

Turn the projector off, and unplug the power cord. Allow the

projector to cool suf ciently. After making sure that the projector has cooled adequately,

slowly turn over the projector, so that the bottom is facing.

Turn the battery cover fully in the direction indicated “O PE N”

using a coin or the like, and pick the cover up to remove it.

Pry up the battery using a  athead screwdriver or the like

to take it out. Do not use any metal tools. While prying it up, put a  nger lightly on the battery since it may pop out of the holder.

Replace the battery with a new MAXELL,

Part No.C R 2 0 3 2 or C R 2 0 3 2 H . Slide the battery in under the plastic claw, and push it into the holder until it clicks.

Replace the battery cover in place, then turn it in the

direction indicated “C L O S E ” using such as coins, to  x.

Battery Cover

OPEN



OPEN



OPEN

WARNING ►Always handle the batteries with care and use them only as directed. Battery may explode if mistreated. Do not recharge, disassemble or dispose of in  re. And also improper use may result in cracking or leakage, which could result in  re, injury and/or pollution of the surrounding environment.

・ Be sure to use only the batteries speci ed. ・ Make sure the plus and minus terminals are correctly aligned when loading a battery. ・ Keep a battery away from children and pets. If swallowed consult a physician

immediately for emergency treatment.

・ Do not short circuit or solder a battery. ・ Do not allow a battery in a  re or water. Keep batteries in a dark, cool and dry place. ・ If you observe battery leakage, wipe out the leakage and then replace a battery. If the

leakage adheres to your body or clothes, rinse well with water immediately.

・ Obey the local laws on disposing a battery.

9 2

Page 93

Maintenance

Other care

In s i d e o f t h e p r o j e c t o r

In order to ensure the safe use of your projector, please have it cleaned and inspected by your dealer about once every year.

C a r i n g f o r t h e l e n s

If the lens is awed, soiled or fogged, it could cause deterioration of display quality. Please take care of the lens, being cautious of handling.

Turn the projector off, and unplug the power cord. Allow the projector to cool

sufciently. After making sure that the projector is cool adequately, lightly wipe the lens

with a commercially available lens-cleaning wipe. Do not touch the lens directly with your hand.

C a r i n g f o r t h e c a b i n e t a n d r e m o t e c o n t r o l

Incorrect care could have adverse inuence such as discoloration, peeling paint, etc.

Turn the projector off, and unplug the power cord. Allow the projector to cool

sufciently.

After making sure that the projector is cool adequately, lightly wipe with gauze

or a soft cloth. If the projector is extremely dirty, dip soft cloth in water or a neutral cleaner diluted in water, and wipe lightly after wringing well. Then, wipe lightly with a soft, dry cloth.

WARNING

and then allow the projector to cool sufciently. The care in a high temperature state of the projector could cause a burn and/or malfunction to the projector. ►Never try to care for the inside of the projector personally. Doing is so dangerous. ►Avoid wetting the projector or inserting liquids in the projector. It could result in a re, an electric shock, and/or malfunction to the projector.

• Do not put anything containing water, cleaners or chemicals near the projector.

• Do not use aerosols or sprays.

CAUTION

following. Incorrect care could cause not only an injury but adverse inuence such as discoloration, peeling paint, etc. ►Do not use cleaners or chemicals other than those specied in this manual. ►Do not polish or wipe with hard objects.

NOTICE ►Do not directly touch the lens surface with hands.

►Before caring, make sure the power cord is not plugged in,

►Please take right care of the projector according to the

9 3

Page 94

Troubleshooting

If an abnormal operation should occur, stop using the projector immediately.

WARNING

strange odor, excessive sound, damaged casing or elements or cables, penetration

►

Never use the projector if abnormal operations such as smoke,

Troubleshooting

of liquids or foreign matter, etc. should occur. In such cases, immediately disconnect the power plug from the power outlet. After making sure that the smoke or odor has stopped, contact to your dealer or service company.

Otherwise if a problem occurs with the projector, the following checks and measures are recommended before requesting repair. If this does not resolve the problem, please contact your dealer or service company. They will tell you what warranty condition is applied.

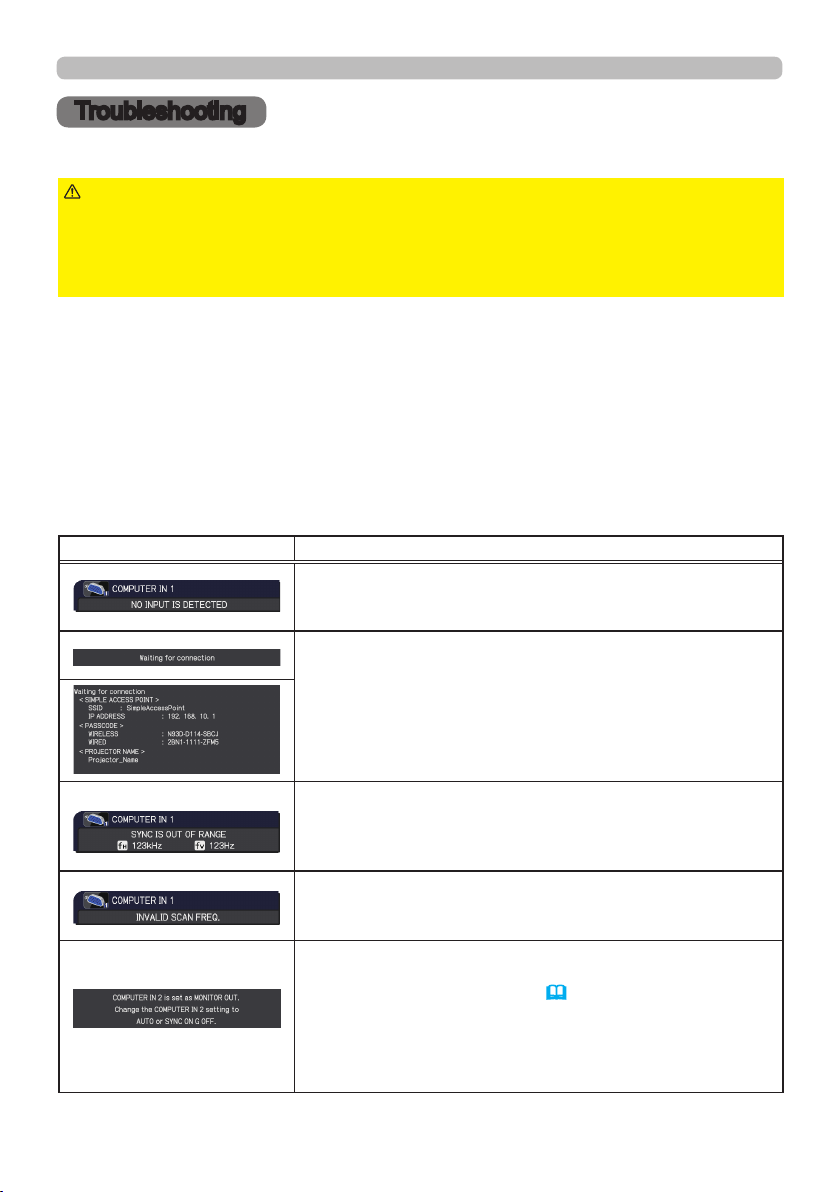

Related messages

When some message appears, check and cope with it according to the following table. Although these messages will be automatically disappeared around several minutes, it will be reappeared every time the power is turned on.

M e s s a g e D e s c r i p t i o n

Th e r e i s n o i n p u t s i g n a l .

Please conrm the signal input connection, and the status of the signal source.

Projector is waiting for an image le.

Check the hardware connection, settings on the projector and network-related settings. The computer-Projector network connection might be disconnected. Please re-connect them.

(continued on next page)

9 4

Th e h o r i z o n t a l o r v e r t i c a l f r e q u e n c y o f t h e i n p u t s i g n a l i s

not within the specied range.

Please conrm the specs for your projector or the signal source specs.

A n i m p r o p e r s i g n a l i s i n p u t .

Please conrm the specs for your projector or the signal source specs.

Th e C O M PUTE R IN2 / M O NITO R O UT p o r t i s s e l e c t e d a s t h e p i c t u r e i n p u t s o u r c e e v e n i f M O NITO R O UT i s s e l e c t e d f o r C O M PUTE R IN2 (

Select AUTO or SYNC ON G OFF in the dialog to project the picture input to the C O M PUTE R IN2 / M O NITO R O UT port. In this case, you cannot use the MONITOR OUT function. Otherwise select other port for picture input.



4 3 ) .

Page 95

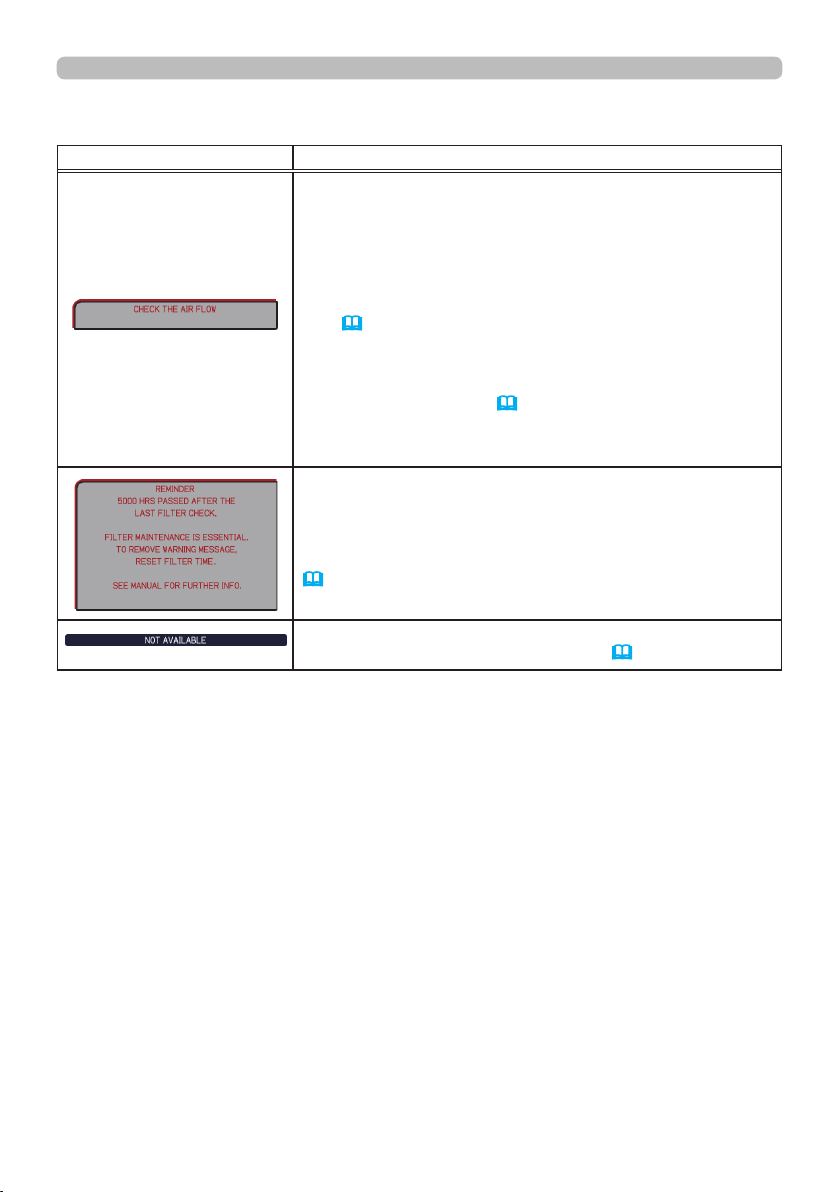

Related messages (continued)

M e s s a g e D e s c r i p t i o n

Th e i n t e r n a l t e m p e r a t u r e i s r i s i n g . Th e p r o j e c t o r i s o p e r a t i n g i n l o w p o w e r .

Please turn the power off, and allow the projector to cool down at least 20 minutes. After having conrmed the following items, please turn the power ON again.

• Is there blockage of the air passage aperture?

• Is the air lter dirty? If so, please clean or replace the air lter (

• Does the peripheral temperature exceed 35°C?

• If the projector is used at an altitude of about 1600 m (5250

feet) or higher, set ALTITUDE of the SERVICE item in the OPTION menu to HIGH ( If the projector is used with a wrong setting, it may cause damage to the projector itself or the parts inside.

A note of precaution when cleaning the air lter.

Please immediately turn the power off, and clean or change the air lter referring to the C l e a n i n g a n d r e p l a c i n g t h e air lter section of this manual. After you have cleaned or changed the air lter, please be sure to reset the lter timer (

48, 91).



Th e b u t t o n o p e r a t i o n i s n o t a v a i l a b l e .

Check the button you are going to use (

90, 91).



67).

Troubleshooting

6 ).



9 5

Page 96

TroubleshootingRegarding the indicator lamps

Regarding the indicator lamps

When operation of the L A M P, TE M P and PO W E R indicators differs from usual, check and cope with it according to the following table.

PO W E R

i n d i c a t o r

Lighting

In O r a n g e

Blinking

In Green

Lighting

In G r e e n

Blinking

In Orange

Blinking

In Red

Blinking

In Red

Lighting

In R e d

Blinking

In Red

Lighting

In R e d

(continued on next page)

L A M P

i n d i c a t o r

Turned

o f f

Turned

o f f

Turned

o f f

Turned

o f f

(discretionary)

Lighting

In R e d

Blinking

In Red

TE M P

i n d i c a t o r

Turned

o f f

Turned

o f f

Turned

o f f

Turned

o f f

(discretionary)

Turned

o f f

Turned

o f f

D e s c r i p t i o n

Th e p r o j e c t o r i s i n a s t a n d b y s t a t e .

Please refer to the section “Power on/off”.

Th e p r o j e c t o r i s w a r m i n g u p .

Please wait.

Th e p r o j e c t o r i s i n a n o n s t a t e .

Ordinary operations may be performed.

Th e p r o j e c t o r i s c o o l i n g d o w n .

Please wait.

Th e p r o j e c t o r i s c o o l i n g d o w n . A c e r t a i n e r r o r h a s b e e n d e t e c t e d .

Please wait until PO W E R indicator nishes blinking, and then perform the proper measure using the item descriptions below.

Th e l a m p d o e s n o t l i g h t , a n d t h e r e i s a p o s s i b i l i t y t h a t i n t e r i o r p o r t i o n h a s b e c o m e h e a t e d .

Please turn the power off, and allow the projector to cool down at least 45 minutes. After the projector has sufciently cooled down, please make conrmation of the following items, and then turn the power on again.

• Is there blockage of the air passage aperture?

• Is the air lter dirty?

• Does the peripheral temperature exceed 35°C? Otherwise, remove the lamp unit once, and then put back into place, referring to the R e p l a c i n g t h e l a m p . If the same indication is displayed after the remedy, please change the lamp referring to the section R e p l a c i n g t h e l a m p .

The lamp cover has not been properly xed.

Please turn the power off, and allow the projector to cool down at least 45 minutes. After the projector has sufciently cooled down, please make conrmation of the attachment state of the lamp cover. After performing any needed maintenance, turn the power on again. If the same indication is displayed after the remedy, please contact your dealer or service company.

9 6

Page 97

Regarding the indicator lamps (continued)

Regarding the indicator lamps

PO W E R

i n d i c a t o r

Blinking

In R e d

Lighting

In R e d

Blinking

In Red

Lighting

In R e d

Lighting

In G r e e n

Lighting

In G r e e n

L A M P

i n d i c a t o r

Turned

o f f

Turned

o f f

Simultaneous

blinking in Red

Alternative

blinking in Red

TE M P

i n d i c a t o r

Blinking

In Red

Lighting

In R e d

D e s c r i p t i o n

Th e c o o l i n g f a n i s n o t o p e r a t i n g .

Please turn the power off, and allow the projector to cool down at least 20 minutes. After the projector has sufciently cooled down, please make conrmation that no foreign matter has become caught in the fan, etc., and then turn the power on again. If the same indication is displayed after the remedy, please contact your dealer or service company.

Th e r e i s a p o s s i b i l i t y t h a t t h e i n t e r i o r p o r t i o n h a s b e c o m e h e a t e d .

Please turn the power off, and allow the projector to cool down at least 20 minutes. After the projector has sufciently cooled down, please make conrmation of the following items, and then turn the power on again.

• Is there blockage of the air passage aperture?

• Is the air lter dirty?

• Does the peripheral temperature exceed 35°C?

• If the projector is used at an altitude of about 1600 m (5250 feet) or higher, set ALTITUDE of the SERVICE item in the OPTION menu to HIGH ( projector is used with a wrong setting, it may cause damage to the projector itself or the parts inside.

67). If the



It is time to clean the air lter.

Please immediately turn the power off, and clean or change the air lter referring to the section C l e a n i n g and replacing the air lter. After cleaning or changing the air lter, please be sure to reset the lter timer. After the remedy, reset the power to ON.

Th e r e i s a p o s s i b i l i t y t h a t t h e i n t e r i o r p o r t i o n h a s b e c o m e o v e r c o o l e d .

Please use the unit within the usage temperature parameters (5°C to 35°C). After the treatment, reset the power to ON.

Blinking In

G r e e n for

approx. 3

seconds.

(continued on next page)

Turned

o f f

Turned

o f f

A t l e a s t 1 Po w e r O N s c h e d u l e i s s a v e d t o t h e p r o j e c t o r .

Please refer to Schedule Settings in the Network Guide.

9 7

Page 98

Regarding the indicator lamps

Regarding the indicator lamps (continued)

NOTE

• When the interior portion has become overheated, for safety purposes, the projector is automatically shut down, and the indicator lamps may also be turned off. In such a case, disconnect the power cord, and wait at least 45 minutes. After the projector has sufciently cooled down, please make conrmation of the attachment state of the lamp and lamp cover, and then turn the power on again. If the projector is used at an altitude of about 1600 m (5250 feet) or higher, set ALTITUDE of the SERVICE item in the OPTION menu to HIGH (

67). Otherwise, set it to NORMAL.



Resetting all settings

When it is hard to correct some wrong settings, the FACTORY RESET function of SERVICE item in OPTION menu (7 1 ) can reset all settings (except settings such as LANGUAGE, AUTO BLANK, LAMP TIME, FILTER TIME, FILTER MESSAGE, STANDBY MODE, COMMUNICATION, SECURITY and NETWORK) to the factory default.

9 8

Page 99

Troubleshooting

Phenomena that may be easy to be mistaken for machine defects

About the phenomenon confused with a machine defect, check and cope with it according to the following table.

Ph e n o m e n o n C a s e s n o t i n v o l v i n g a m a c h i n e d e f e c t

Th e e l e c t r i c a l p o w e r c o r d i s n o t p l u g g e d i n .

Correctly connect the power cord.

Th e m a i n p o w e r s o u r c e h a s b e e n i n t e r r u p t e d d u r i n g o p e r a t i o n s u c h a s b y a p o w e r o u t a g e ( b l a c k o u t ) , e t c .

Please disconnect the power plug from the power outlet, and allow the projector to cool down at least 10 minutes,

Power does not

come on.

then turn the power on again.

E i t h e r t h e r e i s n o l a m p a n d / o r l a m p c o v e r , o r e i t h e r

of these has not been properly xed.

Please turn the power off and disconnect the power plug from the power outlet, and allow the projector to cool down at least 45 minutes. After the projector has sufciently cooled down, please make conrmation of the attachment state of the lamp and lamp cover, and then turn the power on again.

Th e s i g n a l c a b l e s a r e n o t c o r r e c t l y c o n n e c t e d .

Correctly connect the connection cables.

S i g n a l s o u r c e d o e s n o t c o r r e c t l y w o r k .

Correctly set up the signal source device by referring to the manual of the source device.

Neither sounds

nor pictures are

output.

Th e i n p u t c h a n g e o v e r s e t t i n g s a r e m i s m a t c h e d .

Select the input signal, and correct the settings.

Th e B L A NK f u n c t i o n f o r p i c t u r e s a n d t h e M UTE f u n c t i o n f o r s o u n d s a r e w o r k i n g .

AV MUTE may be active. Refer to the item “Sound does not come out” and “No pictures are displayed” on the next page to turn off the MUTE and BLANK functions.

R e f e r e n c e

p a g e

1 5

8 8

10 ~ 14

–

2 3

2 2

(continued on next page)

9 9

Page 100

Troubleshooting

Phenomena that may be easy to be mistaken for machine defects (continued)

Ph e n o m e n o n C a s e s n o t i n v o l v i n g a m a c h i n e d e f e c t

Th e s i g n a l c a b l e s a r e n o t c o r r e c t l y c o n n e c t e d .

Correctly connect the audio cables.

Th e M UTE f u n c t i o n i s w o r k i n g .

Restore the sound pressing M UTE or V O L UM E + /- button on the remote control.

Sound does

not come out.

Th e v o l u m e i s a d j u s t e d t o a n e x t r e m e l y l o w l e v e l .

Adjust the volume to a higher level using the menu function or the remote control.

Th e A UD IO S O UR C E / S PE A K E R s e t t i n g i s n o t c o r r e c t .

Correctly set the AUDIO SOURCE/SPEAKER in AUDIO menu.

The Sound button (♪) or checkbox is disabled.

If you have selected L A N, put a check mark on the Sound checkbox in the Option menu of “LiveViewer”.

Th e l e n s c o v e r i s a t t a c h e d .

Remove the lens cover.

Th e s i g n a l c a b l e s a r e n o t c o r r e c t l y c o n n e c t e d .

Correctly connect the connection cables.

Th e b r i g h t n e s s i s a d j u s t e d t o a n e x t r e m e l y l o w l e v e l .

Adjust BRIGHTNESS to a higher level using the menu function.

No pictures are

displayed.

Th e c o m p u t e r c a n n o t d e t e c t t h e p r o j e c t o r a s a Pl u g a n d - Pl a y m o n i t o r .

Make sure that the computer can detect a Plug-and-Play monitor using another Plug-and-Play monitor.

Th e B L A NK s c r e e n i s d i s p l a y e d . Press B L A NK button on the remote control.

C O M PUTE R IN2 i s s e t t o M O NITO R O UT.

Set COMPUTER IN2 to AUTO or SYNC ON G OFF.

(continued on next page)

R e f e r e n c e

p a g e

10 ~ 14

2 2

22, 52

5 2

–

10 ~ 14

3 6

1 0

3 0

4 3

1 0 0
