Dukane 8941A, 28A8941 User Manual

Progressive Scan

Liquid Crystal Projector

Model

28A8941/8941A

User's Manual

Liquid Crystal Projector

USER'S MANUAL

USER'S MANUAL

Thank you for purchasing this liquid crystal projector.

WARNING • Please read the accompanying manual “SAFETY

INSTRUCTIONS” and this “USER'S MANUAL” thoroughly to ensure correct
usage through understanding. After reading, store this instruction manual in a
safe place for future reference.

NOTE

• The manufacturer assumes no responsibility for any errors that may appear in this manual

• The reproduction, transmission or use of this document or contents is not permitted without
express written authority.

TRADEMARK ACKNOWLEDGMENT : PS/2, VGA and XGA are registered trademarks of
International Business Machines Corporation. Apple, Mac and ADB are registered trademarks of
Apple Computer, Inc. VESA and SVGA are trademarks of the Video Electronics Standard
Association. Windows is a registered trademark of Microsoft Corporation. Carefully observe the
trademarks and registered trademarks of all companies, even when not mentioned.

CONTENTS

CONTENTS

FEATURES .......................................2

BEFORE USE ...................................2

Contents of Package ..............................2

Part Names.............................................3

Loading the Batteries..............................5

INSTALLATION ................................6

Installation of the Projector and Screen

Angle Adjustment ...................................6

Cabling ...................................................7

Power Connection ..................................8

Example of System Setup ......................8

Plug & Play.............................................8

OPERATIONS...................................9

Power ON ..................................................9

Power OFF

Basic Operation....................................10

Setup Menu ..........................................12

Input Menu............................................13

Image Menu..........................................14

Options Menu .......................................15

No Signal Menu....................................16

MAINTENANCE ..............................17

Lamp.....................................................17

Air Filters ..............................................19

Other Maintenance...............................19

• The information in this manual is subject to change without notice.

Page

TROUBLESHOOTING ....................20

OSD Message ......................................20

Indicators Message ..............................21

Symptom ..............................................22

SPECIFICATIONS...........................23

WARRANTY AND AFTER-SERVICE

........6

.......................................................................................

TABLES

Table 1. Installation Reference.................6

Table 2. Cabling .......................................7

Table 3. Basic Operation........................10

Table 4. Setup Menu ..............................12

Table 5. Input Menu................................13

..............................................9

Table 6. Image Menu..............................14

Table 7. Options Menu ...........................15

Table 8. No Signal Menu........................16

Table 9. OSD Message ..........................20

Table 10. Indicators Message ................21

Table 11. Symptom ................................22

Table 12. Specifications .........................23

.......................................................................................

For "TECHNICAL" and "REGULATORY
NOTICE", see the end of this manual.

......24

ENGLISH

Page

ENGLISH-1

FEATURES

FEATURES

This liquid crystal projector is used to project various computer signals as well as NTSC / PAL /
SECAM video signals onto a screen. Little space is required for installation and large images can
easily be realized.

Outstanding Brightness

The UHB lamp and high-efficiency optical system assure a high level of brightness.

Partial Magnification Function

Interesting parts of images can be magnified for closer viewing.

Distortion Correction Function

Distortion-free images are quickly available.

BEFORE USE

BEFORE USE

Contents of package

Make sure all of the following items are included in the package. If anything is missing, please
contact your dealer.

NOTE

• Keep the original packing material for future reshipment.

Projector

(with Lens Cap)

Liquid Crystal Projector

CP-X990W

USER'S MANUAL

Please read this user's manual thoroughly to ensure correct usage through understanding.

BEDIENUNGSANLEITUNG

Bitte lessen Sie diese Bedienungsanleitung zugunsten der korrekten Bedienung
aufmerksam.

MANUEL D'UTILISATION

Nous vous recommandons de lire attentivement ce manuel pour bien assimiler le
fonctionnement de l'appareil.

MANUALE D'ISTRUZIONI

Vi preghiamo voler leggere attentamente il manuale d'sitruzioni in modo tale da poter
comprendere quanto riportato ai fini di un corretto utilizzo del proiettore.

MANUAL DE USUARIO

Lea cuidadosamente este manual del usuario para poder utilizar corretamente el
producto.

GEBRUIKSAANWIJZING

Lees voor het qebruik alstublieft deze handleiding aandachtig door, om volledig profijt te
hebben van de uitgebreide mogelijkheden.

BRUKERHÅNDBOK

Vennligst les denne bruksanvisningen grundig for å være garantert driftssikker bruk.

INSTRUÇÕES DO PROPRIETÁRIO

Para assegurar o uso correto do equipamento, por favor leia atentamente este manual do
usuário.

TECHNICAL

REGULATORY NOTICES

ENGLISH

DEUTSCH

FRANÇAIS

ITALIANO

ESPAÑOL

NEDERLANDS

NORSK

PORTGÊS

TECHNICAL

User’s Manual

(this manual)

Safety Instructions

Power Cord

(US Type)

RGB Cable

Mouse cable

(PS/2)

Power Cord

(UK Type)

Component Video Cable

Batteries

for Remote Control

Transmitter

Power Cord

(Europe Type)

BLANK

STANDBY/ON

LASER

RGB

VIDEO

AUTO

MENU

KEYSTONE

MENU SELECT

RESET

POSITION

PinP

FREEZE

MAGNIFY

MUTE

OFF

ZOOMFOCUS

VOLUME

ENGLISH-2

Remote Control

Transmitter

BBBBEEEEFFFFOOOORRRREEEE UUUUSSSSEEEE ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

Part Names

))

ZOOM Button

KEYSTONE Button

STANDBY/ON Button

LAMP Indicator

POWER Indicator

Remote Control Sensor

Lens

Filter Cover

( Air Filter )

Foot Adjuster

Lens Cap

Remote Control Sensor

Speaker

ZOOM

KEYSTONE INPUT

STANDBY/ON

MENU

POWER TEMPLAMP

FOCUS

RESET

Control Panel

(Refer to P.9 "OPERATIONS")

Front/Right View

FOCUS Button

ENGLISH

INPUT Button

MENU Button

RESET Button

TEMP Indicator

Control Panel
Ventilation Openings

(exhaust)
Carrying Handle
Filter cover

Air Filter and Intake

( )

for the Cooling Fan

Foot Adjuster

Terminal Panel

(Refer below)

Power Switch

AC Inlet

(to Power Cord)

DVI Terminal

S-VIDEO Terminal

VIDEO Terminal

AUDIO(MONO)/L

Terminal

AUDIO R Terminal

USB Terminal

Rear/Left View

DVI

S-VIDEO

VIDEO

(MONO)/L

AUDIO

R

USB

Terminal
Panel

COMPO

VIDEO

RGB IN 1 Terminal
RGB IN 2 Terminal

1

RGB IN 2

NENT

RGB OUT

Y

C

B/PB

C

R/PR

AUDIO IN AUDIO

RGB 2

RGB 1

DVI

CONTROL

OUT

RGB OUT Terminal

CONTROL Terminal
AUDIO IN RGB1/DVI Terminal

AUDIO IN RGB2 Terminal
AUDIO OUT Terminal

COMPONENT VIDEO
Y Terminal
CB/PB Terminal
C

R/PR Terminal

ENGLISH-3

BBBBEEEEFFFFOOOORRRREEEE UUUUSSSSEEEE ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

ZOOM

FOCUS

ST

A

N

D

B

Y

/

ON

LASER

BLANK

RGB

VIDEO

AUTO

MENU

MENU SELECT

KEYSTONE

R

ESET

FREEZE

PinP

MAGNIFY

POSITION

OFF

VOLUME

MUTE

))

Part Names (continued)

STANDBY/ON Button

VIDEO Button

Disk Pad

BLANK Button
LASER Button

RGB Button
MOUSE / RIGHT Button

Used to operate the
mouse shift function and
left click function.

AUTO Button

MENU Button

KEYSTONE Button

RESET Button

MENU SELECT Button

Used to click the left
mouse button.

, , , Button

Used to operate the
mouse shift function.

POSITION Button

MAGNIFY Button

PinP Button

FREEZE Button

MUTE Button

VOLUME Button

ZOOM Button
FOCUS Button

REMOTE CONTROL TRANSMITTER

(Refer to P.9 "OPERATIONS")

These functions work when the mouse control function is activated. Remember, the POSITION,

BLANK ON and MENU ON functions disable the mouse control function.

WARNING • The laser pointer of the remote control transmitter is used in place of a

finger or rod. Never look directly into the laser beam outlet or point the laser beam at
other people. The laser beam can cause vision problems.

CAUTION • Use of controls or adjustments or performance of procedures other than

those specified herein may result in hazardous radiation exposure.

AVOID EXPOSURE-

LASER RADIATIONS IS

EMITTED FROM THIS

APERTURE

Complies with 21 CFR 1040. 10 and 1040. 11 except for deviations

NOTE

• Do not give the remote control transmitter any physical impact. Take care not to drop.

• Do not place the heavy objects on the remote control transmitter.

• Keep the remote control transmitter away from children and pets.

• Do not wet the remote control transmitter or place it on any wet object.

• Do not place the remote control transmitter close to the cooling fan of the projector.

• Do not disassemble the remote control transmitter.

pursuant to Laser Notice No.50, dated 2001.7.26
SMK CORPORATION
6-5-5 Togoshi Shinagawa-ku, Tokyo, JAPAN 142-8511
MANUFACTURED
PLACE OF MANUFACTURER: A

Novemver 2001

CAUTION

LASER RADIATION­DO NOT STARE INTO BEAM
MAX. OUTPUT: 1mW
WAVE LENGTH

: 650nm

CLASS2 LASER PRODUCT

LASER RADIATION

DO NOT STARE INTO BEAM

CLASS2 LASER PRODUCT
MAX. OUTPUT: 1mW
WAVE LENGTH: 650nm

IEC60825-1 :1993+A1:1997

ENGLISH-4

Used to click the right
mouse button.

Used to click the right
mouse button.

BBBBEEEEFFFFOOOORRRREEEE UUUUSSSSEEEE ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

))

Loading the Batteries

Install the AA batteries into the remote control
transmitter.

1. Remove the battery cover.
Push the knob while lifting up the battery cover.

2. Load the batteries.
Make sure the plus and minus poles are correctly
oriented.

3. Close the battery cover.

CAUTION • Use only the specified batteries with this remote control
transmitter. Also, do not mix new and old batteries. This could cause battery

cracking or leakage, which could result in fire or personal injury.

• When loading the batteries, make sure the plus and minus terminals are
correctly oriented as indicated in the remote control transmitter. Incorrect
orientation could cause battery cracking or leakage, which could result in
personal injury or pollution of the surrounding environment.

• When you dispose the battery, you should obey the law in the relative area or
country.

• Keep the battery away from children and pets.

• When not to be used for an extended period, remove the batteries from the

remote control transmitter.

1

2

ENGLISH

NOTE

Replace the batteries when remote control transmitter operation becomes difficult.

ENGLISH-5

INSTALLATION

INSTALLATION

Installation of the Projector and Screen

Refer to the drawing and table below for determining the screen size and projection distance.

The projection distances shown in the table below
are for full size (1024 x 768 dots).

a: Distance from the projector to the screen. (±10%)
b: Distance from the lens center to the bottom of the

screen. (±10%)

Table 1. Installation Reference

Screen size
[inches (m)]

40 (1.0) 55 (1.4) 73 (1.9) 1 (3)
60 (1.5) 85 (2.2) 114 (2.9) 2 (4)

80 (2.0) 114 (2.9) 151 (3.8) 2 (6)
100 (2.5) 144 (3.7) 191 (4.9) 3 (7)
120 (3.0) 176 (4.5) 231 (5.9) 3 (9)
150 (3.8) 220 (5.6) 282 (7.2) 4 (11)

200 (5.0) 291 (7.4) 386 (9.8) 6 (15)

CAUTION • Install the projector in a suitable environment according to instructions of
the accompanying manual “SAFETY INSTRUCTIONS” and this manual.

• When you fix this unit with a metal tool and the like, you must connect it with ground
wire; otherwise, fire or electric shock can result.
Connect the ground terminal of AC inlet of this unit with the ground terminal provided at the
building using an optional three-core power-supply cord.

• Please basically use liquid crystal projector at the horizontal position. If you use liquid
crystal projector by the lens up position, the lens down position and the side up position,
this may cause the heat inside to build up and cause damage. Be especially careful not to
install it with ventilation holes blocked.

• Do not install LCD projector in smoke effected environment. Smoke residue may buildup
on critical parts (i.e.LCD panel, Lens Assy etc.).

a [inches (m)]

Min. Max.

b

[inches (cm)]

Screen

b

Lens center

a

Top View

Side View

Angle Adjustment

Use the foot adjusters on the bottom of the
projector to adjust the projection angle. It is
variable within 0˚ to 9˚ approximately.

1. Lift up the front side of the projector, and
pressing the foot adjuster button, adjust the
projection angle.

2. Release the button to lock at the desired angle.

3. Use the foot adjusters for fine adjustment. Do
not force the adjuster screws. This could
damage the adjusters or cause the lock to fail.

CAUTION • Do not release the foot adjuster button unless the projector is
being held; otherwise, the projector could overturn or fingers could get

caught and cause personal injury.

ENGLISH-6

Foot Adjusters

Variable within the range of approximately 0° - 9°

IIIINNNNSSSSTTTTAAAALLLLLLLLAAAATTTTIIIIOOOONNNN ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

))

Cabling

Refer to the table below for connecting each terminal of the projector to a device.

Table 2. Cabling

Function Terminal Cable

Analog RGB input

Analog RGB output RGB OUT

Digital RGB input DVI DVI cable with inch thread screws

Audio input
(from the computer)

PS/2 mouse control

ADB mouse control ADB mouse cable

Serial mouse control Serial mouse cable

RS-232C communication RS-232C cable
USB mouse control USB USB cable

S-video input S-VIDEO S-video cable with mini DIN 4-pin jack

Video input VIDEO Video/Audio cable

Component video input

Audio input
(from video equipment)

Audio output AUDIO OUT Audio cable with stereo mini jack

RGB IN 1
RGB IN 2

AUDIO IN [RGB 1] / [DVI]

(interlocked with RGB IN 1 or DVI)

AUDIO IN [RGB 2]

(interlocked with RGB IN 2)

CONTROL

COMPONENT VIDEO Y

/PB
COMPONENT VIDEO CR/PR
AUDIO (MONO)/L
AUDIO R

RGB cable with D-sub 15-pin shrink jack
and inch thread screws

Audio cable with stereo mini jack

PS/2 mouse cable

Component Video cableCOMPONENT VIDEO CB

Video/Audio cable or Audio cable with RCA
jack

ENGLISH

CAUTION • Incorrect connecting could result in fire or electrical shock.
Please read this manual and the separate “SAFETY INSTRUCTIONS”.

• Before connecting, turn off to all devices to be connected, except for the USB
cable.

• The cables may have to be used with the core set to the projector side. Use the
cables which are included with the projector or specified.

NOTE

projector is compatible with the device.

• Secure the screws on the connectors and tighten.

• For some RGB input modes, the optional Mac adapter is necessary.

• To select the DVI input, the computer may need some settings. See the manuals of the computer for details.

• Some computers may have multiple display screen modes. Use of some of these modes will not be possible
with this projector.

• Refer to the “TECHNICAL” section for the pin assign of connectors and RS-232C communication data.

• When the DVI terminal is used, the RGB OUT terminal may not function.

• Before connecting, read instruction manuals of the devices to be connected, and make sure that the

ENGLISH-7

IIIINNNNSSSSTTTTAAAALLLLLLLLAAAATTTTIIIIOOOONNNN ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

))

Power Connection

Use the correct power cord depending on the power outlet to be used.
Connect the AC inlet of the projector to the power outlet firmly by the power cord.

CAUTION • Be carful in handling the power

cord according to instructions of the
accompanying manual "SAFETY INSTRUCTIONS"
and this manual.

• Connect the power cord firmly. Avoid using a
loose, unsound outlet or failed contact.

Example of System Setup

Computer

(desktop type)

S-Video Tape
Recorder

DIGTAL

RGB IN 2

S-VIDEO

COMPO

NENT

VIDEO

VIDEO

(MONO)/L

AUDIO

R

USB

RGB OUT

AUDIO IN AUDIO

B/PB

C

CR/PR

RGB 1
DIGITAL

RGB 2

CONTROL

Power outlet

AC Inlet

Power Cord

Computer

(notebook type)

Display
Monitor

OUT

Speaker
with
amplifier

NOTE

DVD Player

• When connecting with a notebook computer, set the proper RGB external image output

Computer (desktop type)

(setting CRT display or simultaneous display of LCD and CRT). Please read instruction manual of
the notebook for more information.

Plug & Play

This projector is VESA DDC 1/2B compatible. Plug & play is possible by connecting to a computer
that is VESA DDC (Display Data Channel) compatible.
Please use this function by connecting the RGB cable with RGB IN 1 terminal (DDC 1/2B
compatible), or by connecting a DVI cable with DVI terminal (DDC 2B compatible). Plug & play
may not operate by other connections.

NOTE

display and an operating system.

• This projector is recognized as a plug & play monitor. Use the standard display drivers.

• Plug & play may not operate by the computer to connect. Use the RGB IN 2 terminal if plug &
play does not operate correctly.

ENGLISH-8

• Plug & play is a system configured with peripheral equipment including a computer,

OPERATIONS

OPERATIONS

POWER Indicator

FOCUS button

Power Switch

STANDBY/ON Button

ZOOM button

STANDBY/

ON Button

STANDBY/ON

AUTO

MENU

POSITION

MAGNIFY

VIDEO

MENU SELECT

LASER

FREEZE

OFF

BLANK

RGB

KEYSTONE

RESET

PinP

MUTE

FOCUS button

ZOOMFOCUS

VOLUME

Lens cap

ZOOM button

Power ON

1. Check that the power cord is connected correctly.

2. Set the power switch to [ | ]. The standby mode is selected, and the POWER indicator is turned to
orange.

3. Press the STANDBY/ON button on the control panel or the remote control transmitter. Warm-up
begins and the POWER indicator blinks in green.

4. The POWER indicator ceases blinking and turns to green when power is on. Remove the lens cap.

5. Adjust picture size using the ZOOM button.

6. Adjust focus using the FOCUS button .

Power OFF

1. Press the STANDBY/ON button on the control panel or the remote control transmitter. Then, the
message "Power off?" will appear on the screen, and the message will disappear by any operation or no
operation for 5 seconds. During this message indication, press the STANDBY/ON button again.
The projector lamp is extinguished and lamp cooling begins. The POWER indicator blinks orange
during lamp cooling. Pressing the STANDBY/ON button has no effect while the POWER indicator
is blinking.

2. The system assumes the Standby mode when cooling is complete, and the POWER indicator ceases
blinking and changes to orange. Check that the indicator is orange and set the Power switch to [

3. The POWER indicator is extinguished when power is off. Attach the lens cap.

WARNING • Please read this manual, and the separate “SAFETY
INSTRUCTIONS” thoroughly before using the equipment. Always ensure that

the equipment is used safely.

O

].

ENGLISH

NOTE

• Except in emergencies, follow the above-mentioned procedure for turning power off.

If the
projector is used improperly, it may be very difficult to turn off the projector caused by heating inside the
unit. And the reduction of life time of lamp and LCD panels will be caused by incorrect procedure.

• To prevent any trouble, turn on/off the projector when the computer or video tape recorder is OFF.
Providing a RS-232C cable is connected, turn on the computer before the projector.

• When a projector continues projecting the same image, the image may remain as an afterimage. Please
do not project the image same for a long time.

ENGLISH-9

ENGLISH-9

OOOOPPPPEEEERRRRAAAATTTTIIIIOOOONNNNSSSS ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

OFF

))

Basic Operation

The basic operations shown in Table 3 is performed from the supplied remote control transmitter or
the projector control panel. Items indicated by (*) may be used from the control panel.

Table 3 . Basic Operation

Item Description

Select Input Signal (*) : Press the INPUT button.

RGB IN 1 → RGB IN 2 → DVI
→ VIDEO → S-VIDEO → COMPONENT VIDEO (→ RGB IN 1)

Select RGB Input : Press the RGB button.

INPUT
SELECT

POSITION

RESET (*)

MAGNIFY

FREEZE

VIDEO/S-VIDEO/COMPONENT VIDEO → RGB IN 1/RGB IN 2/DVI
RGB IN 1 → RGB IN 2 → DVI (→ RGB IN 1)

Select Video Input : Press the VIDEO button.

RGB IN 1/RGB IN 2/DVI → VIDEO/S-VIDEO/COMPONENT VIDEO
VIDEO → S-VIDEO → COMPONENT VIDEO (→ VIDEO)

• The selected signal name is displayed for approximately 3 seconds when the input
signal is changed.

Set/Clear Position Adjustment Mode : Press the POSITION button.

The [ ] icon is displayed in the POSITION mode.

Image Position Adjustment: Press the , , and buttons in the
POSITION mode.

• Valid only in the MAGNIFY mode with a video signal is input.

• After approximately 10 seconds of inactivity the [ ] icon is extinguished and the

POSITION mode is cleared automatically.

• , , and

buttons may operate as the mouse control button. Refer to page 4.

Initialize Each Item : Select an item and press the RESET button.
Initialize Position Adjustment : Press the RESET button and the

POSITION mode. This function is valid only when RGB signal is input.

• Valid except for the VOLUME, LANGUAGE, WHISPER and H PHASE.

• The RESET button may operate as the mouse control button. Refer to page 4.

Set MAGNIFY Mode : Press the MAGNIFY button.
Move Magnified Area : Run the POSITION in the MAGNIFY mode.
Adjust Magnification : Press the MAGNIFY / button in MAGNIFY

mode.
Clear MAGNIFY Mode : Press the MAGNIFY button.

• The MAGNIFY mode is cleared by running or setting the AUTO, ASPECT, INPUT
SELECT or VIDEO, or by changing the input signal.

Set/Clear FREEZE Mode : Press the FREEZE button. The [II] icon is
displayed, and the image is frozen, in the FREEZE mode.

• The FREEZE mode is cleared by running or setting POSITION, VOLUME, MUTE,
Automatic Adjustment, BLANK ON/OFF, or MENU ON/OFF, or by changing the input
signal.

• Do not forget to clear frozen static images.

NOTE

• Use the remote control transmitter at a distance of approximately 5m from the sensor on
the front of the projector, and within a range of 30° left-right. Strong light and obstacles will
interfere with operation of the remote control transmitter.

ENGLISH-10ENGLISH-10

OOOOPPPPEEEERRRRAAAATTTTIIIIOOOONNNNSSSS ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

Items indicated by (*) may be used from the control panel.

Table 3. Basic Operation (continued)

Item Description

VOLUME

MUTE

AUTO

BLANK
ON/OFF

MENU
ON/OFF (

MENU
SELECT

Volume Adjustment : Press the VOLUME / button.
Set/Clear Mute Mode : Press the MUTE button. No sound is heard in the

MUTE mode.
Automatic Adjustment at RGB Input : Press the AUTO button. Horizontal

position(H.POSIT), vertical position (V.POSIT),clock phase (H.PHASE), and
horizontal size(H.SIZE) are automatically adjusted. Use with the window at
maximum size in the application display.
Automatic Adjustment at Video Input : Press the AUTO button. A signal
type appropriate for the input signal is selected automatically. Valid only
when AUTO is set for VIDEO on the menu.

• This operation requires approximately 10 seconds. It may not function correctly with
some input signals.

Set/Clear Blank Mode: Press the BLANK button. No image is displayed in
the Blank mode. The screen color is as set in BLANK on the Image menu.

Menu Display Start/Stop: Press the MENU button.

• The menu display is terminated automatically after approximately 10 seconds of

*)

inactivity.

Select Menu Type: Press the MENU SELECT button. Allows the user to
select the normal menu or the single menu. Only the selected item is
displayed on the single menu, and other items are displayed with the
and buttons as with the normal menu.

• Valid only when the Setup menu is used. Push the MENU SELECT button after
selecting items such as "BRIGHTNESS".

• The MENU SELECT button may operate as the mouse control button. Refer to
page 4.

Normal menu Single menu

SETUP INPUT OPT.IMAGE

BRIGHT

CONTRAST

V POSIT
H POSIT
H PHASE

H SIZE
COLOR BAL R
COLOR BAL B

ASPECT

0

-2
100
100

+1

800

0
0

(MENU SELECT)

))

ENGLISH

-2

CONTRAST

P.IN P.
MODE

ZOOM (*)

FOCUS (*)

KEYSTONE

Select Mode of P.IN P. Display : Press the PinP button.

→ Large → P.IN P. off (→Small)

Small

• P.IN P. function superimposes a video image over RGB or DVI signals.

Adjust Screen Size : Press the ZOOM / button.
Adjust Focus : Press the FOCUS / button.

Set / Clear KEYSTONE Mode : Press the KEYSTONE button.
Select KEYSTONE Mode : Press the / button in the KEYSTONE mode.

Vertical ↔ Horizontal
Adjust KEYSTONE : Press the / button.

*)

(

• The image may not be appeared properly when this function is activated on some
input signals.

• The adjustable range of distortion correction will be different among input signals.

ENGLISH-11

ENGLISH-11

OOOOPPPPEEEERRRRAAAATTTTIIIIOOOONNNNSSSS ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

BRIGHT

CONTRAST

V POSIT

H POSIT

H PHASE

H SIZE
COLOR BAL R
COLOR BAL B

ASPECT

0

-2

+1

0
0

100
100

800

SETUP INPUT OPT.IMAGE

BRIGHT

CONTRAST

SHARPNESS

COLOR

TINT

H PHASE
COLOR BAL R
COLOR BAL B

ASPECT

0
+1
+1

0

0
+1

0

0

SETUP INPUT OPT.IMAGE

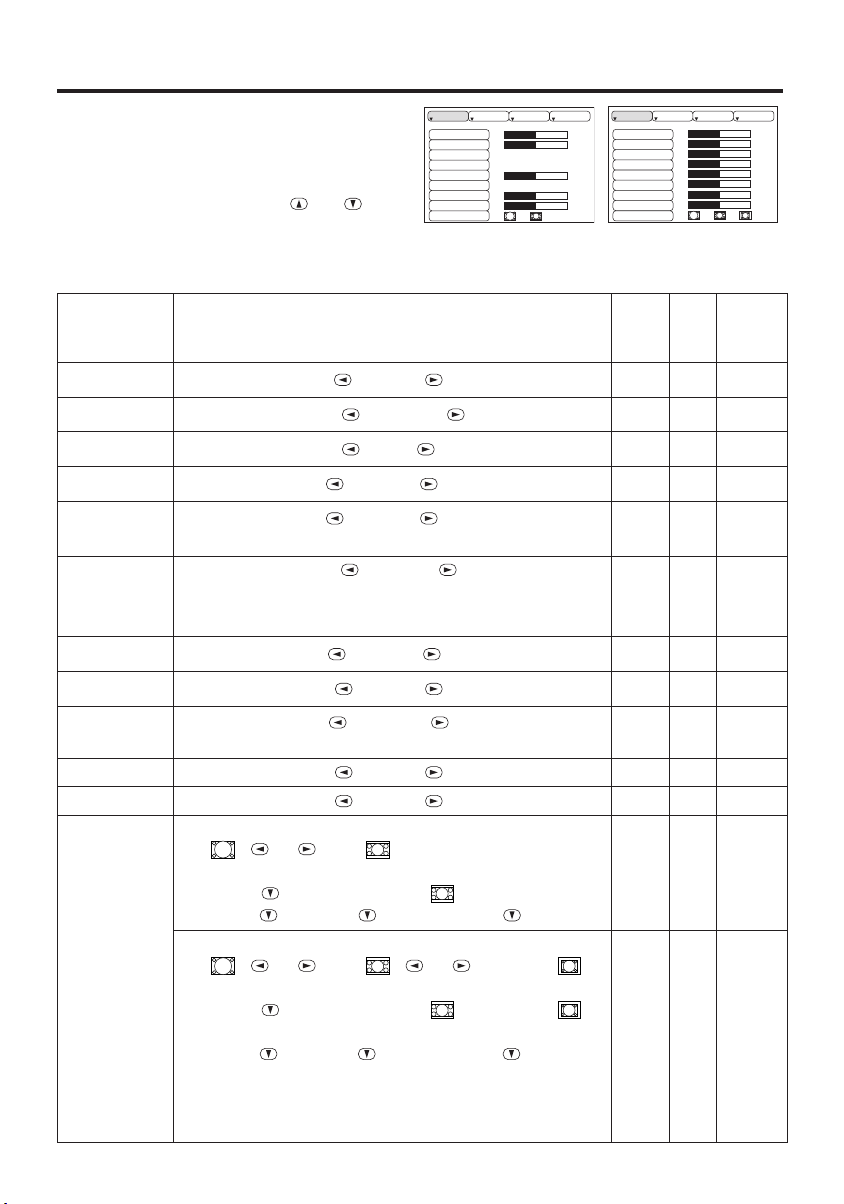

Setup Menu

The following adjustments and settings are possible
when SETUP is selected at the top of the menu. Part
of the Setup menu differs between RGB input and
video input. Select an item with the and
buttons, and start operation. Use the Single menu to
reduce menu size (see Table 3, MENU SELECT).

Table 4. Setup Menu

Item Description

RGB IN 1
RGB IN 2

DVI

))

S-VIDEO

COMPONENT VIDEO

RGB IN 1
RGB IN 2

VIDEO

DVI

VIDEO

S-VIDEO

COMPONENT

BRIGHT

CONTRAST

V POSIT

H POSIT

H PHASE

H SIZE

SHARPNESS

COLOR

TINT

COLOR BAL R

COLOR BAL B

ASPECT

ENGLISH-12ENGLISH-12

Adjustment: Dark ↔ Light

Adjustment: Weak ↔ Strong

Adjustment: Down ↔ Up

Adjustment: Left ↔ Right
Adjustment: Left ↔ Right

• Adjust to eliminate flicker.

✔ ✔ ✔

✔ ✔ ✔

✔

- -

✔

- -

✔

-

✔

Adjustment: Small ↔ Large

• The image may not be displayed correctly if the horizontal
size is excessive. In such cases, press the RESET button,
and initialize the horizontal size.

Adjustment: Soft ↔ Clear

Adjustment: Light ↔ Dark
Adjustment: Red ↔ Green

• Valid only when NTSC or NTSC 4.43 signal is received.

Adjustment: Light ↔ Dark
Adjustment: Light ↔ Dark

✔

- -

- -

- -

- -

✔ ✔ ✔

✔ ✔ ✔

✔

✔

✔

Select Image Aspect Ratio :

4:3[ ]

Select Position of Image:

↔ 16:9[ ]

✔ ✔

-

Press the button while 16:9[ ] is selected.
Center

→ Down → Up ( → Center )

Select Image Aspect Ratio:

4:3[ ]

↔ 16:9[ ] ↔ 4:3 small[ ]

Select Position of Image :

Press the button while 16:9[ ] / 4:3 small[ ]
is selected.
Center

→ Down → Up ( → Center )

- -

• 4:3 small cannot be selected with the input of 720P or
1080i component.

• 4:3 small may not be displayed correctly with some input
signals.

✔

OOOOPPPPEEEERRRRAAAATTTTIIIIOOOONNNNSSSS ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

))

Input Menu

The following functions are available when INPUT is selected on the
menu. Select an item with the and buttons, and start or stop
operation with the and buttons. The function indicated (**) are
effective on video input mode only, not on RGB input mode, except in
the P.IN P. window on RGB input mode.

Table 5. Input Menu

Item Description

Automatic Adjustment at RGB Input: Select the EXECUTE with the button.

Horizontal position (H.POSIT), vertical position (V.POSIT), clock phase (H.PHASE),
and horizontal size (H.SIZE) are automatically adjusted. Use with the window at
maximum size in the application display.

AUTO

RGB

VIDEO (**)

VIDEO NR

(**)

Progressive

(**)

BLACK(**)

HDTV (**)

Automatic Adjustment at Video Input: Select the
signal type appropriate for the input signal is selected automatically when
is selected automatically. Valid only when AUTO is set for VIDEO on the menu.

•

This operation requires approximately 10 seconds. It may not function correctly with

some input signals. Pressing the AUTO button in this case may correct this problem.

• This function is the same as for the AUTO function in Basic operation.

Displays RGB Input Frequency: Displays the horizontal and vertical sync signal
frequencies for RGB input.

• Valid only at RGB input.
Select Video Signal Type: Select the signal type with the and buttons.

Select NTSC, PAL, SECAM, NTSC4.43, M-PAL, or N-PAL as appropriate for the
input signal. The selection of AUTO enables and executes the function AUTO
(Automatic Adjustment at Video Input), except for the N-PAL input.

• Use this function when the image becomes unstable (eg. the image becomes
irregular, or lacks color) at VIDEO/S-VIDEO input.

• Automatic Adjustment requires approximately 10 seconds. It may not function
correctly with some input signals. Pressing the AUTO button in this case may correct
this problem except for the N-PAL input.

• For the COMPONENT VIDEO input, this function is not effective and the signal type
is distinguished automatically. Refer to the item HDTV of the OPT. Menu for the
signal of HDTV.

Set/Clear Noise Reduction Mode: Select the TURN ON / TURN OFF with the
/ button. When the TURN ON is selected, the NR mode is active and the noise on
screen of the video input will be reduced.

• Valid except for the HDTV.

Select Progressive Mode: Select the mode suitable for the input signal with the
and buttons. The TV mode and the FILM mode convert the interlaced video signal
into the progressive signal. The FILM mode is adptable 2-3 Pull-Down system to the
conversion.

• Use this function to raise resolution, at the interlaced video input except HDTV
signal.

Set/Clear Black Enhancement Mode: Select the TURN ON / TURN OFF with the

/ button. When the TURN ON is selected, the black enhancement mode is
active and the contrast ratio of the screen for the video input will be raised by making
black level darker.

Select HDTV mode: Select the 1035i mode or 1080i mode suitable for the input
signal with the / button.

EXECUTE

SETUP INPUT OPT.

AUTO

RGB

VIDEO

VIDEO NR

Progressive

BLACK

HDTV

with the button. A


EXECUTE
CANCEL

EXECUTE

ENGLISH

ENGLISH-13

ENGLISH-13

OOOOPPPPEEEERRRRAAAATTTTIIIIOOOONNNNSSSS ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

))

Image Menu

The following adjustments and settings are available when IMAGE is
selected on the menu. Select an item with the and buttons, and
start or stop operation with the and buttons.

Table 6. Image Menu

Item Description

Select Blank Screen: Select the screen in case of the BLANK mode with the /

button.The selected one (MyScreen, ORIGIAL or one colors) is displayed when the
BLANK mode is ON.

BLANK

START UP

MyScreen

MIRROR

P. IN P.
POSIT

P. IN P.
INPUT

GAMMA

ENGLISH-14ENGLISH-14

MyScreen is a mode that the customer-customized screen is displayed. This is the
blue screen at the factory setting. Refer to the description of MyScreen below.
ORIGINAL is a mode that the factory fixed screen is displayed.

• When MyScreen or ORIGIAL is selected, the screen is going to the black after
several minutes.

Select Start Up Screen:Select the screen in case of no signal input with the /
button. The selected one (MyScreen, ORIGIAL or TURN OFF) is displayed when no
signal is input
MyScreen is a mode that the customer-customized screen is displayed. This is the
blue screen at the factory setting. Refer to the description of MyScreen below.

ORIGINAL is a mode that the factory fixed screen is displayed.
TURN OFF displays the blue screen.

• When MyScreen or ORIGIAL is selected, the screen is going to the black after
several minutes.

Set MyScreen Mode: Select the EXECUTE with the button to display the
MyScreen menu and set the MyScreen mode for BLANK and START UP functions.

ESC clears and closes the menu box.
NORM. is default of the MyScreen menu.
FREEZE freezes the image and displays the frame to capture.

Press the button after freeze to go to the MyScreen Capture Position mode.
In the MyScreen Capture Position mode, the buttons , , and allow to
move the frame to capture.
After adjusting the position, press the KEYSTONE button to go to the MyScreen
Display Size mode.
To cancel freezing and return to the NORM. of the MyScreen menu, press the
RESET button.
In the MyScreen Display Size mode, select the magnification x1, x2 or FULL with the
button / .
After selecting the magnification, press the KEYSTONE button to go to the CAPT.
mode and start capturing.
To return to the MyScreen Capture Position mode, press the RESET button.
CAPT. executes a capturing the image. It requires about 20 seconds. After capturing,
the captured image will be displayed for about 10 seconds.

Select Mirror Status: Select mirror status with / button.
Select Position of P. in P. Display : Press the / button.

↔↔↔

• P.IN P. function superimposes a video image over RGB or DVI signals.

Select signal of P. in P. Display : Press the / button.

VIDEO ↔ S-VIDEO ↔ COMPONENT

Select Gamma Mode: Select the gamma mode with the / button.

NORMAL ↔ CINEMA ↔ DYNAMIC

SETUP INPUT OPT.

BLANK

START UP

MyScreen

MIRROR
P.IN P. POSIT
P.IN P. INPUT

GAMMA


MyScreen
ORIGINAL

OOOOPPPPEEEERRRRAAAATTTTIIIIOOOONNNNSSSS ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

))

Options Menu

The following adjustments and settings are available when OPT. is
selected on the menu. Select an item with the and buttons, and
start operation.

Table 7. Options Menu

Item Description

VOLUME

MENU COLOR

LANGUAGE

AUTO OFF

SYNC ON G

WHISPER

Volume Adjustment: Reduce VOLUME ↔ Increase VOLUME

Select Menu Background Color: Select with the and buttons.

Operation Start/Stop: Press the / button.
Select Menu Display Language: Select with the and buttons.

Operation Start/Stop: Press the / button.
Set AUTO OFF: Set 1~99 minutes with the and buttons. The

system automatically enters the standby mode when a signal is not
received for the set time.
Clear AUTO OFF: Select STOP (0 min.) with the button. When
STOP is selected the system does not enter the standby mode even if
no signal is received.

Operation Start/Stop: Press the / button.
SYNC ON G Valid: Select TURN ON with the button.
SYNC ON G Invalid: Select TURN OFF with the button.

• May not be displayed correctly with some input signals when SYNC ON G is
valid. In such cases, remove the signal connector so that no signal is received,
set SYNC ON G to invalid, and reconnect the signal.

Set / Crear WHISPER Mode: Press the / button. When the
WHISPER is selected, the WHISPER mode is active. In the WHISPER
mode, acoustic noise level from the unit is reduced, and brightness level
on screen is a little lower.

SETUP INPUT OPT.

VOLUME

MENU COLOR

LANGUAGE

AUTO OFF

SYNC ON G

WHISPER


16

ENGLISH

ENGLISH-15

ENGLISH-15

OOOOPPPPEEEERRRRAAAATTTTIIIIOOOONNNNSSSS ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

))

No Signal Menu

The same adjustments and settings are available with the Image and
Options menus when the MENU button is pressed during display of the
“NO INPUT IS DETECTED ON ***” or “SYNC IS OUT OF RANGE
ON ***” message while no signal is received.

Table 8. No Signal Menu

Item Description

Volume Adjustment: Reduce VOLUME ↔ Increase VOLUME

VOLUME

BLANK

START UP

MIRROR

MENU COLOR

LANGUAGE

AUTO OFF

SYNC ON G

WHISPER

ENGLISH-16ENGLISH-16

• When this function is used, audio input is automatically switched to video. The
audio input can be switched by moving the DISK PAD left and right during the
display of the volume adjustment bar. The volume adjustment bar is displayed by
pressing VOLUME or VOLUME button.

Select Blank Screen: Select the screen in case of the BLANK mode with the
/ button.The selected one (MyScreen, ORIGIAL or one colors) is displayed
when the BLANK mode is ON.
MyScreen is a mode that the customer-customized screen is displayed. This is
the blue screen at the factory setting. Refer to the description of MyScreen below.
ORIGINAL is a mode that the factory fixed screen is displayed.

• When MyScreen or ORIGIAL is selected, the screen is going to the black after
several minutes.

Select Start Up Screen:Select the screen in case of no signal input with the
/ button. The selected one (MyScreen, ORIGIAL or TURN OFF) is displayed
when no signal is input
MyScreen is a mode that the customer-customized screen is displayed. This is
the blue screen at the factory setting. Refer to the description of MyScreen below.

ORIGINAL is a mode that the factory fixed screen is displayed.
TURN OFF displays the blue screen.

• When MyScreen or ORIGIAL is selected, the screen is going to the black after
several minutes.

Operation Start/Stop: Press the / button.
Select Mirror Status: Select the mirror status with the and buttons.

Select Menu Background Color: Select the color with the and buttons.
Operation Start/Stop: Press the / button.

Select Menu Display Language: Select the language with the and buttons.
Operation start/stop: Press the / button.

Set AUTO OFF: Set 1~99 minutes with the and buttons. The system

automatically enters the standby mode when a signal is not received for the set
time.
Clear AUTO OFF: Select the STOP (0 min.) with the button. When the STOP
is selected the system does not enter the standby mode even if no signal is
received.

Operation Start/Stop: Press the / button.
SYNC ON G Valid: Select the TURN ON with the button.
SYNC ON G Invalid: Select the TURN OFF with the button.

• May not be displayed correctly with some input signals when the SYNC ON G is
valid. In such cases, remove the signal connector so that no signal is received,
set the SYNC ON G to invalid, and reconnect the signal.

Set / Crear WHISPER Mode: Press the / button. When the WHISPER is
selected, the WHISPER mode is active. In the WHISPER mode, acoustic noise
level from the unit is reduced, and brightness level on screen is a little lower.

VOLUME

BLANK

START UP

MIRROR

MENU COLOR

LANGUAGE

AUTO OFF

SYNC ON G

WHISPER

16

MAINTENANCE

MAINTENANCE

Lamp

HIGH VOLTAGE

HIGH TEMPERATURE

HIGH PRESSURE

Contact your dealer before replacing the lamp.
For the optional lamp, see the item “Option Parts” of the Table 12.
Before replacing the lamp, switch power OFF, remove the power cord from the power outlet, and
wait approximately 45 minutes until the lamp has cooled. The lamp may explode if handled at high
temperatures.

WARNING A mercury lamp used in this LCD projector is made of glass and has high

internal pressure. The mercury lamp can burst with a big noise due to deterioration
resulting from a shock, crack and passage of time, and can end its service life in unlit
condition. Lamps also have a considerably different service life and can sometimes end up
in burst or turn to unlit condition soon after use. Furthermore, when the lamp is blown up,
glass fragments can get scattered around the lamp house and some gas containing mercury
inside the lamp can leak out of the projector’s air vent.

• Handle the lamp with utmost care as it can burst during use if subjected to a shock or
impact or if scratched or cracked.

• Probability for the burst will increase if the lamp is used for extended period of time or
used exceeding the period of replacement. You are advised to follow instructions for lamp
replacement as soon as they are given (Refer to Table 9 of Page 20, Table 10 of Page 21).
Avoid any reuse of an old lamp (used lamp) since such reuse can result in burst.

• In case the lamp gets blown up in a short period of time after use, some electrical failures
or troubles other than the lamp itself may be suspected as causes. Under such
circumstances, consult the store where you purchased it or a service company.

• Should the lamp burst (accompanied by a big bursting noise), perform ventilation
sufficiently, and exercise maximum caution not to inhale any gas out of the projector’s air
vent or not to let it enter your eyes or mouth.

• Should the lamp burst (accompanied by a big bursting noise), make absolutely sure to
unplug the power cord from the outlet and ask the store where you bought the lamp for
immediate replacement. You should not engage in cleanup or replacement of the lamp by
yourself since scattered glass fragments can damage the inside of projector or can result in
personal injury when you handle it.

• When you dispose of any used lamps, be sure to observe and follow local ordinances and
regulations of the area or district where they are subjected to disposal. Generally speaking,
the lamps are treated similarly as glasses and bottles in most cases, but there are areas or
districts where lamps are classified as a separate collection, and so be sure to use caution.

• Never use the lamp in a state where the lamp cover is removed.

ENGLISH

Lamp Life

Projector lamps have a finite life. The image will become darker, and hues will become weaker,
after a lamp has been used for a long period of time.
Replace the lamp if the LAMP indicator is red, or the CHANGE THE LAMP message appears
when the projector is switched ON. See Table 9 of P.20 and Table 10 of P.21.

NOTE

replacing the lamp, switch power OFF, wait approximately 20 minutes, and switch power ON again.
If the LAMP indicator is still red, replace the lamp.

• The LAMP indicator is also red when the lamp unit reaches high temperature. Before

ENGLISH-17

ENGLISH-17

MMMMAAAAIIIINNNNTTTTEEEENNNNAAAANNNNCCCCEEEE ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

Replacing the Lamp

1. Switch the projector OFF, remove the power cord from the
power outlet, and wait at least 45 minutes for the unit to cool.

2. Prepare a new lamp.

3. Check that the projector has cooled sufficiently, and gently
turn it upside down.

4. Loosen the screw as shown in the diagram, and remove the
lamp cover.

5. Loosen the two screws, and gently remove the lamp while
holding the grips. Touching the inside of the lamp case may
result in uneven coloring.

6. Install the new lamp and tighten the two screws firmly. Also
steadily push the opposite side of the screwed lamp into the
unit.

7. Replace the lamp cover in position and tighten the screw
firmly.

8. Gently turn the projector right-side up.

CAUTION • Ensure that screws are tightened
properly. Screws not tightened fully may result

in injury or accidents.

• Do not use the projector with the lamp cover
removed.

))

Resetting the Lamp Timer

Reset the lamp timer after replacing the lamp. When the lamp has been replaced after the LAMP
indicator is red, or the CHANGE THE LAMP message is displayed, complete the following
operation within ten minutes of switching power ON. The power will be turned off automatically in
over 10 minutes.

1. Switch power ON, and press the RESET button, for approximately three seconds. The ‘LAMP
xxxx hr’ message will appear on the lamp timer on the bottom of the screen.

2. Press the MENU button on the remote control transmitter, or the RESET button on the control
panel, while the lamp timer is displayed. The ‘LAMP xxxx
then appear.

3. Press the and select 0, and wait until the timer display is cleared.

NOTE

when replacing the lamp. The message functions will not operate properly if the lamp timer is not
reset correctly.

• Do not reset the lamp timer without replacing the lamp. Reset the lamp timer always

→ 0 ■ CANCEL’ message will

ENGLISH-18ENGLISH-18

MMMMAAAAIIIINNNNTTTTEEEENNNNAAAANNNNCCCCEEEE ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

))

Air Filters

Cleaning Air Filters

This projector uses 2 air filters. These air filters should be
cleaned as described below at intervals of approximately
100 hours.

1. Switch the projector power supply OFF, and remove the

power cord from the power outlet.

2. Remove the filter cover and the air filter.

3. Clean the air filter with a vacuum cleaner.

4. Set the air filter and the filter cover.

Replacing the Air Filter

Replace the air filter if contamination cannot be removed, or if it is damaged.

1. Switch the projector power supply OFF, and remove the power cord from the power outlet.

2. Remove the filter cover and the old filter.

3. Set the new filter and the filter cover.

CAUTION • Switch power OFF and remove the power cord from the power
outlet before beginning maintenance work. Please read the separate “SAFETY

INSTRUCTIONS” thoroughly to ensure that maintenance is performed correctly.

• Replace the air filter if contamination cannot be removed, or if it is damaged.
Contact your dealer in such case. For the optional air filter, see the item “Optional
Parts” of the Table 12.

• Do not use the equipment with the air filter removed.

• When the air filter is clogged with dust etc. the power supply is switched OFF

automatically to prevent the temperature rising inside the projector.

filter cover

filters

Other Maintenance

Maintenance Inside the Equipment

For safety reasons, ensure that the equipment is cleaned and checked by the dealer once every two
years. Maintaining the equipment by yourself is dangerous.

Cleaning the Lens

Gently wipe the lens with lens cleaning paper. Do not touch the lens with your hands.

Cleaning the Cabinet and Remote control transmitter

Gently wipe with a soft cloth. If dirt and stains etc. are not easily removed, use a soft cloth
dampened with water, or water and a neutral detergent, and wipe dry with a soft, dry cloth.

ENGLISH

CAUTION • Switch power OFF and remove the power cord from the power
outlet before beginning maintenance work. Please read the separate “SAFETY

INSTRUCTIONS” thoroughly to ensure that maintenance is performed correctly.

• Do not use detergents or chemicals other than those noted above (e.g. benzene
or thinners).

• Do not use cleaning sprays.

• Do not rub with hard materials, or tap the equipment.

NOTE

take place on the projection lens and mirror inside, blurring the screen and reducing your eyesight,
but do not worry. The condensation will disappear and the screen will return to a normal condition
no sooner than the projector acclimates to the surrounding temperature.

• When this projector is brought into a warm room from a cold outdoor, condensation can

ENGLISH-19

ENGLISH-19

TROUBLESHOOTING

TROUBLESHOOTING

OSD Message

The messages as described below may appear on the screen at power ON. Take the appropriate
measures when such messages appears.

Table 9. OSD Message

Message Contents

CHANGE THE LAMP

AFTER REPLACING LAMP,

RESET THE LAMP TIME.

CHANGE THE LAMP

AFTER REPLACING LAMP,

RESET THE LAMP TIME.

THE POWER WILL TURN OFF

AFTER ** hr.

CHANGE THE LAMP

AFTER REPLACING LAMP,

RESET THE LAMP TIME.

THE POWER WILL

TURN OFF

AFTER 0 hr.

The usage time of lamp will be reaching 2000 hr
shortly.(*2)
It is recommended to replace the lamp soon. Prepare a

(*1)

new lamp as a replacement.

The usage time of lamp will be reaching 2000 hr shortly.
It is recommended to replace the lamp within * *
hours.(*2)
It might be happened that the lamp is cut off before * * hr
by any chance. Power will be switched OFF
automatically in * * hours. Replace the lamp as shown in

(*1)

P.17~18 “Lamp”. Always reset the lamp timer after
replacing the lamp.

The usage time of lamp is about to reach. Power will be
switched OFF in a few minutes.(*2)
Switch power OFF immediately and replace the lamp as
shown in P.17 ~18 “Lamp”. Always reset the lamp timer
after replacing the lamp.

NO INPUT IS DETECTED

ON ***

SYNC IS OUT OF RANGE

ON ***

CHECK THE AIR FLOW

NOTE

appears every time power is switched ON.
(*2) The unit has a function to turn the power off which will be active when the usage time reaches
2000 hr. However the life of lamp might be much different among lamps, so that it might be
happened that a lamp is cut off before the function is active.

(*1) This message is cleared automatically after approximately three minutes, and

No input signal found.
Check signal input connections and signal sources.

The horizontal or vertical frequency of the input signal is
not within the specified range.
Check the specifications of the equipment and the signal
source.

The internal temperature has risen.
Switch power OFF, and wait 20 minutes until the
equipment cools.
Check the following and Switch power ON again.
* Are the ventilation openings blocked.
* Is the air filter dirty.
* Is the ambient temperature in excess of 35°C.

ENGLISH-20ENGLISH-20

TTTTRRRROOOOUUUUBBBBLLLLEEEESSSSHHHHOOOOOOOOTTTTIIIINNNNGGGG ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

))

Indicators Message

The POWER indicator, LAMP indicator, and TEMP indicator are lit and blank as follows. Take the
appropriate measures.

Table 10. Indicators Message

POWER

indicator

Lights

orange

Blinks
green

Lights
green

Blinks

orange

Lights red

Lights red

Lights red Turns off

Lights red Turns off

LAMP

indicator

Turns off Turns off The Standby mode has been set.

Turns off Turns off Warming up. Please wait.

Turns off Turns off ON. Normal operation possible.

Turns off Turns off Cooling. Please wait.

Lights

red

Blinks

red

TEMP

indicator

Turns off

Turns off

Blinks

red

Lights

red

Contents

Lamp is not lit.
The interior of the equipment may be too hot. Switch
power OFF, wait 20 minutes until the equipment cools,
and check whether the ventilation openings are blocked,
whether the air filter is dirty, or whether the ambient
temperature exceeds 35 °C. And switch power ON
again. Replace the lamp if the same problem occurs.

Lamp or lamp cover is not found, or hasn’t been fitted in
correctly.
Switch power OFF, and wait for 45 minutes until the
equipment cools. Check fitting of the lamp and lamp
cover, and switch power ON again. Contact your dealer if
the same problem occurs again.

The cooling fan is not operating.
Switch power OFF, and wait for 20 minutes until the
equipment cools. Check for foreign matters in the fan,
and switch power ON again. Contact your dealer if the
same problem occurs again.

The interior of the equipment is too hot.
Switch power OFF, and wait for 20 minutes until the
equipment cools. Check whether the ventilation openings
are blocked, whether the air filter is dirty, or whether the
ambient temperature exceeds 35 °C. Then switch power
ON again. Contact your dealer if the same problem
occurs again.

ENGLISH

NOTE

for safety reasons, and the indicator is extinguished. Set the power switch to [
minutes until the equipment has cooled sufficiently.

When the internal temperature becomes excessive power is switched OFF automatically

O

] and wait for 20

ENGLISH-21

ENGLISH-21

TTTTRRRROOOOUUUUBBBBLLLLEEEESSSSHHHHOOOOOOOOTTTTIIIINNNNGGGG ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

Symptom

Before requesting repair, check in accordance with the following chart. If the situation cannot be
corrected, then contact your dealer.

Table 11. Symptom

Symptom Possible cause Remedy Page

The power is not
turned on.

No video or audio.

Video is present but
no audio.

The main power switch is not
turned on.

The power cord is
disconnected.

The main power was
disconnected during operation
by the power failure and so on.

The input is not correctly set.

No signal input. Connect correctly.

The projector is not correctly
connected.

The volume is set to minimum.

Mute is turned on.

The projector is not correctly
connected.

Turn on the main power switch.

Plug the power cord into an AC
power outlet.

Turn off the projector with the main
power switch (set the power switch
to [O]), and wait for about 20
minutes. When the equipment has
cooled enough, turn power on.

Use the projector or remote control
transmitter to set.

Connect correctly.

Press VOLUME on the remote
control or display the menu screen
and adjust the volume.

Press the MUTE button.

Connect correctly.

11,15

))

8,9

9

10

7,8

7,8

11

7,8

Audio is present but
no video.

Colors are pale and
color matching is
poor.

Images are dark.

Video is blurred.

ENGLISH-22ENGLISH-22

The brightness adjustment knob
is rotated fully clockwise.

The lens cap is still attached. Remove the lens cap.

Color density and color
matching are not correctly
adjusted.

Brightness and contrast are not
correctly adjusted.

The lamp is nearing the end of
its service life.

Focus or H PHASE is out of
adjustment.

Select BRIGHT with the MENU
button and the press the button.

Adjust the video.

Adjust the video.

Replace with a new lamp.

Adjust the focus or H PHASE.

12

9

12

12

17

9,12

SPECIFICATIONS

SPECIFICATIONS

Table 12. Specifications

Item Specification

Product name Liquid crystal projector

Liquid
crystal
panel

Lens Zoom lens F=1.7 ~ 2.3 f=49.0 ~ 64.0 mm

Lamp 275 W UHB

Speaker 1.2 W + 1.2W (Stereo)

Power supply AC100 ~ 120V, 4.7A / AC220 ~ 240V, 2.0A

Power consumption 440W

Temperature range 0 ~ 35°C (Operating)

Size 289 (W) x 144 (H) x 350 (D) mm

Weight (mass) 6.5 kg

RGB
signal
input

Video
signal
input

Signal
output

Control
functions

Optional Parts

NOTE

Panel size 3.3 cm (1.3 type)

Drive system TFT active matrix

Pixels 786,432 pixels (1024 horizontal x 768 vertical)

Video: Analog 0.7Vp-p, 75Ω terminator (positive)

1

RGB IN

DVI

RGB1

AUDIO IN

VIDEO

S-VIDEO

COMPONENT
VIDEO

AUDIO

RGB OUT

AUDIO OUT

CONTROL D-sub 15-pin shrink plug

USB USB jack (B type)

DVI
RGB2

L/MONO

H/V. sync.: TTL level (positive/negative)
Composite sync.: TTL level

2

D-sub 15-pin shrink jack

TMDS, DC: 150~1200 mV / AC: 1.56 Vp-p
TTL Level (Positive/Negative)

200mVrms, 50 kΩ (max. 3.0Vp-p)
Stereo mini jack

1.0Vp-p, 75Ω terminator
RCA jack

Brightness signal: 1.0Vp-p, 75Ω terminator
Color signal: 0.286Vp-p (burst signal), 75Ω terminator
Mini DIN 4-pin jack

Y 1.0 Vp-p, 75 Ω Terminator (Positive)
CB/PB 0.7 Vp-p, 75 Ω Terminator (Positive)
CR/PR 0.7 Vp-p, 75 Ω Terminator (Positive)

200mVrms, 50 kΩ (max. 3.0Vp-p)
RCA jack

R

Video: Analog 0.7Vp-p, 75Ω output impedance (positive)
H/V. sync.: TTL level (positive/negative)
Composite sync.: TTL level
D-sub 15-pin shrink jack

200mVrms, output impedance 1 kΩ (max. 3.0Vp-p)
Stereo mini jack

Lamp: DT00491
Air Filter: MN04531
* For others, consult your dealer.

• This specifications are subject to change without notice.

ENGLISH

ENGLISH-23

ENGLISH-23

WARRANTY AND AFTER-SERVICE

WARRANTY AND AFTER-SERVICE

If a problem occurs with the equipment, first refer to the P.20 “TROUBLESHOOTING” section and
run through the suggested checks. If this does not resolve the problem contact your dealer or service
company. They will tell you what warranty condition is applied.

ENGLISH-24ENGLISH-24

TECHNICAL

1

23

4

5

6

7

89

10

11

1213

1415

TECHNICAL

Dimension Diagram

395

350

289

308.5

139

144

88

30.5

Unit : mm

Signal Connector Pin Assignment

1. D-sub 15-pin Shrink Connector (RGB IN 1/RGB IN 2/RGB OUT)

Pin No Signal Pin No Signal Pin No Signal

1 Video input Red 9 -

2 Video input Green 10 Ground RGB IN 2: -

3 Video input Blue 11 - RGB OUT: -

4 -

5 Ground RGB IN 2: -

6 Ground Red RGB OUT: -

7 Ground Green 13

8 Ground Blue 14 Vertical sync

RGB IN 1: SDA(DDC)

12

H. sync./ Composite sync.

2. Digital Receptacle Connector (DVI)

Pin No Signal Pin No Signal Pin No Signal

1 T.M.D.S. Data 2 - 11 T.M.D.S. Data 1 / 3 Shield 21 -

2 T.M.D.S. Data 2 + 12 - 22 T.M.D.S. Clock Shield

3 T.M.D.S. Data 2 / 4 Shield 13 - 23 T.M.D.S. Clock +

4 - 14 +5V Power 24 T.M.D.S. Clock -

5 - 15

6 DDC Clock 16 Hot-Plug Sense

7 DDC Data 17 T.M.D.S. Data 0 -

8 Analog V. Sync. 18 T.M.D.S. Data 0 +

9 T.M.D.S. Data 1 - 19 T.M.D.S. Data 0 / 5 Shield

10 T.M.D.S. Data 1 + 20 -

Ground (+5V, Analog H/V Sync.)

3. Mini Din 4-pin Connector (S-VIDEO)

Pin No Signal

Color:0.286Vp-p (NTSC, burst signal),75Ω terminator

1

2 Brightness:1.0Vp-p, 75Ω terminator

3 Ground

4 Ground

0.3Vp-p (PAL/SECAM, burst signal),75Ω terminator

RGB IN 1: SCL(DDC)

15

123456 78
9 101112131415

17 18 19 20 21 22 23 24

16

TECHNICAL

TECHNICAL - 1

TTTTEEEECCCCHHHHNNNNIIIICCCCAAAALLLL((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

))

Example of computer signal

Resolution

H ××V

720 × 400

640 × 480

640 × 480

640 × 480

640 × 480

640 × 480

800 × 600

800 × 600

800 × 600

800 × 600

800 × 600

832 × 624

1024 × 768

1024 × 768

1024 × 768

1024 × 768

1152 × 864

1280 × 960

1280 × 1024

1280 × 1024

1600 × 1200

fH (kHz) fV (Hz) Rating Signal mode

37.9 85.0 VESA TEXT Zoom in

31.5 59.9 VESA VGA (60Hz) Zoom in

35.0 66.7 Mac13"mode Zoom in

37.9 72.8 VESA VGA (72Hz) Zoom in

37.5 75.0 VESA VGA (75Hz) Zoom in

43.3 85.0 VESA VGA (85Hz) Zoom in

35.2 56.3 VESA SVGA (56Hz) Zoom in

37.9 60.3 VESA SVGA (60Hz) Zoom in

48.1 72.2 VESA SVGA (72Hz) Zoom in

46.9 75.0 VESA SVGA (75Hz) Zoom in

53.7 85.1 VESA SVGA (85Hz) Zoom in

49.7 74.5 Mac16"mode Zoom in

48.4 60.0 VESA XGA (60Hz)

56.5 70.1 VESA XGA (70Hz)

60.0 75.0 VESA XGA (75Hz)

68.7 85.0 VESA XGA (85Hz)

67.5 75.0 VESA SXGA (75Hz) Zoom out

60.0 60.0 VESA SXGA (60Hz) Zoom out

64.0 60.0 VESA SXGA (60Hz) Zoom out

80.0 75.0 VESA SXGA (75Hz) Zoom out

75.0 60.0 VESA VXGA (60Hz) Zoom out

Display

mode

NOTE

• Some computers may have multiple display screen modes. Use of some of these modes

will not be possible with this projector.

• Be sure to check jack type, signal level, timing and resolution before connecting this projector to a
computer.

• Depending on the input signal, full-size display may not be possible in some cases. Refer to the
number of display pixels above.

• The image may not be displayed correctly when the input sync. signal is "Composite Sync." or
"Sync. on G".

• The image might be something wrong with computer by computer on the DVI mode. In the case, it
is recommended to reduce the resolution and / or reflesh rate.

TECHNICAL - 2

TTTTEEEECCCCHHHHNNNNIIIICCCCAAAALLLL((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

DATA

HSYNC

DATA

VSYNC

))

Initial set signals

The following signals are used for the initial settings.
The signal timing of some computer models may be different. In such case, refer to adjust the
V.POSIT and H.POSIT of the menu.

Back porch b

Display interval c

Sync a

Computer /

Signal

TEXT 2.0 3.0 20.3 1.0

VGA (60Hz) 3.8 1.9 25.4 0.6

Mac 13"mode 2.1 3.2 21.2 2.1

VGA (72Hz) 1.3 3.8 20.3 1.0

VGA (75Hz) 2.0 3.8 20.3 0.5

VGA (85Hz) 1.6 2.2 17.8 1.6

SVGA (56Hz) 2.0 3.6 22.2 0.7

SVGA (60Hz) 3.2 2.2 20.0 1.0

SVGA (72Hz) 2.4 1.3 16.0 1.1

SVGA (75Hz) 1.6 3.2 16.2 0.3

SVGA (85Hz) 1.1 2.7 14.2 0.6

Mac 16"mode 1.1 3.9 14.5 0.6

XGA (60Hz) 2.1 2.5 15.8 0.4

XGA (70Hz) 1.8 1.9 13.7 0.3

XGA (75Hz) 1.2 2.2 13.0 0.2

XGA (85Hz) 1.0 2.2 10.8 0.5

1152×864 (75Hz)

1280×960 (60Hz)

1280×1024 (60Hz)

1280×1024 (75Hz)

1600×1200 (60Hz)

Horizontal signal timing (µs)

a b c d

1.2 2.4 10.7 0.6

1.0 2.9 11.9 0.9

1.0 2.3 11.9 0.4

1.1 1.8 9.5 0.1

1.2 1.9 9.9 0.4

Front porch d

Back porch b

Display interval c

Sync a

Computer /

Signal

TEXT 3 42 400 1

VGA (60Hz) 2 33 480 10

Mac 13"mode 3 39 480 3

VGA (72Hz) 3 28 480 9

VGA (75Hz) 3 16 480 1

VGA (85Hz) 3 25 480 1

SVGA (56Hz) 2 22 600 1

SVGA (60Hz) 4 23 600 1

SVGA (72Hz) 6 23 600 37

SVGA (75Hz) 3 21 600 1

SVGA (85Hz) 3 27 600 1

Mac 16"mode 3 39 624 1

XGA (60Hz) 6 29 768 3

XGA (70Hz) 6 29 768 3

XGA (75Hz) 3 28 768 1

XGA (85Hz) 3 36 768 1

1152×864 (75Hz)

1280×960 (60Hz)

1280×1024 (60Hz)

1280×1024 (75Hz)

1600×1200 (60Hz)

Vertical signal timimg (lines)

a b c d

3 32 864 1

3 36 960 1

3 38 1024 1

3 38 1024 1

3 46 1200 1

Front porch d

TECHNICAL

TECHNICAL - 3

TTTTEEEECCCCHHHHNNNNIIIICCCCAAAALLLL((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

2

1

4

3

6

5

2

1

4

3

6

5

8

7

10

9

12

11

14

13

15

CLK

DATA

SEL0

RTS

GND

+5V

DATA

GND
+5V
CLK

2

1

4

3

6

5

1

2

3

4

5

678

9

10

11 12

13

14

15

))

Connection to the Mouse Control

1. PS/2, ADB or Serial Mouse

(1) Turn off the projector and computer, and connect the two units with the appropriate cable. For

PS/2 mouse control (for IBM and compatible), use the enclosed mouse cable. For others, consult

your dealer.
(2) Disconnect the USB cable from the projector if it is connected. Then turn on the projector.
(3) Turn on the computer.

Start the mouse function. If the mouse has not been started, reboot the computer (soft reboot or

(4)

reboot buttons). Refer to the descriptions of “DISC PAD” and “MOUSE/RIGHT button” of page 4.

2. USB Mouse

(1) Connect the projector and computer with a suitable commercially available USB cable. Consult

your dealer to get the cable, if you need.
(2) Start the mouse function. Refer to the descriptions of “DISC PAD” and “MOUSE/RIGHT

button” of page 4.

NOTE

• Before connecting, read the instruction manuals of the devices to be connected.

• In the case of notebook type computers with an internal pointing device, the mouse control
function will not work unless the internal pointing device is disabled. In such case, disable the
internal pointing device and change the BIOS setting to select an external mouse before the
operations described in (1) to (4) above.
Also, some computers may not have a utility program to operate a mouse.
Refer to the computer hardware manual for detail.

PS/2 Mouse

CONTROL Terminal

D-sub 15-pin shrink jack

Projector

Computer

TECHNICAL - 4

Mouse jack

Mini DIN 6-pin

TTTTEEEECCCCHHHHNNNNIIIICCCCAAAALLLL((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

1

2

3

4

1

2

3

4

+

5V

—

DATA

+

DATA

GND

+

5V

—

DATA

+

DATA

GND

1

234

2

1

3

4

2

1

4

3

6

5

2

1

4

3

8

7

10

9

12

11

14

13

15

RTS

GND

+5V

ADB

GND

+5V

(

POWER ON

)

DATA

2

1

4

3

1

2

3

4

5

678

9

10

11 12 13

14

15

21

4

3

6

5

8

9

7

1

2

3

4

5

678

9

10

11 12 13

14

15

))

ADB Mouse

CONTROL Terminal

D-sub 15-pin shrink jack

Serial Mouse

CONTROL Terminal

D-sub 15-pin shrink jack

USB Mouse

USB jack

(B type)

Projector

Projector

SEL0

RTS

GND

Projector

TD

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15

USB cable

Computer

Computer

1
2
3
4
5
6
7
8
9

Computer
CD

RD
TD

DTR
GND
DSR
RTS
CTS
RI

Mouse jack

Mini DIN 4-pin

Mouse jack

D-sub 9-pin

USB jack

(A type)

TECHNICAL - 5

TECHNICAL

TTTTEEEECCCCHHHHNNNNIIIICCCCAAAALLLL((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

1

23

4

5

6

7

89

10

11

1213

1415

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15

RD

TD

GND

SELO

RTS

1
2
3
4
5
6
7
8
9

CD
RD
TD
DTR
GND
DSR
RTS
CTS
RI

1

2345

67

8

9

))

RS-232C communication

(1) Turn off the projector and computer power supplies and connect with the RS-232C cable.
(2) Turn on the computer power supply and, after the computer has started up, turn on the projector

power supply.

Projector Computer

Control jack

D-sub 15-pin shrink jack

Communications setting

19200bps, 8N1

1 Protocol

Consist of header (7 bytes) + command data (6 bytes).

2 Header

BE + EF + 03 + 06 + 00 + CRC_low + CRC_high
CRC_low : Lower byte of CRC flag for command data.
CRC_high : Upper byte of CRC flag for command data.

3 Command data

Command data chart

byte_0 byte_1 byte_2 byte_3 byte_4 byte_5

Action Type Setting code

low high low high low high

RS-232C jack

D-sub 9-pin

TECHNICAL - 6

Action (byte_0 - 1)

Action Classification Content

1 SET Change setting to desired value.

2 GET Read projector internal setup value.

4 INCREMENT Increment setup value by 1.

5 DECREMENT Decrement setup value by 1.

6 EXECUTE Run a command.

TTTTEEEECCCCHHHHNNNNIIIICCCCAAAALLLL((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

))

Requesting projector status (Get command)

(1) Send the request code Header + Command data (‘02H’+‘00H’+ type (2 bytes) +‘00H’+‘00H’)

from the computer to the projector.

(2) The projector returns the response code ‘1DH’+ data (2 bytes) to the computer.

Changing the projector settings (Set command)

(1) Send the setting code Header + Command data (‘01H’+‘00H’+ type (2 bytes) + setting code (2

bytes)) from the computer to the projector.
(2) The projector changes the setting based on the above setting code.
(3) The projector returns the response code ‘06H’ to the computer.

Using the projector default settings (Reset Command)

(1) The computer sends the default setting code Header + Command data (‘06H’+‘00H’+ type (2

bytes) +‘00H’+‘00H’) to the projector.
(2) The projector changes the specified setting to the default value.
(3) The projector returns the response code ‘06H’ to the computer.

Increasing the projector setting value (Increment command)

(1) The computer sends the increment code Header + Command data (‘04H’+‘00H’+ type (2 bytes)

+‘00H’+‘00H’) to the projector.
(2) The projector in creases the setting value on the above setting code.
(3) The projector returns the response code ‘06H’ to the computer.

Decreasing the projector setting value (Decrement command)

(1) The computer sends the decrement code Header + Command data (‘05H’+‘00H’+ type (2 bytes)

+‘00H’ + ‘00H’) to the projector.
(2) The projector decreases the setting value on the above setting code.
(3) The projector returns the response code ‘06H’ to the computer.

When a command sent by the projector cannot be understood by the computer

When the command sent by the projector cannot be understood, the error command ‘15H’ is
returned by the computer. Some times, the projector ignores RS-232C commands during other
works. If the error command ‘15H’ is returned, please send the same command again.

When data sent by the projector cannot be practice

When the command sent by the projector cannot be practiced, the the error code ‘1cH’ +‘xxxxH’ is
returned.
When the data length is greater than indicated by the data length code, the projector will ignore the
excess data code.
Conversely, when the data length is shorter than indicated by the data length code, an error code
will be returned to the projector.

NOTE

data.

Provide an interval of at least 40ms between the response code and any other code.

•

• The projector outputs test data when the power supply is switched ON, and when the lamp is lit.
Ignore this data.

• Commands are not accepted during warm-up.

• Operation cannot be guaranteed when the projector receives an undefined command or

TECHNICAL - 7

TECHNICAL

TTTTEEEECCCCHHHHNNNNIIIICCCCAAAALLLL((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

))

Command data chart

Names Operation type Header

Red BE EF 03 06 00 3B D3 01 00 00 30 00 00

Orange BE EF 03 06 00 AB D2 01 00 00 30 01 00

Green BE EF 03 06 00 5B D2 01 00 00 30 02 00

Blue BE EF 03 06 00 CB D3 01 00 00 30 03 00

Blank Color

Mirror

Freeze

Menu Color

Startup

Language

Set

Set

Set

Set

Set

Set

Purple BE EF 03 06 00 FB D1 01 00 00 30 04 00

White BE EF 03 06 00 6B D0 01 00 00 30 05 00

Black BE EF 03 06 00 9B D0 01 00 00 30 06 00

MyScreen BE EF 03 06 00 FB CA 01 00 00 30 20 00

ORIGINAL BE EF 03 06 00 FB E2 01 00 00 30 40 00

Get BE EF 03 06 00 08 D3 02 00 00 30 00 00

Normal BE EF 03 06 00 C7 D2 01 00 01 30 00 00

H Inverse BE EF 03 06 00 57 D3 01 00 01 30 01 00

V lnverse BE EF 03 06 00 A7 D3 01 00 01 30 02 00

H&V Inverse BE EF 03 06 00 37 D2 01 00 01 30 03 00

Get BE EF 03 06 00 F4 D2 02 00 01 30 00 00

Normal BE EF 03 06 00 83 D2 01 00 02 30 00 00

Freeze BE EF 03 06 00 13 D3 01 00 02 30 01 00

Get BE EF 03 06 00 B0 D2 02 00 02 30 00 00

Red BE EF 03 06 00 7F D3 01 00 03 30 00 00

Orange BE EF 03 06 00 EF D2 01 00 03 30 01 00

Green BE EF 03 06 00 1F D2 01 00 03 30 02 00

Blub BE EF 03 06 00 8F D3 01 00 03 30 03 00

Purple BE EF 03 06 00 BF D1 01 00 03 30 04 00

Transparent BE EF 03 06 00 2F D0 01 00 03 30 05 00

Gray BE EF 03 06 00 DF D0 01 00 03 30 06 00

Get BE EF 03 06 00 4C D3 02 00 03 30 00 00

ORIGINAL BE EF 03 06 00 0B D2 01 00 04 30 00 00

OFF BE EF 03 06 00 9B D3 01 00 04 30 01 00

MyScreen BE EF 03 06 00 CB CB 01 00 04 30 20 00

Get BE EF 03 06 00 38 D2 02 00 04 30 00 00

English BE EF 03 06 00 F7 D3 01 00 05 30 00 00

Français BE EF 03 06 00 67 D2 01 00 05 30 01 00

Deutsch BE EF 03 06 00 97 D2 01 00 05 30 02 00

Español BE EF 03 06 00 07 D3 01 00 05 30 03 00

Italiano BE EF 03 06 00 37 D1 01 00 05 30 04 00

Norsk BE EF 03 06 00 A7 D0 01 00 05 30 05 00

Nederlands BE EF 03 06 00 57 D0 01 00 05 30 06 00

Português BE EF 03 06 00 C7 D1 01 00 05 30 07 00

Japanese BE EF 03 06 00 37 D4 01 00 05 30 08 00

Get BE EF 03 06 00 C4 D3 02 00 05 30 00 00

CRC Action Type Setting code

Command data

TECHNICAL - 8

TTTTEEEECCCCHHHHNNNNIIIICCCCAAAALLLL((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

))

Command data chart

Names Operation type Header

Get BE EF 03 06 00 7C D2 02 00 07 30 00 00

Magnify

Auto off

Brightness Reset Execute BE EF 03 06 00 58 D3 06 00 00 70 00 00

Contrast Reset Execute BE EF 03 06 00 A4 D2 06 00 01 70 00 00

V.Position Reset Execute BE EF 03 06 00 E0 D2 06 00 02 70 00 00

H.Position Reset Execute BE EF 03 06 00 IC D3 06 00 03 70 00 00

H.Size Reset Execute BE EF 03 06 00 68 D2 06 00 04 70 00 00

Color Balance R Reset Execute BE EF 03 06 00 94 D3 06 00 05 70 00 00

Color Balance B Reset Execute BE EF 03 06 00 D0 D3 06 00 06 70 00 00

Sharpness Reset Execute BE EF 03 06 00 C4 D0 06 00 09 70 00 00

Color Reset Execute BE EF 03 06 00 80 D0 06 00 0A 70 00 00

Tint Reset Execute BE EF 03 06 00 7C D1 06 00 0B 70 00 00

Keystone_V Reset Execute BE EF 03 06 00 08 D0 06 00 0C 70 00 00

Keystone_H Reset Execute BE EF 03 06 00 98 D8 06 00 20 70 00 00

Auto Execute BE EF 03 06 00 91 D0 06 00 0A 20 00 00

Blank on/off

Error Status Get

Power

Input Source

Volume

Increment BE EF 03 06 00 1A D2 04 00 07 30 00 00

Decrement BE EF 03 06 00 CB D3 05 00 07 30 00 00

Get BE EF 03 06 00 08 86 02 00 10 31 00 00

Increment BE EF 03 06 00 6E 86 04 00 10 31 00 00

Decrement BE EF 03 06 00 BF 87 05 00 10 31 00 00

off BE EF 03 06 00 FB D8 01 00 20 30 00 00

Set

on BE EF 03 06 00 6B D9 01 00 20 30 01 00

Get BE EF 03 06 00 C8 D8 02 00 20 30 00 00

BE EF 03 06 00 D9 D8 02 00 20 60 00 00

(Example of Return)
00 00 01 00 02 00 03 00
(Normal) (Cover-error) (Fan-error) (Lamp-error)

04 00 05 00 06 00
(Temp-error) (Air flow-error) (Lamp-Time-over)

OFF

Set

ON

Get

RGB1 BE EF 03 06 00 FE D2 01 00 00 20 00 00

RGB2 BE EF 03 06 00 3E D0 01 00 00 20 04 00

Digital BE EF 03 06 00 0E D2 01 00 00 20 03 00

Set

Video BE EF 03 06 00 6E D3 01 00 00 20 01 00

SVideo BE EF 03 06 00 9E D3 01 00 00 20 02 00

Component

Get BE EF 03 06 00 CD D2 02 00 00 20 02 00

Get BE EF 03 06 00 31 D3 02 00 01 20 00 00

Increment BE EF 03 06 00 57 D3 04 00 01 20 00 00

Decrement BE EF 03 06 00 86 D2 05 00 01 20 00 00

BE EF 03 06 00 2A D3 01 00 00 60 00 00
BE EF 03 06 00 BA D2 01 00 00 60 01 00

BE EF 03 06 00 19 D3 02 00 00 60 00 00

BE EF 03 06 00 AE D1 01 00 00 20 05 00

CRC Action Type Setting code

Command data

TECHNICAL - 9

TECHNICAL

TTTTEEEECCCCHHHHNNNNIIIICCCCAAAALLLL((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

))

Command data chart

Names Operation type Header

Normal BE EF 03 06 00 46 D3 01 00 02 20 00 00

Mute

Brightness

Contrast

Color

Balance R

Color

Balance B

Keystone_V

Keystone_H

Aspect

Display

Position at

16 : 9 or Small

V.Position

H.Position

H.Size

H.Phase

Set

Set

Set

Mute BE EF 03 06 00 D6 D2 01 00 02 20 01 00

Get BE EF 03 06 00 75 D3 02 00 02 20 00 00

Get BE EF 03 06 00 89 D2 02 00 03 20 00 00

Increment BE EF 03 06 00 EF D2 04 00 03 20 00 00

Decrement BE EF 03 06 00 3E D3 05 00 03 20 00 00

Get BE EF 03 06 00 FD D3 02 00 04 20 00 00

Increment BE EF 03 06 00 9B D3 04 00 04 20 00 00

Decrement BE EF 03 06 00 4A D2 05 00 04 20 00 00

Get BE EF 03 06 00 01 D2 02 00 05 20 00 00

Increment BE EF 03 06 00 67 D2 04 00 05 20 00 00

Decrement BE EF 03 06 00 B6 D3 05 00 05 20 00 00

Get BE EF 03 06 00 45 D2 02 00 06 20 00 00

Increment BE EF 03 06 00 23 D2 04 00 06 20 00 00

Decrement BE EF 03 06 00 F2 D3 05 00 06 20 00 00

Get BE EF 03 06 00 B9 D3 02 00 07 20 00 00

Increment BE EF 03 06 00 DF D3 04 00 07 20 00 00

Decrement BE EF 03 06 00 0E D2 05 00 07 20 00 00

Get BE EF 03 06 00 E9 D0 02 00 0B 20 00 00

Increment BE EF 03 06 00 8F D0 04 00 0B 20 00 00

Decrement BE EF 03 06 00 5E D1 05 00 0B 20 00 00

4:3 BE EF 03 06 00 9E D0 01 00 08 20 00 00

16:9 BE EF 03 06 00 0E D1 01 00 08 20 01 00

Small BE EF 03 06 00 FE D1 01 00 08 20 02 00

Get BE EF 03 06 00 AD D0 02 00 08 20 00 00

Default BE EF 03 06 00 62 D1 01 00 09 20 00 00

Bottom BE EF 03 06 00 F2 D0 01 00 09 20 01 00

Top BE EF 03 06 00 02 D0 01 00 09 20 02 00

Get BE EF 03 06 00 51 D1 02 00 09 20 00 00

Get BE EF 03 06 00 0D 83 02 00 00 21 00 00

Increment BE EF 03 06 00 6B 83 04 00 00 21 00 00

Decrement BE EF 03 06 00 BA 82 05 00 00 21 00 00

Get BE EF 03 06 00 F1 82 02 00 01 21 00 00

Increment BE EF 03 06 00 97 82 04 00 01 21 00 00

Decrement BE EF 03 06 00 46 83 05 00 01 21 00 00

Get BE EF 03 06 00 B5 82 02 00 02 21 00 00

Increment BE EF 03 06 00 D3 82 04 00 02 21 00 00

Decrement BE EF 03 06 00 02 83 05 00 02 21 00 00

Get BE EF 03 06 00 49 83 02 00 03 21 00 00

Increment BE EF 03 06 00 2F 83 04 00 03 21 00 00

Decrement BE EF 03 06 00 FE 82 05 00 03 21 00 00

CRC Action Type Setting code

Command data

TECHNICAL - 10

TTTTEEEECCCCHHHHNNNNIIIICCCCAAAALLLL((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

))

Command data chart

Names Operation type Header

Get BE EF 03 06 00 F1 72 02 00 01 22 00 00

Sharpness

Color

Tint

Video Format

Video NR

Progressive

Black

HDTV

PinP Size

Increment BE EF 03 06 00 97 72 04 00 01 22 00 00

Decrement BE EF 03 06 00 46 73 05 00 01 22 00 00

Get BE EF 03 06 00 B5 72 02 00 02 22 00 00

Increment BE EF 03 06 00 D3 72 04 00 02 22 00 00

Decrement BE EF 03 06 00 02 73 05 00 02 22 00 00

Get BE EF 03 06 00 49 73 02 00 03 22 00 00

Increment BE EF 03 06 00 2F 73 04 00 03 22 00 00

Decrement BE EF 03 06 00 FE 72 05 00 03 22 00 00

Auto BE EF 03 06 00 9E 75 01 00 00 22 0A 00

NTSC BE EF 03 06 00 FE 71 01 00 00 22 04 00

PAL BE EF 03 06 00 6E 70 01 00 00 22 05 00

Set

Set

Set

Set

Set

Set

SECAM BE EF 03 06 00 6E 75 01 00 00 22 09 00

NTSC 4.43 BE EF 03 06 00 5E 72 01 00 00 22 02 00

M-PAL BE EF 03 06 00 FE 74 01 00 00 22 08 00

N-PAL BE EF 03 06 00 0E 71 01 00 00 22 07 00

Get BE EF 03 06 00 0D 73 02 00 00 22 00 00

off BE EF 03 06 00 B6 73 01 00 06 22 00 00

on BE EF 03 06 00 26 72 01 00 06 22 01 00

Get BE EF 03 06 00 85 73 02 00 06 22 00 00

off BE EF 03 06 00 4A 72 01 00 07 22 00 00

TV BE EF 03 06 00 DA 73 01 00 07 22 01 00

FILM BE EF 03 06 00 2A 73 01 00 07 22 02 00

Get BE EF 03 06 00 79 72 02 00 07 22 00 00

off BE EF 03 06 00 5E 71 01 00 08 22 00 00

on BE EF 03 06 00 CE 70 01 00 08 22 01 00

Get BE EF 03 06 00 6D 71 02 00 08 22 00 00

1080i BE EF 03 06 00 F2 73 01 00 05 22 00 00

1035i BE EF 03 06 00 62 72 01 00 05 22 01 00

Get BE EF 03 06 00 C1 73 02 00 05 22 00 00

off BE EF 03 06 00 FE 22 01 00 00 23 00 00

Large BE EF 03 06 00 6E 23 01 00 00 23 01 00

Small BE EF 03 06 00 9E 23 01 00 00 23 02 00

Get BE EF 03 06 00 Cd 22 02 00 00 23 00 00

Command data

CRC Action Type Setting code

TECHNICAL - 11

TECHNICAL

TTTTEEEECCCCHHHHNNNNIIIICCCCAAAALLLL((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

))

Command data chart

Names Operation type Header

Upper left BE EF 03 06 00 02 23 01 00 01 23 00 00

Upper right BE EF 03 06 00 92 22 01 00 01 23 01 00

Set

PinP Position

PinP Audio ch

PinP Input

FOCUS

Zoom

Sync on G

WHISPER

GAMMA

bottom left BE EF 03 06 00 62 22 01 00 01 23 03 00

bottom right BE EF 03 06 00 F2 23 01 00 01 23 02 00

Get BE EF 03 06 00 31 23 02 00 01 23 00 00

Set

Set

Set

Set

Set

RGB BE EF 03 06 00 BA 22 01 00 03 23 00 00

Video BE EF 03 06 00 2A 23 01 00 03 23 01 00

Get BE EF 03 06 00 89 22 02 00 03 23 00 00

Video BE EF 03 06 00 D6 22 01 00 02 23 01 00

S-Video BE EF 03 06 00 26 22 01 00 02 23 02 00

Component BE EF 03 06 00 16 20 01 00 02 23 05 00

Get BE EF 03 06 00 75 23 02 00 02 23 00 00

Increment BE EF 03 06 00 6A 93 04 00 00 24 00 00

Decrement BE EF 03 06 00 BB 92 05 00 00 24 00 00

Increment BE EF 03 06 00 96 92 04 00 01 24 00 00

Decrement BE EF 03 06 00 47 93 05 00 01 24 00 00

off BE EF 03 06 00 CB D0 01 00 08 30 01 00

on BE EF 03 06 00 5B D1 01 00 08 30 00 00

Get BE EF 03 06 00 68 D1 02 00 08 30 00 00

NORMAL BE EF 03 06 00 3B 23 01 00 00 33 00 00

WHISPER BE EF 03 06 00 AB 22 01 00 00 33 01 00

Get BE EF 03 06 00 08 23 02 00 00 33 00 00

NORMAL BE EF 03 06 00 C7 F0 01 00 A1 30 00 00

CINEMA BE EF 03 06 00 57 F1 01 00 A1 30 01 00

DYNAMIC BE EF 03 06 00 A7 F1 01 00 A1 30 02 00

6500K BE EF 03 06 00 37 F0 01 00 A1 30 03 00

Get BE EF 03 06 00 F4 F0 02 00 A1 30 00 00

Command data

CRC Action Type Setting code

TECHNICAL - 12

REGULATORY NOTICES

REGULATORY NOTICES

FCC Statement Warning

WARNING: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

INSTRUCTIONS TO USERS: This equipment complies with the requirements
of FCC (Federal Communication Commission) equipment provided that the
following conditions are met.
The cables may have to be used with the core set to the projector side. Use
the cables which are included with the projector or specified.

Core

CAUTION: Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.

For the Customers in CANADA

NOTICE: This Class B digital apparatus complies with Canadian ICES-003.

Pour les utilisateurs au Canada

AVIS: Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du
Canada.

REGULATORY NOTICES - 1

DUKANE CORPORATION

FIVE-YEAR LIMITED WARRANTY

This Dukane projector is warranted to the original purchaser for a period of five (5) years from
the original purchase date – in normal operating conditions – against defects in material and
workmanship . DUKANE CORPORATION EXPRESSLY DISCLAIMS ALL OTHER
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

DURING THE WARRANTY PERIOD, DUKANE CORPORATION’S LIABILITY FOR ANY
DEFECTIVE PRODUCT (except for the lamp, which is subject to whatever warranties the
manufacturer may provide) IS LIMITED TO THE REPAIR OR REPLACEMENT OF
PRODUCT AT DUKANE CORPORATION’S OPTION. REPLACEMENT PRODUCTS MAY
BE NEW OR USED (used units will not exceed hours of defective unit). The following are not
covered by the limited warranty and Dukane Corporation shall not be liable for:

1. Any product which is not distributed in the U.S.A. or Canada by Dukane Corporation or an

authorized dealer.

2. Normal decrease in lamp light output over time.

3. Damage, deterioration or malfunction resulting from:

• Accident, misuse, abuse, neglect, improper ventilation, fire, dust, smoke, water, lighting

or other acts of nature, unauthorized product modification, or failure to follow
instructions supplied with the product (including proper maintenance of air filters).

• Repair or attempted repair by anyone other than a Dukane Corporation authorized service

center.

• Any shipment of product (claims must be presented to the carrier).

• Removal or installation of the product.

• Any other causes which do not relate to a product defect.

• Use of the product beyond normal operating conditions. Normal operating conditions are

defined as product use not in excess of 8 hours per day and 260 days per year.

4. Cartons, carry cases, shipping cases, batteries, or any accessories used in connection with the

product.

5. Service required as a result of third party components.

6. Product used as commercial rental units
Dukane corporation will pay labor and material expenses for covered items, but Dukane

Corporation will not pay for the following:

1. Removal or installation charges.

2. Cost of technical adjustment, set-up, maintenance, or adjustment of user controls.

3. Payment of shipping and related charges incurred in returning the product for warranty

repair.

Dukane Corporation disclaims all liability for incidental or consequential damage of any kind,
including all damages arising out of any interruptions in operation of the product and all damages
to software.

No person, firm, or representative is authorized to assume any obligation or to make any warranty
on behalf of the Dukane Corporation other than as stated above.

Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, IL 60174-3395
E-mail: [e-mail]

Audio Visual Products

Phone: [phone]

Orders: [phone]

Fax: [phone]

Parts & Service: [phone]

Fax: [phone]

Part # 401-586-01
