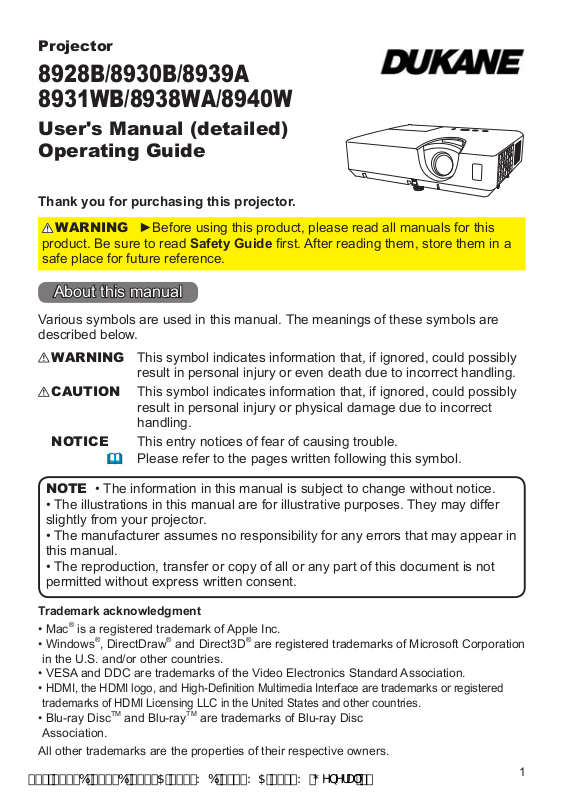

Dukane 8928B, 8930B, 8931WB, 8940W User Manual

Projector

8928B/8930B/8939A
8931WB/8938WA/8940W

User's Manual (detailed)
Operating Guide

Thank you for purchasing this projector.

WARNING

product. Be sure to read Safety Guide rst. After reading them, store them in a
safe place for future reference.

►Before using this product, please read all manuals for this

About this manual

Various symbols are used in this manual. The meanings of these symbols are
described below.

WARNING

CAUTION

NOTICE This entry notices of fear of causing trouble.

NOTE

• The illustrations in this manual are for illustrative purposes. They may differ
slightly from your projector.

• The manufacturer assumes no responsibility for any errors that may appear in
this manual.

• The reproduction, transfer or copy of all or any part of this document is not
permitted without express written consent.

Trademark acknowledgment

• Mac® is a registered trademark of Apple Inc.

• Windows
in the U.S. and/or other countries.

• VESA and DDC are trademarks of the Video Electronics Standard Association.

•

HDMI, the HDMI logo, and High-Denition Multimedia Interface are trademarks or registered

trademarks of HDMI Licensing LLC in the United States and other countries.

• Blu-ray DiscTM and Blu-rayTM are trademarks of Blu-ray Disc
Association.

All other trademarks are the properties of their respective owners.

%%$:%:$:*HQHUDO

• The information in this manual is subject to change without notice.

®

This symbol indicates information that, if ignored, could possibly
result in personal injury or even death due to incorrect handling.

This symbol indicates information that, if ignored, could possibly
result in personal injury or physical damage due to incorrect
handling.

Please refer to the pages written following this symbol.



, DirectDraw® and Direct3D® are registered trademarks of Microsoft Corporation

1

Contents



Introduction ...............3

Features ...................... 3

Checking the contents of package

...3

Part names ....................4

Setting up .................7

Arrangement ...................7

Connecting with your devices
Connecting to a power supply

Fastening the adapter cover ......

.....10

.....16

17

Using the security bar and slot ....17

Remote control ............18

Installing the batteries ...........18

About the remote control signal ...19
Changing the frequency of remote

control signal ..................19

Using as a simple PC mouse & keyboard

. . 20

Power on/off ..............21

Turning on the power ...........21

Turning off the power ...........22

Operating ................23

Adjusting the volume ............23

Temporarily muting the sound .....23

Selecting an input signal .........24

Searching an input signal ........25

Selecting an aspect ratio .........26

Adjusting the projector's elevator . . 27

Adjusting the zoom and focus .....27

Using the automatic adjustment feature

...28

Adjusting the position ........... 28

Correcting the keystone/perfect t distortions

. . 29

Using the magnify feature ........30

Temporarily freezing the screen ...31
Temporarily blanking the screen . . 31

Using the menu function ........32

EASY MENU. . . . . . . . . . . . . . . 34

Aspect, Auto keystone, k

keystone, perfect fit,picture mode,
eco mode, instAllAtion, reset, filter time,
l

AnguAge, AdvAnced menu, exit

eystone

,

PICTURE menu ............36

Brightness, contrAst, hdcr,
A

ccentuAlizer, gAmmA, color temp,

color, tint, shArpness, Active iris, my memory

IMAGE menu ..............40

Aspect, over scAn, v position, h position,
h phAse, h size, Auto Adjust execute

INPUT menu ..............43

progressive, video nr, color spAce,
video formAt, hdmi formAt, hdmi rAnge,



computer in, frAme lock, resolution

SETUP menu ..............47

Auto keystone,
p

erfect fit, lAmp & filter, imAge optimizer,

instAllAtion, stAndBy mode

k

eystone,

keystone,

AUDIO menu ..............52

volume, speAker, Audio source,
m

ic level, mic volume

SCREEN menu .............53

lAnguAge, menu position, BlAnk,
Auto BlAnk, stArt up,

M

yScreen Lock

t

emplAte, c.c.

, messAge, source nAme,

M

yScreen

,

OPTION menu .............59

Auto seArch, Auto keystone,
d

irect power on, Auto power off,

m

y Button, my source, schedule, service

NETWORK menu ...........73

SECURITY menu ...........74

security pAssword chAnge,

M

trAnsition detector, my text pAssword,
my text displAy, my text writing,
cloning lock

pAssword, pin lock,

yScreen

Presentation tools .........80

PC-LESS Presentation

USB Display
USB Display

(Windows computer)

(Mac computer)

...........80

......90

........94

Maintenance ..............98

Replacing the lamp .............98

Cleaning and replacing the air lter . 100

Other care ...................102

Troubleshooting ..........103

Related messages ............103

Regarding the indicator lamps ...105

Resetting all settings ...........108

Phenomena that may be easy
to be mistaken for machine defects

. . 108

Specications ............113

2

Introduction

Introduction

Features

The projector provides you with the broad use by the following features.
ü This projector has a variety of I/O ports that supposedly cover for any

business scene. The HDMI port can support various image equipment which
have digital interface to get clearer pictures on a screen. This model has two
HDMI ports.

ü If you insert a USB storage device, such as a USB memory, into the USB

TYPE A port and select the port as the input source, you can view images

stored in the device.

ü This projector can be controlled and monitored via LAN connection.

Furthermore, you can use the designated USB wireless adapter (optional) to
establish wireless LAN connection.

ü The built-in 16W speaker can deliver sufcient sound volume in a large space

like a classroom without external speakers.

ü Has an HDCR and an ACCENTUALIZER features which are Dukane’s original

image stabilizer for a clearer image.

ü Equipped with IMAGE OPTIMIZER which is Dukane’s original function to

maintain visibility by automatic image correction in accordance with lamp
deterioration.

Checking the contents of package

Please see the Contents of package section in the User’s Manual (concise)
which is a book. Your projector should come with the items shown there. Require
of your dealer immediately if any items are missing.

WARNING

not to put in the mouth. If swallowed, consult a physician immediately for
emergency treatment.

NOTE

• Keep the original packing materials, for future reshipment. Be sure
to use the original packing materials when moving the projector. Use special
caution for the lens.

• The projector may make a rattling sound when tilted, moved or shaken, since
a ap to control the air ow inside of the projector has moved. Be aware that
this is not a failure or malfunction.

Note: The Dukane models described in this document are manufactured by Hitachi

and use the same rmware, software programs, control code, and accessory parts.

The equivalent Dukane to Hitachi models are; 8928B ( CP-X2541WN), 8930B
(CP-X3041WN), 8939A (CP-X4041WN), 8931WB (CP-WX3041WN), 8938WA
(CP-WX3541WN), and 8940W (CP-WX4041WN).

►Keep small parts away from children and pets. Take care

3

Introduction

Part names

(1) Lamp cover (98)

The lamp unit is inside.
(2) Speaker (
(3) Filter cover (100)

The air lter and intake vent are inside.
(4) Elevator feet (x2) (27)
(5) Elevator button (27)
(6) Remote sensor (19)
(7) Lens (102)
(8) Lens cover
(9) Intake vents
(10) Control panel (5)
(11) FOCUS ring (27)
(12) ZOOM ring (27)
(13) AC (AC inlet) (16)
(14) Exhaust vent
(15) Rear panel (5)

23, 52)

(10)

(13)

(8)

(4)(5)

(15) (9)

(12)

(11)

(2)

(3)
(9)

(6)

(7)

(1)

(14)

(4)

WARNING

►Do not open or remove any portion of the product, unless the
manuals direct it.
►Do not subject the projector to unstable conditions.
►Do not apply a shock or pressure to this product.
►Do not look into the lens and the openings on the projector while the lamp is
on, since the projection ray may cause a trouble on your eyes.
►Keep any object away from concentrated projection light beam. Blocking the
beam by something causes high temperature and could result in re or smoke.

CAUTION

►Do not touch around the lamp cover and the exhaust
vents during use or just after use, since it is too hot.
►Do not attach anything onto the lens because it could damage the lens,
such as melting the lens.
►Do not attach anything onto the lens except the lens cover of this projector
because it could damage the lens, such as melting the lens.

(continued on next page)

4

Part names (continued)

Control panel

(1) STANDBY/ON button (

21)
(2) INPUT button (24)
(3) MENU button (32)
(4) LAMP indicator (105)
(5) TEMP indicator (105)
(6) POWER indicator (105)

Introduction

(4)(5)

(1) (3)(2) (6)

Rear panel (

10 ~ 15)

(1) LAN port
(2) USB TYPE A port (x2)
(3) USB TYPE B port
(4) HDMI port (x2)
(5) MIC port (

15)
(6) AUDIO IN1 port
(7) AUDIO IN2 port
(8) AUDIO IN3 (R,L) ports
(9) AUDIO OUT port
(10) COMPUTER IN1 port

(1)

(11) COMPUTER IN2 / MONITOR OUT port
(12) CONTROL port
(13) VIDEO port
(14) Security slot (17)
(15) Security bar (17)

(4)(3)(2) (8)

(10) (15)

(10)

(15)

(continued on next page)

(6) (7)

(9)

(5) (14)(13) (12)(11)

5

Introduction

Part names (continued)

Remote control

(1) VIDEO button (

24)
(2) COMPUTER button (24)
(3) SEARCH button (25)
(4) STANDBY/ON button (21)
(5) ASPECT button (26)
(6) AUTO button (28)
(7) BLANK button (31)
(8) MAGNIFY - ON button (30)
(9) MAGNIFY - OFF button (30)
(10) MY SOURCE/DOC.CAMERA button

(25, 62)
(11) VOLUME - button (23)
(12) PAGE UP button (20)
(13) PAGE DOWN button (20)
(14) VOLUME + button (23)
(15) MUTE button (23)
(16) FREEZE button (31)
(17) MY BUTTON - 1 button (61, 62)
(18) MY BUTTON - 2 button (61, 62)
(19) KEYSTONE button (29)
(20) POSITION button (28, 32)
(21) MENU button (32)
(22) ▲/▼/◄/► cursor buttons (32)
(23) ENTER button (32)
(24) ESC button (32)
(25) RESET button (32)
(26) Battery cover (18)

(2)
(1)
(6)
(5)
(16)
(8)
(9)
(19)
(17)
(20)

ON

OFF

KEYSTONE

POSITION

(22)

(24)

the remote control

MY SOURCE/

VIDEO

COMPUTER

DOC.CAMERA

ASPECT

AUTO

SEARCH

BLANK

FREEZE

MAGNIFY

PAGE

VOLUME

UP

㧗

DOWN

࡯

MY BUTTON

MUTE





MENU

ENTER

ESC

RESET

B a c k o f

(10)
(4)
(3)
(7)
(12)
(14)
(11)
(13)
(15)
(18)
(21)
(23)
(25)

(26)

6

Setting up

Setting up

Install the projector according to the environment and manner the projector will be
used in.

For the case of installation in a special state such as ceiling mount, the specied
mounting accessories (
service may be required. Before installing the projector, consult your dealer about
your installation.

Specications in the User’s Manual (concise)) and

Arrangement

Refer to tables T-1 to T-4 and gures F-1 and F-2 at the end of User’s Manual
(concise) to determine the screen size and projection distance.
The values shown in the table are calculated for a full size screen.

a Screen size (diagonal)
b Projection distance (±10%, from the projector’s end)
c1 , c2 Screen height (±10%)

• If the projector is used at an altitude of about 1600 m (5250 feet) or higher,

set ALTITUDE of the SERVICE item in the OPTION menu to HIGH (
Otherwise, set it to NORMAL. If the projector is used with a wrong setting, it may
cause damage to the projector itself or the parts inside.

NOTE

suspended from the ceiling or other location due to the exibility of the plastic
projector body. If readjustment is necessary, consult with your dealer or service
personnel.

(continued on next page)

• The screen position may shift after installation if the projector is

66).

7

Setting up

Arrangement (continued)

WARNING

►Install the projector where you can access the power

outlet easily. If an abnormality should occur, unplug the projector urgently.

Otherwise it could cause a re or electric shock.
►Do not subject the projector to unstable conditions. If the projector falls
or topples over, it could result in injury or damage to the projector and the
surrounding things. Using a damaged projector could result in a re and an
electric shock.

• Do not place the projector in unstable places, such as an inclined surface,
places subject to vibration, on top of a wobbly table or cart, or a surface that is
smaller than the projector.

• Do not put the projector on its side, front or rear position.

• Do not attach nor place anything on the projector unless otherwise specied in
the manual.

• Do not use any mounting accessories except the accessories specied by the
manufacturer. Read and keep the manuals of the accessories used.

• For special installation such as ceiling mounting, be sure to consult your dealer

beforehand.

►

Do not install the projector near thermally conductive or ammable

things. Such things when heated by the projector could result in a re and burns.

• Do not place the projector on a metal stand.

►Do not place the projector where any oils, such as cooking or machine
oil, are used. Oil may harm the product, resulting in malfunction, or falling from
the mounted position.
►Do not place the projector in a place where it may get wet. Getting the
projector wet or inserting liquid into the projector could cause a re and an
electric shock, and damage the projector.

• Do not place the projector near water, such as in a bathroom, kitchen, or
poolside.

• Do not place the projector outdoors or by the window.

• Do not place anything containing liquid near the projector.

(continued on next page)

8

Arrangement (continued)

Setting up

CAUTION

►Place the projector in a cool place with sufcient
ventilation. The projector may shutdown automatically or may malfunction if its
internal temperature is too high.
Using a damaged projector could result in a re and an electric shock.

• Do not place the projector in direct sunlight or near hot objects such as heaters.

• Do not place the projector where the air from an air conditioner or similar unit

will blow on it directly.

• Keep a space of 30 cm or more between a side of the projector and other

objects such as walls.

• Do not place the projector on carpet, cushions or bedding.

• Do not stop up, block nor cover the projector's vent holes. Do not place

anything around the projector that could be sucked in or stuck to the projector's
intake vents.

• Do not place the projector at places that are exposed to magnetic elds, doing

so can cause the cooling fans inside the projector to malfunction.
►Avoid placing the projector in smoky, humid or dusty place. Placing the
projector in such places could cause a re, an electric shock and malfunction of
the projector.

• Do not place the projector near humidiers. Especially for an ultrasonic

humidier, chlorine and minerals contained in tap water are atomized and could

be deposited in the projector causing image degradation or other problems.

NOTICE

• Do not place the projector in a smoking area, kitchen, passageway

or by the window.

• Position the projector to prevent light from directly hitting the projector's remote
sensor.

• Do not place the product in a place where radio interference may be caused.

• Check and correct the setting for ALTITUDE of SERVICE in the OPTION menu
according to the usage environment (

66). If the projector is used with a wrong

setting, it may cause damage to the projector itself or the parts inside.

• Keep heat-sensitive things away from the projector. Otherwise, they may be
damaged by the heat from the projector.

9

Setting up

Connecting with your devices

Before connecting the projector to a device, consult the manual of the device to
conrm that the device is suitable for connecting with this projector and prepare
the required accessories, such as a cable in accord with the signal of the device.
Consult your dealer when the required accessory did not come with the product or
the accessory is damaged.
After making sure that the projector and the devices are turned off, perform
the connection, according to the following instructions. Refer to the gures in
subsequent pages.
Before connecting the projector to a network system, be sure to read Network
Guide too.

WARNING

►Use only the appropriate accessories. Otherwise it could

cause a re or damage the projector and devices.

• Use only the accessories specied or recommended by the projector’s

manufacturer. It may be regulated under some standard.

• Neither disassemble nor modify the projector and the accessories.

• Do not use the damaged accessory. Be careful not to damage the accessories.

Route a cable so that it is neither stepped on nor pinched out.

CAUTION

►For a cable with a core at only one end, connect the end

with the core to the projector. That may be required by EMI regulations.

NOTE

• Do not turn on or off the projector while connected to a device in
operation, unless that is directed in the manual of the device. Otherwise it may
cause malfunction in the device or projector.

• The function of some input ports can be selected according to your usage
requirements. Check the reference page indicated beside each port in the
following illustration.

• Be careful not to mistakenly connect a connector to a wrong port. Otherwise it
may cause malfunction in the device or projector.

- When connecting a connector to a port, make sure that the shape of the

connector ts the port.

- Tighten the screws to connect a connector equipped with screws to a port.

- Use the cables with straight plugs, not L-shaped ones, as the input ports of

the projector are recessed.

(continued on next page)

10

Setting up

Connecting with your devices (continued)

About Plug-and-Play capability

• Plug-and-Play is a system composed of a computer, its operating system
and peripheral equipment (i.e. display devices). This projector is VESA DDC
2B compatible. Plug-and-Play can be used by connecting this projector to a
computer that is VESA DDC (display data channel) compatible.

- Take advantage of this feature by connecting a computer cable to the

COMPUTER IN1 port (DDC 2B compatible). Plug-and-Play may not work
properly if any other type of connection is attempted.

- Please use the standard drivers in your computer as this projector is a Plug-

and-Play monitor.

(continued on next page)

11

Setting up

Connecting with your devices (continued)

Computer

NOTE

• Before connecting the projector to a computer, consult the computer’s
manual and check the compatibility of the signal level, the synchronization
methods and the display resolution output to the projector.

- Some signal may need an adapter to input this projector.

- Some computers have multiple screen display modes that may include some

signals which are not supported by this projector.

- Although the projector can display signals with resolution up to UXGA

(1600x1200), the signal will be converted to the projector’s panel resolution
before being displayed. The best display performance will be achieved if the
resolutions of the input signal and the projector panel are identical.

• If you connect this projector and a notebook computer, you need output the
display to an external monitor, or output simultaneously to the internal display
and an external monitor. Consult the computer's manual for the setting.

• Depending on the input signal, the automatic adjustment function of this
projector may take some time and not function correctly.

- Note that a composite sync signal or sync-on-green signal may confuse the

automatic adjustment function of this projector (28).

- If the automatic adjustment function does not work correctly, you may not see

the dialog to set the display resolution. In such a case, use an external display
device. You may be able to see the dialog and set an appropriate display
resolution.

(continued on next page)

12

Connecting with your devices (continued)

Setting up

USB

wireless

adapter

(optional)

USB

storage

device

CAUTION

Computer

Access

point

► Before connecting the projector to a network system be sure

External device

to obtain the consent of the administrator of the network.
►Do not connect the LAN port to any network that might have the excessive
voltage.
►The designated USB wireless adapter that is sold as an option is required to
use the wireless network function of this projector.
►Before removing the USB storage device from the port of the projector, be
sure to use the REMOVE USB function on the thumbnail screen to secure your
data (83).
►Do not use any extension cable or device when connecting the adapter to the
projector. Before you insert or pull out the USB wireless adapter from the projec­tor, turn off the power of the projector and pull out the power cord’s plug from the
outlet. Do not touch the USB wireless adapter while the projector is receiving AC
power.
►To connect both the LAN cable and USB device to the projector, use a LAN
cable that is  at on the side where the plug’s wire is visible. Otherwise, both of
them cannot be connected correctly, or the wire may break (malfunction).

NOTE

• If an oversized USB storage device blocks the LAN port, use a USB
extension cable to connect the USB storage device.

(continued on next page)

13

Setting up

Connecting with your devices (continued)

VCR/DVD/Blu-ray DiscTM player

NOTE

• The HDMI port of this model is compatible with HDCP (High-band­width Digital Content Protection) and therefore capable of displaying a video
signal from HDCP compatible DVD players or the like.

- The HDMI supports the following signals.

Video signal : 480i@60, 480p@60, 576i@50, 576p@50, 720p@50/60,

1080i@50/60, 1080p@50/60

Audio signal : Format Linear PCM

Sampling frequency 48kHz / 44.1kHz / 32kHz

- This projector can be connected with another equipment that has HDMITM

connector, but with some equipment the projector may not work properly,
something like no video.

- Be sure to use an HDMITM cable that has the HDMITM logo.

- Use a Category 2-certi ed HDMITM cable to input 1080p@50/60 signal to the

projector.

- When the projector is connected with a device having DVI connector, use a

DVI to HDMITM cable to connect with the HDMI input.

(continued on next page)

14

Connecting with your devices (continued)

Speakers

Monitor

RGB IN

(with an ampli er)

Setting up

Mic

NOTE

• If a loud feedback noise is produced from the speaker, move the
microphone away from the speaker.

Microphone function

•

You can connect a dynamic microphone to the MIC port with a 3.5 mm mini-plug.
In that case, the built-in speaker outputs the sound from the microphone, even
while the sound from the projector is output. You can input line level signal to
the MIC port from equipment such as wireless microphone. Select HIGH in the
MIC LEVEL item of the AUDIO menu when you input line level audio signal to
the MIC port. In the normal mode, the volume of the microphone can be adjusted
separately from the volume of the projector using the menu (52). In the standby
mode, the volume of the microphone is adjustable with the VOLUME +/- buttons
on the remote control, in synchronization with the volume of the projector (23).
Even when the sound of projector is set to mute mode by the AUDIO SOURCE
function (52), the volume of the microphone is adjustable.
In both modes (standby or normal), the MUTE button on the remote control
works on the sounds of the microphone and the projector (23).

• This projector doesn't support plug-in power for the microphone.

15

Setting up

Connecting to a power supply

Put the connector of the power cord into the

1.

AC (AC inlet) of the projector.
Firmly plug the power cord’s plug into the

2.

outlet. In a couple of seconds after the
power supply connection, the POWER
indicator will light up in steady orange.

Please remember that when the DIRECT POWER
ON function activated (59), the connection of the
power supply make the projector turn on.

AC

Power
cord

WARNING

incorrect or faulty connections may result in re and/or electrical shock.

• Do not touch the power cord with a wet hand.

• Only use the power cord that came with the projector. If it is damaged, consult
your dealer to get a new one. Never modify the power cord.

• Only plug the power cord into an outlet whose voltage is matched to the power
cord. The power outlet should be close to the projector and easily accessible.
Remove the power cord for complete separation.

• Do not distribute the power supply to multiple devices. Doing so may overload
the outlet and connectors, loosen the connection, or result in re, electric shock
or other accidents.

• Connect the ground terminal for the AC inlet of this unit to the ground terminal
of the building using an appropriate power cord (bundled).

NOTICE

phase voltage of 220 to 240 V.

►Please use extra caution when connecting the power cord, as

►This product is also designed for IT power systems with a phase-to-

16

Fastening the adapter cover

Use the supplied adapter cover to
prevent the USB wireless adapter from
coming off easily.

Loosen the screw (marked with

1.

triangle) on the bottom left of the

USB TYPE A port.

Insert the tab of the cover into the

2.

hole at the upper right of the USB
TYPE A port in the direction of the
arrow.

Align the screw holes on the

3.

projector and the cover. Then
insert the screw removed from the
projector into the hole and tighten
the screw.

Setting up

1

2

3

Tab

WARNING

to put in the mouth.

Using the security bar and slot

A commercially available anti-theft chain or
wire can be attached to the security bar on
the projector. Refer to the  gure to choose
an anti-theft chain or wire.
Also this product has the security slot for
the Kensington lock.
For details, see the manual of the security
tool.

WARNING

from falling down, since it is not designed for it.

CAUTION

It may become too hot.

NOTE

measures. It is intended to be used as supplemental theft prevention measure.

• The security bar and slot is not comprehensive theft prevention

►Keep small parts away from children and pets. Take care not

Security slot

12.2mm

18.6mm

18.0mm

Anti-theft

chain or wire

►Do not use the security bar and slot to prevent the projector

►Do not place anti-theft chain or wire near the exhaust vents.

security bar

17

Remote control

Remote control

Installing the batteries

Please insert the batteries into the remote control before using it. If the remote control
starts to malfunction, try to replace the batteries. If you will not use the remote control for
long period, remove the batteries from the remote control and store them in a safe place.

Remove the battery cover.

1.

Align and insert the two AA batteries

2.

(HITACHI MAXELL, Part No.LR6 or R6P)
according to their plus and minus terminals as
indicated in the remote control.

Put the battery cover back to the former state.

3.

WARNING

directed. Improper use may result in battery explosion, cracking or leakage,
which could result in re, injury and/or pollution of the surrounding environment.

• Be sure to use only the batteries specied. Do not use batteries of different
types at the same time. Do not mix a new battery with used one.

•

Make sure the plus and minus terminals are correctly aligned when loading a battery.

• Keep a battery away from children and pets.

• Do not recharge, short circuit, solder or disassemble a battery.

•

Do not place a battery in a re or water. Keep batteries in a dark, cool and dry place.

•

If you observe battery leakage, wipe out the leakage and then replace a battery.

If the leakage adheres to your body or clothes, rinse well with water immediately.

• Obey the local laws on disposing the battery.

►Always handle the batteries with care and use them only as

18

Remote control

About the remote control signal

The remote control works with the projector’s remote
sensor. This projector has a remote sensor on the front.
The sensor senses the signal within the following range
when the sensor is active:

60 degrees (30 degrees to the left and right of the sensor)
within 3 meters about.

•

NOTE

The remote control signal re ected in the screen or the like may be available.

(approx.)

If it is dif cult to send the signal to the sensor directly, attempt to make the signal re ect.

• The remote control uses infrared light to send signals to the projector (Class 1
LED), so be sure to use the remote control in an area free from obstacles that
could block the remote control’s signal to the projector.

•

The remote control may not work correctly if strong light (such as direct sun
light) or light from an extremely close range (such as from an inverter  uorescent
lamp) shines on the remote sensor of the projector. Adjust the position of
projector avoiding those lights.

Changing the frequency of remote control signal

The accessory remote control has the two choices on signal
frequency Mode 1:NORMAL and Mode 2:HIGH. If the remote control
does not function properly, attempt to change the signal frequency.
In order to set the Mode, please keep pressing the combination of
two buttons listed below simultaneously for about 3 seconds.

(1) Set to Mode 1:NORMAL... VOLUME - and RESET buttons
(2) Set to Mode 2:HIGH... MAGNIFY OFF and ESC buttons

Please remember that the REMOTE FREQ. in the SERVICE item of

(67)

the OPTION menu

of the projector to be controlled should be

set to the same mode as the remote control.

(2)

MY SOURCE/

VIDEO

COMPUTER

DOC.CAMERA

ASPECT

AUTO

SEARCH

BLANK

FREEZE

MAGNIFY

PAGE

VOLUME

UP

ON

OFF

KEYSTONE

POSITION

ESC

㧗

DOWN

࡯

MY BUTTON

MUTE





MENU

ENTER

RESET

(1)

19

Remote control

Using as a simple PC mouse & keyboard

The accessory remote control works as a simple mouse
and keyboard of the computer, when the projector’s USB
TYPE B port and the computer’s type A USB port are
connected.

(1) PAGE UP key: Press PAGE UP button.
(2) PAGE DOWN key: Press PAGE DOWN button.
(3) Mouse left button: Press ENTER button.
(4) Move pointer: Use the cursor buttons ▲, ▼, ◄ and ►.
(5) ESC key: Press ESC button.
(6) Mouse right button: Press RESET button.

NOTICE

►Improper use of the simple mouse & keyboard
function could damage your equipment. While using this
function, please connect this product only to a computer. Be

USB TYPE B
port

(3)

(5)

ON

OFF

KEYSTONE

POSITION

VIDEO

ASPECT

MAGNIFY

MY SOURCE/

COMPUTER

DOC.CAMERA

AUTO

SEARCH

BLANK

FREEZE

PAGE

VOLUME

UP

＋

DOWN

ー

MY BUTTON

MUTE

2

1

MENU

ENTER

ESC

RESET

sure to check your computer’s manuals before connecting this
product to the computer.

NOTE

When the simple mouse & keyboard function of this product does not work

correctly, please check the following.

• When a USB cable connects this projector with a computer having a built-in pointing
device (e.g. track ball) like a laptop computer, open BIOS setup menu, then select the
external mouse and disable the built-in pointing device, because the built-in pointing
device may have priority to this function.

Windows XP SP3 or higher is required for this function. And also this function may not work

•
depending on the computer’s con gurations and mouse drivers. This function can work with the
computer which can operate general USB mouse or keyboard.

• You cannot do things like press two buttons at once (for instance, pressing two buttons
at the same time to move the mouse pointer diagonally).

This function is activated only when the projector is working properly. This function is not

•
available in any of the following cases:

- While the lamp is warming up. (The POWER indicator blinks in green.)

- When either USB TYPE A or USB TYPE B port is selected.

- While displaying BLANK

, TEMPLATE

(57)

or MY IMAGE screen.

(53)

- When any menu is displayed on the screen.
While using the cursor buttons to operate the sound or screen functions such as adjusting the

-

sound volume, correcting the keystone, correcting the picture position and magnifying the screen.

(1)

(2)

(4)

(6)

20

Power on/off

Power on/off

STANDBY/ON button

Turning on the power

Make sure that the power cord is rmly and

1.

correctly connected to the projector and the
outlet.

Make sure that the POWER indicator is

2.

steady orange (105). Then remove the
lens cover.

Press STANDBY/ON button on the

3.

projector or the remote control.
The projection lamp will light up and POWER
indicator will begin blinking in green. When the
power is completely on, the indicator will stop blinking and light in steady
green (105).

To display the picture, select an input signal according to the section Selecting an
input signal (24).

The INITIAL SETTING Menu will be displayed by factory default upon startup.
Once the INITIAL SETTING Menu is set, it will not appear until FACTORY RESET

(72) is executed. If you wish to change the settings, refer to the LANGUAGE
(53) and ALTITUDE (66) menu.

(1) LANGUAGE: Use the ▲/▼/◄/►

buttons to select the desired language
and press the ENTER button of the
remote control or the INPUT button of
the projector to execute.

VIDEO

POWER indicator

MY SOURCE/
DOC.CAMERA

COMPUTER

BLANK

SEARCH

＋

VOLUME

AUTO

PAGE

UP

ASPECT

ー

FREEZE

MAGNIFY

DOWN

ON

MUTE

2

OFF

MY BUTTON

1

KEYSTONE

MENU

POSITION

ENTER

RESET

ESC

(2) ALTITUDE: Use the ▲/▼ buttons to

select NORMAL for altitude below 1600
m (5250 feet), otherwise select HIGH
and press the ENTER button of the
remote control or the INPUT button of
the projector to execute.

21

Power on/off

Turning off the power

Press the STANDBY/ON button on the projector or the remote control.

1.

The message “Power off?” will appear on the screen for about 5 seconds.

Press the STANDBY/ON button again while the message appears.

2.

The projector lamp will go off, and the POWER indicator will begin blinking in
orange. Then POWER indicator will stop blinking and light in steady orange
when the lamp cooling is complete (105).

Attach the lens cover, after the POWER indicator turns in steady orange.

3.

Do not turn the projector on for about 10 minutes or more after turning it off.
Also, do not turn the projector off shortly after turning it on. Such operations might
cause the lamp to malfunction or shorten the lifetime of some parts including the lamp.

WARNING

Do not look into the lens of the projector or look inside of the projector through
any of the projector’s openings, since the projection ray may cause a trouble on
your eyes.
►Do not touch around the lamp cover and the exhaust vents during use or just
after use, since it is too hot.

NOTE

prior to the connected devices.

• This projector has the function that can make the projector automatically turn

on/off. Please refer to the DIRECT POWER ON (59) and AUTO POWER
OFF (60) items of the OPTION menu.

• Turn the power on/off in right order. Please power on the projector

►A strong light is emitted when the projector’s power is on.

22

Operating

Operating

Adjusting the volume

Use the VOLUME +/VOLUME - buttons to adjust the volume.

1.

A dialog will appear on the screen to aid you in adjusting the
volume. If you do not do anything, the dialog will automatically
disappear after ten seconds.

● When

is selected for current picture input port, the volume

VOLUME +/- button

VIDEO

ASPECT

MAGNIFY

ON

OFF

KEYSTONE

adjustment is disabled. Please see AUDIO SOURCE item of AUDIO menu
(52).

● Even if the projector is in the standby mode, the volume is adjustable when

both of the following conditions are true:

- An option other than is selected for STANDBY in the AUDIO SOURCE
item of the AUDIO menu (52).

-

NORMAL is selected in the STANDBY MODE item of the SETUP menu

● In the standby mode, the volume of the microphone is adjustable with the
VOLUME +/- buttons on the remote control, in synchronization with the volume
of the projector.

Temporarily muting the sound

Press MUTE button on the remote control.

1.

A dialog will appear on the screen indicating that you have muted
the sound.
To restore the sound, press the MUTE, VOLUME + or

VOLUME - button. Even if you do not do anything, the dialog

MUTE button

VIDEO

ASPECT

MAGNIFY

ON

OFF

KEYSTONE

will automatically disappear after ten seconds.

MY SOURCE/

COMPUTER

DOC.CAMERA

AUTO

SEARCH

FREEZE

PAGE

UP

DOWN

MY BUTTON

2

1

(51).

MY SOURCE/

COMPUTER

DOC.CAMERA

AUTO

SEARCH

FREEZE

PAGE

UP

DOWN

MY BUTTON

2

1

BLANK

BLANK

VOLUME

MUTE

VOLUME

MUTE

＋

ー

＋

ー

● When is selected for current picture input port, the sound is always muted.
Please see AUDIO SOURCE item of AUDIO menu (52).

● C.C. (Closed Caption) is automatically activated when sound is muted and
an input signal containing C.C. is received. This function is available only
when the signal is NTSC for VIDEO or 480i@60 for COMPUTER IN1 or
COMPUTER IN2, and when AUTO is selected for DISPLAY in the C.C. menu
under the SCREEN menu (58).

23

Operating

Selecting an input signal

Press INPUT button on the projector.

1.

Each time you press the button, the projector switches its
input port from the current port as below.

COMPUTER IN1  COMPUTER IN2  LAN

VIDEO USB TYPE A

HDMI2 USB TYPE B

HDMI1

● While ON is selected for AUTO SEARCH item in OPTION menu (59), the
projector will keep checking the ports in above order repeatedly till an input
signal is detected.

● It may take several seconds to project the images from the USB TYPE B port.

Press COMPUTER button on the remote control.

1.

Each time you press the button, the projector switches its
input port from the current port as below.

COMPUTER IN1  COMPUTER IN2  LAN
USB TYPE B  USB TYPE A

●

While ON is selected for AUTO SEARCH item in OPTION menu, the
projector will keep checking every port sequentially till an input signal is detected
(59). If COMPUTER button is pressed when VIDEO, HDMI1 or HDMI2 port is
selected, the projector will check COMPUTER IN1 port  rst.

●

It may take several seconds to project the images from the USB TYPE B port.

Press VIDEO button on the remote control.

1.

Each time you press the button, the projector switches its

input port from the current port as below.

HDMI1  HDMI2  VIDEO

● While ON is selected for AUTO SEARCH item in OPTION menu,
the projector will keep checking every port sequentially till an input signal
is detected (

59). If VIDEO button is pressed when COMPUTER IN1,
COMPUTER IN2, LAN, USB TYPE A or USB TYPE B port is selected, the
projector will check HDMI1 port  rst.

INPUT

button

COMPUTER button

VIDEO

COMPUTER

ASPECT

AUTO

FREEZE

MAGNIFY

ON

OFF

MY BUTTON

VIDEO button

VIDEO

COMPUTER

ASPECT

AUTO

FREEZE

MAGNIFY

ON

OFF

MY BUTTON

MY SOURCE/
DOC.CAMERA

SEARCH

PAGE

UP

DOWN

MY SOURCE/
DOC.CAMERA

SEARCH

PAGE

UP

DOWN

BLANK

BLANK

VOLUME

VOLUME

＋

ー

＋

ー

24

Selecting an input signal(continued)

Operating

Press the MY SOURCE / DOC. CAMERA button on

1.

the remote control. The input signal will be changed
into the signal you set as MY SOURCE (62).

● This function also can use for document camera. Select the
input port that connected the document camera.

MY SOURCE /
DOC. CAMERA button

VIDEO

COMPUTER

ASPECT

FREEZE

MAGNIFY

ON

OFF

Searching an input signal

Press SEARCH button on the remote control.

1.

The projector will start to check its input ports as below in
order to  nd any input signals.
When input signal is detected, the projector will stop
searching and display the image. If no signal is found,
the projector will return to the state selected before the
operation.

COMPUTER IN1  COMPUTER IN2  LAN

VIDEO USB TYPE A

HDMI2 USB TYPE B

HDMI1

● While ON is selected for AUTO SEARCH item in OPTION menu (59), the
projector will keep checking the ports in above order repeatedly till an input
signal is detected.

●

It may take several seconds to project the images from the USB TYPE B port.

SEARCH button

VIDEO

COMPUTER

ASPECT

AUTO

FREEZE

MAGNIFY

ON

OFF

MY BUTTON

KEYSTONE

1

AUTO

MY BUTTON

MY SOURCE/
DOC.CAMERA

SEARCH

MY SOURCE/

DOC.CAMERA

SEARCH

PAGE

DOWN

BLANK

PAGE

VOLUME

UP

＋

DOWN

ー

BLANK

VOLUME

UP

＋

ー

MUTE

2

25

Operating

Selecting an aspect ratio

Press ASPECT button on the remote control.

1.

Each time you press the button, the projector switches the
mode for aspect ratio in turn.

 For a computer signal

8928B/8930B/8939A:
NORMAL  4:3  16:9  16:10

8931WB/8938WA/8940W:
NORMAL  4:3  16:9  16:10  NATIVE

 For an HDMITM signal

8928B/8930B/8939A:
NORMAL  4:3  16:9  16:10  14:9

8931WB/8938WA/8940W:
NORMAL  4:3  16:9  16:10  14:9  NATIVE

 For a video signal or component video signal

8928B/8930B/8939A:

4:3  16:9  14:9

8931WB/8938WA/8940W:
4:3  16:9  16:10  14:9  NATIVE

ASPECT button

MY SOURCE/

VIDEO

COMPUTER

DOC.CAMERA

ASPECT

AUTO

SEARCH

BLANK

FREEZE

MAGNIFY

PAGE

VOLUME

UP

ON

OFF

KEYSTONE

1

MY BUTTON

＋

DOWN

ー

MUTE

2

 For an input signal from the LAN, USB TYPE A or USB TYPE B port, or

if there is no signal

8928B/8930B/8939A: 4:3 ( xed)
8931WB/8938WA/8940W: 16:10 ( xed)

● ASPECT button does not work when no proper signal is inputted.

● NORMAL mode keeps the original aspect ratio setting.

● The display will be dark for a split second while switching the Aspect, but this
is not a malfunction.

26

Operating

Adjusting the projector’s elevator

<Front Foot>
Using the Front elevator foot can tilt the projector in order to project at a suitable
angle to the screen, elevating the front side of the projector within 12 degrees.

The elevator foot is adjustable while pushing the elevator button.

Holding the projector, push the elevator

1.

button to loose the elevator foot.
Release the elevator button in order to

2.

lock the elevator foot.
If necessary, the elevator foot can be manually

3.

twisted to make more precise adjustments.
Hold the projector when twisting the foot.

►

CAUTION

elevator button without holding the projector,
since the projector may drop down.
►Do not tilt the projector other than
elevating its front within 12 degrees using
the elevator foot. A tilt of the projector
exceeding the restriction could cause
malfunction or shortening the lifetime of
consumables, or the projector itself.

<Rear Foot>
When the place to put the projector is slightly uneven to the left or right, use the
Rear elevator foot to place the projector horizontally.
Rear elevator foot at the time of shipment, and the projector is ready for use. If
necessary, detach the spacer, and the elevator foot can be manually twisted to
make more precise adjustments.

Do not handle the

Rear foot

Elevator button

12°

Front foot

A spacer is installed on the

WARNING

to let them swallow the spacer. If swallowed consult a physician immediately for
emergency treatment.

NOTE

with a spacer.
the projector.

•

►Keep the spacer away from children and pets. Be careful not

After the foot is adjusted, it is possible to return it to the state of the shipment

It is recommended to keep the spacer and reuse it when relocating

Adjusting the zoom and focus

Use the ZOOM ring to adjust the screen size.

1.

Use the FOCUS ring to focus the picture.

2.

ZOOM ring

FOCUS ring

27

Operating

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

SEARCH

BLANK

MUTE

MY BUTTON

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

ON

OFF

FREEZE

UP

ー

＋

VOLUME

1

2

Using the automatic adjustment feature

Press AUTO button on the remote control.

1.

Pressing this button performs the following.

 For a computer signal

The vertical position, the horizontal position and the horizontal
phase will be automatically adjusted.
Make sure that the application window is set to its maximum size
prior to attempting to use this feature. A dark picture may still be
incorrectly adjusted. Use a bright picture when adjusting.

 For a video signal

The video format best suited for the respective input signal will be selected
automatically. This function is available only when the AUTO is selected for
the VIDEO FORMAT item in the INPUT menu (

44).

The vertical position and

horizontal position will be automatically set to the default.

 For a component video signal

The vertical position and horizontal position will be automatically set to the default.
The horizontal phase will be automatically adjusted.

● The automatic adjustment operation requires approx. 10 seconds. Also please
note that it may not function correctly with some input.

● When this function is performed for a video signal, a certain extra such as a line
may appear outside a picture.

● When this function is performed for a computer signal, a black frame may be
displayed on the edge of the screen, depending on the computer model.

The items adjusted by this function may vary when the FINE or DISABLE is selected

●
for the AUTO ADJUST item of the SERVICE item in the OPTION menu (

AUTO button

VIDEO

ASPECT

MAGNIFY

ON

OFF

KEYSTONE

66).

COMPUTER

AUTO

FREEZE

1

MY BUTTON

MY SOURCE/
DOC.CAMERA

SEARCH

PAGE

UP

DOWN

BLANK

VOLUME

＋

ー

MUTE

2

Adjusting the position

Press POSITION button on the remote control when no menu is

1.

indicated.
The “POSITION” indication will appear on the screen.

Use the ▲/▼/◄/► cursor buttons to adjust the picture position.

2.

When you want to reset the operation, press RESET button on
the remote control during the operation.
To complete this operation, press POSITION button again. Even if
you do not do anything, the dialog will automatically disappear
after a few seconds.

When this function is performed on a video signal, some image such as an

●
extra-line may appear at outside of the picture.

● When this function is performed on a video signal, the range of this adjustment
depends on OVER SCAN in IMAGE menu (
adjust when OVER SCAN is set to 10.

● If POSITION button is pressed when a menu is indicated on screen, the displayed
picture does not move its position but the menu does.

● This function is unavailable for a signal from the LAN, USB TYPE A, USB TYPE B
or HDMI port.

28

POSITION

ENTER

ESC

POSITION button

41) setting. It is not possible to

MENU

RESET

Correcting the keystone/perfect  t distortions

Press KEYSTONE button on the remote

1.

control. A dialog will appear on the screen
to aid you in correcting the distortion.

Operating

KEYSTONE
button

Use the ▲/▼ cursor buttons to select AUTO, MANUAL

2.

or PERFECT FIT operation, and press the ► button to
perform the following.
(1)

AUTO performs the automatic vertical keystone correction.

(2) MANUAL displays a dialog for keystone correction.

VIDEO

ASPECT

MAGNIFY

ON

OFF

KEYSTONE

COMPUTER

AUTO

FREEZE

1

MY BUTTON

MY SOURCE/
DOC.CAMERA

SEARCH

PAGE

Use the ▲/▼ buttons to select KEYSTONE /

KEYSTONE, then use the ◄/► buttons for

adjustment.

(3) PERFECT FIT displays a dialog for adjusting the shape

of the projected image in each of the corners and sides.

To close the dialog and complete this operation, press
KEYSTONE button again. Even if you do not do anything,
the dialog will automatically disappear after about ten
seconds.

● The adjustable range of this function will vary among inputs. For some input,
this function may not work well.

● When REAR / CEILING or FRONT / CEILING is selected for the
INSTALLATION item in the SETUP menu, the automatic vertical keystone
correction function may not work correctly if the projector screen is slanted or
tilted downwards.

● When the zoom adjustment is set to the TELE (telephoto focus), this function
may be excessive. This function should be used when the zoom adjustment is
set to the full WIDE (wide-angle focus) whenever possible.

● When the projector is placed on the level (about ±4°), the automatic keystone
distortion correction may not work.

● When the projector is inclined to near ±30 degree or over, this function may
not work well.

● This function will be unavailable when the TRANSITION DETECTOR is on

77).

(

● The display will be dark for a split second while switching the KEYSTONE,
but this is not a malfunction.

BLANK

VOLUME

UP

＋

DOWN

ー

MUTE

2

29

Operating

Using the magnify feature

Press the MAGNIFY ON button on the remote control.

1.

The picture will be magni ed, and the MAGNIFY dialog
will appear on the screen. When the MAGNIFY
ON button is pressed for the  rst time after the
projector is turned on, the picture will be zoomed
by 1.5 times. On the dialog, triangle marks to show

MAGNIFY
ON/OFF button

MY SOURCE/

VIDEO

COMPUTER

DOC.CAMERA

ASPECT

AUTO

SEARCH

FREEZE

MAGNIFY

PAGE

ON

OFF

MY BUTTON

KEYSTONE

1

each direction will be displayed.
The display magni cation of the projector switches in order with every press

2.

of the MAGNIFY ON button.

 For computer signals or HDMI

TM

(RGB) signals

1.5 times  2 times  3 times  4 times  1 time

 For video signals, component video signals or HDMITM (Component)

signals

1.5 times  2 times  1 time

While the triangles are displayed on the dialog, use the ▲/▼/◄/► cursor

3.

buttons to shift the magnifying area.

Press the MAGNIFY OFF button on the remote control to exit magni cation.

4.

● The MAGNIFY dialog will automatically disappear in several seconds with no
operation. The dialog will appear again if the MAGNIFY ON button is pressed
when the dialog has automatically disappeared.

● The magni cation is automatically disabled when the displaying signal or its
display condition is changed.

● While the magni cation is active, the keystone distortion condition may vary.
It will be restored when the magni cation is disabled.

● Some horizontal stripes might be visible on the image while magni cation is
active.

● This function is not available in the following cases:

- A sync signal in the range not supported is input.

- There is no input signal.

BLANK

VOLUME

UP

＋

DOWN

ー

MUTE

2

30
