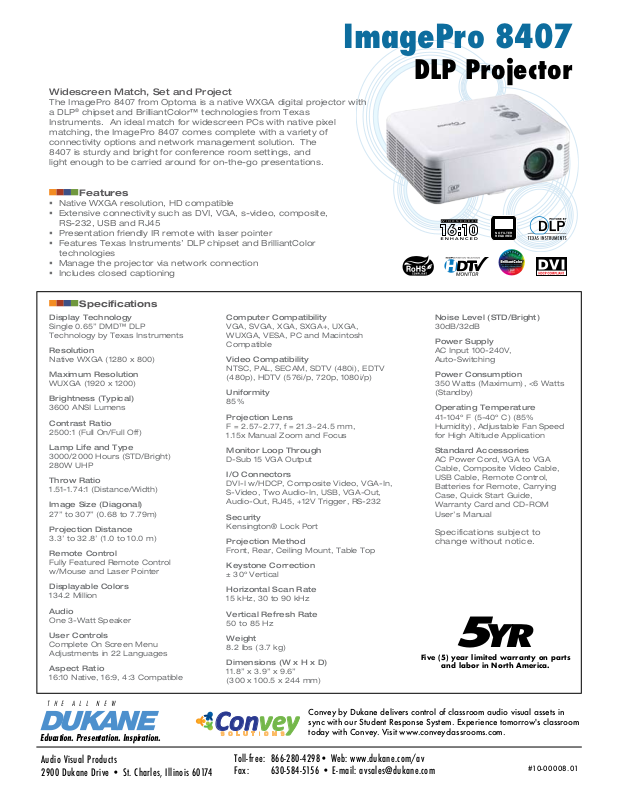

Dukane 8407 Product Sheet

NO FILTER
REQUIRED

TWR1693 − Multimedia Projector

Widescreen Match, Set and Project

The ImagePro 8407 from Optoma is a native WXGA digital projector with
a DLP

®

chipset and BrilliantColor™ technologies from Texas
Instruments. An ideal match for widescreen PCs with native pixel
matching, the ImagePro 8407 comes complete with a variety of
connectivity options and network management solution. The
8407 is sturdy and bright for conference room settings, and
light enough to be carried around for on-the-go presentations.

Features

 Native WXGA resolution, HD compatible
 Extensive connectivity such as DVI, VGA, s-video, composite,

RS-232, USB and RJ45

 Presentation friendly IR remote with laser pointer
 Features Texas Instruments’ DLP chipset and BrilliantColor

technologies

 Manage the projector via network connection
 Includes closed captioning

Specifications

Display Technology

Single 0.65” DMD™ DLP
Technology by Texas Instruments

Resolution

Native WXGA (1280 x 800)

Maximum Resolution

WUXGA (1920 x 1200)

Brightness (Typical)

3600 ANSI Lumens

Contrast Ratio

2500:1 (Full On/Full Off)

Lamp Life and Type

3000/2000 Hours (STD/Bright)
280W UHP

Throw Ratio

1.51-1.74:1 (Distance/Width)

Image Size (Diagonal)

27” to 307” (0.68 to 7.79m)

Projection Distance

3.3’ to 32.8’ (1.0 to 10.0 m)

Remote Control

Fully Featured Remote Control
w/Mouse and Laser Pointer

Displayable Colors

134.2 Million

Audio

One 3-Watt Speaker

User Controls

Complete On Screen Menu
Adjustments in 22 Languages

Aspect Ratio

16:10 Native, 16:9, 4:3 Compatible

Computer Compatibility

VGA, SVGA, XGA, SXGA+, UXGA,
WUXGA, VESA, PC and Macintosh
Compatible

Video Compatibility

NTSC, PAL, SECAM, SDTV (480i), EDTV
(480p), HDTV (576i/p, 720p, 1080i/p)

Uniformity

85%

Projection Lens

F = 2.57~2.77, f = 21.3~24.5 mm,

1.15x Manual Zoom and Focus

Monitor Loop Through

D-Sub 15 VGA Output

I/O Connectors

DVI-I w/HDCP, Composite Video, VGA-In,
S-Video, Two Audio-In, USB, VGA-Out,
Audio-Out, RJ45, +12V Trigger, RS-232

Security

Kensington® Lock Port

Projection Method

Front, Rear, Ceiling Mount, Table Top

Keystone Correction

± 30º Vertical

Horizontal Scan Rate

15 kHz, 30 to 90 kHz

Vertical Refresh Rate

50 to 85 Hz

Weight

8.2 lbs (3.7 kg)

Dimensions (W x H x D)

11.8” x 3.9” x 9.6”
(300 x 100.5 x 244 mm)

Noise Level (STD/Bright)

30dB/32dB

Power Supply

AC Input 100-240V,
Auto-Switching

Power Consumption

350 Watts (Maximum), <6 Watts
(Standby)

Operating Temperature

41-104º F (5-40º C) (85%
Humidity), Adjustable Fan Speed
for High Altitude Application

Standard Accessories

AC Power Cord, VGA to VGA
Cable, Composite Video Cable,
USB Cable, Remote Control,
Batteries for Remote, Carrying
Case, Quick Start Guide,
Warranty Card and CD-ROM
User’s Manual

ImagePro 8407

Education. Presentation. Inspiration.

T H E A L L N E W

S O L U T I O N S

Convey

DLP Projector

Audio Visual Products

2900 Dukane Drive • St. Charles, Illinois 60174

Toll-free: 866-280-4298• Web: www.dukane.com/av
Fax: [phone] • E-mail: [e-mail]

Convey by Dukane delivers control of classroom audio visual assets in
sync with our Student Response System. Experience tomorrow's classroom
today with Convey. Visit www.conveyclassrooms.com.

Specifications subject to
change without notice.

5YR

Five (5) year limited warranty on parts

and labor in North America.

#10-00008.01
