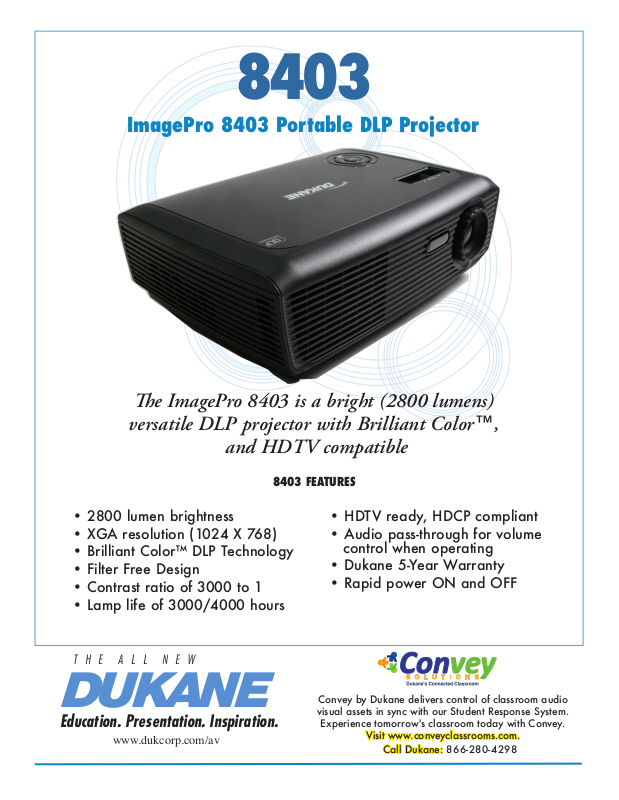

Dukane 8403 Product Sheet

8403

Education. Presentation. Inspiration.

T H E A L L N E W

S O L U T I O N S

Convey

ImagePro 8403 Portable DLP Projector

e ImagePro 8403 is a bright (2800 lumens)

versatile DLP projector with Brilliant Color™,

and HDTV compatible

8403 FEATURES

• 2800 lumen brightness

• XGA resolution (1024 X 768)

• Brilliant Color™ DLP Technology

• Filter Free Design

• Contrast ratio of 3000 to 1

• Lamp life of 3000/4000 hours

• HDTV ready, HDCP compliant

• Audio pass-through for volume
control when operating

• Dukane 5-Year Warranty

• Rapid power ON and OFF

www.dukcorp.com/av

Convey by Dukane delivers control of classroom audio

visual assets in sync with our Student Response System.

Experience tomorrow's classroom today with Convey.

Visit www.conveyclassrooms.com.

Call Dukane: 866-280-4298

ImagePro 8403
Portable DLP projector

Composite

Video

VGA In 2

Power

VGA-In 1

S-Video

RS-232

Control

Back Panel

Connections

VGA Out

FEATURES

• XGA (1024 x 768) resolution

• 2800 ANSI lumens of brightness

• 3000:1 contrast ratio

• Status, control and maintenance over the network

• Speaker, 2 watt

• Brilliant color images

• Vertical keystone correction

• Only 5 lbs.

• No filter to service

• Controllable remotely

• Lamp life of 3000/4000 hours

• 5-Year Warranty

Audio Out

Audio

In1

Specications 8403

Image Element 0.55” DND DLP "Brilliant Color"
Brightness 2800 ANSI lumens (2100 econo mode)

Resolution 1024 x 768 pixels (H X V), XGA
Contrast 3000:1

Scanning Frequency fh 15-91 kHz, fv 25-85 Hz

Lens Manual zoom, 1.1X

Lens Throw Ratio 1.95 -2.15 throw distance

to image width
Keystone Correction Digital vertical +/-40˚
Aspect Ratio 4:3 native, 16:9, 16:10 selectable

Computer

Compatibility

VGA, SVGA, XGA, SXGA,UXGA

Mac compatible

Offset 115 %
Video Compatibility NTSC, PAL, PAL-M

SECAM, HDTV1080i/p, 720p, 480i/p,

Closed Caption CC1, CC2
Projection Modes Front/rear/ceiling
Color Reproduction 1.07 billion colors
Lamp 185W, VIP
Lamp Life 3000 hours (4000 hours econo mode)

Audio One 2 watt speaker
Throw Distance 4 to 33'
Screen Size, diagonal 30” to 300”

Inputs, Video

(1) S-video, Min DIN 4-pin,

(1) Composite video, RCA x 1

Inputs, Computer (2) RGB Signal: D-sub, 15 pin,

(1) Audio, Stereo mini jack

Outputs Monitor 15 pin, D-sub (normal/standby)

8403 Projection Table

Image Size 4:3 Throw Distance

Outputs Audio Audio, Stereo mini jack x 1
Outputs, Other 3-pin, RS232

Diagonal Width Min. Max.

Inches Inches Feet Feet

40 32 5.2 5.7
60 48 7.8 8.6
80 64 10.4 11.5

100 80 13.0 14.3
120 96 15.6 17.4

Throw Ratio (distance to width) 1.95 2.15

15.6

to

Security Kensington slot, security bar,

Fan Level 32dB, (30dB in econo mode)
Operating Temperature 41 to 104 deg. F (5-40 deg C)
Power AC 100-120V, AC220-240V

Size (WxHxD) 11.3” x 4” x 7.6”
Weight 5.0 lbs. (2.3 kg)
Carton Size 7” x 19” x 13”
Shipping Weight 12 lbs.
Accessories Included Remote control, batteries (AA), power

Dukane Corporation

Audio Visual Products Division

2900 Dukane Drive

Safety FCC,CUL, UL

Optional Accessories Lamp 456-8403

St. Charles, Illinois 60174

866-280-4298 toll-free

630-584-5156 fax

[e-mail] e-mail

www.dukcorp.com/av

#09095 ImagePro is a registered trademark of Dukane Corporation

#09096

Five (5) year limited warranty on parts and labor in North
America, lamp excluded (for other locations, local warranties
apply).Includes Dukane’s FREE 1 year Peace-of-Mind Loaner

Program.

keypad lock

50/60 Hz, 255 watt

cord, Computer cable, User manual,

lens cap

Ceiling mount, universal, RPA-U

or PRG-UNV

5YR
