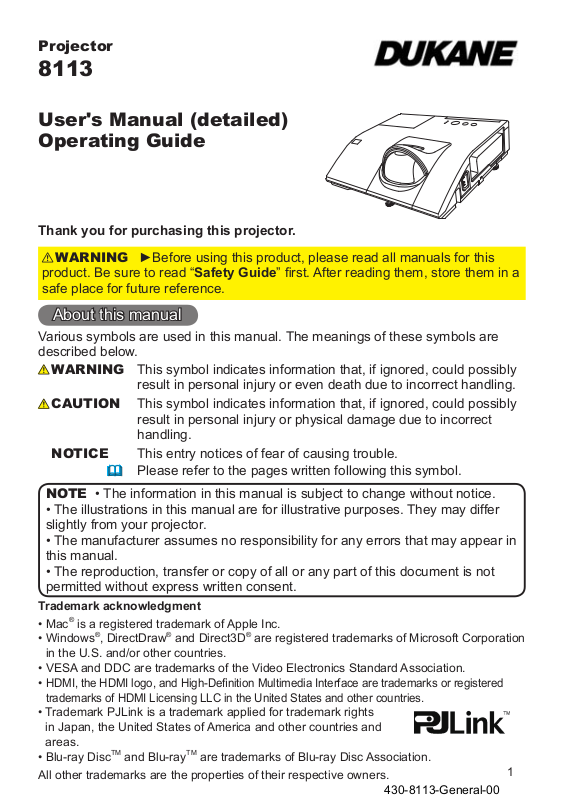

Dukane 8113 User Manual

Projector

8113

User's Manual (detailed) Operating Guide

Thank you for purchasing this projector.

WARNING

►Before using this product, please read all manuals for this product. Be sure to read “Safety Guide” rst. After reading them, store them in a safe place for future reference.

About this manual

Various symbols are used in this manual. The meanings of these symbols are described below.

WARNING

CAUTION

NOTICE This entry notices of fear of causing trouble.

NOTE

• The information in this manual is subject to change without notice.

• The illustrations in this manual are for illustrative purposes. They may differ slightly from your projector.

• The manufacturer assumes no responsibility for any errors that may appear in this manual.

• The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent.

Trademark acknowledgment

• Mac® is a registered trademark of Apple Inc.

• Windows in the U.S. and/or other countries.

• VESA and DDC are trademarks of the Video Electronics Standard Association.

•

HDMI, the HDMI logo, and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

• Trademark PJLink is a trademark applied for trademark rights in Japan, the United States of America and other countries and areas.

• Blu-ray Disc

All other trademarks are the properties of their respective owners.

This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling.

This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling.

Please refer to the pages written following this symbol.



, DirectDraw® and Direct3D® are registered trademarks of Microsoft Corporation

and Blu-rayTM are trademarks of Blu-ray Disc Association.

430-8113-General-00

Contents



Introduction . . . . . . . . . . . . . . . 3

Features . . . . . . . . . . . . . . . . . . . . . . 3

Checking the contents of package

Fastening the lens cover ..........4

Part names . . . . . . . . . . . . . . . . . . . . 5

Setting up . . . . . . . . . . . . . . . . . 8

Arrangement ...................8

Connecting with your devices Connecting to a power supply

.....10

.....16

Using the security bar and slot . . . . 16

Remote control ............17

Installing the batteries ...........17

About the remote control signal . . . 17 Changing the frequency of remote control signal Using as a simple PC mouse & keyboard

. . 18

Power on/off . . . . . . . . . . . . . . 19

Turning on the power Turning off the power

. . . . . . . . . . . 19

. . . . . . . . . . . 20

Operating . . . . . . . . . . . . . . . . 21

Adjusting the volume ............21

Temporarily muting the sound .....21

Selecting an input signal .........21

Searching an input signal . . . . . . . . 23

Selecting an aspect ratio .........23

Adjusting the projector's elevator . . 24

Adjusting the focus . . . . . . . . . . . . . 24

Using the automatic adjustment feature

...25

Adjusting the position . . . . . . . . . . . 25

Correcting the keystone distortions

Using the magnify feature ........27

Temporarily freezing the screen . . . 28 Temporarily blanking the screen . . 28

Using the menu function . . . . . . . . 29

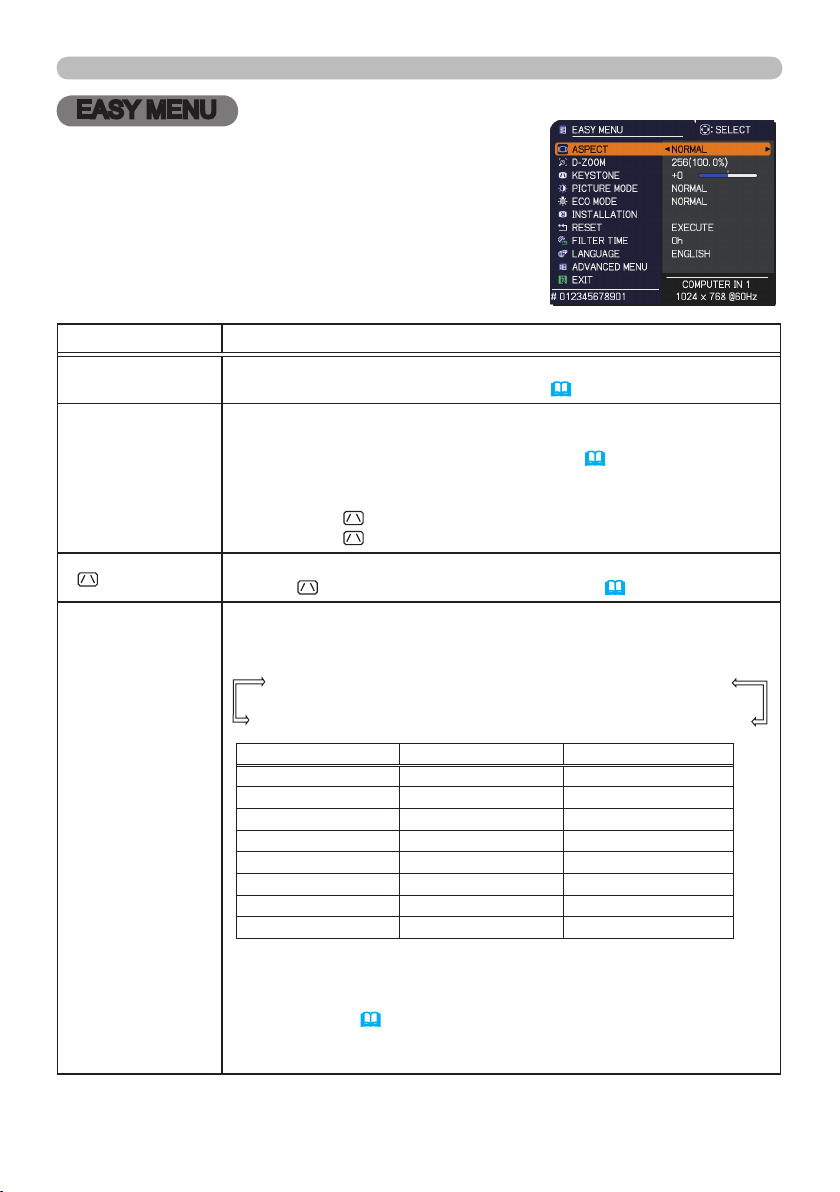

EASY MENU. . . . . . . . . . . . . . . 31

As p e c t ,

D-z o o m ,

Ke y s t o n e ,

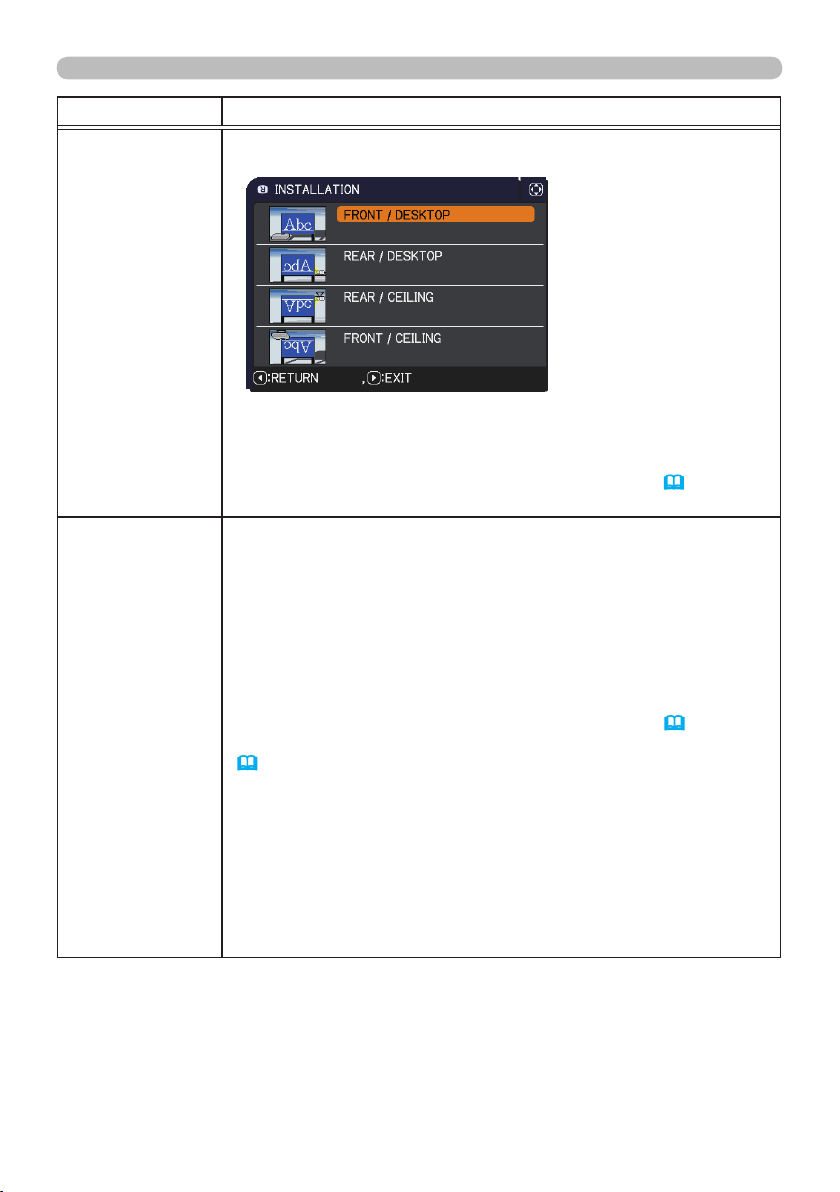

pi c t u r e m o D e , ec o m o D e , in s t A l l A t i o n , re s e t , Fi l t e r t i m e , l

A n g u A g e , AD v A n c e D m e n u , ex i t

PICTURE menu . . . . . . . . . . . . 33

Br i g h t n e s s , co n t r A s t , gA m m A , co l o r t e m p , co l o r , ti n t , sh A r p n e s s , Ac t i v e i r is , my m e m o r y

IMAGE menu . . . . . . . . . . . . . . 36

As p e c t , ov e r s c A n , v p o s i t i o n , h p o s i t i o n , h

p h A s e , h s i z e , Au t o A D j u s t e x e c u t e

INPUT menu . . . . . . . . . . . . . . 39

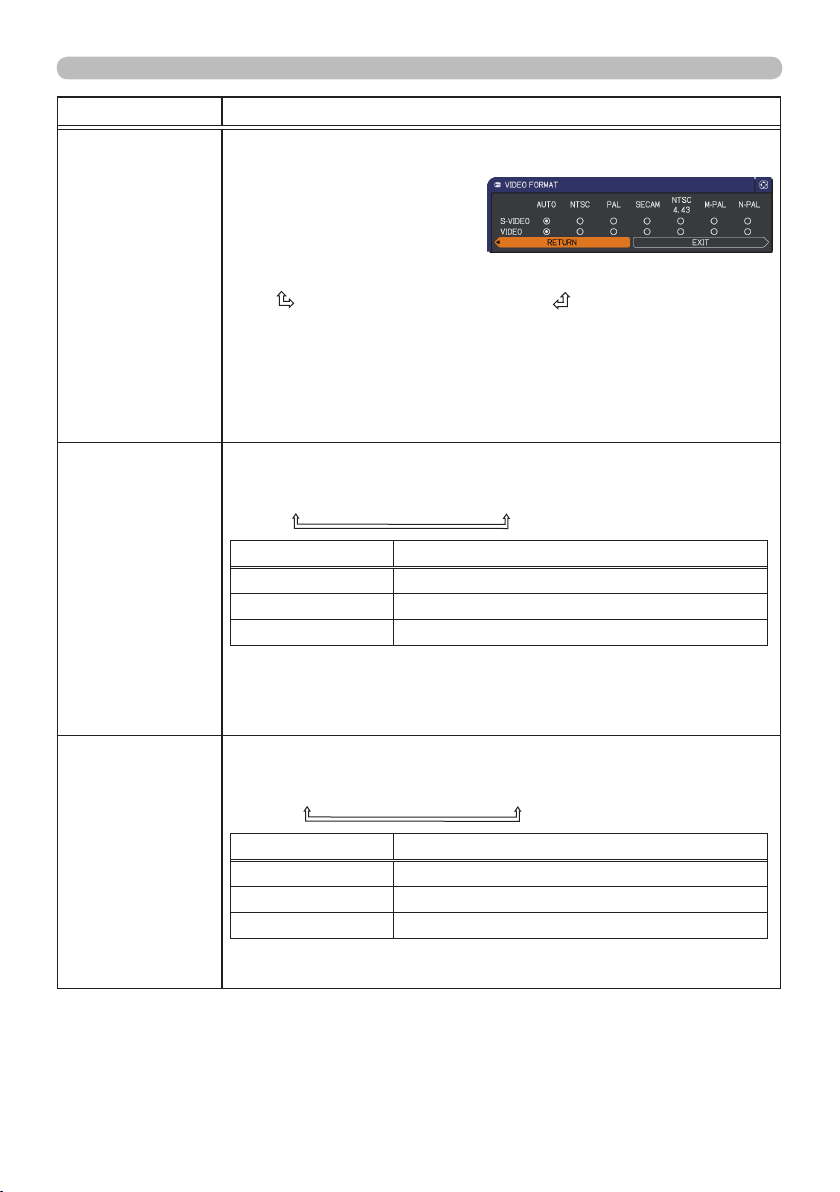

pr o g r e s s i v e , vi D e o n r , co l o r s p A c e , v

i D e o F o r m A t , hD m i F o r m A t , hD m i r A n g e ,

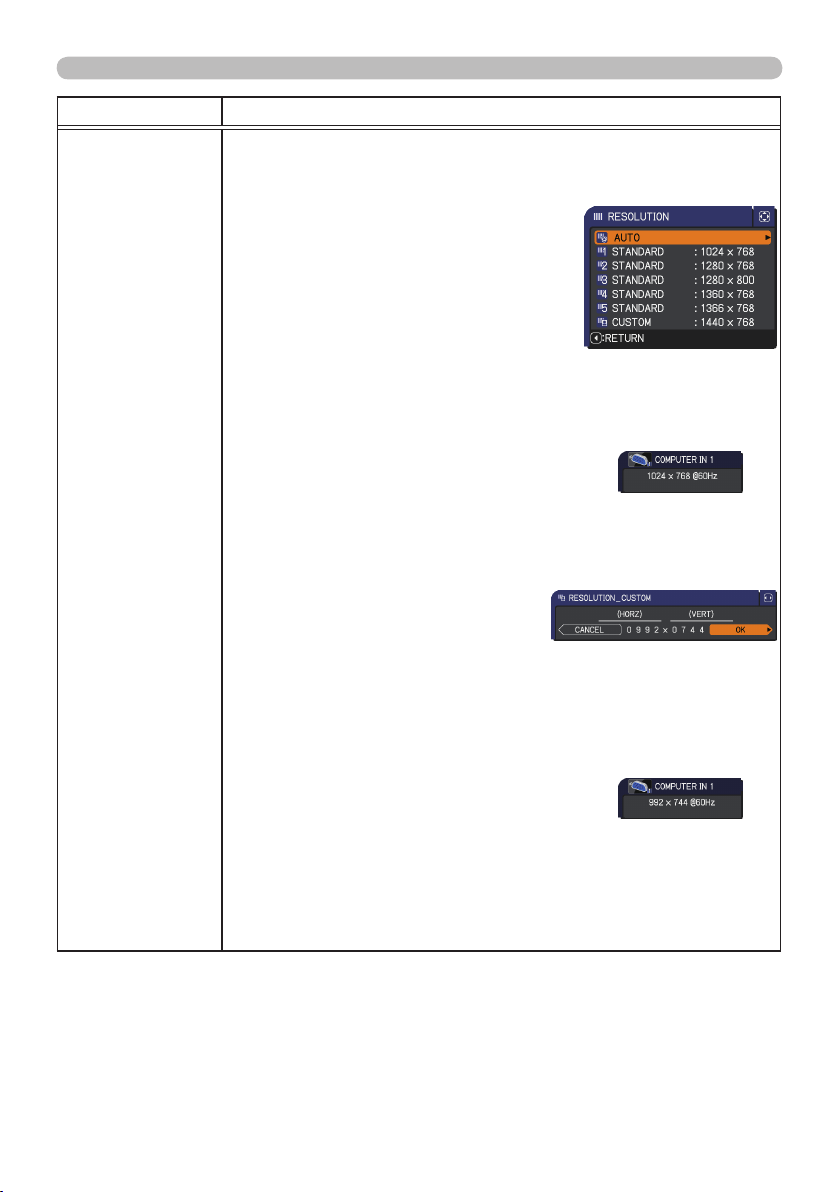

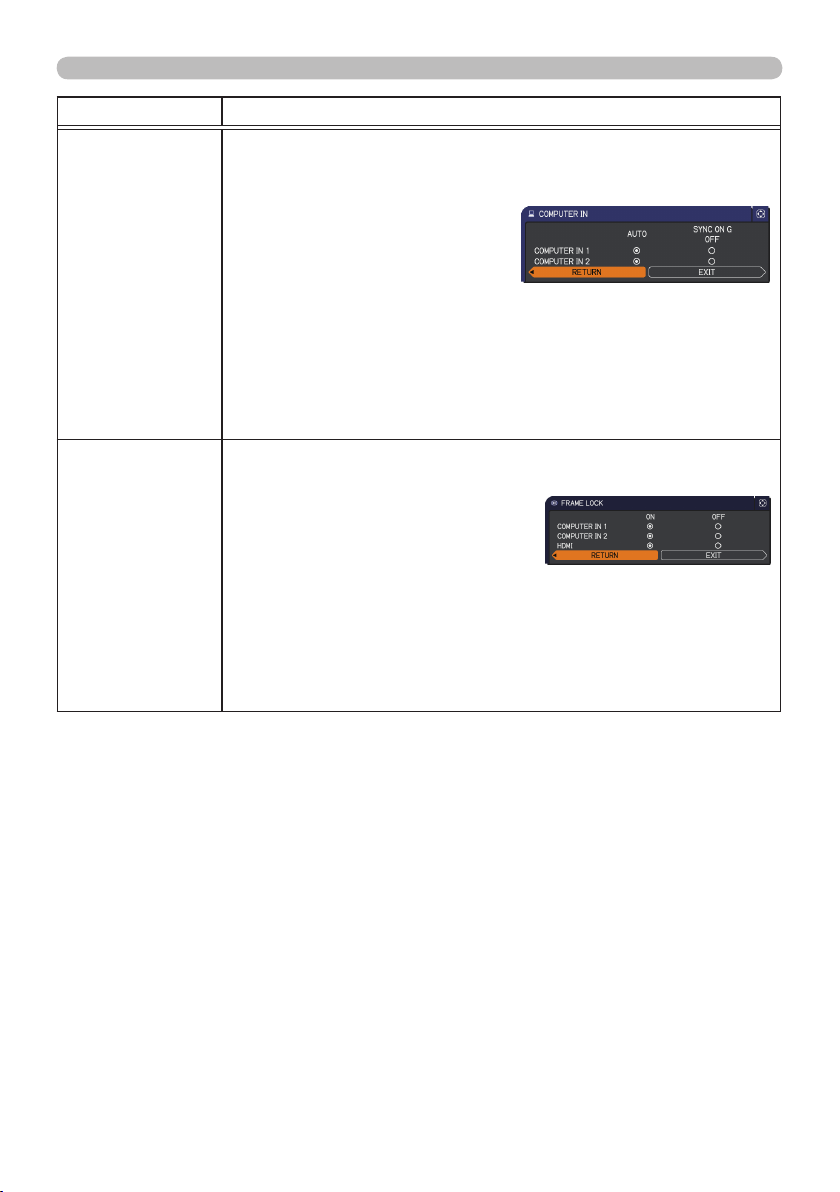

o m p u t e r in , Fr A m e l o c K , re s o l u t i o n

SETUP menu ..............43

...3

AUDIO menu . . . . . . . . . . . . . . 48

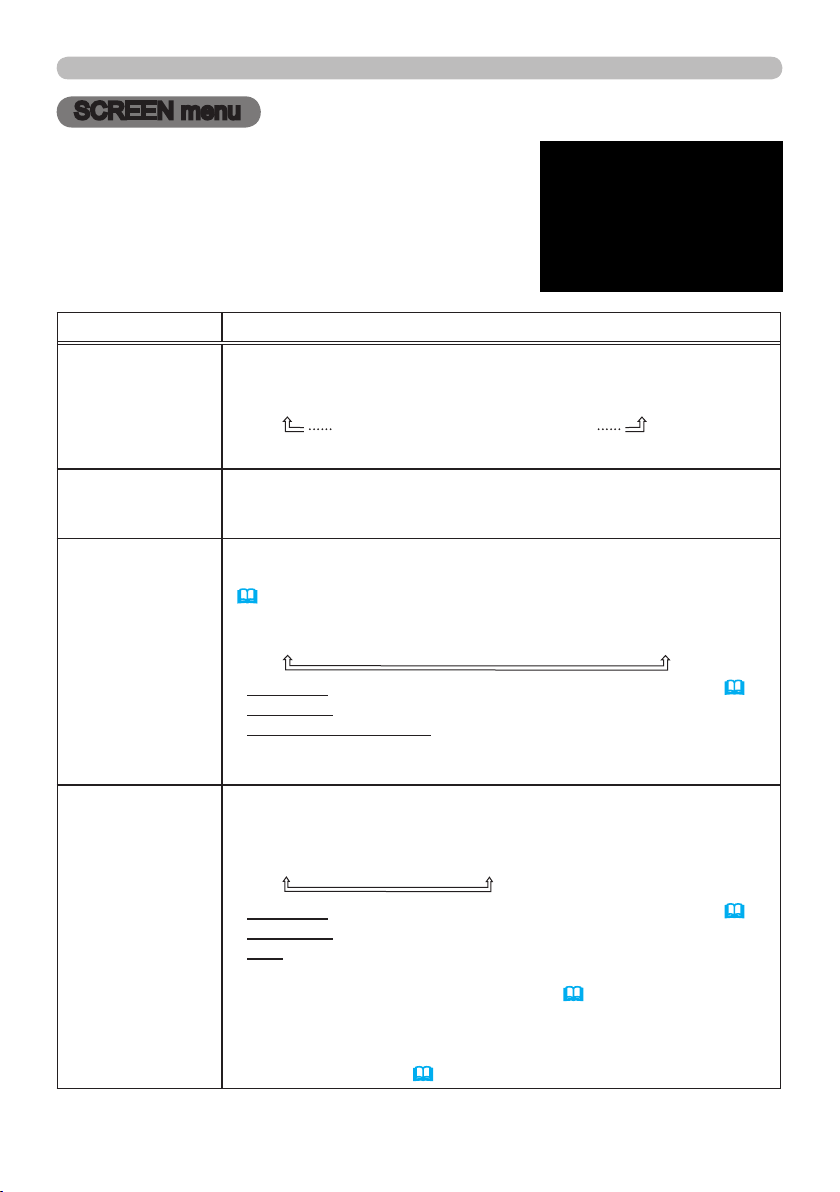

SCREEN menu .............50

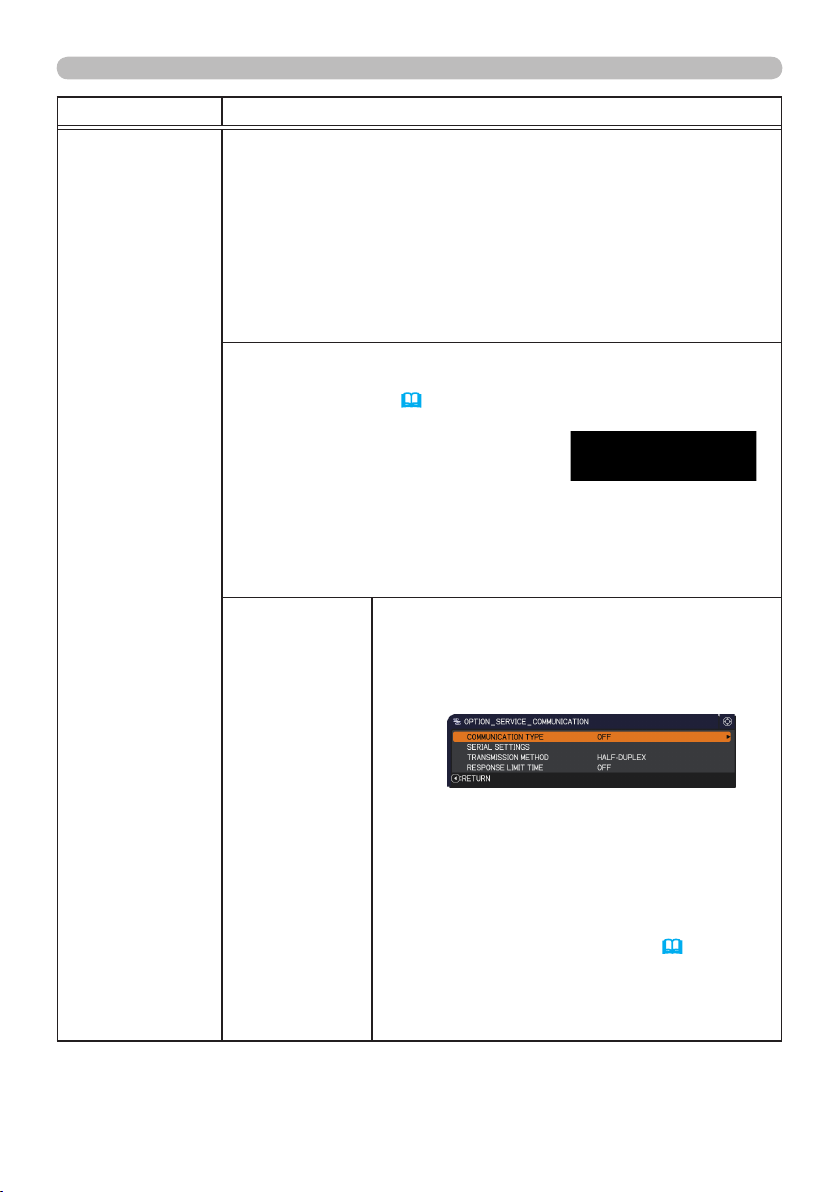

OPTION menu . . . . . . . . . . . . . 56

NETWORK menu ...........68

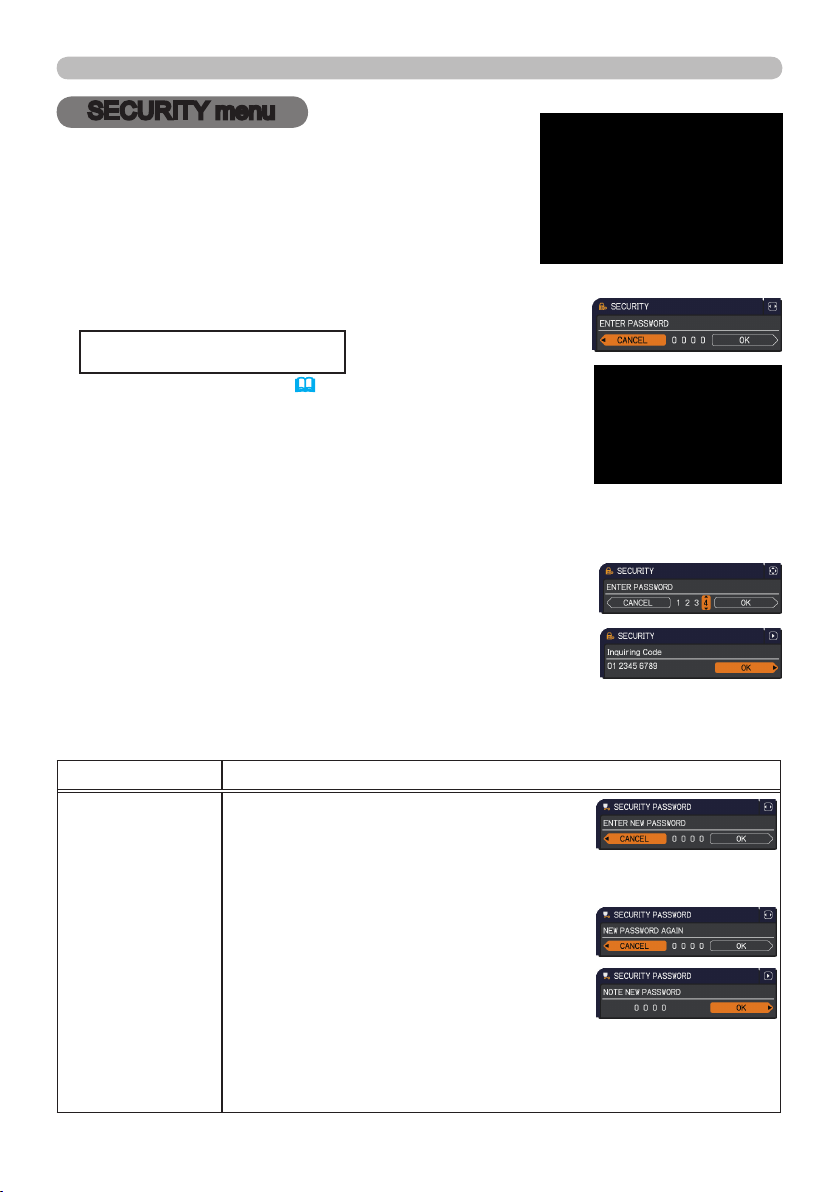

SECURITY menu ...........79

Presentation tools . . . . . . . . . 85

. . 26

Maintenance .............103

Troubleshooting . . . . . . . . . . 108

Specications ............119



D-z o o m , D-s h i F t , pi c t u r e p o s i t i o n / pi c t .p o s i t .h,

Ke y s t o n e ,

n s t A l l A t i o n

Au t o e c o m o D e , ec o m o D e ,

, st A n D B y m o D e , mo n i t o r o u t

vo l u m e , sp e A K e r , Au D i o s o u r c e , m

i c l e v e l , mi c v o l u m e

lA n g u A g e , me n u p o s i t i o n , Bl A n K , s

t A r t u p ,

e s s A g e , so u r c e n A m e , te m p l A t e , c.c.

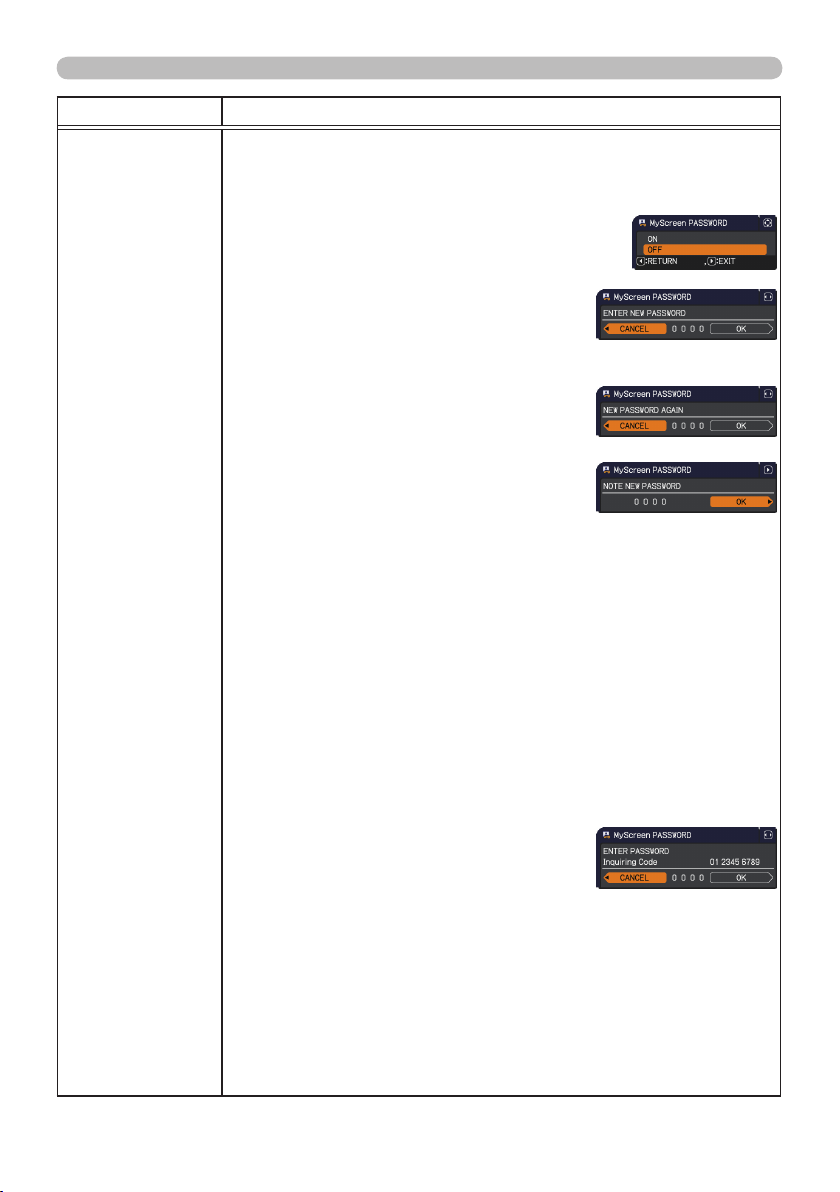

yScreen

, M

yScreen Lock

Au t o s e A r c h , Di r e c t p o w e r o n , A

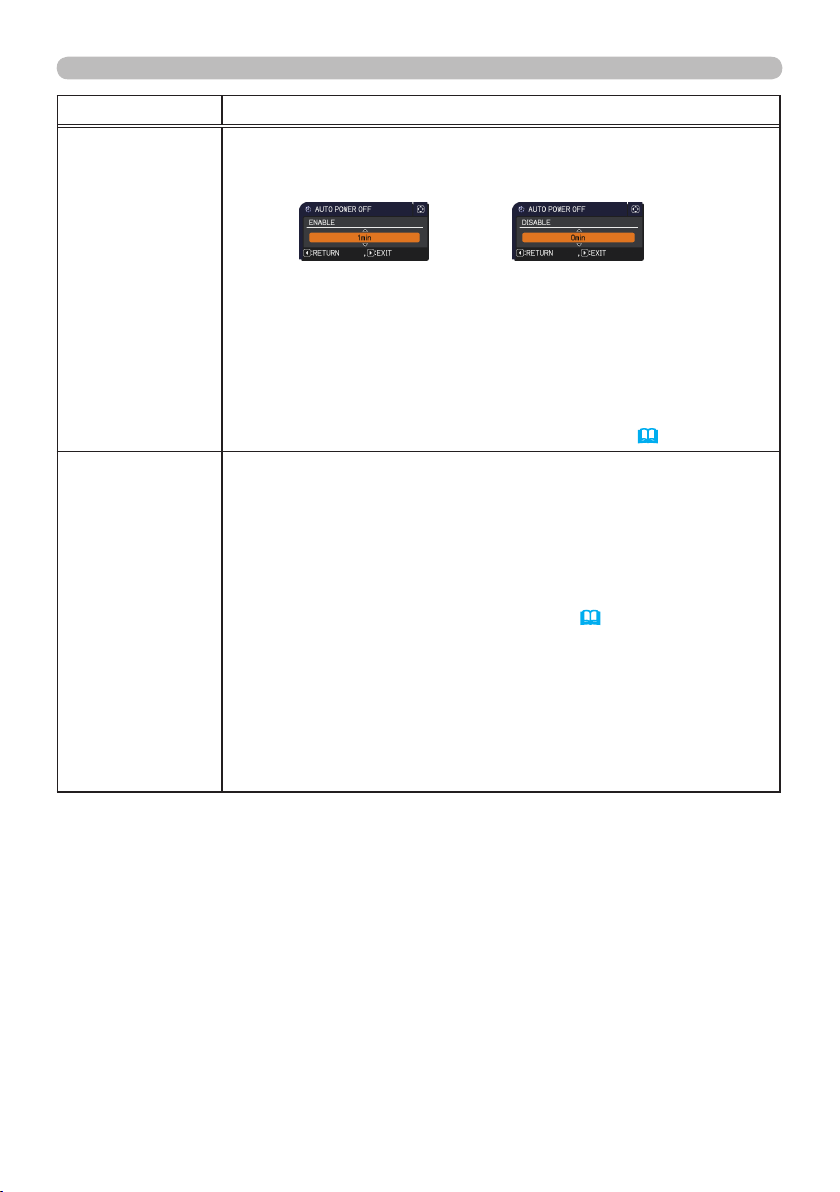

u t o p o w e r o F F , us B t y p e B, lA m p t i m e ,

i l t e r t i m e , my B u t t o n , my s o u r c e ,

e r v i c e

wi r e l e s s s e t u p , wi r e l e s s i n F o r m A t i o n , w

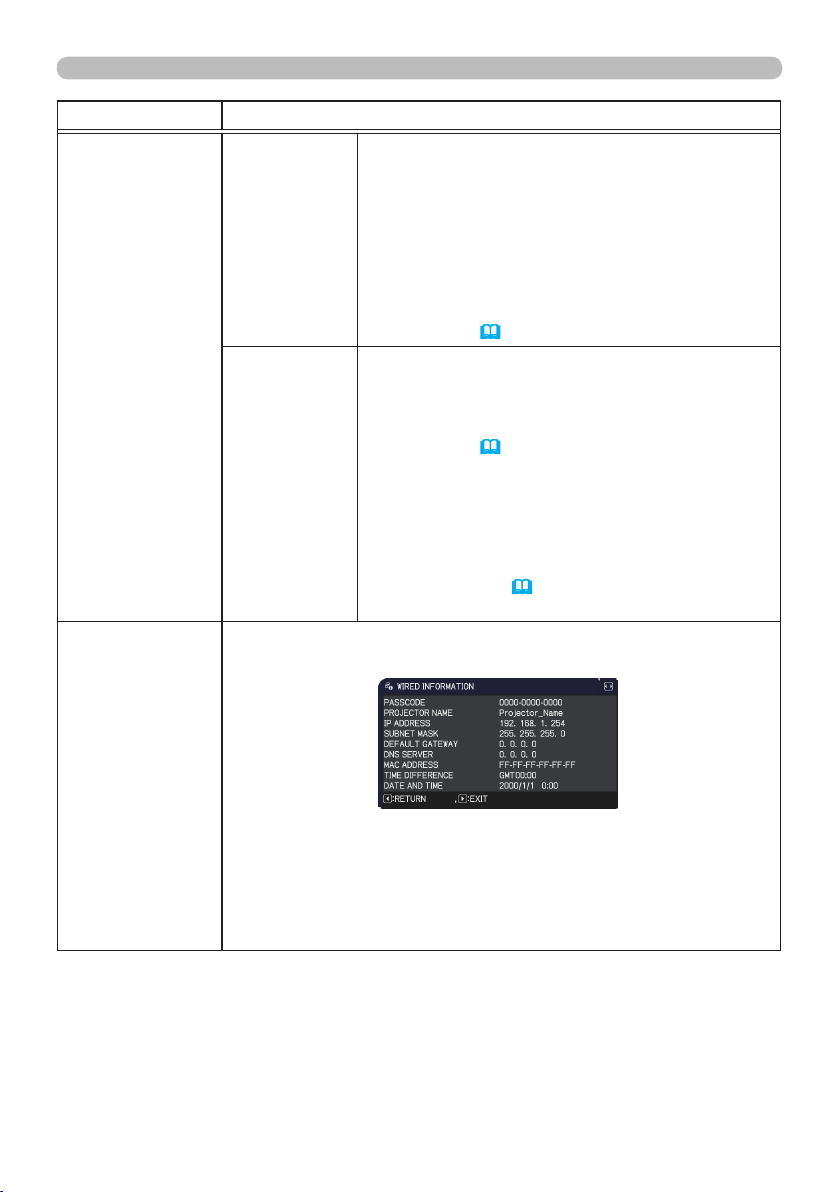

i r e D s e t u p , wi r e D i n F o r m A t i o n ,

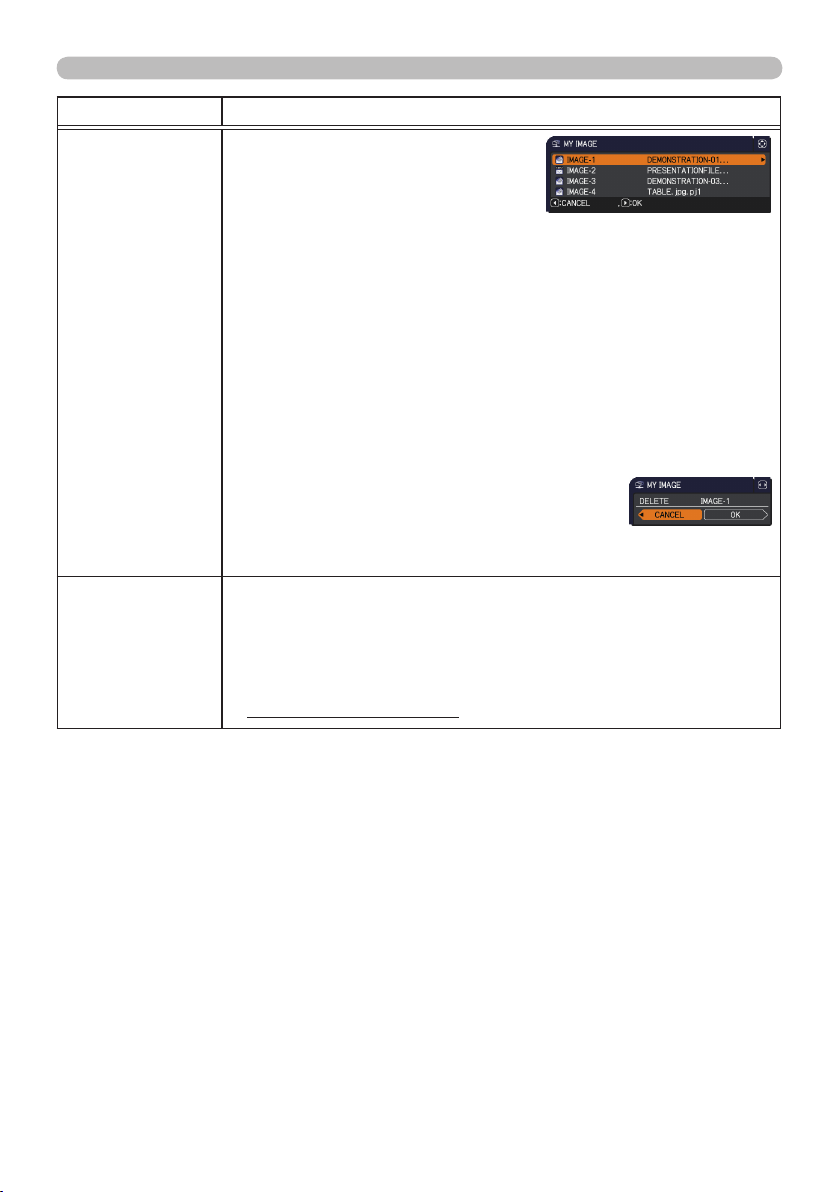

r o j e c t o r n A m e , my i m A g e , Am x D.D.,

r e s e n t A t i o n , se r v i c e

se c u r i t y p A s s w o r D c h A n g e ,

t m c

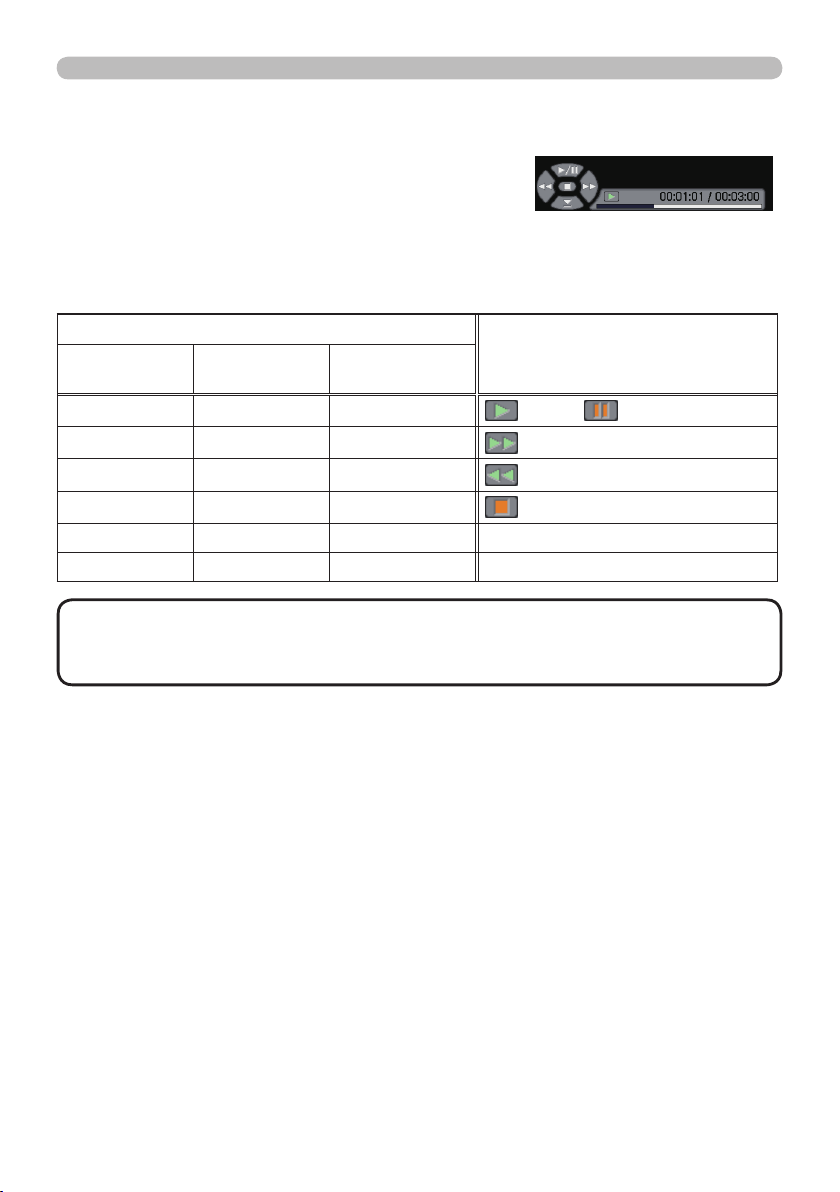

PC-LESS Presentation

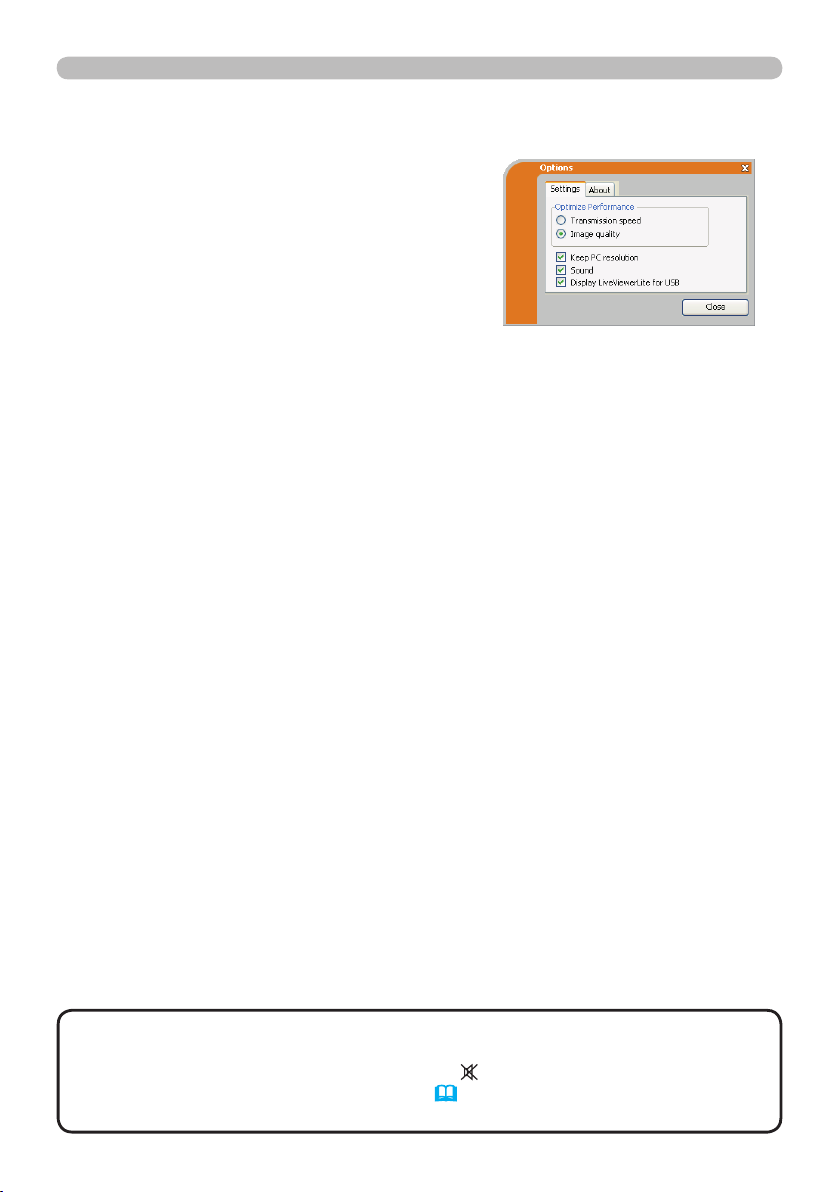

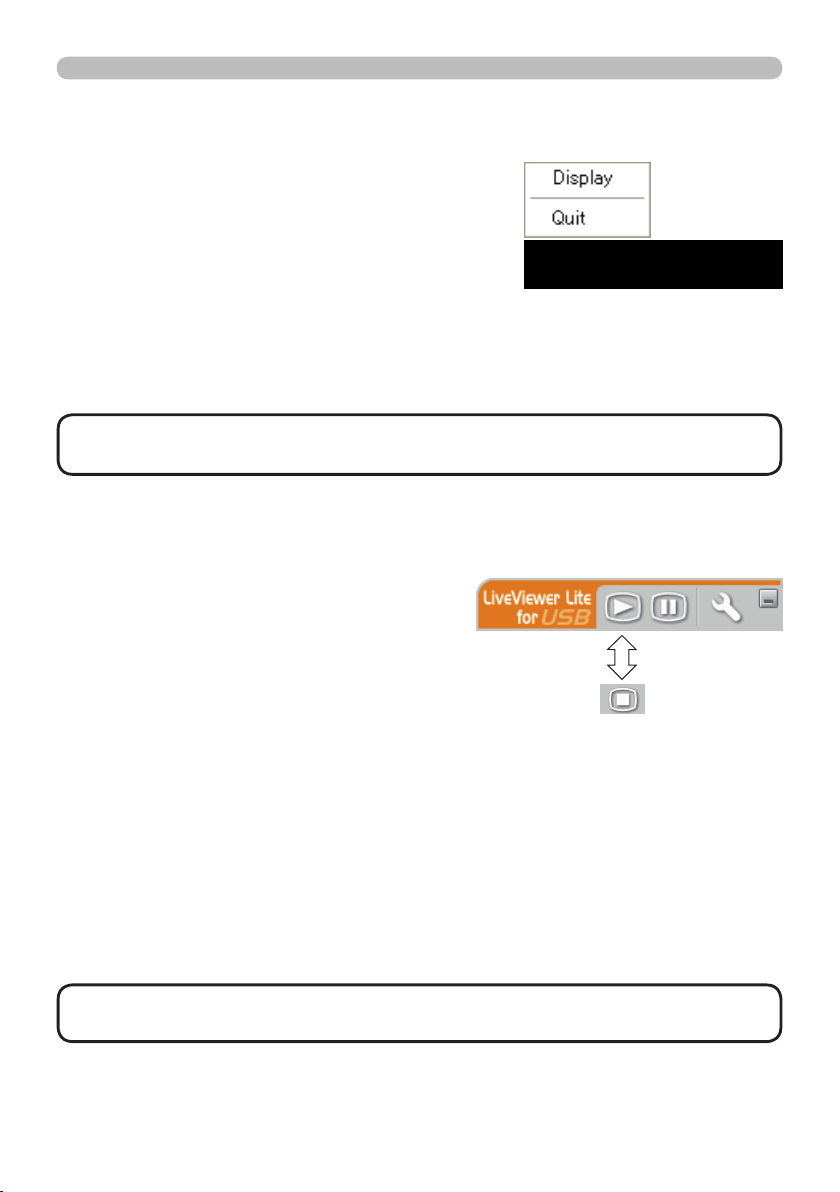

USB Display (Windows computer) USB Display (Mac computer)

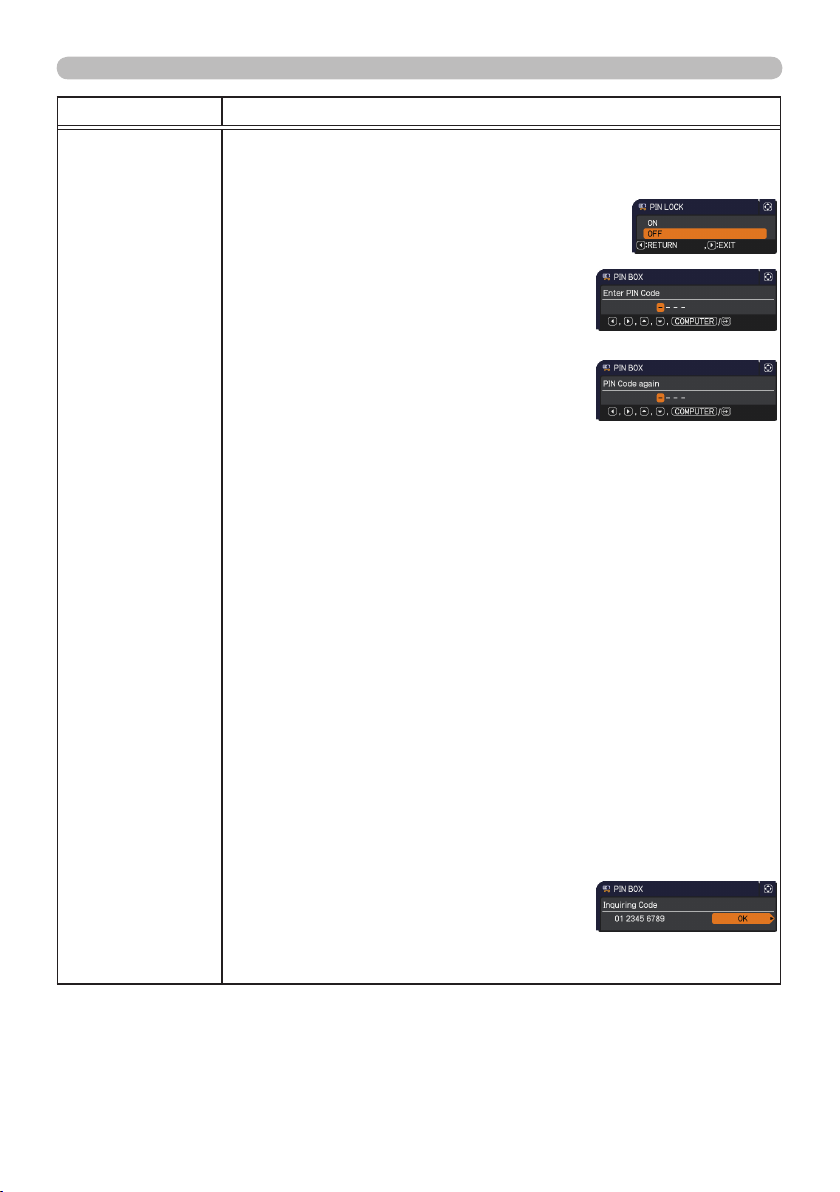

p A s s w o r D , pi n l o c K ,

yScreen

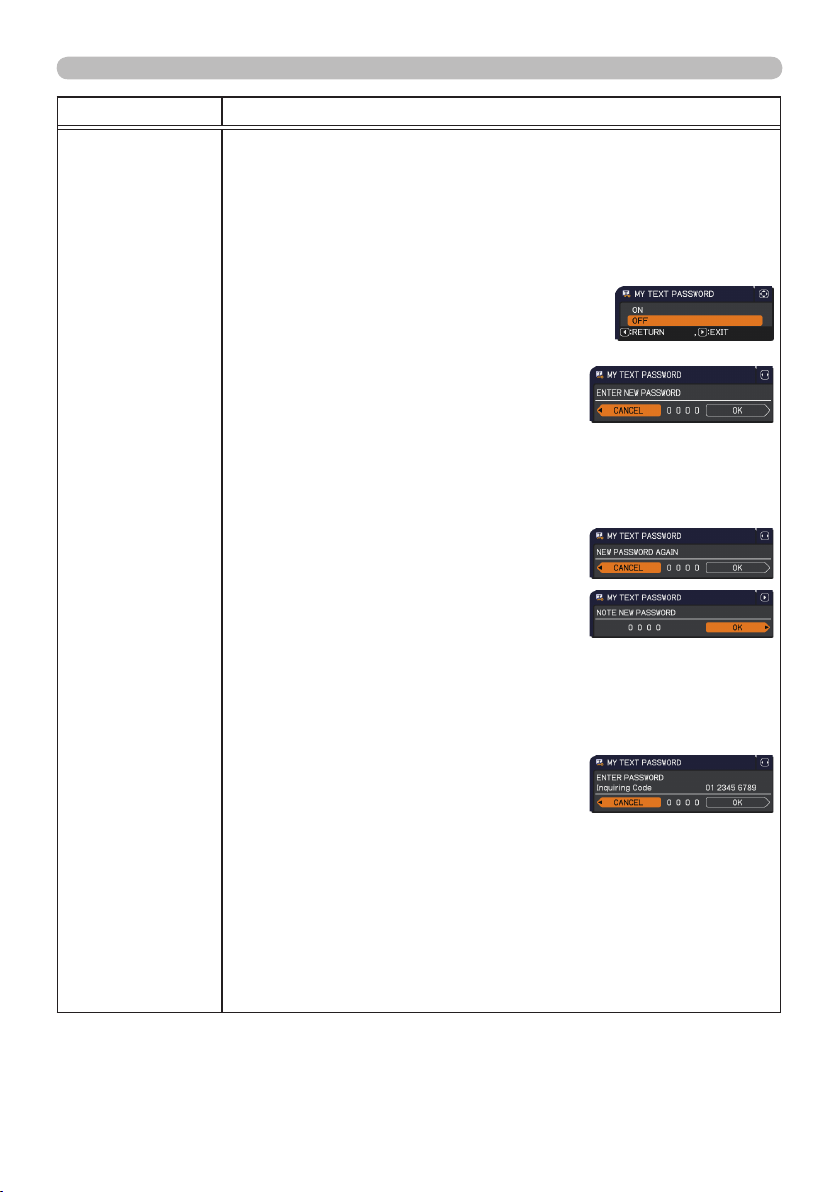

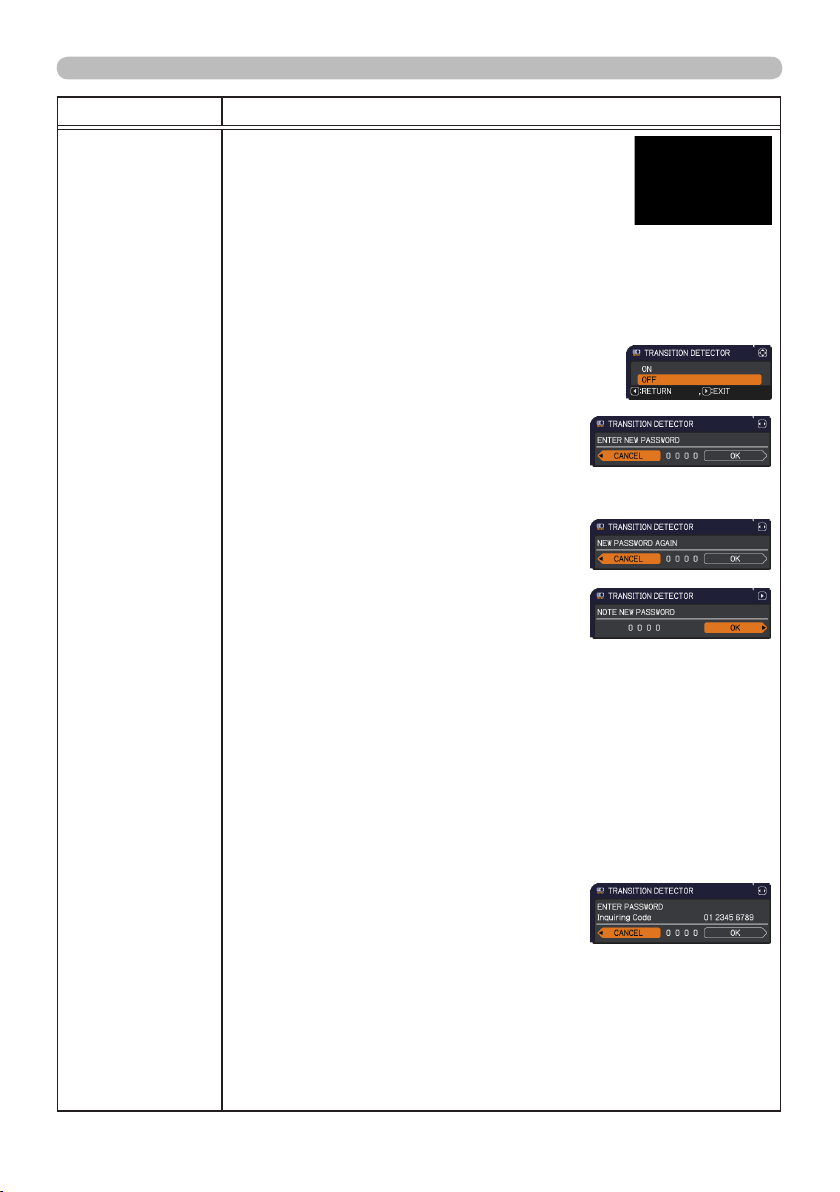

r A n s i t i o n D e t e c t o r , my t e x t p A s s w o r D ,

y t e x t D i s p l A y , my t e x t w r i t i n g ,

l o n i n g l o c K

...........85

...95

.......

Replacing the lamp ............103

Cleaning and replacing the air lter . 105

Other care ...................107

Related messages . . . . . . . . . . . . 108

Regarding the indicator lamps . . . 110

Resetting all settings ........... 113

Phenomena that may be easy to

be mistaken for machine defects

. . 113

Introduction

Features

The projector provides you with the broad use by the following features.

ü The unique optics system produces a large projected image in a short

distance, which provides you with various ways of use. The double layer lter system is expected to function longer and offers you

less maintenance frequency.

ü The HDMI port can support various image equipment which have digital

interface to get clearer pictures on a screen.

ü This projector can be controlled and monitored via LAN connection.

Furthermore, you can use the designated USB wireless adapter (optional) to establish wireless LAN connection.

Checking the contents of package

Please see the Contents of package section in the User’s Manual (concise) which is a book. Your projector should come with the items shown there. Require of your dealer immediately if any items are missing.

NOTE

to use the original packing materials when moving the projector. Use special caution for the lens.

• Keep the original packing materials, for future reshipment. Be sure

Introduction

Fastening the lens cover

To avoid losing the cover, please fasten the lens cover to the projector using the included strap.

Fasten the strap to the strap hole as shown

in the gure for step 1. Please note that the knot on the strap is used to fasten it to the lens cover in step 2.

Put the strap end into the slit of the lens

cover with the knot on the side of the lens. Make sure that the strap is inserted to the end of the slit.

Insert the upper tab (1 part) of the lens cover

between the upper case and lens as shown in the gure for step 3. Then, t the right/left tabs (2 parts) to attach the lens cover.

Strap hole

Lens cover

Strap

Upper caseLens

Strap slit

CAUTION

lens cover in front of the lens when the projector is mounted upside down such as when mounted on the ceiling. Otherwise, the lens cover may block the light from the projector or hit the lens, which may cause damage to it. When mounting the projector upside down, hang the lens cover on the side of the projector or place it on the projector. For instance, let the strap put through the concave portion around the security bar to hang the lens cover (refer to the gure). ►Be careful not to damage the lens while handling the lens cover.

►Do not hang the

Right/Left tabs

Upper tab

Introduction

Part names

Projector

(1) Control panel (6) (2) Lamp cover (103)

The lamp unit is inside. (3) Remote sensor (17) (4) Lens (107) (5) AC (AC inlet) (16) (6) Ports (6) (7) Exhaust vent (8) Speaker (13, 21, 48) (9) Elevator feet (x 2) (24) (10) Spacer (24) (11) Security slot (16) (12) Security bar (16) (13) Strap hole (4) (14) FOCUS ring (24) (15) Filter cover (105)

The air lter and intake vent are inside.

(16) Intake vents

(3)

(4)

(2)

(8)

HOT!

(9)

(1)

(5)

(6)

(7)

HOT!

(13)

(12)

(11)

(10)

(14)

(16)

(15)

WARNING

►HOT! : Do not touch around the lamp cover and the exhaust vents during use or just after use, since it is too hot. ►Do not look into the lens or vent while the lamp is on, since the strong light is not good for your eyes. ►Do not use the security bar and slot to prevent the projector from falling down, since it is not designed for it.

CAUTION

►Maintain normal ventilation to prevent the projector from heating up. Do not cover, block or plug up the vents. Do not place anything that can stick or be sucked to the vents, around the intake vents. Clean the air lter periodically.

Introduction

Part names (continued)

Control panel

(1) STANDBY/ON button (

19) (2) INPUT button (21) (3) POWER indicator (19, 110) (4) TEMP indicator (110) (5) LAMP indicator (110) (6) MENU / Cursor button (29)

(4)

(5)

Ports (

10 ~ 15)

(1) USB TYPE A port (x2) (2) LAN port (3) HDMI port (4) USB TYPE B port (5) MIC port (6) AUDIO IN1 port (7) AUDIO IN2 port (8) AUDIO IN3(L,R) ports

(1)

(2)

(4)

(1)

(9) AUDIO OUT (L,R) ports (10) COMPUTER IN1 port (11) COMPUTER IN2 port (12) MONITOR OUT port (13) CONTROL port (14) VIDEO port (15) S-VIDEO port

(3) (11)

(2)

(6)

(10)

(3)

(15)

(14)

(9)

(8)

(13)

(7)

(6) (12)

(5)

Introduction

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

POSITION

ESC

RESET

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

࡯

㧗

VOLUME





ENTER

Part names (continued)

Remote control

(1) VIDEO button (

22) (2) COMPUTER button (22) (3) SEARCH button (23) (4) STANDBY/ON button (19) (5) ASPECT button (23) (6) AUTO button (25) (7) BLANK button (28) (8) MAGNIFY - ON button (27) (9) MAGNIFY - OFF button (27) (10) MY SOURCE/DOC.CAMERA button

(22, 60) (11) VOLUME - button (21) (12) PAGE UP button (18) (13) PAGE DOWN button (18) (14) VOLUME + button (21) (15) MUTE button (21) (16) FREEZE button (28) (17) MY BUTTON - 1 button (59) (18) MY BUTTON - 2 button (59) (19) KEYSTONE button (26) (20) POSITION button (25, 30) (21) MENU button (29, 30) (22) ▲/▼/◄/► cursor buttons (29) (23) ENTER button (29, 30) (24) ESC button (29) (25) RESET button (29) (26) Battery cover (17)

(2) (1) (6) (5) (16) (8) (9) (19) (17) (20) (22)

(24)

the remote control

(10) (4) (3) (7) (12) (14) (11) (13) (15) (18) (21) (23) (25)

Back of

(26)

Setting up

Install the projector according to the environment and manner the projector will be used in.

Arrangement

Refer to table T-1 or T-2 and gures F-1 and F-2 at the end of User’s Manual (concise) to determine the screen size and projection distance.

The values shown in the table are calculated for a full size screen.

Screen size (diagonal)

• For the case of installation in a special state such as ceiling mount, the specied mounting accessories and service may be required. Before installing the projector, consult your dealer about your installation. The screen position may shift after installation if the projector is suspended from the

• ceiling or other location due to the exibility of the plastic projector body. If readjustment is necessary, consult with your dealer or service personnel.

• The projected image position and/or focus may change during warm-up (approx. 30 minutes after the lamp is turned on) or when the ambient conditions change. Readjust the image position and/or focus as necessary.

• Since the projector features a short throw, be aware that it is required to select a screen carefully to have better performance.

- A soft screen such as a pull-down screen may cause serious distortion of a projected image. A hard screen such as a board screen is recommended for use with this projector.

- A high-gain screen such as a bead screen that has narrow viewing angle is not suitable for this projector. A low-gain screen (around 1.0) such as a matte screen that has wide viewing angle is recommended for use with this projector.

A screen with a weave pattern may cause moiré on the projected image, which is not a failure of the projector. A screen that has less moiré effects is recommended for use with this projector.

b Projection distance (±8%)

c1 , c2 Screen height (±8%)

►

WARNING

Place the projector in a stable horizontal position. If the projector falls or is knocked over, it could cause injury and/or damage to the projector. Using a damaged projector could then result in re and/or electric shock.

• Do not place the projector on an unstable, slanted or vibrational surface such

as a wobbly or inclined stand.

• Do not place the projector on its side or front position.

• For special installation such as ceiling mounting, be sure to consult your dealer

beforehand.

(continued on next page)

Setting up

Arrangement (continued)

WARNING

►Place the projector in a cool place, and ensure that there is sufcient ventilation. The high temperature of the projector could cause re, burns and/or malfunction of the projector.

• Do not stop-up, block or otherwise cover the projector's vents.

• Keep a space of 30 cm or more between the sides of the projector and other

objects such as walls.

• Do not place or attach anything that would block the lens or vent holes.

• Do not place the projector on metallic thing or anything weak in heat.

• Do not place the projector on carpet, cushions or bedding.

• Do not place the projector in direct sunlight or near hot objects such as heaters.

Do not place the projector where the air from an air conditioner or similar unit will blow on it directly.

•

Do not place anything near the projector lens or vents, or on top of the projector.

•

Do not place anything that may be sucked into or stick to the vents on the

bottom of the projector. This projector has some intake vents also on the bottom. ►Do not place the projector anyplace where it may get wet. Getting the projector wet or inserting liquid into the projector could cause re, electric shock and/or malfunction of the projector.

• Do not place the projector in a bathroom or the outdoors.

• Do not place anything containing liquid near the projector.

•

Do not place the projector where any oils, such as cooking or machine oil, are used. ►

Use only the mounting accessories the manufacturer specied, and leave installing

and removing the projector with the mounting accessories to the service personnel.

• Read and keep the user’s manual of the mounting accessories used.

CAUTION

►Avoid placing the projector in smoky, humid or dusty place. Placing the projector in such places could cause re, electric shock and/or malfunction of the projector.

• Do not place the projector near humidiers, smoking spaces or a kitchen. Also do not use an ultrasonic humidier near the projector. Otherwise chlorine and minerals contained in tap water are atomized and could be deposited in the projector causing image degradation or other problems. ►

Position the projector to prevent light from directly hitting the projector's remote sensor. ►Do not place the product in a place where radio interference may be caused. ►Do not place this product in a magnetic eld. ►

If the projector is used at an altitude of about 1600 m or higher, set ALTITUDE of the SERVICE item in the OPTION menu to HIGH

(61). Otherwise, set it to NORMAL. If the projector is used with a wrong setting, it may cause damage to the projector itself or the parts inside.

(continued on next page)

Setting up

Arrangement (continued)

NOTE

• The projector may make a rattling sound when tilted, moved or shaken, since a ap to control the air ow inside of the projector has moved. Be aware that this is not a failure or malfunction.

• The incoming light to the screen from the projector has a large angle. While the white image is on the screen, you may see it with colors, but this is because of the type of the screen used or the angles viewed, and it is not a malfunction.

• When the ambient temperature is around 35 to 40°C, the brightness of the lamp is reduced automatically.

Connecting with your devices

Before connecting the projector to a device, consult the manual of the device to conrm that the device is suitable for connecting with this projector and prepare the required accessories, such as a cable in accord with the signal of the device. Consult your dealer when the required accessory did not come with the product or the accessory is damaged. After making sure that the device and projector are turned off, connect them following the instructions below.

►

WARNING

a re or damage to the device and the projector.

- Use only the accessories specified or recommended by the projector’s manufacturer. Consult your dealer when the required accessory did not come with the product or the accessory is damaged. It may be regulated under some standard.

- For a cable with a core at only one end, connect the end with the core to the projector. That may be required by EMI regulations.

- Neither disassemble nor modify the projector and the accessories.

- Do not use the damaged accessory. Be careful not to damage the accessories.

Route a cable so that it is neither stepped on nor pinched out.

CAUTION

in operation, unless that is directed in the manual of the device. Otherwise it may cause malfunction in the device or projector. ►Be careful not to mistakenly connect a connector to a wrong port. Otherwise it may cause malfunction in the device or projector.

- When connecting a connector to a port, make sure that the shape of the

connector ts the port.

- Tighten the screws to connect a connector equipped with screws to a port.

- Use the cables with straight plugs, not L-shaped ones, as the input ports of the

projector are recessed.

Use only the appropriate accessories. Otherwise it could cause

►Do not turn on or off the projector while connected to a device

(continued on next page)

Setting up

COMPONENT

Cb/Pb

Cr/Pr

HDMI

VIDEO

S-VIDEO

AUDIO

OUT

AUDIO

OUT

USB

(A)

DISPLAY

RS-232C

HDMI

Connecting with your devices (continued)

About Plug-and-Play capability

• Plug-and-Play is a system composed of a computer, its operating system and peripheral equipment (i.e. display devices). This projector is VESA DDC 2B compatible. Plug-and-Play can be used by connecting this projector to a computer that is VESA DDC (display data channel) compatible.

- Take advantage of this feature by connecting a computer cable to the COMPUTER IN1 port (DDC 2B compatible). Plug-and-Play may not work properly if any other type of connection is attempted.

Please use the standard drivers in your computer as this projector is a Plug-andPlay monitor.

• When AUTO is selected for the COMPUTER IN1 or COMPUTER IN2 port in COMPUTER IN of the INPUT menu, that port will accept component video signals (

•

When the USB TYPE B port and the computer's type A USB port are connected,

41).

you can use the USB TYPE B port as a picture input port from the computer, or use the remote control as a simple mouse and keyboard of the computer. (18).

VCR/DVD/Blu-ray Disc

player

(continued on next page)

Computer

Setting up

Connecting with your devices (continued)

NOTE

• Before connecting the projector to a computer, consult the computer’s manual and check the compatibility of the signal level, the synchronization methods and the display resolution output to the projector.

- Some signal may need an adapter to input this projector.

- Some computers have multiple screen display modes that may include some

signals which are not supported by this projector.

- Although the projector can display signals with resolution up to UXGA

(1600X1200), the signal will be converted to the projector’s panel resolution before being displayed. The best display performance will be achieved if the resolutions of the input signal and the projector panel are identical.

• If you connect this projector to a notebook computer, you need to output the

display to an external monitor, or output simultaneously to the internal display and an external monitor. Consult the computer's manual for the setting.

• Depending on the input signal, the automatic adjustment function of this

projector may take some time and not function correctly.

- Note that a composite sync signal or sync-on-green signal may confuse the

automatic adjustment function of this projector (

41).

- If the automatic adjustment function does not work correctly, you may not see

the dialog to set the display resolution. In such a case, use an external display device. You may be able to see the dialog and set an appropriate display resolution.

(continued on next page)

Setting up

RGB IN

Connecting with your devices (continued)

• If you insert a USB storage device, such as a USB memory, into the USB TYPE A port and select the port as the input source, you can view images stored in the

device (85).

• You can connect a dynamic microphone to the MIC port with a 3.5 mm mini-plug. In that case, the built-in speaker outputs the sound from the microphone, even while the sound from the projector is output. You can input line level signal to the MIC port from equipment such as wireless microphone. Select HIGH in the MIC LEVEL item of the AUDIO menu when you input line level audio signal to the MIC port. In the normal mode, the volume of the microphone can be adjusted separately from the volume of the projector using the menu. (49)

In the standby mode, the volume of the microphone is adjustable with the

VOLUME +/- buttons on the remote control, in synchronization with the volume of the projector. (21)

Even when the sound of projector is set to mute mode by the AUDIO SOURCE

function (48), the volume of the microphone is adjustable.

In both modes (standby or normal), the MUTE button on the remote control

works on the sounds of the microphone and the projector. (21)

Monitor

Speakers

(with an amplier)

NOTE

• If a loud feedback noise is produced from the speaker, move the

Microphone system

microphone away from the speaker.

• This projector doesn't support plug-in power for the microphone.

(continued on next page)

Setting up

USB storage

device

Connecting with your devices (continued)

To use network functions of the projector, connect the LAN port with the computer's LAN port, or with an access point that is connected to the computer with wireless LAN, using a LAN cable. To use NETWORK BRIDGE function, also connect the CONTROL port and an RS-232C port of the external device to communicate as a network terminal. See the User's Manual - Network Guide for details of the network functions.

►Before connecting the projector to a network system, be sure to obtain the consent of the administrator of the network. ►

Do not connect the LAN port to any network that might have the excessive voltage.

►The designated USB wireless adapter that is sold as an option is required to use the wireless network function of this projector. ►Before removing the USB storage device from the port of the projector, be sure to use the REMOVE USB function on the thumbnail screen to secure your data (88). ►Do not use any extension cable or device when connecting the adapter to the projector. Before you insert or pull out the USB wireless adapter from the projector, turn off the power of the projector and pull out the power cord’s plug from the outlet. Do not touch the USB wireless adapter while the projector is receiving AC power. ►To connect both the LAN cable and USB device to the projector, use a LAN cable that is  at on the side where the plug’s wire is visible. Otherwise, both of them cannot be connected correctly, or the wire may break (malfunction).

CAUTION

RS-232C

LAN

USB TYPE A

RS-232C

Access point

Computer

(continued on next page)

USB

wireless

adapter

(optional)

External

Device

Setting up

Connecting with your devices (continued)

NOTE

• If an oversized USB storage device blocks the LAN port, use a USB

extension cable to connect the USB storage device.

• The HDMI port of this model is compatible with HDCP (High-bandwidth Digital Content Protection) and therefore capable of displaying a video signal from HDCP compatible DVD players or the like.

- The HDMI supports the following signals. Video signal : 480i@60, 480p@60, 576i@50, 576p@50, 720p@50/60, 1080i@50/60, 1080p@50/60 Audio signal : Format Linear PCM Sampling frequency 48kHz / 44.1kHz / 32kHz

- This projector can be connected with another equipment that has HDMI

connector, but with some equipment the projector may not work properly, something like no video.

- Be sure to use an HDMITM cable that has the HDMITM logo.

- Use a Category 2-certied HDMITM cable to input 1080p@50/60 signal to the projector.

- When the projector is connected with a device having DVI connector, use a DVI to HDMITM cable to connect with the HDMI input.

• Up to one USB wireless adapter (optional) can be connected to a projector.

Setting up

Connecting to a power supply

Put the connector of the power cord into the

AC (AC inlet) of the projector. Firmly plug the power cord’s plug into the

outlet. In a couple of seconds after the power supply connection, the POWER indicator will light up in steady orange.

Please remember that when the DIRECT POWER ON function activated ( power supply make the projector turn on.

56), the connection of the

Power cord

WARNING

incorrect or faulty connections may result in re and/or electrical shock.

• Do not touch the power cord with a wet hand.

• Only use the power cord that came with the projector. If it is damaged, consult your dealer to get a new one. Never modify the power cord.

• Only plug the power cord into an outlet whose voltage is matched to the power cord. The power outlet should be close to the projector and easily accessible. Remove the power cord for complete separation.

• Do not distribute the power supply to multiple devices. Doing so may overload the outlet and connectors, loosen the connection, or result in re, electric shock or other accidents.

Using the security bar and slot

A commercial anti-theft chain or wire up to 10 mm in diameter can be attached to the security bar on the projector. Also this product has the security slot for the Kensington lock. For details, see the manual of the security tool.

WARNING

from falling down, since it is not designed for it.

CAUTION

It may become too hot.

►Please use extra caution when connecting the power cord, as

Security slot

Security bar

Anti-theft chain or wire

►Do not use the security bar and slot to prevent the projector

►Do not place anti-theft chain or wire near the exhaust vents.

NOTE

measures. It is intended to be used as supplemental theft prevention measure.

• The security bar and slot is not comprehensive theft prevention

Remote control

About the remote control signal

The remote control works with the projector’s remote sensor. This projector has a remote sensor on the front. The sensor senses the signal within the following range when the sensor is active:

60 degrees (30 degrees to the left and right of the sensor) within about 3 meters.

Installing the batteries

Please insert the batteries into the remote control before using it. If the remote control starts to malfunction, try to replace the batteries. If you will not use the remote control for long period, remove the batteries from the remote control and store them in a safe place.

Holding the hook part of the battery cover, remove it.

Align and insert the two AA batteries

(HITACHI MAXELL ENERGY, Part No.LR6 or R6P) according to their plus and minus terminals as indicated

in the remote control.

Replace the battery cover in the direction of the arrow and snap it back into place.

►Always handle the batteries with care and use them only as directed. Improper use may result in battery explosion, cracking or leakage, which could result in  re, injury and/or pollution of the surrounding environment.

• Be sure to use only the batteries speci ed. Do not use batteries of different types at the same time. Do not mix a new battery with used one.

•

Make sure the plus and minus terminals are correctly aligned when loading a battery.

• Keep a battery away from children and pets.

• Do not recharge, short circuit, solder or disassemble a battery.

•

Do not place a battery in a  re or water. Keep batteries in a dark, cool and dry place.

• If you observe battery leakage, wipe out the leakage and then replace a battery. If the leakage adheres to your body or clothes, rinse well with water immediately.

• Obey the local laws on disposing the battery.

WARNING

•

The remote control signal re ected in the screen or the like may be available.

If it is dif cult to send the signal to the sensor directly, attempt to make the signal re ect.

• The remote control uses infrared light to send signals to the projector (Class 1 LED), so be sure to use the remote control in an area free from obstacles that could block the remote control’s signal to the projector.

•

The remote control may not work correctly if strong light (such as direct sun light) or light from an extremely close range (such as from an inverter  uorescent lamp) shines on the remote sensor of the projector. Adjust the position of projector avoiding those lights.

NOTE

21 3

Remote

sensor

30º

Approx.

3 m

Remote control

Changing the frequency of remote control signal

The accessory remote control has the two choices on signal frequency Mode 1:NORMAL and Mode 2:HIGH. If the remote control does not function properly, attempt to change the signal frequency. In order to set the Mode, please keep pressing the combination of two buttons listed below simultaneously for about 3 seconds.

Using as a simple PC mouse & keyboard

The accessory remote control works as a simple mouse and keyboard of the computer, when the projector’s USB TYPE B port and the computer’s type A USB port are connected and MOUSE is selected for the USB TYPE B item in the OPTION menu. (1) PAGE UP key: Press PAGE UP button.

(2) PAGE DOWN key: Press PAGE DOWN button. (3) Mouse left button: Press ENTER button. (4) Move pointer: Use the cursor buttons ▲, ▼, ◄ and ►. (5) ESC key: Press ESC button. (6) Mouse right button: Press RESET button.

►Improper use of the simple mouse & keyboard function could damage your equipment. While using this function, please connect this product only to a computer. Be sure to check your computer’s manuals before connecting this product to the computer.

NOTICE

When the simple mouse & keyboard function of this product does not work

correctly, please check the following.

• When a USB cable connects this projector with a computer having a built-in pointing device (e.g. track ball) like a laptop PC, open BIOS setup menu, then select the external mouse and disable the built-in pointing device, because the built-in pointing device may have priority to this function.

•

Windows XP SP3 or higher is required for this function. And also this function may not work depending on the computer’s con gurations and mouse drivers. This function can work with the computer which can operate general USB mouse or keyboard.

• You cannot do things like press two buttons at once (for instance, pressing two buttons at the same time to move the mouse pointer diagonally).

•

This function is activated only when the projector is working properly. This function is not available in any of the following cases:

- While the lamp is warming up. (The POWER indicator blinks in green.)

- When either USB TYPE A or USB TYPE B port is selected.

- While displaying BLANK

(28)

, TEMPLATE

(54)

or MY IMAGE

(76)

screen.

- When any menu is displayed on the screen.

While using the cursor buttons to operate the sound or screen functions such as adjusting the sound volume, correcting the keystone, correcting the picture position and magnifying the screen.

NOTE

(1) Set to Mode 1:NORMAL... VOLUME - and RESET buttons (2) Set to Mode 2:HIGH... MAGNIFY OFF and ESC buttons

Please remember that the REMOTE FREQ. in the SERVICE item of the OPTION menu

(62)

of the projector to be controlled should be

set to the same mode as the remote control.

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

POSITION

ESC

RESET

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

ENTER

(1)(2)

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

POSITION

ESC

RESET

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

ENTER

(1)

(3)

(5)

(2)

(4)

(6)

USB TYPE B

port

Power on/off

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

POSITION

ESC

RESET

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

ENTER

FOCUS

D-ZOOM

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

POSITION

ESC

RESET

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

ENTER

Power on/off

Turning on the power

Make sure that the power cord is rmly

and correctly connected to the projector and the outlet.

Make sure that the POWER indicator is

steady orange (

110). Then, remove the

lens cover. Press the STANDBY/ON button on the

projector or the remote control. The projection lamp will light up and the POWER indicator will begin blinking in green. When the power is completely on, the indicator will stop blinking and light in steady green (

110).

To display the picture, select an input signal according to the section Selecting an input signal (21).

The INITIAL SETTING Menu will be displayed by factory default upon startup. Once the INITIAL SETTING Menu is set, it will not appear until FACTORY RESET (

66) is executed. If you wish to change the settings, refer to the LANGUAGE

(50) and ALTITUDE (60) menu.

STANDBY/ON button

POWER indicator

(1) LANGUAGE: Use the ▲/▼/◄/►

buttons to select the desired language and press the ENTER button of the remote control or the INPUT button of the projector to execute.

(2) ALTITUDE: Use the ▲/▼ buttons to

select NORMAL for altitude below 1600 m (5250 feet), otherwise select HIGH and press the ENTER button of the remote control or the INPUT button of the projector to execute.

(continued on next page)

Power on/off

Turning on the power (continued)

WARNING ►A strong light is emitted when the projector’s power is on. Do not look into the lens of the projector or look inside of the projector through any of the projector’s openings. ►Do not touch around the lamp cover and the exhaust vent during use or just after use, since it is too hot.

Turning off the power

Press the STANDBY/ON button on the projector or the remote control.

The message “Power off?” will appear on the screen for about 5 seconds. Press the STANDBY/ON button again while the message appears.

The projector lamp will go off, and the POWER indicator will begin blinking in orange. Then POWER indicator will stop blinking and light in steady orange when the lamp cooling is complete (110).

Attach the lens cover, after the POWER indicator turns in steady orange.

Do not turn the projector on for about 10 minutes or more after turning it off. Also, do not turn the projector off shortly after turning it on. Such operations might cause the lamp to malfunction or shorten the lifetime of some parts including the lamp.

WARNING

during use or just after use, since it is too hot. ►Remove the power cord for complete separation. The power outlet should be close to the projector and easily accessible.

NOTE

prior to the connected devices.

This projector has the function that can make the projector automatically turn on/

• off. Please refer to the DIRECT POWER ON items of the OPTION menu.

• Turn the power on/off in right order. Please power on the projector

►Do not touch around the lamp cover and the exhaust vents

(56)

and AUTO POWER OFF

(57)

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

Operating

Adjusting the volume

Use the VOLUME +/VOLUME - buttons to adjust the volume. A dialog will appear on the screen to aid you in adjusting the volume. If you do not do anything, the dialog will automatically disappear after about ten seconds.

● When

is selected for current picture input port, the volume adjustment is

disabled. Please see AUDIO SOURCE item of AUDIO menu (48).

● Even if the projector is in the standby mode, the volume is adjustable in the following conditions:

- An option other than is selected for STANDBY in the AUDIO SOURCE item of the AUDIO menu (48).

NORMAL is selected in the STANDBY MODE item of the SETUP menu

(46).

● In the standby mode, the volume of the microphone is adjustable with the VOLUME +/- buttons on the remote control, in synchronization with the volume of the projector (13).

Press MUTE button on the remote control. A dialog will appear on the screen indicating that you have muted the sound. To restore the sound, press the MUTE, VOLUME + or VOLUME - button. Even if you do not do anything, the dialog will automatically disappear after about ten seconds.

Temporarily muting the sound

● When is selected for current picture input port, the sound is always muted. Please see AUDIO SOURCE item of AUDIO menu (48).

● C.C. (Closed Caption) is automatically activated when sound is muted and an input signal containing C.C. is received. This function is available only when the signal is NTSC for VIDEO or S-VIDEO, or 480i@60 for COMPUTER IN1 or COMPUTER IN2, and when AUTO is selected for DISPLAY in the C.C. menu under the SCREEN menu (55).

Press INPUT button on the projector. Each time you press the button, the projector switches its input port from the current port as below.

Selecting an input signal

(continued on next page)

●

While ON is selected for AUTO SEARCH item in OPTION menu (56), the projector will keep checking the ports in above order repeatedly till an input signal is detected.

●

It may take several seconds to project the images from the USB TYPE B port.

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

VOLUME +/- button

MUTE button

COMPUTER IN1  COMPUTER IN2

VIDEO LAN

S-VIDEO USB TYPE A

HDMI  USB TYPE B

INPUT button

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

Operating

Press VIDEO button on the remote control. Each time you press the button, the projector switches its input port from the current port as below.

Selecting an input signal (continued)

●

While ON is selected for AUTO SEARCH item in OPTION menu, the projector will keep checking every port sequentially till an input signal is detected (56). If VIDEO button is pressed when COMPUTER IN1, COMPUTER IN2, LAN, USB TYPE A or USB TYPE B port is selected, the projector will check HDMI port  rst.

Press COMPUTER button on the remote control. Each time you press the button, the projector switches its input port from the current port as below.

● While ON is selected for AUTO SEARCH item in OPTION menu, the projector will keep checking every port sequentially till an input signal is detected (

56). If COMPUTER button is pressed when VIDEO, S-VIDEO or HDMI port is selected, the projector will check COMPUTER IN1 port  rst.

● It may take several seconds to project the images from the USB TYPE B port.

Press the MY SOURCE / DOC. CAMERA button on the remote control. The input signal will be changed into the signal you set as MY SOURCE (60).

● This function also can use for document camera. Select the input port that connected the document camera.

COMPUTER IN1  COMPUTER IN2  LAN USB TYPE B  USB TYPE A

HDMI  S-VIDEO

VIDEO

VIDEO button

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

MY SOURCE / DOC. CAMERA button

COMPUTER button

Operating

Searching an input signal

Press SEARCH button on the remote control.

The projector will start to check its input ports as below in order to  nd any input signals. When an input is detected, the projector will stop searching and display the image. If no signal is found, the projector will return to the state selected before the operation.

COMPUTER IN1  COMPUTER IN2

VIDEO LAN

S-VIDEO USB TYPE A

HDMI  USB TYPE B

SEARCH button

MY SOURCE/

VIDEO

COMPUTER

DOC.CAMERA

ASPECT

AUTO

FREEZE

MAGNIFY

OFF

MY BUTTON

KEYSTONE

POSITION

ESC

● While ON is selected for AUTO SEARCH item in OPTION menu (56), the projector will keep checking the ports in the above order repeatedly till an input signal is detected.

●

It may take several seconds to project the images from the USB TYPE B port.

Selecting an aspect ratio

Press ASPECT button on the remote control.

Each time you press the button, the projector switches the mode for aspect ratio in turn.

 For a computer signal

NORMAL  4:3  16:9  16:10  NATIVE

 For an HDMITM signal

NORMAL  4:3  16:9  16:10  14:9  NATIVE

 For a video signal, s-video signal or component video signal

4:3  16:9  16:10  14:9  NATIVE

 For an input signal from the LAN, USB TYPE A or USB TYPE B port, or

if there is no signal

8113: 4:3 ( xed)

ASPECT button

MY SOURCE/

VIDEO

COMPUTER

DOC.CAMERA

ASPECT

AUTO

FREEZE

MAGNIFY

OFF

MY BUTTON

KEYSTONE

POSITION

ESC

BLANK

PAGE

VOLUME

＋

DOWN

ー

MUTE

RESET

BLANK

PAGE

VOLUME

＋

DOWN

ー

MUTE

RESET

● ASPECT button does not work when no proper signal is inputted.

● NORMAL mode keeps the original aspect ratio setting.

● The on-screen menu might be displayed outside of the image display area depending on the adjustment value of the ASPECT, D-ZOOM and

KEYSTONE. Changing the values of ASPECT, D-ZOOM and KEYSTONE may  x the symptom.

Operating

Adjusting the projector's elevator

The projector has Front foot for inclinations and Rear foot for horizontals. A spacer is installed on the Rear elevator foot at the time of shipment, and the projector is ready for use. If necessary, detach the spacer, and the elevator feet can be manually twisted to make more precise adjustments.

0~2°

Front foot Rear foot

Front foot

-1~1°

Spacer

WARNING

Spacer

Rear foot

►Keep the spacer away from children and pets. Be careful not to let them swallow the spacer. If swallowed consult a physician immediately for emergency treatment.

NOTE

• The Front foot can be adjusted within 0~2°, while the Rear foot can

be adjusted within -1~1°.

•

After the foot is adjusted, it is possible to return it to the state of the shipment with a spacer.

It is recommended to keep the spacer and reuse it when relocating the projector.

Adjusting the focus

Use the focus ring to focus the picture.

FOCUS ring

Operating

Press AUTO button on the remote control. Pressing this button performs the following.

Using the automatic adjustment feature

 For a computer signal

The vertical position, the horizontal position and the horizontal phase will be automatically adjusted. Make sure that the application window is set to its maximum size prior to attempting to use this feature. A dark picture may still be incorrectly adjusted. Use a bright picture when adjusting.

 For a video signal and s-video signal

The video format best suited for the respective input signal will be selected automatically. This function is available only when the AUTO is selected for the VIDEO FORMAT item in the INPUT menu (

40).

The vertical position and

horizontal position will be automatically set to the default.

● The automatic adjustment operation requires approx. 10 seconds. Also please note that it may not function correctly with some input.

● When this function is performed for a video signal, a certain extra such as a line may appear outside a picture.

● When this function is performed for a computer signal, a black frame may be displayed on the edge of the screen, depending on the PC model.

●

The items adjusted by this function may vary when the FINE or DISABLE is selected for the AUTO ADJUST item of the SERVICE item in the OPTION menu (

61).

 For a component video signal

The vertical position and horizontal position will be automatically set to the default. The horizontal phase will be automatically adjusted.

AUTO button

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

Adjusting the position

Press the POSITION button on the remote control while no menu

is on screen, to display the D-SHIFT

Use the ▲, ▼, ◄ and ► buttons to adjust the picture position.

Press the POSITION button again to  nish this operation.

(43)

dialog on screen.

VIDEO

COMPUTER

ASPECT

AUTO

MY BUTTON

KEYSTONE

POSITION

ENTER

ESC

POSITION button

MY SOURCE/

DOC.CAMERA

BLANK

MUTE

RESET

● This is a function to shift the position of the shrunken picture by the D-ZOOM function.

● When an OSD (On Screen Display) menu is displayed, this operation moves the

(30)

position of the OSD menu, but not the position of the picture

● The D-SHIFT adjustment values are not valid when the D-ZOOM is set to 256 (full screen). (8113)

● The D-SHIFT adjustment values are not valid when the D-ZOOM is set to 320 (full screen). (CP-DW25WN)

(43)

Operating

Correcting the keystone distortions

KEYSTONE button

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

Press the KEYSTONE button on the remote control. A dialog will appear on the screen to aid you in correcting the distortion.

Use the ◄/► cursor buttons for adjustment. To close the dialog and complete this operation, press the KEYSTONE button again. Even if you do not do anything, the dialog will automatically disappear after about ten seconds.

● The adjustable range of this function varies for each input signal. For some input, this function may not work well.

● When the projector is inclined to near ±6 degrees or over, this function may not work well.

● This function will be unavailable when the TRANSITION DETECTOR is activated (

82).

● The OSD menu might be displayed outside of the image display area depending on the adjustment value of the ASPECT, D-ZOOM and

KEYSTONE. Changing

the values of ASPECT, D-ZOOM and

KEYSTONE may  x the symptom.

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

Operating

Using the magnify feature

Press the MAGNIFY ON button on the remote control. The picture will be magni ed, and the MAGNIFY dialog will appear on the screen. When the MAGNIFY ON button is pressed for the  rst time after the projector is turned on, the picture will be zoomed by 1.5 times. On the dialog, triangle marks to show each direction will be displayed.

The display magni cation of the projector switches in order with every press of the MAGNIFY ON button.

 For computer signals, HDMI

(RGB) signals, input signals from the

LAN, USB TYPE A or USB TYPE B port

1.5 times  2 times  3 times  4 times  1 time



For video signals, s-video signals, component video signals or HDMITM (Component) signals

1.5 times  2 times  1 time

While the triangles are displayed on the dialog, use the ▲/▼/◄/► cursor buttons to shift the magnifying area.

Press the MAGNIFY OFF button on the remote control to exit magni cation.

● The MAGNIFY dialog will automatically disappear in several seconds with no operation. The dialog will appear again if the MAGNIFY ON button is pressed when the dialog has automatically disappeared.

● The magni cation is automatically disabled when the displaying signal or its display condition is changed.

● While the magni cation is active, the keystone distortion condition may vary. It will be restored when the magni cation is disabled.

● Some horizontal stripes might be visible on the image while magni cation is active.

● This function is not available in the following cases:

- A sync signal in the range not supported is input.

- There is no input signal.

MAGNIFY ON/OFF button

Operating

Press BLANK button on the remote control. The BLANK screen will be displayed instead of the screen of input signal. Please refer to BLANK item in SCREEN menu (50). To exit from the BLANK screen and return to the input signal screen, press BLANK button again.

Temporarily blanking the screen

● The projector automatically exits from the

BLANK

mode when

some control buttons are pressed.

•

The sound is not connected with the BLANK screen function. If necessary, set the volume or mute  rst. To display the BLANK screen and mute the sound at one time, use AV MUTE function

(60).

NOTE

Press the FREEZE button on the remote control. The “FREEZE” indication will appear on the screen (however, the indication will not appear when the OFF is selected for the MESSAGE item in the SCREEN menu (52)), and the projector will go into the FREEZE mode, which the picture is frozen. To exit the FREEZE mode and restore the screen to normal, press the FREEZE button again.

Temporarily freezing the screen

● The projector automatically exits from the FREEZE mode when some control buttons are pressed.

● If the projector continues projecting a still image for a long time, the LCD panel might possibly be burned in. Do not leave the projector in the FREEZE mode for too long.

● Images might appear degraded when this function is operated, but it is not a malfunction.

►If you wish to have a blank screen while the projector’s lamp is on, use the BLANK function above. Taking any other action may cause the damage on the projector.

CAUTION

FREEZE button

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

BLANK button

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

POSITION

ESC

RESET

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

ENTER

FOCUS

D-ZOOM

Operating

To start the MENU, press the MENU button. The MENU you last used (EASY or ADVANCED) will appear. EASY MENU has priority to appear just after powered on.

Using the menu function

(1) Use the ▲/▼ cursor buttons to select an item to

operate. If you want to change it to the ADVANCED MENU, select the ADVANCED MENU.

(2) Use the ◄/► cursor buttons to operate the item.

This projector has the following menus: PICTURE, IMAGE, INPUT, SETUP, AUDIO, SCREEN, OPTION, NETWORK, SECURITY and EASY MENU. EASY MENU consists of functions often used, and the other menus are classi ed into each purpose and brought together as the ADVANCED MENU. Each of these menus is operated using the same methods. While the projector is displaying any menu, the MENU button on the projector works as the cursor buttons. The basic operations of these menus are as follows.

In the EASY MENU

(continued on next page)

(1) Use the ▲/▼ cursor buttons to select a menu.

If you want to change it to the EASY MENU, select the EASY MENU. The items in the menu appear on the right side.

(2) Press the ► cursor button or ENTER button to

move the cursor to the right side. Then use the ▲/▼ cursor buttons to select an item to operate and press the ► cursor button or ENTER button to progress. The operation menu or dialog of the selected item will appear.

(3) Use the buttons as instructed in the OSD to operate the item.

In the ADVANCED MENU

MENU button

(Cursor buttons)

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

POSITION

ESC

RESET

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

ENTER

RESET button

ENTER button MENU button

Cursor buttons

ESC button

Operating

Using the menu function (continued)

To close the MENU, press the MENU button again or select EXIT and press

the ◄ cursor button or ENTER button. Even if you do not do anything, the dialog will automatically disappear after about 30 seconds.

●

If you want to move the menu position, use the cursor buttons after pressing the POSITION button.

● Some functions cannot be performed when a certain input port is selected, or when a certain input signal is displayed.

● When you want to reset the operation, press RESET button on the remote control during the operation. Note that some items (ex. LANGUAGE, VOLUME) cannot be reset.

● In the ADVANCED MENU, when you want to return to the previous display, press the ◄ cursor button or ESC button on the remote control.

Indication in OSD (On Screen Display)

The meanings of the general words on the OSD are as follows.

Indication Meaning

EXIT

RETURN Selecting this word returns the menu to the previous menu.

CANCEL or NO

OK or YES

Selecting this word nishes the OSD menu. It's the same as pressing the MENU button.

Selecting this word cancels the operation in the present menu and returns to the previous menu.

Selecting this word executes the prepared function or shifts the menu to the next menu.

+ 89 hidden pages
