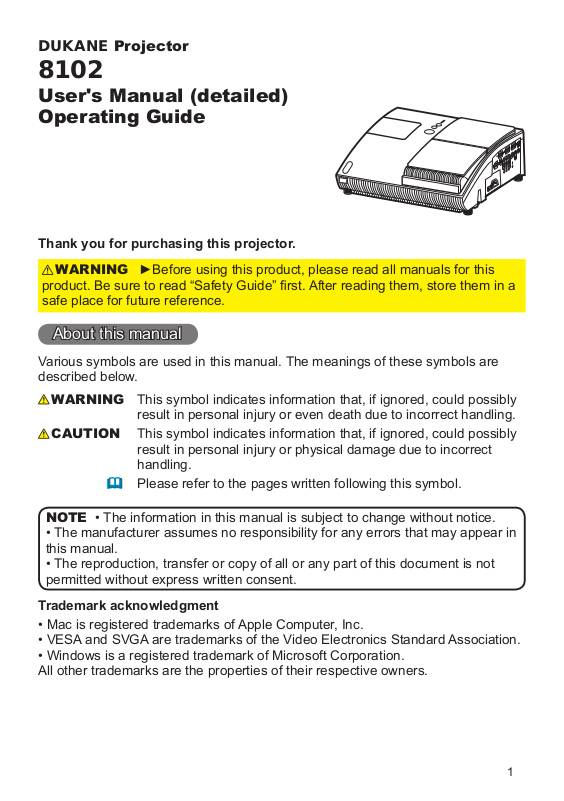

Dukane 8102 User Manual
DUKANE Projector
8102
User's Manual (detailed)
Operating Guide
Thank you for purchasing this projector.
WARNING
product. Be sure to read “Safety Guide” rst. After reading them, store them in a
safe place for future reference.
►Before using this product, please read all manuals for this
About this manual
Various symbols are used in this manual. The meanings of these symbols are
described below.
WARNING
CAUTION
NOTE
• The manufacturer assumes no responsibility for any errors that may appear in
this manual.
• The reproduction, transfer or copy of all or any part of this document is not
permitted without express written consent.
Trademark acknowledgment
• Mac is registered trademarks of Apple Computer, Inc.
• VESA and SVGA are trademarks of the Video Electronics Standard Association.
• Windows is a registered trademark of Microsoft Corporation.
All other trademarks are the properties of their respective owners.
• The information in this manual is subject to change without notice.
This symbol indicates information that, if ignored, could possibly
result in personal injury or even death due to incorrect handling.
This symbol indicates information that, if ignored, could possibly
result in personal injury or physical damage due to incorrect
handling.
Please refer to the pages written following this symbol.
1
Contents
Contents
About this manual . . . . . . . . . . . 1
Contents .
Projector features . .
Preparations . .
. . . . . . . . . . . . . . . . . 2
. . . . . . . . . 3
. . . . . . . . . . . . . 3
Contents of package . . . . . . . . . . . . . 3
Part names
. . . . . . . . . . . . . . . 4
.
PICTURE Menu . . . . . . . . . . . . 28
IMAGE Menu . . . . . . . . . . . . . . 31
Projector . . . . . . . . . . . . . . . . . . . . . . 4
Control buttons . . . . . . . . . . . . . . . . . 5
Ports . . . . . . . . . . . . . . . . . . . . . . . . . 5
INPUT Menu . . . . . . . . . . . . . . 33
Remote control . . . . . . . . . . . . . . . . . 6
Setting up .
Arrangement . . . . . . . . . . . . . . . . . . . 7
Connecting with your devices . . . . . 10
Connecting with a power supply
Using the security bar and slot . . . . 1
Using the cable cover
emote control . .
R
. . . . . . . . . . . . . . . . 7
. . . 12
. . . . . . . . . . . 13
. . . . . . . . . . 14
SETUP Menu . . . . . . . . . . . . . . 36
3
SCREEN Menu . . . . . . . . . . . . . 38
Preparing for the remote control . . . 14
Changing the frequency of remote control signal
Using as a simple PC mouse & keyboard
Power on/off .
. . . . . . . . . . . . . 16
. 15
. 15
OPTION Menu . . . . . . . . . . . . . 42
Turning on the power . . . . . . . . . . . 16
T
urn off the power . . . . . . . . . . . . . . 17
Oper
ating .
. . . . . . . . . . . . . . . 18
NETWORK Menu . . . . . . . . . . . 55
Adjusting the volume . . . . . . . . . . . . 18
T
emporarily muting the sound . . . . . 18
Selecting an input signal
Searching an input signal .
Selecting an aspect ratio
Adjusting the projection position
Adjusting the zoom
Adjusting the picture position .
Adjusting the focus .
. . . . . . . . . 18
. . . . . . . 19
. . . . . . . . . 19
. . . 20
. . . . . . . . . . . . . 20
. . . . 20
. . . . . . . . . . . . 21
Using the automatic adjustment feature
Correcting the keystone distortions
C.C. (Closed Caption) Menu . . 60
Maintenance . . . . . . . . . . . . . . 61
. 21
. 22
Troubleshooting
Using the magnify feature . . . . . . . . 22
Freezing the screen . . . . . . . . . . . . 2
T
emporarily blanking the screen . . . 23
Using the menu function
.
EASY MENU
Aspect, D-zoom, Keystone ,
picture moDe, Brightness, contrAst,
olor, tint, shArpness, Whisper,
c
irror, reset, Filter time,
m
AnguAge,
l
. . . . . . . . . . . . . . 26
Go to Advanced Menu
. . . . . . . . . 24
...
3

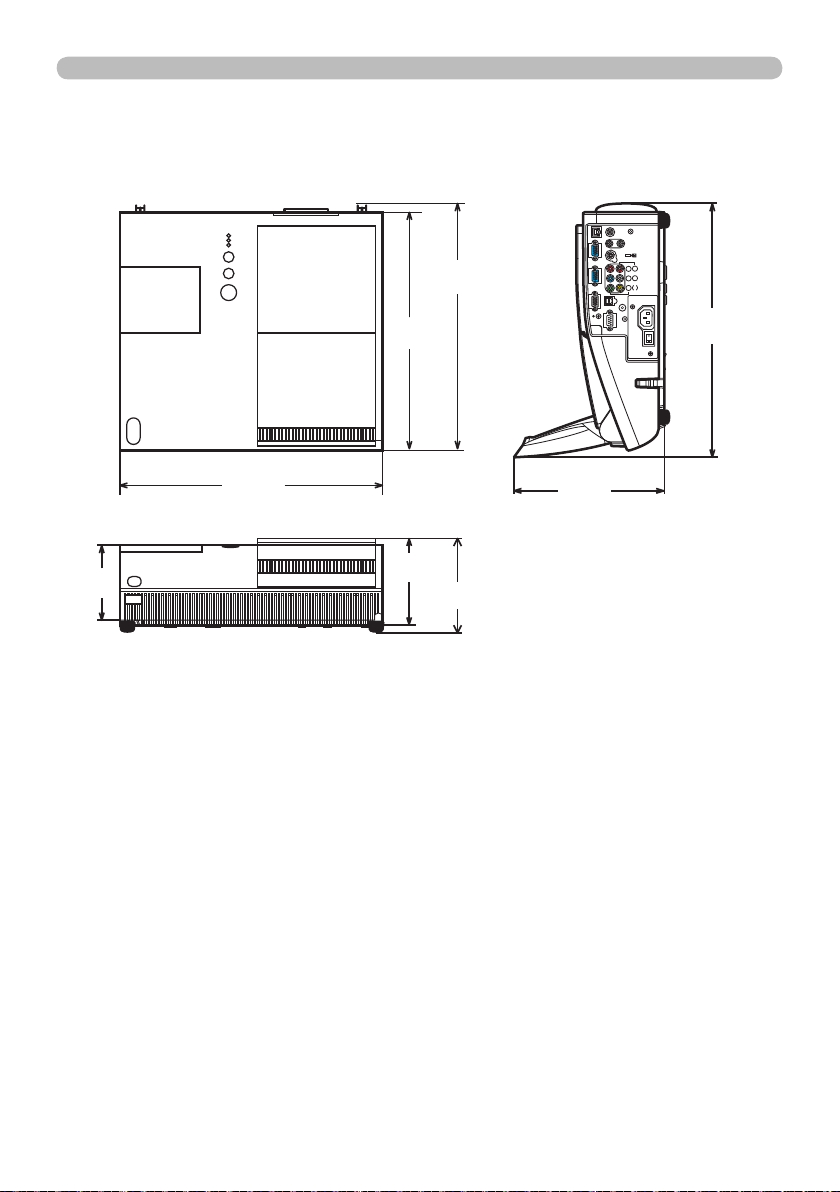

Specications . .
Brightness, contrAst, gAmmA,
olor temp, color, tint,
c
hArpness, my memory
s
Aspect, over scAn, v position,
position, h phAse, h size,
h
uto ADjust execute
A
progressive, viDeo nr, color spAce,
omponent, viDeo FormAt, FrAme locK,
c
omputer in, resolution
c
D-zoom, D-shiFt v, D-shiFt h,
K
eystone
v
olume, speAKer, AuDio
lAnguAge, menu position, BlAnK,
tArt up,
s
essAge, source nAme
m
Auto seArch, Auto on, Auto oFF,
Amp time, Filter time, my Button,
l
ervice, security
s
setup, projector nAme, e-shot,
i
nFormAtion, service
DisplAy, moDe, chAnnel
, Whisper, mirror,
M
yScreen
, M
yScreen Lock
,

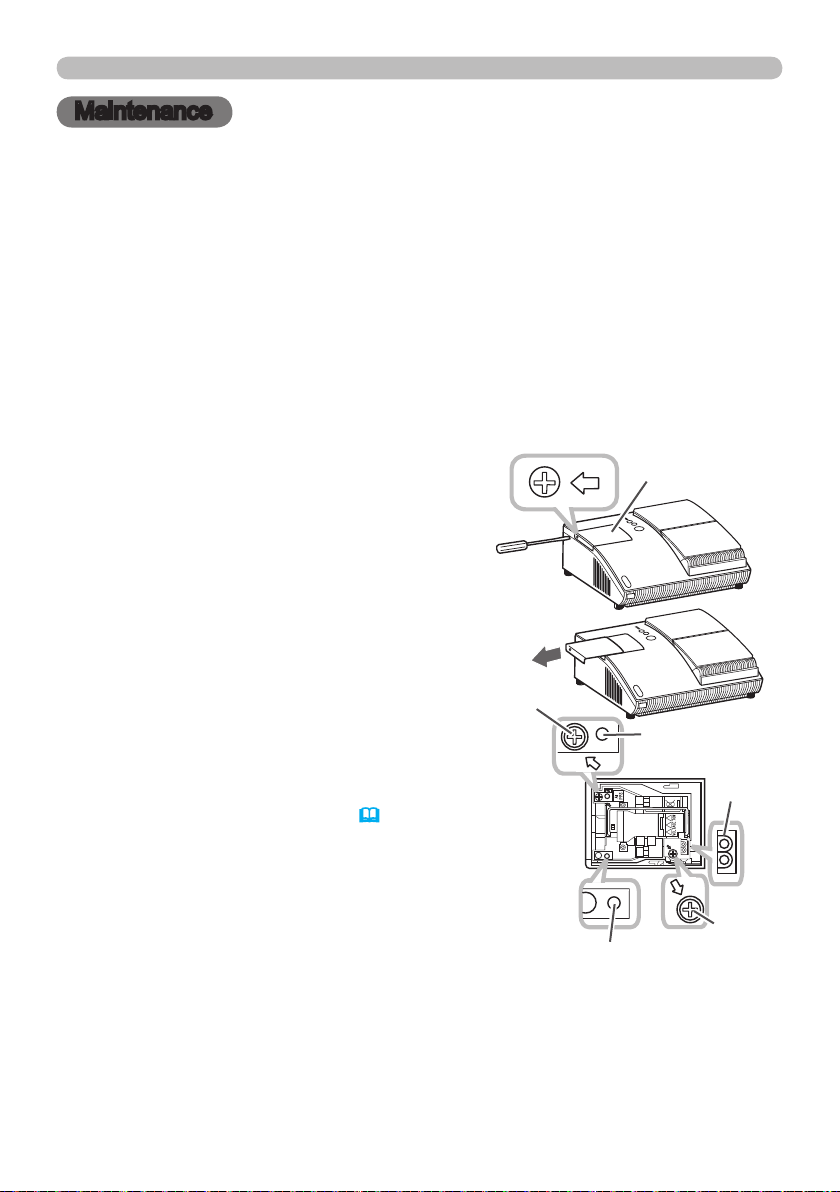

Replacing the lamp . . . . . . . . . . . . . 61
Maintaining the air-lter
. . . . . . . . . . 63
Replacing the clock battery . . . . . . . 65
Caring for the mirror and lens . . . . . 66
Other care . . . . . . . . . . . . . . . . . . . . 67
. . . . . . . . . . 68
.
Related messages . . . . . . . . . . . . . 68
Regarding the indicator lamps . . . . 69
Shutting the projector down . . . . . . 70
Resetting all settings . . . . . . . . . . . . 70
Phenomena that may be easy
to be mistaken for machine defects
. . 71
. . . . . . . . . . . 74
2
Projector features / Preparations
Projector features
This product realizes the large projection image of various image signals, even if
in a small space. This product can offer you convenience and various uses by the
following features.
ü The unique lens and mirror system realizes ultra short distance projection,
which gives you more various way of use.
ü The motorized lens door offers you very simple use of the projector
ü This projector can be controlled and monitored via LAN connection.
.
Preparations
Contents of package
Please see the “Checking the contents” section in the User’s Manual (concise)
which is a book. Your projector should come with the items shown there. Contact
immediately your dealer if anything is missing.
NOTE
to use the original packing materials when moving the projector. Use special
caution for the lens.
• Keep the original packing materials, for future reshipment. Be sure
3
Part names
Part names
Projector
(1) Control buttons
(See the following page.)
(2) Lamp cover (
(3) Remote sensors (
(4) Speaker (
(5) Exhaust vents
(6) Lens door (
(7) Ports (
(8) AC inlet (
(9) Power switch (
(10) Security bar (
(11) Intake vents
(12) Filter unit (
(13) Elevator feet (
(14) Battery cover (
(15) Internal threads
These are threads for optional
mounting accessories.
(16) Lens (
(17) Mirror (
61)
14)
37)
16, 66)
5, 10)
12)
16)
13)
63)
20)
65)
16, 66)
16, 66)
(6)
(3)
(4)
(13)
(16)
(2)
(14)
(12)
(5)
(1)
(11)
(6)
(6)
(7)
(8)
(9)
(10)
(5)
(15)
(13)
(17)
WARNING
►Be careful not to pinch your nger with the lens door, to
prevent an injury.
►Never look into the projection lens or mirror while the projection lamp lights,
since the projection lamp ray may cause a trouble on your eyes.
CAUTION
►Do not touch the lamp cover or approach the exhaust vents
while using the projector and for a while after use, to prevent a burn.
►Do not cover, block, or plug up the vents to keep normal ventilation. Do not
place anything that can stick or be sucked to the vents, around the intake vents.
4
Control buttons
LAMP
TEMP
POWER
STANDBY/ON
INPUT
MENU
FOCUS - + FOCUS
MONITOR OUT
COMPUTER IN2
COMPUTER IN1
CONTROL
LAN
AUDIO
OUT
S-VIDEO
Y CB/PB CR/PR
VIDEO L R
USB
AUDIO IN3
AUDIO IN
1
2
Part names
(1) LAMP indicator (69)
(2) TEMP indicator (
(3) POWER indicator (
(4) STANDBY/ON button (
(5) INPUT button (
69)
16, 17, 69)
16, 17)
18)
(6) FOCUS +/- buttons
when no menu is displayed (
Cursor ◄, ► buttons
when a menu is displayed (
(7) MENU buttons
when no menu is displayed (
Cursor ▲, ▼ buttons
when a menu is displayed (
Ports (10, Technical's 3 to 6)
(1) Shutdown switch
(2) MONITOR OUT port
B/PB, CR/PR
(3) Y, C
(Component video) ports
(4) COMPUTER IN2 port
(5) COMPUTER IN1 port
(6) LAN port
(7) CONTROL port
21), or
24).
24), or
24).
(1)
(2)
(3)
(6)
(8) USB port (
15)
(9) VIDEO port
(10) AUDIO IN3 (L,R) ports (
(11) AUDIO OUT port
(12) AUDIO IN1 port (
(13) AUDIO IN2 port (
37)
37)
(14) S-VIDEO port
(15) Security slot (
13)
(4)
(5)
(7)
37)
(7)
(8)
(1) (2) (3) (4) (5) (6)
(9) (10)
(15)
(11)
(12)
(13)
(14)
5
Part names
VIDEO COMPUTER SEARCH
ASPECT AUTO BLANK
ON
OFF
MAGNIFY
HOME PAGE UP VOLUME
END
PAGE DOWN
MUTE
FREEZE MY BUTTON KEYSTONE
1 2
FOCUS D-ZOOM
- + - +
POSITION MENU
ENTER
ESC RESET
Remote control
(1) STANDBY/ON button (16, 17)
(2) VIDEO button (
(3) COMPUTER button (
(4) SEARCH button (
(5) ASPECT button (
(6) AUTO button (
(7) BLANK button (
(8) MAGNIFY ON button (
(9) MAGNIFY OFF button (
(10) HOME button (
(11) END button (
(12) PAGE UP button (
(13) PAGE DOWN button (
(14) VOLUME button (
(15) MUTE button (
(16) FREEZE button (
(17) MY BUTTON 1 button (
(18) MY BUTTON 2 button (
(19) KEYSTONE button (
(20) FOCUS – button (
(21) FOCUS + button (
(22) D-ZOOM – button (
(23) D-ZOOM + button (
(24) POSITION button (
(25) MENU button (
(26) Cursor ▲/▼/◄/► buttons (
(27) ENTER button (
(28) ESC button (
(29) RESET button (
(30) Battery cover (
19)
18)
19)
19)
21)
23)
22)
15, 22)
15)
15)
15)
15)
18)
15, 18)
23)
44)
44)
22)
21)
21)
20)
20)
20, 22, 24)
24)
24, 25)
24, 25)
24, 25)
24, 25)
14)
(3)
(2)
(5)
(10)
(8)
(9)
(11)
(16)
(17)
(20)
(21)
(24)
(26)
(28)
(4)
(1)
(6)
(7)
(12)
(14)
(15)
(13)
(19)
(18)
(23)
(22)
(25)
(27)
(29)
(30)
6
Back of
the remote control
Setting up
Setting up
Arrangement
Install the projector in a stable, cool, dry and airy place, keeping a space of 30 cm
or more between the sides of the projector and other objects such as walls.
Refer to the following to decide the projection style. Ceiling mount and tabletop
use must be setup with the designated optional accessories. Ask your dealer for
details.
(3) Ceiling mount
NOTE
(2) Tabletop use
(1) Usual use
• When installing the projector, conrm that there is nothing that blocks
Mirror protector
Tabletop use feet
the projection light between the projector and the screen.
• When installing the projector, check that the remote sensors are not exposed
to any strong ray (14).
CAUTION
►The designated optional accessory for the tabletop use
contains the tabletop use feet and mirror protector. Please see the manual
enclosed with the accessory.
• The tabletop use feet must be used for the tabletop use, otherwise the projector
can't stand or falls down broken.
• The mirror protector must be used to protect the lens door when the projector
falls to the table.
7
Setting up
A
C2
C1
B2
B1
A
C2
C1
B2
B1
A
C2
C1
B2
B1
*
A
B1
B2
C1
C2
A
B1
B2
C1
C2
Arrangement (continued)
Refer to the following for the projection distance.
The values shown in the table are calculated for a full size screen: 1024x768.
(1)
(2)
(3)
Table for 4:3 screen
inch cm inch cm inch cm inch cm inch
48 * 0.5 *(0.2) 38.3 15 24.4 10 98.2 39
50 2.0 1 39.8 16 25.2 10 101.9 40
60 9.6 4 47.4 19 28.9 1
70 17.2 7 55.0 22 32.6 13 139.3 55
80 24.8 10 62.6 25 36.2 14 158.2 62
90 32.4 13 70.2 28 39.9 16 177.1 70
100 39.9 16 77.7 31 43.6 17 196.0 77
120 55.0 22 92.8 37 50.9 20 234.0 92
1
50 77.7 31 1
200 115.5 45 153.3 60 80.4 32 385.7 15
15.5 45 62.0 24 291.0 115
Table for 16:9 screen
inch cm inch cm inch cm inch cm inch
44 * 0.5 *(0.2) 38.3 15 33.6 13 88.9 35
50 5.4 2 43.2 17 37.3 15 99.9 39
60 13.7 5 51.5 20 43.5 17 118.3 47
70 22.0 9 59.8 24 49.6 20 136.8 54
80 30.2 12 68.0 27 55.7 22 155.3 61
90 38.5 15 76.3 30 61.8 24 173.9 68
100 46.6 18 84.4 33 67.9 27 192.3 76
120 63.1 25 100.9 40 80.1 32 229.5 90
150 87.8 35 125.6 49 98.4 39 285.3 112
200 129.0 51 166.8 66 129.0 51 378.2 149
(±8%)
1 120.4 47
(±8%)
2
NOTE
• It is recommended to adjust the screen size from 60 inch to 100 inch
diagonal. The screen image adjusted out of this range, either smaller or larger,
may be deteriorated.
• The screen position may be shifted after installation if the projector is
suspended on a ceiling or somewhere, since the body of this projector is made
of plastics. If readjustment is necessary, consult with your dealer or installater.
8
Arrangement (continued)
Setting up
WARNING
►Place the projector in a stable horizontal position. If the
projector falls or is knocked over it could cause injury and/or damage to the
projector. Using a damaged projector could then result in re and/or electric
shock.
• Do not place the projector on an unstable, slanted or vibrational surface such
as a wobbly or inclined stand.
• Do not place the projector on its side or front position. To place the projector
on its rear position for the table top use, it is required to use the designated
optional parts. Consult with your dealer.
• Consult with your dealer before a special installation such as suspending from
a ceiling or somewhere else.
►Place the projector in a cool place, and ensure that there is sufcient
ventilation. The high temperature of the projector could cause re, burns and/or
malfunction of the projector.
• Do not stop-up, block or cover the projector's vents.
• Keep a space of 30 cm or more around the projector from other objects such
as walls.
• Do not place the projector on metallic thing or anything weak in heat.
• Do not place the projector on carpet, cushions or bedding.
• Do not place the projector in direct sunlight or near hot objects such as heaters.
• Do not place anything near the lens door, lens, mirror, vents. or on the top of
the projector.
• Do not place anything that may be sucked into or stick to the vents on the rear
and bottom of the projector. This projector has some intake vents on the rear
and bottom.
►Do not place the projector anyplace where it may get wet. Getting the projector
wet or inserting liquid into the projector could cause re, electric shock and/or
malfunction of the projector.
• Do not place the projector in a bathroom or the outdoors.
• Do not place anything containing liquid near the projector.
CAUTION
►Avoid placing the projector in smoky, humid or dusty place.
Placing the projector in such places could cause re, electric shock and/or
malfunction of the projector.
• Do not place the projector near humidiers, smoking spaces or a kitchen.
►Position the projector to prevent light from directly hitting the projector's remote
sensor.
9
Setting up
MONITOR OUT
COMPUTER IN2
COMPUTER IN1
CONTROL
LAN
AUDIO
OUT
S-VIDEO
Y CB/PB CR/PR
VIDEO L R
USB
AUDIO IN3
AUDIO IN
1
2
RGB OUT
AUDIO
OUT
AUDIO
OUT
RS-232C
USB-A
Y CB/PB CR/PR
COMPONENT VIDEO OUT
L R
AUDO OUT
L R
AUDO OUT
L R
AUDO OUT
S-VIDEO
OUT
VIDEO
OUT
RGB OUT
LAN
AUDIO IN
RGB IN
Connecting with your devices
Before connecting them, make sure that the devices are suitable to connect with
this projector, and prepare the required signal cables and adapters. Consult your
dealer if the accessory that is not included in this product is required. Refer to the
following for connection. If you want to use the cable cover, see the Using the
cable cover (
13).
PCs
Monitor
Speakers
(with an amplier)
VCR/DVD
players
WARNING
►Use only the accessories contained in this product or
recommended by your dealer. Do not modify the projector or accessories.
►For the cable with a ferrite core only at one end, connect the end with the core
to the projector. The cables may be required a specic length or a ferrite core by
the regulations.
►Be careful not to damage the cables. Route the cables so that they are not
likely to be walked on or pinched by items placed upon or against them.
CAUTION
►Do not connect or disconnect the projector with devices while
they are connected to a power supply, except for the cases directed by the
manuals.
►Be careful not to set a connector into a wrong port or with a wrong way.
(continued on next page)
10
Connecting your devices (continued)
Setting up
NOTE
projector, and make sure that all the devices are suitable to be connected with this
product. Before connecting to a PC, check the signal level, the signal timing, and the
resolution.
- Be sure to consult to the administrator of the network. Do not connect LAN
network that might have the excessive voltage.
- Some signal may need an adapter to input this projector
- Some PCs have multiple screen display modes that may include some signals which
are not supported by this projector.
- Although the projector can display signals with resolution up to UXGA (1600X1200),
the signal will be converted to the projector’s panel resolution before being displayed.
The best display performance will be achieved if the resolutions of the input signal and
the projector panel are identical.
• While connecting, make sure that the shape of the cable's connector ts the port to
connect with. And be sure to tighten the screws on connectors with screws.
• When connecting a laptop PC to the projector, be sure to activate the PC’s external
RGB output. (Set the laptop PC to CRT display or to simultaneous LCD and CRT
display.) For details on how this is done, please refer to the instruction manual of the
corresponding laptop PC.
• When the picture resolution is changed on a PC depending on an input, automatic
adjustment function may take some time and may not be completed. In this case,
you may not be able to see a check box to select “Yes/No” for the new resolution on
Windows. Then the resolution will go back to the original. It might be recommended to
use other CRT or LCD monitors to change the resolution.
• In some cases, this projector may not display a proper picture or display any picture on
screen. For example, automatic adjustment may not function correctly with some input
signals. An input signal of composite sync or sync on G may confuse this projector, so
the projector may not display a proper picture.
• Be sure to read the manuals for devices before connecting them to the
port to any
.
About Plug-and-Play capability
Plug-and-Play is a system composed of a PC, its operating system and peripheral
equipment (i.e. display devices). This projector is VESA DDC 2B compatible. Plug-andPlay can be used by connecting this projector to a PC that is VESA DDC (display data
channel) compatible.
• Take advantage of this feature by connecting an RGB cable to the COMPUTER IN1
port (DDC 2B compatible). Plug-and-Play may not work properly if any other type of
connection is attempted.
• Please use the standard drivers in your PC as this projector is a Plug-and-Play monitor.
11
Setting up
Connecting with a power supply
Before connection, conrm that the power
outlet is suitable for this projector and the
power cord.
Then follow the procedure below for
connection.
Insert the end of the power cord with the
1.
socket into the AC inlet of the projector.
Plug the other end of the power cord into
2.
a power outlet.
WARNING
electric shock or a re.
• Do not handle the power cord with the wet hand.
• Use this product with only the type of power supply indicated on the projector.
• Use a power outlet that is close to the projector and easily accessible.
• Connect rmly the power cord not to result in loose connection. Do not use a
loose or unsound power outlet.
• Do not overload the outlet, since overloading can result in a risk of re or
electric shock.
• Use only the power cord contained in this product unless it is damaged. If it is
damaged, consult your dealer to get new one. Do not modify the power cord.
►Be careful of operation for a power supply not to cause an
AC Inlet
Power cord
(with the socket)
12
Using the security bar and slot
This projector has the security bar for a
commercial anti-theft chain or wire up to 10
mm in diameter, and also the security slot for
the Kensington lock.
For details, see the manual of the security
tool.
Setting up
Security slot
NOTE
comprehensive theft preventions but
supplemental measures.
exhaust vents, since the chain or wire heated by the hot exhaust gas may cause
a burn.
►Do not use the security bar or slot for the purpose of fall prevention, since
these are not designed for it.
• These are not provided as
WARNING
►Do not place the anti-theft chain or wire near the projector’s
Security bar
Using the cable cover
Utilize the cable cover as the guard and blind for the connecting parts.
Connect the signal cables and the
1.
power cord to the projector rst.
Attach the cable cover to the
2.
projector, uniting the interlocking
parts.
Tighten the screw to x the cable
3.
cover.
Connect the other ends of the
4.
cables to other devices, and plug
the power cord to the power outlet.
Interlocking parts
Cable cover
Screw
Screw driver
CAUTION
prevent damage to the cables.
►Be careful not to pinch the cables in the cable cover, to
13
Remote control
Remote control
Preparing for the remote control
The accessory remote control needs batteries. Use the
batteries included in this product or two new batteries of
the specied type: HITACHI MAXELL, part number LR6
or R6P. Follow the following procedure.
Remove the battery cover in the back of the remote
1.
control.
Put the batteries into the battery holder, according to
2.
the polarity markings (+) and (-) inside the holder.
Put the battery cover back to the former state.
3.
NOTE
remote control malfunctions.
• This remote control works with the remote
sensors on the projector using infrared light
(Class 1 LED). The active sensor senses the
remote control signal assigned within 60 degrees
to right and left, and within 3 meters.
• The remote control signal reected in the
screen or the like may be available.
• Prevent the remote sensors from being hit by
a strong ray. It may cause malfunction of the
projector and remote control.
WARNING
cracking or leakage, which could result in a re, an injury, and environment pollution.
•
Use only the specied and new battery. Do not use a battery with damage, such
as a scratch, a dent, rust or leakage. Do not mix a new battery with used one.
•
When a battery leaked, wipe the leakage out well with a waste cloth. If the
leakage adhered to your body, immediately rinse it well with water. When a battery
leaked in the battery holder, replace the batteries after wiping the leakage out.
•
Make sure the plus and minus terminals are correctly aligned when loading a battery.
• Do not work on a battery; for example recharging or soldering.
• Do not keep the batteries put into the remote control when the remote control
is not used for a long while. Keep a battery in a dark, cool and dry place. Never
expose a battery to a re or water.
• Obey the local laws on disposing a battery.
• Try changing the batteries when the
►
Be careful of handling a battery, as a battery can cause explosion,
Remote sensors
30º
30º
3 m
(approx.)
14
VIDEO COMPUTER SEARCH
ASPECT AUTO BLANK
ON
OFF
MAGNIFY
HOME PAGE UP VOLUME
END
PAGE DOWN
MUTE
FREEZE MY BUTTON KEYSTONE
1 2
FOCUS D-ZOOM
- + - +
POSITION MENU
ENTER
ESC RESET
USB
VIDEO COMPUTER SEARCH
ASPECT AUTO BLANK
ON
OFF
MAGNIFY
HOME PAGE UP VOLUME
END
PAGE DOWN
MUTE
FREEZE MY BUTTON KEYSTONE
1 2
FOCUS D-ZOOM
- + - +
POSITION MENU
ENTER
ESC RESET
Remote control
Changing the frequency of remote control signal
The accessory remote control has the two choices on signal
frequency Mode 1:NORMAL and Mode 2:HIGH. If the remote control
does not function properly, attempt to change the signal frequency.
In order to set the Mode, please keep pressing the combination of
two buttons listed below simultaneously for about 3 seconds.
(1) Set to Mode 1:NORMAL... MUTE and RESET buttons
(2) Set to Mode 2:HIGH... MAGNIFY OFF and
ESC buttons
Please remember that the REMOTE FREQ. in the SERVICE item of
(46)
the OPTION Menu
of the projector to be controlled should be
set to the same mode as the remote control.
Using as a simple PC mouse & keyboard
The accessory remote control works as a simple mouse
and keyboard of the PC, when the projector's USB port
(B type) connects with the PC's USB port (A type) port
via a mouse cable.
(1) HOME key: Press HOME button.
(2) END key: Press END button.
(3) PAGE UP key: Press PAGE UP button.
(4) PAGE DOWN key: Press PAGE DOWN button.
(5) Mouse left button: Press ENTER button.
(6) Move pointer: Use the cursor buttons ▲, ▼, ◄ and ►.
(7) ESC key: Press ESC button.
(8) Mouse right button: Press RESET button.
USB port
(1)
(2)
(1)(2)
(3)
(4)
WARNING
keyboard function could damage your equipment. While
►Improper use of the simple mouse &
(5)
using this function, please connect this product only
to a PC. Be sure to check your PC’s manuals before
(7)
connecting this product to the PC.
•
NOTE
When the simple mouse & keyboard function of this product does not work
correctly, please check the following.
- When a USB cable connects this projector with a PC having a built-in pointing device
(e.g. track ball) like a notebook PC, open BIOS setup menu, then select the external
mouse and disable the built-in pointing device, because the built-in pointing device may
have priority to this function.
- Windows 95 OSR 2.1 or higher is required for this function. And also this function may
not work depending on the PC’s congurations and mouse drivers.
- You cannot do things like press two buttons at once (for instance, pressing two buttons
at the same time to move the mouse pointer diagonally).
- This function is activated only when the projector is working properly. This function is
not available while the lamp is warming up (the POWER indicator blinks green), and
while adjusting the volume and display, correcting for keystone, magnifying the screen,
using the BLANK function, or displaying the menu screen.
(6)
(8)
15
LAMP
TEMP
POWER
STANDBY/ON
INPUT
Power on/off
Power on/off
Turning on the power
Turn on the projector and the connected devices. Turn on the projector ahead of
other connected devices, unless mentioned in the manuals.
For this projector, follow the procedure below.
Press the side marked " I " of the power
1.
switch, as the power-on position.
The POWER indicator lights up in orange.
STANDBY/ON button
POWER indicator
● For a couple of seconds after the POWER
indicator lights up, wait to use the control
buttons (on the projector and remote control).
The buttons may not work soon.
Conrm that there is nothing that the lens
2.
door hits while opening.
Then, press the STANDBY/ON button (on
the projector or remote control).
The lens door opens, the projection lamp
lights up, and the POWER indicator begins to
Power
switch
blink green.
When the projector starts completely, the indicator
STANDBY/ON button
will turn steady green.
To display the picture, select an input signal according to the section “Selecting an
input signal” (18).
NOTE
• When the AUTO ON of the OPTION Menu is set to the TURN ON,
and the power was turned off by the power switch last time, turning the power
switch on makes the projection lamp light on without pushing the STANDBY/
ON button (
42).
WARNING
lamp lights, since the projection lamp ray may cause a trouble on your eyes.
►Do not touch around the lamp cover and the exhaust vents during use or just
►
Never look into the projection lens or mirror while the projection
after use, since it is too hot.
CAUTION
►Be careful not to pinch your nger with the lens door, as it may
cause an injury.
16
LAMP
TEMP
POWER
STANDBY/ON
INPUT
Power on/off
Turn off the power
Turn the projector off after turning off the other connected devices, unless
mentioned in the manuals. For this projector, follow the procedure below.
Press the STANDBY/ON button (on the
1.
projector or remote control).
The “Power off?” dialog appears on the
screen for about 5 seconds.
Conrm that there is nothing that the lens
2.
door hits while closing.
Then press the STANDBY/ON button again
while the message appears.
The projection lamp goes off, the lens door
closes, and the POWER indicator begins to
blink orange.
● For cooling the projector down, wait for the
POWER indicator to stop blinking and turn
steady orange.
The projector can be turned off without
waiting for cooling down. However, the
manufacture recommends cooling the
projector down enough.
Do not turn the projector on for about 10
minutes or more after turning it off to prevent
shortening its life.
STANDBY/ON button
POWER indicator
Power
switch
STANDBY/ON button
Press the side marked " " of the power switch, as the power-off position.
3.
The POWER indicator goes off.
When you will not use the projector for a long while, unplug and separate the
power cord from the power outlet, for safety purposes.
NOTE
off by normal procedure.
• Do not turn the projector on for about 10 minutes or more after turning it off.
• Use the shutdown switch (70) only when the projector is not turned
Turning the projector on again too soon could shorten the lifetime of some
consumable parts of the projector.
CAUTION
►Be careful not to pinch your nger with the lens door, to
prevent an injury.
►Do not touch the lamp cover or approach the exhaust vents while using the
projector and for a while after use, to prevent a burn.
17
VIDEO COMPUTER SEARCH
ASPECT AUTO BLANK
ON
OFF
MAGNIFY
HOME PAGE UP VOLUME
END
PAGE DOWN
MUTE
FREEZE MY BUTTON KEYSTONE
1 2
FOCUS D-ZOOM
- + - +
POSITION MENU
INPUT
MENU
VIDEO COMPUTER SEARCH
ASPECT AUTO BLANK
ON
OFF
MAGNIFY
HOME PAGE UP VOLUME
END
PAGE DOWN
MUTE
FREEZE MY BUTTON KEYSTONE
1 2
FOCUS D-ZOOM
- + - +
POSITION MENU
VIDEO COMPUTER SEARCH
ASPECT AUTO BLANK
ON
OFF
MAGNIFY
HOME PAGE UP VOLUME
END
PAGE DOWN
MUTE
FREEZE MY BUTTON KEYSTONE
1 2
FOCUS D-ZOOM
- + - +
POSITION MENU
ENTER
ESC RESET
Operating
Operating
Adjusting the volume
Press VOLUME button on the remote control.
1.
A dialog will appear on the screen to aid you in adjusting the volume.
Use the ▲/▼ cursor buttons to adjust the volume.
2.
To close the dialog and complete the operation, press the VOLUME
button again. Even if you do not do anything, the dialog will
automatically disappear after a few seconds.
●
When is selected for current picture input port, the volume adjustment
is disable. Please see AUDIO item of SETUP Menu
(37).
Temporarily muting the sound
Press MUTE button on the remote control.
1.
A dialog will appear on the screen indicating that you have muted the sound.
To restore the sound, press the MUTE or VOLUME button. Even if you do
not do anything, the dialog will automatically disappear after a few seconds.
●
● When
When
is selected for current picture input port, the sound is always
muted. Please see AUDIO item of SETUP Menu
is selected to VIDEO, S-VIDEO or COMPONENT port, the
(37).
C.C. (Closed Caption) is automatically activated if the C.C. is set to
AUTO in the DISPLAY of the C.C. Menu and the input signal from the
port supports the C.C. feature (
60).
Selecting an input signal
Press INPUT button on the projector.
1.
Each time you press the button, the projector switches its input
port from the current port as below.
COMPUTER IN 1 COMPUTER IN 2
VIDEO S-VIDEO COMPONENT (Y, CB/PB, CR/PR)
VOLUME button
▲/▼ button
MUTE button
INPUT button
● While TURN ON is selected for AUTO SEARCH item in OPTION
Menu (
42), the projector will keep checking the ports in above order
repeatedly till an input signal is detected.
Press COMPUTER button on the remote control.
1.
Each time you press the button, the projector switches its input
port from the current port as below.
COMPUTER IN 1 COMPUTER IN 2
● While
(continued on next page)
18
TURN ON is selected for AUTO SEARCH item in OPTION
Menu, the projector will keep checking every port sequentially till an
input signal is detected (
VIDEO, S-VIDEO or COMPONENT port is selected, the projector will
check COMPUTER IN1 port rst.
COMPUTER button
42). If COMPUTER button is pushed when
VIDEO COMPUTER SEARCH
ASPECT AUTO BLANK
ON
OFF
MAGNIFY
HOME PAGE UP VOLUME
END
PAGE DOWN
MUTE
FREEZE MY BUTTON KEYSTONE
1 2
VIDEO COMPUTER SEARCH
ASPECT AUTO BLANK
ON
OFF
MAGNIFY
HOME PAGE UP VOLUME
END
PAGE DOWN
MUTE
FREEZE MY BUTTON KEYSTONE
1 2
FOCUS D-ZOOM
- + - +
VIDEO COMPUTER SEARCH
ASPECT AUTO BLANK
ON
OFF
MAGNIFY
HOME PAGE UP VOLUME
END
PAGE DOWN
MUTE
FREEZE MY BUTTON KEYSTONE
1 2
Operating
Selecting an input signal (continued)
Press VIDEO button on the remote control.
1.
Each time you press the button, the projector switches its input
VIDEO button
port from the current port as below.
COMPONENT (Y, CB/PB, CR/PR) S-VIDEO VIDEO
●
While TURN ON is selected for AUTO SEARCH item in OPTION Menu, the projector
will keep checking every port sequentially till an input signal is detected (
42). If
VIDEO button is pushed when COMPUTER IN1 or COMPUTER IN2 port is selected,
the projector will check COMPONENT port rst.
Searching an input signal
Press SEARCH button on the remote control.
1.
The projector will start to check its input ports as below in order to
nd any input signals.
When an input is found, the projector will stop searching and
display the image. If no signal is found, the projector will return to
the state selected before the operation.
COMPUTER IN 1 COMPUTER IN 2
VIDEO S-VIDEO COMPONENT (Y, CB/PB, CR/PR)
● While TURN ON is selected for AUTO SEARCH item in OPTION Menu (42), the
projector will keep checking the ports in above order repeatedly till an input signal is
detected.
SEARCH button
Selecting an aspect ratio
Press ASPECT button on the remote control.
1.
Each time you press the button, the projector switches the mode
for aspect ratio in turn.
For a computer signal
NORMAL 4:3 16:9
For a video signal, s-video signal or component video signal
4:3 16:9 14:9
For no signal
4:3 (xed)
● ASPECT button does not work when no proper signal is inputted.
● NORMAL mode keeps the original aspect ratio setting.
ASPECT button
19
20
VIDEO COMPUTER SEARCH
ASPECT AUTO BLANK
ON
OFF
MAGNIFY
HOME PAGE UP VOLUME
END
PAGE DOWN
MUTE
FREEZE MY BUTTON KEYSTONE
1 2
FOCUS D-ZOOM
- + - +
POSITION MENU
ENTER
ESC RESET
VIDEO COMPUTER SEARCH
ASPECT AUTO BLANK
ON
OFF
MAGNIFY
HOME PAGE UP VOLUME
END
PAGE DOWN
MUTE
FREEZE MY BUTTON KEYSTONE
1 2
FOCUS D-ZOOM
- + - +
POSITION MENU
ENTER
ESC RESET
Operating
►
Do not lengthen the elevator feet to 43 mm or more. The foot
lengthened exceeding the limit may come off from the projector, and result in an injury.
►Tilt the projector with these elevating feet only.
►Do not tilt the projector over 5 degrees, when it is suspended from a ceiling or
somewhere.
CAUTION
COMPUTER OUT
COMPUTER IN2
COMPUTER IN1
CONTROL
LAN
AUDIO
OUT
S-VIDEO
Y C
B
/P
B
C
R
/P
R
VIDEO L
R
USB
AUDIO IN3
AUDIO IN
1
2
Adjusting the projection position
This projector has four elevator feet in the bottom. Use them to adjust the
projection position.
Elevator feet
max. 43 mm
Adjusting the zoom
Press the D-ZOOM + or D-ZOOM – button on the remote
control to display D-ZOOM dialog on screen.
Use the D-ZOOM + and D-ZOOM – buttons to adjust the
picture size.
To nish the operation, do not touch these buttons for a few
seconds until the dialog is disappeared.
D-ZOOM + button
D-ZOOM – button
Adjusting the picture position
Press the POSITION button on the remote control while no
menu is on screen, to display the D-SHIFT dialog on screen.
Use the ▲, ▼, ◄ and ► buttons to adjust the picture position.
Press the POSITION button again to nish this operation.
POSITION button
● If you want to expand a part of the image, use the magnify
function (22).
● This is a function to shift the position of the shrunken picture
by the zoom function.
● The function is not available, if any menu is displayed on
screen.
● The function is not available, if the D-ZOOM is adjusted to
100 (full screen) on its dialog.
VIDEO COMPUTER SEARCH
ASPECT AUTO BLANK
ON
OFF
MAGNIFY
HOME PAGE UP VOLUME
END
PAGE DOWN
MUTE
FREEZE MY BUTTON KEYSTONE
1 2
FOCUS D-ZOOM
- + - +
POSITION MENU
ENTER
ESC RESET
VIDEO COMPUTER SEARCH
ASPECT AUTO BLANK
ON
OFF
MAGNIFY
HOME PAGE UP VOLUME
END
PAGE DOWN
MUTE
FREEZE MY BUTTON KEYSTONE
1 2
FOCUS D-ZOOM
- + - +
POSITION MENU
Adjusting the focus
Operating
Press the FOCUS + or FOCUS – button on the remote control,
FOCUS + button
or FOCUS + or FOCUS – button on the projector while no
menu is on screen, to display the FOCUS box on screen.
Use the FOCUS + and FOCUS – buttons to adjust the screen
focus. After the focus adjustment, wait for a while until the
FOCUS box is disappeared, if you want to display any other
menu on screen by pushing the MENU button on the projector.
FOCUS – button
Using the automatic adjustment feature
Press AUTO button on the remote control.
1.
Pressing this button performs the following.
For a computer signal
The vertical position, the horizontal position and the
horizontal phase will be automatically adjusted.
Make sure that the application window is set to its maximum
size prior to attempting to use this feature. A dark picture
may still be incorrectly adjusted. Use a bright picture when
adjusting.
For a video signal and s-video signal
The video format best suited for the respective input signal will be selected
automatically
the VIDEO FORMAT item in the INPUT Menu (
and horizontal position will be automatically set to the default.
. This function is available only when the AUTO is selected for
34). The vertical position
AUTO button
For a component video signal
The vertical position, horizontal position and horizontal phase will be
automatically set to the default.
● The automatic adjustment operation requires approx. 10 seconds. Also
please note that it may not function correctly with some input. When this
function is performed for a video signal, a certain extra such as a line may
appear outside a picture.
● The items adjusted by this function may vary when the FINE or DISABLE is
selected for the AUTO ADJUST item of the SERVICE item in the OPTION
Menu (
45).
21
VIDEO COMPUTER SEARCH
ASPECT AUTO BLANK
ON
OFF
MAGNIFY
HOME PAGE UP VOLUME
END
PAGE DOWN
MUTE
FREEZE MY BUTTON KEYSTONE
1 2
VIDEO COMPUTER SEARCH
ASPECT AUTO BLANK
ON
OFF
MAGNIFY
HOME PAGE UP VOLUME
END
PAGE DOWN
MUTE
FREEZE MY BUTTON KEYSTONE
1 2
FOCUS D-ZOOM
- + - +
POSITION MENU
ENTER
ESC RESET
Operating
Correcting the keystone distortions
Press KEYSTONE button on the remote
1.
control. A dialog will appear on the screen
to aid you in correcting the distortion.
Use the ▲/▼ cursor buttons to adjust the
2.
keystone correction.
To close the dialog and complete this operation, press KEYSTONE button
again. Even if you do not do anything, the dialog will automatically disappear
after a few seconds.
● The adjustable range of this correction will vary among inputs. For some
input, this function may not work well.
● This function will be unavailable when T
Using the magnify feature
Press the ON button of MAGNIFY on the remote control.
1.
The “MAGNIFY” indication will appear on the screen and
the projector will go into the MAGNIFY mode. When the ON
button of MAGNIFY is pressed rst after the projector is
started, the picture will be zoomed twice. The indication will
disappear in several seconds with no operation.
Use the ▲/▼ cursor buttons to adjust the zoom level. The picture of video,
2.
s-video or component video signal can be zoomed in up to 2 times, and the
one of computer signal can be zoomed in up to 4 times.
To move the zoom area, press the POSITION button in the MAGNIFY mode,
then use the ▲/▼/◄/► cursor buttons to move the area. And to nalize the
zoom area, press the POSITION button again.
To exit from the MAGNIFY mode and restore the screen to normal, press the
OFF button of MAGNIFY on the remote control.
● The projector automatically exits from the MAGNIFY mode when the input
signal is changed or when the display condition is changed.
● In the MAGNIFY
restored when the projector exits from the MAGNIFY mode.
NOTE
nd the level you want.
22
• The zoom level can be nely adjusted. Closely watch the screen to
mode, the keystone distortion condition may vary, it will be
KEYSTONE button
ransition Detector is on (51).
MAGNIFY
ON/OFF button
VIDEO COMPUTER SEARCH
ASPECT AUTO BLANK
ON
OFF
MAGNIFY
HOME PAGE UP VOLUME
END
PAGE DOWN
MUTE
FREEZE MY BUTTON KEYSTONE
1 2
FOCUS D-ZOOM
- + - +
POSITION MENU
ENTER
VIDEO COMPUTER SEARCH
ASPECT AUTO BLANK
ON
OFF
MAGNIFY
HOME PAGE UP VOLUME
END
PAGE DOWN
MUTE
FREEZE MY BUTTON KEYSTONE
1 2
FOCUS D-ZOOM
- + - +
POSITION MENU
ENTER
Operating
Freezing the screen
Press the FREEZE button on the remote control.
1.
The “FREEZE” indication will appear on the screen (however,
FREEZE button
the indication will not appear when the TURN OFF is selected
for the MESSAGE item in the SCREEN Menu (
41)), and
the projector will go into the FREEZE mode, which the picture
is frozen.
To exit the FREEZE mode and restore the screen to normal,
press the FREEZE button again.
● The projector automatically exits from the FREEZE mode when one of the
projector’s buttons or remote control buttons of STANDBY/ON, SEARCH,
COMPUTER, VIDEO, BLANK, AUTO, VOLUME, MUTE, KEYSTONE,
MENU, MAGNIFY and MY BUTTON1/2 (except MY MEMORY or PICTURE
MODE is assigned to) (44) is pressed.
● If the projector continues projecting a still image for a long time, the LCD
panel might possibly be burned in. Do not leave the projector in the FREEZE
mode for too long.
Temporarily blanking the screen
Press BLANK button on the remote control.
1.
The BLANK screen will be displayed instead of the screen of
input signal. Please refer to BLANK item in SCREEN Menu
(38).
To exit from the BLANK screen and return to the input signal
screen, press BLANK button again.
● The projector automatically returns to the input signal screen
when one of the projector’s buttons or the remote control
buttons (except ASPECT, POSITION, MAGNIFY or FREEZE
button, also except MY BUTTON1/2 if MY MEMORY or
PICTURE MODE is assigned to (44)) is pressed.
BLANK button
•
NOTE
The sound is not connected with the BLANK screen function.
If necessary, set the volume or mute rst.
• If you want to make the screen blank and the sound muted at the same time,
use AV Mute function that is required to be assigned to one of the MY BUTTON
on the remote in advance (44).
23
Loading...
