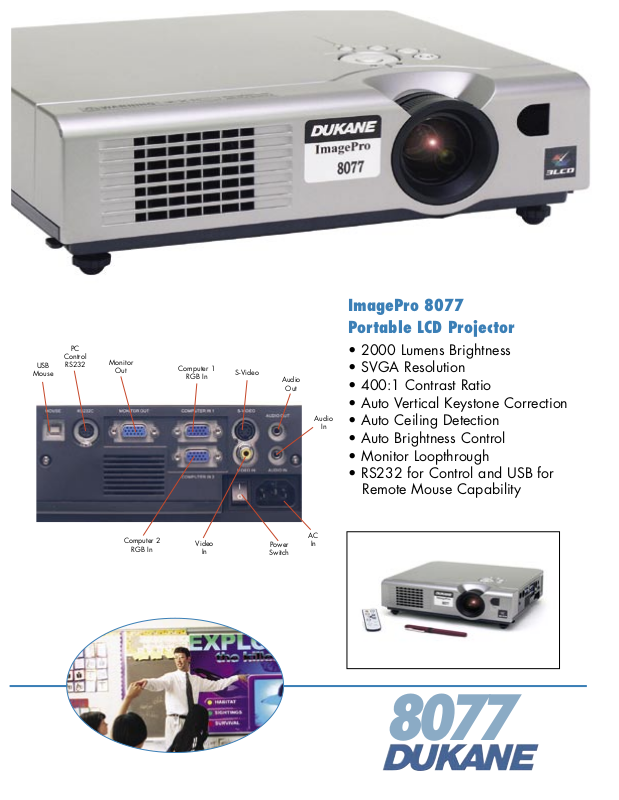

Dukane 8077 Product Sheet
ImagePro 8077
Portable LCD Projector
USB
Mouse
PC
Control
RS232
Monitor
Out
Computer 2
RGB In
Computer 1
RGB In
Video
In
S-Video
Power
Switch
Audio
Out
AC
In
Audio
In
• 2000 Lumens Brightness
• SVGA Resolution
• 400:1 Contrast Ratio
• Auto Vertical Keystone Correction
• Auto Ceiling Detection
• Auto Brightness Control
• Monitor Loopthrough
• RS232 for Control and USB for
Remote Mouse Capability
8077
ImagePro 8077
Super Bright LCD projector
The Dukane ImagePro 8077 is an outstanding value
projector for your classroom or conference room.
Auto keystone correction,
ceiling detection, and
brightness control make
this projector fast and
easy to set up.
Key features:
• SVGA (800 x 600) Resolution
• 2,000 ANSI Lumens of Brightness
• 400:1 Contrast Ratio
• Easy Carry, 6 lbs.
• Flexibility with 2 Computer and 2 Video inputs
• Auto Vertical Keystone Correction
• Auto Ceiling Detection
• Auto Brightness Control
• Monitor Loopthrough
• RS232 for Control and USB for Remote Mouse Capability
• Two Year Warranty and One Year Peace of Mind Service
8077 Projection Table
Image Size 4:3 Throw Distance
Diagonal Width Min. Max.
Inches Inches Feet Feet
30 24 3.6 4.3
40 32 4.8 5.7
50 40 6.0 7.1
60 48 7.2 8.6
80 64 9.5 11.4
100 80 11.9 14.3
200 160 23.9 28.5
300 240 35.8 42.8
Throw Ratio (distance to width) 1.79 2.14
Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, Illinois 60174
800-676-2485 toll-free
630-584-5156 fax
avsales@dukcorp.com e-mail
www.dukcorp.com/av
ImagePro is a registered trademark of Dukane Corporation
#11700-E-06
Specifications 8077
Image Element 0.7” polysilicon TFT x3, MLA
Brightness 2000 ANSI lumens
1600 (whisper mode)
Resolution 800 x 600 (H x V), SVGA
Contrast 400:1
Scanning Frequency fh 15-69 kHz, fv 43-85 Hz
Lens Manual zoom and focus (F=1.8 to 2.1),
1.2X
Lens Throw Ratio 1.79 -2.14 :1 throw distance
to image width
Keystone Correction Digital, vertical +/-30 deg, automatic
Aspect Ratio 4:3, 16:9 selectable
Computer VGA, SVGA, XGA SXGA comperessed,
Compatibility MAC
Video Compatibility NTSC, NTSC 4.43, PAL, PAL-M,
PAL-N, SECAM,
HDTV 1080i, 720p, 480i/p
Image Control Freeze function, electronic
magnification and pan
Mouse Control Using USB
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 180W
Lamp Life 2000 hours (3000 in whisper mode)
Audio 1W x 1
Throw Distance 60” to 445”
Screen Size, diagonal 40” to 300”
Inputs, Video (1) Composite video, RCA x 1
(1) S-video, Min DIN 4-pin,
Inputs, Computer (2) RGB Signal: D-sub, 15 pin
Audio, Stereo mini-jack x 1
Outputs Monitor 15 pin, D-sub
Outputs Audio Audio, Stereo mini jack x 1
Outputs,Control 9 pin D-sub Connector, RS232C
USB connector x 1
Security Kensington lock slot
Fan Level 37dB, (33dB in whisper mode)
Operating Temperature 41 to 95 deg. F (5-35 deg C)
Power AC 100-120V, AC220-240V, 50/60
Hz 250W (normal), 232W
(whisper), >5W (standby)
Size (WxHxD) 12” x 4” x 10.5”
Weight 6 lbs.
Carton Size 18” x 9” x 14”
Shipping Weight 18 lbs.
Accessories Included Remote control, battery, power cord,
S-Video cable, VGA cable, RCA video
cable, Mini-jack audio cable, Filter,
Quick Start Guide, User Manual, CD
ROM, and Soft Carry Case
Safety UL, cUL, FCC, CE, CB, CCC
Optional Accessories Lamp 456-8077
Wireless Extender, LV3500W
Ceiling mount , universal; RPA-U
Two (2) year limited warranty on parts and labor in North America,
lamp excluded (for other locations, local warranties apply).Includes
Dukane’s FREE 1 year Peace-of-Mind Loaner Program.
