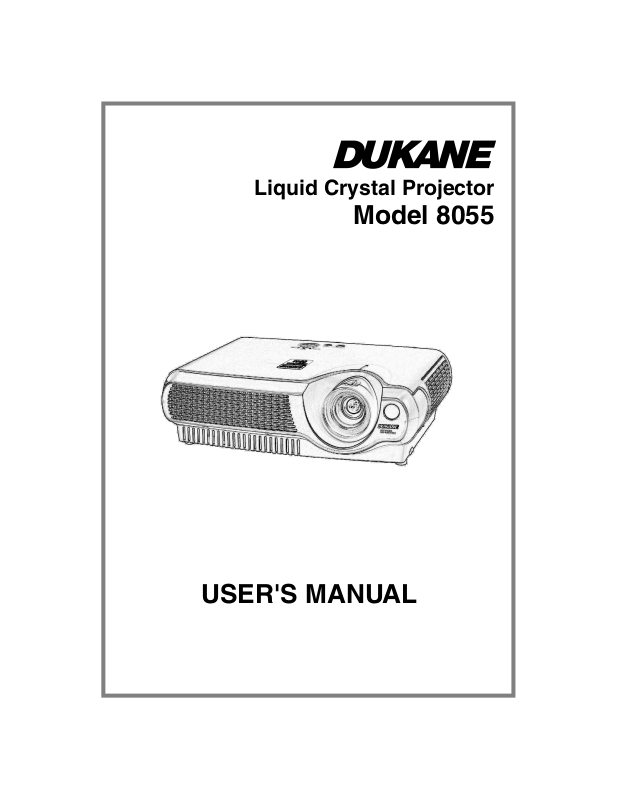

Dukane 8055 User Manual

Liquid Crystal Projector

Model 8055

USER'S MANUAL

Projector

8055

User's Manual - Operating Guide

Thank you for purchasing this projector.

WARNING Before using, read the "User's Manual - Safety Guide" and
these manuals to ensure correct usage through understanding. After reading,

store them in a safe place for future reference.

NOTE

• The manufacturer assumes no responsibility for any errors that may appear in this manual.

• The reproduction, transmission or use of this document or contents is not permitted without
express written authority.

TRADEMARK ACKNOWLEDGMENT :

• VGA and XGA are registered trademarks of the International Business Machines Corporation.

• Apple and Mac are registered trademarks of Apple Computer, Inc.

• VESA and SVGA are trademarks of the Video Electronics Standard Association.

• Windows is a registered trademark of Microsoft Corporation.
All other trademarks are the property of their respective owners.

• The information in this manual is subject to change without notice.

1

Contents

Projector Features
Preparation
Part Names

The Projector ………………………4
Fastening The Lens Cap …………4
The Remote Control ………………6

Setting Up

Arrangement ………………………7
Adjusting The Projector’s
Elevator ……………………………8
Connecting Your Devices…………9
Connecting Power Supply ………11

Remote Control

Putting Batteries …………………12
Operating The Remote Control…13

Power ON/OFF

Turning On The Power …………14
Selecting An Input Signal ………15
Turning Off The Power …………16

Operating

Adjusting The Volume …………17
Temporarily Muting The Sound…17
Adjusting The Position …………18
Using The Automatic
Adjustment Feature………………19
Correcting Keystone
Distortions…………………………19
Using The Magnify Feature ……20
Freezing The Screen ……………20
Signal Searching …………………21
Selecting The Aspect Ratio ……21
Temporarily Blanking
The Screen ………………………21

……………………………………………………
……………………………………………………

…………………………………………………………

……………………………………………………

……………………………………

…………………………………………

…………………………………………

12

14

17

3

Multifunctional Settings
3
4

7

Using The Menu Functions ……22
MAIN Menu ………………………23
PICTURE-1 Menu ………………24
PICTURE-2 Menu ………………26
INPUT Menu ……………………27
AUTO Menu ………………………29
SCREEN Menu …………………30
OPTION Menu ……………………31

Operating The PC Screen

Lamp

Air Filter

Other Care

Troubleshooting

Specifications

………………………………………………………………

Replacing The Lamp ……………34

…………………………………………………………

Caring For The Air Filter…………35
Replacing The Air Filter …………36

Caring For The Inside
Of The Projector …………………37
Caring For The Lens ……………37
Caring For The Cabinet
And Remote Control ……………37

Related Messages ………………38
Regarding
The Indicator Lamps ……………40
Phenomena That May Easily Be
Mistaken For Machine Defects …42
Warranty And After-Service ……43

……………………

………………

……………………………………………………

……………………………………

…………………………………………

22

32
33

35

37

38

44

2

Projector Features

This multimedia projector is used to project various computer signals as well as
NTSC / PAL / SECAM video signals onto a screen. Little space is required for
installation and large images can easily be realized.

Ultra High Brightness

●

Crisp, ultra-bright presentations is achieved by using a UHB (ultra high brightness) lamp and a highly
efficient optical system.

Whisper Mode Equipped

●

Special mode is available for reducing projector noise to achieve quieter operation.

User Memory Function

●

This projector can memorize 4 settings by MY MEMORY function.

Partial Magnification Function

●

Interesting parts of images can be magnified for closer viewing.

Keystone Distortion Correction

●

Quick correction of distorted images electrically.

3

Part Names

The Projector

Zoom ring

Focus ring

Lens

(The picture is

projected from

here.)

Lens cap

15

15

14

Projector (Front/Right)

Indicates the corresponding
reference page

8

Elevator feet

8

Fastening The Lens Cap

To avoid losing, please fasten the lens cap to the projector using the strap.

Fix the strap to the strap ring of lens

1

cap, as the right drawing.

Lens cap Strap ring Strap

35

Air filter cover

(An air filter is
inside.)

Remote sensor

13

Elevator button

Pull

Put one piece of the strap into the

2

groove on rivet, as the right drawing.

Strap Rivet

Push the rivet into the strap hole.

3

Strap
hole

(Bottom side)

Push in

Rivet

4

STANDBY/ON

INPUT

POWER

LAMP

TEMP

MENU

Part Names (continued)

The Projector (continued)

INPUT button

toggles between the signal
ports.

RGB VIDEO

S-VIDEO

COMPONENT VIDEO

STANDBY/ON
button

prepares for turning the
power on/off. Refer to the
section “Power ON/OFF”.

15 14 40

14

AUDIO R port

L port

(from a video equipment)

S-VIDEO port

10

POWER indicator

tells the state of power
supply. Refer to the section
“Power ON/OFF”.

10

10

TEMP indicator

lights or blinks when any
problem about internal
temperature has happened.

40

LAMP indicator

lights or blinks when any
problem about the lamp has
happened.

22

MENU buttons

operate the menu function.

AUDIO OUT port

AUDIO IN port

(from a computer)

VIDEO port

COMPONENT VIDEO - Y

COMPONENT VIDEO - CB/PB

COMPONENT VIDEO - CR/PR

10

10

10

10

AC

IN

10

10

11

CONTROL port

10

Projector (Rear/Left)

10

Power switch

14

AC inlet

RGB OUT port

10

USB port

10

RGB IN port

5

Part Names (continued)

The Remote Control

RGB button

selects the input signal of
RGB port.

VIDEO button

toggles between the signal
ports of VIDEO, S-VIDEO
and COMPONENT VIDEO.

ASPECT button

toggles between the
modes for aspect ratio.

MAGNIFY ON/OFF
buttons

turns on/off the MAGNIFY
mode.
In the MAGNIFY mode,

To move the
magnified area,

(1) Press the POSITION
button.
(2) Use the cursor buttons
to move the picture.
(3) Press the POSITION
button again to finish.

To shift the magnify
level,

use the cursor
buttons.

FREEZE button

freezes/reactivates the
picture.

POSITION button

turns on/off the POSITION
mode. (for RGB input)
In the POSITION mode,

To move the picture,

use the cursor buttons.

ESC button

returns to the previous display
at the menu functions.

32

( Available for
operating PC screen)

6

15

15

21

/

20

22

18

20

21

SEARCH button

searches for an input
signal between the
following signal ports of
RGB, VIDEO, S-VIDEO
and COMPONENT VIDEO.

VIDEO

ASPECT

MAGNIFY

ON

OFF

ESC RESET

SEARCH

RGB

AUTO BLANK

HOME PAGE UP

PAGE DOWN

END

KEYSTONEFREEZE

ENTER

ENTER button

22

VOLUME

MUTE

MENUPOSITION

proceeds to the next operation
at the menu functions.

32

( Available for
operating PC screen)

,,,

22

(Cursor) buttons

works for adjusting or
menu controlling.

32

( Available for
operating PC screen)

(STANDBY/ON)

14

button

prepares for turning the
power on/off.

19

AUTO button

executes automatic
adjustment.

21

BLANK button

blanks the screen
temporarily.

17

VOLUME button

turns on/off the VOLUME
mode.
In the VOLUME mode,

To adjust the volume,

use the cursor

/

buttons.

32

KEYBOARD button

operate the PC screen.

17

MUTE button

mutes/restores the sound.

19

KEYSTONE
button

turns on/off the KEYSTONE
mode.
In the KEYSTONE mode,

To adjust the
keystone,

use the cursor
buttons.

MENU button

22

opens/closes the menu.

22

RESET button

cancels the adjustment in
progress.
* The adjustments of the
volume etc. are not reset.

/

Setting Up

Arrangement

WARNING • Install the projector in a suitable environment according to

instructions of the “User’s Manual – Safety Guide” and this manual.

• The power outlet should be close to the projector and easily accessible.

Refer to the illustrations and tables below to determine the screen size and projection
distance.

The values shown in the table are calculated for a full size screen:800×600
(a):Distance from the projector to the screen (±10%)
(b):Distance from the lens center to the bottom of the screen (±10%)
(c):Distance from the lens center to the top of the screen (±10%)

Reference for
the 4:3 aspect ratio

Screen

Lens center

(c)

(b)

(a)

Side View

Screen Size [inch (m)]

30 (0.8) 35(0.9) 42(1.1) 2(5) 16(41)
40 (1.0) 47(1.2) 56(1.4) 2(6) 22(55)
50 (1.3) 59(1.5) 71(1.8) 3(8) 27(69)
60 (1.5) 71(1.8) 85(2.2) 4(9) 32(82)
70 (1.8) 83(2.1) 99(2.5) 4(11) 38(96)
80 (2.0) 95(2.4) 114(2.9) 5(12) 43(110)

90 (2.3) 107(2.7) 128(3.3) 5(14) 49(123)
100 (2.5) 119(3.0) 143(3.6) 6(15) 54(137)
120 (3.0) 143(3.6) 171(4.4) 7(18) 65(165)
150 (3.8) 179(4.6) 215(5.5) 9(23) 81(206)
200 (5.0) 240(6.1) 287(7.3) 12(30) 108(274)
250 (6.3) 300(7.6) 359(9.1) 15(38) 135(343)
300 (7.5) 360(9.1)

(a) [inch (m)]
Min. Max.

431(10.9)

(b)

[inch (cm)]

18(46) 162(411)

(c)

[inch (cm)]

Reference for
the 16:9 aspect ratio

Screen

Lens center

(c)

(b)

(a)

Side View

Screen Size [inch (m)]

30 (0.8) 38(1.0) 46(1.2) 0(1) 15(39)

40 (1.0) 51(1.3) 61(1.6) 1(2) 20(51)

50 (1.3) 64(1.6) 77(2.0) 1(2) 25(64)

60 (1.5) 77(2.0) 93(2.4) 1(2) 30(77)

70 (1.8) 90(2.3)

80 (2.0) 104(2.6)

90 (2.3) 117(3.0)
100 (2.5) 130(3.3)
120 (3.0) 156(4.0)
150 (3.8) 196(5.0)
200 (5.0) 216(6.6)
250 (6.3) 327(8.3)
300 (7.5)

(a) [inch (m)]
Min. Max.

393(10.0)

469(11.9)

108(2.8)
124(3.2)
140(3.6)
155(3.9)
187(4.7)
234(5.9)
312(7.9)
391(9.9)

(b)

[inch (cm)]

1(3) 35(90)
1(3) 41(103)
1(4) 46(116)
2(4) 51(129)
2(5) 61(154)
2(6) 76(193)

3(8) 101(257)
4(10) 127(322)
5(12) 152(386)

(c)

[inch (cm)]

7

Setting Up (continued)

Adjusting The Projector's Elevator

CAUTION •
projector might crash down, overturn, smash your fingers and possibly result in
malfunction. To prevent damaging the projector and injuring yourself, ALWAYS HOLD
THE PROJECTOR whenever using the elevator buttons to adjust the elevator feet.

You can use the elevator feet to make adjustments if the surface on which you need to set
the projector is uneven or if you otherwise need to adjust the angle of projection. The
adjustment range of the elevator feet is 0 to 9 degrees.

Press and hold in the elevator buttons.

1

Raise or lower the projector to the

2

desired height and then release the
elevator buttons.

When you release the elevator buttons, the elevator
feet will lock into position.

As necessary, you can also finely

3

adjust the height of the projector by
twisting the elevator feet by hand.

If you press the elevator buttons without holding the projector, the

Elevator buttons

Elevator feet

8

Setting Up (continued)

Connecting Your Devices

WARNING • Incorrect connecting could result in fire or electrical shock.
Whenever attempting to connect other devices to the projector, please thoroughly read
the "User's Manual - Safety Guide", this manual and the manual of each device to be
connected.

CAUTION

Attempting to connect a live device to the projector may generate extremely loud
noises or other abnormalities that may result in malfunction and/or damage to the
device and/or projector.

ATTENTION

connection may result in malfunction and/or damage to the device and/or projector.
Refer to the section “TECHNICAL” of this manual for the pin assignment of connectors
and RS-232C communication data.

• Some cables have to be used with core set. Use the accessory cable or a
designated-type cable for the connection. For cables that have a core only at one end,
connect the core to the projector.

• Secure the screws on the connectors and tighten.

• Whenever attempting to connect a laptop computer to the projector, be sure to
activate the laptop’s RGB external image output (set the laptop to CRT display or to
simultaneous LCD and CRT display). For details on how this is done, please refer to the
instruction manual of the corresponding laptop computer.

• TURN OFF ALL DEVICES prior to connecting them to the projector.

• Make sure that you connect devices to the correct port. Incorrect

NOTE

• This projector is compatible with VESA DDC 1/2B. Plug-and-Play can be achieved by
connecting this projector to computers that are VESA DDC (display data channel)
compatible. Please take advantage of this function by connecting the accessory RGB
cable to the RGB port (DDC 1/2B compatible). Plug-and-Play may not work properly if
any other type of connection is attempted.

• Plug-and-Play is a system composed of the computer, its operating system and
peripheral equipment (i.e. display devices).

• Please use the standard drivers in your computer as this projector is a Plug-and-Play
monitor.

NOTE

these modes will not be possible with this projector.

• For some RGB input modes, the optional Mac adapter is necessary.

• When the image resolution is changed on a computer, depending on an input,
automatic adjust function may take some time and may not be completed. In this case,
you may not be able to see a check box to select “Yes/No” for the new resolution on
Windows. Then the resolution will go back to the original. It might be recommended to

use other CRT or TFT monitors to change the resolution.

About Plug-and-Play Capability

• Some computers may have multiple display screen modes. Use of some of

9

1

4

5

6

Setting Up (continued)

Please refer to the following for connecting your devices.
See the rear of the projector. You can see the ports.

A

C


I
N

Connecting to a computer

RGB out RGB cable (D-sub 15 pin)

Audio out Audio cable (Stereo mini)

RS-232C port RS-232C cable

USB out USB cable

2
3
11

Connecting to a DVD/VCR player

Video out
Audio out (L) Audio/Video cable
Audio out (R)

If using a SCART RGB input,

Video
AUDIO-L
AUDIO-R SCART SCART cable

G out port
B
R

4
5

6
7

8
9

If using a S-video input,

S-video out port S-video cable
Audio out (L) Audio cable
Audio out (R)

10
5

6

If using a component input,

Component (Y) out
Component (C
Component (C

B/PB) out Component cable
R/PR) out

Audio out (L) Audio cable
Audio out (R)

7
8
9
5
6

If using a component input from RGB
port,

Component (Y) out
Component (CB/PB) out Component cable
Component (CR/PR) out (with D-sub 15 pin)
Audio out Audio cable(Stereo mini)

1

2

AUDIO OUT

2

AUDIO IN

AUDIO OUT

AUDIO IN

AUDIO OUT

AUDIO IN

AUDIO OUT

AUDIO IN

AUDIO OUT

AUDIO IN

AUDIO OUT

2

AUDIO IN

S-VIDEO IN

S-VIDEO IN

S-VIDEO IN

10

S-VIDEO IN

S-VIDEO IN

S-VIDEO IN

VIDEO

VIDEO

VIDEO

VIDEO

VIDEO

VIDEO

Y

C

B/PB CR/PR

COMPONENT VIDEO

4

5

Y

B/PB CR/PR

C

COMPONENT VIDEO

4

5
8

7

Y

B/PB CR/PR

C

COMPONENT VIDEO

5

Y

C

B/PB CR/PR

COMPONENT VIDEO

5
8

7

Y

C

B/PB CR/PR

COMPONENT VIDEO

Y

C

B/PB CR/PR

COMPONENT VIDEO

L-AUDIO-R

1

RGB OUT

RGB IN

3

CONTROL

L-AUDIO-R

6

RGB IN

CONTROL

L-AUDIO-R

6

RGB IN

9

CONTROL

L-AUDIO-R

6

RGB IN

CONTROL

L-AUDIO-R

6

RGB IN

9

CONTROL

L-AUDIO-R

1

RGB IN

CONTROL

RGB OUT

RGB OUT

RGB OUT

RGB OUT

RGB OUT

11

USB

USB

USB

USB

USB

USB

If using a RGB output, a Audio output,

RGB in RGB cable (D-sub 15 pin)

Audio in Audio cable (Stereo mini)

10

12
13

VIDEO

13 12

AUDIO OUT

S-VIDEO IN

AUDIO IN

Y

C

B/PB CR/PR

COMPONENT VIDEO

L-AUDIO-R

RGB IN

CONTROL

RGB OUT

USB

A
C


I

N

Setting Up (continued)

Connecting Power Supply

WARNING • Please use extra caution when connecting the power cord as
incorrect or faulty connections may result in FIRE and/or ELECTRICAL SHOCK. Please
adhere to the “User’s manual – Safety Guide” and the following.

• Only plug the power cord into outlets rated for use with the power cord’s specified
voltage range.

• Only use the power cord that came with the projector. If it is damaged, contact your
dealer to newly get correct one.

• Never modify the power cord. Never attempt to defeat the ground connection of the
three-pronged plug.

• Make sure that you firmly connect the power cord to the projector and wall outlet.

Connect the connector of the

1

power cord to the AC inlet of the
projector.

Firmly plug the power cord’s plug

2

into the outlet.

1

AC Inlet

Connector Side

1

11

Remote Control

Putting Batteries

CAUTION Always handle the batteries with care and use them only as directed.
Improper use may result in battery cracking or leakage, which could result in fire, injury
and/or pollution of the surrounding environment.

• Keep the battery away from children and pets.

• Be sure to use only the batteries specified for use with the remote control. Do not mix
new batteries with used ones.

• When inserting batteries, verify that the plus and minus terminals are aligned correctly
(as indicated in the remote control).

• When you dispose the battery, you should obey the law in the relative area or country.

Remove the

1

battery cover.

Slide back and
remove the battery
cover in the direction
of the arrow.

Insert the

2

batteries.

Align and insert the two
AA batteries according to
their plus and minus
terminals (as indicated in
the remote control).

Close the

3

battery cover.

Replace the battery
cover in the direction
of the arrow and
snap it back into
place.

12

Remote Control (continued)

Operating The Remote Control

ATTENTION • Do not drop or otherwise expose the remote control to physical
impact.

• Do not get the remote control wet or place it on wet objects. Doing so may result in
malfunction.

• Remove the batteries from the remote control and store them in a safe place if you
won’t be using the remote control for an extended period.

• Replace the batteries whenever the remote control starts to malfunction.

• When strong lights, such as direct sunlight or light from an extremely close range
(such as from an inverter fluorescent lamp), hit the projector’s remote sensor, the
remote control may cause to function. Adjust the direction of the projector to keep light
from directly hitting the projector’s remote sensor.

• The remote control works with the projector’s remote
sensor.

• The range of the remote sensor is 3 meters with a 60­degree range (30 degrees to the left and right of the
remote sensor).

Also a remote signal reflected in the screen etc. may be
available. If it is difficult to send a remote signal to the
sensor directly, please try.

• Since the remote control uses infrared light to send
signals to the projector (Class1 LED), be sure to use the
remote control in an area free from obstacles that could
block the remote control’s output signal to the projector.

Remote sensor

30° 30°

approximately
3 meters

13

STANDBY/ON

INPUT

POWER

LAMP

TEMP

MENU

Power ON/OFF

VIDEO

ASPECT

VOLUME

MAGNIFY

HOME PAGE UP

AUTO BLANK

RGB

SEARCH

ON

Tur ning On The Power

WARNING • When the power is ON, a strong light is emitted. Do not look into the

lens or vents of the projector.

NOTE

• Turn the power on/off in right order. Please power on the projector before

the connected devices. Power off the projector after the connected devices.

Make sure that the power cord is

1

firmly and correctly connected to the

POWER indicator

projector and outlet.

When the lens cap is attached, remove

2

the lens cap.

STANDBY/ON button

Set the power switch to [ | ] (ON).

3

Power switch (ON position)

The POWER indicator will light orange.

Press the STANDBY/ON button of the

4

projector or the button of the remote

ACIN

Power switch

control.

The projector lamp will light up and the POWER
indicator will begin blinking green.
According to a setup, the projector lamp may light
up and the POWER indicator may begin blinking
green, without pressing this button.
When the power is completely on, the indicator will
stop blinking and light green.

(STANDBY/ON) button

14

RGB VIDEO S-VIDEO

COMPONENT VIDEO

VIDEO S-VIDEO

COMPONENT VIDEO

STANDBY/ON

INPUT

POWER

LAMP

TEMP

MENU

Power ON/OFF (continued)

Selecting An Input Signal

Using the projector’s control button

1

Press the INPUT button.

As illustrated below, each time you press the INPUT
button, the projector switches between its input signal
ports. Select the signal you wish to project.

INPUT button

ACIN

Selecting a RGB signal, using the remote control

RGB button

Press the RGB button.

When this button is pressed, the projector switches to
the RGB port.

Selecting a video signal, using the remote control

Press the VIDEO button.

As illustrated below, each time you press the VIDEO
button, the projector switches between its input signal
ports. Select the signal you wish to project.

Use the zoom ring to adjust the screen

2

size.

Use the focus ring to focus the picture.

3

VIDEO button

Focus ring

VIDEO

RGB

ASPECT

MAGNIFY

HOME PAGE UP

ON

VIDEO

RGB

ASPECT

MAGNIFY

HOME PAGE UP

ON

Zoom ring

SEARCH

AUTO BLANK

VOLUME

SEARCH

AUTO BLANK

VOLUME

15

STANDBY/ON

INPUT

POWER

LAMP

TEMP

MENU

Power ON/OFF (continued)

VIDEO

ASPECT

VOLUME

MAGNIFY

HOME PAGE UP

AUTO BLANK

RGB

SEARCH

ON

Tur ning Off The Power

NOTE

• Turn the power on/off in right order. Please power on the projector before

the connected devices. Power off the projector after the connected devices.

Press the STANDBY/ON button of the

1

projector or the button of the remote
control.

The message “Power off?” will appear on the screen
for approximately 5 seconds.

POWER indicator

Press the STANDBY/ON button again

2

while “Power off?” the message is
visible.

The projector lamp will go off, and the POWER
indicator will begin blinking orange.
Then the POWER indicator will stop blinking and light
to solid orange when the lamp cooling is complete.

Switch the power switch to [O] (OFF).

3

Power switch (OFF position)

The POWER indicator will go off.

Attached the lens cap.

4

STANDBY/ON button

ACIN

Power switch

(STANDBY/ON) button

16

Operating

VOLUME

MUTE

PAGE DOWN

END

HOME PAGE UP

OFF

ON

VIDEO

ASPECT

MUTE

KEYSTONEFREEZE

MENUPOSITION

ENTER

ESC RESET

VOLUME

AUTO BLANK

RGB SEARCH

MAGNIFY

Adjusting The Volume

Press the VOLUME button.

1

As illustrated on the right, a dialog will
appear on the screen to aid you in adjusting

2

the volume.

Use the

VOLUME

/

volume.

Press the VOLUME button again to close the dialog and
complete this operation.
(Even if you don't do anything, the dialog will
automatically disappear after a few seconds.)

Press this to increase the volume
Press this to decrease the volume

Temporarily Muting The Sound

VOLUME

16

buttons to adjust the

VOLUME

16

VIDEO

SEARCH

RGB

ASPECT

MAGNIFY

ON

OFF

AUTO BLANK

HOME PAGE UP

PAGE DOWN

END

ENTER

ESC RESET

KEYSTONEFREEZE

VOLUME

MUTE

MENUPOSITION

Press the MUTE button.

1

Press the MUTE button.
As illustrated on the right, a dialog will appear on the
screen indicating that you have muted the sound.
(If you don't do anything, the dialog will automatically
disappear after a few seconds.)
Press the MUTE or VOLUME button to restore the sound.

MUTE

VOLUME

16

17

Operating (continued)

Adjusting The Position

Press the POSITION button.

1

VIDEO

RGB SEARCH

ASPECT

MAGNIFY

ON

OFF

AUTO BLANK

HOME PAGE UP

PAGE DOWN

END

ENTER

ESC RESET

VOLUME

MUTE

KEYSTONEFREEZE

MENUPOSITION

As illustrated on the right, a dialog will appear on the screen
to aid you in adjusting the position.

Use the

2

the position.

When you want to initialize the position, press the RESET
button during adjustment.
Press the POSITION button again to close the dialog and
complete this operation. (Even if you don't do anything, the
dialog will automatically disappear after a few seconds.)
This function is only available for RGB input.

POSITION

,,,

POSITION

buttons to adjust

NOTE

• When a menu is displayed, the operation of adjusting the position works

for the position of not the picture but the menu.

18

PAGE DOWN

END

HOME PAGE UP

OFF

ON

VIDEO

ASPECT

MUTE

KEYSTONEFREEZE

MENUPOSITION

ENTER

ESC RESET

VOLUME

AUTO BLANK

RGB SEARCH

MAGNIFY

PAGE DOWN

END

HOME PAGE UP

OFF

ON

VIDEO

ASPECT

MUTE

KEYSTONEFREEZE

MENUPOSITION

ENTER

ESC RESET

VOLUME

AUTO BLANK

RGB SEARCH

MAGNIFY

AUTO

Operating (continued)

Using The Automatic Adjustment Feature

Press the AUTO button.

1

Automatic Adjustment for RGB Input

Horizontal position (H POSITION), vertical position (V POSITION),
clock phase (H PHASE) and horizontal size (H SIZE) are
automatically adjusted.
Make sure that the application window is set to its maximum size
prior to attempting to use this feature. Dark pictures may still be
incorrectly adjusted. Use a bright screen when adjusting.

Automatic Adjustment for Video Input

The signal type best suited for the respective input signal is
selected automatically.
This feature is available only if VIDEO is set to AUTO in the INPUT
menu.

adjustment is ignored.

• The correcting keystone distortions function may not be work well with some types of
input signals.

• The adjustable range for correcting keystone distortions will vary with the type of
input signal.

NOTE

• The automatic adjustment operation requires approximately 10 seconds.

Also, please note that it may not function correctly with some input.

Correcting Keystone Distortions

Press the KEYSTONE button.

1

As illustrated on the right, a dialog will appear on
the screen to aid you in correcting the distortion.

KEYSTONE

,

buttons to correct distortion.

NOTE

Use the

2

Press the KEYSTONE button again to close the dialog
and complete this operation. (Even if you don't do
anything, the dialog will automatically disappear after
a few seconds.)

• When the WIDE is selected under the ASPECT item of the MAIN menu, this

KEYSTONE

+0

19
