Dukane 8053 User Manual

Liquid Crystal Projector

Model 8053

USER'S MANUAL

Liquid Crystal Projector

USER'S MANUAL

Thank you for purchasing this liquid crystal projector.

WARNING • Please read the accompanying manual “SAFETY

INSTRUCTIONS” and this “USER'S MANUAL” thoroughly to ensure correct usage through understanding. After reading, store this instruction manual in a safe place for future reference.

NOTE

• The manufacturer assumes no responsibility for any errors that may appear in this manual

• The reproduction, transmission or use of this document or contents is not permitted without express written authority.

TRADEMARK ACKNOWLEDGMENT : PS/2, VGA and XGA are registered trademarks of International Business Machines Corporation. Apple, Mac and ADB are registered trademarks of Apple Computer, Inc. VESA and SVGA are trademarks of the Video Electronics Standard Association. Windows is a registered trademark of Microsoft Corporation. Carefully observe the trademarks and registered trademarks of all companies, even when not mentioned.

CONTENTS

FEATURES .......................................2

BEFORE USE ...................................2

Contents of Package ..............................2

Part Names.............................................3

Loading the Batteries..............................5

INSTALLATION ................................6

Installation of the Projector and Screen

Angle Adjustment ...................................6

Cabling ...................................................7

Power Connection ..................................8

Example of System Setup ......................8

Plug & Play.............................................8

OPERATIONS...................................9

Power ON ..................................................9

Power OFF

Basic Operation....................................10

Setup Menu ..........................................12

Input Menu............................................13

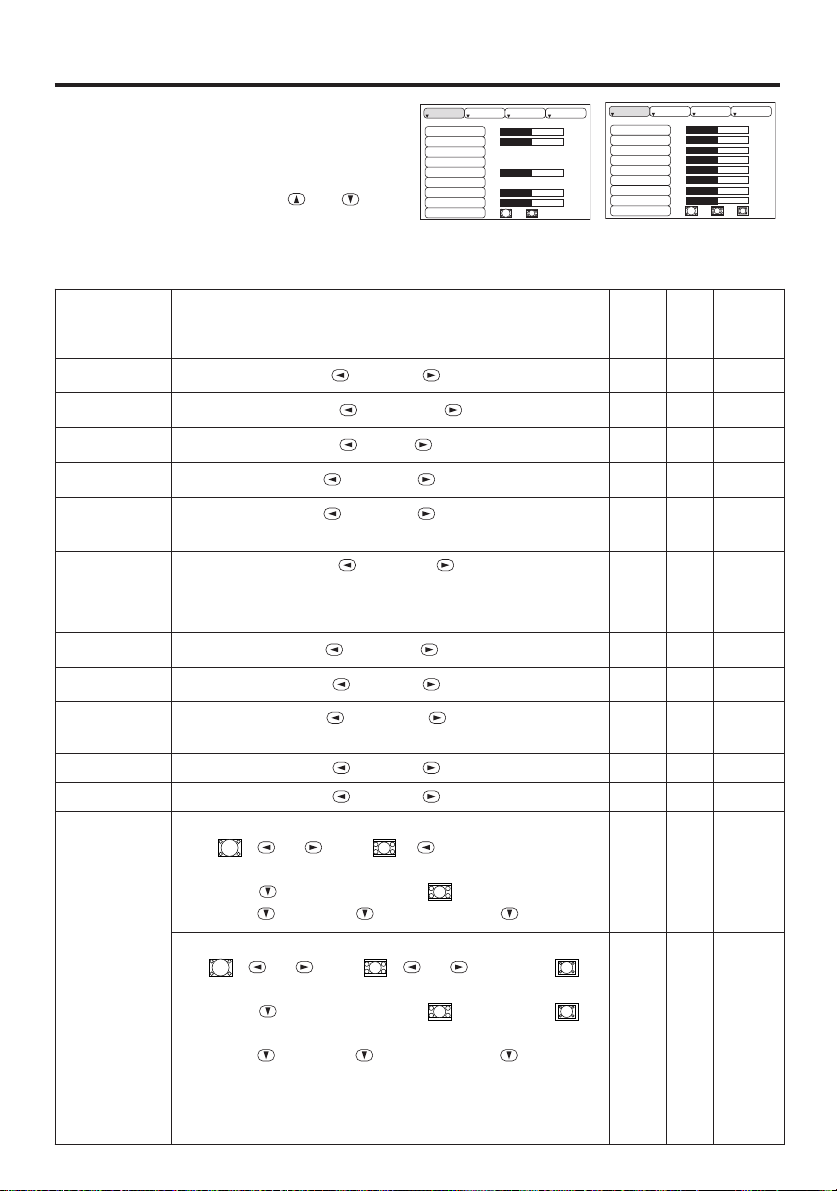

Image Menu..........................................14

Options Menu .......................................15

No Signal Menu....................................16

MAINTENANCE ..............................17

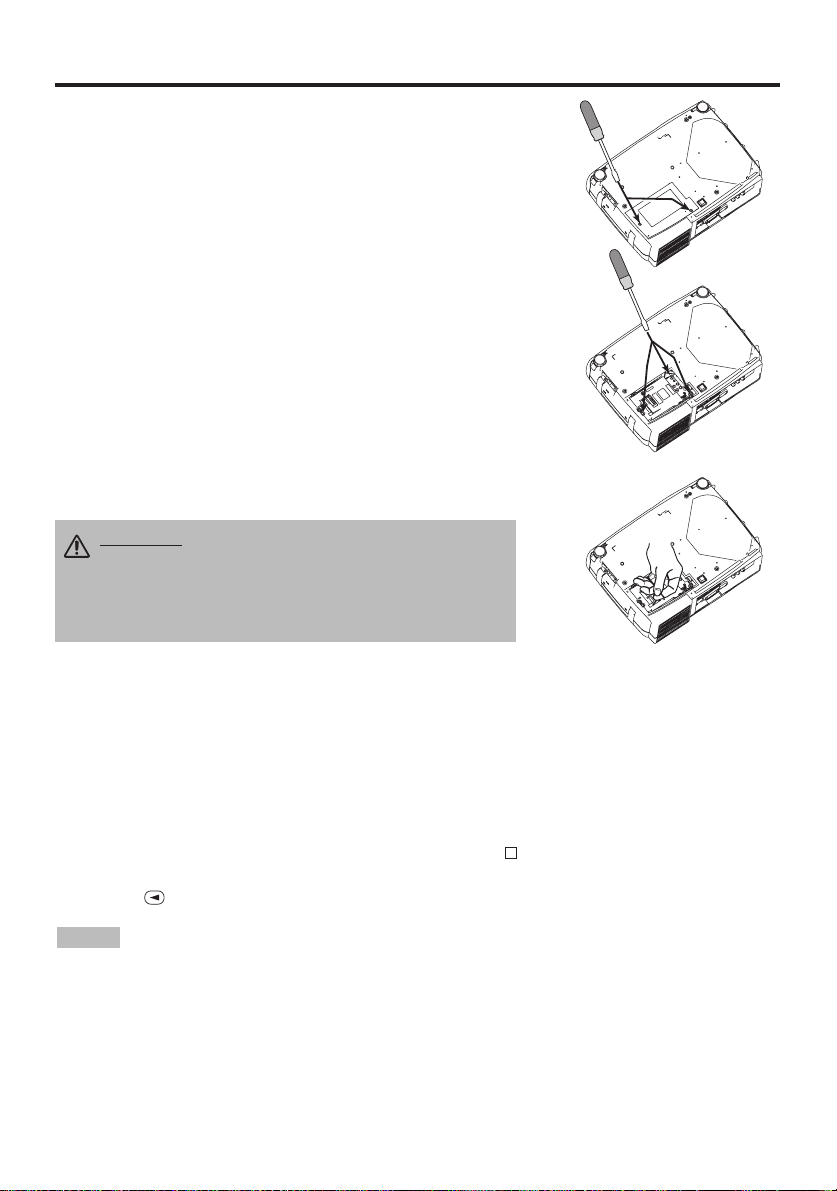

Lamp.....................................................17

Air Filter ................................................19

Other Maintenance...............................19

• The information in this manual is subject to change without notice.

Page

TROUBLESHOOTING ....................20

OSD Message ......................................20

Indicators Message ..............................21

Symptom ..............................................22

SPECIFICATIONS...........................23

WARRANTY AND AFTER-SERVICE

........6

TECHNICAL SECTION .................I-VI

.......................................................................................

TABLES

Table 1. Installation Reference.................6

Table 2. Cabling .......................................7

Table 3. Basic Operation........................10

Table 4. Setup Menu ..............................12

Table 5. Input Menu................................13

..............................................9

Table 6. Image Menu..............................14

Table 7. Options Menu ...........................15

Table 8. No Signal Menu........................16

Table 9. OSD Message ..........................20

Table 10. Indicators Message ................21

Table 11. Symptom ................................22

Table 12. Specifications .........................23

.......................................................................................

For "TECHNICAL" and "REGULATORY NOTICE", see the end of this manual.

......24

ENGLISH

Page

ENGLISH-1

FEATURES

ENGLISHDEUTSCH

FRANÇAIS

ITALIANO

ESPAÑOL

NEDERLANDS

NORSK

TECHNICAL

PORTGÊS

Liquid Crystal Projector

ImagePro 8053

FEATURES

This liquid crystal projector is used to project various computer signals as well as NTSC / PAL / SECAM video signals onto a screen. Little space is required for installation and large images can easily be realized.

Outstanding Brightness

The UHB lamp and high-efficiency optical system assure a high level of brightness.

Partial Magnification Function

Interesting parts of images can be magnified for closer viewing.

Distortion Correction Function

Distortion-free images are quickly available.

Extra-low Noise Function

Acoustic noise level from the unit can be reduced.

BEFORE USE

Contents of Package

Make sure all of the following items are included in the package. If anything is missing, please contact your dealer.

WARNING • Keep the original packing material for future reshipment. To

avoid penetration of foreign objects, do not put the projector into a case or bag together with anything except the accessories of the projector, signal cables and connectors.

(with Lens Cap)

User’s Manual

(this manual)

Safety Instructions

ENGLISH-2

Projector

Soft case

Power Cord

(US Type)

RGB Cable

Power Cord

(UK Type)

Component Video Cable

Batteries

for Remote Control

Transmitter

Power Cord

(Europe Type)

Mouse cable

(PS/2)

BLANK

STANDBY/ON

LASER

RGB

VIDEO

AUTO

KEYSTONE

MENU SELECT

RESET

POSITION

PinP

FREEZE

MAGNIFY

MUTE

OFF

VOLUME

Remote Control

Transmitter

BBBBEEEEFFFFOOOORRRREEEE UUUUSSSSEEEE ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

Part Names

))

Speaker

Carrying Handle

AC Inlet

(to the Power Cord)

Power Switch

Foot Adjuster

Ventilation Openings

(Intake)

Control Panel (Refer to P.9 "OPERATIONS")

STANDBY/ON Button

KEYSTONE Button

Foot Adjuster Button

Filter Cover

Air Filter and Intake

( )

for the Cooling Fan

FRONT/LEFT VIEW OF THE PROJECTOR

Zoom Knob Focus Ring Remote Control Sensor Lens Foot Adjuster

Lens Cap

INPUT Button LAMP Indicator TEMP Indicator POWER Indicator RESET Button MENU Button

Ventilation Openings (exhaust)

ENGLISH

S-VIDEO Terminal

COMPONENT VIDEO

Y Terminal

B/PB Terminal

R/PR Terminal

VIDEO IN Terminal

AUDIO IN R

AUDIO IN L

AUDIO IN 1

AUDIO IN 2

AUDIO OUT

Terminal

REAR/RIGHT VIEW OF THE PROJECTOR

CR/P

AUDIO IN

COMPONENTVIDEO

CB/P

AUDIOOUT USB1 2

S-VIDEOIN

VIDEOIN

DVI

RGBIN

RGBOUT CONTROL

TERMINAL PANEL

Terminal Panel (Refer below)

Remote Control Sensor

DVI Terminal (CP-X430 only)

RGB IN 1 Terminal

RGB IN 2 Terminal

CONTROL Terminal

RGB OUT Terminal

USB Terminal

ENGLISH-3

BBBBEEEEFFFFOOOORRRREEEE UUUUSSSSEEEE ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

STANDBY/ON

LASER

BLANK

RGB

VIDEO

AUTO

MENU SELECT

KEYSTONE

RESET

FREEZE

PinP

MAGNIFY

POSITION

OFF

VOLUME

MUTE

Complies with 21 CFR 1040. 10 and 1040. 11 except for deviations pursuant to Laser Notice No.50, dated 2001.7.26 SMK CORPORATION 6-5-5 Togoshi Shinagawa-ku, Tokyo, JAPAN 142-8511 MANUFACTURED

Novemver 2001

PLACE OF MANUFACTURER: A

))

Part Names (continued)

STANDBY/ON Button

VIDEO Button

Disk Pad

Used to operate the mouse shift function and left click function.

AUTO Button

MENU Button

MENU SELECT Button

Used to click the left mouse button.

, , , Button

Used to operate the mouse shift function.

POSITION Button

MAGNIFY Button

These functions work when the mouse control function is activated. Remember, the POSITION,

BLANK ON and MENU ON functions disable the mouse control function.

WARNING • The laser pointer of the remote control transmitter is used in place of a finger or rod. Never look directly into the laser beam outlet or point

the laser beam at other people. The laser beam can cause vision problems.

• Use of controls or adjustments or performance of procedures

CAUTION

LASER RADIATIONDO NOT STARE INTO BEAM MAX. OUTPUT: 1mW WAVE LENGTH

: 650nm

CLASS2 LASER PRODUCT

LASER RADIATION

DO NOT STARE INTO BEAM

CLASS2 LASER PRODUCT MAX. OUTPUT: 1mW WAVE LENGTH: 650nm

IEC60825-1 :1993+A1:1997

CAUTION other than those specified herein may result in hazardous radiation exposure.

AVOID EXPOSURE-

LASER RADIATIONS IS

EMITTED FROM THIS

APERTURE

BLANK Button LASER Button

RGB Button MOUSE / RIGHT Button

Used to click the right mouse button.

KEYSTONE Button

RESET Button

Used to click the right mouse button.

PinP Button

FREEZE Button

MUTE Button

VOLUME Button

REMOTE CONTROL

TRANSMITTER

(Refer to P.9 "OPERATIONS")

NOTE

• Do not give the remote control transmitter any physical impact. Take care not to drop.

• Do not place the heavy objects on the remote control transmitter.

• Do not wet the remote control transmitter or place it on any wet object.

• Do not place the remote control transmitter close to the cooling fan of the projector.

• Do not disassemble the remote control transmitter.

ENGLISH-4

• Keep the remote control transmitter away from children and pets.

BBBBEEEEFFFFOOOORRRREEEE UUUUSSSSEEEE ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

))

Loading the Batteries

Install the AA batteries into the remote control transmitter.

1. Remove the battery cover. Push the knob while lifting up the battery cover.

2. Load the batteries. Make sure the plus and minus poles are correctly oriented.

3. Close the battery cover.

CAUTION • Use only the specified batteries with this remote control transmitter. Also, do not mix new and old batteries. This could cause battery

cracking or leakage, which could result in fire or personal injury.

• When loading the batteries, make sure the plus and minus terminals are correctly oriented as indicated in the remote control transmitter. Incorrect orientation could cause battery cracking or leakage, which could result in personal injury or pollution of the surrounding environment.

• When you dispose the battery, you should obey the law in the relative area or country.

• Keep the battery away from children and pets.

• When not to be used for an extended period, remove the batteries from the

remote control transmitter.

ENGLISH

NOTE

Replace the batteries when remote control transmitter operation becomes difficult.

ENGLISH-5

INSTALLATION

Installation of the Projector and Screen

Refer to the drawing and table below for determining the screen size and projection distance. The projection distances shown in the table below are for full

size (CP-S420:800 x 600 pixels , CP-X430:1024 x 768 pixels). a: Distance from the projector to the screen. (±10%)

Table 1. Installation Reference

Screen size [inches (m)]

40 (1.0) 62 (1.6) 82 (2.1) 60 (1.5) 94 (2.4) 123 (3.1)

80 (2.0) 127 (3.2) 164 (4.2) 100 (2.5) 160 (4.1) 205 (5.2) 120 (3.0) 192 (4.9) 246 (6.3) 150 (3.8) 241 (6.1) 308 (7.8)

200 (5.0) 323 (8.2) 411 (10.4)

CAUTION • Install the projector in a suitable environment according to instructions of the accompanying manual “SAFETY INSTRUCTIONS” and this manual.

• When you fix this unit with a metal tool and the like, you must connect it with ground

wire; otherwise, fire or electric shock can result. Connect the ground terminal of AC inlet of this unit with the ground terminal provided at the building using an optional three-core power-supply cord.

• Please basically use liquid crystal projector at the horizontal position. crystal projector by the lens up position, the lens down position and the side up position, this may cause the heat inside to build up and cause damage. with ventilation holes blocked.

• Do not install LCD projector in smoke effected environment. Smoke residue may buildup on critical parts (i.e.LCD panel, Lens Assy etc.).

a [inches (m)]

Min. Max.

Top View

Side View

If you use liquid

Be especially careful not to install it

Angle Adjustment

Use the foot adjusters on the bottom of the projector to adjust the projection angle. It is variable within 0˚ to 9˚ approximately.

Foot Adjusters

1. Lift up the front side of the projector, and pressing the foot adjuster button, adjust the projection angle.

2. Release the button to lock at the desired angle.

3. Use the foot adjusters for fine adjustment. Do not force the adjuster screws. This could damage the adjusters or cause the lock to fail.

CAUTION • Do not release the foot adjuster button unless the projector is being held; otherwise, the projector could overturn or fingers could get caught and cause personal

injury.

ENGLISH-6

Press the foot adjuster button

IIIINNNNSSSSTTTTAAAALLLLLLLLAAAATTTTIIIIOOOONNNN ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

))

Cabling

Refer to the table below for connecting each terminal of the projector to a device.

Table 2. Cabling

Function Terminal Cable

RGB input

RGB output RGB OUT

DVI input (CP-X430 only) DVI DVI cable with inch thread screws

Audio input (from the computer)

PS/2 mouse control

ADB mouse control ADB mouse cable

Serial mouse control Serial mouse cable

RS-232C communication RS-232C cable USB mouse control USB USB cable S-video input S-VIDEO IN S-video cable with mini DIN 4-pin jack Video input VIDEO IN Video/Audio cable

Component video input

Audio input (from video equipment)

Audio output AUDIO OUT Audio cable with stereo mini jack

RGB IN 1 RGB IN 2

AUDIO IN 1

(interlocked with RGB IN 1 or DVI)

AUDIO IN 2

(interlocked with RGB IN 2)

CONTROL

COMPONENT VIDEO Y

COMPONENT VIDEO CR/PR AUDIO IN L AUDIO IN R

RGB cable with D-sub 15-pin shrink jack and inch thread screws

Audio cable with stereo mini jack

PS/2 mouse cable

Component Video cableCOMPONENT VIDEO CB/PB

Video/Audio cable or Audio cable with RCA jack

ENGLISH

CAUTION • Incorrect connecting could result in fire or electrical shock. Please read this manual and the separate “SAFETY INSTRUCTIONS”.

• Before connecting, turn off to all devices to be connected, except for the USB cable.

• The cables may have to be used with the core set to the projector side. Use the cables which are included with the projector or specified.

NOTE

projector is compatible with the device.

• Secure the screws on the connectors and tighten.

• For some RGB input modes, the optional Mac adapter is necessary.

• To select the DVI input, the comuter may need some settings. See the manuals of the computer for details.

• Some computers may have multiple display screen modes. Use of some of these modes will not be possible

with this projector.

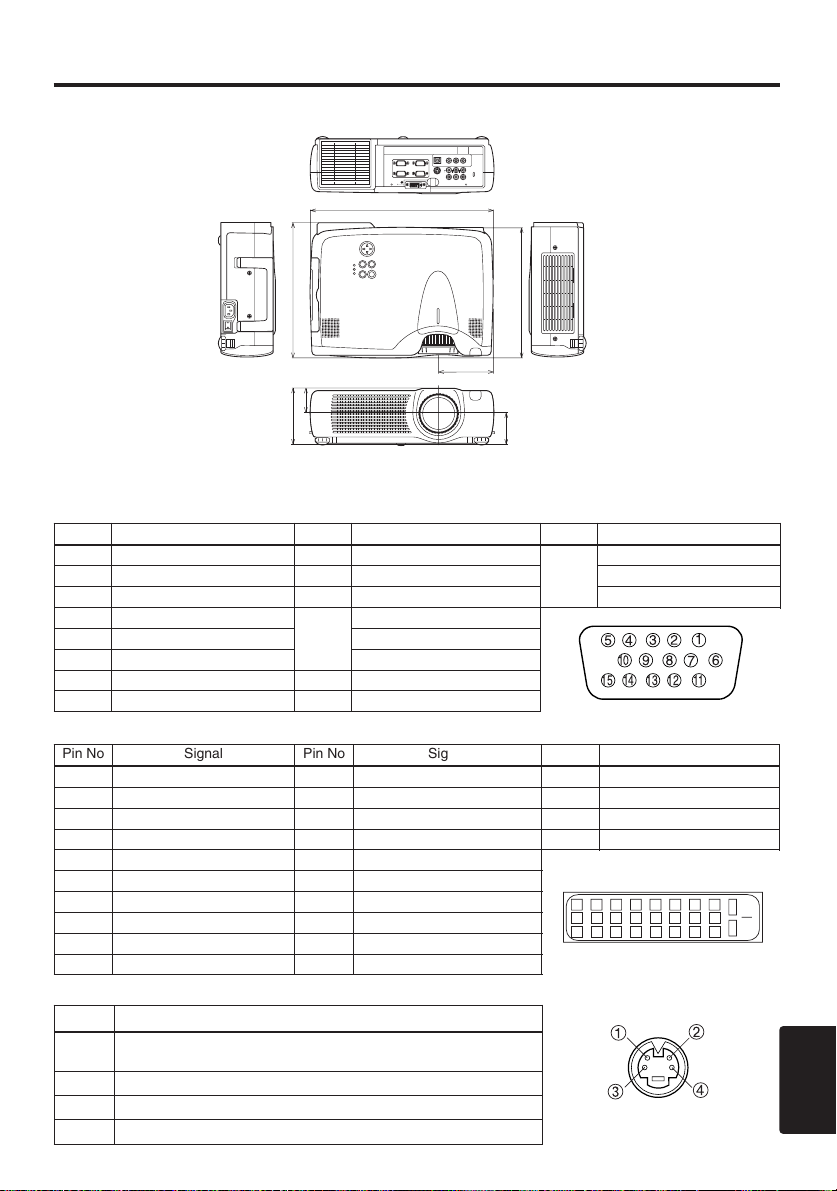

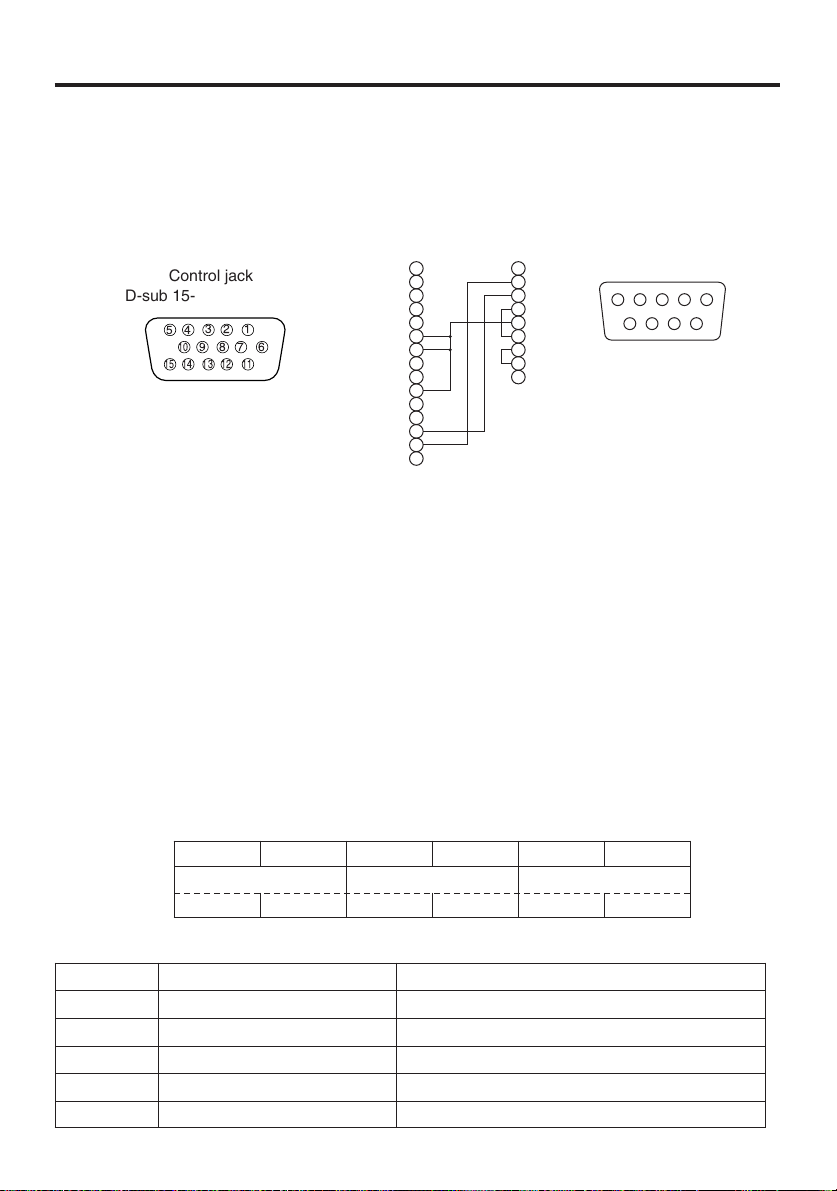

• Refer to the “TECHNICAL” section for the pin assignment of connectors and RS-232C communication data.

• When the DVI terminal is used, the RGB OUT terminal may not function.

• Before connecting, read instruction manuals of the devices to be connected, and make sure that the

ENGLISH-7

IIIINNNNSSSSTTTTAAAALLLLLLLLAAAATTTTIIIIOOOONNNN ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

))

Power Connection

Use the correct power cord depending on the power outlet to be used. Connect the AC inlet of the projector to the power outlet firmly by the power cord.

CAUTION • Be carful in handling the power

cord according to instructions of the accompanying manual "SAFETY INSTRUCTIONS" and this manual.

• Connect the power cord firmly. Avoid using a loose, unsound outlet or failed contact.

Example of System Setup

COMPONENT VIDEO

CR/PR

DVD Player

S-Video Tape Recorder

Speaker with amplifier

CB/PB Y

AUDIO IN

AUDIOINAUDIO OUT

2USB

VIDEO IN

S-VIDEO IN

RGB OUT

Power

outlet

Power Cord

Display Monitor

DVI

RGB IN

CONTROL

Computer

(desktop type)

AC Inlet

*DVI:CP-X430 only

Computer

(notebook type)

NOTE

• When connecting with a notebook computer, set the proper RGB external image output (setting CRT display or simultaneous display of LCD and CRT). Please read instruction manual of the notebook for more information.

Plug & Play

This projector is VESA DDC 1/2B compatible. Plug & play is possible by connecting to a computer that is VESA DDC (Display Data Channel) compatible. Please use this function by connecting the RGB cable with RGB IN 1 terminal (DDC 1/2B compatible), or by connecting a DVI cable with DVI terminal (CP-X430 only/DDC 2B compatible). Plug & play may not operate by other connections.

NOTE

display and an operating system.

• This projector is recognized as a plug & play monitor. Use the standard display drivers.

• Plug & play may not operate by the computer to connect. Use the RGB IN 2 terminal if plug & play does not operate correctly.

ENGLISH-8

• Plug & play is a system configured with peripheral equipment including a computer,

OPERATIONS

STANDBY/ON

LASER

BLANK

RGB

VIDEO

AUTO

MENU SELECT

KEYSTONE

RESET

FREEZE

PinP

MAGNIFY

POSITION

OFF

MUTE

OPERATIONS

STANDBY/

STANDBY/ON Button

ON Button

POWER Indicator

Zoom Knob

Focus Ring

Power Switch

Lens Cap

Power ON

1. Check that the power cord is connected correctly.

2. Set the power switch to [ | ]. The standby mode is selected, and the POWER indicator is turned to orange.

3. Press the STANDBY/ON button on the control panel or the remote control transmitter. Warm-up begins and the POWER indicator blinks in green.

4. The POWER indicator ceases blinking and turns to green when power is on. Remove the lens cap.

5. Adjust picture size using the zoom knob.

6. Adjust focus using the focus ring .

ENGLISH

Power OFF

1. Press the STANDBY/ON button on the control panel or the remote controller. Then,the message "Power off?" will appear on the screen, and the message will disappear by any operation or no operation for 5 seconds. During this message indication, press the STANDBY/ON button again. The projector lamp is extinguished and lamp cooling begins. The POWER indicator blinks orange during lamp cooling. Pressing the STANDBY/ON button has no effect while the POWER indicator is blinking.

2. The system assumes the Standby mode when cooling is complete, and the POWER indicator ceases blinking and changes to orange. Check that the indicator is orange and set the power switch to [

3. The POWER indicator is extinguished when power is off. Do not forget to attach the lens cap.

the equipment is used safely.

NOTE

projector is used improperly, it may very difficult to turn off the projector caused by heating inside the unit. And the reduction of life time of lamp and LCD panels will be caused by incorrect procedure.

• To prevent any trouble, turn on/off the projector when the computer or video tape recorder is OFF.

Providing a RS-232C cable is connected, turn on the computer before the projector.

• When a projector continues projecting the same image, the image may remain as an afterimage.

Please do not project the image same for a long time.

WARNING • Please read this manual, and the separate “SAFETY INSTRUCTIONS” thoroughly before using the equipment. Always ensure that

•

Except in emergencies, follow the above-mentioned procedure for turning power off. If the

ENGLISH-9

OOOOPPPPEEEERRRRAAAATTTTIIIIOOOONNNNSSSS ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

OFF

))

Basic Operation

The basic operations shown in Table 3 is performed from the supplied remote control transmitter or the projector control panel. Items indicated by (*) may be used from the control panel.

Table 3 . Basic Operation

Item Description

Select Input Signal (*) : Press the INPUT button.

RGB IN 1→RGB IN 2→DVI→ VIDEO IN → S-VIDEO IN → COMPONENT VIDEO (→ RGB IN 1)

Select RGB Input : Press the RGB button.

VIDEO IN / S-VIDEO IN / COMPONENT VIDEO → RGB IN 1 / RGB IN 2 / DVI

INPUT SELECT

POSITION

RESET (*)

MAGNIFY

FREEZE

RGB IN 1 → RGB IN 2 → DVI (→ RGB IN 1)

Select Video Input : Press the VIDEO button.

RGB IN 1 / RGB IN 2 / DVI → VIDEO IN / S-VIDEO IN / COMPONENT VIDEO VIDEO IN → S-VIDEO IN → COMPONENT VIDEO (→ VIDEO IN)

• The selected signal name is displayed for approximately 3 seconds when the input signal is changed.

• Only for CP-X430, DVI exists.

Set/Clear Position Adjustment Mode : Press the POSITION button.

The [ ] icon is displayed in the POSITION mode.

Image Position Adjustment: Press the , , and buttons in the POSITION mode.

• Valid only in the MAGNIFY mode with a video signal is input.

• After approximately 10 seconds of inactivity the [ ] icon is extinguished and the

POSITION mode is cleared automatically.

• , , and

buttons may operate as the mouse control button. Refer to page 4.

Initialize Each Item : Select an item and press the RESET button. Initialize Position Adjustment : Press the RESET button and the

POSITION mode. This function is valid only when RGB signal is input.

• Valid except for the VOLUME, LANGUAGE and H PHASE.

• The RESET button may operate as the mouse control button. Refer to page 4.

Set MAGNIFY Mode : Press the MAGNIFY button. Move Magnified Area : Run the POSITION in the MAGNIFY mode. Adjust Magnification : Press the MAGNIFY / button in MAGNIFY

mode. Clear MAGNIFY Mode : Press the MAGNIFY button.

• The MAGNIFY mode is cleared by running or setting the AUTO, ASPECT, INPUT SELECT or VIDEO, or by changing the input signal.

Set/Clear FREEZE Mode : Press the FREEZE button. The [II] icon is displayed, and the image is frozen, in the FREEZE mode.

• The FREEZE mode is cleared by running or setting POSITION, VOLUME, MUTE, Automatic Adjustment, BLANK ON/OFF, or MENU ON/OFF, or by changing the input signal.

• Do not forget to clear frozen static images.

NOTE

• Strong light and obstacles will interfere with operation of the remote control transmitter.

ENGLISH-10ENGLISH-10

+ 28 hidden pages
