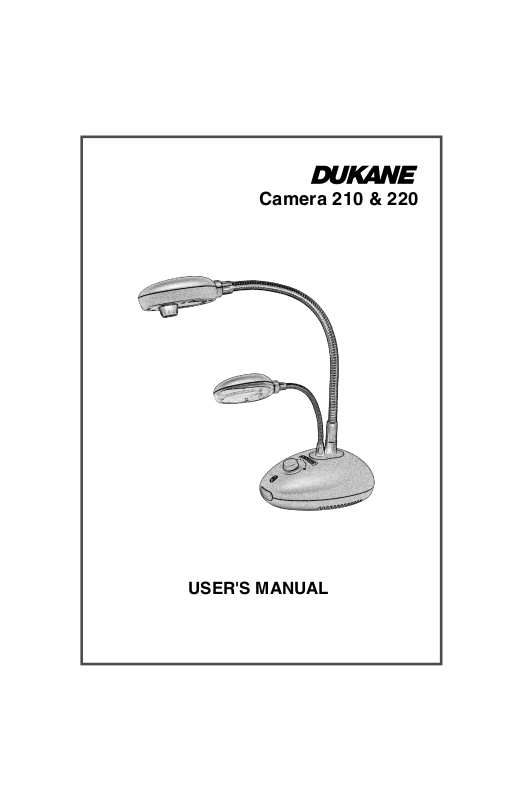

Dukane 220 User's Manual

Camera 210 & 220

USER'S MANUAL

Table of Contents Models 210 & 220

Chapter 1 Introduction

1.1 Introduction

1.2 Certification

1.3 Warning

1.4 Safety Instruction

1.5 Specification

Chapter 2 Package Content

Chapter 3 Product Overview

3.1 Digital Presenter

3.2 I/O Connection

3.3 Infrared Remote Control (220)

Chapter 4 Using the Presenter

4.1 Getting Started

4.2 Using the Menu

4.3 Menus

4.4 Base bottom switches

Chapter 5 Troubleshooting

1

Chapter 1 Introduction

Thank you for purchasing the camera.

1.1 Introduction

With a stylish and streamlined look, this Digital Presenter is outstanding. The
goose-neck technology provides more felxability, a better viewing angle for
the camera or the lamp, plus space-saving storage.

Beyond that, the Digital Presenter is designed to combine many practical
functions that help presenters deliver successful presentations. The digital presenter
displays any document or 3D object on a LCD or DLP projector. It switches between
the camera and a PC output, plus assists the presenter by providing additional light
with the lamp.

This user manual is a quick guide. Please read this manual carefully before you
set up this Digital Presenter.

1.2 Certification

UL, CE, FCC

1.3 Warning

 Safety Precautions

Warning: To reduce the risk of fire or electric shock, do not expose this
appliance to rain or moisture.

This Digital Presenter has a ground-type AC line Plug. This is a safety feature to ensure
that the plug will fit into the power outlet. Do not try to defeat this safety feature.

2

CAUTION

Caution: To reduce the risk of electric shock. Do not remove cover (or back).

No user-serviceable parts inside. Refer servicing to licensed service Personnel.

RISK OF ELECTRIC SHOCK

This symbol indicates

that dangerous voltage

constituting a risk of

electric shock is present

within this unit.

This symbol indicates that

there are important

operating and maintenance

instructions in the User’s
Manual.

 FCC Warning
This Digital Presenter has been certified to comply with the limits for a Class A
computing device, pursuant to Subpart J of Part 15 of FCC Rules. These limits are
designed to provide reasonable protection against a harmful interference when the
equipment is operated in a commercial environment.

 EN55022 (CE Radiation) Warning
This product is intended for use in a commercial, industrial, or educational
environment. It is not intended for residential use.

This is a Class A product. In a domestic environment it may cause radio interference,
in which case the user may be required to take adequate measures. The typical use is
in a conference room, meeting room or auditorium.

1.4 Safety Instruction

Always follow these safety instructions when setting up and using the Digital
Presenter:

1. Do not place the Digital Presenter on an unstable trolley, stand or table.

2. Do not use the Digital Presenter near water or source of heat.

3. Use attachments only as recommended.

4. Use the type of power source indicated on the Digital Presenter. If you are not sure
of the type of power available, consult your dealer or local electricity company for
advice.

5. Place the Digital Presenter where it can be easily unplugged.

6. Insert the Digital Presenter’s two-pin grounded plug into a properly grounded
socket. Do not handle the plug with wet hands.

7. Always take the following precautions when handling the plug. Failure to do so
may result in sparks or fire.

 Ensure the plug is free of dust before inserting it into a socket.
 Ensure that the plug is inserted into the socket securely.

8. Do not overload wall sockets, extensions leads or multi-way plug boards as this

3

may cause fire or electric shock.

9. Do not place the Digital Presenter where the cord can be stepped on as this may
result in fraying or damage to the lead or the plug.

10. Unplug the projector form the wall socket before cleaning. Use a damp cloth for
cleaning. Do not use liquid or aerosol cleaners.

11. Do not block the slots and openings in the projector case. They provide ventilation
and prevent the Digital Presenter from overheating. Do not place the Digital
Presenter on a sofa, rug or other soft surface or in a built-in installation unless
proper ventilation is provided.

12. Never push objects of any kind through cooling slots. Never allow liquid of any

kind to spill into the Digital Presenter.

13. Except as specifically instructed in this User’s Manual, do not attempt to operate
this product by yourself. Opening or removing covers may expose you to
dangerous voltages and other hazards. Refer all servicing to licensed service
personnel.

14. Unplug the Digital Presenter during thunderstorms or if it is not going to be used
for an extended period, do not place the Digital Presenter or remote control on top

of heat-emitting equipment or heated objects such as a car or radiator.

15. In the following situations, unplug the Digital Presenter from the wall outlet and
refer servicing to licensed service personnel:

 If the power cable or plug becomes damaged or frayed.
 If liquid is spilled into it or the Digital Presenter has been exposed to rain or

water.

1.5 Specification

Optics

 Fix Lens: F3.6; f=5.0 mm
 Shooting Area: 330mm x 250mm (Max.); 32mm x 24mm (Min.)
 Focus: Manual

Image:

 Pick-up Device: 1/3” CCD Progressive Scan
 Total Pixels: 1077(H) x 788(V)
 Effective Pixels: 1024(H) x 768(V)

 Frame Rate: 20 Frame/Sec

 White Balance: Auto
 Exposure: Auto/Manual
 Digital Zoom: 15X
 Image Mode: Normal/ Film/ Gray (Model 220 only)
 Gamma: Photo/ Text (Model 220 only)
 Image Flip: Up/Down Selectable
 RGB Output: XGA 60Hz/75Hz; SVGA 60Hz/75Hz Selectable

4

 Composite Video Output: NTSC/PAL Selectable

Lighting

 CCFL: Build in One Cathode fluorescent lamp

Input

 VGA Pass through: Model 210; HD-SUB 15 pin female.

Model 220; has a VGA adapter for DVI-I connector port.

Output

 VGA: HD-SUB, 15 Pins Female
 DVI: Digital & Analog Receptacle Connector (Model 220 only)
 C-video: RCA Jack
 USB: Standard USB Socket (Type B)
 DC 12V Output: DC Jack, 700 mA

Power

 Power Source: 100-240Vac
 Consumption: 18W

Dimension

 Operating: 400mm(L) X 140mm(W) X 360mm(H)
 Weight: About 2.4kg

5

Chapter 2 Package Content

Please make sure the package comes with the following items when you unpack:

 Power Cable
 VGA Cable
 DVI Adapter (220 only)
 USB Cable
 C-Video Cable
 Remote Controller (220 only)
 User’s Manual

 CD

6

Chapter 3 Product Overview

3.1 Digital Presenter

1. Camera View

2. Control Button

4. I/O Port

3. Power Button

Figure 3-1

6. Lamp View

7. DIP Switch

Figure 3-2

7

3.2 I/O Connection

Model 220

Adapter

DVI for Model 220 only.

Figure 3-3

8

3.3 Infrared Remote Control (Model 220)

1. Power:

Turn on/off.

2. Capture:

Capture the image.

3. Freeze:

Freeze the image.

5. Arrows:

Press the 4 hot keys of

Up/Down/Right/Left to go to the
desired function item.

6. Flip:

Rotate the image by 180 degrees.

7. Source:

Figure 3-4

8. Gamma:

Different color contrast mode.

9. Lamp:
Turn on/off Lamp.

10. Play & Del:

Press play, you can recall the saved

images in the flash memory of your
Digital Presenter. Press Del if you would
like to discard the saved image.

11. Zoom +/-:

Make the image larger & smaller.

12. BRT+/-:

Press the hot key to make the

image brighter or darker.

13. Menu:

Switch between different signal
sources.

CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE
OF USED BATTERIES ACCRDING TO THE INSTRUCTIONS.

Click on Menu, to adjust all the

functions on the screen.

9

Chapter 4 Using the Presenter

This chapter describes the basic and advanced functions of the Digital Presenter, how
to use the OSD menu.

4.1 Getting Started

Turn on the Digital Presenter.

 Option 1: Press

Model 220 only

 Option 2: Press

Small Button.

the Button

on Remote control.

4.2 Using the Menu Introduction

Showing the Main Menu:

 Option 1: Press Knob-Button. (Control

Button.)

Model 220 only

 Option 2: Press

Menu operation:

First, press button to start the Menu.
Turn the control button to choose function.
Second, choosing function, press control button to start this function.

Menus
Note that menus are different for the Model 210 and the 220.

Button.

10

4.3 Menu Model 210 only

VGA Mode Computer Image. Use the Control Button for menu operation.

Layer 1 Layer 2 Function

Flip

Source

Zoom

Lamp


Language

Factory Reset

On/Off Select flip on or off

Presenter/ VGA In

Digital Zoom 0100%

On/Off Select lamp on or off

Normal/Gray/Film

English, Deutsch, Francais, Italiano,

Espanol, Русский,, , , Exit

Enter/Exit

Exit this menu.

Select images of Presenter
and VGA In.

Adjust zoom 0100% ~ 1500%

Select Normal/Gray/Film
Mode.

Select a preferred language
on the menu.

Reset all the values to the
factory default.

VIDEO Mode

Layer 1 Function

Select Lamp On

Select Lamp Off

Model 220 Menu

The Main Menu has five icons (Setting

, and Exit ).

, Display , Source , Storage

The Control Button or the remote control can be used to navigate the menu.

11

Menu Model 220 only

VGA Mode (Computer Image)

Layer 1 Layer 2 Layer 3 Function

Setting

Lamp On/Off Select Lamp On or Off.

English, Deutsch, Francais,

Select a preferred language

Language

Italiano, Espanol, Русский,

on the menu.

, , Exit

Chooses a preferred

XGA 75Hz/XGA 60Hz

Output Format

resolution to be the output

SVGA 75Hz/ SVGA 60Hz

mode.

Reset all the values to the

Factory Reset Enter/Exit

factory default.

Exit Exit this menu.

Digital Zoom 0100% Adjust Zoom 100% ~

Display

Zoom

1500%.

Gamma Photo/Text Select Photo/Text Mode.

Select Normal/Gray/Film

Image Normal/Gray/Film

Mode.

Flip On/Off

Adjust the image up and
down by 180°.

Use Freeze to retain the

Freeze On/Off

image on the screen.

Exit Exit this menu.

Source

Presenter

VGA In

Select images of Presenter

camera or the VGA In.

Capture the image of

Storage

Capture

Presenter.

Playback Present the captured image.

Delete Delete the captured image.

Delete All Delete All

Delete all images.

Enter/ Exit

Memory Format

Format

Memory Format

Enter/ Exit

Exit Exit this menu.

Exit menu.

12

VIDEO Mode (Video Image)

Layer 1 Layer 2 Layer 3 Function

Display

Image Normal/Gray Select Normal/Gray Mode.

Freeze On/Off

Exit Exit this menu.

Setting

Lamp On/Off Adjust On/Off.

Factory Reset On/Off

Exit Exit this menu.

Gamma Photo/Text Select Photo/Text Mode.

Use Freeze to retain the
image on the screen.

Language

English, , , Exit

Select a preferred language
on the menu.

Reset all the values to the
factory default.

Exit menu.

4.4 Base Bottom Switch

On the bottom of the base are four (4) small switches,
which can change the Presenter operation. After a switch
is changed the power must be turn “off” and back “on”
before the new function will be operational. Also when the
video is switched “on” the VGA (computer) mode will not
be operating. The video “on” will limit the camera to NTSC
or PAL resolution. The switch settings are:

Switch Number On Off Function

SW1 AE AE Auto Exposure
SW2 VIDEO VIDEO Video Operation
SW3 PAL NTSC Video Type
SW4 - Set Here Reserved

Default operation, all switches in "Off" position.

13

Chapter 5 Troubleshooting

This chapter describes the conditions you might have encountered when you use the
Digital Presenter. If you have a problem, refer to the appropriate section and follow all
the suggestions that apply to your problem. If none of the suggested solutions solves
the problem, call your dealer or your service center.

Problem 1: No picture from the Digital Presenter.

Solution -

1: Wait a few seconds, press desired source selector again.
2: Press a different source, then press-desired source again.
3: Check if the power of the Digital Presenter is turned on.
4: Make sure the document or object is positioned under the camera.

Problem 2: Cannot Focus, camera will not focus properly.

Solution - To p r op e rl y fo cus : Zoo m in as f ar a s possible on the document or object,

focus, then zoom out to desired distance.

Problem 3: Image is too bright or dark, cannot see desired part of the image
because it is too bright or dark.

Solution – Adjust the Control Knob Button on the Digital Presenter.

14

Audio Visual Products

Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, IL 60174-3395
E-mail: [e-mail]
www.dukcorp.com/av

Phone: [phone]

Orders: [phone]

Fax: [phone]

Parts & Service: [phone]

Fax: [phone]

Part # 401-210_220-01
