GENERAL INFORMATION
The present spare parts order exactly the right spare parts
When ordering specify:
1) the part's code number followed by its description; quantity needed;
2) the motorcycle's serial number, stamped on the steering head.
Reference to right and left apply to the vehicle in terms of its direction of move-ment.
Spare parts drawings are general and do not represent the part.
The contents of this catalogue are general and can undergo changes without prior notice.
DUCATI
VALIDITY
f.m.
Until V.I.N.
d.m.
f.m.m.
d.m.m.
From V.I.N.
Up to engine number
From engine number
LIST
CAL California
CND Canada
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
Ducati Motor Holding S.p.A.
Commercial and Administation Office:
Via A. Cavalieri Ducati n. 3
40132 Bologna, Italy
Telefono 051 6413111
Fax 051 406580
Internet www.ducati.com
915.1.202.2C
01 - 07
1
PAINTS
DUCATI
Paint
Code
101.374_F)GPP("ITACUDyrasrevinnAossoR"
7100*)GPP("otazzillateMorucSoigirG"
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
62
64
66
68
70
72
74
76
78
80
82
84
86
88
90
92
94
96
98
100
102
104
106
108
110
112
001
001a
001b
001c
001d
002
003
004
005
006
007
008
009
010
011
011a
012
013
013a
014
015
016
017
018
019
020
021
022
023
023a
024
025
026
027
028
029
030
031
032
033
034
035
036
037
038
039
040
041
042
043
044
045
046
047
048
CONTENTSpage
WORKSHOP SERVICE TOOLS
WORKSHOP SERVICE TOOLS
WORKSHOP SERVICE TOOLS
DDS TESTER
WORKSHOP SERVICE TOOLS
GEARCHANGE CONTROL
GEARBOX
CLUTCH
CLUTCH-SIDE CRANKCASE COVER
CONNECTING RODS
CYLINDERS - PISTONS
TIMING SYSTEM
FILTERS AND OIL PUMP
CRANKCASE HALVES
WATER PUMP-ALTR-SIDE CRNKCSE COVER
WATER PUMP-ALTR-SIDE CRNKCSE COVER
ELECTRIC STARTING AND IGNITION
CYLINDER HEAD : TIMING SYSTEM
MANIFOLDS AND CYLINDER HEAD COVERS
VERTICAL CYLINDER HEAD
HORIZONTAL CYLINDER HEAD
THROTTLE BODY
EXHAUST SYSTEM
STANDS
FRAME
L.H. FOOTRESTS
R.H. FOOTRESTS
HEADLIGHT SUPPORT
HEADLIGHT AND ELECTRICAL WIRING
HEADLIGHT
INSTRUMENT PANEL
HANDLEBARS AND CONTROLS
FRONT FORKS
CLUTCH CONTROL
FRONT HYDRAULIC BRAKE
RADIATOR
COOLING SYSTEM
ELECTRICAL SYSTEM
BATTERY SUPPORT
AIR INTAKE - OIL BREATHER
SWINGARM AND DRIVE CHAIN
REAR SUSPENSION
OIL COOLER
REAR HYDRAULIC BRAKE
FRONT AND REAR WHEELS
NUMBER PLATE HOLDER
SEAT
FUEL TANK
FUEL SYSTEM
HEADLIGHT FAIRING
FAIRING
PANNIER FASTENERS
SIDE PANNIERS
EVAPORATIVE EMISSIONS CANISTER
DATA PLATE POSITIONS
DUCATI
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
3
DUCATI
DRAWING 001
1
2
3
WORKSHOP SERVICE TOOLS
8
9
10
14
15
17
16
22
18
19
4
11
12
20
5
6
13
21
7
4
DUCATI
DRAWING 001
CODE NO. DESCRIPTION VALIDITYNOTES NO.
WORKSHOP SERVICE TOOLS
1 88713.2295 Timing belt roller reaction tool 1
2 88713.2676 Head nuts holder wrench 1
3 88713.2103 Head mounting base 1
4 98112.0002 Degree wheel 1
5 88713.0123 Degree wheel holder tool for ignition
1
advance check
6 88713.0874 Exhaust valve guide punch tool 1
7 88713.0879 Punch tool to extract valve guide 1
8 88713.0875 Intake valve guide punch tool 1
9 88765.1297 T.D.C. control gauge 1
10 051.2.001.1A Torque wrench for timing belt 1
11 88713.0137 Crankshaft gear holder wrench for
1
tightening nut
12 88713.1078 Punch tool for driving exhaust valve seat 1
13 88765.1397 Valve lift gauge 1
14 88713.1079 Punch tool for driving intake valve seat 1
15 88765.1000 Fork feeler gauge 0.1 mm 1
15 88765.1005 Fork feeler gauge 0,2 mm 1
15 88765.1006 Fork feeler gauge 0.3 mm 1
16 88765.0999 Timing belt control gauge 1
17 88713.2011 Tool to hold crankshaft in TDC position 1
18 88765.1298 Spacer for checking lower valve shim 1
19 88713.2036 Flywheel Wrench 1
20 88700.5749 Crankcases assembling cap 1
21 88713.1091 Plate for positioning gear engagement fork 1
22 88765.1086 Conversion kit for 2V belts tensioning tool 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
5
DUCATI
DRAWING 001a
1
2
3
4
WORKSHOP SERVICE TOOLS
13
8
9
14
10
15
5
11
7
6
12
6
DUCATI
DRAWING 001a
CODE NO. DESCRIPTION VALIDITYNOTES NO.
WORKSHOP SERVICE TOOLS
1 88713.1749 Drive roller puller 1
2 88713.1994 Rocker shaft extractor 1
3 88713.2422 Wrench for tightening primary transmission
1
ring nut
4 88700.5665 Sleeve for installing clutch bell gear 1
5 88713.2092 Extractor for primary drive gear 1
6 88713.2442 Seal ring driving tool 1
7 88713.2423 Torque wrench 1
8 88700.5644 Wrench for camshaft pulley ring nut
1
adjustment
9 88713.2544 Tool to fit seals on camshafts 1
10 88713.1904 Half-rings mounting punch tool 1
11 88713.1215 Torque wrench for timing belt 1
12 88713.1429 Tool to drive valve seal ring ø7 1
13 88713.2545 Tool to install rocker arm shaft clip 1
14 88713.2257 Cam axis locking tool 1
15 88713.2651 Reaction tool for wet "FCC" clutch 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
7
DUCATI
DRAWING 001b
WORKSHOP SERVICE TOOLS
3
4
2
7
5
6
1
8
9
8
DUCATI
DRAWING 001b
CODE NO. DESCRIPTION VALIDITYNOTES NO.
1 88713.1062 Tool for assembling the steering head
WORKSHOP SERVICE TOOLS
1
bearings
2 8000.70139 Wrench for front wheel spindle 1
3 88713.1344 Tool for assembling chain 1
4 677.4.003.1A Coupling 1
5 88713.1515 Frame/engine mount 1
6 88713.1072 Stopper for driving the half bearing of the
1
steering head base
7 88713.1010 Union for exhaust gas suction 1
8 88713.1096 Tool for overhauling SHOWA forks -
1
assembling seal ring
9 88713.1058 Wrench for assembling the steering head
1
cap
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
9
DUCATI
DRAWING 001c
DDS TESTER
9
8
10
11
13
12
15
14
1
2
16
5
3
7
6
4
10
DUCATI
DRAWING 001c
CODE NO. DESCRIPTION VALIDITYNOTES NO.
1 97900.0215 DDS (Ducati Diagnosis System) + manifold
DDS TESTER
1
vacuum meter. kit
2 97900.0002 Belt tensioning kit 1
3 88765.1371 Sensor 1
4 88765.1374 Bracket 1
5 97900.0216 Battery 2
6 97900.0224 Feeder 1
7 97900.0211 Bare DDS 1
8 97900.0225 (USB) Memory card reader 1
9 97900.0222 Main cable 1060838 1
10 97900.0219 Fuse 2
11 97900.0223 Software DDS CD 1
12 97900.0226 (USB) Cable extension 1
13 97900.0229 Black case with sponge rubber 1
14 88765.1126V Amperometer plier 1
15 97900.0217 Battery charger 1
16 97900.0232 DDS manual 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
11
DUCATI
DRAWING 001d
WORKSHOP SERVICE TOOLS
1
9
10
2
3
4
5
6
7
11
12
8
14
24
18
13
15
16
19
17 20 22 2321
12
DUCATI
DRAWING 001d
CODE NO. DESCRIPTION VALIDITYNOTES NO.
WORKSHOP SERVICE TOOLS
1 590.1.189.1A Fuel pressure line HS. 1
2 590.1.190.1A Fuel pressure line ST/SS/M. 1
3 875.1.065.1A Oil pressure line 1
4 552.1.037.1A Fitting - cylinder compression M12 1
5 552.1.038.1A Fitting - cylinder compression M10 1
6 514.1.037.1A Cable Volt PF DUC 21 1
7 97900.0227 Main cable D607 1
8 814.1.114.1A Oil pressure fitting 1
9 514.1.032.1A Cable for supplementary tests 1
10 514.1.035.1A Red clamp cable 1
10 514.1.036.1A Black clamp cable 1
11 552.1.040.1A Temperature probe 1
12 97900.0228 Battery connection adapter 1
13 514.1.033.1A Electric lighter connection adapter (ST) 1
14 514.1.038.1A Battery connection adapter 1
15 698.1.033.1A Red case with sponge rubber 1
16 88765.1126T DUCATI sticker RH/LH side 2
17 97900.0231 (USB) Adaptor 1
18 97900.0218 Depressure sensor 1
19 552.1.039.1A Pressure sensor 1
20 97900.0230 Feeder 1
21 97900.0220 Depressure/pressure line 2
22 97900.0221 Union 4
23 97900.0003 Pressure kit 1
24 88765.1126C Cable for potentiometer adjustement 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
13
DUCATI
DRAWING 002
GEARCHANGE CONTROL
7
8
9
10
6
5
35
38
11
13
3637
12
14
17
16
18
19
22
21
20
23
4
3
24
25
28
2
1
29
26
27
15 34 33 32 31 30
14
DUCATI
DRAWING 002
CODE NO. DESCRIPTION VALIDITYNOTES NO.
GEARCHANGE CONTROL
1 799.1.049.1A Return spring 1
2 852.1.053.2A Washer 1
3 779.1.039.1A Special screw 1
4 455.2.003.1A Gear stopper assembly 1
5 852.5.024.1A Gasket th.1 1
6 539.1.021.1B Switch 1
7 779.1.203.2A Push rod holder 1
8 0272.91.090 Gasket 1
9 0660.13.143 Gear selector spring 1
10 76835.1134 Ball 1
11 180.1.001.1A 1st,4th-2nd,3rd gear selector fork 2
12 180.1.002.1A 5th,6th gear selector fork 1
13 0660.13.070 Fork pin 2
14 852.1.005.1A Shim th. 1 1
15 73500.1542 Circlip 1
16 882.1.006.1A Needle retaining ring (square cross-section) 1
17 821.1.070.1A Pin 6
18 182.2.018.1A Complete gearbox drum 1
19 0660.13.060 Shim th. 1 1
19 852.1.094.1A Shim th. 0.9 1
20 799.1.025.1A Fork return spring 1
21 0400.09.050 Shim th. 0.5 1
21 0765.92.205 Shim th. 0.2 2
22 884.5.034.1A Ring 1
23 748.1.040.1A Nut 1
24 180.1.008.1A Gearbox drum control fork 1
25 0660.13.165 Gearchange lever pin 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
26 821.1.001.1A Pin with gearchange lever 1
27 0799.13.110 Gearchange lever return spring 1
28 771.5.067.8B Screw 1
29 852.1.172.1A Washer 1
30 771.5.123.8B Screw 1
31 852.1.174.1A Washer 1
32 881.1.012.1A Centering ring 1
33 826.1.009.1A Stopper plate 1
34 0400.29.125 Shim th. 0.2 2
34 0400.29.126 Shim th. 0.5 1
35 847.4.006.1A Ball 1
36 799.1.211.1A Spring 1
37 852.1.199.1A Aluminium gasket th.2 1
37 852.1.201.1A Aluminium gasket th.1,5 1
38 771.1.032.1A Special screw 1
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
15
DUCATI
DRAWING 003
15
GEARBOX
11
10
7
6
4
9
27
8
6
7
12
29 30
7
6
5
4
3
2
1
13
14
26
25
3
4
24
6
7
23
7
6
22
4
20
16
4
21
6
7
28
19
18
17
16
DUCATI
DRAWING 003
CODE NO. DESCRIPTION VALIDITYNOTES NO.
GEARBOX
1 0251.47.054 Shim th. 1.2 1
2 149.1.046.1A Gearbox main shaft 1
3 0670.16.150 Shim th. 0.5 2
4 701.4.005.1A Needle bearing 5
5 172.1.004.1A Driving gear 5th sp. 1
6 856.1.001.1A Grooved washer th. 0.5 6
7 0670.16.145 Snap ring 6
8 172.1.003.1A Driving gear 3rd/4th sp. 1
9 172.1.005.1A Driving gear 6th sp. 1
10 172.1.002.1B Driving gear 2nd sp. 1
11 713.1.014.1E Shim th. 1.6 1
12 449.A.045.1A Chain sprocket Z=15 1
13 713.1.157.1A Spacer 1
14 930.4.023.1A O-ring 1
15 713.1.266.1A Spacer th. 3,15 1
16 856.1.031.1A Grooved washer th. 0.5 1
17 76402.0002 Needle bearing 1
18 172.1.006.1B Driven gear 1st sp. 1
19 0670.16.155 Shim th. 1 1
20 172.1.010.1A Driven gear 5th sp. 1
21 172.1.009.1A Driven gear 4th sp. 1
22 172.1.008.1A Driven gear 3rd sp. 1
23 172.1.011.1A Driven gear 6th sp. 1
24 172.1.007.1B Driven gear 2nd sp. 1
25 149.1.032.3A Gearbox lay shaft 1
26 0670.16.170 Shim th. 0.8 1
27 150.2.078.1A Complete main shaft 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
28 150.2.063.1A Gearbox lay shaft 1
29 851.1.004.1A Lock washer 1
30 750.1.007.1A Nut 1
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
17
DUCATI
DRAWING 004
CLUTCH
3
4
10
2
1
20
5
7
8
9
16
18
11
17
12
13
14
15
19
6
18
DUCATI
DRAWING 004
CODE NO. DESCRIPTION VALIDITYNOTES NO.
CLUTCH
1 797.1.032.1A Clutch spring 5
2 841.1.046.1A Retainer 5
3 771.5.072.8C Screw 5
4 194.1.027.1A Pressure plate "FCC" 1
5 702.5.047.1A Bearing 1
6 771.5.065.8B Screw 3
7 748.1.013.1A Hexagon nut 1
8 799.5.001.2A Spring washer 1
9 190.2.013.1A Clutch plates set 1
10 799.1.191.1A Spring washer "FCC" 1
11 190.1.017.1A Spring 1
12 196.1.035.1A Plate holder hub "FCC" 1
13 713.1.309.1A Spacer 1
14 198.2.036.1A Clutch housing 1
15 713.1.237.1A Spacer 1
16 117.2.007.1A Clutch control rod 1
17 93823.2018 O-ring 2
18 886.4.043.1A O-ring 1
19 195.4.003.1A Piston assembly 1
20 818.1.016.1A Clutch control pin "FCC" 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
19
DUCATI
DRAWING 005

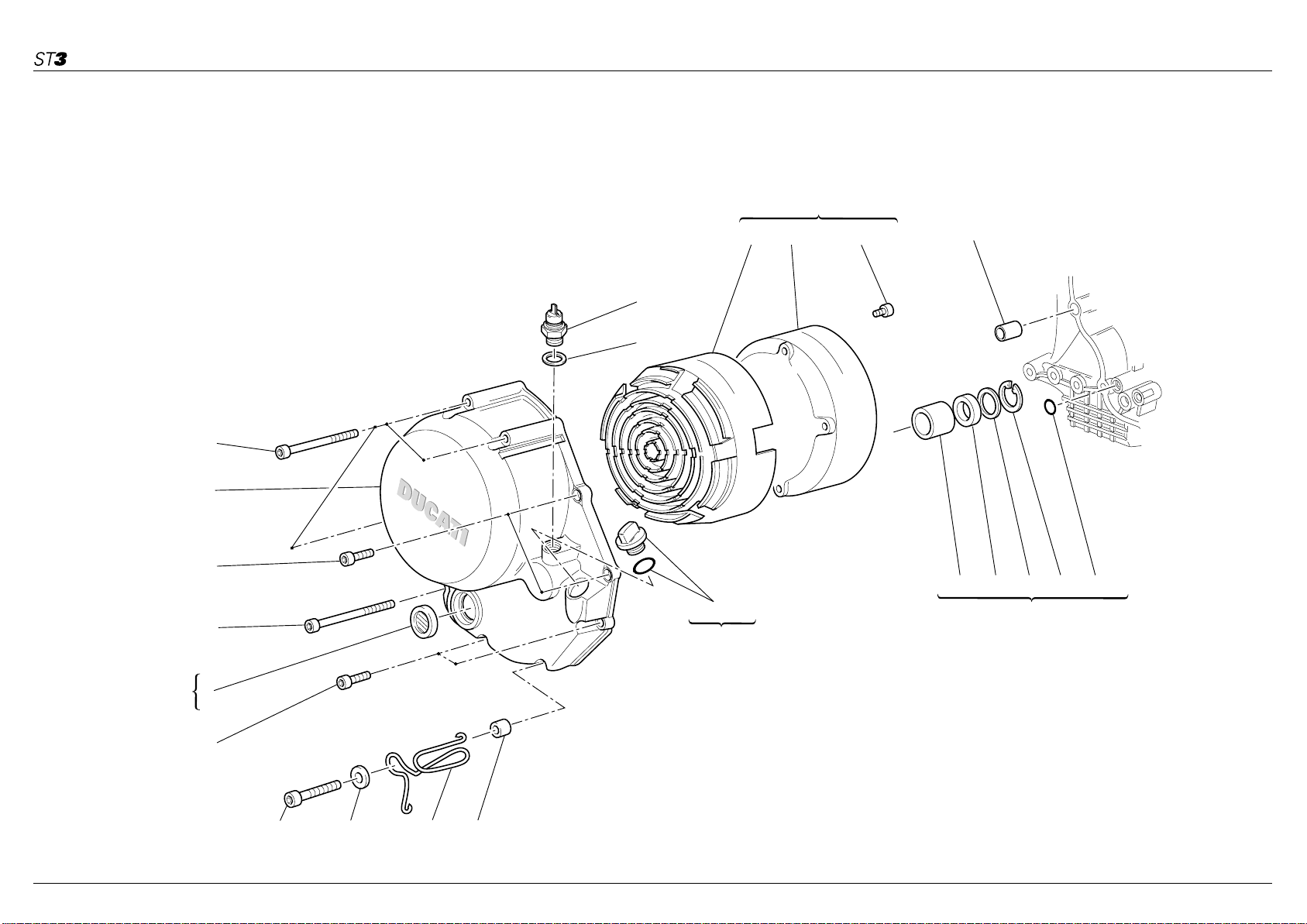

CLUTCH-SIDE CRANKCASE COVER
3
1
21
20
1
617 19
13
5
8 9 10 11 12
15
2
1
1
4
1
5
7
16
14
18
20
DUCATI
DRAWING 005
CODE NO. DESCRIPTION VALIDITYNOTES NO.
CLUTCH-SIDE CRANKCASE COVER
1 243.2.109.3A Cover clutch side 1
2 771.5.083.8B Screw 1
3 771.5.081.8B Screw 3
4 254.4.001.2A Oil level sight glass 1
5 771.5.069.8B Screw 4
6 486.1.051.1A Panel (BLACK) 1
7 771.5.072.8B Screw 2
8 0665.49.680 Bush 1
9 930.4.091.1A Seal ring 1
10 852.1.008.1A Shim th. 0.5 1
11 884.5.035.1A Circlip 1
12 93827.0114 O-ring 1
13 0400.49.240 Locating bush 1
14 881.1.051.1A Holder 1
15 893.2.013.1A Complete cap 1
16 852.1.176.1A Washer 1
17 243.1.029.1A Cover 1
18 713.1.241.1A Spacer 1
19 773.1.001.1A Screw 6
20 852.1.195.1A Gasket th.2 1
21 539.4.030.2A Switch 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
21
DUCATI
DRAWING 006
CONNECTING RODS
6
5
51
79
10
4
8
8
14
2
11
15 3
13
12
16
11
8
6
5
8
7
5
9
22
DUCATI
DRAWING 006
CODE NO. DESCRIPTION VALIDITYNOTES NO.
CONNECTING RODS
1 146.2.104.1A Crankshaft 1
2 779.1.109.1A Special screw 1
3 750.1.012.2A Nut 1
4 72121.2106 Threaded dowel 1
5 158.2.019.1A Connecting rods pair 1
6 712.1.021.1A Bush 2
7 74224.0570 Pin 4
8 112.1.012.1AB Half-bearing (BLUE) 4
8 112.1.012.1AC Half-bearing (YELLOW) 4
9 779.1.007.2A Special screw 4
10 74172.1008 Woodruff key 1
11 852.1.104.1A Shim th. 1.9 2
11 852.1.104.1B Shim th. 1.95 2
11 852.1.104.2C Shim th. 2 2
11 852.1.104.2D Shim th. 2,05 2
11 852.1.104.2E Shim th. 2,1 2
11 852.1.104.2F Shim th. 2,15 2
11 852.1.104.2G Shim th. 2.2 2
11 852.1.104.1H Shim th. 2.25 2
11 852.1.104.2I Shim th. 2.3 2
11 852.1.104.2J Shim th. 2.35 2
11 852.1.104.1K Shim th. 2,4 2
11 852.1.104.1L Shim th. 2,45 2
11 852.1.104.1M Shim th. 2.5 2
11 852.1.104.1N Shim th. 2.55 2
12 851.4.003.1A Lock washer 1
13 750.1.113.1A Ring nut 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
14 0755.29.025 Woodruff key 1
15 799.1.051.2A Spring washer 1
16 170.2.081.1A Primary drive front sprocket 1
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
23
DUCATI
DRAWING 007
15
10
7
8
2
CYLINDERS - PISTONS
12 14 13 11 17
11
9
11
7
16
34 5
2
1
13
14
12
15
6
24
DUCATI
DRAWING 007
CODE NO. DESCRIPTION VALIDITYNOTES NO.
CYLINDERS - PISTONS
1 120.2.092.1A Horizontal cylinder-piston fit 1
2 122.2.118.1A Complete piston 2
3 121.1.079.1A Piston pin circlip 4
4 121.1.078.2A Piston pin 2
5 121.2.033.1A Piston rings set 2
6 684.1.070.1A Stud bolt 1
7 786.1.086.1A Cylinder-crankcase gasket th. 0.4 2
8 711.1.093.2A Bush 4
9 791.2.036.2A Head-cylinder gaskets set 1
10 120.2.093.1A Vertical cylinder-piston fit 1
11 741.4.002.1A Hose guide 4
12 788.1.072.1A O-ring 2
13 814.1.124.1A Water inlet union to cylinders 2
14 771.5.067.8B Screw 4
15 786.1.073.1A Head-cylinder gasket 2
16 800.1.008.1A Horizontal cylinder water inlet hose 1
17 800.1.007.1A Vertical cylinder water inlet hose 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
25
DUCATI
DRAWING 008
TIMING SYSTEM
7
6
5
10 11 12
19
20
14 21 21
8
21
18 17 15 19 16
15
9
13
2
20
1
8
3
3
6 5
24
7
26
DUCATI
DRAWING 008
CODE NO. DESCRIPTION VALIDITYNOTES NO.
TIMING SYSTEM
1 245.1.055.1A Vertical timing belt cover 1
2 771.5.072.8B Screw 2
3 771.5.067.8B Screw 3
4 245.1.056.1A Horizontal timing belt cover 1
5 702.4.069.1A Bearing 4
6 884.5.034.1A Ring 2
7 451.2.017.1A Complete vertical cylinder tensioner roller 2
8 772.1.010.3A Screw 4
9 147.1.014.2A Timing lay shaft 1
10 171.2.020.2B Timing gears pair 1
11 851.1.013.1A Lock washer 1
12 0124.40.060 Hexagon nut 1
13 716.1.073.2A Spacer 1
14 882.1.003.1A Snap ring 1
15 255.1.023.2A Timing belt roller 2
16 856.1.062.2A Belt roller separating washer 1
17 716.1.099.1A Spacer 1
18 703.5.006.2A Elastic-stop ring nut 1
19 737.4.021.1A Timing drive toothed belt 2
20 451.1.025.1A Fixed tensioner assembly 2
21 0755.29.025 Woodruff key 3
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
27
DUCATI
DRAWING 009
FILTERS AND OIL PUMP
89
1
576
89
1
24 13 2512
15
4
15
22
28
27
3
23
16
10 11
17
14
26
21
20
2
18
19
28
DUCATI
DRAWING 009
CODE NO. DESCRIPTION VALIDITYNOTES NO.
FILTERS AND OIL PUMP
1 174.2.025.6A Complete oil pump 1
2 873.1.037.1A Cap 1
3 852.1.120.1A Aluminium gasket 1
4 886.4.037.1A O-ring 1
5 593.1.018.1A Bypass valve 1
6 780.1.018.1A Bypass cap 1
7 799.1.055.1A Bypass spring 1
8 771.5.129.8B Screw 2
9 853.1.002.1A Spring washer 2
10 771.5.069.8B Screw 1
11 853.1.004.1A Spring washer 1
12 174.1.025.2A Pump drive gear 1
13 710.1.001.1A Bush 1
14 799.2.077.2A Bypass spring 1
15 0759.49.280 Locating bush 2
16 220.3.208.3A Gasket 1
17 780.2.047.1A Oil drain plug with magnet 1
18 852.5.005.1A Gasket th.1,5 1
19 894.2.009.1A Oil filter 1
20 444.4.003.4A Oil filter cartridge 1
21 815.1.028.1A Nipple 1
22 93827.0114 O-ring 1
23 779.1.198.2A Cap 1
24 884.4.042.1A Snap ring 1
25 884.5.036.1A Circlip 1
26 0670.49.310 Reduction bush 1
27 779.1.162.2A Cap 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
28 852.1.195.1A Gasket th.2 1
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
29
DUCATI
DRAWING 010
CRANKCASE HALVES
5
8
7
6
33
213 2 4
34
8
7
22
9
1
20
18
32
13
26
11
10
9
6
23
24 32 2
1
4
39
37
12
14
15
36
1
27
18
17
16
38
24
1
28
31
30
29
25
21
1
35
19
1
30
DUCATI
DRAWING 010
CODE NO. DESCRIPTION VALIDITYNOTES NO.
CRANKCASE HALVES
1 225.2.146.1A Complete half-crankcases pair 1
2 0755.49.265 Seal ring 4
3 76400.0004 Needle bearing 4
4 76266.2668 Snap ring 2
5 94247.0014 Fluid sealant 1
6 766.1.060.1A Stud bolt for fastening head cylinder 8
7 856.1.064.2A Special washer 8
8 748.1.050.1A Nut 8
9 702.4.033.1A Bearing 2
10 72094.1616 Screw 2
11 826.1.012.1A Keep plate 1
12 702.5.019.1A Bearing 1
13 930.4.022.1A Seal ring 1
14 713.1.140.1A Spacer 2
15 770.5.250.8B Screw 2
16 93785.1830 Seal ring 1
17 75794.1542 Bearing 1
18 73503.3380 Circlip 2
19 787.1.011.1A Aluminium gasket th.2 2
20 702.5.008.1A Bearing 1
21 710.1.069.1A Bearing holder bush 1
22 463.4.001.1A Seal ring 1
23 860.1.004.1A Locating dowel 2
24 771.5.136.8B Screw 6
25 75191.3380 Bearing 1
26 702.4.013.1A Bearing 1
27 771.5.080.8B Screw 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
28 93827.0114 O-ring 1
29 702.4.020.1A Bearing 1
30 710.1.070.1A Bearing holder bush 1
31 771.5.072.8B Screw 7
32 711.1.095.1A Bush 2
33 593.1.003.1B Breather valve 1
34 93823.3156 O-ring 1
35 815.1.022.1A Nipple 2
36 779.1.026.2A Screw 1
37 852.5.026.1A Aluminium gasket th.1,5 1
38 711.1.128.1A Bush 2
39 779.1.029.2A Special screw 1
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
31
DUCATI
DRAWING 011

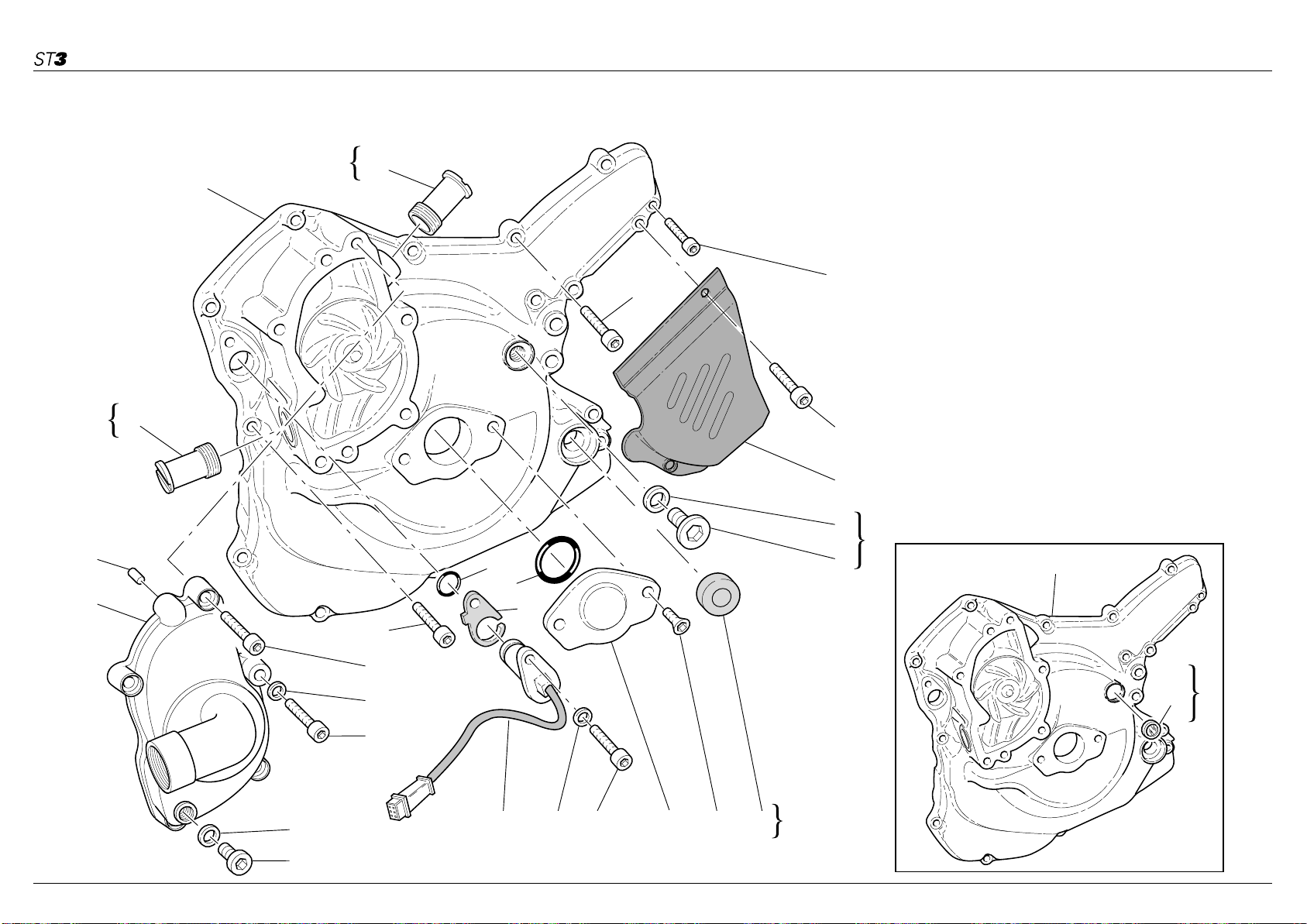

WATER PUMP-ALTR-SIDE CRNKCSE COVER
12
9
11
10
8
7
6
Rif. 14 / 22 - Tav. 011a
18
16
19
1
45
2
22
17
3
15
14
13
23
21
20
32
DUCATI
DRAWING 011
CODE NO. DESCRIPTION VALIDITYNOTES NO.
WATER PUMP-ALTR-SIDE CRNKCSE COVER
1 264.4.018.3A Generator d.m.m.002962 1
1 264.4.025.1A Generator f.m.m.002961 1
2 771.5.073.8B Screw 3
3 779.4.075.1A Screw 8
4 702.5.008.1A Bearing 1
5 73503.3380 Circlip 1
6 770.5.250.8B Screw 2
7 852.1.172.1A Washer 2
8 884.5.011.1A A 10 Ring 1
9 702.4.010.2A Bearing 1
10 852.1.114.1A Washer 1
11 702.4.009.1A Bearing 1
12 713.1.128.1B Spacer 1
13 0400.49.240 Locating bush 2
14 830.1.144.1A Bracket 1
15 771.5.040.8B Screw 2
16 251.2.009.1A Water pump fan 1
17 94247.0014 Fluid sealant 1
18 930.5.005.1A Seal 1
19 930.5.006.2B Mechanical seal 1
20 852.1.176.1A Washer 1
21 881.1.051.1A Holder 1
22 771.5.072.8B Screw 1
23 713.1.365.1A Spacer 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
33
DUCATI
DRAWING 011a
12
14
18
13
WATER PUMP-ALTR-SIDE CRNKCSE COVER
12
14
14
11
10
24
25
19
1
20
14
3
22
5
9
17
16
2
15
11
2
218 764
14
23
22
34
DUCATI
DRAWING 011a
CODE NO. DESCRIPTION VALIDITYNOTES NO.
WATER PUMP-ALTR-SIDE CRNKCSE COVER
1 247.1.083.1AE Chain cover 1
2 771.5.066.8B Screw 5
3 779.1.198.2A Cap 1
4 93783.1524 Seal ring 1
5 886.4.035.1A O-ring 1
6 247.1.002.1BC Cover 1
7 777.5.049.8B Screw 2
8 552.4.020.1A Sensor 1
9 788.1.076.1A Gasket th.0,6 1
9 788.1.076.1AA Gasket th.0,8 1
9 788.1.076.1AB Gasket th.1,0 1
10 886.4.033.1A O-ring 1
11 771.5.069.8B Screw 10
12 668.1.001.3A Water pump delivery filler 2
13 247.2.166.2A Complete water pump cover 1
14 242.2.062.2A Generator cover 1
15 852.5.023.1A Gasket 1
16 780.5.001.1A Cap 1
17 852.5.024.1A Gasket th.1 1
18 860.1.004.1A Locating dowel 2
19 771.5.065.8B Screw 2
20 852.1.120.1A Aluminium gasket 1
21 853.1.003.1A Spring washer 1
22 242.2.038.2BB Generator cover 1
23 254.4.001.1A Oil level sight glass 1
24 771.5.067.8B Screw 2
25 771.5.071.8B Screw 3
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
35
DUCATI
DRAWING 012
ELECTRIC STARTING AND IGNITION
17
19 18
20
9
8
1321
16
15
14
12
11
9
10
24
23
67
22
2
1
3
4
5
1
36
DUCATI
DRAWING 012
CODE NO. DESCRIPTION VALIDITYNOTES NO.
ELECTRIC STARTING AND IGNITION
1 270.4.005.1A Complete starter motor 1
2 853.1.003.1A Spring washer 1
3 750.1.121.1A Nut 1
4 788.1.054.2A Starter motor gasket 1
5 771.5.066.8B Screw 2
6 176.1.001.1A Starter motor sprocket 1
7 884.5.036.1A Circlip 1
8 0660.50.020 Intermediate gear pin 1
9 856.1.071.1A Washer 2
10 176.1.009.1A Intermediate gear assembly 1
11 73500.1440 Circlip 1
12 771.5.078.8B Screw 1
13 160.1.057.1A Flange 1
14 863.1.002.1A Locating pin 1
15 882.1.012.1A Check ring 1
16 276.1.028.1B Ignition flywheel 1
17 0619.50.065 Washer 1
18 881.1.010.1C Inner ring 1
19 701.4.003.1A Needle bearing 1
20 173.1.012.3A Electric starter driven gear 1
21 701.4.007.1A Starter clutch 1
22 771.5.069.8B Screw 1
23 771.5.071.8B Screw 1
24 700.1.036.1A Flexible bush 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
37
DUCATI
DRAWING 013
1
CYLINDER HEAD : TIMING SYSTEM
14
20
10
10
14
17
9
7
5
19
8
12
11
15
3
2
16
8
4
13
18
12
11
20
15
713
19
17
2
1
6
3
21
13
18
4
38
DUCATI
DRAWING 013
CODE NO. DESCRIPTION VALIDITYNOTES NO.
CYLINDER HEAD : TIMING SYSTEM
1 703.5.006.2A Elastic-stop ring nut 2
2 852.1.173.1A Washer 2
3 255.1.024.2A Timing belt roller 2
4 779.5.030.2A Screw 6
5 245.1.054.1A Vertical belt inner cover 1
6 245.1.057.1A Horizontal belt inner cover 1
7 930.5.007.1A Seal ring 2
8 74172.1008 Woodruff key 2
9 148.1.143.1A Vertical head camshaft 1
10 771.5.067.8B Screw 4
11 788.1.071.1A O-ring 2
12 235.1.036.1A Side cap 2
13 788.1.075.1A O-ring 4
14 771.5.063.8B Screw 2
15 886.4.060.1A O-ring 2
16 148.1.142.1A Horizontal head camshaft 1
17 856.1.074.2A Special washer 2
18 766.4.019.1A Stud bolt 8
19 160.1.105.1A Flange 2
20 852.5.023.1A Gasket 2
21 771.1.026.3A Screw 4
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
39
DUCATI
DRAWING 013a
1 2 3 1 2 1
MANIFOLDS AND CYLINDER HEAD COVERS
4 8
1
4
8
2
6 5
1
3
7
1
40
DUCATI
DRAWING 013a
CODE NO. DESCRIPTION VALIDITYNOTES NO.
MANIFOLDS AND CYLINDER HEAD COVERS
1 771.5.067.8B Screw 22
2 240.1.029.1A Valve cover 3
3 788.1.074.1A Head gasket 4
4 140.2.033.1A Intake manifold 2
5 852.5.025.1A Aluminium gasket th.1 2
6 771.5.062.8B Screw 2
7 240.1.032.1A Exaust valve cover (horizontal) 1
8 741.4.067.1A Hose guide 2
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
41
DUCATI
DRAWING 014
19
VERTICAL CYLINDER HEAD
17
12
19
18
17
13
12
12
17
14
18
19
15
20
13
12
14
16
21
14
12
13
12
15
21
19
18
17
24
16
15
7
6
16 15
6
6
5
1
4
1
2
23
11
9
42
10
8
3
22
22
1
DUCATI
DRAWING 014
CODE NO. DESCRIPTION VALIDITYNOTES NO.
VERTICAL CYLINDER HEAD
1 301.2.131.1C Complete vertical head 1
2 304.A.001.1A Intake valve seat 2
2 304.A.001.1AB Oversize intake valve seat 0.03 2
2 304.A.001.1AC Oversize intake valve seat 0.06 2
3 304.A.004.1A Exhaust valve seat 1
3 304.A.004.1AB Oversize exhaust valve seat 0.03 1
3 304.A.004.1AC Oversize exhaust valve seat 0.06 1
4 303.1.039.1A Intake valve guide 2
4 303.1.039.1AB Intake valve guide magg. 0,03 2
4 303.1.039.1AC Intake valve guide magg. 0,06 2
4 303.1.039.1AD Intake valve guide magg. 0,09 2
5 303.1.025.1A Exhaust valve guide 1
5 303.1.025.1AB Oversize valve guide 0.03 1
5 303.1.025.1AC Oversize valve guide 0.06 1
5 303.1.025.1AD Oversize valve guide 0.09 1
6 764.1.002.1A Rubber pad 3
7 799.1.147.1A R.H. Closing rocker spring 1
8 881.1.043.1A Hose guide 1
9 60N102511 Screw 1
10 210.1.047.1B Intake valve 2
11 211.1.043.2B Exhaust valve 1
12 0795.37.096 Washer 6
13 799.1.179.1A Spring 3
14 208.1.022.1A Opening rocker 3
15 821.1.141.1A Opening rocker shaft 4
16 209.1.026.1B Closing rocker 3
17 840.2.002.1B See table 3
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
18 669.1.001.1E Split rings 6
19 840.2.001.1A See table 3
20 799.1.146.1A L.H. Closing rocker spring 1
21 821.1.142.1B Closing rocker shaft 2
22 852.1.176.1A Washer 2
23 881.1.051.1A Holder 1
24 799.1.221.1A Return spring 1
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
43
DUCATI
DRAWING 015
HORIZONTAL CYLINDER HEAD
11 13
16
14
14
17
16
17
10
11
12
13
6
15
17
10
10
8
12
13
15
10
9
11
18
18
51
13
7
1
2
19
15
20
4
13
1
12
11
17
19
14
16
44
DUCATI
DRAWING 015
CODE NO. DESCRIPTION VALIDITYNOTES NO.
HORIZONTAL CYLINDER HEAD
1 301.2.130.1C Complete horizontal head 1
2 303.1.025.1A Exhaust valve guide 1
2 303.1.025.1AB Oversize valve guide 0.03 1
2 303.1.025.1AC Oversize valve guide 0.06 1
2 303.1.025.1AD Oversize valve guide 0.09 1
3 303.1.039.1A Intake valve guide 2
3 303.1.039.1AB Intake valve guide magg. 0,03 2
3 303.1.039.1AC Intake valve guide magg. 0,06 2
3 303.1.039.1AD Intake valve guide magg. 0,09 2
4 304.A.001.1A Intake valve seat 2
4 304.A.001.1AB Oversize intake valve seat 0.03 2
4 304.A.001.1AC Oversize intake valve seat 0.06 2
5 304.A.004.1A Exhaust valve seat 1
5 304.A.004.1AB Oversize exhaust valve seat 0.03 1
5 304.A.004.1AC Oversize exhaust valve seat 0.06 1
6 211.1.043.2B Exhaust valve 1
7 210.1.047.1B Intake valve 2
8 799.1.147.1A R.H. Closing rocker spring 1
9 799.1.146.1A L.H. Closing rocker spring 1
10 821.1.141.1A Opening rocker shaft 4
11 840.2.001.1A See table 3
12 669.1.001.1E Split rings 6
13 840.2.002.1B See table 3
14 208.1.022.1A Opening rocker 3
15 209.1.026.1B Closing rocker 3
16 799.1.179.1A Spring 3
17 0795.37.096 Washer 6
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
18 764.1.002.1A Rubber pad 3
19 821.1.142.1B Closing rocker shaft 2
20 799.1.221.1A Return spring 1
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
45
DUCATI
DRAWING 016
4
THROTTLE BODY
1
1
12
8
1
1
8
14
10
13
7
11
5
3
6
3
2
2
1
9
46
DUCATI
DRAWING 016
CODE NO. DESCRIPTION VALIDITYNOTES NO.
THROTTLE BODY
1 282.4.019.2B Throttle body 1
2 791.1.017.2A Gasket 2
3 886.5.004.1A O-ring 2
4 802.1.009.1A Air funnel 1
5 802.1.015.1A Air funnel 1
6 799.1.052.2A Spring 4
7 470412 Screw 4
8 280.4.015.1A Injector 2
9 283.4.011.1A Stepper motor 1
10 779.1.335.1A Pressure pick-up point 1
11 741.4.040.1A Clamp "M" 1
12 590.1.124.1A Tube 1
13 590.1.103.1A Tube 1
14 741.4.041.1A Clamp "R" 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
47
DUCATI
DRAWING 017
EXHAUST SYSTEM
45 1
19
1312
1414
10
18
16
17
3
17
16
1
15
11
6
9 8
4
2 7
48
DUCATI
DRAWING 017
CODE NO. DESCRIPTION VALIDITYNOTES NO.
EXHAUST SYSTEM
1 790.1.007.1A Exhaust gasket 2
2 852.5.024.1A Gasket th.1 2
3 574.1.088.1A L.H. silencer 1
4 748.1.024.1A Nut 8
5 571.1.100.1A Vertical head exhaust pipe 1
6 741.1.003.3A Clamp 1
7 570.1.102.1B Horizontal head exhaust pipe 1
8 780.1.007.1A Cap 2
9 799.1.072.1A Spring 1
10 866.1.061.1A Rubber pad 1
11 573.1.088.1A R.H. silencer 1
12 779.5.016.1B Screw 2
13 684.1.044.1A Stud bolt 2
14 764.1.001.1A Rubber pad 4
15 576.1.034.1A R.H. bracket 1
16 73270.8001 Washer 4
17 70914.2121 Screw 4
18 576.1.035.1A L.H. bracket 1
19 552.1.111.1A Lambda sensor 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
49
DUCATI
DRAWING 018
STANDS
7
23
45
6
1
8
13
8
16
115
11 10
14
12
9
50
DUCATI
DRAWING 018
CODE NO. DESCRIPTION VALIDITYNOTES NO.
STANDS
1 748.4.024.1AB Nut 1
2 555.1.007.1A R. H. Plate 1
3 555.1.005.1A Central stand 1
4 555.1.006.1B L. H. Plate 1
5 799.1.069.1A Inner spring 1
6 799.1.070.1A Outer spring 1
7 772.1.001.1A Screw 1
8 771.5.754.8B Screw 2
9 799.1.089.1B Inner spring 1
10 799.1.088.1B Outer spring 1
11 827.1.139.2B Plate 1
12 779.4.005.2A Screw 1
13 539.1.023.2A Switch 1
14 556.1.017.1C Side stand 1
15 556.1.018.1D Pivot 1
16 556.2.020.1D Plate 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
51
DUCATI
DRAWING 019
FRAME
18
14 6 7 9 10
5
20
17
21
12
16
22
19
87
11
13
12
23
15
14
1
234
52
DUCATI
DRAWING 019
CODE NO. DESCRIPTION VALIDITYNOTES NO.
FRAME
1 470.1.081.1AB Frame (BLACK) 1
1 470.1.081.1AF Frame (RED) 1
2 460.1.088.1A Mudflap 1
3 741.1.013.1A Hose guide 3
4 829.1.170.1AB L.H. holder 1
5 829.1.169.1AB R.H. holder 1
6 713.1.332.1A Spacer 2
7 764.1.084.1A Vibration damper pad 2
8 829.1.487.1A Holder 1
9 852.1.191.1A Washer 1
10 772.5.029.1A Screw 2
11 779.1.213.1A Screw 2
12 872.1.026.1A Cap 4
13 827.1.121.1A Stud bolt 2
14 772.5.032.1A Screw 1
15 771.5.071.8B Screw 2
16 748.4.002.1A Nut 2
17 872.1.027.1A Cap 1
18 598.2.017.2A Locks kit 1
19 741.4.013.1A Hose guide 3
20 764.1.010.1A Rubber pad 1
21 117.2.002.1B Rod 1
22 741.1.012.1A Hose guide 1
23 0364.99.020 Bush 2
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
53
DUCATI
DRAWING 020
L.H. FOOTRESTS
1
3
37
19
30
2
17
31
2928
22
21
35
32
27 36
2
26
3
33
34
20
8
9
5
10
4
5
6
17
13
7
22
21
20
23
25
24
18
11
38
12
14 15
11
16
54
DUCATI
DRAWING 020
CODE NO. DESCRIPTION VALIDITYNOTES NO.
L.H. FOOTRESTS
1 824.1.039.1A L.H. foot peg holder plate 1
2 771.1.035.1A Screw 4
3 821.1.254.1A Pin 2
4 0370.69.910 Spring 1
5 749.5.006.1A Nut 2
6 848.5.001.1A Ball joint 1
7 747.5.001.1AB Nut 1
8 117.1.033.1A Gearbox transmission rod 1
9 747.5.010.1A Nut 1
10 848.5.002.1A Ball joint 1
11 779.5.011.1B Screw 2
12 456.1.006.2A Gearchange control lever 1
13 852.1.053.1A Washer 1
14 8000.59056 Bush 1
15 765.1.001.1A Rubber pad 1
16 456.2.009.1A Gearchange lever 1
17 73500.0827 Circlip 2
18 821.1.170.1A Pin 1
19 827.1.192.1B Plate 1
20 777.5.235.8A Screw 4
21 827.1.390.1A Plate 2
22 0370.69.940 Foot peg rubber cover 2
23 0370.69.950 Front L.H. foot peg, complete 1
24 772.1.047.1A Screw 2
25 460.1.062.1A Protection 1
26 779.1.159.1B Screw 1
27 806.1.012.1A Handle 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
28 861.5.003.1A Spring pin 1
29 799.1.071.1A Spring 1
30 824.1.041.1C Rear L.H. foot peg holder plate 1
31 827.1.391.1A Plate 1
32 799.1.024.1A Spring 1
33 847.4.002.1A Ball 2
34 827.1.045.1B Keep plate 1
35 0370.69.960 Rear L.H. foot peg, complete 1
36 806.1.013.1A Handgrip 1
37 386.4.013.2A Power Point 1
38 779.5.001.1B Screw 1
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
55
DUCATI
DRAWING 021
R.H. FOOTRESTS
13
14 5 15
8
7
2
5
12
6
11
10
4
17 16
1
2
8
7
9
3
4
6
56
DUCATI
DRAWING 021
CODE NO. DESCRIPTION VALIDITYNOTES NO.
R.H. FOOTRESTS
1 824.1.040.1B R.H. foot peg holder plate 1
2 821.1.254.1A Pin 2
3 0370.69.910 Spring 1
4 73500.0827 Circlip 2
5 771.1.035.1A Screw 4
6 777.5.235.8A Screw 2
7 827.1.390.1A Plate 2
8 0370.69.940 Foot peg rubber cover 2
9 0370.69.955 Front R.H. foot peg, complete 1
10 827.1.045.1B Keep plate 1
11 847.4.002.1A Ball 2
12 799.1.024.1A Spring 1
13 0370.69.965 Rear R.H. foot peg, complete 1
14 827.1.391.1A Plate 1
15 824.1.042.1C Rear R.H. foot peg holder plate 1
16 460.1.063.1A Protection 1
17 772.1.047.1A Screw 2
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
57
DUCATI
DRAWING 022
HEADLIGHT SUPPORT
3
5 10
9
8
2
6
11
12
13
34 1
7
12
14
58
DUCATI
DRAWING 022
CODE NO. DESCRIPTION VALIDITYNOTES NO.
HEADLIGHT SUPPORT
1 829.1.168.1AB L.H. holder 1
2 758.1.026.1A Fairlead 1
3 771.5.043.8B Screw 9
4 829.1.167.2AB R.H. holder 1
5 829.1.556.1A Holder 1
6 772.1.055.1A Screw 1
7 829.1.544.1A Holder 1
8 771.5.141.8B Screw 2
9 749.4.032.1A Nut 2
10 821.1.075.1A Pin 2
11 764.1.084.1A Vibration damper pad 2
12 772.5.029.1A Screw 3
13 829.1.204.1A Holder 1
14 0000.60283 Hose guide 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
59
DUCATI
DRAWING 023
HEADLIGHT AND ELECTRICAL WIRING
14
20 2
1513 13
18
5
16
6
7
13
19
8
19
9
10
12
7
17
6
11
5
4
60
DUCATI
DRAWING 023
CODE NO. DESCRIPTION VALIDITYNOTES NO.
HEADLIGHT AND ELECTRICAL WIRING
1 389.4.006.1A Fuse 3A 1
1 389.4.007.1A Fuse 7.5A 3
1 389.4.008.1A Fuse 15A 1
1 389.4.012.1A Fuse 20A 1
1 389.4.015.1A Fuse 5A 2
2 741.4.062.1A Clip 2
3 821.1.054.1A Pin 2
4 764.4.003.1A Fairlead 2
5 772.5.031.1B Screw 4
6 716.1.022.1B Spacer 4
7 764.1.090.1A Rubber pad 4
8 764.1.084.1A Vibration damper pad 4
9 772.5.038.1A Screw 2
10 540.4.011.1C Regulator 1
11 541.4.007.1A Relay 1
12 829.1.190.1A Rubber holder 1
13 775.1.031.1B Screw 3
14 510.1.444.1A Front wiring 1
15 246.1.009.1G Cover 1
16 827.1.166.1A Plate 2
17 552.4.012.1A Air temperature sensor 1
18 433.1.296.1B Sticker ”schema fusibili” 1
19 390.4.008.1A Warning lamp bulb 12V-3W 2
20 772.1.055.1A Screw 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
61
DUCATI
DRAWING 023a
HEADLIGHT
2
3
1
1
1
4
5
56
1
62
DUCATI
DRAWING 023a
HEADLIGHT
CODE NO. DESCRIPTION VALIDITYNOTES NO.
1 520.1.002.3C Complete headlight 1
2 390.4.011.1A Bulb 1
3 390.4.014.1A Bulb 1
4 246.2.083.1A Cover 1
5 799.1.215.1A Spring 2
6 672.1.040.1A Rubber pad 4
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
63
DUCATI
DRAWING 024
INSTRUMENT PANEL
1
5 8
2
9
10
8
9
4
7
6
9
3
64
DUCATI
DRAWING 024
CODE NO. DESCRIPTION VALIDITYNOTES NO.
INSTRUMENT PANEL
1 406.1.020.2B Complete instrument panel 1
2 734005N01 Spring washer 3
3 716.1.107.1B Spacer 3
4 748.4.038.1A Nut 3
5 460.1.174.1B Front headlight fairing panel 1
6 460.1.175.1A Rear headlight fairing panel 1
7 700.1.043.1A Spacer 3
8 850.4.047.1A Quik fastening 3
9 779.1.050.1A Screw 9
10 850.4.082.1A Insert 4
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
65
DUCATI
DRAWING 025
13
6
HANDLEBARS AND CONTROLS
10
14
20
15
11
21
12
16
28
27
29
38
2322
39
22
3839
24
25
30
36
22
17
18
15
37
34
38
5
6
9
37
38
26
30
40
33
5
4
1931
8
3
2
1
7
35
32
66
DUCATI
DRAWING 025
CODE NO. DESCRIPTION VALIDITYNOTES NO.
HANDLEBARS AND CONTROLS
1 747.5.007.1A Nut 2
2 779.1.099.1B Special screw 2
3 342.2.015.1B Steering head base 1
4 852.1.103.1A Washer 1
5 930.1.004.1A Seal ring 2
6 702.4.004.1A Bearing 2
7 771.5.727.8B Screw 4
8 598.4.016.1A Wrench with Transponder 1
8 598.4.018.1A Wrench without Transponder 1
9 652.4.006.1D Key-operated switch 1
10 821.1.073.1A Pin 1
11 827.1.122.2A Plate 1
12 685.1.006.1A Split pin 1
13 8000.70178 Belt 1
14 651.1.001.1A L.H. switch 1
15 8000.78345 Grips pair 1
16 360.2.057.1C L.H. handlebar 1
17 772.5.023.1A Screw 2
18 658.4.002.1B Cover 1
19 771.5.074.8B Screw 2
20 779.1.221.1B Special screw 2
21 852.5.030.1A Washer 1
22 771.5.725.8B Screw 3
23 341.2.042.1A Steering head 1
24 360.2.056.1B R.H. handlebar 1
25 650.1.002.1A R.H. switch 1
26 656.1.050.1B Throttle control transmission 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
27 246.1.060.2A Cover 1
28 749.4.002.1A Nut 2
29 518.4.004.2B Antenna 1
30 654.4.006.1A Throttle control 1
31 153.1.008.1A Counterweight 2
32 772.1.047.1A Screw 2
33 710.1.068.1A Bush 2
34 703.1.013.1A Ring nut 1
35 460.1.076.2A Mudflap 1
36 8000.66774 Screw 2
37 832.1.032.1A Pin 2
38 771.5.669.8B Screw 8
39 872.1.048.1A Cap 2
40 711.1.072.1A Bush 2
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
67
DUCATI
DRAWING 026
FRONT FORKS
3
2
13
11
10
9
8
1
7
6
18
14
1
22
21
20
19
17
12
15
16
12
13
5
4
68
DUCATI
DRAWING 026
CODE NO. DESCRIPTION VALIDITYNOTES NO.
FRONT FORKS
1 340.2.283.1A R.H. fork leg assembly 1
2 349.1.075.1A Centering ring 2
3 349.1.198.1A Damper tube 2
4 340.2.284.1A L.H. fork leg assembly 1
5 349.1.197.1A Complete L.H. slider 1
6 366.1.039.1A Spring 2
7 349.1.097.1A Spring coupling 2
8 349.1.064.1A Damper tube 2
9 349.1.065.1A Rubber cush drive hub 2
10 349.2.014.1B Complete cap 2
11 349.1.098.1A Snap ring 2
12 8000.70127 Hose guide 4
13 772.5.026.1A Screw 4
14 349.1.103.1A Bush 2
15 349.1.124.1A Adjusting screw 2
16 349.1.076.1A Washer 2
17 349.1.196.1A Complete R.H. slider 1
18 349.1.194.1A Stanchion tube 2
19 349.1.101.1A Dust seal 2
20 884.1.005.1A Ring 2
21 930.1.005.1A Seal ring 2
22 349.1.102.1A Check ring 2
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
69
DUCATI
DRAWING 027
CLUTCH CONTROL
7
8
9
6
5
4
1
12
3
2
11
10
8
13
70
DUCATI
DRAWING 027
CODE NO. DESCRIPTION VALIDITYNOTES NO.
CLUTCH CONTROL
1 630.4.024.1A Clutch drive pump 1
2 626.4.034.1A Clutch control lever 1
3 626.4.011.1A Spare lever pin 1
4 626.4.015.1C Bracket 1
5 585.4.007.1A Complete oil tank 1
6 893.4.008.1A Cap 1
7 779.1.366.1AB Special screw 1
8 852.5.024.1A Gasket th.1 4
9 632.1.030.1A Clutch control pipe 1
10 779.1.397.1A Special screw 1
11 0000.33552 Bleed 1
12 612.4.005.1A Dust seal 1
13 539.4.033.1A Microswitch 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
71
DUCATI
DRAWING 028
FRONT HYDRAULIC BRAKE
4
5
1
3
2
721
23
13
14 15
8
3
6
9
22
16
17
1
18
20
19
10
11
9
8
8
12
72
DUCATI
DRAWING 028
CODE NO. DESCRIPTION VALIDITYNOTES NO.
FRONT HYDRAULIC BRAKE
1 624.4.031.1A Front brake pump 1
2 626.4.019.1A Brake control lever 1
3 626.4.011.1A Spare lever pin 1
4 771.5.669.8B Screw 2
5 626.4.015.1D Bracket 1
6 539.4.021.1A Microswitch 1
7 585.4.006.1A Complete oil tank 1
8 852.5.024.1A Gasket th.1 6
9 779.1.366.1AB Special screw 2
10 771.5.431.8B Screw 4
11 610.4.079.1A R.H. brake caliper 1
12 610.4.078.1A L.H. brake caliper 1
13 618.4.061.1A Caliper pump pipe 1
14 829.1.208.2A Holder 1
15 772.5.032.1A Screw 2
16 612.4.014.1A Spare pins and spring 2
17 612.4.017.1A Spring 2
18 612.4.008.1A Dust seal 2
19 631.4.004.1A Spare bleed union 2
20 613.4.021.1B Pads pair 2
21 893.4.007.1A Tank cap 1
22 612.4.018.1A Spring 2
23 779.1.415.1A Special screw 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
73
DUCATI
DRAWING 029
RADIATOR
2
8
9
6
1
3
4
7 6 6 5
74
DUCATI
DRAWING 029
CODE NO. DESCRIPTION VALIDITYNOTES NO.
RADIATOR
1 548.4.019.2A Water radiator 1
2 893.1.003.1A Radiator cap 1
3 772.5.032.1A Screw 3
4 550.4.008.1A Electric fan 1
5 779.1.368.2A Special screw 1
6 764.1.024.1A Vibration damper pad 4
7 830.1.299.1A Holder 1
8 713.1.304.1A Spacer 1
9 772.5.033.1A Screw 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
75
DUCATI
DRAWING 030
3
COOLING SYSTEM
138
8
19 12 16 12 10 14
2
1
21
3
4
3
4
12
4
22
20
17
12
159
11
5 6
10 15
7
88 18
76
DUCATI
DRAWING 030
CODE NO. DESCRIPTION VALIDITYNOTES NO.
COOLING SYSTEM
1 585.1.020.1A Water tank 1
2 0000.40427 Tank cap 1
3 772.5.031.1B Screw 3
4 716.1.038.1B Spacer 4
5 8A00.67610 Hose guide 1
6 800.1.049.1A Hose 1
7 741.4.001.1A Hose guide 1
8 741.4.025.1A Clamp 4
9 552.4.013.1A Sensor 2
10 788.1.072.1A O-ring 2
11 814.1.157.1A Water outlet union 1
12 741.4.002.1A Hose guide 4
13 800.1.129.1A Cooler/thermostat hose 1
14 814.1.123.1A Water outlet union 1
15 771.5.067.8B Screw 4
16 800.1.126.1A Thermostat/pump hose 1
17 800.1.127.1A Thermostat/pump hose 1
18 800.1.128.1A Pump/cooler hose 1
19 553.4.004.1A Thermostat 1
20 850.4.082.1A Insert 2
21 711.1.084.1A Bush 1
22 741.4.055.1A Hose guide 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
77
DUCATI

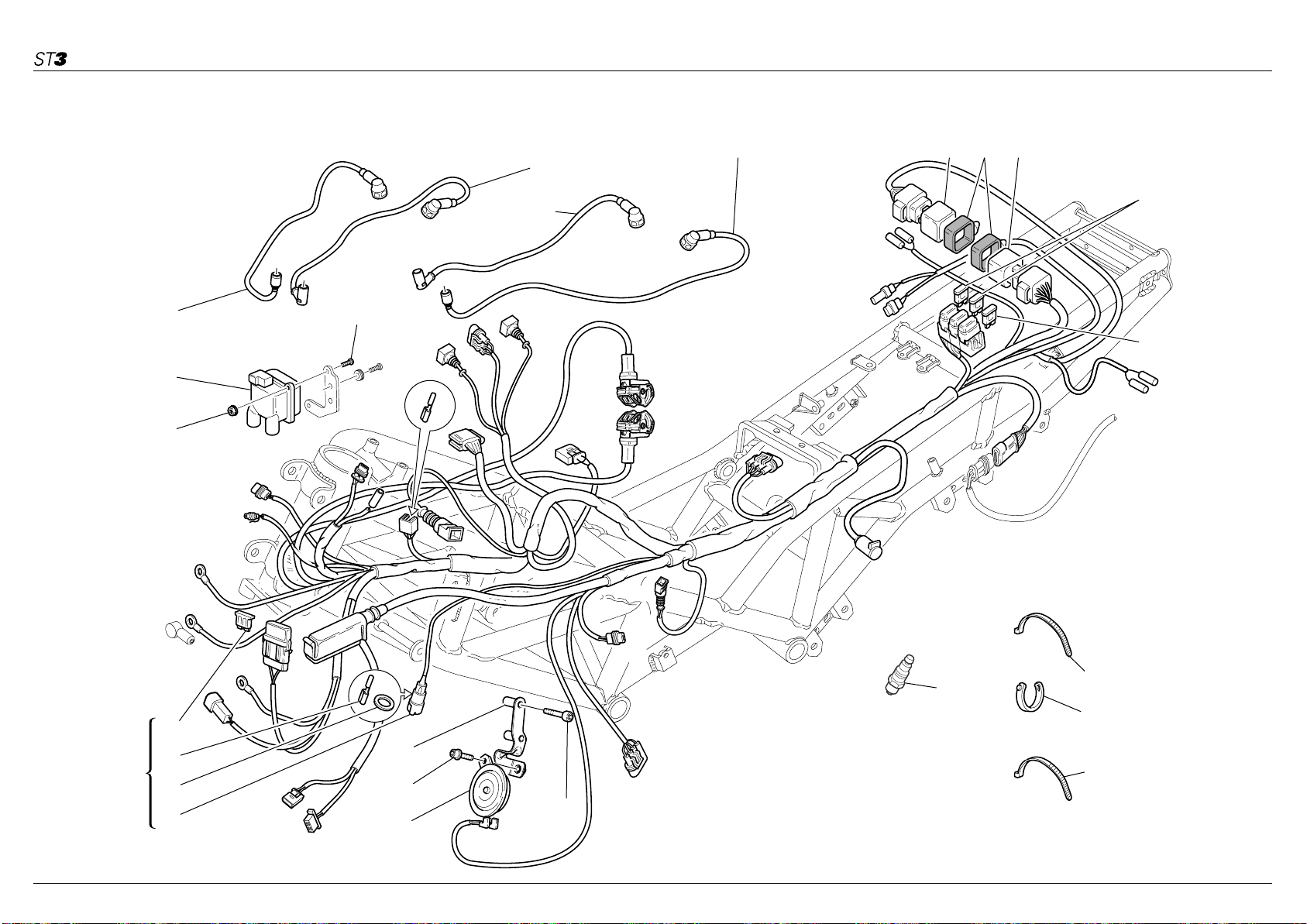

DRAWING 031
ELECTRICAL SYSTEM
9
8
22
187 1819
10
24
14
21
20
12
13
11
2
16
1
15
17
4
23
5
3
6
78
DUCATI
DRAWING 031
CODE NO. DESCRIPTION VALIDITYNOTES NO.
ELECTRICAL SYSTEM
1 510.1.445.2A Electric wiring 1
2 389.4.014.1A Fuse 40A 1
3 771.1.034.2A Screw 2
4 830.1.290.1B Holder 1
5 771.1.020.1A Screw 1
6 516.4.001.1AB Horn (BLACK) 1
7 671.1.031.1A Vertical spark plug cable - left 1
8 380.4.010.1C Coil 2
9 671.1.032.1A Horizontal spark plug cable - right 1
10 671.1.033.1A Horizontal spark plug cable - left 1
11 0691.91.030 Hose guide 17
12 670.9.016.1B Spark plug 4
13 741.1.013.1A Hose guide 1
14 671.1.030.1A Vertical spark plug cable - right 1
15 764.4.005.1A Rubber pad 1
16 387.4.002.1A End section 2
17 386.4.006.1A Connector 1
18 541.4.007.1A Relay 2
19 829.1.127.1A Holder 2
20 389.4.006.1A Fuse 3A 1
21 771.5.043.8B Screw 2
22 748.4.100.1AB Nut 2
23 741.4.038.1A Hose guide 12
24 389.4.012.1A Fuse 20A 2
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
79
DUCATI
DRAWING 032
BATTERY SUPPORT
24
3
20
12
27
28
15
16
9
15
16
9
10
22
3
8
9
2
24
4
10
14
23
26
17
6
25
13
9
1
15
9
16
21
19
11 8
718
5
6
80
DUCATI
DRAWING 032
CODE NO. DESCRIPTION VALIDITYNOTES NO.
BATTERY SUPPORT
1 286.4.136.1D Injection control unit 1
2 514.1.041.1A Battery - solenoid starter cable 1
3 748.4.100.1AB Nut 2
4 514.1.040.1A Solenoid starter - starter motor cable 1
5 750.5.005.1A Nut 2
6 853.5.010.1A Spring washer 4
7 397.2.001.2A Remote switch 1
8 750.5.001.1B Nut 2
9 852.1.191.1A Washer 5
10 716.1.022.1B Spacer 3
11 716.1.053.1B Spacer 1
12 827.1.286.1A Plate 1
13 775.1.038.1B Screw 1
14 866.1.031.1A Rubber pad 1
15 772.5.031.1B Screw 3
16 300182 Rubber pad 3
17 395.2.013.1C Battery 1
18 672.1.029.1A Rubber cap 1
19 0691.91.030 Hose guide 1
20 772.5.032.1A Screw 1
21 827.1.330.1A Plate 1
22 829.1.172.2B Battery box mount 1
23 764.1.084.1A Vibration damper pad 2
24 827.2.215.1A Plate 2
25 772.5.021.1A Screw 2
26 821.1.129.1A Spacer 2
27 775.1.062.2A Special screw 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
28 513.1.008.2D Battery grounding cable 1
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
81
DUCATI
DRAWING 033
AIR INTAKE - OIL BREATHER
17 18
15
16
15
15 19 20 21 22
11
12
5
24
3
2
6
7
4
23
13
10
1
14
13
10
9
8
10
82
DUCATI
DRAWING 033
CODE NO. DESCRIPTION VALIDITYNOTES NO.
AIR INTAKE - OIL BREATHER
1 684.1.026.1B Stud bolt 1
2 772.1.050.1A Screw 1
3 748.1.036.1A Nut 1
4 829.1.129.1A Clip 1
5 829.1.486.1B Bracket 1
6 442.2.008.1B Air filter box 1
7 877.2.004.2A Tube 1
8 772.5.031.1B Screw 1
9 716.1.022.1B Spacer 1
10 764.1.090.1A Rubber pad 3
11 760.1.003.1B Hook 4
12 74223.1045 Spring pin 4
13 821.1.075.1A Pin 2
14 852.1.191.1A Washer 1
15 741.4.002.1A Hose guide 2
16 876.1.083.1A Breather pipe 1
17 772.5.029.1A Screw 2
18 585.1.019.2D Oil breather tank 1
19 876.1.084.1A Filter/fuel tank outlet pipe 1
20 426.1.009.1A Filter element 1
21 246.1.056.1A Filter case cover 1
22 135.1.015.1A Air funnel 2
23 775.1.011.1B Screw 2
24 748.4.100.1AB Nut 2
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
83
DUCATI

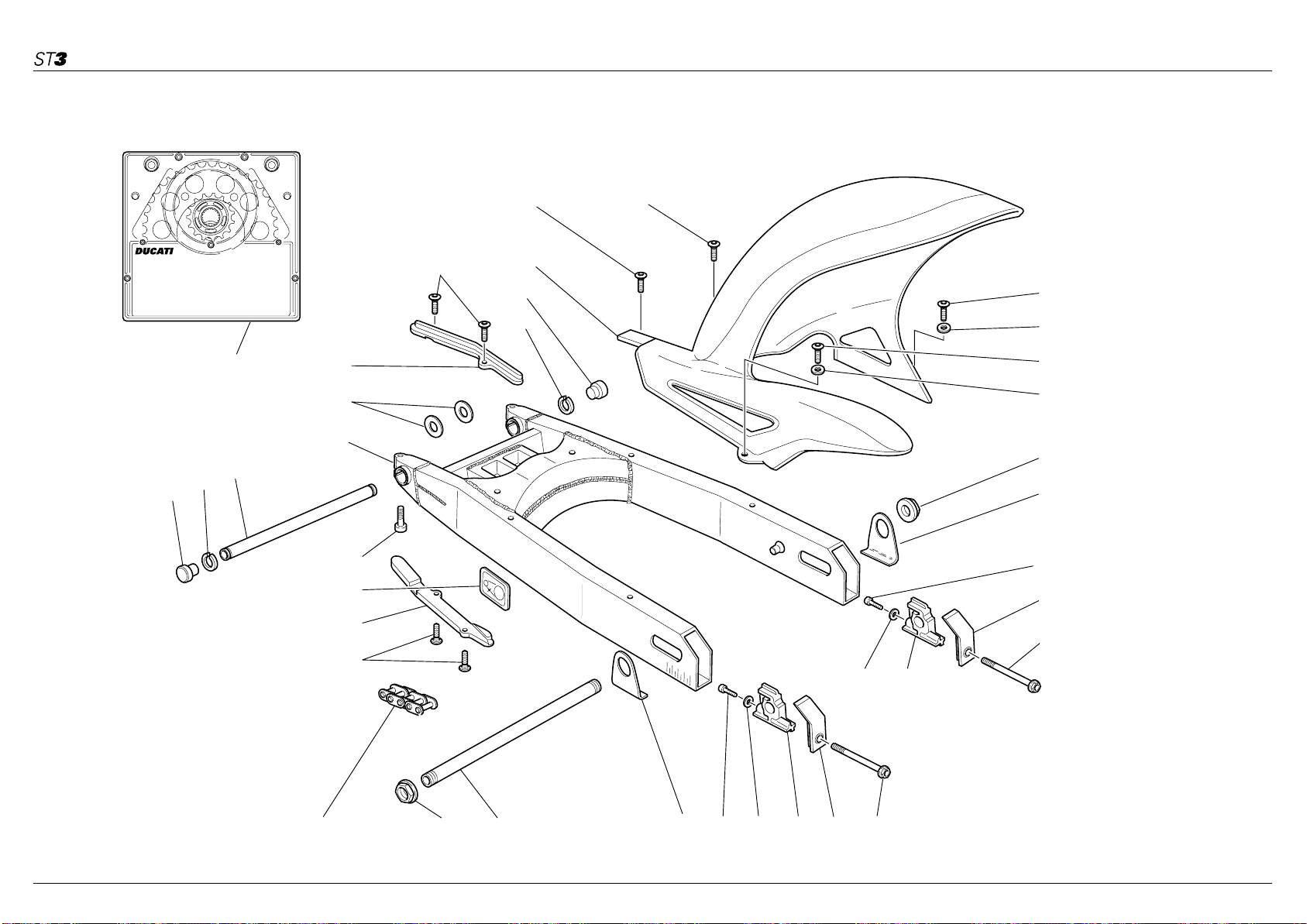

DRAWING 034
SWINGARM AND DRIVE CHAIN
11
8
7
6
13
12
10
3
3
16
6
7
3
3
22
3
22
1
17
9
18
15
5
4
21
14
3
19 20
1
2
142120191817
84
DUCATI
DRAWING 034
CODE NO. DESCRIPTION VALIDITYNOTES NO.
SWINGARM AND DRIVE CHAIN
1 748.1.023.1B Nut 2
2 819.1.030.1A Rear wheel spindle 1
3 779.1.119.1B Special screw 8
4 447.1.031.2A Lower chain sliding shoe 1
5 433.1.230.1A Chain adjustment sticker 1
6 872.1.019.1A Cap 2
7 884.4.007.1A Snap ring 2
8 369.1.004.1A Swingarm pivot 1
9 771.5.156.8B Screw 2
10 370.1.021.1B Swingarm 1
11 676.2.055.1A Final drive kit 1
12 852.1.001.1B Shim th. 1.8 2
12 852.1.002.1B Shim th. 0.2 2
12 852.1.003.1B Shim th. 0.1 1
13 447.1.030.2A Upper chain sliding shoer 1
14 779.1.037.1B Screw 2
15 676.4.018.1A Chain (102 Links) 1
16 565.1.021.2A Rear mudguard 1
17 373.1.029.1C Plate 2
18 771.5.004.8B Screw 2
19 852.1.079.1B Washer 2
20 373.1.028.1B Sliding shoe 2
21 373.1.023.1B Cover 2
22 0364.99.710 Nylon gasket 2
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
85
DUCATI
DRAWING 035
REAR SUSPENSION
1
3
2
2
3
7
8
13
4
5
4
6
10
9
15
16
11
4
4
13
12
14
86
DUCATI
DRAWING 035
CODE NO. DESCRIPTION VALIDITYNOTES NO.
REAR SUSPENSION
1 372.2.008.3A Rocker assembly 1
2 93781.1824 Seal ring 2
3 701.4.006.1A Needle bearing 4
4 710.1.025.1A Bush 4
5 771.5.938.8B Screw 1
6 365.2.027.1C Shock absorber 1
7 771.5.937.8B Screw 1
8 715.1.004.1A Spacer 1
9 710.1.057.1B Bush 1
10 771.1.009.1A Screw 1
11 771.1.016.1A Screw 1
12 710.1.046.1B Bush 1
13 848.4.011.1A Ball joint 2
14 0670.92.190 Shim th. 2 2
15 750.1.041.1B Nut 1
16 875.1.063.1B Tie rod ( L=272 mm ) 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
87
DUCATI
DRAWING 036
OIL COOLER
11 10
9
11
10
11
10
8
7
3
3
4
5
9
1
2
6
88
DUCATI
DRAWING 036
CODE NO. DESCRIPTION VALIDITYNOTES NO.
OIL COOLER
1 548.4.023.1B Oil cooler 1
2 8000.69069 Vibration damper 1
3 764.1.024.1A Vibration damper pad 2
4 713.1.304.1A Spacer 1
5 772.5.033.1A Screw 1
6 875.1.055.1A Oil return pipe 1
7 875.1.054.1A Oil delivery pipe 1
8 779.1.083.2A Special screw 1
9 875.1.111.1A Oil delivery pipe 1
10 781.1.003.3A Special screw 3
11 852.5.024.1A Gasket th.1 6
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
89
DUCATI
DRAWING 037
REAR HYDRAULIC BRAKE
25
26
36
35
42
33
32
23
31
24
18
19
34
30
20
21
17
25
17
16
26
15
27
4344
8 9
393740
12
13
9
11
14
10
3
22
41
1
2
39
38
28
29
7
5
4
6
90
DUCATI
DRAWING 037
CODE NO. DESCRIPTION VALIDITYNOTES NO.
REAR HYDRAULIC BRAKE
1 829.1.184.1A Holder 1
2 852.1.054.1A Washer 1
3 884.5.003.1A Ring 1
4 8000.59056 Bush 1
5 764.1.011.2A Rubber pad 1
6 457.2.008.1A Brake control lever 1
7 821.1.052.1A Pedal pin 1
8 8000.67981 Threaded dowel 1
9 60N115062 Nut 2
10 821.1.096.2A Pin 1
11 184.1.001.1A Fork 1
12 772.5.029.1AB Screw 2
13 117.1.025.2A Adjuster rod 1
14 771.5.754.8B Screw 1
15 539.4.003.1B Switch 1
16 877.1.050.1A Tube 1
17 741.4.043.1A Hose guide 2
18 772.5.037.1A Screw 1
19 893.4.005.1A Cap 1
20 585.4.001.1A Complete oil tank 1
21 779.5.024.1A Screw 1
22 420.2.000.8A Copper gasket sp. 1 1
23 749.4.031.1A Nut 1
24 829.1.073.3A Holder 1
25 779.1.366.1AB Special screw 2
26 852.5.024.1A Gasket th.1 4
27 625.4.006.1A Rear brake pump 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
28 631.4.008.1A Spare union 1
29 626.4.013.1A Dust cover 1
30 619.4.029.1A Caliper pump pipe 1
31 741.4.062.1A Clip 1
32 8000.69282 Spacer 1
33 772.1.055.1A Screw 1
34 825.1.030.1A Caliper holder plate 1
35 771.5.723.8B Screw 2
36 611.4.009.1A Rear brake caliper 1
37 631.4.016.1A Bleed 1
38 613.4.021.1A Pads pair 1
39 612.4.016.1A Spare pins and spring 1
40 612.4.008.1A Dust seal 1
41 799.1.083.1B Spring 1
42 552.4.037.1A Sensor 1
43 713.1.192.1A Spacer 1
44 771.5.665.8B Screw 1
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
91
DUCATI
DRAWING 038
FRONT AND REAR WHEELS
15
6
8
7
16
13
418144
19
21
22
17
11
24
2
7
5
2023
5
434
1
10 9 12
92
DUCATI
DRAWING 038
CODE NO. DESCRIPTION VALIDITYNOTES NO.
FRONT AND REAR WHEELS
1 501.2.080.1AB Front wheel rim (BLACK) 1
1 501.2.080.1AE Front wheel rim (RED) 1
2 497.2.001.2A Valve 1
3 714.1.028.1A Inner spacer 1
4 702.5.045.1A Bearing 4
5 492.4.024.1A Brake disc 2
6 779.1.311.1A Screw 6
7 779.1.399.1A Screw 12
8 819.1.017.1C Front wheel spindle 1
9 714.1.045.1B Spacer 1
10 0000.64471 Seal ring 1
11 884.5.008.1A Circlip 1
12 748.1.014.1C Fork nut 1
13 502.2.104.1AB Rear wheel rim (BLACK) 1
13 502.2.104.1AE Rear wheel rim (RED) 1
14 713.1.098.1A Inner spacer 1
15 492.4.003.2A Brake disc 1
16 497.2.003.1A Valve 1
17 702.5.050.1A Bearing 2
18 700.1.005.1A Vibration damper 6
19 821.1.009.1B Pin 6
20 748.4.024.1AB Nut 6
21 160.1.049.1A Rear sprocket flange 1
22 710.1.041.1B Bush 1
23 494.1.068.4D Ring gear Z=42 1
24 713.1.097.1B Spacer 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
93
DUCATI
DRAWING 039
NUMBER PLATE HOLDER
1
15
5
14
16 18
33
22
23
12
19
14
17
26
13
34
4
312
13
21
6
7
1112
20
24
25
910
30
31
8
27
29
28 19
28
25
35
9
10
1232
94
DUCATI
DRAWING 039
CODE NO. DESCRIPTION VALIDITYNOTES NO.
NUMBER PLATE HOLDER
1 772.1.063.1A Screw 4
2 806.1.011.1AA Handle (RED) 1
2 806.1.011.1AT Handle (BLACK) 1
3 732.2.006.2A Lock latch 1
4 772.1.055.1A Screw 2
5 598.2.010.1A Seat lock 1
6 530.4.003.1B L.H. turn indicator 1
7 0000.36726 Bulb 1
8 532.4.001.1A Cup 2
9 852.5.001.1C Washer 4
10 749.5.001.1B Nut 6
11 716.1.022.1B Spacer 2
12 749.4.031.1A Nut 6
13 850.4.082.1A Insert 5
14 764.1.090.1A Rubber pad 3
15 525.4.010.1A Tail light 1
16 390.4.003.1A Two-light bulb 12V 5/21W 1
17 821.1.081.1A Pin 1
18 532.4.002.1A Lens 1
19 852.5.031.1A Washer 2
20 0000.36230 Bulb 1
21 510.1.108.1A Wiring 1
22 771.5.065.8B Screw 2
23 530.4.004.1B R.H. turn indicator 1
24 525.1.004.2A Tail lamp 1
25 529.1.006.1A Reflector 3
26 772.5.029.1A Screw 2
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
27 561.1.019.1A Plate 1
28 771.5.043.8B Screw 5
29 561.1.013.2A Number plate holder 1
30 417.7.007.1A Cap 2
31 741.1.012.1A Hose guide 9
32 460.1.077.1A Mudflap 1
33 460.1.080.1A Mudflap 1
34 772.5.037.1A Screw 2
35 829.1.136.1A Holder 1
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
CATALOGUE No:
ISSUED:
915.1.202.2C
01 - 07
95
DUCATI
DRAWING 040
33
22
SEAT
24
25
23 4
32
29
14
19
21
20
17
30
28
32
16
15
18
11
12
14
10
13
9
8
7
6
27
5
26
4
3
2
31
1
96
Loading...
