Spare parts catalogue SPORT TOURING 3 U.S.A.
DUCATIMOTORHOLDING
M.Y. '05
U.S.A.
Spare Parts Department
DUCATIMOTORHOLDING
Spare Parts Department
DUCATIMOTORHOLDING
Spare Parts Department
DUCATIMOTORHOLDING
Spare Parts Department
P.N. 91512022B
P.N. 91512022B
P.N. 91512022B
P.N. 91512022B
Febbraio - February '05
M.Y. '05
Febbraio - February '05
M.Y. '05
Febbraio - February '05
M.Y. '05
Febbraio - February '05
Edizione - Edition 01
U.S.A.
Edizione - Edition 01
U.S.A.
Edizione - Edition 01
U.S.A.
Edizione - Edition 01
GENERAL INFORMATION
The present spare parts order exactly the right spare parts
When ordering specify:
1) the part's code number followed by its description; quantity needed;
2) the motorcycle's serial number, stamped on the steering head.
Reference to right and left apply to the vehicle in terms of its direction of move-ment.
Spare parts drawings are general and do not represent the part.
The contents of this catalogue are general and can undergo changes without prior notice.
DUCATI
VALIDITY
f.m.
Until V.I.N.
d.m.
f.m.m.
d.m.m.
From V.I.N.
Up to engine number
From engine number
LIST
CAL California
CND Canada
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
Ducati Motor Holding S.p.A.
Commercial and Administation Office:
Via A. Cavalieri Ducati n. 3
40132 Bologna, Italy
Telefono 051 6413111
Fax 051 406580
Internet www.ducati.com
915.1.202.2B
02 - 05
1
PAINTS
DUCATI
Paint
Code
101.374_F)GPP("ITACUDyrasrevinnAossoR"
415.842)GPP("ITACUDodicuLoreN"
6200*)GPP("otazzillateMoraihCoigirG"
088.822)GPP("etnerapsarT"
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
2
DUCATI
CONTENTSpage
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
62
64
66
68
70
72
74
76
78
80
82
84
86
88
90
92
94
96
98
100
102
104
106
108
110
112
001
001a
001b
001c
001d
002
003
004
005
006
007
008
009
010
011
011a
012
013
013a
014
015
016
017
018
019
020
021
022
023
023a
024
025
026
027
028
029
030
031
032
033
034
035
036
037
038
039
040
041
042
043
044
045
046
047
048
WORKSHOP SPECIAL TOOLS
WORKSHOP SPECIAL TOOLS
WORKSHOP SPECIAL TOOLS
WORKSHOP SPECIAL TOOLS
DIAGNOSIS TESTER MATHESIS
GEARCHANGE
GEAR-BOX
CLUTCH
CLUTCH COVER
CRANKSHAFT
CYLINDERS - PISTONS
TIMING
FILTERS AND OIL PUMP
HALF CRANKCASES
WATER PUMP - ALTERNATOR COVER
WATER PUMP - ALTERNATOR COVER
ELECTRIC STARTER AND IGNITION
HEAD : TIMING

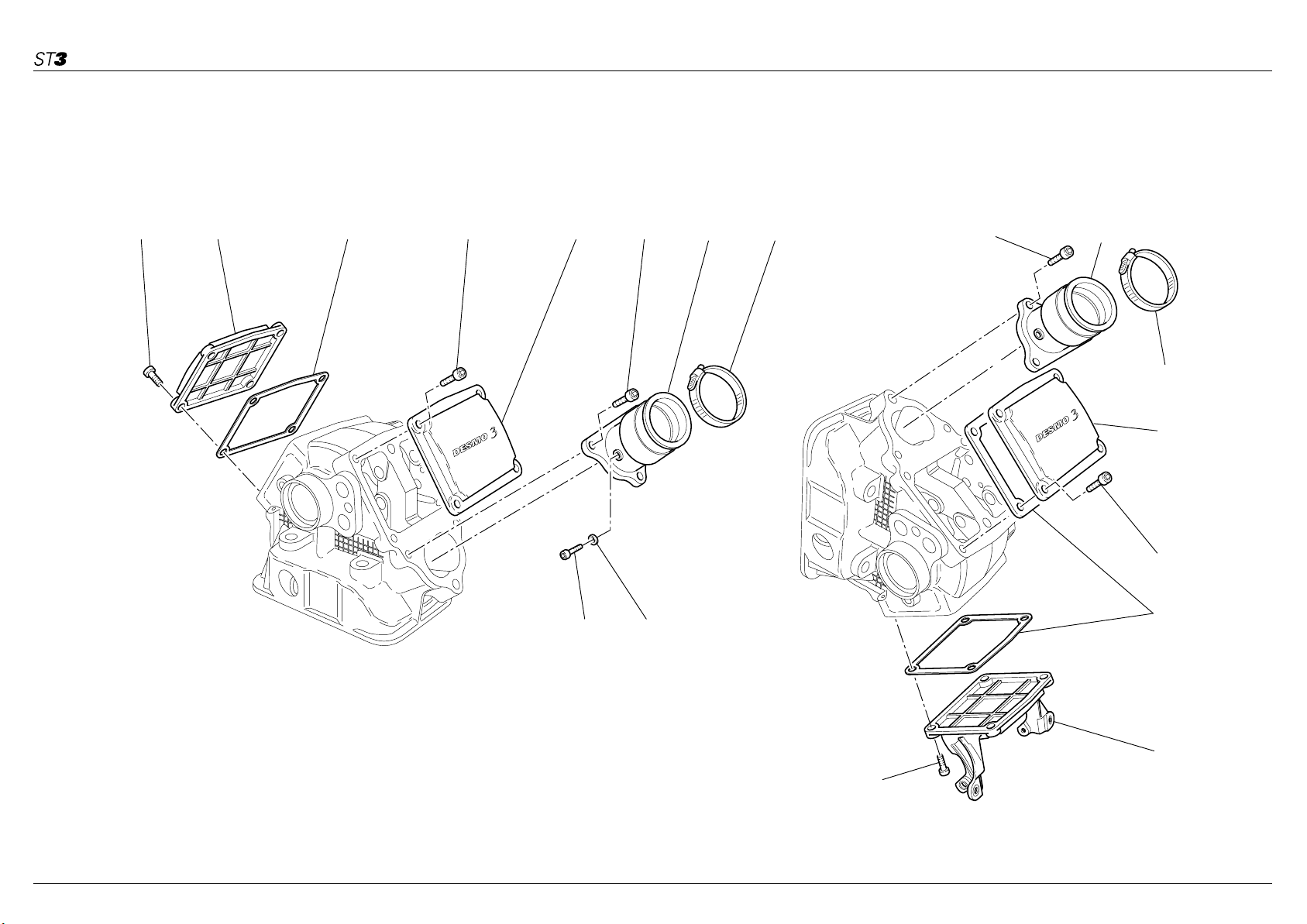

COLLECTORS AND HEAD COVERS
VERTICAL HEAD
HORIZONTAL HEAD
THROTTLE BODY
EXHAUST SYSTEM
STANDS
FRAME
L.H. FOOT RESTS
R.H. FOOT RESTS
HEADLIGHT HOLDER
HEAD-LIGHT AND ELECTRIC WIRING
FRONT HEAD-LIGHT
INSTRUMENT PANEL
HALF HANDLEBARS AND CONTROLS
FRONT FORK
CLUTCH CONTROL
FRONT HYDRAULIC BRAKE
WATER RADIATOR ASSY
COOLING CIRCUIT
ELECTRIC SYSTEM
BATTERY BOX MOUNT
AIR INDUCTIO AND OIL VENT
SWINGARM AND CHAIN
REAR SUSPENSION
OIL COOLER
REAR HYDRAULIC BRAKE
FRONT AND REAR WHEELS

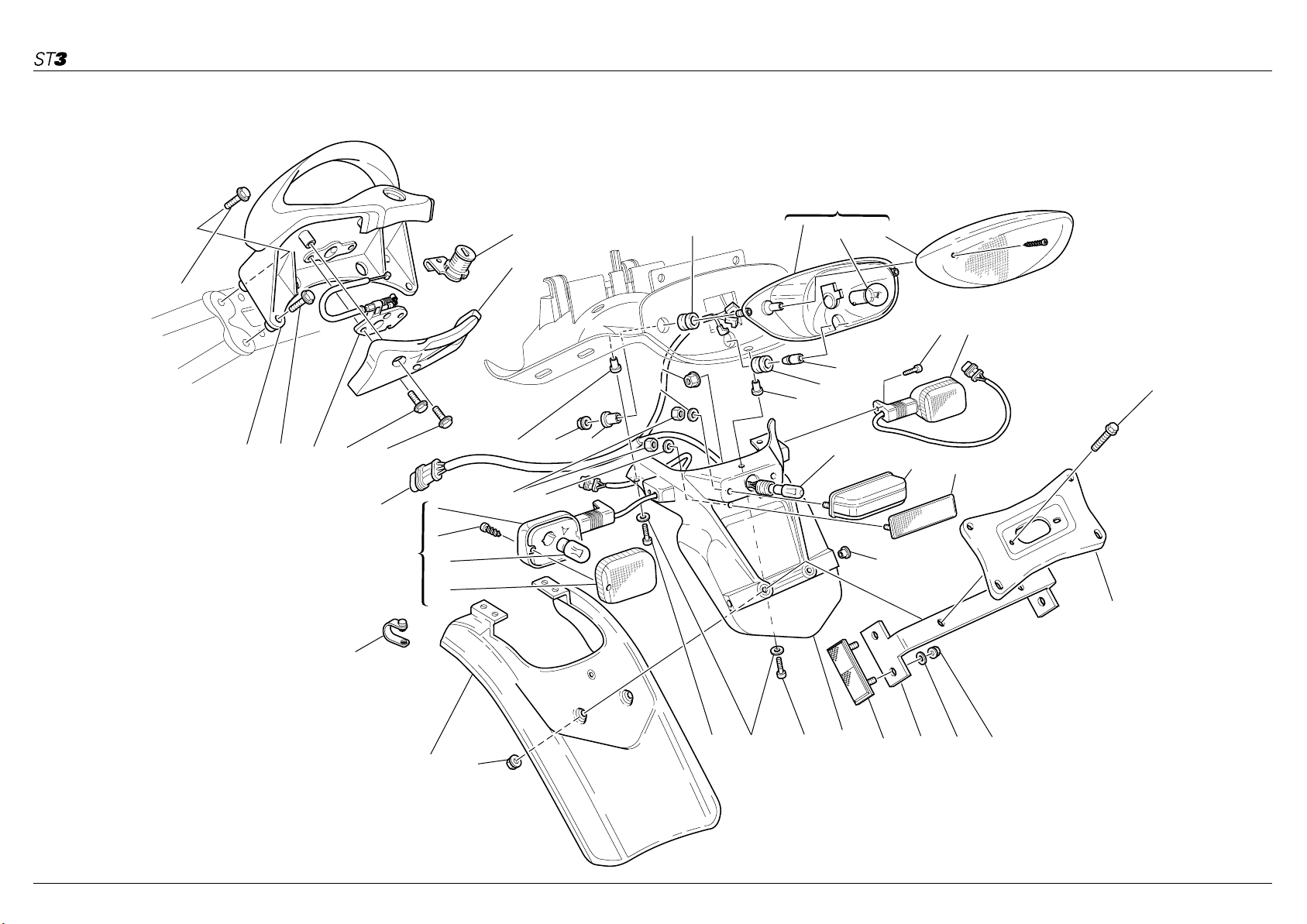

NUMBER PLATE HOLDER
SEAT
FUEL TANK
FUEL SYSTEM
HEADLIGHT FAIRING
FAIRING
PANNIERS FASTENS
SIDE PANNIERS
FUEL INFEED
MARKING PLATES
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
3
DUCATI
DRAWING 001
1
2
3
WORKSHOP SPECIAL TOOLS
8
9
10
14
15
17
16
18
22
19
4
11
12
20
21
5
6
13
23
7
4
DUCATI
DRAWING 001
CODE NO. DESCRIPTION VALIDITYNOTES NO.
WORKSHOP SPECIAL TOOLS
Q.TY
1 88713.2295 Timing belt roller reaction tool 1
2 88713.2676 Head nuts holder wrench 1
3 88713.2103 Head mounting base 1
4 98112.0002 Degree wheel 1
5 88713.0123 Degree wheel holder tool for ignition
1
advance check
6 88713.0874 Exhaust valve guide punch tool 1
7 88713.0879 Punch tool to extract valve guide 1
8 88713.0875 Intake valve guide punch tool 1
9 88765.1375AF Check intrument 1
GB 9 88765.1375BF Check intrument 1
D 9 88765.1375CF Check intrument 1
F 9 88765.1375DF Check intrument 1
E 9 88765.1375EF Check intrument 1
10 051.2.001.1A Torque wrench for timing belt 1
11 88713.0137 Crankshaft gear holder wrench for
1
tightening nut
12 88713.1078 Punch tool for driving exhaust valve seat 1
13 88765.1397 Valve lift gauge 1
14 88713.1079 Punch tool for driving intake valve seat 1
15 88765.1000 Fork feeler gauge 0.1 mm 1
15 88765.1005 Fork feeler gauge 0,2 mm 1
15 88765.1006 Fork feeler gauge 0.3 mm 1
16 88765.0999 Timing belt control gauge 1
17 88713.2011 Tool to hold crankshaft in TDC position 1
18 88765.1298 Spacer for checking lower valve shim 1
19 88713.2036 Flywheel Wrench 1
20 88700.5749 Crankcases assembling cap 1
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
21 88713.1091 Plate for positioning gear engagement fork 1
22 88765.1086 Conversion kit for 2V belts tensioning tool 1
23 88765.1297 T.D.C. control gauge 1
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
5
DUCATI
DRAWING 001a
1
2
3
4
WORKSHOP SPECIAL TOOLS
13
8
9
14
10
15
5
11
16
6
12
6
DUCATI
DRAWING 001a
CODE NO. DESCRIPTION VALIDITYNOTES NO.
WORKSHOP SPECIAL TOOLS
1 88713.1749 Drive roller puller 1
2 88713.1994 Rocker shaft extractor 1
3 88713.2422 Wrench for tightening primary transmission
1
ring nut
4 88700.5665 Sleeve for installing clutch bell gear 1
5 88713.2092 Extractor for primary drive gear 1
6 88713.2442 Seal ring driving tool 1
7 88713.2282 Belt roller timing of two-valva head 1
8 88700.5644 Wrench for camshaft pulley ring nut
1
adjustment
9 88713.2544 Tool to fit seals on camshafts 1
10 88713.1904 Half-rings mounting punch tool 1
11 88713.1215 Torque wrench for timing belt 1
12 88713.1429 Tool to drive valve seal ring ø7 1
13 88713.2545 Tool to install rocker arm shaft clip 1
14 88713.2257 Cam axis locking tool 1
15 88713.2651 Reaction tool for wet "FCC" clutch 1
16 88713.2423 Torque wrench 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
7
DUCATI
DRAWING 001b
WORKSHOP SPECIAL TOOLS
3
4
2
7
5
6
1
8
9
8
DUCATI
DRAWING 001b
CODE NO. DESCRIPTION VALIDITYNOTES NO.
1 88713.1062 Tool for assembling the steering head
WORKSHOP SPECIAL TOOLS
1
bearings
2 8000.70139 Wrench for front wheel spindle 1
3 88713.1344 Tool for assembling chain 1
4 677.4.003.1A Coupling 1
5 88713.1515 Frame/engine mount 1
6 88713.1072 Stopper for driving the half bearing of the
1
steering head base
7 88713.1010 Union for exhaust gas suction 1
8 88713.1096 Tool for overhauling SHOWA forks -
1
assembling seal ring
9 88713.1058 Wrench for assembling the steering head
1
cap
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
9
DUCATI
DRAWING 001c
WORKSHOP SPECIAL TOOLS
1
11
2
8
3
4
9
5
6
10
7
12
13
14
16
15
10
DUCATI
DRAWING 001c
CODE NO. DESCRIPTION VALIDITYNOTES NO.
WORKSHOP SPECIAL TOOLS
Q.TY
0 88765.1241 Check intrument 1
GB 0 88765.1242 Check intrument 1
D 0 88765.1243 Check intrument 1
F 0 88765.1244 Check intrument 1
E 0 88765.1245 Check intrument 1
1 590.1.189.1A Fuel pressure line HS. 1
2 590.1.190.1A Fuel pressure line ST/SS/M. 1
3 875.1.065.1A Oil pressure line 1
4 552.1.037.1A Fitting - cylinder compression M12 1
5 552.1.038.1A Fitting - cylinder compression M10 1
6 514.1.037.1A Cable Volt PF DUC 21 1
7 552.1.039.1A Pressure sensor 1
8 814.1.114.1A Oil pressure fitting 1
9 514.1.032.1A Cable for supplementary tests 1
10 514.1.035.1A Red clamp cable 1
10 514.1.036.1A Black clamp cable 1
11 552.1.040.1A Temperature probe 1
12 514.1.034.1A Main cable PF A621 1
13 514.1.033.1A Electric lighter connection adapter (ST) 1
14 514.1.038.1A Battery connection adapter 1
15 698.1.033.1A Red case with sponge rubber 1
16 88765.1126T DUCATI sticker RH/LH side 2
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
11
DUCATI
DRAWING 001d
2
23
21
DIAGNOSIS TESTER MATHESIS
5
3
13
10
715
19
9
18
6
17
11
12
14
16
20
24
26 27
1
22
4
8
28
24
25
12
DUCATI
DRAWING 001d
CODE NO. DESCRIPTION VALIDITYNOTES NO.
DIAGNOSIS TESTER MATHESIS
1 88765.1126Z Bare Mathesis 1
2 914.7.023.1A Italian manual 1
2 914.7.023.1B English manual 1
2 914.7.023.1C German manual 1
2 914.7.023.1D Franch manual 1
2 914.7.023.1E Spanish manual 1
3 88765.1126R Main cable Mathesis 1
4 88765.1126A Pickup Control cable 1
5 88765.1126Q Battery mains cable 1
6 88765.1126 Mains cable adapter for self diagnosis 1
7 88765.1126N Sensor for absolute pressure sampling 1
8 88765.1126V Amperometer plier 1
9 88765.1126E Adapter for 3 wires Pickup test cable 1
10 88765.1126P Sensor for air temperature sampling 1
11 88765.1126C Cable for potentiometer adjustement 1
12 88765.1126B Test cable and speed indicator adjustement 1
13 88765.1126F Adapter for 2 wires Pickup test cable 1
14 88765.1126D Adapter for potentiometer adjustement 1
15 552.4.028.1A Sensor for small throttle potentiometer
1
sampling
16 88765.1126H Sensor for throttle potentiomer sampling 1
17 88765.1126G Sensor for air/water temperature sampling 1
18 88765.1126M Sfety remote switch 1
19 88765.1126L 2 Wires sampling Pickup sensor 1
20 88765.1126U Case with sponge 1
21 88765.1073 Memory card reader 1
21 88765.1074 English memory card 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
21 88765.1075 German memory card 1
21 88765.1076 French memory card 1
21 88765.1077 Spanish memory card 1
22 88765.1126S DUCATI sticker for case 1
23 88765.1126T DUCATI sticker RH/LH side 1
24 88765.1369A Belt tensioning kit 1
GB 24 88765.1369B Belt tensioning kit 1
D 24 88765.1369C Belt tensioning kit 1
F 24 88765.1369D Belt tensioning kit 1
E 24 88765.1369E Belt tensioning kit 1
25 88765.1371 Sensor 1
26 88765.1372 Main cable 1
27 88765.1373 Cable extension 1
28 88765.1374 Bracket 1
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
13
DUCATI
DRAWING 002
GEARCHANGE
7
8
6
5
11
38
13
9
10
3637
35
12
14
17
16
18
19
22
21
20
23
4
3
24
25
28
2
1
29
26
27
15 34 33 32 31 30
14
DUCATI
DRAWING 002
CODE NO. DESCRIPTION VALIDITYNOTES NO.
GEARCHANGE
1 799.1.049.1A Return spring 1
2 852.1.053.2A Washer 1
3 779.1.039.1A Special screw 1
4 455.2.003.1A Gear stopper assembly 1
5 852.5.024.1A Gasket th.1 1
6 539.1.021.1A Switch 1
7 779.1.203.2A Push rod holder 1
8 0272.91.090 Gasket 1
9 0660.13.143 Gear selector spring 1
10 76835.1134 Ball 1
11 180.1.001.1A 1st,4th-2nd,3rd gear selector fork 2
12 180.1.002.1A 5th,6th gear selector fork 1
13 0660.13.070 Fork pin 2
14 852.1.005.1A Shim th. 1 1
15 73500.1542 Circlip 1
16 882.1.006.1A Needle retaining ring (square cross-section) 1
17 821.1.070.1A Pin 6
18 182.2.018.1A Complete gearbox drum 1
19 0660.13.060 Shim th. 1 1
19 852.1.094.1A Shim th. 0.9 1
20 799.1.025.1A Fork return spring 1
21 0400.09.050 Shim th. 0.5 1
21 0765.92.205 Shim th. 0.2 2
22 884.5.034.1A Ring 1
23 748.1.040.1A Nut 1
24 180.1.008.1A Gearbox drum control fork 1
25 0660.13.165 Gearchange lever pin 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
26 821.1.001.1A Pin with gearchange lever 1
27 0799.13.110 Gearchange lever return spring 1
28 771.5.067.8B Screw 1
29 852.1.172.1A Washer 1
30 771.5.123.8B Screw 1
31 852.1.174.1A Washer 1
32 881.1.012.1A Centering ring 1
33 826.1.009.1A Stopper plate 1
34 0400.29.125 Shim th. 0.2 2
34 0400.29.126 Shim th. 0.5 1
35 847.4.006.1A Ball 1
36 799.1.211.1A Spring 1
37 852.1.199.1A Aluminium gasket th.2 1
37 852.1.201.1A Aluminium gasket th.1,5 1
37 852.5.025.1A Aluminium gasket th.1 1
38 771.1.032.1A Special screw 1
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
15
DUCATI
DRAWING 003
15
GEAR-BOX
11
10
7
6
4
9
27
8
6
7
12
29 30
7
6
5
4
3
2
1
13
14
26
25
3
4
24
6
7
23
7
6
22
4
20
16
4
21
6
7
28
19
18
17
16
DUCATI
DRAWING 003
CODE NO. DESCRIPTION VALIDITYNOTES NO.
GEAR-BOX
1 0251.47.050 Shim th. 1 1
1 0251.47.054 Shim th. 1.2 1
1 851.1.004.1A Lock washer 1
1 852.1.108.1AH Shim th. 0.9 1
1 852.1.108.1AL Shim th. 1,1 1
1 852.1.108.1AN Shim th. 1,3 1
2 149.1.046.1A Gearbox main shaft 1
3 0670.16.150 Shim th. 0.5 2
4 701.4.005.1A Needle bearing 5
5 172.1.004.1A Driving gear 5th sp. 1
6 856.1.001.1A Grooved washer th. 0.5 6
7 0670.16.145 Snap ring 6
8 172.1.003.1A Driving gear 3rd/4th sp. 1
9 172.1.005.1A Driving gear 6th sp. 1
10 172.1.002.1B Driving gear 2nd sp. 1
11 0670.16.163 Shim th. 1.8 1
11 0670.16.164 Shim th. 2 1
11 713.1.014.1A Shim th. 1.5 1
11 713.1.014.1B Shim th. 1.7 1
11 713.1.014.1E Shim th. 1.6 1
11 713.1.014.1F Shim th. 1.9 1
12 449.1.045.1A Front sprocket w/rubber protection Z=15 1
13 713.1.204.1A Spacer 1
14 930.4.023.1A O-ring 1
15 0670.16.164 Shim th. 2 1
15 0670.16.165 Shim th. 2.2 1
15 0670.16.184 Shim th. 1 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
15 0670.16.185 Shim th. 1.2 1
15 713.1.011.1A Shim th. 2.3 1
15 713.1.014.1A Shim th. 1.5 1
15 713.1.014.1E Shim th. 1.6 3
15 713.1.266.1A Spacer th. 3,15 1
16 856.1.031.1A Grooved washer th. 0.5 1
17 76402.0002 Needle bearing 1
18 172.1.006.1B Driven gear 1st sp. 1
19 0670.16.155 Shim th. 1 1
20 172.1.010.1A Driven gear 5th sp. 1
21 172.1.009.1A Driven gear 4th sp. 1
22 172.1.008.1A Driven gear 3rd sp. 1
23 172.1.011.1A Driven gear 6th sp. 1
24 172.1.007.1B Driven gear 2nd sp. 1
25 149.1.032.3A Gearbox lay shaft 1
26 0670.16.170 Shim th. 0.8 1
26 0670.16.171 Shim th. 1 1
26 852.1.105.1AB Shim th. 0.9 1
26 852.1.105.1AD Shim th. 1,1 1
26 852.1.105.1AG Shim th. 0.7 1
27 150.2.078.1A Complete main shaft 1
28 150.2.063.1A Gearbox lay shaft 1
29 851.1.004.1A Lock washer 1
30 750.1.007.1A Nut 1
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
17
DUCATI
DRAWING 004
CLUTCH
3
4
10
2
1
5
7
8
9
16
18
11
17
12
13
14
15
19
6
18
DUCATI
DRAWING 004
CODE NO. DESCRIPTION VALIDITYNOTES NO.
CLUTCH
1 797.1.032.1A Clutch spring 5
2 841.1.046.1A Retainer 5
3 771.5.072.8C Screw 5
4 194.1.027.1A Pressure plate "FCC" 1
5 818.1.060.1A Bearing 1
6 60N107335 Screw 3
7 748.1.013.1A Hexagon nut 1
8 799.5.001.2A Spring washer 1
9 190.2.013.1A Clutch plates set 1
10 799.1.191.1A Spring washer "FCC" 1
11 797.1.036.1A Spring 1
12 196.1.035.1A Plate holder hub "FCC" 1
13 713.1.309.1A Spacer 1
14 198.2.036.1A Clutch housing 1
15 713.1.237.1A Spacer 1
16 117.2.007.1A Clutch control rod 1
17 93823.2018 O-ring 2
18 886.4.043.1A O-ring 1
19 195.4.003.1A Piston assembly 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
19
DUCATI
DRAWING 005
CLUTCH COVER
3
1
21
20
1
617 19
13
5
8 9 10 11 12
14 15
2
1
1
4
1
5
7
16
22
18
20
DUCATI
DRAWING 005
CODE NO. DESCRIPTION VALIDITYNOTES NO.
CLUTCH COVER
1 243.2.109.2A Cover clutch side 1
2 771.5.083.8B Screw 1
3 771.5.081.8B Screw 3
4 254.4.001.2A Oil level sight glass 1
5 771.5.069.8B Screw 4
6 486.1.051.1A Panel (BLACK) 1
7 771.5.072.8B Screw 2
8 0665.49.680 Bush 1
9 930.4.091.1A Seal ring 1
10 852.1.008.1A Shim th. 0.5 1
11 884.5.035.1A Circlip 1
12 93827.0114 O-ring 1
13 0400.49.240 Locating bush 1
14 886.4.090.1A O-ring 1
15 893.1.005.1A Cap 1
16 852.1.176.1A Washer 1
17 243.1.029.1A Cover 1
18 713.1.241.1A Spacer 1
19 773.1.001.1A Screw 6
20 852.1.195.1A Gasket th.2 1
21 539.4.030.1A Switch 1
22 881.1.030.1A Holder 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
21
DUCATI
DRAWING 006
CRANKSHAFT
6
5
51
79
10
4
8
8
14
2
11
15 3
13
12
16
11
8
6
5
8
7
5
9
22
DUCATI
DRAWING 006
CODE NO. DESCRIPTION VALIDITYNOTES NO.
CRANKSHAFT
1 146.2.104.1A Crankshaft 1
2 779.1.109.1A Special screw 1
3 750.1.012.2A Nut 1
4 72121.2106 Threaded dowel 1
5 158.2.019.1A Connecting rods pair 1
6 712.1.021.1A Bush 2
7 74224.0570 Pin 4
8 112.1.026.1AA Half-bearing (RED) 4
8 112.1.026.1AB Half-bearing (BLUE) 4
9 779.1.007.2A Special screw 4
10 74172.1008 Woodruff key 1
11 852.1.104.1A Shim th. 1.9 2
11 852.1.104.1B Shim th. 1.95 2
11 852.1.104.1C Shim th. 2 2
11 852.1.104.1D Shim th. 2,05 2
11 852.1.104.1E Shim th. 2,1 2
11 852.1.104.1F Shim th. 2,15 2
11 852.1.104.1G Shim th. 2.2 2
11 852.1.104.1H Shim th. 2.25 2
11 852.1.104.1I Shim th. 2.3 2
11 852.1.104.1J Shim th. 2.35 2
11 852.1.104.1K Shim th. 2,4 2
11 852.1.104.1L Shim th. 2,45 2
11 852.1.104.1M Shim th. 2.5 2
11 852.1.104.1N Shim th. 2.55 2
12 851.4.003.1A Lock washer 1
13 750.1.113.1A Ring nut 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
14 0755.29.025 Woodruff key 1
15 799.1.051.2A Spring washer 1
16 170.2.081.1A Primary drive front sprocket 1
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
23
DUCATI
DRAWING 007
15
10
7
8
2
CYLINDERS - PISTONS
12 14 13 11 17
11
9
11
7
16
34 5
2
1
13
14
12
15
6
24
DUCATI
DRAWING 007
CODE NO. DESCRIPTION VALIDITYNOTES NO.
CYLINDERS - PISTONS
1 120.2.092.1A Horizontal cylinder-piston fit 1
2 122.2.118.1A Complete piston 2
3 121.1.079.1A Piston pin circlip 4
4 121.1.078.2A Piston pin 2
5 121.2.033.1A Piston rings set 2
6 684.1.070.1A Stud bolt 1
7 786.1.086.1A Cylinder-crankcase gasket th. 0.4 2
8 711.1.093.2A Bush 4
9 791.2.036.2A Head-cylinder gaskets set 1
10 120.2.093.1A Vertical cylinder-piston fit 1
11 741.4.002.1A Hose guide 4
12 788.1.072.1A O-ring 2
13 814.1.124.1A Water inlet union to cylinders 2
14 771.5.067.8B Screw 4
15 786.1.073.1A Head-cylinder gasket 2
16 800.1.008.1A Horizontal cylinder water inlet hose 1
17 800.1.007.1A Vertical cylinder water inlet hose 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
25
DUCATI
DRAWING 008
TIMING
7
6
5
10 11 12
19
20
14 21 21
8
21
18 17 15 19 16
15
9
13
2
20
1
8
3
3
6 5
24
7
26
DUCATI
DRAWING 008
CODE NO. DESCRIPTION VALIDITYNOTES NO.
TIMING
1 245.1.055.1A Vertical timing belt cover 1
2 771.5.072.8B Screw 2
3 771.5.067.8B Screw 3
4 245.1.056.1A Horizontal timing belt cover 1
5 702.4.069.1A Bearing 4
6 884.5.034.1A Ring 2
7 451.2.017.1A Complete vertical cylinder tensioner roller 2
8 772.1.010.3A Screw 4
9 147.1.014.1A Timing lay shaft 1
10 171.2.020.2B Timing gears pair 1
11 851.1.013.1A Lock washer 1
12 0124.40.060 Hexagon nut 1
13 716.1.073.2A Spacer 1
14 882.1.003.1A Snap ring 1
15 255.1.023.1A Timing belt roller 2
16 856.1.062.2A Belt roller separating washer 1
17 716.1.099.1A Spacer 1
18 72944.1542 Elastic-stop ring nut 1
19 737.4.021.1A Timing drive toothed belt 2
20 451.1.025.1A Fixed tensioner assembly 2
21 0755.29.025 Woodruff key 3
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
27
DUCATI
DRAWING 009
FILTERS AND OIL PUMP
89
1
576
89
1
24 13 2512
15 4
15
22
28
27
3
23
16
10 11
17
14
26
21
20
2
18
19
28
DUCATI
DRAWING 009
CODE NO. DESCRIPTION VALIDITYNOTES NO.
FILTERS AND OIL PUMP
1 174.2.025.6A Complete oil pump 1
2 873.1.037.1A Cap 1
3 852.1.120.1A Aluminium gasket 1
4 886.4.037.1A O-ring 1
5 593.1.018.1A Bypass valve 1
6 780.1.018.1A Bypass cap 1
7 799.1.055.1A Bypass spring 1
8 771.5.129.8B Screw 2
9 853.1.002.1A Spring washer 2
10 771.5.069.8B Screw 1
11 853.1.004.1A Spring washer 1
12 174.1.025.2A Pump drive gear 1
13 710.1.001.1A Bush 1
14 799.2.077.2A Bypass spring 1
15 0759.49.280 Locating bush 2
16 220.3.208.3A Gasket 1
17 780.2.047.1A Oil drain plug with magnet 1
18 852.5.005.1A Gasket th.1,5 1
19 894.2.009.1A Oil filter 1
20 444.4.003.4A Oil filter cartridge 1
21 815.1.028.1A Nipple 1
22 93827.0114 O-ring 1
23 779.1.198.2A Cap 1
24 884.4.042.1A Snap ring 1
25 884.5.036.1A Circlip 1
26 0670.49.310 Reduction bush 1
27 779.1.162.2A Cap 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
28 852.1.195.1A Gasket th.2 1
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
29
DUCATI
DRAWING 010
HALF CRANKCASES
5
8
7
6
33
213 2 4
34
8
7
22
9
1
20
18
32
13
26
11
10
9
6
23
24 32 2
1
4
39
37
12
14
15
36
1
27
18
17
16
38
24
1
28
31
30
29
25
21
1
35
19
1
30
DUCATI
DRAWING 010
CODE NO. DESCRIPTION VALIDITYNOTES NO.
HALF CRANKCASES
1 225.2.102.1A Complete half-crankcases pair 1
2 0755.49.265 Seal ring 4
3 76400.0004 Needle bearing 4
4 76266.2668 Snap ring 2
5 94247.0014 Fluid sealant 1
6 766.1.027.1A Stud bolt for fastening head cylinder 8
7 856.1.064.2A Special washer 8
8 748.1.050.1A Nut 8
9 702.4.033.1A Bearing 2
10 72094.1616 Screw 2
11 826.1.012.1A Keep plate 1
12 702.5.019.1A Bearing 1
13 930.4.022.1A Seal ring 1
14 713.1.140.1A Spacer 2
15 770.5.250.8B Screw 2
16 93785.1830 Seal ring 1
17 75794.1542 Bearing 1
18 73503.3380 Circlip 2
19 420.2.006.4A Aluminium gasket 2
20 702.5.008.1A Bearing 1
21 710.1.069.1A Bearing holder bush 1
22 463.4.001.1A Seal ring 1
23 860.1.004.1A Locating dowel 2
24 771.5.136.8B Screw 6
25 75191.3380 Bearing 1
26 702.4.013.1A Bearing 1
27 771.5.080.8B Screw 2
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
28 93827.0114 O-ring 1
29 702.4.020.1A Bearing 1
30 710.1.070.1A Bearing holder bush 1
31 771.5.072.8B Screw 7
32 711.1.095.1A Bush 2
33 593.1.003.1B Breather valve 1
34 93823.3156 O-ring 1
35 815.1.022.1A Nipple 2
36 779.1.026.2A Screw 1
37 852.5.026.1A Aluminium gasket th.1,5 1
38 711.1.128.1A Bush 2
39 779.1.029.2A Special screw 1
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
31
DUCATI
DRAWING 011
WATER PUMP - ALTERNATOR COVER
12
9
11
10
8
7
6
Rif. 14 / 22 - Tav. 011a
18
16
19
1
5
4
2
22
17
3
15
14
13
20 21 20
32
DUCATI
DRAWING 011
CODE NO. DESCRIPTION VALIDITYNOTES NO.
WATER PUMP - ALTERNATOR COVER
1 264.4.018.2A Generator dmm2962 1
1 264.4.025.1A Generator fmm2961 1
2 771.5.073.8B Screw 3
3 779.4.075.1A Screw 8
4 702.5.008.1A Bearing 1
5 73503.3380 Circlip 1
6 770.5.250.8B Screw 2
7 852.1.172.1A Washer 2
8 884.5.011.1A A 10 Ring 1
9 702.4.010.2A Bearing 1
10 852.1.114.1A Washer 1
11 702.4.009.1A Bearing 1
12 713.1.128.1B Spacer 1
13 0400.49.240 Locating bush 2
14 830.1.144.1A Bracket 1
15 771.5.040.8B Screw 2
16 251.2.009.1A Water pump fan 1
17 94247.0014 Fluid sealant 1
18 930.5.005.1A Seal 1
19 930.5.006.2B Mechanical seal 1
20 852.1.176.1A Washer 2
21 881.1.030.1A Holder 1
22 771.5.072.2B Screw 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
33
DUCATI
DRAWING 011a
12
14
18
13
WATER PUMP - ALTERNATOR COVER
12
14
14
11
10
24
25
19
1
20
14
3
22
5
9
17
16
2
15
11
2
218 764
14
23
22
34
DUCATI
DRAWING 011a
CODE NO. DESCRIPTION VALIDITYNOTES NO.
WATER PUMP - ALTERNATOR COVER
1 247.1.083.1AE Chain cover 1
2 771.5.066.8B Screw 5
3 779.1.198.2A Cap 1
4 93783.1524 Seal ring 1
5 886.4.035.1A O-ring 1
6 247.1.002.1BC Cover 1
7 777.5.049.8B Screw 2
8 552.4.020.1A Sensor 1
9 788.1.076.1A Gasket th.0,6 2
9 788.1.076.1AA Gasket th.0,8 1
9 788.1.076.1AB Gasket th.1,0 1
10 886.4.033.1A O-ring 1
11 771.5.069.8B Screw 10
12 668.1.001.3A Water pump delivery filler 2
13 247.2.166.2A Complete water pump cover 1
14 242.2.062.2A Generator cover 1
15 852.5.023.1A Gasket 1
16 780.5.001.1A Cap 1
17 852.5.024.1A Gasket th.1 1
18 860.1.004.1A Locating dowel 2
19 771.5.064.2B Screw 2
20 852.1.120.1A Aluminium gasket 1
21 853.1.003.1A Spring washer 1
22 242.2.038.2BB Generator cover 1
23 254.4.001.1A Oil level sight glass 1
24 771.5.067.8B Screw 2
25 771.5.071.8B Screw 3
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
35
DUCATI
DRAWING 012
ELECTRIC STARTER AND IGNITION
17
19 18
20
9
8
1321
16
15
14
12
11
9
10
24
23
67
22
2
1
3
4
5
1
36
DUCATI
DRAWING 012
CODE NO. DESCRIPTION VALIDITYNOTES NO.
ELECTRIC STARTER AND IGNITION
1 270.4.005.1A Complete starter motor 1
2 853.1.003.1A Spring washer 1
3 750.1.121.1A Nut 1
4 788.1.054.1A Starter motor gasket 1
5 771.5.066.8B Screw 2
6 176.1.001.1A Starter motor sprocket 1
7 884.5.036.1A Circlip 1
8 0660.50.020 Intermediate gear pin 1
9 856.1.071.1A Washer 2
10 176.1.009.1A Intermediate gear assembly 1
11 73500.1440 Circlip 1
12 771.5.078.8B Screw 1
13 160.1.057.1A Flange 1
14 863.1.002.1A Locating pin 1
15 882.1.012.1A Check ring 1
16 276.1.028.1B Ignition flywheel 1
17 0619.50.065 Washer 1
18 881.1.010.1C Inner ring 1
19 701.4.003.1A Needle bearing 1
20 173.1.012.3A Electric starter driven gear 1
21 701.4.007.1A Starter clutch 1
22 771.5.069.8B Screw 1
23 771.5.071.8B Screw 1
24 700.1.036.1A Flexible bush 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
37
DUCATI
DRAWING 013
1
HEAD : TIMING
14
20
10
10
14
17
9
7
5
19
8
12
11
15
3
2
16
8
4
13
18
12
11
20
15
713
19
17
2
1
6
3
21
13
18
4
38
DUCATI
DRAWING 013
CODE NO. DESCRIPTION VALIDITYNOTES NO.
HEAD : TIMING
1 72944.1542 Elastic-stop ring nut 2
2 852.1.173.1A Washer 2
3 255.1.024.1A Timing belt roller 2
4 779.5.030.2A Screw 6
5 245.1.054.1A Vertical belt inner cover 1
6 245.1.057.1A Horizontal belt inner cover 1
7 930.5.007.1A Seal ring 2
8 74172.1008 Woodruff key 2
9 148.1.143.1A Vertical head camshaft 1
10 771.5.067.8B Screw 4
11 788.1.071.1A O-ring 2
12 235.1.036.1A Side cap 2
13 788.1.075.1A O-ring 4
14 771.5.063.8B Screw 2
15 886.4.060.1A O-ring 2
16 148.1.142.1A Horizontal head camshaft 1
17 856.1.074.2A Special washer 2
18 766.4.019.1A Stud bolt 8
19 160.1.105.1A Flange 2
20 852.5.023.1A Gasket 2
21 771.1.026.3A Screw 4
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
39
DUCATI
DRAWING 013a
1 2 3 1 2 1
COLLECTORS AND HEAD COVERS
4 8
1
4
8
2
6 5
1
3
7
1
40
DUCATI
DRAWING 013a
CODE NO. DESCRIPTION VALIDITYNOTES NO.
COLLECTORS AND HEAD COVERS
1 771.5.067.8B Screw 22
2 240.1.029.1A Valve cover 3
3 788.1.074.1A Head gasket 4
4 140.2.033.1A Intake manifold 2
5 852.5.025.1A Aluminium gasket th.1 2
6 771.5.062.8B Screw 2
7 240.1.032.1A Exaust valve cover (horizontal) 1
8 741.4.067.1A Hose guide 2
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
41
DUCATI
DRAWING 014
VERTICAL HEAD
19 17
12
19
18
17
13
12
12
17
14
18
19
15
20
13
12
14
16
21
14
12
13
12
15
21
19
18
17
24
16
15
7
6
16 15
6
6
5
1
4
1
23
2
11
8
22
9
3
10
1
42
DUCATI
DRAWING 014
CODE NO. DESCRIPTION VALIDITYNOTES NO.
VERTICAL HEAD
1 301.2.131.1C Complete vertical head 1
2 304.A.001.1A Intake valve seat 2
2 304.A.001.1AB Oversize intake valve seat 0.03 2
2 304.A.001.1AC Oversize intake valve seat 0.06 2
3 304.A.004.1A Exhaust valve seat 1
3 304.A.004.1AB Oversize exhaust valve seat 0.03 1
3 304.A.004.1AC Oversize exhaust valve seat 0.06 1
4 303.1.039.1A Intake valve guide 2
4 303.1.039.1AB Intake valve guide magg. 0,03 2
4 303.1.039.1AC Intake valve guide magg. 0,06 2
4 303.1.039.1AD Intake valve guide magg. 0,09 2
5 303.1.025.1A Exhaust valve guide 2
5 303.1.025.1AB Oversize valve guide 0.03 1
5 303.1.025.1AC Oversize valve guide 0.06 1
5 303.1.025.1AD Oversize valve guide 0.09 1
6 764.1.002.1A Rubber pad 3
7 799.1.147.1A R.H. Closing rocker spring 1
8 881.1.043.1A Hose guide 1
9 60N102511 Screw 1
10 210.1.047.1B Intake valve 2
11 211.1.043.2B Exhaust valve 1
12 0795.37.096 Washer 6
13 799.1.179.1A Spring 3
14 208.1.022.1A Opening rocker 3
15 821.1.141.1A Opening rocker shaft 4
16 209.1.026.1B Closing rocker 3
17 840.2.002.1B See table 3
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
18 669.1.001.1E Split rings 6
19 840.2.001.1A See table 3
20 799.1.146.1A L.H. Closing rocker spring 1
21 821.1.142.1B Closing rocker shaft 2
22 852.1.176.1A Washer 1
23 881.1.030.1A Holder 1
24 799.1.221.1A Return spring 1
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
43
DUCATI
DRAWING 015
HORIZONTAL HEAD
11 13
16
14
14
17
16
17
10
11
12
13
6
15
17
10
10
8
12
13
15
10
9
11
18
18
51
13
7
1
2
19
15
20
4
13
1
12
11
17
19
14
16
44
DUCATI
DRAWING 015
CODE NO. DESCRIPTION VALIDITYNOTES NO.
HORIZONTAL HEAD
1 301.2.130.1C Complete horizontal head 1
2 303.1.025.1A Exhaust valve guide 1
2 303.1.025.1AB Oversize valve guide 0.03 1
2 303.1.025.1AC Oversize valve guide 0.06 1
2 303.1.025.1AD Oversize valve guide 0.09 1
3 303.1.039.1A Intake valve guide 1
3 303.1.039.1AB Intake valve guide magg. 0,03 1
3 303.1.039.1AC Intake valve guide magg. 0,06 1
3 303.1.039.1AD Intake valve guide magg. 0,09 1
4 304.A.001.1A Intake valve seat 2
4 304.A.001.1AB Oversize intake valve seat 0.03 2
4 304.A.001.1AC Oversize intake valve seat 0.06 2
5 304.A.004.1A Exhaust valve seat 1
5 304.A.004.1AB Oversize exhaust valve seat 0.03 1
5 304.A.004.1AC Oversize exhaust valve seat 0.06 1
6 211.1.043.2B Exhaust valve 1
7 210.1.047.1B Intake valve 2
8 799.1.147.1A R.H. Closing rocker spring 1
9 799.1.146.1A L.H. Closing rocker spring 1
10 821.1.141.1A Opening rocker shaft 4
11 840.2.001.1A See table 3
12 669.1.001.1E Split rings 6
13 840.2.002.1B See table 3
14 208.1.022.1A Opening rocker 3
15 209.1.026.1B Closing rocker 3
16 799.1.179.1A Spring 3
17 0795.37.096 Washer 6
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
18 764.1.002.1A Rubber pad 2
19 821.1.142.1B Closing rocker shaft 2
20 799.1.221.1A Return spring 1
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
45
DUCATI
DRAWING 016
THROTTLE BODY
16
18
3
2
21
19
17
20
19
13
9
8
15
10
11
1
14
12
5
4
6
7
46
DUCATI
DRAWING 016
CODE NO. DESCRIPTION VALIDITYNOTES NO.
THROTTLE BODY
1 282.4.019.1D Throttle body 1
2 884.5.010.1A Circlip 1
3 830.1.172.1A Bracket 1
4 590.1.103.1A Tube 1
5 741.4.040.1A Clamp "M" 1
6 741.4.041.1A Clamp "R" 1
7 590.1.124.1A Tube 1
8 799.1.052.2A Spring 4
9 470412 Screw 4
10 287.4.028.1A Bypass adjusting screw 1
11 287.4.024.1B Hose guide 4
12 590.1.080.1A Tube 1
13 830.1.121.1A Connector holder 1
14 284.4.001.1B Potentiometer PF09/04 1
15 287.4.029.1A Repair kit 1
16 287.4.027.1A Tie rod 1
17 280.4.005.1A Injector 2
18 802.1.015.1A Air funnel 1
19 791.1.017.2A Gasket 2
20 886.5.004.1A O-ring 2
21 802.1.009.1A Air funnel 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
47
DUCATI
DRAWING 017
EXHAUST SYSTEM
45 1
1312
1414
10
15
16
11
17
17
16
18
3
6
9 8
1
4
2 7
48
DUCATI
DRAWING 017
CODE NO. DESCRIPTION VALIDITYNOTES NO.
EXHAUST SYSTEM
1 790.1.007.1A Exhaust gasket 2
2 852.5.024.1A Gasket th.1 2
3 574.1.088.1A L.H. silencer 1
4 748.1.024.1A Nut 8
5 571.1.100.1A Vertical head exhaust pipe 1
6 741.1.003.3A Clamp 1
7 570.1.102.1A Horizontal head exhaust pipe 1
8 780.1.007.1A Cap 2
9 799.1.072.1A Spring 1
10 866.1.061.1A Rubber pad 1
11 573.1.088.1A R.H. silencer 1
12 779.5.016.1A Screw 2
13 684.1.044.1A Stud bolt 2
14 764.1.001.1A Rubber pad 4
15 576.1.034.1A R.H. bracket 1
16 73270.8001 Washer 4
17 70914.2121 Screw 4
18 576.1.035.1A L.H. bracket 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
49
DUCATI
DRAWING 018
STANDS
7
23
45
6
1
8
13
8
16
115
11 10
14
12
9
50
DUCATI
DRAWING 018
CODE NO. DESCRIPTION VALIDITYNOTES NO.
STANDS
1 749.4.045.2G Nut 2
2 555.1.007.1A R. H. Plate 1
3 555.1.005.1A Central stand 1
4 555.1.006.1B L. H. Plate 1
5 799.1.069.1A Inner spring 1
6 799.1.070.1A Outer spring 1
7 772.1.001.1A Screw 1
8 771.5.154.8B Screw 4
9 799.1.089.1A Spring 1
10 799.1.088.1A Outer spring 1
11 827.1.139.2B Plate 1
12 779.4.005.2A Screw 1
13 539.1.023.2A Switch 1
14 556.1.017.1C Side stand 1
15 556.1.018.1C Pivot 1
16 556.2.020.1B Plate 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
51
DUCATI
DRAWING 019
FRAME
18
14 6 7 9 10
5
20
17
21
12
16
22
24
87
11
13
12
23
15
14
1
234
19
52
DUCATI
DRAWING 019
CODE NO. DESCRIPTION VALIDITYNOTES NO.
FRAME
1 470.1.081.1AA Frame (METALLIC DARK GREY) 1
1 470.1.081.1AB Frame (BLACK) 1
2 460.1.088.1A Mudflap 1
3 741.1.013.1A Hose guide 3
4 829.1.170.1AB L.H. holder 1
5 829.1.169.1AB R.H. holder 1
6 0000.44099 Spacer 2
7 764.1.084.1A Vibration damper pad 2
8 829.1.487.1A Holder 2
9 8000.56359 Washer 2
10 772.5.024.1A Screw 2
11 779.1.213.1A Screw 2
12 872.1.026.1A Cap 4
13 827.1.121.1A Stud bolt 2
14 772.5.025.1A Screw 2
15 60N102511 Screw 2
16 748.4.002.1A Nut 2
17 872.1.027.1A Cap 1
18 598.2.017.2A Locks kit 1
19 866.1.034.1A Rubber pad 2
20 764.1.010.1A Rubber pad 1
21 117.2.002.1A Rod 1
22 741.1.012.1A Hose guide 1
23 0364.99.020 Bush 2
24 741.4.013.1A Hose guide 3
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
53
DUCATI
DRAWING 020
L.H. FOOT RESTS
1
3
37
19
30
2
17
31
2928
22
21
35
32
27 36
2
26
3
33
34
20
8
9
5
10
4
5
6
17
13
7
22
21
20
23
25
24
18
11
38
12
14 15
11
16
54
DUCATI
DRAWING 020
CODE NO. DESCRIPTION VALIDITYNOTES NO.
L.H. FOOT RESTS
1 824.1.039.1A L.H. foot peg holder plate 1
2 771.5.725.8B Screw 4
3 0370.69.920 Pin 2
4 0370.69.910 Spring 1
5 763106N01 El-stop nut 2
6 848.5.001.1A Ball joint 1
7 747.5.001.1A L.H. nut 1
8 117.1.033.1A Gearbox transmission rod 1
9 417.9.030.6A Nut 1
10 848.5.002.1A Ball joint 1
11 779.5.011.1A Screw 2
12 456.1.006.2A Gearchange control lever 1
13 852.1.053.1A Washer 1
14 8000.59056 Bush 1
15 765.1.001.1A Rubber pad 1
16 456.2.009.1A Gearchange lever 1
17 73500.0827 Circlip 2
18 821.1.170.1A Pin 1
19 827.1.192.1A Plate 1
20 777.5.002.1A Screw 4
21 0370.69.930 Plate 2
22 0370.69.940 Foot peg rubber cover 2
23 0370.69.850 Front L.H. foot peg, complete 1
24 772.1.047.1A Screw 2
25 460.1.062.1A Protection 1
26 779.1.159.1A Screw 1
27 806.1.012.1A Handle 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
28 861.5.003.1A Spring pin 1
29 799.1.071.1A Spring 1
30 824.1.041.1C Rear L.H. foot peg holder plate 1
31 0370.69.970 Plate 1
32 799.1.024.1A Spring 1
33 847.4.002.1A Ball 2
34 827.1.045.1A Keep plate 1
35 0370.69.860 Rear L.H. foot peg, complete 1
36 806.1.013.1A Handgrip 1
37 386.4.013.2A Power Point 1
38 779.5.001.1A Screw 1
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
55
DUCATI
DRAWING 021
R.H. FOOT RESTS
13
14 5 15
8
7
2
5
12
6
11
10
4
17 16
1
2
8
7
9
3
4
6
56
DUCATI
DRAWING 021
CODE NO. DESCRIPTION VALIDITYNOTES NO.
R.H. FOOT RESTS
1 824.1.040.1B R.H. foot peg holder plate 1
2 0370.69.920 Pin 2
3 0370.69.910 Spring 1
4 73500.0827 Circlip 2
5 771.5.725.8B Screw 4
6 777.5.002.1A Screw 4
7 0370.69.930 Plate 2
8 0370.69.940 Foot peg rubber cover 2
9 0370.69.855 Front R.H. foot peg, complete 1
10 827.1.045.1A Keep plate 1
11 847.4.002.1A Ball 2
12 799.1.024.1A Spring 1
13 0370.69.865 Rear R.H. foot peg, complete 1
14 0370.69.970 Plate 1
15 824.1.042.1C Rear R.H. foot peg holder plate 1
16 460.1.063.1A Protection 1
17 772.1.047.1A Screw 2
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
57
DUCATI
DRAWING 022
HEADLIGHT HOLDER
3
5 10
9
8
2
6
11
12
13
74 1
15
12
14
58
DUCATI
DRAWING 022
CODE NO. DESCRIPTION VALIDITYNOTES NO.
HEADLIGHT HOLDER
1 829.1.168.1AB L.H. holder 1
2 758.1.026.1A Fairlead 1
3 771.5.043.2B Screw 7
4 829.1.167.2AB R.H. holder 1
5 829.1.556.1A Holder 1
6 8A00.67997 Screw 1
7 60N102488 Screw 1
8 771.5.141.2B Screw 2
9 729908FN1 Nut 2
10 821.1.075.1A Pin 2
11 764.1.084.1A Vibration damper pad 2
12 772.5.024.1A Screw 3
13 829.1.204.1A Holder 1
14 0000.60283 Hose guide 1
15 829.1.544.1A Holder 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
59
DUCATI
DRAWING 023
HEAD-LIGHT AND ELECTRIC WIRING
14
20 21
3 2
151
18
5
16
6
7
13
19
8
9
19
12
10
7
17
6
11
5
4
60
DUCATI
DRAWING 023
CODE NO. DESCRIPTION VALIDITYNOTES NO.
HEAD-LIGHT AND ELECTRIC WIRING
1 389.4.006.1A Fuse 3A 1
1 389.4.007.1A Fuse 7.5A 3
1 389.4.008.1A Fuse 15A 1
1 389.4.012.1A Fuse 20A 1
1 389.4.015.1A Fuse 5A 2
2 779.1.088.1A Screw 2
3 821.1.054.1A Pin 2
4 764.4.003.1A Fairlead 2
5 772.5.023.1A Screw 4
6 716.1.022.1A Spacer 4
7 764.1.090.1A Rubber pad 4
8 764.1.084.1A Vibration damper pad 4
9 0000.62730 Screw 2
10 540.4.011.1C Regulator 1
11 541.4.007.1A Relay 1
12 829.1.190.1A Rubber holder 2
13 8000.59572 Screw 2
14 510.1.262.1A Front wiring 1
15 246.1.009.1G Cover 1
16 827.1.166.1A Plate 2
17 552.4.012.1A Air temperature sensor 1
18 433.1.296.1B Sticker ”schema fusibili” 1
19 390.4.008.1A Warning lamp bulb 12V-3W 2
20 8A00.67997 Screw 1
21 741.4.062.1A Clip 2
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
61
DUCATI
DRAWING 023a
FRONT HEAD-LIGHT
2
3
1
1
1
4
5
56
1
62
DUCATI
DRAWING 023a
FRONT HEAD-LIGHT
CODE NO. DESCRIPTION VALIDITYNOTES NO.
1 520.1.002.1C Complete headlight 1
2 390.4.011.1A Bulb 1
3 390.4.014.1A Bulb 1
4 246.2.083.1A Cover 1
5 799.1.215.1A Spring 2
6 672.1.040.1A Rubber pad 4
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
63
DUCATI
DRAWING 024
INSTRUMENT PANEL
1
5 8
2
9
10
8
9
4
7
6
9
3
64
DUCATI
DRAWING 024
CODE NO. DESCRIPTION VALIDITYNOTES NO.
INSTRUMENT PANEL
1 406.1.020.1B Complete instrument panel 1
2 734005N01 Spring washer 3
3 716.1.107.1B Spacer 3
4 748.4.038.1A Nut 3
5 460.1.174.1A Front headlight fairing panel 1
6 460.1.175.1A Rear headlight fairing panel 1
7 700.1.043.1A Spacer 3
8 850.4.047.1A Quik fastening 3
9 779.1.050.1A Screw 9
10 0000.63150 Insert 4
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
65
DUCATI
DRAWING 025
13
6
HALF HANDLEBARS AND CONTROLS
15
14
10
18
20
11
21
12
16
28
27
38
29
2322
39
22
3839
24
25
30
36
22
17
42
15
37
34
38
5
6
9
37
38
26
30
40
41
5
4
1931
8
3
2
1
7
33
35
32
66
DUCATI
DRAWING 025
CODE NO. DESCRIPTION VALIDITYNOTES NO.
HALF HANDLEBARS AND CONTROLS
1 417.9.030.8A Nut 2
2 779.1.099.1A Special screw 2
3 342.2.015.1B Steering head base 1
4 852.1.103.1A Washer 1
5 930.1.004.1A Seal ring 2
6 702.4.004.1A Bearing 2
7 60N102557 Screw 4
8 598.4.016.1A Wrench with Transponder 1
8 598.4.018.1A Wrench without Transponder 1
9 652.4.006.1D Key-operated switch 1
10 821.1.073.1A Pin 1
11 827.1.122.2A Plate 1
12 0000.62705 Split pin 1
13 8000.70178 Belt 1
14 651.4.011.1A L.H. switch 1
15 8000.78345 Grips pair 1
16 360.2.057.1A L.H. handlebar 1
17 772.5.023.1A Screw 2
18 657.1.019.1A Flexible cable 1
19 771.5.074.2B Screw 2
20 779.1.221.1A Special screw 2
21 734305N01 Washer 1
22 771.5.725.2B Screw 3
23 341.2.042.1A Steering head 1
24 360.2.056.1A R.H. handlebar 1
25 650.1.002.1A R.H. switch 1
26 656.1.050.1A Throttle control transmission 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
27 246.1.060.2A Cover 1
28 749.4.002.1A Nut 2
29 518.4.004.1B Antenna 1
30 654.4.006.1A Throttle control 1
31 153.1.008.1A Counterweight 2
32 772.1.047.1A Screw 2
33 799.1.087.1A Starter control transmission return spring 1
34 703.1.013.1A Ring nut 1
35 460.1.076.2A Mudflap 1
36 8000.66774 Screw 2
37 832.1.032.1A Pin 2
38 771.5.669.2B Screw 8
39 872.1.048.1A Cap 2
40 711.1.072.1A Bush 2
41 710.1.068.1A Bush 2
42 658.4.002.1B Cover 1
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
67
DUCATI
DRAWING 026
FRONT FORK
3
2
13
11
10
9
8
1
7
6
18
14
1
22
21
20
19
17
12
15
16
12
13
5
4
68
DUCATI
DRAWING 026
CODE NO. DESCRIPTION VALIDITYNOTES NO.
FRONT FORK
1 340.2.283.1A R.H. fork leg assembly 1
2 349.1.075.1A Centering ring 2
3 349.1.198.1A Damper tube 2
4 340.2.284.1A L.H. fork leg assembly 1
5 349.1.197.1A Complete L.H. slider 1
6 366.1.039.1A Spring 2
7 349.1.097.1A Spring coupling 2
8 349.1.064.1A Slider 2
9 349.1.065.1A Rubber cush drive hub 2
10 349.2.014.1B Complete cap 2
11 349.1.098.1A Snap ring 2
12 8000.70127 Hose guide 4
13 8A00.69056 Screw 4
14 349.1.103.1A Bush 2
15 349.1.124.1A Adjusting screw 2
16 349.1.076.1A Washer 2
17 349.1.196.1A Complete R.H. slider 1
18 349.1.194.1A Stanchion tube 2
19 349.1.101.1A Dust seal 2
20 884.1.005.1A Ring 2
21 930.1.005.1A Seal ring 2
22 349.1.102.1A Check ring 2
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
69
DUCATI
DRAWING 027
CLUTCH CONTROL
7
8
9
6
5
4
1
12
3
2
11
10
8
13
70
DUCATI
DRAWING 027
CODE NO. DESCRIPTION VALIDITYNOTES NO.
CLUTCH CONTROL
1 630.4.024.1A Clutch drive pump 1
2 626.4.034.1A Clutch control lever 1
3 626.4.011.1A Spare lever pin 1
4 626.4.015.1C Bracket 1
5 585.4.007.1A Complete oil tank 1
6 893.4.008.1A Cap 1
7 779.1.366.1AB Special screw 1
8 852.5.024.1A Gasket th.1 4
9 632.1.030.1A Clutch control pipe 1
10 779.1.397.1A Special screw 1
11 0000.33552 Bleed 1
12 612.4.005.1A Dust seal 1
13 539.4.033.1A Microswitch 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
71
DUCATI
DRAWING 028
FRONT HYDRAULIC BRAKE
4
5
1
3
2
721
23
13
14 15
8
3
6
9
22
16
17
1
18
20
19
10
11
9
8
8
12
72
DUCATI
DRAWING 028
CODE NO. DESCRIPTION VALIDITYNOTES NO.
FRONT HYDRAULIC BRAKE
1 624.4.031.1A Front brake pump 1
2 626.4.019.1A Brake control lever 1
3 626.4.011.1A Spare lever pin 1
4 771.5.669.2B Screw 2
5 626.4.015.1D Bracket 1
6 539.4.021.1A Microswitch 1
7 585.4.006.1A Complete oil tank 1
8 852.5.024.1A Gasket th.1 6
9 779.1.366.1AB Special screw 2
10 771.5.431.2B Screw 4
11 610.4.079.1A R.H. brake caliper 1
12 610.4.078.1A L.H. brake caliper 1
13 618.4.061.1A Caliper pump pipe 1
14 829.1.208.2A Holder 1
15 772.5.025.1A Screw 2
16 612.4.014.1A Spare pins and spring 2
17 612.4.017.1A Spring 2
18 612.4.008.1A Dust seal 2
19 631.4.004.1A Spare bleed union 2
20 613.4.021.1A Pads pair 2
21 893.4.007.1A Tank cap 1
22 612.4.018.1A Spring 2
23 779.1.415.1A Special screw 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
73
DUCATI
DRAWING 029
WATER RADIATOR ASSY
2
8
9
6
1
3
4
7 6 6 5
74
DUCATI
DRAWING 029
CODE NO. DESCRIPTION VALIDITYNOTES NO.
WATER RADIATOR ASSY
1 548.4.019.2A Water radiator 1
2 893.1.003.1A Radiator cap 1
3 772.5.025.1A Screw 3
4 550.4.008.1A Electric fan 1
5 779.1.368.2A Special screw 1
6 764.1.022.1A Vibration damper pad 4
7 830.1.299.1A Holder 1
8 713.1.304.1A Spacer 1
9 0000.62729 Screw 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
75
DUCATI
DRAWING 030
3
COOLING CIRCUIT
138
8
19 12 16 12 10 14
2
1
21
3
4
3
4
12
4
22
20
17
12
159
11
5 6
10 15
7
88 18
76
DUCATI
DRAWING 030
CODE NO. DESCRIPTION VALIDITYNOTES NO.
COOLING CIRCUIT
1 585.1.020.1A Water tank 1
2 0000.40427 Tank cap 1
3 772.5.024.1A Screw 3
4 716.1.038.1A Spacer 4
5 8A00.67610 Hose guide 1
6 800.1.049.1A Hose 1
7 741.4.001.1A Hose guide 1
8 741.4.025.1A Hose guide 4
9 552.4.013.1A Sensor 2
10 788.1.072.1A O-ring 2
11 814.1.157.1A Water outlet union 1
12 741.4.002.1A Hose guide 4
13 800.1.129.1A Cooler/thermostat hose 1
14 814.1.123.1A Water outlet union 1
15 771.5.067.8B Screw 4
16 800.1.126.1A Thermostat/pump hose 1
17 800.1.127.1A Thermostat/pump hose 1
18 800.1.128.1A Pump/cooler hose 1
19 553.4.004.1A Thermostat 1
20 0000.63150 Insert 2
21 711.1.084.1A Bush 1
22 741.4.055.1A Hose guide 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
77
DUCATI
DRAWING 031
22
ELECTRIC SYSTEM
9
8
187 1819
10
24
14
21
20
12
13
11
2
16
4
23
1
15
17
5
3
6
78
DUCATI
DRAWING 031
CODE NO. DESCRIPTION VALIDITYNOTES NO.
ELECTRIC SYSTEM
1 510.1.265.1A Electric wiring 1
2 389.4.014.1A Fuse 40A 1
3 771.1.034.2A Screw 2
4 830.1.290.1B Holder 1
5 771.5.721.2B Screw 1
6 516.4.001.1AB Horn (BLACK) 1
7 671.1.031.1A Vertical spark plug cable - left 1
8 380.4.010.1C Coil 2
9 671.1.032.1A Horizontal spark plug cable - right 1
10 671.1.033.1A Horizontal spark plug cable - left 1
11 0691.91.030 Hose guide 17
12 670.4.016.1B Spark plug 4
13 741.1.013.1A Hose guide 1
14 671.1.030.1A Vertical spark plug cable - right 1
15 764.4.005.1A Rubber pad 1
16 387.4.002.1A End section 2
17 386.4.006.1A Connector 1
18 541.4.007.1A Relay 2
19 829.1.127.1A Holder 2
20 389.4.006.1A Fuse 3A 1
21 775.1.011.1A Screw 2
22 8000.56443 Nut 2
23 741.4.038.1A Hose guide 12
24 389.4.012.1A Fuse 20A 2
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
79
DUCATI
DRAWING 032
BATTERY BOX MOUNT
24
3
20
12
27
28
15
16
9
15
16
9
10
22
3
8
9
2
24
4
10
14
23
26
17
6
25
13
9
1
15
9
16
21
19
11 8
718
5
6
80
DUCATI
DRAWING 032
CODE NO. DESCRIPTION VALIDITYNOTES NO.
BATTERY BOX MOUNT
1 286.4.100.1L Injection control unit 1
2 514.1.041.1A Battery - solenoid starter cable 1
3 0000.56443 Nut 2
4 514.1.040.1A Solenoid starter - starter motor cable 1
5 417.9.050.6A Nut 2
6 462.4.037.6A Spring washer 2
7 397.4.002.1A Remote switch 1
8 750.5.001.1A Nut 2
9 8000.56359 Washer 5
10 716.1.022.1A Spacer 3
11 716.1.053.1A Spacer 1
12 827.1.286.1A Plate 1
13 775.1.038.1B Screw 1
14 866.1.031.1A Rubber pad 1
15 772.5.023.1A Screw 3
16 300182 Rubber pad 3
17 395.2.013.1C Battery 1
18 672.1.029.1A Rubber cap 1
19 0691.91.030 Hose guide 1
20 772.5.025.1A Screw 1
21 827.1.330.1A Plate 1
22 829.1.172.2B Battery box mount 1
23 764.1.084.1A Vibration damper pad 2
24 827.2.215.1A Plate 2
25 772.5.021.1A Screw 2
26 821.1.129.1A Spacer 2
27 775.1.006.1A Special screw 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
28 513.1.008.2D Battery grounding cable 1
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
81
DUCATI
DRAWING 033
AIR INDUCTIO AND OIL VENT
17 18
15
16
15
15 19 20 21 22
11
12
24
2
5
6
7
3
23
4
1
13
10
14
13
10
9
8
10
82
DUCATI
DRAWING 033
CODE NO. DESCRIPTION VALIDITYNOTES NO.
AIR INDUCTIO AND OIL VENT
1 684.1.026.1A Stud bolt 1
2 772.1.050.1A Screw 1
3 748.1.036.1A Nut 1
4 829.1.129.1A Clip 1
5 829.1.486.1A Bracket 1
6 442.2.008.1A Air filter box 1
7 877.2.004.2A Tube 1
8 772.5.023.1A Screw 1
9 716.1.022.1A Spacer 1
10 764.1.090.1A Rubber pad 3
11 760.1.003.1B Hook 4
12 74223.1045 Spring pin 4
13 821.1.075.1A Pin 2
14 8000.56359 Washer 1
15 741.4.002.1A Hose guide 3
16 876.1.083.1A Breather pipe 1
17 0364.99.015 Screw 2
18 585.1.019.2D Oil breather tank 1
19 876.1.084.1A Filter/fuel tank outlet pipe 1
20 0370.98.610 Filter element 1
21 246.1.056.1A Filter case cover 1
22 135.1.015.1A Air funnel 2
23 775.1.011.1A Screw 2
24 8000.56443 Nut 2
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
83
DUCATI
DRAWING 034
SWINGARM AND CHAIN
11
8
7
6
13
12
10
3
3
16
6
7
3
3
22
3
22
1
17
9
18
15
5
4
21
14
3
19 20
1
2
142120191817
84
DUCATI
DRAWING 034
CODE NO. DESCRIPTION VALIDITYNOTES NO.
SWINGARM AND CHAIN
1 748.1.023.1B Nut 2
2 819.1.030.1A Rear wheel spindle 1
3 779.1.119.1B Special screw 8
4 447.1.031.2A Lower chain sliding shoe 1
5 433.1.230.1A Chain adjustment sticker 1
6 872.1.019.1A Cap 2
7 884.4.007.1A Snap ring 2
8 369.1.004.1A Swingarm pivot 1
9 60N102584 Screw 2
10 370.1.021.1B Swingarm 1
11 676.2.055.1A Final drive kit 1
12 852.1.001.1A Shim th. 1.8 2
12 852.1.002.1A Shim th. 0.2 2
12 852.1.003.1A Shim th. 0.1 1
13 447.1.030.2A Upper chain sliding shoer 1
14 779.1.037.1B Screw 2
15 676.4.018.1A Chain (102 Links) 1
16 565.1.021.2A Rear mudguard 1
17 373.1.029.1C Plate 2
18 771.5.004.8B Screw 2
19 852.1.079.1B Washer 2
20 373.1.028.1B Sliding shoe 2
21 373.1.023.1B Cover 2
22 0364.99.710 Nylon gasket 2
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
85
DUCATI
DRAWING 035
REAR SUSPENSION
1
3
2
2
3
7
8
13
4
5
4
6
10
9
15
16
11
4
4
13
12
14
86
DUCATI
DRAWING 035
CODE NO. DESCRIPTION VALIDITYNOTES NO.
REAR SUSPENSION
1 372.2.008.3A Rocker assembly 1
2 93781.1824 Seal ring 2
3 701.4.006.1A Needle bearing 4
4 710.1.025.1A Bush 4
5 771.5.938.2B Screw 1
6 365.2.027.1C Shock absorber 1
7 771.5.937.2B Screw 1
8 715.1.004.1A Spacer 1
9 710.1.057.1A Bush 1
10 771.1.009.1A Screw 1
11 771.1.016.1A Screw 1
12 710.1.046.1A Bush 1
13 848.4.011.1A Ball joint 2
14 0670.92.190 Shim th. 2 2
15 750.1.041.1A Nut 1
16 875.1.063.1B Tie rod ( L=272 mm ) 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
87
DUCATI
DRAWING 036
OIL COOLER
11 10
9
11
12
11
12
8
7
3
3
4
5
9
1
2
6
88
DUCATI
DRAWING 036
CODE NO. DESCRIPTION VALIDITYNOTES NO.
OIL COOLER
1 548.4.023.1B Oil cooler 1
2 8000.69069 Vibration damper 1
3 764.1.022.1A Vibration damper pad 2
4 713.1.304.1A Spacer 1
5 0000.62729 Screw 1
6 875.1.055.1A Oil return pipe 1
7 875.1.054.1A Oil delivery pipe 1
8 779.1.083.2A Special screw 1
9 875.1.111.1A Oil delivery pipe 1
10 779.1.058.1A Special screw 1
11 852.5.024.1A Gasket th.1 6
12 781.1.003.3A Special screw 2
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
89
DUCATI
DRAWING 037
REAR HYDRAULIC BRAKE
25
26
36
35
42
33
32
23
31
24
18
19
34
30
20
21
17
25
17
16
26
15
27
4344
8 9
393740
12
13
9
11
14
10
3
22
41
1
2
39
38
28
29
7
5
4
6
90
DUCATI
DRAWING 037
CODE NO. DESCRIPTION VALIDITYNOTES NO.
REAR HYDRAULIC BRAKE
1 829.1.184.1A Holder 1
2 852.1.054.1A Washer 1
3 884.5.003.1A Ring 1
4 8000.59056 Bush 1
5 764.1.011.2A Rubber pad 1
6 457.2.008.1A Brake control lever 1
7 821.1.052.1A Pedal pin 1
8 8000.67981 Threaded dowel 1
9 60N115062 Nut 2
10 821.1.096.2A Pin 1
11 184.1.001.1A Fork 1
12 772.5.024.1A Screw 2
13 117.1.025.2A Adjuster rod 1
14 771.5.754.2B Screw 1
15 539.4.003.1B Switch 1
16 877.1.050.1A Tube 1
17 741.4.043.1A Hose guide 2
18 0000.62726 Screw 1
19 893.4.005.1A Cap 1
20 585.4.001.1A Complete oil tank 1
21 707006N02 Screw 1
22 420.2.000.8A Copper gasket sp. 1 1
23 729906FN1 Nut 1
24 829.1.073.3A Holder 1
25 779.1.366.1AB Special screw 2
26 852.5.024.1A Gasket th.1 4
27 625.4.006.1A Rear brake pump 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
28 631.4.008.1A Spare union 1
29 626.4.013.1A Dust cover 1
30 619.4.029.1A Caliper pump pipe 1
31 741.4.062.1A Clip 1
32 8000.69282 Spacer 1
33 8A00.67997 Screw 1
34 825.1.030.1A Caliper holder plate 1
35 771.5.723.2B Screw 2
36 611.4.009.1A Rear brake caliper 1
37 0370.39.780 Spare bleed union 1
38 613.4.021.1A Pads pair 1
39 612.4.016.1A Spare pins and spring 1
40 612.4.008.1A Dust seal 1
41 799.1.083.1B Spring 1
42 552.4.037.1A Sensor 1
43 713.1.192.1A Spacer 1
44 771.5.665.2B Screw 1
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
91
DUCATI
DRAWING 038
FRONT AND REAR WHEELS
15
6
8
7
16
13
418144
19
21
22
17
11
24
2
7
5
2023
5
434
1
10 9 12
92
DUCATI
DRAWING 038
CODE NO. DESCRIPTION VALIDITYNOTES NO.
FRONT AND REAR WHEELS
1 501.2.080.1AA Front wheel rim 1
2 497.2.001.2A Valve 1
3 714.1.028.1A Inner spacer 1
4 75162.2566 Bearing 4
5 492.4.024.1A Brake disc 2
6 779.1.311.1A Screw 6
7 779.1.399.1A Screw 12
8 819.1.017.1A Front wheel spindle 1
9 714.1.045.1A Spacer 1
10 0000.64471 Seal ring 1
11 884.5.008.1A Circlip 1
12 748.1.014.1B Fork nut 1
13 502.2.104.1AA Rear wheel rim 1
14 713.1.098.1A Inner spacer 1
15 492.4.003.2A Brake disc 1
16 0803.77.010 Valve 1
17 75162.3075 Bearing 2
18 700.1.005.1A Vibration damper 6
19 821.1.009.1B Pin 6
20 748.4.024.1A Nut 6
21 160.1.049.1A Rear sprocket flange 1
22 710.1.041.1B Bush 1
23 494.1.068.4D Ring gear z=42 1
24 713.1.097.1B Spacer 1
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
93
DUCATI
DRAWING 039
NUMBER PLATE HOLDER
1
15
5
14
16 18
33
22
23
12
19
14
17
26
13
34
4
312
13
21
6
7
1112
20
24
25
910
30
31
8
27
29
28 19
28
25
35
9
10
1232
94
DUCATI
DRAWING 039
CODE NO. DESCRIPTION VALIDITYNOTES NO.
NUMBER PLATE HOLDER
1 772.1.063.1A Screw 4
2 806.1.011.1AA Handle (RED) 1
2 806.1.011.1AH Handle (SILVER) 1
2 806.1.011.1AT Handle (BLACK) 1
3 732.2.006.2A Lock latch 1
4 8A00.67997 Screw 2
5 598.2.010.1A Seat lock 1
6 530.4.003.1B L.H. turn indicator 1
7 0000.36726 Bulb 2
8 532.4.001.1A Cup 2
9 852.5.001.1A Washer 4
10 749.5.001.1A Nut 6
11 716.1.022.1A Spacer 2
12 729906FN1 Nut 6
13 0000.63150 Insert 5
14 764.1.090.1A Rubber pad 3
15 525.4.010.1A Tail light 1
16 390.4.003.1A Two-light bulb 12V 5/21W 1
17 821.1.081.1A Pin 1
18 532.4.002.1A Lens 1
19 60N115548 Washer 2
20 0000.36230 Bulb 1
21 510.1.108.1A Wiring 1
22 60N107335 Screw 2
23 530.4.004.1B R.H. turn indicator 1
24 525.1.004.2A Tail lamp 1
25 529.1.006.1A Reflector 3
Q.TY
CODE NO. DESCRIPTIONNOTES NO.
VALIDITY Q.TY
26 772.5.024.1A Screw 2
27 561.1.019.1A Plate 1
28 771.5.043.2B Screw 5
29 561.1.013.2A Number plate holder 1
30 417.7.007.1A Cap 2
31 741.1.012.1A Hose guide 2
32 460.1.077.1A Mudflap 1
33 460.1.080.1A Mudflap 1
34 0000.62726 Screw 2
35 829.1.136.1A Holder 1
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
CATALOGUE No:
ISSUED:
915.1.202.2B
02 - 05
95
DUCATI
DRAWING 040
33
22
SEAT
24
25
23 4
32
29
14
19
21
20
17
30
28
32
16
15
18
11
12
14
10
13
9
8
7
6
27
5
26
4
3
2
31
1
96
Loading...
