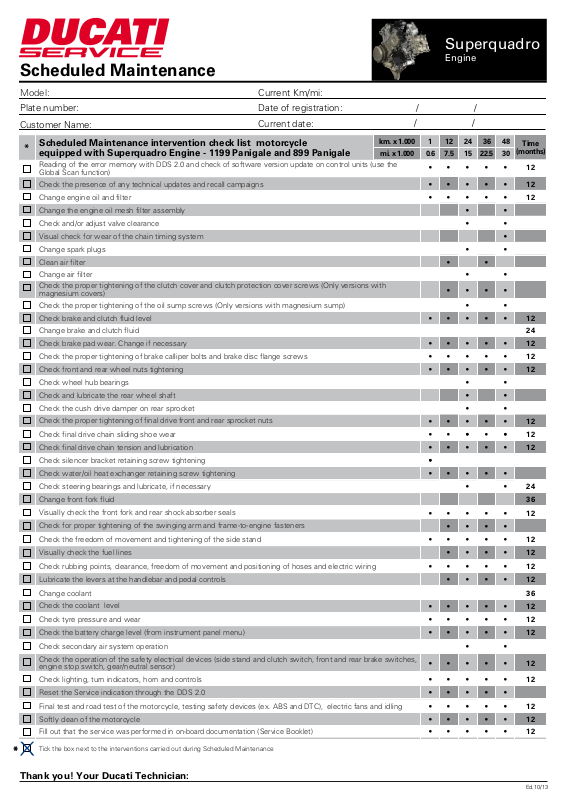

Page 1
Scheduled Maintenance
Superquadro
Engine
Model: Current Km/mi:
Plate number:
Customer Name:
*
/
Date of registration:
Current date:
Scheduled Maintenance intervention check list motorcycle
equipped with Superquadro Engine - 1199 Panigale and 899 Panigale
Reading of the error memory with DDS 2.0 and check of software version update on control units (use the
Global Scan function)
Check the presence of any technical updates and recall campaigns • • • • • 12
Change engine oil and filter • • • •
Change the engine oil mesh filter assembly
Check and/or adjust valve clearance • •
Visual check for wear of the chain timing system •
Change spark plugs
Clean air filter
Change air filter •
Check the proper tightening of the clutch cover and clutch protection cover screws (Only versions with
magnesium covers)
Check the proper tightening of the oil sump screws (Only versions with magnesium sump) • •
Check brake and clutch fluid level •
Change brake and clutch fluid 24
Check brake pad wear. Change if necessary • • • • 12
Check the proper tightening of brake calliper bolts and brake disc flange screws • • • • 12
Check front and rear wheel nuts tightening • • • • • 12
Check wheel hub bearings • •
Check and lubricate the rear wheel shaft • •
Check the cush drive damper on rear sprocket • •
Check the proper tightening of final drive front and rear sprocket nuts
Check final drive chain sliding shoe wear • •
Check final drive chain tension and lubrication • • • • • 12
Check silencer bracket retaining screw tightening •
Check water/oil heat exchanger retaining screw tightening • • • • •
Check steering bearings and lubricate, if necessary
Change front fork fluid 36
Visually check the front fork and rear shock absorber seals
Check for proper tightening of the swinging arm and frame-to-engine fasteners
Check the freedom of movement and tightening of the side stand • 12
Visually check the fuel lines
Check rubbing points, clearance, freedom of movement and positioning of hoses and electric wiring • • • • • 12
Lubricate the levers at the handlebar and pedal controls
Change coolant 36
Check the coolant level
Check tyre pressure and wear • •
Check the battery charge level (from instrument panel menu)
Check secondary air system operation • •
Check the operation of the safety electrical devices (side stand and clutch switch, front and rear brake switches,
engine stop switch, gear/neutral sensor)
Check lighting, turn indicators, horn and controls • • • • • 12
Reset the Service indication through the DDS 2.0 • • • • • 12
Final test and road test of the motorcycle, testing safety devices (ex. ABS and DTC), electric fans and idling
Softly clean of the motorcycle
Fill out that the service was performed in on-board documentation (Service Booklet)
km. x 1.000 1 12 24 36 48
mi. x 1.000 0.6 7.5 15 22.5 30
/
/
/
• • • • • 12
• •
• •
• •
• •
•
• • • • 12
•
•
• • • •
• • •
• • • • • 12
•
• • • • • 12
• • • • • 12
• • • • •
• • • • • 12
• • • •
• • • • • 12
• • • • • 12
• • • • • 12
• • • • • 12
• 12
• • • • • 12
• • • • • 12
• 12• • • •
• • • • •
•
• • • • • 12
• • • • • 12
• •
• •
• • • •
• • • • 12
• • • • 12
•
• • •
•
•
•
Time
(months)
•
12
•
•
• 12
12
24
12
•
•
12
Tick the box next to the interventions carried out during Scheduled Maintenance
*
*
Thank you! Your Ducati Technician:
Ed.10/13
