Projector

8104WB/8105B/8106B

User's Manual (detailed) Operating Guide

Thank you for purchasing this projector.

►Before using this product, please read all manuals for this product. Be sure to read “Safety Guide” rst. After reading them, store them in a safe place for future reference.

WARNING

• The information in this manual is subject to change without notice.

• The illustrations in this manual are for illustrative purposes. They may differ slightly from your projector.

• The manufacturer assumes no responsibility for any errors that may appear in this manual.

• The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent.

NOTE

Trademark acknowledgment

Various symbols are used in this manual. The meanings of these symbols are described below.

About this manual

WARNING

CAUTION

This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling.

This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling.

Please refer to the pages written following this symbol.



• Mac® is a registered trademark of Apple Inc.

• Windows

, DirectDraw® and Direct3D® are registered trademarks of Microsoft Corporation

in the U.S. and/or other countries.

• VESA and DDC are trademarks of the Video Electronics Standard Association.

•

HDMI, the HDMI logo, and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

• Trademark PJLink is a trademark applied for trademark rights in Japan, the United States of America and other countries and areas.

• Blu-ray Disc

and Blu-rayTM are trademarks of Blu-ray Disc Association.

All other trademarks are the properties of their respective owners.

NOTICE This entry notices of fear of causing trouble.

430-8104WB-8105B-8106B-User Guide Detailed-00

Page 2

Contents

Introduction ............... 3

Features ......................3

Checking the contents of package

... 3

Part names ....................4

Setting up ................. 7

Arrangement ...................7

Connecting with your devices

......9

Connecting to a power supply

.....15

Using the security bar and slot ....15

Using the cable cover ...........16

Remote control ............ 17

Installing the batteries ........... 17

About the remote control signal ...17 Changing the frequency of remote control signal

..18

Using as a simple PC mouse & keyboard

..18

Power on/off .............. 19

Operating ................ 22

Adjusting the volume ............22

Temporarily muting the sound ..... 22

Selecting an input signal ......... 22

Searching an input signal ........24

Selecting an aspect ratio .........24

Adjusting the projector's elevator ..25

Adjusting the zoom and focus ..... 25

Using the automatic adjustment feature

... 26

Adjusting the position ...........27

Correcting the keystone distortions

.. 27

Using the magnify feature ........ 28

Temporarily freezing the screen ...29 Temporarily blanking the screen ..29

Using the menu function ........30

EASY MENU. . . . . . . . . . . . . . . 32

Aspect,

D-zoom,

Keystone, Keystone,

perfect fit

, picture moDe,

eco moDe,

nstAllAtion, reset, filter time, lAnguAge,

DvAnceD menu, exit

PICTURE menu ............ 34

Brightness, contrAst, gAmmA, color temp, color, tint, shArpness, Active iris, my memory

IMAGE menu .............. 37

Aspect, over scAn, v position, h position

phAse, h size, Auto ADjust execute

INPUT menu .............. 40

progressive, viDeo nr, color spAce, v

iDeo formAt, hDmi formAt, hDmi rAnge,

omputer in, frAme locK, resolution



SETUP menu .............. 44

D-zoom, D-shift, picture position / pict.posit.h,

Keystone, Keystone, perfect fit

uto eco moDe, eco moDe, instAllAtion

tAnDBy moDe, monitor out

AUDIO menu .............. 50

volume, speAKer, AuDio source, m

ic level, mic volume

SCREEN menu ............. 52

lAnguAge, menu position, BlAnK, s

tArt up,

yScreen

, M

yScreen Lock

essAge, source nAme, templAte, c.c.

OPTION menu ............. 58

Auto seArch, Direct power on, A

uto power off, lAmp time, filter time,

y Button, my source, service

NETWORK menu ........... 70

wireless setup, wireless informAtion, w

ireD setup, wireD informAtion,

rojector nAme, my imAge, Amx D.D.,

resentAtion, service

SECURITY menu ........... 81

security pAssworD chAnge,

yScreen

pAssworD, pin locK,

rAnsition Detector, my text pAssworD,

y text DisplAy, my text writing,

loning locK

Presentation tools ......... 87

PC-LESS Presentation

...........87

Drawing Function

...............97

USB Display (Windows computer)

..103

USB Display (Mac computer)

......

107

Maintenance ............. 111

Replacing the lamp ............ 111

Cleaning and replacing the air lter . 113

Caring for the mirror and lens

......115

Other care ................... 116

Troubleshooting .......... 117

Related messages ............ 117

Regarding the indicator lamps ... 119

Resetting all settings ........... 122

Phenomena that may be easy to

be mistaken for machine defects

..122

Specications ............ 127



SETUP menu .............. 44

D-zoom, D-shift, picture position / pict.posit.h,

Keystone, Keystone, perfect fit

uto eco moDe, eco moDe, instAllAtion

tAnDBy moDe, monitor out

AUDIO menu .............. 50

volume, speAKer, AuDio source, m

ic level, mic volume

SCREEN menu ............. 52

lAnguAge, menu position, BlAnK, s

tArt up,

yScreen

, M

yScreen Lock

essAge, source nAme, templAte, c.c.

OPTION menu ............. 58



SETUP menu .............. 44

D-zoom, D-shift, picture position / pict.posit.h,

Keystone, Keystone, perfect fit

uto eco moDe, eco moDe, instAllAtion

tAnDBy moDe, monitor out

AUDIO menu .............. 50

volume, speAKer, AuDio source, m

ic level, mic volume

SCREEN menu ............. 52

lAnguAge, menu position, BlAnK, s

tArt up,

yScreen

, M

yScreen Lock

essAge, source nAme, templAte, c.c.

OPTION menu ............. 58

uto seArch

, D

irect power on

uto power off, lAmp time, filter time,

y Button, my source, service

NETWORK menu ........... 70

wireless setup, wireless informAtion, w

ireD setup, wireD informAtion,

rojector nAme, my imAge, Amx D.D.,

resentAtion, service

SECURITY menu ........... 81

security pAssworD chAnge,

yScreen

pAssworD, pin locK,

rAnsition Detector, my text pAssworD,

y text DisplAy, my text writing,

loning locK

Presentation tools ......... 87

PC-LESS Presentation

...........87

Drawing Function

...............97

USB Display (Windows computer)

..103

USB Display (Mac computer)

......

107

Maintenance ............. 111

Replacing the lamp ............ 111

Cleaning and replacing the air lter . 113

Caring for the mirror and lens

......115

Other care ................... 116

Troubleshooting .......... 117

Related messages ............ 117

Regarding the indicator lamps ... 119

Resetting all settings ........... 122

Phenomena that may be easy to

be mistaken for machine defects

..122

Specications ............ 127

USB Type B

Page 3

Introduction

• Keep the original packing materials, for future reshipment. Be sure to use the original packing materials when moving the projector. Use special caution for the lens.

NOTE

Introduction

The projector provides you with the broad use by the following features.

Checking the contents of package

ü The unique lens and mirror system realizes ultra short distance

projection,which gives you more various way of use.

ü The motorized lens door offers you very simple use of the projector. ü

The double layer lter system is expected to function longer and offers you less maintenance frequency.

ü The HDMI port can support various image equipment which have digital

interface to get clearer pictures on a screen.

ü This projector can be controlled and monitored via LAN connection.

Furthermore, you can use the designated USB wireless adapter (optional) to establish wireless LAN connection.

Please see the Contents of package section in the User’s Manual (concise) which is a book. Your projector should come with the items shown there. Require of your dealer immediately if any items are missing.

Features

Note: Dukane models described in this document are manufactured by Hitachi and use the same ﬁrmware and software programs. The equivalent Dukane to Hitachi models are 8104WB (CP-AW252WN), 8105B (CP-A222WN), 8106B (CP-A302WN).

Page 4

Introduction

(1) Lamp cover (111)

The lamp unit is inside. (2) Control panel (5) (3) Elevator feet (x 2) (25) (4) Remote sensor (17) (5) Lens (115) (6) Intake vents (7) Filter cover (113)

The air lter and intake vent

are inside. (8) Speaker (12, 22, 50) (9) Exhaust vent

(10) AC IN (AC inlet) (15) (11) Ports (5) (12) Security bar (15) (13) Security slot (15)

(14) Lens door (115) (15) Mirror (115) (16) Spacer (Small) (25) (17) Spacer (Large) (25)

►HOT! : Do not touch around the lamp cover and the exhaust vents during use or just after use, since it is too hot. ►Be careful not to pinch your nger with the lens door, to prevent an injury. ►Never look into the projection lens or mirror while the projection lamp lights, since the projection lamp ray may cause a trouble on your eyes. ►Do not use the security bar and slot to prevent the projector from falling down, since it is not designed for it.

WARNING

►Maintain normal ventilation to prevent the projector from heating up. Do not cover, block or plug up the vents. Do not place anything that can stick or be sucked to the vents, around the intake vents. Clean the air lter periodically.

CAUTION

Part names

Projector

(5)

(14)

(15)

(4)

(10)

HOT!

(1)

(2)

(6)

(3)

(7)

(8)

(11)

(12)

(13)

(9)

(14)

(16)

(17)

Small

Large

Page 5

Introduction

Part names (continued)

Control panel

(1) STANDBY/ON button (

19) (2) INPUT button (22) (3) POWER indicator (19, 119) (4) TEMP indicator (119) (5) LAMP indicator (119) Buttons ◄/►/▲/▼ (6) FOCUS +/- buttons

when no menu is displayed (26), or

Cursor ◄/► buttons

when a menu is displayed (30). FOCUS +/- function is invalid when the USB TYPE A port is selected as the input source.

(7) MENU buttons

when no menu is displayed (30), or

Cursor ▲/▼ buttons

when a menu is displayed (30). The ◄/►/▲/▼ buttons on the projector work only as the cursor buttons while the template is displayed (56).

Ports

(

9 ~ 14)

(1) USB TYPE A port (x2) (2) LAN port (3) HDMI port (4) USB TYPE B port (5) MIC port (6) AUDIO IN1 port (7) AUDIO IN2 port (8) AUDIO IN3(L,R) ports

(9) AUDIO OUT (L,R) ports (10) COMPUTER IN1 port (11) COMPUTER IN2 port (12) MONITOR OUT port (13) CONTROL port (14) VIDEO port (15) S-VIDEO port

(7)

(3) (11)

(6) (12)

(10)

(8)

(14)

(4)

(1)

(13)

(15)

(2)

(5)

(9)

(1)

(7)

(2)

(3)

(5)

(4)

(6)

Page 6

Introduction

Part names (continued)

Remote control

(1) VIDEO button (

23) (2) COMPUTER button (23) (3) SEARCH button (24) (4) STANDBY/ON button (19) (5) ASPECT button (24) (6) AUTO button (26) (7) BLANK button (29) (8) MAGNIFY - ON button (28) (9) MAGNIFY - OFF button (28) (10) MY SOURCE/DOC.CAMERA button (23, 61) (11) VOLUME - button (22) (12) PAGE UP button (18) (13) PAGE DOWN button (18) (14) VOLUME + button (22) (15) MUTE button (22) (16) FREEZE button (29) (17) MY BUTTON - 1 button (60) (18) MY BUTTON - 2 button (60) (19) KEYSTONE button (27) (20) FOCUS - button (26) (21) FOCUS + button (26) (22) D-ZOOM - button (25) (23) D-ZOOM + button (25) (24) POSITION button (27, 31) (25) MENU button (30, 31) (26) ▲/▼/◄/► cursor buttons (30) (27) ENTER button (30, 31) (28) ESC button (30) (29) RESET button (30) (30) Battery cover (17)

Back of

the remote control

(30)

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

POSITION

ESC

RESET

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

ENTER

FOCUS

D-ZOOM

(2) (1) (6) (5) (16) (8) (9) (19) (17) (20) (21) (24) (26) (28)

(10) (4) (3) (7) (12) (14) (11) (13) (15) (18) (23) (22) (25) (27) (29)

Page 7

Setting up

(continued on next page)

Install the projector according to the environment and manner the projector will be used in.

Arrangement

Refer to table T-1 or T-2 and gures F-1 and F-2 at the end of User’s Manual (concise) to determine the screen size and projection distance.

The values shown in the table are calculated for a full size screen.

Screen size (diagonal)

b1 , b2

Projection distance (±8%)

c1 , c2 Screen height (±8%)

• For the case of installation in special conditions such as on the wall or ceiling, the specied mounting accessories and service may be required. Tabletop use must be setup with the designated optional accessories. Before installing the projector, consult your dealer about your installation.

•

The screen position may shift after installation if the projector is mounted on locations such as the wall or ceiling, due to the exibility of the plastic projector body. If readjustment is necessary, consult with your dealer or service personnel.

• The projected image position and/or focus may change during warm-up (approx. 30 minutes after the lamp is turned on) or when the ambient conditions change. Readjust the image position and/or focus as necessary.

• Since the projector features an ultra short throw, be aware that it is required to select a screen carefully to have better performance.

- A soft screen such as a pull-down screen may cause serious distortion of a projected image. A hard screen such as a board screen is recommended for use with this projector.

- A high-gain screen such as a bead screen that has narrow viewing angle is not suitable for this projector. A low-gain screen (around 1.0) such as a matte screen that has wide viewing angle is recommended for use with this projector.

A screen with a weave pattern may cause moiré on the projected image, which is not a failure of the projector. A screen that has less moiré effects is recommended for use with this projector.

►

Place the projector in a stable horizontal position. If the projector falls or is knocked over, it could cause injury and/or damage to the projector. Using a damaged projector could then result in re and/or electric shock.

• Do not place the projector on an unstable, slanted or vibrational surface such

as a wobbly or inclined stand.

• Do not place the projector on its side or front position. To place the projector

on its rear position for the table top use, it is required to use the designated optional parts. Consult with your dealer.

• Consult with your dealer before a special installation such as on the wall or

ceiling.

WARNING

Page 8

Setting up

Arrangement (continued)

►Place the projector in a cool place, and ensure that there is sufcient ventilation. The high temperature of the projector could cause re, burns and/or malfunction of the projector.

• Do not stop-up, block or otherwise cover the projector's vents.

• Keep a space of 30 cm or more between the sides of the projector and other

objects such as walls.

•

Do not place or attach anything that would block the lens or vent holes.

• Do not place the projector on metallic thing or anything weak in heat.

• Do not place the projector on carpet, cushions or bedding.

• Do not place the projector in direct sunlight or near hot objects such as heaters.

Do not place the projector where the air from an air conditioner or similar unit will blow on it directly.

•

Do not place anything near the projector lens or vents, or on top of the projector.

•

Do not place anything that may be sucked into or stick to the vents on the

bottom of the projector. This projector has some intake vents also on the bottom. ►Do not place the projector anyplace where it may get wet. Getting the projector wet or inserting liquid into the projector could cause re, electric shock and/or malfunction of the projector.

• Do not place the projector in a bathroom or the outdoors.

• Do not place anything containing liquid near the projector.

•

Do not place the projector where any oils, such as cooking or machine oil, are used. ►

Use only the mounting accessories the manufacturer specied, and leave installing

and removing the projector with the mounting accessories to the service personnel.

• Read and keep the user’s manual of the mounting accessories used.

WARNING

►Avoid placing the projector in smoky, humid or dusty place. Placing the projector in such places could cause re, electric shock and/or malfunction of the projector.

• Do not place the projector near humidiers, smoking spaces or a kitchen. Also do not use an ultrasonic humidier near the projector. Otherwise chlorine and minerals contained in tap water are atomized and could be deposited in the projector causing image degradation or other problems. ►

Position the projector to prevent light from directly hitting the projector's remote sensor. ►Do not place the product in a place where radio interference may be caused. ►Do not place this product in a magnetic eld. ►

If the projector is used at an altitude of about 1600 m or higher, set ALTITUDE of the SERVICE item in the OPTION menu to HIGH

(

62)

. Otherwise, set it to NORMAL. If the projector is used with a wrong setting, it may cause damage to the projector itself or the parts inside.

CAUTION

Page 9

Setting up

Before connecting the projector to a device, consult the manual of the device to conrm that the device is suitable for connecting with this projector and prepare the required accessories, such as a cable in accord with the signal of the device. Consult your dealer when the required accessory did not come with the product or the accessory is damaged. After making sure that the device and projector are turned off, connect them following the instructions below.

►

Use only the appropriate accessories. Otherwise it could cause

a re or damage to the device and the projector.

- Use only the accessories specified or recommended by the projector’s manufacturer. Consult your dealer when the required accessory did not come with the product or the accessory is damaged. It may be regulated under some standard.

- For a cable with a core at only one end, connect the end with the core to the projector. That may be required by EMI regulations.

- Neither disassemble nor modify the projector and the accessories.

- Do not use the damaged accessory. Be careful not to damage the accessories.

Route a cable so that it is neither stepped on nor pinched out.

WARNING

►Do not turn on or off the projector while connected to a device in operation, unless that is directed in the manual of the device. Otherwise it may cause malfunction in the device or projector. ►Be careful not to mistakenly connect a connector to a wrong port. Otherwise it may cause malfunction in the device or projector.

- When connecting a connector to a port, make sure that the shape of the

connector ts the port.

- Tighten the screws to connect a connector equipped with screws to a port.

- Use the cables with straight plugs, not L-shaped ones, as the input ports of the

projector are recessed.

CAUTION

Connecting with your devices

(continued on next page)

Arrangement (continued)

• The projector may make a rattling sound when tilted, moved or shaken, since a ap to control the air ow inside of the projector has moved. Be aware that this is not a failure or malfunction.

• The incoming light to the screen from the projector has a large angle. While the white image is on the screen, you may see it with colors, but this is because of the type of the screen used or the angles viewed, and it is not a malfunction.

• When the ambient temperature is around 35 to 40°C, the brightness of lamp is reduced automatically.

NOTE

Page 10

Connecting with your devices (continued)

• When AUTO is selected for the COMPUTER IN1 or COMPUTER IN2 port in COMPUTER IN of the INPUT menu, that port will accept component video signals (

42).

•

When the USB TYPE B port and the computer's type A USB port are connected, you can use the USB TYPE B port as a picture input port from the computer, or use the remote control as a simple mouse and keyboard of the computer. (

18).

Setting up

(continued on next page)

• Plug-and-Play is a system composed of a computer, its operating system and peripheral equipment (i.e. display devices). This projector is VESA DDC 2B compatible. Plug-and-Play can be used by connecting this projector to a computer that is VESA DDC (display data channel) compatible.

- Take advantage of this feature by connecting a computer cable to the COMPUTER IN1 port (DDC 2B compatible). Plug-and-Play may not work properly if any other type of connection is attempted.

Please use the standard drivers in your computer as this projector is a Plug-andPlay monitor.

About Plug-and-Play capability

COMPONENT

Cb/Pb

Cr/Pr

HDMI

VIDEO

S-VIDEO

AUDIO

OUT

AUDIO

OUT

USB

(A)

DISPLAY

RS-232C

HDMI

VCR/DVD/Blu-ray Disc

player

Computer

Page 11

Connecting with your devices (continued)

(continued on next page)

• Before connecting the projector to a computer, consult the computer’s manual and check the compatibility of the signal level, the synchronization methods and the display resolution output to the projector.

- Some signal may need an adapter to input this projector.

- Some computers have multiple screen display modes that may include some

signals which are not supported by this projector.

- Although the projector can display signals with resolution up to UXGA

(1600X1200), the signal will be converted to the projector’s panel resolution before being displayed. The best display performance will be achieved if the resolutions of the input signal and the projector panel are identical.

• If you connect this projector and a notebook computer, you need output the

display to an external monitor, or output simultaneously to the internal display and an external monitor. Consult the computer's manual for the setting.

• Depending on the input signal, the automatic adjustment function of this

projector may take some time and not function correctly.

- Note that a composite sync signal or sync-on-green signal may confuse the

automatic adjustment function of this projector (

42).

- If the automatic adjustment function does not work correctly, you may not see

the dialog to set the display resolution. In such a case, use an external display device. You may be able to see the dialog and set an appropriate display resolution.

NOTE

Setting up

Page 12

(continued on next page)

Connecting with your devices (continued)

Setting up

• If you insert a USB storage device, such as a USB memory, into the USB TYPE A port and select the port as the input source, you can view images stored in the

device (

87).

• You can connect a dynamic microphone to the MIC port with a 3.5 mm mini-plug.

In that case, the built-in speaker outputs the sound from the microphone, even while the sound from the projector is output. You can input line level signal to the MIC port from equipment such as wireless microphone. Select HIGH in the MIC LEVEL item of the AUDIO menu when you input line level audio signal to the MIC port. In the normal mode, the volume of the microphone can be adjusted separately from the volume of the projector using the menu. (51)

In the standby mode, the volume of the microphone is adjustable with the

VOLUME +/- buttons on the remote control, in synchronization with the volume of the projector. (22)

Even when the sound of projector is set to mute mode by the AUDIO SOURCE

function (50), the volume of the microphone is adjustable.

In both modes (standby or normal), the MUTE button on the remote control

works on the sounds of the microphone and the projector. (22)

• If a loud feedback noise is produced from the speaker, move the

microphone away from the speaker.

• This projector doesn't support plug-in power for the microphone.

NOTE

Monitor

RGB IN

Microphone system

Speakers

(with an amplier)

Page 13

Setting up

USB storage

device

Connecting with your devices (continued)

To use network functions of the projector, connect the LAN port with the computer's LAN port, or with an access point that is connected to the computer with wireless LAN, using a LAN cable. To use NETWORK BRIDGE function, also connect the CONTROL port and an RS-232C port of the external device to communicate as a network terminal. See the User's Manual - Network Guide for details of the network functions.

►Before connecting the projector to a network system be sure to obtain the consent of the administrator of the network. ►

Do not connect the LAN port to any network that might have the excessive voltage.

►The designated USB wireless adapter that is sold as an option is required to use the wireless network function of this projector. ►Before removing the USB storage device from the port of the projector, be sure to use the REMOVE USB function on the thumbnail screen to secure your data (

90). ►Do not use any extension cable or device when connecting the adapter to the projector. Before you insert or pull out the USB wireless adapter from the projector, turn off the power of the projector and pull out the power cord’s plug from the outlet. Do not touch the USB wireless adapter while the projector is receiving AC power. ►To connect both the LAN cable and USB device to the projector, use a LAN cable that is  at on the side where the plug’s wire is visible. Otherwise, both of them cannot be connected correctly, or the wire may break (malfunction).

CAUTION

RS-232C

LAN

USB TYPE A

Access point

Computer

(continued on next page)

Page 14

• If an oversized USB storage device blocks the LAN port, use a USB

extension cable to connect the USB storage device.

• The HDMI port of this model is compatible with HDCP (High-bandwidth Digital Content Protection) and therefore capable of displaying a video signal from HDCP compatible DVD players or the like.

- The HDMI supports the following signals. Video signal : 480i@60, 480p@60, 576i@50, 576p@50, 720p@50/60, 1080i@50/60, 1080p@50/60 Audio signal : Format Linear PCM Sampling frequency 48kHz / 44.1kHz / 32kHz

- This projector can be connected with another equipment that has HDMI

connector, but with some equipment the projector may not work properly, something like no video.

- Be sure to use an HDMITM cable that has the HDMITM logo.

- Use a Category 2-certied HDMITM cable to input 1080p@50/60 signal to the projector.

- When the projector is connected with a device having DVI connector, use a DVI to HDMITM cable to connect with the HDMI input.

• Up to one USB wireless adapter (optional) can be connected to a projector.

NOTE

Setting up

Connecting with your devices (continued)

Page 15

Setting up

Connecting to a power supply

Put the connector of the power cord into the AC IN (AC inlet) of the projector.

Firmly plug the power cord’s plug into the outlet. In a couple of seconds after the power supply connection, the POWER indicator will light up in steady orange.

►Please use extra caution when connecting the power cord, as

incorrect or faulty connections may result in re and/or electrical shock.

• Do not touch the power cord with a wet hand.

• Only use the power cord that came with the projector. If it is damaged, consult your dealer to get a new one. Never modify the power cord.

• Only plug the power cord into an outlet whose voltage is matched to the power cord. The power outlet should be close to the projector and easily accessible. Remove the power cord for complete separation.

• Do not distribute the power supply to multiple devices. Doing so may overload the outlet and connectors, loosen the connection, or result in re, electric shock or other accidents.

WARNING

Using the security bar and slot

A commercial anti-theft chain or wire up to 10 mm in diameter can be attached to the security bar on the projector. Also this product has the security slot for the Kensington lock. For details, see the manual of the security tool.

►Do not use the security bar and slot to prevent the projector

from falling down, since it is not designed for it.

WARNING

►Do not place anti-theft chain or wire near the exhaust vents.

It may become too hot.

CAUTION

• The security bar and slot is not comprehensive theft prevention

measures. It is intended to be used as supplemental theft prevention measure.

NOTE

Please remember that when the DIRECT POWER ON function activated (

58), the connection of the

power supply make the projector turn on.

AC IN

Power cord

Security bar

Security slot

Anti-theft chain or wire

Page 16

Using the cable cover

Utilize the cable cover as the guard and blind for the connecting parts.

Connect the signal cables and the power cord to the projector rst.

Combine parts as shown in gure, and assemble the cable cover.

Insert the three knobs on the cable cover into the three holes on the projector as shown in the gure. Pass the cables through the holes on the bottom of

the cable cover.

knobs

Setting up

► Be careful not to pinch the cables in the cable cover, to prevent damage to the cables. ► Use the cable cover that is supplied with the projector. Do not attempt any modications to the cable cover.

CAUTION

Page 17

Remote control

About the remote control signal

The remote control works with the projector’s remote sensor. This projector has a remote sensor on the front. The sensor senses the signal within the following range when the sensor is active:

60 degrees (30 degrees to the left and right of the sensor) within 3 meters about.

Installing the batteries

Please insert the batteries into the remote control before using it. If the remote control starts to malfunction, try to replace the batteries. If you will not use the remote control for long period, remove the batteries from the remote control and store them in a safe place.

Holding the hook part of the battery cover, remove it.

Align and insert the two AA batteries

(HITACHI MAXELL or HITACHI MAXELL ENERGY, Part No.LR6 or R6P) according to their plus and minus terminals

as indicated in the remote control.

Replace the battery cover in the direction of the arrow and snap it back into place.

►Always handle the batteries with care and use them only as

directed. Improper use may result in battery explosion, cracking or leakage, which could result in  re, injury and/or pollution of the surrounding environment.

• Be sure to use only the batteries speci ed. Do not use batteries of different types at the same time. Do not mix a new battery with used one.

•

Make sure the plus and minus terminals are correctly aligned when loading a battery.

• Keep a battery away from children and pets.

• Do not recharge, short circuit, solder or disassemble a battery.

•

Do not place a battery in a  re or water. Keep batteries in a dark, cool and dry place.

• If you observe battery leakage, wipe out the leakage and then replace a battery. If the leakage adheres to your body or clothes, rinse well with water immediately.

• Obey the local laws on disposing the battery.

WARNING

•

The remote control signal re ected in the screen or the like may be available.

If it is dif cult to send the signal to the sensor directly, attempt to make the signal re ect.

• The remote control uses infrared light to send signals to the projector (Class 1 LED), so be sure to use the remote control in an area free from obstacles that could block the remote control’s signal to the projector.

•

The remote control may not work correctly if strong light (such as direct sun light) or light from an extremely close range (such as from an inverter  uorescent lamp) shines on the remote sensor of the projector. Adjust the position of projector avoiding those lights.

NOTE

21 3

Remote

sensor

30º

Approx.

3 m

Page 18

Remote control

Changing the frequency of remote control signal

The accessory remote control has the two choices on signal frequency Mode 1:NORMAL and Mode 2:HIGH. If the remote control does not function properly, attempt to change the signal frequency. In order to set the Mode, please keep pressing the combination of two buttons listed below simultaneously for about 3 seconds.

Using as a simple PC mouse & keyboard

(1) Set to Mode 1:NORMAL... VOLUME - and RESET buttons (2) Set to Mode 2:HIGH... MAGNIFY OFF and ESC buttons

Please remember that the REMOTE FREQ. in the SERVICE item of the OPTION menu

(64)

of the projector to be controlled should be

set to the same mode as the remote control.

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

POSITION

ESC

RESET

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

ENTER

FOCUS

D-ZOOM

(1)(2)

Remote control

Changing the frequency of remote control signal

Using as a simple PC mouse & keyboard

(1) PAGE UP key: Press PAGE UP button. (2) PAGE DOWN key: Press PAGE DOWN button. (3) Mouse left button: Press ENTER button. (4) Move pointer: Use the cursor buttons ▲, ▼, ◄ and ►. (5) ESC key: Press ESC button. (6) Mouse right button: Press RESET button.

►Improper use of the simple mouse & keyboard

function could damage your equipment. While using this function, please connect this product only to a computer. Be sure to check your computer’s manuals before connecting this product to the computer.

NOTICE

When the simple mouse & keyboard function of this product does not work

correctly, please check the following.

• When a USB cable connects this projector with a computer having a built-in pointing device (e.g. track ball) like a laptop PC, open BIOS setup menu, then select the external mouse and disable the built-in pointing device, because the built-in pointing device may have priority to this function.

•

Windows XP SP3 or higher is required for this function. And also this function may not work

depending on the computer’s congurations and mouse drivers. This function can work with the

computer which can operate general USB mouse or keyboard.

• You cannot do things like press two buttons at once (for instance, pressing two buttons

at the same time to move the mouse pointer diagonally).

•

This function is activated only when the projector is working properly. This function is not available in any of the following cases:

- While the lamp is warming up. (The POWER indicator blinks in green.)

- When either USB TYPE A or USB TYPE B port is selected.

- While displaying BLANK

(29)

, TEMPLATE

(56)

or MY IMAGE

(78)

screen.

- When any menu is displayed on the screen.

While using the cursor buttons to operate the sound or screen functions such as adjusting the

sound volume, correcting the keystone, correcting the picture position and magnifying the screen.

NOTE

(1) Set to Mode 1:NORMAL... VOLUME - and RESET buttons (2) Set to Mode 2:HIGH... MAGNIFY OFF and ESC buttons

Please remember that the REMOTE FREQ. in the SERVICE item of the OPTION menu

(64)

of the projector to be controlled should be

set to the same mode as the remote control.

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

POSITION

ESC

RESET

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

ENTER

FOCUS

D-ZOOM

(1)(2)

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

POSITION

ESC

RESET

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

ENTER

FOCUS

D-ZOOM

(1)

(3)

(5)

(2)

(4)

(6)

USB TYPE B

port

The accessory remote control works as a simple mouse and keyboard of the computer, when the projector’s USB TYPE B port and the computer’s type A USB port are connected and MOUSE is selected for the USB TYPE B item in the OPTION menu.

Page 19

Power on/off

Make sure that the power cord is rmly and correctly connected to the projector and the outlet.

Turning on the power

Make sure that the POWER indicator is steady orange (

119).

Conrm that there is nothing that the lens door hits while opening. Press STANDBY/ ON button on the projector or the remote control. The lens door opens, the projection lamp lights up, and the POWER indicator begins to blink green. When the power is completely on, the indicator will stop blinking and light in steady green

(

119).

Power on/off

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

POSITION

ESC

RESET

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

ENTER

FOCUS

D-ZOOM

STANDBY/ON button POWER indicator

(continued on next page)

To display the picture, select an input signal according to the section Selecting an input signal (

22).

The INITIAL SETTING Menu will be displayed by factory default upon startup. Once the INITIAL SETTING Menu is set, it will not appear until FACTORY RESET

(

69) is executed. If you wish to change the settings, refer to the LANGUAGE

(52) and ALTITUDE (62) menu.

(1) LANGUAGE: Use the ▲/▼/◄/►

buttons to select the desired language and press the ENTER button of the remote control or the INPUT button of the projector to execute.

(2) ALTITUDE: Use the ▲/▼ buttons to

select NORMAL for altitude below 1600 m (5250 feet), otherwise select HIGH and press the ENTER button of the remote control or the INPUT button of the projector to execute.

Page 20

WARNING ►Never look into the projection lens or mirror while

the projection lamp lights, since the projection lamp ray may cause a trouble on your eyes. ►

Be careful not to pinch your nger with the lens door, to prevent an injury. ►Do not place the projector vertically with the lens door open as shown in the gure on the right. It could cause malfunction or injury.

Tabletop use must be setup with the designated optional accessories. ►Do not stand under the projector mounted on the wall or ceiling,

when its lens door is opening or closing. Moreover, do not look at the mirror when the lens door is opening or closing. ►Never touch a lens door or mirror. If the mirror is broken, the

projected image will be distorted. Close the lens door, and contact your dealer.

Power on/off

Page 21

Power on/off

►Be careful not to pinch your nger with the lens door, to

prevent an injury.

►Do not touch around the lamp cover and the exhaust vents during use or just after use, since it is too hot. ►Remove the power cord for complete separation. The power outlet should be close to the projector and easily accessible.

WARNING

Press the STANDBY/ON button on the projector or the remote control. The message “Power off?” will appear on the screen for about 5 seconds.

Turning off the power

Conrm that there is nothing that the lens door hits while closing. Press the STANDBY/ON button again while the message appears. The projector lamp will go off, and the POWER indicator will begin blinking in orange. The lens door will close right after the lamp goes off. However, to maintain better picture quality, the lens door will close after the lamp has been cooled down when the projector is installed upside down such as in ceiling mount installation. Then POWER indicator will stop blinking and light in steady orange when the lamp cooling is complete (

119).

Do not turn the projector on for about 10 minutes or more after turning it off. Also, do not turn the projector off shortly after turning it on. Such operations might cause the lamp to malfunction or shorten the lifetime of some parts including the lamp.

• Turn the power on/off in right order. Please power on the projector

prior to the connected devices.

•

This projector has the function that can make the projector automatically turn on/

off. Please refer to the DIRECT POWER ON

(58)

and AUTO POWER OFF

(59)

items of the OPTION menu.

NOTE

Page 22

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

FOCUS

D-ZOOM

Operating

Adjusting the volume

Use the VOLUME +/VOLUME - buttons to adjust the volume. A dialog will appear on the screen to aid you in adjusting the volume. If you do not do anything, the dialog will automatically disappear after a few seconds.

● When

is selected for current picture input port, the volume adjustment is

disabled. Please see AUDIO SOURCE item of AUDIO menu (

50).

● Even if the projector is in the standby mode, the volume is adjustable when both of the following conditions are true:

- An option other than

is selected for STANDBY in the AUDIO SOURCE

item of the AUDIO menu

(

50).

NORMAL is selected in the STANDBY MODE item of the SETUP menu

(48).

● In the standby mode, the volume of the microphone is adjustable with the VOLUME +/- buttons on the remote control, in synchronization with the volume of the projector

(12)

Press MUTE button on the remote control. A dialog will appear on the screen indicating that you have muted the sound. To restore the sound, press the MUTE, VOLUME + or VOLUME - button. Even if you do not do anything, the dialog will automatically disappear after a few seconds.

Temporarily muting the sound

● When is selected for current picture input port, the sound is always muted. Please see AUDIO SOURCE item of AUDIO menu (

50).

● C.C. (Closed Caption) is automatically activated when sound is muted and an input signal containing C.C. is received. This function is available only when the signal is NTSC for VIDEO or S-VIDEO, or 480i@60 for COMPUTER IN1 or COMPUTER IN2, and when AUTO is selected for DISPLAY in the C.C. menu under the SCREEN menu (57).

Press INPUT button on the projector. Each time you press the button, the projector switches its input port from the current port as below.

Selecting an input signal

(continued on next page)

●

While ON is selected for AUTO SEARCH item in OPTION menu (58), the projector will keep checking the ports in above order repeatedly till an input signal is detected.

●

It may take several seconds to project the images from the USB TYPE B port.

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

VOLUME +/- button

MUTE button

COMPUTER IN1  COMPUTER IN2

VIDEO LAN

S-VIDEO USB TYPE A

HDMI



USB TYPE B

INPUT button

Page 23

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

FOCUS

D-ZOOM

Operating

Press VIDEO button on the remote control. Each time you press the button, the projector switches its input port from the current port as below.

Selecting an input signal (continued)

●

While ON is selected for AUTO SEARCH item in OPTION menu, the projector will keep checking every port sequentially till an input signal is detected (

58). If VIDEO button is pressed when COMPUTER IN1, COMPUTER IN2, LAN, USB TYPE A or USB TYPE B port is selected, the projector will check HDMI port rst.

Press COMPUTER button on the remote control. Each time you press the button, the projector switches its input port from the current port as below.

● While ON is selected for AUTO SEARCH item in OPTION menu, the projector will keep checking every port sequentially till an input signal is detected (

58). If COMPUTER button is pressed when VIDEO, S-VIDEO or HDMI port is selected, the projector will check COMPUTER IN1 port rst.

● It may take several seconds to project the images from the USB TYPE B port.

Press the MY SOURCE / DOC. CAMERA button on the remote control. The input signal will be changed into the signal you set as MY SOURCE (

61).

● This function also can use for document camera. Select the

input port that connected the document camera.

COMPUTER IN1  COMPUTER IN2  LAN USB TYPE B  USB TYPE A

HDMI  S-VIDEO

VIDEO

VIDEO button

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

FOCUS

D-ZOOM

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

FOCUS

D-ZOOM

MY SOURCE / DOC. CAMERA button

COMPUTER button

Page 24

Press ASPECT button on the remote control. Each time you press the button, the projector switches the mode for aspect ratio in turn.

Selecting an aspect ratio

● ASPECT button does not work when no proper signal is inputted.

● NORMAL mode keeps the original aspect ratio setting.

● The on-screen menu might be displayed outside of the image display area

depending on the adjustment value of the ASPECT, D-ZOOM, KEYSTONE and KEYSTONE. Changing the values of ASPECT, D-ZOOM,

KEYSTONE and KEYSTONE may x the symptom.

Press SEARCH button on the remote control. The projector will start to check its input ports as below in order to nd any input signals. When an input is found, the projector will stop searching and display the image. If no signal is found, the projector will return to the state selected before the operation.

Searching an input signal

● While ON is selected for AUTO SEARCH item in OPTION menu (58), the projector will keep checking the ports in above order repeatedly till an input signal is detected.

●

It may take several seconds to project the images from the USB TYPE B port.

 For a computer signal

NORMAL  4:3  16:9  16:10  NATIVE

 For a video signal, s-video signal or component video signal

4:3  16:9  16:10  14:9  NATIVE

 For an input signal from the LAN, USB TYPE A or USB TYPE B port, or

if there is no signal

CP-A222WN, CP-A302WN: 4:3 (xed) CP-AW252WN: 16:10 (xed)

Operating

 For an HDMITM signal

NORMAL  4:3  16:9  16:10  14:9  NATIVE

ASPECT button

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

FOCUS

D-ZOOM

COMPUTER IN1  COMPUTER IN2

VIDEO LAN

S-VIDEO USB TYPE A

HDMI



USB TYPE B

SEARCH button

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

FOCUS

D-ZOOM

8105B, 8106B: 4:3 (fixed) 8104WB: 16:10 (fixed)

Page 25

Operating

Adjusting the zoom and focus

Adjusting the projector's elevator

The projector has Front foot for inclinations and Rear foot for horizontals. Spacers on the each elevator foot are installed at the time of shipment, and projector is in a condition to be able to just project. If necessary, detach the spacer, and the elevator feet can be manually twisted to make more precise adjustments.

Front foot Rear foot

2.3~4.3°

-1~1°

Front foot

Rear foot

Spacer

Spacer (Large)

Spacer (Small)

Press the D-ZOOM + or D-ZOOM - button on the remote control to display D-ZOOM dialog on screen. Use the D-ZOOM + and D-ZOOM - buttons to adjust the picture size. To nish the operation, do not touch these buttons for a few seconds until the dialog is disappeared.

● If you want to expand a part of the image, use the magnify function (

28).

►Keep the spacers away from children and pets. Be careful not to let them swallow the spacers. If swallowed consult a physician immediately for emergency treatment.

WARNING

• The adjustment angle can be adjusted up to plus or minus 1° each of

FRONT and REAR foot.

•

After the foot is adjusted, it is possible to return it to the state of the shipment with a spacer. Install Large on the Front foot and Small on the Rear foot of the spacer. If change the setting place of the projector, it will recommend keep and reuse the spacers.

NOTE

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

POSITION

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

FOCUS

D-ZOOM

D-ZOOM + button

D-ZOOM - button

Page 26

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

POSITION

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

FOCUS

D-ZOOM

Operating

Press AUTO button on the remote control. Pressing this button performs the following.

Using the automatic adjustment feature

 For a computer signal

The vertical position, the horizontal position and the horizontal phase will be automatically adjusted. Make sure that the application window is set to its maximum size prior to attempting to use this feature. A dark picture may still be incorrectly adjusted. Use a bright picture when adjusting.

 For a video signal and s-video signal

The video format best suited for the respective input signal will be selected automatically. This function is available only when the AUTO is selected for the VIDEO FORMAT item in the INPUT menu (

41).

The vertical position and

horizontal position will be automatically set to the default.

● The automatic adjustment operation requires approx. 10 seconds. Also please note that it may not function correctly with some input.

● When this function is performed for a video signal, a certain extra such as a line may appear outside a picture.

● When this function is performed for a computer signal, a black frame may be displayed on the edge of the screen, depending on the PC model.

●

The items adjusted by this function may vary when the FINE or DISABLE is selected for the AUTO ADJUST item of the SERVICE item in the OPTION menu (

62).

 For a component video signal

The vertical position and horizontal position will be automatically set to the default. The horizontal phase will be automatically adjusted.

AUTO button

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

FOCUS

D-ZOOM

Press the FOCUS + or FOCUS - button on the remote control, or FOCUS + or FOCUS - button on the projector

(5)

while no menu is on screen, to display the FOCUS box on screen. Use the FOCUS + and FOCUS - buttons to adjust the screen focus. After the focus adjustment, wait for a while until the FOCUS box is disappeared, if you want to display any other menu on screen by pushing the MENU button on the projector.

● The ◄/►/▲/▼ buttons on the projector work only as the cursor buttons while the template is displayed (56).

● FOCUS +/- button on the projector is invalid when the USB

TYPE A port is selected as the input source.

FOCUS + button

FOCUS - button

Page 27

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

POSITION

ESC

RESET

COMPUTER

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

ENTER

FOCUS

D-ZOOM

Press the POSITION button on the remote control while no menu is on screen, to display the D-SHIFT

(44)

dialog on screen.

Adjusting the position

Use the ▲, ▼, ◄ and ► buttons to adjust the picture position. Press the POSITION button again to nish this operation.

● This is a function to shift the position of the shrunken picture by the D-ZOOM

(44)

function.

● When an OSD (On Screen Display) menu is displayed, this operation moves the position of the OSD menu, but not the position of the picture

(31)

● The D-SHIFT adjustment values are not valid when the D-ZOOM is set to 256 (full screen). (8105B, 8106B)

● The D-SHIFT adjustment values are not valid when the D-ZOOM is set to 320 (full screen). (8104WB)

Operating

Press KEYSTONE button on the remote control. A dialog will appear on the screen to aid you in correcting the distortion.

Correcting the keystone distortions

Use the ▲/▼ cursor buttons to select MANUAL or PERFECT FIT operation, and press the ► button to perform the following. (1) MANUAL displays a dialog for keystone correction.

Use the ▲/▼ buttons to select KEYSTONE /

KEYSTONE, then use the ◄/► buttons for

adjustment.

(2) PERFECT FIT displays a dialog for adjusting the shape

of the projected image in each of the corners and sides.

To close the dialog and complete this operation, press KEYSTONE button again. Even if you do not do anything, the dialog will automatically disappear after a few seconds.

● The adjustable range of this function will vary among inputs. For some input, this function may not work well.

● This function will be unavailable when TRANSITION DETECTOR is on (

84).

POSITION button

KEYSTONE button

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

POSITION

ESC

RESET

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

FOCUS

D-ZOOM

Page 28

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

Operating

Using the magnify feature

Press the MAGNIFY ON button on the remote control. The picture will be magnied, and the MAGNIFY dialog will appear on the screen. When the MAGNIFY ON button is pressed for the rst time after the projector is turned on, the picture will be zoomed by 1.5 times. On the dialog, triangle marks to show each direction will be displayed.

The display magnication of the projector switches in order with every press of the MAGNIFY ON button.

 For computer signals, HDMI

(RGB) signals, input signals from the

LAN, USB TYPE A or USB TYPE B port

1.5 times  2 times  3 times  4 times  1 time



For video signals, s-video signals, component video signals or HDMITM (Component) signals

1.5 times  2 times  1 time

While the triangles are displayed on the dialog, use the ▲/▼/◄/► cursor buttons to shift the magnifying area.

Press the MAGNIFY OFF button on the remote control to exit magnication.

● The MAGNIFY dialog will automatically disappear in several seconds with no

operation. The dialog will appear again if the MAGNIFY ON button is pressed when the dialog has automatically disappeared.

● The magnication is automatically disabled when the displaying signal or its

display condition is changed.

● While the magnication is active, the keystone distortion condition may vary.

It will be restored when the magnication is disabled.

● Some horizontal stripes might be visible on the image while magnication is

active.

● This function is not available in the following cases:

- A sync signal in the range not supported is input.

- There is no input signal.

MAGNIFY ON/OFF button

Page 29

Operating

Press BLANK button on the remote control. The BLANK screen will be displayed instead of the screen of input signal. Please refer to BLANK item in SCREEN menu

(

52). To exit from the BLANK screen and return to the input signal screen, press BLANK button again.

Temporarily blanking the screen

● The projector automatically exits from the

BLANK

mode when

some control buttons are pressed.

•

The sound is not connected with the BLANK screen function. If necessary, set the volume or mute rst. To display the BLANK screen and mute the sound at one time, use AV MUTE function

(61).

NOTE

Press the FREEZE button on the remote control. The “FREEZE” indication will appear on the screen (however, the indication will not appear when the OFF is selected for the MESSAGE item in the SCREEN menu (

54)), and the projector will go into the FREEZE mode, which the picture is frozen. To exit the FREEZE mode and restore the screen to normal, press the FREEZE button again.

Temporarily freezing the screen

● The projector automatically exits from the FREEZE mode when some control buttons are pressed.

● If the projector continues projecting a still image for a long time, the LCD

panel might possibly be burned in. Do not leave the projector in the FREEZE mode for too long.

● Images might appear degraded when this function is operated, but it is not a

malfunction.

►If you wish to have a blank screen while the projector’s lamp is on, use the BLANK function above. Taking any other action may cause the damage on the projector.

CAUTION

FREEZE button

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

FOCUS

D-ZOOM

BLANK button

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

FOCUS

D-ZOOM

Page 30

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

POSITION

ESC

RESET

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

ENTER

FOCUS

D-ZOOM

Operating

To start the MENU, press the MENU button. The MENU you last used (EASY or ADVANCED) will appear. EASY MENU has priority to appear just after powered on.

Using the menu function

(1) Use the ▲/▼ cursor buttons to select an item to

operate. If you want to change it to the ADVANCED MENU, select the ADVANCED MENU.

(2) Use the ◄/► cursor buttons to operate the item.

This projector has the following menus: PICTURE, IMAGE, INPUT, SETUP, AUDIO, SCREEN, OPTION, NETWORK, SECURITY and EASY MENU. EASY MENU consists of functions often used, and the other menus are classied into each purpose and brought together as the ADVANCED MENU. Each of these menus is operated using the same methods. While the projector is displaying any menu, the MENU button on the projector works as the cursor buttons. The basic operations of these menus are as follows.

In the EASY MENU

(continued on next page)

(1) Use the ▲/▼ cursor buttons to select a menu.

If you want to change it to the EASY MENU, select the EASY MENU. The items in the menu appear on the right side.

(2) Press the ► cursor button or ENTER button to

move the cursor to the right side. Then use the ▲/▼ cursor buttons to select an item to operate and press the ► cursor button or ENTER button to progress. The operation menu or dialog of the selected item will appear.

(3) Use the buttons as instructed in the OSD to operate the item.

In the ADVANCED MENU

MENU button

(Cursor buttons)

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

POSITION

ESC

RESET

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

ENTER

FOCUS

D-ZOOM

RESET button

ENTER button MENU button

Cursor buttons

ESC button

Page 31

Operating

Using the menu function (continued)

To close the MENU, press the MENU button again or select EXIT and press the ◄ cursor button or ENTER button. Even if you do not do anything, the dialog will automatically disappear after about 30 seconds.

●

If you want to move the menu position, use the cursor buttons after pressing the POSITION button.

● Some functions cannot be performed when a certain input port is selected, or when a certain input signal is displayed.

● When you want to reset the operation, press RESET button on the remote control during the operation. Note that some items (ex. LANGUAGE, VOLUME) cannot be reset.

● In the ADVANCED MENU, when you want to return to the previous display, press the ◄ cursor button or ESC button on the remote control.

Indication in OSD (On Screen Display)

The meanings of the general words on the OSD are as follows.

Indication Meaning

EXIT

Selecting this word nishes the OSD menu. It's the same as pressing the MENU button.

RETURN Selecting this word returns the menu to the previous menu.

CANCEL or NO

Selecting this word cancels the operation in the present menu and returns to the previous menu.

OK or YES

Selecting this word executes the prepared function or shifts the menu to the next menu.

Page 32

EASY MENU

From the EASY MENU, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons. Then perform it according to the following table.

Item Description

ASPECT

Using the ◄/► buttons switches the mode for aspect ratio. See the ASPECT item in IMAGE menu (



37).

D-ZOOM

Using the ◄/► cursor buttons adjusts the magnication ratio.

Small ó Large

See the D-ZOOM item in the SETUP menu (



44).

• The on-screen menu might be displayed outside of the image display area depending on the adjustment value of the ASPECT, D-ZOOM,

KEYSTON and KEYSTONE. Changing the values

of ASPECT, D-ZOOM,

KEYSTONE and KEYSTONE may x

the symptom.

KEYSTONE

Using the ◄/► buttons corrects the vertical keystone distortion. See the

KEYSTONE item in SETUP menu (



45).

KEYSTONE

Using the ◄/► buttons corrects the horizontal keystone distortion. See the

KEYSTONE item in SETUP Menu (



45).

PERFECT FIT

Pressing the ► button displays the dialog for adjusting the shape of the projected image in each of the corners and sides. See the PERFECT FIT item in SETUP menu (



46).

(continued on next page)

Page 33

EASY MENU

Item Description

PICTURE MODE

Using the ◄/► buttons switches the picture mode. The picture modes are combinations of GAMMA and COLOR TEMP settings. Choose a suitable mode according to the projected source.

NORMAL ó CINEMA ó DYNAMIC ó BOARD(BLACK)

PHOTO ó DAYTIME ó WHITEBOARD ó BOARD(GREEN)

GAMMA COLOR TEMP NORMAL 1 DEFAULT 2 MID CINEMA 2 DEFAULT 3 LOW DYNAMIC 3 DEFAULT 1 HIGH BOARD(BLACK) 4 DEFAULT 4 Hi-BRIGHT-1 BOARD(GREEN) 4 DEFAULT 5 Hi-BRIGHT-2 WHITEBOARD 5 DEFAULT 2 MID DAYTIME 6 DEFAULT 6 Hi-BRIGHT-3 PHOTO 7 DEFAULT 7 Hi-BRIGHT-4

• When the combination of GAMMA and COLOR TEMP differs from pre-assigned modes above, the display on the menu for the PICTURE MODE is “CUSTOM”. Please refer to the GAMMA and COLOR TEMP (



34, 35) items in PICTURE menu.

• Lines or other noise might appear on the screen when this function is operated, but it is not a malfunction.

ECO MODE

Using the ◄/► buttons changes the eco mode setting. See the ECO MODE item in SETUP menu (



47).

• When the ambient temperature is around 35 to 40°C, the brightness of lamp is reduced automatically.

INSTALLATION

Pressing the ► button displays the INSTALLATION dialog. See the INSTALLATION item in SETUP menu (



48).

RESET

Performing this item resets all of the EASY MENU items except the FILTER TIME and LANGUAGE. A dialog is displayed for conrmation. Selecting the OK using the ► button performs resetting.

FILTER TIME

The usage time of the air lter is shown in the menu. Performing this item resets the lter time which counts usage time of the air lter. A dialog is displayed for conrmation. Selecting the OK using the ► button performs resetting. See the FILTER TIME item in OPTION menu (



59).

LANGUAGE

Using the ◄/► buttons changes the display language. See the LANGUAGE item in SCREEN menu (



52).

ADVANCED MENU

Press the ► or ENTER button to use the menu of PICTURE, IMAGE, INPUT, SETUP, AUDIO, SCREEN, OPTION, NETWORK or SECURITY.

EXIT Press the ◄ or ENTER button to nish the OSD menu.

Page 34

PICTURE menu

From the PICTURE menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.

Item Description

BRIGHTNESS

Using the

◄/►

buttons adjusts the brightness.

Dark ó Light

CONTRAST

Using the

◄/►

buttons adjusts the contrast.

Weak ó Strong

GAMMA

Using the ▲/▼ buttons switches the gamma mode.

To adjust CUSTOM

Selecting a mode whose name includes CUSTOM and then pressing the ► button or the ENTER button displays a dialog to aid you in adjusting the mode. This function is useful when you want to change the brightness of particular tones.

Choose an item using the ◄/► buttons, and adjust the level using the ▲/▼ buttons.

You can display a test pattern for checking the effect of your adjustment by pressing the ENTER button. Each time you press the ENTER button, the pattern changes as below.

No pattern ð Gray scale of 9 steps Ramp  Gray scale of 15 steps

The eight equalizing bars correspond to eight tone levels of the test pattern (Gray scale of 9 steps) except the darkest in the left end. If you want to adjust the 2nd tone from left end on the test pattern, use the equalizing adjustment bar “1”. The darkest tone at the left end of the test pattern cannot be controlled with any of equalizing adjustment bar.

• Lines or other noise might appear on the screen when this function is operated, but it is not a malfunction.

(continued on next page)

Page 35

PICTURE menu

(continued on next page)

Item Description

COLOR TEMP

Using the ▲/▼ buttons switches the color temperature mode.

To adjust CUSTOM

Selecting a mode whose name includes CUSTOM and then pressing the ► button or the ENTER button displays a dialog to aid you in adjusting the OFFSET and GAIN of the selected mode.

OFFSET adjustments change the color intensity on the whole tones of the test pattern.

GAIN adjustments mainly affect color intensity on the brighter tones of the test pattern.

Choose an item using the ◄/► buttons, and adjust the level using the ▲/▼ buttons.

You can display a test pattern for checking the effect of your adjustment by pressing the ENTER button. Each time you press the ENTER button, the pattern changes as below.

No pattern ð Gray scale of 9 steps

Ramp  Gray scale of 15 steps

• Lines or other noise might appear on the screen when this function is operated, but it is not a malfunction.

COLOR

Using the ◄/► buttons adjusts the strength of whole color.

Weak ó Strong

• This item can be selected only for a video, s-video and component video signal.

•

For an HDMITM signal, this item can also be selected if either (1) or (2) applies. (1) HDMI FORMAT item in the INPUT menu is set to VIDEO. (2) HDMI FORMAT item in the INPUT menu is set to AUTO, and the

projector recognizes that it receives video signals.

TINT

Using the ◄/► buttons adjusts the tint.

Reddish ó Greenish

• This item can be selected only for a video, s-video and component video signal.

•

projector recognizes that it receives video signals.

Page 36

PICTURE menu

Item Description

SHARPNESS

Using the ◄/► buttons adjusts the sharpness.

Weak ó Strong

• There may be some noise and/or the screen may icker for a moment when an adjustment is made. This is not a malfunction.

ACTIVE IRIS

Using the ▲/▼ cursor buttons changes the active iris control mode.

PRESENTATION ó THEATER ó OFF

PRESENTATION : The active iris displays the best presentation

image for both bright and dark scenes.

THEATER : The active iris displays the best theater image for

both bright and dark scenes.

OFF : The active iris is always open.

• The screen may icker when the PRESENTATION or THEATER modes are selected. If this occurs select OFF.

MY MEMORY

This projector has 4 memories for adjustment data (for all the items of the PICTURE menu). Selecting a function using the ▲/▼ buttons and pressing the ► or ENTER button performs each function.

SAVE-1 ó SAVE-2 ó SAVE-3 ó SAVE-4 LOAD-4 óLOAD-3 ó LOAD-2 ó LOAD-1

SAVE-1, SAVE-2, SAVE-3, SAVE-4 Performing a SAVE function saves the current adjustment data into the memory linked in the number included in the function’s name.

• Remember that the current data being stored of a memory will be lost by saving new data into the memory.

LOAD-1, LOAD-2, LOAD-3, LOAD-4 Performing a LOAD function loads the data from the memory linked in the number included in the function’s name, and adjusts the picture automatically depending on the data.

• The LOAD functions whose linked memory has no data are skipped.

• Remember that the current adjusted condition will be lost by loading data. If you want to keep the current adjustment, please save it before performing a LOAD function.

• There may be some noise and the screen may icker for a moment when loading data. This is not malfunction.

• You can perform the LOAD function using MY BUTTON. Please see MY BUTTON item in OPTION menu (



60).

Page 37

IMAGE menu

From the IMAGE menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.

Item Description

ASPECT

Using the ▲/▼ buttons switches the mode for aspect ratio.

For a computer signal

NORMAL ó 4:3 ó 16:9 ó 16:10 ó NATIVE

For an HDMITM signal

NORMAL

4:3

16:9

16:10

14:9

ó NATIVE

For a video signal, s-video signal or component video signal

4:3 ó 16:9 ó 16:10 ó 14:9 ó NATIVE

For an input signal from the LAN, USB TYPE A or USB TYPE B port, or if there is no signal

C8105B, 8106B: 4:3 (xed) C8104WB: 16:10 (xed)

• The NORMAL mode keeps the original aspect ratio of the signal.

OVER SCAN

Using the ◄/► buttons adjusts the over-scan ratio.

Small (It magnies picture) ó Large (It reduces picture)

• This item can be selected only for a video, s-video and component video signal.

• For an HDMI

signal, this item can also be selected if either (1) or (2) applies. (1) HDMI FORMAT item in the INPUT menu is set to VIDEO. (2) HDMI FORMAT item in the INPUT menu is set to AUTO, and the

projector recognizes that it receives video signals.

(continued on next page)

Page 38

IMAGE menu

Item Description

V POSITION

Using the ◄/► buttons adjusts the vertical position.

Down ó Up

• Over-adjusting the vertical position may cause noise to appear on the screen. If this occurs, please reset the vertical position to the default setting. Pressing the RESET button when the V POSITION is selected will reset the V POSITION to the default setting.

• When this function is performed on a video signal or an s-video signal, the range of this adjustment depends on OVER SCAN (



37)

setting. It is not possible to adjust when OVER SCAN is set to 10.

•

This function is unavailable for a signal from the LAN, USB TYPE A,

USB TYPE B or HDMI port.

H POSITION

Using the ◄/► buttons adjusts the horizontal position.

Right ó Left

•

Over-adjusting the horizontal position may cause noise to appear on the screen. If this occurs, please reset the horizontal position to the default setting. Pressing the RESET button when the H POSITION is selected will reset the H POSITION to the default setting.

• When this function is performed on a video signal or an s-video signal, the range of this adjustment depends on OVER SCAN (



37)

setting. It is not possible to adjust when OVER SCAN is set to 10.

•

This function is unavailable for a signal from the LAN, USB TYPE A, USB TYPE B or HDMI por

(continued on next page)

Page 39

IMAGE menu

Item Description

H PHASE

Using the

◄/►

buttons adjusts the horizontal phase to eliminate icker.

Right ó Left

• This item can be selected only for a computer signal or a component video signal. This function is unavailable for a signal from the LAN, USB TYPE A, USB TYPE B or HDMI port.

H SIZE

Using the ◄/► buttons adjusts the horizontal size.

Small ó Large

• This item can be selected only for a computer signal. This function is unavailable for a signal from the LAN, USB TYPE A, USB TYPE B or HDMI port.

• When this adjustment is excessive, the picture may not be displayed correctly. In such a case, please reset the adjustment by pressing the RESET button on the remote control during this operation.

• Images might appear degraded when this function is operated, but it is not a malfunction.

AUTO ADJUST

EXECUTE

Selecting this item performs the automatic adjustment feature.

For a computer signal

For a video signal and s-video signal

The video format best suited for the respective input signal will be selected automatically. This function is available only when the AUTO is selected for the VIDEO FORMAT item in the INPUT menu (



41).

The vertical position and horizontal position will be

automatically set to the default.

For a component video signal

The vertical position and horizontal position will be automatically set to the default. The horizontal phase will be automatically adjusted.

• The automatic adjustment operation requires approx. 10 seconds. Also please note that it may not function correctly with some input.

• When this function is performed for a video signal, a certain extra such as a line may appear outside a picture.

• When this function is performed for a computer signal, a black frame may be displayed on the edge of the screen, depending on the PC model.

• The items adjusted by this function may vary when the FINE or DISABLE is selected for the AUTO ADJUST item of the SERVICE item in the OPTION menu (



62).

Page 40

INPUT menu

From the INPUT menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.

Item Description

PROGRESSIVE

Using the ▲/▼ buttons switches the progress mode.

TV ó FILM ó OFF

•

This function works only for a video signal, s-video signal, component video signal (of 480i@60 or 576i@50 or 1080i@50/60) and an HDMI

signal (of 480i@60 or 576i@50 or 1080i@50/60)

• When TV or FILM is selected, the screen image will be sharp. FILM adapts to the 2-3 Pull-Down conversion system. But these may cause a certain defect (for example, jagged line) of the picture for a quick moving object. In such a case, please select OFF, even though the screen image may lose sharpness.

VIDEO NR

Using the ▲/▼ buttons switches the noise reduction mode.

HIGH ó MID ó LOW

• This function works only for a video signal, s-video signal, component video signal (of 480i@60 or 576i@50 or 1080i@50/60) and an HDMI

signal (of 480i@60 or 576i@50 or 1080i@50/60).

COLOR SPACE

Using the ▲/▼ buttons switches the mode for color space.

AUTO ó RGB ó SMPTE240 ó REC709 ó REC601

• This item can be selected only for a computer signal, component video signal(except for signals from the LAN, USB TYPE A and USB TYPE B ports) or an HDMI™ signal.

• The AUTO mode automatically selects the optimum mode.

• The AUTO operation may not work well at some signals. In such a case, it might be good to select a suitable mode except AUTO.

(continued on next page)

Page 41

INPUT menu

(continued on next page)

Item Description

VIDEO FORMAT

The video format for S-VIDEO port and VIDEO port can be set. (1) Use the ▲/▼ buttons to

select the input port.

(2) Using the ◄/► buttons

switches the mode for video format.

AUTO ó NTSC ó PAL ó SECAM N-PAL ó M-PAL ó NTSC4.43

• This item is performed only for a video signal from the VIDEO port or the S-VIDEO port.

• The AUTO mode automatically selects the optimum mode.

• The AUTO operation may not work well for some signals. If the picture becomes unstable (e.g. an irregular picture, lack of color), please select the mode according to the input signal.

HDMI FORMAT

Using the ▲/▼ cursor buttons switches the video format for an input from the HDMI port.

AUTO ó VIDEO ó COMPUTER

Feature AUTO automatically sets the optimum mode. VIDEO sets the suitable mode for DVD signals. COMPUTER sets the suitable mode for computer signals.

• When the COMPUTER is selected, the functions COLOR (PICTURE menu), TINT (PICTURE menu) and OVER SCAN (IMAGE menu) are unavailable.

HDMI RANGE

Using the ▲/▼ cursor buttons changes the digital range for input from the HDMI port.

AUTO ó NORMAL ó ENHANCED

Feature AUTO automatically sets the optimum mode. NORMAL s

ets the suitable mode for DVD signals. (16-

235)

ENHANCED

sets the suitable mode for computer signals. (0-255)

• If the contrast of the screen image is too strong or too weak, try nding a more suitable mode.

Page 42

INPUT menu

Item Description

COMPUTER IN

The computer input signal type for COMPUTER IN1 and IN2 ports can be set.

(1)

Use the ▲/▼ buttons to select the COMPUTER IN port to be set.

(2) Use the ◄/► buttons to select

the computer input signal type.

AUTO ó SYNC ON G OFF

• Selecting the AUTO mode allows you to input a sync on G signal or component video signal from the port. Please refer to “Technical” for the connection of component video input to COMPUTER IN1/2 port.

• In the AUTO mode, the picture may be distorted with certain input signals. In such a case, remove the signal connector so that no signal is received and select the SYNC ON G OFF, and then reconnect the signal.

FRAME LOCK

Set the frame lock function on/off for each port. (1) Use the ▲/▼ buttons to select

the input ports.

(2) Use the ◄/► buttons to turn the

frame lock function on/off .

ON ó OFF

• This item can be performed only on a signal with a vertical frequency of 49 to 51Hz, 59 to 61 Hz.

• When ON is selected, moving pictures are displayed more smoothly.

• This function is unavailable for a signal from the HDMI (of 480i@60 or 576i@50 or 1080i@50/60) port.

(continued on next page)

Page 43

INPUT menu

Item Description

RESOLUTION

The resolution for the COMPUTER IN1 and COMPUTER IN2 input signals can be set on this projector.

(1) In the INPUT menu select the RESOLUTION using the ▲/▼

buttons and press the ► button. The RESOLUTION menu will be displayed.

(2) In the RESOLUTION menu select the

resolution you wish to display using the ▲/▼ buttons. Selecting AUTO will set a resolution appropriate to the input signal.

(3) Pressing the ► or ENTER button when

selecting a STANDARD resolution will automatically adjust the horizontal and vertical positions, clock phase and

horizontal size. The INPUT_INFORMATION dialog will be displayed.

(4) To set a custom resolution use the ▲/▼ buttons to select

the CUSTOM and the RESOLUTION_CUSTOM box will be

displayed. Set the horizontal (HORZ) and vertical (VERT) resolutions using the ▲/▼/◄/► buttons. This function may not support all resolutions.

(5) Move the cursor to OK on screen and press the ► or ENTER

button. The message "ARE YOU SURE YOU WISH TO

CHANGE RESOLUTION?" appears. To save the setting, press

the ► button.

The horizontal and vertical positions, clock phase and horizontal

size will be automatically adjusted. The INPUT_INFORMATION dialog will be displayed.

(6) To revert back to the previous resolution without saving changes,

move the cursor to CANCEL on screen and press the ◄ or

ENTER button.

The screen will then return to the RESOLUTION menu

displaying the previous resolution.

• For some pictures, this function may not work well.

STANDARD

↓

CUSTOM

↓

Page 44

SETUP menu

From the SETUP menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.

Item Description

D-ZOOM

Using the ◄/► cursor buttons adjusts the magnication ratio.

Small ó Large

• The on-screen menu might be displayed outside of the image display area depending on the adjustment value of the ASPECT, D-ZOOM,

KEYSTONE and KEYSTONE. Changing the values

of ASPECT, D-ZOOM,

KEYSTONE and KEYSTONE may x

the symptom.

D-SHIFT

Using the ◄/►/▲/▼ cursor buttons adjusts the picture position.

• The D-SHIFT adjustment values are not valid when the D-ZOOM is set to 256 (full screen). (8105B, 8106B)

• The D-SHIFT adjustment values are not valid when the D-ZOOM is set to 320 (full screen). (8104WB)

PICTURE POSITION

(8105B, 8106B)

Using the ▲/▼ cursor buttons selects the vertical picture position.

TOP ó MID ó BOTTOM The PICTURE POSITION is not changed if any of the following cases apply.

• The ASPECT is set to 4:3.

• The input signal has an aspect ratio of 4:3 or vertically larger than 4:3, while the ASPECT is set to NORMAL.

• Vertical size of the displayed image is full on the effective display area, while the ASPECT is set to NATIVE.

• One of the following messages is displayed on the screen: "NO INPUT IS DETECTED" "SYNC IS OUT OF RANGE" "INVALID SCAN FREQ."

• The BLANK or TEMPLATE function is selected.

(continued on next page)

Page 45

SETUP menu

Item Description

PICT. POSIT. H

(8104WB)

Using the ▲/▼ cursor buttons selects the horizontal picture position.

LEFT ó MID ó RIGHT

The PICT. POSIT. H is not changed if any of the following cases apply.

• The ASPECT is set to 16:9 or 16:10.

• The input signal has an aspect ratio of 16:9, 16:10 or verticallly smaller than 16:10, while ASPECT is set to NORMAL.

• Horizontal size of the displayed image is full on the effective display area, while the ASPECT is set to NATIVE.

• One of the following messages is displayed on the screen: "NO INPUT IS DETECTED" "SYNC IS OUT OF RANGE" "INVALID SCAN FREQ."

• The BLANK or TEMPLATE function is selected.

KEYSTONE

Using the ◄/► buttons corrects the vertical keystone distortion.

Shrink the bottom of the image ó Shrink the top of the image

• The adjustable range of this function will vary among inputs. For some input, this function may not work well.

• This function will be unavailable when the TRANSITION DETECTOR is on (



84) or the PERFECT FIT (46) is adjusted.

KEYSTONE

Using the ◄/► buttons corrects the horizontal keystone distortion.

Shrink the right of the image ó Shrink the left of the image

• The adjustable range of this function will vary among inputs. For some input, this function may not work well.

• This function will be unavailable when the TRANSITION DETECTOR is on (



84) or the PERFECT FIT (46) is adjusted.

(continued on next page)

Page 46

SETUP menu

Item Description

PERFECT FIT

This item allows you to adjust the shape of the projected image in each of the corners and sides. (1) Choose a corner or side to adjust using the ▲/▼/◄/► buttons and press the ENTER or INPUT button. (2) Adjust the distortion as below. Use the ▲/▼/◄/► buttons to adjust the position of the corner. Use the ▲/▼ buttons to adjust the distortion of the top or bottom side, after dening the adjusting position with the ◄/► buttons. Use the ◄/► buttons to adjust the distortion of the left or right side, after dening the adjusting position with the ▲/▼ buttons. (3) To adjust another corner or side, follow the same procedure from (1) above. To reset the adjustment of all the corners and sides, select RESET with the ▲/▼ buttons and press the ENTER or INPUT button. (4) This projector is equipped with a memory feature for PERFECT FIT adjustment. Up to 3 sets of adjustments can be stored.

• SAVE:

To store the current PERFECT FIT adjustment, select one of the SAVE icons

numbered 1 to 3 (number of the memory) with the ◄ /▲/▼ buttons and press the ENTER or INPUT button. Remember that the current data being stored of a memory will be lost by saving new data into the memory.

• LOAD: To recall stored adjustments, select one of the LOAD icons

numbered 1 to 3 (number of the memory) with the ◄ /▲/▼ buttons and press the ENTER or INPUT button. Remember that the current adjusted condition will be lost by loading data. If you want to keep the current adjustment, please save it before performing a LOAD function.

- The LOAD functions whose linked memory has no data are

skipped.

- There may be some noise and the screen may icker for a

moment when loading data. This is not malfunction.

(continued on next page)

Page 47

SETUP menu

(continued on next page)

Item Description

PERFECT FIT

(continued)

• While the distortion is adjusted with the PERFECT FIT function,

keystone adjustment feature is unavailable. To correct the keystone distortion, reset the adjustment of all the corners and sides.

• The adjustable range of this correction will vary among inputs. For

some input, this function may not work well.

• One adjustment position common to the top and bottom sides can

be set. Also, another adjustment position common to the left and right sides can be set.

• The distortion of the top and bottom sides can be adjusted only in

the same direction, pincushion or barrel. The adjustment for the left and right sides is carried out in the same manner.

• This function will be unavailable when the TRANSITION

DETECTOR is on (



84).

AUTO ECO MODE

Using the ▲/▼ buttons turns on/off the AUTO ECO MODE.

ON ó OFF

• When ON is selected, the projector will always be set to Eco mode

at start-up regardless of the ECO MODE (



47) setting. An OSD message “AUTO ECO MODE” will be displayed for tens of seconds when the projector starts with this function activated.

ECO MODE

Using the ◄/► buttons switches the ECO MODE. NORMAL ó ECO ó INTELLIGENT ECO ó SAVER

• When the ECO is selected, acoustic noise and screen brightness are reduced.

• When INTELLIGENT ECO is selected, the brightness of the lamp changes according to the level of the input signal. The lamp becomes brighter when the input signal level is high and darker when the level is low. If dark images are projected continuously, the brightness of the lamp may increase to maintain its performance.

• When SAVER is selected, you can select the time within 1 to 30 min. for SAVER MODE using the ► button. If the image signal level doesn’t change more than the period set, the lamp brightness is reduced and electric power consumption decreased. If the image signal level changes or any buttons are operated, the lamp will brighten again. If dark images are projected continuously, the brightness of the lamp may increase to maintain its performance.

• When AUTO ECO MODE (



above) is set to ON, the projector will

always be set to Eco mode at start-up regardless this setting.

• When the ambient temperature is around 35 to 40°C, the brightness of lamp is reduced automatically.

Page 48

SETUP menu

Item Description

INSTALLATION

Pressing the ►button displays the dialog for changing the INSTALLATION setting.

Use the ▲/▼ buttons to select the desired setting on the INSTALLATION dialog, and press the ENTER button of the remote control or the INPUT button of the projector to execute. If TRANSITION DETECTOR is ON and the INSTALLATION status is changed, the TRANSITION DETECTOR ON alarm (



84) will be

displayed when the projector is restarted.

STANDBY MODE

Using ▲/▼ buttons switches the standby mode setting between NORMAL and SAVING.

NORMAL ó SAVING

When SAVING is selected, the power consumption in the standby mode is lowered with some functional restriction as below:

• When SAVING is selected, the RS-232C communication control except to turn the projector on and the network function are disabled while the projector is in the standby mode. If the COMMUNICATION TYPE in the COMMUNICATION menu is set to NETWORK BRIDGE, all of the RS-232C commands are disabled (



65).

• When SAVING is selected, STANDBY setting of AUDIO SOURCE

(



50) is invalid, and no signal is output from AUDIO OUT port in

the standby mode.

• When SAVING is selected, STANDBY setting of MONITOR OUT is invalid, and no signal is output from MONITOR OUT port in the standby mode.

• The USB connection is disabled while the projector is in standby mode if the STANDBY MODE item in the SETUP menu of the projector is set to SAVING.

• When SAVING is selected, CLONING load function is invalid while in STANDBY MODE.

(continued on next page)

Page 49

SETUP menu

Item Description

MONITOR OUT

While the image signal from the input port chosen in step (1) is projected, the image signal from the input port selected in step (2) is output to MONITOR OUT port. (1) Choose a picture input port using ▲/▼ buttons.

Choose STANDBY to select the picture output in the standby mode.

(2) Select one of the COMPUTER IN ports

using ◄/► buttons. Select OFF to disable the MONITOR OUT port for the input port or standby mode chosen in the step (1).

• You cannot select COMPUTER IN1 in step (1) and COMPUTER IN2 in step (2) and vice versa.

Page 50

AUDIO menu

From the AUDIO menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or the ENTER button to execute the item. Then perform it according to the following table.

Item Description

VOLUME

Using the ◄/► buttons adjusts the volume.

Low ó High

SPEAKER

Using the ▲/▼ buttons turns on/off the built-in speaker.

ON ó OFF

When OFF is selected, the built-in speaker does not work.

AUDIO SOURCE

While the image signal from the input port chosen in step (1) is projected, the audio signal from the input port selected in step (2) is output to both the AUDIO OUT port and built-in speaker of this projector. However, the built-in speaker does not work when SPEAKER is set to OFF. (1) Choose a picture input port using the

▲/▼ buttons.

Choose STANDBY to select the sound

output in the standby mode.

(2) Select an audio input port or the mute

icon using the ◄/► buttons.

The icons indicate the following;

No.1: AUDIO IN1 port No.2: AUDIO IN2 port No.3: AUDIO IN3 port No.4: LAN port No.5: USB TYPE A port No.6: USB TYPE B port No.7: HDMI port : mutes the sound

• Audio input from port nos 4 to 7 can only be selected by each of the picture input ports.

• Even if the projector is in the standby mode, cooling fans may work and make noises when the built-in speaker is in operation.

• C.C. (Closed Caption) is automatically activated when

is selected and an input signal containing C.C. is received. This function is available only when the signal is NTSC for VIDEO or S-VIDEO, or 480i@60 for COMPUTER IN1 or COMPUTER IN2, and when AUTO is selected for DISPLAY in the C.C. menu under the SCREEN menu

(



57).

(continued on next page)

Page 51

AUDIO menu

Item Description

MIC LEVEL

Using the ▲/▼ buttons switches the input level to match that of the microphone connected to the MIC port.

HIGH ó LOW

HIGH: for a microphone with an amplier. LOW: for a microphone without an amplier.

MIC VOLUME

Using the ◄/► buttons adjusts the volume of the microphone connected to the MIC port.

Low ó High

Page 52

SCREEN menu

From the SCREEN menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.

Item Description

LANGUAGE

Using the ▲/▼/◄/► buttons switches the OSD (On Screen Display) language.

ENGLISH ó FRANÇAIS ó DEUTSCH ó ESPAÑOL

(shown in the LANGUAGE dialog)

Press the ENTER or INPUT button to save the language setting.

MENU POSITION

Using the ▲/▼/◄/► buttons adjusts the menu position. To quit the operation, press the MENU button on the remote control or keep no operation for about 10 seconds.

BLANK

Using the ▲/▼ buttons switches the mode for the blank screen. The blank screen is a screen for the temporarily blanking feature

(



29). It is displayed by pressing the BLANK button on the remote

control.

MyScreen ó ORIGINAL ó BLUE ó WHITE ó BLACK

MyScreen :

Screen can be registered by the MyScreen item (



53). ORIGINAL : Screen preset as the standard screen. BLUE, WHITE, BLACK : Plain screens in each color.

• To avoid remaining as an afterimage, the MyScreen or ORIGINAL screen will change to the plain black screen after several minutes.

START UP

Using the ▲/▼ buttons switches the mode for the start-up screen. The start-up screen is a screen displayed when no signal or an unsuitable signal is detected.

MyScreen ó ORIGINAL ó OFF

MyScreen :

Screen can be registered by the MyScreen item (



53). ORIGINAL : Screen preset as the standard screen. OFF : Plain black screen.

• To avoid remaining as an afterimage, the MyScreen or ORIGINAL screen will change to the BLANK screen (



above) after several minutes. If also the BLANK screen is the MyScreen or ORIGINAL, the plain black screen is instead used.

• When the ON is selected to the MyScreen PASSWORD item in the SECURITY menu (



82), the START UP is fixed to MyScreen.

(continued on next page)

Page 53

SCREEN menu

Item Description

MyScreen

This item allows you to capture an image for use as a MyScreen image which can be used as the BLANK screen and START UP screen. Display the image you want to capture before executing the following procedure.

Selecting this item displays a dialog titled “MyScreen”. It will ask you if you start capturing an image from the current screen. Please wait for the target image to be displayed, and press the ENTER or INPUT button to start registration. To restore the screen and return to the previous dialog, press the RESET button on the remote control. Registration may take several minutes. When the registration is completed, the registered screen and the following message is displayed for several seconds:

“MyScreen registration is nished.”

If the registration failed, the following message is displayed:

“A capturing error has occurred. Please try again.”

• This function cannot be selected when the ON is selected to the MyScreen Lock item (



54).

• This function cannot be selected when the ON is selected to the MyScreen PASSWORD item in SECURITY menu (



82).

•

This function is unavailable for a signal from the LAN, USB TYPE A,

USB TYPE B or HDMI port.

(continued on next page)

Page 54

SCREEN menu

Item Description

MyScreen Lock

Using the ▲/▼ buttons turns on/off the MyScreen lock function.

ON ó OFF

When the ON is selected, the item MyScreen is locked. Use this function for protecting the current MyScreen.

• This function cannot be selected when the ON is selected to the MyScreen PASSWORD item in SECURITY menu (



82).

MESSAGE

Using the ▲/▼ buttons turns on/off the message function.

ON ó OFF

When the ON is selected, the following message function works.

“AUTO IN PROGRESS” while automatically adjusting “NO INPUT IS DETECTED” “SYNC IS OUT OF RANGE” “INVALID SCAN FREQ.” “NOT AVAILABLE” “Searching….” while searching for the input “Detecting….” while an input signal is detected “AUTO ECO MODE” while starting up with AUTO ECO MODE The indication of the input signal displayed by changing The indication of the aspect ratio displayed by changing The indication of the PICTURE MODE displayed by changing The indication of the ACTIVE IRIS displayed by changing The indication of the MY MEMORY displayed by changing The indication of “FREEZE” and “II” while freezing the screen by pressing the FREEZE button. The indication of the TEMPLATE displayed by changing. The indication of the ECO MODE displayed by changing. The indication of "+++ FOCUS +++" displayed by changing The D-ZOOM dialog displayed by changing

• When the OFF is selected, please remember if the picture is frozen. Do not mistake freezing for a malfunction (



29).

(continued on next page)

Page 55

SCREEN menu

Item Description

SOURCE NAME

Each input port for this projector can have a name applied to it. (1) Use the ▲/▼ buttons on the SCREEN menu to select SOURCE

NAME and press the ► or ENTER button. The SOURCE NAME menu will be displayed.

(2) Use the ▲/▼ buttons on the SOURCE

NAME menu to select the port to be named and press the ► button. The SOURCE NAME dialog will be displayed.

Right side of the menu is blank until a name is specied.

(3) Select an icon you would like to assign to

the port in the SOURCE NAME dialog. The name assigned to the port will also be automatically switched according to your icon selection. Press the ENTER or INPUT button to determine your icon selection.

(4) Select a number you would like to assign

to the port along with the icon. You can select the number either from blank (no number assigned), 1, 2, 3, or 4. Then press the ENTER or INPUT button.

(5) If you would like to modify the name assigned

to the port, select CUSTOM NAME and press the ENTER or INPUT button.

(continued on next page)

Page 56

SCREEN menu

Item Description

SOURCE NAME

(Continued)

(6) The current name will be displayed on

the rst line. Use the ▲/▼/◄/► buttons and the ENTER or INPUT button to select and enter characters. To erase 1 character at one time, press the RESET button or press the ◄ and INPUT button at the same time. Also if you move the cursor to DELETE or ALL CLEAR on screen and press the ENTER or INPUT button, 1 character or all characters will be erased. The name can be a maximum of 16 characters.

(7) To change an already inserted character,

press the ▲ button to move the cursor to the rst line, and use the ◄/► buttons to move the cursor on the character to be

changed. After pressing the ENTER or INPUT button, the character is selected. Then, follow the same procedure as described at the item (6) above.

(8) To nish entering text, move the cursor to the OK on screen and

press the ►, ENTER or INPUT button. To revert to the previous

name without saving changes, move the cursor to the CANCEL

on screen and press the ◄, ENTER or INPUT button.

TEMPLATE

Using the ▲/▼ cursor buttons switches the mode for the template screen. Press the ► cursor (or the ENTER) button to display the selected template, and press the ◄ cursor button to close the displayed screen. The last selected template is displayed when the MY BUTTON allocated to the TEMPLATE function is pressed (



61).

TEST PATTERN ó DOT-LINE1 ó DOT-LINE2 ó DOT-LINE3



MAP2 ó MAP1 ó CIRCLE2 ó CIRCLE1 ó DOT-LINE4

You can turn a map upside down and scroll it horizontally when MAP1 or MAP2 is selected. To invert or scroll the map, display the guidance by pressing the RESET button on the remote three seconds or more when MAP1 or MAP2 appears.

(continued on next page)

Page 57

SCREEN menu

Item Description

C.C.

(Closed Caption)

The C.C. is the function that displays a transcript or dialog of the audio portion of a video, les or other presentation or other relevant sounds. It is required to have NTSC format video or 480i@60 format component video source supporting C.C. feature to utilize this function. It may not work properly, depending on equipment or signal source. In this case, please turn off the Closed Caption.

DISPLAY

Select Closed Caption DISPLAY setting from following options using ▲/▼ buttons.

AUTO ó ON ó OFF

AUTO : Closed Caption automatically displays when the volume

is muted. ON : Closed Caption is on. OFF : Closed Caption is off.

• The caption is not displayed when the OSD menu is active.

• The Closed Caption is the function to display the dialogue, narration, and / or sound effects of a television program or other video sources. The Closed Caption availability is depending upon broadcaster and/or content.

MODE

Select Closed Caption MODE setting from following options using ▲/▼ buttons.

CAPTIONS ó TEXT CAPTIONS : Display Closed Caption.

TEXT : Display Text data, which is for additional information such

as news reports or a TV program guide. The information covers the entire screen. Not all of the C.C. program has Text information.

CHANNEL

Select Closed Caption CHANNEL from following options using ▲/▼ buttons.

1 ó 2 ó 3 ó 4

1: Channel 1, primary channel / language 2: Channel 2 3: Channel 3 4: Channel 4

The channel data may vary, depending on the content. Some channel might be used for secondary language or empty.

Page 58

OPTION menu

From the OPTION menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item, except for the items LAMP TIME and FILTER TIME. Then perform it according to the following table.

Item Description

AUTO SEARCH

Using the ▲/▼ buttons turns on/off the automatic signal search function.

ON ó OFF

When the ON is selected, detecting no signal automatically cycles through input ports in the following order. The search is started from the current port. Then when an input is found, the projector will stop searching and display the image.

COMPUTER IN1 ð COMPUTER IN2 ð LAN ð USB TYPE A

VIDEO  S-VIDEO  HDMI USB TYPE B

• It may take several seconds to project the images from the

USB TYPE B port.

DIRECT POWER

Using the ▲/▼ buttons turns on/off the DIRECT POWER ON function.

ON ó OFF

When set to the ON, the lamp in projector will be automatically turned on without the usual procedure (



19), only when the projector is

supplied with the power after the power was cut while the lamp was on.

• This function does not work as long as the power has been supplied to the projector while the lamp is off.

•

After turning the lamp on by the DIRECT

POWER

ON function, if neither input nor operation is detected for about 30 minutes, the projector is turned off, even though the AUTO

POWER

OFF function

(



59) is disabled.

(continued on next page)

Page 59

OPTION menu

Item Description

AUTO POWER

OFF

Using the ▲/▼ buttons adjusts the time to count down to automatically turn the projector off.

Long (max. 99 minutes) ó Short (min. 0 minute = DISABLE)

When the time is set to 0, the projector is not turned off automatically. When the time is set to 1 to 99, and when the passed time with nosignal or an unsuitable signal reaches at the set time, the projector lamp will be turned off. If one of the projector's buttons or the remote control buttons is pressed or one of the commands (except get commands) is transmitted to the CONTROL port during the corresponding time, projector will not be turned off. Please refer to the section “Turning off the power”

(



21).

OPTION menu

Item Description

AUTO POWER

OFF

Using the ▲/▼ buttons adjusts the time to count down to automatically turn the projector off.

Long (max. 99 minutes) ó Short (min. 0 minute = DISABLE)

When the time is set to 0, the projector is not turned off automatically. When the time is set to 1 to 99, and when the passed time with no- signal or an unsuitable signal reaches at the set time, the projector lamp will be turned off. If one of the projector's buttons or the remote control buttons is pressed or one of the commands (except get commands) is transmitted to the CONTROL port during the corresponding time, projector will not be turned off. Please refer to the section “Turning off the power”

(



21).

LAMP TIME

The lamp time is the usage time of the lamp, counted after the last resetting. It is shown in the OPTION menu. Pressing the RESET button on the remote control or the ► button of the projector displays a dialog. To reset the lamp time, select the OK using the ► button.

CANCEL

• Please reset the lamp time only when you have replaced the lamp, for a suitable indication about the lamp.

•

For the lamp replacement, see the section "Replacing the lamp" (



111).

FILTER TIME

The lter time is the usage time of the air lter, counted after the last resetting. It is shown in the OPTION menu. Pressing the RESET button on the remote control or the ► button of the projector displays a dialog. To reset the lter time, select the OK using the ► button.

CANCEL

•

Please reset the lter time only when you have cleaned or replaced

the air lter, for a suitable indication about the air lter.

• For the air lter cleaning, see the section “Cleaning and replacing the air lter” (



113, 114).

(continued on next page)

4. Operating Guide, OPTION menu p.59 Add the following item between AUTO POWER OFF and LAMP TIME.

Item Description

USB TYPE B

Using the ▲/▼ buttons selects the function of USB TYPE B port. To use this function, you need to connect the USB TYPE B port of the projector and the type A USB port of a computer.

MOUSE  USB DISPLAY

MOUSE : The accessory remote control works as the simple mouse

and keyboard of the computer.

USB DISPLAY : The port works as an input port that receives image

signals from the computer.

• It may take several seconds to project the images from the USB TYPE B port.

• In the following cases, a message to notify you that USB TYPE B port is not available for picture input appears together with the USB TYPE B dialog:

- This setting is switched to MOUSE while a picture input from the

USB TYPE B port is projected.

- The USB TYPE B port is selected as the picture input source while

this setting is set to MOUSE. Select USB DISPLAY in the dialog to project the picture input to the USB TYPE B port. In this case, you cannot use the simple mouse and keyboard function. Otherwise select other port for picture input.

【Addition】

Page 60

OPTION menu

Item Description

MY BUTTON

This item is to assign one of the following functions to MY BUTTON 1/2 on the remote control (



6).

(1) Use the ▲/▼ buttons on the MY BUTTON menu to select a MY

BUTTON - (1/2) and press the ► or ENTER button to display the MY BUTTON setup dialog.

(2) Then using the ▲/▼/◄/► buttons sets one of the following

functions to the chosen button. Press the ENTER or INPUT button to save the setting.

• LAN: Selects input from LAN port.

• USB TYPE A: Selects input from USB TYPE A port.

• USB TYPE B: Selects input from USB TYPE B port.

• HDMI: Selects input from HDMI port.

• COMPUTER IN1: Selects the input from COMPUTER IN1 port.

• COMPUTER IN2: Selects the input from COMPUTER IN2 port.

• S-VIDEO: Selects the input from S-VIDEO port.

• VIDEO: Selects the input from VIDEO port.

• SLIDESHOW: Selects the input from USB TYPE A port, and starts a Slideshow.

• MY IMAGE: Displays the MY IMAGE menu (



78).

• MESSENGER:

Turns the messenger text displayed on the screen on/off

(Messenger Function in the User's Manual - Network Guide

). When there is no transferred text data to display, the message ”NO MESSENGER DATA" appears.

• INFORMATION: Displays SYSTEM_INFORMATION, INPUT_INFORMATION (



69), WIRELESS INFORMATION

(



74), WIRED INFORMATION (76) or nothing.

• MY MEMORY: Loads one of adjustment data stored (



36). When more than one data are saved, the adjustment changes every time the MY BUTTON is pressed. When no data is saved in memory, the dialog "No saved data" appears. When the current adjustment is not saved to memory, the dialog as shown in the right appears. If you want to keep the current adjustment, please press the ► button to exit. Otherwise loading a data will overwrite the current adjusted condition.

(continued on next page)

Page 61

OPTION menu

Item Description

MY BUTTON

(Continued)

• ACTIVE IRIS: Changes the active iris mode.

• PICTURE MODE: Changes the PICTURE MODE (



33).

•

FILTER RESET: Displays the lter time reset conrmation dialogue

(



59).

• TEMPLATE: Makes the template pattern selected to the TEMPLATE item (



56) appear or disappear.

• AV MUTE: Turns the picture and audio on/off.

• D-ZOOM: Turns the D-ZOOM mode on/off. When the D-ZOOM mode is on, use the ◄/► cursor buttons to adjust the magnication ratio.

• D-SHIFT: Turns the D-SHIFT mode on/off. When the D-SHIFT mode is on, use the ▲/▼/◄/► cursor buttons to move the magnifying area.

• RESOLUTION: Turns on/off the RESOLUTION dialog (



43).

• MIC VOLUME: Turns on/off the MIC VOLUME dialog (



51).

• ECO MODE: Turns on/off the ECO MODE dialog (



47).

• SAVER MODE: Turns on/off the SAVER MODE (



47).

MY SOURCE

Using ▲/▼ buttons selects the picture input port to be selected with pressing the MY SOURCE/DOC.CAMERA button on the remote control. You can use this function not only for document cameras but also computers and other equipment.

COMPUTER IN1 ó COMPUTER IN2 ó LAN ó USB TYPE A VIDEO ó S-VIDEO ó HDMI ó USB TYPE B

(continued on next page)

Page 62

OPTION menu

Item Description

SERVICE

Selecting this item displays the SERVICE menu. Select an item using the ▲/▼ buttons, and press the ► button or the ENTER button on the remote control to execute the item.

ALTITUDE

Using the ▲/▼ buttons switches the rotation speed of the cooling fans. If the projector is used at an altitude of about 1600 m or higher, select HIGH. Otherwise, select NORMAL. Note that the projector is noisier when the HIGH is selected.

HIGH ó NORMAL

AUTO ADJUST

Using the ▲/▼ buttons to select one of the mode. When the DISABLE is selected, the automatic adjustment feature is disabled.

FINE ó FAST ó DISABLE

FINE: Finer tuning including H.SIZE adjustment. FAST: Faster tuning, setting H.SIZE to prearranged data for the

input signal.

• Depending on conditions, such as input image, signal cable to

the projector, environment around the projector, etc., the automatic adjustment may not work correctly. In such a case, please choose DISABLE to disable the automatic adjustment, and make adjustment manually.

GHOST

Adjust the settings using the ▲/▼ buttons to eliminate ghosting.

FILTER MESSAGE

Use the ▲/▼ button to set the timer for notifying by the message when to replace the lter unit

100h ó • • • ó 5000h ó OFF

After choosing an item except OFF, the message “REMINDER ***

HRS PASSED ....” will appear after the timer reaches the interval

time set by this feature (



118). When the OFF is chosen, the message will not appear. Utilize this feature to keep the air lter clean, setting the suitable time according to your environment of this projector.

• Please take care of the lter unit periodically, even if there is no message. If the air lter becomes to be blocked by dust or other matter, the internal temperature will rise, which could cause malfunction, or reduce the lifetime of the projector.

• Please be careful with the operating environment of the projector and the condition of the lter unit.

(continued on next page)

Page 63

OPTION menu

Item Description

SERVICE

(continued)

KEY LOCK

(1) Use the ▲/▼ buttons to select CONTROL PANEL or REMOTE

CONTROL.

(2) Use the ◄/► buttons to turn the key lock function on/off. When ON is selected, all buttons on the projector or remote control

except the STANDBY/ON button are locked.

• Please use this function to prevent tampering or accidental operation.

• It is not possible to set both CONTROL PANEL and REMOTE CONTROL to ON.

LENS DOOR LOCK

Use the ▲/▼ cursor buttons to turn on/off the LENS DOOR LOCK function. Set LENS DOOR LOCK to ON to keep the lens door open even when power is turned off. Follow cautions below when you set LENS DOOR LOCK to ON and keep the lens door open all the time.

• Do not apply excessive force on or allow impact to the lens door, as it incorporates a mirror.

• Keep the projector out of the reach of children.

• Never touch a lens door or mirror. If the mirror is broken, the projected image will be distorted. Close the lens door, and contact your dealer. When the LENS DOOR LOCK is set to ON and the lens door is not open completely for some reason, the image may shift or have keystone distortion. In that case use the LENS DOOR OPEN function (



below) to open the lens door completely.

LENS DOOR OPEN

Use the LENS DOOR OPEN function to open the lens door if not open completely for some reason such as cleaning.

LENS DOOR CLOSE

Use the LENS DOOR CLOSE function to temporarily close the lens door when LENS DOOR LOCK is set to ON. Note that the lamp will be turned off when the lens door is closed. Press the STANDBY/ON button on the projector or the remote control to open the lens door and start the projector again.

(continued on next page)

Page 64

OPTION menu

Item Description

SERVICE

(continued)

REMOTE FREQ.

(1) Use the ▲/▼ button to change the projector's remote sensor

frequency setting (



17, 18).

1:NORMAL ó 2:HIGH

(2) Use the ◄/► button to change the

projector's remote sensor on or off.

ON ó OFF

The factory default setting is for both 1:NORMAL and 2:HIGH to be on. If the remote control does not function correctly, disable either of them. It's not possible to disable both options at the same time.

COMMUNICATION

Selecting this item displays COMMUNICATION menu. In this menu, you can congure the serial communication settings of the projector using the CONTROL port.

• Select an item using the cursor buttons ▲/▼. Then pressing the ► button opens the submenu for the setting item you selected. Or, pressing the ◄ button instead of the ► button makes the menu back to the previous one without changing the setup. Each submenu can be operated as described above.

• When COMMUNICATION TYPE

(



65)

is set to OFF, the other items in COMMUNICATION menu are invalid.

• For the function of serial communication, refer to the User's Manual - Network Guide.

(continued on next page)

Page 65

OPTION menu

Item Description

SERVICE

(continued)

COMMUNICATION

(continued)

COMMUNICATION TYPE

Select the communication type for transmission via the CONTROL port. NETWORK BRIDGE:

Select this type, if it is required to control an external device as a network terminal, via this projector from the computer. The CONTROL port doesn't accept RS-232C commands (



Network Bridge Function in the

User’s Manual - Network Guide

)

OFF: Select this mode to receive RS-232C

commands using the CONTROL port.

•

OFF is selected as the default setting.

• When you select the NETWORK BRIDGE, check the item, TRANSMISSTION METHOD

(



below)

SERIAL SETTINGS

Select the serial communication condition for the

CONTROL port.

BAUD RATE

4800bps ó 9600bps ó 19200bps ó 38400bps

PARITY

NONE ó ODD ó EVEN

•

The BAUD RATE is xed to 19200bps and PARITY

is xed NONE when the COMMUNICATION TYPE is set to OFF

(

above)

TRANSMISSION METHOD

Select the transmission method for communication by the NETWORK BRIDGE from the CONTROL port.

HALF-DUPLEX ó FULL-DUPLEX

HALF-DUPLEX: This method lets the projector

make two way communication, but only one direction, either transmitting or receiving data, is allowed at a time.

FULL-DUPLEX: This method lets the projector

make two way communication, transmitting and receiving data at the same time.

• HALF-DUPLEX is selected as the default setting.

• If you select HALF-DUPLEX, check the setting of the item RESPONSE LIMIT TIME

(



66)

(continued on next page)

Page 66

OPTION menu

Item Description

SERVICE

(continued)

COMMUNICATION

(continued)

RESPONSE LIMIT TIME

Select the time period to wait for receiving response data from other device communicating by the NETWORK BRIDGE and the HALF-DUPLEX through the CONTROL port.

OFF ó 1s ó 2s ó 3s

OFF: Select this mode if it is not required to check

the responses from the device that the projector sends data to. In this mode, the projector can send out data from the computer continuously.

1s /2s /3s: Select the time period to keep the

projector waiting for response from the device that the projector sends data to. While waiting the response, the projector does not send out any data from the CONTROL port.

• This menu is available only when the NETWORK BRIDGE is selected for the COMMUNICATION TYPE and the HALF-DUPLEX is selected for the TRANSMISSION METHOD (



65).

• OFF is selected as the default setting.

CLONING

The setttings of the projector can be coppied via USB memory.

SAVE:

Saves each settings of the projector to USB memory.

LOAD:

Loads each settings of the projector from USB memory. Message will be displayed after loading, and power will turn off after ve min. or by pressing ► button. (A message is displayed for a few seconds if loading fails.)

(continued on next page)

Page 67

OPTION menu

Item Description

SERVICE

(continued)

CLONING

(continued)

The following items are exempted. OPTION: LAMP TIME, FILTER TIME,

SERVICE(GHOST)

NETWORK: WIRELESS AND WIRED SETUP

(IP ADDRESS, SUBNET MASK, DEFAULT GATEWAY, DATE AND TIME), MY IMAGE, PRESENTATION

SECURITY: MY TEXT DISPLAY

• Operation is not available if SECURITY_ CLONNING LOCK is turned ON.

• The Screen_MyScreen can only be loaded.

CLONING load function on STANDBY MODE

• While the projector is in STANDBY MODE, push the INPUT button of control panel together with ► button, and then press ▲ button to start operating the CLONING load function.

• During loading process, the three indicators of control panel (POWER (orange), TEMP, LAMP) will remain on.

• After the loading process, the three indicators (POWER (orange), TEMP, LAMP) will turn off.

• If the loading fails, the three indicators (POWER (orange), TEMP, LAMP) will blink at the same time.

• CLONING is invalid with the following conditions.

- CLONING LOCK is turned ON.

With this condition, the three indicators (POWER

(orange), TEMP, LAMP) will blink at approximately three seconds intervals.

- If the STANDBY MODE is set to SAVING.

- If there is no USB memory inserted into USB TYPE A port.

• Please operate one of the following after loading.

- Press INPUT button and

◄

button of the control

panel at the same time.

- Wait at least ve min. after loading.

- Restart the projector after re-plugging the AC cable.

(continued on next page)

Page 68

OPTION menu

Item Description

SERVICE

(continued)

CLONING

(continued)

Load MyScreen data

• Please save the image data as "pj_logo.bmp" or "pj_logo.gif" into USB memory.

• Please note that the only compatible formats are as follows.

-File format

Windows BMP bit/pixel: 2/4/8/15/16/24/32bit Compression format : Without compression/RLE GIF

-Image size: more than 36x36, less than 1280x800

• If two kinds of le format are saved, "pj_logo. bmp" will be registered into MyScreen data.

• If MyScreen LOCK is turned ON, the data of MyScreen cannot be loaded.

Setting the data

• Operating the SAVE function under CLONING will name the le as "pj_data.bin" into the USB memory. Please do not attempt to change the le name or the folder structure.

• If a le with the same name already exists, it will be overwritten by operating the SAVE function.

Loading function

• Please note that saved data from other model cannot be loaded.

• Please note that, you cannot load the saved data if the settings of MyScreen PASSWORD, PIN LOCK, TRANSITION DETECTOR and MY TEXT PASSWORD under SECURITY menu is turned ON.

(continued on next page)

Page 69

OPTION menu

Item Description

SERVICE

(continued)

INFORMATION

Selecting this item displays a dialog titled “INPUT_INFORMATION”. It shows the information about the current input.

• The “FRAME LOCK” message on the dialog means the frame lock function is working.

• This item can't be selected for no signal and sync out.

• When the MY TEXT DISPLAY is set to ON, the MY TEXT is displayed together with the input information in the INPUT_ INFORMATION box (



86).

FACTORY RESET

Selecting OK using the ► button performs this function. By this function, all the items in all of menus will collectively return to the initial setting. Note that the items LAMP TIME, FILTER TIME, LANGUAGE, FILTER MESSAGE, NETWORK and SECURITY settings are not reset.

CANCEL ð OK

Be sure to set ALTITUDE after resetting all the settings (



62).

Page 70

NETWORK menu

Remember that incorrect network settings on this projector may cause trouble on the network. Be sure to consult with your network administrator before connecting to an existing access point on your network. Select “NETWORK” from the main menu to access the following functions. Select an item using the ▲/▼ cursor buttons on the projector or remote control, and press the ► cursor button on the projector or remote control, or ENTER button on the remote control to execute the item. Then perform it according to the following table. See the Network Guide for details of NETWORK operation.

NETWORK menu

• To use the wireless network function of this projector, the designated USB wireless adapter that is sold as an option is required. Do not use

any extension cable or device when connecting the adapter to the projector.

•

The projector does not allow both wireless and wired LAN to be connected to

the same network.

• Do not set the same network address for both wireless and wired LAN.

• If you are not utilizing SNTP (Date/Time Settings in the Network Guide), then you must set the DATE AND TIME during the initial installation.

• The network communication control is disabled while the projector is in standby mode if the STANDBY MODE item of SETUP menu is set to SAVING. Please connect the network communication to the projector after setting the STANDBY MODE to NORMAL (

48).

NOTE

Item Description

WIRELESS

SETUP

Selecting this item displays the WIRELESS SETUP menu for the wireless LAN. Use the ▲/▼ buttons to select an item, and the ► or ENTER button on the remote control to perform the item.

MODE

Use the ▲/▼ buttons to select the mode of the network communication system. Select according to the settings of your computer.

AD HOC ó INFRASTRUCTURE

To save the setting, press the ► button.

• When ADHOC is selected, IEEE802.11 n cannot

be used.

• If ADHOC is set to MODE while one of WPA-

PSK or WPA2-PSK is selected in ENCRYPTION, the ENCRYPTION (



72) setting switches to OFF

automatically.

(continued on next page)

Page 71

NETWORK menu

Item Description

WIRELESS

SETUP

(continued)

DHCP

(Dynamic Host

Conguration

Protocol)

Use the ▲/▼ buttons to turn DHCP on/off.

ON ó OFF

Select OFF when the network does not have DHCP enabled. To save the setting, press the ► button.

• When the “DHCP” setting changes to “ON”, it

takes a little time to obtain IP address from DHCP server.

• Auto IP function will be assigned an IP address if

the projector could not obtain an IP address from server even if DHCP is “ON”

IP ADDRESS

Use the ▲/▼/◄/► buttons to enter the IP ADDRESS. This function can only be used when DHCP is set to OFF.

• The IP ADDRESS is the number that identies

this projector on the network. You cannot have two devices with the same IP ADDRESS on the same network.

• The IP ADDRESS “0.0.0.0” is prohibited.

SUBNET

MASK

Use the ▲/▼/◄/► buttons to enter the same SUBNET MASK used by your computer. This function can only be used when DHCP is set to OFF.

• The SUBNET MASK “0.0.0.0” is prohibited.

DEFAULT

GATEWAY

Use the ▲/▼/◄/► buttons to enter the DEFAULT GATEWAY (a node on a computer network that serves as an access point to another network) address. This function can only be used when DHCP is set to OFF.

DNS SERVER

Use the ▲/▼/◄/► buttons to input the DNS server address. The DNS server is a system to control domain names and IP addresses on the Network.

TIME

DIFFERENCE

Use the ▲/▼ buttons to enter the TIME DIFFERENCE. Set the same TIME DIFFERENCE as the one set on your computer. If unsure, consult your IT manager. Use the ► button to return to the menu after setting the TIME DIFFERENCE.

• When this item is set, the same item in the

WIRED SETUP menu is overwritten with the same setting (



76).

(continued on next page)

Page 72

NETWORK menu

Item Description

WIRELESS

SETUP

(continued)

DATE AND

TIME

Use the ▲/▼/◄/► buttons to enter the Year (last two digits), Month, Date, Hour and Minute.

• When this item is set, the same item in the

WIRED SETUP menu is overwritten with the same setting (



76).

• The projector will override this setting and retrieve

DATE AND TIME information from the Time server when SNTP is enabled. (Date/Time Settings in the Network Guide)

• This setting will be reset if the projector is turned

off while STANDBY MODE in the SETUP menu is set to SAVING (



48), or when the AC power is

turned off.

Use the ▲/▼ buttons to select the channel of the wireless LAN to be used while MODE (



70) is set to ADHOC. Select according to the settings of your computer. The channels 1 to 11 are available. To save the setting, press the ► button.

• The available channels would be various depending on a country. In addition, wireless network card might be required due to the standard.

• This item can only be selected when MODE is set to ADHOC. When MODE is set to INFRASTRUCTURE, the channel is automatically selected.

ENCRYPTION

Use the ▲/▼ buttons to select the encryption method to be used.

WPA2-PSK(AES) ó WPA2-PSK(TKIP)   OFF WPA-PSK(AES)   WEP 64bitóWEP 128bitóWPA-PSK(TKIP)

To save the setting, press the ► button.

• When MODE (



70) is set to ADHOC, either

WPA-PSK and WPA2-PSK cannot be selected.

• If IEEE802.11 n is used while MODE is set to INFRASTRUCTURE, TKIP and WEP are disabled.

• If OFF or AES is not selected, communication will switch automatically to IEEE802.11 b/g.

(continued on next page)

Page 73

NETWORK menu

Item Description

WIRELESS

SETUP

(continued)

SSID

Use the ▲/▼ buttons to select the SSID to display the SSID menu.

#1 DEFAULT ó #2 DEFAULT ó #3 DEFAULT

#5 CUSTOM ó #4 DEFAULT

Select one of the DEFAULT (#1~#4) and press ► or ENTER button.

To adjust CUSTOM

Press the ► or ENTER button when the # 5 CUSTOM is selected. The SSID #5 CUSTOM menu will be appeared.

(1)

The current SSID will be displayed on the rst line. If not yet written, the line will be blank. Use the ▲/▼/◄/► buttons and the ENTER or INPUT button to select and enter characters. To erase 1 character at one time, press the RESET button or press the ◄ and INPUT button at the same time. Also if you move the cursor to DELETE or ALL CLEAR on screen and press the ENTER or INPUT button, 1 character or all characters will be erased. The SSID can be input up to 32 characters.

(2)

To change an already inserted character, press the ▲/▼ button to move the cursor to one of the rst 2 lines, and use the ◄/► buttons to move the cursor on the character to be changed. After pressing the ENTER or INPUT button, the character is selected. Then, follow the same procedure as described at the item (1) above.

(3)

To nish entering text, move the cursor to the OK on screen and press the ►, ENTER or INPUT button. To revert to the previous name without saving changes, move the cursor to the CANCEL on screen and press the ◄, ENTER or INPUT button.

(continued on next page)

Page 74

NETWORK menu

Item Description

WIRELESS

INFORMATION

"Selecting this item displays the WIRELESS_INFORMATION dialog for viewing the wireless LAN settings." Use the ▲/▼ buttons to switch the page. The rst page shows the wireless LAN settings. The second and subsequent pages display the signal information of wireless LAN connection devices.

• For details of PASSCODE, refer to the manual for “LiveViewer”.

• Nothing (blank) is shown in the PROJECTOR NAME

(



77)

and

SSID

(



73)

field until you setup those items. Only the first 16

characters of the PROJECTOR NAME.

• IP ADDRESS, SUBNET MASK and DEFAULT GATEWAY indicate “0.0.0.0” in the following condition. (1) The USB wireless adapter is not inserted into the projector. (2) DHCP is ON and the projector does not get address from DHCP server.

• Nothing (blank) is shown in the CH and SPEED elds if the USB wireless adapter is not inserted.

• The actual performance and setting will be shown in the CH eld, instead of the setting value in the WIRELESS SETUP menu.

• An icon is displayed to the left of the SSID of the device connected to the projector.

(continued on next page)

Page 75

NETWORK menu

Item Description

WIRED SETUP

Selecting this item displays the WIRED SETUP menu for the wired LAN. Use the ▲/▼ buttons to select an item, and the ► or ENTER button on the remote control to perform the item.

DHCP

(Dynamic Host

Conguration

Protocol)

Use the ▲/▼ buttons to turn DHCP on/off.

ON ó OFF

Select OFF when the network does not have DHCP enabled. To save the setting, press the ► button.

• When the “DHCP” setting changes to “ON”, it takes a little time to obtain IP address from DHCP server.

• Auto IP function will be assigned an IP address if the projector could not obtain an IP address from server even if DHCP is “ON”.

IP ADDRESS

Use the ▲/▼/◄/► buttons to enter the IP ADDRESS. This function can only be used when DHCP is set to OFF.

• The IP ADDRESS is the number that identies this projector on the network. You cannot have two devices with the same IP ADDRESS on the same network.

• The IP ADDRESS “0.0.0.0” is prohibited.

SUBNET

MASK

Use the ▲/▼/◄/► buttons to enter the same SUBNET MASK used by your computer. This function can only be used when DHCP is set to OFF.

• The SUBNET MASK “0.0.0.0” is prohibited.

DEFAULT

GATEWAY

DNS SERVER

Use the ▲/▼/◄/► buttons to input the DNS server address. The DNS server is a system to control domain names and IP addresses on the Network.

(continued on next page)

Page 76

NETWORK menu

Item Description

WIRED SETUP

(continued)

TIME

DIFFERENCE

• When this item is set, the same item in the WIRELESS SETUP menu is overwritten with the same setting (



71).

DATE AND

TIME

Use the ▲/▼/◄/► buttons to enter the Year (last two digits), Month, Date, Hour and Minute.

• When this item is set, the same item in the WIRELESS SETUP menu is overwritten with the same setting (



72).

• The projector will override this setting and retrieve DATE AND TIME information from the Time server when SNTP is enabled. (Date/Time Settings in the Network Guide)

• This setting will be reset if the projector is turned off while STANDBY MODE in the SETUP menu is set to SAVING (



48), or when the AC power is

turned off.

WIRED

INFORMATION

Selecting this item displays the WIRED INFORMATION dialog for viewing the wired LAN settings.

• For details of PASSCODE, refer to the manual for “LiveViewer”.

• Only the first 16 characters of the PROJECTOR NAME are displayed.

• IP ADDRESS, SUBNET MASK and DEFAULT GATEWAY indicate “0.0.0.0” when DHCP is ON and the projector has not gotten address from DHCP server.

(continued on next page)

Page 77

NETWORK menu

Item Description

PROJECTOR

NAME

(1) Use the ▲/▼ buttons on the

NETWORK menu to select the PROJECTOR NAME and press the ► button. The PROJECTOR NAME dialog will be displayed.

(2) The current PROJECTOR NAME will be displayed on the rst 3

lines. Particular projector name is pre-assigned by default.

Use the ▲/▼/◄/► buttons and the ENTER or INPUT button to select and enter characters. To erase 1 character at one time, press the RESET button or press the ◄ and INPUT button at the same time. Also if you move the cursor to DELETE or ALL CLEAR on screen and push the ENTER or INPUT button, 1 character or all characters will be erased.The PROJECTOR NAME can be input up to 64 characters.

(3) To change an already inserted

character, press the ▲/▼ button to move the cursor to one of the rst 3 lines, and use the ◄/► buttons to move the cursor on the character to be changed. After pressing the ENTER or INPUT button, the character is selected. Then, follow the same procedure as described at the item (2) above.

(4) To nish entering text, move the cursor to the OK on screen and

press the ►, ENTER or INPUT button. To revert to the previous PROJECTOR NAME without saving changes, move the cursor to the CANCEL on screen and press the ◄, ENTER or INPUT button.

(continued on next page)

Page 78

NETWORK menu

Item Description

MY IMAGE

Selecting this item displays the MY IMAGE menu. Use the application to transfer the image data. It can be downloaded from the Hitachi web site. Use the ▲/▼ buttons to select an item which is a still image by the MY IMAGE (My Image Function in the Network Guide) and the ► or ENTER button to display the image.

• The item without image stored cannot be selected.

• The image names are each displayed in 16 characters or less.

To switch the image displayed

Use the ▲/▼ buttons.

To return to the menu

Press the ◄ button on the remote control.

To erase the image displayed and its source le in the projector.

(1) Press the RESET button on the remote

control while displaying an image to display the MY IMAGE DELETE menu.

(2) Press the ► button to perform to erase.

To stop erasing, press the ◄ button.

AMX D.D.

(AMX Device

Discovery)

Use the ▲/▼ buttons to turn the AMX Device Discovery on/off.

ON ó OFF

When ON is selected, the projector can be detected by controllers of AMX connected to the same network. For the details of AMX Device Discovery, visit the AMX web site.

URL: http://www.amx.com/ (as of Dec. 2011)

(continued on next page)

Page 79

NETWORK menu

Item Description

PRESENTATION

Selecting this item displays the PRESENTATION menu. Use ▲/▼ buttons to select one of the following items, then press ► or ENTER button to use the function.

• To use Network Presentation, an exclusive application, "LiveViewer" is required. It can be installed from the bundled application CD. You can also download the latest version and relevant information from the Hitachi website (http://www.hitachi-america.us/digitalmedia or http://www.hitachidigitalmedia.com).For details of Network Presentation and instructions to install the "LiveViewer", refer to the manual for "LiveViewer".

QUIT

PRESENTER

MODE

If you set a computer to the Presenter mode while its image is projected, the projector is occupied by the computer and access from any other computer is blocked. Use this function to quit the Presenter mode and allow other computers to access the projector. Select this item to display a dialog. Press ► button to choose OK in the dialog. The Presenter mode is cancelled and a message is displayed indicating the result.

• To make Presenter mode setting, use “LiveViewer”. For details, refer to the manual for "LiveViewer".

MULTI PC

MODE

If you set one or more computers to the Multi PC mode on “LiveViewer” and send their images to the projector, you can select the display mode on the projector from two options below.

- Single PC mode: displays the image of the selected computer on full screen.

- Multi PC mode: displays the images sent from up to four computers on screen that is divided into quarter sections.

Select this item to display a dialog. Use the dialog to change the display mode as explained below.

• To change from Multi PC mode to Single PC mode,

select one of computers in the dialog using the ▲/▼/◄/► buttons and press the ENTER or INPUT button. Press the ► button to choose OK, and then press ENTER or INPUT again. The image for the selected computer is displayed on full screen.

(continued on next page)

Page 80

NETWORK menu

Item Description

PRESENTATION

(continued)

MULTI PC

MODE

(continued)

• To change from Single PC mode to Multi PC mode,

press ► button to choose OK in the dialog and press the ENTER or INPUT button. The display mode is changed.

•

For details on how to switch the

display mode to Multi PC mode on your computer, refer to the manual for

“LiveViewer”

• The Presenter mode setting of the selected

computer becomes valid when the display mode is changed to Single PC mode. Also, the Presenter mode setting becomes invalid when the display mode is changed to Multi PC mode, regardless the setting on the computers. For details, refer to the manual for “LiveViewer”.

DISPLAY

USER NAME

Selecting this item displays the user name. This function helps you identify from which computer the current image is sent.

• You can set user names for each computer on

“LiveViewer”. For details, refer to the manual for “LiveViewer”.

SERVICE

Executing this item restarts and initializes the network functions. Choose the NETWORK RESTART EXECUTE using the button ►.

Then use the button ► to execute.

Network will be once cut off when choose restart. If DHCP is selected on, IP address may be changed. After selecting NETWORK RESTART EXECUTE, NETWORK menu may not be controlled approx. 30 seconds.

Page 81

SECURITY menu

Item Description

SECURITY

PASSWORD

CHANGE

(1) Use the ▲/▼ buttons on the SECURITY menu

to select SECURITY PASSWORD CHANGE and press the ► button to display the ENTER

NEW PASSWORD box. (2) Use the ▲/▼/◄/► buttons to enter the new password. (3) Move the cursor to the right side of the

ENTER NEW PASSWORD box and press the

► button to display the NEW PASSWORD

AGAIN box, enter the same password again. (4)

Move the cursor to the right side of the NEW

PASSWORD AGAIN box and press the ►

button and the NOTE NEW PASSWORD box

will be displayed for about 30 seconds, please

make note of the password during this time.

Pressing the ENTER button on the remote control or ► button on the

projector will close the NOTE NEW PASSWORD box.

• Please do not forget your password.

SECURITY menu

(continued on next page)

This projector is equipped with security functions. From the SECURITY menu, items shown in the table below can be performed. To use SECURITY menu: User registration is required before using the security functions.

Enter to the SECURITY menu

1. Press the ► button. The ENTER PASSWORD box will be displayed.

2. Use the ▲/▼/◄/► buttons to enter the registered password. The factory default password is as follows.

C8105B, 8106B : 6415 C8104WB: 4815

This password can be changed

(



below)

. Move the cursor to the right side of the ENTER PASSWORD box and press the ► button to display the SECURITY menu.

• It is strongly recommended the factory default password to be changed as soon as possible.

• If an incorrect password is input, the ENTER PASSWORD box will be displayed again. If incorrect password is input 3 times, the projector will turn off. Afterwards the projector will turn off every time an incorrect password is input.

3. Items shown in the table below can be performed.

If you have forgotten your password

(1). While the ENTER PASSWORD box is displayed, press and hold

the RESET button on the remote control for about 3 seconds or press and hold the INPUT button for 3 seconds while pressing the ► button on the projector.

(2). The 10 digit Inquiring Code will be displayed. Contact your dealer

with the 10 digit Inquiring Code. Your password will be sent after your user registration information is conrmed.

• If there is no key input for about 55 seconds while the Inquiring Code is displayed, the menu will close. If necessary, repeat the process from (1).

Page 82

SECURITY menu

Item Description

MyScreen

PASSWORD

The MyScreen PASSWORD function can be used to prohibit access to the MyScreen function and prevent the currently registered MyScreen image from being overwritten.

1 Turning on the MyScreen PASSWORD

1-1 Use the ▲/▼ buttons on the SECURITY menu to

select MyScreen PASSWORD and press the ► button to display the MyScreen PASSWORD on/ off menu.

1-2 Use the ▲/▼ buttons on the MyScreen

PASSWORD on/off menu to select ON. The ENTER NEW PASSWORD box (small) will be displayed.

1-3 Use the ▲/▼/◄/► buttons to enter the

password. Move the cursor to the right side of the ENTER NEW PASSWORD box (small) and press the ► button to display the NEW PASSWORD AGAIN box, enter the same PASSWORD again.

1-4 Move the cursor to the right side of the

NEW PASSWORD AGAIN box and press the ► button to display the NOTE NEW PASSWORD box for about 30 seconds, please make note of the password during

this time. Pressing the ENTER button on the remote control or ► button on the projector will return to MyScreen PASSWORD on/off menu.

When a password is set for MyScreen:

•

The MyScreen registration function (and menu) will be unavailable.

•

The MyScreen Lock menu will be unavailable.

•

The START UP setting will be locked on MyScreen (and the menu will be unavailable). Turning the MyScreen PASSWORD off will allow normal operation of these functions.

•

Please do not forget your MyScreen PASSWORD.

2 Turning off the MyScreen PASSWORD

2-1 Follow the procedure in 1-1 to display the MyScreen PASSWORD on/off

menu.

2-2

Select OFF to display the ENTER PASSWORD box (large). Enter the registered password and the screen will return to the MyScreen PASSWORD on/off menu.

If an incorrect PASSWORD is input, the menu will close. If necessary, repeat the process from 2-1.

3 If you have forgotten your password

3-1 Follow the procedure in 1-1 to display the MyScreen PASSWORD on/off

menu.

3-2 Select OFF to display the ENTER PASSWORD box (large). The 10 digit

Inquiring Code will be displayed inside the box.

3-3 Contact your dealer with the 10 digit Inquiring Code. Your password will

be sent after your user registration information is conrmed.

ENTER NEW PASSWORD

box (small)

(continued on next page)

ENTER PASSWORD box

(large)

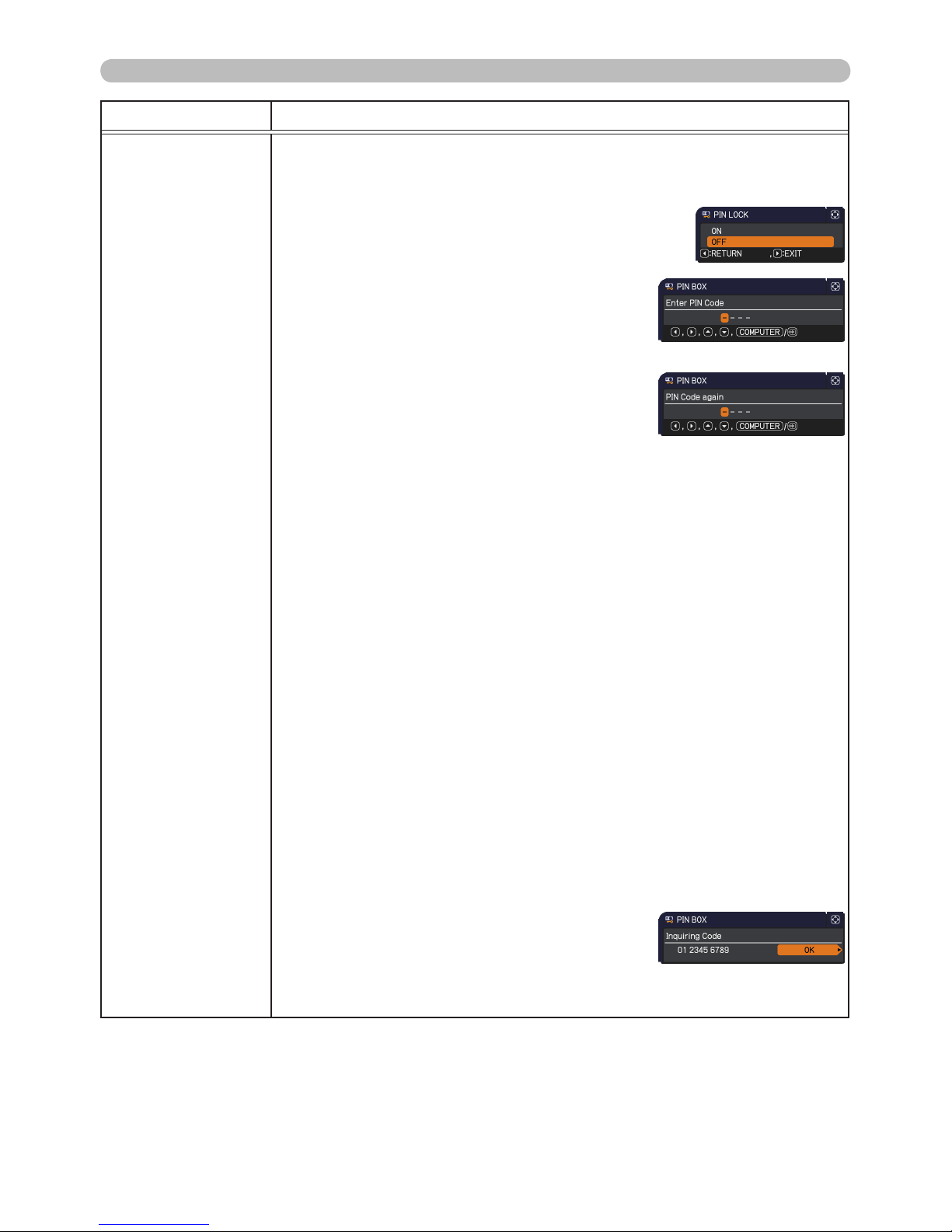

Page 83

SECURITY menu

Item Description

PIN LOCK

PIN LOCK is a function which prevents the projector from being used unless a registered Code is input.

1 Turning on the PIN LOCK

1-1 Use the ▲/▼ buttons on the SECURITY menu to

select PIN LOCK and press the ► button or the ENTER button to display the PIN LOCK on/off menu.

1-2 Use the ▲/▼ buttons on the PIN LOCK on/

off menu to select ON and the Enter PIN Code box will be displayed.

1-3 Input a 4 part PIN code using the ▲/▼/◄/►,

COMPUTER or INPUT button. The PIN Code again box will appear. Reenter the same PIN code. This will complete the PIN code registration.

•

If there is no key input for about 55 seconds while the Enter PIN Code box or the PIN Code again box is displayed, the menu will close. If necessary, repeat the process from 1-1.

Afterwards, anytime the projector is restarted after AC power is turned off the Enter PIN Code box will be displayed. Enter the registered PIN code. The projector can be used after entering the registered PIN code. If an incorrect PIN code is input, the Enter PIN code box will be displayed again. If an incorrect PIN code is input 3 times, the projector will turn off. Afterwards the projector will turn off every time an incorrect PIN code is input. The projector will also turn off if there is no key input for about 5 minutes while the Enter PIN code box is displayed. This function will activate only when the projector is started after AC power is turned off.

•

Please do not forget your PIN code.

2 Turning off the PIN LOCK

2-1 Follow the procedure in 1-1 to display the PIN LOCK on/off menu. 2-2 Use the ▲/▼ buttons to select OFF and the Enter PIN Code box will be

displayed. Enter the registered PIN code to turn the PIN LOCK function off.

If an incorrect PIN code is input 3 times, the projector will turn off.

3 If you have forgotten your PIN code

3-1 While the Enter PIN code box is displayed, press and hold the RESET

button for 3 seconds or press and hold the INPUT button for 3 seconds while pressing the ► button on the projector. The 10 digit Inquiring Code will be displayed.

•

If there is no key input for about 5 minutes while the Inquiring Code is displayed, the projector will turn off.

3-2 Contact your dealer with the 10 digit Inquiring Code. Your PIN code will

be sent after your user registration information is conrmed.

(continued on next page)

Page 84

SECURITY menu

Item Description

TRANSITION

DETECTOR

If this function is set to ON and the vertical angle of the projector or the INSTALLATION setting is different from the previous recorded setting, the TRANSITION DETECTOR ON alarm will be displayed and the input signal will not be displayed.

• To display the signal again, set this function OFF.

• After about 5 minutes of displaying the TRANSITION DETECTOR ON alarm, the lamp will turn off.

• Keystone adjustment feature has been prohibited as long as the TRANSITION DETECTOR function is on.

1 Turning on the TRANSITION DETECTOR

1-1 Use the ▲/▼ buttons on the SECURITY menu

to select TRANSITION DETECTOR and press the ► or the ENTER button to display the TRANSITION DETECTOR on/off menu.

1-2

Use the ▲/▼ buttons on the TRANSITION DETECTOR on/off menu to select ON. Selecting ON will save the setting of the current angle and the INSTALLATION setting. The ENTER NEW PASSWORD box (small) will be displayed.

1-3 Use the ▲/▼/◄/► buttons to enter a

password. Move the cursor to the right side of the ENTER NEW PASSWORD box (small) and press the ► button to display the NEW PASSWORD AGAIN box, enter the same password again.

1-4 Move the cursor to the right side of the

NEW PASSWORD AGAIN box and press the ► button to display the NOTE NEW PASSWORD box for about 30 seconds, please make note

of the password during this time. Pressing the ENTER button on the remote control or the ► button on the projector will return to the TRANSITION DETECTOR on/off menu.

• Please do not forget your TRANSITION DETECTOR password.

• This function will activate only when the projector is started after turning off the AC power.

• This feature may not function properly if the projector is not in a stable position when ON is selected.

2 Turning off the TRANSITION DETECTOR

2-1

Follow the procedure in 1-1 to display the TRANSITION DETECTOR on/off menu.

2-2

Select OFF to display the ENTER

PASSWORD box (large). Enter the registered

password and the screen will return to the

TRANSITION DETECTOR on/off menu.

If an incorrect password is input, the menu will close. If necessary, repeat the process from 2-1.

3 If you have forgotten your password

3-1

Follow the procedure in 1-1 to display the TRANSITION DETECTOR on/off menu.

3-2 Select OFF to display the ENTER PASSWORD box (large). The 10 digit

Inquiring Code will be displayed inside the box.

3-3 Contact your dealer with the 10 digit Inquiring Code. Your password will

be sent after your user registration information is conrmed.

(continued on next page)

ENTER NEW PASSWORD

box (small)

ENTER PASSWORD box

(large)

Page 85

SECURITY menu

Item Description

MY TEXT

PASSWORD

The MY TEXT PASSWORD function can prevent the MY TEXT from being overwritten. When the password is set for the MY TEXT;

• The MY TEXT DISPLAY menu will be unavailable, which can prohibit changing the DISPLAY setting.

• The MY TEXT WRITING menu will be unavailable, which can prevent the MY TEXT from being overwritten.

1 Turning on the MY TEXT PASSWORD

1-1 Use the ▲/▼ buttons on the SECURITY menu to

select the MY TEXT PASSWORD and press the

► button to display the MY TEXT PASSWORD

on/off menu.

1-2 Use the ▲/▼ buttons on the MY TEXT

PASSWORD on/off menu to select ON. The

ENTER NEW PASSWORD box (small) will

be displayed.

1-3 Use the ▲/▼/◄/► buttons to enter the

password. Move the cursor to the right side

of the ENTER NEW PASSWORD box (small)

and press the ► button to display the NEW

PASSWORD AGAIN box, and then enter the

same password again.

1-4 Move the cursor to the right side of the

NEW PASSWORD AGAIN box and press

► button to display the NOTE NEW

PASSWORD box for about 30 seconds, then

please make note of the password during

this time.

Pressing the ENTER button on the remote control or ► button on the projector will return to the MY TEXT PASSWORD on/off menu.

2 Turning off the MY TEXT PASSWORD

2-1 Follow the procedure in 1-1 to display the MY TEXT PASSWORD on/off

menu.

2-2 Select OFF to display the ENTER

PASSWORD box (large). Enter the

registered password and the screen will

return to the MY TEXT PASSWORD on/off

menu.

If an incorrect password is input, the menu will close. If necessary, repeat the process from 2-1

3 If you have forgotten your password

3-1 Follow the procedure in 1-1 to display the MY TEXT PASSWORD on/off

menu.

3-2 Select OFF to display the ENTER PASSWORD box (large). The 10 digit

inquiring code will be displayed inside the box.

3-3 Contact your dealer with the 10 digit inquiring code. Your password will

be sent after your user registration information is conrmed.

ENTER NEW PASSWORD

box (small)

ENTER PASSWORD box

(large)

(continued on next page)

Page 86

SECURITY menu

Item Description

MY TEXT

DISPLAY

(1) Use the ▲/▼ buttons on the SECURITY menu to

select the MY TEXT DISPLAY and press the ► or ENTER button to display the MY TEXT DISPLAY on/off menu.

(2) Use the ▲/▼ buttons on the MY TEXT DISPLAY on/off menu to select

on or off.

ON ó OFF

When it is set ON, the MY TEXT will be displayed on the START UP screen and the INPUT_ INFORMATION when the INFORMATION on the SERVICE menu is chosen.

• This function is available only when the MY TEXT PASSWORD function is set to the OFF.

MY TEXT WRITING

(1) Use the ▲/▼ buttons on the

SECURITY menu to select the MY TEXT WRITING and press the ► button. The MY TEXT WRITING dialog will be displayed.

(2) The current MY TEXT will be displayed

on the rst 3 lines. If not yet written, the lines will be blank. Use the ▲/▼/◄/► buttons and the ENTER or INPUT button to select and enter characters. To erase 1 character at one time, press the RESET button or press the ◄ and INPUT button at the same time. Also if you move the cursor to DELETE or ALL CLEAR on screen and press the ENTER or INPUT button, 1 character or all characters will be erased. The MY TEXT can be input up to 24 characters on each line.

(3) To change an already inserted

(4) To nish entering text, move the cursor to the OK on screen and press

the ►, ENTER or INPUT button. To revert to the previous MY TEXT without saving changes, move the cursor to the CANCEL on screen and press the ◄, ENTER or INPUT button.

•

The MY TEXT WRITING function is available only when the MY TEXT

PASSWORD function is set to OFF.

CLONING LOCK

The CLONING operation under OPTION_SERVICE menu is not available if ON is selected.

Page 87

Presentation toolsPresentation tools

Presentation tools

The PC-LESS Presentation reads image and audio data from the storage media inserted into the USB TYPE A port and displays the image in the following modes. The PC-LESS Presentation can be started by selecting the USB TYPE A port as the input source. This feature allows you to make your presentations without using your computer.

PC-LESS Presentation

- Thumbnail mode (88)

- Full Screen mode (92)

- Slideshow mode (94)

[Supported storage media]

• USB memory (USB memory type, USB hard disk and USB card reader type)

• USB readers (adapters) that have more than one USB slot may not

work (if the adapter is acknowledged as multiple devices connected).

• USB devices with security software may not work.

• Be careful when inserting or removing a USB device. (

13, 90)

NOTE

• NTFS is not supported.NOTE

[Supported format]

• FAT12, FAT16 and FAT32

The projector has the following two convenient tools that enable on-screen presentations easily and quickly:

- PC-LESS Presentation (

below)

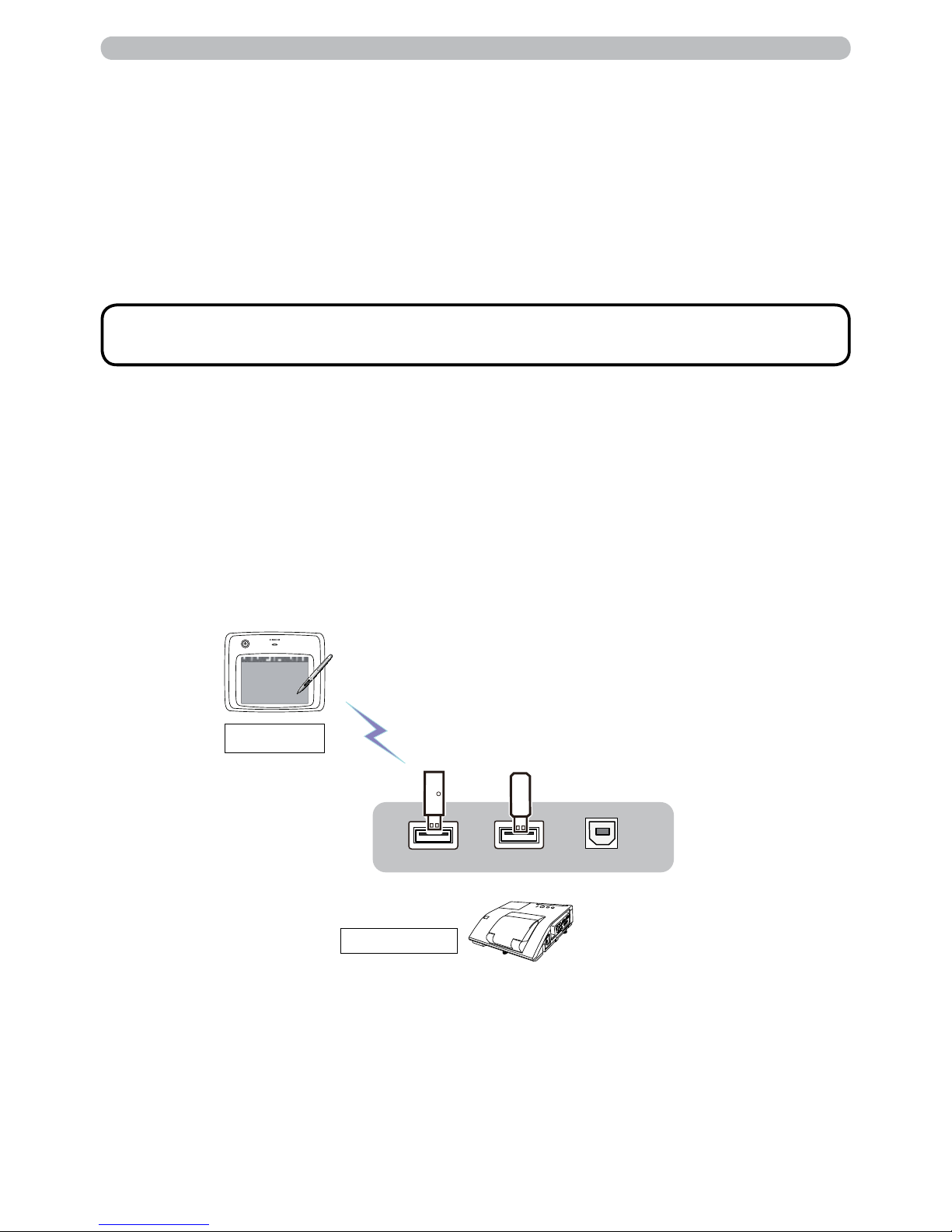

Drawing function

Drawing function enables you to draw on the projector’s screen with

USBmouse or tablets connected to the USB TYPE A ports. For details of Drawing function, refer to the Operating Guide - Drawing function.

- USB Display (

103)

Page 88

Presentation tools

• Files with a resolution larger than the following are not supported.

8105B, 8106B: 1024 x 768 (Still)， 768 x 576 (Movie) 8104WB: 1280 x 800 (Still)， 768 x 576 (Movie)

(* Some computers may not support 1280 x 800.)

• Files with a resolution smaller than 36 x 36 are not supported.

• Files with a resolution smaller than 100 x 100 may not be displayed.

• Movie images with a frame rate higher than 15 fps cannot be displayed.

• Movie images with a bit rate higher than 20 Mbps cannot be displayed.

• Some supported les may not be displayed.

• Only a frame appears when the content of image data cannot be displayed in the Thumbnail mode.

• Even with the le format and audio format combinations described above, playback of some les may fail.

NOTE

[Supported le format and its extension]

• JPEG (.jpeg, .jpg) * Progressive is not supported.

• Bitmap (.bmp) * 16bit mode and compressed bitmap is not supported.

• PNG (.png) * Interlace PNG is not supported.

• GIF (.gif)

• Movie (.avi, .mov) *

Supported video format: Motion-JPEG Supported audio format:

WAV (Linear PCM, Stereo 16bit),

IMA-ADPCM

Thumbnail mode

PC-LESS Presentation (continued)

The Thumbnail mode displays the images stored in a USB storage device on the Thumbnail screen. Maximum 20 images are displayed in a screen. If you wish, you can jump into the Full Screen mode or Slideshow mode, after you select some images in the Thumbnail mode. The Thumbnail mode will be started as the primary function of the PC-LESS Presentation after selecting the USB TYPE A port as the input source.

Thumbnail menu

Selected image

Thumbnail images

Page 89

Presentation tools

PC-LESS Presentation (continued)

The SETUP menu for the selected image

Item Functions

SETUP

Use the ◄/► cursor buttons to switch each setting or use the ► cursor button to execute the functions as follows.

RETURN Press the ► cursor button or ENTER to return to the Thumbnail screen.

START

Switch to ON to set the selected image as the rst image in the Slideshow. This setting information will be saved in the “playlist.txt” le

(



96).

STOP

Switch to ON to set the selected image as the last image in the Slideshow. This setting information will be saved in the “playlist.txt” le

(



96).

SKIP

Switch to ON to skip the selected image in the Slideshow. This setting information will be saved in the “playlist.txt” le (



96).

ROTATE

Press the ► cursor or ENTER button to rotate the selected still image 90 degrees clockwise. This setting information will be saved in the “playlist.txt” le (



96).

You can control the images on the Thumbnail screen with the remote control, control panel or Web Remote Control. The following functions can be supported while the Thumbnail is displayed.

Operating by buttons or keys

Button operation

Functions

The remote control

Control panel

Web Remote Control

▲/▼/◄/► ▲/▼/◄/► [▲]/[▼]/[◄]/[►] Move cursor

PAGE UP PAGE DOWN

[PAGE UP] [PAGE DOWN]

Switches pages

ENTER INPUT [ENTER]

• Displays the selected image on the Full Screen mode when a cursor is on a thumbnail image.

• Displays the SETUP menu

(



below) for the selected image

when a cursor is on a thumbnail image number.

Page 90

Presentation tools

You can also control the images by using the menu on the Thumbnail screen.

PC-LESS Presentation (continued)

Operating by the menu on the Thumbnail screen

Item Functions

Moves to an upper folder.

SORT Allows you to sort les and folders as following.

RETURN

Press the ► cursor button or ENTER to return to the Thumbnail

screen. NAME UP Sorts in ascending order by le name. NAME DOWN Sorts in descending order by le name. DATE UP Sorts in ascending order by le date. DATE DOWN Sorts in descending order.by le date.

▲/▼ Go to previous / next page. SLIDESHOW Congures and starts the Slideshow (



94).

RETURN

Press the ► cursor button or ENTER to return to the Thumbnail

screen. PLAY Press the ► cursor button or ENTER to start the Slideshow. START Sets the beginning number of the Slideshow. STOP Sets the end number of the Slideshow.

INTERVAL

Sets the interval time for displaying still images during the

Slideshow. PLAY MODE Selects the Slideshow mode.

INPUT Switches the input port. MENU Displays the menu.

REMOVE USB

Be sure to use this function before removing USB storage device

from the projector. After that, the projector will not recognize a

USB storage device until you insert it again into the USB TYPE A

input port.

Turns the sound on/off for les that contain audio data.

Page 91

Presentation tools

PC-LESS Presentation (continued)

•

These operations are not accessible while the projector OSD is displayed.

• The Thumbnail mode is able to display up to 20 les in one page.

• It is not possible to change the input port by using the INPUT button when the Thumbnail screen, Slideshow, or Full Screen is displayed.

• The image quality may deteriorate when playing back audio data included in a movie. If you want to give priority to the image quality, turn off the sound by setting ♪ to off.

• If one of the AUDIO IN ports is selected or is selected for USB TYPE A in AUDIO SOURCE of the AUDIO menu (

50), ♪ cannot be operated.

• Some error icons will be displayed in the Thumbnail.

NOTE

This le seems to be broken or not supported format.

A le that cannot be displayed on the thumbnail screen is indicated by a le format icon.

Page 92

Presentation tools

PC-LESS Presentation (continued)

The Full Screen mode shows a full display image. To display in Full Screen mode, select an image in the Thumbnail screen. Then press the ENTER button on the remote control, the INPUT button on the control panel or click [ENTER] on the Web Remote Control.

Full Screen Mode

Button operation

Functions

The remote control

Control panel

Web Remote Control

▼ ► or

PAGE DOWN

▼ or ►

[▼] [►] or [PAGE DOWN]

Shows the next le.

▲ ◄ or

PAGE UP

▲ or ◄

[▲] [◄] or [PAGE UP]

Shows the previous le.

ENTER INPUT [ENTER] Displays Thumbnail.

The following operations are enabled in the Full Screen mode while a still image is displayed.

Full screen display

Operations for still images

Page 93

Presentation tools

PC-LESS Presentation (continued)

Button operation

Functions

The remote control

Control panel

Web Remote Control

▲ ▲ [▲]

(Play) /

(Pause) toggle

► ► [►]

(FF) Fast-forward

◄ ◄ [◄]

(REW) Fast-rewind

ENTER INPUT [ENTER] (Stop), Displays Thumbnail. PAGE DOWN – [PAGE DOWN]

Shows the next le.

PAGE UP – [PAGE UP]

Shows the previous le.

•

These operations are not accessible while the projector OSD is displayed.

• It is not possible to change the input port by using the INPUT button when the Thumbnail screen, Slideshow, or Full Screen is displayed.

NOTE

A remote control icon and a progress bar are displayed when one of the cursor buttons, ENTER button or INPUT button on the remote control, control panel or Web Remote Control is pressed or clicked while a movie is playing in the Full Screen mode. The following operations are enabled while the remote control icon and progress bar are displayed.

Operations for movie

Page 94

Presentation tools

PC-LESS Presentation (continued)

Slideshow mode

While the Slideshow is displayed, the following button operations are enabled when still images are displayed, and the same button operations in the Full Screen mode are enabled when movies are displayed.

• These operations are not accessible while the projector OSD is

displayed.

• It is not possible to change the input port by using the INPUT button when the Thumbnail screen, Slideshow, or Full Screen is displayed.

• When the Slideshow mode is set to ONE TIME and the last le is a still image, the last slide of the presentation will remain displayed until the ENTER button on the remote control or Web Remote Control, or the INPUT button on the control panel is pressed.

NOTE

You can start this function from the Slideshow menu. To display the Slideshow menu, select the SLIDESHOW button in the Thumbnail mode and press the

ENTER button on the remote control, INPUT button on the control panel, or click [ENTER] on the Web Remote Control.

Button operation

Functions

The remote control

Control panel

Web Remote Control

ENTER INPUT [ENTER] Displays thumbnail

The Slideshow mode displays images in full screen and switches the images at intervals set in INTERVAL on the Thumbnail screen menu (

90).

Page 95

Presentation tools

PC-LESS Presentation (continued)

You can play the Slideshow at your desired conguration. Congure the Slideshow items in the Thumbnail.

1) RETURN :

Returns to the thumbnail mode.

2) PLAY : Play the Slideshow.

3) START :

Set the beginning number of the Slideshow.

4) STOP : Set the end number of the Slideshow.

5) INTERVAL : Sets the interval time for displaying still images during the Slideshow. It is not recommend to set the interval time very short something like several seconds, because it may take more than several seconds to read and display an image le if it is stored in very deep layer directory or if so many les are stored in the same directory.

6) PLAY MODE : Select the Slideshow mode. ONE TIME : Play the Slideshow one time. ENDLESS : Play the Slideshow endless.

• The settings of the Slideshow are saved to the “playlist.txt” le that is stored in the storage media. If the le is not existed, it is generated automatically.

• The settings for the START, STOP, INTERVAL, and PLAY MODE are saved to the Playlist.

• If the storage media is under the write protection or the “playlist.txt” is the read only type le, it is impossible to change the settings of the Slideshow.

NOTE

Page 96

Presentation tools

PC-LESS Presentation (continued)

Playlist

The Playlist is a DOS format text le, which decides the order of displayed still image les in the Thumbnail or Slideshow. The playlist le name is “playlist.txt” and it can be edited on a computer. It is created in the folder that contains the selected image les when the PC-LESS Presentation is started or the Slideshow is congured.

[Example of “playlist.txt” les] START setting : STOP setting : INTERVAL setting : PLAY MODE setting : img001.jpg: : : : img002.jpg:600: : : img003.jpg:700:rot1: : img004.jpg: : :SKIP: img005.jpg:1000:rot2:SKIP:

The “playlist.txt” le contains the following information. Each piece of information requires to be separated by “:”, and “:” at the end of each line. 1st line: START, STOP, INTERVAL and PLAY MODE settings (95). 2nd line and after: le name, interval time, rotation setting and skip setting.

interval time:

It can be set from 0 to 999900 (ms) with an increment of 100 (ms).

rotation setting

: “rot1” means a rotation at 90 degrees clockwise; “rot2” and

“rot3” increase another 90 degrees in order.

skip setting: “SKIP” means that the image will not be displayed in the

Slideshow.

•

The maximum length in a line on the "playlist.txt" le is 255 characters

including linefeed. If any line exceeds the limit, the "playlist.txt" le becomes invalid.

•

Up to 999 les can be registered to the Playlist. However, if some folders exist in the same directory the limit number is decreased by the number of folders. Any les over the limit will not be shown in the Slideshow.

•

If the storage device is protected or does not have sufcient space, the “playlist.txt” le cannot be created.

• For the Slideshow settings, refer to the section Slideshow mode (94).

NOTE

Page 97

Presentation tools

This function is an interactive tool for use with projector; it offers effective features for making classroom and business presentations more fun and easier to understand.

Main Functions

Drawing on projected images

You can draw pictures or text on images projected by our projectors.

• Authorization by the copyright owner(s) is required pursuant to applicable laws for the use of works including visual images, if such works are copyrighted works.

• This drawing function may not work depending on the image signal.

NOTE

Saving and displaying drawn images

You can save images with pictures or text drawn on them to a USB memory device and then retrieve the saved images and display them again later.

• A USB memory device is necessary to use this function. In addition, if your projector only has one available USB TYPE A port, you will also need a USB hub.

• Copyright protected images cannot be saved.

NOTE

Use as a simple mouse

The Pen tablet (ex. TB-1)/ USB mouse with the drawing function can be used as a simple mouse of a computer connected to a projector.

• To use this function, a USB cable is required to connect the computer

and the projector.

•Some Pen tablets (ex. TB-1) and USB mouse devices may not operate properly.

NOTE

Drawing Function

Page 98

Presentation tools

Connect into the USB TYPE A port on your projector. To save an image that has been drawn, a USB memory device must also be connected to a USB TYPE A port of the projector. If the projector only has one USB TYPE A port, use a USB hub to connect both devices.

Connecting the Pen tablet (ex. TB-1)/USB mouse and USB memory device.

In order to use the Pen tablet (ex. TB-1)/USB mouse in place of the computer’s mouse, connect a USB TYPE B port of the projector with a USB port (Type A) of the computer with a USB cable.

• Some USB memory devices and/or USB hubs may not operate properly.

NOTE

Drawing Function (continued)

Connecting the Computer and Projector with a USB Cable

Presentation tools

Connecting the Pen tablet (ex. TB-1)/USB mouse and USB memory device.

In order to use the Pen tablet (ex. TB-1)/USB mouse in place of the computer’s mouse, connect a USB TYPE B port of the projector with a USB port (Type A) of the computer with a USB cable.

• Some USB memory devices and/or USB hubs may not operate properly.

NOTE

Drawing Function (continued)

Connecting the Computer and Projector with a USB Cable

USB TYPE B

USB TYPE A

Wireless adapter

USB memory device

Fig.1 Example of connections

Projector

Tablet

4. Operating Guide, OPTION menu p.59 Add the following item between AUTO POWER OFF and LAMP TIME.

Item Description

USB TYPE B

Using the ▲/▼ buttons selects the function of USB TYPE B port. To use this function, you need to connect the USB TYPE B port of the projector and the type A USB port of a computer.

MOUSE  USB DISPLAY

MOUSE : The accessory remote control works as the simple mouse

and keyboard of the computer.

USB DISPLAY : The port works as an input port that receives image

signals from the computer.

• It may take several seconds to project the images from the USB TYPE B port.

• In the following cases, a message to notify you that USB TYPE B port is not available for picture input appears together with the USB TYPE B dialog:

- This setting is switched to MOUSE while a picture input from the

USB TYPE B port is projected.

- The USB TYPE B port is selected as the picture input source while

5. Operating Guide, Connecting the Computer and Projector with a USB Cable p.98 Add the following sentence after the "In order to use 〜 with a USB cable.":

Then select “MOUSE” for the projector’s “USB TYPE B” function setting.

NOTE

• For information on the projector’s “USB TYPE B” settings, refer to the user’s manual of the projector.

【Addition】

Page 99

Presentation tools

Drawing Function (continued)

USB

(A)

USB TYPE B

USB TYPE A

Wireless adapter

USB memory device

Tablet

Projector

USB hub

Computer

Mouse

Fig.3 Example of connections

USB TYPE B

USB TYPE A

USB

(A)

Tablet

Projector

Computer

Fig.2 Example of connections

Page 100

100

Presentation tools

Using the Drawing Function

Touching/clicking Pen tablet (ex. TB-1)/USB mouse function key starts up the drawing mode. A tool bar like the  gure below is displayed on the projector screen while in the drawing mode. Touching/clicking an icon on the tool bar enables the following functions. Touching anywhere on the tool bar except an icon and dragging moves the toolbar.

• Images may be copyrighted, in which case, permission from the copyright holder is necessary for use, in accordance with the copyright act and other applicable laws.

• The drawing function does not support drawing on images from the LAN port or the USB TYPE B port of the projector. If you operate the Pen tablet (ex. TB-1)/USB mouse while these images are displayed, the input source may automatically switch to USB TYPE A port.

NOTE

Pen1. Selects the pen function.

The cursor turns into a Pencil ; dragging it draws a line of the speci ed pen color and size.

The cursor turns into a Laser Pointer . Dragging it does not draw a line.

Pen color2.

Selects the Color of the line drawn by the Pencil.

Speci es Black.

Speci es Red.

Speci es Blue.

Pen size3.

Selects the Thickness of the line drawn by the Pencil.

Speci es 1-dot.

Speci es 3-dot.

Speci es 5-dot.

Eraser4.

Switches the pen function to that of an eraser and speci es its size. The cursor turns into an Eraser

; dragging it erases previously

drawn lines.

Speci es a 12-dot Eraser.

Speci es a 20-dot Eraser.

Speci es a 28-dot Eraser.

Ducane 8104WB, 8105B, 8106B User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
