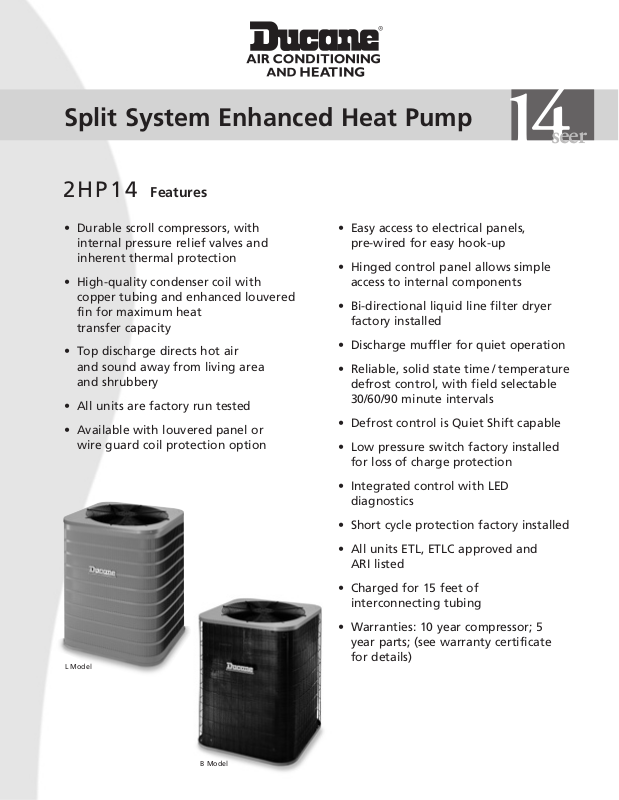

Page 1
Split System Enhanced Heat Pump
14
seer
2HP14
• Durable scroll compressors, with
internal pressure relief valves and
inherent thermal protection
• High-quality condenser coil with
copper tubing and enhanced louvered
fin for maximum heat
transfer capacity
• Top discharge directs hot air
and sound away from living area
and shrubbery
• All units are factory run tested
• Available with louvered panel or
wire guard coil protection option
Features
• Easy access to electrical panels,
pre-wired for easy hook-up
• Hinged control panel allows simple
access to internal components
• Bi-directional liquid line filter dryer
factory installed
• Discharge muffler for quiet operation
• Reliable, solid state time / temperature
defrost control, with field selectable
30/60/90 minute intervals
• Defrost control is Quiet Shift capable
• Low pressure switch factory installed
for loss of charge protection
• Integrated control with LED
diagnostics
L Model
• Short cycle protection factory installed
• All units ETL, ETLC approved and
ARI listed
• Charged for 15 feet of
interconnecting tubing
• Warranties: 10 year compressor; 5
year parts; (see warranty certificate
for details)
B Model
Page 2
14
seer
2HP14 Split System Enhanced Heat Pump
Model Number Guide
2 HP 14 B 36 P - 1 A
Refrigerant – 2 = R22
AC = Condenser
HP = Heat Pump
14 - 14 SEER Nominal
Family / Coil Protection
B = Non-Louvered
L = Louvered
A = Service Level
Revision Code
Voltage
P - 208-230v/60hz
Single Phase
Nominal Capacity
36 - 36,000 Btuh
Voltage/Phase/Hz
Model
2HP14*18P-1* 208-230/1/60 197 - 253 8.3 41 1/10 0.7 1075 11.1 20 139
2HP14*24P-1* 208-230/1/60 197 - 253 10.3 56 1/10 0.7 1075 14.6 25 131
2HP14*30P-1* 208-230/1/60 197 - 253 12.2 61 1/5 0.8 1075 16.0 25 160
2HP14*36P-1* 208-230/1/60 197 - 253 13.5 73 1/5 0.8 1075 18.4 30 177
2HP14*42P-1* 208-230/1/60 197 - 253 16.5 95 1/4 1.4 1075 22.2 35 188
2HP14*48P-1* 208-230/1/60 197 - 253 18.0 104 1/4 1.4 1075 23.7 40 273
2HP14*60P-1* 208-230/1/60 197 - 253 19.2 137 1/3 2.0 1075 26.0 40 252
*15 feet of line sets included.
Voltage/ Voltage
Hz/Phase Range
Rated Locked Condenser Rated
Compressor Fan Motor
Load
(Amps)
Rotor Fan Load
(Amps) HP (Amps)
Min.
Nom.
RPM
Circuit
Ampacity
Maximum
Current
Device
Over-
Refrig.*
Charge
(oz.)
Sound Ratings
Model Sound Rating (dBa) Weight
2HP14(B,L)18P-1* 78 162
2HP14(B,L)24P-1* 79 175
2HP14(B,L)30P-1* 79 187
2HP14(B,L)36P-1* 79 195
2HP14(B,L)42P-1* 78 222
2HP14(B,L)48P-1* 78 224
2HP14(B,L)60P-1* 80 275
Page 3
Cooling/Heating Performance
2HP14 Split System Enhanced Heat Pump
14
seer
Outdoor Model Indoor Model
RBCS2M18COONAT 19,000 14.00 12.5 0.71 17,000 7.70 650 TXV3
RBCS2M18OONAP+TXV 19,000 14.00 12.5 0.71 17,000 7.70 650 TXV3
HP14B18/EC2T28/CMPEV050 19,000 15.00 13.0 0.72 17,000 7.70 650 TXV3
HP14B18/EC1P29+TXV/CMPEV050 19,000 15.00 13.0 0.72 17,000 7.70 650 TXV3
HP14B18/EC2T36/CMPEV050 19,000 15.00 13.0 0.72 17,000 7.70 650 TXV3
HP14B18/EC1P36+TXV/CMPEV050 19,000 15.00 13.0 0.72 17,000 7.70 650 TXV3
HP14B18/EC2T29/CMPEV075 19,000 15.00 13.0 0.72 17,000 7.70 650 TXV3
HP14B18/EC1P29+TXV/CMPEV075 19,000 15.00 13.0 0.72 17,000 7.70 650 TXV3
2HP14*18P-1*
2HP14*24P-1*
HP14B18/EC2T36/CMPEV075 19,000 15.00 13.0 0.72 17,000 7.70 650 TXV3
HP14B18/EC1P36+TXV/CMPEV075 19,000 15.00 13.0 0.72 17,000 7.70 650 TXV3
HP14B18/EC2T29/MPGAV050 19,000 15.00 13.0 0.72 17,000 7.70 650 TXV3
HP14B18/EC1P29+TXV/MPGAV050 19,000 15.00 13.0 0.72 17,000 8.00 650 TXV3
HP14B18/EC2T36/MPGAV050 19,000 15.00 13.4 0.72 17,000 8.00 650 TXV3
HP14B18/EC1P36+TXV/MPGAV050 19,000 15.00 13.4 0.72 17,000 8.00 650 TXV3
HP14B18/EC2T19/MPGAV075 19,000 15.00 13.4 0.72 17,000 8.00 650 TXV3
HP14B18/EC1P28+TXV/MPGAV075 19,000 15.00 13.4 0.72 17,000 8.00 650 TXV3
HP14B18/EC2T36/MPGAV075 19,000 15.00 13.4 0.72 17,000 8.00 650 TXV3
HP14B18/EC1P36+TXV/MPGAV075 19,000 15.00 13.4 0.72 17,000 8.00 650 TXV3
RBCS2M24C00NAT 25,000 14.00 12.0 0.68 21,800 8.20 850 TXV3
RBCS2M24C00NAP+TXV 25,000 14.00 12.0 0.68 21,800 8.20 850 TXV3
EC2129/CMPEV050 25,000 14.20 12.0 0.68 22,500 8.20 850 TXV3
EC1P29+TWV/CMPEV050 25,000 14.20 12.0 0.68 22,500 8.20 850 TXV3
EC2T36/CMPEV050 25,000 14.20 12.0 0.678 22,500 8.20 850 TXV3
EC1P36+TXV/CMPEV050 25,000 14.20 12.0 0.68 22,500 8.20 850 TXV3
EC2T29/GMPEV075 25,000 14.20 12.0 0.68 22,500 8.20 850 TXV3
EC1P29+TXV/CMPEV075 25,000 14.20 12.0 0.68 22,500 8.20 850 TXV3
EC2T36/CMPEV075 25,000 14.20 12.0 0.68 22,500 8.20 850 TXV3
EC1P36+TXV/CMPEV075 25,000 14.20 12.0 0.68 22,500 8.20 850 TXV3
EC2T29/MPGAV050 25,000 14.50 12.0 0.68 22,500 8.20 850 TXV3
EC1P9+TXV/MPGAV050 25,000 14.50 12.4 0.68 22,500 8.20 850 TXV3
EC2T36/MPGAV050 25,000 14.50 12.4 0.68 22,500 8.20 850 TXV3
EC1P36+TXV/MPGAV050 25,000 14.50 12.4 0.68 22,500 8.20 850 TXV3
EC2T19/MPGAV075 25,000 14.80 12.4 0.68 22,500 8.20 850 TXV3
EC1P29+TXV/MPGAV075 25,000 14.80 12.4 0.68 22,500 8.20 850 TXV3
EC2T36/MPGAV075 25,000 14.80 12.4 0.68 22,500 8.20 850 TXV3
EC1P36+TXV/MPGAV075 25,000 14.80 12.4 0.68 22,500 8.20 850 TXV3
Cooling Heating
BTUH SEER EER S/T BTUH HSPF
CFM
Required
Indoor
Expansion
Device
Page 4
14
seer
2HP14 Split System Enhanced Heat Pump
Cooling/Heating Performance
Outdoor Model Indoor Model
RBC52M30COONAT 28,400 14.00 12.0 0.72 26,000 8.20 1,050 TXV3
RBCS2M30COONAP+TXV 28,400 14.00 12.0 0.72 26,000 8.20 1,050 TXV3
EC2T36 28,400 13.50 12.0 0.72 26,000 7.70 1,050 TXV3
EC1P36+TXV 28,400 13.50 12.0 0.72 26,000 7.70 1,050 TXV3
EC2T43 29,000 13.50 12.0 0.72 26,000 7.70 1,050 TXV3
EC1P43+TXV 29,000 13.50 12.0 0.72 26,000 7.70 1,050 TXV3
EC2T48 28,800 13.50 12.0 0.72 26,000 7.70 1,050 TXV3
EC1P48+TXV 28,800 13.50 12.0 0.72 26,000 7.70 1,050 TXV3
EC2T36/CMPEV050 29,000 14.00 12.0 0.72 26,000 8.20 1,050 TXV3
EC1P36+TXV/CMPEV050 29,000 14.00 12.0 0.72 26,000 8.20 1,050 TXV3
EC2T36/CMPEV075 29,000 14.00 12.0 0.72 26,000 8.20 1,050 TXV3
EC1P36+TXV/CMPEV075 29,000 14.00 12.0 0.72 26,000 8.20 1,050 TXV3
E2T36/CMPEV100 29,000 14.50 12.8 0.72 26,000 8.20 1,050 TXV3
EC1P36+TXV/CMPEV100 29,000 14.50 12.8 0.72 26,000 8.20 1,050 TXV3
EC2T43/CMPEV100 29,000 14.50 12.8 0.72 26,000 8.20 1,050 TXV3
2HP14*30P-1*
2HP14*36P-1*
EC1P43+TXV/CMPEV100 29,000 14.50 12.8 0.72 26,000 8.20 1,050 TXV3
EC2T48/CMPEV100 29,000 14.50 12.8 0.72 26,000 8.20 1,050 TXV3
EC1P43+TXV/CMPEV100 29,000 14.50 12.8 0.72 26,000 8.20 1,050 TXV3
EC2T36/MPGAV050 29,000 14.20 12.6 0.72 26,000 8.20 1,050 TXV3
EC1P36+TXV/MPGAV050 29,000 14.20 12.6 0.72 26,000 8.20 1,050 TXV3
EC2T36/MPGAV075 29,000 14.20 12.6 0.72 26,000 8.20 1,050 TXV3
EC1P36+TXV/MPGAV075 29,000 14.20 12.6 0.72 26,000 8.20 1,050 TXV3
EC2T43/MPGAV075 29,000 14.20 12.6 0.72 26,000 8.20 1,050 TXV3
EC1P43+TXV/MPGAV075 29,000 14.20 12.6 0.72 26,000 8.20 1,050 TXV3
EC2T48/MPGAV075 29,000 14.20 12.6 0.72 26,000 8.20 1,050 TXV3
EC1P48+TXV/MPGAV075 29,000 14.20 12.6 0.72 26,000 8.20 1,050 TXV3
EC2T36/MPGAV100 29,000 14.50 12.8 0.72 26,000 8.20 1,050 TXV3
EC1P36+TXV/MPGAV100 29,000 14.50 12.8 0.72 26,000 8.20 1,050 TXV3
EC2T43/MPGAV100 29,000 14.50 12.8 0.72 26,000 8.20 1,050 TXV3
EC1P43+TXV/MPGAV100 29,000 14.50 12.8 0.72 26,000 8.20 1,050 TXV3
EC2T48/MPGAV100 29,000 14.50 12.8 0.72 26,000 8.20 1,050 TXV3
RCBS2M36T 35,000 14.00 12.0 0.73 33,000 8.20 1,250 TXV3
RCBS2M36P+TXV 35,000 14.00 12.0 0.73 33,000 8.20 1,250 TXV3
EC2T36+CMPEV100 35,000 14.50 12.0 0.74 33,000 8.20 1,250 TXV3
EC1P36+CMPEV100+TXV 35,000 14.50 12.0 0.74 33,000 8.20 1,250 TXV3
EC2T36+MPGAV075 35,000 14.50 12.0 0.75 33,000 8.20 1,250 TXV3
EC1P36+MPGAV075+TXV 35,000 14.50 12.0 0.75 33,000 8.20 1,250 TXV3
EC2T43+MPGAV075 35,000 14.50 12.0 0.73 32,800 8.20 1,250 TXV3
EC1P43+MPGAV075+TXV 35,000 14.50 12.0 0.73 32,800 8.20 1,250 TXV3
Cooling Heating
BTUH SEER EER S/T BTUH HSPF
CFM
Required
Indoor
Expansion
Device
Page 5
Cooling/Heating Performance
2HP14 Split System Enhanced Heat Pump
14
seer
Outdoor Model Indoor Model
EC2T48+MPGAV075 35,000 14.50 12.0 0.73 32,400 8.00 1,250 TXV3
EC1P48+MPGAV075+TXV 35,000 14.50 12.0 0.73 32,400 8.00 1,250 TXV3
EC2T36+MPGAV100 35,000 14.50 12.0 0.74 33,000 8.20 1,250 TXV3
2HP14*36P-1*
Cont...
2HP14*42P-1*
2HP14*48P-1*
2HP14*60P-1*
EC1P36+MPGAV100+TXV 35,000 14.50 12.0 0.74 33,000 8.20 1,250 TXV3
EC2T43+MPGAV100 35,000 14.50 12.4 0.73 32,800 8.20 1,250 TXV3
EC1P43+MPGAV100+TXV 35,000 14.50 12.4 0.73 32,800 8.20 1,250 TXV3
EC2T48+MPGAV100 35,000 15.00 12.4 0.73 32,400 8.00 1,250 TXV3
EC1P48+MPGAV100+TXV 35,000 15.00 12.4 0.73 32,400 8.00 1,250 TXV5
RBCS2M42COONAT 41,500 14.00 12.0 0.71 38,500 8.20 1,450 TXV5
RBCS2M42COONAP+TXV 41,500 14.00 12.0 0.71 38,500 8.20 1,450 TXV5
EC2T43BC+MPGAV100 41,000 14.00 12.0 0.71 37,500 8.20 1,450 TXV5
EC1P43BC+MPGAV100+TXV 41,000 14.00 12.0 0.71 37,500 8.20 1,450 TXV5
EC2T50C+MPGAV100 40,500 14.00 12.0 0.71 37,500 8.20 1,450 TXV5
EC1P50C+MPGAV100+TXV 40,500 14.00 12.0 0.71 37,500 8.20 1,450 TXV5
EC2T49C+MPGAV100 41,500 14.50 12.4 0.71 38,000 8.20 1,450 TXV5
EC1P49C+MPGAV100+TXV 41,500 14.50 12.4 0.71 38,000 8.20 1,450 TXV5
EC2T43BC+MPGAV125 41,000 14.50 12.4 0.71 37,500 8.20 1,450 TXV5
EC1P43BC+MPGAV125+TXV 41,000 14.50 12.4 0.71 37,500 8.20 1,450 TXV5
EC2T50C+MPGAV125 41,000 14.50 12.4 0.71 37,000 8.20 1,450 TXV5
EC1P50C+MPGAV125+TXV 41,000 14.50 12.4 0.71 37,000 8.20 1,450 TXV5
EC2T49C+MPGAV125 42,000 15.00 12.6 0.71 37,500 8.20 1,450 TXV5
EC1P49C+MPGAV125+TXV 42,000 15.00 12.6 0.71 37,500 8.20 1,450 TXV5
RBCS2M60COONAP+TXV 47,000 14.00 12.0 0.77 45,500 8.20 1,650 TXV5
RBCS2M60COONAT 47,000 14.00 12.0 0.77 45,500 8.20 1,650 TXV5
EC2T49C 47,000 14.00 11.8 0.76 45,500 8.20 1,650 TXV5
EC1P49C+TXV 47,000 14.00 11.8 0.76 45,500 8.20 1,650 TXV5
EC2T62D 47,000 14.00 11.8 0.76 45,500 8.20 1,650 TXV5
EC1P62D+TXV 47,000 14.00 11.8 0.76 45,500 8.20 1,650 TXV5
EC2T49C+MPGAV125 47,500 14.00 12.0 0.76 45,500 8.20 1,650 TXV5
EC1P49C+MPGAV125+TXV 47,500 14.00 12.0 0.76 45,500 8.20 1,650 TXV5
EC2T62D+MPGAV125 47,500 14.00 12.0 0.76 45,500 8.20 1,650 TXV5
EC1P62D+MPGAV125+TXV 47,500 14.00 12.0 0.76 45,500 8.20 1,650 TXV5
RBCS2M60V**NA2T 53,000 14.00 12.0 0.76 52,000 7.70 1,950 TXV5
RBCS2M60V**NAP+TXV 53,000 14.00 12.0 0.76 52,000 7.70 1,950 TXV5
EC2T62NC+BDK 53,000 13.00 11.5 0.76 53,000 7.70 1,950 TXV5
EC1P62NC+TXV+BDK 53,000 13.00 11.5 0.76 53,000 7.70 1,950 TXV5
EC2T62D+BDK 53,000 13.00 11.5 0.76 53,000 7.70 1,950 TXV5
EC1P62D+TXV+BDK 53,000 13.00 11.5 0.76 53,000 7.70 1,950 TXV5
Cooling Heating
BTUH SEER EER S/T BTUH HSPF
CFM
Required
Indoor
Expansion
Device
Page 6
14
seer
2HP14 Split System Enhanced Heat Pump
Expanded Cooling Performance
Outdoor Model Indoor Model
Ratio Ratio Ratio Ratio Ratio
2HP14*18P-1* RBCS2M18C*** 80/67 20,700 0.64 1320 19,800 0.68 1410 19,300 0.7 1520 18,300 0.73 1570 17,000 0.73 1620
2HP14*24P-1* RBCS2M24C*** 80/67 28,600 0.61 1790 27,300 0.65 2050 26,600 0.67 2150 25,300 0.7 2240 23,400 0.7 2310
2HP14*30P-1* RBCS2M30C*** 80/67 31,300 0.66 2000 29,800 0.7 2200 29,100 0.72 2310 27,600 0.75 2400 25,600 0.75 2480
2HP14*36P-1* RBCS2M36C*** 80/67 37,800 0.66 2490 36,100 0.7 2750 35,200 0.72 2880 33,400 0.75 3000 31,000 0.75 3100
2HP14*42P-1* RBCS2M42C*** 80/67 44,700 0.66 2880 42,600 0.7 3260 41,600 0.72 3420 39,500 0.75 3550 36,600 0.75 3780
2HP14*48P-1* RBCS2M60C*** 80/67 51,100 0.66 3270 48,800 0.7 3700 47,600 0.72 3890 45,200 0.75 4040 41,900 0.75 4170
2HP14*60P-1* RBCS2M60V*** 80/67 57,000 0.69 3660 54,300 0.74 4180 53,000 0.76 4400 50,400 0.79 4580 46,600 0.80 4740
Indoor 80 db/ 67 wb
Indoor
Temp.
(DB /WB°F)
65° F Outdoor 85° F Outdoor 95° F Outdoor 105° F Outdoor 115° F Outdoor
Btuh S / T kW Btuh S / T kW Btuh S / T kW Btuh S / T kW Btuh S / T kW
Expanded Heating Performance
Outdoor Model Indoor Model
2HP14*18P-1* RBCS2M18C*** 70 9,500 1.96 1420 14,500 3.00 1410 17,500 3.46 1480 20,800 3.92 1550
2HP14*24P-1* RBCS2M24C*** 70 14,200 2.18 1900 19,000 2.90 1910 22,900 3.33 2010 27,200 3.76 2120
2HP14*30P-1* RBCS2M30C*** 70 15,700 2.2 2090 22,000 2.59 2150 26,500 3.43 2260 31,500 3.88 2380
2HP14*36P-1* RBCS2M36C*** 70 20,500 2.35 2560 27,600 2.97 2720 33,200 3.4 2860 39,500 3.85 3010
2HP14*42P-1* RBCS2M42C*** 70 23,900 2.31 3030 32,100 2.94 3200 38,700 3.38 3360 46,100 3.82 3530
2HP14*48P-1* RBCS2M60C*** 70 26,700 2.41 3220 35,300 3.11 3330 43,700 3.49 3490 50,600 4.04 3660
2HP14*60P-1* RBCS2M60V*** 70 27,600 2.31 3500 35,000 2.40 3920 52,000 3.71 4100 54,400 3.84 4150
Indoor
Temp.
17° F Outdoor 35° F Outdoor 47° F Outdoor 60° F Outdoor
Btuh COP kW Btuh COP kW Btuh COP kW Btuh COP kW
Page 7
2HP14 Split System Enhanced Heat Pump
14
Accessories
Description Kit Number Catalog No.
Hard Start Kit 20442715 12W59 x x x x x x x
High Pressure Kit 20442506 14W09 x x x x x x x
Low Pressure Kit Standard Factory Installed on all models
Short Cycle Protection Standard Factory Installed on all models
Crankcase Heater 20442805 14W05 x x x x x x x
Sound Blanket
Outdoor Thermostat 20444702 x x x x x x x
Fossil Fuel Kit 20444602 x x x x x x x
Cold Weather Kit
(CWK-1)
TXV
20442908 14W00 x x x
20442906 14W02
20444903 1.851356 x x x x
20444904 1.851357 x x x
48666-001 1.921145 x x x x x x x
18 24 30 36 42 48 60
x x x x
Where Used
seer
Page 8
14
seer
2HP14 Split System Enhanced Heat Pump

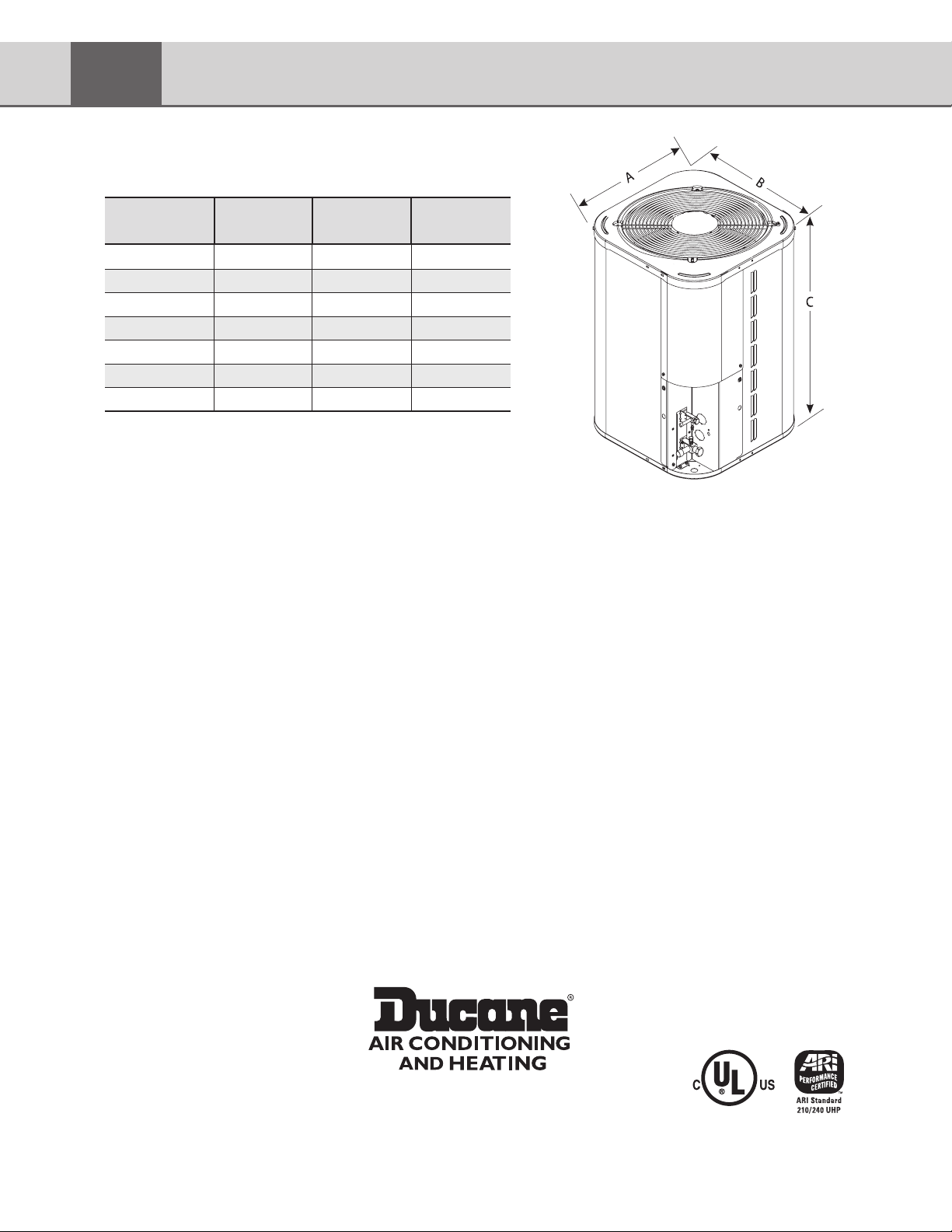

Unit Dimensions
Model A - Width B - Depth C - Height
(Inches) (Inches) (Inches)
18 30 30 25-1/2
24 30 30 25-1/2
30 30 30 29-1/2
36 30 30 29-1/2
42 30 30 41-1/2
48 30 30 41-1/2
60 30 30 41-1/2
www.ducanehvac.com
All specifications and illustrations
subject to change without notice
and without incurring obligations.
Form No. D2HP14B/L-100 (11/07) ©2007 Allied Air Enterprises Inc. a Lennox International Inc. Company Printed in the U.S.A.
1-800-448-5872
D&S
Loading...
