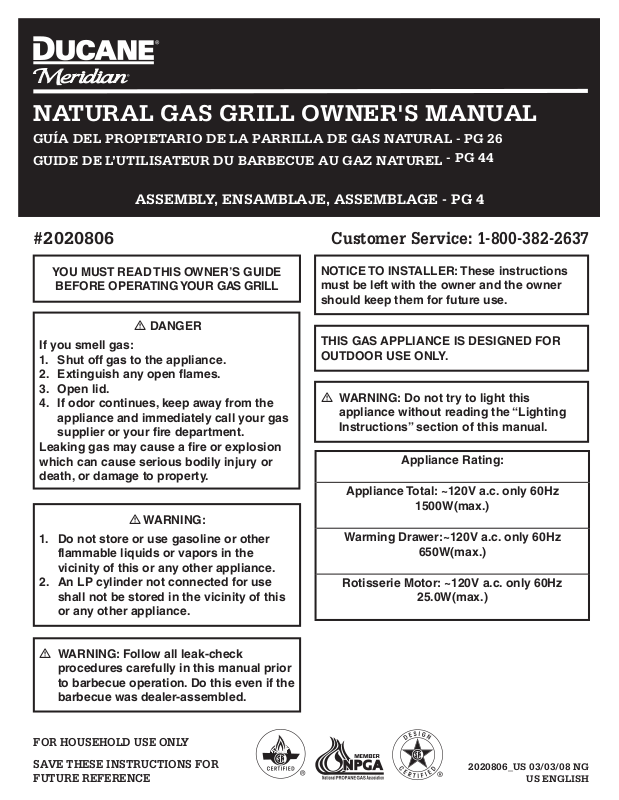

Ducane 2020806 User Manual

NATURAL GAS GRILL OWNER'S MANUAL

GUÍA DEL PROPIETARIO DE LA PARRILLA DE GAS NATURAL - PG 26 GUIDE DE L’UTILISATEUR DU BARBECUE AU GAZ NATUREL

ASSEMBLY, ENSAMBLAJE, ASSEMBLAGE - PG 4

#2020806

YOU MUST READ THIS OWNER’S GUIDE

BEFORE OPERATING YOUR GAS GRILL

 DANGER

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flames.

3. Open lid.

4. If odor continues, keep away from the appliance and immediately call your gas supplier or your fire department.

Leaking gas may cause a fire or explosion which can cause serious bodily injury or death, or damage to property.

 WARNING:

Customer Service: 1-800-382-2637

NOTICE TO INSTALLER: These instructions must be left with the owner and the owner should keep them for future use.

THIS GAS APPLIANCE IS DESIGNED FOR OUTDOOR USE ONLY.

 WARNING: Do not try to light this

appliance without reading the “Lighting Instructions” section of this manual.

Appliance Rating:

Appliance Total: ~120V a.c. only 60Hz

1500W(max.)

- PG 44

1. Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance.

2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

 WARNING: Follow all leak-check

procedures carefully in this manual prior to barbecue operation. Do this even if the barbecue was dealer-assembled.

FOR HOUSEHOLD USE ONLY

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

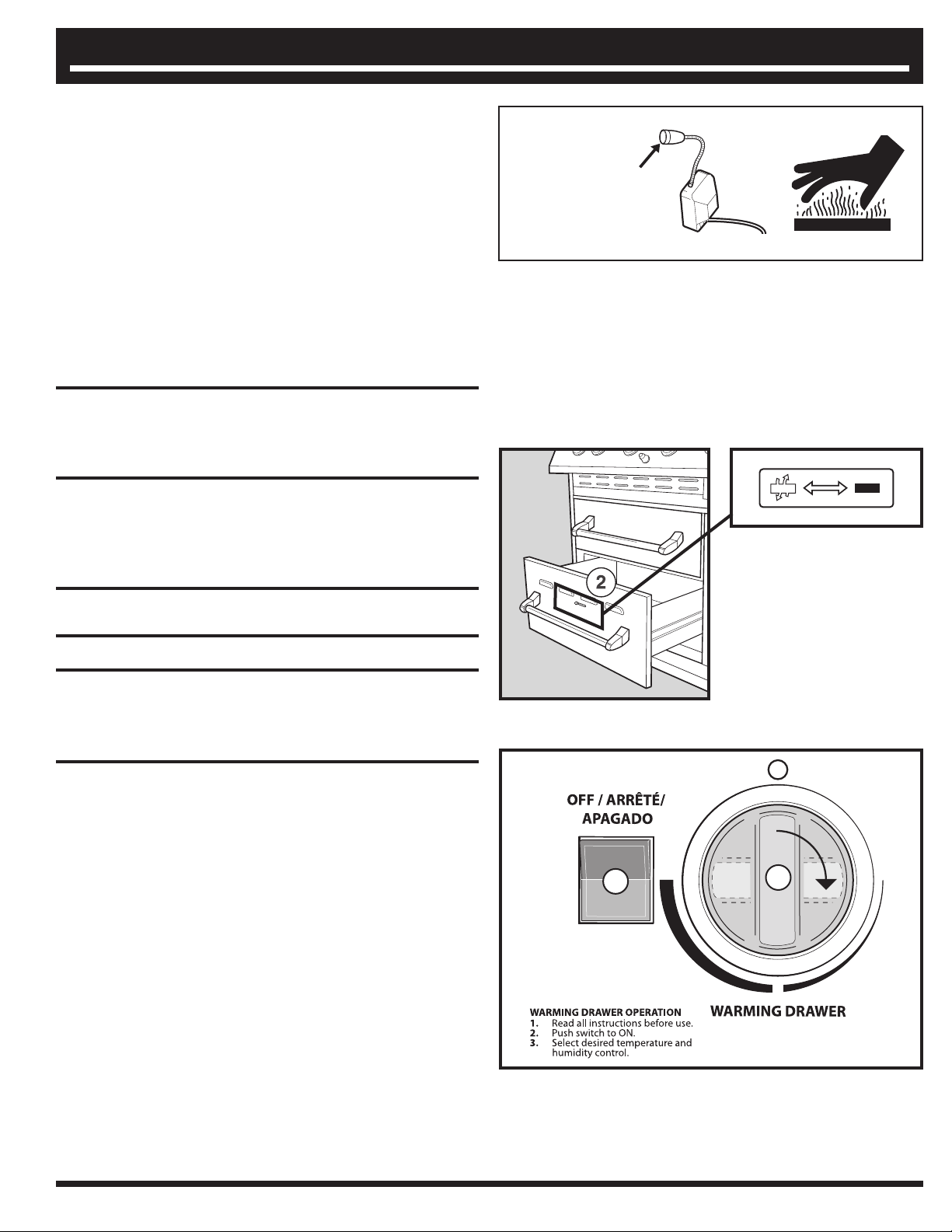

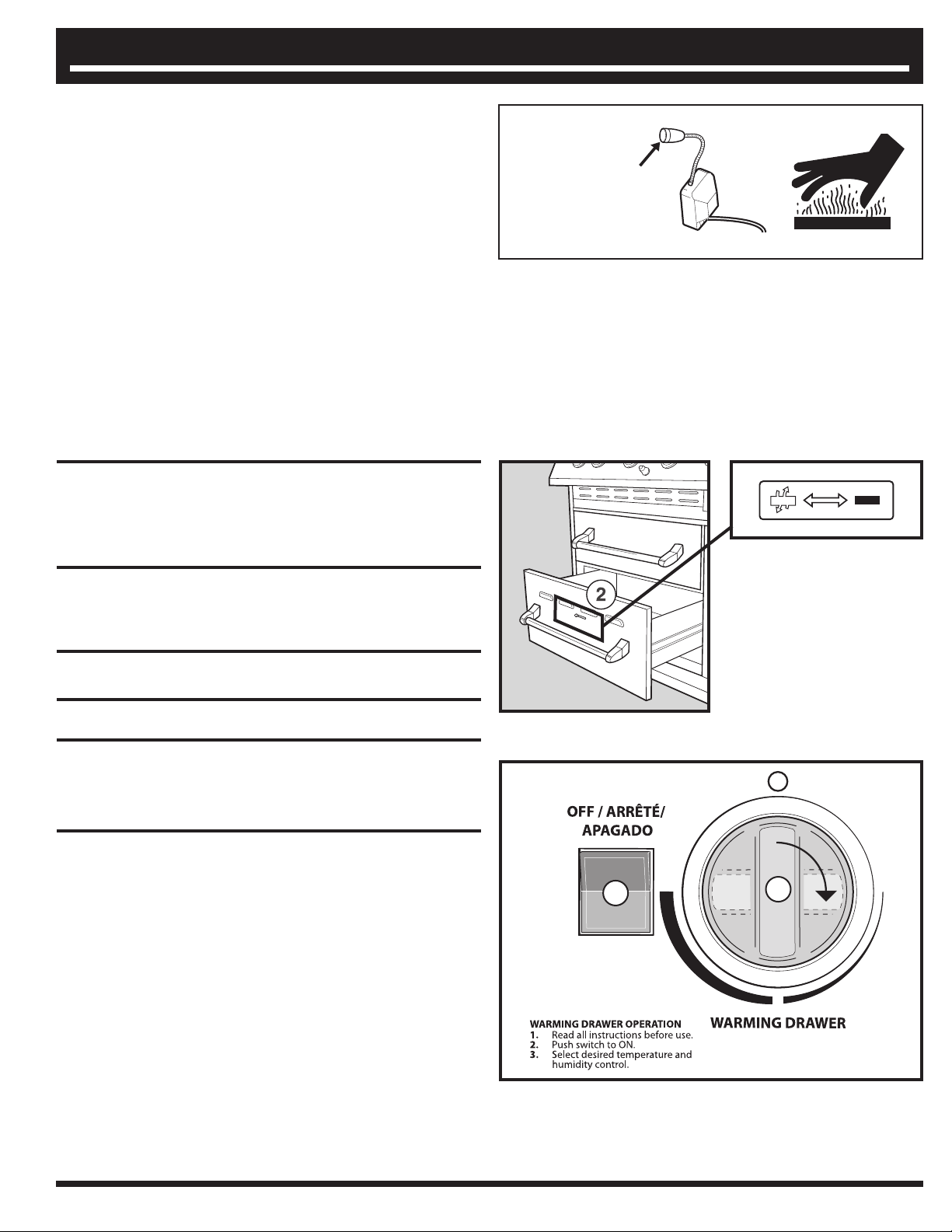

Warming Drawer:~120V a.c. only 60Hz

650W(max.)

Rotisserie Motor: ~120V a.c. only 60Hz

25.0W(max.)

2020806_US 03/03/08 NG

US ENGLISH

DANGERS AND WARNINGS

 DANGER

Failure to follow the Dangers, Warnings and Cautions contained in this Owner’s Manual may result in serious bodily injury or death, or in a fire or an explosion causing damage to property.

 WARNING

 Do not lift the barbecue using the control panel as a handle. Lifting by the control panel can damage gas handling and electrical

components. Damage to gas handling and electrical components can result in serious bodily injury or death and damage to property.

 Do not store a spare or disconnected liquid propane cylinder under or near this barbecue.  Improper assembly may be dangerous. Please carefully follow the assembly instructions in this manual  After a period of storage, and/or non-use, the Ducane

gas barbecue should be checked for gas leaks and burner obstructions

before use. See instructions in this manual for correct procedures.

 Do not operate the Ducane

gas barbecue if there is a gas leak present.

 Do not use a flame to check for gas leaks.  Combustible materials should never be within 24 inches of the top, bottom, back or sides of your Ducane

gas barbecue.

 Do not put a barbecue cover or anything flammable on, or in the storage area under the barbecue.  Your Ducane

gas barbecue should never be used by children. Accessible parts of the barbecue may be very hot. Keep young

children away while it is in use.

 You should exercise reasonable care when operating your Ducane

gas barbecue. It will be hot during cooking or cleaning and

should never be left unattended or moved while in operation.

 Should the burners go out while in operation, turn all gas valves off. Open the lid and wait five minutes before attempting to

relight using the lighting instructions.

 Do not use charcoal or lava rock in your Ducane

gas barbecue.

 Never lean over open grill or place hands or fingers on the front edge of the cooking box.  Should a grease fire occur, turn off all burners and leave lid closed until fire is out.  Do not enlarge valve orifices or burner ports when cleaning the valves or burners.  The Ducane

gas barbecue should be thoroughly cleaned on a regular basis.

 Liquid propane gas is not natural gas. The conversion or attempted use of natural gas in a liquid propane unit or liquid propane

gas in a natural gas unit is dangerous and will void your warranty.

 Do not attempt to disconnect any gas fitting while your barbecue is in operation.  Use heat-resistant barbecue mitts or gloves when operating barbecue.  Keep any electrical supply cord and the fuel supply hose away from any heated surfaces.  Combustion byproducts produced when using this product contain chemicals known to the state of California to cause cancer,

birth defects, or other reproductive harm.

 Do not use this barbecue unless all parts are in place. The unit must be properly assembled according to the instructions

outlined in the “Assembly Guide”.

 Remove all packing material before use.  Do not build this model of grill in any built-in or slide in construction. Ignoring this Warning could cause a fire or an explosion

that can damage property and cause serious bodily injury or death.

 Proposition 65 Warning: Handling the brass material on this product exposes you to lead, a chemical known to the state of

California to cause cancer, birth defects or other reproductive harm.

(Wash hands after handling this product.)

LIQUID PROPANE GAS UNITS ONLY:  Use the regulator that is supplied with your Ducane

gas barbecue.

 Do not attempt to disconnect the gas regulator or any gas fitting while your barbecue is in operation.  A dented or rusty liquid propane cylinder may be hazardous and should be checked by your liquid propane supplier. Do not use

a liquid propane cylinder with a damaged valve.

 Although your liquid propane cylinder may appear to be empty, gas may still be present, and the cylinder should be transported

and stored accordingly.

 If you see, smell or hear the hiss of escaping gas from the liquid propane cylinder:

1. Move away from liquid propane cylinder.

2. Do not attempt to correct the problem yourself.

3. Call your fire department.

2 www.ducane.com

IMPORTANT SAFEGUARDS

 Read all instructions.  WARNING: Use only outdoors, do not expose to rain. This is to prevent electric shock which can cause serious bodily injury or

death.

 WARNING: Disconnect appliance from supply circuit before performing maintenance and cleaning.  WARNING: For protection against risk of electric shock, connect to properly grounded outlets only.  WARNING: For protection against risk of electric shock, keep extension cord connection dry and off the ground.  Use extreme caution when removing tray or disposing of hot grease.  Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electric

shock.

 Do not use charcoal in this appliance.  Only use metal or glass containers in the warming drawer.  Do not place any ﬂ ammable materials in the warming drawer. This includes matches, lighters, paper, cooking oils, pressurized

containers and alcohol.

 Do not touch surfaces that may be hot. Use handles or knobs provided.  To protect against electrical shock do not immerse cord, plugs, portable appliances (or other speciﬁ c part or parts) in water or

other liquid.

 Close supervision is necessary when any appliance is used by or near children.  Make sure appliance is OFF and remove plug from outlet when not in use, before putting on or taking off parts, and before

cleaning. Allow to cool before handling.

 Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in

any manner. Contact Ducane customer service at 1-800-DUCANES.

 The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.  Do not let cord hang over edge of table or counter or touch hot surfaces.  Where applicable, always attach plug to appliance and check that the control is OFF before plugging cord into wall outlet. To

disconnect, turn the control to OFF, then remove plug from wall outlet.

 Do not use appliance for other than intended use.  Avoid contacting moving parts.  SAVE THESE INSTRUCTIONS

ASSEMBLY, ENSAMBLAJE, ASSEMBLAGE

 CAUTION: Although we make every effort to ensure that the assembly process is as easy and as safe as possible, it is inherent with fabricated steel parts that corners and edges can cause cuts if improperly handled during assembly procedures. Be careful while handling any parts during assembly. IT IS STRONGLY RECOMMENDED THAT HANDS BE PROTECTED WITH A PAIR OF WORK GLOVES.

 WARNING: Do not lift the barbecue using the control panel as a handle. Lifting by the control panel can damage gas handling and electrical components. Damage to gas handling and electrical components can result in serious bodily injury or death and damage to property.



PRECAUCIÓN: Aunque hacemos todo lo posible para que el proceso de ensamblaje sea tan fácil y seguro, es imposible evitar que, con las partes fabricadas de acero, las esquinas y los bordes causen cortes si no son usados apropiadamente durante el proceso de ensamblaje. ES MUY RECOMENDABLE QUE LAS MANOS SEAN PROTEGIDAS POR GUANTES DE TRABAJO.

 ADVERTENCIA: eléctricos y de manejo del gas. Daños a los componentes eléctricos y de manejo del gas pudieran resultar en lesiones corporales graves e incluso la muerte, además de daños a la propiedad.



ATTENTION: Bien que nous fassions tous les efforts possibles pour s’assurer que le processus d’assemblage soit aussi facile et sécuritaire que possible, il est inhérent que la fabrication de pièces métalliques laissent des coins et des bords tranchants qui puissent causer des blessures lors de la manipulation incorrecte pendant les procédures d’assemblage. Soyez prudent lors de la manipulation de toute pièce durant l’assemblage. IL EST FORTEMENT RECOMMANDÉ DE PORTER DES GANTS POUR PROTÉGER VOS MAINS.

 AVERTISSEMENT panneau de contrôle peut endommager les pièces liées au gaz et à l’électricité. Tout dommage aux pièces liées au gaz et à l’électricité peut provoquer des blessures graves ou mortelles et des dégâts matériels.

No levante la barbacoa utilizando el panel de control como asa. El hacerlo pudiera dañar los componentes

: N’utilisez pas le panneau de contrôle comme poignée pour lever le barbecue. Le fait de lever par le

4 www.ducane.com

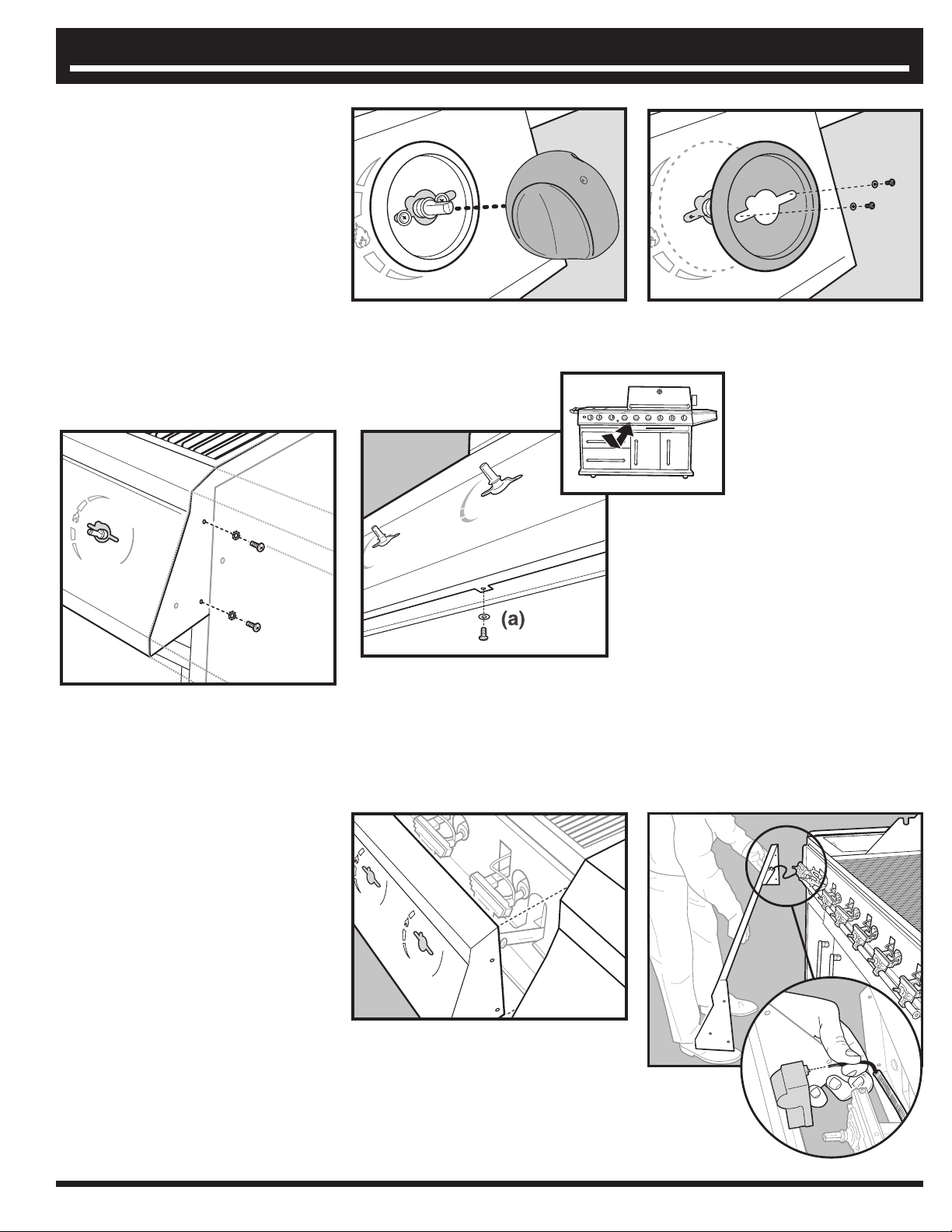

ASSEMBLY, ENSAMBLAJE, ASSEMBLAGE

NEEDED:

TOOLS

HERRAMIENTAS REQUERIDAS:

11mm (7/16”)

OUTILS NECESSAIRES:

NOTE: The bolts to install the stainless steel side shelf are threaded into the grill cart on the right side of the grill. Remove the bolts and re-install when attaching the stainless steel side shelf.

OBSERVACIÓN: Los tornillos utilizados para armar las mesas de acero inoxidables están atornillados a la izquierda y derecha del asador. Quite los tornillos y renstálese cuando valla armar las mesas de acero inoxidable.

REMARQUE: Les boulons pour l’installation des deux étagères latérales en acier inoxydable sont vissés dans le chariot du grill, sur les côtés gauche et droit du grill. Retirez ces boulons puis ré-installez-les lorsque vous fixez les étagères latérales en acier inoxydable.

ASSEMBLY, ENSAMBLAJE, ASSEMBLAGE

 CAUTION: Always remove the warming rack when using the rotisserie.



OBSERVACIÓN: Siempre quite la rejilla de calentamiento cuando esté usando el sistema rotativo.



REMARQUE: Enlevez toujours la grille de chauffage lors de l’utilisation de la rôtisserie.

6 www.ducane.com

ASSEMBLY, ENSAMBLAJE, ASSEMBLAGE



WARNING: The rotisserie motor must be stored indoors when not in use. DO NOT leave it mounted to the grill.



PRECAUCIÓN: El motor deber ser almacenado dentro, cuando no esté en uso. NO LO DEJE montado en la parrilla.



AVERTISSEMENT: Le moteur de rôtisserie doit être entreposé à l’intérieur lorsqu’il n’est pas utilisé. NE le laissez PAS installé sur le gril.

ASSEMBLY, ENSAMBLAJE, ASSEMBLAGE

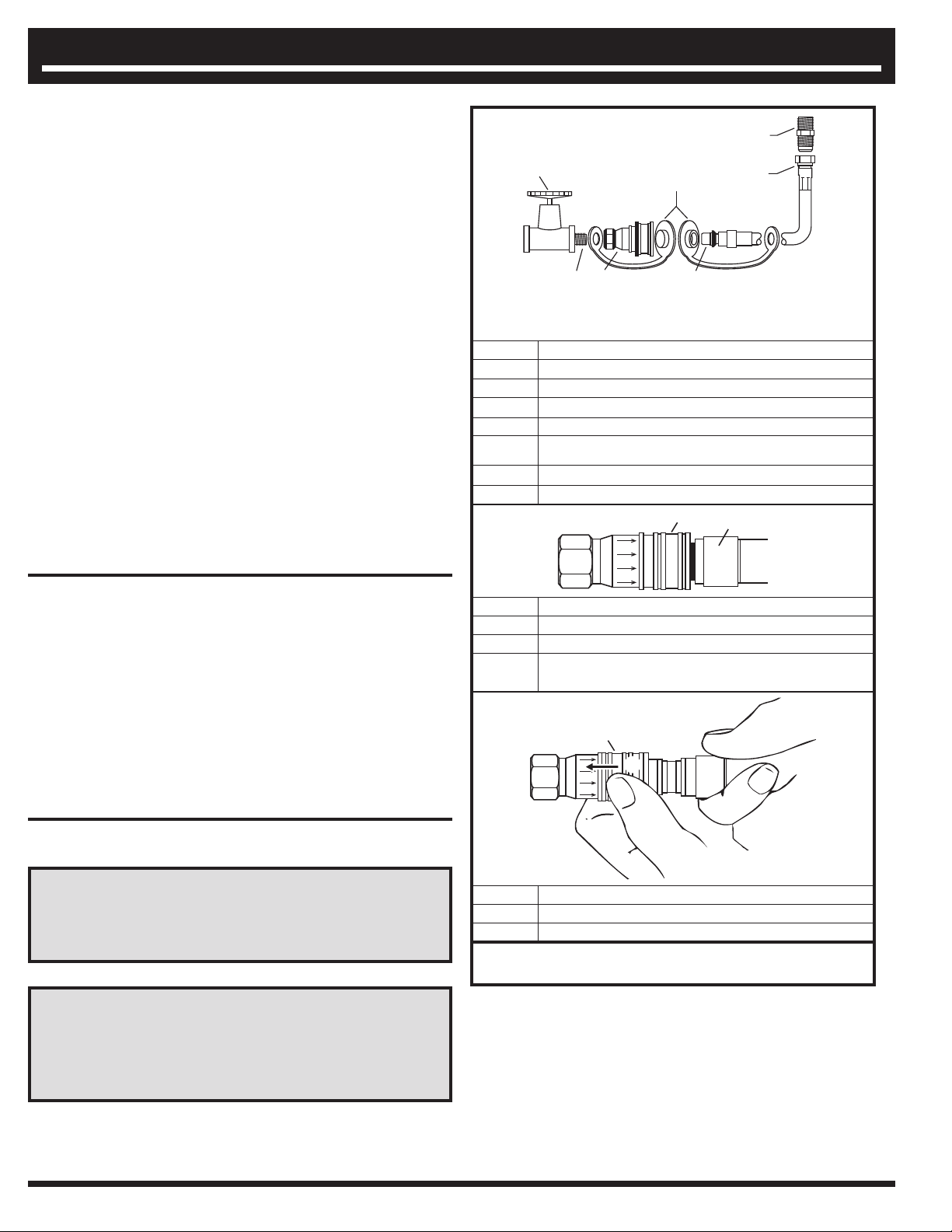

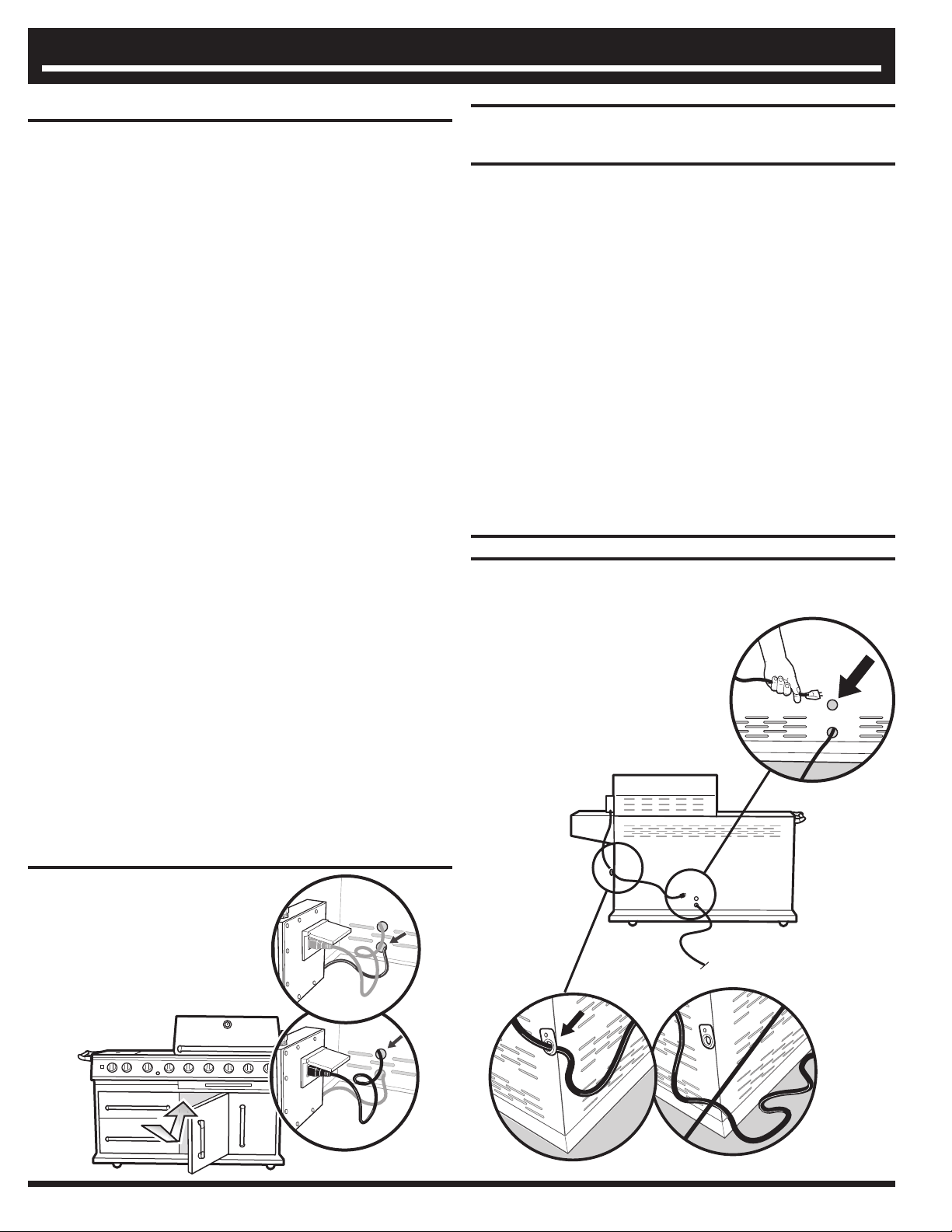

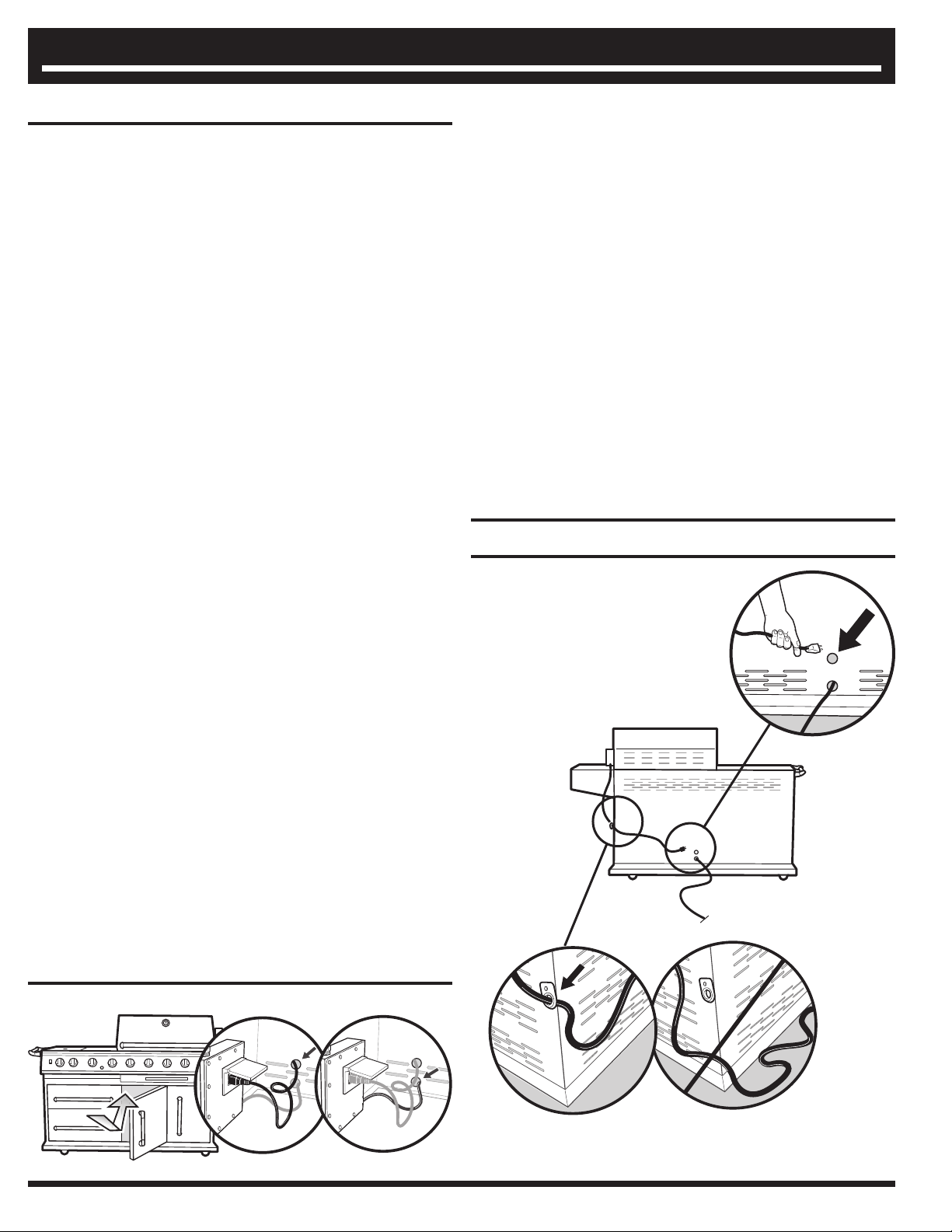

Uncoil the NG supply hose and route the end out of the access hole at the back panel of the cabinet.

Desenrolle la manguera de suministro de gas natural y pase el extremo hacia afuera por el orificio de acceso en el panel posterior del gabinete.

Déroulez le tuyau d’alimentation en gaz naturel et faites passer le bout par l’ouverture d’accès située sur le panneau arrière du cabinet.

8 www.ducane.com

WARRANTY, GARANTÍA, GARANTIE

Ducane Products, Co. hereby warrants to the ORIGINAL PURCHASER of this Ducane® Stainless Series gas grill that it will be free of defects in material and workmanship from the date of purchase as follows:

Ten-Year Limited Warranty

• Stainless steel cabinetry and grill lid excluding discoloration and scratches

Five-Year Limited Warranty

• Stainless steel cooking grates

• Stainless steel primary grill burners

• Side Burner Inserts

• Stainless steel rotisserie burners

Two-Year Limited Warranty

• Rotisserie motor

• Ignition system

• All remaining parts

The above warranty period(s) applies only to grills used in a non-commercial setting when assembled and operated in accordance with the printed instructions accompanying the grill. Ducane may require valid proof of your date of purchase. Please retain your receipt of purchase or invoice as reasonable proof. This Limited Warranty shall be limited to repair or replacement of parts that prove defective under normal, non-commercial use and which, on examination shall indicate, to Ducane’s satisfaction, that they are defective. Before returning any parts, please contact Ducane’s Customer Service at 1-800-DUCANES (1-800-382-2637). If Ducane conﬁ rms the defect and approves the claim, Ducane will elect to replace such parts without charge. If you are required to return defective parts, transportation charges must be paid by you. Ducane will return parts to purchaser, freight or postage prepaid.

This Limited Warranty does not cover failures or operating difﬁ culties due to accident, abuse, misuse, alteration, misapplication, vandalism, improper installation, use in a commercial enterprise, improper maintenance, including but not limited to damage caused by insects within burner tubes, as described in the owner’s manual. Deterioration or damage due to severe weather conditions, such as hail, hurricanes, earthquakes, or tornadoes is not covered by this Limited Warranty. Deterioration or discoloration due to exposure to chemicals, either directly or in the atmosphere, is not covered by this Limited Warranty. There are no other express warrants except as set forth herein and any applicable implied warranties of merchantability and ﬁ tness are limited in duration to the period of coverage of this express written Limited Warranty. Some regions do not allow limitation on how long an implied warranty lasts, so this limitation may not apply to you. Ducane is not liable for any special, indirect or consequential damages. Some regions do not allow the exclusion or limitation of incidental and consequential damages, so this limitation or exclusion may not apply to you. Ducane does not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return or replacement of its equipment; and no such representations are binding on Ducane. This Limited Warranty applies only to products sold at and purchased from a retail entity excluding on-line auction services.

DUCANE PRODUCTS CO. Customer Service Center 1890 Roselle Road, Suite 308 Schaumburg, IL 60195 USA For replacement parts call: 1-800-446-1071 www.ducane.com

Ducane Products, Co., por el presente documento garantiza al COMPRADOR ORIGINAL de esta parrilla a gas de la Serie Inoxidable de Ducane® que estará libre de defectos de materiales y

fabricación desde la fecha de adquisición así:

Garantía limitada de diez años

• Gabinete de acero inoxidable y tapa de la parrilla, excluyendo descoloración y rasguños

Garantía limitada de cinco años

• Rejillas para cocción en acero inoxidable

• Quemadores primarios de la parrilla en acero inoxidable

• Insertos de quemadores laterales

• Quemadores para asador en acero inoxidable

Garantía limitada de dos años

• Motor del asador

• Sistema de encendido

• Todas las demás partes

Los anteriores períodos de garantía sólo se aplican a parrillas usadas en ambientes no comerciales cuando sean ensambladas y operadas de acuerdo con las instrucciones impresas que acompañan la parrilla. Ducane puede solicitar una prueba válida de su fecha de adquisición. Por favor guarde su recibo de compra o la factura como prueba razonable. Esta Garantía Limitada se limitará a la reparación o reemplazo de partes que se pruebe que estaban defectuosas bajo un uso normal y no comercial, y que, tras ser examinadas, indiquen a satisfacción de Ducane que efectivamente están defectuosas. Antes de devolver cualquier parte, por favor contacte al Servicio al Cliente de Ducane al 1-800-DUCANES (1-800-382-2637).

Si Ducane confirma el defecto y aprueba la reclamación, Ducane elegirá reemplazar dicha parte sin ningún cargo. Si se le solicita que devuelva las partes defectuosas, los costos de transporte deberán ser asumidos por usted. Ducane devolverá las partes al comprador con flete o timbre pagado por anticipado.

Par la présente, Ducane Products, Co., garantie à l’ACHETEUR ORIGINAL du gril au gaz en acier inoxydable Ducane® qu’elle sera sans vices de matériaux et de fabrication à partir de la date d’achat, tel que suit:

Garantie Limitée de Dix Ans

• Habillage et couvercle de gril en acier inoxydable à l’exception de décoloration et d’égratignures.

Garantie Limitée de Cinq Ans

• Gril de cuisson en acier inoxydable

• Brûleurs primaire en acier inoxydable

• Insertions du bruleurs du côté

• brûleurs de tournebroche en acier inoxydable

Garantie Limitée de deux ans

• Moteur du tournebroche

• système d’allumage

• Toutes autres pièces

La(Les) période(s) de garantie ci-haut mentionné s’applique seulement au grils personnel, et non ceux qui sont utilisés dans un milieu commercial, quand assemblé et opéré selon les instructions inclues avec le gril. Ducane pourra exiger une preuve d’achat valable. Veuillez conserver votre preuve d’achat ou votre facture comme preuve. Cette garantie sera limitée à la réparation ou le remplacement de pièces qui s’avèrent être défectueux sous des conditions d’utilisation normal, non-commercial, et qui, après exam indiquera, à la satisfaction de Ducane’s, une défectuosité. Avant de retourner les pièces, veuillez contacter le service a clientèle de Ducane au 1-800-DUCANES (1-800-382-2637).

Esta Garantía Limitada no cubre fallos o dificultades de operación debidos a accidentes, abuso, mal uso, alteración, mal manejo, vandalismo, instalación inadecuada, uso en empresa comercial, mantenimiento indebido, e incluye, pero no se limita, a daños causados por insectos al interior de los tubos quemadores, como se describe en el manual del usuario. El deterioro o daño debido a condiciones climáticas extremas, tales como granizo, huracanes, terremotos o tornados no está cubierto por esta Garantía Limitada. El deterioro o la decoloración debidos a la exposición a químicos, bien sea directamente o en la atmósfera no están cubiertos por esta Garantía Limitada. No hay ninguna otra garantía expresa salvo las que están contenidas en este documento, y cualquier garantía implícita aplicable de comerciabilidad y adecuación está limitada a la duración del período de cobertura de esta expresa Garantía Limitada. Algunas regiones no admiten una limitación al tiempo de duración de una garantía implícita, de forma que esta limitación no aplica para usted. Ducane no es responsable por ningún daño especial, indirecto o resultante. Algunas regiones no admiten la exclusión o limitación de daños incidentales o resultantes, de forma que esta limitación podría no aplicar para usted. Ducane no autoriza a ninguna persona o compañía a asumir en su nombre ninguna otra obligación o responsabilidad en relación con la venta, instalación, uso, retiro, devolución o reemplazo de este equipo; y ninguna de dichas representaciones obligan a Ducane. Esta Garantía Limitada aplica únicamente a productos vendidos en y comprados de una entidad detallista, excluyendo servicios de subasta en línea.

DUCANE PRODUCTS CO. Customer Service Center 1890 Roselle Road, Suite 308 Schaumburg, IL 60195 USA Para partes de repuesto llame a: 1-800-446-1071 www.ducane.com

ISi Ducane conﬁ rme la défectuosité et approuve la demande, Ducane choisira de remplacer ses pièces sans frais. Si vous êtes obligé de retourner des pièces déféctueueses, vous devez assumer tous les frais de transports, fret ou port-pré-payé. Cette garantie limitée ne couvre pas les pannes ou les difﬁ cultés d’opération résultant d’accidents, abus, emploi abusif ou mauvaise opération, vandalisme, mauvaise installation, utilisation commerciale, mauvais entretien, incluant mais pas limitée aux dommages causés par les insectes dans les tubes de brûleurs, tel que décrites dans le guide d’achat. La détérioration ou les dommages dû aux conditions sévère de température, notamment, grêles, ouragans, tremblements de terre , ou tornades ne sont pas couvert par cette garantie limitée. La détérioration ou la décoloration dû à une exposition au produits chimique, directement ou dans l’atmosphère, ne sont pas couverte par cette garantie limitée. Il n’y a pas d’autres garantie expresse à part celles détaillées et n’importe quelle garantie tacite de qualité marchande et de compatibilité applicable est limitée à la durée de la période de couverture de cette garantie expresse limitée. Certaines régions ne permettent pas la limitation de garantie tacite, donc la limitation ne pourrait vous être applicable. Ducane n’est pas responsable des dommages, indirects ou conséquents. Certaines régions ne permettent pas l’exclusion ou la limitation de dommages accessoires ou immatériels, donc, l’exclusion ou la limitation ci-haut mentionnée ne pourrait vous être applicable. Ducane n’autorise aucune personne ou entreprise, d’assumer à son nom, n’important quelle obligation ou responsabilité reliée à la vente, l’installation, l’utilisation, l’enlèvement, le retour ou le remplacement de son équipement; et ce, notamment, aucune répresentations de ce genre engage Ducane. Cette garantie limitée s’applique seulement aux produits vendu par, ou procuré chez, un détaillant, excluant tous sites de vente aux enchères en-ligne..

DUCANE PRODUCTS CO. Product Registration P.O. Box 40530 Burlington, ON L7P 4W1

Para compras hechas en México DUCANE PRODUCTS S.A. de C.V. Marcella No. 338, Colonia Americana 44160 México, C.P. México Para partes de repuesto llame a: (52) (33) 3615-0736 www.ducane.com

Pour des pièces de rechange, appelez le : 1-800-265-2150 www.ducane.com

SAFETY INFORMATION

IMPORTANT

We urge you to read this manual carefully and to follow the recommendations enclosed. This will help assure you of the most enjoyable and trouble-free operation of your new Ducane® Gas Grill. We also advise you to keep this manual for future reference.

CALIFORNIA PROPOSITION 65

 WARNING: Your grill has been designed to operate using

only the gas specified on the rating plate. Do not attempt to operate your grill on other gases. Failure to follow this warning could lead to a fire hazard and bodily harm, and will void your warranty.

 CAUTION: FOR YOUR SAFETY Do not store any flammable

materials in any cabinets beneath the grill burner box or in the vicinity of your grill.

 WARNING: The burning of gas cooking fuel generates some

by-products which are on the list of substances known by the State of California to cause cancer or reproductive harm. California law requires businesses to warn customers of potential exposure to such substances. To minimize exposure to these substances always operate this unit according to the use and care manual, ensuring you provide good ventilation when cooking with gas.

10 www.ducane.com

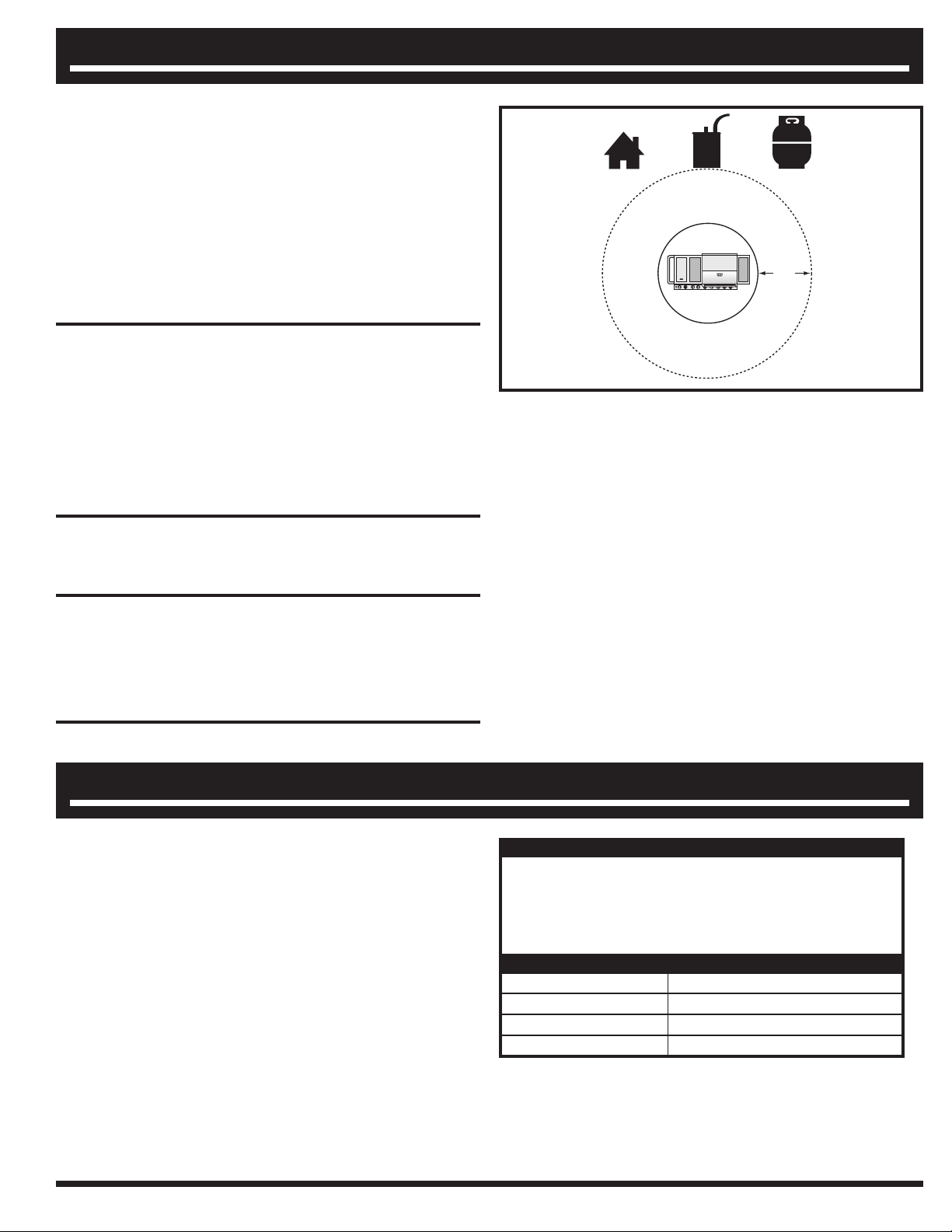

INSTALLATION

Natural Gas Grills

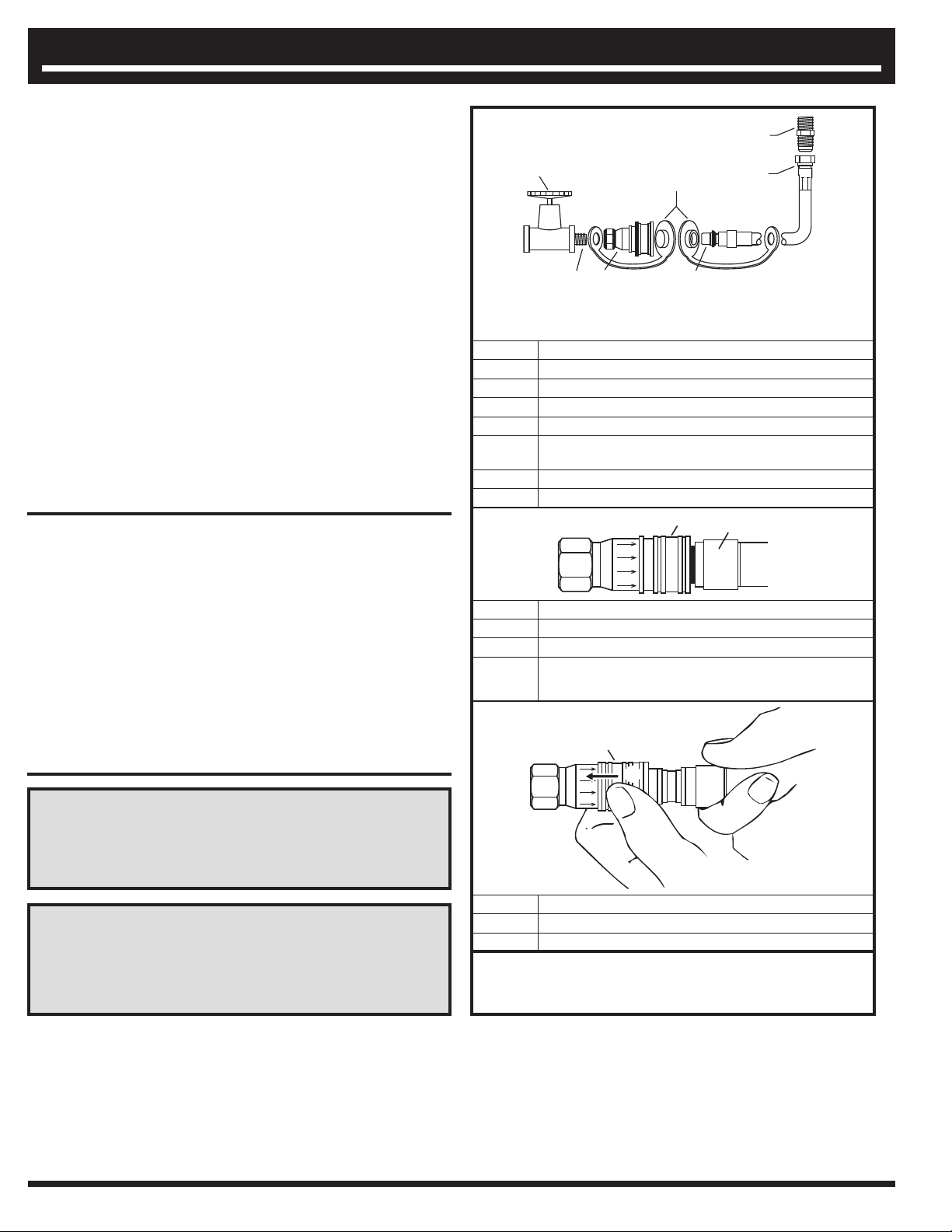

CONNECTION

Natural Gas Grills

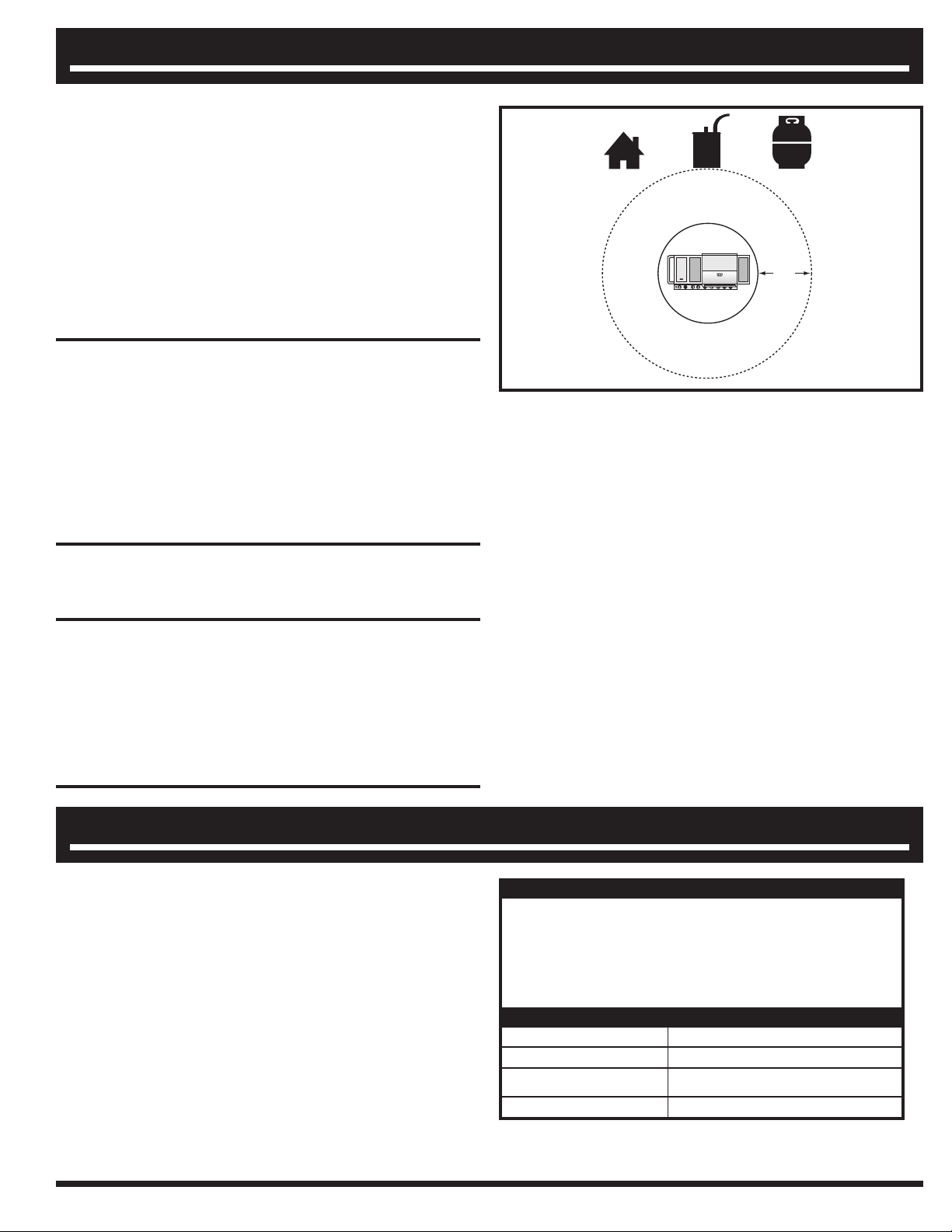

Locating Your Grill

• Your Ducane® Gas Grill is manufactured for outdoor use only! Any grill, charcoal or gas, produces carbon monoxide while in operation and the gas should not be allowed to accumulate in a conﬁ ned area. Never operate this grill inside your home or recreational vehicle or any enclosed area.

• When locating your grill, choose a safe outdoor location away from ﬂ ammable or combustible surfaces and out of trafﬁ c paths. Ducane® strongly recommends a 24” clearance to combustible surfaces.

• Consult your local codes for possible additional restrictions on location or operation of your grill.

• As your grill uses gas, it requires air to burn properly. Do not locate your grill in such manner or as to obstruct the ﬂ ow of combustion and ventilation air around the grill.

• When possible, adjust your grills’ position to reduce the likelihood of wind blowing onto it.

Natural Gas Grills

 CAUTION: Never operate your grill under any overhead

combustible construction.

 CAUTION: This grill is not intended to be installed in or

attached to a recreational vehicle. It is also not intended to be installed in or on a boat.

 WARNING: Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any other appliance. Failure to follow this warning could lead to a fire, explosion and bodily harm.

Assembly

Make sure your grill is assembled properly. Detailed assembly instructions are packed with each grill giving speciﬁ c assembly procedures for each model. Follow these instructions carefully to ensure the correct and safe assembly of the grill.

 CAUTION: Although we take every effort to ensure that the

assembly process is as easy and as safe as possible, it is inherent with fabricated steel parts that corners and edges can cause cuts if improperly handled during assembly procedures. Be careful while handling any parts during assembly. It is strongly recommended that you protect hands with a pair of work gloves.

24”

Leveling

It is important for the proper operation of the grill that it be located on a level surface.

Grounding Instructions

This appliance shall be grounded while in use to protect the operator from electrical shock. The appliance is equipped with a 3-conductor cord and a 3-prong groundingtype plug to ﬁ t the proper grounding-type receptacle. Plug into a GFCI-protected

outdoor receptacle, where available.

Extension Cords

Use only 3-wire extension cords that have 3-prong grounding-type plugs and 3-pole cord connectors that accept the plug from the appliance. Only extension cords identiﬁ ed by the marking with the sufﬁ x letters W-A, and tagged “Suitable for use with outdoor appliances” shall be used outdoors. Use only extension cords having an electrical rating not less than the rating of the appliance. Do not use damaged extension cords. Examine extension cord before using and replace if damaged. Do not abuse extension cord and do not tug on any cord to disconnect. Keep cord away from heat and sharp edges.

CONNECTION

Type of Gas

Your natural gas grill is factory built to operate using natural gas only. Never attempt to operate your grill on gases other than the type speciﬁ ed on the grill rating plates. Your grill operates at 7” of water column pressure. If replacement of the hose becomes necessary, factory speciﬁ ed parts are required. See your local dealer. For safety and design reasons, the conversion of a Ducane® grill from operation using Natural gas to operation using LP gas requires the change out of the entire gas supply system of the grill. If this becomes necessary, see your dealer for additional

information.

What is Natural Gas?

Natural gas, often called methane, is a safe modern fuel. Natural gas is supplied by your local utility and should be readily available if your house is already heated with

gas.

Natural Gas Grills

NATURAL GAS INSTALLER’S GUIDE

This guide is a recommendation for natural gas installations. It advises the installer as to the size tubing that is necessary on a natural gas installation depending on how far the grill is located from the house. All tubing should be anticorrosive tin-line copper or an AGA-approved alternate. Operating pressure of the grill is 4.5 water column pressure. This should be veriﬁ ed after the installation is complete. Comparable sized black iron pipe is also acceptable for natural gas lines.

Distance Pipe Size

1 - 25 feet 3/8

26 - 50 feet 1/2

51- 100 feet 2/3 of the run 3/4" down to 1/2"

101 feet or more 3/4

CONNECTION

Natural Gas Grills

Portable Installation

Limited portability can be afforded to the grill head when mounted on the portable cart. All grill heads mounted on this portable cart and cabinet model grills so equipped can be moved about 10 feet away from the main gas supply. Ducane recommends moving the grill at least two (2) feet from the gas supply and any combustible surfaces. After the gas supply has been run and checked for leaks in accordance to the assembly instructions, you are ready to grill. To connect the hose to the gas supply, pull back the outer ﬁ tting, insert the hose ﬁ tting all of the way, and release the outer ﬁ tting. This process will produce a gas joint. Follow special storage instructions located in the Helpful Hints section of this manual for proper care of your grill and its gas hose.

Gas Leaks Checks

Before operating your grill, check carefully to be certain that all connections are tight and there are no gas leaks. Never use a match or ﬂ ame for leak detection. Use soapy water or testing solution. Brush the solution on to connection points and look closely for bubbles indicating escaping gas. If leaks are detected, shut off the main gas supply valve and securely retighten connections, then repeat the leak test.

 CAUTION: The appliance and its individual shutoff valve

must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psig (14” wc).

 CAUTION: The appliance must be isolated from the gas

supply piping system by closing its individual manual shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig (14” wc).

 WARNING: Never use an open flame when testing for gas

leaks! Use of an open flame may result in serious bodily injury or death, or in a fire or an explosion causing damage to property.

1 2 3 4 5 6 7 8

1 2 3

Push plug until sleeve snaps forward locking plug in socket. (This

Install covers when hose is disconnected.

Coat this pipe nipple with gas resistant pipe dope.

FLOW

turns on gas automatically.)

FLOW

Natural Gas Regulator

Flare Union

Swivel Connection

Shut Off Valve

Socket

Male Connection

Socket Sleeve

Plug

IMPORTANT

Installation must conform with local codes or, in the absence of local codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or CAN/ CGA-B149.1; Natural Gas and Propane Installation Code.

Socket Sleeve

Push Sleeve Back

IMPORTANT

When connecting or replacing any gas pipe or ﬁ ttings, all joints must be sealed with leak-proof sealing compound approved for use with natural and propane gases. After making connections, check all joints for leaks using

1 2 3

When properly assembled the plug cannot be removed without pushing

the sleeve back. To disconnect, push sleeve back and pull out plug.

(This automatically shuts off gas.)

soapy water and a brush.

12 www.ducane.com

NORMAL OPERATION

 WARNING: Your Ducane® grill was not designed to operate

with the Rotisserie Burner and the Main Burner(s) on at the same time. Failure to follow this warning will lead to an overheating condition which would damage grill components and cause bodily harm.

 WARNING: Keep any electrical supply cord and the fuel

supply hose away from any heated surfaces.

Plug in Accessory Power to Your Grill

Connect your grill to a convenient outdoor outlet. This appliance shall be grounded while in use to protect the operator from electrical shock. The appliance is equipped with a 3-conductor cord and a 3-prong grounding-type plug to ﬁ t the proper grounding-type receptacle. Plug into a GFCI protected outdoor receptacle, where available.

WARNING: Use only 3-wire extension cords that have 3-prong grounding-type plugs and 3-pole cord connectors that accept the plug from the appliance. Only extension cords identiﬁ ed by the marking with the sufﬁ x letters W-A, and tagged “Suitable for use with outdoor appliances” shall be used outdoors. Use only extension cords having an electrical rating not less than the rating of the appliance. Do not use damaged extension cords. Examine extension cord before using and replace if damaged. Do not abuse extension cord and do not tug on any cord to disconnect. Keep cord away from heat and sharp edges.

Lighting Your Grill

 WARNING: Before each use of your grill it is important to

inspect the full length of the gas line hose. Your hose can be accessed through the cabinet doors. If it is evident there is excessive abrasion or wear, or the hose is cut, the hose must be replaced with a manufacturer recommended part prior to the appliance being put into operation.

Check your parts list or your authorized dealer for the proper replacement hose assembly. It will be necessary to open the doors to fully inspect the hose.

 DANGER: Make sure that the lid is in the full open postion

any time you attempt to light your grill. Failure to open the lid could lead to delayed ignition which may result in serious bodily injury or death, or in a fire or an explosion causing damage to property.

IMPORTANT

If an external electrical source is used it must be electrically grounded in accordance with local codes and/or the National Electrical Code ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1

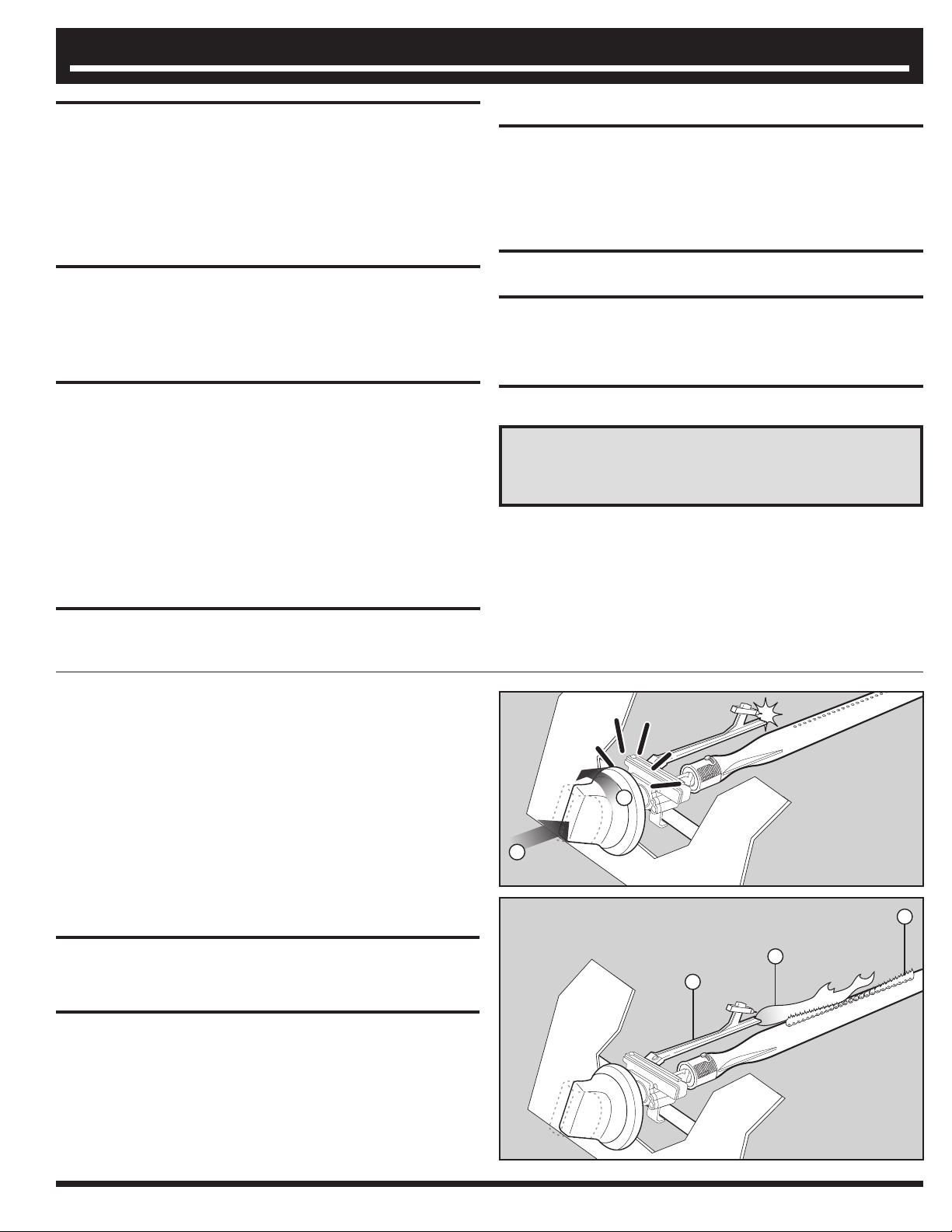

Snap Ignition Operation

 Always open the lid before igniting the burners

Each control knob has its own igniter electrode built in. To create a spark you must push the control knob in (A) and turn to “START/High” (B).

This action will generate gas ﬂ ow and a spark to the burner lighting tube (C). You will hear a “snap” from the igniter. You will also see a 3˝ - 5˝ orange ﬂ ame coming from the burner lighting tube at the left side of the burner (D).

Continue to hold the burner control knob in for two seconds after the “snap”. This will allow gas to ﬂ ow completely down the burner tube (E) and insure ignition.

Check that the burner is lit by looking through the cooking grates. You should see a ﬂ ame. If burner does not light on ﬁ rst try, push control knob in and turn to OFF.

 WARNING: If the burner still does not light, turn the burner control knob to “OFF” and wait 5 minutes to let the gas clear before you try again or try to light with a match.

NORMAL OPERATION

Preheating Grill

It is extremely important that your grill be up to temperature before you begin using it. After lighting, close the lid and preheat the grill on “high” for 10 minutes. This

preheating will ensure that the cooking grid is hot enough for proper grilling.

 WARNING: Never leave a grill unattended to guard against possible grease fires getting out of control. Grease fires can be severe and cause grill damage, property damage and bodily harm.

Open or Close Lid for Grilling

Cooking with the lid open or closed is a matter of personal preference. Cooking with the lid closed is recommended if you enjoy cooking at maximum “searing” temperatures. This method will also speed the cooking process, and will give you a more robust, smoky, outdoor ﬂ avor. If you prefer cooking slower, with less ﬂ are up, we suggest the lid-open method. We recommend always cooking with your lid CLOSED if you are in a windy area or colder climate. Your Ducane® gas grill has been designed and constructed to give you maximum ﬂ exibility and cooking performance. Be creative, try different cooking methods on your grill to determine what suits your needs best…there is no “right” or “wrong” way to cook…just different individual styles.

 WARNING: Please remember that this is an outdoor gas

cooking appliance. Many areas of the grill generate extreme heat. We have taken every precaution to protect you from the contact areas. However, it is impossible to isolate all high-temperature areas. Therefore, use good judgment and a certain degree of caution when grilling on this product. We suggest a covered, protected hand during operation of grill. Do not move your grill when it is in operation or hot to the touch. Wait until your unit is turned off and properly cooled down before moving from place to place. Failure to follow this warning could result in personal injury.

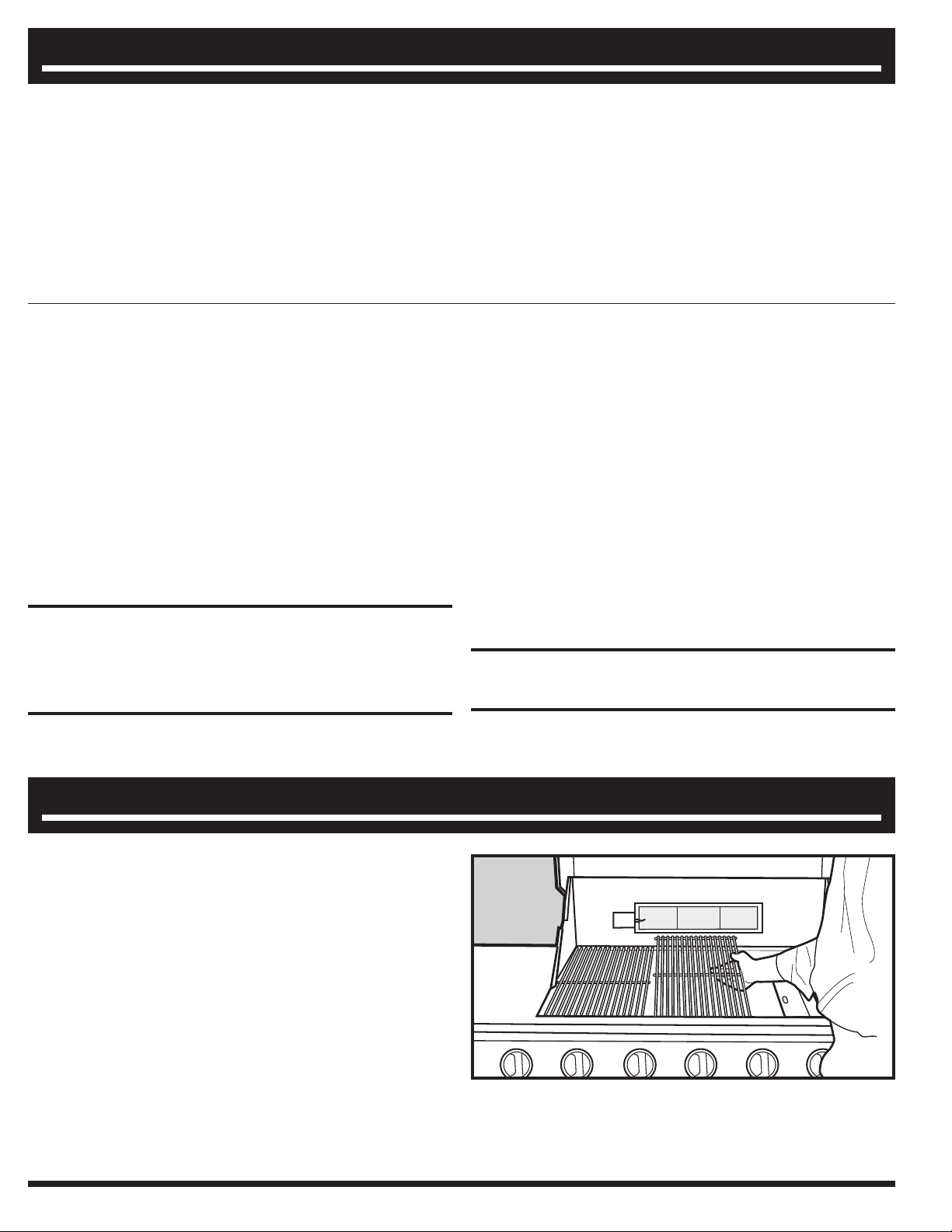

Post-heating Grill

In order to assist cleaning your cook grid and to completely vaporize remaining juices, post-heat grill for 10 minutes with the burners on “high” and the lid closed.

 CAUTION: Do not cover the cook grate during the post-heat-

ing period.

After the post-heating of your grill is completed turn the control knobs to the “OFF” position.

For Natural Gas Grills and System Propane

It is also advisable to turn off the Natural Gas or System Propane gas supply at the main cut-off valve when your grill is not in use.

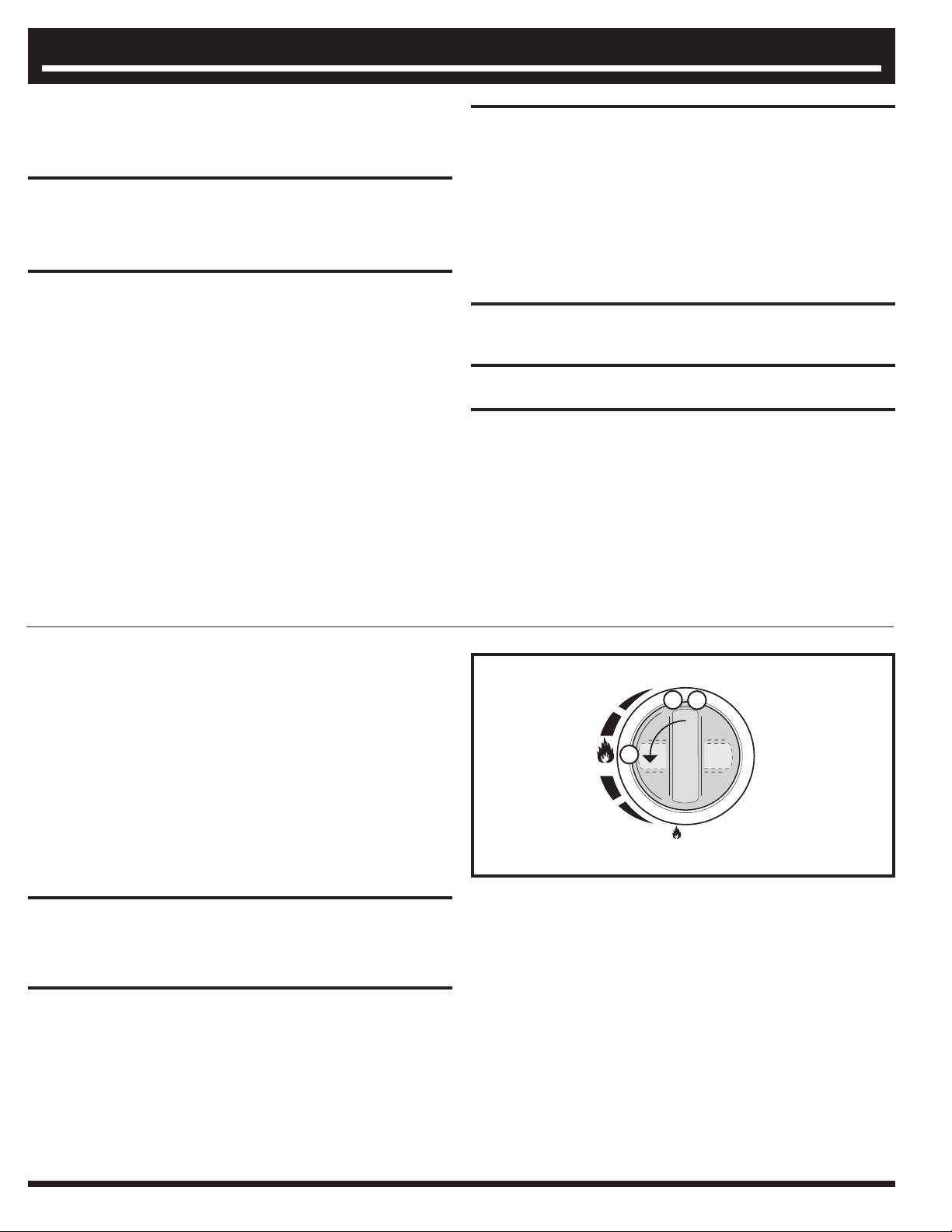

Main Burner Snap Ignition

Note: Each control knob snap igniter creates a spark from the igniter electrode to the burner lighting tube. You generate the energy for the spark by pushing in the control knob and turning to “START/HI”. This will ignite each individual burner.

Follow the simple steps listed below to light the Main Burner(s) of your grill:

1. Open the lid and make sure that all burners are in the “OFF” position.

2. Turn main gas supply on.

3. Push the control knob in and turn to “START/HI” until you hear the igniter snap continue to hold control knob in for two seconds. This action will spark the igniter, the burner lighting tube and then main burner.

4. Check that the burner is lit by looking through the cooking grates. You should see a ﬂ ame. If burner does not light on ﬁ rst try, push control knob in and turn to OFF.

 WARNING: If ignition still does not occur, turn control knob

OFF and wait 5 minutes before manually lighting the burner with match. See Match Lighting instructions.

OFF / ARRÊTÉ / APAGADO

MAIN BURNER

14 www.ducane.com

NORMAL OPERATION

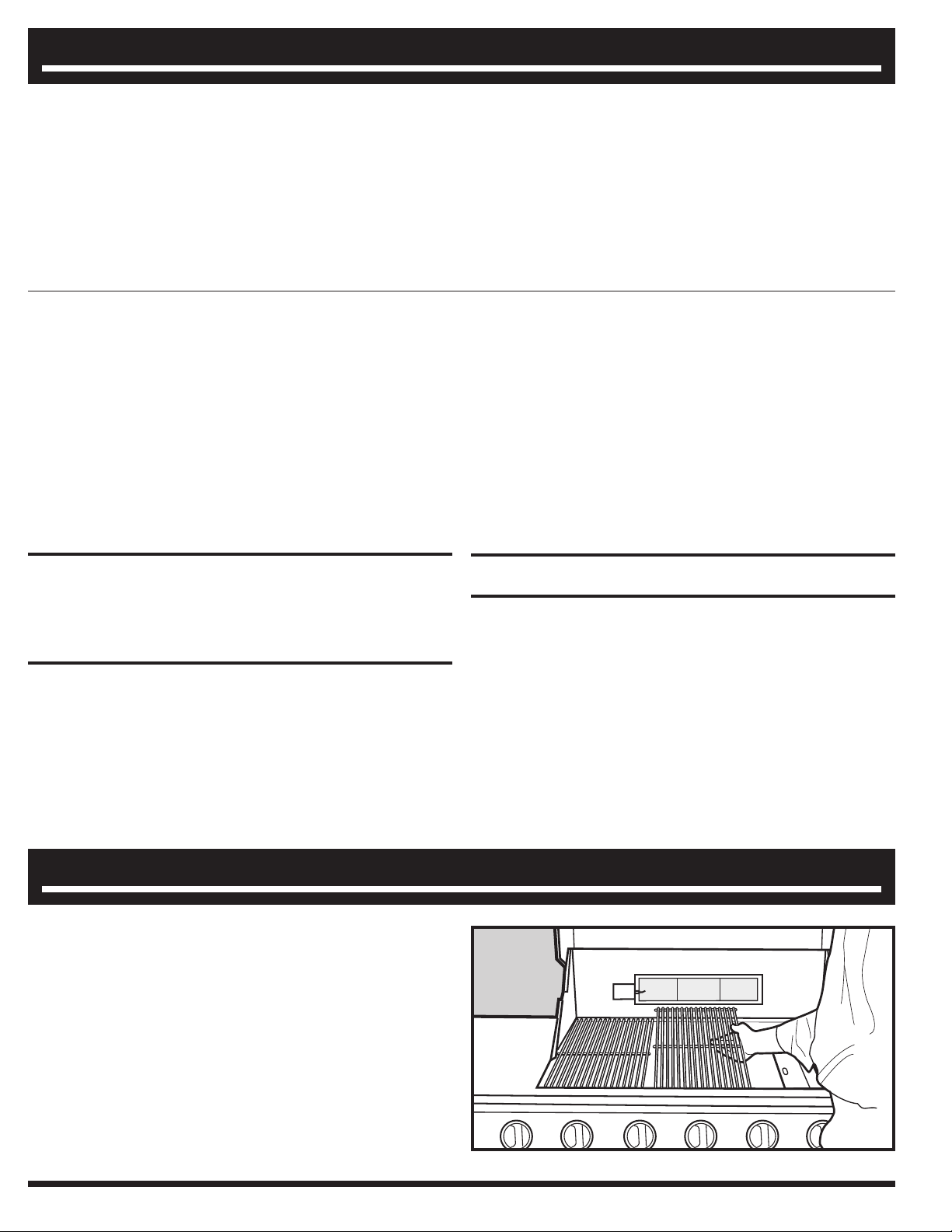

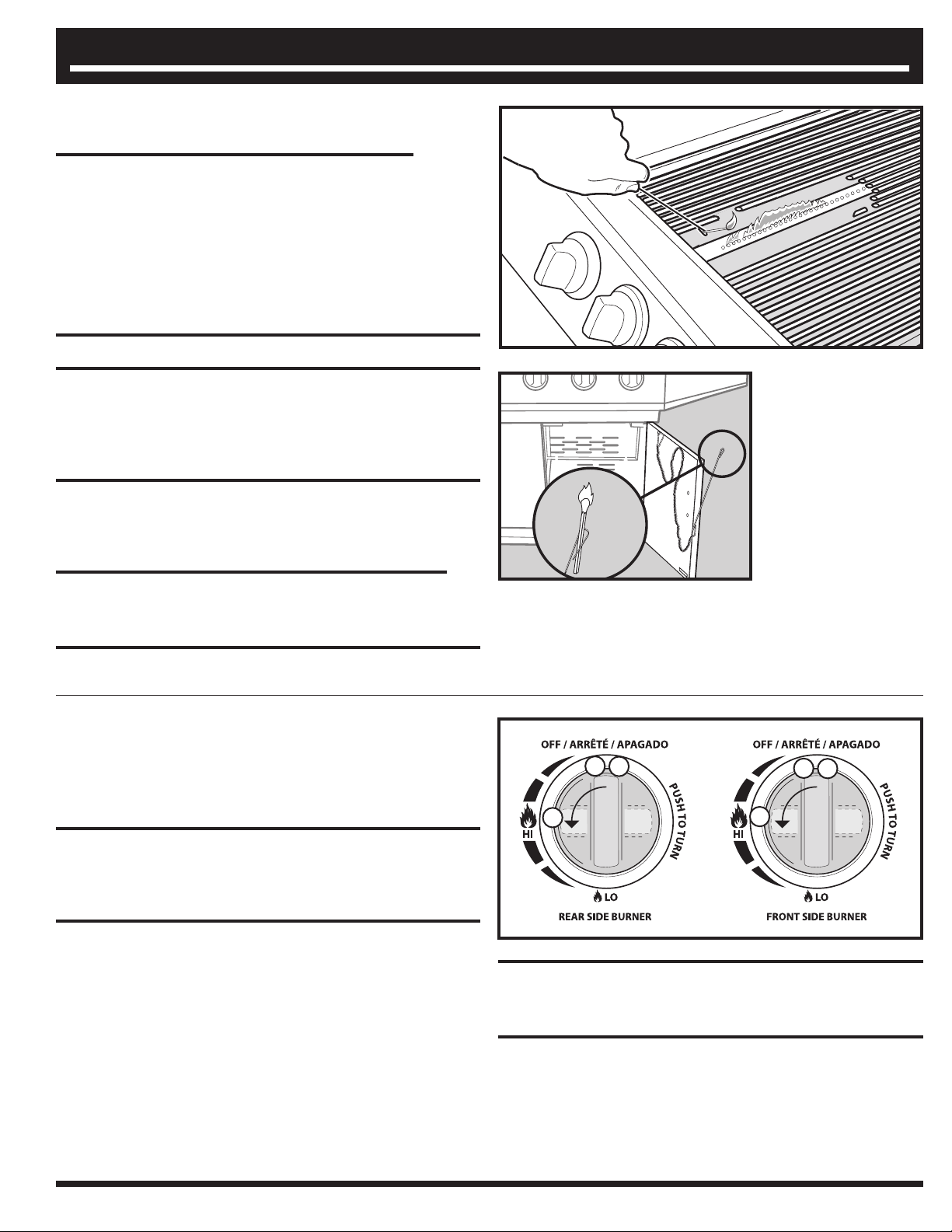

Match Lighting Your Grill Main Burners

Follow the simple steps listed below to match light the Main Burner(s) of grill, in the event snap ignition fails:

 WARNING: (Make sure that 5 minutes have elapsed since last

attempt of lighting.) Make sure that the lid is in the full open position any time you attempt to light your grill. Failure to open the lid could lead to delayed ignition which may result in serious bodily injury or death, or in a fire or an explosion causing damage to property.

 WARNING: Do not lean over an open barbecue.

1. Open the lid and make sure that all burners are in the “OFF” position.

 DANGER: Failure to open the lid while igniting the main

burners, or not waiting 5 minutes to allow the gas to clear if the main burner(s) does not light, may result in an explosive flame-up which can cause bodily injury or death.

2. Turn main gas supply on.

3. Put match in the match holder and strike match.

4. Push in selected MAIN BURNER control knob and turn to “HIGH”.

5. Insert match holder and light match down through cooking grate to ignite the selected Main Burner.

 WARNING: If the burner does not light, turn the selected

burner control knob to OFF and wait 5 minutes to let the gas clear before trying again to light burner(s).

6. Verify selected Main Burner(s) has ignited by visual inspection of a ﬂ ame.

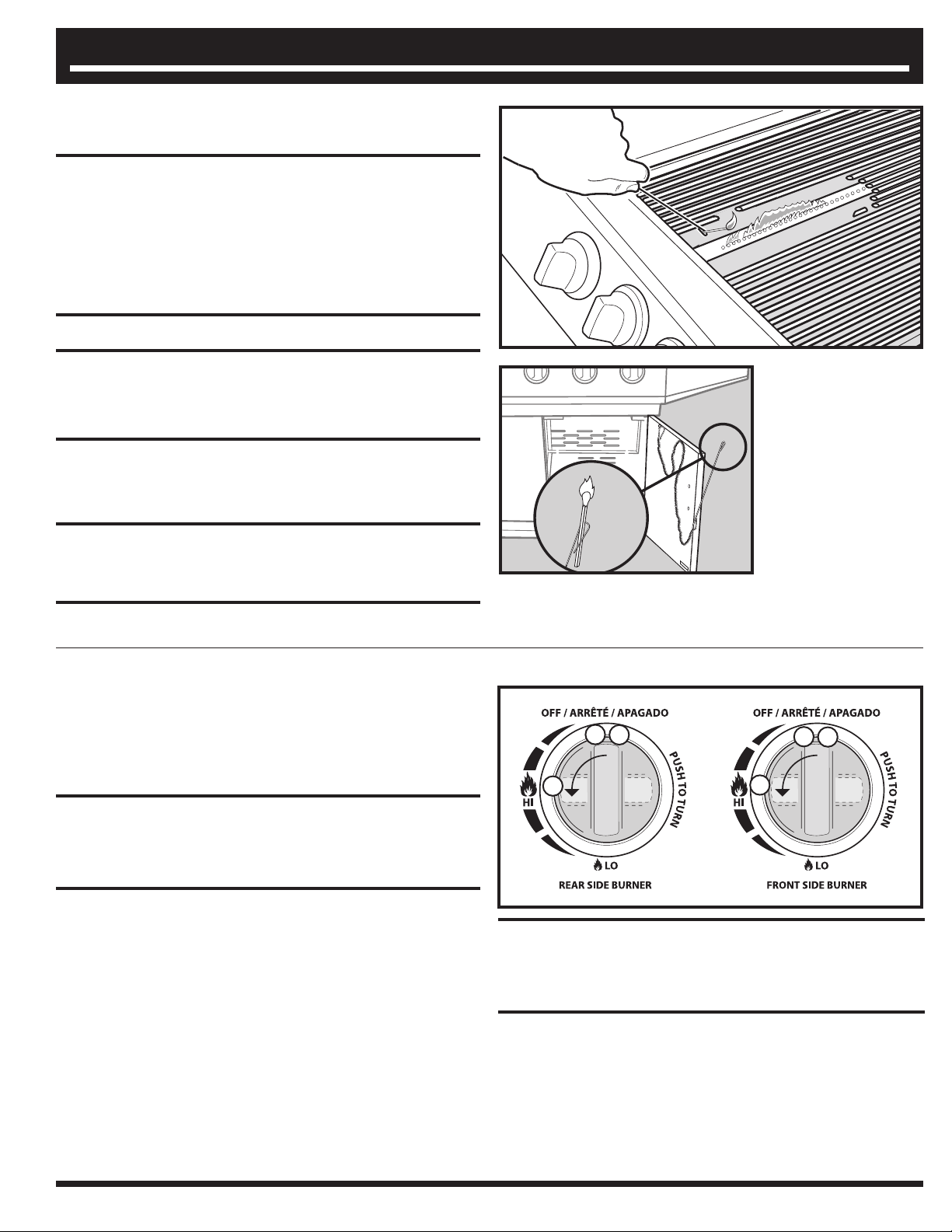

Side Burner Snap Ignition

Note: Each control knob snap igniter creates a spark from the igniter electrode to the burner lighting tube. You generate the energy for the spark by pushing in the control knob and turning to

“START/HI”. This will ignite each individual burner.

Follow the simple steps listed below to light the Side Burner (SB) of your grill:

 DANGER: Failure to open the lid while igniting the side

burner, or not waiting 5 minutes to allow the gas to clear if the side burner does not light, may result in a explosive flame-up which can cause bodily injury or death.

1. Open the lid and make sure that all burners are in the “OFF” position.

2. Turn main gas supply on.

3. Select the Front or rear SIDE BURNER.

4. Push the control knob in and turn to “START/HI” until you hear the igniter snap -

continue to hold control knob in for two seconds. This action will spark the igniter, the burner lighting tube and then side burner.

5. Check that the burner is lit by looking through the cooking grates. You should see a ﬂ ame. If burner does not light on ﬁ rst try, push control knob in and turn to OFF. Repeat lighting procedure a second time.

6. Verify Side Burner has ignited by visual inspection of a ﬂ ame.

 WARNING: If ignition still does not occur, turn control knob

OFF and wait 5 minutes before manually lighting the burner with match. See Match Lighting instructions.

NORMAL OPERATION

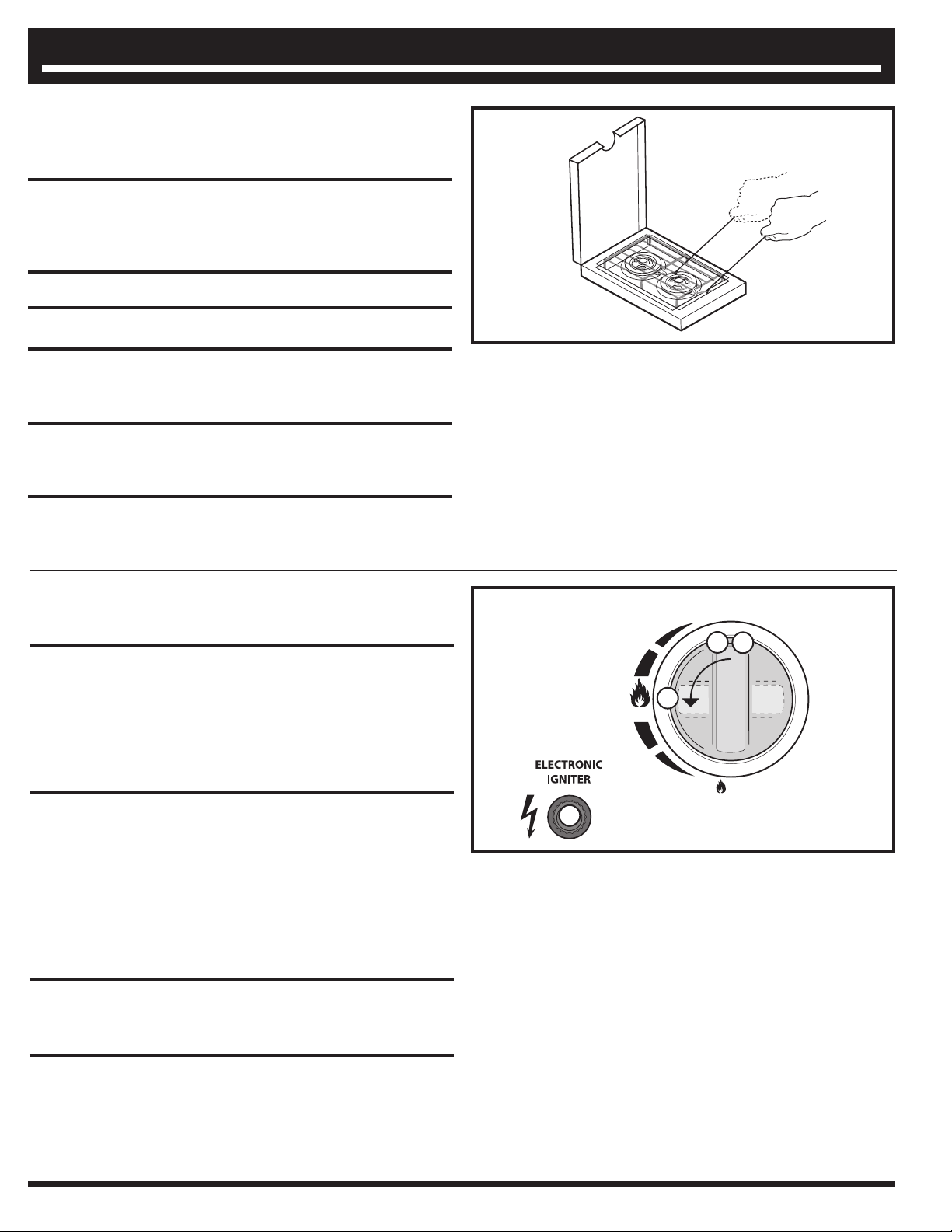

Match Lighting Your Grill Side Burner

Follow the simple steps listed below to match light the Side Burner of grill, in the event snap ignition fails:

1. Open the lid and make sure that all burners are in the “OFF” position.

 DANGER: Failure to open the lid while igniting the Side

Burner, or not waiting 5 minutes to allow the gas to clear if the Side Burner does not light, may result in an explosive flame-up which can cause bodily injury or death.

2. Turn main gas supply on.

3. Put match in the match holder and strike match.

 WARNING: Do not lean over an open barbecue.

4. Select the Front or rear SIDE BURNER.

5. Push in Side Burner control knob and turn to “high”.

6. Insert match holder and lit match through trivet to ignite the Side Burner.

 WARNING: If burner does not light, turn the Side Burner

control knob to OFF and wait 5 minutes to let the gas clear before trying again to light burner.

7. Verify Side Burner has ignited by visual inspection of a ﬂ ame.

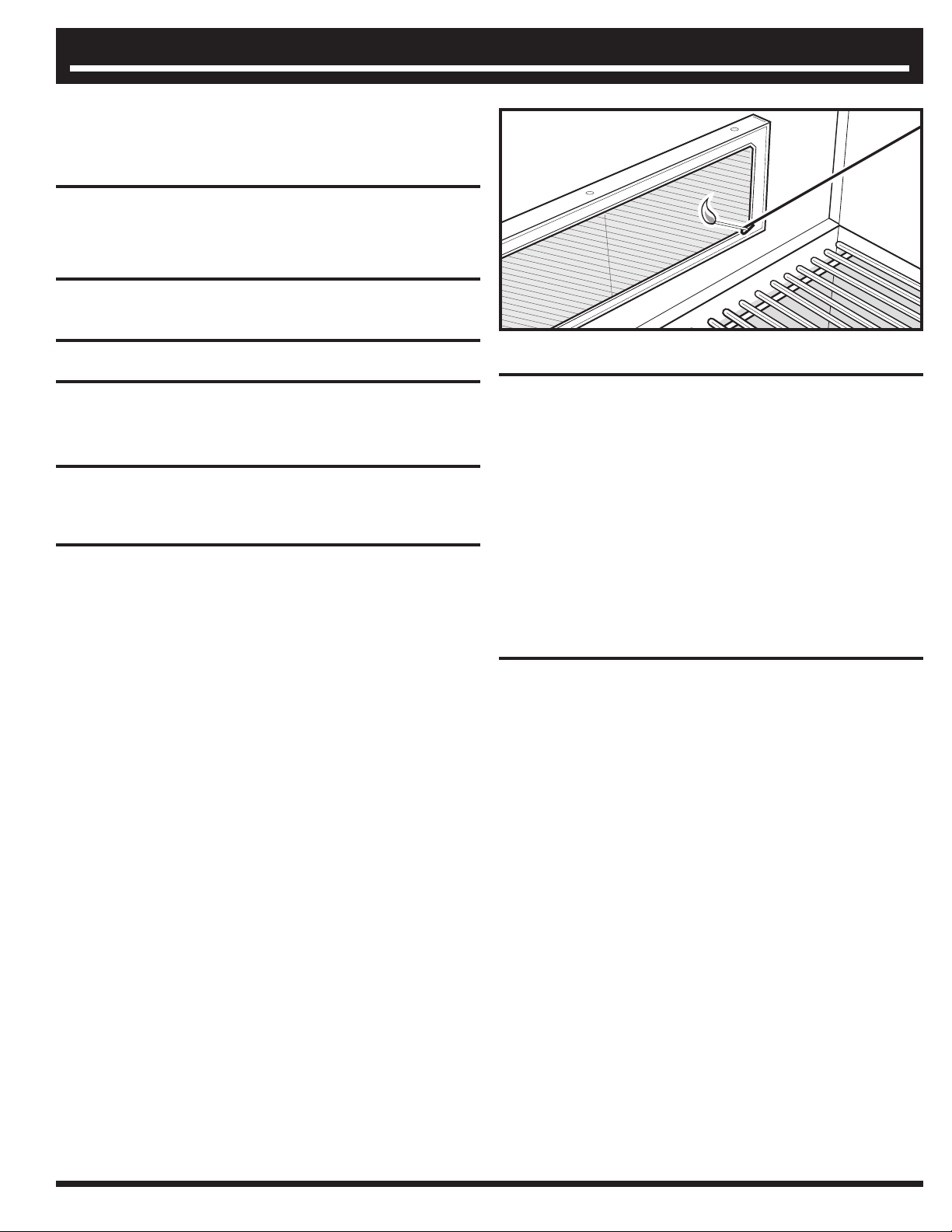

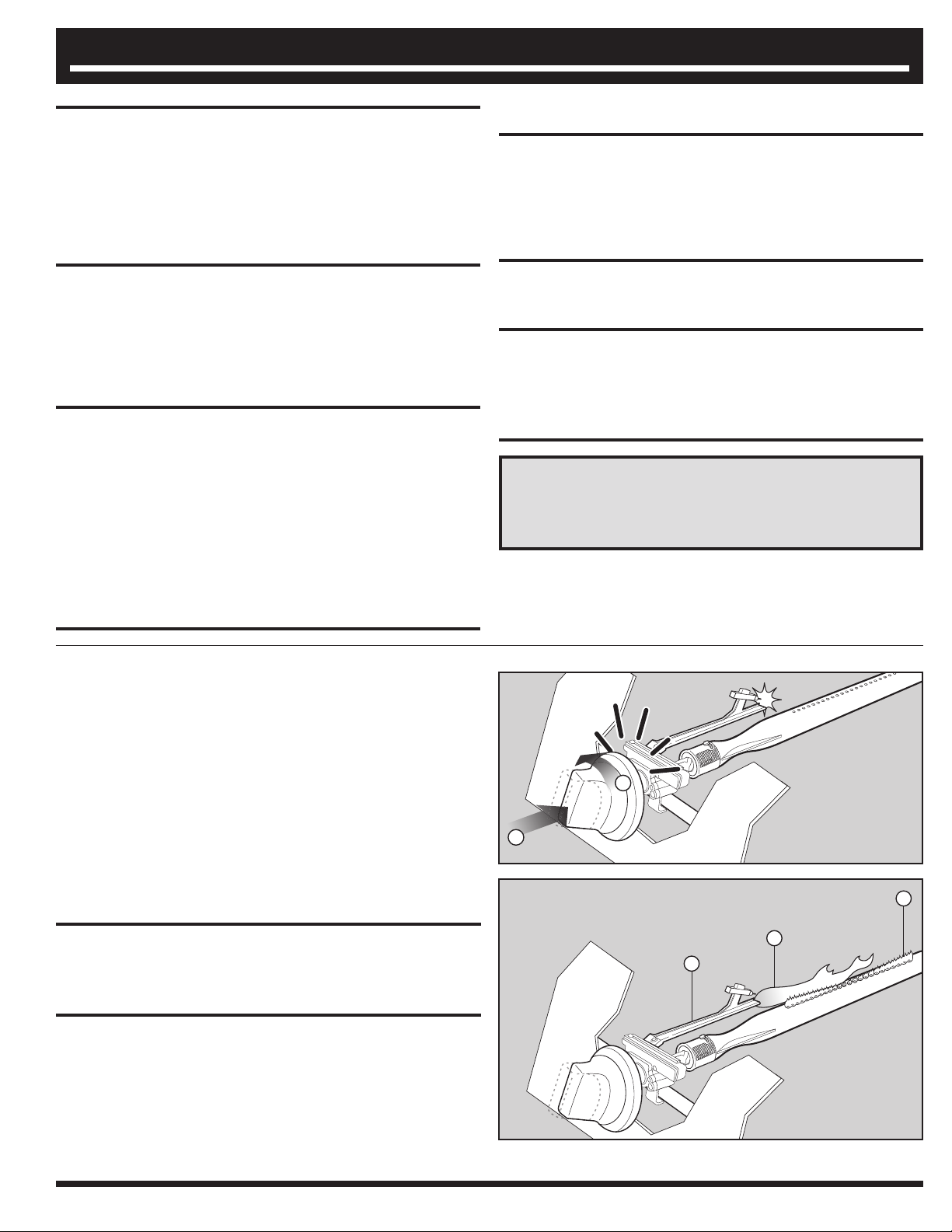

Rotisserie Burner Electronic Ignition

Follow the simple steps listed below to light the Rotisserie Burner of your grill:

 DANGER: Failure to open the lid while igniting the Rotisserie

Burner, or not waiting 5 minutes to allow the gas to clear if the Rotisserie Burner does not light, may result in a explosive flame-up which can cause bodily injury or death.

 CAUTION: The Rotisserie Burner flame may be difficult to see

on a bright sunny day.

1. Open the lid and make sure that all burners are in the “OFF” position.

2. Turn main gas supply on.

3. Remove warming rack. NOTE: Always remove the warming rack when using the rotisserie.

4. Push the ROTISSERIE BURNER control knob in and turn to “HIGH”.

5) Push in the electronic ignition button. Continue to hold the ROTISSERIE BURNER control knob in until 20 seconds after the burner has ignited. Then release the ROTISSERIE BURNER control knob.

6. If ignition does not occur within 5 seconds, turn control knob “OFF” and repeat ignition step numbers 3 and 4.

7. Verify Rotisserie Burner has ignited by visual inspection of a ﬂ ame. (The burner will glow red.)

 WARNING: If ignition still does not occur, turn control knob

OFF and wait 5 minutes before manually lighting the burner with match. See Match Lighting instructions.

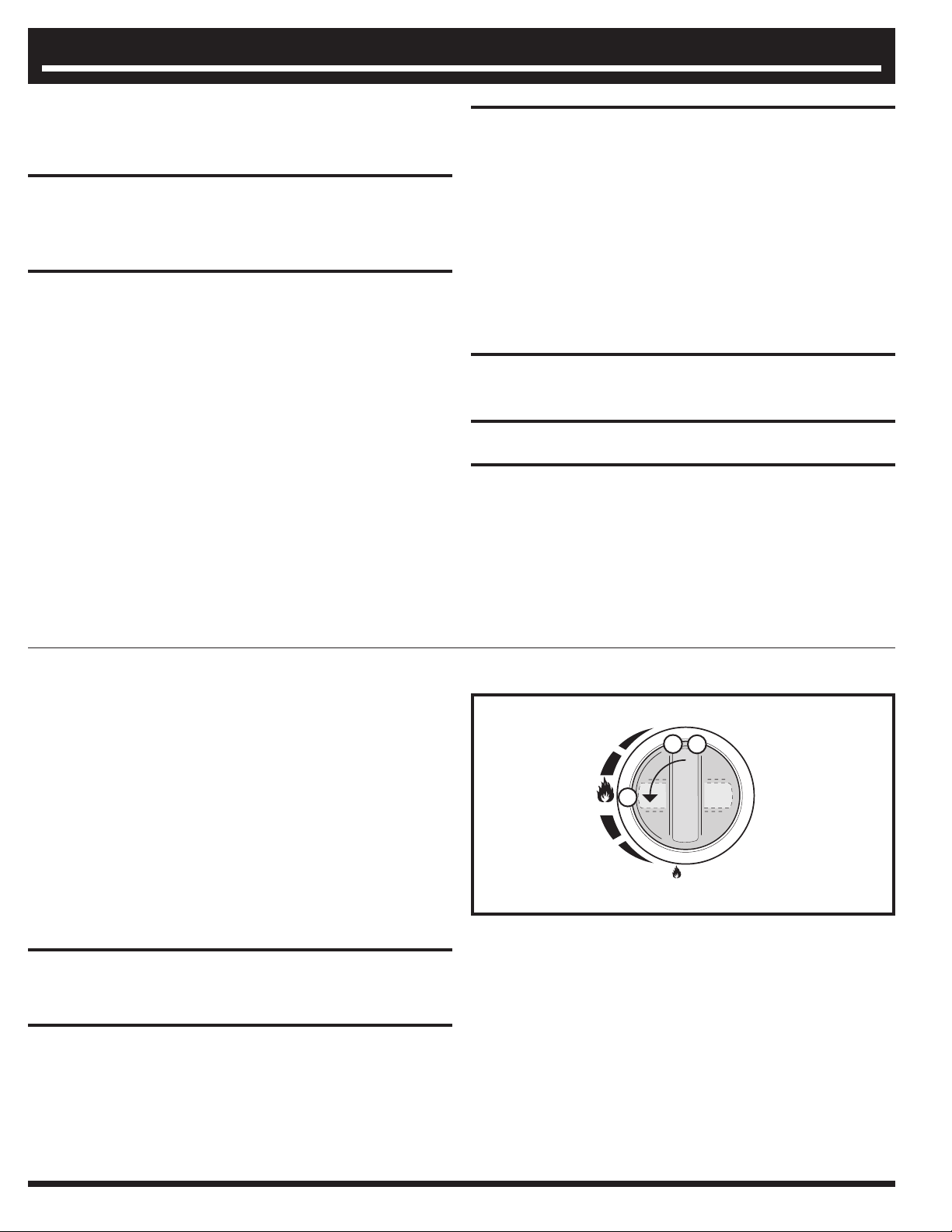

OFF / ARRÊTÉ / APAGADO

ROTISSERIE BURNER

16 www.ducane.com

NORMAL OPERATION

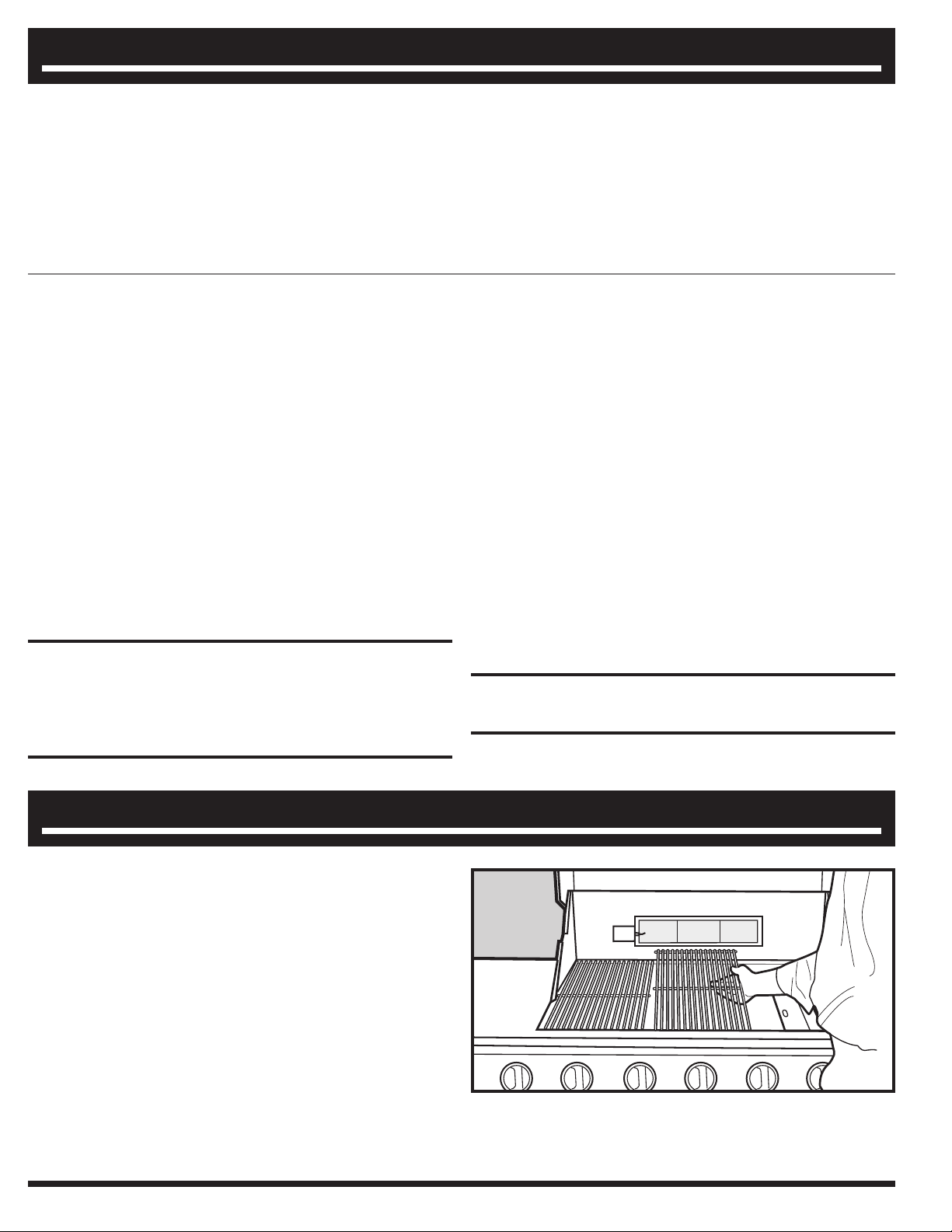

Match Lighting Your Rotisserie Burner

Follow the simple steps listed below to match light the Rotisserie Burner of grill, in the event electronic ignition fails:

1. Open the lid and make sure that all burners are in the “OFF” position.

 DANGER: Failure to open the lid while igniting the Rotisserie

Burner, or not waiting 5 minutes to allow the gas to clear if the Rotisserie Burner does not light, may result in an explosive flame-up which can cause bodily injury or death.

2. Turn main gas supply on.

3. Remove warming rack. NOTE: Always remove the warming rack when using the rotisserie.

4. Put match in the match holder and strike match.

 WARNING: Do not lean over an open barbecue.

5. Push the ROTISSERIE BURNER control knob in and turn to “high”. Continue to hold the ROTISSERIE BURNER control knob in until 20 seconds after the burner has ignited. Then release the ROTISSERIE BURNER control knob.

6. Hold match holder and lit match to the middle of the Rotisserie Burner to ignite.

 WARNING: If burner does not light, turn the selected burner

control knob to OFF and wait 5 minutes to let the gas clear before trying again to light burner(s).

7. Verify Rotisserie Burner has ignited by visual inspection of a ﬂ ame. (The burner will glow red.)

 WARNING: Never leave a grill unattended. This will guard

against possible grease fires getting out of control. Grease fires can be severe and cause grill damage, property damage and bodily harm.

 WARNING: Please remember that this is an outdoor gas

NORMAL OPERATION

Using the Rotisserie

WARNINGS:

Read all instructions before using your rotisserie.  This rotisserie is for outdoor use only.  Remove motor and store in a dry place when not in use.  Do not touch hot surfaces. Use barbecue mitts.  This rotisserie is not for use by children.  To protect against electrical hazards do not immerse cord,

plugs, or motor in water or other liquids.

 Unplug the motor from outlet when not in use or before

cleaning.

 Do not use rotisserie for other than intended use.  Make sure motor is OFF before placing it on the motor

bracket.

 Do not operate the rotisserie motor with a damaged cord or

plug.

 Do not operate the rotisserie motor if it should malfunction.  The rotisserie motor is equipped with a three prong (ground-

ing) power cord for your protection against shock hazard.

 The power cord should be plugged directly into a properly

grounded three prong receptacle. If use of an extension cord is required, be sure that it is a minimum 16 AWG, 3 wire well insulated cord, marked for outdoor use only and properly grounded.

 When using an extension cord, make sure it is not in contact

with a hot or sharp surface.

 Outdoor extension cords should be marked with the letters

“W-A” and a tag stating “Suitable for use with outdoor appliances”.

 Do not cut or remove the grounding prong from the rotis-

serie motor power cord.

 Do not let cord hang over any sharp edge or hot surface.  Do not expose to rain.  To reduce the risk of electric shock, keep extension cord

connection dry and off the ground.

 A short power cord is supplied to reduce the risk of tripping

over the cord. Extension cords may be used, but caution must be taken to prevent tripping over the cord.

In absence of local codes the rotisserie motor must be

grounded electrically in accordance with the National Electrical Code, ANSI/NFPA 70, or Canadian Electrical Code, CSA C22.1.

 WARNING: Setup the rotisserie with food before lighting

Rotisserie Burner.

1. Remove rotisserie shaft from grill.

2. Loosen and remove right side bearing, the counterbalance and right side spit fork.

3. Push the rotisserie shaft through the center of the food.

4. Slide the right side spit fork back onto the shaft. Insert the tines of both spit forks into the food. The food should be centered on the shaft. Tighten spit fork thumb screws.

5. Place left side bearing (welded in place) groove into the left side spit rod mount cut-out.

6. Place the right side bearing onto the spit rod and insert the pointed end of the spit rod into the rotisserie motor.

7. Line up both the groove on the right side bearing with the right side spit rod mount cut-out, and slide the motor over the motor mounting bracket ﬂ ange and push down. Note: The thumbscrew is only tightened when the rotisserie is not

in use. Do not tighten the thumbscrew when using so that the spit rod can rotate freely.

8. The rotisserie shaft should rotate so that the heavy side of the meat or poultry rotates down to the bottom. Large cuts of meat may require the removal of the cook grates to allow full rotation of the spit rod. Note: Remount the food and/or use the

counterbalance if necessary for better balance on the spit rod. The counterbalance can be mounted after Step 5 above.

9. Plug the motor in and turn it on.

10. Follow Lighting Instructions. The cord can be routed through the access hole at the back of the grill Plug cord into the accessory outlet inside the base cabinet.

Operating the Rotisserie

 CAUTION: Do not use more than 9.5A from the receptacle.



18 www.ducane.com

NORMAL OPERATION

Cooking with the Rotisserie

• When using the rotisserie, the lid must be closed except when basting.

• Meats (except poultry and ground meat) should be brought to room temperature before cooking. (20 to 30 minutes should be adequate for most foods. If frozen defrost completely before cooking.)

• Tie meat or poultry with a string, if necessary, to make the shape as uniform as possible before putting it on the spit.

• Remove cooking grates and warming rack to allow food to turn freely.

• Follow Lighting Instructions for Rotisserie Burner under Lighting Your Grill section.

• Set Rotisserie Burner on “med-high” based on outside air temperatures.

• Place food within area of burner.

• If you wish to save drippings for gravy, place a drip pan directly under the food on top of the heat distribution plates.

• Food preparation steps are the same for rotisserie cooking as for regular cooking.

NOTE: When using the Rotisserie Burner, grill thermometer will not reﬂ ect the temperature inside the cooking box.

Operating the Electric Warming Drawer

 CAUTION: When operating additional appliances while the

rotisserie motor is in use, the household electrical circuit could overload.

 WARNING: Do not use or spill liquids on our near the

accessory outlet.

1. Make sure that the grill has been plugged into a properly grounded outlet.

2. Before using the Electric Warming Drawer, move the humidity control knob, so

that the humidity control vent is partially open. This will prevent moisture and steam from forming in the Warming Drawer.

3. Carefully place food to be warmed inside the Warming Drawer



Do not touch hot surfaces. Use barbecue mitts.

4. Close drawer and turn the power switch to on.

5. Adjust the control knob to reach the desired warming temperature.

 WARNING: Moist foods may cause steam to form in the Warming Drawer. Use an oven mitt when opening the Warming Drawer to prevent steam from contacting skin. Steam may cause serious burns to skin.



NORMAL OPERATION

HELPFUL HINTS

Flare Ups

Any time you cook fatty foods over an open ﬂ ame, you can expect ﬂ are ups. Flare ups are caused by the ﬂ ash which occurs when the natural juices fall on the heat distribution plates. Controlled ﬂ are ups give foods their delicious outdoor ﬂ avor and appearance. Excessive ﬂ are ups may occur when your grill is not level or when cooking fatty foods such as spare ribs and chicken parts, especially if the cooking temperature is set too high. These ﬂ are ups should be controlled or your food will burn, although it will

not burn nearly as much as you might think even in the direct ﬂ ame.

 WARNING: Do not spray or pour any liquid into the cooking

box to control flare ups. Doing so will void your warranty and may damage the grill.

To help control ﬂ are ups, we suggest using leaner cuts of meats and trimming excess fat from the meats to be grilled. Also, your grill should be level. If ﬂ are ups do occur, use the “Low” control setting and relocate the meat on the cooking grid until the ﬂ are ups have subsided.

1. To prevent food from sticking to the grid, preheat the cooking surface with the hood down for 10 minutes. Place the meat product on the grid and allow it to remain there for at least half of the suggested grilling time.

2. It is unnecessary to keep ﬂ ipping meat products— allow them to sear and seal in

their juices, then halfway through the cooking period, with a spatula, ﬂ ip the meat product onto its other side. When grilling chicken, always place the meat side on the grill ﬁ rst.

3. A light coating of oil applied to any of the meat products prior to grilling will also help. The use of a commercial spray cooking product is also helpful. This spray should only be used prior to lighting your grill but never during the cooking period. Use of spray cooking product can leave a black stain on areas of your cook grate. This is not harmful and does not affect cooking; however, if this becomes an appearance problem, the best way to remove the discoloration is by placing the cook grate in a self-cleaning oven during the clean cycle.

When Using the Rotisserie

 WARNING: The rotisserie motor must be stored indoors when

not in use. Do not leave it mounted on the grill.

1. When using the rotisserie, the hood must be closed except when basting.

2. Important: Always light rotisserie burner with the hood in the full open position.

3. It is important to evenly balance the meat on the spit rod. This can be difﬁ cult especially with a turkey. Proper balancing will lead to more even cooking and prolong the life of the rotisserie motor.

4. Pliers may be used to tighten thumb screws on meat forks when larger cuts of meat are being rotissed.

5. Use twine to secure the meat on the spit rod, especially fowl or other cuts of meat that require tying.

Rotisserie Bracket (Motor Bracket Side)

When mounting the spit rod motor onto the motor bracket (right side burner box), the ears of the motor bracket must be fully inserted into the spit motor slots. Accomplish this by sliding the spit motor down to the stops of the spit motor bracket. The spit rod should not be making surface contact with the slot in the spit motor bracket. See Assembly Guide for more information.

Shelf/Shelves

Do not use shelf or shelves as a cutting board. Clean with soap and water.

Moving Portable Grills

When your grill is not in use and you wish to relocate it, we recommend you push the grill by the side shelf.

 CAUTION: If your grill is portable and you are using a gas

tank, make sure you turn the appliance control knobs first, and then the gas supply tank. On permanent installations, it is strongly recommended that the inline field installed cutoff valve also be turned off when the grill is not in use.

HELPFUL HINTS

Storing Natural Gas Grills

After you have ﬁ nished cooking and have cleaned your grill, (see Maintenance section – for cleaning), turn your grill off at your appliance control knob. It is strongly recommended that the inline ﬁ eld installed cutoff valve also be turned off when the grill is not in use. When the portable grill is to be stored indoors, the connection between the hose and the gas supply line must be broken. While the special ﬁ tting will stop the gas ﬂ ow when the hose connection is removed, it is highly recommended you turn the gas supply off prior to disconnecting the hose assembly. To protect the gas ﬁ tting, it is necessary to insert the plastic plug (supplied with 10’ hose package) into the female quick connect. The male end of the hose must be protected by placing the plastic cap (supplied with

10’ hose package) over the brass ﬁ tting on the end of the hose.

Gas Valve Oriﬁ ce

 WARNING: Any alteration made to the orifice(s) such as drill-

ing it out, will void your warranty and may result in serious bodily injury or death, or in a fire or an explosion causing damage to property.

20 www.ducane.com

+ 44 hidden pages
