Strona główna » Dual » Dual CS529BK W pełni automatyczny gramofon z
napędem pasowym Instrukcja obsługi
zawartość
1 podwójny CS529BK w pełni automatyczny gramofon z napędem pasowym
2 Instrukcje użytkowania produktu
3 Wstęp
4 Utylizacja opakowań
5 Przegląd produktu
6 Obsługa gramofonu

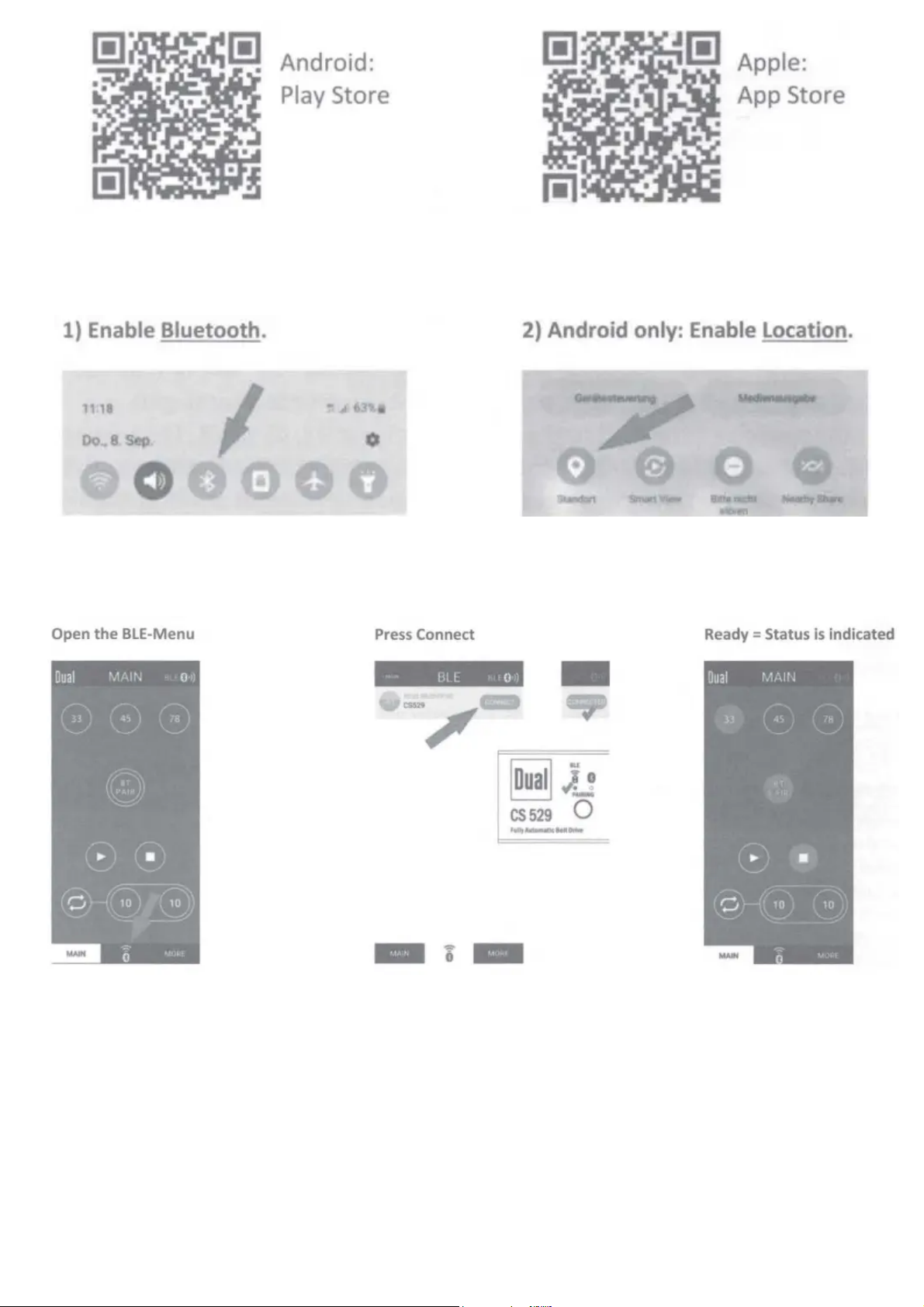

7. Obsługa Bluetooth
8 Dokumenty / Zasoby
8.1 Odniesienia
Instrukcje+
⚙
Page 2
Podwójny CS529BK w pełni automatyczny gramofon z napędem pasowym
Specyfikacje
Silnik: Pasowy/prąd stały, sterowany serwosilnikiem z
optyczną kontrolą prędkości
Ustawienia prędkości napędu: 33/45/78
Wow i trzepotanie: < 0,1%
Ramię gramofonu:
Funkcja: Łożysko
Długość efektywna: 2,5 mm
Kąt odchylenia: hartowana stalowa wrzeciono,
tuleja mosiężna
Typ wystający: Odlew aluminiowy z gumy
Zakres nacisku rysika: 5 g do 9 g
Wkładka: Ortofon 2M Red
Zakres wagowy: 850g
⚙
Page 3
Talerz:
Materiał: Aluminium
Mata: Guma
Średnica łożyska: 2,5 mm
Waga z matą: 850g
Cokół:
Wykończenie powierzchni: Stopy
Połączenie: wejście gramofonowe, wejście liniowe,
wyjście cyfrowe
Wymiary (zamknięta osłona przeciwpyłowa):
Wymiary (otwarta pokrywa przeciwpyłowa):
Waga:
Zasilanie:
Typ: FJ-SW1202000N
Napięcie wejściowe: 100 (-10%) V AC do 240 (+10%)
V AC
Częstotliwość: 50 / 60 Hz
Napięcie wyjściowe: 12 V DC
Prąd wyjściowy: 2,0 A
Moc wyjściowa Średnia wydajność podczas
Operacja: 24W ;:: 86,2%
Pobór mocy w stanie spoczynku:
Instrukcje użytkowania produktu
Organizować coś
Aby skonfigurować gramofon, wykonaj następujące czynności:

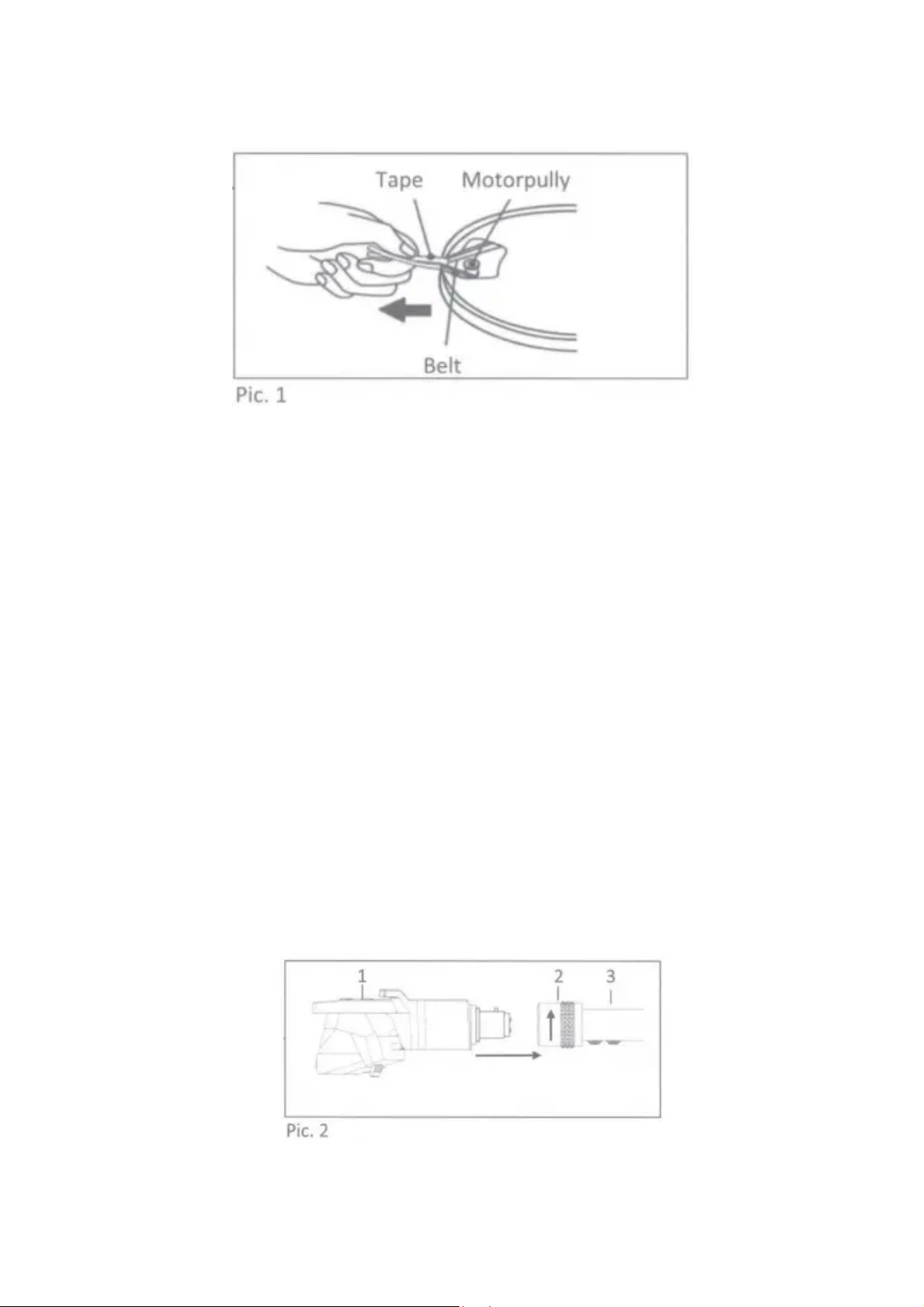

1. Montaż talerza i paska: Zamontuj talerz i pasek zgodnie z instrukcją

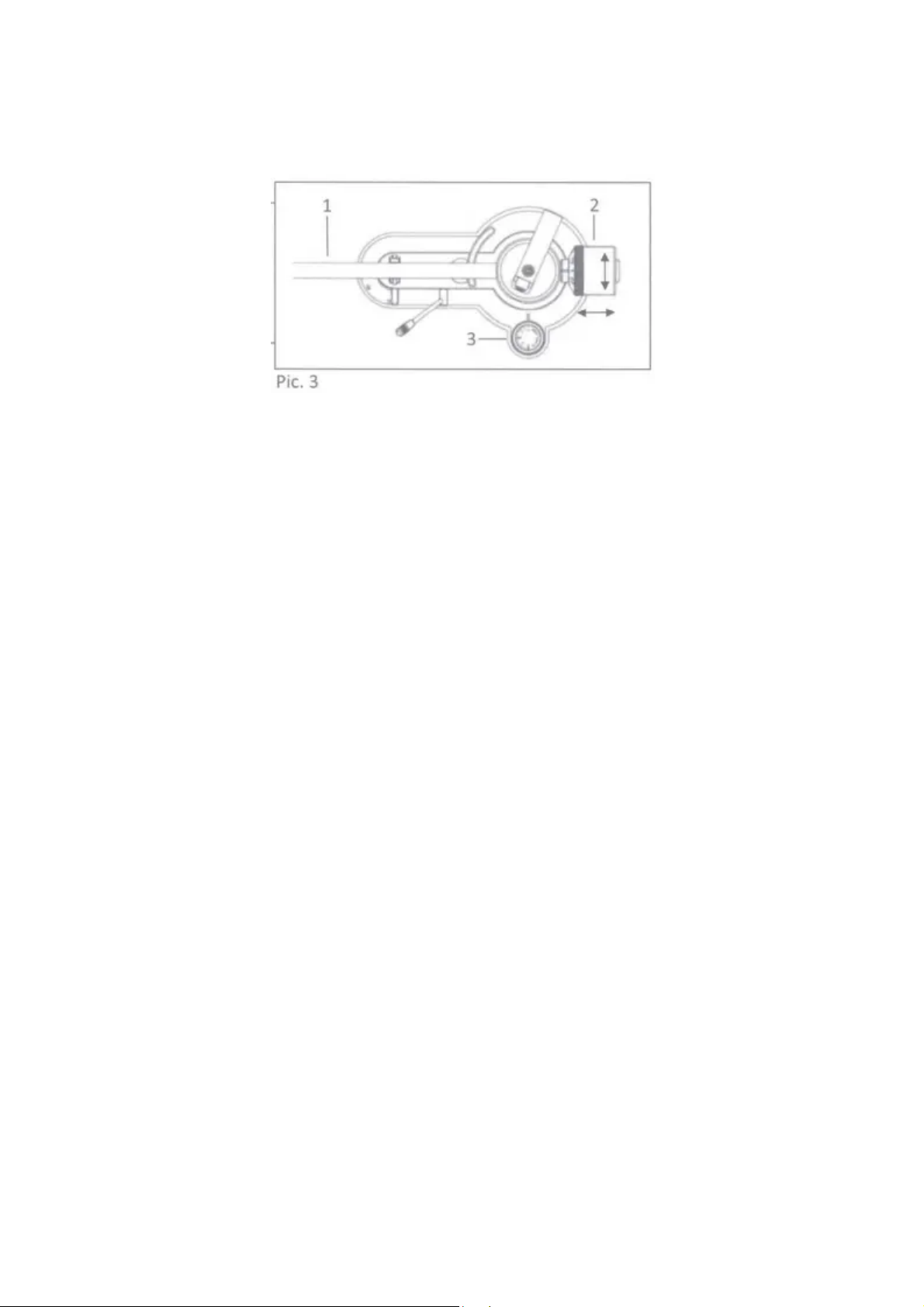

2. Ramię gramofonu: Zamontuj główkę gramofonu, przeciwwagę i wyważ ramię.
3. Montaż osłony przeciwpyłowej : Zamontuj osłonę przeciwpyłową na gramofonie.

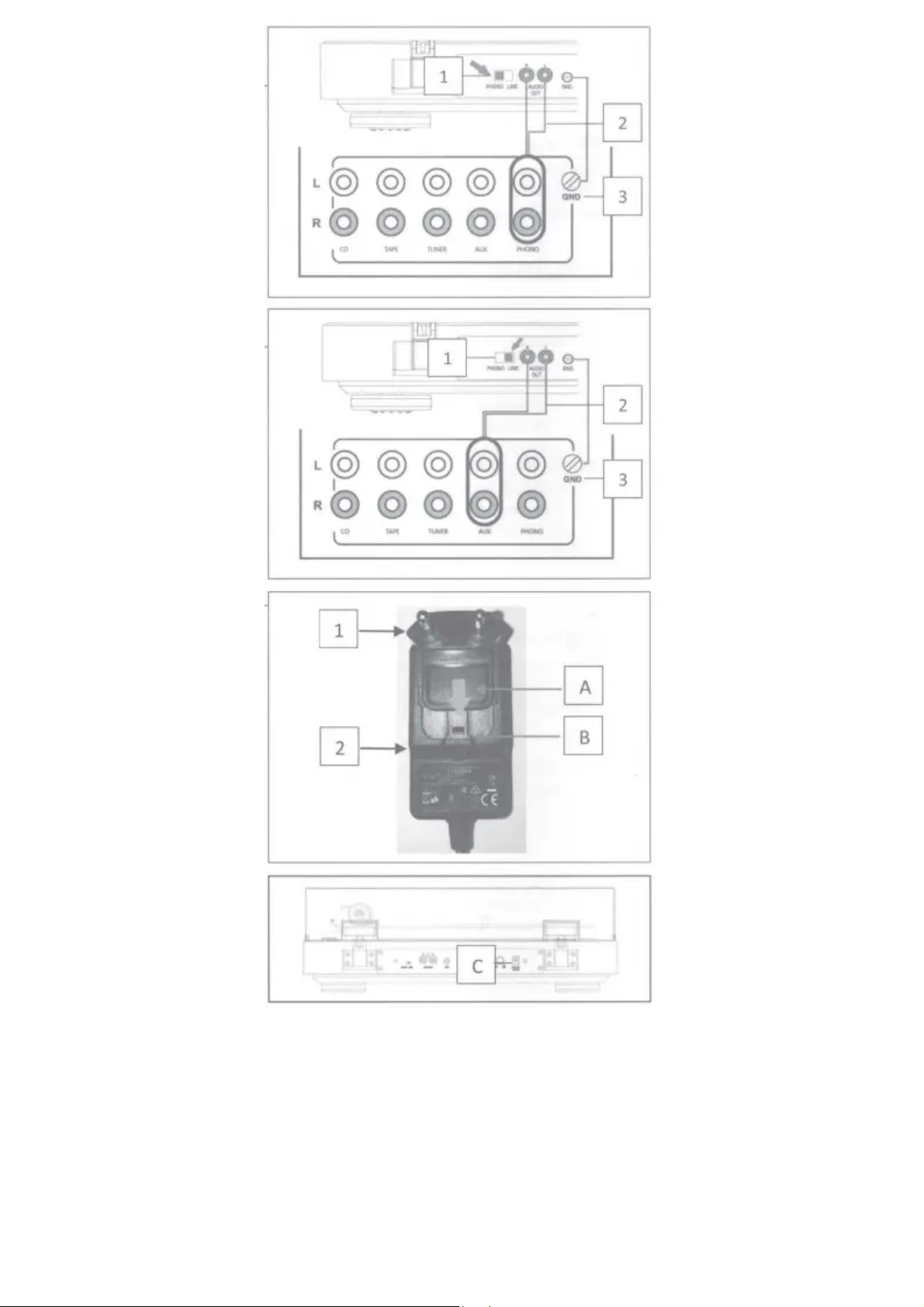

4. Podłączenie do wzmacniacza i zasilania : Podłącz gramofon do wzmacniacza i zasilania
zgodnie z instrukcją.
⚙
Page 4
Obsługa gramofonu
Aby obsługiwać gramofon:
1. Aby odtworzyć płytę (ręcznie): Postępuj zgodnie z instrukcjami dotyczącymi ręcznego
umieszczenia i odtworzenia płyty.
2. Aby odtworzyć płytę (automatycznie): Skorzystaj z funkcji automatycznego
odtwarzania, postępując zgodnie z podanymi instrukcjami.
3. Aby ustawić prędkość : Dostosuj ustawienia prędkości zgodnie z pożądanym
odtwarzaniem.
4. Cleaning: Regularly clean the stylus, record player, and records as recommended in the
manual.

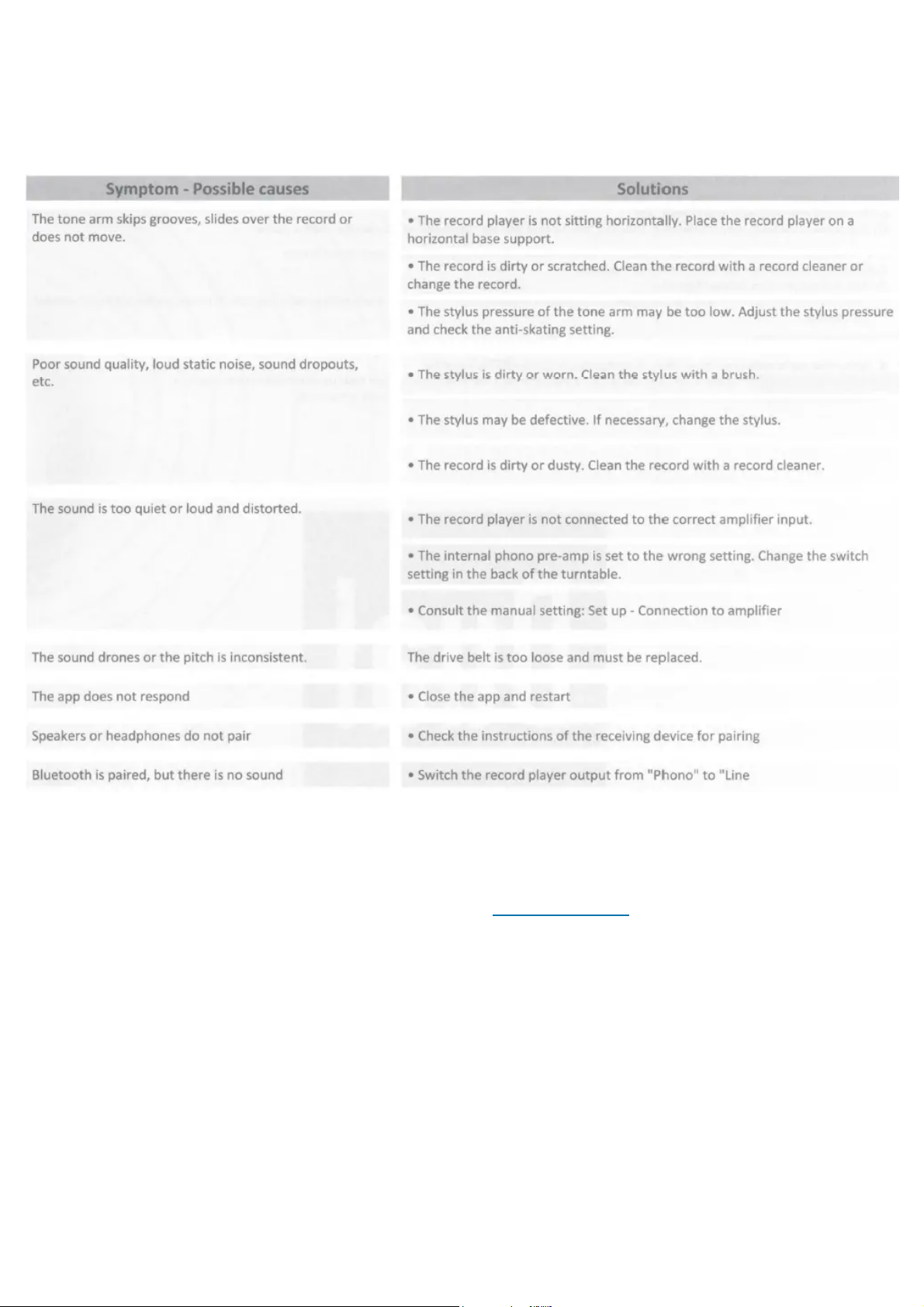

Troubleshooting
If you encounter issues with the turntable, refer to the troubleshooting section of the manual for
guidance on resolving common problems.
FAQ
Q: How do I adjust the tracking force on the tonearm?
A: To adjust the tracking force, use the counterweight provided and follow the
instructions in the manual for proper balancing.
Q: Can I use a different cartridge with this turntable?
A: The turntable comes with a factory-installed cartridge. If you wish to use a different
cartridge, ensure it is compatible with the tonearm specifications and weight range
mentioned in the manual.
Technical Specifications
⚙
Page 5
Technical Specifications
Motor
Drive
Belt/ DC Servo-controlled Motor with optical sp
eed control
Speed settings 33/45/78
Wow & Flutter < ±0,08 % (DIN WTD)
Tonearm
Function
All functions can be fully automatic or manually
operated
Bearing Ball-Bearing/ Twin Gimbal Mounting
Effective length 221,5 mm
Offset Angle 25,6°
Overhang 19 mm
Type statically balanced with counterweight
Stylus Pressure Range Oto 4 g
Cartridge Weight Range s g to 9 g

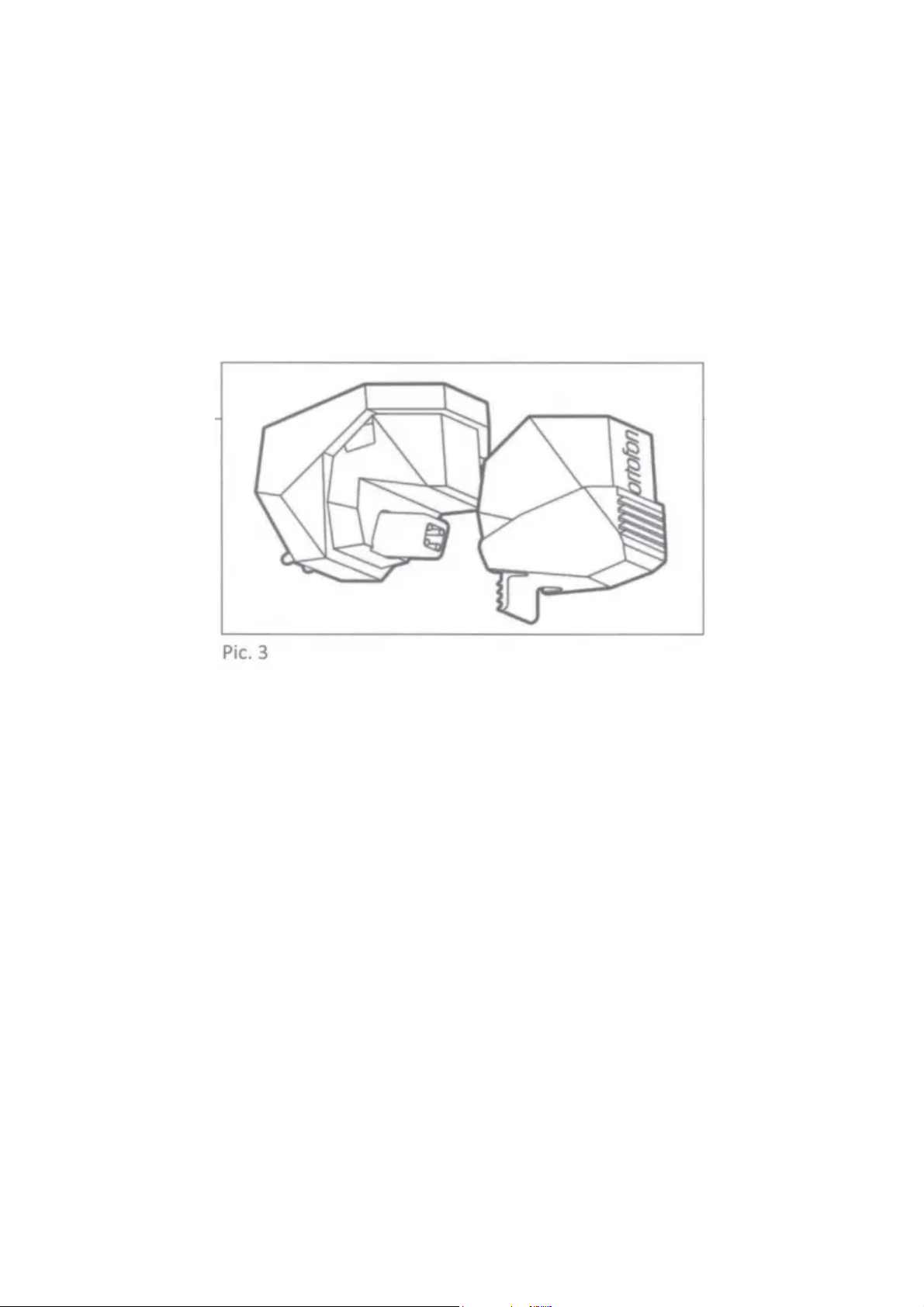

Factory installed Pick-up Ortofon 2M Red
Replacement Stylus Ortofon Stylus 2M Red
Platter
Material Aluminium Die-cast
Mat Rubber 2,5 mm
Bearing Hardened Steel Spindle, Brass Bushing
Diameter 305mm
Weight incl. Mat 850 g
Plinth
Surface Finish
MDF: Vinyl veneer= Black / Wood Veneer= Wal
nut
⚙
Page 6
Feet (Z! 62 mm / Elastomer Damping Element
Connection RCA socket
Connection to Phono Input YES
Connection to Line Input YES
Digital Output Bluetooth
Dimension (closed dust cover) 435 x 367 x 148.5 mm
Dimension (open dust cover) D: 415 mm/ H: 400 mm
Weight 6,7 kg
Power Supply
The efficiency readings were taken with an inpu
t Voltage
of 230 V AC at 50 Hz
Type FJ-SW1202000N
Input Voltage 100 (-10 %) V AC to 240 (+10 %) V AC
Frequency 50 / 60 Hz
Output Voltage 12 V DC
Output Current 2,0A
Output Watt 24W
Average Efficiency During Operation ?: 86.2%
Power Consumption at Idle <0,1W
Preface
This instruction manual will help you to operate the turntable in a safe way. Please read this
manual and the safety notices carefully before
using the unit and keep them for later use. Be sure to make them accessible to other users and
observe all information given here.
Intended users of this operating manual
⚙
Page 7
This operating manual is intended for everyone who:
sets up,
operates,
cleans
or disposes of the record player.
Warnings
The warning signs in this operating manual are structured as seen below:
Danger
The word,, DANGER” points out an immediate life hazard!
The word,, WARNING” points out a potentially life-threatening situation or irreversible injuries!
A Careful
The word,, CAREFUL” points out the possible threat of medium or light injuries!
ATTENTION
The word,, ATTENTION” points out potential damages to the product.
Note:
,, NOTE” provides useful or important information.
Directives and standards
This product conforms to: CE • the Low-voltage Directive (2014/35/EU),
the EMC Directive (2014/30/EU),
RoHS Directive 2011/65/EU,
ERP 2009/125/EC and
CE Marking Directive.
Disposal of packaging
Danger
⚙
Page 8
,,Danger” through suffocation! Keep the packaging and its parts out of the reach of children. Risk
of suffocation from foil and other packaging materials. Your new unit was protected on its way to
you by the packaging. All materials used are environmentally safe and can be recycled. Please help
and dispose of the packaging in an environmentally responsible manner. To learn about current
disposal methods, contact your dealer or your local disposal facility.
Disposal of turntable
Old units are not simply waste. Valuable raw materials can be salvaged through
environmentally friendly disposal. For information about the correct and environmentally friendly
disposal of your unit, please contact your local council.
This unit is labeled according to 2002/96/EC, the Waste Electrical and Electronic Equipment
Directive (WEEE). This product must not be disposed of with normal household waste. Instead, it
must be deposited at a recycling station for electrical and electronic devices. The symbol on the
product and the instructions for use or the packaging indicate this. The materials can be recycled
in accordance with their marking. By reusing, recycling, or repurposing old units, you make an
important contribution to protecting our environment.
Safety instructions
Please read through all of the safety instructions carefully and keep them for questions that may
arise later. Always observe all warnings and instructions in this operating manual and on the rear
of the unit .
careful
Safety instructions for using the power supply
The unit should only be connected to a mains voltage supply of 100- 240 v~, 50/60 Hz.
Never try to operate the unit with a different voltage.
Only use the supplied power supply or an original Dual alternative.
The mains plug should only be connected after installation has been completed according to
the instructions.
Use a suitable, easily accessible mains connection and avoid using multiple sockets!
This socket should be as close to the unit as possible.
⚙
Page 9
Make sure the power cable or plug is always easily accessible so that the unit can be
disconnected quickly from the power supply!
Lay the mains cable in such a way that no one can trip over it and do not place any heavy
objects on the mains cable.
Fully insert the mains plug into the socket.
o not touch the mains plug with wet hands-risk of electric shock!
If the mains plug of the unit is defective or if the unit shows other damage, it must not be
operated.
When unplugging the mains cable from the socket pull on the mains plug, not on the cable.
Disconnect the mains plug from the socket if you do not intend to use the unit for a prolonged
period. Only pull on the plug itself.
In the event of malfunctions or smoke and odour coming from the housing disconnect the
mains plug from the socket immediately!
Before a thunderstorm sets in, disconnect the mains plug from the socket.
WARNING
Safety instructions for the turntable placement
In order to avoid the risk of fire and electric shock, do not expose the unit to rain or moisture.
Prevent the unit from coming into contact with water or moisture.
The appliance should not be sited in rooms with high levels of humidity, e.g. kitchens,
bathrooms or saunas, or in the vicinity of swimming pools indoors or outdoors, as splashing or
the formation of condensation on the appliance may damage it.
Do not place any containers which contain a liquid on the unit, such as a flower vase. These
could fall over and the spilled liquid could lead to severe damage to the unit or the risk of
electric shock or fire.
No open flames, such as burning candles, are permitted to sit on the unit.
Foreign materials, e.g. needles, coins, etc., should not be allowed to enter the unit.
If any foreign material or liquid enters the unit, disconnect the plug from the socket
immediately. Get the unit checked by a specialist before starting to use it again. Failure to do
this will leave you at risk of receiving an electric shock!
⚙
Page 10
Safety instructions for repairs and servicing
Never attempt to repair a defective unit yourself. Always contact one of our authorized
customer service representatives.
Always leave maintenance to a qualified technician. Failure to do this will put you and others in
danger.
Never open the unit under any circumstances – this should only be undertaken by a specialist.
Do not open the housing. Doing so will put you at risk of receiving an electric shock!
Making modifications to the appliance is prohibited.
Do not continue to use the appliance and/or accessories if they are damaged.
Use only appropriate cleaning agents (antistatic) to clean the unit and the records. These are
available from your specialist retailer.
Careful
Safety instruction for operating the turntable
Do not listen to music or radio broadcasts at very high volumes. Doing so can cause lasting
damage to your hearing.
This appliance should only be operated by a competent owner or persons under direct
supervision of the owner or who are deemed by the owner to be competent to do so.
Intended use and application
The appliance is intended for playing vinyl records. The appliance is designed for use in a private
home and is not suitable for commercial use. Use of any other kind is classed as other than
intended and may result in damage to property or even personal injury. The manufacturer accepts
no liability whatsoever for loss or damage arising from use of the appliance in a manner other
than that intended.
Before using the appliance for the first time, please read through the safety and installation
instructions carefully. Only by doing so will you be able to use all functions safely and reliably.
Keep the installation instructions in a safe place and pass them on to any subsequent owner.
⚙
Page 11
List of contents / Packing instructions
Unpacking
1. First, remove the appliance and all associated parts from the packaging.
2. Remove all adhesive tapes.
3. Ensure that all listed components are present:
Note:
The small components are in the side compartments of the polystyrene packaging sections!
Do not throw the stylus guard for the needle away!
Retain the packaging for any possible future transportation!

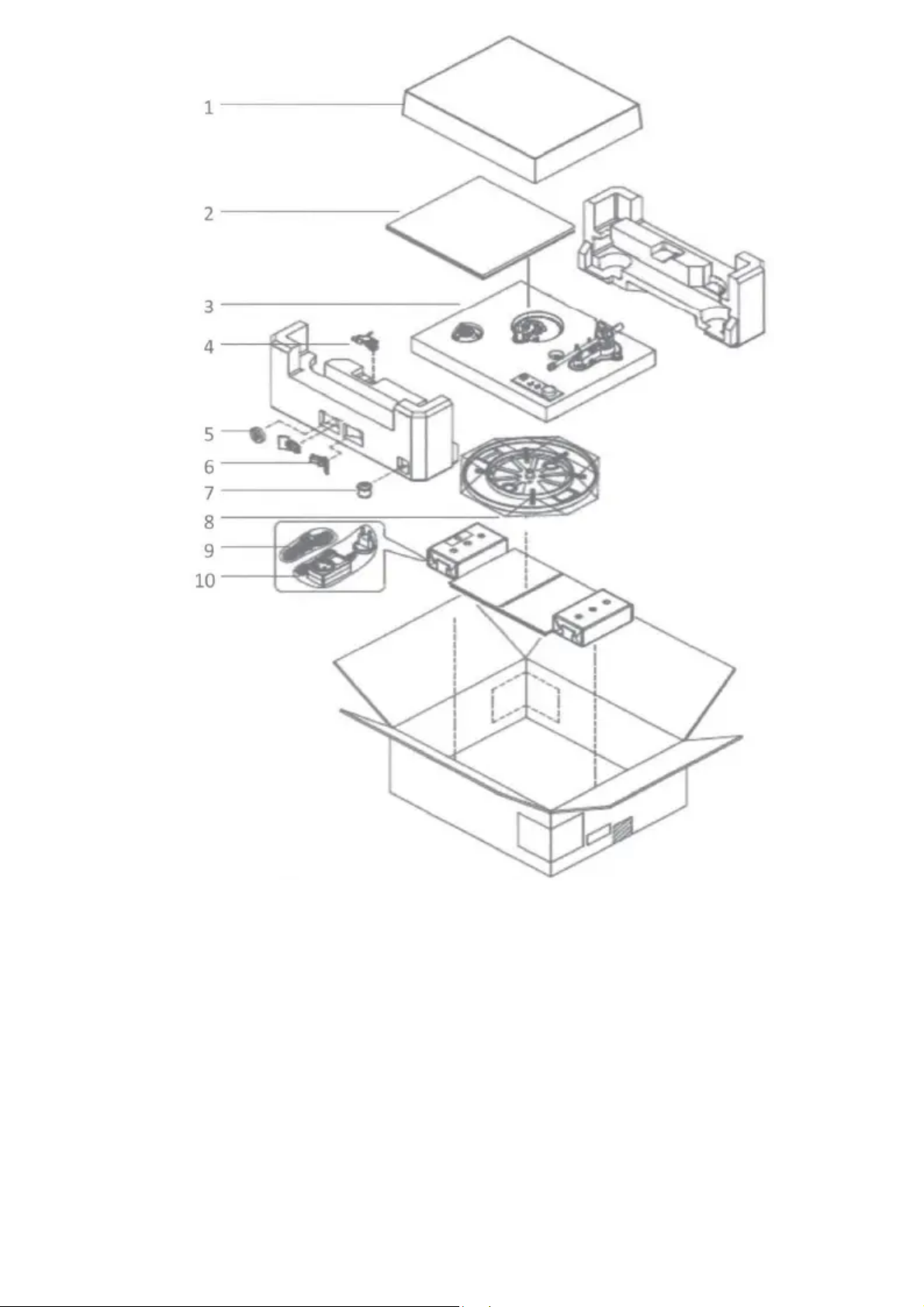

List of contents
⚙
Page 12
1. Dust cover,
2. Platter mat,
3. Record player,
4. Headshell with phono cartridge,
5. Spindle adaptor (for 7″ EPs),
6. 2 hinges for the dust cover,
7. Counterweight,
8. Platter including belt,
9. Coaxial stereo audio cable.
⚙
Page 13
10. Power supply for connecting to the main supply,
Note:
If any of these elements are missing, please contact the supplier.
Repacking
1. Repack all component parts in the corresponding, original packaging.
2. The counterweight must be dismantled and stowed in one of the polystyrene sections (fixed
securely with sticky tape)
3. Remove the turntable platter. (Never transport the record player with the platter in position)
4. Secure the stylus with the protective cover for the needle and remove headshell.
5. Attach the tonearm securely to the tonearm rest.
6. Ensure that none of the small parts or associated packaging can move inside the cardboard
box.
Note:
For further information, please go to www.dual.de
⚙
Page 14

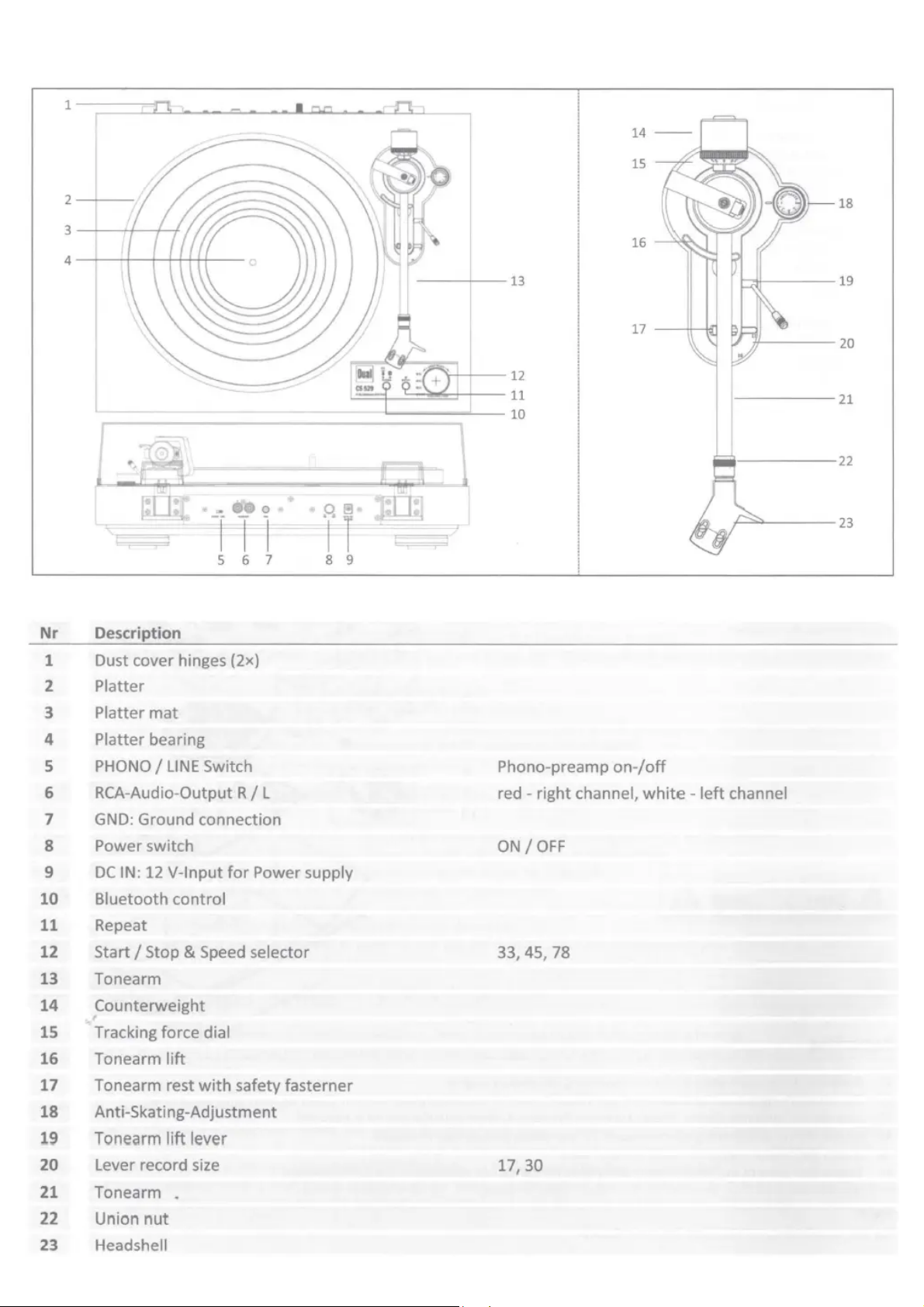

Product overview
⚙
Page 15
Set-Up
Platter and belt installation
The record player is delivered with the drive belt already fitted around the turntable flange.
The belt is provided with a red tape so that it can be pulled over the drive motor pulley. (pie. 1)
1. Place the platter on the turntable spindle. Rotate the platter until the cut-out is positioned over
the motor pulley (at about the 8 o’clock position).
2. Using the red tape, pull the drive belt over the motor drive pulley and position it in the centre of
the pulley. Then remove the red tape.
3. Now place the turntable mat on the platter.
Tonearm
The tonearm is secured at the tonearm rest with a coated wire and the safety clip.
Remove and discard the coated wire and open the safety clip to play the record.
Fitting the headshell
Fit the removable headshell onto the tonearm as described below: (pie. 2)
⚙
Page 16
1. Place the headshell (1) into the socket (2) at the end of the tonearm (3).
2. Hold the headshell, while turning the socket (2) in the direction of the arrow.
Counterweight fitting
Fit the supplied counterweight (2) onto the tonearm (1) by screwing it on from behind.
Keep the dial facing forward. The counterweight is used to set the correct tracking force for the
pick-up. (pie. 3)
Balancing the tonearm
Damage to the stylus
Ensure that the stylus does not come in contact with the platter mat, or any other part of the
turntable.
1. Place the turntable on an even horizontal surface.
2. Remove the stylus guard (page 20).
3. Lower the tonearm lift via the tonearm lift lever.
4. Position the tonearm in between the platter and the tonearm rest. (not resting on the stylus)
5. Turn the anti-skating dial {3) to ,,0″ (pie. 3).
6. Turn the counterweight {2) backwards or forwards until the tonearm reaches a horizontal
balance.
7. Place the balanced tonearm back onto the tonearm rest and secure it with the clip.

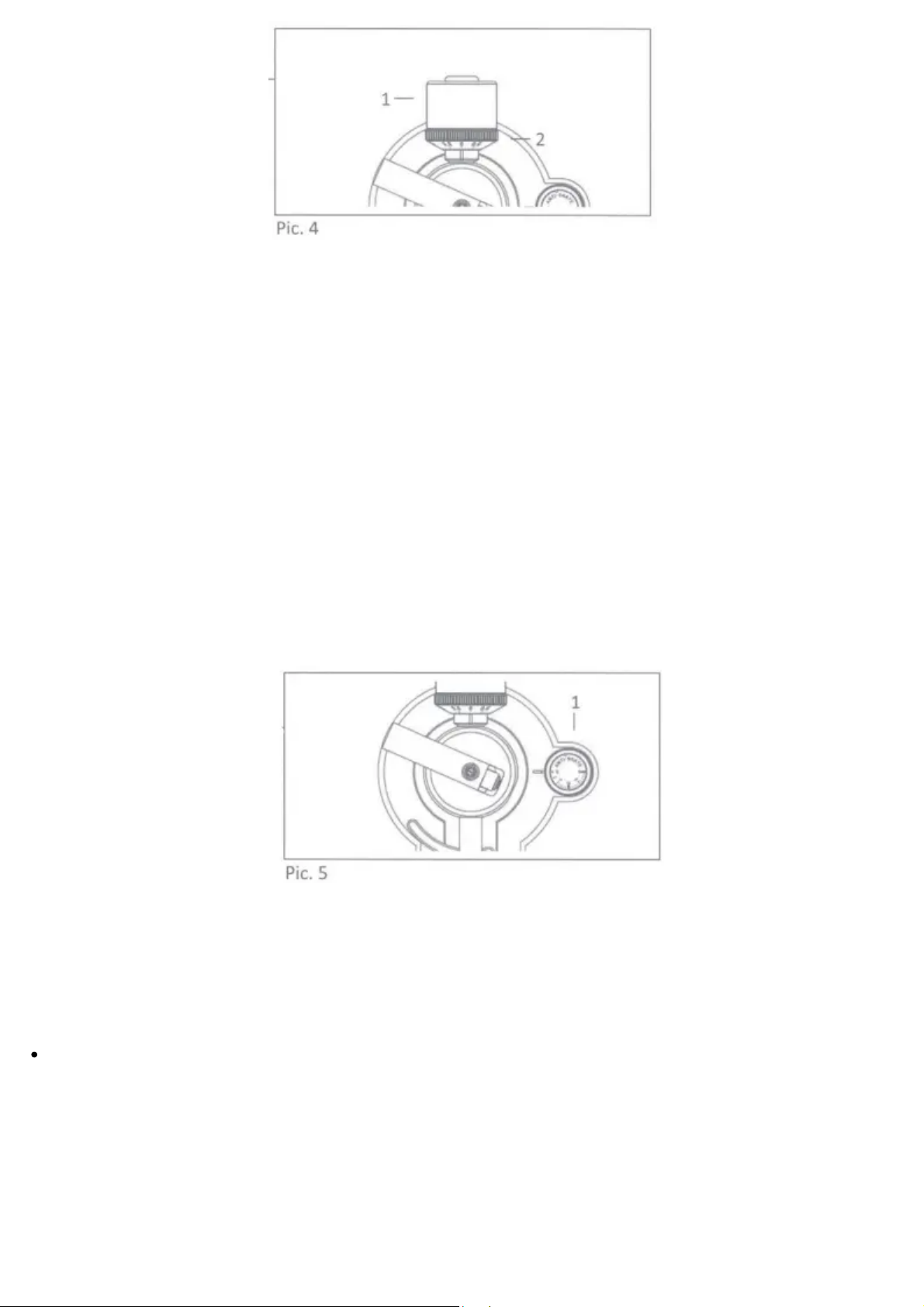

8. (Pie 4) Hold the counterweight (1) in position while turning the tracking force dial (2) to ,,0″
{12 o’clock position).
Tracking force
⚙
Page 17
The tracking force needs to be adjusted according to the installed pick-up. (pie. 4)
1. Adjust the entire counterweight (1) including the scale to the required weight (2).
2. The tracking force weight can be read from the scale.
Note:
The recommended force/ weight for the supplied pick-up is between 1,6 g and 2,0 g.
If in doubt, please consult the pick-up manufacturer for recommended values.
Anti-Skating-adjustment
The skating force pulls the tonearm towards the centre of the platter. This increases the pressure
on the inside wall of the groove. The ANTI-Skating force compensates this movement and ensures
the ideal tracking of the stereo information on the vinyl.
Set the Anti-skating dial (1) to the same value setting as the tracking force. (pie. 5)

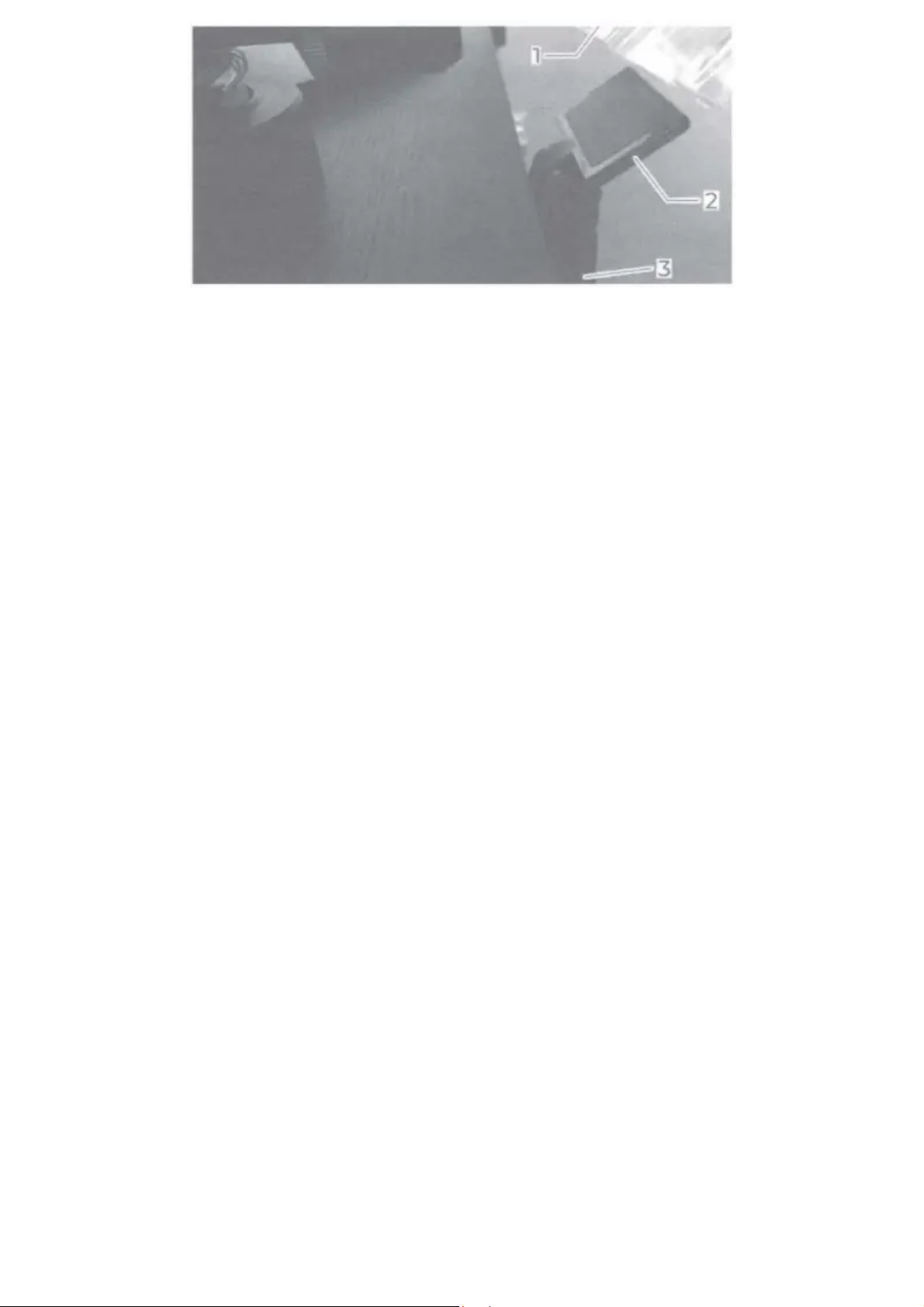

Dust cover fitting
⚙
Page 18
1. Slot both hinges (2) into the housings (3) in the back of the turntable.
2. Uniformly push the right and left dust cover (1) receptacles onto the hinges
Connection to amplifier
⚙
Page 19
The turntable comes with a built-in phono pre-amplifier. It can be either connected to the phono
input or the line input at the amplifier. The built-in phono stage can switched on or off via a
switch in the back of the turntable.
⚙
Page 20
Phono-input
1. Connect the RCA cable to the Audio output,, AUDIO OUT” (2) at the turntable and the PHONO
input sockets at the amplifier.
2. Move the switch (1) into the position: PHONO.
3. Connect the ground connection GND (3) with the amplifier to avoid noise.
Note:
Ensure the correct connection of the cable.
(red= right channel, white= left channel)
Select “Phono MM” on the amplifier, if available
Line-input
1. Connect the RCA cable to the Audio output ,, AUDIO OUT” (2) at the turntable and the LINE/
AUX input sockets at the amplifier.
2. Move the switch (1) into the position: LINE.
3. Connect the ground connection GND (3) with the amplifier to avoid noise.
Note:
\Ensure the correct connection of the cable.
(red= right channel, white= left channel)
Connection to power supply
Different adapter plugs (1) are included with the product. Find the specific adapter relevant to
your country and socket system. Fit it to the power supply (2).
1. Fit the socket adapter into the power supply and twist in the direction of the arrow (A).
2. Check that the adapter is locked correctly (B).
3. Plug tl:ie power supply into a power socket (C).
Note:
Only use a factory-supplied or approved power supply.
ATTENTION
⚙
Page 21
Damage to the turntable!
Incorrect voltages can damage the product. Ensure that the mains voltage is within the stated
specification.
Operating the turntable

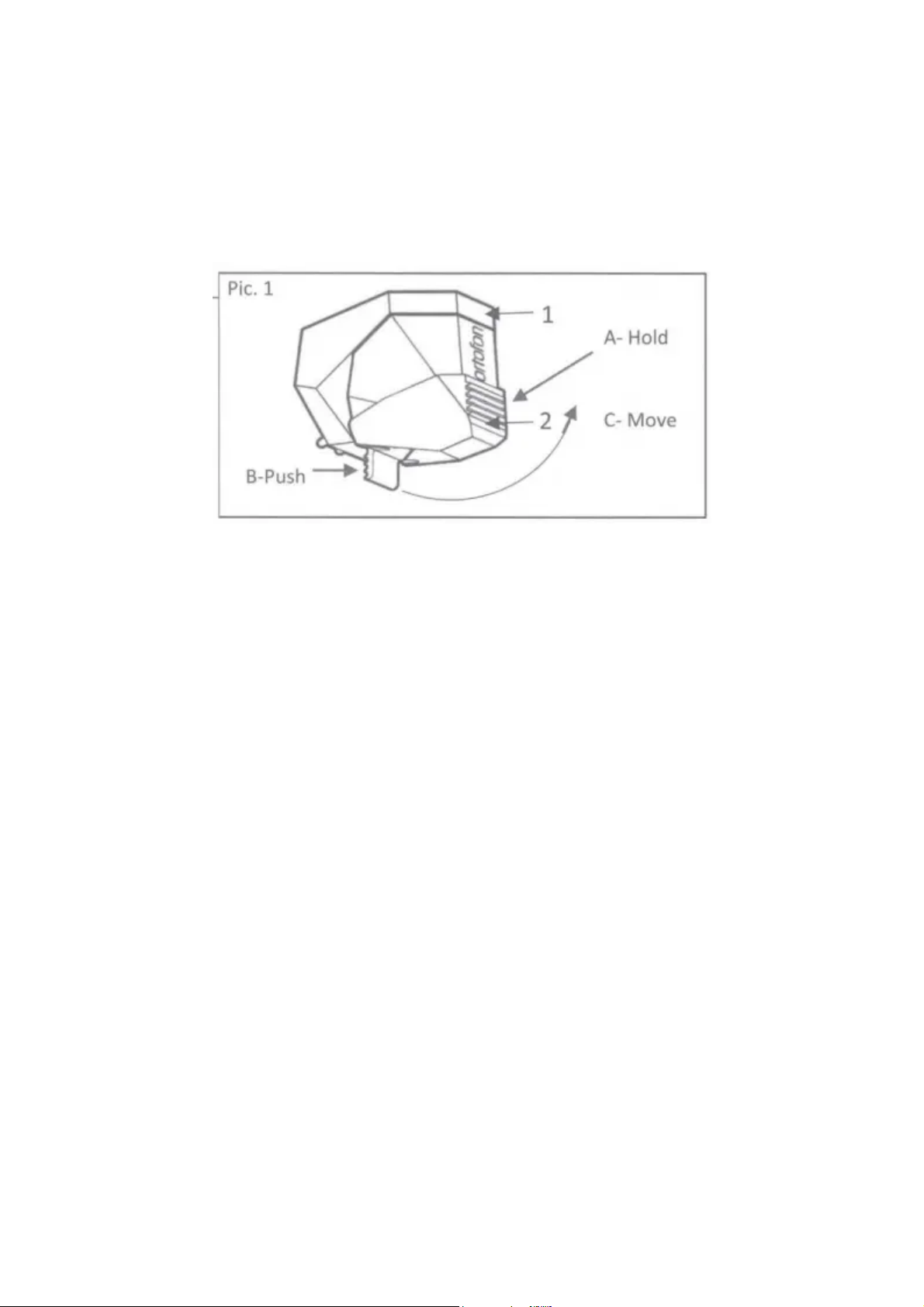

Removing / Attaching the stylus protection cap
Remove the stylus protection cap from the pick-up (1) prior to playing a record. (Pic.1)
1. Push the stylus cap (2) on the bottom (B) as seen in the diagram. Hold in position (A) while
move it up in circular motion (C).
2. Replace the cap after playing the record.
To play the record (manually)
1. Push the power button (8): The LEDs for Bluetooth and “33” will light up red and blue (Pic.2).
2. Place a record on the turntable, use the spindle adaptor to play singles. 1′
3. Turn the speed selector (12) to the required setting: 33, 45 or 78. The selected speed will be
indicated via the LED.
4. Release the safety fastener on the tonearm rest and raise the tonearm with the lift lever.
5. Carefully move the tonearm away from the tonearm rest and position it above the first groove
on the record. The platter is turning.
6. Lower the tonearm with the lift lever.
7. The tonearm will return to the tonearm rest automatically at the end of the record and the
motor will switch off.
8. The motor will switch off automatically when the tonearm is manually returned to the
tonearmrest.
⚙
Page 22
9. Secure the tonearm with the safety fastener on the tonearm rest.
10. After 30 minutes of rest (the factory setting can be changed), the unit switches to standby
mode. The “Start” LED lights up red.
Note:
The tonearm can be raised at any point, even for short periods. The platter will continue to
turn.

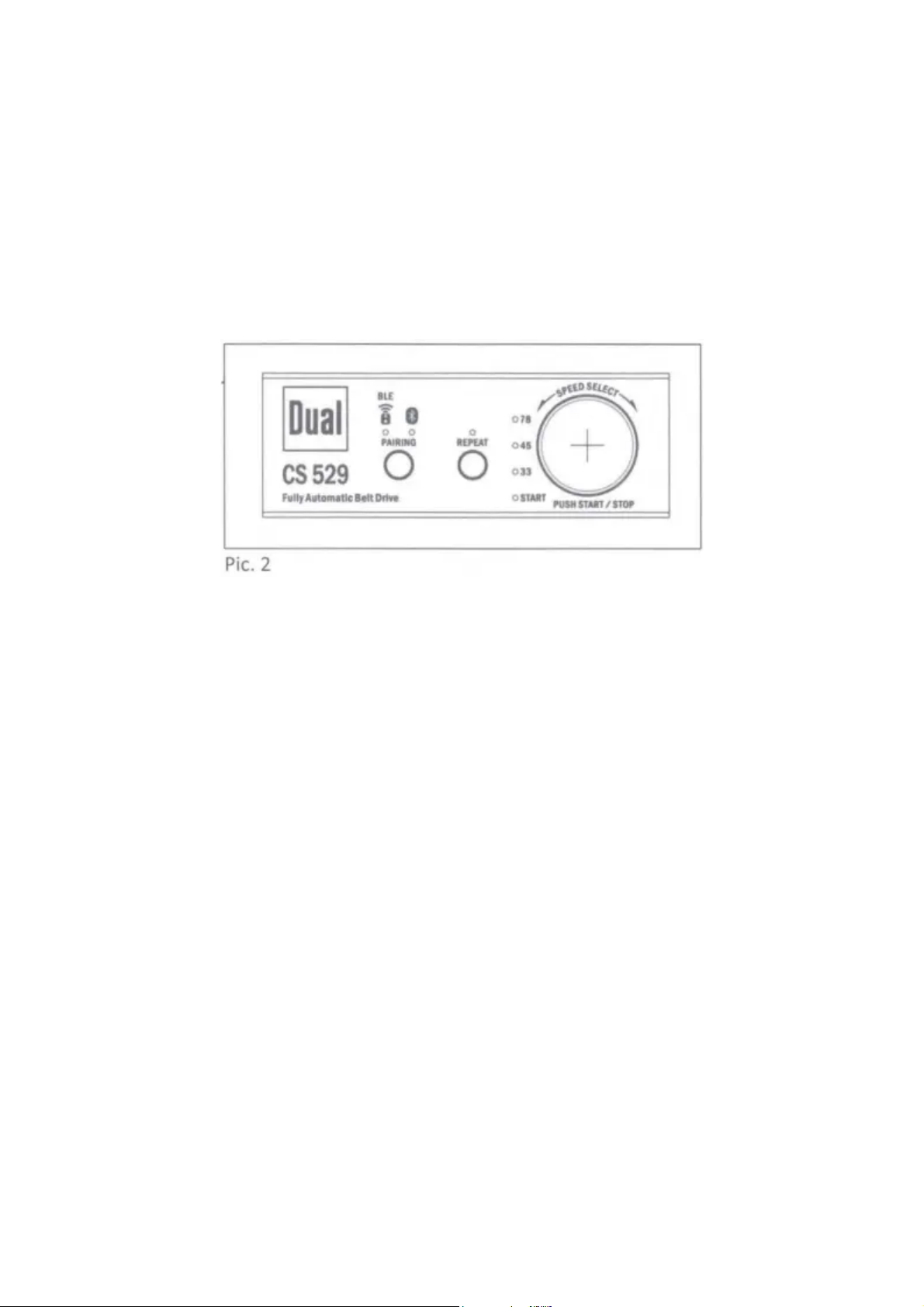

To play the record (automatically) Pic.2
1. Push the power button (8). The LEDs for Bluetooth and “33” will light up red and blue. (Pic.2)
2. Place a record on the turntable, use the spindle adaptor to play singles and select the record
size (20).
3. Turn the speed selector (12) to the required setting: 33, 45 or 78. The selected speed will be
indicated via the LED.
4. Release the safety fastener on the tonearm rest and press the START-STOP button (12).
5. The platter will start turning and the arm will move towards the first groove and will be
lowered onto the record. The green “Start” LED will flash during the operation and glow
permanently during operation.
6. Stop the operation with the START-STOP button (12). The tonearm will return to the tonearm
rest automatically. The “Start” LED will flash.
7. The tonearm will return to the tonearm rest automatically at the end of the record and the
motor will switch off.
8. The motor will switch off automatically when the tonearm is manually returned to the
tonearmrest.
9. Secure the tonearm with the safety fastener on the tonearm rest.
10. After 30 minutes (setting can be changed) of rest, the unit switches to standby mode The
“Start” LED lights up red.
⚙
Page 23
Note:
No automatic function for records with 25cm (10″) diameter!
The tonearm can be lifted at any time during the automatic playback process.
To set the speed
The exact speed is fixed through an internal processor. There is no further adjustment
Repeat function
Press the “Repeat” button (Pie. 2) to repeat the playback at the end of the record.
Replacing the stylus
The stylus is naturally exposed to wear and tear by the playback process.
Therefore, we recommend regular inspections.
1. Remove the stylus by pulling diagonally downwards. (Pie. 3)
2. Insert the stylus by doing performing the reverse action.
Note:
Worn or damaged (splintered) styluses ruin records.
When you need to replace a stylus, use the original type if possible.
Operating Bluetooth
Install App on Mobile Device
⚙
Page 24
Mobile Devise Settings
Connect the Remote-Control Function
Connect with Loudspeaker / Headphone
Enable Bluetooth,, Pairing” on the loudspeaker/ headphone.
Select,, line” on the turntable.
⚙
Page 25
Recognize new receiving device
Press the ,, Pairing” button twice on the mobile device, or the turntable.
The LED and screen buttons will flash red and blue while connecting.
The LED and screen buttons remain lit when connected.
Pairing existing receiving devise
Press the ,, Pairing” button once on the mobile device, or the turntable.
The LED and screen buttons will flash blue while connecting.
The LED and screen buttons remain lit when connected.

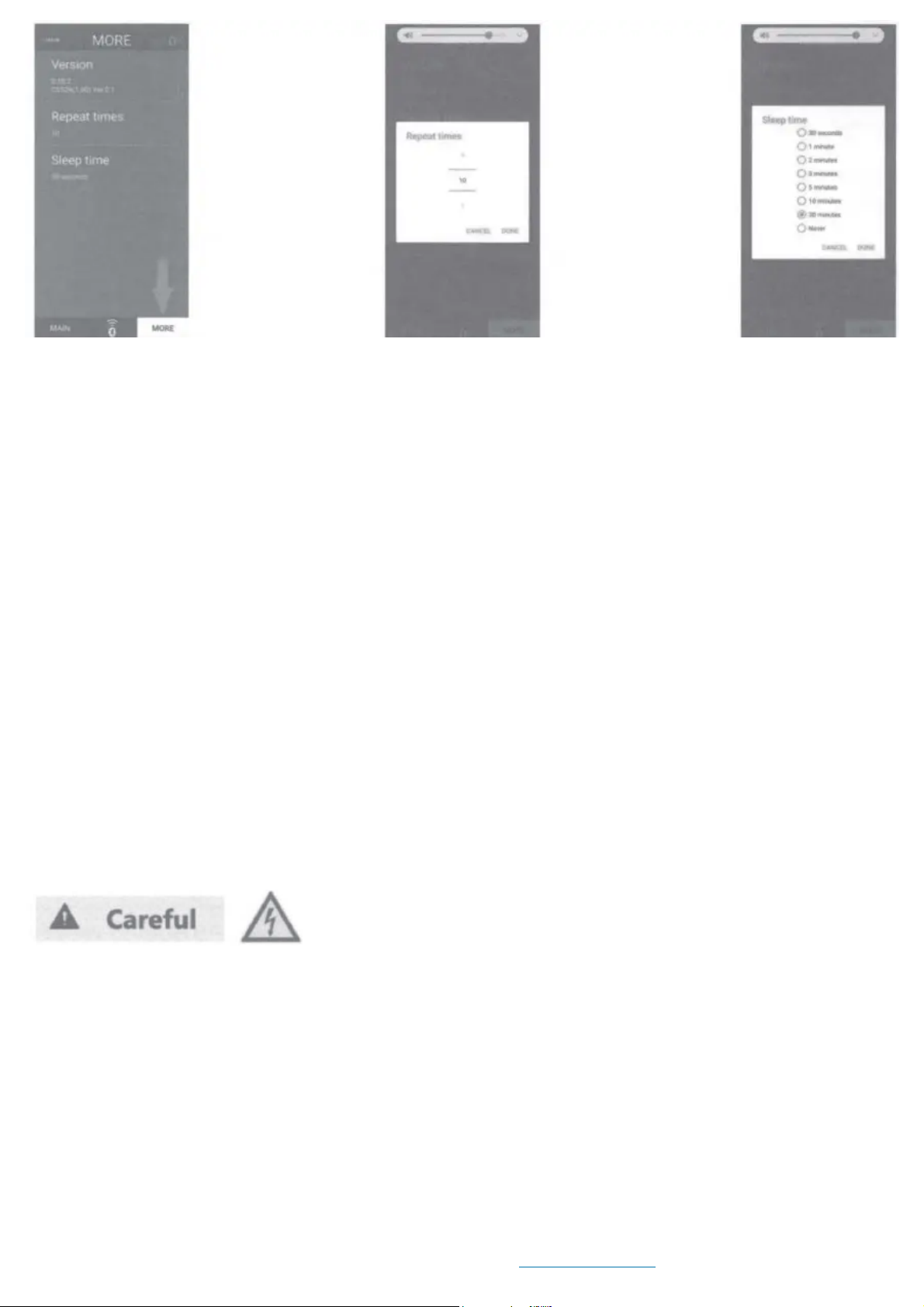

Settings: Repeat times / Stand-by time
⚙
Page 26
Cleaning & Troubleshooting
Cleaning stylus and record
Clean the stylus and record prior to every record played. That minimizes premature wear and tear.
ATTENTION
Damage to components!
1. Carefully wipe the stylus brush in a front-to-back motion under the stylus.
2. To clean a record, use a carbon fiber brush to wipe gently and diagonally over the record.
Cleaning the record player
Danger – Electric shock!
To avoid the danger of an electric shock, you must not clean the
unit with a wet cloth or under running water.
Pull the power plug prior to any cleaning.
Damage to components!
ATTENTION Do not use any scrubbing sponges, cleaning powder or solvents such as alcohol and
petrol. To clean the appliance and the records, only use cleaning agents that are specifically
designed for the purpose (antistatic).
Note:
Brushes and accessories are available in the Dual shop: www.dual.eu
⚙
Page 27
Troubleshooting
If the unit does not function as intended, perform checks using the following tables.
If the malfunction cannot be fixed even after these checks, please contact the manufacturer.
Spare parts & Accessories
Spare parts and accessories are available from Dual: www.dual.eu
FCC statement in User’s Manual (for class B) -for FCC 15b devices (15.105)
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the Instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
⚙
Page 28
off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC/IC Caution:
1. This device complies with Part 15 of the FCC rules/ Industry Canada license-exempt RSS
standard(s).
Operation is subject to the following two conditions:
1) this device may not cause harmful interference and
2) this device must accept any interference received, including interference that may
cause undesired operation.
2. This Transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
3. Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate this equipment.
IMPORTANT NOTE: (For Mobile Device Configuration)
FCC Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment.
This equipment should be installed and operated with a minimum distance of 20 centimeters
between the radiator and your body.
ICES-003
This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numerique de la
classe [BJ est conforme a la norme NMB-003 du Canada.
Industry Canada Caution:
⚙
Page 29
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Dual GmbH
www.dual.eu
Documents / Resources
Dual CS529BK Fully Automatic Belt Drive Turntable [pdf] Owner's Manual
CS529BK Fully Automatic Belt Drive Turntable, CS529BK, Fully Automatic Belt Dr
ive Turntable, Automatic Belt Drive Turntable, Belt Drive Turntable, Drive Turnta
ble, Turntable
References
User Manual
Ta strona internetowa jest niezależną publikacją i nie jest ani powiązana, ani popierana przez żadnego z właścicieli znaków towarowych. Znak słowny „Bluetooth®” i logo są
zarejestrowanymi znakami towarowymi należącymi do Bluetooth SIG, Inc. Znak słowny „Wi-Fi®” i logo są zarejestrowanymi znakami towarowymi należącymi do Wi-Fi
Alliance. Jakiekolwiek użycie tych znaków na tej stronie internetowej nie oznacza żadnego powiązania ani poparcia.
⚙
Loading...
