DSS NETWORKS
Metro-Switch Gigabit Backplane Switch Fabric
Board and Firmware Users Manual
(Includes models 8260, 8261 and 8261-RIO)
Firmware Version 1.14g, Document p/n 131902
May 2007
1. INTRODUCTION..................................................................................................... 4
1.1 CAPABILITIES OVERVIEW.................................................................................. 4
1.2 USE AND TARGET APPLICATIONS.................................................................... 5
1.3 KIT CONTENTS.................................................................................................... 5
1.4 REFERENCES...................................................................................................... 5
1.5 COMPATIBILITY................................................................................................... 6
2. MODEL / PART NUMBERS.................................................................................... 6
3. FEATURES............................................................................................................. 8
4. SYSTEM REQUIREMENTS .................................................................................... 9
5. BOARD AND CONNECTOR INFORMATION....................................................... 10
5.1 COMPONENT DIAGRAM ................................................................................... 10
5.2 BOARD PHOTOS ............................................................................................... 10
5.2 BOARD PHOTOS ............................................................................................... 11
5.3 BOARD LED INDICATORS................................................................................. 13
5.4 CPCI CONNECTOR PIN/SIGNAL DEFINITIONS............................................... 14
6. POWER CONSUMPTION SPECIFICATIONS...................................................... 20
7. HARDWARE INSTALLATION............................................................................... 20
7.1 SERIAL PORT CABLE DIAGRAM...................................................................... 22
8. COPPER AND FIBER CABLING .......................................................................... 23
8.1. FIBER CABLE SPECIFICATIONS..................................................................... 23
8.2 COPPER RJ-45 CONNECTOR AND CAT5 CABLE........................................... 23
9. UNIT OPERATION................................................................................................ 25
9.1 SERIAL PORT CLI COMMAND LINE INTERFACE............................................ 25
9.1.1 HELP COMMAND............................................................................................ 27
9.1.2 VLAN TABLE SET COMMAND........................................................................ 27
9.1.3 VLAN TABLE SHOW COMMAND.................................................................... 28
9.1.4 VLAN TABLE REGISTER COMMAND ............................................................ 29
9.1.5 CFG SAVE COMMAND ................................................................................... 29
9.1.6 CFG CLEAR COMMAND................................................................................. 29
9.1.7 SWITCH RESET COMMAND .......................................................................... 29
9.1.8 SETTING PACKET AGING.............................................................................. 29
9.1.9 SETTING DEFAULT VLAN.............................................................................. 30
9.1.10 SETTING UNTAGGED VLAN ID’s................................................................. 30
9.1.11 ‘EEREG SET’ COMMAND ............................................................................. 32
9.1.12 ‘EEREG CLR’ COMMAND............................................................................. 33
9.1.13 ‘EEREG SHOW’ COMMAND......................................................................... 33
9.1.14 LINK COMMAND ........................................................................................... 34
9.1.15 LINK REGS COMMAND ................................................................................ 35
9.1.16 GMAC STATS SHOW COMMAND................................................................ 37
9.1.17 GMAC STATS CLEAR COMMAND............................................................... 38
9.1.18 GMAC REGS SHOW COMMAND ................................................................. 38
9.1.19 GENERAL STATS COMMAND...................................................................... 38
9.1.20 GPIC REGS SHOW COMMAND ................................................................... 39
9.1.21 SGMII REGS SHOW COMMAND.................................................................. 40
9.1.22 SGMII STATUS SHOW COMMAND.............................................................. 40
DSS NETWORKS, INC. Version: 1.14g Page: 2
9.1.23 EEPROM CONTENTS SHOW COMMAND................................................... 41
9.1.24 EPROM INIT COMMAND.............................................................................. 41
9.1.25 EEPROM TEST READ COMMAND............................................................... 41
9.1.26 MMU REGS SHOW COMMAND.................................................................... 41
9.1.27 CMIC REGS SHOW COMMAND................................................................... 42
9.1.28 ARL REGS SHOW COMMAND..................................................................... 43
9.1.29 STG SHOW COMMAND................................................................................ 43
9.1.30 ‘GIMASK SET’ COMMAND............................................................................ 44
9.1.31 ‘GIRULE SET’ COMMAND............................................................................. 46
9.1.32 ‘GIMASK SHOW’ COMMAND........................................................................ 47
9.1.33 ‘GIRULE SHOW’ COMMAND ........................................................................ 48
9.1.34 ‘GIMASK SHOW REGISTER’ COMMAND..................................................... 49
9.1.35 ‘GIRULE SHOW REGISTER’ COMMAND..................................................... 49
9.1.36 ‘GFFP-CTR’ SHOW COMMAND.................................................................... 50
9.1.37 ‘GFFP-CTR’ CLEAR COMMAND................................................................... 51
9.1.38 ‘GFFP-PKT’ CLEAR COMMAND ................................................................... 51
9.1.39 ‘GFFP-PKT’ SHOW COMMAND.................................................................... 51
9.1.40 MIRROR CONTROL SET COMMAND........................................................... 52
9.1.41 MIRROR CONTROL SHOW COMMAND ...................................................... 53
9.1.42 MIRROR CONTROL REGS COMMAND ....................................................... 54
9.1.43 MIRROR CONTROL CLEAR COMMAND...................................................... 54
9.1.44 EGRESS MASK (BLOCK MASK) SET COMMAND....................................... 54
9.1.45 EGRESS MASK (BLOCK MASK) SHOW COMMAND................................... 55
9.1.44 EGRESS MASK (BLOCK MASK) REGS COMMAND.................................... 55
9.1.45 EGRESS MASK (BLOCK MASK) CLEAR COMMAND.................................. 55
9.2 TEST METHODS............................................................................................... 56
10. ON BOARD FIRMWARE..................................................................................... 57
10.1 INTRODUCTION............................................................................................... 57
10.2 BLOCK DIAGRAM ............................................................................................ 58
10.3 FIRMWARE DEVELOPMENT ENVIRONMENT ............................................... 58
10.3 FIRMWARE DEVELOPMENT ENVIRONMENT ............................................... 59
11. SPECIFICATIONS .............................................................................................. 60
11.1 ENVIRONMENTAL SPECIFICATIONS............................................................. 62
11.2 MECHANICAL SPECIFICATIONS.................................................................... 64
11.3 INDUSTRY STANDARDS COMPLIANCE ........................................................ 64
11.4 SNMP SUPPORT MIB COUNTERS................................................................. 64
11.5 PERFORMANCE AND CAPABILITIES............................................................. 65
11.6 MANAGEMENT FEATURES............................................................................. 66
11.7 HARDWARE SPECIFICATIONS....................................................................... 67
12. WARRANTEE AND SUPPORT INFO................................................................. 68
DSS NETWORKS, INC. Version: 1.14g Page: 3
1. INTRODUCTION
The Metro-Switch family of embedded Gigabit Ethernet switches are a high­performance, flexible and cost-effective solution for adding scalable Gigabit Ethernet switching capabilities for use in standalone or rackmount embedded systems applications.
The Models 8260 and 8261 support 12-ports of 10/100/1000 Base T over copper or 10­ports copper and 2 ports of 1000 Base X over optical fiber. The Model 8260 is a L2+ or L3 switch utilizing lower cost switch L2+ and L3 switch devices from Broadcom. The Model 8261 uses higher end multi-layer (L2 – L7) switch devices also in the Broadcom StrataXGS family. Both models provide an extensive list of features including an onboard management processor with extensible value-added firmware making it ideal for use in many embedded systems applications.
1.1 CAPABILITIES OVERVIEW
The Metro-Switch models feature 12 ports of 10/100/1000 Base T Gigabit Ethernet over Copper with two 1000 Base SX/LX fiber uplinks. It is PICMG 2.16 6U fabric card compliant and compatible with both standard CompactPCI® and PICMG 2.16 backplanes. All 12-ports may be routed to slots on the Compact PCI backplane or externally via rear I/O. A system management interface is also supported via the PICMG 2.9 IPMI interface. It optionally supports two 1000 base SX/LX gigabit fiber ports with standard SFF LC connectors via the front panel. It has an onboard RISC/DSP processor for local management and can be operated as a standalone or fully managed switch. LEDS are provided for each port showing link status, transmit and receive and link quality. All LEDS are multifunction and can be used for additional functions including cable testing and energy detection. It is also PICMG 2.1 R2.0 hot-swap compliant providing support for the hardware connection layer.
The Metro-Switch models use the latest advanced high-performance, full-featured and highly integrated 12-port Broadcom StrataSwitch BCM56XX L2+, L3 or multilayer switches and BCM5464SR quad-port transceivers and are fully 802.3 compliant. They provide a fully non-blocking 24Gb/32 million frames per second aggregate switching fabric. The switching function supports an extended list of features including layer 3 switching, link aggregation, 802.1Q VLANs, 802.1D spanning tree and priority-based
802.1D/802.1p CoS/traffic class expediting and dynamic multicast filtering. The switch can be configured in a fully redundant, non-blocking network that prevents single points of failure from congesting network traffic. It provides advanced cell and packet based “head of line” blocking prevention techniques, has 1MB of onboard memory for packet buffering, and supports a 10-gig uplink interface. Extended ethernet frame sizes to 9KB are supported. Additional advanced features including rules-based layer 2-7 packet classification/filtering on 128 multiple data flows, port trunking and port mirroring are provided for advanced networking and flow techniques. Network management support
DSS NETWORKS, INC. Version: 1.14g Page: 4
includes fully configurable routing tables and RMON, SNMP, Ethernet and extended MIB(s). A 32-bit, 66 MHZ PCI interface is also provided to support system management via the PCI bus and the switch can additionally route packets to/from the PCI interface as a “virtual port” function. This would allow for example, SNMP or other management packets to be routed to an external processing component in a distributed network management scheme.
1.2 USE AND TARGET APPLICATIONS
The Metro-Switch 12-port switches are equipped ready-to-use out of the box with no additional software or drivers required. In this most basic operational mode it is used as a standalone switch installed in a rackmount chassis. An additional mode allows it to be controlled in a simple managed mode using a serial port Command Line Interface (CLI). The CLI allows more sophisticated configuration and control management while still operating as a standalone switch. The most functional mode allows it to be controlled in a fully managed switch mode from an external processor communicating with the Metro-Switch over the PCI bus via the JN1 CPCI connector.
The Metro-Switch models are targeted for OEMs and Systems Integrators for use in Data and Telecommunications products including switches, multiplexers, edge routers, media gateways and video broadcasting equipment. It is well suited for support of embedded broadband applications including Internet voice, digital video, IP security, network monitoring, military applications and test equipment.
1.3 KIT CONTENTS
Metro-Switch 12-port board with front panel mounting and ejector handles Serial-port RJ11 male to DB9 female cable Telnet adapter module (ordered under a separate P/N or customer supplied) User Manual OEM Developer Kit CD
1.4 REFERENCES
Please also see the following documents on our website at www.dssnetworks.com and also included in the OEM developers kit CD:
Datasheets – please see product datasheets and other updated product information on OEM developer CD and on website.
Release Notes -- where updated information is provided on new features, compatibility, performance benchmarks, platform information and corrected problems.
DSS NETWORKS, INC. Version: 1.14g Page: 5
1.5 COMPATIBILITY
The Metro-Switch is fully compliant with the following standards: IEEE 802.3-2002 (all sections applicable to 1000 Base T, 1000 Base SX, 1000 Base
LX)
IEEE 802.1D and IEEE 802.1Q as applicable for VLAN and priority queuing support PCI 2.2 bus compliant, 32-bit 33/66 MHZ PICMG 2.0 R3.0 Compact PCI compliant (6U form factor) PICMG specifications: 2.16 R1.0 Packet Switching Backplane (PSB) complaint
fabric board
PICMG 2.9 IPMI support PICMG 2.1 R2.0 hot-swap (basic hot-swap hardware connection layer) Telnet remote terminal access standard
2. MODEL / PART NUMBERS
This user manual covers all models of our Metro-Switch product line including:
Model 8260
Part Number Model Description Copper ports Fiber ports Switch type
Part Number Model Description Copper ports Fiber ports Switch type
182602 8260 12-port Compact PCI PICMG 2.16 compliant switch 12 (10/100/1000 Base T) 2 (1000 Base SX 850nm multimode LC fiber) L2+ and L3
182606 8260 12-port Compact PCI PICMG 2.16 compliant switch 12 (10/100/1000 Base T) 2 (1000 Base LX 1310nm singlemode LC fiber) L2+ and L3
DSS NETWORKS, INC. Version: 1.14g Page: 6
Part Number Model Description # Copper ports # Fiber ports Switch type
182604 8260 12-port Compact PCI PICMG 2.16 compliant switch 12 (10/100/1000 Base T) 0 (without fiber uplinks) L2+ and L3
Model 8261
Part Number Model Description Copper ports Fiber ports Switch type
182612 8261 12-port Compact PCI PICMG 2.16 compliant switch 12 (10/100/1000 Base T) 2 (1000 Base SX 850nm multimode LC fiber) Multilayer (L2 – L7)
Part Number Model Description Copper ports Fiber ports Switch type
182616 8261 12-port Compact PCI PICMG 2.16 compliant switch 12 (10/100/1000 Base T) 2 (1000 Base LX 1310nm singlemode LC fiber) Multilayer (L2 – L7)
DSS NETWORKS, INC. Version: 1.14g Page: 7
Part Number Model Description # Copper ports # Fiber ports Switch type
182614 8261 12-port Compact PCI PICMG 2.16 compliant switch 12 (10/100/1000 Base T) 0 (without fiber uplinks) Multilayer (L2 – L7)
Note: Please note that copper ports 10 and 11 are not active when
fiber ports are used.
3. FEATURES
The Metro-Switch adapter offers the following key features:
• 12-port full-duplex Gigabit Ethernet interfaces routed to 2.16 backplane or rear I/O
• Optional support for 2 multimode or singlemode fiber links (850nm MM or 1310nm SM LC)
• Sustained aggregate throughput of 24 Gbps (3 GB)
• Frame processing rate of up to 32 million frames per
• Onboard RISC management processor and EEPROM configuration
• 4 multi-function LEDS per port (TX, RX, LINK, Signal Quality)
• 32-bit, 66 MHZ PCI interface
• Onboard RS232 (RJ-11 jack) for serial port console support
• Remote network access via Telnet
• Basic hot-swap support for hardware connection layer
• Installs in CompactPCI PICMG 2.16 compliant system chassis
• Optionally installs in standard Compact PCI PICMG 2.0 R3.0 chassis
• Available with 12-port rear I/O transition module
• Ideal solution for CompactPCI rackmount embedded systems
• Utilizes single 5V power from JN1/JP1 PCI connector
• Provides power regulators onboard for power distribution (3.3V, 2.5V, 1.25V)
• Complies with all PCI revision 2.2 mechanical and electrical requirements
• Fully IEEE 802.3z, IEEE 802.3ab, 802.3u and IEEE 1386 compliant
• Compatible with all 10/100/1000BaseT hubs, switches and routers
• Operates as standalone Layer 2 switch or fully managed L3/multiplayer switch
• Jumbo frame support for up to 9K
• 802.3x full duplex flow control
DSS NETWORKS, INC. Version: 1.14g Page: 8
4. SYSTEM REQUIREMENTS
Compact PCI PSB Platform:
Compact PCI compliant (PICMG 2.16, PICMG 2.0 R3.0) Size 6U chassis and slots, power supply and fan(s) Packet Switching Backplane Compliant to PICMG 2.16 R1.0 At least one fabric slot required Metro-Switch installs into fabric slot in PICMG 2.16 PSB backplane
Note: The Metro-Switch may also be installed into peripheral slot on standard
Compact PCI chassis with H.110 compatible backplane for connections via rear I/O only, however all pins on CPCI connectors “J3” and “J5” must be passive and comply to PICMG 2.16 signal definitions and routed to rear I/O.
DSS NETWORKS, INC. Version: 1.14g Page: 9
5. BOARD AND CONNECTOR INFORMATION

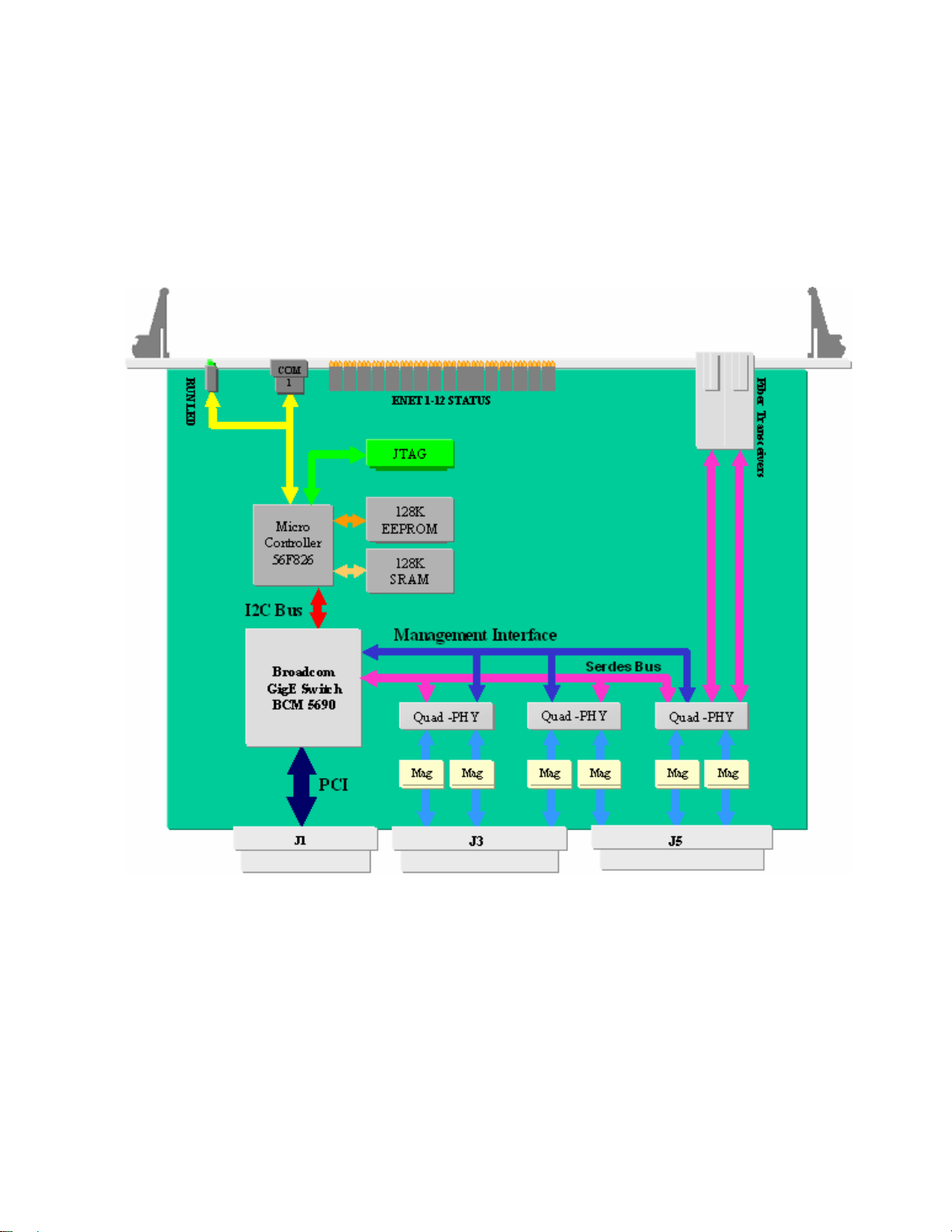

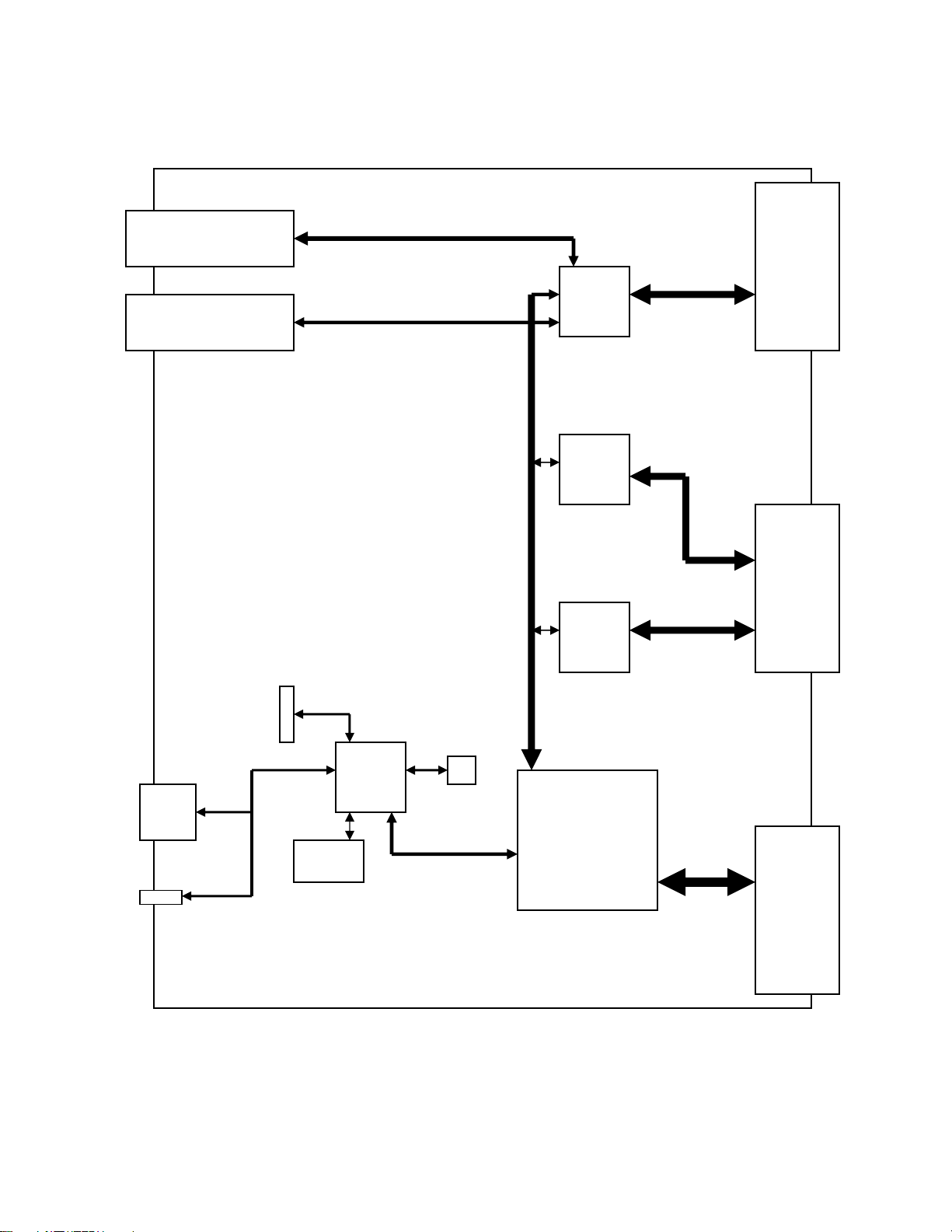

5.1 COMPONENT DIAGRAM
DSS NETWORKS, INC. Version: 1.14g Page: 10
5.2 BOARD PHOTOS

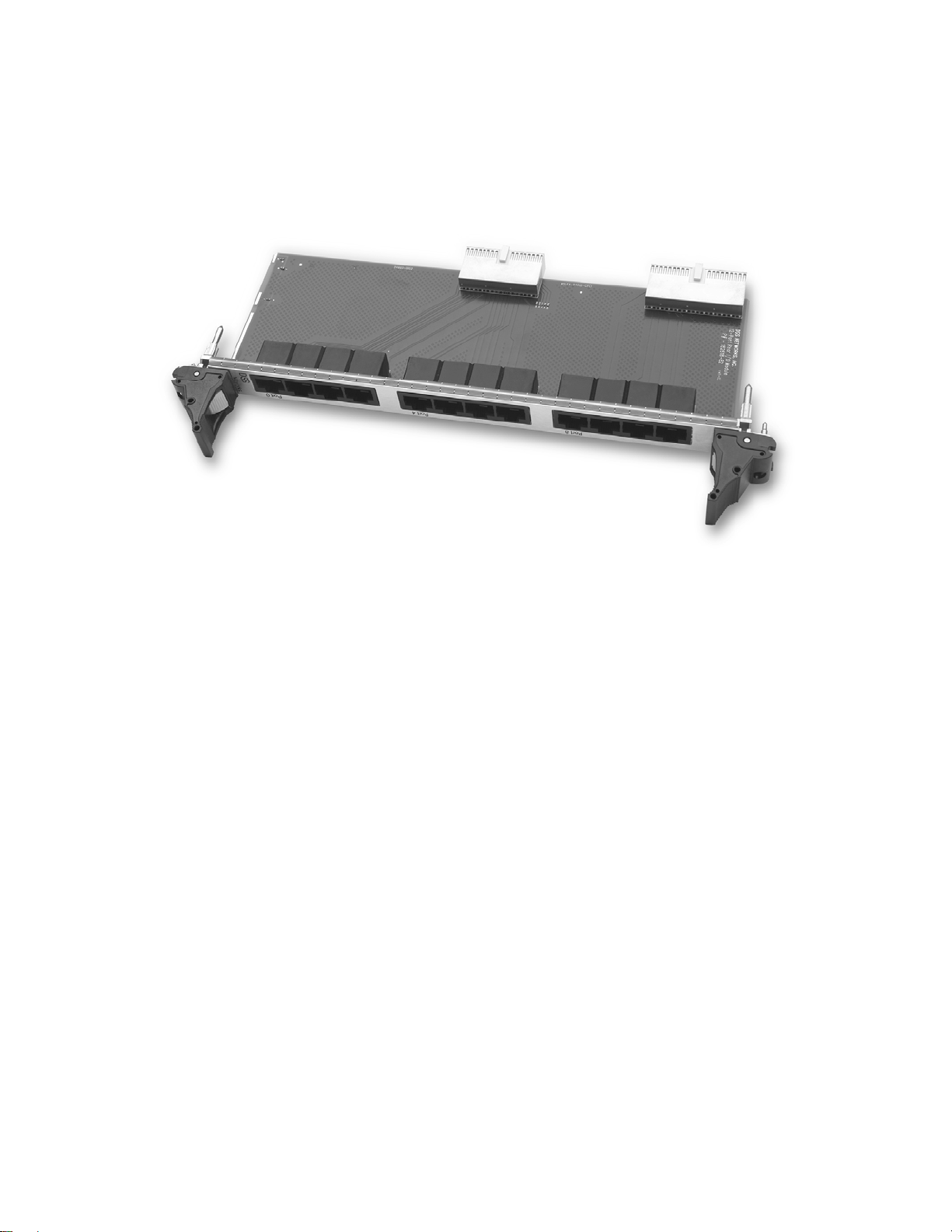

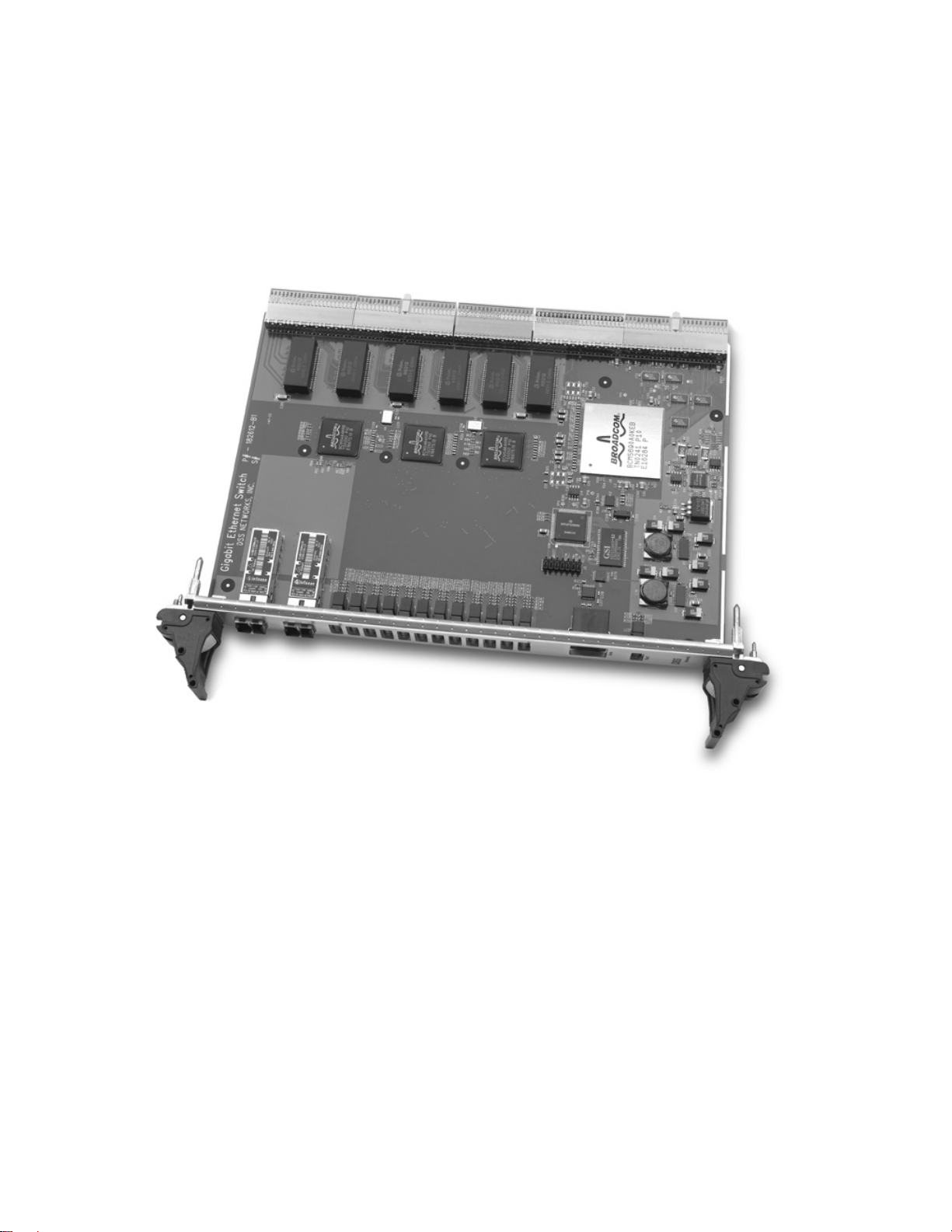

Model 8261 - P/N 182612 (shown without heat sinks)
DSS NETWORKS, INC. Version: 1.14g Page: 11
Model 8261-RIO - P/N 182618
DSS NETWORKS, INC. Version: 1.14g Page: 12
5.3 BOARD LED INDICATORS
There are 12 LED arrays marked “P0” thru “P11” on the front panel. Each port array has 4 green LEDS and their meaning is described in the following table:
Port LED Arrays (P0 – P11) Function Table (from left to right)
Gigabit Switch Model
8260/8261 Link TX RX Quality*
Note: The Quality LED is only available for ports in 1000-Base-T copper mode.
There is also a single LED Array containing a row of 3 LEDS (2 Yellow, 1 Green) described in the following table:
Processor LED (LED1) Function Table (left to right)
Gigabit Switch Model
8260/8261 Warn LinkSt RUN
LED # 1 Green
LED # 1 YEL
LED # 2 Green
LED # 2 YEL
LED #3 Yellow
LED #3 Green
LED #4 Yellow
Note: After power on and during normal operation, the green “RUN” LED should
always blink at a slow steady heartbeat pace of about once per every 2 seconds.
DSS NETWORKS, INC. Version: 1.14g Page: 13
5.4 CPCI CONNECTOR PIN/SIGNAL DEFINITIONS
The MetroSwitch models use the J1, J3 and J5 Compact PCI connectors as shown in the following diagrams. Connectors J2 and J4 are not used.
Board Connectors pin diagram J1
CPCI Connector J1
A1 EARLY_5V B1 -12V A2 P_TCK B2 EARLY_5V A3 P_INTA_N B3 INTB# A4 P_IPMB_PWR B4 P_HEALTHY_N A5 NC B5 RESERVED A6 P_REQ_N B6 GND/PCI_PRSNT# A7 P_AD30 B7 P_AD29 A8 P_AD26 B8 GND A9 P_CBEN3 B9 P_IDSEL A10 P_AD21 B10 GND A11 P_AD18 B11 P_AD17 A12 NC B12 NC A13 NC B13 NC A14 NC B14 NC A15 EARLY_3V B15 P_FRAME_N A16 P_DEVSEL_N B16 P_PCIXCAP A17 EARLY_3V B17 P_IPMB_SCL A18 P_SERR_N B18 GND A19 EARLY_3V B19 P_AD15 A20 P_AD12 B20 GND A21 EARLY_3V B21 P_AD9 A22 P_AD7 B22 GND A23 EARLY_3V B23 P_AD15 A24 P_AD1 B24 EARLY_5V A25 EARLY_5V B25 REQ64#
C1 P_TRST_N D1 +12V C2 P_TMS D2 P_TDO C3 INTC# D3 EARLY_5V C4 EARLY_VIO D4 INTP C5 P_RST_N D5 GND C6 EARLY_3V D6 P_PCICLK C7 P_AD28 D7 GND C8 EARLY_VIO D8 P_AD25 C9 P_AD23 D9 GND C10 EARLY_3V D10 P_AD20 C11 P_AD16 D11 GND C12 NC D12 NC C13 NC D13 NC C14 NC D14 NC C15 P_IRDY_N D15 P_BDSEL_N C16 EARLY_VIO D16 P_STOP_N
Signal Name CPCI
Connector J1
Signal Name
DSS NETWORKS, INC. Version: 1.14g Page: 14
C17 P_IPMB_SDA D17 GND C18 EARLY_3V D18 P_PAR C19 P_AD14 D19 GND C20 EARLY_VIO D20 P_AD11 C21 P_AD8 D21 P_M66EN C22 EARLY_3V D22 P_AD6 C23 P_AD3 D23 EARLY_5V C24 EARLY_VIO D24 P_AD0 C25 P_ENUM_N D25 EARLY_3V
E1 EARLY_5V F1 GND E2 P_TDI F2 GND E3 INTD# F3 GND E4 INTS F4 GND E5 P_GNT_N F5 GND E6 P_AD31 F6 GND E7 P_AD27 F7 GND E8 P_AD24 F8 GND E9 P_AD22 F9 GND E10 P_AD19 F10 GND E11 P_CBEN2 F11 GND E12 NC F12 NC E13 NC F13 NC E14 NC F14 NC E15 P_TRDY_N F15 GND E16 LOCK# F16 GND E17 P_PERR_N F17 GND E18 P_CBEN1 F18 GND E19 P_AD13 F19 GND E20 P_AD10 F20 GND E21 P_CBEN0 F21 GND E22 P_AD5 F22 GND E23 P_AD2 F23 GND E24 ACK64# F24 GND E25 EARLY_5V F25 GND
DSS NETWORKS, INC. Version: 1.14g Page: 15
Board Connectors pin diagram J3
CPCI Connector J3
A1 MDIB_P-1 B1 MDIB_N-1 A2 MDIA_P-1 B2 MDIA_N-1 A3 MDIB_P-2 B3 MDIB_N-2 A4 MDIA_P-2 B4 MDIA_N-2 A5 MDIB_P-3 B5 MDIB_N-3 A6 MDIA_P-3 B6 MDIA_N-3 A7 MDIB_P-4 B7 MDIB_N-4 A8 MDIA_P-4 B8 MDIA_N-4 A9 MDIB_P-5 B9 MDIB_N-5 A10 MDIA_P-5 B10 MDIA_N-5 A11 MDIB_P-6 B11 MDIB_N-6 A12 MDIA_P-6 B12 MDIA_N-6 A13 MDIB_P-7 B13 MDIB_N-7 A14 MDIA_P-7 B14 MDIA_N-7 A15 MDIB_P-8 B15 MDIB_N-8 A16 MDIA_P-8 B16 MDIA_N-8 A17 LP1-DB_P B17 LP1-DB_N A18 LP1-DA_P B18 LP1-DA_N A19 SGA4 B19 SGA3
C1 GND D1 MDID_P-1 C2 GND D2 MDIC_P-1 C3 GND D3 MDID_P-2 C4 GND D4 MDIC_P-2 C5 GND D5 MDID_P-3 C6 GND D6 MDIC_P-3 C7 GND D7 MDID_P-4 C8 GND D8 MDIC_P-4 C9 GND D9 MDID_P-5 C10 GND D10 MDIC_P-5 C11 GND D11 MDID_P-6 C12 GND D12 MDIC_P-6 C13 GND D13 MDID_P-7 C14 GND D14 MDIC_P-7 C15 GND D15 MDID_P-8 C16 GND D16 MDIC_P-8 C17 GND D17 LP1-DD_P C18 GND D18 LP1-DC_P C19 SGA2 D19 SGA1
E1 MDID_N-1 F1 GND E2 MDIC_N-1 F2 GND E3 MDID_N-2 F3 GND E4 MDIC_N-2 F4 GND E5 MDID_N-3 F5 GND E6 MDIC_N-3 F6 GND E7 MDID_N-4 F7 GND E8 MDIC_N-4 F8 GND
Signal Name CPCI
Connector J3
Signal Name
DSS NETWORKS, INC. Version: 1.14g Page: 16
E9 MDID_N-5 F9 GND E10 MDIC_N-5 F10 GND E11 MDID_N-6 F11 GND E12 MDIC_N-6 F12 GND E13 MDID_N-7 F13 GND E14 MDIC_N-7 F14 GND E15 MDID_N-8 F15 GND E16 MDIC_N-8 F16 GND E17 LP1-DD_N F17 GND E18 LP1-DC_N F18 GND E19 SGA0 F19 GND
DSS NETWORKS, INC. Version: 1.14g Page: 17
Board Connectors pin diagram J5
CPCI Connector J5
A1 MDIB_P-9 B1 MDIB_N-9 A2 MDIA_P-9 B2 MDIA_N-9 A3 MDIB_P-10 B3 MDIB_N-10 A4 MDIA_P-10 B4 MDIA_N-10 A5 MDIB_P-11 B5 MDIB_N-11 A6 MDIA_P-11 B6 MDIA_N-11 A7 MDIB_P-12 B7 MDIB_N-12 A8 MDIA_P-12 B8 MDIA_N-12 A9 LP13-DB_P B9 LP13-DB_N A10 LP13-DA_P B10 LP13-DA_N A11 LP14-DB_P B11 LP14-DB_N A12 LP14-DA_P B12 LP14-DA_N A13 LP15-DB_P B13 LP15-DB_N A14 LP15-DA_P B14 LP15-DA_N A15 LP16-DB_P B15 LP16-DB_N A16 LP16-DA_P B16 LP16-DA_N A17 LP17-DB_P B17 LP17-DB_N A18 LP17-DA_P B18 LP17-DA_N A19 LP18-DB_P B19 LP18-DB_N A20 LP18-DA_P B19 LP18-DA_N A21 LP19-DB_P B19 LP19-DB_N A22 LP19-DA_P B19 LP19-DA_N
C1 GND D1 MDID_P-9 C2 GND D2 MDIC_P-9 C3 GND D3 MDID_P-10 C4 GND D4 MDIC_P-10 C5 GND D5 MDID_P-11 C6 GND D6 MDIC_P-11 C7 GND D7 MDID_P-12 C8 GND D8 MDIC_P-12 C9 GND D9 LP13-DD_P C10 GND D10 LP13-DC_P C11 GND D11 LP14-DD_P C12 GND D12 LP14-DC_P C13 GND D13 LP15-DD_P C14 GND D14 LP15-DC_P C15 GND D15 LP16-DD_P C16 GND D16 LP16-DC_P C17 GND D17 LP17-DD_P C18 GND D18 LP17-DC_P C19 GND D19 LP18-DD_P C20 GND D20 LP18-DC_P C21 GND D21 LP19-DD_P C22 GND D22 LP19-DC_P
E1 MDID_N-9 F1 GND E2 MDIC_N-9 F2 GND
Signal Name CPCI
Connector J5
Signal Name
DSS NETWORKS, INC. Version: 1.14g Page: 18
E3 MDID_N-10 F3 GND E4 MDIC_N-10 F4 GND E5 MDID_N-11 F5 GND E6 MDIC_N-11 F6 GND E7 MDID_N-12 F7 GND E8 MDIC_N-12 F8 GND E9 LP13-DD_N F9 GND E10 LP13-DC_N F10 GND E11 LP14-DD_N F11 GND E12 LP14-DC_N F12 GND E13 LP15-DD_N F13 GND E14 LP15-DC_N F14 GND E15 LP16-DD_N F15 GND E16 LP16-DC_N F16 GND E17 LP17-DD_N F17 GND E18 LP17-DC_N F18 GND E19 LP18-DD_N F19 GND E20 LP18-DC_N F20 GND E21 LP19-DD_N F21 GND E22 LP19-DC_N F22 GND
DSS NETWORKS, INC. Version: 1.14g Page: 19
6. POWER CONSUMPTION SPECIFICATIONS
All board power is derived from 5V power rail to CPCI “J1” connector. Note: The 3.3V onboard power has its own power regulator taken from the 5V rail,
however it can optionally be jumpered to use the 3.3V power rail from the J1 CPCI connector.
Onboard power supplies
1.2V Power
(mA, A)
6.584A 7.91W 3.01A 7.53W 1.025 3.39W 18.83W
J1 CPCI Connector Power Rails
3.3V Source Current (mA, A)
Not used *** 5A (max)
*** Note: Board can be optionally jumpered at factory to use 3.3V onboard from
3.3V power rail for power distribution.
2.5V Power
(mA, A)
5V Source (main supply) Current (mA, A)
3.3V Power (mA, A)
12V power rail
Not used
Power (W)
7. HARDWARE INSTALLATION
Before attempting to install the Metro-Switch into your system, please make sure to check and verify the following:
Shut off the power to the system and chassis and any peripherals. It is important to
remove the power cable to the system chassis. Step 1: Assess system power requirements. If you already have other CPCI cards in
your system, make sure that your system is able to provide the necessary power to support the addition of the Metro-Switch fabric card. Check your systems user manual for power specifications and limitations.
Step 2: Ground yourself. Many electronic components inside computer and on the Metro-Switch can be severely damaged by receiving a shock of static electricity. Before touching any electronic components or boards, discharge any static electricity on your
DSS NETWORKS, INC. Version: 1.14g Page: 20
body by using a wrist ground-strap or by touching the bare metal case around the power supply inside your computer. Avoid excessive movement during the installation, such as walking across carpets, as this can generate static. If you must leave the installation area before the installation is complete, be sure to ground yourself again before continuing the installation.
Step 2: Insert Metro-Switch fabric card into the first CPCI 2.16 fabric slot firmly seating it into the Compact PCI chassis. Use ejector handles to secure card into slot so that it is fully inserted and connected to backplane.
Step 3: If using serial port console attach supplied RS232 cable with RJ-11 jack into J1 on Metro-Switch board. Connect other end to serial port DB9 mail connector on PC (COM1, COM2, etc.) and use HyperTerm or another RS232 serial port terminal emulator to connect. Serial port parameters are as follows:
8 Data Bits 1 Stop Bit No Parity No hardware or software flow control Speed: 115200 baud
Step 4: If using external cabling options and/or rear I/O, connect fiber optic cables and CAT5 cables to RJ-45 connectors via Rear I/O.
Step 5: After fully seating card and connecting all cables, apply power to system. Green “RUN” LED should begin flashing at the rate of once per every one or two seconds to indicate healthy run status and the system is ready for use.
DSS NETWORKS, INC. Version: 1.14g Page: 21
7.1 SERIAL PORT CABLE DIAGRAM
Included in each Metro-Switch kit shipped from the factory to the customer is one RJ-11 male to DB9 female RS232 serial port cable for connecting to the PC’s serial COM port for use with a terminal emulator in a PC. The following table shows the cabling diagram for this serial port cable:
RJ11 Pin RS232 Signal
1 2 Transmit Data (TD) Receive Data (RD) 2 3 Ground Ground 5 4 5 Receive Data (RD) Transmit Data (TD) 3 6 N/A N/A N/A
Not used Not used
Not used Not used Not used
Not used Not used Not used Not used Not used Not used
COM PORT Signal
Ground 6
DB9 Pin
1
4
7 8 9

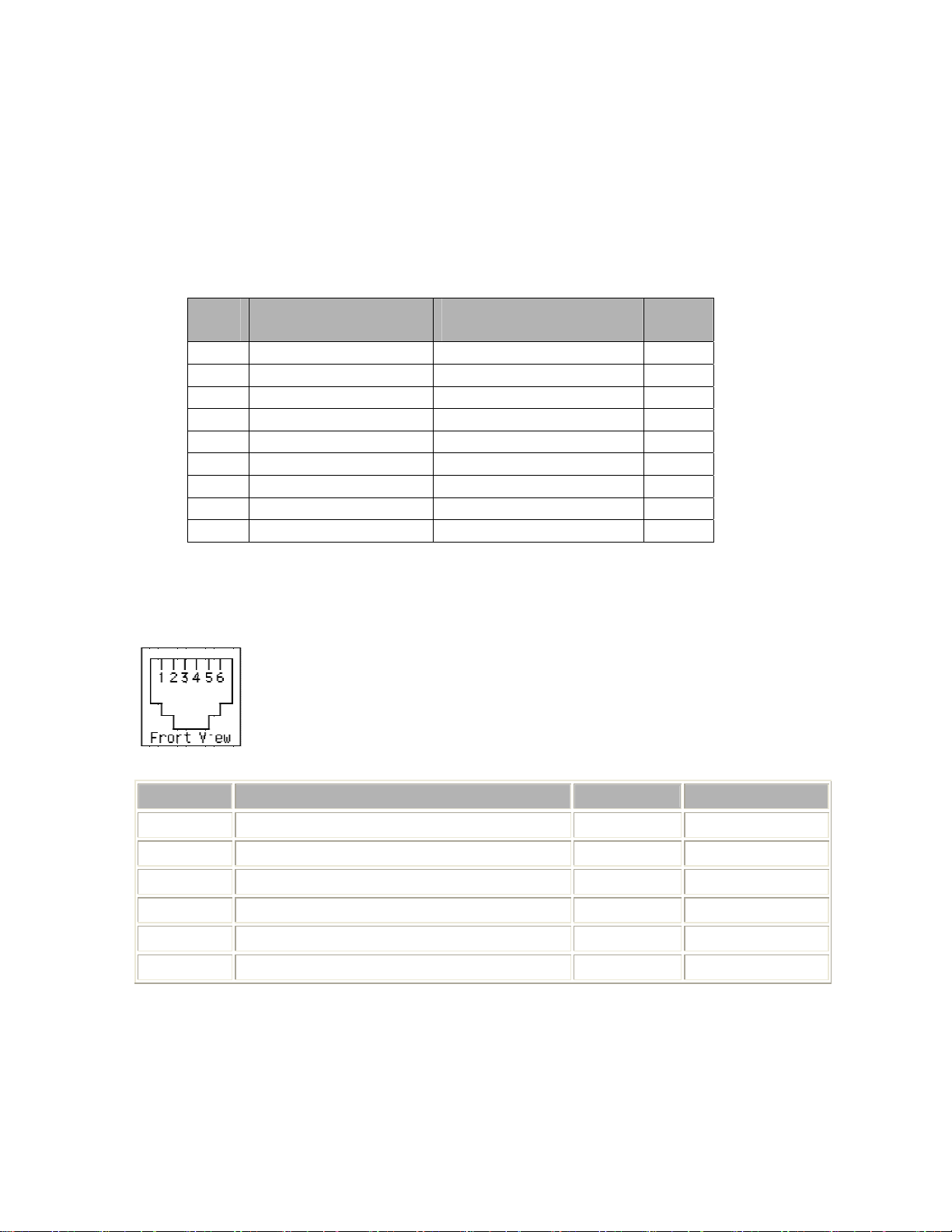

RS-232 Signals on an RJ11 Jack
RJ11 Wire Signal DTE DCE
1 hardware flow control transmit (optional) RTS or DTR CTS and/or DSR 2 transmit 3 transmit ground 4 receive ground 5 receive 6 hardware flow control receive (optional) CTS or DSR RTS and/or DTR
DSS NETWORKS, INC. Version: 1.14g Page: 22
8. COPPER AND FIBER CABLING
8.1. FIBER CABLE SPECIFICATIONS
Distance (1000-base-SX 850nm multimode)
(1000-base-LX 1310nm singlemode)
1000BASE-SX/LX (850 nm Laser for multimode-SX, 1310nm laser for single-mode-LX)
Fiber Core Diameter
62.5/125 um multi-mode 160 Mhz * km 2 to 220 m
62.5/125 um multi-mode 200 Mhz * km 2 to 275 m
50.0/125 um multi-mode 400 Mhz * km 2 to 500 m
50.0/125 um multi-mode 500 Mhz * km 2 to 550 m
9.0/125 um single-mode 500 Mhz * km 5 km
Type
Connecting fiber optic cable to J2 or J3 ports on Metro-Switch
This section explains how to connect external Ethernet fiber ports to the Metro-Switch when using standard fiber optic cables. Typically 50 or 62.5 micron multimode fiber optic cables with LC type connectors are used for 1000 Base SX operation depending on the connector option. For extended distance, single-mode fiber can be used in models equipped with extended range single-mode connectors (1000 Base LX).
Insert the fiber optic cable into the LC type connector until the self-locking tab clicks into position. Connect the opposite end in to a 1000 Base SX switch. Two types of cables are used when connecting external ports to the Metro-Switch. A workstation or "straight through" cable is typically used to connect Ethernet fiber ports to switches. A fiber “crossover” cable may also be used to connect ports back-to-back. This configuration is useful for loopback and/or diagnostic purposes or when a switch is not available.
Fiber Bandwidth Mhz* km
Distance
8.2 COPPER RJ-45 CONNECTOR AND CAT5 CABLE
Connecting Copper (CAT5/RJ-45) to Rear I/O Transition Module
DSS NETWORKS, INC. Version: 1.14g Page: 23
This section explains how to connect external 1000 Base T copper ports to the Metro­Switch using the standard Category 5, 5e or 6 cables. The maximum cable length is typically 100 meters or 328 feet.
Insert the Category 5 or 5e cable into the RJ-45 connector on the Rear I/O module until the self-locking tab clicks into position. Connect the opposite end in to a device containing a 10/100 or 10/100/1000 Base T port. Two types of cables are used when connecting the Metro-Switch controller to the network. A workstation or "straight through" cable is typically used to connect Ethernet adapters to switches. A “crossover” cable may also be used to connect controllers back-to-back. This configuration is useful for diagnostic purposes or when a hub or switch is not available.
Note(1): The Metro-Switch supports “auto-MDIX” mode where a crossover cable is not required when directly attaching two ports back-to-back.
Note(2): Cables used for Gigabit networks must use all 8 wires. In 10 and 100 modes, wires are dedicated for transmit or receive while in Gigabit mode, data is transmitted and received over all 4-pairs (see pinout diagram below).
DSS NETWORKS, INC. Version: 1.14g Page: 24
RJ-45 pinouts for CAT5 connectors and cables are shown in the following table:
Pin 10/100 Signal Gigabit Signal
1 Transmit+ Channel A+ 2 Transmit- Channel A­3 Receive+ Channel B+ 4 Unused Channel C+ 5 Unused Channel C­6 Receive- Channel B­7 Unused Channel D+ 8 Unused Channel D+
9. UNIT OPERATION
The switch is factory pre-programmed with firmware and default switching configuration to operate as a standalone “layer 2” switch. After power on, the Metro-Switch will initialize and begin to operate a layer 2 switch. This requires no operator intervention and all ports are enabled and will begin to switch traffic based on layer 2 MAC addresses.
9.1 SERIAL PORT CLI COMMAND LINE INTERFACE
The serial port console Command Line Interface (CLI) provides a User Interface for the purpose of local management and is used for Configuration, Status, Statistics and Diagnostic functions. The CLI command line interface is available via the serial port (typically connected to PC and used with terminal emulator window). Configuration functions are provided for general switch parameters, layer 2 switch configuration, layer 3 IP routing table configuration, trunking, mirroring and filtering.
When power is applied to the Metro-Switch and the serial port console is connected and configured, the following message will be displayed:
Metro-Switch firmware, ver: 1.12, 12-01-2004 Copyright (c) 2004 DSS Networks, Inc. All rights reserved.
metro-sw>
Configuration ‘set’ commands are stored in eeprom and are loaded and applied to the switch upon power up or internal reset.
NOTE: The CLI commands supported in this firmware release are described in the following sections and include commands to invoke the following capabilities:
DSS NETWORKS, INC. Version: 1.14g Page: 25
Switch status Switch statistics Link status Link (port) statistics Port-based VLANS Tagged and untagged VLANS Spanning tree groups (MSTP) Simple and rapid spanning tree (STP, RSTP) Switch reset Port statistics Configuration commands Eeprom access commands
Note: Additional features including trunking, port aggregation, protected ports, IPv4 IP static routing and QoS are planned and will be available in upcoming releases of the switch firmware.
DSS NETWORKS, INC. Version: 1.14g Page: 26
9.1.1 HELP COMMAND
metro-sw> h
CLI cmds: link [show | stat | regs] [int | ext | <arg>] ... stats [show | clr] eeprom [show | init | test] [read | <arg>] <arg> eereg [show | set | clr] <arg> ... mmu regs arl regs vlan [show | set | regs] <arg> ... stg [show] <arg> gimask [show | set | regs] <arg> <arg> ... girule [show | set | regs] <arg> <arg> ... gffp-ctr [show | clr] <arg> gffp-pkt [show | clr] <arg> cmic show cfg [save | clr] switch reset gmac [stat | clr | regs] <arg> gpic regs <arg> sgmii [show | regs] ext <arg> portctl [show | set | regs] <arg> ... mirctl [show | set | regs | clr] <arg> ... egrmask [show | set | regs | clr] <arg> ... help h metro-sw>
Note: Many commands use a “link index” (linkIdx) for addressing one of 12-ports in the supplied range of 0 to 11. The help command is invoked by either typing ‘h’ or ‘help’. It lists the available commands with their respective options and arguments. The general command format is ‘command option <arg> …’ where ‘option’ is one of the options listed above and ‘<arg> …’ denotes any number of arguments, including zero. For detailed information on the arguments, please see the corresponding entry below.
9.1.2 VLAN TABLE SET COMMAND
The vlan table set command can be used to add or delete VLAN table entries specifying member ports. There are two port maps specified. The ‘vlan port map’ bitmask identifies the member ports for this VLAN ID (VID). If the incoming packet is tagged, the VID of the incoming packet is used to index into the VLAN table to get the tagged VLAN port members. If the incoming packet is untagged, then the VID is picked up from the PRTABLE (port default vlan tables) for this port and the VID is used to index into the VLAN table to get the member ports for this VLAN.
All packets inside of the switch will then contain a VID tag. The ‘egr map_untagged’ port bit map specified in the vlan set command simple tells the switch whether to leave the tag on or strip of the tag when transmitting the packet out the egress port.
DSS NETWORKS, INC. Version: 1.14g Page: 27
Usage example:
metro-sw> vlan set 3 0x04 0x1ff 0x3ff
The arguments to the Vlan set command are as follows:
vlan set <id> <stg> <vlan_port_map> <egr_map_untagged>
Where:
Id = vlan id stg = Spanning tree group vlan_port_map = port bitmap of vlan member ports egr_map_untagged = port bitmap of egress ports (sent w/o tags)
Note: The port bit map is a 12-bit mask shown as hexadecimal value. For example to enable ports 0, 3 and 11 the mask would be set to: 0x809 (bits 0, 3 and 11 set).
To display VLAN id 3 as set in the example above:
metro-sw> vlan show 3
vlan id = 3
vlan[0x000000]: 9 # value is (stg << 1) | valid_bit vlan[0x000001]: 1ff # vlan[0x000002]: 3ff # egr_mapped_untagged port bitmap
metro-sw>
Note(1): To remove an existing VLAN, use the ‘vlan set’ command specifying both a ‘egr_mapped_tagged’ and egr_map_untagged with a value of zero as in the following example:
vlan set 1 1 0 0
Note(2): Once the vlan configurations have been made, you must use the ‘cfg save’ command to save the configuration to flash eeprom. Changes will take effect upon reset of the switch.
egr_mapped_tagged port bitmap
9.1.3 VLAN TABLE SHOW COMMAND
The vlan table show command can be used to display the VLAN table entries by vlan_id as shown in the following example:
metro-sw> vlan show 3
vlan id = 3
stg : 9 # spanning tree group port map: 1ff # egr map: 3ff #
DSS NETWORKS, INC. Version: 1.14g Page: 28
egress_mapped_tagged port bitmap egress_mapped_untagged port bitmap
9.1.4 VLAN TABLE REGISTER COMMAND
The vlan table show register command is used to display the value of the corresponding vlan register of the switch e.g., the register value which is used for the current mode of operation.
metro-sw> vlan reg 3
vlan id = 03
vlan[0x3e00000]: 9 # value is (stg << 1) | valid_bit vlan[0x3e0000c]: 1ff # vlan[0x3e00018]: 3ff # egress_mapped_untagged port bitmap
egress_mapped_tagged port bitmap
9.1.5 CFG SAVE COMMAND
metro-sw> cfg save
This command is used to save a previously defined configuration to eeprom so that it may be loaded upon issuing a ‘switch reset’ command or upon power up.
Note: The ‘cfg save’ command affect only the switch configuration structure and does not affect the individual ‘eereg set’ commands stored in eeprom. These are initialized and saved independently via the ‘eereg set’ command.
9.1.6 CFG CLEAR COMMAND
metro-sw> cfg clr
This command is used to clear the configuration records prior to saving to eeprom thereby erasing existing configuration.
Note: This command will clear the configuration and save the values to eeprom immediately. No additional ‘cfg save’ command is necessary.
9.1.7 SWITCH RESET COMMAND
metro-sw> switch reset
This command is used to initiate a reset (reboot) of the switch. Note: Any CLI configuration commands entered will be not saved unless a ‘cfg save’ command
is first issued prior to reset.
9.1.8 SETTING PACKET AGING
The ‘eereg set’ command is used to set packet aging as in the following example:
DSS NETWORKS, INC. Version: 1.14g Page: 29
metro-sw> eereg set 1 0x24 1 1 0x00 0x10 0x00 0x40
In this command, the arguments are interpreted as follows:
metro-sw> eereg set <class=1> <reg-base=0x24> <increment=1> <count=1>
<data bytes = 0x00 0x10 0x00 0x40>
metro-sw> eereg show
reg idx: 01, rclass: 01 (reg set cmd) base: 24, strt/incr: 01, end/cnt: 01 data: 00 10 00 40
In the example above, the last two data bytes (0x00 0x40) specify the layer 2 ARL age timeout in seconds (i.e. 0x00 0x40 hexidecimal equals 64 seconds).
9.1.9 SETTING DEFAULT VLAN
The ‘eereg set’ command is used to set the default VLAN id for a port or range of ports as in the following example:
metro-sw> eereg set 3 0x21 0 1 0x00 0x00 0x00 0x01
In this command, the arguments are interpreted as follows:
metro-sw> eereg set <class=3> <reg-base=0x21> <strt-port=0> <end-port=1>
<data bytes = 0x00 0x00 0x00 0x01>
metro-sw> eereg show
reg idx: 02, rclass: 03 (reg set cmd) base: 21, strt/incr: 00, end/cnt: 01 data: 00 00 00 01
In the example above, the last two data bytes (0x00 0x01) specify the default VLAN id for the port range starting at zero and ending at 1 (port 0 and port1). Any port range (i.e. 0 – 11) may be specified with this command.
9.1.10 SETTING UNTAGGED VLAN ID’s
The ‘eereg set’ command is used to set up to seven (7) default VLAN ID’s per port. This command can operate on a single port or range of ports as in the following example:
metro-sw> metro-sw> eereg set 3 0x22 0 0 0x01 0x08 0x00 0x01
In this command, the arguments are interpreted as follows:
metro-sw> eereg set <class=3> <reg-base=0x22> <strt-port=0> <end-port=0>
<data bytes = 0x01 0x08 0x00 0x01>
DSS NETWORKS, INC. Version: 1.14g Page: 30
Note: ‘reg-base’ can be set from 0x22 – 0x28 for up to seven entries per port.
metro-sw> eereg show
reg idx: 01, rclass: 03 (reg set cmd) base: 22, strt/incr: 00, end/cnt: 00 data: 01 08 00 01
In the example above, the data bytes comprising a 32-bit long word (0x01, 0x08, 0x00 0x01) specify the VLAN id, Ethertype and Frame-Type for the port range starting at zero and ending at 0 (port 0 only).
DSS NETWORKS, INC. Version: 1.14g Page: 31
The following table shows the encoding of the data bytes comprising the 32-bit longword argument:
Bits Name
30:28
(Only one bit set per entry)
Bits Name
27:12
Bits Name
11:00
EtherType (i.e. 0x0800 for
FrameType
001 = Ethernet II
010 = 802.3 LLC/SNAP
100 = LLC
IPv4)
VLAN ID
Description
Frame type to match
Description
Ether type field which
determines the protocol
Description
Vlan ID for this entry
9.1.11 ‘EEREG SET’ COMMAND
The ‘eereg set’ command is used to set
functionality. For example:
metro-sw> eereg set 1 0x24 1 1 00 10 00 40
The parameters for the eereg set command are interpreted as follows:
metro-sw> eereg set <reg-class> <reg-offset> <strt/incr> <end/cnt> <quad-bytes>
To show (display) all existing ‘eereg set’ entries:
metro-sw> eereg show
reg idx: 01, rclass: 01 (reg set cmd) base: 24, strt/incr: 01, end/cnt: 01 data: 00 10 00 40
To clear out (erase) all existing ‘eereg set’ entries:
metro-sw> eereg set 0
Note: ‘eereg set’ commands are provided as a basic capability to set and enable certain features of the switch functionality. Please contact our technical support department regarding the setting of any additional features not shown in this document. The switch must be reset after all reg-set commands have been entered in order to take effect.
and enable certain features of the switch
DSS NETWORKS, INC. Version: 1.14g Page: 32
9.1.12 ‘EEREG CLR’ COMMAND
metro-sw> eereg clr <idx>
Clears eeprom entries specified by ‘reg-idx’.
9.1.13 ‘EEREG SHOW’ COMMAND
metro-sw> eereg show
The ‘eereg show’ command displays all eeprom reg-set entries currently stored as in the following example:
metro-sw> eereg show
reg idx: 01, rclass: 03 (reg set cmd) base: 22, strt/incr: 00, end/cnt: 00 data: 01 08 00 01
reg idx: 02, rclass: 01 (reg set cmd) base: 24, strt/incr: 01, end/cnt: 01 data: 00 10 00 40
reg idx: 03, rclass: 03 (reg set cmd) base: 21, strt/incr: 00, end/cnt: 01 data: 00 00 00 01
DSS NETWORKS, INC. Version: 1.14g Page: 33
9.1.14 LINK COMMAND
metro-sw> link show int 0xb
phy link = 11, link up = 1 reg(0x0): 1140 reg(0x1): 796d reg(0x1c-68): 69bf reg(0x1c-7c): 7cec
metro-sw> link show ext 4
iphy link = 4, link up = 1 reg(0x01): 0004 reg(0x00): 0140 reg(0x05): 0000 reg(0x06): 0000 reg(0x0b): 0004 reg(0x0c): 180c reg(0x0e): 0000 reg(0x0f): 0000 reg(0x10): 0400 reg(0x14): 001d
The ‘link stat’ command shows a summary table of the link state (down/up) and link speed.
An argument ‘all’ or ‘-1’ shows a brief summary of all links. A numeric argument between 0-11 shows a summary of the specified link.
Usage example:
metro-sw> linkst all
Link Up Spd
---- -- ---­ 0 1 1000 1 1 1000 2 0 0 3 0 0 4 1 1000 5 0 0 6 0 0 7 0 0 8 0 0 9 0 0 10 1 1000 11 1 1000
metro-sw> link stat 4
phy link = 4, link up = 1, speed = 1000 link state: 1 ed state: 1 sd state: 0 sgmii state: 1 mac state: 1 lk down cnt: 5 lk up cnt: 1 lk cfg cnt: 2 ed down cnt: 0 ed up cnt: 1 sd down cnt: 0
DSS NETWORKS, INC. Version: 1.14g Page: 34
sd up cnt: 0 an strt cnt: 0
9.1.15 LINK REGS COMMAND
metro-sw> link regs int 0
iphy[0x00]: 140 iphy[0x01]: 4 iphy[0x02]: 0 iphy[0x03]: 0 iphy[0x04]: 40 iphy[0x05]: 0 iphy[0x06]: 0 iphy[0x07]: 0 iphy[0x08]: 0 iphy[0x09]: 0 iphy[0x0a]: 0 iphy[0x0b]: 4 iphy[0x0c]: 180c iphy[0x0d]: 0 iphy[0x0e]: 0 iphy[0x0f]: 0 iphy[0x10]: 400 iphy[0x11]: 330 iphy[0x12]: 3fff iphy[0x13]: 0 iphy[0x14]: 1d iphy[0x15]: 2 iphy[0x16]: 100 iphy[0x17]: 0 iphy[0x18]: 0 iphy[0x19]: 0 iphy[0x1a]: 0 iphy[0x1b]: 0 iphy[0x1c]: 0 iphy[0x1d]: 0 iphy[0x1e]: 0 iphy[0x1f]: 0
metro-sw> link regs ext 2
phy[0x00]: 1140 phy[0x01]: 796d phy[0x02]: 20 phy[0x03]: 60b1 phy[0x04]: 1e1 phy[0x05]: cde1 phy[0x06]: f phy[0x07]: 2001 phy[0x08]: 402d phy[0x09]: 700 phy[0x0a]: 7c00 phy[0x0b]: 0 phy[0x0c]: 0 phy[0x0d]: 0 phy[0x0e]: 0 phy[0x0f]: 3000 phy[0x10]: 1 phy[0x11]: 2303
DSS NETWORKS, INC. Version: 1.14g Page: 35
phy[0x12]: 0 phy[0x13]: 0 phy[0x14]: 101 phy[0x15]: 60e6 phy[0x16]: 0 phy[0x17]: f03 phy[0x18]: 7267 phy[0x19]: ff1c phy[0x1a]: 247e phy[0x1c]: 7cec phy[0x1d]: 57b phy[0x1e]: 0 phy[0x1f]: 0 s-1c[0x34]: 3421 s-1c[0x38]: 3868 s-1c[0x68]: 68c0 s-1c[0x70]: 721c s-1c[0x78]: 7927 s-1c[0x7c]: 7cec xphy[0x00]: ffff xphy[0x01]: 60 xphy[0x02]: ff xphy[0x03]: 60e6 xphy[0x05]: 1c1 xphy[0x07]: 6de7 xphy[0x08]: bdf xphy[0x09]: 3200 xphy[0x0a]: 13ff xphy[0x0b]: 69e6 xphy[0x0c]: 190 xphy[0x0d]: bd5 xphy[0x0e]: 320 xphy[0x0f]: ffef
DSS NETWORKS, INC. Version: 1.14g Page: 36
9.1.16 GMAC STATS SHOW COMMAND
The switch provides a large number of statistical counters to support system management capabilities and include information to support RMON, SNMP and Ethernet MIBs as shown below:
metro-sw> gmac stat 0
link: 2 mib stats
offset name count
------ --------- ------- (0x20) GTR64 8 (1757/EtherStatsPkts64Octets) (0x21) GTR127 19078 (1757/EtherStatsPkts65to127Octets) (0x22) GTR255 0 (1757/EtherStatsPkts128to255Octets) (0x23) GTR511 0 (1757/EtherStatsPkts256to511Octets) (0x24) GTR1023 0 (1757/EtherStatsPkts512to1023Octets) (0x25) GTR1518 19080 (1757/EtherStatsPkts1024to1518Octets) (0x26) GTRMGV 0 (0x27) GTR2047 0 (0x28) GTR4095 0 (0x29) GTR9216 0 (0x2c) GRPKTs 19090 (1757/EtherStatsPkts;1493/dot1dTpPortInFrames) (0x2d) GRUND* 0 (1757/EtherStatsUndersizePkts) (0x2e) GRFRG 0 (1757/EtherStatsFragments) (0x2f) GRBYTes 15116368 (1757/EtherStatsOctets) (0x30) GRMCast 0 (1757/EtherStatsMulticastPkts) (0x31) GRBCast 0 (1757/EtherStatsBroadcastPkts) (0x32) GRFCS* 0 (1757/EtherStatsCRCAlignErrs;1643/dot3StatsFCSErrs) (0x33) GRXCF 0 (802.2-30.3.3.4/aMACCtrlFrmsRcvd) (0x34) GRXPF 0 (802.2-30.3.4.3/aMACPauseCtrlFrmRcvd;2665/dot3InPauseFrames) (0x35) GRXUO* 0 (802.2-30.3.3.5/aUnsuppOpcRcvd;2665/dot3CtrlUnkOpcodes) (0x36) GRALN* 0 (0x37) GRFLR* 0 (0x38) GRCDE* 0 (0x39) GRFCR* 0 (0x3a) GROVR* 0 (0x3b) GRJBR* 0 (0x3c) GRIPC 0 (0x3d) GIMBP 0 (0x3e) GIMRP 0 (0x3f) GRIMDR 0 (0x40) GRIPD 0 (0x41) GRIPHE* 0 (0x42) GRDISC 0 (0x43) GRUC 19104 (0x44) GPDISC 0 (0x45) GRFILDR 0 (0x46) GRPORTD 0 (0x48) GTPKTs 19108 (1493/dot1dTpPortOutFrames) (0x49) GTMCast 0 (802.2-30.3.1.18/aMulticastXmittedOk) (0x4a) GTBCast 0 (802.2-30.3.1.19/aBroadcastXmittedOk) (0x4b) GTXPF 0 (0x4c) GTJBR 0 (0x4d) GTFCS* 0 (0x4e) GTXCF 0 (0x4f) GTOVR* 0 (0x50) GTDFR 0 (0x51) GTEDF* 0 (0x52) GTSCL* 0
DSS NETWORKS, INC. Version: 1.14g Page: 37
(0x53) GTMCL* 0 (0x54) GTLCL* 0 (0x55) GTXCL* 0 (0x56) GTFrags 0 (0x57) GTNCL* 0 (0x5b) GTBYTes 5138544 (802.2-30.3.1.1.8/aOctetsTransmittedOk;2665/ifOutOctets) (0x5c) GTIP 0 (0x5d) GTVLAN 0 (0x5e) GTAGE 0 (0x5f) GTIPD* 0 (0x60) GTIMTLD 0 (0x61) GTABRT* 0 (0x62) GTIMDR 0 (0x63) GTFIDR 0 (0x74) GTCE* 0 (0x75) GTIPAGE 0
9.1.17 GMAC STATS CLEAR COMMAND
The gmac stats clear command executes an implicit ‘gmac stat <port>’ command before clearing the stats values for the selected port.
metro-sw> gmac clr 3
9.1.18 GMAC REGS SHOW COMMAND
metro-sw> gmac regs 11
gmac[0x0000]: 1 gmac[0x0001]: 550a1681 gmac[0x0002]: c gmac[0x0003]: 6 gmac[0x0004]: 180c200 gmac[0x0005]: 10000 gmac[0x0008]: 2328 gmac[0x0100]: 1 gmac[0x0101]: 4101 gmac[0x0102]: 15 gmac[0x0103]: c12 gmac[0x0104]: 370f gmac[0x0105]: 23ff gmac[0x0110]: 0 gmac[0x0111]: 0 gmac[0x0112]: 0
9.1.19 GENERAL STATS COMMAND
metro-sw> stats show ms: unit: 0 statistics main loop cnt 7888 sw i2c read cnt 63949 sw i2c read fail 0 sw i2c write cnt 127405 sw i2c write fail 0 sw ack cnt 1515882 sda val 0 wait clk high 0 wait clk low 0
DSS NETWORKS, INC. Version: 1.14g Page: 38
wait data high 0 last read val 0 last progress code 4 mii timeouts 0 schan timeouts 0 schan err cnt 0 last schan rsp 0 l2 purge cnt 0
The clear stats command executes an implicit ‘stats show’ command before clearing the stats values.
metro-sw> stats clr ms: unit: 0 statistics main loop cnt 8976 sw i2c read cnt 72765 sw i2c read fail 0 sw i2c write cnt 144969 sw i2c write fail 0 sw ack cnt 1724862 sda val 0 wait clk high 0 wait clk low 0 wait data high 0 last read val 0 last progress code 4 mii timeouts 0 schan timeouts 0 schan err cnt 0 last schan rsp 0 l2 purge cnt 0
9.1.20 GPIC REGS SHOW COMMAND
metro-sw> gpic regs 0
gpic[0x80000]: 1001800 gpic[0x80001]: 1 gpic[0x80002]: 1001 gpic[0x80003]: fff gpic[0x80004]: 0 gpic[0x80005]: 0 gpic[0x80006]: 0 gpic[0x80007]: 0 gpic[0x80008]: 0 gpic[0x80009]: c2000020 gpic[0x8000a]: 180 gpic[0x8000b]: c2000021 gpic[0x8000c]: 180 gpic[0x8000d]: 0 gpic[0x8000e]: 0 gpic[0x8000f]: 0 gpic[0x80010]: 0 gpic[0x80011]: 0 gpic[0x80012]: 0 gpic[0x80013]: 0 gpic[0x80014]: 0 gpic[0x80015]: 0 gpic[0x80016]: 0 gpic[0x80017]: 0
DSS NETWORKS, INC. Version: 1.14g Page: 39
gpic[0x80018]: 0 gpic[0x80019]: 0 gpic[0x8001a]: 0 gpic[0x8001b]: 0 gpic[0x8001c]: 0 gpic[0x8001d]: 0 gpic[0x8001e]: 0 gpic[0x8001f]: 0 gpic[0x80020]: 0 gpic[0x80021]: 1 gpic[0x80022]: 0 gpic[0x80023]: 0 gpic[0x80024]: 0 gpic[0x80025]: 0 gpic[0x80026]: 0 gpic[0x80027]: 0 gpic[0x80028]: 0
9.1.21 SGMII REGS SHOW COMMAND
metro-sw> sgmii regs ext 11
sgmii[0x 0]: 140 sgmii[0x 1]: 149 sgmii[0x 2]: 20 sgmii[0x 3]: 60b1 sgmii[0x 4]: 1 sgmii[0x 5]: 0 sgmii[0x 6]: 2 sgmii[0x 7]: 0 sgmii[0x 8]: 0 sgmii[0x 9]: 0 sgmii[0x a]: 0 sgmii[0x b]: 0 sgmii[0x c]: 0 sgmii[0x d]: 0 sgmii[0x e]: 0 sgmii[0x f]: c000 sgmii[0x 10]: 0 sgmii[0x 11]: 2000 sgmii[0x 12]: 0 sgmii[0x 13]: 0 sgmii[0x 14]: 0 sgmii[0x 15]: e0e7 sgmii[0x 16]: 0 sgmii[0x 17]: f03 sgmii[0x 18]: 400 sgmii[0x 19]: 1000 sgmii[0x 1a]: 0 sgmii[0x 1c]: 7c1d sgmii[0x 1d]: 0 sgmii[0x 1e]: 0 sgmii[0x 1f]: 0
9.1.22 SGMII STATUS SHOW COMMAND
metro-sw> sgmii show ext 11
sgmii phy link = 11, link up = 0
DSS NETWORKS, INC. Version: 1.14g Page: 40
reg(0x0): 000b reg(0x1): 0149 reg(0x1c-68): 69bf reg(0x1c-7c): 7c1d
metro-sw> sgmii show ext 0
sgmii phy link = 0, link up = 0 reg(0x0): 0000 reg(0x1): 0149 reg(0x1c-68): 68c0 reg(0x1c-7c): 7ced
9.1.23 EEPROM CONTENTS SHOW COMMAND
metro-sw> eeprom show 0 20
offset: 0000, cnt: 20 0000: fe fe fe fe fe fe fe fe - fe fe fe fe fe fe fe fe 0016: fe fe fe fe
metro-sw> eeprom init -1 253 metro-sw> eeprom init 0 256 metro-sw> eeprom show 0 64
offset: 0000, cnt: 64 0000: fd fd fd fd fd fd fd fd - fd fd fd fd fd fd fd fd 0016: fd fd fd fd fd fd fd fd - fd fd fd fd fd fd fd fd 0032: fd fd fd fd fd fd fd fd - fd fd fd fd fd fd fd fd 0048: fd fd fd fd fd fd fd fd - fd fd fd fd fd fd fd fd
9.1.24 EPROM INIT COMMAND
metro-sw> eeprom init -1 250 # sets pattern for initialization to value=250
metro-sw> eeprom init 0 256 # offset=0, count=256
eeprom init done.
9.1.25 EEPROM TEST READ COMMAND
metro-sw> eeprom test read 100
eeprom test read begin. eeprom test read done.
9.1.26 MMU REGS SHOW COMMAND
metro-sw> mmu regs 0
mmu[0xd80000]: 5555555 mmu[0xd80001]: 5555555 mmu[0xd80002]: 0 mmu[0xd80003]: 0 mmu[0xd80004]: 5555555
DSS NETWORKS, INC. Version: 1.14g Page: 41
mmu[0xd80005]: 5555555 mmu[0xd80006]: 0 mmu[0xd80007]: 0 mmu[0xd80008]: 0 mmu[0xd80009]: 0 mmu[0xd8000a]: 0 mmu[0xd8000b]: 0 mmu[0xd8000c]: 0 mmu[0xd8000d]: 0 mmu[0xd8000e]: 280 mmu[0xd8000f]: 280 mmu[0xd80010]: 280 mmu[0xd80011]: 280 mmu[0xd80012]: 280 mmu[0xd80013]: 280 mmu[0xd80014]: 280 mmu[0xd80015]: 280 mmu[0xd80016]: 84210 mmu[0xd80017]: 84210 mmu[0xd80018]: 1fff mmu[0xd80019]: 30 mmu[0xd8001a]: 1f00 mmu[0xd8001b]: 1e00 mmu[0xd8001c]: 3518 mmu[0xd8001d]: a237 mmu[0xd8001e]: 3fff mmu[0xd8001f]: 3fff mmu[0xd80020]: 0 mmu[0xd80021]: 1fff mmu[0xd80022]: 0
9.1.27 CMIC REGS SHOW COMMAND
metro-sw> cmic show
reg(0x0178): 35690 reg(0x0050): 48002 reg(0x010c): 4a00010 reg(0x0140): 3fff reg(0x0160): 3fff reg(0x0158): 1c0bb4df reg(0x015c): 34df reg(0x0164): ffefffff reg(0x0168): 0 reg(0x016c): 3fff reg(0x0120): 4c reg(0x0128): 4c reg(0x012c): 4c
DSS NETWORKS, INC. Version: 1.14g Page: 42
9.1.28 ARL REGS SHOW COMMAND
metro-sw> metro-sw> arl regs
arl[0xe80000]: 0 arl[0xe80001]: 0 arl[0xe80002]: 0 arl[0xe80003]: 0 arl[0xe80004]: 0 arl[0xe80005]: 0 arl[0xe80006]: 0 arl[0xe80007]: 0 arl[0xe80008]: 0 arl[0xe80009]: 0 arl[0xe8000a]: 0 arl[0xe8000b]: 0 arl[0xe8000c]: 0 arl[0xe8000d]: 0 arl[0xe8000e]: 0 arl[0xe8000f]: 0 arl[0xe80010]: 0 arl[0xe80011]: 0 arl[0xe80012]: 0 arl[0xe80013]: 0 arl[0xe80014]: 0 arl[0xe80015]: 0 arl[0xe80016]: 0 arl[0xe80017]: 0 arl[0xe80018]: 0 arl[0xe80019]: 0 arl[0xe8001a]: 0 arl[0xe8001b]: 0 arl[0xe8001c]: 0 arl[0xe8001d]: 0 arl[0xe8001e]: 0 arl[0xe8001f]: 0 arl[0xe80020]: 0 arl[0xe80021]: 0 arl[0xe80022]: 0 arl[0xe80023]: 0 arl[0xe80024]: 100040 arl[0xe80025]: 0 arl[0xe80026]: 0 arl[0xe80027]: 0 arl[0xe80028]: e
9.1.29 STG SHOW COMMAND
The ‘stg show’ command shows the spanning tree groups and default state specified by group index (default state = 0x3ffffff if initialized):
metro-sw> stg show 1
stg id = 01
stg[0x3e10000]: 3ffffff
DSS NETWORKS, INC. Version: 1.14g Page: 43
9.1.30 ‘GIMASK SET’ COMMAND
The ‘gimask set’ command is used to setup the GIMASK tables for the FFP processor. The command takes seven numeric arguments. The first argument is the ‘link’ index (0-
11) and the second argument is the ‘mask’ index (0-15). The third argument is the table entry index (0 – 11). The last 4 arguments are the data bytes comprising the 32-bit dword. The rightmost argument ‘d1’ is the least significant byte (bits 0 – 7) while the leftmost ‘d3’ is the most significant byte (bits 24-31) of the 32-bit dword.
metro-sw> gimask set <linkIdx> <maskIdx> <entryIdx> <0xd4 0xd3 0xd2 0xd1>
Usage examples: The following example shows setting up the FFP IMASK and IRULE tables for a simple
method of filtering, re-routing and mirroring. Ports 0 and 4 are connected to external PC’s and there is a ping traffic running into port 4 from one PC going to the second PC connected to port 0. The ping reply goes in the opposite direction.
The example filters the packets arriving at port 0 and if a match is found sends the packets out port 1. In addition, the egress of port 0 (going out port 1) is mirrored to port 4 resulting in the original ping traffic being returned to the source port 4 as well as being sent out port 1.
The FFP IMASK and IRULE configuration below sets up the FFP to filter the Ethernet II IP frame type of ‘0x0800’ with the first word of the IP header of ‘0x4500’ which is found at offset 12 in the packet header. In the FFP matching, it occurs at offset 16 which is probably due to packet type normalization.
The example shown sets up one mask and one rule entry to filter the four bytes of 08 00 45 00. The action in the IRULE instructs the FFP to send the packet out and alternate port as specified in the rule table. A ‘GFFPCOUNTER’ is also instructed to be incremented for each action taken (packet send to port 1). The comments next to the following commands indicate which settings are taking place.
# GIMASK settings
metro-sw> gimask set 0 0 0 0 0x80 0 0 # set rules-size=1 and start-index=0 midx: 00, eidx: 00
metro-sw> gimask set 0 0 1 0 0 0 0x18 # set DATAOFF-2 = 3 (bytes 16-19) midx: 00, eidx: 01
metro-sw> gimask set 0 0 2 0 0x2 0 0 # set the ‘untag’ bit midx: 00, eidx: 02
metro-sw> gimask set 0 0 5 0xff 0 0xff 0 # set FMASK-2 (for dataoff-2 mask) midx: 00, eidx: 05
# GIRULE settings
DSS NETWORKS, INC. Version: 1.14g Page: 44
metro-sw> girule set 0 0 0 0 0 0 0xa0 # set action bits 5 and 7 (send to port) midx: 00, eidx: 00 # (and increment counter)
metro-sw> girule set 0 0 2 0 0 0 0x21 # dest-port=1, untag-bit, ctr=0 midx: 00, eidx: 02
metro-sw> girule set 0 0 5 0x08 0 0x45 0 # set FILTER-2 (for dataoff-2 filter) midx: 00, eidx: 05
metro-sw> eereg set 3 5 0 0 0 0x5 0 0xff # enable mirroring on port 0 egress port 1
metro-sw> cfg save # save configuration to eeprom
DSS NETWORKS, INC. Version: 1.14g Page: 45
FFP “GIMASK” table bit map description:
ADDR-LIMIT 0x07g0.000B:table bit 383
FMASK(8)
FMASK(7)
FMASK(6)
FMASK(5)
FMASK(4)
FMASK(3)
FMASK(2)
FMASK(1)
RSVD OUTPUTMODMASK(5) RSVD(7) EGRMASK(5)
RSVD OUTPUTMOD(5) U OUTPUTPORT(5) TOS_P(3) DIFFSERV(6)
NOTDEFINED DATAOFF-8 DATASOFF=7 DATAOFF-6 DATAOFF-5 DATAOFF-4 DATAOFF-3 DATAOFF-2 DATAOFF-1
R
RULES-SIZE(8) RULES-START(7) NOMATCHACTION(16)
PKTFORMAT
MASK(4)
IEEE802­DOT1PRI
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
ADDR-BASE 0x07g0.0000:table bit 0
Additional notes: See the following Broadcom documents for further details regarding the programming of the FFP:
Programmer's Reference Guide
569x-PG101-R
StrataXGS(tm) BCM5690/BCM5691/BCM5692/BCM5693
Application Note 5690-AN100-R
BCM5690 Fast Filtering Processor Application Note
Application Note
5690-AN900-R
BCM5690 Application Note ­StrataXGS - Traffic Mirroring
9.1.31 ‘GIRULE SET’ COMMAND
The ‘girule set’ command is used to setup the “GIRULE” tables for the FFP processor. The command takes seven numeric arguments. The first argument is the ‘link’ index (0-
11) and the second argument is the ‘rule’ index (0-63). The third argument is the table entry index (0 – 11). The last 4 arguments are the data bytes comprising the 32-bit
DSS NETWORKS, INC. Version: 1.14g Page: 46
dword. The rightmost argument ‘d1’ is the least significant byte (bits 0 – 7) while the leftmost ‘d3’ is the most significant byte (bits 24-31) of the 32-bit dword.
metro-sw> girule set <linkIdx> <ruleIdx> <entryIdx> <0xd4 0xd3 0xd2 0xd1>
Usage examples:
metro-sw> girule set 0 0 0 0 0 0 0xa0 midx: 00, eidx: 00
metro-sw> girule set 0 0 2 0 0 0 0x21 midx: 00, eidx: 02
metro-sw> girule set 0 0 5 0x08 0 0x45 0 midx: 00, eidx: 05
metro-sw> cfg save
FFP “GIRULE” table bit map description:
ADDR-LIMIT 0x07g2.000B:table bit 383
FILTER(8)
FILTER(7)
FILTER(6)
FILTER(5)
FILTER(4)
FILTER(3)
FILTER(2)
FILTER(1)
RSVD(7) PRI(3) TOS_P(3) FSEL(4) EGRSMOD(5) | R(1) EPORT(5) PKTFMT(4)
RSVD(4) METERID(6) COUNTER(5) DIFFSERV(6) OUTPUT MOD 5 U DST_PORT(5)
RSVD(5) CLASSIFICATION-TAG(16) OUT_DSCP(6) OUTACTIONS(5)
R VLANID(12) ACTION(18)
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
ADDR-BASE 0x07g2.0000:table bit 0
9.1.32 ‘GIMASK SHOW’ COMMAND
The ‘gimask show’ command is used to display the GIMASK tables for the FFP processor. The command takes two numeric arguments. The first argument is the ‘link’ index (0-11) and the second argument is the ‘mask’ index (0-63).
DSS NETWORKS, INC. Version: 1.14g Page: 47
If <linkIdx> is either ‘-1’ or ‘all’, all valid entries in the table are shown. If <maskIdx> is either ‘-1’ or ‘all’, all valid table entries with the specified link index are
shown.
metro-sw> gimask show <linkIdx> <maskIdx>
Usage examples:
metro-sw> gimask show 0 0
ffpm link: 00, midx: 00
ffpm[0x7000000]: 800000 ffpm[0x7000001]: 18 ffpm[0x7000002]: 20000 ffpm[0x7000003]: 0 ffpm[0x7000004]: 0 ffpm[0x7000005]: ff00ff00 ffpm[0x7000006]: 0 ffpm[0x7000007]: 0 ffpm[0x7000008]: 0 ffpm[0x7000009]: 0 ffpm[0x700000a]: 0 ffpm[0x700000b]: 0
9.1.33 ‘GIRULE SHOW’ COMMAND
The ‘girule show’ command is used to show GIMASK tables for the FFP processor. The command takes two numeric arguments. The first argument is the ‘link’ index (0-11) and the second argument is the ‘rule’ index (0-63).
If <linkIdx> is either ‘-1’ or ‘all’, all valid entries in the table are shown. If <ruleIdx> is either ‘-1’ or ‘all’, all valid table entries with the specified link index are
shown.
metro-sw> girule show <linkIdx> <ruleIdx>
Usage example:
metro-sw> girule show 0 0
ffpr link: 00, ridx: 00
ffpr[0x7020000]: a0 ffpr[0x7020001]: 0 ffpr[0x7020002]: 21 ffpr[0x7020003]: 0 ffpr[0x7020004]: 0 ffpr[0x7020005]: 8004500 ffpr[0x7020006]: 0
DSS NETWORKS, INC. Version: 1.14g Page: 48
ffpr[0x7020007]: 0 ffpr[0x7020008]: 0 ffpr[0x7020009]: 0 ffpr[0x702000a]: 0 ffpr[0x702000b]: 0
9.1.34 ‘GIMASK SHOW REGISTER’ COMMAND
The ‘gimask regs’ command is used to display the current GIMASK tables for the FFP processor currently used by the switch. The command takes two numeric arguments. The first argument is the ‘link’ index (0-11) and the second argument is the ‘mask’ index (0-63).
Note: By default, the tables are not initialized
metro-sw> gimask regs <linkIdx> <maskIdx>
Usage examples:
metro-sw> gimask regs 0 0
ffpm link: 00, midx: 00
ffpm[0x7000000]: 800000 ffpm[0x7000001]: 18 ffpm[0x7000002]: 20000 ffpm[0x7000003]: 0 ffpm[0x7000004]: 0 ffpm[0x7000005]: ff00ff00 ffpm[0x7000006]: 0 ffpm[0x7000007]: 0 ffpm[0x7000008]: 0 ffpm[0x7000009]: 0 ffpm[0x700000a]: 0 ffpm[0x700000b]: 0
9.1.35 ‘GIRULE SHOW REGISTER’ COMMAND
The ‘girule regs’ command is used to display the GIMASK tables for the FFP processor currently used by the switch. The command takes two numeric arguments. The first argument is the ‘link’ index (0-11) and the second argument is the ‘rule’ index (0-63). Note: By default, the tables are not initialized.
metro-sw> girule regs <linkIdx> <ruleIdx>
Usage example:
metro-sw> girule regs 0 0
ffpr link: 00, ridx: 00
ffpr[0x7020000]: a0
DSS NETWORKS, INC. Version: 1.14g Page: 49
ffpr[0x7020001]: 0 ffpr[0x7020002]: 21 ffpr[0x7020003]: 0 ffpr[0x7020004]: 0 ffpr[0x7020005]: 8004500 ffpr[0x7020006]: 0 ffpr[0x7020007]: 0 ffpr[0x7020008]: 0 ffpr[0x7020009]: 0 ffpr[0x702000a]: 0 ffpr[0x702000b]: 0
9.1.36 ‘GFFP-CTR’ SHOW COMMAND
The ‘gffp-ctr show’ command is used to display the ffp counters for a particular link. The link index is used as an argument.
metro-sw> gffp-ctr show <linkIdx>
Usage example:
metro-sw> gffp-ctr show 0
gffp ctrs link: 00
gffp-ctr[0x7050000]: 14df gffp-ctr[0x7050004]: 0 gffp-ctr[0x7050008]: 0 gffp-ctr[0x705000c]: 0 gffp-ctr[0x7050010]: 0 gffp-ctr[0x7050014]: 0 gffp-ctr[0x7050018]: 0 gffp-ctr[0x705001c]: 0 gffp-ctr[0x7050020]: 0 gffp-ctr[0x7050024]: 0 gffp-ctr[0x7050028]: 0 gffp-ctr[0x705002c]: 0 gffp-ctr[0x7050030]: 0 gffp-ctr[0x7050034]: 0 gffp-ctr[0x7050038]: 0 gffp-ctr[0x705003c]: 0 gffp-ctr[0x7050040]: 0 gffp-ctr[0x7050044]: 0 gffp-ctr[0x7050048]: 0 gffp-ctr[0x705004c]: 0 gffp-ctr[0x7050050]: 0 gffp-ctr[0x7050054]: 0 gffp-ctr[0x7050058]: 0 gffp-ctr[0x705005c]: 0 gffp-ctr[0x7050060]: 0 gffp-ctr[0x7050064]: 0 gffp-ctr[0x7050068]: 0 gffp-ctr[0x705006c]: 0 gffp-ctr[0x7050070]: 0 gffp-ctr[0x7050074]: 0 gffp-ctr[0x7050078]: 0 gffp-ctr[0x705007c]: 0
DSS NETWORKS, INC. Version: 1.14g Page: 50
9.1.37 ‘GFFP-CTR’ CLEAR COMMAND
The ‘gffp-ctr clr’ command is used to clear the ffp counters for the specified link. The link index is used as an argument. Note: The ‘gffp-ctr clr’ command issues an implicit ‘gffp-ctr show’ command before clearing the counters.
metro-sw> gffp-ctr clr <linkIdx>
9.1.38 ‘GFFP-PKT’ CLEAR COMMAND
The ‘gffp-pkt clr’ command is used to clear the ffp packet counters for the specified link. The link index is used as an argument. Note: The ‘gffp-pkt clr’ command issues an implicit ‘gffp-pkt show’ command before clearing the counters.
metro-sw> gffp-pkt clr <linkIdx>
9.1.39 ‘GFFP-PKT’ SHOW COMMAND
The ‘gffp-pkt show’ command is used to display the ffp packet counters for a particular link. The link index is used an argument.
metro-sw> gffp-pkt show <linkIdx>
Usage example:
metro-sw> gffp-pkt show 0
gffp pkt ctrs link: 00
gffp-pkt[0x7040000]: 0 gffp-pkt[0x7040004]: 0 gffp-pkt[0x7040008]: 0 gffp-pkt[0x704000c]: 0 gffp-pkt[0x7040010]: 0 gffp-pkt[0x7040014]: 0 gffp-pkt[0x7040018]: 0 gffp-pkt[0x704001c]: 0 gffp-pkt[0x7040020]: 0 gffp-pkt[0x7040024]: 0 gffp-pkt[0x7040028]: 0 gffp-pkt[0x704002c]: 0 gffp-pkt[0x7040030]: 0 gffp-pkt[0x7040034]: 0 gffp-pkt[0x7040038]: 0 gffp-pkt[0x704003c]: 0 gffp-pkt[0x7040040]: 0 gffp-pkt[0x7040044]: 0
DSS NETWORKS, INC. Version: 1.14g Page: 51
gffp-pkt[0x7040048]: 0 gffp-pkt[0x704004c]: 0 gffp-pkt[0x7040050]: 0 gffp-pkt[0x7040054]: 0 gffp-pkt[0x7040058]: 0 gffp-pkt[0x704005c]: 0 gffp-pkt[0x7040060]: 0 gffp-pkt[0x7040064]: 0 gffp-pkt[0x7040068]: 0 gffp-pkt[0x704006c]: 0 gffp-pkt[0x7040070]: 0 gffp-pkt[0x7040074]: 0 gffp-pkt[0x7040078]: 0 gffp-pkt[0x704007c]: 0 gffp-pkt[0x7040080]: 0 gffp-pkt[0x7040084]: 0 gffp-pkt[0x7040088]: 0 gffp-pkt[0x704008c]: 0 gffp-pkt[0x7040090]: 0 gffp-pkt[0x7040094]: 0 gffp-pkt[0x7040098]: 0 gffp-pkt[0x704009c]: 0 gffp-pkt[0x70400a0]: 0 gffp-pkt[0x70400a4]: 0 gffp-pkt[0x70400a8]: 0 gffp-pkt[0x70400ac]: 0 gffp-pkt[0x70400b0]: 0 gffp-pkt[0x70400b4]: 0 gffp-pkt[0x70400b8]: 0 gffp-pkt[0x70400bc]: 0 gffp-pkt[0x70400c0]: 0 gffp-pkt[0x70400c4]: 0 gffp-pkt[0x70400c8]: 0 gffp-pkt[0x70400cc]: 0 gffp-pkt[0x70400d0]: 0 gffp-pkt[0x70400d4]: 0 gffp-pkt[0x70400d8]: 0 gffp-pkt[0x70400dc]: 0 gffp-pkt[0x70400e0]: 0 gffp-pkt[0x70400e4]: 0 gffp-pkt[0x70400e8]: 0 gffp-pkt[0x70400ec]: 0 gffp-pkt[0x70400f0]: 0 gffp-pkt[0x70400f4]: 0 gffp-pkt[0x70400f8]: 0 gffp-pkt[0x70400fc]: 0
9.1.40 MIRROR CONTROL SET COMMAND
The ‘mirctl set’ command is used to modify the port mirroring control register. The command takes either 3 or 4 arguments.
metro-sw> mirctl set <linkIdx> <mtp> <dst_map> <fmt>
<linkIdx> is the link index for which the control register is set.
DSS NETWORKS, INC. Version: 1.14g Page: 52
<mtp> mirror-to-port. This specifies the local port to which the mirrored packets are being sent.
<dst_map> Destination bitmap specifying which ports are mirrored on egress. <fmt> Preserve format. When set, packets that are mirrored will be the same
tagged/untagged format (at the mtp) as the ingress packet. When clear, the format of the mirrored packet is determined by the VLAN. This argument is optional. When omitted it is set implicitly.
Note: To make the settings effective, the configuration has to be saved and the switch has to be reset.
Usage example:
metro-sw> mirctl set 3 0 0xff0
The above command will set the mirror control register for port 3. All incoming packets on port 3 with destination port 11-4 will be mirrored to port 0. The preserve format bit is set implicitly.
9.1.41 MIRROR CONTROL SHOW COMMAND
The ‘mirctl show’ command is used to display the modified values of the port mirror control register.
metro-sw> mirctl show <linkIdx>
Usage example:
metro-sw> mirctl show 3 Mirror Control Register link reg fmt mtp DSTmap 0x03 0x00140ff0 0x1 0x00 1111 1111 0000 [0xff0]
metro-sw> mirctl show all Mirror Control Register link reg fmt mtp DSTmap 0x01 0x0014000c 0x1 0x00 0000 0000 1100 [0x00c] 0x03 0x00140ff0 0x1 0x00 1111 1111 0000 [0xff0] 0x0b 0x000487ff 0x0 0x02 0111 1111 1111 [0x7ff]
reg: 32 bit register value. fmt: Preserve format flag. mtp: Mirror-to-port.
DSS NETWORKS, INC. Version: 1.14g Page: 53
DSTmap: Destination bitmap binary value [hex value]
9.1.42 MIRROR CONTROL REGS COMMAND
The ‘mirctl regs’ command is used to display the actual values of the port mirror control registers currently used by the switch. It has the same output format as the ‘mirctl show’ command.
metro-sw> mirctl regs <linkIdx>
Usage example:
metro-sw> mirctl regs all Mirror Control Register link reg fmt mtp DSTmap
0x00 0x00000000 0x0 0x00 0000 0000 0000 [0x000] 0x01 0x0014000c 0x1 0x00 0000 0000 1100 [0x00c] 0x02 0x00000000 0x0 0x00 0000 0000 0000 [0x000] 0x03 0x00140ff0 0x1 0x00 1111 1111 0000 [0xff0] 0x04 0x00000000 0x0 0x00 0000 0000 0000 [0x000] 0x05 0x00000000 0x0 0x00 0000 0000 0000 [0x000] 0x06 0x00000000 0x0 0x00 0000 0000 0000 [0x000] 0x07 0x00000000 0x0 0x00 0000 0000 0000 [0x000] 0x08 0x00000000 0x0 0x00 0000 0000 0000 [0x000] 0x09 0x00000000 0x0 0x00 0000 0000 0000 [0x000] 0x0a 0x00000000 0x0 0x00 0000 0000 0000 [0x000] 0x0b 0x000487ff 0x0 0x02 0111 1111 1111 [0x7ff]
9.1.43 MIRROR CONTROL CLEAR COMMAND
The ‘mirctl clr’ command clears the mirror control register for the specified link.
metro-sw> mirctl clr <linkIdx>
9.1.44 EGRESS MASK (BLOCK MASK) SET COMMAND
The ‘egrmask set’ command is used to set the per-port egress mask (blocking mask). Each port allows a blocking of packets on egress, specified by the egress mask. A ‘0’ indicates no blocking, a ‘1’ indicates blocking of packets.
metro-sw> egrmask set <linkIdx> <egrMask>
<linkIdx> Link index for which the egress mask is to be set. <egrMask> 12 bit value of egress mask, each bit representing a port. ‘0’ do not block, ‘1’
block (default value is ‘0’).
DSS NETWORKS, INC. Version: 1.14g Page: 54
Usage example:
metro-sw> egrmask set 7 0xffe
Port 7 allows only packets to be forwarded which have destination port 0. All other incoming packets on port 7 are being blocked.
9.1.45 EGRESS MASK (BLOCK MASK) SHOW COMMAND
The ‘egrmask show’ command is used to display the value of the modified per-port egress mask.
metro-sw> egrmask show <linkIdx>
Usage example:
metro-sw> egrmask show 7 link egress mask 0x07 1111 1111 1110 [0xffe]
9.1.44 EGRESS MASK (BLOCK MASK) REGS COMMAND
The ‘egrmask regs’ command is used to display the value of the actual per-port egress mask currently used by the switch.
metro-sw> egrmask regs <linkIdx>
Usage example:
metro-sw> egrmask regs 7 link egress mask 0x07 1111 1111 1110 [0xffe]
9.1.45 EGRESS MASK (BLOCK MASK) CLEAR COMMAND
The ‘egrmask clr’ command clears the egress mask for the specified link.
metro-sw> egrmask clr <linkIdx>
DSS NETWORKS, INC. Version: 1.14g Page: 55
9.2 TEST METHODS
There are several ways to test the Metro-Switch using methods to stimulate network traffic through the switch. This section provides suggestions on how you may test and verify your installation. Before you can proceed with any of the suggested tests, you must have previously configured your TCP/IP protocols and interfaces on your computers or external test equipment. Please refer to your online help and User Manuals for your particular system on instructions on setting up your TCP/IP environment.
ICMP Ping. Ping is a simple verification method and it very useful for verification of
cabling, switch and system configuration of the TCP/IP protocol software. You can also specify a “fast ping” and larger message sizes in order to more effectively test the protocols and switch capabilities.
FTP File Transfer. FTP is also an available method for testing your installation. FTP
allows you to test by transferring files of different sizes. Using large file transfers is a good way to test medium transfer rates through the switching system.
HTTP Web Browsing. Web browsing is a good means of testing the protocols and
switching through the system.
Telnet. Using Telnet you can log into another system and invoke commands to send
a receive data exercising interface and protocol functions in the switch. You can also test multiple connections within a single terminal window by repetitively Telnet’ing back and forth between multiple systems.
Windows Explorer. In a Windows environment, you can also use the Windows
explorer to access files on other systems within your Workgroup or Domain.
Blaster / blastee can be used to perform TCP throughput tests between VxWorks,
Linux and Windows platforms through the Metro-Switch. These test programs are included on the OEM developer CD.
Internal loopback: Switch ports may be put into internal loopback to perform testing
functions.
DSS NETWORKS, INC. Version: 1.14g Page: 56
10. ON BOARD FIRMWARE
10.1 INTRODUCTION
The Metro-Switch has an onboard 16-bit RISC microcontroller and uses the Motorola DSP56F826 hybrid DSP/microcontroller for onboard management functions. The DSP56F826 is useful for a local switch management processor because it contains more features than found in conventional microcontrollers. It has a 16-bit bus interface unit suitable for external devices including SRAM and also has a JTAG interface suitable for use with a JTAG debugger.
The microcontroller switch management processor contains the following features:
80 MHZ operation 40 MIPS 16-bit external bus interface unit I2C communications to BCM5690 switch at 100KHZ (12 Kbytes/sec) 128K words (256KB) of SRAM for code and data 16K bytes of EEPROM for switch configuration JTAG port connected to 14-pin onboard header 3 general purpose LEDS (used for run-state) RS232 serial port connected to onboard RJ-11
The microcontroller interfaces to the Broadcom BCM5690 switch via the I2C interface. This interface runs at 100KHZ and provides a register read/write access with a bandwidth of 100Kb (12KB/sec).
The microcontroller also controls each of the four Broadcom BCM5464SR quad-port transceivers by accessing them via the “MI” interface by going indirectly through the switch.
The microcontroller interfaces to the 128 KB general purpose non-volatile storage EEPROM via the I2C interface and interfaces to the 128KB SRAM via the 16-bit external bus interface. There is also a serial RS232 com port for the CLI command line interface and 3-LEDS are also accessible and controlled from the microcontroller.
DSS NETWORKS, INC. Version: 1.14g Page: 57
10.2 BLOCK DIAGRAM
Fiber transceivers
COM port
JTAG
56F826
MI-interface
128K EEPROM
Quad-PHY
Quad-PHY
Quad-PHY
J5
J3
BCM5690
switch
I2C bus
RUN LED
128K-SRAM
PCI I/F
Switch data path block diagram
DSS NETWORKS, INC. Version: 1.14g Page: 58
J1
10.3 FIRMWARE DEVELOPMENT ENVIRONMENT
The development environment uses the Metrowerks IDE 5.1 in conjunction with the Motorola Embedded SDK version 3.0. The Metrowerks development environment provides a complete project-based facility and includes everything needed to develop, compile, link, download and debug firmware for the 56F826 via the JTAG port with “one­click” operation from compile to JTAG debug.
Metrowerks CodeWarrior IDE for Motorola 56800/56800E version 5.1 (current version
5.2.1177)
Develop code using IDE or other editor Compile code using project facility Link code using project facility Download code from IDE onto board using JTAG interface Begin execution and debug using integrated debugger.
DSS NETWORKS, INC. Version: 1.14g Page: 59
11. SPECIFICATIONS
Distance (copper): Recommended maximum distance is 328 feet (100 meters).
Backplane I/O: 12-ports routed to “J3” and “J5” Compact PCI connectors as per
PICMG 2.16 specification (RJ3 and RJ5 on rear I/O backplane). NOTE: All J3 and J5 (RJ3, RJ5) pins must be fully PICMG 2.16 compliant or Passive or
electrical short circuit could occur.
Connectors (Rear I/O module):
10/100/1000 Base T connector type: RJ-45 (CAT5 specification)
Cable type (copper): CAT5, CAT5e or CAT6 Connector (Fiber, 1000 Base SX multimode):
LC type connector for 850nm VCSEL laser over 50 and 62.5 micron fiber
Connector (Fiber, 1000 Base LX singlemode):
LC type connector for 1310nm VCSEL laser over 9/125 micron fiber
Port Status Indicators: Link, Transmit, Receive and Signal Quality Microcontroller Status Indicators: RUN, LINK STATUS, ERROR indicators Bus Interface: PCI v2.2 bus master, 32-bit, 33/66 MHz Dimensions: Compact PCI 6U, 9.187 (H) X 6.300 (W) PCI Power supply voltage: 5V power rail from CPCI J1 connector PCI signaling voltage: 5V and 3.3V (5V tolerant) Performance Throughput: 24 Gbps (full-duplex) sustained Maximum frame rate: Up to 32 million frames per second total aggregate switching
rate (non-blocking) Other: Jumbo packets, 802.3x full duplex flow control with
automatic pause and priority with multiple priority queues
DSS NETWORKS, INC. Version: 1.14g Page: 60
Voltage: Uses single 5V from CPCI connector “J1” Power Rail Power: Uses single 5V supply from Compact PCI connector,
(onboard 3.3V, 2.5V and 1.2V regulators)
Power consumption: 18W total board power Conformal Coating:
Conformal coating is available as custom order option and typically based on customer’s requirements and reference specifications.
MTBF: 200,000 hours SAFETY: PCB manufactured with UL flammability rating of 94V-0
DSS NETWORKS, INC. Version: 1.14g Page: 61
11.1 ENVIRONMENTAL SPECIFICATIONS
Rugged Class
C1
R1
R2
Grade
Commercial
Rugged, Forced Air
Rugged, Forced Air
Operating Temp.
0ºC to +65ºC 250 linear ft/minute air flow
Storage:
-55ºC
-20ºC to +75ºC 500 linear ft/minute air flow
Storage:
-55ºC
-40ºC to +85ºC 500 linear ft/minute air flow
Storage:
-55ºC
Vibration Shock Humidity
5Hz-2000Hz at 2g,
0.38mm peak displacement (operating)
5Hz-2000Hz at 5g,
0.76mm peak displacement (non­operating
5Hz-2000Hz at 2g,
0.38mm peak displacement (operating)
5Hz-2000Hz at 5g,
0.76mm peak displacement (non­operating
5Hz-2000Hz at 2g,
0.38mm peak displacement (operating)
5Hz-2000Hz at 5g,
0.76mm peak displacement (non­operating
20g, 11ms, ½ sine (operating);
30g, 11ms, ½ sine (non­operating)
20g, 11ms, ½ sine (operating);
30g, 11ms, ½ sine (non­operating)
20g, 11ms, ½ sine (operating);
30g, 11ms, ½ sine (non­operating)
Operating: Up to 90% Non­Condensing
Operating: Up to 95% Non­Condensing
Operating: Up to 95% Non­Condensing
Conformal Coated
No
Yes
Yes
DSS NETWORKS, INC. Version: 1.14g Page: 62
Environmental Standards Compliance (pending):
FCC Part 15, Class B EN 55022; 1998 Class B EN 50082-1 CE Mark
DSS NETWORKS, INC. Version: 1.14g Page: 63
11.2 MECHANICAL SPECIFICATIONS
6U form-factor: 9.187 inches x 6.3 inches (233mm x 160mm)
Single-slot-width: 0.8inches (20.3mm)
 
Connectors: IEC-1076-4-101 type for J1-J5
11.3 INDUSTRY STANDARDS COMPLIANCE
PICMG 2.0 R3.0 Compact PCI compliant (6U form factor) PICMG specifications: 2.16 R1.0 Packet Switching Backplane (PSB) complaint
fabric board (occupies one fabric slot per board, up to two per chassis)
PICMG 2.9 R1.0 IPMI support PICMG 2.1 R2.0 hot-swap (basic hot-swap hardware connection layer) IEEE specifications: 802.3-2002, 802,1D, 802.1Q, 802.3x, 802.3z Spanning tree: IEEE 802.1D (STP), 802.1s (MSTP), 802.1w (RSTP) RMON, SNMP and Ethernet MIB statistics, RFCs 1213, 1493, 1573, 1757, 2358 and
IEEE 802.3 Ethernet MIB
12 ports 1000 Base T routed to backplane Two onboard 850nm multimode fiber LC connectors (1000 Base SX) via front panel
interface
Optional support for two 1310nm singlemode fiber LC connectors (1000 Base LX) 10-Gigabit Ethernet fiber uplink (extended model)
11.4 SNMP SUPPORT MIB COUNTERS
The switch provides many counters to support system management capabilities. Each port has over 70 counters. Counters are provided to support the following SNMP MIBs:
o RMON Statistics Group (RFC 1757) o SNMP Interface Group (RFC 1213 and 1573) o Ethernet-like MIB (RFC 2358) o Bridge MIB (RFC 1493)
DSS NETWORKS, INC. Version: 1.14g Page: 64
o Ethernet MIB (RFC 802.3)
11.5 PERFORMANCE AND CAPABILITIES
Full Duplex:
Support for 10/100/1000 Base T on all copper models, auto-negotiating 1000 Base X on fiber ports, auto negotiating
Virtual Network: Virtual LAN (VLAN) tag support Line speed: multi-layer switching on all 12-ports Performance category: 32 million packets-per-second/24Gb line rate switching L2 table: 16384-entry ARL MAC address table, automatic learning L3 Table: Integrated 4096-entry IPv4 host table Port trunking and mirroring: (32 trunk groups with link aggregation) Memory: Integrated 1MB packet memory Protocol support:
Rapid spanning tree protocol support VLAN 802.1D, 802.1Q support (4096 VLANS, 8 Classes of service per port) IP multicasting
Traffic control:
Packet classification and L2-L7 filtering Traffic metering/shaping
Flow control: Advanced flow-control and head-of-line blocking prevention, packet aging, storm control
Filtering: Advanced fast filter processor and rules-based matching Jumbo Frames: Supports jumbo frames to 9K
DSS NETWORKS, INC. Version: 1.14g Page: 65
11.6 MANAGEMENT FEATURES
Can be operated in simple (lightly) managed or unmanaged mode Simple managed switch operation with serial port CLI console management
interface
External management mode via PCI bus interface and external processor Onboard management provided by microprocessor and firmware Management functions for all onboard devices including Broadcom BCM5690 switch
and BCM5464SR transceivers
Configuration, status, statistics, diagnostics and healthy status
DSS NETWORKS, INC. Version: 1.14g Page: 66
11.7 HARDWARE SPECIFICATIONS
Broadcom BCM5690/5695 12-port non-blocking multi-layer switch fabric network
processor
Broadcom BCL6464SR 4-port gigabit transceivers with Serdes Motorola DSP56F826 management processor, 80 MHZ PIGMG 2.1 R1.0 hot-swap support for hardware connection layer IPMI management interface 32-bit, 66 MHZ PCI bus interface Serial I2C EEPROM for configuration parameters, up to 128K X 8 2X onboard 850nm multimode fiber LC connectors for 1000 base SX 2X 1310nm singlemode fiber LC connectors for 1000 base LX (optional) 4 multi-function LEDS per port, 3 CPU controlled multi-function LEDS via front
panel
12-port rear I/O module with ganged CAT5 RJ-45 connectors RJ-11 serial port console connector via front panel
DSS NETWORKS, INC. Version: 1.14g Page: 67
12. WARRANTEE AND SUPPORT INFO
Technical Support and Warranty:
Telephone technical support (8AM to 6PM, MST), 24-hour support via web email 1 year product warranty on controller hardware (subject to Standard Warrantee Policy and Purchase Terms and Conditions).
Contacting Us
You may contact DSS Networks in one of several ways: via the Web, e-mail, fax or telephone.
Sales and Technical Support
Send all technical support queries to support@dssnetworks.com or visit the DSS Networks website at www.dssnetworks.com. The website contains product, technical and sales information.
Sales and Technical Support-Worldwide
+1.949.716.9051
Sales and Technical Support-Fax
+1.949.716.9052
Main Corporate Telephone Numbers
949-716-9051
DSS NETWORKS, INC. Version: 1.14g Page: 68
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
