Drolet Spark DB03400 Installation And Operation Manual

Download

Installation and Operation Manual

SPARK (DB03400)

US ENVIRONMENTAL PROTECTION

AGENCY PHASE II CERTIFIED

WOOD STOVE

Safety tested according to ULC S627, UL 737

and UL 1482 Standards

by an accredited laboratory

250, rue de Copenhague, St-Augustin-de-Desmaures

After-sale service: 418-908-8002 E-mail: tech@sbi-international.com

This manual is available for free download on the manufacturer’s web site. It is a copyrighted document. Re-sale is strictly prohibited. The manufacturer may update this manual from time to time and cannot be responsible for problems, injuries, or damages arising out of the use of information contained in any manual obtained from unauthorized sources.

READ AND KEEP THIS MANUAL FOR REFERENCE

45840A Printed in Canada 03-05-2016

www.drolet.ca

Stove Builder International Inc.

(Quebec) Canada G3A 2H3

Spark Installation and Operation Manual

THANK YOU FOR CHOOSING THIS DROLET WOOD STOVE

As one of North America’s largest and most respected wood stove and fireplace manufacturers, Stove Builder International takes pride in the quality and performance of all its products. We want to help you get maximum satisfaction as you use this product.

In the pages that follow you will find general advice on wood heating, detailed instructions for safe and effective installation, and guidance on how to get the best performance from this stove as you build and maintain fires, and maintain your wood heating system.

We recommend that our wood burning hearth products be installed and serviced by professionals who are certified in the United States by NFI (National Fireplace Institute®) or in Canada by WETT (Wood Energy Technology Transfer) or in Quebec by APC (Association des Professionnels du Chauffage).

Congratulations on making a wise purchase.

When this stove is not properly installed, a house fire may result. To reduce the risk of fire, follow the installation instructions. Contact local building or fire officials about restrictions and installation inspection requirements in your area.

Please read this entire manual before you install and use your new stove. Failure to follow instructions may result in property damage, bodily injury, or even death. It is important that you follow the installations guidelines exactly.

You may need to obtain a building permit for the installation of this stove and the chimney that it is connected to. Consult your municipal building department or fire department before installation to determine the need to obtain one. We recommend that you also inform your home insurance company to find out if the installation will affect your policy.

To receive full warranty coverage, you will need to show

evidence of the date you purchased your stove. Keep your sales

invoice. We also recommend that you register your warranty

online at:

http://www.drolet.ca/en/service-support/warranty-registration

Registering your warranty online will help us to quickly track the

information we need about your stove.

Spark Installation and Operation Manual

Table of content

PART A - OPERATION AND MAINTENANCE ............................... 6

1 Safety Information ..................................................................... 6

1.1

Summary of Operation and Maintenance Cautions and Warnings ......................... 6

2 General information on Spark (DB03400) ................................ 7

2.1

Appliance performance

2.2

General Features ................................................................................................... 8

2.3

Zone Heating and How to Make it Work for You .................................................... 9

2.4

The Benefits of Low Emissions and High Efficiency ............................................. 10

2.5

The SBI Commitment to You and the Environment .............................................. 10

2.5.1 What is Your New Stove Made Of? .................................................................. 10

(1)

....................................................................................... 7

3 Fuel ............................................................................................ 11

3.1

Materials That Should Not be Burned .................................................................. 11

3.2

How to Prepare or Buy Good Firewood ............................................................... 11

3.2.1 What is Good Firewood? .................................................................................. 11

3.2.2 Tree Species ..................................................................................................... 11

3.2.3 Log Length ........................................................................................................ 12

3.2.4 Piece Size ......................................................................................................... 12

3.2.5 How to Dry Firewood ........................................................................................ 13

3.2.6 Judging Firewood Moisture Content ................................................................. 14

3.3

Manufactured Logs .............................................................................................. 14

4 Operating Your Stove .............................................................. 15

4.1

The use of a fire screen ....................................................................................... 15

4.2

Your First Fires ..................................................................................................... 15

4.3

Lighting Fires ........................................................................................................ 15

4.3.1 Conventional Fire Starting ................................................................................ 16

4.3.2 The Top Down Fire ........................................................................................... 16

4.3.3 Two Parallel Logs ............................................................................................. 17

4.3.4 Using Fire Starters ............................................................................................ 17

4.4

Maintaining Wood Fires ....................................................................................... 17

4.4.1 General Advice ................................................................................................. 17

4.4.2 Ash Removal..................................................................................................... 18

4.4.3 Raking Charcoal ............................................................................................... 18

4.4.4 Firing Each New Load Hot ................................................................................ 18

4.4.5 Turning Down the Air Supply ............................................................................ 19

4.4.6 Building Different Fires for Different Needs ....................................................... 19

Spark Installation and Operation Manual

5 Maintaining Your Wood Heating System ............................... 22

5.1

Stove Maintenance .............................................................................................. 22

5.1.1 Plated Finish Maintenance ................................................................................ 22

5.1.2 Cleaning Door Glass ......................................................................................... 22

5.1.3 Door adjustment ................................................................................................ 23

5.1.4 Replacing the Door Gasket ............................................................................... 23

5.1.5 Replacing the Glass Gasket and/or the Glass .................................................. 24

5.1.6 Cleaning and Painting the Stove ....................................................................... 25

5.2

Chimney and Chimney Connector Maintenance .................................................. 25

5.2.1 Why Chimney Cleaning is Necessary ............................................................... 25

5.2.2 How Often Should You Clean the Chimney? .................................................... 25

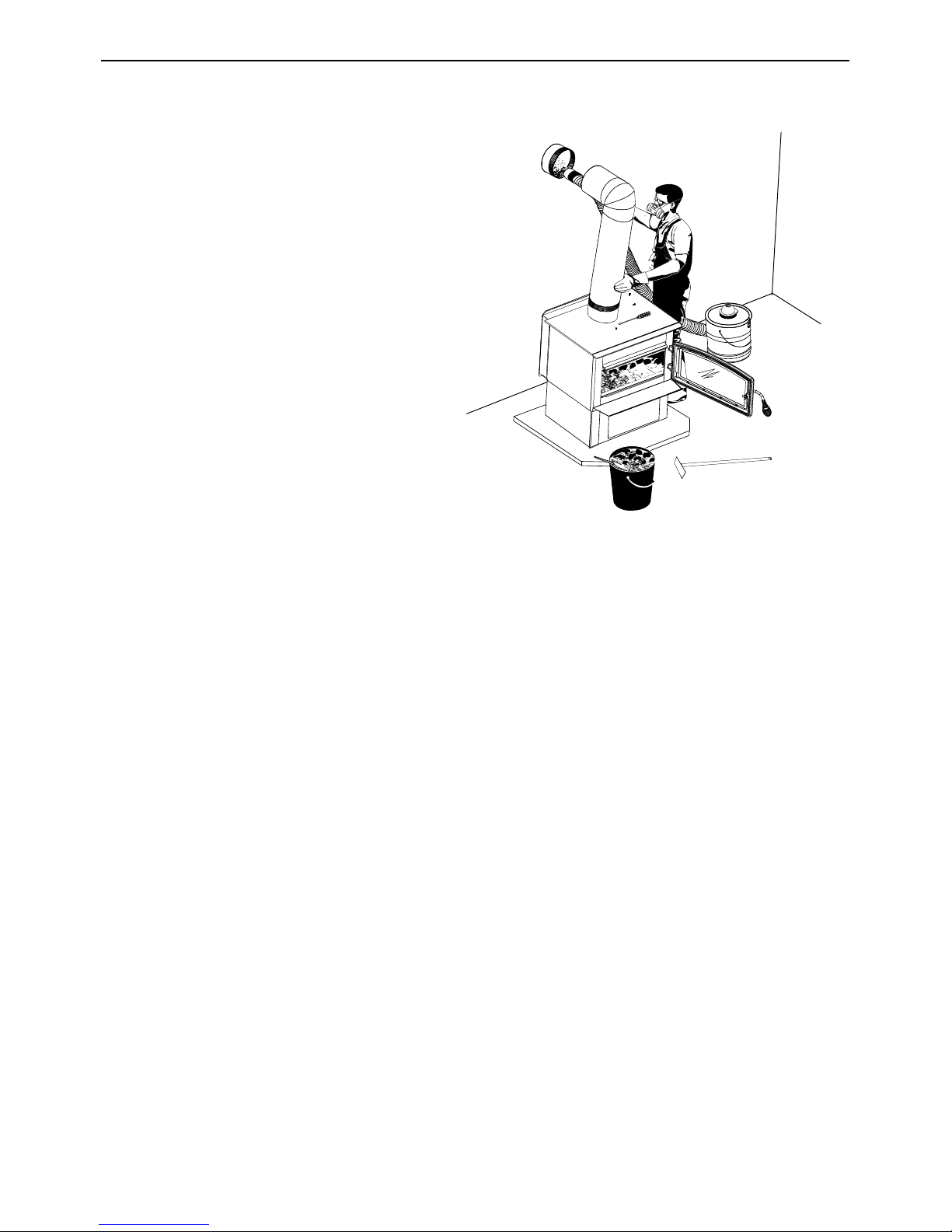

5.2.3 Cleaning the Chimney ....................................................................................... 26

PART B - INSTALLATION ............................................................. 27

6 Safety Information ................................................................... 27

6.1

Summary of Installation Cautions and Warnings .................................................. 27

6.2

Regulations Covering Stove Installation ............................................................... 27

7 Assembly of the unit................................................................ 28

8 Clearances to Combustible Material ...................................... 34

8.1

Location of the certification label .......................................................................... 34

8.2

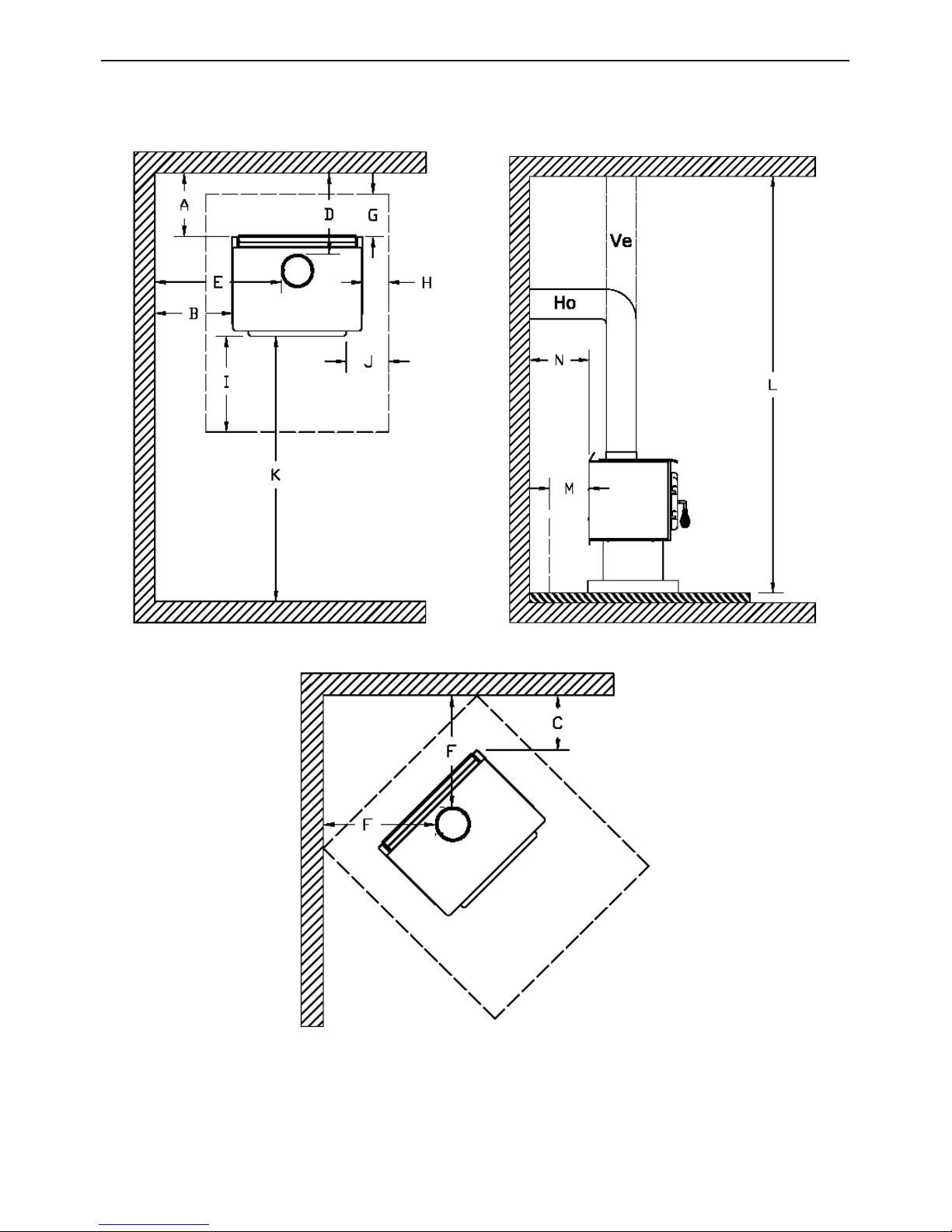

Clearances to Walls and Ceiling .......................................................................... 35

8.3

Floor protector ...................................................................................................... 38

8.4

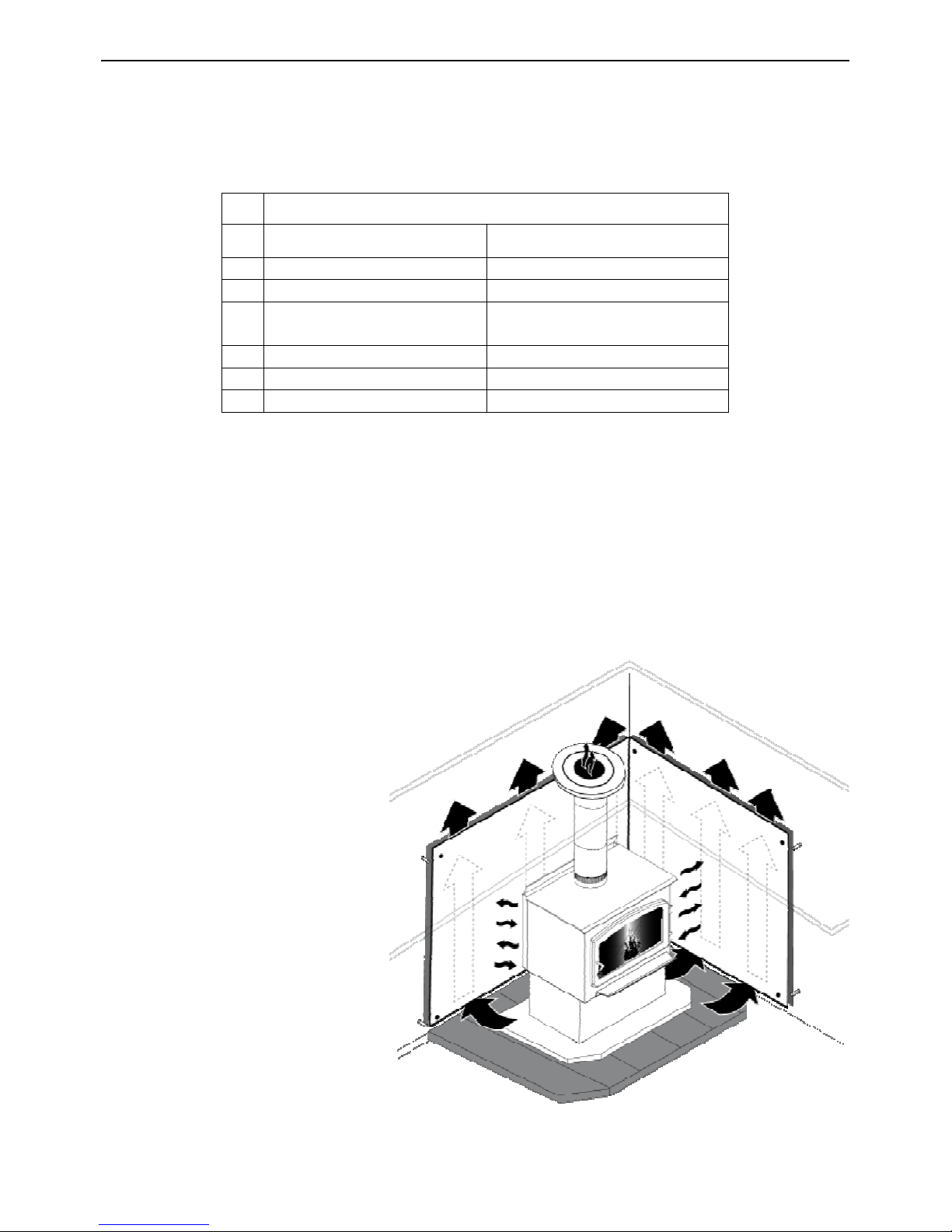

Reducing Wall and Ceiling Clearances Safely ..................................................... 38

8.4.1 Shield Construction Rules ................................................................................. 39

8.4.2 Table of Clearance Reduction Percentages ..................................................... 41

9 The Venting System ................................................................. 42

9.1

General ................................................................................................................ 42

9.2

Suitable Chimneys ............................................................................................... 42

9.2.1 Factory-built Metal Chimneys............................................................................ 42

9.2.2 Masonry Chimneys ........................................................................................... 43

9.3

Minimum Chimney Height .................................................................................... 43

9.4

The Relationship Between the Chimney and the House ...................................... 44

9.4.1 Why inside chimneys are preferred ................................................................... 44

9.4.2 Why the chimney should penetrate the highest heated space .......................... 45

9.5

Supply of Combustion Air ..................................................................................... 45

9.5.1 Air Supply in Conventional Houses ................................................................... 45

9.6

Installing the Chimney Connector ........................................................................ 46

9.6.1 Installation of Single Wall Chimney Connector ................................................. 47

Spark Installation and Operation Manual

Appendix 1: Installing the Fresh Air Kit (AC01331) ................... 49

Appendix 2: Installing the Fire Screen (AC01318) ..................... 50

Appendix 3: Installation and Use of the Optional Blower

(AC02050), and Use of Thermodisc (AC05530, AC02055)......... 51

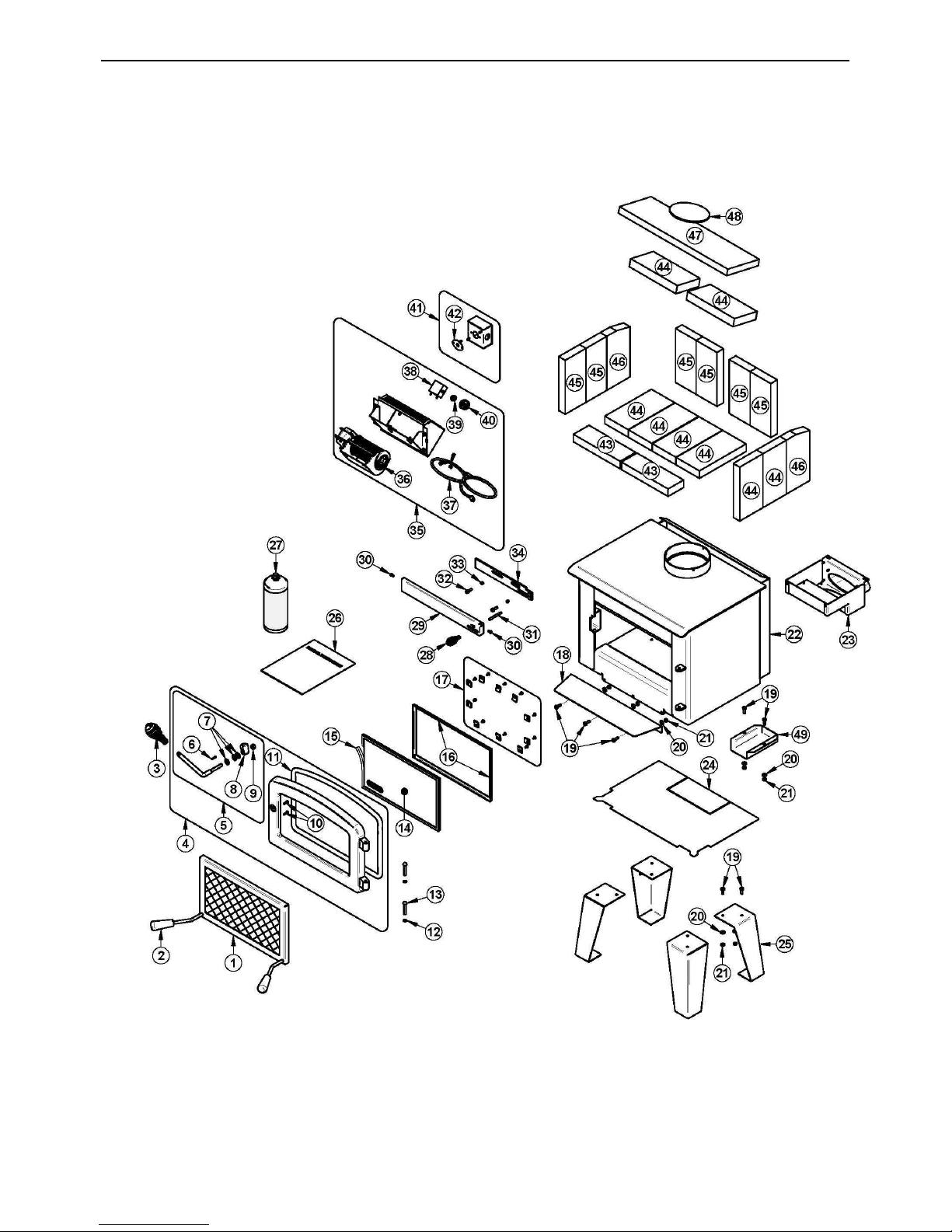

Appendix 4: Exploded Diagram and Parts List .......................... 53

DROLET LIMITED LIFETIME WARRANTY .................................. 56

Spark Installation and Operation Manual

PART A - OPERATION AND MAINTENANCE

Please see Part B for installation instructions.

1 Safety Information

1.1 Summary of Operation and Maintenance Cautions and Warnings

•

HOT WHILE IN OPERATION, KEEP CHILDREN, CLOTHING AND FURNITURE AWAY. CONTACT MAY CAUSE SKIN BURNS. GLOVES MAY BE NEEDED FOR STOVE OPERATION.

•

USING A STOVE WITH CRACKED OR BROKEN COMPONENTS, SUCH AS GLASS OR FIREBRICKS OR BAFFLES MAY PRODUCE AN UNSAFE CONDITION AND MAY DAMAGE THE STOVE.

•

OPEN THE AIR CONTROL FULLY BEFORE OPENING FIRING DOOR.

•

OPERATE ONLY WITH DOOR FULLY CLOSED OR FULLY OPEN WITH FIRE SCREEN IN PLACE. IF DOOR IS LEFT PARTLY OPEN, GAS AND FLAME MAY BE DRAWN OUT OF THE OPENING, CREATING RISKS FROM BOTH FIRE AND SMOKE.

•

THIS STOVE HAS BEEN TESTED FOR USE WITH AN OPEN DOOR IN CONJUNCTION WITH A FIRE SCREEN (AC01318, SOLD SEPARATELY). THE DOOR MAY BE OPEN OR FIRE SCREEN REMOVED ONLY DURING LIGHTING PROCEDURES OR RELOADING. ALWAYS CLOSE THE DOOR OR PUT BACK THE FIRE SCREEN AFTER IGNITION. DO NOT LEAVE THE STOVE UNATTENDED WHEN THE DOOR IS OPENED WITH OR WITHOUT FIRE SCREEN.

•

NEVER USE GASOLINE, GASOLINE-TYPE LANTERN FUEL (NAPHTHA), FUEL OIL, MOTOR OIL, KEROSENE, CHARCOAL LIGHTER FLUID, OR SIMILAR LIQUIDS OR AEROSOLS TO START OR ‘FRESHEN UP’ A FIRE IN THIS STOVE. KEEP ALL SUCH LIQUIDS OR AEROSOLS WELL AWAY FROM THE STOVE WHILE IT IS IN USE.

•

DO NOT STORE FUEL WITHIN HEATER MINIMUM INSTALLATION CLEARANCES.

•

BURN ONLY SEASONED NATURAL FIREWOOD.

•

DO NOT BURN:

o GARBAGE OF ANY KIND, o COAL OR CHARCOAL, o TREATED, PAINTED OR COATED WOOD, o PLYWOOD OR PARTICLE BOARD, o FINE PAPER, COLORED PAPER OR CARDBOARD, o SALT WATER DRIFTWOOD, OR o RAILROAD TIES.

•

DO NOT ELEVATE THE FIRE BY USING A GRATE IN THIS STOVE.

•

THIS APPLIANCE SHOULD BE MAINTAINED AND OPERATED AT ALL TIMES IN ACCORDANCE WITH THESE INSTRUCTIONS.

Spark Installation and Operation Manual

(3)

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

2 General information on Spark (DB03400)

2.1 Appliance performance

(1)

Fuel type Dry cordwood Recommended heating area

[*]

250 to 1,000 ft2 (23 to 93 m2) Firebox volume 1.3 ft3 (0.037 m3) Maximum burn time

[*]

5 h Maximum heat output (dry cordwood) 40,000 BTU/h (11.7 kW) Overall heat output rate (min. to max.)

Average overall efficiency

- EPA Cribs / Douglas

Fir Average overall efficiency

Optimum efficiency

(3)

- Dry cordwood To come % (HHV

(2)(6)

78.2% Average particulate emissions rate Average CO

[*]

Recommended heating area and maximum burn time may vary subject to location in home, chimney draft, heat loss

factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.

Values are as measured per test method, except for the recommended heating area, firebox volume, maximum burn

time and maximum heat output.

Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19%

and 25%. As measured per CSA B415.1-10 stack loss method. Higher Heating Value of the fuel. Lower Heating Value of the fuel. Optimum overall efficiency at a specific burn rate (LHV). This appliance is officially tested and certified by an independent agency. Carbon monoxide.

(8)

130.5 g/h

(2)(3)

10,800 BTU/h to 22,600 BTU/h (3.2 kW to 6.6 kW)

68.0% (HHV

(7)

4.0 g/h (EPA / CSA B415.1-10)

(4)

) 73.5% (LHV

(4)

) To come % (LHV

(5)

)

(5)

)

Spark Installation and Operation Manual

‡

2.2 General Features

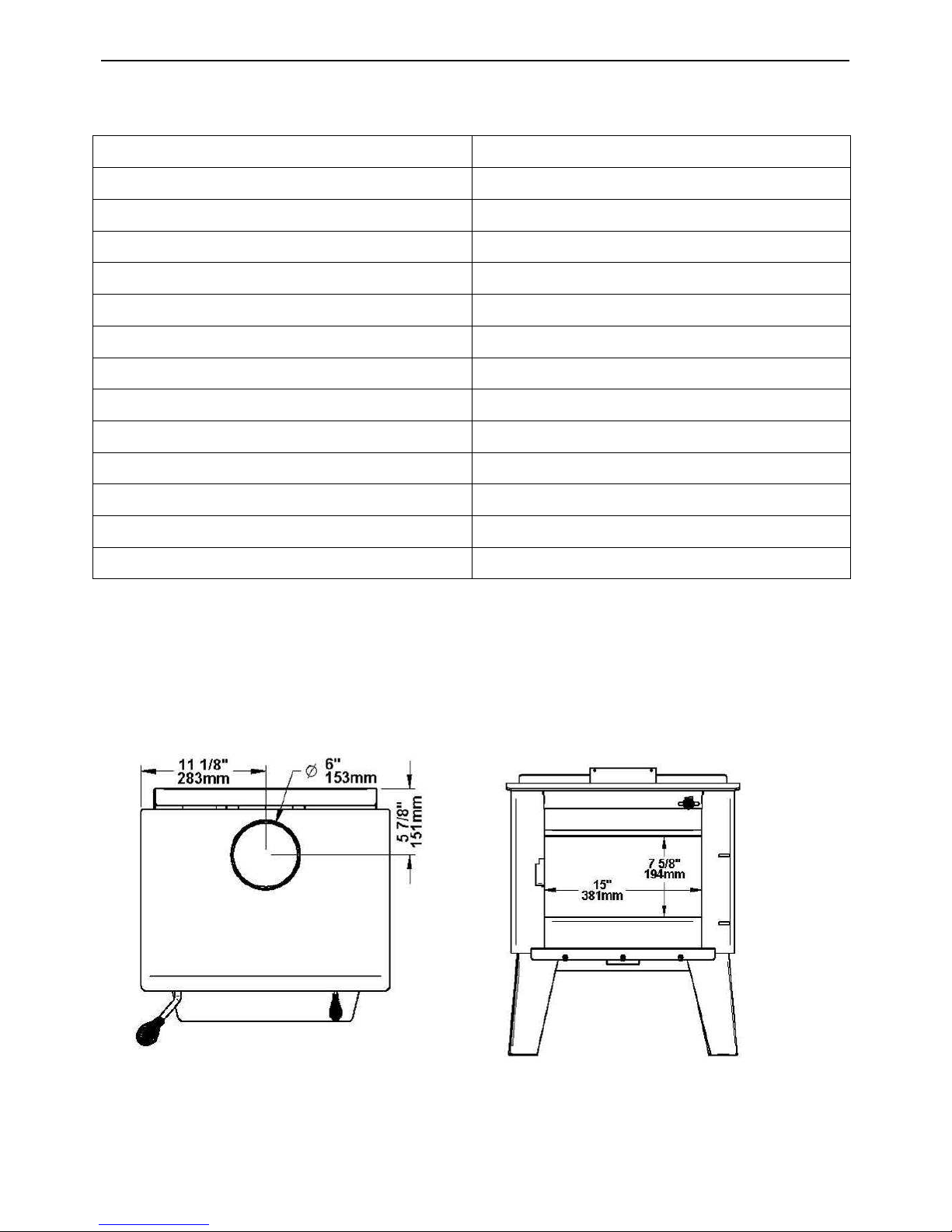

Maximum log length 17 in (432 mm) east-west* Flue outlet diameter 6 in (150 mm) Recommended connector pipe diameter 6 in (150 mm) Type of chimney Listed to ULC S629 or UL 103 HT (2100 °F) Baffle material Stainless steel Approved for alcove installation Yes Approved for mobile home installation‡ Not approved Shipping weight (without option) 215 lb (80 kg) Type of door Single, glass with cast iron frame Type of glass Ceramic glass Blower Optional (up to 100 CFM) Particulate emission standard EPA / CSA B415.1-10 USA standard (safety) UL 1482, UL 737 Canadian standard (safety) ULC S627

East-west: through the door you see the longitudinal sides of the logs; north-south: through the door you see the tips

of the logs.

Mobile home (Canada) or manufactured home (USA): The US department of Housing and Urban Development

describes “manufactured homes” better known as “mobile homes” as followed; buildings built on fixed wheels and those transported on temporary wheels/axles and set on a permanent foundation. In Canada, a mobile home is a dwelling for which the manufacture and assembly of each component is completed or substantially completed prior to being moved to a site for installation on a foundation and connection to service facilities and which conforms to the CAN/CSA-Z240 MH standard

Spark Installation and Operation Manual

2.3 Zone Heating and How to Make it Work for You

Your new Spark wood stove is a space heater, which means it is intended to heat the area it is installed in, as well as spaces that connect to that area, although to a lower temperature. This is called zone heating and it is an increasingly popular way to heat homes or spaces within homes.

Spark Installation and Operation Manual

Zone heating can be used to supplement another heating system by heating a particular space within a home, such as a basement family room or an addition that lacks another heat source.

Although the stove may be able to heat the main living areas of your house to an adequate temperature, we strongly recommend that you also have a conventional oil, gas or electric heating system to provide backup heating.

Your success with zone heating will depend on several factors, including the correct sizing and location of the stove, the size, layout and age of your home and your climate zone. Three-season vacation homes can usually be heated with smaller stoves than houses that are heated all winter.

2.4 The Benefits of Low Emissions and High Efficiency

The low smoke emissions produced by the special features inside the Spark firebox mean that your household will release up to 90 percent less smoke into the outside environment than if you used an older conventional stove. But there is more to the emission control technologies than protecting the environment.

The smoke released from wood when it is heated contains about half of the energy content of the fuel. By burning the wood completely, your stove releases all the heat energy from the wood instead of wasting it as smoke up the chimney. Also, the features inside the firebox allow you to reduce the air supply to control heat output, while maintaining clean and efficient flaming combustion, which boosts the efficient delivery of heat to your home.

The emission control and advanced combustion features of your stove can only work properly if your fuel is in the correct moisture content range of 15 to 20 percent. See Section 3: Fuel of this manual for suggestions on preparing fuelwood and judging its moisture.

2.5 The SBI Commitment to You and the Environment

The SBI team are committed to protecting the environment, so we do everything we can to use only materials in our products that will have no lasting negative impact on the environment.

2.5.1 What is Your New Stove Made Of?

The body of your stove, which is most of its weight, is carbon steel. Should it ever become necessary many years in the future, almost the entire stove can be recycled into new products, thus eliminating the need to mine new materials.

The paint coat on your stove is very thin. Its VOC content (Volatile Organic Components) is very low. VOCs can be responsible for smog, so all the paint used during the manufacturing process meets the latest air quality requirements with regards to VOC reduction or elimination.

Lightweight firebrick is made of pumice and cement. Pumice is in fact volcanic rock, a naturally green product found in the Northwest United States. Disposal at a landfill is recommended.

The door and glass gaskets are fibreglass which is spun from melted sand. Black gaskets have been dipped into a solvent-free solution. Disposal at a landfill is recommended.

The door glass is a 5 mm thick ceramic material that contains no toxic chemicals. It is basically made of raw earth materials such as sand and quartz that are combined in such a way to form a glass at high temperatures. Ceramic glass will not re-melt in the same way as normal glass, so it should not be recycled with your regular household products. Disposal at a landfill is recommended.

Spark Installation and Operation Manual

3 Fuel

3.1 Materials That Should Not be Burned

•

GARBAGE OF ANY KIND,

•

COAL OR CHARCOAL,

•

TREATED, PAINTED OR COATED WOOD,

•

PLYWOOD OR PARTICLE BOARD,

•

FINE PAPER, COLORED PAPER OR CARDBOARD,

•

SALT WATER DRIFTWOOD,

•

MANUFACTURED LOGS CONTAINING WAX OR CHEMICAL ADDITIVES,

•

RAILROAD TIES,

•

LIQUIDS SUCH AS KEROSCENE OR DIESEL FUEL TO START A FIRE.

3.2 How to Prepare or Buy Good Firewood

3.2.1 What is Good Firewood?

Good firewood has been cut to the correct length for the stove, split to a range of sizes and stacked in the open until its moisture content is reduced to 15 to 20 per cent.

3.2.2 Tree Species

The tree species the firewood is produced from is less important than its moisture content. The main difference in firewood from various tree species is the density of the wood. Hardwoods are denser than softwoods. People who live in the coldest regions of North America usually have only spruce, birch and poplar, other low-density species to burn and yet they can heat their homes successfully.

Homeowners with access to both hardwood and softwood fuel sometimes use both types for different purposes. For example, softer woods make good fuel for relatively mild weather in spring and fall because they light quickly and produce less heat Softwoods are not as dense as hardwoods so a given volume of wood contains less energy. Using softwoods avoids overheating the house, which can be a common problem with wood heating in moderate weather. Harder woods are best for colder winter weather when more heat and longer burn cycles are desirable.

Note that hardwood trees like oak, maple, ash and beech are slower growing and longer lived than softer woods like poplar and birch. That makes hardwood trees more valuable. The advice that only hardwoods are good to burn is outdated. Old, leaky cast iron stoves wouldn’t hold a fire overnight unless they were fed large pieces of hardwood. That is no longer true. You can successfully heat your home by using the less desirable tree species and give the forest a break at the same time.

Spark Installation and Operation Manual

3.2.3 Log Length

Logs should be cut about 1” (25 mm) shorter than the firebox so they fit in easily. Pieces that are even slightly too long make loading the stove very difficult. The most common standard length of firewood is 16” (400 mm).

The pieces should be a consistent length, with a maximum of 1” (25 mm) variation from piece to piece.

3.2.4 Piece Size

Firewood dries more quickly when it is split. Large unsplit rounds can take years to dry enough to burn. Even when dried, unsplit logs are difficult to ignite because they don’t have the sharp edges where the flames first catch. Logs as small as 3” (75 mm) should be split to encourage drying.

Wood should be split to a range of sizes, from about 3” to 6” (75 mm to 150 mm) in cross section. Having a range of sizes makes starting and rekindling fires much easier. Often, the firewood purchased from commercial suppliers is not split finely enough for convenient stoking. It is sometimes advisable to resplit the wood before stacking to dry.

Spark Installation and Operation Manual

3.2.5 How to Dry Firewood

Firewood that is not dry enough to burn is the cause of most complaints about wood inserts. Continually burning green or unseasoned wood produces more creosote and involves lack of heat and dirty glass door. See Section 5: Maintaining your wood heating system for concerns about creosote.

Here are some things to consider in estimating drying time:

•

firewood takes a long time to dry

•

firewood bought from a dealer is rarely dry enough to burn, so it is advisable to buy the wood in spring and dry it yourself

•

drying happens faster in dry weather than in damp, maritime climates

•

drying happens faster in warm summer weather than in winter weather

•

small pieces dry more quickly than large pieces

•

split pieces dry more quickly than unsplit rounds

•

softwoods take less time to dry than hardwoods

•

softwoods like pine, spruce, and poplar/aspen can be dry enough to burn after being stacked in the open for only the summer months

•

hardwoods like oak, maple and ash can take one, or even two years to dry fully, especially if the pieces are big

•

firewood dries more quickly when stacked in the open where it is exposed to sun and wind; it takes much longer to dry when stacked in a wood shed

•

firewood that is ready to burn has a moisture content between15 and 20% by weight and will allow your stove to produce its highest possible efficiency

Spark Installation and Operation Manual

3.2.6 Judging Firewood Moisture Content

You can find out if some firewood is dry enough to burn by using these guidelines:

•

cracks form at the ends of logs as they dry

•

as it dries in the sun, the wood turns from white or cream coloured to grey or yellow,

•

bang two pieces of wood together; seasoned wood sounds hollow and wet wood sounds dull,

•

dry wood is much lighter in weight than wet wood,

•

split a piece, and if the fresh face feels warm and dry it is dry enough to burn; if it feels damp, it is too wet,

•

burn a piece; wet wood hisses and sizzles in the fire and dry wood does not.

You could buy a wood moisture meter to test your firewood.

3.3 Manufactured Logs

Do not burn manufactured logs made of wax impregnated sawdust or logs with any chemical additives. Manufactured logs made of 100% compressed sawdust can be burned, but use caution in the number of these logs burned at one time. Start with one manufactured log and see how the stove reacts. You can increase the number of logs burned at a time to making sure the temperature never rises higher than 475 °F (246 °C) on a magnetic thermometer for installation on single wall stove pipes or 900 °F (482 °C) on a probe thermometer for installation on double wall stove pipe. The thermometer should be placed about 18” (457 mm) above the stove. Higher temperatures can lead to overheat and damage your stove.

Spark Installation and Operation Manual

4 Operating Your Stove

4.1 The use of a fire screen

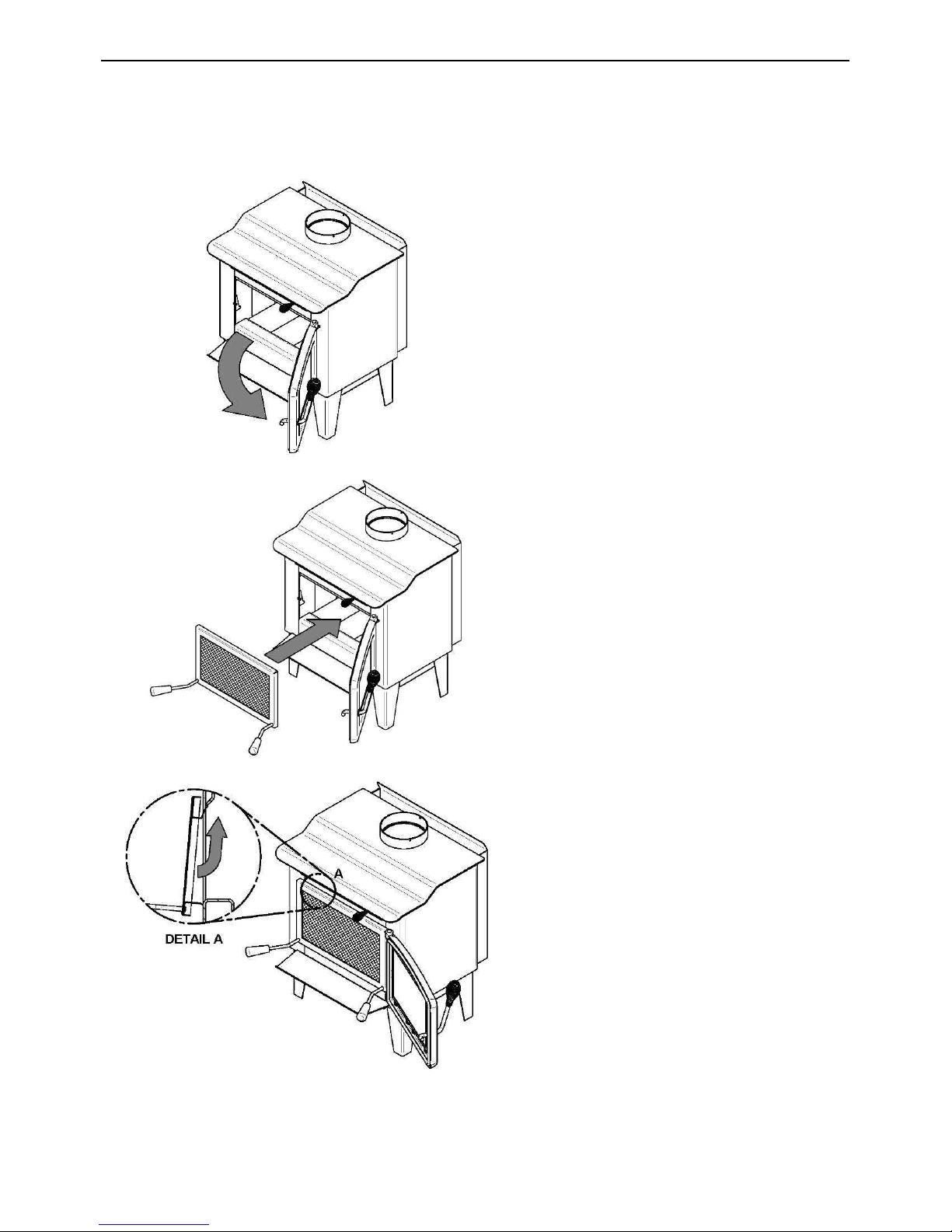

This stove has been tested for use with an open door in conjunction with a fire screen (AC01318, sold separately). Make sure the fire screen is properly secured on the stove to avoid any risk of fire. When the fire screen is used, it is important not to leave the stove unattended to respond promptly in the event of smoke spillage into the room. Potential causes of smoke spillage are described in Section 9: The Venting System of this manual. See Appendix 2 for installation instructions.

OPERATING WITH THE FIRE SCREEN INCREASES POSSIBILITIES OF GENERATING CARBON MONOXIDE. CARBON MONOXIDE IS AN ODOURLESS GAS THAT IS HIGHLY TOXIC AND WHICH CAN CAUSE DEATH AT HIGH CONCENTRATION IN AIR.

4.2 Your First Fires

Two things will happen as you burn your first few fires; the paint cures and the internal components of the stove are conditioned.

As the paint cures, some of the chemicals vaporize. The vapors are not poisonous, but they do smell bad. Fresh paint fumes can also cause false alarms in smoke detectors. So, when you first light your stove, be prepared by opening doors and/or windows to ventilate the house. As you burn hotter and hotter fires, more of the painted surfaces reach the curing temperature of the paint. The smell of curing paint does not disappear until you have burned one or two very hot fires.

Burn one or two small fires to begin the curing and conditioning process. Then build bigger and hotter fires until there is no longer any paint smell from the stove. Once the paint smell disappears, your stove is ready for serious heating.

4.3 Lighting Fires

Each person who heats with wood develops their own favorite way to light fires. Whatever method you choose, your goal should be to get a hot fire burning quickly. A fire that starts fast produces less smoke and deposits less creosote in the chimney. Here are three popular and effective ways to start wood fires.

Spark Installation and Operation Manual

4.3.1 Conventional Fire Starting

The conventional way to build a wood fire is to bunch up 5 to 10 sheets of plain newspaper and place them in the firebox. Next, place 10 or so pieces of fine kindling on the newspaper. This kindling should be very thin; less than 1” (25 mm). Next, place some larger kindling pieces on the fine kindling. Open the air control fully and light the newspaper. If you have a tall, straight venting system you should be able to close the door immediately and the fire will ignite. If your venting system has elbows or an outside chimney, you may need to leave the door closed but unlatched for a few minutes as the newspaper ignites and heat in the chimney produces some draft. Once the fire has ignited, close the door and leave the air control fully open.

A conventional kindling fire with paper under

finely split wood.

DO NOT LEAVE THE STOVE UNATTENDED WHEN THE DOOR IS SLIGHTLY OPENED DURING IGNITION. ALWAYS CLOSE THE DOOR AFTER IGNITION.

After the kindling fire has mostly burned, you can add standard firewood pieces until you have a fire of the right size for the conditions.

4.3.2 The Top Down Fire

The top down fire starting method solves two problems with the conventional method: first, it does not collapse and smother itself as it burns; and second, it is not necessary to build up the fire gradually because the firebox is loaded before the fire is lit. A top down fire can provide up to two hours of heating or more. The top down method only works properly if the wood is well-seasoned.

Start by placing three or four full-sized split pieces of dry firewood in the firebox. Next, place 4 or 5 more finely split pieces of firewood (2” to 3” [50 mm to 75 mm] in dia.) on the base logs at right angles (log cabin style). Now place about 10 pieces of finely split kindling on the second layer at right angles.

The fire is topped with about 5 sheets of newspaper. You can just bunch them up and stuff them in between the kindling and the underside of the baffle. Or you can make newspaper knots by rolling up single sheets corner to corner and tying a knot in them. The advantage of knots is that they don’t roll off the fire as they burn. Light the newspaper and watch as the fire burns from top to bottom.

Spark Installation and Operation Manual

4.3.3 Two Parallel Logs

Place two spit logs in the firebox. Place a few sheets of twisted newspaper between the logs. Now place some fine kindling across the two logs and some larger kindling across those, log cabin style. Light the newspaper.

4.3.4 Using Fire Starters

Many people like to use commercial fire starters instead of newspaper. Some of these starters are made of sawdust and wax and others are specialized flammable solid chemicals. Follow the package directions for use.

Gel starter may be used but only if there are no hot embers present. Use only in a cold firebox to start a fire.

DO NOT USE FLAMMABLE LIQUIDS SUCH AS GASOLINE, NAPHTHA, FUEL OIL, MOTOR OIL, OR AEROSOLS TO START OR REKINDLE THE FIRE.

4.4 Maintaining Wood Fires

4.4.1 General Advice

Wood heating with a space heater is very different than other forms of heating. There will be variations in the temperature in different parts of the house and there will be variations in temperature throughout the day and night. This is normal, and for experienced wood burners these are advantages of zone heating with wood.

Do not expect steady heat output from your stove. It is normal for its surface temperature to rise after a new load of wood is ignited and for its temperature to gradually decline as the fire progresses. This rising and falling of temperature can be matched to your household routines. For example, the area temperature can be cooler when you are active, such as when doing housework or cooking, and it can be warmer when you are inactive, such as when reading or watching television.

Wood burns best in cycles. A cycle starts when a new load of wood is ignited by hot coals and ends when that load has been consumed down to a bed of charcoal about the same size as it was when the wood was loaded. Do not attempt to produce a steady heat output by placing a single log on the fire at regular intervals. Always place at least three, and preferably more, pieces on the fire at a time so that the heat radiated from one piece helps to ignite the pieces next to it. Each load of wood should provide several hours of heating. The size of each load can be matched to the amount of heat needed.

When you burn in cycles, you rarely need to open the stove’s loading door while the wood is flaming. This is an advantage because there is more chance that smoke will leak from the stove when the door is opened as a full fire is burning. This is especially true if the chimney connector has 90 degree elbows and if the chimney runs up the outside wall of the house.

IF YOU MUST OPEN THE DOOR WHILE THE FUEL IS FLAMING, OPEN THE AIR CONTROL FULLY FOR A FEW MINUTES, THEN UNLATCH AND OPEN THE DOOR SLOWLY.

Spark Installation and Operation Manual

4.4.2 Ash Removal

Ash should be removed from the firebox every two or three days of full time heating. Do not let the ash build up in the firebox because it will interfere with proper fire management.

The best time to remove ash is after an overnight fire when the stove is relatively cool, but there is still some chimney draft to draw the ash dust into the stove and prevent it from coming into the room.

After ashes have been removed from the stove and placed in a tightly covered metal container, they should be taken outside immediately. The closed container of ashes should be placed on a non-combustible floor or on the ground well away from all combustible materials pending final disposal. Ashes normally contain some live charcoal that can stay hot for several days. If the ashes are disposed of by burial in soil or otherwise locally dispersed, they should be retained in the closed container until all cinders have thoroughly cooled. Other waste shall not be placed in this container.

NEVER STORE ASHES INDOORS OR IN A NON-METALIC CONTAINER OR ON A WOODEN DECK.

4.4.3 Raking Charcoal

Rekindle the fire when you notice that the room temperature has fallen. You will find most of the remaining charcoal at the back of the firebox, furthest from the door. Rake these coals towards the door before loading. There are two reasons for this raking of the coals. First, it concentrates them near where most of the combustion air enters the firebox and where they can ignite the new load quickly, and second, the charcoal will not be smothered by the new load of wood. If you were to simply spread the charcoal out, the new load will smoulder for a long time before igniting.

Remove ash first, and then rake charcoal towards the front of the firebox before loading so that it will ignite the new load.

4.4.4 Firing Each New Load Hot

Place the new load of wood on and behind the charcoal, and not too close to the glass or door. Close the door and open the air control fully. Leave the air control fully open until the firebox is full of flames, the wood has charred to black and its edges are glowing red. Firing each load of wood hot accomplishes a few things:

•

drives the surface moisture from the wood,

•

creates a layer of char on the wood, which slows down its release of smoke,

•

heats the firebox components so they reflect heat back to the fire, and

•

heats the chimney so it can produce strong, steady draft for the rest of the cycle.

Although it is important to fire each new load hot to prepare for a clean burn, do not allow the fire to burn at full intensity for more than a few minutes.

Spark Installation and Operation Manual

DO NOT LEAVE THE STOVE UNATTENDED WHILE A NEW LOAD IS BEING FIRED HOT.

DO NOT OVERFIRE.

When you burn a new load of wood hot to heat up the wood, the stove and the chimney, the result will be a surge of heat from the stove. This heat surge is welcome when the room temperature is a little lower than desirable, but not welcome if the space is already warm. Therefore, allow each load of wood to burn down so that the space begins to cool off a little before loading. Letting the space cool before loading is one of the secrets to clean burning and effective zone heating.

4.4.5 Turning Down the Air Supply

Once the firewood, firebox and chimney are hot, you can begin to reduce the air supply for a steady burn.

As you reduce the air supply to the fire, two important things happen. First, the firing rate slows down to spread the heat energy in the fuel over a longer period of time. Second, the flow rate of exhaust through the stove and flue pipe slows down, which gives more time for the transfer of heat from the exhaust. You will notice that as you reduce the air setting, the flames slow down. This is your indication that the stove is burning at its peak efficiency.

If the flames get small and almost disappear when you turn down the air, you have turned down the air too early, or your firewood is wetter than it should be. With good fuel and correct air control use, the flames should slow down, but should stay large and steady, even as the air supply is reduced.

4.4.6 Building Different Fires for Different Needs

Using the air control is not the only way to match the stove’s heat output to the heat demand. Your house will need far less heat in October than in January to be kept at a comfortable temperature. If you fill the firebox full in fall weather, you will either overheat the space or turn the stove down so much that the fire will be smoky and inefficient. Here are some suggestions for building fires to match different heat demand.

Spark Installation and Operation Manual

4.4.6.1 Small Fires to Take the Chill Off the House

To build a small fire that will produce a low heat output, use small pieces of firewood and load them crisscross in the firebox. The pieces should be only 3” to 4” in diameter. After raking the coals, you can lay two pieces parallel to each other corner to corner in the firebox and lay two more across them in the other direction. Open the air control fully and only reduce the air after the wood is fully flaming. This kind of fire is good for mild weather when you are around to tend the stove and should provide enough heat for four hours or more. Small fires like this are a good time to use softer wood species so there will be less chance of overheating the house.

4.4.6.2 Long Lasting Low Output Fires

Sometimes you will want to build a fire to last up to eight hours, but don’t need intense heat. In this case use soft wood species and place the logs compactly in the firebox so the pieces are packed tightly together. You will need to fire the load hot for long enough to fully char the log surfaces before you can turn the air down. Make sure the fire is flaming brightly before leaving the fire to burn.

4.4.6.3 High Output Fires for Cold Weather

When the heat demand is high during cold weather, you’ll need a fire that burns steadily and brightly. This is the time to use your biggest pieces of hardwood fuel if you have it. Put the biggest pieces at the back of the firebox and place the rest of the pieces compactly. A densely built fire like this will produce the longest burn your stove is capable of.

You will need to be cautious when building fires like this because if the air is turned down too much, the fire could smoulder. Make sure the wood is flaming brightly before leaving the fire to burn.

4.4.6.4 Maximum Burn Cycle Times

The burn cycle time is the period between loading wood on a coal bed and the consumption of that wood back to a coal bed of the same size. The flaming phase of the fire lasts for roughly the first half of the burn cycle and the second half is the coal bed phase during which there is little or no flame. The length of burn you can expect from your stove, including both the flaming and coal bed phases, will be affected by a number of things, such as:

•

firebox size,

•

the amount of wood loaded,

•

the species of wood you burn,

•

the wood moisture content,

•

the size of the space to be heated,

•

the climate zone you live in, and

•

the time of year.

Spark Installation and Operation Manual

MAXIMUM

BURN TIME

The table below provides a very general indication of the maximum burn cycle times you are likely to experience, based on firebox volume.

FIREBOX VOLUME

<1.5 cubic feet 3 to 5 hours

1.5 c.f. to 2.0 c.f 5 to 6 hours

2.0 c.f. to 2.5 c.f. 6 to 8 hours

2.5 c.f. to 3.0 c.f. 8 to 9 hours >3.0 c.f. 9 to 10 hours

Long burn times are not necessarily an indication of efficient stove operation. When you are home during the day and able to tend the fire, it is preferable to build a smaller fire that might provide three or four hours of heating than to fully load the firebox for a much longer burn. Shorter burn cycles make it easier to match the heat output of the stove to the heat demand of the space.

4.4.6.5 North-South Fires Versus East-West Fires

In fireboxes that are roughly square, wood can be loaded so that looking through the glass door you see the ends of the logs (north-south) or the sides of the logs (east-west).

East-west loads that are built compactly break down slowly when heated, but the amount of wood you can load is limited because if you put in too many pieces, one may fall against the glass. East-west loads are excellent for long, low output fires for relatively mild weather.

North-south loads break down more quickly, but much more wood can be loaded at a time. This makes north-south loading good for high output, long lasting fires for cold weather.

Spark Installation and Operation Manual

5 Maintaining Your Wood Heating System

5.1 Stove Maintenance

Your new stove will give many years of reliable service if you use and maintain it correctly. Some of the internal components of the firebox, such as firebricks, baffles and air tubes, will wear over time under intense heat. You should always replace defective parts with original parts (see Appendix 4: Exploded Diagram and Parts List). For firing each load hot to begin a cycle as described above will not cause premature deterioration of the stove. However, letting the stove run with the air control fully open for entire cycles can cause damage over time. The hotter you run the stove throughout burn cycles, the more quickly its components will deteriorate. For that reason, never leave the stove

unattended while a new load is being fired hot.

5.1.1 Plated Finish Maintenance

If your appliance has a plated finish, use a metal polish and a soft cloth to clean it. Do not use abrasives such as steel wool, steel pads or an abrasive cleaner for they may scratch the finish.

5.1.2 Cleaning Door Glass

Under normal conditions, your door glass should stay relatively clear. If your firewood is dry enough and you follow the operating instructions in this manual, a whitish, dusty deposit will form on the inside of the glass after a week or so of use. This is normal and can be easily removed when the stove is cool by wiping with a damp cloth or paper towel and then drying. Never try to clean the glass when the stove is hot.

In spring and fall when the stove is run at lower temperatures, you may see some light brown stains forming, especially at the lower corners of the glass. This indicates that the fire has been smoky and some of the smoke has condensed on the glass. When the weather is mild, you may find that letting the fire go out is better than trying to maintain a continuous fire. Use the technique described above for building a fire to take the chill off the house.

If you do get brown stains on the glass you can remove them with special cleaners for wood stove glass doors. Do not use abrasives to clean your stove’s door glass.

The deposits that form on the glass are the best indication of the quality of your fuel and how well you are doing in operating the stove. Your goal should be clear glass with no brown stains. If you continue to see brown stains on the glass, something about your fuel and operating procedure needs to be changed. Stains on the glass indicate incomplete combustion of the wood, which also means more smoke emissions and faster formation of creosote in the chimney.

If you see brown streaks coming from the edge of the glass, it is time to replace the gasket around the glass. Visit your stove retailer to get the self-adhesive glass gasket and follow the instructions below for installation.

Spark Installation and Operation Manual

5.1.3 Door adjustment

In order for your stove to burn at its best efficiency, the door must provide a perfect seal with the firebox. Therefore, the gasket should be inspected periodically making sure to obtain an air tight fit. Airtightness can be improved with a simple latch mechanism adjustment. To increase the pressure on the gasket, remove one washer (A). To reduce pressure on the door, when putting a new door gasket for example, put two washers. To adjust:

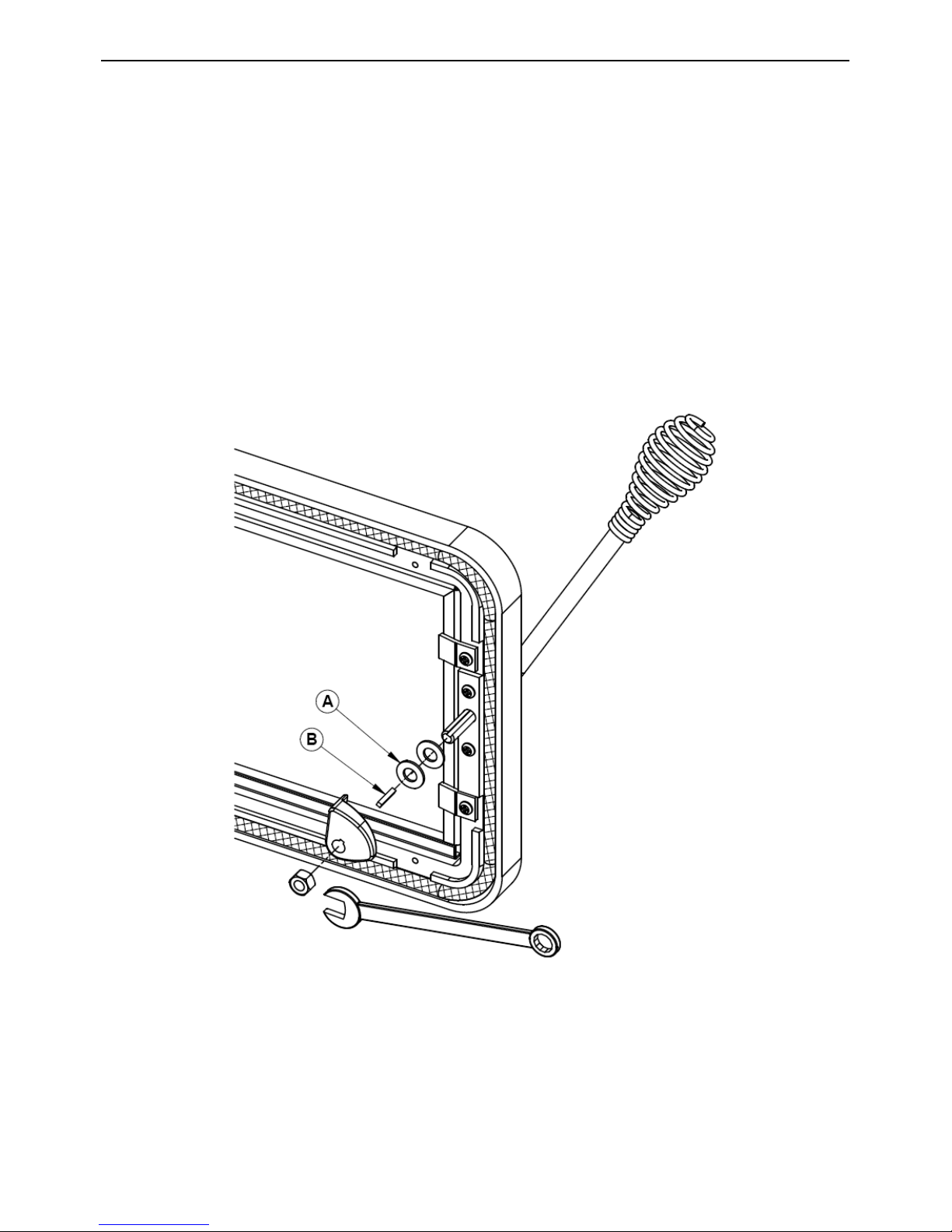

1. Unscrew the nut.

2. Remove the door latch and the key path pin (B).

3. Remove or add one washer (A) as needed. Keep the removed washer for future adjustment.

4. Re-install the key path pin in the key-way and slide the latch along it.

5. Secure with the nut.

5.1.4 Replacing the Door Gasket

It is important to maintain the gasket in good condition. After a year or more of use, the door gasket will compress and become hard, which may allow air to leak past it. You can test the condition of the door gasket by closing and latching the door on a strip of paper. Test all around the door. If the paper slips out easily anywhere, it is time to replace the gasket.

Spark Installation and Operation Manual

Use the correct replacement gasket that you can purchase from your retailer. The diameter and density of the gasket is important to getting a good seal.

Place the door face-down on something soft like a cushion of rags or piece of carpet. Remove the old gasket from the door by pulling and prying it out with an old screw driver. Then use the screwdriver to scrape the old gasket adhesive from the door. Now run a 1/4” (6 mm) bead of high temperature silicone in the door gasket groove. Starting from the middle of the hinge side, press the gasket into the groove. Do not stretch the gasket as you place it. Leave the gasket about 1/2” long when you cut it and press the end into the groove. Tuck any loose fibres under the gasket and into the silicone. Close the door and do not use the stove for 24 hours.

5.1.5 Replacing the Glass Gasket and/or the Glass

It is a good idea to replace the glass gasket when the door gasket is replaced. The gasket is flat, adhesive-backed, woven fibreglass. Remove the glass retaining screws (A) and clips (B) then both metal frames (C) that holds the glass to the door frame (E). Lift out the glass (D) and pull off the old gasket. This is a good time to clean the glass thoroughly.

The gasket must be centred on the edge of the glass. To do this easily, peel back a section of the paper covering the adhesive and place the gasket on a table with the adhesive side up. Stick the end of the gasket to the middle of one edge, then press the edge of the glass down onto the gasket, taking care that it is perfectly centred on the gasket. Peel off more of the backing and rotate the glass and press the next section onto the gasket. Do not stretch the gasket as you place it. Continue until you get to the start and trim the gasket to length. Now pinch the gasket to the glass in a U shape, all around the glass. Reinstall the glass, being careful to centre the glass carefully in the door. Do not over-tighten the screws. Note that the two main causes of broken door glass are uneven placement in the door and over-tightening of retaining screws.

Spark Installation and Operation Manual

Do not abuse the glass door by striking or slamming shut. Do not use the stove if the glass is broken. To change the

glass, perform the same operation described above.

5.1.6 Cleaning and Painting the Stove Do not attempt to clean or paint the stove when the unit is hot. Painted surfaces can

be wiped down with a damp cloth. Plated surfaces may be scratched by abrasive cleaners. To maintain the finish at its original brilliance, use only a damp soft cloth to clean plated surfaces.

If the paint becomes scratched or damaged, you can give your wood stove a brand new look by repainting it with heat-resistant paint. Before painting, roughen the surface with fine sand paper, wipe it down to remove dust, and apply two thin coats of paint. For best results, use the same paint that was originally used on the stove, which is available in spray cans. See your dealer for details.

5.2 Chimney and Chimney Connector Maintenance

5.2.1 Why Chimney Cleaning is Necessary

Wood smoke can condense inside the chimney connector and chimney, forming a combustible deposit called creosote. If creosote is allowed to build up in the venting system it can ignite when a hot fire is burned in the stove and a very hot fire can progress to the top of the chimney. Severe chimney fires can damage even the best chimneys. Smouldering, smoky fires can quickly cause a thick layer of creosote to form. When you avoid smouldering so the exhaust from the chimney is mostly clear, creosote builds up more slowly. Your new stove has the right characteristics to help you to burn clean fires with little or no smoke, resulting in less creosote in the chimney.

5.2.2 How Often Should You Clean the Chimney?

It is not possible to predict how much or how quickly creosote will form in your chimney. It is important, therefore, to check the build-up in your chimney monthly when getting used to the new stove until you determine the rate of creosote formation. Even if creosote forms slowly in your system, the chimney should be cleaned and inspected at least once each year.

It is recommended to clean thoroughly the chimney system at the end of every heating season. During summer, the air is damper and with minimal air circulation within the stove or furnace, it can mix with creosote and/or sooth deposits in the chimney system to form an acid that could accelerate the corrosion process and induce premature decay of the steel. Corrosion damages are not covered under warranty. Have your chimney system cleaned by a professional chimney sweep. Use a plastic or steel brush.

Contact your local municipal or provincial fire authority for information on how to handle a chimney fire. Have a clearly understood plan to handle a chimney fire.

Spark Installation and Operation Manual

5.2.3 Cleaning the Chimney

Chimney cleaning can be a difficult and dangerous job. If you don’t have experience cleaning chimneys, you might want to hire a professional chimney sweep to clean and inspect the system for the first time. After having seen the cleaning process, you can decide if it is a job you would like to take on.

The most common equipment used are fibreglass rods with threaded fittings and stiff plastic brushes. The brush is forced up and down inside the chimney flue to scrub off the creosote.

The chimney connector assembly should always be cleaned at the same time the chimney is cleaned.

CAUTION: Operation of your stove without the baffle may cause unsafe and hazardous temperature conditions and will void the warranty. NOTE: Before installing the firebrick,

check to ensure that none are broken or damaged in any way. If so, have the damaged ones replaced. Check the firebrick for damage at least annually and replace any broken or damaged ones with new ones. Inspection and cleaning of the chimney is facilitated by the removable baffle.

Spark Installation and Operation Manual

PART B - INSTALLATION 6 Safety Information

6.1 Summary of Installation Cautions and Warnings

•

THE INFORMATION GIVEN ON THE CERTIFICATION LABEL AFFIXED TO THE APPLIANCE ALWAYS OVERRIDES THE INFORMATION PUBLISHED, IN ANY OTHER MEDIA (OWNER’S MANUAL, CATALOGUES, FLYERS, MAGAZINES AND/OR WEB SITES).

•

MIXING OF APPLIANCE COMPONENTS FROM DIFFERENT SOURCES OR MODIFYING COMPONENTS MAY RESULT IN HAZARDOUS CONDTIONS. WHERE ANY SUCH CHANGES ARE PLANNED, STOVE BUILDER INTERNATIONAL INC. SHOULD BE CONTACTED IN ADVANCE.

•

ANY MODIFICATION OF THE APPLIANCE THAT HAS NOT BEEN APPROVED IN WRITING BY THE TESTING AUTHORITY VIOLATES CSA B365 (CANADA), AND ANSI NFPA 211 (USA).

•

CONNECT THIS STOVE ONLY TO A LISTED FACTORY-BUILT CHIMNEY FOR USE WITH SOLID FUEL OR TO A LINED MASONRY CHIMNEY CONFORMING TO NATIONAL AND LOCAL BUILDING CODES.

•

IF REQUIRED, A SUPPLY OF COMBUSTION AIR SHALL BE PROVIDED TO THE ROOM OR SPACE.

•

DO NOT CONNECT TO OR USE IN CONJUNCTION WITH ANY AIR DISTRIBUTION DUCTWORK UNLESS SPECIFICALLY APPROVED FOR SUCH INSTALLATION.

•

DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE.

•

DO NOT INSTALL IN A MOBILE HOME.

WARNING: IT IS NOT RECOMMENDED TO INSTALL THIS APPLIANCE IN A

SLEEPING ROOM OF A CONVENTIONAL HOME.

6.2 Regulations Covering Stove Installation

When installed and operated as described in these instructions, the Spark wood stove is suitable for use as a freestanding heater in residential installations.

In Canada, the CSA B365 Installation Code for Solid Fuel Burning Appliances and Equipment and the CSA C22.1 Canadian National Electrical Code are to be followed in the absence of local code requirements. In the USA, the ANSI NFPA 211 Standard for Chimneys, Fireplaces, Vents and Solid Fuel-Burning Appliances and the ANSI NFPA 70 National Electrical Code are to be followed in the absence of local code requirements.

This stove must be connected to a chimney complying with the requirements for Type HT chimneys in the Standard for Factory-Built Chimneys for Residential Type and Building Heating Appliances, UL 103 HT and ULC S629 or to a code-approved masonry chimney with a flue liner.

Spark Installation and Operation Manual

7 Assembly of the unit

The kit contains the following parts:

PL63072 PL63084 SE63085

PL63335 PL63198

PL53951 30033 142

Spark Installation and Operation Manual

30100N 30863 30254 (5x)

BLACK WASHER

ID 13/32" X OD

13/16"

30533 30224

LOCKNUT 3/8"-16 HEX

30131 (2x)

BLACK METAL

SCREW #10 X 1/2"

TYPE "A" PAN

QUADREX

30017 (13x)

1/4-20 X 3/4" PAN QUADREX

ZINC SCREW

Necessary tools:

30185 (13x)

17/64" "AA" TYPE WASHER

30100 (13x)

BLACK HEX NUT

1/4 - 20

Spark Installation and Operation Manual

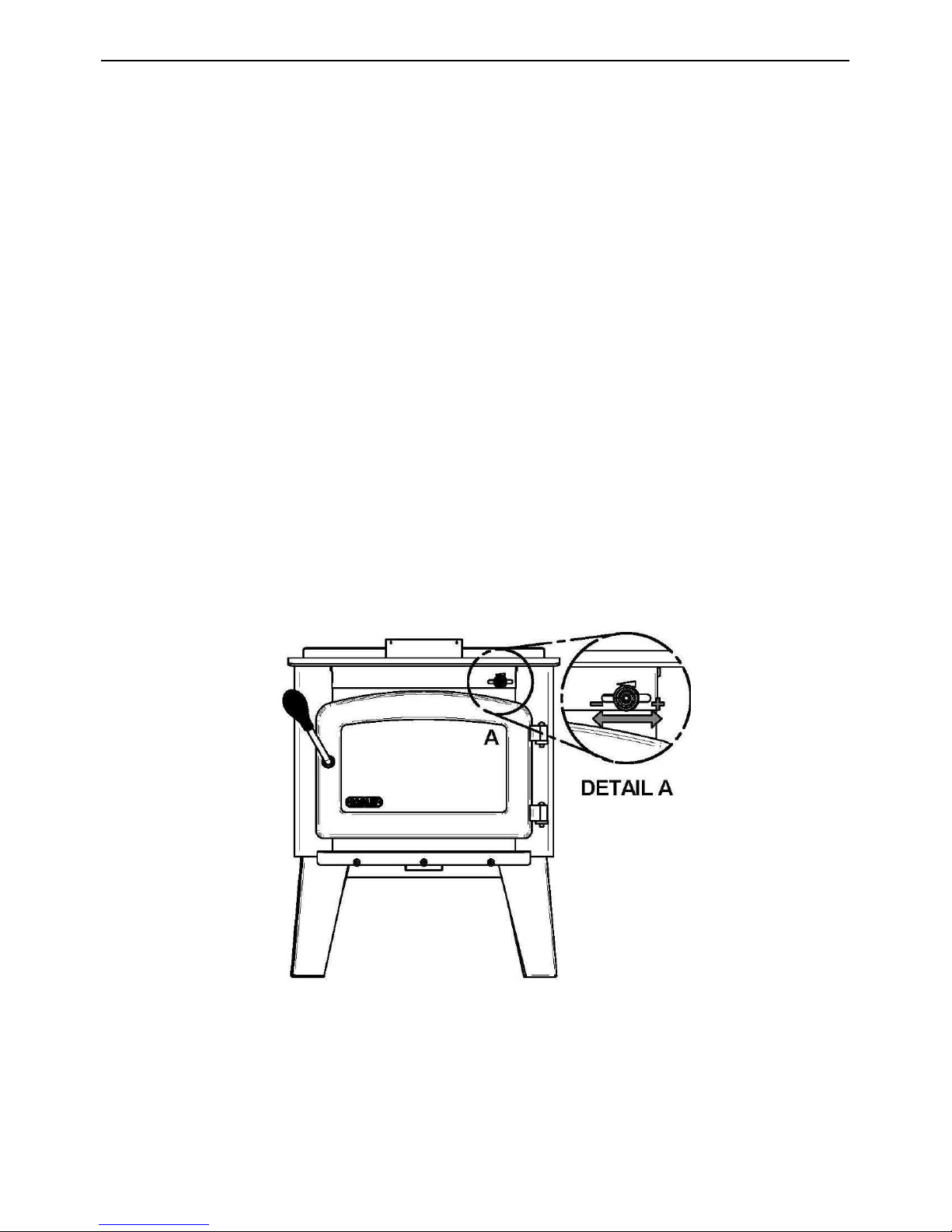

Assembly steps:

Spark Installation and Operation Manual

8 Clearances to Combustible Material

The clearances shown in this section have been determined by test according to procedures set out in safety standards ULC S627 (Canada), UL1482 (U.S.A.) and UL737 (U.S.A.). When the stove is installed so that its surfaces are at or beyond the minimum clearances specified, combustible surfaces will not overheat under normal and even abnormal operating conditions.

No part of the stove or flue pipe may be located closer to combustibles than the minimum clearance figures given.

8.1 Location of the certification label

Since the information given on the certification label affixed to the appliance always overrides the information published, in any other media (owner’s manual, catalogues, flyers, magazines and/or web sites) it is important to refer to it in order to have a safe and compliant installation. In addition, you will find information about your stove (model, serial number, etc.). You can find the certification label on the back of the stove.

Spark Installation and Operation Manual

8.2 Clearances to Walls and Ceiling

The clearances to combustible walls may be slightly different in Canada and the U.S.A. and may also differ depending on whether you use single or double wall flue pipe. Please be sure to choose the correct clearance for your location and type of flue pipe. See figure Clearances to combustible materials and floor protection to match each letter to a clearance.

APPLIANCE CLEARANCES

(INSTALLATION WITH SINGLE

WALL PIPE CONNECTOR)

CANADA USA A 15½" (394 mm) 15" (381 mm) B 18" (457 mm) 18" (457 mm) C 10" (254 mm) 10" (254 mm)* K 48" (1220 mm) 48" (1220 mm)

L 84" (213 cm) 84" (213 cm)

CANADA USA A 10" (254 mm) 10" (254 mm) B 18" (457 mm) 18" (457 mm) C 10" (254 mm) 10" (254 mm) K 48" (1220 mm) 48" (1220 mm) L 84" (213 cm) 84" (213 cm)

APPLIANCE CLEARANCES

(INSTALLATION WITH DOUBLE

WALL PIPE CONNECTOR)

Note: These clearances are also valid for an alcove installation.

If the above clearances are met, then the distances measured from the flue outlet will be:

DISTANCES* FROM PIPE

CONNECTOR TO THE

COMBUSTIBLE MATERIALS

CANADA USA D 18" (457 mm) 17½" (455 mm) E 26¼" (667 mm) 26¼" (667 mm)

F 18" (457 mm) 18" (457 mm)

CANADA USA D 12½" (318 mm) 12½" (318 mm) E 26¼" (667 mm) 26¼" (667 mm) F 18" (457 mm) 18" (457 mm)

DISTANCES* FROM PIPE

CONNECTOR TO THE

COMBUSTIBLE MATERIALS

*The pipe distances listed in this table refer to the distances obtained when the stove is installed in accordance with the appliance clearances above mentioned. However, you can install the stove at reduced clearances; follow the instructions in Section 8.4: Reducing Wall and Ceiling Clearances Safely. Where they are followed, the new distance of the pipe to combustible materials must be respected in the appropriate certification of the pipe.

Spark Installation and Operation Manual

Clearances with ceiling (L) lowered to 68" (173 cm)

APPLIANCE CLEARANCES

(INSTALLATION WITH SINGLE

WALL PIPE CONNECTOR)

CANADA USA A 15½" (394 mm) 15" (381 mm) B 18" (457 mm) 18" (457 mm) C 12" (305 mm) 12" (305 mm) K 48" (1220 mm) 48" (1220 mm)

L 68" (173 cm) 68" (173 cm)

CANADA USA A 12" (305 mm) 12" (305 mm) B 18" (457 mm) 18" (457 mm) C 10" (254 mm) 10" (254 mm) K 48" (1220 mm) 48" (1220 mm) L 68" (173 cm) 68" (173 cm)

APPLIANCE CLEARANCES

(INSTALLATION WITH DOUBLE

WALL PIPE CONNECTOR)

Note: These clearances are also valid for an alcove installation.

If the above clearances are met, then the distances measured from the flue outlet will be:

DISTANCES* FROM PIPE

CONNECTOR TO THE

COMBUSTIBLE MATERIALS

DISTANCES* FROM PIPE

CONNECTOR TO THE

COMBUSTIBLE MATERIALS

CANADA USA D 18" (457 mm) 17½" (455 mm) E 26¼" (667 mm) 26¼" (667 mm)

F 20" (508 mm) 20" (508 mm)

CANADA USA D 14½" (368 mm) 14½" (368 mm) E 26¼" (667 mm) 26¼" (667 mm) F 18" (457 mm) 18" (457 mm)

Spark Installation and Operation Manual

Clearances to combustible materials and floor protection

Spark Installation and Operation Manual

8.3 Floor protector

If the stove is to be installed on top of a combustible floor, it must be guarded by a non combustible material as shown on figure 1.3 (see the dotted line area).

CANADA USA

FLOOR PROTECTOR*

8" (203 mm) – Note 1 N/A (Canada only)

8" (203 mm) N/A (Canada only)

18" (457 mm)

From door opening

16" (406 mm)

From door opening

N/A (USA only) 8" (203 mm)

8" (203 mm) N/A (Canada only)

N/A (USA only) Note 2

*Steel with a minimum thickness of 0.015" (0.38 mm) or ceramic tiles sealed together with grout. No protection is required if the unit is installed on a non-combustible floor (ex: concrete).

Note 1: The floor protection at the back of the stove is limited to the stove’s required

clearance if such clearance is smaller than 8 inches (203 mm).

Note 2: Only required under the horizontal section of the connector. Must exceed each

side of the connector by at least 2 inches (51 mm).

8.4 Reducing Wall and Ceiling Clearances Safely

It is often desirable to reduce the minimum installation clearances by placing the stove closer to walls so the installation takes up less floor space. You can safely reduce the minimum clearances by permanently installing a shield between the stove and combustible material. The rules for safe shields can be complicated, so read them carefully and follow them exactly. Note that there may be minor regional differences in clearance reduction rules so be sure to check with your building or fire inspector before proceeding.

Spark Installation and Operation Manual

8.4.1 Shield Construction Rules

See figure Clearances for shield construction to match each letter to a clearance.

Adhesives used in shield construction must not ignite or lose adhesive qualities at temperatures likely to be encountered. Mounting hardware which extends from the shield surface into combustibles may be used only at the edges of the shield. Mounting hardware must allow full vertical ventilation.

Minimum clearance between the appliance top and an unshielded combustible ceiling: 1067 mm (42 in.). Shield extension above appliance: 500 mm (20 in.).

Minimum space behind shield: 25 mm (1 in.). In Canada 21 mm (7/8 in). Clearance along the bottom of shield: minimum: 25 mm (1 in.) and maximum: 75 mm (3

in.). Minimum clearance along the top of shield at ceiling: 75 mm (3 in.).

Mounting hardware must not be located closer than 200 mm (8 in.) from the vertical centre line of the appliance. Edge clearance for ceiling shields to side and back walls: 75 mm (3 in.).

Shield extension beyond each side of appliance: 450 mm (18 in.).

Spark Installation and Operation Manual

Clearances for shield construction

Spark Installation and Operation Manual

Clearances may be reduced by these

Sides

Top %

Can/US

USA

Can/US

USA

minimum of 24 gauge (0.61 mm)

8.4.2 Table of Clearance Reduction Percentages

percentages

Type of shield

and rear %

(ceiling)

Sheet metal, a minimum of 24 gauge (0.61 mm) in thickness , spaced out at least 25 mm (1 in)* by non-combustible spacers

Ceramic tiles, or equivalent noncombustible material, on noncombustible board spaced out at least 25 mm (1 in)* by noncombustible spacers

Ceramic tiles, or equivalent noncombustible material, on noncombustible board, with a

sheet metal backing spaced out at least 25 mm (1 in)* by noncombustible spacers

(%)

min.

(%)

min.

67 12 in 50 18 in

50 18 in 33 24 in

67 12 in 50 24 in

Brick, spaced out at least 25 mm (1 in)* by non-combustible spacers

Brick, with a minimum of 24 gauge (0.61 mm) sheet metal backing, spaced out at least 25 mm (1 in)* by non-combustible spacers

* In Canada this space can be 21 mm (7/8 in)

50 18 in N/A N/A

67 12 in N/A N/A

Spark Installation and Operation Manual

9 The Venting System

9.1 General

The venting system, made up of the chimney and the connecting pipe between the stove and the chimney, acts as the engine that drives your wood heating system. Even the best stove will not function safely and efficiently as intended if it is not connected to a suitable chimney.

The heat in the flue gases that pass from the stove and chimney connector into the chimney is not waste heat. This heat is what the chimney uses to make the draft that draws in combustion air, keeps smoke inside the stove and safely vents exhaust to outside. You can think of heat in the flue gas as the fuel the chimney uses to make draft.

9.2 Suitable Chimneys

Your wood stove will provide optimum efficiency and performance when connected to a 6inch diameter chimney flue system. The connection to a chimney having a diameter of at least 5 inches (Canada only) or no more than 7 inches is permitted, if it allows the proper venting of combustion gases and that such application is verified and authorized by a qualified installer. Otherwise, the diameter of the flue should be 6 inches.

To be suitable, a factory-built metal chimney must comply with UL 103 HT (U.S.A.) or ULC S629 (Canada).

9.2.1 Factory-built Metal Chimneys

These are sometimes referred to as ‘high temp’ chimneys because they have the special characteristics to withstand the temperatures that can be created by wood burning stoves. Factory-built chimneys are tested as a system with all the necessary components for installation. The instructions provided with the chimney by its manufacturer are the only reliable source of installation guidelines. To be safe and effective, the chimney must be installed exactly in accordance with the manufacturer’s instructions. Use only

components intended for the brand and model of chimney you are using. Never substitute parts from other chimney brands or fabricate your own components. The chimney must be a type suitable for solid fuel.

Spark Installation and Operation Manual

9.2.2 Masonry Chimneys

The stove may also be connected to a masonry chimney, provided the chimney complies with the construction rules found in the building code enforced locally. The chimney must have either a clay liner or a suitably listed stainless steel liner. If the masonry chimney has a square or rectangular liner that is larger in cross sectional area than a round 6” flue, it should be relined with a suitably listed 6” stainless steel liner. Do not downsize the flue to less than 6” unless the venting system is straight and exceeds 25 feet in height. When passing through a combustible wall, the use of an insulated listed thimbleis required.

9.3 Minimum Chimney Height

The top of the chimney should be tall enough to be above the air turbulence caused when wind blows against the house and its roof. The chimney must extend at least 1 m (3 ft.) above the highest point of contact with the roof, and at least 60 cm (2 ft.) higher than any roof line or obstacle within a horizontal distance of 3 m (10 ft.).

Spark Installation and Operation Manual

Good System Design

Inferior System Design

9.4 The Relationship Between the Chimney and the House

Because the venting system is the engine that drives the wood heating system, it must have the right characteristics. The signs of bad system design are cold backdrafting when there is no fire in the stove, slow kindling of new fires, and smoke roll-out when the door is opened for loading. There are two guidelines to follow. First, the chimney should be installed up through the heated space of the house, not out and up an outside wall. Second, the chimney should penetrate the top of the building at or near the highest heated space.

9.4.1 Why inside chimneys are preferred

Venting systems that rise straight up from the stove flue collar provide the best performance. Chimneys that rise inside the warm space of the house tend to provide a small amount of draft even when there is no fire burning. This means that when you light a fire, the initial smoke goes up the chimney and strong draft builds quickly as the chimney flue warms up. Although they are common in North America, chimneys that exit a house wall and run up outside can cause problems.

Inside chimneys are preferred because even

when no fire is burning, there is normally

upward flow in the system.

Outside chimneys are a problem

because when no fire burns they will go

into cold backdraft if the stove is

installed low in the house.

Spark Installation and Operation Manual

9.4.2 Why the chimney should penetrate the highest heated space

When it is cold outside, the warm air in the house is buoyant so it tends to rise. This tendency of warm air to rise creates a slight pressure difference in the house. Called ‘stack effect’, it produces a slightly negative pressure low in the house (relative to outside) and a slightly positive pressure zone high in the house. If there is no fire burning in a heater connected to a chimney that is shorter than the warm space inside the house, the slight negative pressure low in the house will compete against the desired upward flow in the chimney.

There are two reasons why the chimney in the house at right will cold backdraft when it is cold outside and there is no fire burning in the stove. First, the chimney runs up the outside of the house, so the air in it is colder and denser than the warm air in the house. And second, the chimney is shorter than the heated space of the house, meaning the negative pressure low in the house will pull outside air down the chimney, through the stove and into the room. Even the finest stove will not work well when connected to this chimney.

9.5 Supply of Combustion Air

In Canada, wood stoves are not required to have a supply of combustion air from outdoors (except in mobile homes) because research has shown that these supplies do not give protection against house depressurization and may fail to supply combustion air during windy weather. However, to protect against the risk of smoke spillage due to house depressurization, a carbon monoxide (CO) detector/alarm is required in the room in which the stove is installed. The CO detector will provide warning if for any reason the wood stove fails to function correctly.

9.5.1 Air Supply in Conventional Houses

The safest and most reliable supply of combustion air for your wood stove is from the room in which it is installed. Room air is already preheated so it will not chill the fire, and its availability is not affected by wind pressures on the house. Contrary to commonly expressed concerns, almost all tightly-sealed new houses have enough natural leakage to provide the small amount of air needed by the stove. The only case in which the wood stove may not have adequate access to combustion air is if the operation of a powerful exhaust device (such as a kitchen range exhaust) causes the pressure in the house to become negative relative to outdoors.

Spark Installation and Operation Manual

Some jurisdictions in the United States require that wood stoves have a supply of combustion air from outdoors. If you do install an air supply through the wall of the house, be aware that its pressure can be affected during windy weather. If you notice changes in wood stove performance in windy weather, and in particular if smoke puffs from the stove, you should disconnect the outdoor air duct from the stove and remove the duct. In some windy conditions, negative pressure at the duct weatherhood outside the house wall may draw hot exhaust gases from the stove backwards through the duct to outdoors. Check the outdoor air duct for soot deposits when the full system is cleaned and inspected at least once each year.

9.6 Installing the Chimney Connector

The chimney connector is the single or double wall pipe installed between the stove flue collar and the chimney breech. Single wall pipe components are available from most hardware and building supply stores. These components are not usually tested to a particular standard and certified as compliant. Therefore, a list of rules found in solid fuel installation codes apply to the installation of single wall pipe.

Double wall chimney connectors are tested and certified. The rules for double wall pipe are found in the manufacturer’s installation instructions. These rules will be very different than those for single wall.

Spark Installation and Operation Manual

9.6.1 Installation of Single Wall Chimney Connector

The chimney connector assembly has been called ‘the weak link’ in the safety of wood heating systems because failure to install the connector properly (which has been common in the past) can result in house fires.

The best flue pipe assembly is one that rises straight up from the stove to the base of the chimney with no elbows. Straight assemblies are less likely to cause problems like smoke roll-out when the door is opened for loading. They are also more stable and easier to maintain than assemblies with elbows. Horizontal runs of flue pipe should be avoided where possible because they reduce chimney draft.

Use 45 degree elbows where possible, instead of 90 degree elbows.

Spark Installation and Operation Manual

The rules below are based on those found in the CSA B365 installation code. Please carefully follow these installation instruction rules, or those enforced where you live.

•

Maximum overall length of straight pipe: 3 m (10 ft.) including elbows.

•

Minimum clearance from combustible material: 450 mm (18 in.). The minimum clearance may be reduced by 50 percent to 225 mm (9 in.) if suitable shielding is installed either on the pipe or on the combustible surface.

•

The assembly should be as short and direct as possible between the stove and chimney. The use of two 45 degree elbows is often preferable to a single 90 degree elbow because less turbulence is created in the exhaust flow and they result in less horizontal run.

•

Maximum number of 90-degree elbows: 2.

•

Maximum unsupported horizontal length: 1 m (3 feet).

•

Galvanized flue pipes must not be used because the coatings vaporize at high temperatures and release dangerous gases. Use black painted flue pipes.

•

Flue pipes must be at least 24 gauge in thickness.

•

Flue pipe joints should overlap 30 mm (1 1/4 in.)

•

Each joint in the assembly must be fastened with at least three screws.

•

The assembly must have allowance for expansion: elbows in assemblies allow for expansion; straight assemblies should include an inspection wrap with one end unfastened, or a telescopic section.

•

Minimum upward slope towards the chimney: 20 mm/m (1/4 in/ft.).

•

One end of the assembly must be securely fastened to the flue collar with 3 sheet metal screws and the other end securely fastened to the chimney.

•

There must be provision for cleaning of the pipes, either through a clean out or by removal of the pipe assembly. Removal of the assembly should not require that the stove be moved.

•

The male ends of the sections must be oriented towards the appliance so that falling dust and condensation stay inside the pipe.

•

A flue pipe must never pass through a combustible floor or ceiling or through an attic, roof space, closet or concealed space.

•

Where passage through a wall or partition of combustible construction is desired, the installation shall conform to CAN/CSA-B365, Installation Code for Solid-Fuel-Burning Appliances and Equipment.

The ideal flue pipe assembly is one that rises straight up from the appliance flue collar and directly into the chimney with no elbows. A straight up connector assembly needs either a telescopic length or an inspection wrap (pipe coupler) to allow it to be assembled and disassembled without moving the stove.

A straight flue pipe assembly offers the least restriction to gas flow and results in stronger draft. Straight assemblies also need less maintenance because there are no corners to collect creosote.

The chimney connector must be in good condition.

Spark Installation and Operation Manual

Appendix 1: Installing the Fresh Air Kit (AC01331)

When installed with a fresh air kit, the stove must be anchored to the floor.

Spark Installation and Operation Manual

Appendix 2: Installing the Fire Screen (AC01318)

Open the door.

Hold the fire screen by the two handles and bring it close to the door opening.

Lean the upper part of the fire screen against the top door opening making sure to insert the top fire screen brackets behind the primary air deflector as in (Detail A).

Lift the fire screen upwards and push the bottom part towards the stove then let the fire screen rest on the bottom of the door opening.

Warning: Never leave the stove unattended while in use with the fire screen.

Spark Installation and Operation Manual

Appendix 3: Installation and Use of the Optional Blower

(AC02050), and Use of Thermodisc (AC05530, AC02055)

An optional blower can be installed on the back of the stove to increase the flow of air past heat exchange surfaces and to help circulate warm air in the room. When used regularly, the blower can provide a small increase in efficiency, up to 2 percent. However, the use of a blower should not be used as a way to gain more output from a stove that is undersized for the space it is intended to heat. You can purchase this option through your ENERZONE dealer. Make sure to specify this part number: # AC02050

Spark Installation and Operation Manual

The blower has a rheostat, see the illustration on the right to identify the different adjustment positions; either from high (HI) to low (LO) or closed (OFF).

When using the optional blower, allow the stove to reach operating temperature (approximately one hour), before turning it on. The increased airflow from the blower cools the firebox and could affect the start-up combustion efficiency if the blower is turned on too early. You can also install a thermodisc to enable the blower to start or stop automatically when the stove is hot or too cold. The thermodisc part number is AC05530 for a basic model and AC02055 for a quick connect model. Installation instructions are supplied with the blower and the thermodisc.

CAUTION: ENSURE THAT THE BLOWER’S POWER CORD IS NOT IN CONTACT WITH ANY SURFACE OF THE STOVE TO PREVENT ELECTRICAL SHOCK OR FIRE DAMAGE. DO NOT RUN THE POWER CORD BENEATH THE STOVE.

Spark Installation and Operation Manual

Appendix 4: Exploded Diagram and Parts List

Spark Installation and Operation Manual

IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your stove, please provide the model number and the serial number. We reserve the right to change parts due to technology upgrade or availability. Contact an authorized dealer to obtain any of these parts. Never use substitute materials. Use of non-approved parts can result in poor performance and safety hazards.

# Item Description Qty

1 AC01318 RIGID FIRESCREEN 1 2 30569 ROUND WOODEN HANDLE BLACK 2 3 AC07867 1/2" CHROME PLATED COIL HANDLE 1 4 SE54580 BLACK CAST IRON DOOR 1 5 AC09171 REMPLACEMENT HANDLE AND LATCH KIT 1 6 30533 LATCH KEY PATH PIN 1 7 30254 BLACK WASHER ID 13/32" X OD 13/16" 5 8 30033 STEEL DOOR LATCH 1

9 30224 LOCKNUT 3/8"-16 HEX 1 10 30123 SCREW #8 - 32 X 5/8'' PAN QUADREX ZINC 2 11 AC06500 SILICONE AND 5/8" X 8' BLACK DOOR GASKET KIT 1 12 30055 HINGE PIN RETAINING RING 5/16" ID X 0.512" OD 2 13 30169 DOOR HINGE PIN 5/16'' DIA. X 1 3/4"L 2 14 SE63002 REPLACEMENT GLASS WITH GASKET 8 3/4'' X 14 3/4'' 1 15 AC06400 3/4" (FLAT) X 6' BLACK SELF-ADHESIVE GLASS GASKET 1 16 PL54583 GLASS RETAINER FRAME 2 17 SE53585 GLASS RETAINER KIT WITH SCREWS (12 PER KIT) 1 18 PL63084 ASH LIP 1 19 30017 MECHANICAL SCREW 1/4-20 X 3/4" PAN QUADREX ZINC 13 20 30185 17/64" "AA" TYPE WASHER 13 21 30100 BLACK HEX NUT 1/4 - 20 13 22 99999 BUILD TO ORDER 1 23 AC01331 5" FRESH AIR INTAKE KIT 1 24 PL63335 BOTTOM HEAT SHIELD 1 25 SE63085 LEG 4 26 SE45840 SPARK OWNER'S MANUAL KIT 1 27 AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL 1 28 30100N COIL HANDLE 1/4" NICKEL OSBURN 1 29 PL63198 AIR CONTROL COVER 1 30 30131 BLACK METAL SCREW #10 X 1/2" TYPE "A" PAN QUADREX 2 31 30863 AIR CONTROL ROD 1 32 30094 HEX SCREW WASHER HEAD 1/4-20 X 3/4" F ZINC TYPE 2 33 30428 BUSHING 2 34 SE63197 AIR CONTROL DAMPER 1 35 AC02050 BLOWER ASSEMBLY WITH VARIABLE SPEED CONTROL (UP TO 100 CFM) 1 36 44073 CROSSFLOW BLOWER 115V-60Hz-39W 100 CFM 1

Spark Installation and Operation Manual

# Item Description Qty

37 60013 POWER CORD 96" X 18-3 type SJT 1 38 44080 RHEOSTAT WITH NUT 1 39 44087 RHEOSTAT NUT 1 40 44085 RHEOSTAT KNOB 1 41 AC02055 QUICK CONNECT THERMODISC KIT 1 41 AC05530 THERMODISC KIT 1 42 44046 THERMODISC F110-20F 1 43 PL36027 3" X 9" X 1 1/4'' REFRACTORY BRICK 2 44 29010 4 1/2" X 9" X 1 1/4" REFRACTORY BRICK 8 45 29015 4'' X 9'' X 1 1/4'' REFRACTORY BRICK 6 46 PL36019 REFRACTORY BRICK 4 1/2" X 9'' X 8 3/8'' X 1 7/8'' 2 47 21386 BACK INSULATION BAFFLE 1 48 PL63339 BAFFLE INSULATION WEIGHT 1 49 PL63072 BOTTOM CHANEL 1

Spark Installation and Operation Manual

•

DROLET LIMITED LIFETIME WARRANTY

The warranty of the manufacturer extends only to the original retail purchaser and is not transferable. This warranty covers brand new products only, which have not been altered, modified nor repaired since shipment from factory. Proof of purchase (dated bill of sale), model name and serial number must be supplied when making any warranty claim to your DROLET dealer.

This warranty applies to normal residential use only. Damages caused by misuse, abuse, improper installation, lack of maintenance, over firing, negligence or accident during transportation, power failures, downdrafts, venting problems or under-estimated heating area are not covered by this warranty. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.

This warranty does not cover any scratch, corrosion, distortion, or discoloration. Any defect or damage caused by the use of unauthorized or other than original parts voids this warranty. An authorized qualified technician must perform the installation in accordance with the instructions supplied with this product and all local and national building codes. Any service call related to an improper installation is not covered by this warranty.

The manufacturer may require that defective products be returned or that digital pictures be provided to support the claim. Returned products are to be shipped prepaid to the manufacturer for investigation. Transportation fees to ship the product back to the purchaser will be paid by the manufacturer. Repair work covered by the warranty, executed at the purchaser’s domicile by an authorized qualified technician requires the prior approval of the manufacturer. All parts and labour costs covered by this warranty are limited according to the table below.

The manufacturer, at its discretion, may decide to repair or replace any part or unit after inspection and investigation of the defect. The manufacturer may, at its discretion, fully discharge all obligations with respect to this warranty by refunding the wholesale price of any warranted but defective parts. The manufacturer shall, in no event, be responsible for any uncommon, indirect, consequential damages of any nature, which are in excess of the original purchase price of the product. A one-time replacement limit applies to all parts benefiting from lifetime coverage. This warranty applies to products purchased after March 1st, 2015.

WARRANTY APPLICATION*

DESCRIPTION

PARTS LABOUR

Combustion chamber (welds only) and cast iron door frame. Lifetime 3 years Surrounds, heat shields, ash drawer, steel legs, pedestal, trims

(aluminum extrusions), plating (defective manufacture**), and

5 years 3 years

convector air-mate. Removable stainless steel combustion chamber components,

secondary air tubes**, deflectors, and supports.

5 years N/A

Glass retainers, handle assembly, and air control mechanism. 3 years 1 year Carbon steel combustion chamber components, vermiculite baffle**,

and C-Cast baffle**. Standard blower, heat sensors, switches, rheostat, wiring, and other

controls. Optional blower, paint (peeling**), ceramic glass (thermal breakage

only**), ceramic fibre blankets, gaskets, insulation, and other options. Firebricks. All parts replaced under the warranty.

*Subject to limitations above. **Picture required.

Labour cost and repair work to the account of the manufacturer are based on a predetermined rate schedule and must not exceed the wholesale price of the replacement part.

Shall your unit or a components be defective, contact immediately your DROLET dealer. To accelerate processing of your warranty claim, make sure to have on hand the following information when calling:

Your name, address and telephone number;

• Bill of sale and dealer’s name;

• Installation configuration;

Before shipping your unit or defective component to our plant, you must obtain an Authorization Number from your DROLET dealer. Any merchandise shipped to our plant without authorization will be refused automatically and returned to sender.

• Serial number and model name as indicated on the nameplate fixed to the back of your unit;

• Nature of the defect and any relevant information.

2 years N/A

1 year

1 year N/A

N/A

90 days

N/A N/A

Drolet Spark DB03400 Installation And Operation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
