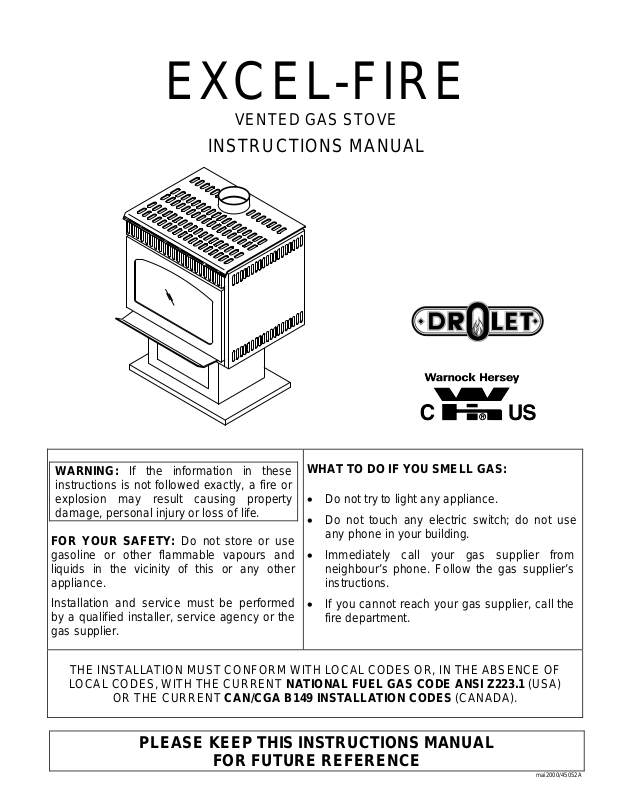

EXCEL-FIRE

VENTED GAS STOVE

INSTRUCTIONS MANUAL







WHAT TO DO IF YOU SMELL GAS:



WARNING: If the information in these





instructions is not followed exactly, a fire or







explosion may result causing property



• Do not try to light any appliance.



damage, personal injury or loss of life.



• Do not touch any electric switch; do not use









FOR YOUR SAFETY: Do not store or use



any phone in your building.









gasoline or other flammable vapours and



• Immediately call your gas supplier from



liquids in the vicinity of this or any other



neighbour’s phone. Follow the gas supplier’s



appliance.



instructions.



Installation and service must be performed



• If you cannot reach your gas supplier, call the



by a qualified installer, service agency or the



fire department.



gas supplier.













THE INSTALLATION MUST CONFORM WITH LOCAL CODES OR, IN THE ABSENCE OF LOCAL CODES, WITH THE CURRENT NATIONAL FUEL GAS CODE ANSI Z223.1 (USA)

OR THE CURRENT CAN/CGA B149 INSTALLATION CODES (CANADA).

PLEASE KEEP THIS INSTRUCTIONS MANUAL

FOR FUTURE REFERENCE

mai2000/45052A

EXCEL-FIRE GAS STOVE

1



TABLE OF CONTENTS

GENERAL INFORMATION.........................................................................................................................

2

WARNING...................................................................................................................................................

2

TECHNICAL SPECIFICATIONS.................................................................................................................

3

Burner.....................................................................................................................................................

4

Gas Valve SIT 820 Nova mV .................................................................................................................

4

Pressure Adjustments .......................................................................................................................

4

INSTALLATION...........................................................................................................................................

5

Safety notice...........................................................................................................................................

5

Clearances to combustibles ...................................................................................................................

5

Logs installation ..........................................................................................................................................

6

Rock wool fiber installation.....................................................................................................................

7

Optional 6-inch pipe installation .............................................................................................................

7

OPERATION INSTRUCTIONS ...................................................................................................................

7

Wall thermostat ......................................................................................................................................

7

Optional blower ......................................................................................................................................

8

Blower electrical connection ..............................................................................................................

8

Gas connection ......................................................................................................................................

9

Spill switch..............................................................................................................................................

9

LIGHTING PROCEDURES.........................................................................................................................

9

Before lighting ........................................................................................................................................

9

The first fire ............................................................................................................................................

9

Shutdown procedures ..........................................................................................................................

10

MAINTENANCE INSTRUCTIONS ............................................................................................................

10

Glass maintenance...............................................................................................................................

10

Glass door ............................................................................................................................................

11

Removal ..........................................................................................................................................

11

Cleaning ..........................................................................................................................................

11

Installation .......................................................................................................................................

11

Burner removal and installation............................................................................................................

11

Removal ..........................................................................................................................................

11

Installation .......................................................................................................................................

12

Gas pressure adjustments ...................................................................................................................

12

Pilot assembly ......................................................................................................................................

13

Adjusting air shutter..............................................................................................................................

13

OPTIONS..................................................................................................................................................

13

REPLACEMENT PARTS ..........................................................................................................................

13

LIMITED WARRANTY ..............................................................................................................................

14

EXCEL-FIRE GAS STOVE

2

GENERAL INFORMATION

The EXCEL-FIRE gas stove is a high-efficiency free-standing gas appliance with a maximum input rating of 30 000 BTU/h (8,8 kW) with natural gas or 26 000 BTU/h (7,6 kW) with propane. It features an adjustable millivolt valve and a constant pilot. This means that you can set the height of the flame with a control knob. An optional wall thermostat is also available for automatic room temperature control. The valve is also independent of any exterior electrical supply. Your appliance will therefore continue to heat your house in the event of a power failure.

To improve efficiency, a 130 CFM (3.68 m3/min) blower with speed control and thermo-switch for automatic on/off control is available as an option.

Read these instructions and consult local building authorities before installing this appliance. Install the unit and its venting system only as directed in these instructions.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

This gas stove has been tested by Intertek Testing Services in accordance with canadian CSA 2.22/aM99, CGA-2,17-M91 and U.S.A ANSI/Z21.50-a-1999, UL307B-1995 standards.

WARNING

Installation should be done by a qualified installer.

Do not burn wood or any other material in this appliance.

Hot when in operation. Keep children, furniture, clothing and flammable material away from the appliance.

Advise adults and children about the hazard of high surface temperatures and that they should stay away to avoid burns or clothing ignition.

Young children should be supervised when they are in the same room as the appliance.

The appliance should be inspected before use and at least annually by a qualified service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc.

It is imperative that the control compartments, burners and circulating air passageways be kept clean.

Do not modify this appliance.

The openings in the gas stove pedestal should never be blocked.

Provide adequate accessibility clearances for servicing and proper operation.

EXCEL-FIRE GAS STOVE

3

TECHNICAL SPECIFICATIONS

Dimensions









Height :

29 ¾

in.

756

mm

Width :

24

in.

610

mm

Depth :

20

in.

508

mm

Glass

18 ½

in.

x

10

½

in.





470

mm

x

267

mm

Weight

140 lbs 64 kg







Colour

metallic black









Flue pipe

"B-Vent" ou "L-Vent"







4 in.

(100 mm)





Clearance to combustibles

Back:

4 in.

102 mm

Side:

8 in.

204 mm

Corner:

2 in.

50 mm

Ceiling:

48 in.

1228 mm

Floor:

Combustible Note 1

Note 1 : Your stove has been successfully certified while installed on a wood floor. Do not install your stove on carpet. Choose instead ceramic tile or wood floor.

EXCEL-FIRE GAS STOVE

4

Burner





Naturel Gas

Propane LP

Maximum Input, BTU/h (kW)

minimum :

20 000

(5,9)

20 000

(5,9)



maximum :

30 000

(8,8)

26 000

(7,6)

Inlet Pressure INWC (kPa)

minimum :

5,0

(1,3)

11,0

(2,8)



maximum :

7,0

(1,8)

14,0

(3,5)

Manifold Pressure INWC (kPa)

minimum :

1,8

(0,5)

7,0

(1,8)



maximum :

3,5

(0,9)

10,0

(2,5)

Burner orifice

:

#36 DMS



#52 DMS

Injecteur du pilot

:

#51 DMS



#30 DMS

Air Shutter opening

(in.)

1/4

open



full open

Gas Valve SIT 820 Nova mV

Millivolt Gas Valve :

Naturel Gas

Propane LP

Model SIT 0.820.634 Nova

Model SIT 0.820.633 Nova



mV

mV

Your stove is equipped with a sophisticated gas control valve, which will give you a safe use of your appliance. The gas control valve SIT 820 Nova mV operates without electricity due to the energy given by the pilot flame and captured by the thermo-generator. (also called thermopile). The admission of the gas fuel to the burner is done only under safe conditions.

Pressure Adjustments

Adjustments to the valve assembly must be performed by a qualified service person.

The appliance and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of ½ psi (3.5 kPa);

The appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less that ½ psi (3.5 kPa);

NATURAL GAS

The inlet supply or line pressure must be a minimum of 5 INWC and a maximum of 7 INWC. The orifice has a #36 hole.

ELEVATION (Canada)

INPUT RATING

0-4500 ft (0-1400m)

30 000 BTU/h

(8.8 kW)

Over 4500 ft (1400 m) +

30 000 BTU/h

(8.8 kW) less 4% per 1000 ft (300 m)



or reduce manifold pressure by 0.25 INWC per 1000 ft (300 m)

ELEVATION (USA)

INPUT RATING

0-2000 ft

30 000 BTU/h (8.8

kW)

Over 2000 ft

Refer to local codes

GAZ PROPANE





The inlet supply or line pressure must be a minimum of 10.5” WC and a maximum of 12” WC. The orifice has a #52 hole.

ELEVATION (Canada)

INPUT RATING

0-4500 pi (0-1400 m)

26 000 BTU/h

(7.6kW)

4500 pi (1400m)+

26 000 BTU/h

(7.6kW) moins 4% par 1000 pi (300m)



or reduce manifold pressure by 1 INWC per 1000 ft

ELEVATION (USA)

INPUT RATING



0-2000 ft

26 000 BTU/h (7.6kW)

Over 2000 ft

Refer to local codes

NOTE : The input rating should always be checked when first running this appliance. To do this, verify inlet valve pressure and manifold pressure,. Adjust manifold pressure to meet values range as indicated in burner characteristics table.
