Drolet Nova 820 User Manual
ELATION
VENTED GAS FIREPLACE INSERT
(4 LOG STYLE)
INSTALLATION AND OPERATING INSTRUCTIONS
WARNING: IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE
OR MAINTENANCE CAN CAUSE INJURY OR PROPERTY DAMAGE. REFER TO
THIS MANUAL. FOR ASSISTANCE OR ADDITIONAL INFORMATION, CONSULT
A QUALIFIED INSTALLER, SERVICE AGENCY, OR THE GAS SUPPLIER.
FOR YOUR SAFETY
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPOURS AND
LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
FOR YOUR SAFETY
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any electrical appliance
• Do not touch any electrical switch
• Do not use any phone in your building
• Immediately call your gas supplier from a neighbour’s phone
• Follow the gas supplier’s instruction
• If you cannot reach your gas supplier, call the fire department
Manufactured by :
DROLET STOVES & FIREPLACES INC.
1700 Leon-Harmel
Quebec, QC G1N 4R9
Canada
Rev 07/98 45046A
Tested by : Intertek Testing Services
WARNOCK HERSEY
ELATION Fireplace Insert 2
TABLE OF CONTENTS
GENERAL INFORMATION .................................................................................................. 3
WARNING............................................................................................................................... 4
SPECIFICATIONS ..................................................................................................................5
OPERATION ........................................................................................................................... 6
BEFORE LIGHTING................................................................................................... 6
LIGHTING PROCEDURE .......................................................................................... 6
WALL THERMOSTAT.............................................................................................. 7
SHUTDOWN ............................................................................................................... 7
BLOWER ..................................................................................................................... 7
MAINTENANCE INSTRUCTIONS....................................................................................... 8
GLASS MAINTENANCE ........................................................................................... 8
TOP, FRONT AND SIDE VIEWS..........................................................................................9
INSTALLATION..................................................................................................................... 10
SAFETY NOTICE ....................................................................................................... 10
POSITIONING THE INSERT..................................................................................... 10
CLEARANCES............................................................................................................ 11
INSTALLATION OF THE UNIT................................................................................ 11-12
GLASS FRONT REMOVAL, CLEANING AND INSTALLATION........................ 13
BURNER REMOVAL AND INSTALLATION.......................................................... 14
EMBER KIT INSTALLATION................................................................................... 15
LOG INSTALLATION............................................................................................... 16
BLOWER REPLACEMENT ....................................................................................... 17
BLOWER WIRING DIAGRAM ................................................................................. 17
SURROUND ASSEMBLY.......................................................................................... 18
ADJUSTMENTS...................................................................................................................... 19
ADJUSTING THE GAS PRESSURE.......................................................................... 20
ADJUSTING AIR SHUTTER ..................................................................................... 21
WALL THERMOSTAT............................................................................................... 21
OPTIONS................................................................................................................................. 22
REPLACEMENT PARTS........................................................................................................ 22
LIMITED 5 YEAR WARRANTY........................................................................................... 22
ELATION Fireplace Insert 3
GENERAL INFORMATION
The ELATION fireplace insert is a high-efficiency free-standing gas appliance with a
maximum input rating of 25,000 Btu/h (7.3 kWh) with natural gas or 25,000 Btu/h (7.3 kWh)
with propane. It features an adjustable millivolt valve and a constant pilot. This means that you
can set the height of the flame with a control knob or with an optional remote control. An
optional wall thermostat is also available for automatic room temperature control. The valve is
also independent of any exterior electrical supply. Your appliance will therefore continue to
heat your house in the event of a power failure.
For increased efficiency, we have included a 130 CFM (3.68 m3/min) blower with speed control
and thermo-switch. Your blower will therefore turn itself on or off automatically if you desire.
Read these instructions and consult local building authorities before installing this appliance.
Install the unit and its venting system only as directed in these instructions.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
This fireplace insert has been tested by Intertek Testing Services in accordance with CAN1-2.1M86, ANSI Z21.11.1 1991, Z21.11.1a 1993, Z21.11.1b-1996, ANSI Z21.50-1996/CGA-2.22M96 .
ELATION Fireplace Insert 4
WARNING
INSTALLATION SHOULD BE DONE BY A QUALIFIED INSTALLER.
DO NOT BURN WOOD OR ANY OTHER MATERIAL IN THIS APPLIANCE.
HOT WHEN IN OPERATION. KEEP CHILDREN, FURNITURE, CLOTHING AND
FLAMMABLE MATERIAL AWAY FROM THE APPLIANCE.
ADVISE ADULTS AND CHILDREN ABOUT THE HAZARD OF HIGH SURFACE
TEMPERATURES AND THAT THEY SHOULD STAY AWAY TO AVOID BURNS OR
CLOTHING IGNITION.
YOUNG CHILDREN SHOULD BE SUPERVISED WHEN THEY ARE IN THE SAME
ROOM AS THE APPLIANCE.
THE APPLIANCE SHOULD BE INSPECTED BEFORE USE AND AT LEAST
ANNUALLY BY A QUALIFIED SERVICE PERSON. MORE FREQUENT CLEANING
MAY BE REQUIRED DUE TO EXCESSIVE LINT FROM CARPETING, BEDDING
MATERIAL, ETC.
IT IS IMPERATIVE THAT THE CONTROL COMPARTMENTS, BURNERS AND
CIRCULATING AIR PASSAGEWAYS BE KEPT CLEAN.
DO NOT MODIFY THIS APPLIANCE.
THE OPENINGS IN THE FIREPLACE INSERT SHOULD NEVER BE BLOCKED.
PROVIDE ADEQUATE ACCESSIBILITY CLEARANCES FOR SERVICING AND
PROPER OPERATION.
ELATION Fireplace Insert 5
SPECIFICATIONS
Dimensions:
height: 20” (508 mm)
width: front: 28” (711 mm) rear: 16” (406 mm)
depth: 14 3/4” (375 mm)
Surround dimensions: Small Large
width: 40” (1016 mm) 44” (1118 mm)
height: 25 ½” (648 mm) 27 ½” (699 mm)
Glass: 5mm 28" (711 mm) x 11 ¼” (286 mm) 1400° F clear ceramic
Fuel: Natural Gas Propane
Maximum input : 25,000 (7.3) 25,000 (7.3) Btu/h (kWh)
Minimum input: 17,000 (5.0) 19,000 (5.6) Btu/h (kWh)
Manifold pressure : 3.5/1.8 (0.9/0.5) 10.5/7.0 (2.6/1.8) in w.c. (kPa)
Min. inlet pressure : 5 (1.3) 11 (2.8) in w.c. (kPa)
Max. inlet pressure : 8 (1.8) 14 (3.5) in w.c. (kPa)
Orifice size/Altitude: 42 dms 0-4500 ft 53 dms 0-4500 ft
Output capacity (Blower off): 18,500 (5.4) 18,500 (5.4) Btu/h (kWh)
Output capacity (Blower on): 20,000 (5.9) 20,000 (5.9) Btu/h (kWh)
Efficiency (Blower off): 73.5% 73.5%
Efficiency (Blower on): 80.6% 80.6%
Vent: 4” "B-vent", "L-vent" or certified flex liner
Valve: SIT model Nova 820 adjustable millivolt valve
Blower : variable speed, 130 CFM (3.68 m
Thermo-switch: 110° F (43° C) “ON”, 90° F (32° C) “OFF” bi-metal type.
3
/min)
ELATION Fireplace Insert 6
OPERATION
BEFORE LIGHTING
1) Do not use this appliance if any part has been under water. Immediately call a qualified
service technician to inspect the appliance and to replace any part of the control system and
any gas control which has been under water.
2) Make sure that there are no obstructions in the air intake or venting system.
3) Clear the immediate area of combustible materials, gasoline, and other flammable liquids
and vapours.
4) Make sure that the gas log is in its proper place.
THE FIRST FIRE:
During the first few hours of operation the appliance will release an odor. This is caused by the
burning off of residual oils used in the manufacturing process and by the curing of the high heat
paint. The ceramic glass window may require cleaning after this initial "burn in." Please read
the instructions on cleaning in the MAINTENANCE section before doing so.
The optional gold plated items must be
from your fingerprints may permanently etch the gold plating.
If the protective packaging that accompanied the gas log is still in place, follow the instructions
in the LOG PLACEMENT section.
absolutely clean before you light each fire. The acid
LIGHTING PROCEDURE
WARNING: If you do not follow these lighting instructions exactly, a fire or explosion may
result causing property damage, personal injury, or loss of life.
Open the pedestal cover front panel to reach the control.
Make sure the gas control knob is turned to the "off" position. If it is not, press knob slightly
and turn clockwise to the "off" position.
was in the on position you should wait 5 minutes before trying to re-light the stove.
• If you smell gas STOP and follow instructions on the COVER page.
• Push in and turn gas control knob counterclockwise to the "pilot" position.
• Press gas control knob in and hold. Immediately push the red igniter button repeatedly until
pilot flame ignites. Continue holding in the control knob for 5 to 10 seconds, then release it.
If the pilot flame goes out, repeat this step.
• Push and turn gas control knob counterclockwise to the "on" position.
Do not force the gas control knob. If the gas control
ELATION Fireplace Insert 7
CAUTION: This insert is hot while in operation. Do not touch. Keep children, clothing and
flammable materials away.

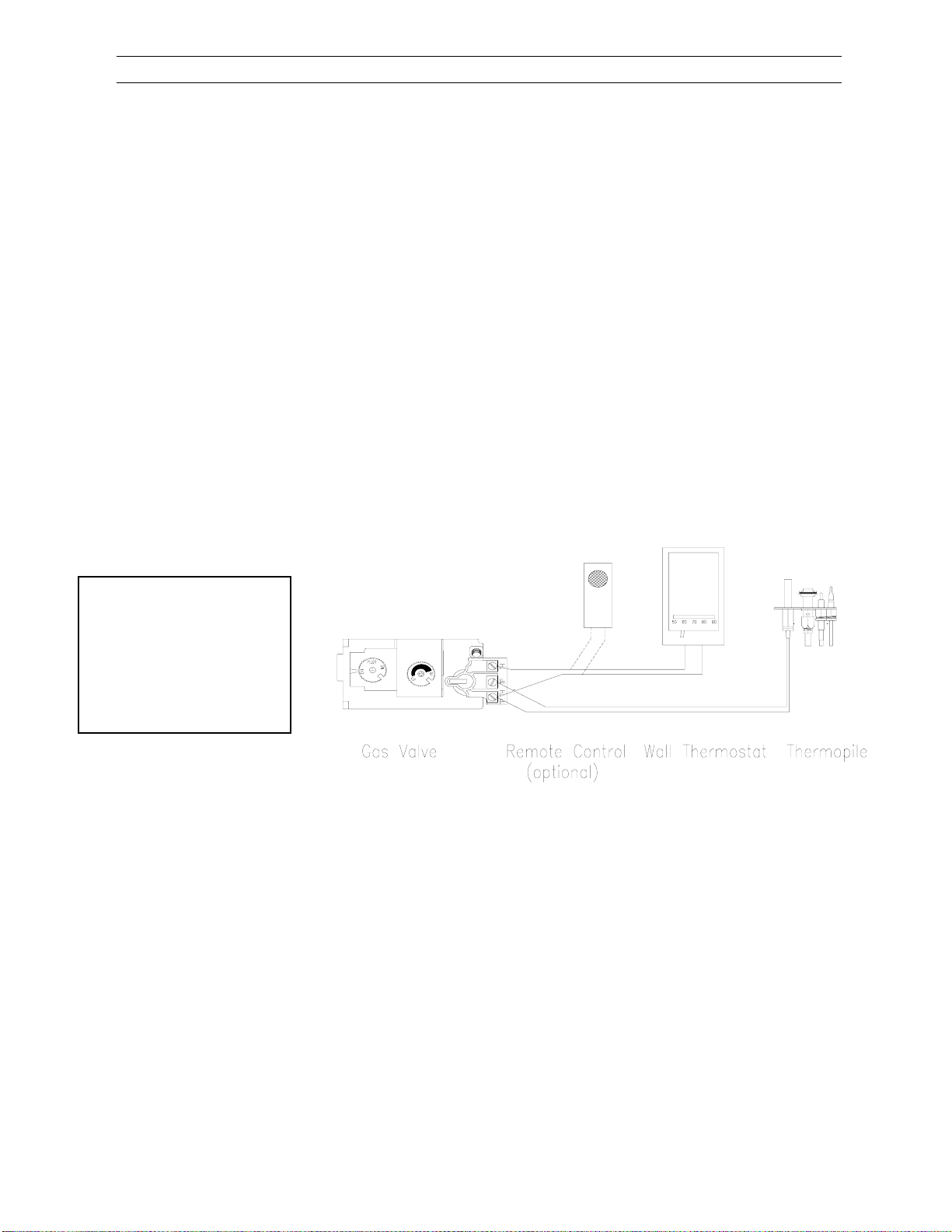

WALL THERMOSTAT
To operate your ELATION using the wall thermostat, follow the lighting procedure and set the
gas control to the ON position. Simply set your wall thermostat to a comfortable temperature
and the insert will do the rest.
During the heating season, you do not have to touch the gas control valve. If you would like the
insert off for a while, just set the thermostat to its minimum setting. However if you do not
need the insert for quite some time, follow the procedure outlined in the SHUTDOWN section.
This will extinguish the pilot light as well.
SHUTDOWN
Push in and rotate the gas control knob clockwise to the "off" position. Do not force.
If you are going to perform any maintenance or cleaning, first allow the insert to cool
completely. Follow the instructions in the section on cleaning under MAINTENANCE
INSTRUCTIONS.
BLOWER
The blower control contains a variable speed switch and a thermal switch. When the insert is
operating, the thermal switch will turn on at 110° F, allowing the blower to operate . When the
insert cools to 90° F, the thermal switch turns off the blower in about 40 minutes. This prevents
the blower from operating when the insert is not in use.
The blower not only helps circulate air throughout the room, it also increases the heat output
and efficiency of the ELATION.
