OWNER`S MANUAL

DROLET NG1800 WOODSTOVES:

AUSTRAL, BALTIC, LEGEND AND MYRIAD

US ENVIRONMENTAL PROTECTION

AGENCY PHASE II CERTIFIED

WOODSTOVES

Verified and tested following

ULC S627 and UL 1482 Standards by:

Manufactured by : STOVE BUILDER INTERNATIONAL INC.. 1700, Léon-Harmel, Québec (Québec) G1N 4R9

Tel : (418 ) 527-3060

Fax : (418 ) 527-4311 www.drolet.ca

READ AND KEEP THIS MANUAL FOR REFERENCE

45063A.doc

TABLE OF CONTENTS



INTRODUCTION...............................................................................................................

2

TECHNICAL SPECIFICATIONS .......................................................................................

3

TIPS ON WOOD HEATING...............................................................................................

4

ASSEMBLY .......................................................................................................................

5

BALTIC ..........................................................................................................................

5

AUSTRAL, LEGEND AND MYRIAD ..............................................................................

6

DOOR ADJUSTMENT ...................................................................................................

7

INSTALLATION.................................................................................................................

8

POSITIONING THE STOVE ..........................................................................................

8

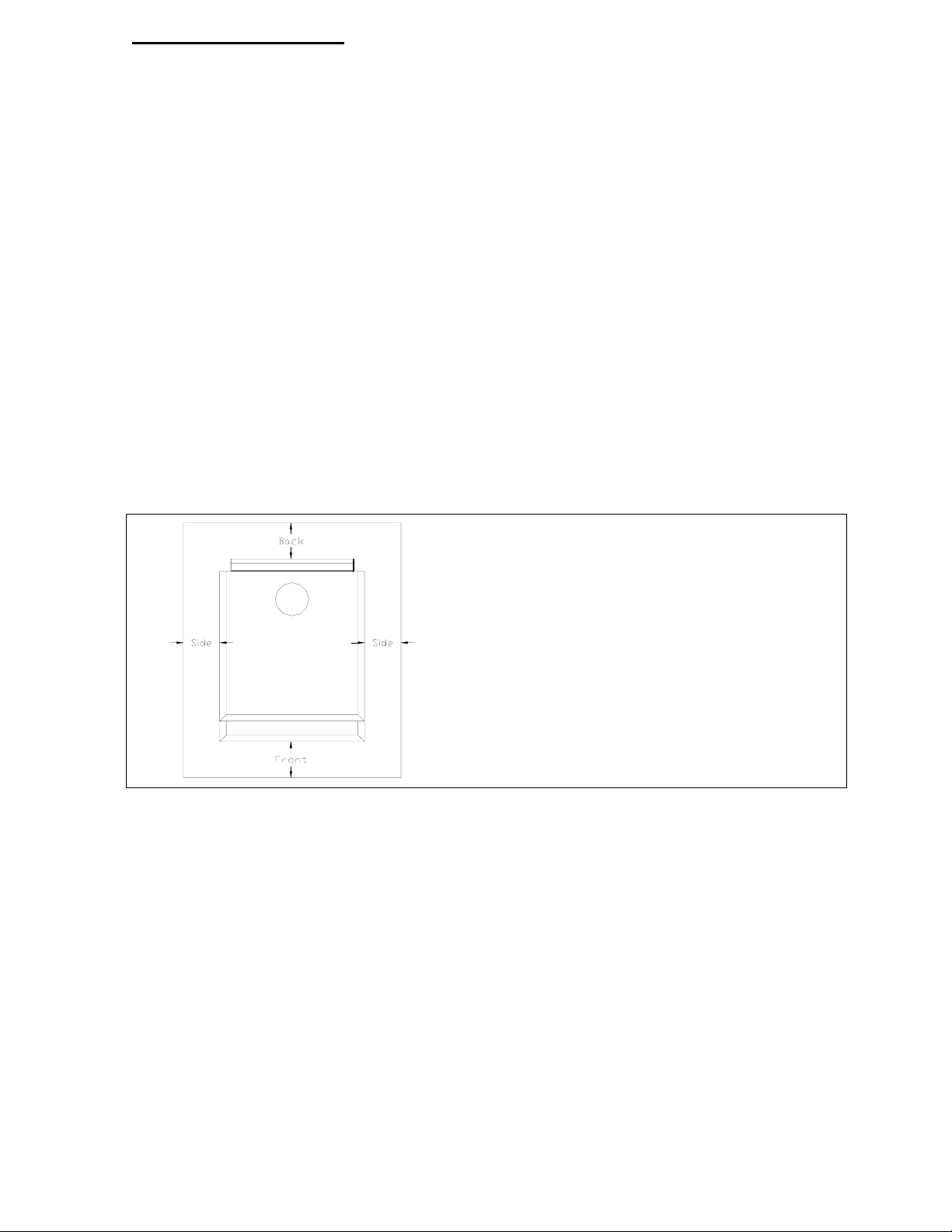

FLOOR PROTECTOR...................................................................................................

9

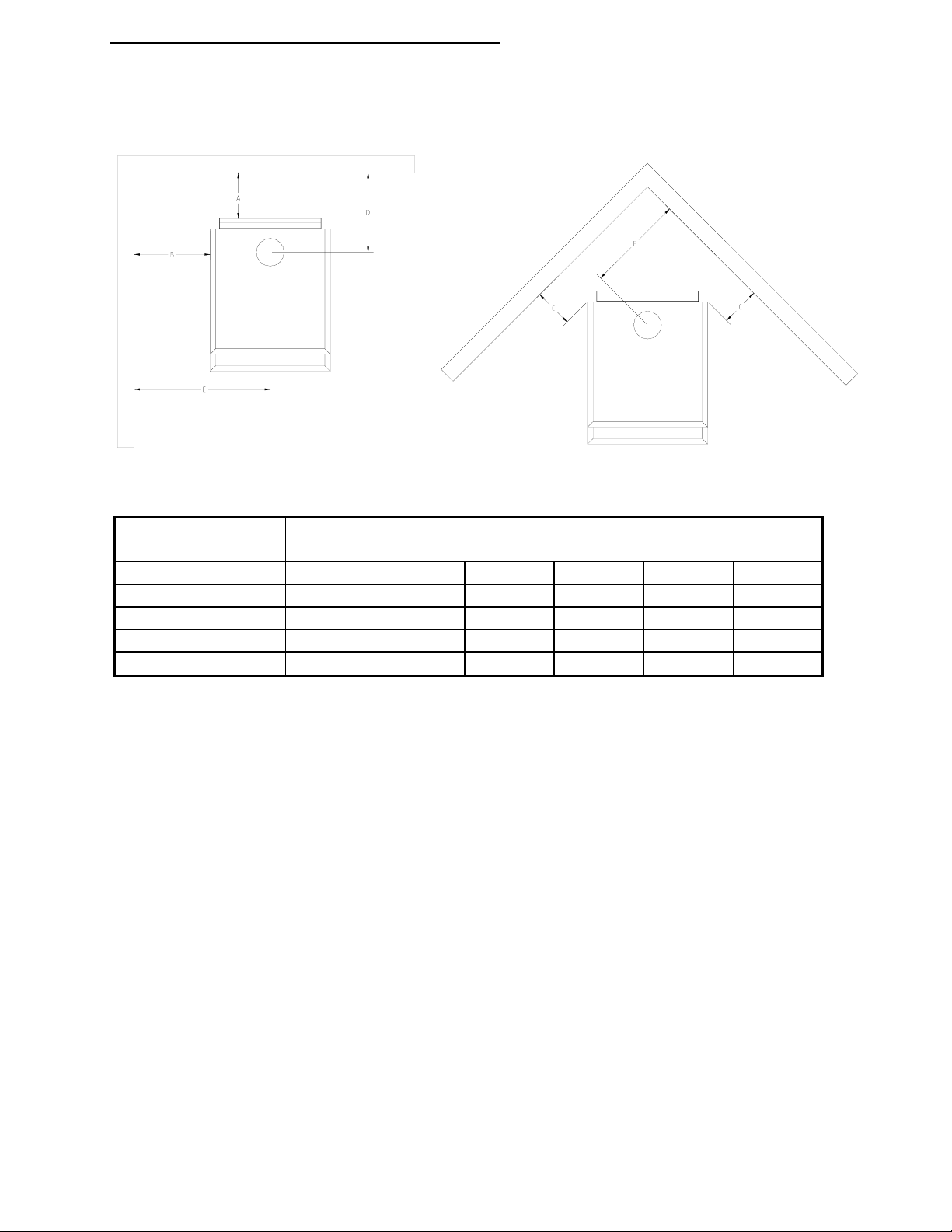

CLEARANCES FROM COMBUSTIBLES ....................................................................

10

REDUCED CLEARANCES (CANADA ONLY) .............................................................

11

CHIMNEY ....................................................................................................................

12

CHIMNEY CONNECTOR (STOVE PIPE)....................................................................

13

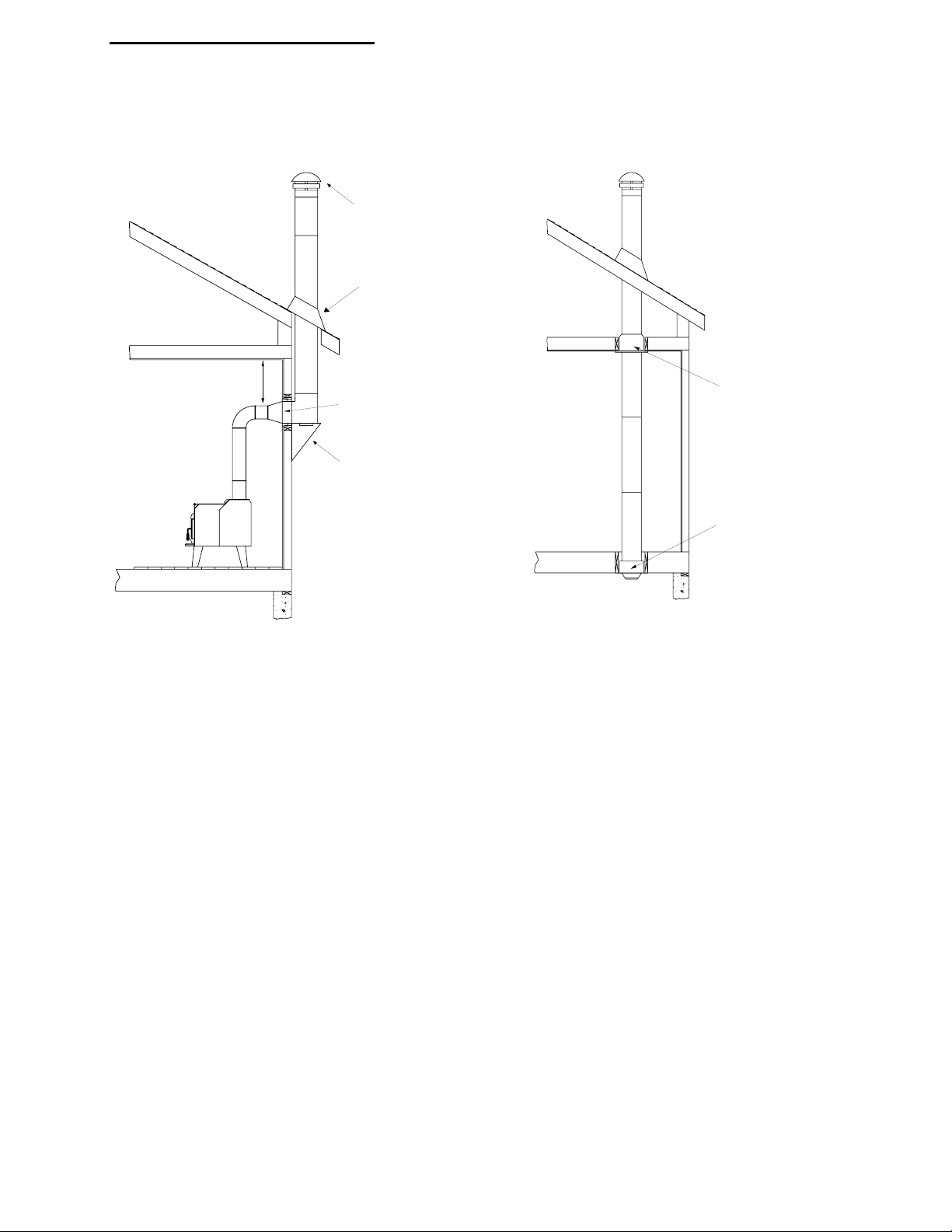

TYPICAL INSTALLATIONS .........................................................................................

14

OUTSIDE COMBUSTION AIR.....................................................................................

18

WOODSTOVE UTILISATION..........................................................................................

19

TESTING YOUR WOOD .............................................................................................

20

THE FIRST FIRES.......................................................................................................

20

IGNITION.....................................................................................................................

20

HEATING.....................................................................................................................

21

RELOADING................................................................................................................

22

CREOSOTE FORMATION AND NEED FOR REMOVAL............................................

22

USE OF THE BYPASS DAMPER................................................................................

23

ASH DISPOSAL ..........................................................................................................

23

MAINTENANCE ..............................................................................................................

25

GLASS.........................................................................................................................

25

GASKETING................................................................................................................

25

PAINT ..........................................................................................................................

25

DROLET LIMITED LIFETIME WARRANTY ....................................................................

26

REGISTER YOU WARRANTY ONLINE



To receive full warranty coverage, you will



need to show evidence of the date you



purchased your stove. Keep your sales



invoice. We also recommend that you register



your warranty online at



www.drolet.ca



Registering your warranty online will help us



track rapidly the information we need on your



stove.



1

INTRODUCTION

SBI INC., one of the most important wood stove and fireplace manufacturers in Canada, congratulates you on your purchase and wishes to help you get maximum satisfaction from your wood stove. In the pages that follow, we will give you advice on wood heating and controlled combustion as well as technical specifications regarding installation, operation and maintenance of the model you have chosen.

The instructions pertaining to the installation of your wood stove comply with ULC-S627 and UL-1482 standards.

Read this entire manual before you install and use your new stove. If this stove is not properly installed, a house fire may result. To reduce the risk of fire, follow the installation instructions. Failure to follow instructions may result in property damage, bodily injury, or even death.

Consult your municipal building department or fire officials about restrictions and installations requirements in your area and the need to obtain a permit.

Keep this instructions manual for future references.

CAUTIONS:

HOT WHILE IN OPERATION. KEEP CHILDREN, CLOTHING AND FURNITURE AWAY. CONTACT MAY CAUSE SKIN BURNS.

DO NOT USE CHEMICALS OR FLUIDS TO IGNITE THE FIRE.

DO NOT LEAVE THE STOVE UNATTENDED WHEN THE DOOR IS SLIGHTLY OPENED.

DO NOT BURN WASTES, FLAMMABLE FLUID SUCH AS GASOLINE, NAPHTHA OR MOTOR OIL.

DO NOT CONNECT TO ANY AIR DISTRIBUTION DUCT OR SYSTEM.

ALWAYS CLOSE THE DOOR AFTER THE IGNITION.

2

TECHNICAL SPECIFICATIONS

Combustible:



Wood

Recommended Surface



500 to 1 800 ft2





(46 to 167 m2)

Heating Capacity :

E.P.A :

30 800 BTU/h





(9.02 kW)



Seasoned cordwood:

70 000BTU/h





(20.50kW)

Default EPA Efficiency :



63 %

Emissions:



5.7 g/h

Colors :



Flat Black

Flue Pipe Diameter :



6’’ (152 mm)

Chimney type :



2 100°F (650 °C)

Minimum Chimney Height :



12’ (3,66 m)

Maximum Log Length :



19 1/2’’ (495 mm)

Dimensions











Overall:



L x P x H



Baltic, Myriad :

23 ¾ x 26 ½ x 31 ½ "





(603 x 673 x 800mm)



Austral, Legend :

23 ¾ x 26 ½ x 30 ¼ "





(603 x 673 x 768mm)







Combustion Chamber :



W x D



Width x Depth :

18 ¼ x 20 ¼ ’’





(464 x 514 mm)



Volume :

3.228 pi3 (0,092 m3)

Door Opening :



W x H



All Models :

15 ½ x 12 1/4’’





(394 x 311 mm)

Pyroceram Glass Door :



W x H



All Models :

15 3/16 ’’ x 11 1/4 ’’





(386 x 286 mm)

Weight:

Austral :

342 lbs ( 116 Kg)



Baltic :

388 lbs ( 188 Kg)



Legend :

383 lbs ( 188 Kg)



Myriad :

381 lbs ( 188 Kg)







OPTIONS



PART NUMBER

Thermodisc



All Models: AC05530

Outside air intake kit



All Models: AC02080

3

TIPS ON WOOD HEATING

Wood is a renewable energy. It is also a very clean heat source when used with appliances that are certified by the U.S. Environmental Protection Agency (EPA), a standard accepted in Canada as well.

EPA-certified wood stoves are different than conventional wood stoves. Burning with an EPA-certified wood stove may therefore require that you modify some of your heating habits. To get the most satisfaction out of your new wood-heating system, please make sure you go through the following check list.

The chimney is the engine that drives the wood-heating system. Use a chimney that is UL-listed, with an inner diameter to match the stove’s outlet collar (6” for all Drolet wood stoves);

Try to run the chimney inside the building for as much length as you can. A tall and warm chimney will produce a good draft;

Try to install your chimney straight up and avoid 90 degree turns in the flue pipe and offsets in the chimney;

Make sure that the chimney is tall enough and its top is clear of obstacles so it can produce a stable draft;

Use a chimney thermometer installed at a distance of approximately 18 inches on the flue pipe above the stove. Flue gases should reach at least 350oF before you close the stove’s primary air intake completely. Operate your unit within the comfort zone indicated on the thermometer;

To reduce the risk of smoke spillage into the room upon reloading your stove, leave the primary air intake completely open for a few minutes. This will heat up the chimney and build up draft before you open the stove door;

Maximize hot air circulation! Our wood stoves are designed to easily receive a variable speed blower that will improve heat distribution in front of the stove; Remember that wood stoves produce radiant heat. Since heat rises, the use of floor traps will greatly improve the heat transfer to rooms upstairs;

Use a mobile home approved stove if you are going to install your wood-heating system in a mobile home. A fresh air kit must be connected to the stove. Never install your wood stove in a bedroom;

Burn only dry cordwood;

Make sure you have a good bed of red coals before you load your stove with logs exceeding 3 inches in diameter;

Read and keep you owner’s manual. It will provide you with tips on how to run a successful wood-heating system.

4

ASSEMBLY

BALTIC

Pedestal Base Installation:

1. Slide the front part of the pedestal base around the pedestal and fix the rear part with the two supplied screws.

2. Slide the ash pan in position.

Side Panels and Ash Lip Installation:

1. Start by fixing the front part of the decorative side in the two clips welded on the sides of the fire box.

2. Then, fix the back of the decorative side with two screws and washers supplied. Line up the decorative side parallel to the side of the appliance.

5

AUSTRAL, LEGEND AND MYRIAD

Ash Pan Installation:

6

DOOR ADJUSTMENT

In order for your stove to operate properly, the door should be adjusted periodically to provide an air tight fit. To adjust:

Remove the lock pin (spring pin) by pulling and turning it using pliers ("wise grip")

Turn the handle counter clock wise one turn to increase pressure

Re-install the lock pin (spring pin) with a small hammer

Figure 1: Door Adjustment

7

INSTALLATION

SAFETY NOTICE

• IF THIS STOVE IS NOT PROPERLY INSTALLED, A HOUSE FIRE MAY RESULT. TO REDUCE THE RISK OF FIRE, FOLLOW THE INSTALLATION INSTRUCTIONS. FAILURE TO FOLLOW INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, BODILY INJURY, OR EVEN DEATH.

• CONSULT YOUR MUNICIPAL BUILDING DEPARTMENT OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATIONS REQUIREMENTS IN YOUR AREA.

USE SMOKE DETECTORS IN THE ROOM WHERE YOUR STOVE IS INSTALLED.

KEEP FURNITURE AND DRAPES WELL AWAY FROM THE STOVE.

NEVER USE GASOLINE, GASOLINE-TYPE LANTERN FUEL, KEROSENE, CHARCOAL LIGHTER FLUID,

OR SIMILAR LIQUIDS TO START OR "FRESHEN UP" A FIRE. KEEP ALL SUCH LIQUIDS WELL AWAY FROM THE STOVE.

• IN THE EVENT OF A CHIMNEY FIRE, PUSH THE AIR CONTROL FULL CLOSED TO DEPRIVE THE FIRE OF OXYGEN. CALL THE FIRE DEPARTMENT.

DO NOT CONNECT TO ANY AIR DISTRIBUTION DUCT OR SYSTEM.

A SOURCE OF FRESH AIR INTO THE ROOM OR SPACE HEATED SHALL BE PROVIDED WHEN

REQUIRED.

POSITIONING THE STOVE

It is very important to position the wood stove as close as possible to the chimney, and in an area that will favour the most efficient heat distribution possible throughout the house.

The stove must therefore be installed in the room where the most time is spent, and in the most spacious room possible. Recall that wood stoves produce radiating heat, the heat we feel when we are close to a wood stove. A wood stove also functions by convection, that is through the displacement of hot air accelerated upwards and its replacement with cooler air. If necessary, the hot air distribution from the stove may be facilitated by the installation of a blower.

The wood stove must not be hooked up to a hot air distribution system since an excessive accumulation of heat may occur.

A wood stove must never be installed in a hallway or near a staircase, since it may block the way in case of fire or fall to respect required clearances.

8
