ULTRA FLAME

FIREPLACE GAS INSERT

INSTALLATION AND OPERATING INSTRUCTIONS

FOR YOUR SAFETY

DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.

FOR YOUR SAFETY

IF YOU SMELL GAS :

1.OPEN WINDOWS

2.TURN OFF MAIN GAS SUPPLY

3.DON’T TOUCH ELECTRICAL SWITCHES

4.EXTINGUISH ANY OPEN FLAME

5.IMMEDIATELY CALL YOUR GAS SUPPLIER

Manufactured by :

DROLET STOVES & FIREPLACES INC.

1700, Leon-Harmel

Quebec, Qc (Canada)

G1N 4R9

Tested by :

WARNOCK HERSEY

Rev. 07/96 45028A

TABLE OF CONTENTS :



GENERAL INFORMATION :.............................................................................

2

WARNING :........................................................................................................

3

SPECIFICATIONS :............................................................................................

4

TOP, SIDE AND FRONT VIEWS :.........................................................

5

INSTALLATION :...............................................................................................

6 to 10

GLASS FRONT REMOVAL CLEANING AND INSTALLATION :........

11

BURNER REMOVAL AND INSTALLATION :......................................

12

LOG INSTALLATION :...........................................................................

13

FACE PLATE ASSEMBLY AND INSTALLATION :..............................

14-15

REFRACTORY PANELS INSTALLATION :..........................................

16

EMBERS KIT INSTALLATION :............................................................

16

OPERATING INSTRUCTIONS :.........................................................................

17

LIGHTING INSTRUCTIONS :.................................................................

17

SHUTDOWN INSTRUCTIONS :..............................................................

17

FAN OPERATION :..................................................................................

17

MAINTENANCE INSTRUCTIONS :...................................................................

18

PILOT BURNER ADJUSTMENT :...........................................................

18

OPTIONAL PARTS :...........................................................................................

19

REPLACEMENT PARTS :...................................................................................

19

LIMITED 5 YEARS WARRANTY :.....................................................................

20

1

GENERAL INFORMATION :

The ULTRA FLAME is a high efficiency fireplace gas insert with an input rating of 30 000 Btu/h with natural gas and 26 000 Btu/h with propane. It features a millivolt valve with a constant pilot. This lets you choose between a wall mounted switch, a wireless remote control to turn on or off the main flame at will. This also means that your ULTRA FLAME gas valve is not connected to any exterior electrical supply and that your appliance will continue to heat your house in the event of a power failure.

For added efficiency, we included a 140 CFM blower with speed control and thermoswitch. Your fan will therefore turn itself on or off automatically, if you so desire.

The ULTRA FLAME should only installed in a existing masonry or prefab fireplaces.

The installation must be in accordance with local building codes or, if inexistant, with current CAN/CGA B149.1 & B149.2 , ANSI Z 223.1 installation codes for gas appliance.

The gas insert must be electrically grounded in accordance with the current electrical Codes.

Read these instructions and consult your local building authorities before installing this appliance. Install the unit and its venting system only as described in these instructions.

KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

This gas insert has been tested by WARNOCK HERSEY according to the CAN-CGA- 2.22M86 standard, and Z21.50, 50A, 50B American standard.

2

WARNING

*INSTALLATION SHOULD BE DONE BY A QUALIFIED INSTALLER.

*DO NOT BURN WOOD OR ANY OTHER MATERIAL IN THE GAS INSERT.

*HOT WHEN IN OPERATION. KEEP, FURNITURE, CLOTHING AND FLAMMABLE MATERIAL AWAY FROM THE APPLIANCE.

*ADVISE ADULTS AND CHILDREN TO THE HAZARD OF HIGH SURFACE TEMPERATURES AND THAT THEY SHOULD STAY AWAY TO AVOID BURNS OR CLOTHING IGNITION.

*YOUNG CHILDREN SHOULD BE SUPERVISED WHEN THEY ARE IN THE SAME ROOM AS THE APPLIANCE.

*THE APPLIANCE SHOULD BE INSPECTED BEFORE USE AND AT LEAST ANNUALLY BY A QUALIFIED SERVICE PERSON. MORE FREQUENT CLEANING MAY BE REQUIRED DUE TO EXCESSIVE LINT FROM CARPETING, DUST, BEDDING MATERIAL, ETC.

*IT IS IMPERATIVE THAT THE CONTROL COMPARTMENTS, BURNERS AND CIRCULATING AIR PASSAGEWAYS BE KEPT CLEAN.

*DO NOT MODIFY THIS APPLIANCE.

*THE LOUVER OPENINGS ON THE GAS INSERT FACE PLATE SHOULD NEVER BE BLOCKED.

*PROVIDE ADEQUATE ACCESSIBILITY CLEARANCES FOR SERVICING AND PROPER OPERATION.

3

SPECIFICATIONS :

Dimensions :











height :

20”







width :

28”







depth :

15”







face plate :

44 5/16” x 27 1/2”







glass :

14 1/2 x 30 5/16

1400° F clear ceramic

Fuel :



Natural Gas

Propane



Input :

30 000

26 000 Btu/h



Manifold pressure :

3.5

11

in w.c.



Min inlet pressure :

5

11

in w.c.



Max inlet pressure :

7

14

in w.c.

Vent size :

4” Diam. listed gas liner





Valve :

Natural gas

Propane







White Rogers

Robertshaw







Model 36C03U TYPE 139 Model 7000 MVRLC





Millivolt operated

Millivolt operated





SIT

SIT







Nova model

Nova model







Millivolt operated

Millivolt operated



Blower :

Variable speed, 140 CFM





Thermo-switch : 120° F “ON” 110° F “OFF” bi-metal type

Efficiency : 74% heating

Clearances to combustibles :

mantel : 10” from top of face place side wall : 0” from side of face plate

4

TOP, SIDE AND FRONT VIEWS :

5

INSTALLATION :

1.When the masonry fireplace that will receive the ULTRA FLAME gas insert is thoroughly cold, remove all ashes and vacuum clean.

2.Remove the glass front from the gas insert following page 11 instructions.

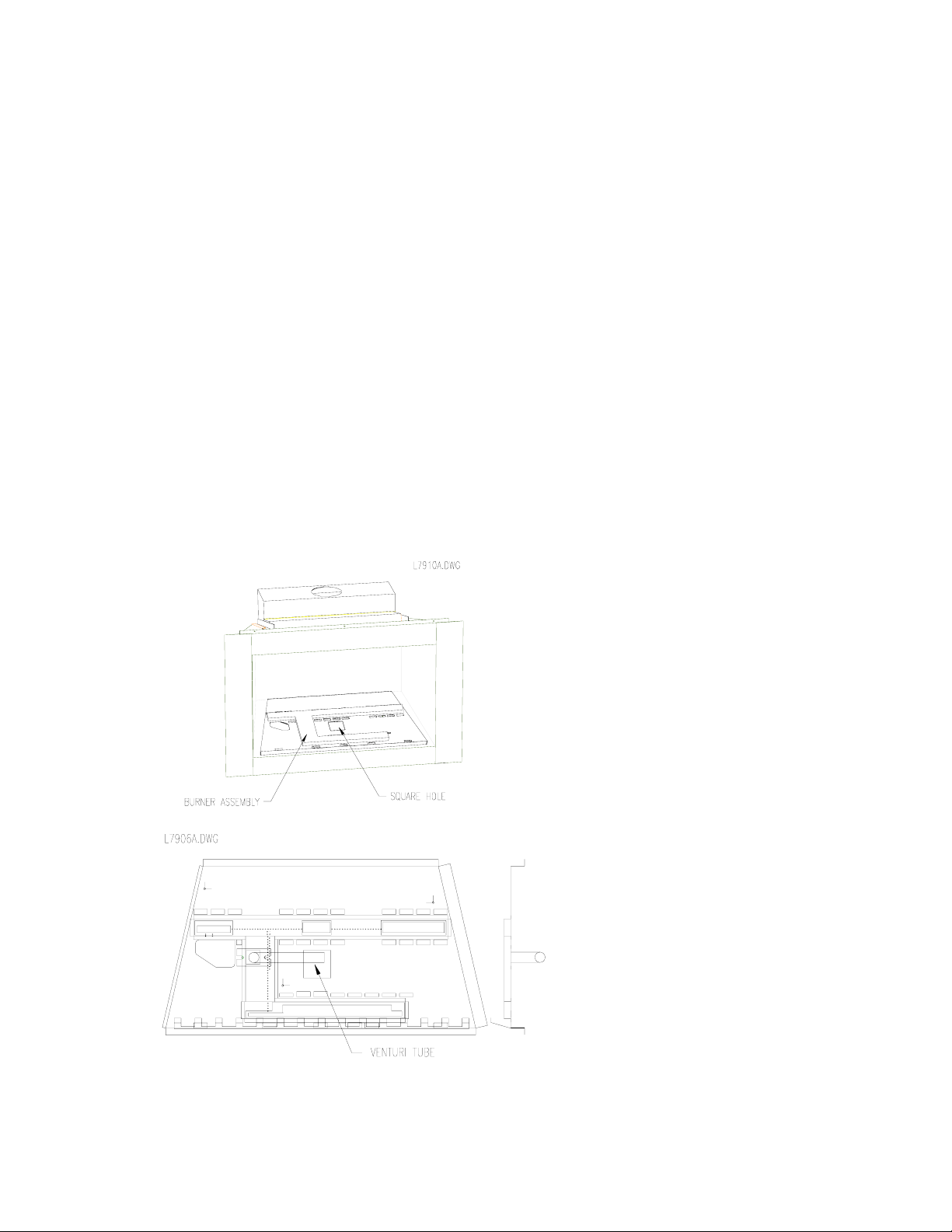

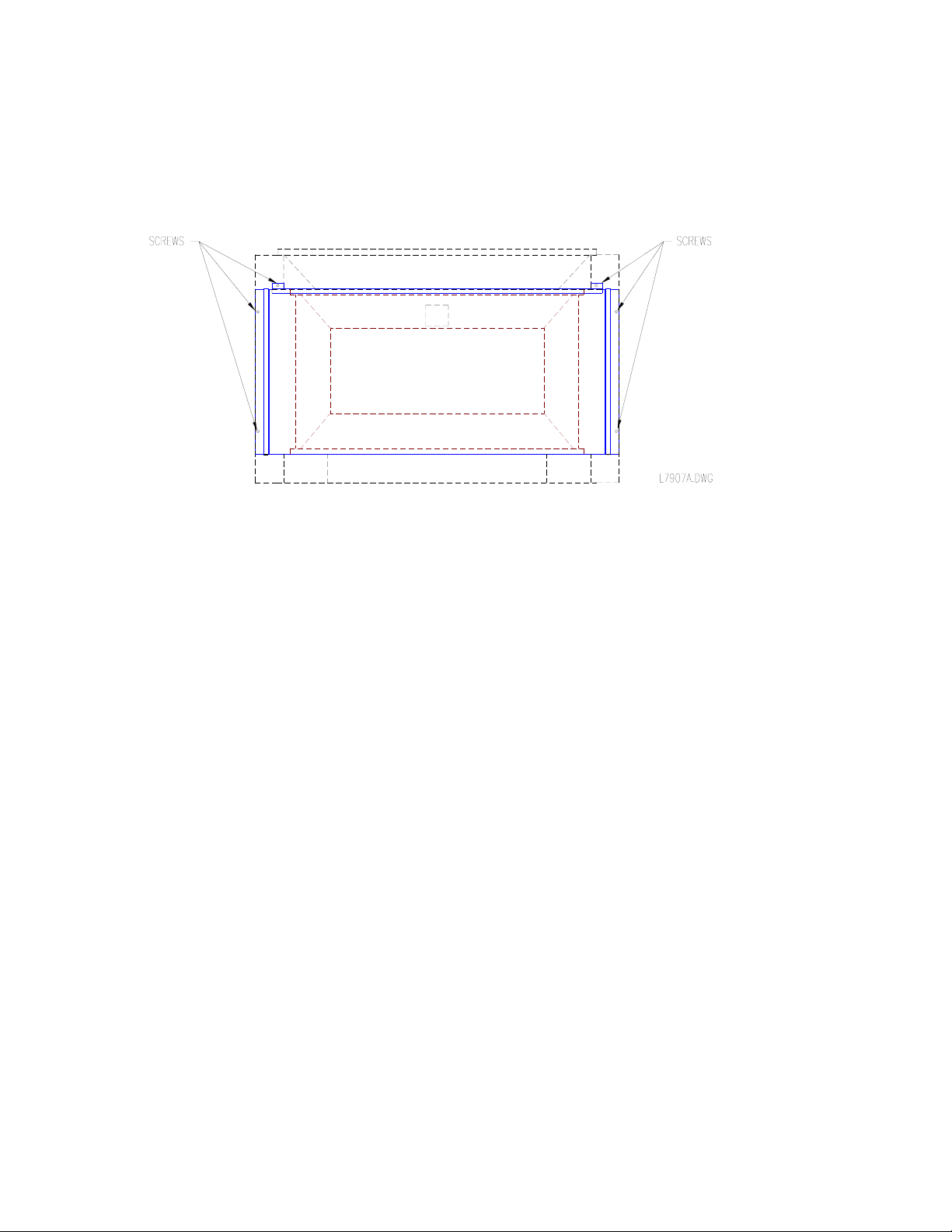

3.Remove the burner and firebox bottom plate from the gas insert following page 12 instructions.

4.Remove the draft hood from the top of the appliance.

5.Move the ULTRA FLAME to the desired position and level the appliance using the two bolts located in the back corners. Mark the location for the gas inlet pipe. ( We suggest using the hole in the back of the ULTRA FLAME for ease of connection. )

6.Remove the ULTRA FLAME gas insert from the fireplace.

7.Route a 3/8” minimum NPT iron pipe gas line to the desired location.

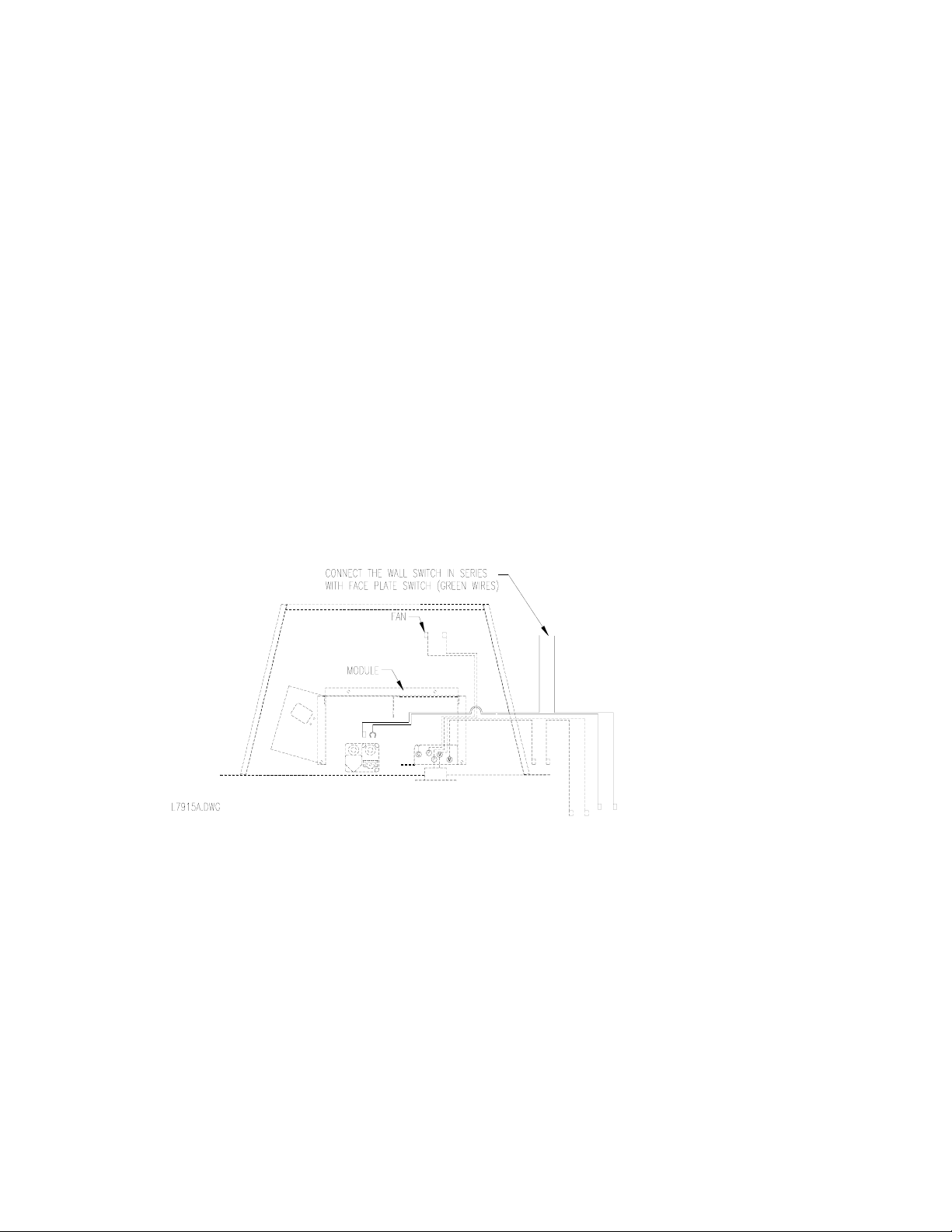

8.If you wish to make a direct electrical connection to the blower without using the six foot cord supplied, route a 120 volts, 60 Hz electrical power supply line to the same location.

9.Remove or block open the masonry fireplace flue damper.

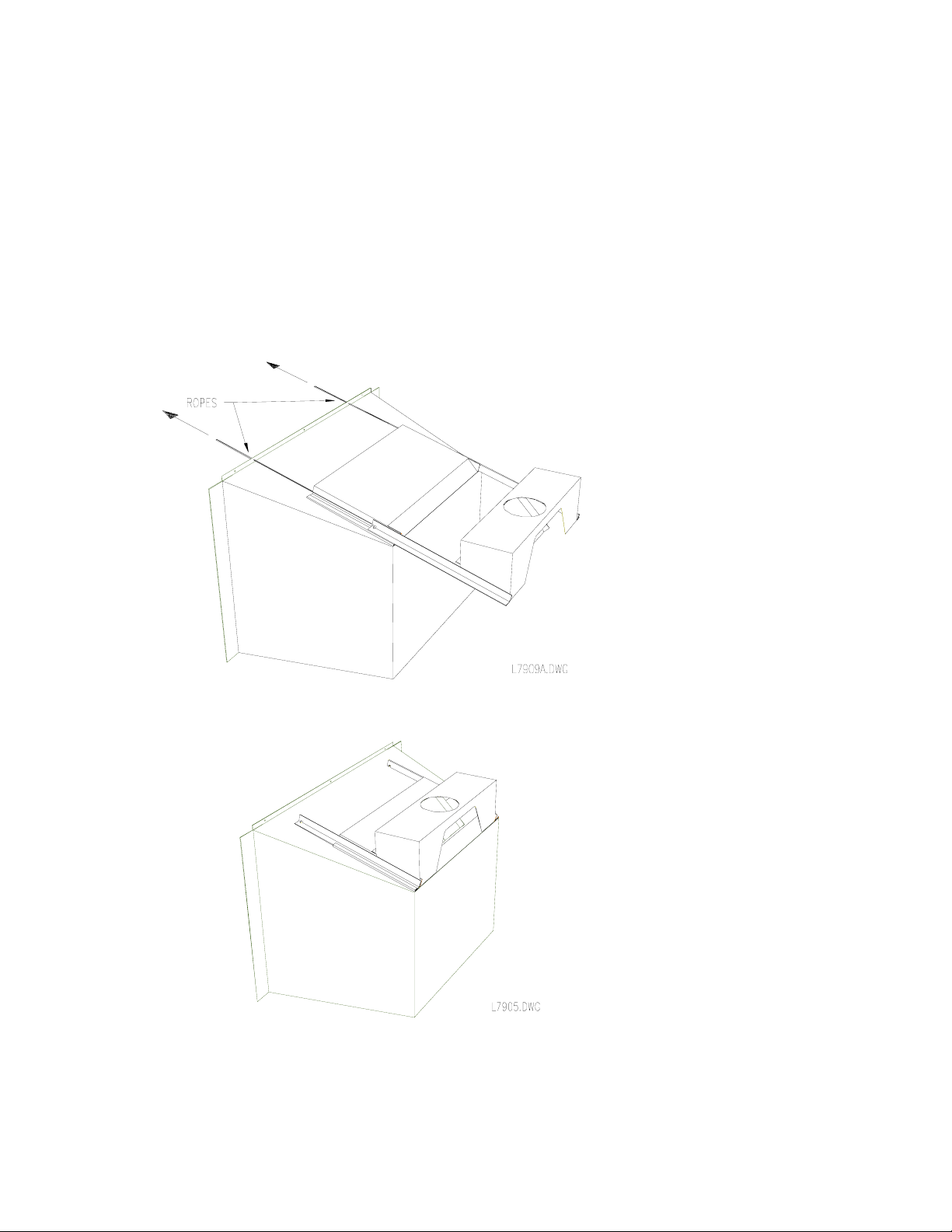

10.Install a certified 4” gas liner inside the chimney from its very top down to the fireplace.

6
