Drive Clever-Lite Quick Start Manual

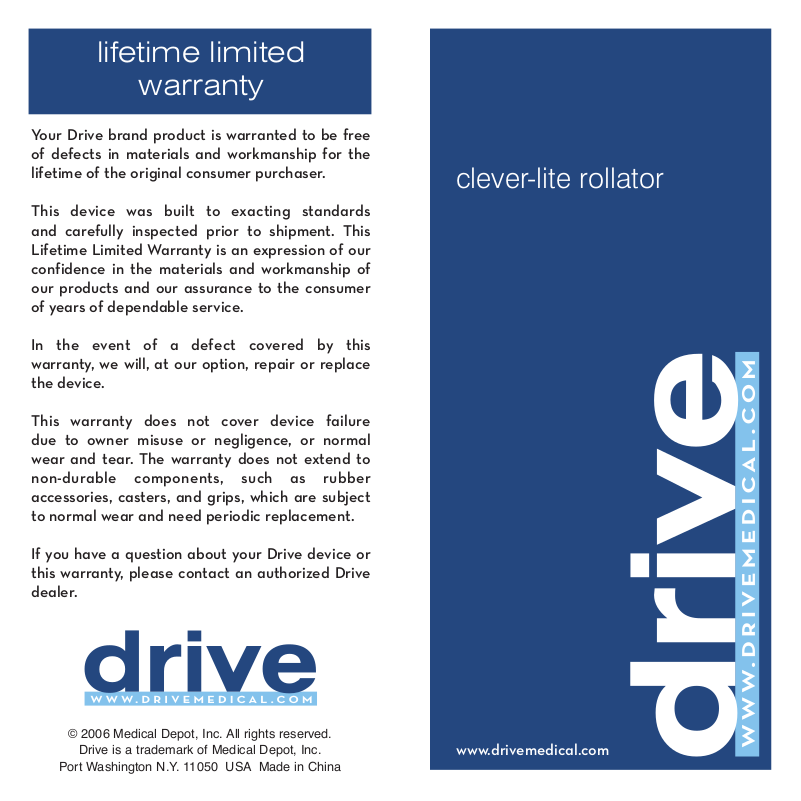

lifetime limited

warranty

Your Drive brand product is warranted to be free
of defects in materials and workmanship for the
lifetime of the original consumer purchaser.

This device was built to exacting standards
and carefully inspected prior to shipment. This
Lifetime Limited Warranty is an expression of our
confidence in the materials and workmanship of
our products and our assurance to the consumer
of years of dependable service.

In the event of a defect covered by this
warranty, we will, at our option, repair or replace
the device.

This warranty does not cover device failure
due to owner misuse or negligence, or normal
wear and tear. The warranty does not extend to
non-durable components, such as rubber
accessories, casters, and grips, which are subject
to normal wear and need periodic replacement.

clever-lite rollator

If you have a question about your Drive device or
this warranty, please contact an authorized Drive
dealer.

© 2006 Medical Depot, Inc. All rights reserved.

Drive is a trademark of Medical Depot, Inc.

Port Washington N.Y. 11050 USA Made in China

www.drivemedical.com

assembly instructions

loop lock operation

Do not aempt to adjust or operate

walker without carefully reading all

instructions in this manual.

1. Remove all contents from carton.

2. Open walker and drop seat to down position.

safety precautions

1. Please make sure the walker is fully opened,
seat is down and secured in the down position.

2. Test walker for stability before applying full
weight to hand grips.

3. Test the loop locks before operating the walker.
When wheels are locked, (see illustrations for
locking and releasing locks), lock bar on rear
wheels should prevent wheels from turning. If
the wheels turn while brakes are locked, please
take unit back to dealer for adjustment. When
locks are released, the wheels should turn freely.

4. Always lock loop locks before siing and do
not use seat when unit is on an incline or
uneven ground.

5. Replace tires when significantly worn
or damaged.

6. Do not have anyone push you while you are
seated on the walker.

7. To fold walker, li seat to upright position.
Deploy one trigger release and swing brace to
closed position. Repeat on the other side.

NOTE: This is a walking aid only. It is not to be

used as a transportation device.

WEIGHT CAPACITY: 300 LBS.

Always engage and disengage wheel locks on both
sides simultaneously.

1. To Slow Down or Come to a Temporary Stop
— Pull up slowly on the loop locks with four
fingers until unit slows down or comes to a
temporary stop.

2. To Temporarily Lock Wheels in Position
— Press down on both loop locks with palms
until you hear a “click” that will tell you wheels
are locked.

3. To Release Wheel Locks
— Push up on both loop locks with palms of hand
to original position.

Orthodic
Hand Grip

Trigger Release
Allows For Easy

Folding

Wide

Comfortable

Seat

Backrest

Swivel Wheel

Bearing For

Smooth Operation
