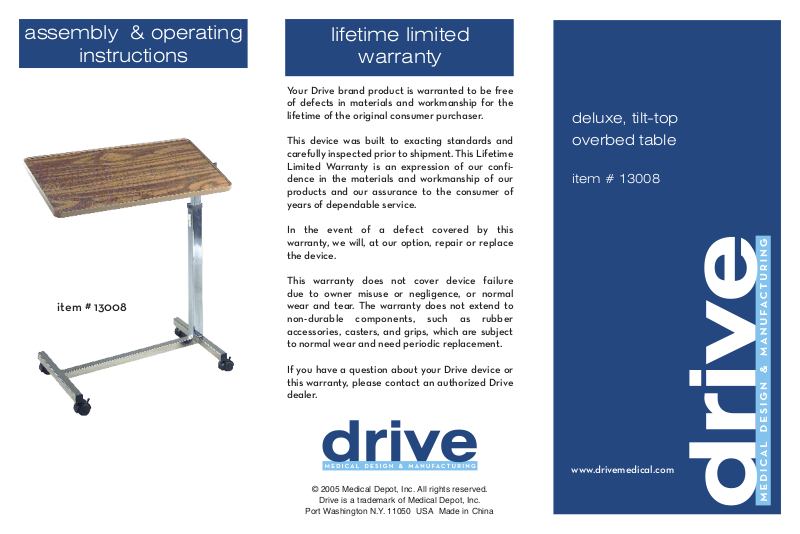

Drive 13008 Assembly & Operating Instructions

assembly & operating

lifetime limited

instructions

item # 13008

warranty

Your Drive brand product is warranted to be free
of defects in materials and workmanship for the
lifetime of the original consumer purchaser.

This device was built to exacting standards and
carefully inspected prior to shipment. This Lifetime
Limited Warranty is an expression of our confi­dence in the materials and workmanship of our
products and our assurance to the consumer of
years of dependable service.

In the event of a defect covered by this
warranty, we will, at our option, repair or replace
the device.

This warranty does not cover device failure
due to owner misuse or negligence, or normal
wear and tear. The warranty does not extend to
non-durable components, such as rubber
accessories, casters, and grips, which are subject
to normal wear and need periodic replacement.

deluxe, tilt-top
overbed table

item # 13008

If you have a question about your Drive device or
this warranty, please contact an authorized Drive
dealer.

© 2005 Medical Depot, Inc. All rights reserved.

Drive is a trademark of Medical Depot, Inc.

Port Washington N.Y. 11050 USA Made in China

www.drivemedical.com

assembly instructions

parts list

1 Lay tabletop Assembly (#2 ) on flat
surface with top bracket assembly facing up,
as shown in Fig. 1.

2 Install column assembly into top bracket as
shown with release handle facing away from
table top edge (fig. 1). Insert shoulder bolt
(#4) through top bracket and column
assemblies. Fasten with locknut (#5)

3 Lay the base flat with holes facing up and
insert a caster (#10) into each hole.
(4 casters total)

4 Place the two bolts (#9) into the bolt plate
(#8) and place through the base (#7). Hold
base steady while hand tightening bolts (#9)
into column (#6).

5 Align the base and top assembly by laying the
table on its side, resting on the edge of the
top and the black caster plugs. Tighten the
bolts (#9) with a 9/16” wrench.

6 Stand the table up on its casters.

7 Remove black lock screw in the column and
discard. Replace with the extra zinc
plated screw shipped with unit, using a
Phillips screwdriver.

fig. 1

operating instructions

1 Pull the release handle (#1) up to raise and
lower the tabletop.

2 To tilt the tabletop in either direction, squeeze
the tilt lock lever (#3) up and rotate the
tabletop. Release Tilt Lever to lock the top

into place.

1. Release Handle (101044)

2. 15 x 30 Table Top

3. Tilt Lock Lever (093025)

4. Shoulder Bolt (093011)

5. 3/8-16 Lock Nut (N06)

6. Column Assembly (95001)

7. Base with Caster Plugs

8. Bolt Plate (101023)

9. 3/8 –16 x 2 bolts (BT01)

10. Casters (CA02)

11. Top Bracket (093008)

12. Black Shipping Screw
13 Zinc Screw (do not remove)

tools required

Phillips Screwdriver

(2) 7/16” Wrenches

9/16” Wrench
