Dressta TD-40C Operator Manual

OMTD40C98/1E

OPERATOR’S MANUAL

TD-40C

TD-40C

TD-40CTD-40C

SERIAL NUMBERS

1501 AND UP

DRESSTA

DRESSTA

DRESSTADRESSTA

Co. Ltd.

Co. Ltd.

Co. Ltd.Co. Ltd.

FOREWORD

Welcome to the growing group of val ue-conscious people who operate

DRESSTA machines!

This manual covers the instructions for safe operation, lubrications, adjustments and maintenance for
normal daily care. These instructions are divided into six sections to simplify your reference to the
information most important to you. Refer to the contents page at the beginning of the section for
a complete list of the subjects covered except for Section 1, which should be read entirely.

This manual has been prepared to help you operate and maintain your machine wi th utmost efficiency
and safety. Read this manual thoroughly and learn your machine before you attempt to operate it.

It is our policy to improve our products whenever it is possible and practical to do so. We reserve the
right to make changes or add improvements at any time without incurring any obligation to install such
changes on products sold previously.

Due to this continuous pr o gr am of r es earch and dev el op me nt , pe riodic rev i s io ns ma y be made to this
publication. It is recommended that customers contact their distributor for information on the latest
revision.

We hope you enjoy operating Dressta machines.

DRESSTA Co. Ltd.

THIS MATERIAL IS PROPRIETARY USED, OR DISCLOSED EXCERT FROM DRESSTA Co. Ltd.
NOT TO BE REPRODUCED, USED, O R DI SCLOS ED E XCER T IN ACCORDA NCE WITH WRITTEN
AUTHORIZATION FROM DRESSTA Co. Ltd.

IT IS OUR POLICY TO IMPROVE OUR PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL
TO DO SO. WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS AT ANY
TIME WITHOUT INCURRING ANY OBLIGATION TO INSTALL SUCH CHANGES ON PRODUCTS
SOLD PREVIOUSLY.

DUE TO THIS CONTINUOUS PROGRAM OF RESEARCH AND DEVELOPMENT, PERIODIC
REVISIONS MAY BE MADE TO THIS PUBLICATION. IT IS RECOMMEMENDED THAT
CUSTOMERS CONTACT THEIR DISTRIBUTOR FOR INFORMATION ON LATEST REVISION.

CONTENTS

1. INTRODUCTION

2. SAFETY PRECAUTIONS

3. MACHINE TRANSPORT AND STORAGE

4. OPERATING

5. MAINTENANCE

6. SPECIFICATIONS

SECTION INDEX

SECTION 1 – INTRODUCTION

This section discusses the use of this manual, ser ial number locations.

SECTION 2 – SAFETY PRECAUTIONS

This section lists safety rules concerning personal safety. Read this section carefully! Maintain this
manual and review it frequently for continuing safe operation and instructing new operators.

SECTION 3 – MACHINE TR ANSPORT AND STORAGE

This section discusses how to ship or st ore this machine.

SECTION 4 – OPERATING

The front portion of thi s sect ion pr ov ide s you with i n str uctions for troubl e free oper a ti on of t he ma chine,
machine precautions and a universa l symbol chart, text and illustrations for instruments and controls.
The instrument and controls area is designed to tell y ou “where it is, what it does and how to use it”.
Read this area carefully. The remaining portion of this section outlines and illustrates the step-by-step
procedures for starting, operating and stopping the machine and discusses a few operating
suggestions and t ech ni ques an d s imp le i d eas t o hel p ease t he wo r k and lengthen the use fu l l i fe of your
machine.

SECTION 5 – MAINT ENANCE

The beginning of this section outlines a complete scheduled maintenance program, which helps to
reduce down-time and expense, and increase the profit and w ork from your machine. Read and use
this area. Following the maintenance program are the lubrication recommendations and requirements
for the machine. The remainder of the section is devoted to clearly explaining the “how to” of the many
maintenance and adjustment procedures listed in the maintenance program. The explanations are
prepared in an easy st yle to help you “do it yourself” and get it right .

SECTION 6 – SPECIFICATI ONS

This section covers the diagrams, general dimensions and weights, refill capacities, ground speeds
and the standard and special torque v alues.

SECTION CONTENTS

1. INTRODUCTION

1.1. Introduction............................................................................................................................ 3

1.2. Serial Numbers...................................................................................................................... 3

2. SAFETY PRECAUTIONS

2.1. General.................................................................................................................................. 3

2.2. Before Starting the Engine.................................................................................................... 4

2.3. Operation............................................................................................................................... 5

2.4. Maintenance.......................................................................................................................... 6

2.5. Shutdown............................................................................................................................... 9

2.6. Safety Product Graphic....................................................................................................... 10

3. MACHINE TR ANSPORT AND STORAGE

3.1. Machine Transport ................................................................................................................ 3

3.2. Lifting Machine on Slings ...................................................................................................... 4

3.3. Moving a Disabled Machine.................................................................................................. 4

3.4. Machine Storage................................................................................................................... 5

4. OPERATING

4.1. Machine Precautions............................................................................................................. 3

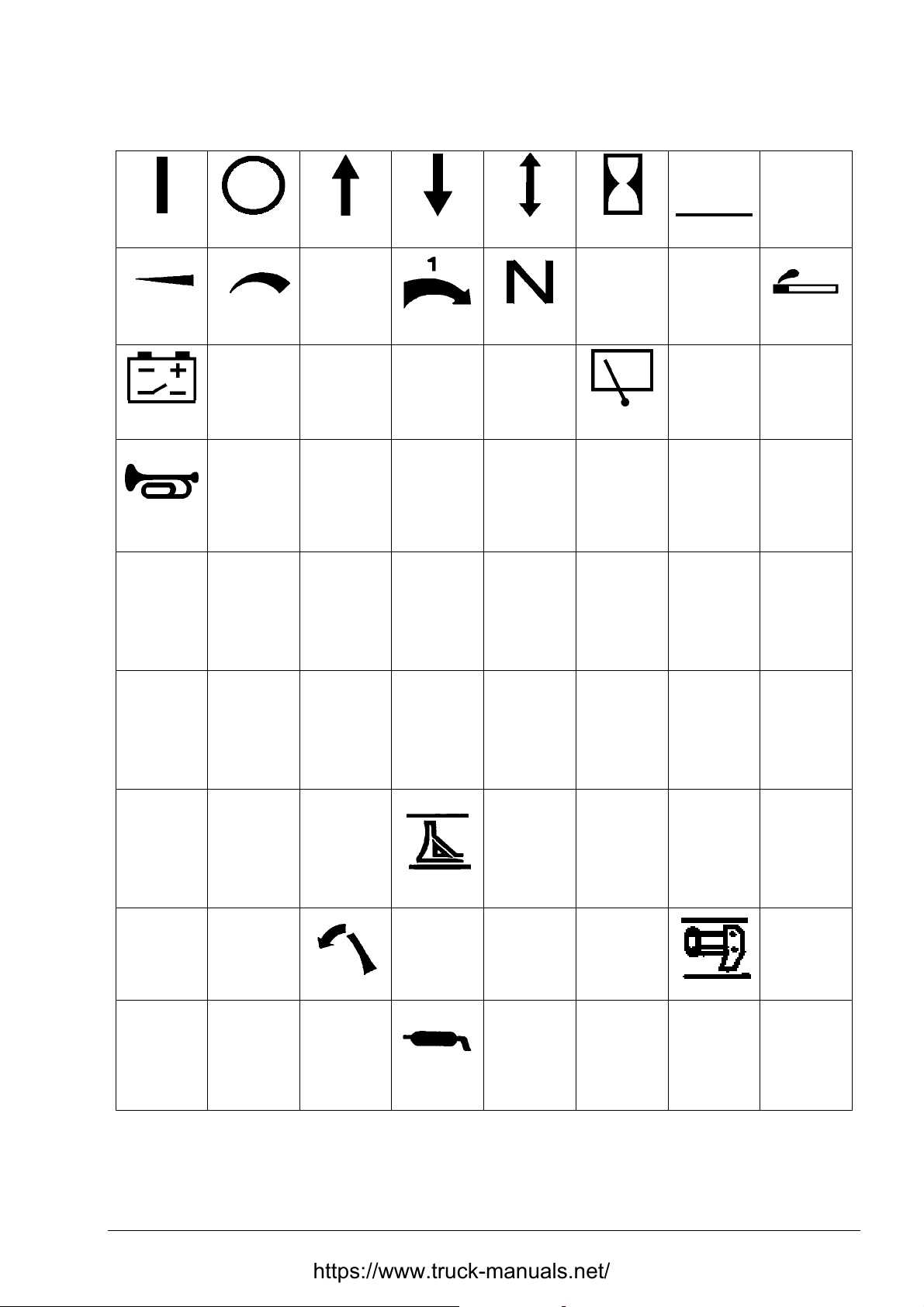

4.2. Universal Symbols for Instruments and Controls.................................................................. 4

4.3. Universal Symbols................................................................................................................. 5

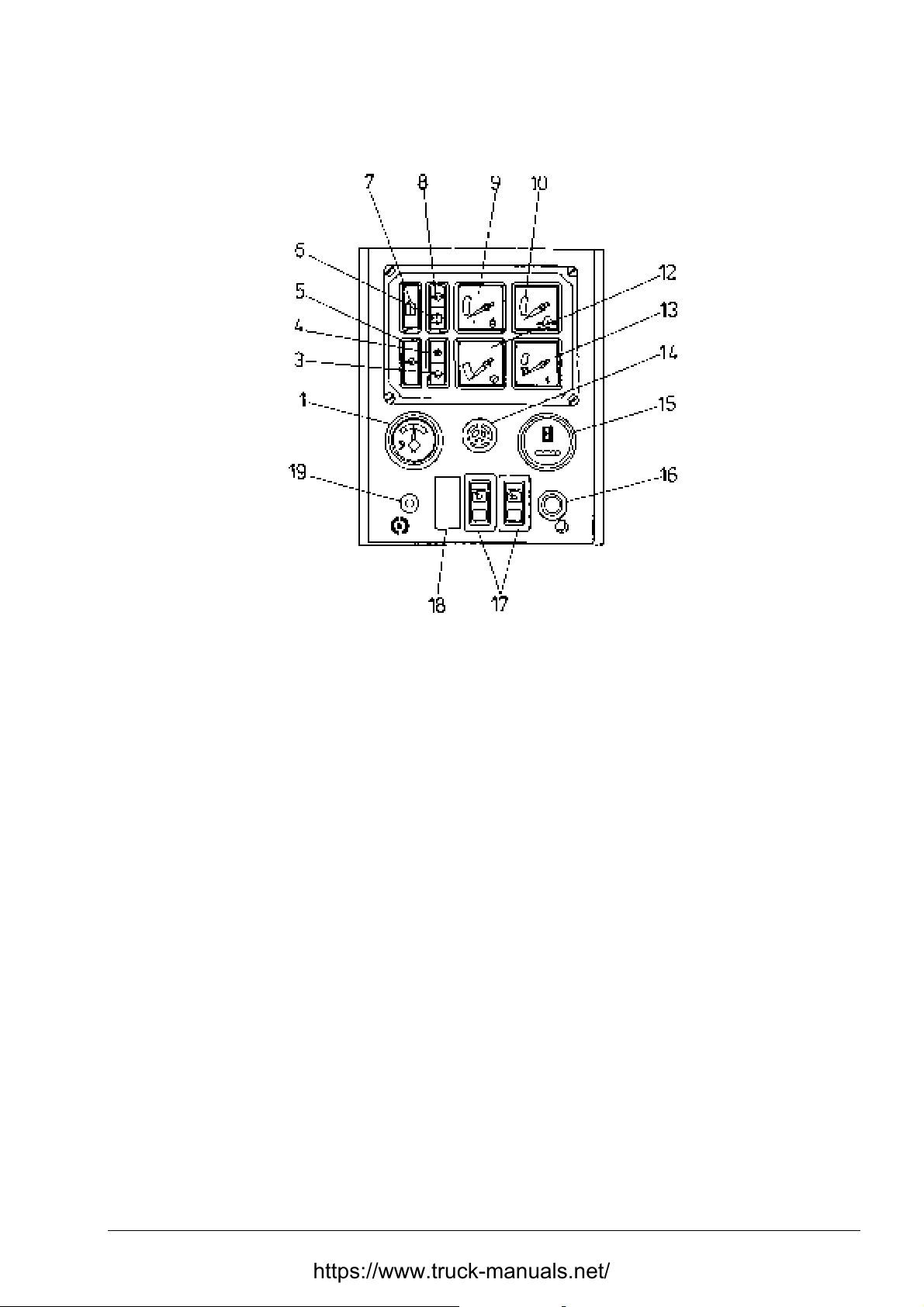

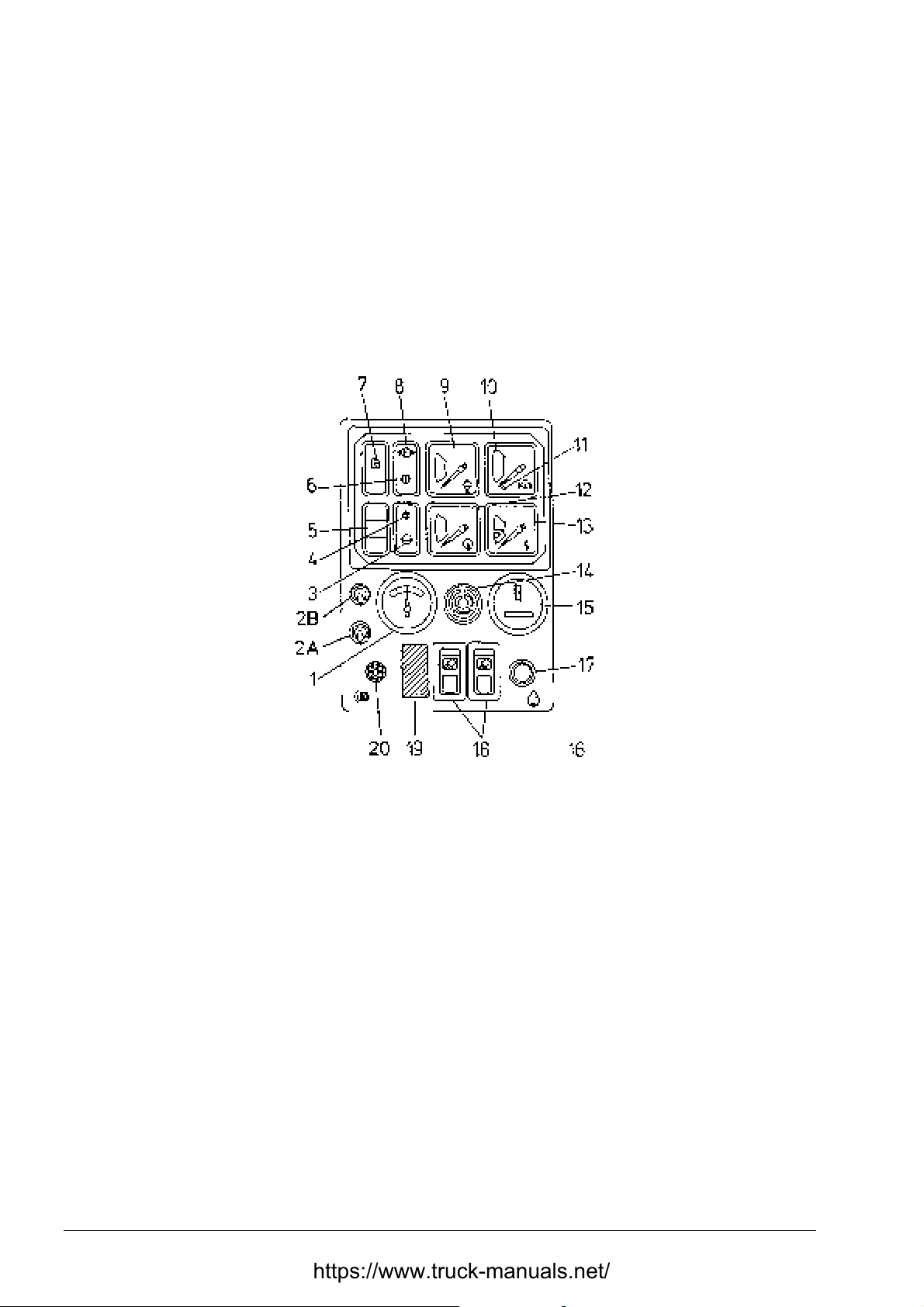

4.4. Instrument Panel................................................................................................................... 6

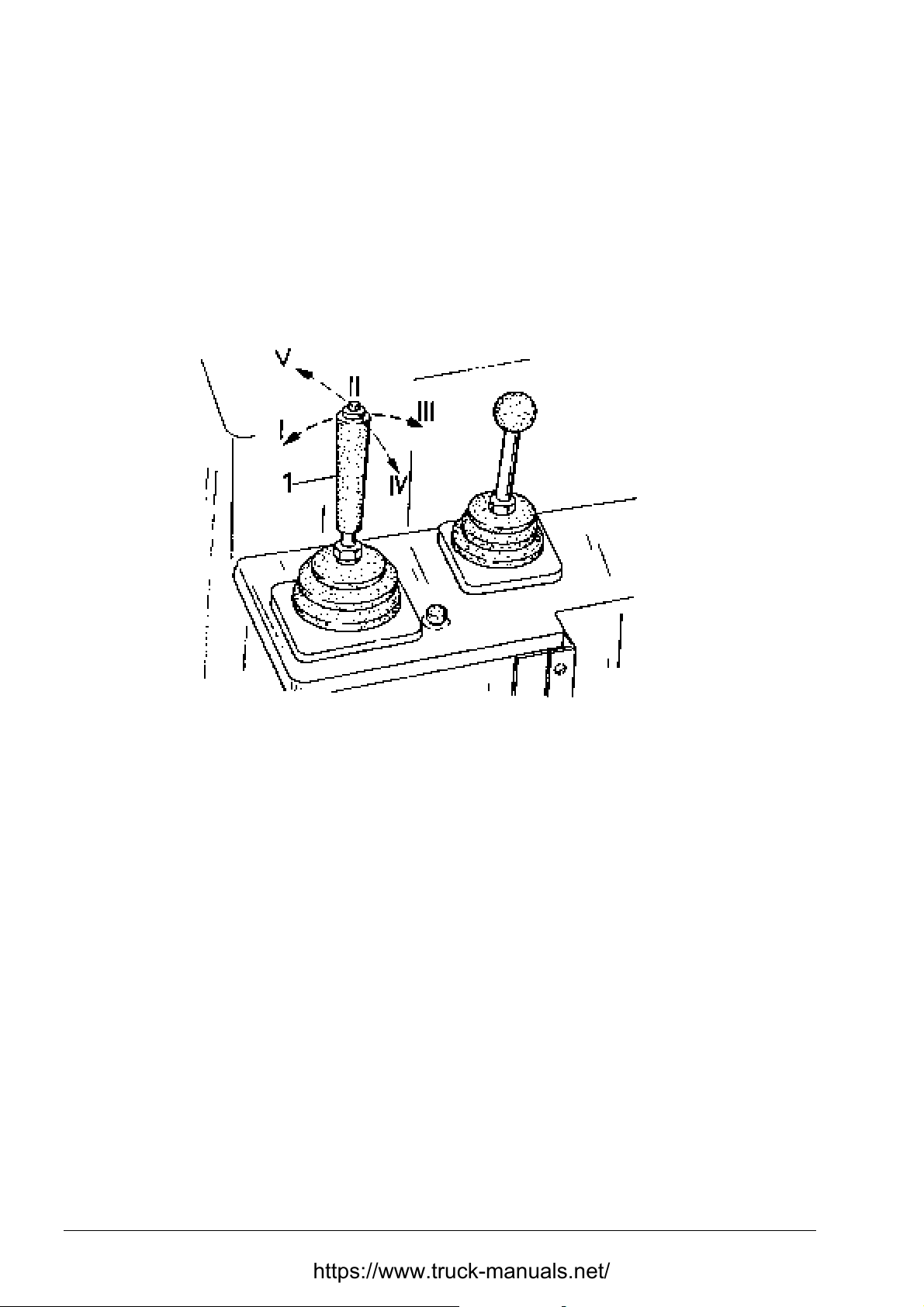

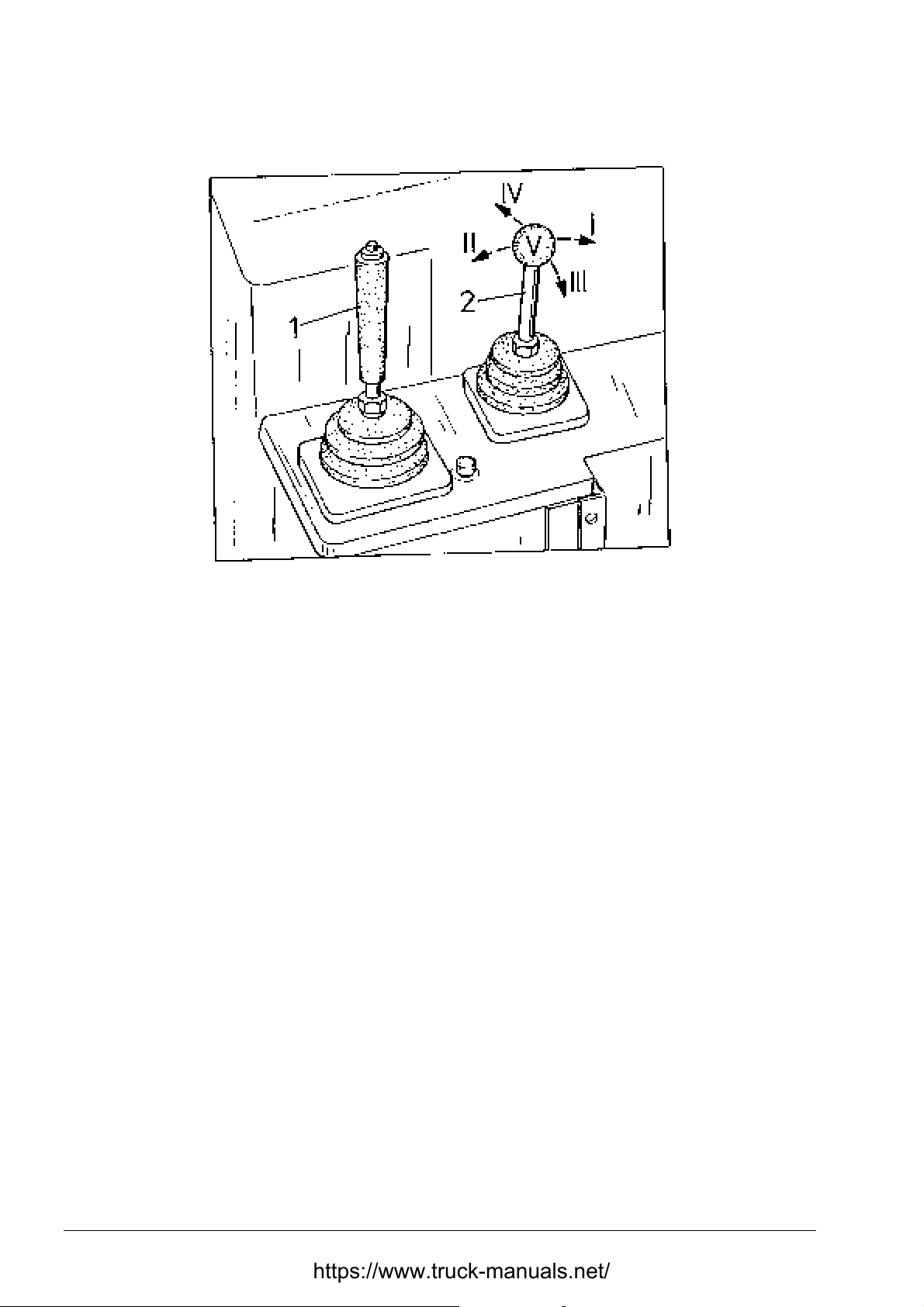

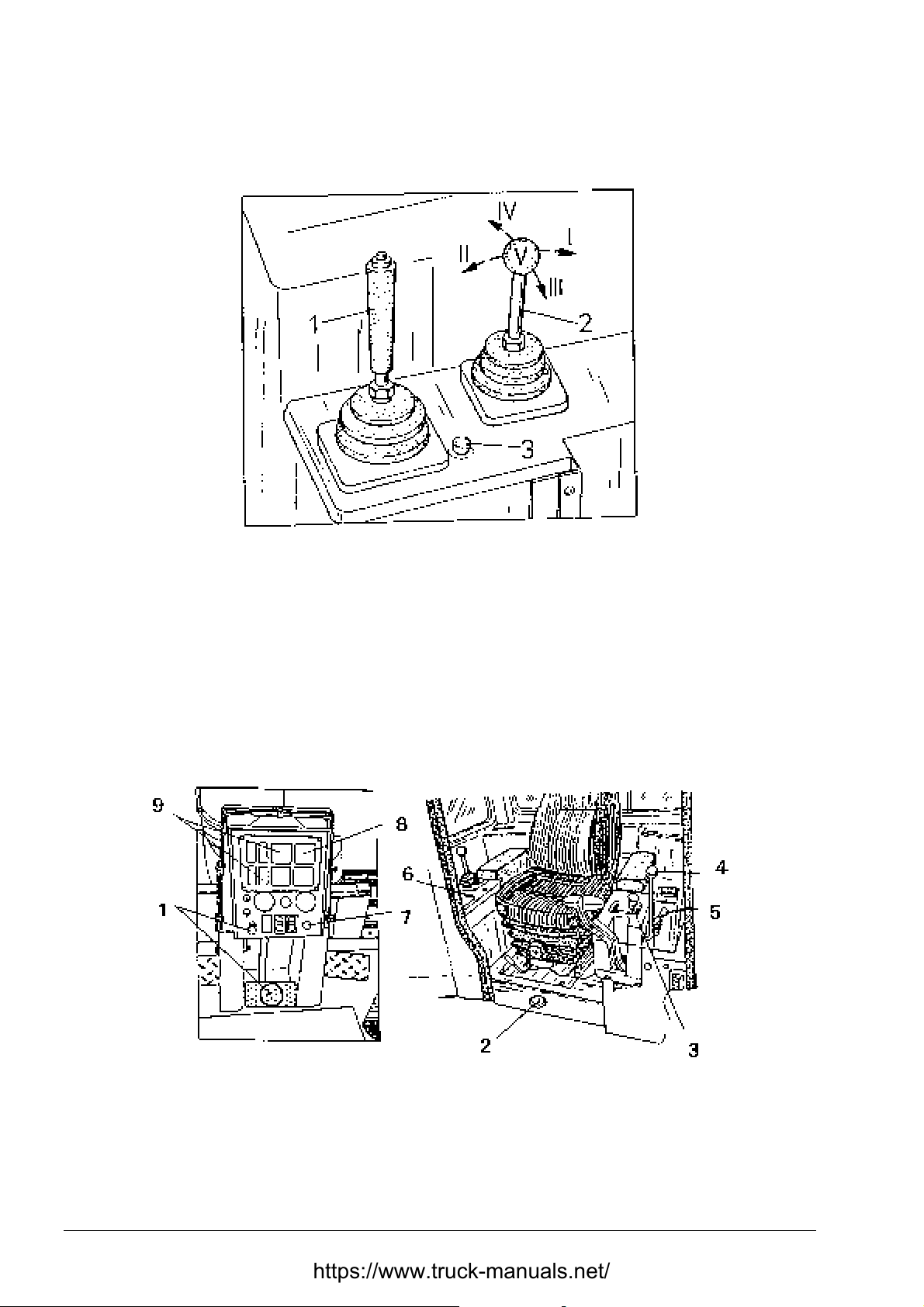

4.5. Cab Controls ....................................................................................................................... 11

4.6. Controls and Adjustment..................................................................................................... 12

4.7. Starting the Engine.............................................................................................................. 18

4.8. Stopping the Engine............................................................................................................ 22

4.9. Driving the Machine............................................................................................................. 23

4.10. Shifting the Transmission.................................................................................................... 24

4.11. Converter Overheating........................................................................................................ 25

4.12. Steering the Machine .......................................................................................................... 25

4.13. Locking both Tracks............................................................................................................ 26

4.14. Downgrade Operation......................................................................................................... 26

4.15. Operating Over an Obstruction ........................................................................................... 26

4.16. Stopping the Machine ......................................................................................................... 26

4.17. Parking the Machine............................................................................................................ 27

4.18. Operating Mounted Equipment........................................................................................... 28

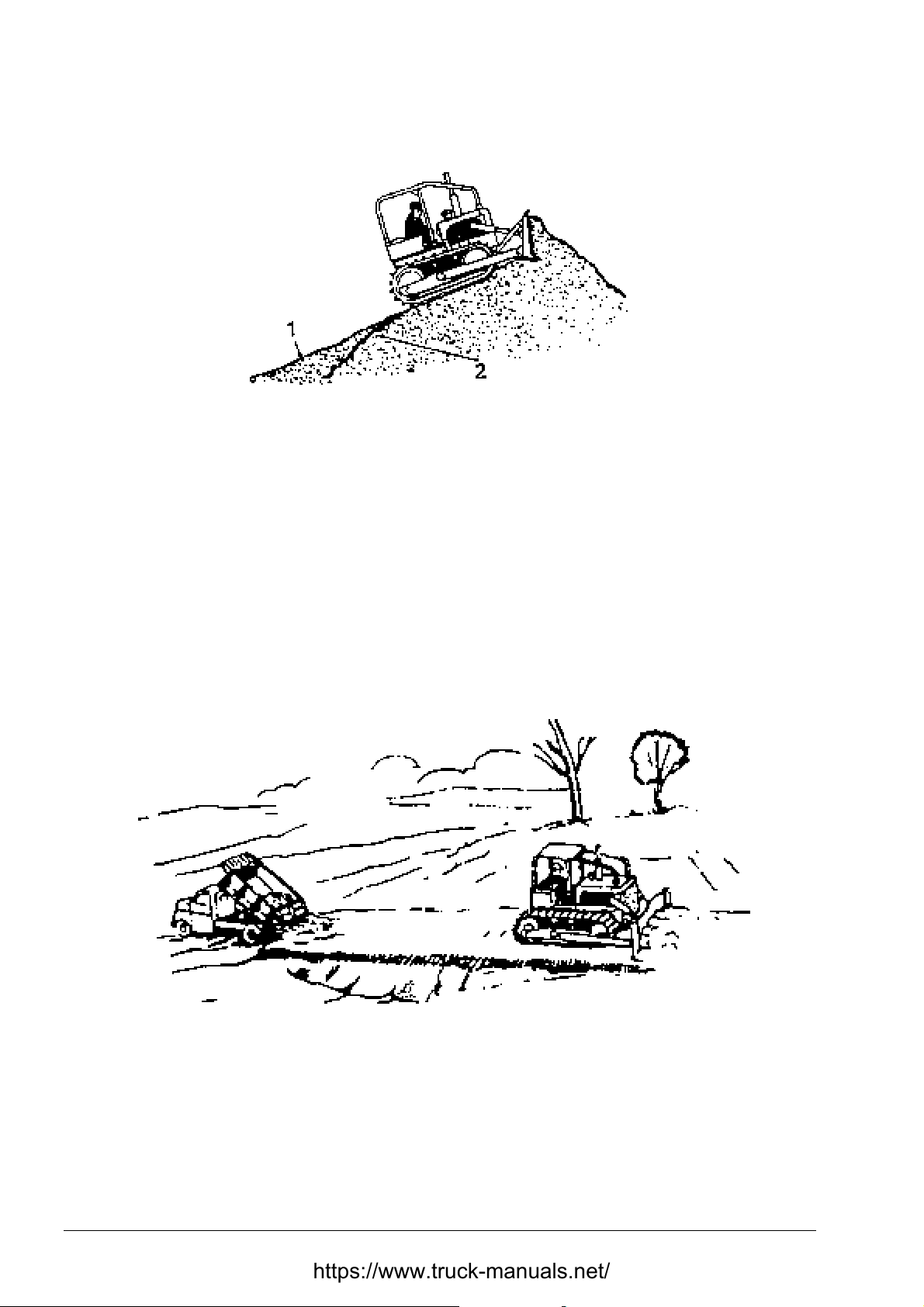

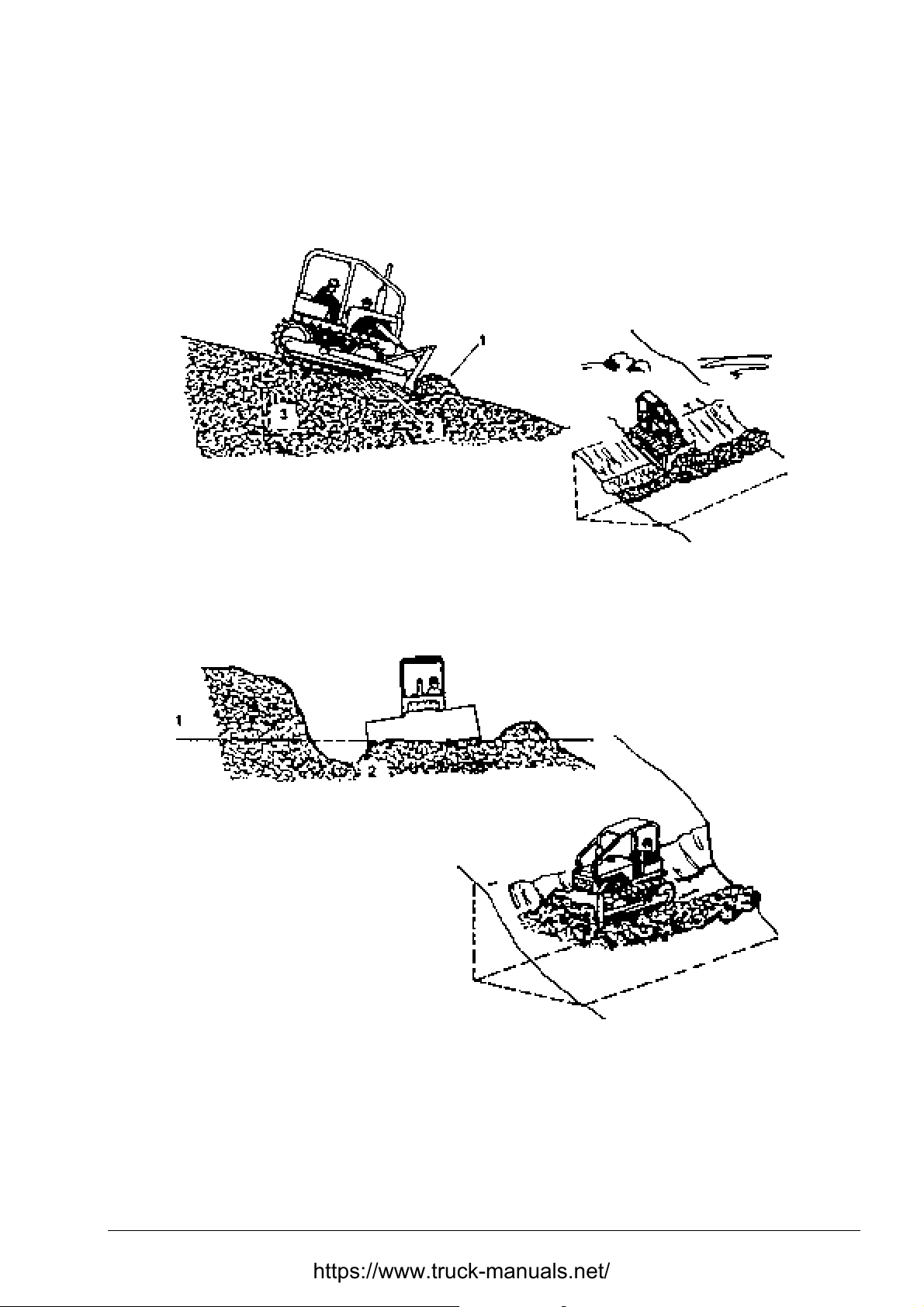

4.19. Operating Techniques......................................................................................................... 31

4.20. Economical Operation of the Machine................................................................................ 40

5. MAINTENANCE

5.1. Service Precautions .............................................................................................................. 3

5.2. Scheduled Maintenance Guide............................................................................................. 4

5.3. Maintenance and Service Chart............................................................................................ 7

5.4. Lubrication........................................................................................................................... 10

5.5. Seasonal Preparation.......................................................................................................... 14

5.6. Air Cleaning System............................................................................................................ 15

5.7. Belts..................................................................................................................................... 19

5.8. Cooling System................................................................................................................... 22

5.9. Fan and Fan Hub................................................................................................................ 27

5.10. Electrical System ................................................................................................................ 28

5.11. Engine................................................................................................................................. 32

5.12. Fuel System........................................................................................................................ 35

5.13. Hydraulic System................................................................................................................ 38

5.14. Lubrication Fittings ............................................................................................................. 43

5.15. Mounted Equipment ........................................................................................................... 44

5.16. Safety Belt........................................................................................................................... 51

5.17. Final Drives......................................................................................................................... 51

5.18. Transmission System ......................................................................................................... 52

5.19. Undercarriage..................................................................................................................... 57

5.20. Adjusting Hand and Foot Controls..................................................................................... 62

5.21. Cab and ROPS................................................................................................................... 63

6. SPECIFICATIONS

6.1. Application ............................................................................................................................ 3

6.2. Technical Description........................................................................................................... 3

6.3. Cinematic Diagram............................................................................................................... 5

6.4. Mounted Equipment Hydraulic Diagram............................................................................... 6

6.5. Transmission System Hydraulic Diagram ............................................................................ 9

6.6. Electrical Diagram............................................................................................................... 10

6.7. Specifications...................................................................................................................... 14

6.8. Special Torques.................................................................................................................. 17

6.9. Standard Metric Fasteners................................................................................................. 19

6.10. Torque Values for Standard English Fasteners................................................................. 20

6.11. Torque Values for Split Flange Connections ..................................................................... 21

6.12. Torque Values for Hydraulic Tubes and Fittings................................................................ 21

6.13. Torque Values for Hose Clamps........................................................................................ 21

6.14. Torque Values for Air Conditioning Tubes and Fittings..................................................... 22

6.15. Torque Values for Air Conditioning O-Ring Connections .................................................. 22

SECTION 1

INTRODUCTION

INTRODUCTION SECTION 1

SECTION CONTENTS

1.1. Introduction..........................................................................................................................3

1.2. Serial Numbers....................................................................................................................3

DRESSTA TD-40C

INTRODUCTION SECTION 1

Page 3

1.1. INTRODUCTION

Fig. 1.1. TD-40 Series C Cr awler T r act o r Equipped with Bulldozer Blade and Cab

! – Right Hand Side of the Machine
" – Left Hand Side of the Machine

General

Throughout this manual there will be two types of cross-references. One type is to a heading in
another section. The other is to a heading within the same section. Unless it is other wise stated,
references will be to the same section. Refer to the section contents page at t he beginning of the
individual sections for specific page number s. Some illustrations are of gener al application of this
model and may not show your machine accurately in all details.

Throughout this manual the use of the term s “left”, “right”, “front”, and “rear” must be understood
to avoid confusion when following instructions. “Lef t" and “right " indicate the left and r ight sides of
the machine when facing forward in the operat or 's seat. See Fig. 1.1.

# – Front of the Machine
$ – Rear of the Machine

1.2. SERIAL NUMBERS

The product identification number (P.I.N.) is stamped on a plate attached to the front wall of the
control console at the left hand side of t he operator’s seat (Fig. 1.2). It is also stamped on the r ear
face of the rear frame in the upper right hand corner (Fig. 1.3).

The bulldozer model designation is stamped on the back of the blade, near the top right hand
corner (Fig. 1.4).

All other components having serial numbers are each equipped with a separate serial number
plate.

Use serial numbers when requesting inform ation or ordering parts and proper numbers from Part s
Catalogue.

DRESSTA TD-40C

SECTION 1 INTRODUCTION

Page 4

1.2. SERIAL NUMBERS

Fig. 1.2. Product Identification Number (P.I.N.) Fig. 1.3. Product Identification

Number (P.I.N.)

Fig. 1.4. Serial Number Desig nat ion of Blade

TD-40C DRESSTA

SECTION 2

SAFETY PRECAUTIONS

SAFETY PRECAUTIONS SECTION 2

SECTION CONTENTS

2.1. General ...............................................................................................................................3

2.2. Before Starting the Engine ..................................................................................................5

2.3. Operation.............................................................................................................................6

2.4. Maintenance........................................................................................................................8

2.5. When Parking ...................................................................................................................11

2.6. Safety Product Graphic Location ......................................................................................12

2.6.1. Safety Product Graphs ...........................................................................................13

DRESSTA TD-40C

SAFETY PRECAUTIONS SECTION 2

Page 3

2.1. GENERAL

WORK SAFELY – FOLLOW THESE RULES

This symbol and text with bold letters is used throughout this manual t o call your
attention to instructions concerning your personal safety. Observe and follow
these instructions. Be certain anyone operating and servicing this machine is
aware of these rules. Fail ure t o fol low these rules may result in injury or death.

WARNING: The machine can only be operated by a person who is familiar with
this manual, knows operation of the machine and its mechanisms, experi enced
and properly licensed to operate such machines. Carefully observe and follow all
instructions provided in this manual.

The instructions and information given in this section do not cover all you ought to k now to operate
the machine safely. Detailed instructions regarding operational safety appear in the following
sections of this manual.

Human error is an important factor in most equipment-related injuries. Haste, carelessness and
lack of training are the primary causes of injuries.

Most operating injuries occur because of excessive speed, loss of control, failure to observe
warning signs, slipping or falling while entering for dismounting, a lack of barms on roadways or
piles, lack of a ROPS or seat belt , or not watching in the direction of travel.

Most maintenance injuries occur during welding or when using hammer s or wrenches. The most
common faults are improper work posit ion, a slipped tool, missed aim, a broken tool, f lying chips
and no welding hood.

Think before you act. A careful operator or maintenance man is the best insurance against an
accident.

Always wear proper safety equipment.
Avoid wearing jewelry and loose fitting clothing; they could catch on moving parts, which could

result in serious injury or death. Hard hat, sturdy rough-soled work shoes or safety shoes, ear
protectors, reflective clothing, safety glasses and heavy gloves may be required. Consult your
employer for specific saf et y eq uipm ent requirements.

Each job site and application may have personal safety requirements. Carefully evaluate your
particular application and machine for equipment such as heater and defroster, all windshield
wipers, warning lights, side view and rearview mirrors, back-up alarms, fire extinguisher, rotat ing
beacons and additional lights. If in doubt, contact your distributor.

The machine should be equipped with a fully charged fire extinguisher. All personnel should be
instructed in fire extinguisher proper usage. Recharge immediately af t er use.

If a machine is equipped with a GRAMMER operator’s seat, the fire extinguisher is placed in a
operator’s cab to right of his seat . Fig. 2.1 shows the fire extinguisher location.

DRESSTA TD-40C

SECTION 2 SAFETY PRECAUTIONS

Page 4

GENERAL

Fig.2.1. Fire extinguisher location in a m achine equipped with GRAMMER operator’s seat

If a machine is equipped with a operator’s seat other than GRAMMER one, the fire extinguisher is
placed on the left hand side of a machine on the ROPS structure. Fig. 2.1A shows the fire
extinguisher location.

Fig.2.1A. Fire extinguisher location in a m achine equipped with different operator ’s seat than

GRAMME R seat.

The machine is equipped with a powder fire extinguisher, placed in a fire extinguisher holder that
prevents its movement the machine operation. In case of fire the extinguisher is easy to r emove.
The fire extinguisher is provided with an instruction label that gives how to use it and its
application. The machine operator is to be familiarized with the fire extinguisher servicing.

Electrical system is 24-volt negative ground.

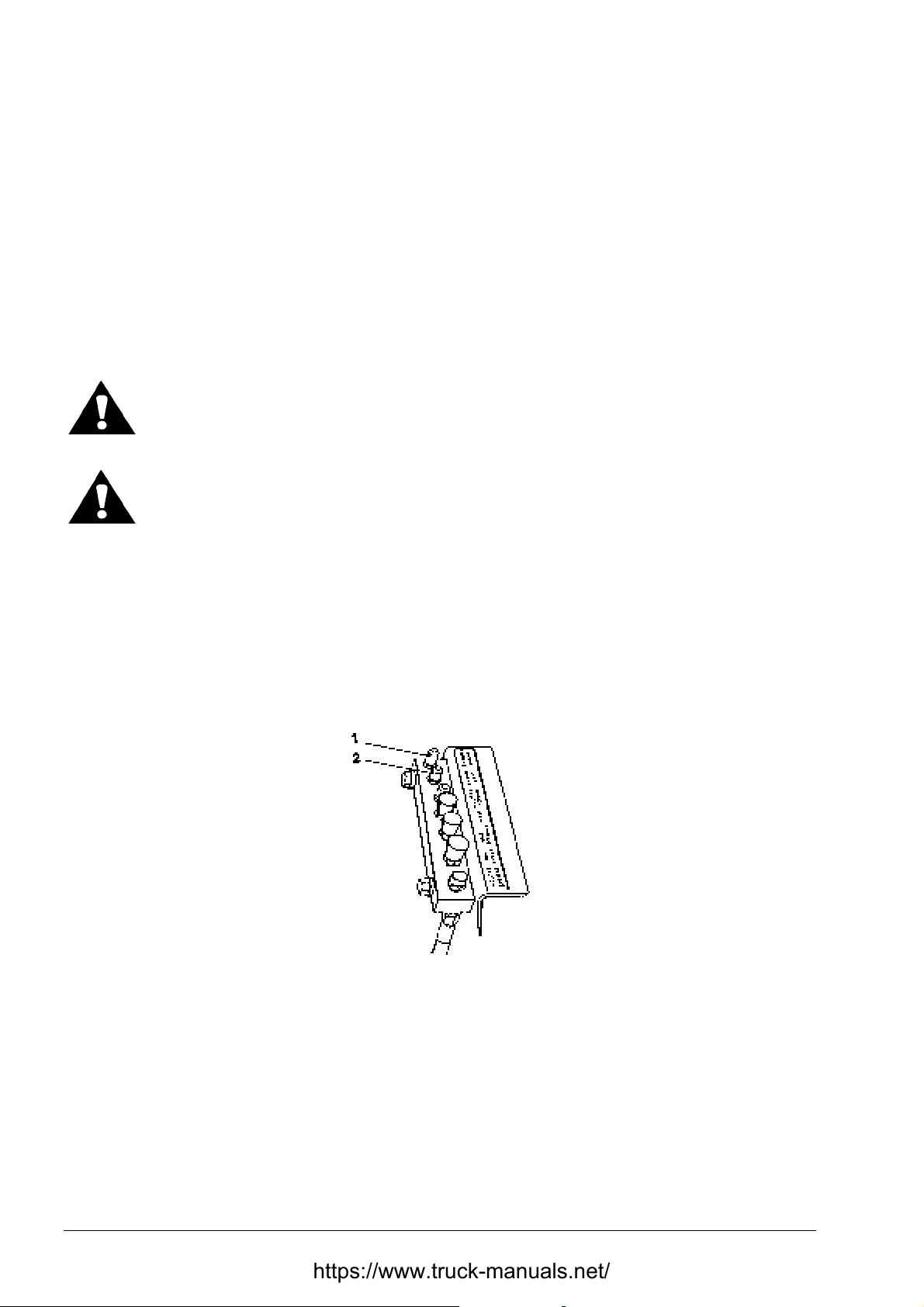

Each machine is equipped with a booster receptacle socket that is to be used during the engine
start up with a booster battery. When the use of t he booster r eceptacle sock et is im possible in out­of-normal situations, follow the precautions g iven below to prevent chances of injury or damag e to
electrical circuits.

TD-40C DRESSTA

SAFETY PRECAUTIONS SECTION 2

Page 5

GENERAL

1. Turn the electrical master switch to the OFF position.

2. Attach one end of jumper cable t o the positive term inal of booster battery and ot her end to t he
positive terminal of machine batter y.

Attach one end of second cable to the negat ive ter m inal of booster battery and other end to t he

3

.

machine's frame away from the battery.

4. To remove cables, reverse above sequence exactly to avoid sparks near the batter y.
A frozen battery can explode when the booster cables are attached.

NEVER check battery charge by placing a metal obj ect across the bat tery posts. T he spark s could
cause an explosion. Use a voltmeter or areometer for checking. Every machine is factory
equipped with a fire extinguisher, fir st aid kit and safety belt.

2.2. BEFORE STARTING THE ENGINE

Never start the engine indoors unless proper exhaust ventilation is provided to remove deadly
exhaust gases. Once the engine is operating , move the machine outdoors as soon as possible.
Exhaust gases are dangerous and can cause unconscious-ness and death.

Always place the gear selector in neutral, apply neutral safety lock and lock the parking brake
before starting the engine.

The operator must be alert, physically fit and free from the influences of alcohol, drugs or
medications that might affect his eyesight, hearing, r eact ions or j udgement.

Observe and know the use of alternate exits from the operator compartment .
Safety must always be the operator's most impor tant concern. He must ref use to operat e when he

knows it is unsafe and consult his supervisor when safety is in doubt. The best saf ety device is a
safe operator.

Do not use controls or hoses as hand holds when climbing on or off the machine. Hoses and
controls can move and do not provide solid support. Movement of the controls may cause
inadvertent and unexpected movement of the machine or its equipment.

Follow all machine-mounted safety signs before starting, operating, maintaining or servicing the
machine.

Be sure the area of the operator 's compartment, all mounting steps and grab handles are f ree of
oil, grease, loose objects, ice and m ud to lessen the possibility of slipping. Remove or secure all
maintenance and personal items so they will not interfer e with the operator or jam the controls.

Perform a visual check of the machine before starting the engine. Look for such things as
improper fluid levels, oil leaks, and loose, damaged or missing parts. Do not star t the engine until
any unsafe conditions are corrected. Secure all caps and filler plugs.

Know and understand the traffic f low patter ns of your job and obey flagman, signs and sig nals.

DRESSTA TD-40C

SECTION 2 SAFETY PRECAUTIONS

Page 6

BEFORE STARTING THE ENGINE

Before entering the oper ator's com partment, clear the imm ediate area surr ounding the machine of
personnel and obstructions. Walk completely around the machine. After entering the operator's
compartment, sound the horn to clear t he immediate area of the machine.
Due to the danger of fire and explosion, never check or fill fuel tank or batteries near lighted
smoking materials or open flame or sparks.

Check work area for hazardous conditions. Be alert for soft ground conditions, especially when
working on slopes, near drop-offs or excavations or fill material, which could lead to sudden tipping
of the machine. At night and tim es of poor visibility, caref ully check the work area bef or e moving in
with the machine. Use all lights provided.

2.3. OPERATION

Check the work area for hazardous conditions. Be alert for soft gr ound conditions, especially when
working on slopes, near drop-offs or excavations or fill material, which could lead to sudden land
collapse and tipping of the machine.

At night and at times of poor visibility, carefully check the work area before moving in with the
machine. Use all lights provided.
Keep the windshield, windows and mirrors (if equipped) clean.

Before starting the engine, be sure you understand all control functions. Check all controls,
including the brakes, decelerator, steering and tr ansmission. Check all gaug es, warning light s and
safety devices. Correct any malfunctions.

Only one person, the operator, should be permit t ed t o ride on the machine when it is in operation.
Perform an operational check of the machine in a safe area before putting it to work.
Keep operating controls, hands and shoes fr ee of g rease, water and mud to insur e posit ive contr ol

functions.
If the machine is ROPS equipped, for your personal protection, wear your seat belt.

Before driving the machine, adjust the seat and fasten the seat belt. Adjust the seat belt to fit
snugly and flow around the hips to lessen the chance and severity of injury in the event of an
accident. Never wear the seat belt across the abdomen.

Check overhead clearance carefully before operating the machine in areas with low overhead
clearance, such as guy wires, power lines, bridges, low-hanging tree branches and building
entrances or exits. These overhead obstructions could cause an accident.

After starting the engine, but before moving the machine, warn nearby personnel by giving
a couple of short horn blasts.

Be sure that the rear screen is securely fastened to the ROPS structure before operating the
winch. Operating without correctly installed screen could result in serious injuries. Operate the
winch from the driver’s seat only. Always engage the parking brake before winching, if the
machine is stopped. Use caution when installing or removing cable from the winch. Keep all
persons clear of a cable under tension. Never use a cable that is dam aged. Failur e to f ollow these
instructions could result in serious injuries.

TD-40C DRESSTA

SAFETY PRECAUTIONS SECTION 2

Page 7

OPERATION

Never mix gasoline, gasohol and/or alcohol with diesel fuel. This pr actice creates an extreme fire
hazard and under certain conditions an explosion, which could result in personal injury or death.

Do not smoke when refueling or ser vicing the machine. A fire could result.
Never place gasoline or diesel fuel in open pan.

Never remove the fuel tank filler caps or refill the fuel tanks while the eng ine is running or hot or
when the machine is indoors. Fumes are dangerous, a spark or flame could result in a fire or
explosion.

On machines equipped with a suction fan or a reversible f an in the suction position, periodically
check the engine exhaust system for leak s. Exhaust gases are dangerous to the operator .

Do not operate the machine in a condition of extrem e fatigue or illness.
Be sure that the rear screen is securely fast ened t o the ROPS structure.

Be sure chains or cables and their anchor points are strong enough to handle the expected load.
Inspect carefully chains and cables for flaws before using them.
Always wear gloves when handling cables and chains. Avoid looping or knotting a cable or chain.
Do not pull with a kinked chain or cable as excessively high stress in bent area m ay cause chain
or cable failure. Cables or chains for towing or winching should be fastened to attachm ent points
designed to this purpose only.
Be sure the attachment pins are securely inserted immediately before pulling with the chain or
cable.
Stand clear of chains or cables under load.

Keep engine exhaust system and exhaust manifold clear of combustible material for your personal
protection.

Know the locations of underground cables, water mains, g as lines, etc. A ruptured g as line or cut
electrical cable could result in personal injury or death.

When leaving the machine unattended for any length of time, make sure the transmission shift
lever is positioned and locked in neutral (N), the blade is completely lowered, the engine is
stopped, the parking brak e is applied, and the electr ical master switch is in the “of f” position. If t he
machine is equipped with a cab make sure that the cab is lock ed.

Before operating the machine read and know the Operator’s Manual and all Safety Product
Graphic.

The roll-over protective structure (ROPS) provides the operator’s protection in the event of
machine rollover or upset. This structure is designed to bend during rollover to protect the operator
from sudden impact loads.

When operat ing the machine, look in the intended direction of travel and the immediate machine
operational area to be sure personnel or allied equipm ent does not interfere with the machine work
pattern.

Never try to get on or off the machine while it is moving. A serious injury or death could r esult .

DRESSTA TD-40C

SECTION 2 SAFETY PRECAUTIONS

Page 8

OPERATION

Never shift the transmission into neutral (N) when traveling downhill. The machine may go out of
control and a rollover could result or the transmission, torque converter or engine could be
damaged when the transmission is again placed in gear. Always put the transmission in low rang e
position before starting downhill. Use the decelerator and brake pedal to slow the machine.

Avoid side hill travel whenever possible. Drive straight up and down the slope. If the machine
starts slipping sideways on a grade, turn downhill immediately.

If possible avoid crossing obstacles such as ridges, rocks or logs. If you can't avoid them , reduce
speed and ease over the obstacle at an angle.

A machine's weight and the vibration it creates can cause the edge of a high wall to collapse.
Keep your machine away from the edges of bank s and excavations. If it is not possible to avoid
turn the machine front towards the bank edge or excavation.

Travel slowly in congested areas or on rough ground, slopes or near drop-of fs or on snow, ice or
slippery surfaces.

Maintain a safe distance between your machine and other vehicles according to the condition of
the road and load.

Never hold the hydraulic controls in their extreme position after the equipment has reached its
maximum travel. This could cause overheating of t he hydraulic system.

Do not adjust the seat position while the machine is in motion. A loss of control may result.
Completely stop the machine, apply and lock the parking brake and then adjust the seat.

Never use the blade as a brake except in an emergency.
Carry the blade low for maximum stability and visibility.
Where noise exposure exceeds levels defined by proper health and safety authorities and

applicable standards wear authorized ear protective equipment.

2.4. MAINTENANCE

Servicemen and their helpers only are allowed to remain at operator’ s post while maintaining or
repairing the machine.
Authorized personnel only is allowed to control, maintain or repair a machine.

Do not hurry. Haste could result in accident.
Load things into the machine form the ground level before mount ing the machine.
Loosen the radiator cap slowly to relieve all pressure in the system and use caution when

removing the caps.

TD-40C DRESSTA

SAFETY PRECAUTIONS SECTION 2

Page 9

MAINTENA NCE

Loosen the filler cap slowly to relieve the pressure to prevent possible injury. Always vent the
hydraulic system before working on any hydraulic component.

Have all equipment resting on the ground and relieve all hydraulic system pressure by moving
control lever in various directions before removing any hydraulic component.

Never work beneath the blade and/ or ripper without proper blocking. Improper blocking could
result in serious injuries.

When service or maintenance requires access to areas that cannot be r eached from the ground,
use a ladder or platform. If such ladders or platforms are not available, use the machine hand
holds and steps provided. Perfor m all ser vice or m aintenance carefully.

Use only approved parts for repairs and maintenance show in your parts catalog . Failure t o do so
could compromise your personal safety and machine performance and reliability.

Never align holes with fingers or hands. Use a proper aligning tool.
Be sure all used tools are in good condition. Do not use tools which are worn, bent or have

mushroomed heads. Use the proper tool for the job. Remove sharp edges and burrs from
reworked parts.

For field service, move machine to level ground if possible and blocks the tracks. If work is
absolutely necessary on an incline, block the machine and its attachments securely. Move the
machine to level ground as soon as possible

Before working on the machine, turn OFF the electrical system master switch and remove the
starting switch key so no one will start it unexpectedly.

Do not carry loose objects in pockets that might catch on the m achine or fall unnoticed into open
compartments.

Before working on any part of t he engine or electrical system, disconnect the battery gr ound cable.
Tag the cable and all controls to alert per sonnel that work is in progress.

When it is necessary to mak e any checks or adjustments with the engine operating, always use
two people. One trained person must be in the operat or's seat to safeguard the second person
making the checks or adjust m ent.

As an added precaution, when making checks or adjustments with the engine operating, make
sure the transmission shift lever is lock ed in neutral (N), and the parking brake is locked.

Never stand on the tracks or near the blade while the eng ine is oper ating.
If the engine is running and t he side doors are open or r emoved be careful of rotating parts such

as the fan and belts that can cause serious injur y.
Use a non-toxic, nonflammable commercial solvent for cleaning parts, unless otherwise specified.

Never use gasoline, diesel fuel, kerosene or other flammable solvents f or cleaning part.

DRESSTA TD-40C

SECTION 2 SAFETY PRECAUTIONS

Page 10

MAINTENA NCE

Excessive or repeated skin contact with sealant or solvents may cause skin irritation. In case of
skin contact, remove sealant or solvent promptly by washing with soap and water. Follow the
manufacturer’s advice whenever cleaning agents or other chem icals ar e used.

Lower blade and ripper before making hydraulic adjustments. T o prevent personal injury, be sure
no personnel are standing in the way of the blade and/or ripper when it is being lowered.
Never allow anyone to walk under or be near unblocked raised equipment.

Provide proper ventilation when operating in a closed building to avoid danger of exhaust gases.
Exhaust gases are dangerous and can cause unconsciousness and death.

Hydraulic fluid escaping under pressure from a very small hole can be almost invisible, yet have
sufficient force to penetrate the skin. Use a piece of cardboard or wood to search for suspected
leaks. Do not use hands. If injured by escaping fluid, see a doctor at once. Serious infection or
reaction can occur if proper medical treatment is not administered imm ediately.

Wear proper protective equipment such as goggles or saf ety glasses with side shields, hard hat,
safety shoes and heavy gloves when metal or other particles are apt to fly or fall.

Lift and handle all heavy parts with a lifting device of pr oper capacit y. Be sure parts ar e secured by
proper slings and hooks. Use lif t ing eyes if provided. Warn people in the area to stand clear.

Do not attempt to repair a protective structure after an accident. Repaired structures do not
provide the original strength and protection. Contact your distributor for inf ormation on structure
replacement. Do not operate the machine again until the ROPS has been replaced.

When using com pressed air for cleaning parts, wear gog gles or safety glasses with side shields.
Use a air nozzle, which limits the pressure to 200 kPa.

Do not use an open flame to check f or leaks or fluid levels anywhere around the machine.
Keep work area clean and dry. Remove oil and water spills immediately.

Do not pile up oily or greasy rags. They are a fire hazard. Store them in an approved, closed met al
container.

Use a soft iron or nonferrous hammer to install or rem ove ripper teeth. It is danger ous to hammer
on the teeth. Wear safety glasses with side shields or gogg les t o r educe the chances of injury.

Batteries give off a hig hly inflammable gas. Never allow sparks or open f lam e near the batteries.
A fire or explosion could occur. Do not charge bat t eries in a closed area. Provide proper ventilation
to guard against accidental explosion of an accumulation of the explosive gas given off in the
charging process.

When installing batteries, be sure the electrical master switch is in the "o ff" position. Be sure to
connect the positive cable to the positive terminal and the negative (ground) cable t o the negative
terminal.

Ether starting fluid is f lam mable. Follow the precaut ions print ed on the cont ainer. An explosion can
result if sparks or f lame contact the ether in t he container or if the container is stor ed in an area in
which the temperature exceeds 70°C. Observe the following precautions:

TD-40C DRESSTA

SAFETY PRECAUTIONS SECTION 2

Page 11

MAINTENA NCE

1. Follow the correct method for starting the engine. Refer to "STARTING THE ENGINE" in
Section 3.

2. Do not use the ether injector when the ambient temperatur e is above f reezing.

3. For your own personal safety, always remove the ether container when welding, grinding or
fusing a torch on the machine.

4. Do not let ether come in contact with your skin, as it can cause localized freezing.

5. Do not breathe t he hazardous et her vapor.

6. Keep the f luid cont ainer out of the reach of children.

7. Never puncture the fluid container or put it into a fire. Dispose of empty container pr oper ly.

8. Do not store fluid containers in the operator's com par t ment.

Never mix gasoline, gasohol or alcohol with diesel fuel. This cr eates an extreme fir e or explosion
hazard, which could result in personal injury or death.

Do not use bleach, color dye or solvents on the seat belt webbing. This m ay cause a severe loss
of tensile strength. This could cause the webbing to break resulting in personal injury. It is
recommended that the seat belt be cleaned only with warm water and mild deterg ent .

2.5. WHEN PARKING

If parking on or near traff ic lanes cannot be avoided, provide appropriat e flag s, barriers, flares and
warning signals. Also provide advance-warning signals in the traffic lane for approaching t raffic.
Park the machine in a non-operating and non-t raf f ic ar ea. Park m achine on level ground whenever
possible. If you must park on a slope, par k at right angles to the slope. Apply and lock t he brake
pedal.

Never leave the machine unattended with the engine running.
When leaving the m achine unattended, slowly lower the hydraulic equipment to the ground, shif t

the transmission into neutral and lock the neutral lock lever, shut of f the eng ine, apply and lock the
parking brake. Relieve any pressure in the hydraulic system by moving the controls in both
directions. Turn off the electrical system master switch and take it out. Always lock up machine
when leaving it unattended, including any anti-vandalism attachments.

Do not jump off t he machine.
When operating in bad weather and storm lightening is nearby, dismount and seek shelter away

from the machine. Lightening will be attracted to the machine and can cause serious injury or
death.

When the machine is to be loaded onto a transport truck and trailer do so carefully. Load only
when the trailer is level. The steel track shoes will slide easily on the t railer. W hen t he machine is
properly positioned chain it securely and block with wooden pieces so it can not move on the
trailer.

Keep your head, body, legs, hand, fingers away from the blade and ripper when they are in a
raised position.

Do not allow the hydraulic system to support the mounted equipment without its proper blocking
when leaving the machine unattended, to eliminate the possibility of an expected drop of the blade
or ripper.

DRESSTA TD-40C

SECTION 2 SAFETY PRECAUTIONS

Page 12

2.6. SAFETY PRODUCT GRAPHIC LOCATION

INCLUDEPICTUREMERGEFORMAT

Fig. 2.2. Safety Product G r aphic Location – Machine

1. Track Adjuster Caution

2. Engine Door Caution

3. ROPS Caution

4. Pressurized Reservoir Caution

Fig. 2.3. Safety Product G raphic Location – Cab

5. General Caution

6. Instruction Caution

7. Safety Caution

TD-40C DRESSTA

SAFETY PRECAUTIONS SECTION 2

SAFETY PRODUCT GRAPHIC LOCATION

2.6.1. SAFETY PRODUCT GRAPHICS

Decal 1

Page 13

Decal 2

Decal 3

Decal 4

DRESSTA TD-40C

SECTION 2 SAFETY PRECAUTIONS

Page 14

SAFETY PRODUCT GRAPHIC LOCATION

Decal 5

Decal 6

Decal 7

TD-40C DRESSTA

SECTION 3

MACHINE TRANSPORT AND STORAGE

MACHINE TRANSPORT AND STORAGE SECTION 3

SECTION CONTENTS

3.1. Machine Transport...............................................................................................................3

3.2. Lifting on Slings ...................................................................................................................4

3.3. Moving a Disabled Machine.................................................................................................4

3.4. Machine Storage..................................................................................................................5

3.4.1. Preparing for Storage ..................................................................................................5

3.4.2. Servicing Machine During Storage .............................................................................. 7

3.4.3. Preparing f or Operation

............................................................................................... 7

DRESSTA TD-40C

MACHINE TRANSPORT AND STORAGE SECTION 3

Page 3

3.1. MACHINE TRANSPORT

Truck

When shipping this machine by truck learn oblig atory regulations. Contact local aut horities for the
proper shipping and loading regulations.
When preparing to transport the machine by truck, have truck and trailer level.

WARNING! Use caution when loading and unloading machine.

1. Use ramps or loading dock to maintain stability

2. Drive the machine in its lower gear

3. Use the lowest engine speed that will move the machine and not stall the engine

4. The machine can be "inched" into place by holding the steering hand levers back and slowly
moving them forward into the drive position. (Be careful and move the levers simultaneously
otherwise the machine will turn).

5. Pulling the steering hand levers back will disconnect the drive. Pulled back part way will permit
the machine to roll freely.

6. W hen the machine is pr operly located, stop the engine, place tr ansmission controls in Neutr al,
apply the Neutral Safety Lever and apply and lock the brakes.

7. Tie the m achine down securely to prevent unintent ional movement.

WARNING! Failure to secure the machine to the truck during transporting can
result in property damage, personal injury or death.

Railroad Flatcar

Respective railroad loading rules and specifications must be followed when shipping this machine
on open top railroad cars.

Fig. 3.1. Lifting Machine on Slings

DRESSTA TD-40C

SECTION 3 MACHINE TRANSPORT AND STORAGE

Page 4

3.2. LIFTING MACHINE ON SLINGS

1. Prior to lifting the machine depress brake and decelerator pedal and apply brake lock.

2. Use slings of sufficient strength for t he machine weight.

3. Attach slings to the machine as shown in the drawing and install the sling hooks in places
marked with “A” letter and protect the slings from sliding away from the machine.

4. Attach beams to the lifting slings and secure them against falling down.

5. STD machine weight with a cab is 66540 [kg].

3.3. MOVING A DISABLED MACHINE

WARNING! When using a chain or cable, be sure it is strong enough or the
expected load and is properly secured to the drawbar pins or tow hooks
(if equipped).

WARNING! When pulling with a chain or cable, take up the slack slowly to avoid
jerking. A chain or cable, which fails under load, can whip and cause serious
injury. Stand clear. Do not pull or tow unless the operator's compartment is
guarded against or out of reach of a whipping chain or cable. Attach only to the
machine tow hook or draw bar. Failure to follow these instructi ons could cause
serious injury.

To avoid the possibility of power train damage, limit t owing to a distance of 0.8 [km] at speeds less
than 1.6 [km/h]. The brakes on this machine are spring applied aut omatically when the engine is
stopped or the steering hydraulic system fails, and can only be released hydraulically. The
diagnostic center (Fig. 3.2) has two check valves

RB and LB

for externally applying hydraulic
pressure to the LH and RH brake spools to release them prior to towing per below specified
procedure.

Fig. 3.2. Diagnostic Center – Tow and Pressure Check Ports

1. Check valve RB 2. Check valve LB

If the tractor can be towed and engine and steering hydraulic system can be operated, pr oceed as
follows:

1. Lock the transmission shift lever in "NEUTRAL".

2. Start the engine.

3. Release the brake pedal.

4. Use a towing cable of sufficient strength. Keep the engine running at half throttle and gear

selector locked in “NEUTRAL” during t he tow.

TD-40C DRESSTA

MACHINE TRANSPORT AND STORAGE SECTION 3

Page 5

MOVING A DISABLED MACHINE

If the tractor can be towed but the engine and/or steering hydraulic system is inoperable pr oceed
as follows:

1. Lock the transmission shift lever in “NEUTRAL”.

2. Release brake and deceler ator pedal.

3. Pump sufficient grease into one of the valve (1 or 2 in Fig. 3.2.) to release the brakes. The
amount of grease req uir ed depends on the amount of pressure dissipation in the system .

4. Use a towing cable of sufficient streng th. During the tow, it may be necessary to pump more
grease into the right brake fitting to replace loss of pressure.

5. Depressing t he brake pedal will relieve hydraulic pressure and apply the brakes.

6. Aft er towing is completed, actuate the steering levers until all grease is purg ed from the system .
There should be no pressure in the brake system (when measured at brake port) with the brak e
and decelerator pedal applied or the steering levers in t he pivot posit ion.

3.4. MACHINE STORAGE

3.4.1. PREPARING FOR STORAGE

When a machine is tak en out of service and stored f or more t han 30 days, steps must be tak en t o
protect the machine. Leaving equipment outdoors exposed to the elements will m aterially shorten
its life. An enclosure will protect the machine from rapid temperature changes and lesson the
amount of condensation that forms in hydraulic com ponents, engine, fuel t ank and f inal drives. If it
is not possible to put the machine in an enclosure, cover it with a tarpaulin.

After the machine has been positioned f or st orag e and the eng ine shut down, perf orm t he f ollowing
operations:

1. Visually inspect the machine for external leakage and other defects.

2. Clean the radiat or , refer to “COOLING SYSTEM.”

3. Thoroughly clean the machine be sure to rinse off any corr osive residue.

4. Correct any defects found. Consult Author ized Distr ibut or of Construction Equipment.

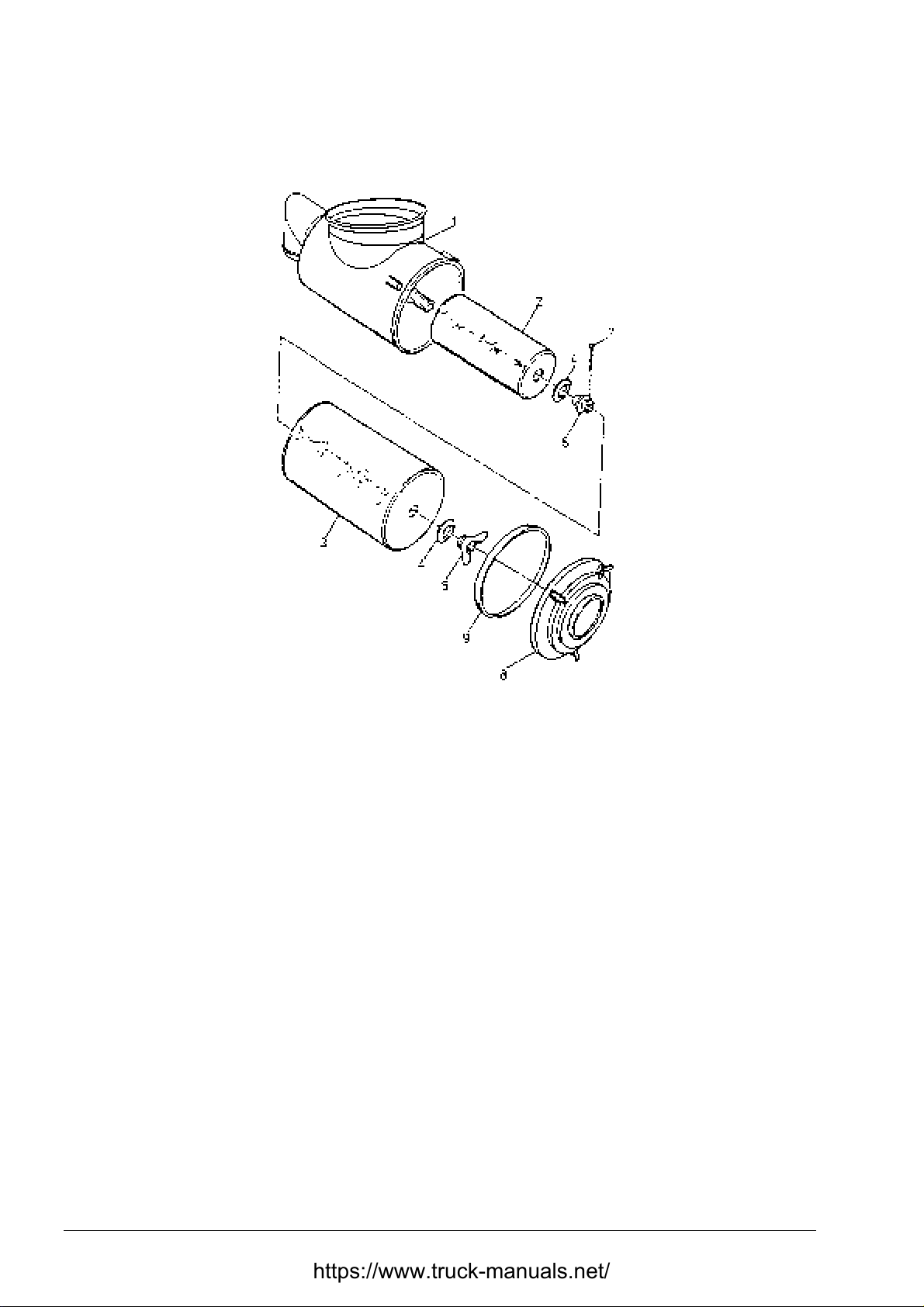

5. Clean or replace t he air cleaner filter elements. Refer to “AIR CLEANING SYSTEM”.

6. The cooling system should be completely drained, chemically flushed, and refilled with
a conditioned water/antifreeze solution suitable for the lowest temperature ant icipated. Refer t o
"COOLING SYSTEM" for the proper antifreeze and conditioner concentrat ions.

IMPORTANT: Under no circumstances should the vehicle be stored with a dry cooling

7. Drain the water from the fuel tank.

8. Remove, empt y, and r einstall the fuel filter s. Refer to “FUEL SYSTEM”.

9. It is recom mended to use a fuel stabilizer quantity as instructed by the manufacturer.
The stabilizer will prevent the degrading of the fuel, sludge buildup and stops the growth of
bacteria in the fuel during stor age. The fuel stabilizer may be purchased from:

system.

FIRE PREP 1000
NALCO CHEMICAL COMPANY
2901 BUTTERFIELD ROAD
OAK BROOK, ILLINOIS 60521, USA
or from Authorized Distributor of Construction Equipment

DRESSTA TD-40C

SECTION 3 MACHINE TRANSPORT AND STORAGE

Page 6

MACHINE STORAGE

10. Add 120 [ml] of volatile corrosion inhibitor “VCI” f or each 100 liters of t otal fuel capacity to the
fuel tank. The "VCI" provides corrosion protect ion by contact with the metal, and in a closed
system, the vapors provide sufficient protection for areas that are not in contact with the oil.
The "VCI" may be purchased from:

NOX RUST VCI # 105 OIL
DAUBERT CHEMICAL COMPANY
1200 JORIES BLVD
OAK BROOK, ILLINOIS 60521, USA
or from Authorized Distributor of Construction Equipment

WARNING! Rust inhibitors are volatile and flammable. Prepare machine in a wel l­ventilated place. Keep away from open flame or sparks DO NOT SMOKE. Store
container in a secure, cool, w ell ventilated place.

WARNING! Due to the volatile nature of "VCI", irritation of eyes and skin may
occur. Prolonged exposure to the vapors or oil should be avoided.

11. Vent the fuel system. Refer to “FUEL SYSTEM” in Section 4.

12. Start the engine and run at 1400 – 1600 [RPM], no load for appr oximately 4 minutes and stop

the engine.

13. Lubricate all points of the machine as outlined in the “SERVICE GUIDE” .

NOTE: Be sure to oil or grease all linkage connections, joints, nuts, pins, shaf ts, and bushings not
covered in the “SERVICE GUIDE”.

14. Drain the crankcase oil from the engine, replace the lubricating oil filters and refill with the
specified oil. Refer t o " ENGINE".

15. Add 15 [ml] of "VCI" for each liter of eng ine oil capacity to the crank case. ( Example: if t he tot al
crankcase capacity is 10 liters, add 150 [ml] of VCI to the crankcase).

WARNING! Due to the volatile nature of "VCI", irritation of eyes and skin may
occur. Avoid prolonged exposure to the vapors or oil.

16. Start the engine and run at 1400 – 1600 [RPM], no load, for approximately 30 seconds and
stop the engine.

17. Remove the air intake cap.

18. Seal all external opening s (i.e. engine exhaust outlet, crank case and hydraulic breathers, fuel
vent line, etc.) with waterproof tape wide enough to cover the opening.

NOTE: When sealing w ith tape, be sure to ext end tape approximately 25 [m m] beyond opening to
insure a good seal.

19. Pour 120 [ml] of "VCI" int o the intake m anifold to provide suff icient cor rosion protect ion for the
area between the top of the piston and the bott om of the cylinder head.

20. Add 350 [ml] of VCI to the hydraulic reservoir.

21. Remove the batteries and store them in a cool, clean, dry, well ventilated place away from
areas storing or dispensing fuel and oil, not near any heat source and preferably where the
temperature range is between 0 [°C] t o +21 [°C].
Be sure the batteries are fully charg ed.

TD-40C DRESSTA

MACHINE TRANSPORT AND STORAGE SECTION 3

Page 7

MACHINE STORAGE

NOTE: Do not leave batteries on a concrete floor or in f r eezing temperatures

IMPORTANT: If the machine is stored with dry-charged batteries or no batteries, the alternator
output lead must be disconnected and insulated. Failure to do so may result in permanent damage
to the alternator. Connect the output lead only after the batteries have been activated with
electrolyte. Refer to " ELECTRI CAL SYSTEM" .

22. If the blade is detached for storage, secure the cylinders to the machine to avoid damage.

23. Coat all machined unpainted surfaces with chassis grease to prevent rust.

3.4.2. SERVICING MACHINE DURING STORAGE

ONE-MONTH REPETITIVE SERVICE PERIOD
MACHINES WITH MAINTENANCE-FREE BATTERI ES:
Check if batteries are fully charged. Never allow batteries to run down below ¾ full charge.
SIX MONTH REPETIT IVE SERVICE PERIOD

1. Visually inspect the engine and radiator for leakage and other defects. Correct all defects;
consult Authorized Distributor of Const r uction Equipment.

2. Remove all storage seals from the machine. (i.e. crankcase and hydraulic breather s, engine air
intake, fuel tank vent lines, etc.).

3. Install fully charged batteries. Refer to "ELECTRICAL SYSTEM".

IMPORTANT: Check that batteries are level in the holders and securely held. The hold- down
fasteners should hold the batteries firmly but not tight enough to w arp or damage eit her the hold­down bar or batteries.

WARNING! Lay the cables so they do not chafe against the hold- down bar their
fasteners. Always connect the negative ground cable last to minimize the chance
of sparks or an explosion.

4. Check the coolant level in the radiator and add proper concentrations of antifreeze and coolant
conditioners, if required. Refer to “COOLING SYSTEM”.

NOTE: If excessive loss of coolant is detected, the problem should be corrected. Refer to
“COOLING SYSTEM”.

5. Follow steps 7 throug h 23 of "PREPARING FOR STORAG E" .

3.4.3. PREPARING FOR OPERATION

1. Visually inspect the machine for external leakage and other defects.

2. Clean the radiat or ; refer to “COOLING SYSTEM”.

3. Thoroughly clean the machine.

4. Correct any defects found. Consult Authorized Distributor of Construction Equipment if
necessary.

5. Rem ove all storage seals from the machine (i.e. crankcase and hydraulic breathers, eng ine air
intake, fuel tank vent lines, etc.).

DRESSTA TD-40C

SECTION 3 MACHINE TRANSPORT AND STORAGE

Page 8

MACHINE STORAGE

6. Replace the air cleaner filter elements. Refer to “AIR CLEANING SYST EM”.

7. Remove and discard f uel filters and replace with new. Refer to “ FUEL SYSTEM”.

8. Fill the fuel tank with approved diesel fuel. Ref er to “FUEL SYSTEM”.

9. Lubricate all point s of the machine as outlined in the “SERVICE G UI DE” .

NOTE: Be sure to oil or grease all linkage connections, joints, nuts, pins, shaf ts, and bushings not
covered on the "SERVICE GUIDE".

10. Drain engine oil from the crankcase and replace the engine lubricating oil filters. Refer to
“ENGINE”.

11. Install fully charged batteries. Refer t o “ELECTRICAL SYSTEM”.

NOTE: Check that batt eries are level in the holders and securely held. The hold-down fasteners
should hold the batteries firmly but not tight enough to warp or damage either the hold-down bar or
batteries.

NOTE: Lay the cables so they do not chafe against the hold-down bar or the fasteners. Always
connect the negative round cable last to minimize the chance of sparks and possible explosion.

12. Prime the turbocharger by placing the engine position and cranking the engine for
approximately 30 seconds. Continue to crank the engine for 30-second periods until an oil
pressure reading is indicated on the engine oil pressure gauge. This should provide an
adequate amount of oil to lubr icat e the turbocharger.

IMPORTANT: Crank the engine fo r a per iod of 30 seconds the, allow the cranking motor to cool
for two minutes before cranking again t o avoid dam aging t he cr anking m otor.

WARNING! Never start the engine indoors unless proper exhaust ventilation is
provided. Once the engine is running, move the machine outdoors as soon as
possible.

13. Start the engine; refer to “STARTING THE ENGINE”. Observe all the gauges on the
instrument panel for proper oper at ion of engine.

14. Perform an engine diagnostic test.

TD-40C DRESSTA

SECTION 4

OPERATING

OPERATING SECTION 4

SECTION CONTENTS

4.1. Machine Precautions............................................................................................................3

4.2. Universal Symbols for Instruments and Controls..................................................................4

4.3. Universal Symbols...............................................................................................................5

4.4. Instrument Panel..................................................................................................................6

4.5. Cab Controls......................................................................................................................11

4.6. Controls and Adjustment....................................................................................................12

4.7. Starting the Engine............................................................................................................18

4.8. Stopping the Engine...........................................................................................................22

4.9. Driving the Machine...........................................................................................................23

4.10. Shifting the Transmission...................................................................................................24

4.11. Converter Overheating.......................................................................................................25

4.12. Steering the Machine.........................................................................................................25

4.13. Locking Both Tracks..........................................................................................................26

4.14. Downgrade Operation........................................................................................................26

4.15. Operating Over an Obstruction..........................................................................................26

4.16. Stopping the Machine........................................................................................................26

4.17. Parking the Machine..........................................................................................................27

4.18. Operating Mounted Equipment..........................................................................................28

4.19. Operating Techniques........................................................................................................31

4.20. Economical Operation of the Machine ...............................................................................40

DRESSTA TD-40C

OPERATING SECTION 4

Page 3

4.1. MACHINE PRECAUTIONS

During operation stay alert and watch what you are doing. Use common sense and do not operate
when fatigued.
Know your machine. For your personal safety read this manual caref ully and f ollow all instructions
and precautions. Refer to and read Sect ion 2 carefully and follow all precautions.

Before starting or operating this tract or, read the following general precautions. These are listed
there to help you protect the machine and to remind you of protection for yourself and those
around you. Sound judgment and observance of these rules will help make your job a safer one.
Visually check out the machine for leak s and broken, missing or malfunctioning parts. Be sur e all
caps, dipsticks, battery covers, etc. are secure before starting. Correct any problems before
operating the machine.

Keep the transmission in low gear when going downhill. Never coast downhill with the transmission
in neutral. The machine could go out of control and tip over. Always drive the machine slowly when
on hillsides, ramps or rough terrain. Be extremely careful when working around t renches or bank s.
Failure to do so could cause the machine to roll over.

Before starting operation, check the machine for correct function of steering controls, brake
controls, hydraulic controls, instruments and safety equipment. Make all necessary repairs or
adjustments before operat ing the machine.

Do not place the tractor under load without the proper engine oil pressure and operating
temperature. After starting the engine, move the engine speed control lever to the low idle
position.
Allow the engine to run at low idle for 3 to 5 minutes at 1000 RPM until normal oil pressure
registers on the gauge t o obtain complete distribution of the lubricating oil.
Oil pressure after 15 seconds must be cor rect. To prevent any possible damage to the alternator ,
the electrical system master switch must be in the “ ON” position when the engine is running. T he
switch must be in the “OFF” position only when the engine is shut down at the end off each day or
when the operator leaves the tractor unattended.

If the tractor is left outside during cold weather and t he tracks become frozen to the ground, do not
attempt to jerk them f ree with the power of t he engine. Star t the tr actor slowly and, if t he track s do
not break free, pry them loose. To prevent the tracks f rom fr eezing in the ground, park the tractor
on planks.

In freezing weather thoroughly clean all ice and mud from the track system after each day's
operation to prevent freeze-up of the system. Be sure to clean the seal area off the sprocket
drives, front idlers, t op idler s and r ollers.

Never pour cold coolant into the radiator if the engine is very hot unless conditions make it
absolutely necessary. Use extreme caution as hot coolant could burn you. Keep face away from
filler neck. Under such conditions, start the engine and let it idle while slowly pouring the coolant
into the radiator. Allow the engine to cool down to 50°C.
Pouring cold coolant into the engine may result in dam age to cast components of t he engine.

Never use water alone in the cooling system.
Fill the fuel tank at the end of each day's work to reduce moisture condensation in t he tank.
When using a long chain or cable to hitch the tractor to the load, drive the tractor forward slowly
until all slack is taken out.
Before shutting down, operate the eng ine at half speed (no load) f or t hree to five minutes. This will
aid in cooling the engine and turbocharg er .

DRESSTA TD-40C

SECTION 4 OPERATING

Page 4

4.2. UNIVERSAL SYMBOLS FOR INSTRUMENTS AND CONTROLS

The use of universal symbols will pictorially identify various instruments and controls. These
symbols are an effort to overcome lang uage differences for all operators in a positive way, thus
enhancing their safety through quick er recognition of the instruments and contr ols while operating
the equipment.
Study the following symbols so you will know their meaning immediately and at a glance.

NOTE: Some symbols may not pertain t o your m achine.

TD-40C DRESSTA

OPERATING SECTION 4

4.3. UNIVERSAL SYMBOLS

Page 5

ON (GENERAL) OFF (GENERAL) FWD or UP

Variable slide

control

Battery isolat or Voltmeter Lights Dome light Windshield wiper

Horn Fuel filler Fuel level Air cleaner Coolant level

Oil pressure Starting aid Drive train oil filler Oil pressure Oil filter Oil level Oil temperature

Variable rotation

control

Next speed

(straight-line)

REVERSE or

DOWN

Next speed

(rotation)

FWD or

REVERSE

NEUTRAL

position

Hourmeter Caution

A/C

Rear window

wiper

Coolant

temperature

Electrical

receptacle

Window washer Fan

Engine Engine RPM

Caution high

pressure

Lighter

Oil pressure

diagnostic point

Hydraulic oil f ilter Hydraulic oil l evel Undercarriage

Hydraulic fil ter Blade Raise Hold Lower Float Tilt left Tilt right

Angle left Angle right Pitch FWD Pitch AFT Ripper Raise Hold Lower

Pitch FWD Pitch AFT Coolant filler Grease lubricant

Vehicle FWD or

REVERSE

LH Track driven RH Track driven RH Track brake LH Track brake

Brake

(GENERAL)

Parking brake Brake ON Lift or lift point

The above symbols are used in crawler dozers manufactured by HSW, however not all of them
must be used on this machine.

DRESSTA TD-40C

SECTION 4 OPERATING

Page 6

4.4. INSTRUMENT PANEL

General

This section covers the location and function of the various instruments and controls. More
detailed information reg arding operation of controls can be found in the following text within t his
section. Regardless of previous experience as an operator; you must be thoroughly familiar with
the location and use of all instruments and controls before operating the m achine.

IMPORTANT: Understand all control functions before start ing t he engine.
IMPORTANT: After starting and while operating observe instruments and warning lights

frequently.

Fig. 4.2. Instrum ent Panel for Machine Equipped with QSK-19 Engine

1. Fuel Level Gauge

2A. Engine ECM Failure Code Display Selector Switch
2B. Engine ECM Memory Activation Diagnostics Switch

3. Engine Coolant Level Warning Light

4. Air Cleaner Filter Warning Light

5. Engine ECM Failure Code Warning Lights

6. Transmission Oil Pressure Filters Warning Light

7. Hydraulic Oil Filters Warning Light

8. Low Transmission Main Pressure and Clutch Low Oil Pressure Warning Light

9. Engine Coolant Temperature Gauge

10. Engine Oil Pressure Gauge

11. Low Engine Oil Pressure Warning Light

12. Torque Converter Oil Temperature Gauge

13. Voltmeter

14. Engine Coolant Low Level and Low Oil Engine Pressure Alarm

15. Hourmeter

16. Starting Button and Warning Light

17. Light Switches

18. Ether Injector Switch

19. Brake Lock

TD-40C DRESSTA

OPERATING SECTION 4

INSTRUMENT PANEL

Page 7

Fig. 4.3. Instrum ent Panel for Machine Equipped with KTA-19C Engine

1. Fuel Level Gauge

3. Engine Coolant Level Warning Light

4. Air Cleaner Filter Warning Light

5. Low Engine Oil Pressure Warning Light for KTA-19C

6. Transmission Oil Pressure Filters Warning Light

7. Hydraulic Oil Filters Warning Light

8. Transmission Main Low Pressure and Clutch Low Oil Pressure Warning Light

9. Engine Coolant Temperature Gauge

10. Engine Oil Pressure Gauge

12. Torque Converter Oil Temperature Gauge

13. Voltmeter

14. Low Engine Coolant Low Level and Low Oil Pressure Alarm

15. Hourmeter

16. Starting Button and Warning Light Check

17. Light Switches

18. Ether Injector Switch

19. Brake Lock

1. FUEL LEVEL GAUGE
The gauge indicates quantity of fuel available for operat ion in fuel tank.

2A. ENGINE ECM FAILURE CODE DISPLAY SELECTO R SWITCH
(QSK-19 engine only)

This selector switch has three positions. In its upper and lower position it enables to display engine
failure codes (in succession). The selector switch reverses automatically to its home-central
position.

DRESSTA TD-40C

SECTION 4 OPERATING

Page 8

INSTRUMENT PANEL

2B. ENGINE ECM MEMORY ACTIVATION DIAGNOSTICS SWITCH
(QSK-19 engine only)
This is a two-position switch: upper – normal (working) position and lower position for engine
failures capture (memory activated).

3. ENGINE COOLANT LEVEL WARNING LIGHT

The engine coolant level indicator will glow if coolant level drops below operating level, this light is
supplemental to low engine coolant and oil pressure alarm (14) on inst r ument panel.

4. AIR CLEANER FILTER WARNING LIGHT

The air cleaner filter warning light will glow amber when the filter element reaches the maximum
allowable restriction. W hen this happens, filter element ser vice is required.

5. ENGINE OIL PRESSURE WARNING LIG HT (KTA –19C engine only)

The engine oil pressure warning light will glow when engine oil pressure is low.

5. ENGINE ECM FAILURE CODE WARNING LIGHTS ( QSK-19 engine only)

If any of monitored eng ine performance characteristics is not within specif ied range or sensor is
damaged, it will be stored in the ECM memory and then signaled by warning lights. This is first
information for t he operator of incor rect engine perf ormance charact eristic. If so, read failur e code
per Engine Manual.

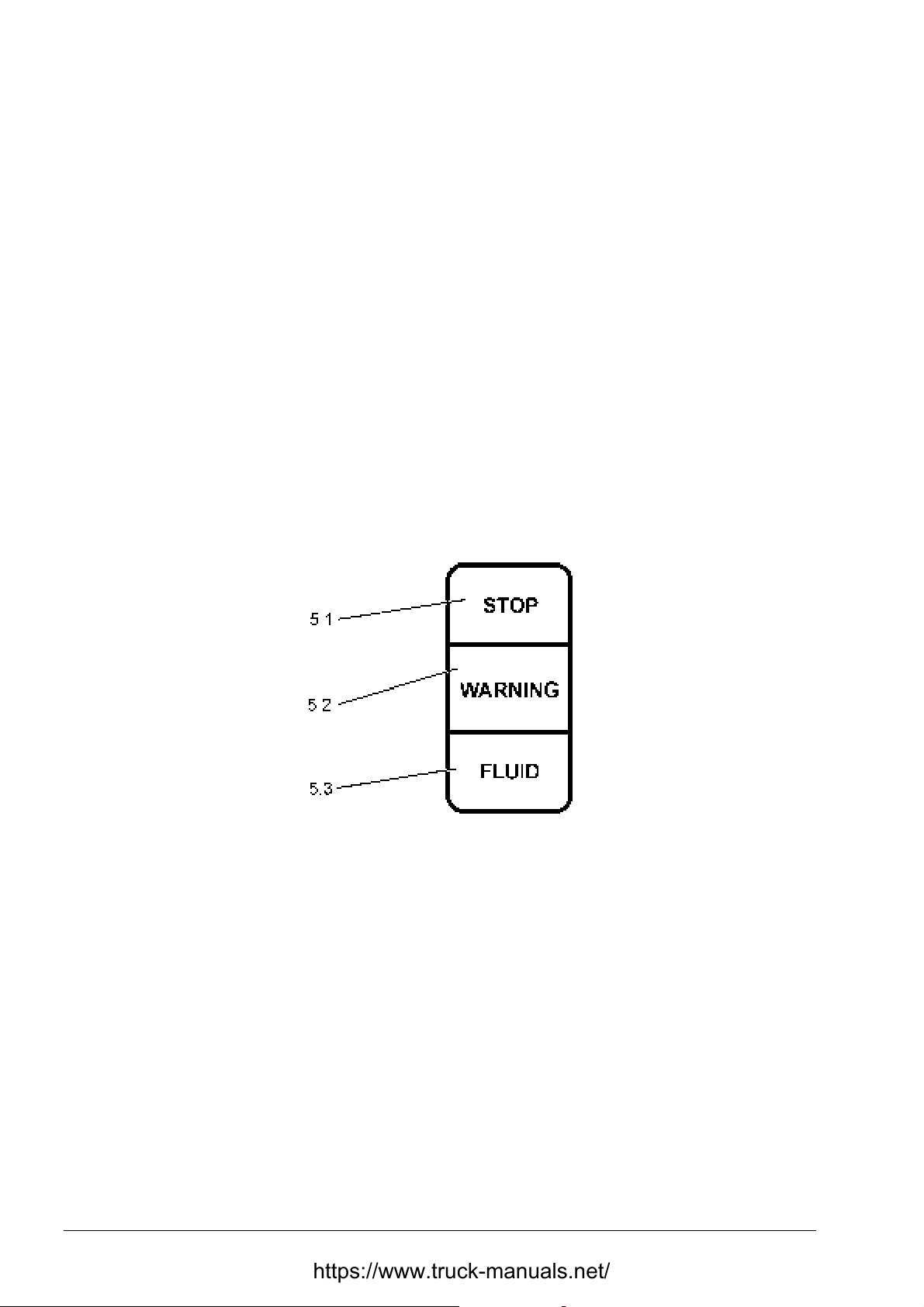

Fig. 3A. Warning lamps.

5.1 WARNI NG LAMP (RED)

This light indicates a serious malfunction of the eng ine. Stop the engine immediately or the ECM
module will stop the engine.

5.2 WARNI NG LAMP (YELLOW)

This light indicates a less serious malfunction of the eng ine. I t can be oper ated but to its pr otect ion
the ECM may reduce the engine performance (power, rpm ). This failure should be corr ected as
soon as possible.

5.3 WARNI NG LAMP (AMBER)

This indicator shows low engine coolant level. The low engine coolant level extending over a
longer period will reduce engine perform ance and eventually, st op t he engine.

6. TRANSMISSION OIL PRESSURE FILTERS WARNING LIGHT

The transmission oil filter indicator will glow amber when the oil filter element reaches the
maximum allowable restriction. W hen this happens, respective transm ission pressure filter service
is required.

TD-40C DRESSTA

OPERATING SECTION 4

Page 9

INSTRUMENT PANEL

7. HYDRAULIC OIL FILTERS WARNING LIGHT
The hydraulic oil filter warning light will glow amber when the oil filter element reaches the
maximum allowable restriction. When this happens, respective filter ser vice is required.

8. TRANSMISSION MAIN LOW PRESSURE AND CLUTCH LOW OIL PRESSURE WARNING
LIGHT

The transmission clutch low oil pressure warning light will glow when there is insufficient oil
pressure in neutral position or insufficient oil pressure available for the t ransmission clutches with
transmission in gear. When warning light is activated stop the engine and clean transmission
system suction filter and check oil level in rear frame. Refer to “TRANSMISSION SYSTEM” in
Section 5. If the light continues to glow stop the engine and consult Authorized Distributor of
Construction Equipment befor e operating the machine.

9. ENGINE COOLANT TEMPERATURE GAUGE

This gauge shows the temperature of the coolant circulating thr ough the engine. After t he engine
has operated a sufficient leng th of the time, the pointer of the gaug e must be in the GREEN ar ea
of the gauge.

During normal operation the gauge readings may vary between the minimum and maximum
indicated by the GREEN area of the gaug e.
Continuous engine operating below the minimum temperature is harmful to the engine. Low
coolant temperatures will also cause exhaust smoke and increase the rat e of fuel consumption.

NOTE: In cold weather, if no louver is m ounted, it may be necessary to cover part of the radiator
to maintain the minimum coolant tem perature indicated at the lower end of t he GREEN area.

The engine temperature under full load should remain in the GREEN of t he gauge.

10. ENGINE OIL PRESSURE GAUGE

This gauge shows the pressure at which the lubricating oil is circulating through the engine. The
pointer must register in the green area during operation of the engine.
The gauge only QSK-19C is equipped with red warning lig ht. When red warning light is on, the
engine must be immediately be stopped.

11. LOW ENGINE OIL PRESSURE WARNING LIGHT (ENGINE QSK-19)

The warning light will glow red when engine lubricating oil pressure drops below permissible
minimum value. If so, stop operat ing the machine and stop the engine.

12. TRANSMISSION SYSTEM OIL TEMPERATURE GAUGE

This gauge shows the temperature of oil in transmission system. The pointer of t he gauge must be
in the GREEN area of the gauge.

13. VOLTMETER

The voltmeter indicates the condition of the batteries. At low idle speed, the gaug e pointer should
be within the green with white stripe area, which indicates a good battery charge. If the voltage
drops below this area, the batteries should be checked.
With the engine operating above low idle speed, the pointer should be within the upper green
area, which is the normal operating range. If the pointer drops below or exceeds this area, the
battery, alternator or wiring may be at fault.

14. LOW ENGINE COOLANT AND LOW OI L PRESSURE ALARM

This alarm will sound when lubricating engine oil pressure or coolant level in radiator drops below
normal. If so, stop t he m achine and find out which warning light glows and check gauge indication.

DRESSTA TD-40C

SECTION 4 OPERATING

Page 10

INSTRUMENT PANEL

15. HOURMETER
The hourmeter electrically records the actual hours of engine operation. The purpose of the
hourmeter is to indicate when to perform the recommended maintenance and lubrication
operations. The hourmeter will reg ist er only when the engine is running.

16. START SWITCH BUTTON AND WARNING LIGHTS CHECK
The button is used to crank the engine. Place the transmission neutral lock in neutral and the
transmission electrical system master switch to the O N position.

IMPORTANT: To prevent damage to the starter motor and avoid low battery output, do not
continuously crank the engine for more then 30 second intervals. Allow 2 to 3 minute recovery
period between cranking.

Prior to starting the engine move the engine speed and shut down lever fully forward (OFF
position), depress the starting switch and check if all warning lights glow. If any warning light
doesn’t glow that indicates that the bulb is defective or its circuit is broken.

17. STARTING SWITCH ( only QSK- 19 engine)

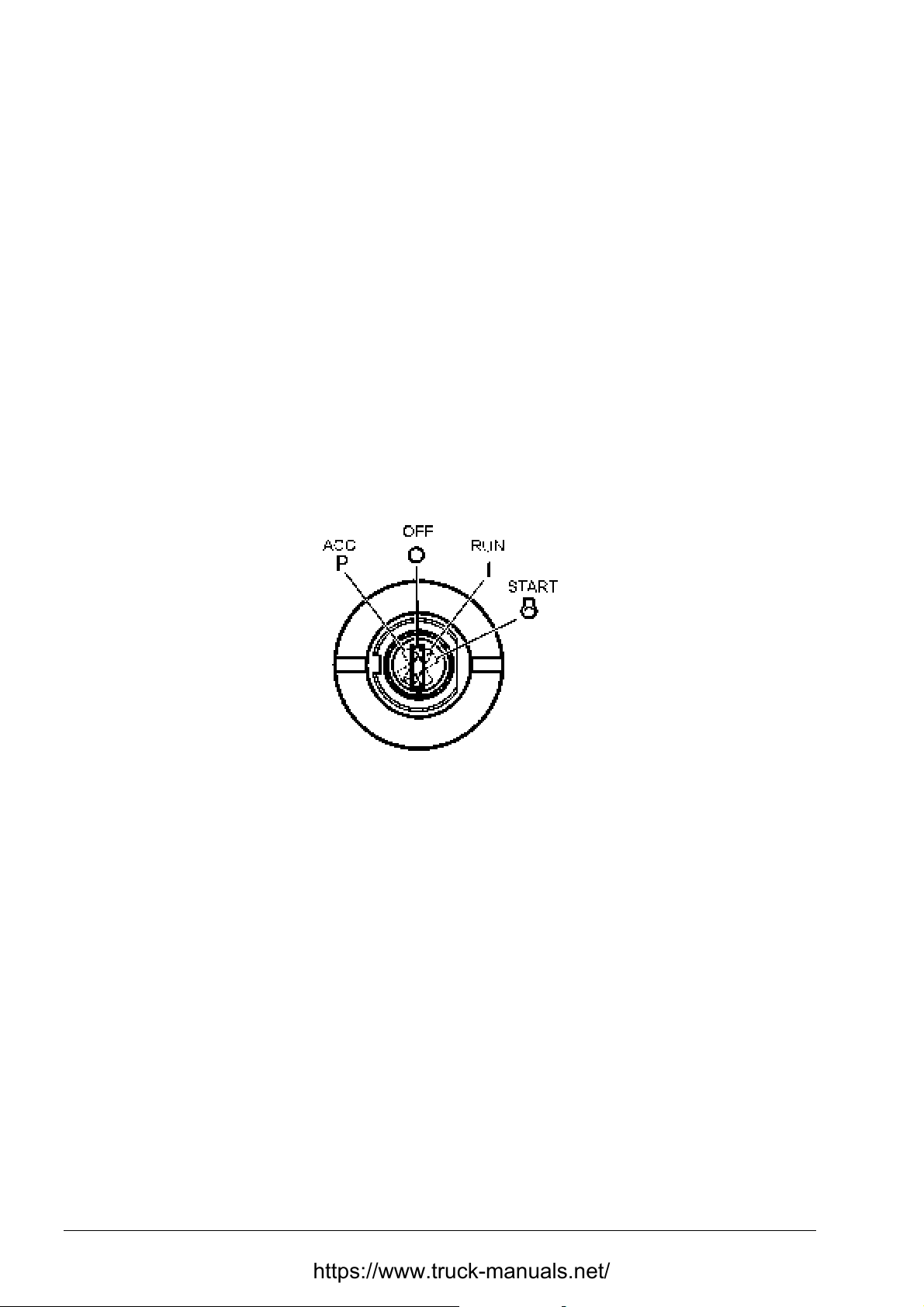

Fig. 3B. Starting switch-key positions

The starting switch equipped with a key is used to connect and disconnect electric circuit s and f or
starting and stopping the machine engine.

Starting switch key positions:
ACC – to the left – for future used,
OFF – after inserting t he key – disconnects electrical circuits,
RUN – to the right – activates electrical cir c uit s ,
START - to the right with automatic return to RUN on key release – engine startup.

18. LIGHTS SWITCHES
Work lights switches are rocker type switches. Activation of the switches tur ns on front and/or r ear
work lights.

19. ETHER INJECTOR SWITCH
This switch controls the ether injector for cold weather starting. Refer to “STARTING THE
ENGINE” for proper oper at ion of this switch.

20. BRAKE LOCK
This handle locks the brake pedal in the applied position for parking the machine. To lock the
brake pedal, fully depress the pedal, pull out the lock handle and r emove your foot f rom the pedal.
To release the brake, simult aneously depress t he br ake pedal and push in the lock handle.

TD-40C DRESSTA

OPERATING SECTION 4

4.5. CAB CONTROLS

Page 11

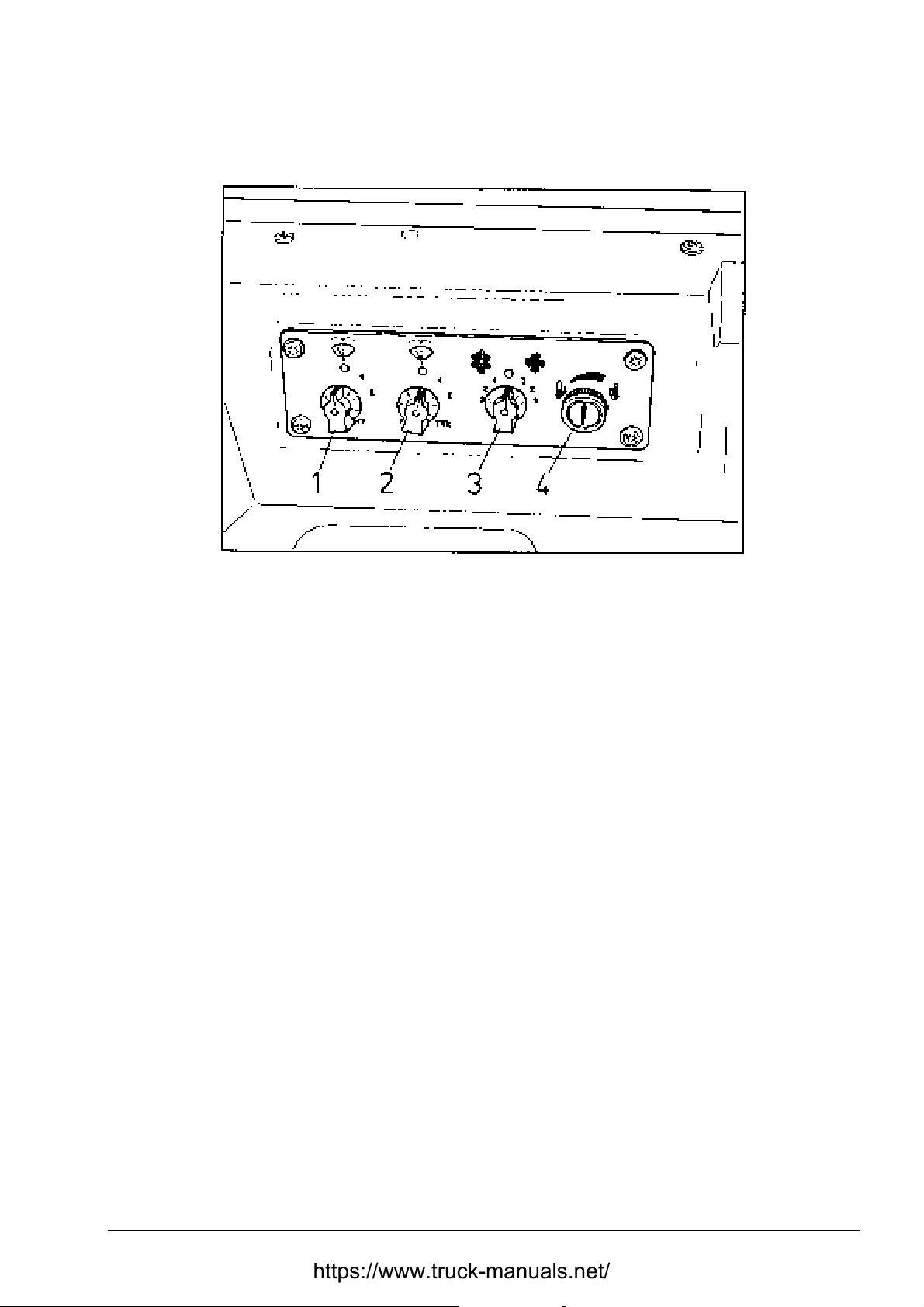

Fig. 4.4. Air Conditioner, Heat er and Accessories Controls

1. Door Wiper Knob and Washer Pushbutton

2. Window Wiper Knob and Washer Pushbutton

3. Heater and/or Cooler Pressurized Control Knob

4. Temperature Control Knob

DOME LIGHT
Dome light is switched on with switch mounted in the light.

CAB VENTILATION
NOTE: For maximum cooling t urn the temperature control knob fully to the left.

1. DOOR WIPER KNOB

This knob activates window wipers and washers. Principle of operation is similar to wiper timing
knob and washer.

2. WINDOW WIPER KNOB

This knob activates window wipers and washers. The switch enables two-speed selection of the
wipers, low and high speed when turn to the left and push the washer button to spray washer fluid.

3. HEATER AND/OR COOLING PRESSURIZER FAN SPEED CONTROL KNO B

This knob controls the speed of the fan circulating air inside the cab. It has three speed settings
low, medium and high. Turn the knob t o the left for three f an speed selections when cooling the
air, i.e. low, medium and high.
Turn the knob to right for three fan speed selections when heating air i.e. low, medium and high.
To turn the fan off, turn knob t o cent er position.

DRESSTA TD-40C

SECTION 4 OPERATING

Page 12

CAB CONTROLS

4. TEMPERATURE CONTROL KNOB
This knob is used to control temper ature inside t he cab. T o decr ease t emper ature tur n the k nob t o
the left position and to increase tem perature turn the knob to t he right position.

4.6. CONTROLS AND ADJUSTMENT

4.6.1. SEAT

SEAT ADJUSTMENT LEVERS

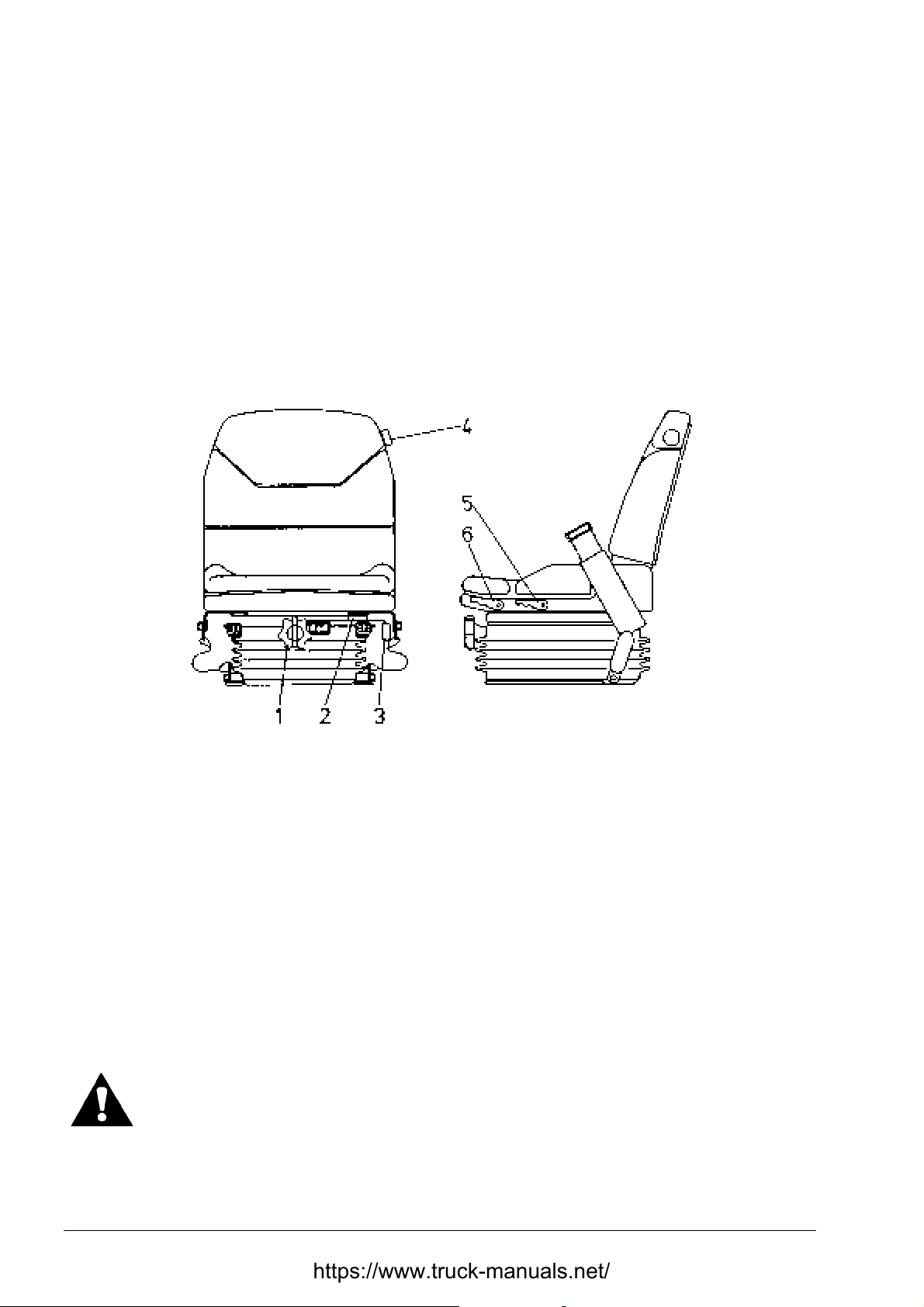

Fig. 4.5. Seat

1. Weight Adjustment Lever

2. Seat Travel Lever

3. 15° Swivel to the Right Lever

4. Back Rest Cushion Adjustment knob

5. Back Cushion Tilt Lever

6. Seat Adjustment Knob

The operator’s seat is adjusted as follows:
Press tilt lever 5 to adjust requir ed angle of back cushion.
Turn the knob 1 to adjust to own weight. Move lever 2 forward to slide the seat back or fort h.
Turn the knob 4 located on the left side to adjust backrest angle.
For ripping operations lift lever 3 t o swivel the seat 15° to the right.

4.6.2. SEAT BELT

WARNING! Before driving the machine adjust the seat belt and fasten the seat
belt. Adjust the belt to fit snugly and low around the hips to lessen the chance
and severity of injury in the event of an accident. Never wear the belt across the
abdomen.

TD-40C DRESSTA

OPERATING SECTION 4

CONTROLS AND ADJUSTMENT

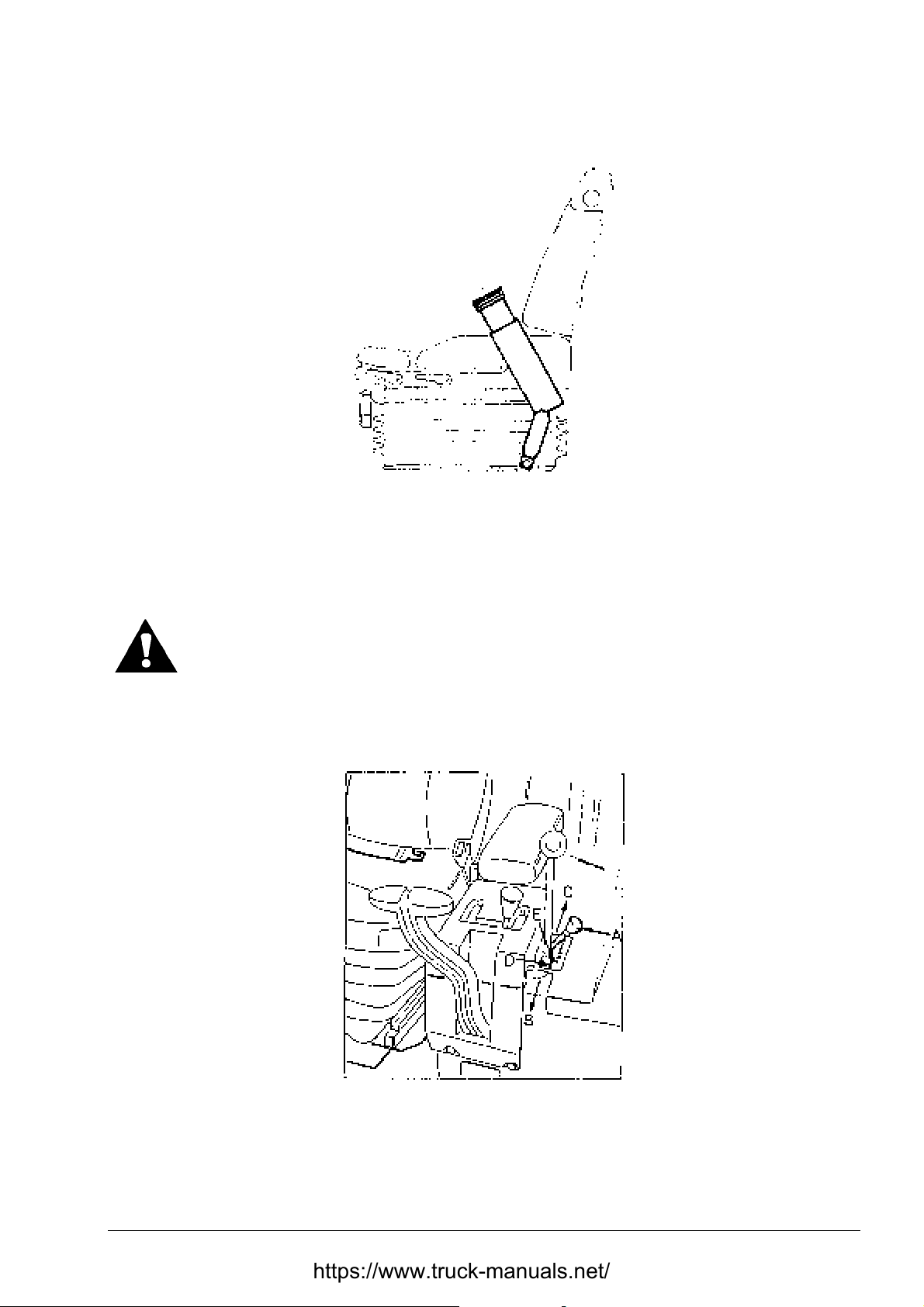

Fig. 4.6. Seat Belt

Page 13

To buckle, insert the tong ue portion of the buckle into the locking portion.

WARNING! Do not bleach, color dye or solvents on the seat belt webbing, this
may cause a severe loss of tensile strength. This could cause the webbing to
break resulting in personal injury, it is recommended that the seat belt be
cleaned only with war water and a mild detergent.
Keep belt flat to avoid twisting and roping when not being used. Do not place
heavy or sharp object on the belts.

4.6.3. ENGINE SPEED AND SHUT DOWN LEVER

Fig. 4.7. Engine Speed and Shut Down Lever

A – Engine Speed and Shut Down Lever
B – Lever Forward to Decrease Speed
C – Lever Back to Increase Speed

DRESSTA TD-40C

D – Large Cutout for Engine Shut Down
E – Engine start and Low Idle Speed

SECTION 4 OPERATING

Page 14

CONTROLS AND ADJUSTMENT

This lever (A) is used to start the eng ine, control this speed of the engine or t o shut it off. Push this
lever forward (B) to decrease engine speed. Pull the lever back (C) to increase engine speed.
Position lever in this large cutout (D) to shut down the eng ine.
For machine equipped with QSK-19 engine – see “ST O PPING THE ENGINE”

4.6.4. TRANSMISSION NEUTRAL LOCK LEVER

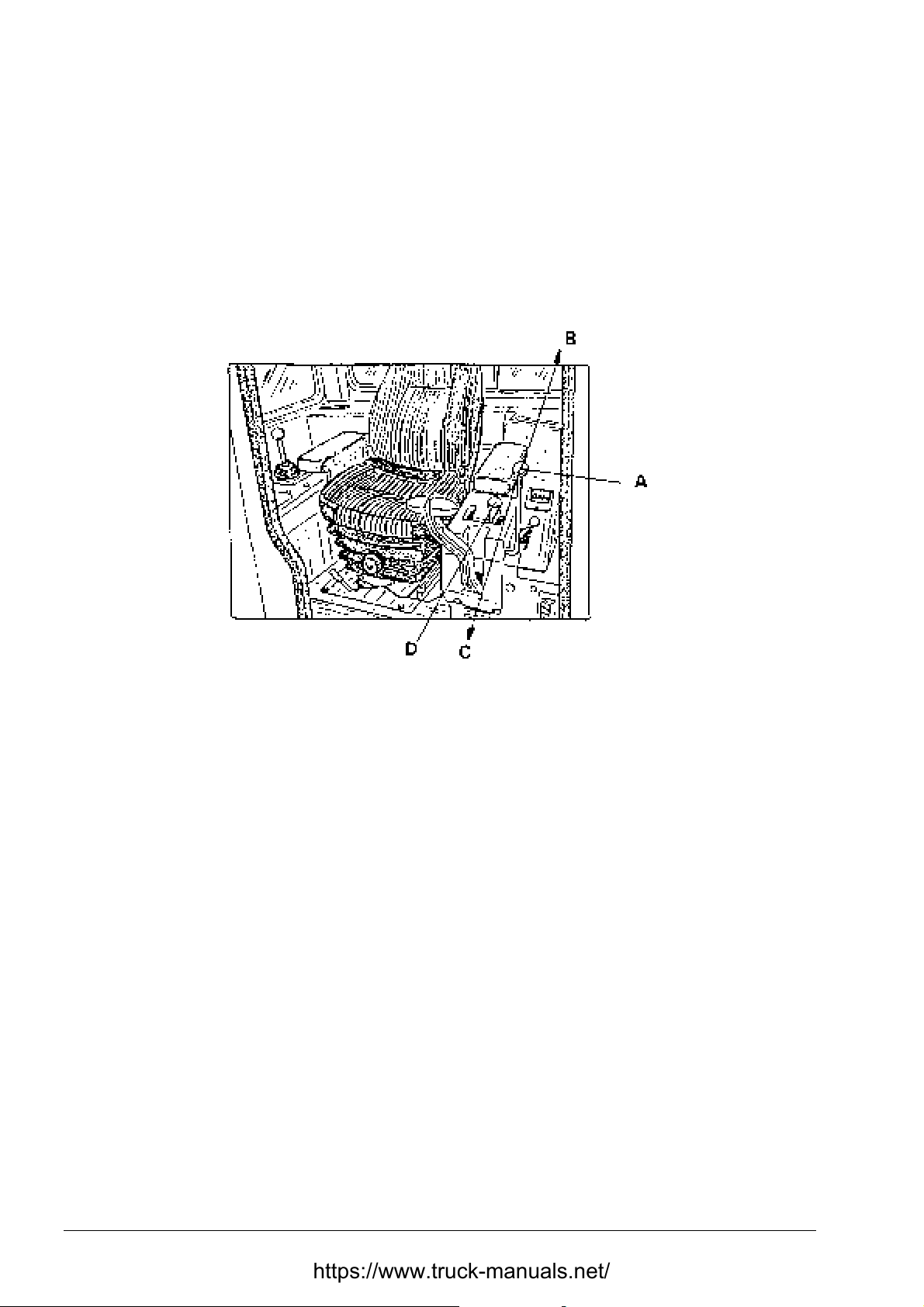

Fig. 4.8. Transmission Cont r ols

A – Transmission Neutral Lock Lever
B – Lever Rearward to Lock Shift Lever
C – Lever forward to release shift lever
D – Transmission Shift Lever

This lever (A) is used to lock the transmission shift lever in “NEUTRAL.” Move the lever backward
(B) (ON position) to lock the shift lever, or forward (C) (OFF position) to release. W hen starting or
idling the engine with the transmission in NEUTRAL place the lock lever in the ON position.

4.6.5. TRANSMISSION SHIFT LEVER

This lever is used to select the various transmission gear ranges.
Refer to “DRIVING THE MACHINE.”

NOTE: When the shift lever is placed in one of the reverse positions, the back-up alarm will
automatically sound.

TD-40C DRESSTA

OPERATING SECTION 4

CONTROLS AND ADJUSTMENT

4.6.6. HAND STEERING LEVERS

Page 15

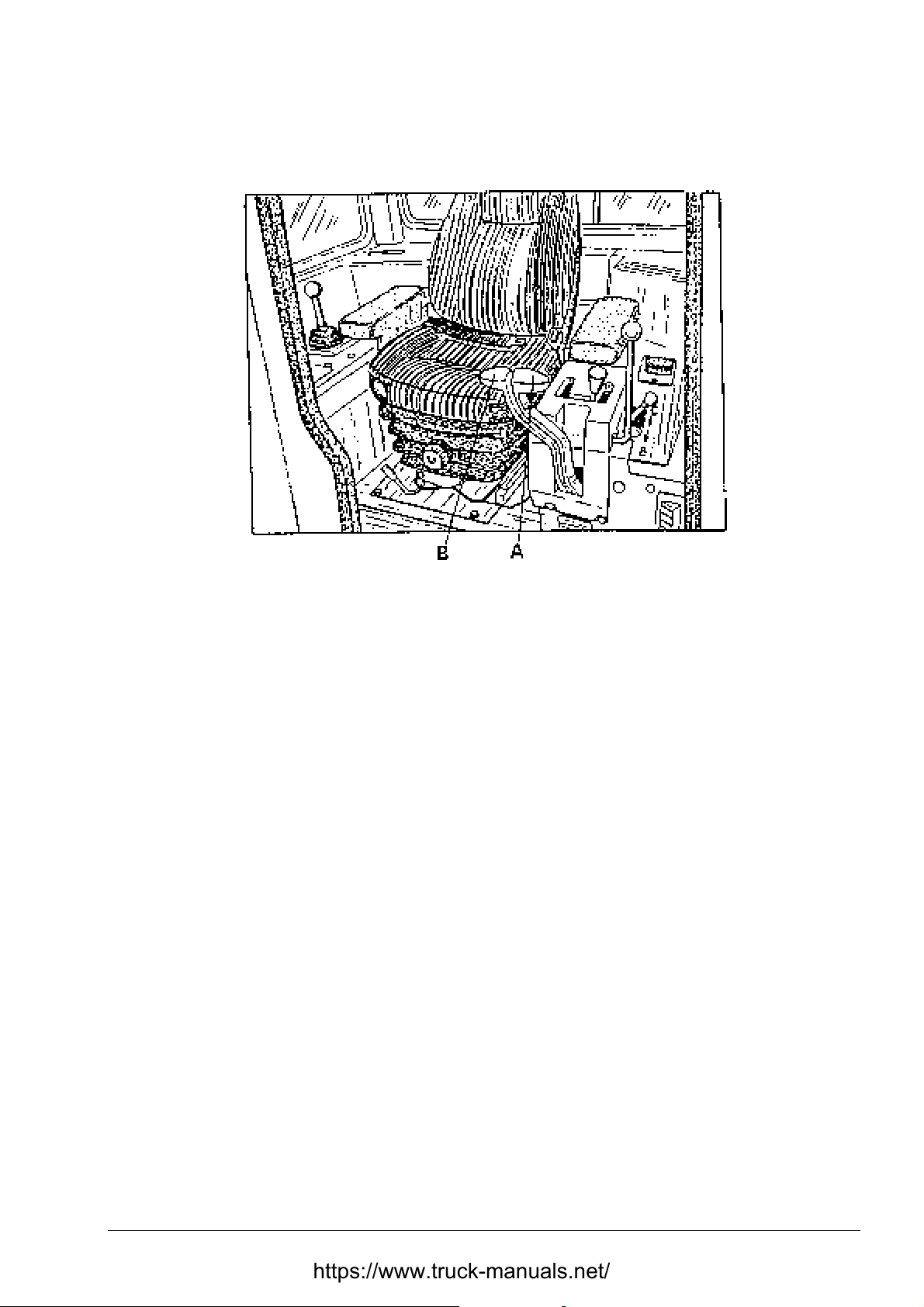

Fig. 4.9. Hand Steering Levers

A – Left Hand Steering Lever
B – Right Hand Steering Lever

These levers steer the machine by controlling engine power to the tracks and by applying and
releasing respective speed range clutch packs and brake clutch packs. The left-hand steering
lever (A) controls the left track with the right hand steering lever (B) controlling the right tr ack.

4.6.7. BRAKE AND DECELERATOR PEDAL

Fig.10. Brake and Decelerator Pedal and Pedal Lock

A – Brake and Decelerator Pedal
B – Brake Lock

DRESSTA TD-40C

SECTION 4 OPERATING

Page 16

CONTROLS AND ADJUSTMENT

This pedal overrides the engine speed control lever setting. Partial depression of the pedal
decreases engine speed for smoother chang es in machine direction and to ease the machine up
to a load. Release the pedal to accelerate the eng ine speed control lever setting . T his pedal stops
the machine when fully depressed. It also serves as a parking brake when the brake pedal lock is
applied and brake pedal lock knob is pulled.

Periodic adjustment of the pedal might be required. Ref er to Author ized Distributor of Construct ion
Equipment if pedal values are not within those shown in Fig. 4.11.

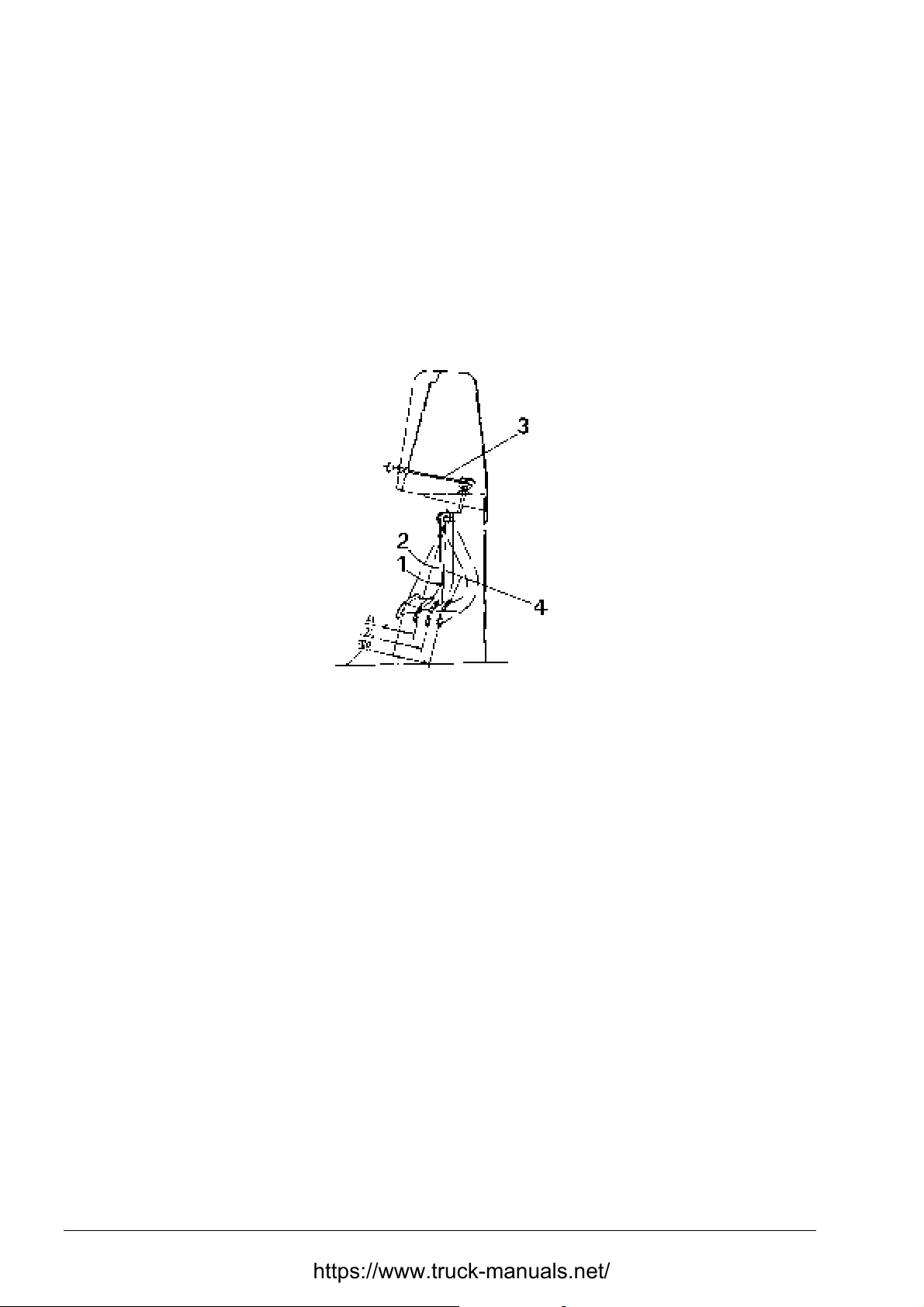

Fig. 4.11. Brake and Decelerat o r Pedal Adj u st m ent

1. Deceleration Angle (10°)

2. Braking Angle (14°)

3. Brake Lock Linkage

4. Brake and Decelerator Pedal

4.6.8. BRAKE AND DECELERATOR PEDAL LOCK

This lock secures the brake and deceler ator pedal in the applied position f or parking the m achine.
To lock the brake and decelerat or pedal fu lly depress the pedal, pull out the lock and remove your
foot from the brake and decelerator pedal. To release the brake, depress the brake and
decelerator pedal and push the lock.

IMPORTANT: Release the br ake pedal lock befor e moving the m achine. The brakes could burn or
be damaged if the machine is driven with partially applied br akes.

4.6.9. ELECTRICAL SYSTEM MASTER SWITCH

Turn the key clockwise to connect the battery ground circuit. Turn the key counterclockwise to
disconnect the battery ground circuit.

IMPORTANT: Keep the switch on w hile the engine is running.

TD-40C DRESSTA

OPERATING SECTION 4

CONTROLS AND ADJUSTMENT

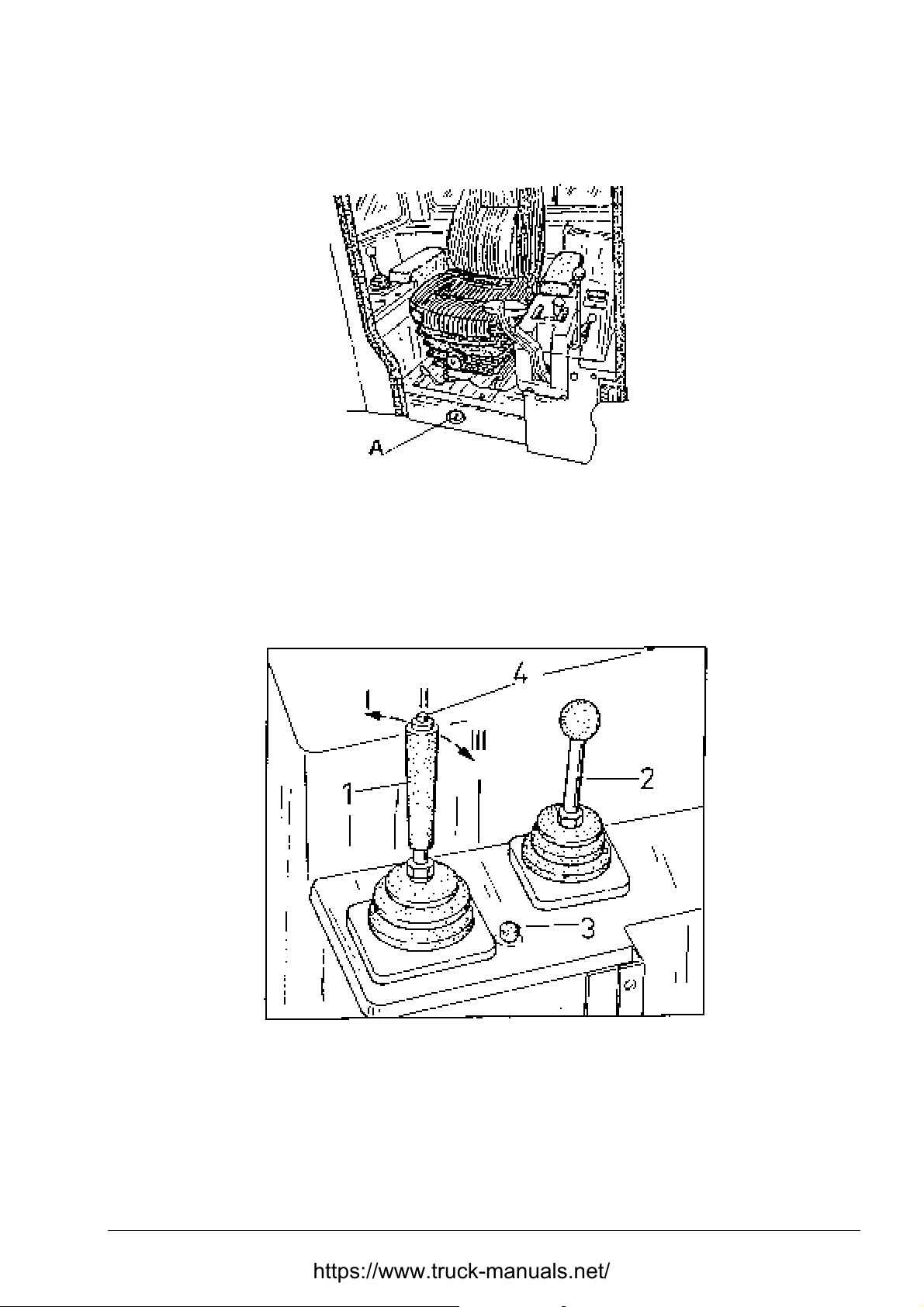

Fig. 4.12. Electrical System Master Switch

Page 17

4.6.10. EQUIPMENT CONTROL LEVERS

BLADE CONTROL LEVER

A – Electrical System Master Switch Key

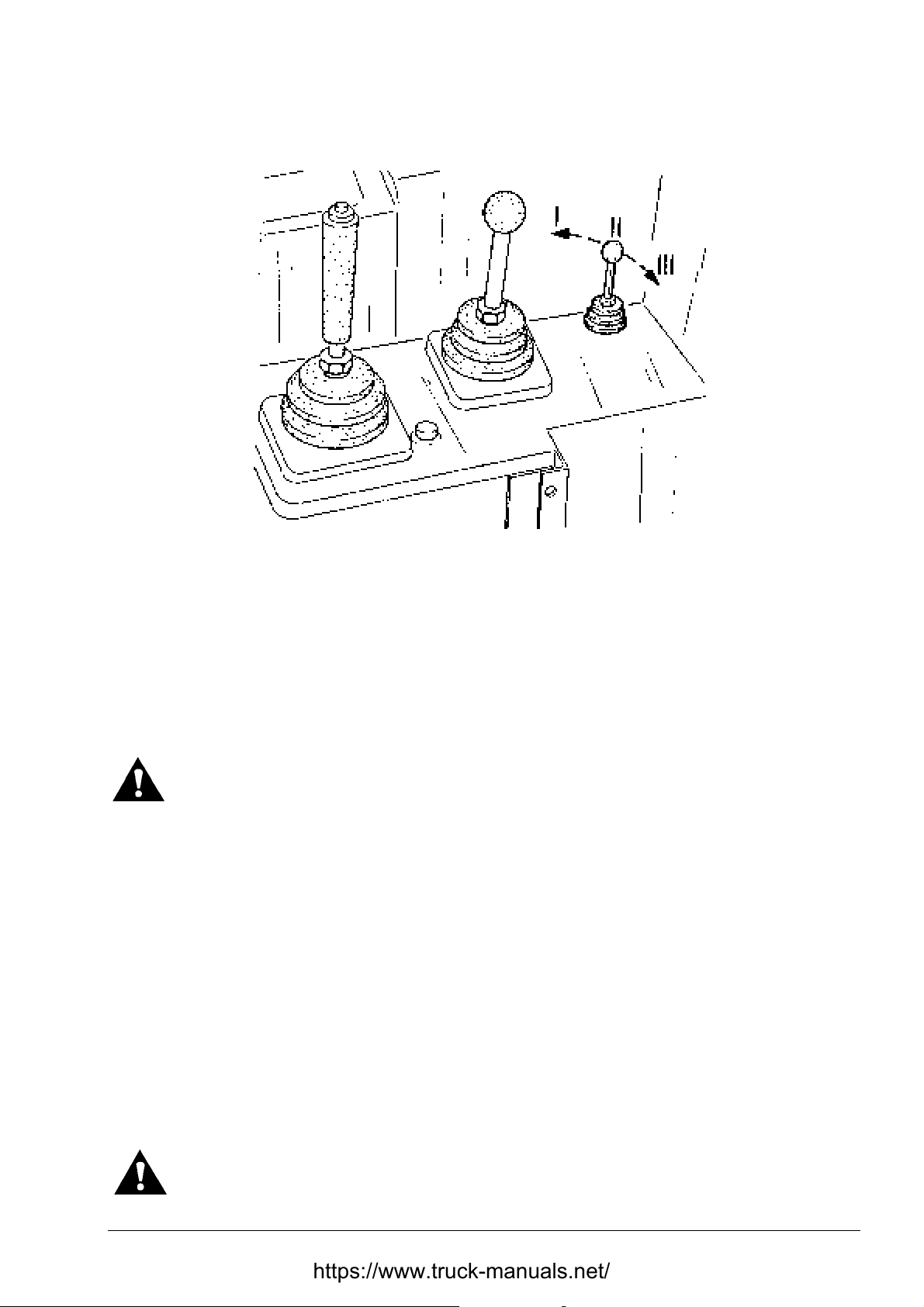

Fig. 4.13. Equipment Control Levers

1. Blade Raise, Lift, Tilt and Pitch Control Lever

2. Ripper Control Lever

3. Horn Button

4. Blade Pitch Button
I - Decreasing Suction Angle
II - Hold
III - Increasing Suction Angle

DRESSTA TD-40C

SECTION 4 OPERATING

Page 18

CONTROLS AND ADJUSTMENT

RIPPER CONTROL LEVER

Fig. 4.14. Ripper Control Lever (2 )

1. Blade Control Lever

2. Ripper Control Lever

3. Horn Button

I - Ripper Pitch Forward
II - Ripper Pitch Aft
III - Ripper Raise
IV - Ripper Lower
V - Hold

NOTE: For proper control of ripper control lever and observation of working tool swivel the
operator seat 15° to the right.

4.7. STARTING THE ENGINE

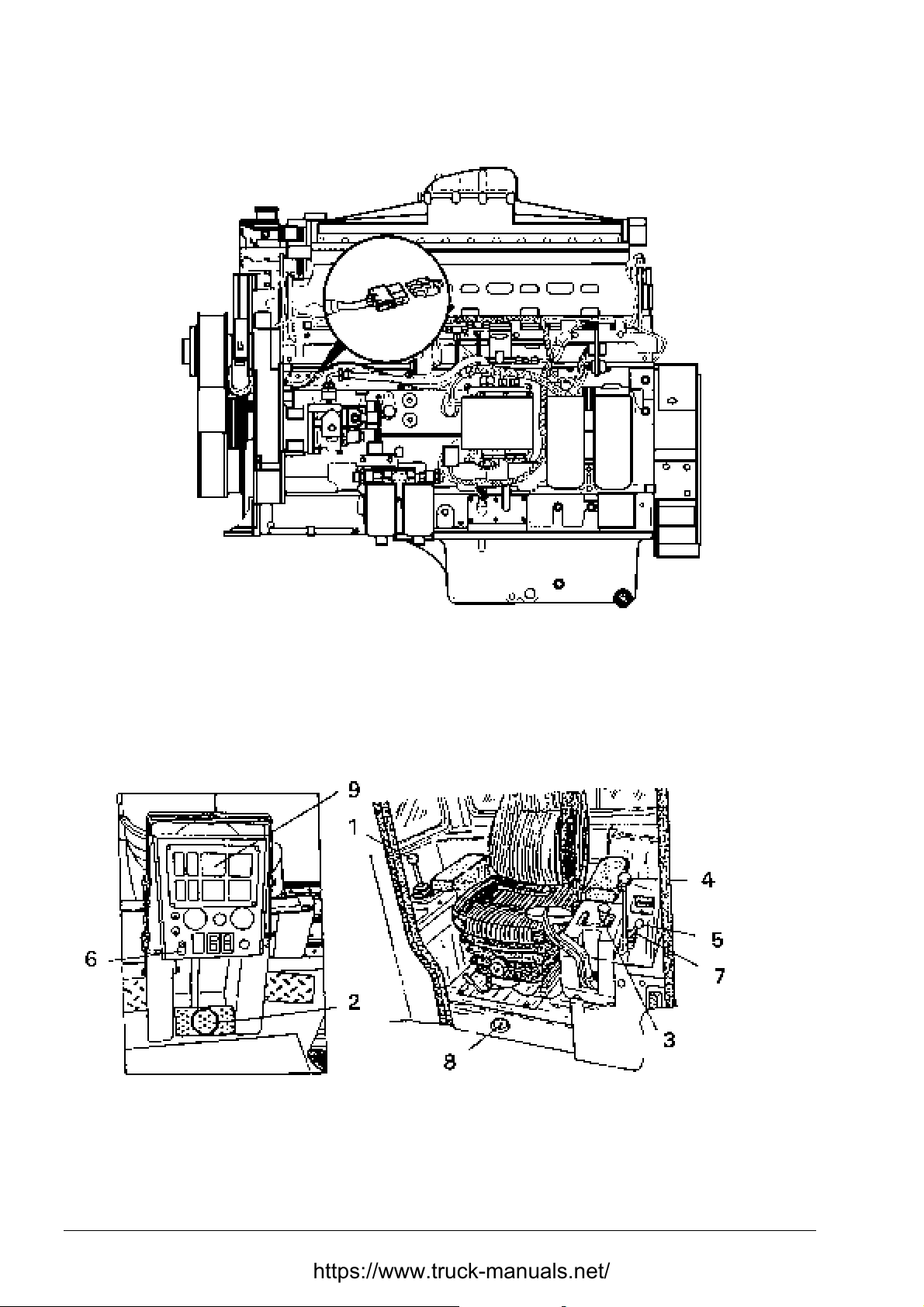

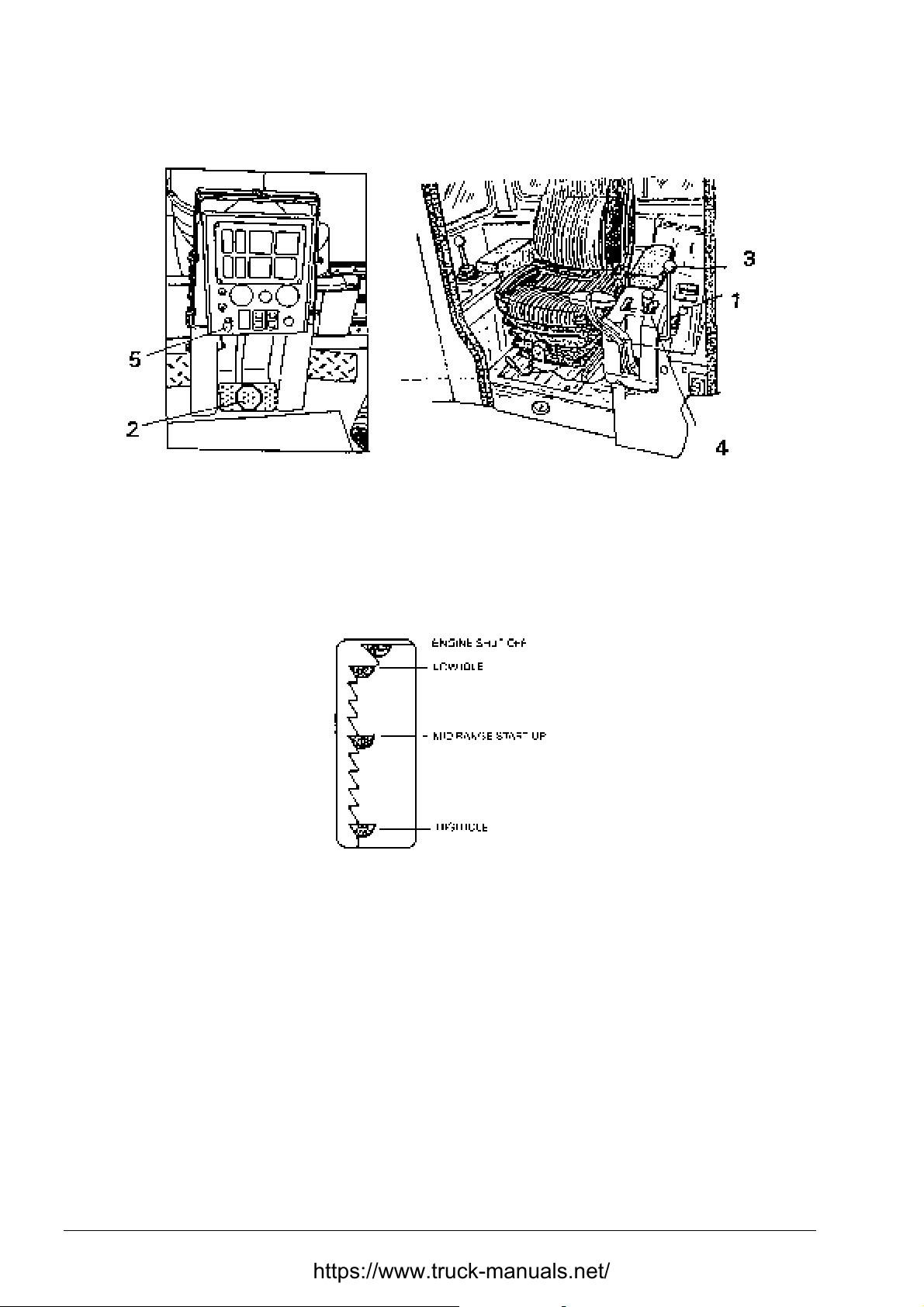

Fig. 4.15. Starting t he Engine

1. Brake and Decelerator Pedal
and Brake Lock Knob

2. Electrical System Master Switch

3. Transmission Shift Lever

TD-40C DRESSTA

4. Transmission Neutral Lock Lever

5. Engine Speed and Shut Down
Lever

6. Horn

7. Start Switch Button-Starting
Switch (for QSK-19 engine
only)

8. Engine Oil Pressure gauge

9. Engine Coolant Gauge and
Light

OPERATING SECTION 4

Page 19

STARTING THE ENGINE

NOTE: Before operating the machine perform each of the 10 hour maintenance requirements

referred to in Section 5.2. SCHEDULED MAINTENANCE. This engine cannot be started by
towing, pushing or coasting the machine.

WARNING! Before entering the operator s compartment, walk completel y around
the machine and clear the area of personnel and obstructions.

WARNING! Read all product graphics before starting, operating, maintaining, or
repairing the machine.

WARNING! Before starting the engine or when the machine is standing with the
engine running, lock the transmission shif t lever in neutral, apply brake lock and
lower all raised equipment:

WARNING! Understand all control functions before starting the engine.

WARNING! Never start the engine indoors unless proper exhaust ventilation is
provided to remove deadly exhaust gases. Once the engine is running, move the
machine outdoors as soon as possible. Exhaust gases are hazardous and can
cause unconsciousness and death.

WARNING! Be sure all personnel are clear of the machine before starting the
engine. Sound the horn.

WARNING! Make sure the operator’s seat is adjusted properly and fasten the
safety seat belt.

4.7.1. NORMAL START (temperature above 0°C)

1. Apply and lock the brake and decelerator pedal.

2. Place transmission shift levers in neutral.

3. Place the neutral lock lever in vertical “ON” posit ion.

4. Move the engine speed control lever to idle speed position (Fig. 4.16) .

5. Turn on electrical system master switch (“ON”.

6. QSK-19 engine only. Turn the st ar t ing switch key from the OFF position to the RUN position
(Fig. 3B). W ith the key in this position warning lights 5.1, 5.2 and 5.3 on the instrument panel
will be on (Fig. 3A). After two seconds the warning light 5.2 will turn off f ollowed by the light 5.1
and 5.3. This means that the eng ine self-detection featur e disclosed no ECM failure.
If the ECM detects engine system f ailure (sensor damage, low oil pressure, low coolant level,
etc.) it will be stored in ECM memory as an active failure.
Turn the starting switch key into the OFF position, the diagnostics switch (2B, Fig.2) into its
upper position and then turn the key into t he RUN posit ion to read active failure codes.
Turn the 2A selector switch (Fig.2) into its upper and lower position to display the failure code.

DRESSTA TD-40C

SECTION 4 OPERATING

Page 20

STARTING THE ENGINE

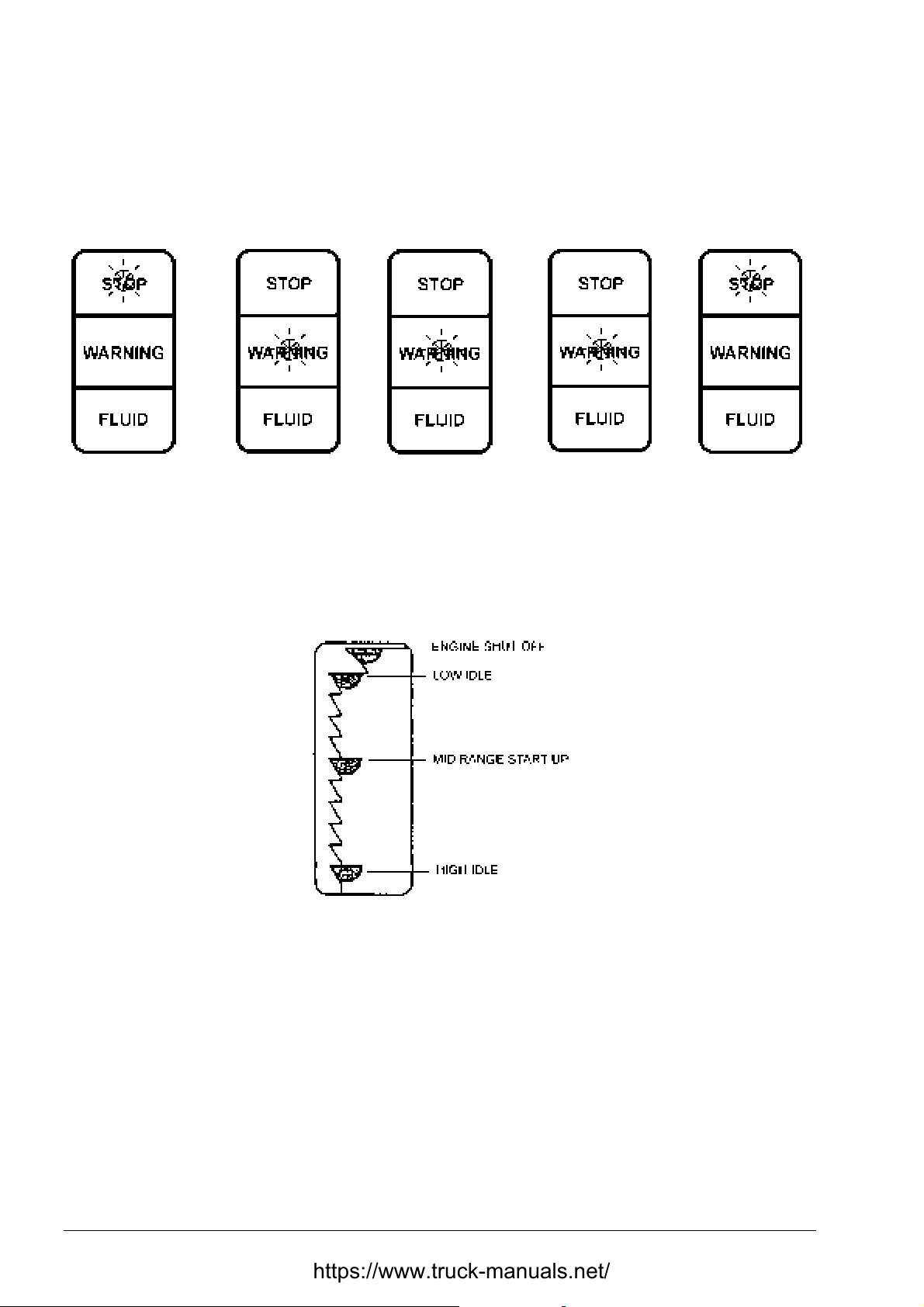

Failure code display (example): 115 (Fig. 15A)

RED

LIGHT

YELLOW

LIGHT

YELLOW

LIGHT

YELLOW

LIGHT

RED

LIGHT

P P P P

1 FLASH 1 FLASH 1 FLASH 5 FLASHES 1 FLASH

Fig. 15A. Failure code display (example)

P.- one second interval
Failure code 115 – engine rpm sensor damage
For failure code – ref er to QSK-19 ENGINE MANUAL
Contact an Authorized Construction Equipment Dist ributor in case you find out any active engine
failures.

Fig. 4.16. Engine Speed and Shut Down Control Lever

6. Sound the horn to clear all personnel fr om t he immediate area.

7. Crank the engine.

- press the start switch button (KTA-19C engine)

- turn the starting switch key to the right to the START position (QSK-19 engine)

8. Check oil pressure. Stop the engine immediately if gauge fails to show correct pressure af ter

15 seconds. Allow the engine to idle for 3 to 5 minutes ( app.1000 RPM.) bef ore increasing the
engine speed and placing under load.

9. Check indications of all instruments to ensure that machine is operating correctly. Refer to

INSTRUMENT PANEL.

IMPORTANT: It is not recommended to run the engine at low idle over 10 minutes due to
possibility of accelerated wear of engine components.

TD-40C DRESSTA

OPERATING SECTION 4

Page 21

STARTING THE ENGINE

4.7.2. ETHER INJECTOR START (temperatures below 0°C)

WARNING! Ether starting fluid is highly flammable. Follow the precaut ions on t he
container. An explosion can result if sparks or flame contact the ether or when
storing ether container when the ai r t emperat ure is above 70°C.

Observe the following precautions:

– Do not use the ether injector when the air temper ature is above 0°C.
– Do not use open flame when using ether starting fluid.
– Do not store fluid containers in the operat or's compartment.
– Store the containers in a cool, well ventilated place. Keep the fluid containers out reach of

children.

– Do not breathe the hazardous ether vapor.
– Do not let ether contact you skin, because it can cause frostbite.
– Never puncture the fluid container or put it into a fire
– Dispose of empty containers per instructions pr int ed on the container
– For your saf ety, remove the ether container when welding, grinding , or using a torch on the

machine.

– Follow the correct method for starting the engine.
– Before any attempt to start the engine, check the ether container or insure that a supply of

starting fluid is available under pressure and the system is in work ing condition.

– Pressing the switch in the instrument panel makes ether injection.

WARNING! Ether injector is to be used only for starting. Misuse of ether injector
while engine is running can result in serious damage to engine.

1. Follow the steps described in the Items 1 throug h5. Refer to NORMAL START (temperature

above 0°C).

- Crank the engine

- press the start switch button (KTA-19C engine)

- turn the starting switch key to the right to the START position (QSK-19 engine)

Press both the engine button and the ether injector switch simultaneously. Allow one to two
seconds for chamber in the valve to fill in then, with the engine crank ing, r elease the ether injector
switch to inject a measured shot of starting fluid into t he engine. If temperature is below –18°C,
additional ether shots may be required. If the engine does not fire with 4 injections maximum,
determine the cause of the engine failure to start and correct it before any another attempt to
restart the engine.

IMPORTANT: Crank engine for 30 seconds at a time. If engine does not start , allow cranking
motor to cool two or three m inut es bef or e cr anking again.

4.7.3. ENGINE START AFTER OIL CHANGE OR PROLONGED STANDSTILL
(over 5 days)

1. Follow the steps described in the Items 1 throug h 6. Refer to NORMAL START.

2. Shift the engine speed control lever t o OFF position (Fig. 4.16).

3. 3. QSK-19 engine. Unplug the male part of the ESP engine RPM sensor connector . Refer to
Fig. 16A.

4. Crank the engine

- - press the start switch button (KTA-19C engine)

- turn the starting switch key to the right to t he START position (QSK-19 engine) ( Fig. 3B)

Continue to crank the engine unt il oil gauge reg isters oil pressure or low oil pressure warning light
goes off.

DRESSTA TD-40C

SECTION 4 OPERATING

Page 22

STARTING THE ENGINE

Fig. 16A. ESP engine RPM sensor connector.

5. QSK-19 engine. Replace the male part of the ESP engine RPM sensor connector.
Follow the steps described in the Items 7 throug h 10. Refer to NORMAL START.

4.8. STOPPING THE ENGINE

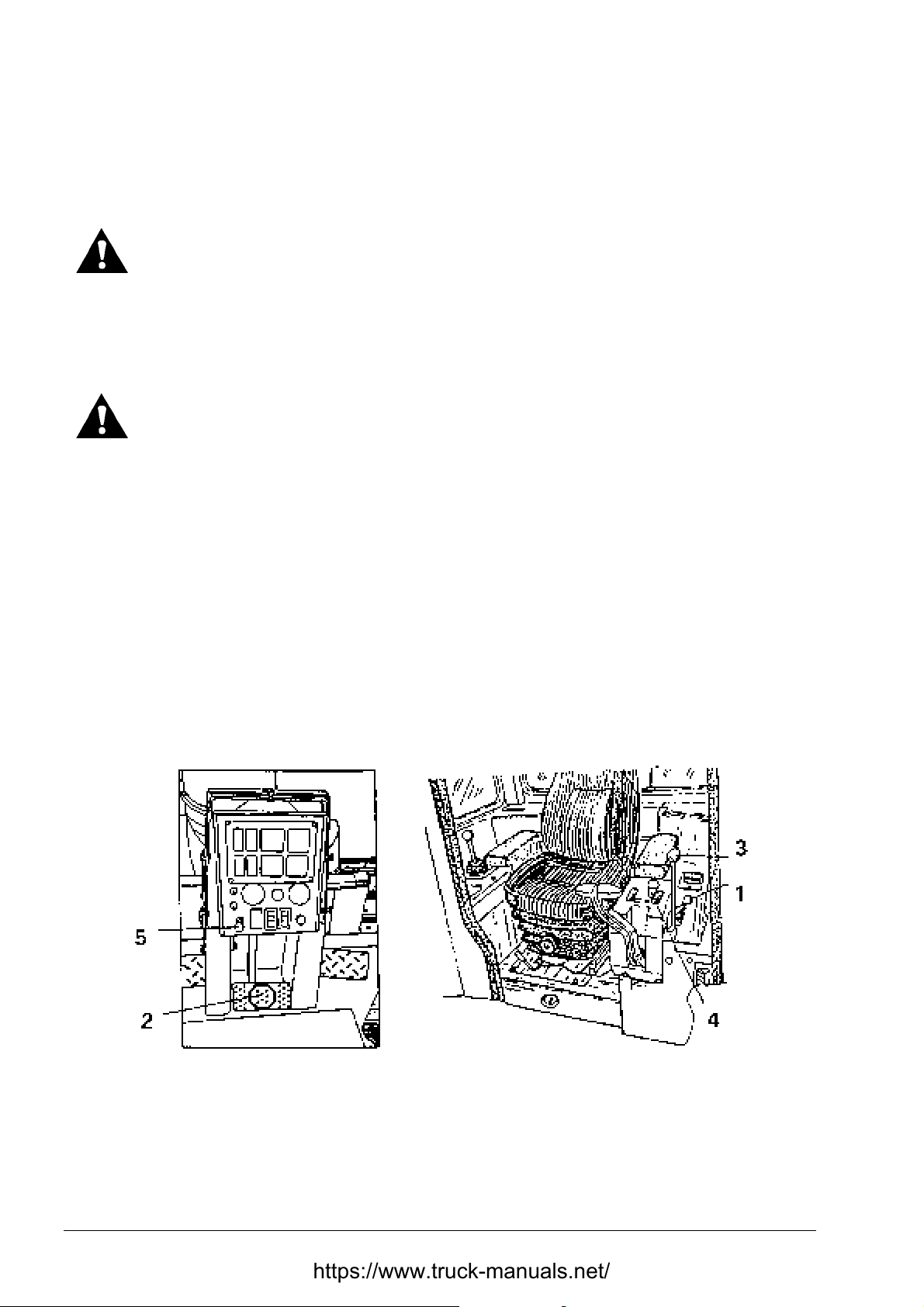

Fig. 4.17. Stopping the Engine

1. Ripper Control Lever

2. Brake and Decelerator Pedal

3. Transmission Shift Lever

4. Transmission Neutral Lock Lever

5. Engine Speed and Shut Down Lever

TD-40C DRESSTA

6. Brake Lock Knob

7. Starting Switch (QSK-19 engine)

8. Electrical System Master Switch

9. Engine Coolant Temperature Gauge

OPERATING SECTION 4

Page 23

STOPPING THE ENGINE

1. Using control lever (1) lower all mounted equipment to the ground. Depress the brake and
decelerator pedal (2) and place transmission shift lever (3) into NEUTRAL.

2. Apply transmission neutral lock lever (4).

3. If engine operated under load, operate the engine at idle speed f or 3 to 5 minutes to allow the
engine to cool down in gradual and uniform manner.

4. Depress and lock brake and decelerator pedal.

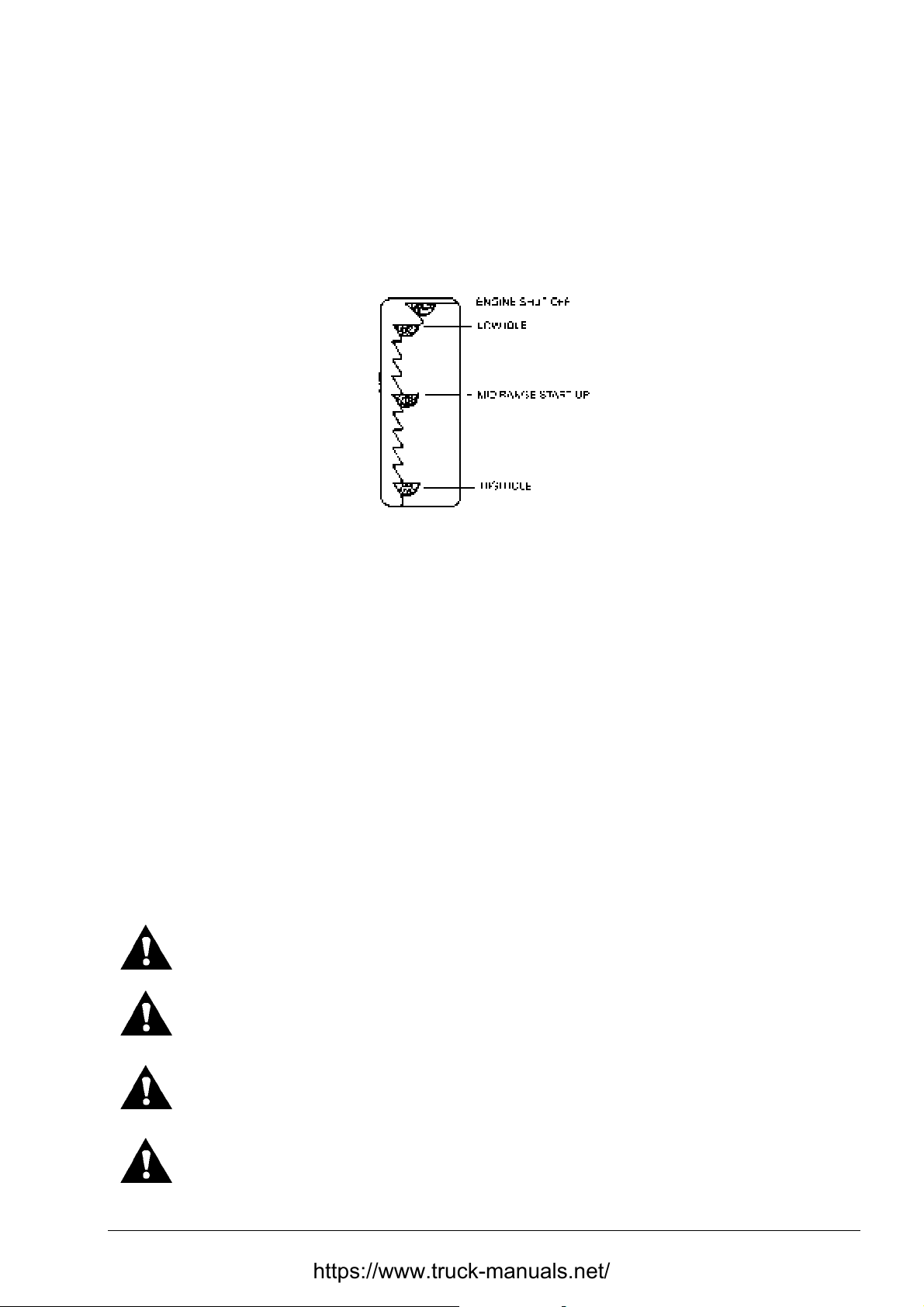

Fig. 4.18. Engine Speed and Shut Down Control Lever

IMPORTANT: Immediate engine shut down after operation under load may result in engine
damage.

5. Shift the eng ine speed and shut down lever to large notched OFF position – the electrovalve
will shut down the engine. ( KTA-19C engine only)

6. QSK-19 engine only: Turn the start ing switch key to the left to the OFF position ( Fig. 3B). The
engine will be shut off.

7. Turn t he electrical master switch to the OFF position.

4.9. DRIVING THE MACHINE

IMPORTANT: Read the SAFETY PRECAUTIONS in Section 2 before operating the machine.
IMPORTANT: Before operating check all inst ruments.

WARNING! Never haul passengers. Only the operator should be on the machine
when it is moving.

WARNING! Sit in the operator seat before operating the controls. Keep hands and
footwear free of grease, water and mud to insure positive control movements.

WARNING! Before operating the machine adjust the seat to allow f ull access of
all controls and fasten the seat belt. Failure to do so could result in serious
injuries or death.

WARNING! Never get on or off the machine while it is moving because serious
injury or death could result.

DRESSTA TD-40C

SECTION 4 OPERATING

Page 24

DRIVING THE MACHINE

Fig. 4.19. Driving the Machine

1. Engine Speed and Shut Down Lever

2. Brake and Decelerator Pedal

3. Transmission Neutral Lock Lever

4. Transmission Shift Lever

5. Brake Lock Lever

Fig. 4.20. Engine Speed and Shut Down Control Lever

1. Place the engine speed and shut down control lever in the high idle position.

2. Depress the decelerator pedal to decrease engine speed.

3. Move forward the neutral lock lever (3) fr om ON to OFF position.

4. Place the transmission shift lever in the desired r ange.

5. Gradually release the brake and decelerator pedal.

4.10. SHIFTING THE TRANSMISSION

The transmission has three speeds in both the forward and reverse ranges. The ranges and
speeds are controlled by the transmission shift lever. The machine is equipped with automatic
system reducing travel speed appropriately to shift ed rang e when changing direct ion of travel fr om
reverse to forward. The system is designed to r educe dynamic load and consequently to prolong
drive train service life.

TD-40C DRESSTA

OPERATING SECTION 4

Page 25

4.11. CONVERTER OVERHEATING

If the pointer of the torque converte r oil temperatur e gauge moves out of the RUN area of the dial
during operation, the transmission may be in a gear range which is too high for the load. Shift
down into the next lower gear range. The temperature should reduce; if not, downshift ag ain. If t he
dial pointer remain out of the RUN range in first gear , stop the machine, shift into neutral and run
the engine at 1000 RPM until the gauge pointer moves into the RUN area. If the converter still
remains overheated, stop the engine and consult Authorized Distributor of Construction Eq uipm ent
before operating the machine.

4.12. STEERING THE MACHINE

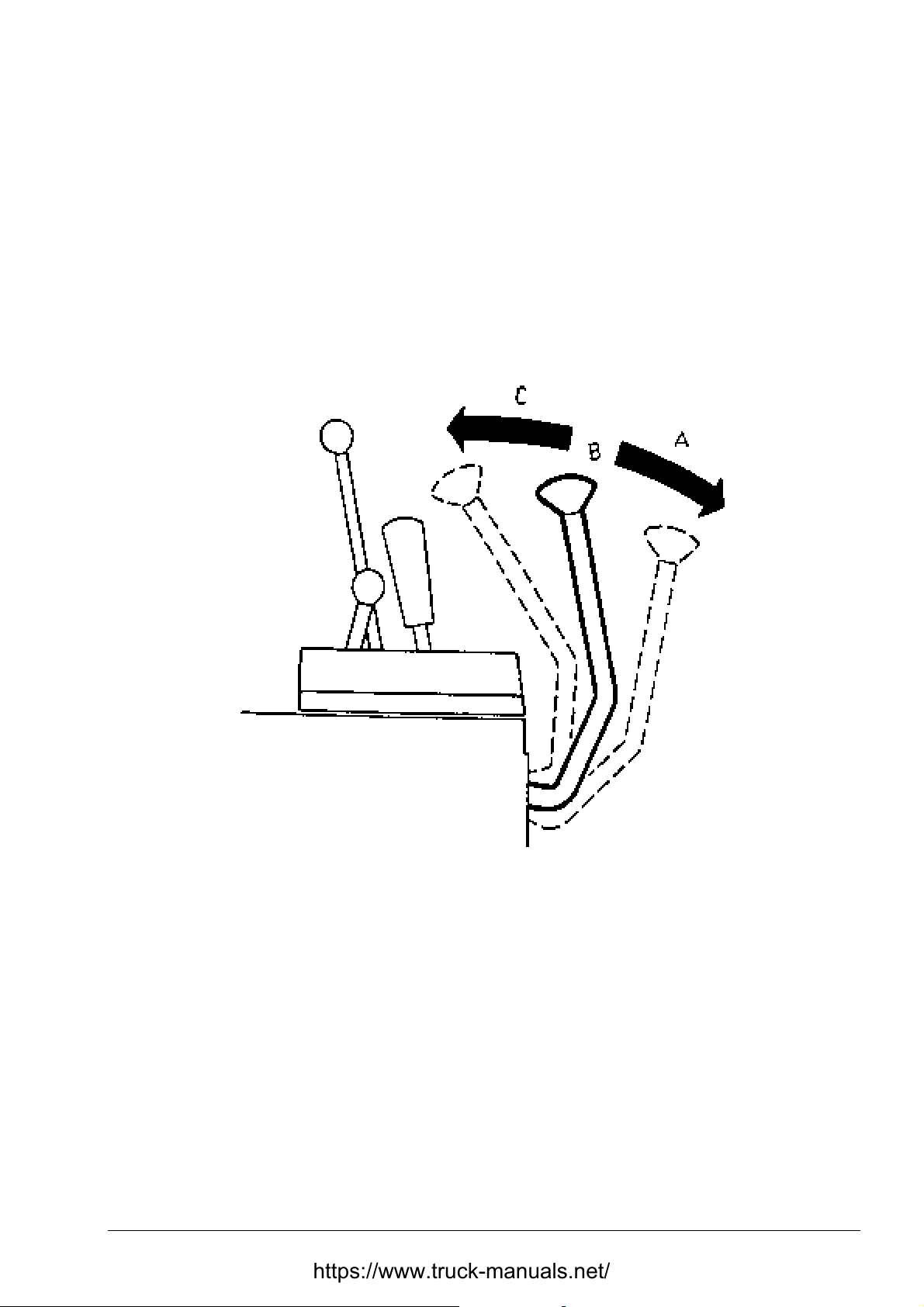

Fig. 4.21. Steering Levers

A – High Range B – Low Range C – Pivot

Steering is accomplished with the two steering levers. Each of the two levers function in three
positions as shown in Fig. 4.21.

– in forward position A transmits power to the track in high range
– in middle position B transmits the power to the track in low range
– in rearward position C disconnects the power and applies the brake

To turn to the right or left pull back the steering lever on the side toward which the turn is to be
made. Pull lever back just enough to make the desired t urn. To ma ke a pivot turn pull the lever all
the way back.
To make a gradual left turn proceed as follows:
With steer ing lever in high r ange move LH steer ing in low r ange. W hen both steering levers are in
low range, move RH steering lever in high rang e. To make a gr adual right turn proceed in similar
manner.

DRESSTA TD-40C

SECTION 4 OPERATING

Page 26

4.13. LOCKING BOTH TRACKS

When both steering levers are pulled simultaneously all the way back, the braking action stops
both tracks.

WARNING! Never pull both steering levers all the way back to stop the machine
unless the machine is moving very slowly. Use the foot brake to slow down or
stop the machine.

4.14. DOWNGRADE OPERATION

WARNING! When operating a machine downhill, always put the transmission in
the low range position. Use the brake pedal to slow the machine. Never go
downhill with the transmission control in neutral. Failure to do so could result in
losing control of the machine and rollover could result.

Before going downgrade, select the range which will provide full tractor control without
overspeeding the engine.

4.15. OPERATING OVER AN OBSTRUCTION

When crossing a log or ditch bank, use the decelerator pedal to slow the machine; and when
possible, cross at an angle. Then gradually increase the power to the tracks as the machine
moves forward, over, and down. If the load is light, it may also be necessary to use the brake
pedal to avoid abrupt movements.

4.16. STOPPING THE MACHINE

Fig. 4.22. Stopping the Machine

1. Engine Speed and Shut Down Lever

2. Brake and Decelerator Pedal

3. Transmission Neutral Lock Lever

TD-40C DRESSTA

4. Transmission Shift Lever

5. Brake Lock Lever

OPERATING SECTION 4

STOPPING THE MACHINE

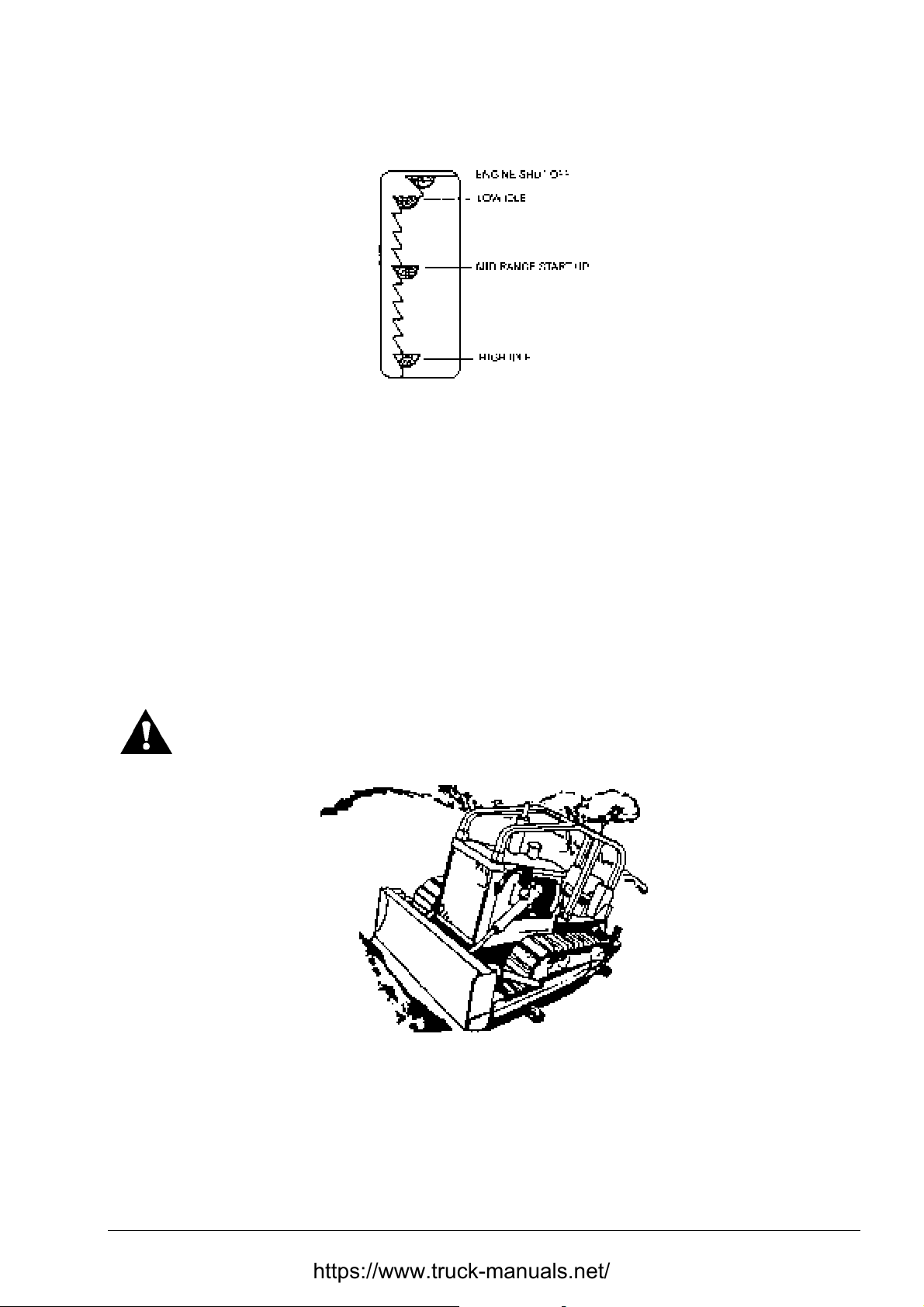

Fig. 4.23. Engine Speed and Shut Down Control Lever

1. Depress the brake and decelerator pedal until t he m achine is stopped.

2. Move the engine speed and shut down control lever to the low idle position.

3. Place the transmission shift lever in NEUT RAL.

4. Place the neutral lock lever in ON position.

5. Lock the brake and decelerator pedal.

Page 27

4.17. PARKING THE MACHINE

A few DO suggestions to protect both lives and equipment when parking. DO park tractor on
planks in freezing weather to prevent tr acks from fr eezing t o ground.
Do lower hydraulically operated tractor equipment to t he ground to reduce injur y possibilities and
to gain tractor stabilit y.

WARNING! Never leave the machine unattended while the engine is running.

Fig. 4.24. Parking on a Slope

Parking on a slope is not recommended. Do park tractor on level ground, if at all possible to:
a) Avoid unexpected movement
b) Obtain accurate coolant, lubricant and fuel level checks

Avoid parking on a slope because unexpected machine movement may occur. However if
necessary, park at a right angle and secur e the tracks with blocks (fr ont and r ear).

DRESSTA TD-40C

SECTION 4 OPERATING

Page 28

4.18. OPERATING MOUNTED EQUIPMENT

General

The hydraulic system provides power for the blade equipment, ripper or various other types of
equipment. Specific instructions for the operation of the blade and ripper are included in this
section.

IMPORTANT: Holding a control lever in any position except HOLD or FLOAT for an extended
period off time after the hydraulic cylinder rod has reached the limit of its travel will produce
excessive heat in the hydraulic system which may affect equipment performance.

Fig. 4.25. Blade Control Lever Positions

I – Lower II - Hold III - Raise IV - LH Tilt V - RH Tilt

4.18.1. HOLD

When the lever is released f rom any position except “Float”, the lever automat ically returns to the
hold position. The blade height will remain the same, as it was when the lever was released.

4.18.2. RAISE

Pull the control lever back to raise the blade t o desired height. When released t he lever will retur n
to the hold position.

4.18.3. LOWER

Push the control lever forward to lower the blade. W hen released the lever will return to the hold
position.

4.18.4. FLOAT

With the cont rol lever in the float position, the blade is f ree to follow the cont our of the g round. T o
place the control lever in the float position, push all the way forward to its detented position in
direction I in Fig.25. T he lever will remain in this position until it is manually returned to the hold
position.

TD-40C DRESSTA

OPERATING SECTION 4

Page 29

OPERATING MOUNTED EQUIPMENT

4.18.5. TILT

LH TILT
Pull the control lever to the left to lower the left hand corner of the blade. The lever will return t o
the hold position when released.

RH TILT
Push the control lever to the right t o lower the right hand corner of the blade. The lever will return
to the hold position when released.

4.18.6. PITCHING THE BLADE

1. To pit ch the blade backward (decrease suction angle) press the button 4 and push the blade
control lever to the right (out ward I dir ection).

2. To pitch the blade forwards (increase suction angle) press the button 4 and pull the blade
control lever to the left (inward III direction).

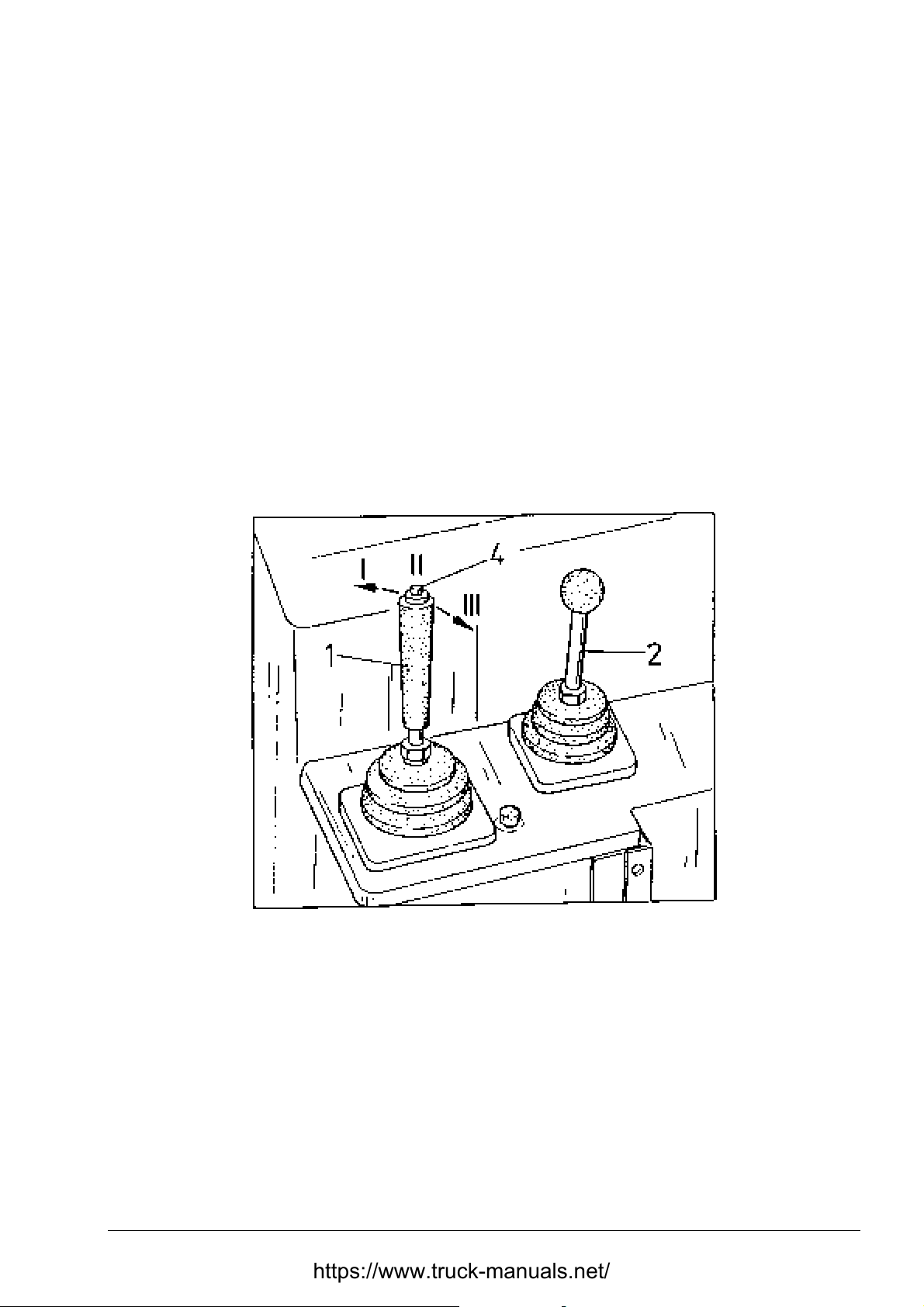

Fig. 4.26. Pitching t he Blade

1. Blade Control Lever

2. Ripper Control Lever

4. Blade Pitch Button
I - Blade Pitch Aft
II - Neutral
III - Blade Pitch Forward

4.18.7. RIPPER CONTROL LEVER

NOTE: For proper operation of ripper cont rol lever and observation of working tool it is necessary

to swivel the operator’s seat 15° to the right.

DRESSTA TD-40C

SECTION 4 OPERATING

Page 30

OPERATING MOUNTED EQUIPMENT

Fig. 4.27. Ripper Control Lever

1. Blade Control Lever

2. Ripper Control Lever

I - Ripper Pitch Forward
II - Ripper Pitch Aft
III - Ripper Raise
IV - Ripper lower
V - Hold

1. Ripper Pitch (forward or aft)
To change angle of ripper tooth move the ripper control lever:

a) Ripper point forward – move the lever to “I” posit ion.
b) Ripper point aft – move the lever to “II ” position.

The control lever will return automatically to HOLD position when released (from “I” to “V” position)

2. Ripper Raise
To raise the ripper to required height move the lever in “III” position. The control lever will return
automatically to HOLD position “V” when released.

3. Ripper Lower
To lower the ripper moves the lever in “IV” position. The cont rol lever will return automatically to
HOLD position “V” when released.

NOTE: Holding the control lever in any position except HOLD for an extended period of time w ill
produce excessive heat in the hydraulic system which may affect equipment performance.

4.18.8. HYDRAULIC PIN PULLER

The pin puller control lever will return automat ically to hold when released. Push the lever to the
right to remove the shaft pin, pull to the left to install the shaft pin. Raise or pitch ripper shank
during those operations to f acilitate pin movement in hole.

TD-40C DRESSTA

OPERATING SECTION 4

OPERATING MOUNTED EQUIPMENT

Page 31

Fig. 4.28. Hydraulic Pin Puller Control Lever

I - Shank Pin Removal
II - Shank Pin Installation
III - Hold

4.19. OPERATING TECHNIQUES

WARNING! Before operating the machine, be sure the area of the operator's
compartment, all mounting steps and grab handles are free of oil, grease, loose
objects, ice, snow and mud to lessen the possibility of slipping. Remove or secure
all maintenance and personal items so they will not interfere with the operator or
jam the controls. Failure to follow these instructions may result in serious injury.

When the blade is held hydraulically it becomes a r igid part of the t ract or, except when the valve is
in “FLOAT” position, and will follow all movements of the tractor. W hen rough terrain encounter ed
it will be necessary to vary the height of the blade while pitching to obtain a smooth cut. When
possible, start all jobs from relatively level ground. If necessary, level an area large enough to
provide sufficient working space f or the tractor. This prevents back and forth pitch of the tractor
and will result in easier digging.
Avoid track spinning whenever possible; this wastes effort and converts a relatively smooth
working area into ruts and piles that pitch and t ilt a t ract or. I n cold weather this mat erial can f reeze
and cause additional difficulty the f ollowing day.
Crossing ditches, ridges, r ock or logs should be done slowly and, at an angle. This slows the f all,
lessens the danger of upsetting the machine and reduces the f all jolt, which can be har mful to the
operator and machine.

4.19.1. DIGGING AND CLEARING

WARNING! Prior to operating know the locations of gas lines, utility lines, sewers,
overhead and buried power lines, and the other obstructions or hazards are
known. A raptured gas line or cut electrical line coul d resul t in personal injury.

DRESSTA TD-40C

SECTION 4 OPERATING

Page 32

OPERATING TECHNIQUES

Always feed the blade into the ground gradually until t he desired depth of cut is obtained. W hen
selecting the gear range and det ermining the depth of cut, allow for an increase in resistance as
the load increases. W hen raising the blade at the end of a cut, do it gradually t o avoid an abrupt
ridge or bump in the path of the tractor. Move material downgrade whenever possible to take
advantage of the reduced effort required (Fig. 4.29).

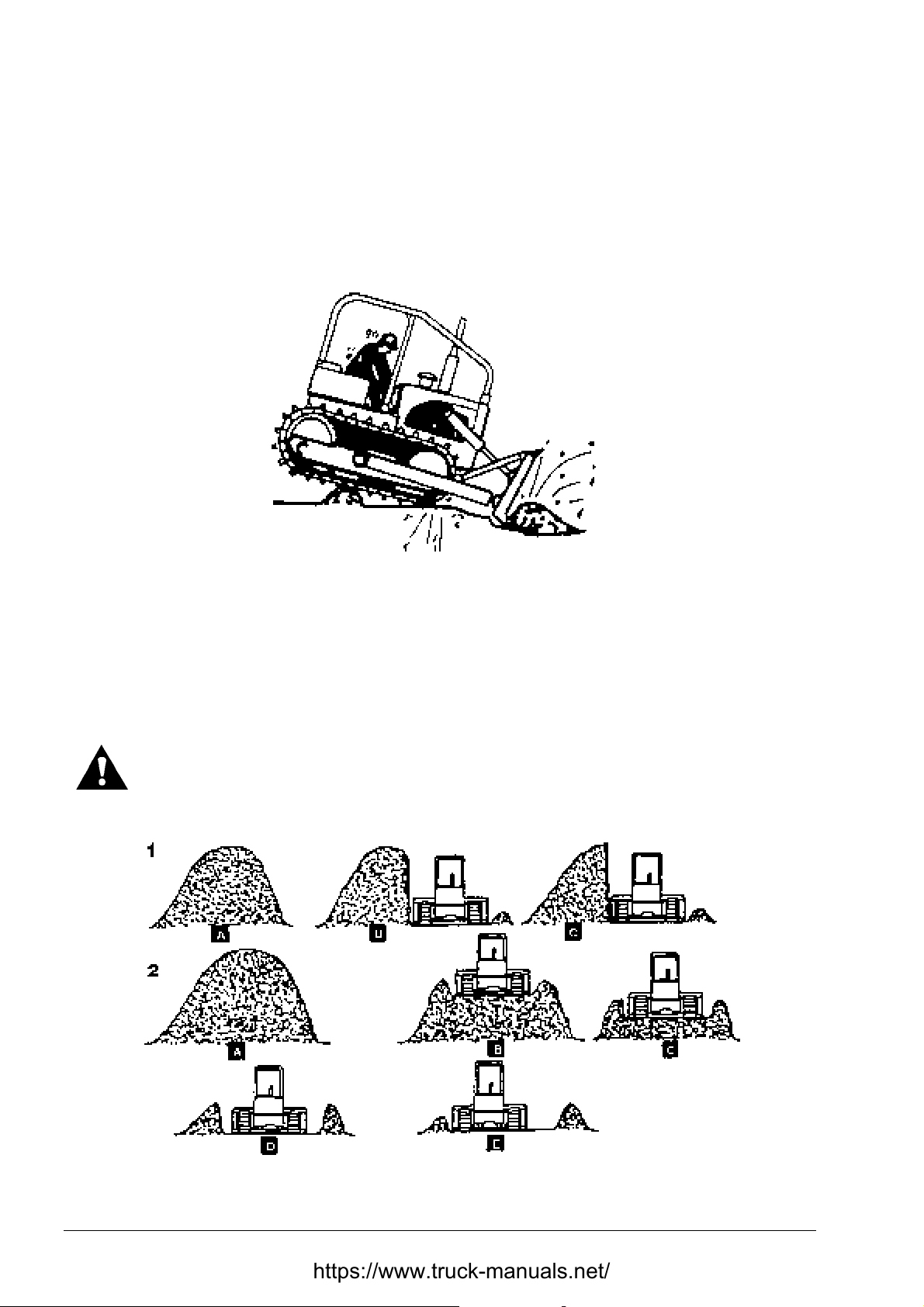

Fig. 4.29. Moving Material Downgrade

Two methods of cutting down a pile or hill are shown in Fig. 4.30. Type of material and local
conditions may dictate which method is preferred. Further infor mation is included in “BREAKING
PILES AND SPREADING” W hen using Method l, never allow the hig h face t o become a hazard to
the operator or machine. W ith the tract or at right angles to the f ace, raise the blade and dislodge
the high bank before r eturning to the original dir ect ion of cut.
When using Method 2, m ake the cut wide enough to avoid trapping the tract or .

WARNING! Avoid high overhangs. Ramp up and remove the top layers first.
Avoid high banks. Operate the machines as far away from the trench as possi ble
or cave-in may result.

Fig. 4.30. Cutting Down a Pile or Hill

1 – Method 1 2 – Method 2

TD-40C DRESSTA

OPERATING SECTION 4

Page 33

OPERATING TECHNIQUES

A side-hill cut can be started more easily if a sm all bench cut is first made as shown in Fig. 4.31.
Then, when digging as in Fig. 4. 32, keep the inside (uphill) surface slig htly lower to gain greater
tractor stability. Tilting the blade will provide this type of cut with less effor t on the operator's part.

Fig. 4.31. Side-Hill Cut

1. Cut I 2. Cut II 3. Cut III

Fig. 4.32. Side Hill Cut

1. Level 2. Lower Surface

Always cut the shelf wide enough to provide solid support for equipment using it later. I f possible,
move the material downhill to gain the advantage of gravity, reduced eff ort and increased tractor
stability. Soft soil or shallow slopes may allow the side hill cut to be made as shown in Fig. 4.33.
Increased stability is realized by running the uphill track inside t he ridg e lef t by the f irst cut . Cut s 3,
4 and 5 illustrate the completion of t he shelf.

DRESSTA TD-40C

SECTION 4 OPERATING

Page 34

OPERATING TECHNIQUES

Fig. 4.33. Shallow Slope Side Hill Cut

Once again, pushing the loosened mater ial to the lower side of the slope will normally reduce tim e
and cost. Do not push material beyond the point requir ed to retain firm track support.

Fig. 4.34. Slope Edge Operation

When backing up, do not raise the blade as this puts extra weight on the front idlers causing
greater track penet r at ion. Let the blade float as you back away from the edge of soft fills.
Initial work on steep hillsides can be safer by either secur ing the tractor with a winch to a suitable
uphill anchor point or by operating a tandem arrangement as shown in Fig. 4.35.

Fig. 4.35. Operating a Tandem Arrangement

TD-40C DRESSTA

OPERATING SECTION 4

Page 35

OPERATING TECHNIQUES

When clearing trees, raise the blade high to gain leverage and make contact gently to reduce
possible harm to the operator and machine (Fig. 4.36).
Heavy roots of large trees may requir e pushing and digging or cutting from several sides of the
tree. Use a cable to topple and remove trees from soft ground (Fig. 4.37).

Fig. 4.36. Machine Equipped with Sweeps

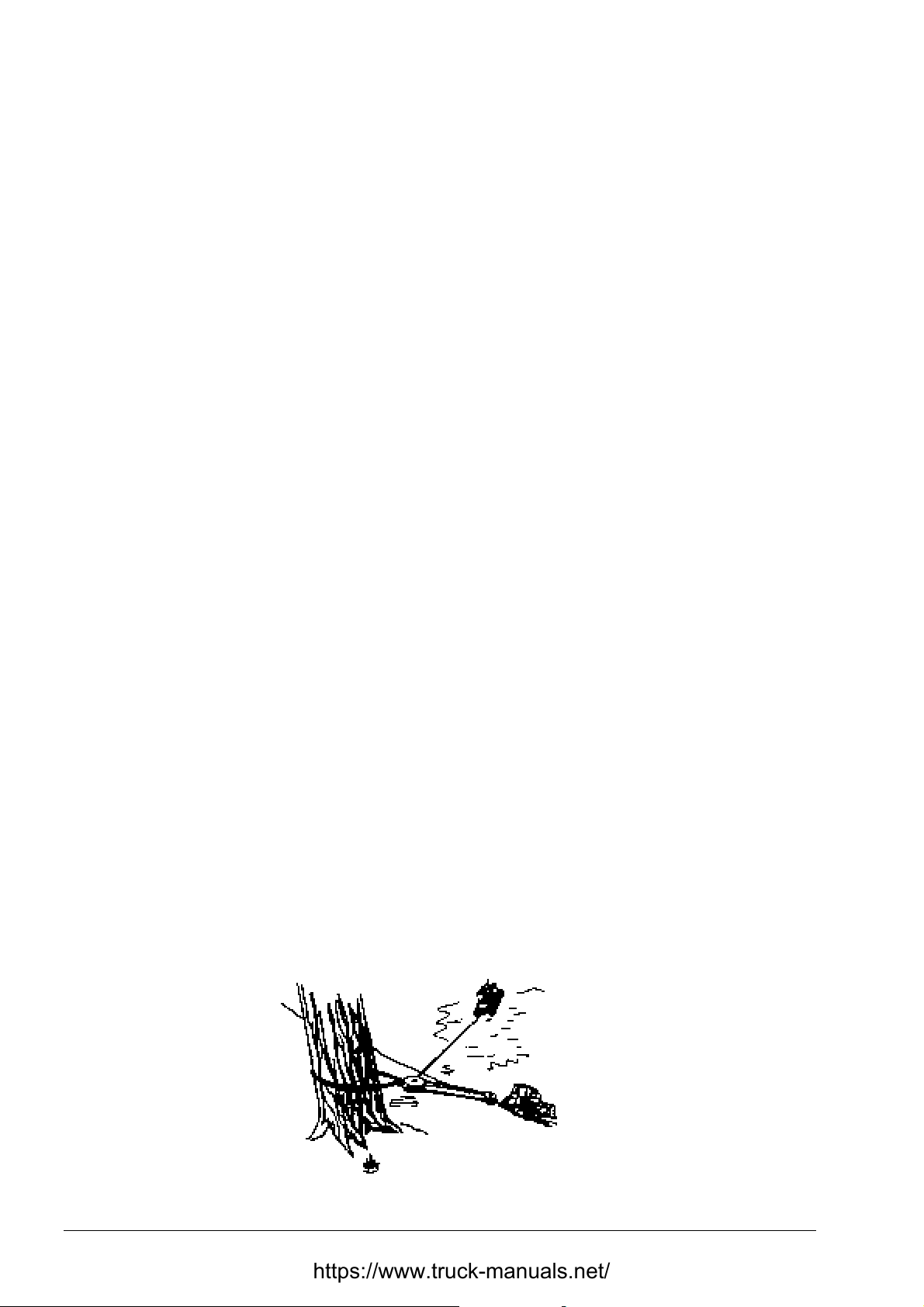

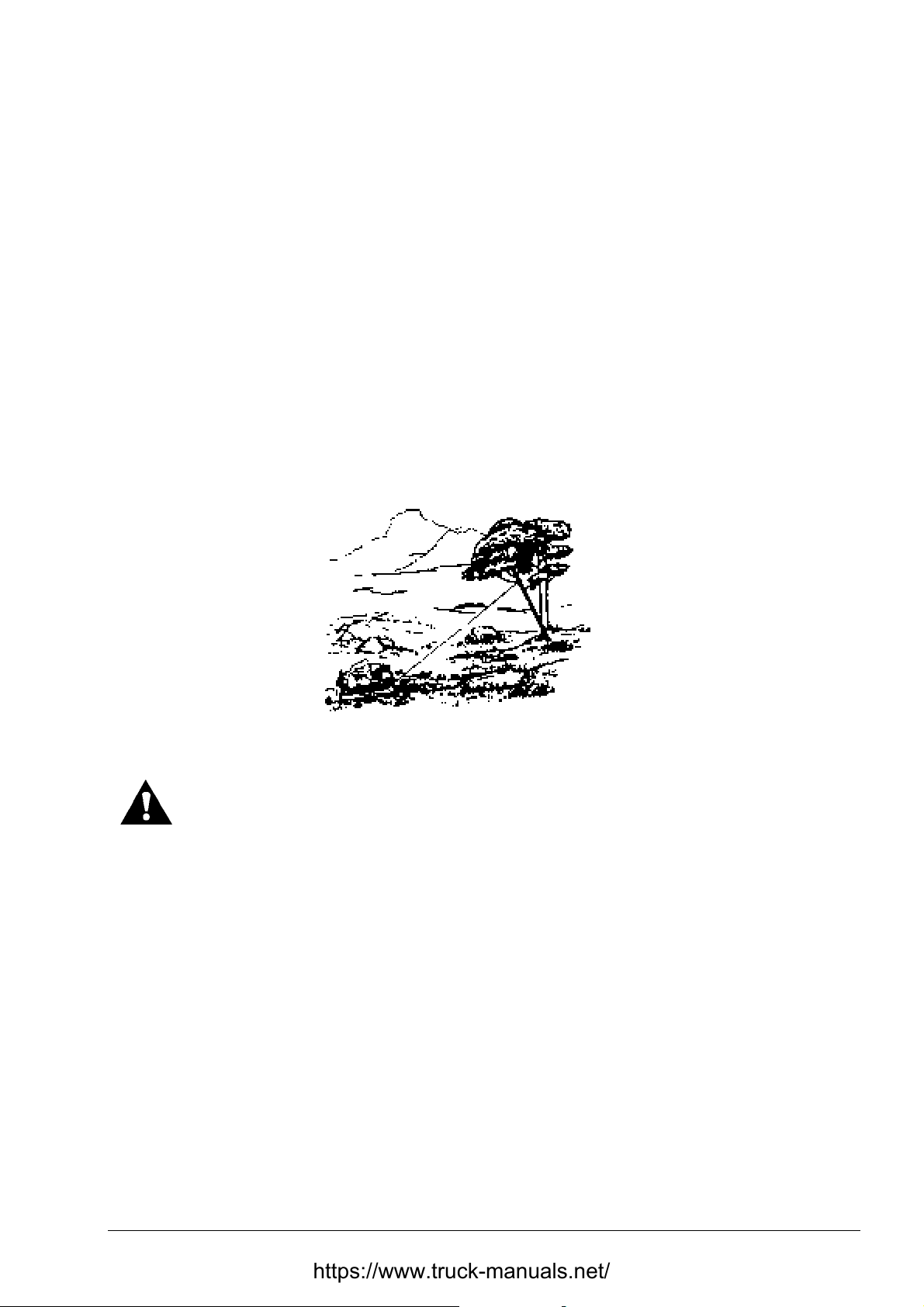

Fig. 4.37. Using Cable to Remo ve Trees

WARNING! Falling trees and dead limbs can cause injuries. When clearing trees,
operator protection must be used.

When clearing a rock y area, r emove the small and loose r ock s f irst, larg e and solid rock s can then
be loosened and moved with less difficulty. W hen loosening larg e or solid rock s, great er f orce and
penetration can be obtained by tilting the blade and prying under the rock with the lower edge of
the blade (Fig. 4.38). Lifting the rock with the blade while pushing will increase traction and r educe
track spinning

Fig. 4.38. Loosening Rocks with Lower Edge of the Blade

DRESSTA TD-40C

SECTION 4 OPERATING

Page 36

OPERATING TECHNIQUES

Penetration on hard, frozen or rock y ground can be made easier by tilting t he blade. This will add
weight and power to the lower cutting edge. When the ground is frozen and the area must be
ripped before it can be worked, rip a relat ively small section and work it t o grade bef ore enlarging
the cut. This will require ripping each sect ion only once, not every morning after the ground has
refrozen. Snow can act as an insulating blanket and reduce or eliminate the need for a ripper.
Therefore, remove snow only from the area to be worked each day; leave the rest to insulate the
ground.

4.19.2. TRANSPORTING, PILING OR LOADING

The transporting of material with a bulldozer is not always a most economical method. Natural
ridges, a window formed by side blade spillage on earlier passes or side-by-side, dozing will
improve the productivity (Fig 4.39). W here the quantity of mat erial or distance involved becomes
excessive, a loader, scraper or truck should be considered.

Fig. 4.39. Side-by-Side Dozing

A usual method of piling is shown in Fig. 4.40. When the piling r eaches st ages
“D” or “E” the operator may elect t o cont inue one of the ot her depending on height or area desired.
When the tractor is used as a pusher, aiding scraper loading (Fig . 4. 41), t he tr actor power must be
carefully controlled. Excessive “push” eff ort can cause the scraper unit t o “j ackk nif e” , with result ing
injury or damage. On turns, be sure the blade of the pusher tractor does not com e in contact with
the rear wheels of the scraper.

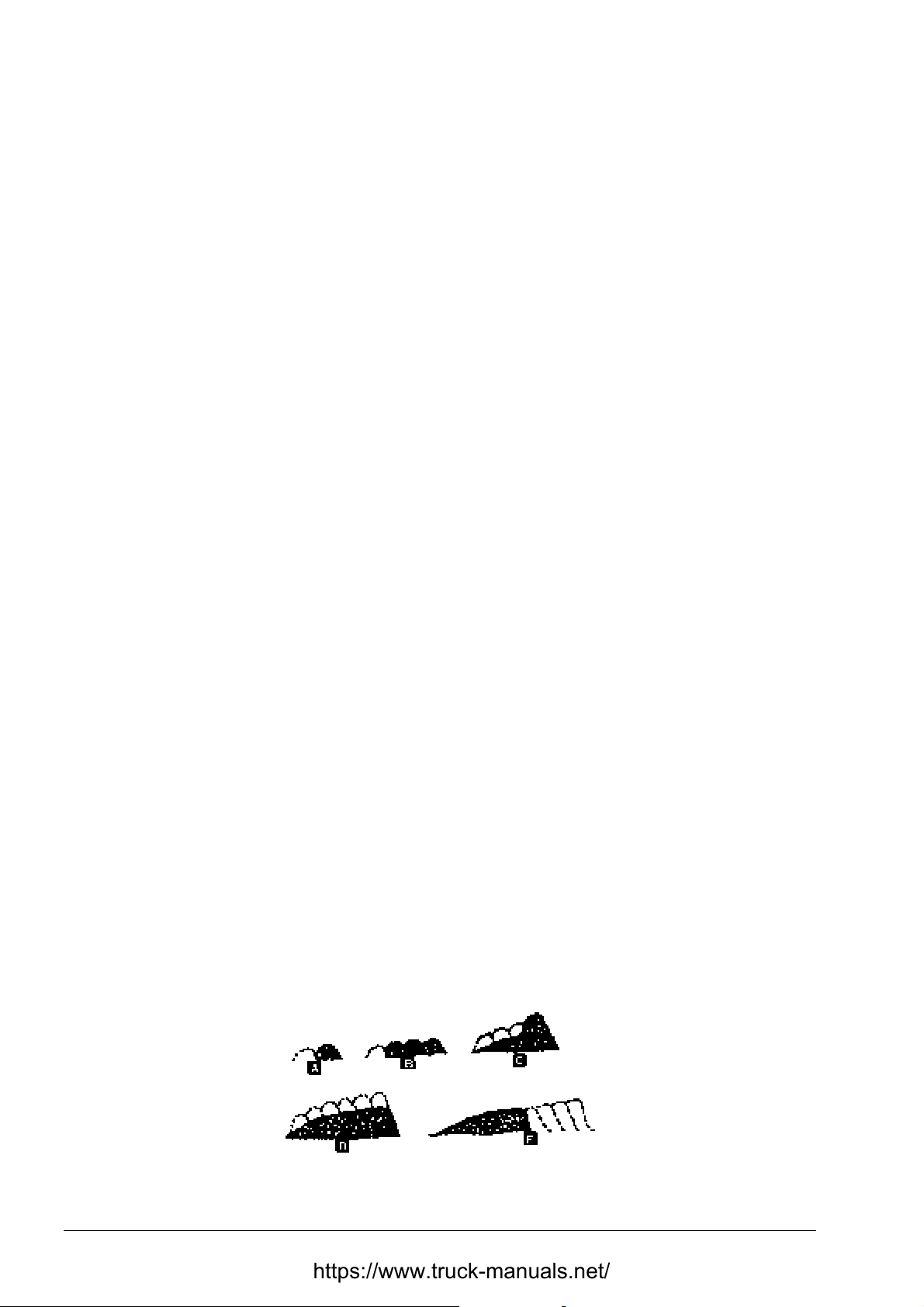

Fig. 4.40. A Usual Method of Piling

TD-40C DRESSTA

OPERATING SECTION 4

OPERATING TECHNIQUES

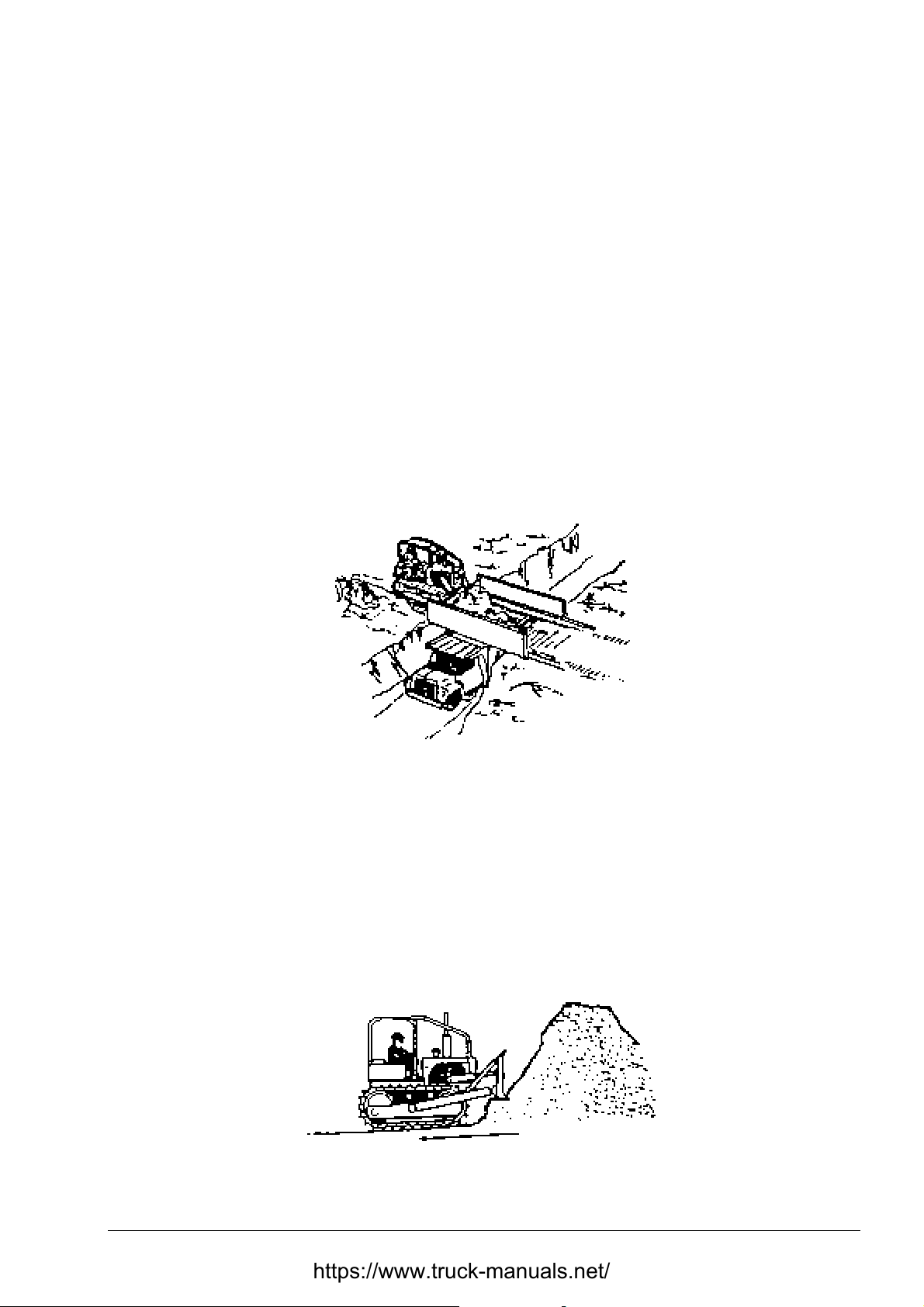

Fig. 4.41. Aiding Scraper Loading

The bulldozer can be used directly as a loader if the method shown in Fig. 4. 42 is used.

Page 37

Fig. 4.42. Loading Directly

4.19.3. BREAKING PILES AND SPREADING

Two methods of breaking down a pile are shown in Fig. 4. 43. When spr eading is to be in several
directions or if the pile is large or hard, Method 1 is usually desired. When using Method 1, cut int o
the side of the pile from different angles. When Method 2 is used, and access to the top of t he pile
is difficult, a slot may be started as shown below. Loosen material at the base and form a dirt
“ramp” to provide a decreased angle of approach and cut.

Method 1

DRESSTA TD-40C

SECTION 4 OPERATING

Page 38

OPERATING TECHNIQUES

Method 2

Fig. 4.43. Breaking Down a Pile

1. Ramp

2. Original Slope

When trucks or wagons are used for hauling, bulldozers are ideal spreading tools at the fill
(Fig. 4.44). Blade should be kept in a straight position so that material is drif ted directly under the
cutting edge (Fig. 4.45). When finishing in non-solid materials, such as earth, drag the blade
backward for a smooth job as shown in Fig. 4.45. Rock, of course, may damag e the blade base,
therefore, such practice is not r ecom m ended where abrasive mat er ial is common.

Fig. 4.44. Spreading Material Forward

TD-40C DRESSTA

OPERATING SECTION 4

OPERATING TECHNIQUES

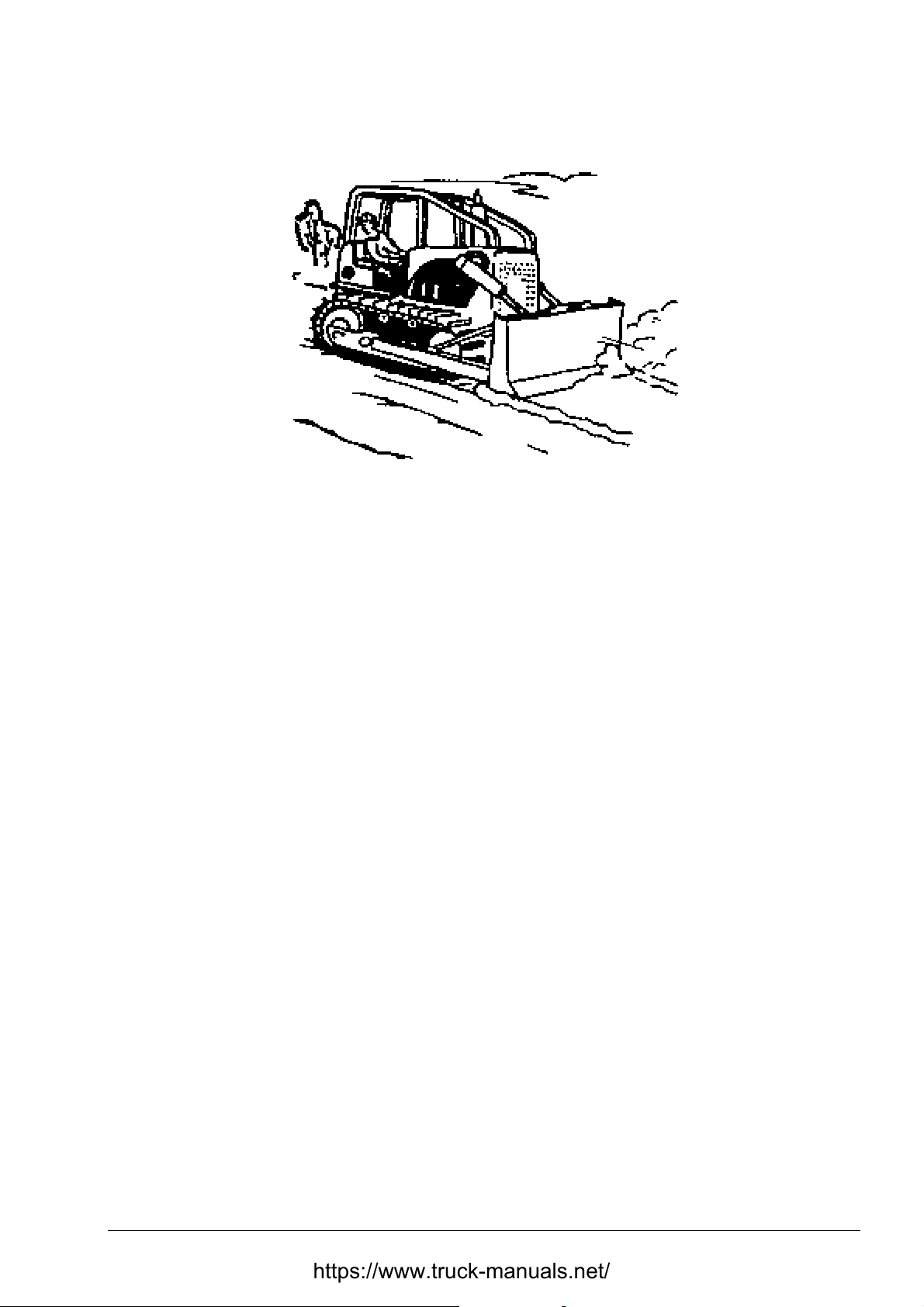

Fig. 4.44. Backdrag ging

Page 39

4.19.4. RIPPING

4.19.4.1. Prior to Operation

Before operating the r ipper proceed as follows:

1. Check all mounting hardware for t orque.

2. Check hydraulic connections for leaks.

3. Check the condition of the ripper, bit s , mounting hardware for completeness and t or que.

4.19.4.2. Ripping Techniques

When starting ripping lower the ripper teeth slowly to required depth. Ripping of r ock mater ial must
be performed in direction of easier ripping what may be established by carrying out t est ripping in
various directions and under various angle of inclination of the shanks. During t est ripping lower
the shank to half of working depth. Machine eff iciency can be improved when several centimeters
of loose material is left on solid r ock. Ripping should be perf ormed at a depth the best results are
obtained without overloading the engine. Keep loose ground level and horizontal as mach as
possible. Never make turns with the machine with ripper teeth are at full depth in rocky ground.
Use the common sense when working in hard ground not to damag e the ripper and the machine.
Do not accelerate the machine and simultaneously lower the ripper teeth into the gr ound – this will
damage the ripper.
Pay attention not at allow rear of the machine t o lift off t he ground during ripping operat ions, as
this decreases traction and accelerates wear of track system. Use new and sharp bits for hard
ground.

4.19.5. COLD WEATHER OPERATION

Start the engine as described in “ST ARTING THE ENGINE” and then proceed as follows:

– move slightly and slowly ripper control to warm oil in hydraulic cylinders.
– raise the ripper at max. height and t hen lower it slowly until it rest s on the ground.
– incr ease gradually pressure in ripper cylinders by keeping the control lever in LOWER position

until rear of the machine is off the ground.

DRESSTA TD-40C

SECTION 4 OPERATING

Page 40

OPERATING TECHNIQUES

– prior to normal ripping operations operate the r ipper at low depth for a couple of minutes to

warm shank bits.

– protect shank and bits when parking the m achine.

4.20. ECONOMICAL OPERATION OF THE MACHINE

Fuel consumption during operation of the dozer depends on many factors as: engine
characteristics, load, terrain, oper ator’s skill and experience, manner of oper at ion.
Relatively of fuel consumption is quantit y on moved material per unit of consumed fuel. To r each
the most favorable value of this ratio observe the following principles of dozer operation:

– Avoid long distance transporting of m at e r ial.
– Loading and pushing of material must be per formed at g ear which ensures maximum drawbar

pull (1

– Reverse travel at top gear but keep eng ine speed above medium , not maximum.
– Avoid stopping machine due stall of the engine.
– Avoid track slippage.
– For digg ing hard material pitch the blade for ward, for transpor tation of mater ial pitch the blade

backward.

st

or 2nd gear) with high blade fill rat io without loosing material in blade.

TD-40C DRESSTA

SECTION 5

MAINTENANCE

MAINTENANCE SECTION 5

SECTION CONTENTS

5.1. Service Precautions.............................................................................................................3

5.2. Scheduled Maintenance.......................................................................................................4

5.3. Maintenance and Service Chart...........................................................................................7

5.4. Lubrication.........................................................................................................................10

5.5. Seasonal Preparation ........................................................................................................14

5.6. Air Cleaning System..........................................................................................................15

5.7. Belts...................................................................................................................................19

5.8. Cooling System..................................................................................................................22

5.9. Fan and Fan Hub...............................................................................................................27

5.10. Electrical System ...............................................................................................................28

5.11. Engine...............................................................................................................................32

5.12. Fuel System.......................................................................................................................35

5.13. Hydraulic System............................................................................................................... 38

5.14. Lubrication Fittings.............................................................................................................43

5.15. Mounted Equipment...........................................................................................................44

5.16. Safety Belt.........................................................................................................................51

5.17. Final Drives........................................................................................................................51

5.18. Transmission System.........................................................................................................52

5.19. Undercarriage....................................................................................................................57

5.20. Adjusting Hand and Foot Controls.....................................................................................62

5.21. Cab and ROPS..................................................................................................................63

DRESSTA TD-40C

MAINTENANCE SECTION 5

Page 3

5.1. SERVICE PRECAUTIONS

WARNING! Only authorized personnel, thoroughly trained with design and
operation of all assemblies and mechanisms may be allowed to service this
machine.

WORK SAFELY – FO LLOW THESE RULES
A CAREFUL OPERATOR IS THE BEST INSURANCE AGAINST AN ACCIDENT.
GENERAL SERVICE PRECAUTIONS

The procedures in this section contain many notes and precautions, which should be followed
along with standard safety procedures to minimize the possibility of personal injury or improper
service. Improper service could compromise the machine's safety or cause it to function
improperly, which could result in personal injury or death. Review the precautions listed in Sect ion
2 “SAFETY PRECAUTIONS”.

Do not attempt to do repairs you do not underst and. Use your „Service Manual” or consult your
Authorized Distributor for information.

Do not jump on or off the machine. When working under the machine or servicing in the area of
the engine fan or belts, turn off the electrical system mast er switch, apply and lock parking brake
and tag controls to warn against start ing the machine.

Whenever servicing, take care to prevent accidental cranking of the engine. T urn off the electrical
master switch and remove the key. It is not possible to anticipate all conceivable ways or
conditions under which the machine may be serviced or to provide precautions for all the possible
hazards that may result. Safety is always the most import ant rule.

Constantly be aware of dangers involved in working on the machine and take proper precautions.
Standard and accepted safety precautions and equipment should be used. This machine is

assembled using high strength fasteners.
Do not substitute. Replacement fast eners must be of the same size and strengt h as the originals

(refer to Section 6). Tighten fasteners to the proper torque value specified in Section 6, unless
otherwise specified.

Refer to Spare Parts Catalogue for all replacement par t s .
Use safety goggles, hard hats, safety shoes, heavy duty gloves and other protection during

cutting, grinding, chiseling, prying or any other process which could cause material removal or
projectiles.

Many machined parts are hardened and can chip.
Use the proper size and type of tool for the job being done. Select a wrench or that fits and be

sure it is on straight. Keep your tools clean and in good condition.
Some procedures require the use of tools specially designed for that specific purpose.

Before substituting another tool or procedure, you must be completely satisfied that neither
personal safety nor the perfor mance of the machine will be endangered.

Scheduled maintenance is the normal maintenance necessary to provide proper and efficient
equipment operation.

DRESSTA TD-40C

SECTION 5 MAINTENANCE

Page 4

5.2. SCHEDULED MAINTENANCE GUIDE

Every 10 Hours of Operation (Every Day)

1. Clean windows, lights and instrument panel.

2. Check engine oil level. Refer to 5.11.1.

3. Check r adiator coolant level. Refer to 5.8. 5

4. Check hydraulic system oil level. Refer to 5.13.1.

5. Check and clean pr ecleaner scr een, if necessary. Refer to 5.6. 4. 1.

6. Check level in window washer reservoir. Refer t o 5. 21

7. Carry out g round level inspection. Refer to 5.2.1.

8. Drain water from fuel filt er s prior to starting the work . Refer to 5.12.7.

9. Visually check the condit ion of drive belts. Refer to 5. 7. and fan Refer to 5. 9.

10. Check instruments and warning lights for operat ion. Refer to 4.3.

11. Refill f uel t ank at the end of each day’s operation. Refer to 5.12.1.

12*. Check torque:

– track shoe bolts. Refer to 5.19.1.
– blade cutting edge and end bit bolts. Refer to 5.15.
– trunnion cap bolts and trunnion mounting bolts. Refer to 5.15.

* – after initial 10 hours of oper at ion only.

Every 50 Hours of Operation

1. Check oil level in rear m a inframe. Refer to 5.18.1.

2. Clean radiator cor e (for QSK – 19 Engine clean also f uel cooler ) . Refer to 5.8.4.2.

3. Check and adj ust track tension, if necessary. Refer to 5.19.3. and 5.19. 4.

4. Check air int ake system for leaks (hoses and clamps). Refer to 5.6.4. 2.

5. Lubricate lift cylinder bearings. Ref er to 5.14.

6. Lubricate r ipper cylinder bearings. Refer to 5.14.
7*. Replace hydraulic system return filters. Refer to 5.13.3.
8*. Replace transmission system pressure f ilt er s. Refer to 5.18.3.
9*. Clean transmission system suction strainer. Refer to 5.18.4.
10*. Replace equipment pilot filter. Refer t o 5.13.3.

* – after initial 50 hours of oper at ion only.

Every 250 Hours of Operation

1. Change engine crankcase oil. Refer t o 5. 11.2.

2. Change engine crankcase oil filter s (2 filter s f or Q SK – 19 and 3 f ilter s f or KT – 19C) . Ref er to

5.11.2.

3. Replace fuel filters (2 filter s) (replace fuel filt ers earlier when drop in eng ine power is noticed).
Refer to 5.12.4.2.

4. Check coolant for DCA concentration and replace coolant filter. Refer t o 5. 8.3.

5. Check engine crankcase breather hoses. Ref er to 5.11.1.

6. Check alt er nator belt and air compressor (if equipped) belt tension. Refer to 5.7.2.

7. Reverse f an blade ( if equipped). Refer to 5.9.

8. Check final drive oil level. Refer to 5.17. 1.

9. Lubricate upper st r uts and joints. Refer t o 5. 14.

10. Lubricate lower struts and j oint s . Refer to 5.14.

11. Lubricate gimbal crosst ube. Refer to 5.14.

12. Lubricate fan idler arm (only QSK-19 if equipped). Refer to 5.9.

TD-40C DRESSTA

MAINTENANCE SECTION 5

5.2. SCHEDULED MAINTENANCE GUIDE

Every 500 Hours of Operation

1. Check oil level in pivot shaft housing. Refer t o 5. 19.6.

2. Lubricate equalizer bar pin. Refer to 5.19. 7.

Every 1000 Hours of Operation

1. Change oil level in rear m ainframe. Refer t o 5.18.2.

2. Clean transm ission system suct ion st r ainer. Refer to 5.18.4.

3. Clean transm ission scavenger suct ion st r ainer. Refer to 5.18.6.

4. Replace transm ission system pr essur e filters. Refer t o 5. 18.3.

5. Replace rear m ainframe breather. Refer to 5.18.5.

6. Change final drive oil. Refer to 5.17. 2.

7. Check spr ocket bolt torque’s. Refer to 5.19.

8. Replace hydraulic system retur n filters. Refer t o 5.13.5.

9. Clean hydraulic reservoir breat her . Refer to 5.13.5.

10. Lubricate gimbal crosst ube. Refer to 5.14.

Page 5

Periodic (at least once a year or as required)

1. Clean air cleaner elem ent s or replace if necessary. Refer to 5. 6.

2. Clean f uel t ank filler strainer. Refer to 5.12.2.

3. Clean cab air filters. Refer to 5.21.

4. Drain water and sediment from fuel tank sediment bowl. Refer to 5.12.5.

5. Lubricate hand and foot linkage, check for operation and adjust if necessar y. Refer to 5.20.

6. Lubricate equipment pilot valve plunger – to – plate surf aces. Refer to 5.20.

7. Check engine RPM with depressed decelerator. Refer to 5.20.

8. Check oper at ion of brake lock. Refer to 5.20.

9. Check under car r iage components for wear. Refer to 5.19.

10. Check track frames guide clearance and adjust if necessary, lubricate track frame guides.
Refer to 5.19.5.

11. Check clearance in blade socket and diagonal struts. Refer t o 5. 15.1.2 ÷ 5.15.1.3.

12. Check the condition and amount of charge of batt er ies. Refer to 5.10.2.

13. Check the condition of electrical wires and connections. Refer to 5.10.

14. Check the condition of safety belt. Refer to 5.16.

15. Check torque:

– cab and ROPS mounting bolts. Refer to 5.21.
– track shoe mounting bolts. Refer to 5.19.1.
– blade cutting edge and end bit bolts. Refer to 5.15.
– trunnion cap bolts and trunnion mounting bolts. Refer to 5.15. 2.

16. Check cutting edges and end bits for wear. Refer to 5.15.3.

17. Check ripper points for wear. Refer to 5.15.3.

18. Check fr ont wheel guide clearance. Refer to 5.19.8.

Every 1500 Hours of Operation or every year

(Per Engine Operator’s Manual)

1. Steam cleans t he engine.

2*. Check and adjust valve and injectors.

3. Lubricate fan hub (for QSK – 19 engine only).

4. Check bypass oil f ilter and cooling system hoses and replace if necessary.

5. Check cold st ar t aids (seasonal).

DRESSTA TD-40C

SECTION 5 MAINTENANCE

Page 6

5.2. SCHEDULED MAINTENANCE GUIDE

6. Check cr ankshaft end clearance.

7. Clean crank case br eat her element and replace if necessary.

8. Check engine mounting bolts and nuts and torque if necessary.

* – after initial 1500 hours and then every 6000 hours of oper at ion.

Every 2000 hours of operation

1. Replace equipm ent pilot filter. Ref er to 5.13.3.

2. Change hydraulic system oil. Refer to 5.13.2.

3. Clean hydraulic system suction str ainer . Refer to 5.13.4.

Every 6000 Hours of Operation or every 2 years

(Per Engine Operator’s Manual)

1. Clean and calibrate inj ectors.

2. Clean and calibrate fuel pump (KTA – 19C)

3. Inspect t he following engine assemblies:

– Turbocharger
– Vibration dumper
– fan hub and fan idler pulley
– water pump for oil and coolant leaks

4. Drain and flush cooling system. Change coolant. Refer to 5.8.6.

5.2.1. GROUND LEVEL INSPECTION

1. Tractor operational equipment f or damage and state of proper fastening.

2. Radiator: for damage, evidence of leakage and condition of grill.

3. Hydraulic components for damage or leakag e.

4. Track system: rollers, front idlers, sprockets, track shoes for cracks, excessive wear, loose
components and leaks.

5. Transmission system and final drives: for possible leakage.

6. Engine compar tment for fuel, oil and coolant leaks.

7. Guards: for damage or missing.

8. ROPS: general condition (no ROPS defects are permissible that may adversely affect its
protection in case of machine rollover.

WARNING! To ensure personal protection performs all maintenance services in
accordance with Scheduled Maint enance Guide and Instructions.

To prolong the service life of your equipment follows the scheduled maintenance listed in
Scheduled Maintenance Guide.

TD-40C DRESSTA

MAINTENANCE SECTION 5

5.3. MAINTENANCE AND SERVICE CHART

(Always use clean containers and lubricators)

Page 7

SERVICE

INTERVAL

Every 10
Hours

Every 50
Hours

Every 250
Hours

Every 500
Hours

REF.

No

1

Radiator Coolant Level

2

Engine crankcase Oil Level

21

Fuel Filter Water Separator

29

Hydraulic Reservoir Oil Level
Ground Level Inspection

11

Rear Frame Oil Level

23

Hydraulic Cylinder Lube Fittings

30

Ripper Lube Fittings

3

Engine Coolant Filter

4

Engine Crankcase Oil Level

10

Final Drive Oil Level

21

Fuel Filter

20

Engine Crankcase Oil Filters

22

Upper Struts

24

Upper Strut Balls

33

KT-19C Engine Bypass Filter

34

Crankcase Breather

5 Pivot Shaft Housing 2 HDTF Check

POINT OF SERVICE

SERVICE

POINTS

1
1
2
1

1
2

12

1
1
2
2
2
4
2
1
3

LUBRICANT SERVICE

Check

E01

HDTF/E02

HDTF

MPG
MPG

E01

MPL

E01
MPG
MPG

E01

Check
Drain
Check
Check

Check
Lube
Lube

Change
Change
Check
Change
Change
Lube
Lube
Change
Change

Every 1000
Hours

Every 2000
Hours

Periodic or
at Least
Once a
Year

Every 6000
Hours or
Two Years

7

Transmission System Suction Strainer

8

Rear frame Breather

14

Transmission System Oil

15

Final Drive Oil

16

Transmission System Pressure Filter

17

Element

26

Gimbal Crosstube

28

Hydraulic Tank Breather

31

Hydraulic System Return Filters
Battery Terminals

9

Hydraulic System Oil

27

Hydraulic Oil Suction Strainer

36

Hydraulic Control System Filter

6

Transmission Scavenger Strainer

12

Fuel Tank Strainer

13

Fuel Tank Sediment Bowl

18

Hand and Foot Control Linkage

19

Air Cleaner Element

25

Pilot Control Valve

35

Hydraulic Tank Strainer

32 Engine Coolant 1 Change

1
1
1
2
2
2
1
2

1
1
1

1
1
1

10

1
1
1

Clean
Change

HDTF

MPL

MPG

HDTF/E02 Change

MPG
MPG

Change
Change
Change
Lube
Clean
Change
Check

Clean
Change

Clean
Clean
Drain
Lube
Clean
Clean
Clean

DRESSTA TD-40C

SECTION 5 MAINTENANCE

Page 8

5.3. MAINTENACE AND SERVICE CHART

E01 – Engine Oil
E02 – Multigrade Transmission O il
MPG – Muli-Purpose Grease
HDTF – Hydraulic Transmission Fluid for Heavy Condition
MPL – Multigr ade Gear Oil

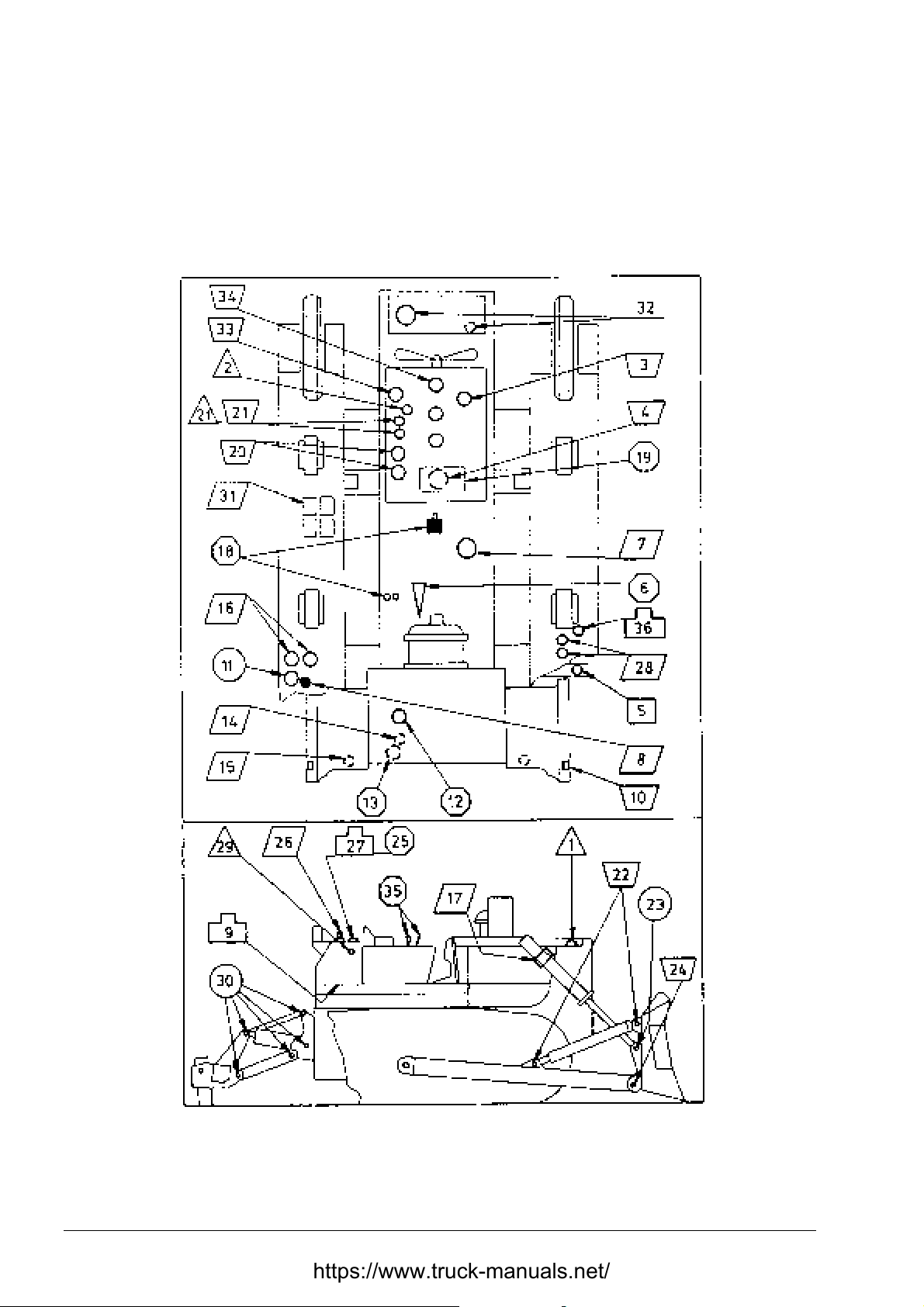

Fig. 5.1. Service Guide

TD-40C DRESSTA

5.3.1. REFILL SPECIFICATIONS AND CAPACITES CHART

MODEL LUBRICATION POINT

TD-40C

Final Drive – Each 85 l MPL SAE 85W-140 SAE 85W-140 SAE 80W-90 MPL – ARCTIC

Engine Crankcase with Filter
Change

Transmission System 270 l HDTF SAE 10W SAE 5W-30

Track
Roller
(each)

Life Time

Top Idler
(each)

Front
Idler
(each)

D-2 Equipment Hydraulic System 265 l

D-2 and Ripper Equipment
Hydraulic System

Lubrication If Rebuilt

REFILL CAPACITY

67 l (QSK-19C)
50 l (KT-19C)

1.0 l

0.5 l

1.4 l

355 l

TYPE

E01 SAE 15W40 SAE 10W-30 SAE 5W-20

HDTF
or
E02*

HDTF
or
E02*

AIR TEMPERATURE

+40 – +7°C

SAE 30

SAE 10W

AIR TEMPERATURE

+21 – -23°C

TEMPERATURE

-12 – -34°C

or SAE 5W-30

or SAE 5W-20

TEMPERATURE

-12 – -54°C

ARCTIC GRADE 75
per
HMS-B22-0003

E01 - ARCTIC
MULTI - PURPOSE
ARCTIC OIL
per
HMS-B21-0001

Cooling System 98 l (QSK-19C)

95 l (KT-19C)

Fuel Tank 1340 l above - 12°C Diesel Fuel # 2D

ANTI-FREEZE SOLUTION
0° – -37°C -37° – -54°C
50% Anti-freeze 62% Anti-freeze
50% Water 38% Water

below - 12°C Diesel Fuel # 1D

62% Anti-freeze
38% Water

Diesel Fuel
VV-F-800DF-A

SECTION 5 MAINTENANCE

Page 10

5.3. MAINTENANCE AND SERVICE CHART

DESCRIPTION:
HDTF:

Severe Service Transmission Fluid per HMS B21-0006 or equivalent and passing fo rmula C-4 and
TO-4. Should not contain viscosity-improving agent .

Arctic selection: per HMS B21-0001
EO1:

Engine Oil per HMS B21-0002 or multigrade diesel engine oil CE, CF-4 per API , MIL–L–2104 with
sulphated ash of 1.5% maximum.

Arctic selection: per HMS B21-0001
EO2: for service only

Multi – purpose engine oil per HMS B21-0003 or engine oil CD per MIL-L-2104C passing TO-2
and C-3 test with 0.10% minimum zinc.

Arctic selection: per HMS B21-0001
MPL:

Multi – purpose gear lubricant per HMS B22-0003 or API GL-5, MIL-L- 2105C

Arctic selection: grade 75 per HMS B22-0003
EO:

Multi – purpose arctic selection per HMS B21-0001 or MIL-L-46167

MPG:

Multi – purpose grease 251 HEPM per HMS B27-0002 or NLGI grade #2 multi-purpose lithium
grease with 3% minimum molybdenum disulfide (MoS

).

2

Arctic selection: per HMS B27-0003 or MIL-L-10924D
ANTI-FREEZE:

Single Phase, ethylene glycol base per HMS B1-0001 or equivalent.

DISEL FUEL:

Per HMS B32-0001 or ASTM D-973

Arctic selection: per VV-F-800DF-A
NOTE: Maintenance/lubricant change service inter vals ar e based on average operating conditions.

Under unusually severe conditions of operations, reduce the int erval of time between services. All
inspection (maintenance) service must be carried out according to schedule, but at least once a
year.

5.4. LUBRICATION

5.4.1. WHEN SHIPPED

This machine has been lubricated at the factory for operation in an air temperat ure r ange of +21 °C
to – 23°C. If this tractor is to be operated above or below this range, change to the correct
lubricants.

Unless an exception is shown below, all lubricants can be used (within above temperature r ange)
until regular scheduled (normal) change inter vals occur. Ref er to “MAINTENANCE AND SERVICE
CHART" for the scheduled (normal) change intervals and to "REFILL SPECIFICATIONS AND
CAPACITIES CHART" f or the proper oil grades f or ambient temperatures.

TD-40C DRESSTA

MAINTENANCE SECTION 5

Page 11

5.4. LUBRICATION

Front idlers, track idlers and track rollers ar e permanent ly lubricated with a SAE30, API CD or MIL­L-2104C engine oil.
A level check of these compartment s is not r equired.

5.4.2. WHEN SERVICED
WARNING! When you service the machine, always follow the Operator's or

Service Manual. Never grease, oil or perform any maintenance alone with the
engine running. Always have another experienced person helping in the
operator's compartment when maintenance must be done with the engine
running. Block up all attachments securely. Do not leave the operator's seat
with the engine running. Failure to follow these instructions could result in
serious injury or death.

The life and perform ance of a tractor and its equipment depends on the service that it is given.
Proper lubrication is an important part of the maintenance service. Thorough lubrication service
performed at specified intervals will aid in prolonging the life of the t ractor and its eq uipm ent and in
reducing operating expense. The type of work being done, load, gr ound and weather conditions
are all factors to consider in frequency of lubrication.

The scheduled intervals between lubrication periods shown on the “SERVICE CHART” are
approximate, based on average operating conditions. It may be necessary to lubricate after
shorter working periods under severe operating conditions such as extremely dusty, low engine
temperatures, intermittent operation, excessively heavy loads with high oil temperatures, or when
diesel fuel with a high sulfur content is used. However, the time intervals between lubrication
periods must never exceed those indicated in this manual.

5.4.3. SELECTION

The selection of the proper type (specification) and the gr ade (weight or viscosity) of lubricant is
important. Many tests have been made to determine the correct lubricant s for this tractor and its
equipment.

5.4.4. VISCOSITIES

During cold weather, base the selection of a crankcase lubricating oil viscosity on the lowest
anticipated temperature f or t he day to m ake starting easier.

For hot weather operation, base the selection on the highest anticipated temperature. Refer to t he
"REFILL SPECIFICATIO NS AND CAPACITIES CHART”.

IMPORTANT: After changing oil or break in operation for more that 5 days follow the below
specified procedure to start the engine:

1. QSK–19C – Engine Procedure
– Disconnect EPS

1)

connector of engine electrical system as shown in Engine Manual

– cr ank the engine until the gauge registers pressure or engine oil pr essur e warning light goes off
– r e connect EPS
– start the engine per normal method for starting procedure

1)

EPS – Engine Position Sensor

DRESSTA TD-40C

SECTION 5 MAINTENANCE

Page 12

5.4. LUBRICATION

2. KTA–19C Starting Procedure

– cut off fuel supply with engine speed and shut down contr ol lever (forward position)
– cr ank the engine until the gauge registers pressure or engine oil pr essur e warning light goes off
– star t the engine per normal method for starting procedure

TD-40C DRESSTA

MAINTENANCE SECTION 5

5.4. LUBRICATION

5.4.5. RECOMMENDED LUBRICANT CHART

Page 13

RECOMMENDED

LUBRICANT

Engine oil per HMS B21­0002 or API CE, CF or
CD or MIL-L02104C with
sulfated ash of 1.65%
maximum SAE 15W/40

Engine oil per HMS B21­0003 or CD
MIL-L02104C/
SAE 10W, SAE 30

Transmission Fluid HDTF
per HMS B21-0006
passing formula C-4 and
TO-4, SAE 10W, SAE 30

Gear Lube per
HMS B22-0003 or API
GL-5 or MIL-L-2105C
SAE 85W/140
SAE 80W/90

POLISH SHELL TEXACO

LOTS DIESEL CE/SF
SAE 15W/40
SUPEROL FALCO
CD.
15W/40

SUPEROL CD.
SAE 10W
SUPEROL CD.
SAE 30

GERAX TKD 10W
GERAX TKD 30

HIPOL 85W/140
HIPOL 80W/90

EQIVALENT LUBRICANT

MYRINA TX
15W/40
RIMULA X
15W/40

ROTELLA TX
10W
ROTELLA TX 30

DONAX TC 10
DONAX TC 30

SPIRAX HD
85W/140
SPIRAX HD
80W/90

URSA SUPER LA
15W/40 E01

URSA SUPER LA
10W
URSA SUPER LA 30

TEXTRAN HD 10W
TEXTRAN HD 30 HDTF

GEARTEX EP-C
85W/140
GEARTEX EP-C
80W/90

TYPE

E02

MPL

Multi-purpose grease per
HMS B27-0002 or NLGI
grade #2
Multi-purpose lithium
grease with 3% minimum
molybdenum disulfide

)

(MoS

2

Anti-freeze, ethylene
glycol base per
HMS B1-0001

Arctic oil, synthetic 75W
per HMS B22-0003

Arctic grease per
HMS B27-0003 or
MIL-L-10924D

Arctic engine Oil,
synthetic per HMS B-21­0001 or MIL-L-46167

Diesel Fuel
Per HMS-B32-0001

LITMOS EP-23 RETINAX EPX2 MOLYTEX EP-2 MPG

ERGOFRYZ GLYCOSHELL

DILUTED

SRI grease manufactured by CONOCO
Grease 2816 manufactured by EMERY Ind.

CHEVRON SUB–ZERO
Fluid OW-30 Manufactured by CHEVRON or
FRIGID-GO 2809A Manufactured by EMERY Ind.

Diesel fuel per Polish Standard PN-C-96051:1992
DL above 0°C
DP above -12°C
DZ above -20°C
IZ-40 above -30°C
For temperatures below -30°C add pour point depressant

ANTIFREEZE
ETX 6042

SYN-STAR 75W
CODE 2080

MPL
ARCTIC

MPG
ARCTIC

EO
ARCTIC

DRESSTA TD-40C

SECTION 5 MAINTENANCE

Page 14

5.5. SEASONAL PREPARATION

General

Mechanical efficiency is enhanced during seasonal air temperature changes, when these
instructions are followed.

Outside source of heat

Machines left outside for prolonged periods in sub-zero weather will suffer from "cold-soak."
Lubricants become viscous and incapable of lubricating moving parts. Extreme wear could result
to the engine, transmission and f inal dr ives unless proper precautions are taken.

A source of outside heat is necessary under these conditions. There are electric as well as
propane-fired engine coolant heater s available. Gas-fired f orced air heaters may also be obt ained
to heat the transmission and final drives.

When using such heat er s follow manufacturer’s safet y instructions.

WARNING! For your personal safety, use caution and foll ow t he manufacturer's
instructions when using engine block heaters to warm the coolant or external
heaters to warm the tractor

5.5.1. FUEL SYSTEM

Refer to "FUEL SYSTEM" for the diesel fuels selection, which will give the most satisfactory
performance.

5.5.2. COOLING SYSTEM

Prepare the cooling system as follows:

1. Check t he ent ire engine system for leaks.

2. Inspect t he condit ion of all hoses and replace the hose and hose clamps as necessary.

3. Clean cooling system . Refer to “CLEANING THE SYSTEM.”

4. Check t he dr ive belt tension and adjust tension or replace belt. Refer to “ENGINE MANUAL”.

5. Remove all debris f rom the radiator core using air or water under pressure. Direct the flow
through the core, opposite the nor mal direction of air flow.

WARNING! For your personal protection, w at er pressure should not exceed 275
kPa and air pressure should not exceed 210 kPa. Use safety goggles.

6. Clean the radiat or guard and outside of the core.

7. Protect your cooling system fr om damage by using approved antif reeze and coolant. Refer to
“FILLING THE DRAINED SYSTEM”.

8. Keepyour cooling system clean and minimize corrosion by changing the coolant filter at
correct intervals. Refer to “COOLING SYSTEM.”

9. Check t he condit ion of fan blades. Lubricate fan hub (QSK-19 Engine)

5.5.3. ELECTRICAL SYSTEM

Clean batteries and remove all corrosion from the battery terminals and cables. Repair or replace
all wires, which have worn, cracked or frayed insulation and broken or loose wires. Service the
batteries.

TD-40C DRESSTA

MAINTENANCE SECTION 5

Page 15

5.6. AIR CLEANING SYSTEM

5.6.1. AIR CLEANER

This machine has a „dry-type” cleaner with replaceable elements.
The cleaner has two elements: primary and safety. The primary can be cleaned for a limited

number of times before replacem ent is necessary, however, the safety element must be replaced
when plugged. Detailed service procedures for t his air cleaner are covered in the following text.

IMPORTANT: As a precaution against dirt entering the engine, all gasket and rubber hoses
between the air cleaner, turbocharger and intake manifold, and betw een the manifold and cylinder
head must be in good condition and the joints or connections must be tight. Never operate the
engine unless a filter element is in place and filter end gasket is installed. Never remove the
element from the air cleaner or ser v ice t he air cleaner while the engine is running.

5.6.2. PRIMARY FILTER ELEMENT

Service

The air cleaner primary element must be serviced whenever indicated by the air cleaner filter
warning light. Ref er to "AIR CLEANER FILTER WARNING LI GHT".

If after perf ormed cleaning of primary f ilter element the air cleaner f ilter-warning light cont inues to
glow, check for allowable restriction, precleaner screen. If the warning cont inues to glow replace
safety filter element. I f with cleaned primary filter element and replaced safety filter element the
warning light still continues to glow, check air cleaner service indicator. The primary element can
be cleaned by either of two methods: washing or compressed air. Washing is the preferred
method as it removes more dust and soot and restor e t he elem ent to an almost new condition.

The result being better per formance and longer intervals between required element ser vice. It is
recommended that a spare element be obtained for use while the serviced element is drying.

IMPORTANT: The primary filt er element must be replaced after six washing.

Cleaning the element with compressed air is not considered an entirely satisf actor y met hod. Some
dust will remain in the element causing more frequent servicing of the element. Cleaning with
compressed air should be used only as a temporary measure until suf ficient time is available to
clean the element by washing. Engine air intake system (hoses, clamps, rubber connectors) is
recommended to be checked for leaks ever 50 hours of operation.

IMPORTANT: After cleaning, if an element is to be stored for later use, place it in a plastic bag
and store in an element-shipping container to protect against dirt and damage.

Removal (Fig. 5.2)

1. Stop the eng ine. Lower equipment on the ground. O pen left engine access door. Remo ve all
dust from the element r em oval end of the air cleaner body

2. Release tree lock straps and remove cover (8) from the air cleaner body (1), unscrew the
wing nut (5) remove gasket (9) and carefully remove the primary element f r om t he body not to
dislodge dust from the dir t y element onto the primary element (2).

DRESSTA TD-40C

SECTION 5 MAINTENANCE

Page 16

5.6. AIR CLEANING SYSTEM

Fig. 5.2. Air Cleaner Assembly

1. Body

2. Safety Element

3. Primary Element

4. Washer

5. Wing Nut

6. Slotted Nut

7. Cotter Key

8. Cover

9. Gasket

3. Check the condition of the gasket on the end of the outer element (3). If the gasket is
damaged or missing, replace the prim ary element. Remove all dirt f rom inside the air cleaner
body with a damp cloth. A small amount of nonsudsing detergent added to the water will
remove the soot.

Washing

IMPORTANT: Never wash elem ent in fuel, oil, gas or solvent. DO NO T OIL ELEMENTS. Do not
tap the element against a hard surface; this will damage the element.

1. Carefully tap the side or end of the element against the palm of your hand to remove loose
dust.

2. Wash the element in clean, warm water 20°C to 40°C. A small amount of nonsudsing
detergent added to the water will remove the soot.

3. Rinse the element in clear water ( if a hose is used, do not exceed 275 kPa).
Shake the element carefully to re m ove excess water.

TD-40C DRESSTA

MAINTENANCE SECTION 5

Page 17

5.6. AIR CLEANING SYSTEM

IMPORTANT: Do not use compressed air t o speed the drying of the element; the air pr essur e will
rupture the wet element.

4. Lay the element on its side and allow it to air-dry before reinstalling. Overnight drying is
usually sufficient. When drying the element, pr otect it from dirt and/ or freezing

NOTE: If no spare element is available, the wet element, after excess w ater has been shaken out,
may be installed in the air cleaner and the engine operated at idle for 10 minutes before operating
the tractor.

5. Inspect for damage. Refer to “INSPECTION.”

Inspection

1. Inspect the filter element for leaks or damage by placing a bright light inside the element.
Inspection of the element on the outside will disclose any holes where concentrated light
shines through. The slight est r upture requires replacement of the filter element .

2. Inspect the contact surfaces of the air cleaner body. If faulty or damaged surf aces are noted,
correct these conditions immediately.

Installation (Fig. 5.2)

1. Insert the open end of the primary element (3) into the air cleaner body (1) and secure with
the washer (4) and wing nut (5). Installs cover (8) with gask et (9) onto the air cleaner body.
Secure the cover to the body with locking clamps making sure cover is not cocked.

2. Inspect and tighten all air cleaner connections before resum ing operation. Start the engine. If
the air cleaner, filter warning light indicates air restriction, replace primary or primary and
safety filter element s.

5.6.3. SAFETY FILTER ELEMENT

Service

Replace the safety element with every third change of the primar y element or when plugged, as
shown by the filter warning light.

Removal (Fig. 5.2.)

1. Remove primar y element . Refer to 5.6.2.

2. Remove cotter key (7), nut (6) and washer (4) and pull safety element from body. Clean
inside of body (1) with a damp cloth. Check the condition of gasket on the end of the saf ety
element. If the gasket is damaged or missing, r eplace the gasket.

Installation (Fig. 5.2.)

1. Install new safety element (2) int o the body and secure with nut (6) and washer (4). Secur e
bolt with cotter key (7).

2. Install primary filter element. Refer to 5.6.2.

DRESSTA TD-40C

SECTION 5 MAINTENANCE

Page 18

5.6. AIR CLEANING SYSTEM

5.6.4. AIR INTAKE SYSTEM

5.6.4.1. Precleaner

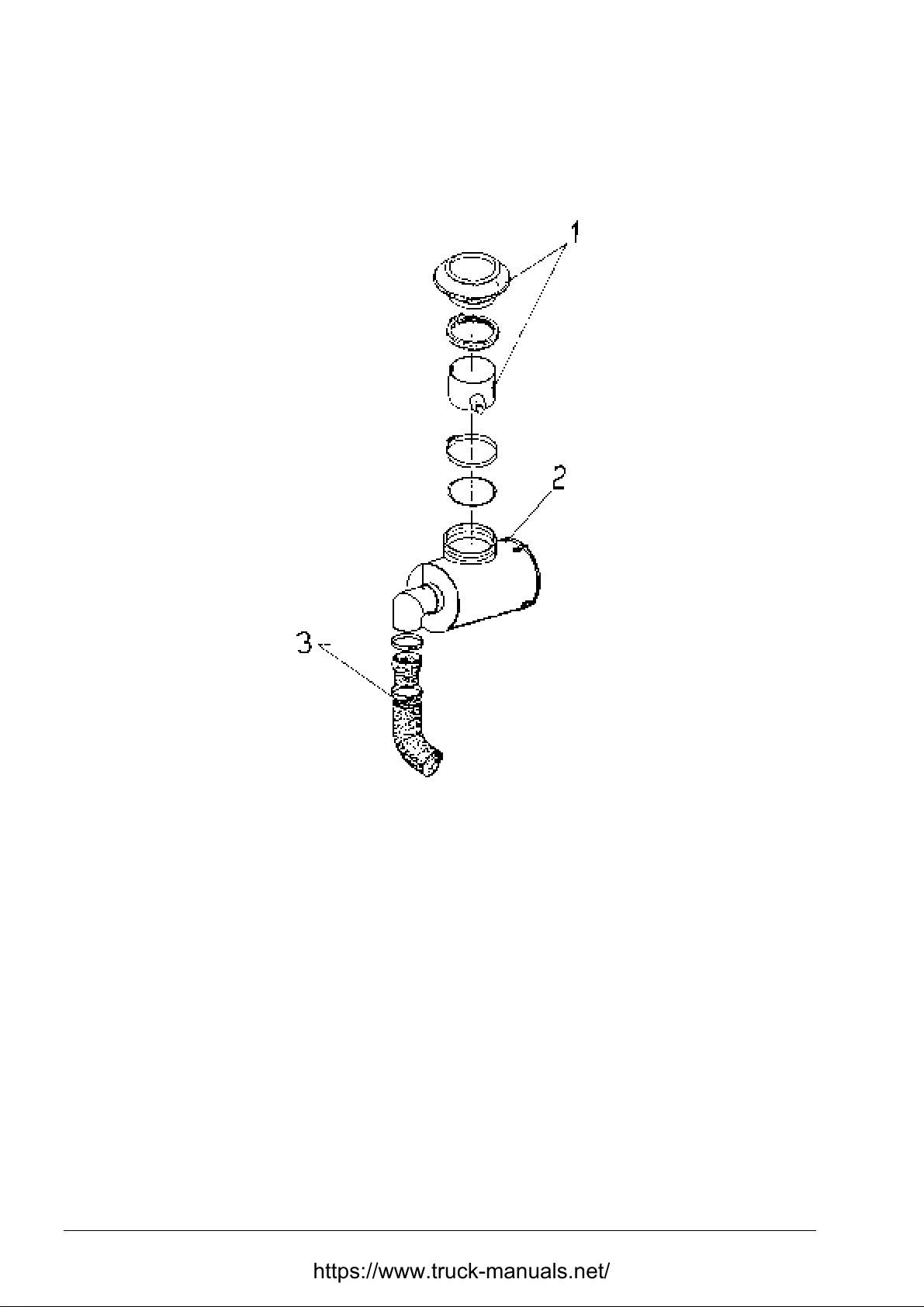

Fig. 5.3. Precleaner Assembly

1. Precleaner Filter

2. Air Cleaner

3. Tube Clamps

The dome of the precleaner hood serves as a rain shield and the screen prevents chaff and
course dirt from getting into the air cleaner. Keep this screen clean from all chaff, oil or dust.
Clogged holes in the screen will reduce the power of the eng ine by rest r ict ing the flow of air.

Loosen the clamp screw on the precleaner hood. Twist and pull upward to remove the cap. Use
compressed air to clean the screen. If compressed air is not available, wash in clean hot water or
water containing a small amount of nonsudsing detergent.

Never wash precleaner installed on the machine as water may penetrate to the engine.

5.6.4.2. Checking air intake system for leaks

1. Remove cover from the air cleaner body.

2. Remove primary element.

TD-40C DRESSTA

MAINTENANCE SECTION 5

Page 19

5.6. AIR CLEANING SYSTEM

3. Mask the entire perforated metal out side diameter of safety element (smaller) with the duct
tape and reinstall. Sealing must be airtight. Connect regulated compressed air supply to one
of existing connecting ports on air intake manifold. Connect pressure gauge to other
connecting port on intake manifold or to warning light switch.

4. Check if underpressure of 0.14 – 0.21 kG/cm
improper pressure is seen, adjust pressure to 0.14 – 0.21 kG/cm
crankshaft to a position where minimum leakage occurs past engine valves.

5. Coat the f ollowing areas with soap solution and check for leaks. Leaks will cause air bubbles
to form.
a) air cleaner body surface around the outlet pipe to app. the outside diameter of safety

element
b) air cleaner outlet to turbocharger inlet hose t o air cleaner body junction
c) orifice and tubing from the air cleaner
d) all clamped hose and gasket connections between air cleaner out let and intake manif old.

This includes connections at turbocharger
e) surf ace of all air induction piping and hoses air cleaner and air intak e manifold including

the manifold gasket ar ea

6. No leakage is permitted between air cleaner and intake manifold (the entire air induction
system).

2

has been obtained by reading the pressure. If

2

by cranking the engine

Test frequency

Air intake system leakproof tests must be perfor med af ter each Disassembly of intake system or if
necessary (leaks or loosens clamps).

5.7. BELTS

General

WARNING! Keep clear of fan and fan belts when the engine i s running. Rotat ing
fan and belt contact can cause injury.

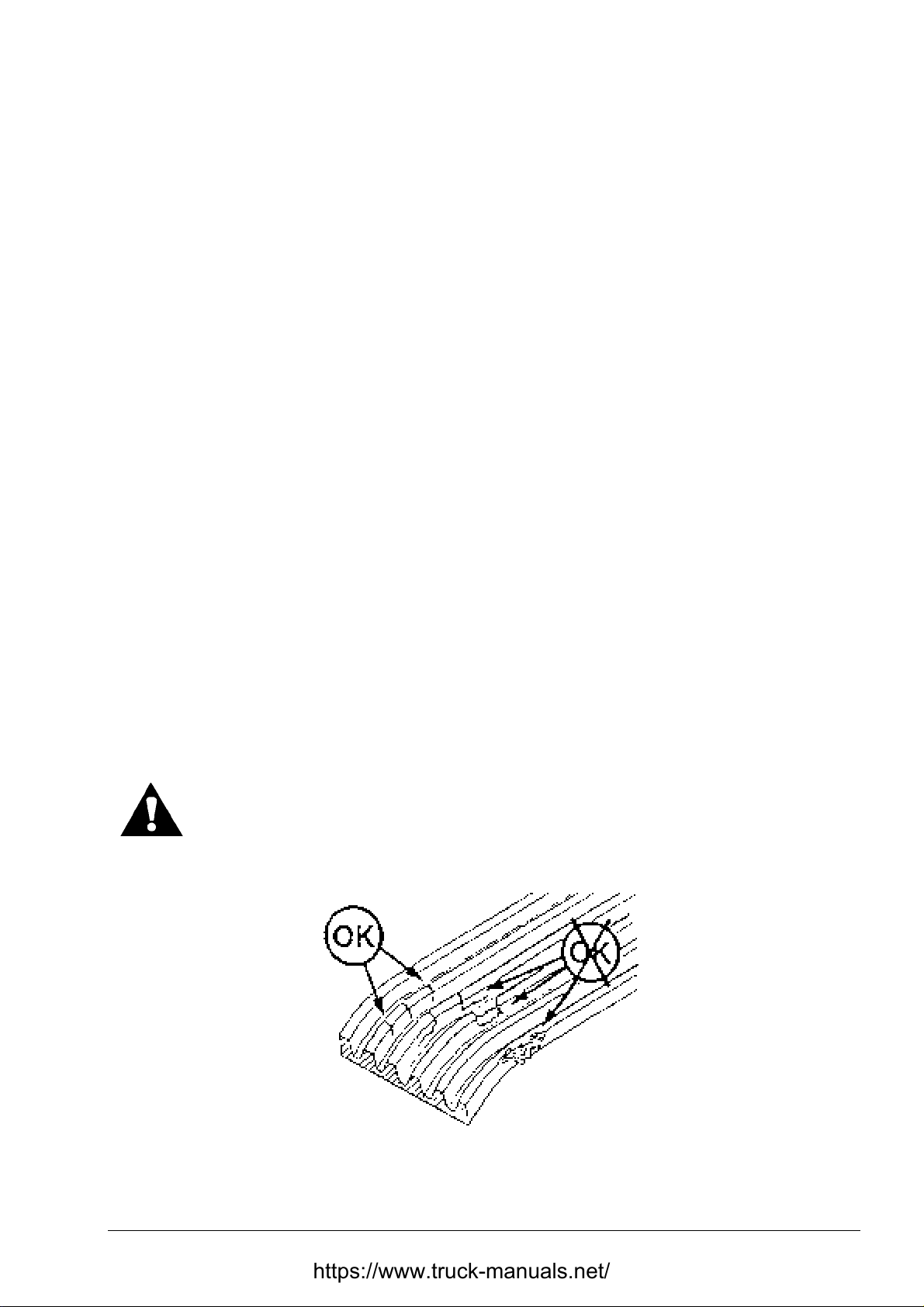

Fig. 5.4. Belt Inspection

DRESSTA TD-40C

SECTION 5 MAINTENANCE

Page 20

5.7. BELTS

Replace badly worn, greasy or cracked belts immediately. These conditions prevent proper belt
function.

Visually inspect the drive belts for intersecting cracks. Transverse (across the belt width) cracks
are acceptable. Longitudinal (direction of belt lengt h) cracks that intersect with transverse cracks
are not acceptable. Replace the belt if it is frayed or has pieces of material missing.

5.7.1. CHECKING TENSION AND ADJUSTMENT

Checking tension

The engine is equipped with an automatic belt tensioner t hat maintains correct tension on the drive
belt. To check belt tension a Borr oughs type gauge must be used.

Adjustment

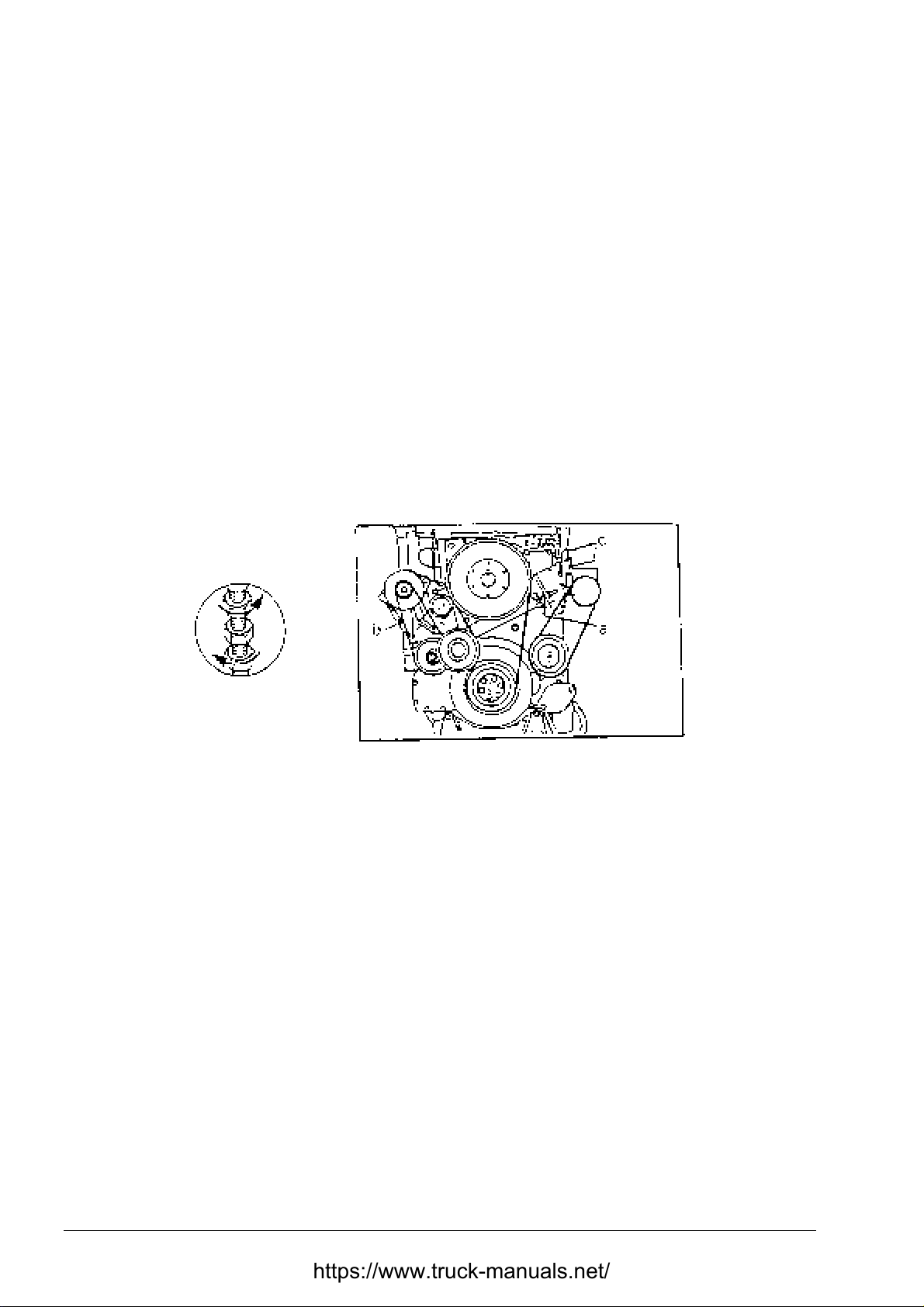

Fig. 5.5. Belt Tension Adjustment

a – Fan Belt Tension Adjustment (only for QSK-19C Engine)
b – Alternator Belt Tension Adjustment
c – Air Conditioner Compressor Belt Tension Adjustment

Belt tension adjustment:

1. Alternator belt – tight en or loosen nuts and adjusting bolt “b” until tension value specified in
chart is obtained.

2. Air conditioner compressor belt- tighten or loosen nuts and adjusting bolt “c” until tension
value specified in chart is obtained.

3. Fan belt (chart enclosed) – loosen locknut and relive belt tension. Move fan idler until it
contacts with the belt. Turn locknut by hand until snug. Turn the locknut by f ull 9 turns using
wrench. Then torque the locknut to 81 Nm.

TD-40C DRESSTA

MAINTENANCE SECTION 5

5.7.2 BELT TENSION CHART

Page 21

BELT W IDTH

0.38” 3822524 140 620 60 – 110 270 – 490

0.44” 3822524 140 620 60 – 110 270 – 490
1/2” 3822524 ST-1138 140 620 60 –110 270 – 490
11/16” 3822524 ST-1138 140 620 60 – 110 270 – 490
3/4” 3822524 ST-1138 140 620 60 – 110 270 – 490
7/8” 3822524 ST-1138 140 620 60 – 110 270 – 490
4-groove 3822524 ST -1138 140 620 60 – 110 270 – 490
5-groove 3822524 ST -1138 150 670 60 – 120 270 – 530
6-groove 3822525 ST -1293 160 710 65 – 130 290 – 580
8-groove 3822525 ST -1293 200 890 80 – 160 360 – 710
10-groove 3822525 3823138 250 1110 100 – 200 440 – 890
12-groove 3822525 3823138 300 1330 120 – 240 530 – 1070

GAUGE NEW BELT TENSION USED BELT TENSION*

CLICK BORROUGHS N Lbf Lbf N

15-groove K 3822525 3823138 375 1670 150 – 300 670 – 1340
16-groove L ----- 3376344 560 2490 260 – 520 1160 – 2315
20-groove L ----- 3823772 700 3115 330 – 650 1470 – 2890

* belt is considered used if it has been run at least 10 minutes. If belt is used f or a shorter period

of time, apply maximum tension value specified for used belt. Groove width for t ype K belt is 3.5
mm and 4.3 mm for type L.

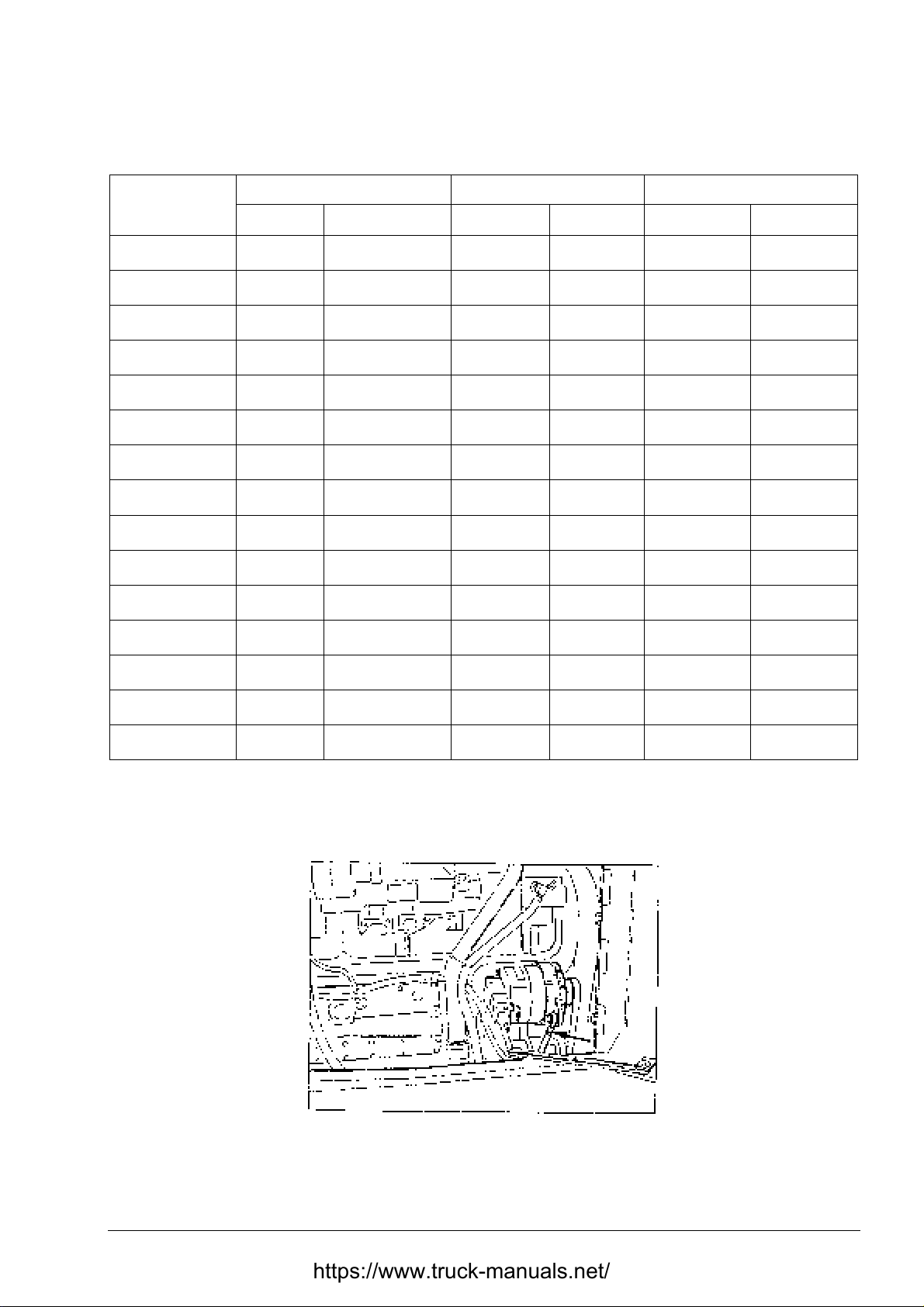

Fig. 5.6. Alternator Belt Adjusting Screw

DRESSTA TD-40C

SECTION 5 MAINTENANCE

Page 22

5.8. COOLING SYSTEM

General

The cooling system operates under pressure. T he water pump circulates the coolant throug h the
oil cooler, engine block, cylinder heads, and radiat or. Circulation is controlled by the thermostats,
which prevent coolant flow through the radiator until the engine reaches operating temperature.
Proper cooling is as assured only when the system is sealed, radiator cap and gasket in good
condition, thermostats operate properly, system is free of coolant and/ or air f loor restr ictions and is
filled to proper level.

Selection and maintenance of the system coolant is important to long engine life. The following
information provides recommendations for selecting the engine coolant, maintaining the coolant
inhibitors, and servicing the cooling system. This system will operate with a water/antifreeze
mixture or inhibited water as a coolant. Never use water alone because water will allow rust, scale
deposits, and corrosion to occur within the system.

5.8.1. WATER

Use water, which has a low mineral content. Water used in conjunction with antifreeze, coolant
filters and inhibited water must meet the following standards:

Total hardness: Not to exceed 170 parts per million to prevent scale deposits. W ater containing
dissolved magnesium and calcium (the usual reason for water hardness) above the specified
amount will cause scale deposits to develop in the engine.

Chlorides – Not to exceed 40 parts per million to prevent cor rosion.
Sulfites – Not to exceed 100 parts per million to prevent corrosion.
Dissolved solids – Not to exceed 340 parts per million to minimize sludge deposits, scale

deposits and corrosion.
If any of the requirements cannot be met, use distilled de-ionized or de-mineralized water. To

determine if local water supplies meet these standards, water treatment laboratories can test
water samples. Softened water that is prepared using common salt (sodium chloride) contains
excessive amounts of chlorides and should not be used.

5.8.2. ANTIFREEZE

Low silicate ethylene glycol antifreeze is recommended. The antifreeze should contain no more
that 0.1% anhydrous alkali metasilicate. Low silicate antifreeze is recommended to avoid the
formation of silica gel (hydro-gel). This g el formation can occur when cooling system contains an
over concentration of high silicate antif reeze and/or supplemental coolant additive. DO NO T use
methanol or alcohol as antifreeze because of its low boiling point. Antifreeze may r etain its f reeze
protection for more than one season but coolant conditioners must be added to maintain corr osion
protection. Antifreeze for mulated with metoxy propanol, or propylene glycol is not recommended
for this system.

IMPORTANT: Do not mix types of antifreeze solutions. Mixed solutions make it impossible to
determine the protection against freezing. Antifreeze containing sealer or anti- leak additives should
not be used in this system. Sealer or anti-leak additives will plug the coolant filter and cause
plugging problems in the cooling system.

TD-40C DRESSTA
