VigorPro 5500 Series

Unified Security Firewall

User’s Guide

Version: 3.0

Date: 2007/05/02

This publication contains information that is protected by copyright. No part may be reproduced, transmitted,

transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright

holders. The scope of delivery and other details are subject to change without prior notice.

Microsoft is a registered trademark of Microsoft Corp.

Windows, Windows 95, 98, Me, NT, 2000, XP and Explorer are trademarks of Microsoft Corp.

Apple and Mac OS are registered trademarks of Apple Computer Inc.

Other products may be trademarks or registered trademarks of their respective manufacturers.

Safety Instructions and Approval

Safety Instructions

Warranty

z Read the installation guide thoroughly before you set up the router. z The router is a complicated electronic unit that may be repaired only be

authorized and qualified personnel. Do not try to open or repair the router yourself.

z Do not place the router in a damp or humid place, e.g. a bathroom. z The router should be used in a sheltered area, within a temperature range of +5 to

+40 Celsius.

z Do not expose the router to direct sunlight or other heat sources. The housing and

electronic components may be damaged by direct sunlight or heat sources.

z Do not deploy the cable for LAN connection outdoor to prevent electronic shock

hazards.

z Keep the package out of reach of children. z When you want to dispose of the router, please follow local regulations on

conservation of the environment. We warrant to the original end user (purchaser) that the router will be free from any defects in workmanship or materials for a period of two (2) years from the date of purchase from the dealer. Please keep your purchase receipt in a safe place as it serves as proof of date of purchase. During the warranty period, and upon proof of purchase, should the product have indications of failure due to faulty workmanship and/or materials, we will, at our discretion, repair or replace the defective products or components, without charge for either parts or labor, to whatever extent we deem necessary tore-store the product to proper operating condition. Any replacement will consist of a new or re-manufactured functionally equivalent product of equal value, and will be offered solely at our discretion. This warranty will not apply if the product is modified, misused, tampered with, damaged by an act of God, or subjected to abnormal working conditions. The warranty does not cover the bundled or licensed software of other vendors. Defects which do not significantly affect the usability of the product will not be covered by the warranty. We reserve the right to re vi se the ma nual and onli ne documentation and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.

Be a Registered Owner

Firmware & Tools Updates

Web registration is preferred. You can register your Vigor router via http://www.draytek.com.

Please consult the DrayTek web site for more information on newest firmware, tools and documents. For more detailed information, please refer to http://www.draytek.com

Parts of the anti-virus features are powered by Kaspersky Lab ZAO. For more detailed information, please refer to http://www.kaspersky.com.

VigorPro5500 Series User’s Guide

European Community Declarations

Manufacturer: DrayTek Corp.

Address: No. 26, Fu Shing Road, HuKou County, HsinChu Industrial Park, Hsin-Chu, Taiwan 303

Product: VigorPro 5500 DrayTek Corp. declares that VigorPro 5500 Series is in compliance with the fo llowing essential requirements and

other relevant provisions of R&TTE Directive 1999/5/EEC. The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive 89/336/EEC by

complying with the requirements set forth in EN55022/Class A and EN55024/Class A. The product conforms to the requirements of Low Voltage (LVD) Directive 73/23/EEC by complying with the

requirements set forth in EN60950.

Regulatory Information

Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televisi o n recept i on , whi ch can be determined by turning the equipment of f a nd on, the use is encouraged to try to correct the interference by one of the following measures:

z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different form that to which the receiver is connected. z Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device may accept any interference received, including interference that may cause undesired operation.

Taiwanese BSMI (Bureau of Standards, Metrology and Inspection) A Warning:

Warning: This device might cause interference of radio frequency under the environment of dwelling. In such condition, the users might be asked to adopt some proper strategies.

Please visit “www.draytek.com/about_us/Regulatory.php”

This product is designed for the 2.4 GHz WLAN network throughout the EC region and Switzerland with restrictions in France.

This is a class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures.

VigorPro5500 Series User’s Guide

iii

TTaabbllee ooff CCoonntteennttss

Preface ...............................................................................................................1

1.1 Web Configuration Buttons Explanation.................................................................................1

1.2 LED Indicators and Connectors.............................................................................................. 1

1.2.1 For VigorPro 5500 ............................................................................................................ 2

1.2.2 For VigorPro 5500G.......................................................................................................... 3

1.2.3 For VigorPro 5500i............................................................................................................ 4

1.2.4 For VigorPro 5500Gi......................................................................................................... 5

1.3 Hardware Installation .............................................................................................................. 7

Configuring Basic Settings ..............................................................................9

2.1 Changing Password................................................................................................................ 9

2.2 Quick Start Wizard.................................................................................................................11

2.2.1 PPPoE ............................................................................................................................ 12

2.2.2 PPTP............................................................................................................................... 14

2.2.3 Static IP........................................................................................................................... 15

2.2.4 DHCP.............................................................................................................................. 16

2.3 Online St atus......................................................................................................................... 17

2.4 Saving Configuration............................................................................................................. 19

A d v a n c e d Web Con f i g ura t i on..................................................................................21

3.1 WAN...................................................................................................................................... 21

3.1.1 Basics of Internet Protocol (IP) Network......................................................................... 21

3.1.2 General Setup................................................................................................................. 22

3.1.3 Internet Access............................................................................................................... 24

3.1.4 Load-Balance Policy.......................................................................................................30

3.2 LAN ....................................................................................................................................... 33

3.2.1 Basics of LAN ................................................................................................................. 33

3.2.2 General Setup................................................................................................................. 35

3.2.3 Static Route.................................................................................................................... 37

3.2.4 VLAN............................................................................................................................... 40

3.2.5 Bind IP to MAC............................................................................................................... 41

3.3 NAT ....................................................................................................................................... 42

3.3.1 Port Redirection.............................................................................................................. 43

3.3.2 DMZ Host........................................................................................................................ 46

3.3.3 Open Ports...................................................................................................................... 48

3.4 Objects Settings.................................................................................................................... 50

3.4.1 IP Object......................................................................................................................... 50

3.4.2 IP Group ......................................................................................................................... 52

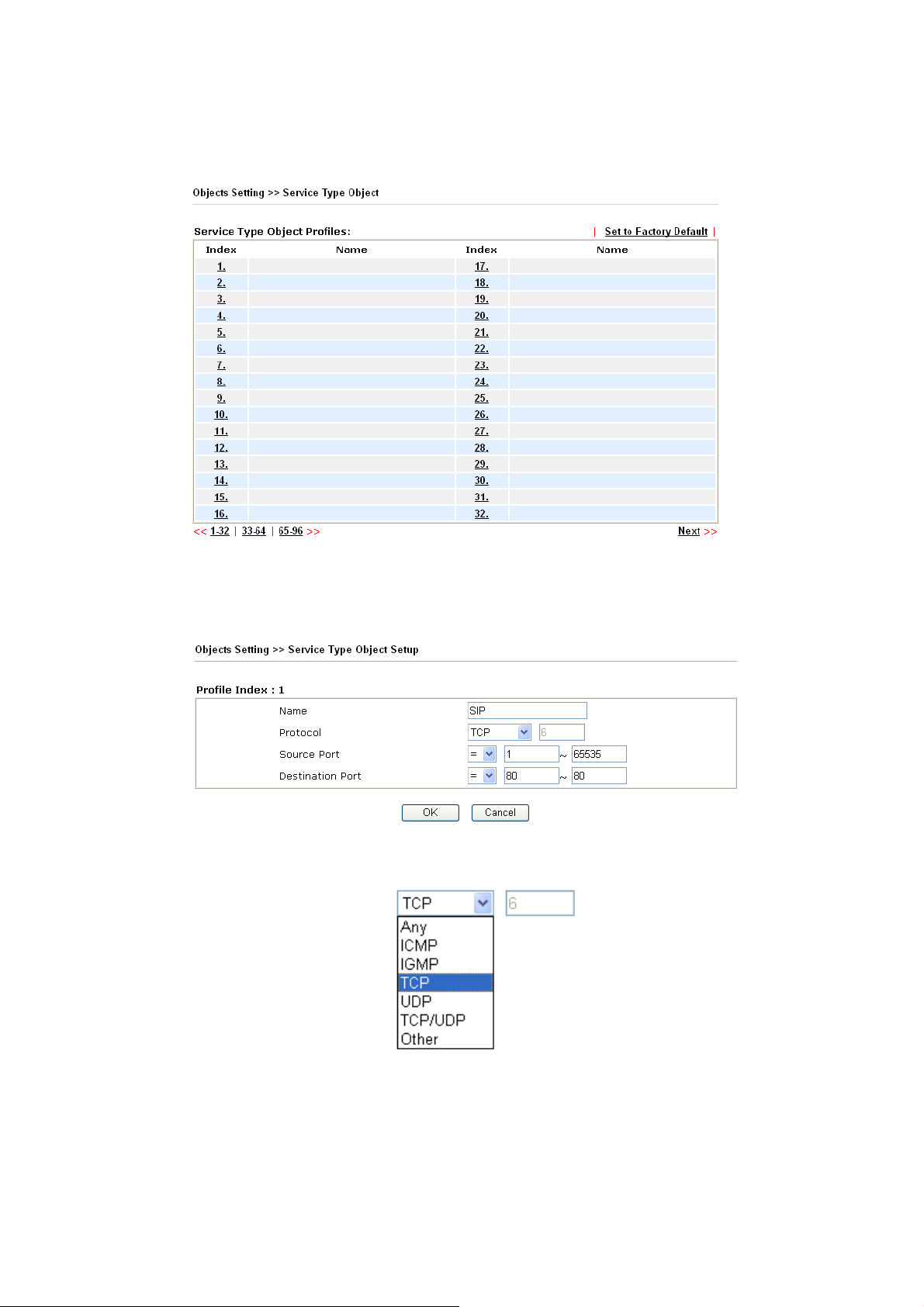

3.4.3 Service Type Object .......................................................................................................53

VigorPro5500 Series User’s Guide

3.4.4 Service Type Group........................................................................................................54

3.4.5 CSM Profile..................................................................................................................... 55

3.5 Firewall.................................................................................................................................. 57

3.5.1 Basics for Firewall........................................................................................................... 57

3.5.2 General Setup................................................................................................................. 60

3.5.3 Filter Setup ..................................................................................................................... 62

3.5.4 DoS Defense .................................................................................................................. 67

3.5.5 URL Content Filter.......................................................................................................... 70

3.5.6 Web Content Filter.......................................................................................................... 72

3.6 Anti-Intrusion......................................................................................................................... 73

3.6.1 Basic Setup..................................................................................................................... 73

3.6.2 Advanced Setup ............................................................................................................. 74

3.7 Anti-Virus............................................................................................................................... 77

3.7.1 Profile Setting ................................................................................................................. 77

3.7.2 Virus List......................................................................................................................... 79

3.7.3 File Pattern List............................................................................................................... 80

3.8 Anti-Spam.............................................................................................................................. 83

3.8.1 Profile Setting ................................................................................................................. 83

3.8.2 Activating Anti-Spam ......................................................................................................85

3.9 Bandwidth Management....................................................................................................... 85

3.9.1 Sessions Limit................................................................................................................. 86

3.9.2 Bandwidth Limit .............................................................................................................. 87

3.9.3 Quality of Service............................................................................................................ 88

3.10 Applications......................................................................................................................... 95

3.10.1 Dynamic DNS............................................................................................................... 95

3.10.2 Schedule....................................................................................................................... 97

3.10.3 RADIUS........................................................................................................................ 99

3.10.4 UPnP........................................................................................................................... 100

3.10.5 Wake On LAN............................................................................................................. 102

3.11 VPN and Remote Access.................................................................................................. 103

3.11.1 Remote Access Control.............................................................................................. 103

3.11.2 PPP General Setup .................................................................................................... 104

3.11.3 IPSec General Setup.................................................................................................. 105

3.11.4 IPSec Peer Identity..................................................................................................... 106

3.11.5 Remote Dial-in User ................................................................................................... 108

3.11.6 LAN to LAN................................................................................................................. 111

3.11.7 Connection Management ........................................................................................... 119

3.12 Certificate Management.................................................................................................... 120

3.12.1 Local Certificate.......................................................................................................... 120

3.12.2 Trusted CA Certificate ................................................................................................ 122

3.12.3 Certificate Backup....................................................................................................... 123

3.13 ISDN.................................................................................................................................. 123

3.13.1 Basic Concept............................................................................................................. 123

3.13.2 General Settings......................................................................................................... 124

3.13.3 Dial to Single/Dual ISPs.............................................................................................. 125

3.13.4 Virtual TA.................................................................................................................... 128

3.13.5 Call Control................................................................................................................. 131

3.14 Wireless LAN .................................................................................................................... 133

3.14.1 Basic Concepts........................................................................................................... 133

3.14.2 General Setup............................................................................................................. 135

VigorPro5500 Series User’s Guide

3.14.3 Security....................................................................................................................... 137

3.14.4 Access Control............................................................................................................ 138

3.14.5 WDS............................................................................................................................ 140

3.14.6 AP Discovery.............................................................................................................. 142

3.14.7 Station List.................................................................................................................. 143

3.14.8 Station Rate Control ................................................................................................... 144

3.15 VLAN................................................................................................................................. 144

3.15.1 Wired VLAN................................................................................................................ 144

3.15.2 Wireless VLAN............................................................................................................ 145

3.15.3 VLAN Cross Setup...................................................................................................... 148

3.15.4 Wireless Rate Control................................................................................................. 150

3.16 System Maintenance......................................................................................................... 151

3.16.1 System Status............................................................................................................. 151

3.16.2 Administrator Password.............................................................................................. 152

3.16.3 Configuration Backup ................................................................................................. 153

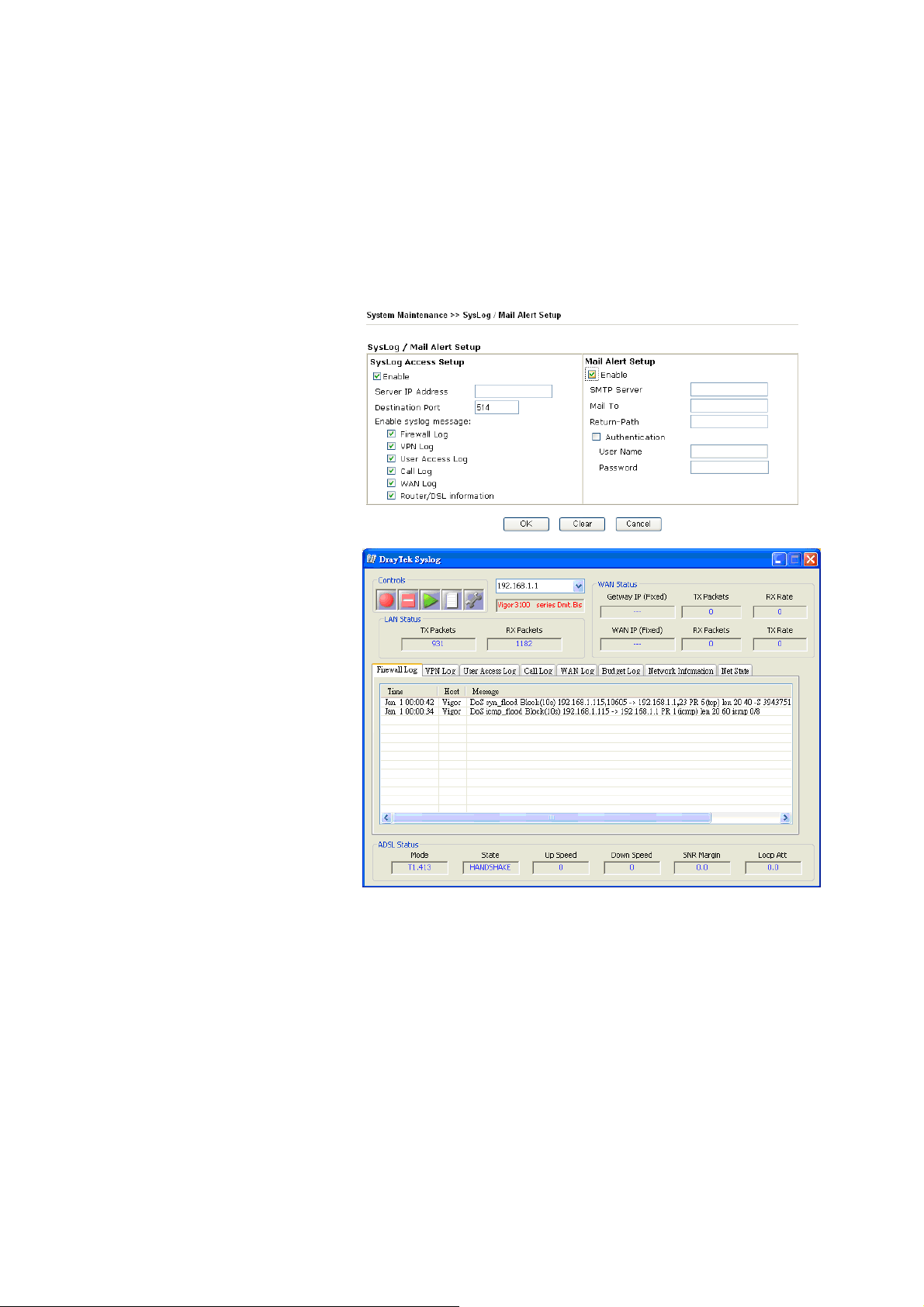

3.16.4 Syslog/Mail Alert......................................................................................................... 154

3.16.5 Time and Date............................................................................................................ 156

3.16.6 Management............................................................................................................... 157

3.16.7 Reboot System........................................................................................................... 158

3.16.8 Firmware Upgrade...................................................................................................... 159

3.16.9 Signature Upgrade...................................................................................................... 160

3.17 Diagnostics........................................................................................................................ 163

3.17.1 Dial-out Trigger........................................................................................................... 163

3.17.2 Routing Table ............................................................................................................. 164

3.17.3 ARP Cache Table....................................................................................................... 164

3.17.4 DHCP Table................................................................................................................ 165

3.17.5 NAT Sessions Table................................................................................................... 165

3.17.6 Wireless VLAN Online Station Table.......................................................................... 166

3.17.7 Ping Diagnosis............................................................................................................ 167

3.17.8 Data Flow Monitor....................................................................................................... 168

3.17.9 Traffic Graph............................................................................................................... 169

3.17.10 Trace Route.............................................................................................................. 170

Registration for the Router...........................................................................171

4.1 Creating and Activating an Account from V igorPro Website............................................... 171

4.2 Creating and Activating an Account from Router Web Configurator................................... 175

4.3 Registering Your Vigor Router ............................................................................................ 180

4.4 Activating Anti-Virus/Anti-Intrusion/Anti-Sp am Service....................................................... 185

4.4.1 For Anti-Virus and Anti-Intrusion Service..................................................................... 185

4.4.2 For Anti-Spam Service.................................................................................................. 190

4.5 Applying a New License for Anti-Intrusion/Anti-Virus.......................................................... 198

4.6 Backup and Upgrade Signature for Anti-Intrusion/Anti-Virus..................................................... 205

4.7 Switching between DT-DT and DT-KL................................................................................ 206

4.8 Enabling Anti-Virus/Anti-Intrusion/Anti-Spam...................................................................... 209

Application and Examples............................................................................211

VigorPro5500 Series User’s Guide

5.1 Create a LAN-to-LAN Connection Between Remote Office and Headquarter....................21 1

5.2 Create a Remote Dial-in User Connection Between the Teleworker and Headquarter...... 218

5.3 QoS Setting Example.......................................................................................................... 222

5.4 LAN – Created by Using NAT ............................................................................................. 225

5.5 Upgrade Firmware for Y our Router..................................................................................... 227

5.6 Request a certificate from a CA server on Windows CA Server......................................... 229

5.7 Request a CA Certificate and Set as Trusted on Windows CA Server............................... 233

Trouble Shooting...........................................................................................235

6.1 Checking If the Hardware Status Is OK or Not....................................................................235

6.2 Checking If the Network Connection Settings on Your Computer Is OK or Not ................. 235

6.3 Pinging the Router from Your Computer............................................................................. 238

6.4 Checking If the ISP Settings are OK or Not........................................................................ 239

6.5 Backing to Factory Default Setting If Necessary ................................................................ 241

6.6 Contacting Your Dealer....................................................................................................... 242

VigorPro5500 Series User’s Guide

vii

Prreeffaaccee

The VigorPro5500 series router provides Dual-WAN interface (which is a configurable second WAN) for Internet access to make the Internet connection more reliable. The wireless LAN supports more secure features and the transmission speed is up to 108Mbps (Super G

11..11 WWeebb CCoonnffiigguurraattiioonn BBuuttttoonnss EExxppllaannaattiioonn

Several main buttons appeared on the web pages are defined as the following:

). Object-oriented firewall is flexible and allows your network be safe.

Save and apply current settings.

Cancel current settings and recover to the previous saved settings.

Clear all the selections and parameters settings, including selection from

drop-down list. All the values must be reset with factory default settings.

Add new settings for specified item.

Edit the settings for the selected item.

Delete the selected item with the corresponding settings.

Note: For the other buttons shown on the web pages, please refer to Chapter 3 for detailed explanation.

11..22 LLEEDD IInnddiiccaattoorrss aanndd CCoonnnneeccttoorrss

Before you use the Vigor router, please get acquainted with the LED indicators and connectors first.

The displays of LED indicators and connectors for the routers are different slightly. The following sections will introduce them respectively.

VigorPro5500 Series User’s Guide

11..22..11 FFoorr VViiggoorrPPrroo 55550000

LED Status Explanation

Virus On

IDP (Intrusion Detection and Prevention)

DMZ On DMZ Host is specified in certain site. Monitor On LAN traffic monitor is active.

QoS

LED on Connector

10 (left LED)

WAN

100 (right LED)

LAN/Monitor LAN

100 (left LED)

1000 (right LED)

Blinking The router is powered on and running normal l y .ACT (Activity) Off The router is powered off.

The anti-virus function is enabled.

(Yellow) On

(Yellow)

On The VPN tunnel is launched. VPN Off The VPN tunnel is closed. On The QoS function is active.

On The port is connected with 10Mbps. Off The port is disconnected. Blinking The data is transmitting. On The port is connected with 100Mbps. Off The port is disconnected. Blinking The data is transmitting. On The port is connected with 100Mbps. Off The port is disconnected. Blinking The data is transmitting. On The port is connected with 1000Mbps. Off The port is disconnected. Blinking The data is transmitting.

The anti-intrusion function is enabled.

Interface Description

RST (Factory Reset)

WAN(1/2) Connecter for remote netw or k e d devi ces . LAN/Monitor Connecter for local networked devices. LAN (1-4) Connecter for local networked devices.

Restore the default settings. Usage: Turn on the router (ACT LED is blinking). Press the hole and keep for more than 5 seconds. When you see the ACT LED begins to blink rapidly than usual, release the button. Then the router will restart with the factory default configuration.

Connecter for a power cord with 100-240VAC (inlet). Power Switch. “1” is ON; “0” is OFF.

VigorPro5500 Series User’s Guide

11..22..22 FFoorr VViiggoorrPPrroo 55550000GG

LED Status Explanation

Virus On

IDP (Intrusion Detection and Prevention)

DMZ On DMZ Host is specified in certain site. Monitor On LAN traffic monitor is active.

QoS WLAN

LED on Connector

10 (left LED)

WAN

100 (right LED)

LAN/Monitor LAN

100 (left LED)

1000 (right LED)

Blinking The ro ut er is powered on and running normally.ACT (Activity) Off The router is powered off.

The anti-virus function is enabled.

(Yellow) On

(Yellow)

On The VPN tunnel is launched. VPN Off The VPN tunnel is closed. On The QoS function is active.

On Wireless access point is ready. Blinking Ethernet packets are transmitting over wireless LAN. Off The WLAN function is inactive.

The anti-intrusion function is enabled.

Interface Description

RST (Factory Reset)

WAN(1/2) Connecter for remote networked devices. LAN/Monitor Connecter for local networked devices. LAN (1-4) Connecter for local networked devices.

VigorPro5500 Series User’s Guide

Connecter for a power cord with 100-240VAC (inlet). Power Switch. “1” is ON; “0” is OFF.

11..22..33 FFoorr VViiggoorrPPrroo 55550000ii

LED Status Explanation

Virus IDP (Intrusion Detection and

Prevention) DMZ On DMZ Host is specified in certain site. Monitor On LAN traffic monitor is active.

QoS ISDN

LED on Connector

10 (left LED)

WAN

100 (right LED)

LAN/Monitor LAN

100 (left LED)

1000 (right LED)

Blinking The router is powered on and running normally. ACT (Activity) Off The router is powered off.

On (Yellow)

On The VPN tunnel is launched. VPN Off The VPN tunnel is closed. On The QoS function is active.

On The ISDN service function is active. Blinking A successful connection on the ISDN BRI

The anti-virus function is enabled. The anti-intrusion function is enabled.

B1/B2 channel.

Interface Description

RST (Factory Reset)

ISDN Connect for NT1 (or NT1+) box provided by ISDN service provider. WAN(1/2) Connecter for remote networked devices. LAN/Monitor Connecter for local networked devices. LAN (1- 4) Connecter for local networked devices.

Connecter for a power cord with 100-240VAC (inlet). Power Switch. “1” is ON; “0” is OFF.

VigorPro5500 Series User’s Guide

11..22..44 FFoorr VViiggoorrPPrroo 55550000GGii

LED Status Explanation

Virus IDP (Intrusion Detection and

Prevention) DMZ On DMZ Host is specified in certain site. Monitor On LAN traffic monitor is active.

QoS WLAN

ISDN

LED on Connector

10 (left LED)

WAN

100 (right LED)

LAN/Monitor LAN

100 (left LED)

1000 (right LED)

Blinking The router is powered on and running normally. ACT (Activity) Off The router is powered off.

On (Yellow)

On The VPN tunnel is launched. VPN Off The VPN tunnel is closed. On The QoS function is active.

On Wireless access point is ready. Blinking Ethernet packets are transmitting over wireless LAN. Off The WLAN function is inactive. On The ISDN service function is active. Blinking A successful connection on the ISDN BRI

The anti-virus function is enabled. The anti-intrusion function is enabled.

B1/B2 channel.

VigorPro5500 Series User’s Guide

Interface Description

RST (Factory Reset)

Connecter for a power cord with 100-240VAC (inlet). Power Switch. “1” is ON; “0” is OFF.

VigorPro5500 Series User’s Guide

11..33 HHaarrddwwaarree IInnssttaallllaattiioonn

This section will guide you to install the router through hardware connection and configure the router’s settings through web browser.

Before starting to configure the router, you have to connect your devices correctly.

1. Connect the power cord to the router’s power port on the rear panel, and the other side

into a wall outlet.

2. Power on the device by pressing down the power switch on the rear panel.

3. The system starts to initiate. After completing the system test, the ACT LED will light

up and start blinking.

4. Connect one end of an Ethernet cable (RJ-45) to one of the LAN ports of the router and

the other end of the cable (RJ-45) into the Ethernet port on your computer (that device also can connect to other computers to form a small area network). The LAN LED will light up according to the network card feature (10Mpbs or 100Mpbs) of the device that it connected.

5. Connect a modem/router (depends on your requirement) to any WAN port of router

with Ethernet cable (RJ-45). The WAN1/WAN2 LED (down/up) will light up according to the network card feature ((10Mpbs or 100Mpbs) of the device that it connected.

Power Switch

Power Cord

Internet

Cable/DSL Modem or Media Converter

(For the detailed information of LED status, please refer to section 1.2.)

LAN

VigorPro5500 Series User’s Guide

Coonnffiigguurriinngg

For use the router properly, it is necessary for you to change the password of web configuration for security and adjust primary basic settings.

This chapter explains how to setup a password for an administrator and how to adjust basic settings for accessing Internet successfully. Be aware that only the administrator can change the router configuration.

22..11 CChhaannggiinngg PPaasssswwoorrdd

To change the password for this device, you have to access into the web browse with default password first.

1. Make sure your computer connects to the router correctly.

Notice: You may either simply set up your computer to get IP dynamically from the router or set up the IP address of the computer to be the same subnet as the default IP address of Vigor router 192.168.1.1. For the detailed information, please refer to the later section - Trouble Shooting of this guide.

2. Open a web browser on your PC and type http://192.168.1.1. A pop-up window will

open to ask for username and password. Please type default values (both username and password are Null) on the window for the first time accessing and click OK for next screen.

Baassiicc

Seettttiinnggss

VigorPro5500 Series User’s Guide

3. Now, the Main Screen will pop up.

Note: The home page will change slightly in accordance with the router you have.

4. Go to System Maintenance page and choose Administrator Password.

5. Enter the login password (the default is blank) on the field of Old Password. Type a

new one in the field of New Password and retype it on the field of Retype New Password. Then click OK to continue.

6. Now, the password has been changed. Next time, use the new password to access the

Web Configurator for this router.

VigorPro5500 Series User’s Guide

22..22 QQuuiicckk SSttaarrtt WWiizzaarrdd

If your router can be under an environment with high speed NAT, the configuration provide here can help you to deploy and use the router quickly. The first screen of Quick Start Wizard is entering login password. After typing the password, please click Next.

On the next page as shown below, please select the WAN interface that you use. Choose Auto negotiation as the physical type for your router. Then click Next for next step.

VigorPro5500 Series User’s Guide

On the next page as shown below, please select the appropriate Internet access type according to the information from your ISP. For example, you should select PPPoE mode if the ISP provides you PPPoE interface. Then click Next for next step.

22..22..11 PPPPPPooEE

In the Quick Start Wizard, you can configure the router to access the Internet with different protocol/modes such as PPPoE, PPTP, Static IP or DHCP. The router supports the DSL WAN interface for Internet access.

PPPoE stands for Point-to-Point Protocol over Ethernet. It relies on two widely accepted standards: PPP and Ethernet. It connects users through an Ethernet to the Internet with a common broadband medium, such as a single DSL line, wireless device or cable modem. All the users over the Ethernet can share a common connection.

PPPoE is used for most of DSL modem users. All local users can share one PPPoE connection for accessing the Internet. Your service provider will provide you information about user name, password, and authentication mode.

VigorPro5500 Series User’s Guide

If your ISP provides you the PPPoE connection, please select PPPoE for this router. The following page will be shown.

User Name Assign a specific valid user name provided by the ISP. Password Assign a valid password provided by the ISP. Confirm Password Retype the password for confirmation.

Click Next for viewing summary of such connection.

Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown.

VigorPro5500 Series User’s Guide

22..22..22 PPPPTTPP

Click PPTP as the protocol. Type in all the information that your ISP provides for this protocol.

Click Next for viewing summary of such connection.

Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown.

VigorPro5500 Series User’s Guide

22..22..33 SSttaattiicc IIPP

Click Static IP as the protocol. Type in all the information that your ISP provides for this protocol.

After finishing the settings in this page, click Next to see the following page.

Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown.

VigorPro5500 Series User’s Guide

22..22..44 DDHHCCPP

Click DHCP as the protocol. Type in all the information that your ISP provides for this protocol.

After finishing the settings in this page, click Next to see the following page.

Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown.

VigorPro5500 Series User’s Guide

22..33 OOnnlliinnee SSttaattuuss

The online status shows the system status, WAN status, ADSL Information and other status related to this router within one page. If you select PPPoE/PPTP as the protocol, you will find out a link of Dial PPPoE/PPPoA or Drop PPPoE/PPPoA in the Online Status web page.

Online status for PPPoE (WAN2)

Online status for PPTP (for WAN2)

Online status for Static IP (for WAN1)

VigorPro5500 Series User’s Guide

Online status for DHCP

Detailed explanation is shown below:

Primary DNS Displays the IP address of the primary DNS. Secondary DNS Displays the IP address of the secondary DNS.

LAN Status

IP Address Displays the IP address of the LAN interface. TX Packets Displays the total transmitted packets at the LAN interface. RX Packets Displays the total number of received packets at the LAN interface.

WAN1/2 Status

Line Displays the physical connection (Ethernet) of this interface. Name Displays the name set in WAN1/WAN web page. Mode Displays the type of WAN connection (e.g., PPPoE). Up Time Displays the total uptime of the interface. IP Displays the IP address of the WAN interface. GW IP Displays the IP address of the default gateway. TX Packets Displays the total transmitted packets at the WAN interface. TX Rate Displays the speed of transmitted octets at the WAN interface. RX Packets Displays the total number of received packets at the WAN

interface.

RX Rate Displays the speed of received octets at the WAN interface.

Note: The words in green mean that the WAN connection of that interface

(WAN1/WAN2) is ready for accessing Internet; the words in red mean that the WAN connection of that interface (WAN1/WAN2) is not ready for accessing Internet.

VigorPro5500 Series User’s Guide

22..44 SSaavviinngg CCoonnffiigguurraattiioonn

Each time you click OK on the web page for saving the configuration, you can find messages showing the system interaction with you.

Ready indicates the system is ready for you to input settings. Settings Saved means your settings are saved once you click Finish or OK button.

VigorPro5500 Series User’s Guide

This page is left blank.

VigorPro5500 Series User’s Guide

Addvvaanncceedd

After finished basic configuration of the router, you can access Internet with ease. For the people who want to adjust more setting for suiting his/her request, please refer to this chapter for getting detailed information about the advanced configuration of this router. As for other examples of application, please refer to chapter 4.

33..11 WWAANN

33..11..11 BBaassiiccss ooff IInntteerrnneett PPrroottooccooll ((IIPP)) NNeettwwoorrkk

Quick Start Wizard offers user an easy method to quick setup the connection mode for the router. Moreover, if you want to adjust more settings for different WAN modes, please go to WAN group and click the Internet Access link.

IP means Internet Protocol. Every device in an IP-based Network including routers, print server, and host PCs, needs an IP address to identify its location on the network. To avoid address conflicts, IP addresses are publicly registered with the Network Information Centre (NIC). Having a unique IP address is mandatory for those devices participated in the public network but not in the private TCP/IP local area networks (LANs), such as host PCs under the management of a router since they do not need to be accessed by the public. Hence, the NIC has reserved certain addresses that will never be registered publicly. These are known as private IP addresses, and are listed in the following ranges:

Weebb

Coonnffiigguurraattiioonn

From 10.0.0.0 to 10.255.255.255 From 172.16.0.0 to 172.31.255.255 From 192.168.0.0 to 192.168.255.255

WWhhaatt aarree PPuubblliicc IIPP AAddddrreessss aanndd PPrriivvaattee IIPP AAddddrreessss

As the router plays a role to manage and further protect its LAN, it interconnects groups of host PCs. Each of them has a private IP address assigned by the built-in DHCP server of the Vigor router. The router itself will also use the default private IP address: 192.168.1.1 to communicate with the local hosts. Meanwhile, Vigor router will communicate with other network devices through a public IP address. When the data flow passing through, the Network Address Translation (NAT) function of the router will dedicate to translate public/private addresses, and the packets will be delivered to the correct host PC in the local area network. Thus, all the host PCs can share a common Internet connection.

GGeett YYoouurr PPuubblliicc IIPP AAddddrreessss ffrroomm IISSPP

In ADSL deployment, the PPP (Point to Point)-style authentication and authorization is required for bridging customer premises equipment (CPE). Point to Point Protocol over Ethernet (PPPoE) connects a network of hosts via an access device to a remote access concentrator or aggregation concentrator. This implementation provides users with significant ease of use. Meanwhile it provides access control, billing, and type of service according to user requirement.

When a router begins to connect to your ISP, a serial of discovery process will occur to ask for a connection. Then a session will be created. Your user ID and password is authenticated via PAP or CHAP with RADIUS authentication system. And your IP address, DNS server, and other related information will usually be assigned by your ISP.

VigorPro5500 Series User’s Guide

Below shows the menu items for WAN.

33..11..22 GGeenneerraall SSeettuupp

This section will introduce some general settings of Internet and explain the connection modes for WAN1 and WAN2 in details.

This router supports dual WAN function. It allows users to access Internet and combine the bandwidth of the dual WAN to speed up the transmission through the network. Each WAN port can connect to different ISPs, Even if the ISPs use different technology to provide telecommunication service (such as DSL, Cable modem, etc.). If any connection problem occurred on one of the ISP connections, all the traffic will be guided and switched to the normal communication port for proper operation. Please configure WAN1 and WAN2 settings.

This webpage allows you to set general setup for WAN1 and WAN respectively.

Note: In default, WAN1 and WAN2 are enabled.

Enable Choose Yes to invoke the settings for this WAN interface.

Choose No to disable the settings for this WAN interface.

Display Name Type the description for the WAN1/WAN2 interface. Physical Mode For WAN1, the physical connection is done through ADSL

port; yet the physical connection for WAN2 is done through an Ethernet port (P1). You cannot change it.

VigorPro5500 Series User’s Guide

Physical Type You can change the physical type for WAN2 or choose Auto

negotiation for determined by the system.

Load Balance Mode If you know the practical bandwidth for your WAN interface,

please choose the setting of According to Line Speed. Otherwise, please choose Auto Weigh to let the router reach the best load balance.

Line Speed If your choose According to Line Speed as the Load

Balance Mode, please type the line speed for downloading

and uploading through WAN1/WAN2. The unit is kbps.

Active Mode Choose Always On to make the WAN connection

(WAN1/WAN2) being activated always; or choose Active on demand to make the WAN connection (WAN1/WAN2) activated if it is necessary.

If you choose Active on demand, the Idle Timeout will be available for you to set for PPPoE and PPTP access modes in the Details Page of WAN>>Internet Access. In addition, there are three selections for you to choose for different purposes. WAN2 Fail – It means the connection for WAN1 will be activated when WAN2 is failed. WAN2 Upload speed exceed XX kbps – It means the connection for WAN1 will be activated when WAN2 Upload speed exceed certain value that you set in this box for 15 seconds. WAN2 Download speed exceed XX kbps– It means the connection for WAN1 will be activated when WAN2 Download speed exceed certain value that you set in this box for 15 seconds. WAN1 Fail – It means the connection for WAN2 will be activated when WAN1 is failed. WAN1 Upload speed exceed XX kbps – It means the connection for WAN2 will be activated when WAN1 Upload speed exceed certain value that you set in this box for 15 seconds. WAN1 Download speed exceed XX kbps– It means the connection for WAN2 will be activated when WAN1 Download speed exceed certain value that you set in this box for 15 seconds.

VigorPro5500 Series User’s Guide

33..11..33 IInntteerrnneett AAcccceessss

For the router supports dual WAN function, the users can set different WAN settings (for WAN1/WAN2) for Internet Access. Due to different physical mode for WAN1 and WAN2, the Access Mode for these two connections also varies slightly.

Index It shows the WAN modes that this router supports. WAN1 is the

Display Name It shows the name of the WAN1/WAN2 that entered in general

Physical Mode It shows the physical port for WAN1/WAN2. Access Mode Use the drop down list to choose a proper access mode. The details

default WAN interface for accessing into the Internet. WAN2 is the optional WAN interface for accessing into the Internet when WAN 1 is inactive for some reason.

setup.

page of that mode will be popped up. If not, click Details Page for accessing the page to configure the settings.

There are three access modes provided for PPPoE, Static or Dynamic IP and PPTP.

Details Page This button will open different web page according to the access

mode that you choose in WAN1 or WAN2.

VigorPro5500 Series User’s Guide

DDeettaaiillss PPaaggee ffoorr PPPPPPooEE

To use PPPoE as the accessing protocol of the internet, please choose Internet Access from WAN menu. Then, select PPPoE mode for WAN2. The following web page will be shown.

PPPoE Client Mode Click Enable for activating this function. If you click Disable, this

function will be closed and all the settings that you adjusted in this page will be invalid.

ISP Access Setup Enter your allocated username, password and authentication

parameters according to the information provided by your ISP. If you want to connect to Internet all the time, you can check Always

On. Username – Type in the username provided by ISP in this field. Password – Type in the password provided by ISP in this field. Index (1-15) in Schedule Setup - You can type in four sets of time

schedule for your request. All the schedules can be set previously in Application – Schedule web page and you can use the number that you have set in that web page.

PPP/MP Setup PPP Authentication – Select PAP only or PAP or CHAP for

PPP. Idle Timeout – Set the timeout for breaking down the Internet after passing through the time without any action. This setting is active only when the Active on demand option for Active Mode is selected in WAN>> General Setup page.

IP Address Assignment Method (IPCP)

Usually ISP dynamically assigns IP address to you each time you connect to it and request. In some case, your ISP provides service to always assign you the same IP address whenever you request. In this case, you can fill in this IP address in the Fixed IP field. Please contact your ISP before you want to use this function.

VigorPro5500 Series User’s Guide

WAN IP Alias - If you have multiple public IP addresses and would like to utilize them on the WAN interface, please use WAN IP Alias. You can set up to 8 public IP addresses other than the current one you are using.

Fixed IP – Click Yes to use this function and type in a fixed IP address in the box of Fixed IP Address. Default MAC Address – You can use Default MAC Address or specify another MAC address by typing on the boxes of MAC Address for the router. Specify a MAC Address – Type the MAC address for the router manually.

After finishing all the settings here, please click OK to activate them.

DDeettaaiillss PPaaggee ffoorr SSttaattiicc oorr DDyynnaammiicc IIPP

For static IP mode, you usually receive a fixed public IP address or a public subnet, namely multiple public IP addresses from your DSL or Cable ISP service providers. In most cases, a Cable service provider will offer a fixed public IP, while a DSL service provider will offer a public subnet. If you have a public subnet, you could assign an IP address or many IP address to the WAN interface.

To use Static or Dynamic IP as the accessing protocol of the internet, please choose Internet Access from WAN menu. Then, select Static or Dynamic IP mode for WAN2. The following web page will be shown.

VigorPro5500 Series User’s Guide

Static or Dynamic IP (DHCP Client)

Click Enable for activating this function. If you click Disable, this function will be closed and all the settings that you adjusted in this page will be invalid.

Keep WAN Connection

Normally, this function is designed for Dynamic IP environments because some ISPs will drop connections if there is no traffic within certain periods of time. Check Enable PING to keep alive box to activate this function. PING to the IP - If you enable the PING function, please specify the IP address for the system to PING it for keeping alive. PING Interval - Enter the interval for the system to execute the PING operation.

RIP Protocol Routing Information Protocol is abbreviated as RIP（RFC1058）

specifying how routers exchange routing tables information. Click

Enable RIP for activating this function.

WAN IP Network Settings

This group allows you to obtain an IP address automatically and allows you type in IP address manually.

VigorPro5500 Series User’s Guide

DNS Server IP Address

Obtain an IP address automatically – Click this button to obtain the IP address automatically if you want to use Dynamic IP mode.

Router Name: Type in the router name provided by ISP. Domain Name: Type in the domain name that you have assigned.

Specify an IP address – Click this radio button to specify some data if you want to use Static IP mode.

IP Address: Type the IP address. Subnet Mask: Type the subnet mask. Gateway IP Address: Type the gateway IP address. Default MAC Address: Click this radio button to use default MAC

address for the router. Specify a MAC Address: Some Cable service providers specify a specific MAC address for access authentication. In such cases you need to click the Specify a MAC Address and enter the MAC address in the MAC Address field.

Type in the primary IP address for the router if you want to use Static IP mode. If necessary, type in secondary IP address for necessity in the future.

VigorPro5500 Series User’s Guide

DDeettaaiillss PPaaggee ffoorr PPPPTTPP

To use PPTP as the accessing protocol of the internet, please choose Internet Access from WAN menu. Then, select PPTP mode for WAN2. The following web page will be shown.

PPTP Setup PPTP Link - Click Enable to enable a PPTP client to establish a

tunnel to a DSL modem on the WAN interface.

PPTP Server - Specify the IP address of the PPTP server.

ISP Access Setup Username -Type in the username provided by ISP in this field.

Password -Type in the password provided by ISP in this field. Index (1-15) in Schedule Setup - You can type in four sets of time

schedule for your request. All the schedules can be set previously in Application – Schedule web page and you can use the number that you have set in that web page.

PPP Setup PPP Authentication - Select PAP only or PAP or CHAP for PPP.

Idle Timeout - Set the timeout for breaking down the Internet after

passing through the time without any action. This setting is active only when the Active on demand option for Active Mode is selected in WAN>> General Setup page.

IP Address Assignment Method(IPCP)

Fixed IP - Usually ISP dynamically assigns IP address to you each

time you connect to it and request. In some case, your ISP provides service to always assign you the same IP address whenever you request. In this case, you can fill in this IP address in the Fixed IP field. Please contact your ISP before you want to use this function. Click Yes to use this function and type in a fixed IP address in the box.

Fixed IP Address -Type a fixed IP address. WAN IP Alias - If you have multiple public IP addresses and

would like to utilize them on the WAN interface, please use WAN IP Alias. You can set up to 8 public IP addresses other than the current one you are using. Notice that this setting is available for WAN1 only.

VigorPro5500 Series User’s Guide

WAN IP Network Settings

33..11..44 LLooaadd--BBaallaannccee PPoolliiccyy

This router supports the function of load balancing. It can assign traffic with protocol type, IP address for specific host, a subnet of hosts, and port range to be allocated in WAN1 or WAN2 interface. The user can assign traffic category and force it to go to dedicate network interface based on the following web page setup. Twenty policies of load-balance are supported by this router.

Note: Load-Balance Policy is running only when both WAN1 and WAN2 are activated.

Default MAC Address – Click this radio button to use default MAC address for the router. Specify a MAC Address - Some Cable service providers specify a specific MAC address for access authentication. In such cases you need to click the Specify a MAC Address and enter the MAC address in the MAC Address field.

Obtain an IP address automatically – Click this button to obtain the IP address automatically.

Specify an IP address – Click this radio button to specify some data.

IP Address – Type the IP address. Subnet Mask – Type the subnet mask.

VigorPro5500 Series User’s Guide

Index Click the number of index to access into the load-balance policy

configuration web page.

Enable Check this box to enable this policy. Protocol Use the drop-down menu to change the protocol for the WAN

interface.

WAN Use the drop-down menu to change the WAN interface.

Src IP Start Displays the IP address for the start of the source IP. Src IP End Displays the IP address for the end of the source IP. Dest IP Start Displays the IP address for the start of the destination IP. Dest IP End Displays the IP address for the end of the destination IP. Dest Port Start Displays the IP address for the start of the destination port. Dest Port End Displays the IP address for the end of the destination port. Click Index 1 to access into the following page for configuring load-balance policy.

VigorPro5500 Series User’s Guide

Enable Check this box to enable this policy. Protocol Use the drop-down menu to choose a proper protocol for the WAN

interface.

Binding WAN

Choose the WAN interface (WAN1 or WAN2) for binding.

interface Src IP Start Type the source IP start for the specified WAN interface. Src IP End Type the source IP end for the specified WAN interface. If this

field is blank, it means that all the source IPs inside the LAN will be passed through the WAN interface.

Dest IP Start Type the destination IP start for the specified WAN interface. Dest IP End Type the destination IP end for the specified WAN interface. If this

field is blank, it means that all the destination IPs will be passed through the WAN interface.

Dest Port Start Type the destination port start for the destination IP. Dest Port End Type the destination port end for the destination IP. If this field is

blank, it means that all the destination ports will be passed through the WAN interface.

VigorPro5500 Series User’s Guide

33..22 LLAANN

Local Area Network (LAN) is a group of subnets regulated and ruled by router. The design of network structure is related to what type of public IP addresses coming from your ISP.

33..22..11 BBaassiiccss ooff LLAANN

The most generic function of Vigor router is NAT. It creates a private subnet of your own. As mentioned previously, the router will talk to other public hosts on the Internet by using public IP address and talking to local hosts by using its private IP address. What NAT does is to translate the packets from public IP address to private IP address to forward the right packets to the right host and vice versa. Besides, Vigor router has a built-in DHCP server that assigns private IP address to each local host. See the following diagram for a briefly understanding.

In some special case, you may have a public IP subnet from your ISP such as

220.135.240.0/24. This means that you can set up a public subnet or call second subnet that each host is equipped with a public IP address. As a part of the public subnet, the Vigor router will serve for IP routing to help hosts in the public subnet to communicate with other public hosts or servers outside. Therefore, the router should be set as the gateway for public hosts.

VigorPro5500 Series User’s Guide

WWhhaatt iiss RRoouuttiinngg IInnffoorrmmaattiioonn PPrroottooccooll ((RRIIPP))

Vigor router will exchange routing information with neighboring routers using the RIP to accomplish IP routing. This allows users to change the information of the router such as IP address and the routers will automatically inform for each other.

WWhhaatt iiss SSttaattiicc RRoouuttee

When you have several subnets in your LAN, sometimes a more effective and quicker way for connection is the Static routes function rather than other method. You may simply set rules to forward data from one specified subnet to another specified subnet without the presence of RIP.

WWhhaatt aarree VViirrttuuaall LLAANNss aanndd RRaattee CCoonnttrrooll

You can group local hosts by physical ports and create up to 4 virtual LANs. To manage the communication between different groups, please set up rules in Virtual LAN (VLAN) function and the rate of each.

VigorPro5500 Series User’s Guide

33..22..22 GGeenneerraall SSeettuupp

This page provides you the general settings for LAN. Click LAN to open the LAN settings page and choose General Setup.

1st IP Address Ty pe in private IP address for connecting to a local private network

(Default: 192.168.1.1).

1st Subnet Mask Type in an address code that determines the size of the network.

(Default: 255.255.255.0/ 24)

For IP Routing Usage Click Enable to invoke this function. The default setting is

Disable.

IP Address Type in secondary IP address for connecting to a subnet.

(Default: 192.168.2.1/ 24)

Subnet Mask An address code that determines the size of the network.

(Default: 255.255.255.0/ 24)

DHCP Server You can configure the router to serve as a DHCP server for the 2nd

subnet.

VigorPro5500 Series User’s Guide

Start IP Address: Enter a value of the IP address pool for the DHCP server to start with when issuing IP addresses. If the 2nd IP address of your router is 220.135.240.1, the starting IP address must be 220.135.240.2 or greater, but smaller than

220.135.240.254.

IP Pool Counts: Enter the number of IP addresses in the pool. The maximum is 10. For example, if you type 3 and the 2nd IP address of your router is 220.135.240.1, the range of IP address by the DHCP server will be from 220.135.240.2 to 220.135.240.11.

MAC Address: Enter the MAC Address of the host one by one and click Add to create a list of hosts to be assigned, deleted or edited IP address from above pool. Set a list of MAC Address for

DHCP server will help router to assign the correct IP address of the correct subnet to the correct host. So those hosts in 2 won’t get an IP address belonging to 1

subnet.

subnet

RIP Protocol Control Disable deactivates the RIP protocol. It will lead to a stoppage of

the exchange of routing information between routers. (Default)

1st Subnet - Select the router to change the RIP information of the 1st subnet with neighboring routers. 2nd Subnet - Select the router to change the RIP information of the 2nd subnet with neighboring routers.

DHCP Server Configuration

DHCP stands for Dynamic Host Configuration Protocol. The router by factory default acts a DHCP server for your network so it automatically dispatch related IP settings to any local user configured as a DHCP client. It is highly recommended that you leave the router enabled as a DHCP server if you do not have a DHCP server for your network.

If you want to use another DHCP server in the network other than

the Vigor Router’s, you can let Relay Agent help you to redirect the DHCP request to the specified location. Enable Server - Let the router assign IP address to every host in the LAN. Disable Server – Let you manually assign IP address to every host in the LAN.

Relay Agent – (1

subnet/2nd subnet) Specify which subnet that

DHCP server is located the relay agent should redirect the DHCP request to. Start IP Address - Enter a value of the IP address pool for the DHCP server to start with when issuing IP addresses. If the 1st IP address of your router is 192.168.1.1, the starting IP address must be 192.168.1.2 or greater, but smaller than 192.168.1.254. IP Pool Counts - Enter the maximum number of PCs that you want the DHCP server to assign IP addresses to. The default is 50 and the maximum is 253. Gateway IP Address - Enter a value of the gateway IP address for the DHCP server. The value is usually as same as the 1st IP address of the router, which means the router is the default gateway.

VigorPro5500 Series User’s Guide

DHCP Server IP Address for Relay Agent - Set the IP address of the DHCP server you are going to use so the Relay Agent can help to forward the DHCP request to the DHCP server.

DNS Server Configuration

DNS stands for Domain Name System. Every Internet host must have a unique IP address, also they may have a human-friendly, easy to remember name such as www.yahoo.com. The DNS server converts the user-friendly name into its equivalent IP address.

Force DNS manual setting -

this page instead of DNS servers given by the Internet Access server (PPPoE, PPTP, L2TP or DHCP server). Primary IP Address -You must specify a DNS server IP address here because your ISP should provide you with usually more than one DNS Server. If your ISP does not provide it, the router will automatically apply default DNS Server IP address: 194.109.6.66 to this field. Secondary IP Address - You can specify secondary DNS server IP address here because your ISP often provides you more than one DNS Server. If your ISP does not provide it, the router will automatically apply default secondary DNS Server IP address:

194.98.0.1 to this field. The default DNS Server IP address can be found via Online Status:

If both the Primary IP and Secondary IP Address fields are left empty, the router will assign its own IP address to local users as a DNS proxy server and maintain a DNS cache.

Force router to use DNS servers in

There are two common scenarios of LAN settings that stated in Chapter 4. For the configuration examples, please refer to that chapter to get more information for your necessity.

33..22..33 SSttaattiicc RRoouuttee

Go to LAN to open setting page and choose Static Route.

Index The number (1 to 10) under Index allows you to open next page to

If the IP address of a domain name is already in the DNS cache, the router will resolve the domain name immediately. Otherwise, the router forwards the DNS query packet to the external DNS server by establishing a WAN (e.g. DSL/Cable) connection.

set up static route.

VigorPro5500 Series User’s Guide

Destination Address Displays the destination address of the static route. Status Displays the status of the static route. Viewing Routing Table Displays the routing table for your reference.

AAdddd SSttaattiicc RRoouutteess ttoo PPrriivvaattee aanndd PPuubblliicc NNeettwwoorrkkss

Here is an example of setting Static Route in Main Router so that user A and B locating in different subnet can talk to each other via the router. Assuming the Internet access has been configured and the router works properly:

z use the Main Router to surf the Internet. z create a private subnet 192.168.10.0 using an internal Router A (192.168.1.2) z create a public subnet 211.100.88.0 via an internal Router B (192.168.1.3). z have set Main Router 192.168.1.1 as the default gateway for the Router A 192.168.1.2.

Before setting Static Route, user A cannot talk to user B for Router A can only forward recognized packets to its default gateway Main Router.

Go to LAN page and click General Setup, select 1st Subnet as the RIP Protocol Control. Then click the OK button.

VigorPro5500 Series User’s Guide

Note: There are two reasons that we have to apply RIP Protocol Control on 1st Subnet. The first is that the LAN interface can exchange RIP packets with the neighboring routers via the 1st subnet (192.168.1.0/24). The second is that those hosts on the internal private subnets (ex. 192.168.10.0/24) can access the Internet via the router, and continuously exchange of IP routing information with different subnets.

1. Click the LAN - Static Route and click on the Index Number 1. Check the Enable

box. Please add a static route as shown below, which regulates all packets destined to

192.168.10.0 will be forwarded to 192.168.1.2. Click OK.

2. Return to Static Route Setup page. Click on another Index Number to add another

static route as show below, which regulates all packets destined to 211.100.88.0 will be forwarded to 192.168.1.3.

3. Go to Diagnostics and choose Routing Table to verify current routing table.

VigorPro5500 Series User’s Guide

33..22..44 VVLLAANN

Note: This menu is available for Vigor5500 model. For Vigor5500G, please refer to 3.13.

Virtual LAN function provides you a very convenient way to manage hosts by grouping them based on the physical port. You can also manage the in/out rate of each port. Go to LAN page and select VLAN. The following page will appear. Click Enable to invoke VLAN function.

To add or remove a VLAN, please refer to the following example.

1. If, VLAN 0 is consisted of hosts linked to P1 and P2 and VLAN 1 is consisted of hosts

linked to P3 and P4.

VigorPro5500 Series User’s Guide

2. After checking the box to enable VLAN function, you will check the table according to

the needs as shown below.

To remove VLAN, uncheck the needed box and click OK to save the results.

33..22..55 BBiinndd IIPP ttoo MMAACC

This function is used to bind the IP and MAC address in LAN to have a strengthen control in network. When this function is enabled, all the assigned IP and MAC address binding together cannot be changed. If you modified the binding IP or MAC address, it might cause you not access into the Internet.

Click LAN and click Bind IP to MAC to open the setup page.

Enable Click this radio button to invoke this function. However, IP/MAC

Disable Click this radio button to disable this function. All the settings on

Strict Bind Click this radio button to block the connection of the IP/MAC

ARP Table This table is the LAN ARP table of this router. The information

VigorPro5500 Series User’s Guide

which is not listed in IP Bind List also can connect to Internet.

this page will be invalid.

which is not listed in IP Bind List.

for IP and MAC will be displayed in this field. Each pair of IP

and MAC address listed in ARP table can be selected and added to IP Bind List by clicking Add below

Add and Edit IP Address – Type the IP address that will be used for the

specified MAC address. Mac Address – Type the MAC address that is used to bind with the assigned IP address.

Refresh It is used to refresh the ARP table. When there is one new PC

added to the LAN, you can click this link to obtain the newly ARP table information.

IP Bind List It displays a list for the IP bind to MAC information. Add It allows you to add the one you choose from the ARP table or

the IP/MAC address typed in Add and Edit to the table of IP Bind List.

Edit It allows you to edit and modify the selected IP address and MAC

address that you create before.

Delete You can remove any item listed in IP Bind List. Simply click

and select the one, and click Delete. The selected item will be removed from the IP Bind List.

33..33 NNAATT

Note: Before you select Strict Bind, you have to bind one set of IP/MAC address for one PC. If not, no one of the PCs can access into Internet. And the web configurator of the router might not be accessed.

Usually, the router serves as an NAT (Network Address Translation) router. NAT is a mechanism that one or more private IP addresses can be mapped into a single public one. Public IP address is usually assigned by your ISP, for which you may get charged. Private IP addresses are recognized only among internal hosts.

When the outgoing packets destined to some public server on the Internet reach the NAT router, the router will change its source address into the public IP address of the router, select the available public port, and then forward it. At the same time, the router shall list an entry in a table to memorize this address/port-mapping relationship. When the public server response, the incoming traffic, of course, is destined to the router’s public IP address and the router will do the inversion based on its table. Therefore, the internal host can communicate with external host smoothly.

The benefit of the NAT includes: z Save cost on applying public IP address and apply efficient usage of IP address.

NAT allows the internal IP addresses of local hosts to be translated into one public IP address, thus you can have only one IP address on behalf of the entire internal hosts.

z Enhance security of the internal network by obscuring the IP address. There are

many attacks aiming victims based on the IP address. Since the attacker cannot be aware of any private IP addresses, the NAT function can protect the internal network.

On NAT page, you will see the private IP address defined in RFC-1918. Usually we use the 192.168.1.0/24 subnet for the router. As stated before, the NAT facility can map one or more IP addresses and/or service ports into different specified services. In other words, the NAT function can be achieved by using port mapping methods.

VigorPro5500 Series User’s Guide

Below shows the menu items for NAT.

33..33..11 PPoorrtt RReeddiirreeccttiioonn

Port Redirection is usually set up for server related service inside the local network (LAN), such as web servers, FTP servers, E-mail servers etc. Most of the case, you need a public IP address for each server and this public IP address/domain name are recognized by all users. Since the server is actually located inside the LAN, the network well protected by NAT of the router, and identified by its private IP address/port, the goal of Port Redirection function is to forward all access request with public IP address from external users to the mapping private IP address/port of the server.

The port redirection can only apply to incoming traffic. To use this function, please go to NAT page and choose Port Redirection web page. The

Port Redirection Table provides 20 port-mapping entries for the internal hosts.

VigorPro5500 Series User’s Guide

Press any number under Index to access into next page for configuring port redirection.

Enable Check this box to enable such port redirection setting. Mode Two options (Single and Range) are provided here for you to

choose. To set a range for the specific service, select Range. In Range mode, if the public port (start port and end port) and the starting IP of private IP had been entered, the system will calculate and display the ending IP of private IP automatically.

Service Name Enter the description of the specific network service. Protocol Select the transport layer protocol (TCP or UDP). Public Port Specify which port can be redirected to the specified Private IP

and Port of the internal host. If you choose Range as the port

redirection mode, you will see two boxes on this field. Simply type the required numbers on these two boxes.

Private IP Specify the private IP address of the internal host providing the

service. If you choose Range as the port redirection mode, you will see two boxes on this field. Simply type the IP address in the first

VigorPro5500 Series User’s Guide

box (as the starting point). The second one is assigned automatically after you type the private port number below.

Private Port Specify the private port number of the service offered by the

internal host. After you enter the proper number in this box, the second box of Private IP address will be assigned accordingly.

Active Check this box to activate the port-mapping entry you have

defined.

Note that the router has its own built-in services (servers) such as Telnet, HTTP and FTP etc. Since the common port numbers of these services (servers) are all the same, you may need to reset the router in order to avoid confliction.

For example, the built-in web configurator in the router is with default port 80, which may conflict with the web server in the local network, http://192.168.1.13:80. Therefore, you need to change the router’s http port to any one other than the default port 80 to avoid conflict, such as 8080. This can be set in the System Maintenance >>Management Setup. You then will access the admin screen of by suffixing the IP address with 8080, e.g., http://192.168.1.1:8080 instead of port 80.

VigorPro5500 Series User’s Guide

33..33..22 DDMMZZ HHoosstt

As mentioned above, Port Redirection can redirect incoming TCP/UDP or other traffic on particular ports to the specific private IP address/port of host in the LAN. However, other IP protocols, for example Protocols 50 (ESP) and 51 (AH), do not travel on a fixed port. Vigor router provides a facility DMZ Host that maps ALL unsolicited data on any protocol to a single host in the LAN. Regular web surfing and other such Internet activities from other clients will continue to work without inappropriate interruption. DMZ Host allows a defined internal user to be totally exposed to the Internet, which usually helps some special applications such as Netmeeting or Internet Games etc.

Note: The inherent security properties of NAT are somewhat bypassed if you set up DMZ host. We suggest you to add additional filter rules or a secondary firewall.

Click DMZ Host to open the following page:

WAN1 This page allows you to configure Private IP or Active True IP as

DMZ host.

Private IP If you choose Private IP as DMZ host, you can type a private IP in

this box or use Choose PC button to choose the one you want.

MAC Address of the True….

If you choose Active True IP as DMZ host, please type the MAC address of the one you want.

VigorPro5500 Series User’s Guide

If you previously have set up WAN Alias in Internet Access>>PPPoE, you will find them in Aux. WAN IP list for your selection.

Enable Check to enable the DMZ Host function. Private IP Enter the private IP address of the DMZ host, or click Choose PC

to select one.

Choose PC Click this button and then a window will automatically pop up, as

depicted below. The window consists of a list of private IP addresses of all hosts in your LAN network. Select one private IP address in the list to be the DMZ host.

When you have selected one private IP from the above dialog, the IP address will be shown on the following screen. Click OK to save the setting.

VigorPro5500 Series User’s Guide

33..33..33 OOppeenn PPoorrttss

Open Ports allows you to open a range of ports for the traffic of special applications. Common application of Open Ports includes P2P application (e.g., BT, KaZaA, Gnutella, WinMX, eMule and others), Internet Camera etc. Ensure that you keep the application involved up-to-date to avoid falling victim to any security exploits.

Click Open Ports to open the following page:

Index Indicate the relative number for the particular entry that you want to

offer service in a local host. You should click the appropriate index number to edit or clear the corresponding entry.

Comment Specify the name for the defined network service. WAN Interface Display the WAN interface for the entry. Local IP Address Display the private IP address of the local host offering the service. Status Display the state for the corresponding entry. X or V is to represent

the Inactive or Active state.

To add or edit port settings, click one index number on the page. The index entry setup page will pop up. In each index entry, you can specify 10 port ranges for diverse services.

VigorPro5500 Series User’s Guide

Enable Open Ports Check to enable this entry. Comment Make a name for the defined network application/service. WAN Interface Specify the WAN interface that will be used for this entry. Local Computer Enter the private IP address of the local host or click Choose PC to

select one.

Choose PC Click this button and, subsequently, a window having a list of

private IP addresses of local hosts will automatically pop up. Select the appropriate IP address of the local host in the list.

Protocol Specify the transport layer protocol. It could be TCP, UDP, or -----

(none) for selection.

Start Port Specify the starting port number of the service offered by the local

host.

End Port Specify the ending port number of the service offered by the local

host.

VigorPro5500 Series User’s Guide

33..44 OObbjjeeccttss SSeettttiinnggss

For IPs in a range and service ports in a limited range usually will be applied for configuring router’s settings, therefore we can define them with objects and bind them with groups for using conveniently. Later, we can select that object/group that can apply it. For example, all the IPs in the same department can be defined with an IP object (a range of IP address).

33..44..11 IIPP OObbjjeecctt

You can set up to 192 sets of IP Objects with different conditions.

Set to Factory Default Clear all profiles. Click the number under Index column for settings in detail.

VigorPro5500 Series User’s Guide

Name Type a name for this profile. Maximum 15 characters are

allowed.

Interface Choose a proper interface (WAN, LAN or Any).

For example, the Direction setting in Edit Filter Rule will ask you specify IP or IP range for WAN or LAN or any IP address. If you choose LAN as the Interface here, and choose LAN as the direction setting in Edit Filter Rule, then all the IP addresses specified with LAN interface will be opened for you to choose in Edit Filter Rule page.

Address Type Determine the address type for the IP address.

Select Single Address if this object contains one IP address only. Select Range Address if this object contains several IPs within a range. Select Subnet Address if this object contains one subnet for IP address. Select Any Address if this object contains any IP address.

Start IP Address Type the start IP address for Single Address type. End IP Address Type the end IP address if the Range Address type is selected. Subnet Mask Type the subnet mask if the Subnet Address type is selected. Invert Select If it is checked, all the IP addresses except the ones listed

above will be applied later while it is chosen.

Below is an example of IP objects settings.

VigorPro5500 Series User’s Guide

33..44..22 IIPP GGrroouupp

This page allows you to bind several IP objects into one IP group.

Set to Factory Default Clear all profiles. Click the number under Index column for settings in detail.

Name Type a name for this profile. Maximum 15 characters are

allowed.

Interface Choose WAN, LAN or Any to display all the available IP

objects with the specified interface.

Available IP Objects All the available IP objects (created in IP Object web page)

with the specified interface chosen above will be shown in this box.

Selected IP Objects Click

button to add the selected IP objects in this box.

VigorPro5500 Series User’s Guide

33..44..33 SSeerrvviiccee TTyyppee OObbjjeecctt

You can set up to 96 sets of Service Type Objects with different conditions.

Set to Factory Default Clear all profiles.

Click the number under Index column for settings in detail.

Name Type a name for this profile. Protocol Specify the protocol(s) which this profile will apply to.

Source/Destination Port Source Port and the Destination Port column are available

VigorPro5500 Series User’s Guide

for TCP/UDP protocol. It can be ignored for other protocols. The filter rule will filter out any port number. (=) – when the first and last value are the same, it indicates one port; when the first and last values are different, it indicates a range for the port and available for this profile.

(!=) – when the first and last value are the same, it indicates

all the ports except the port defined here; when the first and last values are different, it indicates that all the ports

except the range defined here are available for this service type.

(>) – the port number greater than this value is available. (<) – the port number less than this value is available for this

profile.

Below is an example of service type objects settings.

33..44..44 SSeerrvviiccee TTyyppee GGrroouupp

This page allows you to bind several service types into one group.

Set to Factory Default Clear all profiles.

Click the number under Index column for settings in detail.

VigorPro5500 Series User’s Guide

Name Type a name for this profile. Available Service Type

Objects Selected Service Type

Objects

33..44..55 CCSSMM PPrrooffiillee

You can define policy profiles for different policy of IM (Instant Messenger)/P2P (Peer to Peer) application. CSM profile can be used in Filter Setup page.

You can add IP objects from IP Objects page. All the available IP objects will be shown in this box.

Click

button to add the selected IP objects in this

box.

Set to Factory Default Clear all profiles.

Click the number under Index column for settings in detail.

VigorPro5500 Series User’s Guide

Profile Name Type a name for the CSM profile. There are several items for IM, VoIP, P2P provided here for you to choose to disallow

people using. Simple check the box (es) and then click OK. Later, in the Firewall>>Edit Filter Set>>Edit Filter Rule page, you can use Content Management drop down list to choose the proper CSM profile as the standard for the host(s) to follow.

VigorPro5500 Series User’s Guide

33..55 FFiirreewwaallll

33..55..11 BBaassiiccss ffoorr FFiirreewwaallll

While the broadband users demand more bandwidth for multimedia, interactive applications, or distance learning, security has been always the most concerned. The firewall of the Vigor router helps to protect your local network against attack from unauthorized outsiders. It also restricts users in the local network from accessing the Internet. Furthermore, it can filter out specific packets that trigger the router to build an unwanted outgoing connection.

The most basic security concept is to set user name and password while you install your router. The administrator login will prevent unauthorized access to the router configuration from your router.

If you did not set password during installation; you can go to System Maintenance to set up your password.

FFiirreewwaallll FFaacciilliittiieess

The users on the LAN are provided with secured protection by the following firewall facilities:

z User-configurable IP filter (Call Filter/ Data Filter). z Stateful Packet Inspection (SPI): tracks packets and denies unsolicited incoming data z Selectable Denial of Service (DoS) /Distributed DoS (DDoS) attacks protection z URL Content Filter

VigorPro5500 Series User’s Guide

IIPP FFiilltteerrss

Depending on whether there is an existing Internet connection, or in other words “the WAN link status is up or down”, the IP filter architecture categorizes traffic into two: Call Filter and Data Filter.

z Call Filter - When there is no existing Internet connection, Call Filter is applied to all

traffic, all of which should be outgoing. It will check packets according to the filter rules. If legal, the packet will pass. Then the router shall “initiate a call” to build the Internet connection and send the packet to Internet.

z Data Filter - When there is an existing Internet connection, Data Filter is applied to

incoming and outgoing traffic. It will check packets according to the filter rules. If legal, the packet will pass the router.

The following illustrations are flow charts explaining how router will treat incoming traffic and outgoing traffic respectively.

SSttaatteeffuull PPaacckkeett IInnssppeeccttiioonn ((SSPPII))

Stateful inspection is a firewall architecture that works at the network layer. Unlike legacy static packet filtering, which examines a packet based on the information in its header, stateful inspection builds up a state machine to track each connection traversing all interfaces of the firewall and makes sure they are valid. The stateful firewall of Vigor router not just examine the header information also monitor the state of the connection.

VigorPro5500 Series User’s Guide

CCoonntteenntt SSeeccuurriittyy MMaannaaggeemmeenntt ((CCSSMM))

As the popularity of all kinds of instant messenger application arises, communication cannot become much easier. Nevertheless, while some industry may leverage this as a great tool to connect with their customers, some industry may take reserve attitude in order to reduce employee misusage during office hour or prevent unknown security leak. It is similar situation for corporation towards peer-to-peer applications since file-sharing can be convenient but insecure at the same time. To address these needs, we provide CSM functionality.

DDeenniiaall ooff SSeerrvviiccee ((DDooSS)) DDeeffeennssee

The DoS Defense functionality helps you to detect and mitigate the DoS attack. The attacks are usually categorized into two types, the flooding-type attacks and the vulnerability attacks. The flooding-type attacks will attempt to exhaust all your system's resource while the vulnerability attacks will try to paralyze the system by offending the vulnerabilities of the protocol or operation system.

The DoS Defense function enables the Vigor router to inspect every incoming packet based on the attack signature database. Any malicious packet that might duplicate itself to paralyze the host in the secure LAN will be strictly blocked and a Syslog message will be sent as warning, if you set up Syslog server.

Also the Vigor router monitors the traffic. Any abnormal traffic flow violating the pre-defined parameter, such as the number of thresholds, is identified as an attack and the Vigor router will activate its defense mechanism to mitigate in a real-time manner.

The below shows the attack types that DoS/DDoS defense function can detect:

1. SYN flood attack

2. UDP flood attack

3. ICMP flood attack

4. TCP Flag scan

5. Trace route

6. IP options

7. Unknown protocol

8. Land attack

CCoonntteenntt FFiilltteerriinngg

9. Smurf attack

10. SYN fragment

11. ICMP fragment

12. Tear drop attack

13. Fraggle attack

14. Ping of Death attack

15. TCP/UDP port scan

To provide an appropriate cyberspace to users, Vigor router equips with URL Content Filter not only to limit illegal traffic from/to the inappropriate web sites but also prohibit other web feature where malicious code may conceal.

Once a user type in or click on an URL with objectionable keywords, URL keyword blocking facility will decline the HTTP request to that web page thus can limit user’s access to the website. You may imagine URL Content Filter as a well-trained convenience-store clerk who won’t sell adult magazines to teenagers. At office, URL Content Filter can also provide a job-related only environment hence to increase the employee work efficiency. How can URL Content Filter work better than traditional firewall in the field of filtering? Because it checks the URL strings or some of HTTP data hiding in the payload of TCP packets while legacy firewall inspects packets based on the fields of TCP/IP headers only.

On the other hand, Vigor router can prevent user from accidentally downloading malicious codes from web pages. It’s very common that malicious codes conceal in the executable objects, such as ActiveX, Java Applet, compressed files, and other executable files. Once downloading these types of files from websites, you may risk bringing threat to your system. For example, an ActiveX control object is usually used for providing interactive web feature. If malicious code hides inside, it may occupy user’s system.

VigorPro5500 Series User’s Guide

WWeebb FFiilltteerriinngg

We all know that the content on the Internet just like other types of media may be inappropriate sometimes. As a responsible parent or employer, you should protect those in your trust against the hazards. With Web filtering service of the Vigor router, you can protect your business from common primary threats, such as productivity, legal liability, network and security threats. For parents, you can protect your children from viewing adult websites or chat rooms.

Once you have activated your Web Filtering service in Vigor router and chosen the categories of website you wish to restrict, each URL address requested (e.g.www.bbc.co.uk) will be checked against our server database, powered by SurfControl. The database covering over 70 languages and 200 countries, over 1 billion Web pages divided into 40 easy-to-understand categories. This database is updated as frequent as daily by a global team of Internet researchers. The server will look up the URL and return a category to your router. Your Vigor router will then decide whether to allow access to this site according to the categories you have selected. Please note that this action will not introduce any delay in your Web surfing because each of multiple load balanced database servers can handle millions of requests for categorization.

AAnnttii--VViirruuss aanndd AAnnttii--IInnttrruussiioonn

Users might have much more confidence about the security in the network for data transmission if the functions of anti-virus and anti-intrusion are activated. The VigorPro router offers the mechanism of anti-virus and anti-intrusion. What you have to do is to set the proper profiles and invoke them. The anti-virus profile and anti-intrusion configuration can be set in Anti-Virus menu (refer to section 3.7) and Anti-Intrusion menu (refer to section 3.6). However, the mechanism must be enabled either in Firewall>>General Setup or Firewall>>Filter Setup web page. After you choose proper Anti-Virus profile and check Anti-Intrusion box, the Anti-Virus and Anti-Intrusion LEDs on the front panel will light up.

Below shows the menu items for Firewall.

33..55..22 GGeenneerraall SSeettuupp

General Setup allows you to adjust settings of IP Filter and common options. Here you can enable or disable the Call Filter or Data Filter. Under some circumstance, your filter set can be linked to work in a serial manner. So here you assign the Start Filter Set only. Also you can configure the Log Flag settings, Apply IP filter to VPN incoming packets, and Accept

incoming fragmented UDP packets.

Important: When some packet does not fit the rule configured in Filter Setup web page,

the filtering action configured in general setup web page will apply to that packet.

Click Firewall and click General Setup to open the general setup page.

VigorPro5500 Series User’s Guide

Call Filter Check Enable to activate the Call Filter function. Assign a start

filter set for the Call Filter.

Data Filter Check Enable to activate the Data Filter function. Assign a start

filter set for the Data Filter.

Filter Select Pass or Block for the packets that do not match with the

filter rules.

Content Security Management

Select a CSM profile for global IM/P2P application blocking. All the hosts in LAN must follow the standard configured in the CSM profile selected here. For detailed information, refer to the section of CSM profile setup.

Anti-Virus Select one of the anti-virus profile settings (created in

Anti-Virus>>Profile Setting) for applying with this router. Please set at least one profile for anti-virus in Anti-Virus-> Profile Setting web page first.

Anti-Intrusion Check the Enable box to invoke anti-intrusion filter function. Anti-Spam Select one of the anti-spam profile settings (created in

Anti-Spam>>Profile Setting) for applying with this router. Please set at least one profile for anti-spam in Anti-Spam>>Profile Setting web page first.

Log For troubleshooting needs you can specify the

VigorPro5500 Series User’s Guide

filter/CSM/Anti-Virus/Anti-Intrusion/Anti-Spam log here by checking the box. Check this box to record all packets; or uncheck this box to ignore all the packet record. The log will be displayed on Draytek Syslog window.

Some on-line games (for example: Half Life) will use lots of fragmented UDP packets to transfer game data. Instinctively as a secure firewall, Vigor router will reject these fragmented packets to prevent attack unless you enable “Accept Incoming Fragmented UDP Packets”. By checking this box, you can play these kinds of on-line games. If security concern is in higher priority, you cannot enable “Accept Incoming Fragmented UDP Packets”.

33..55..33 FFiilltteerr SSeettuupp

Click Firewall and click Filter Setup to open the setup page.

To edit or add a filter, click on the set number to edit the individual set. The following page will be shown. Each filter set contains up to 7 rules. Click on the rule number button to edit each rule. Check Active to enable the rule.

Filter Rule Click a button numbered (1 ~ 7) to edit the filter rule. Click the

button will open Edit Filter Rule web page. For the detailed information, refer to the following page.

Active Enable or disable the filter rule. Comment Enter filter set comments/description. Maximum length is

23–character long.

Move Up/Down Use Up or Down link to move the order of the filter rules. Next Filter Set Set the link to the next filter set to be executed after the current

filter run. Do not make a loop with many filter sets.

To edit Filter Rule, click the Filter Rule index button to enter the Filter Rule setup page.

VigorPro5500 Series User’s Guide

Check to enable the

Check this box to enable the filter rule.

Filter Rule Comments Enter filter set comments/description. Maximum length is 14-

character long.

Index (1-15) Set PCs on LAN to work at certain time interval only. You may

choose up to 4 schedules out of the 15 schedules pre-defined in Applications >> Schedule setup. The default setting of this filed is blank and the function will always work.

Direction Set the direction of packet flow (LAN->WAN/WAN->LAN). It is

for Data Filter only. For the Call Filter, this setting is not available since Call Filter is only applied to outgoing traffic.

Source/Destination IP Click Edit to access into the following dialog to choose the

source/destination IP or IP ranges.

VigorPro5500 Series User’s Guide

To set the IP address manually, please choose Any Address/Single Address/Range Address/Subnet Address as the Address Type and type them in this dialog. In addition, if you want to use the IP range from defined groups or objects, please choose Group and Objects as the Address Type.

From the IP Group drop down list, choose the one that you want to apply. Or use the IP Object drop down list to choose the object that you want.

Service Type Click Edit to access into the following dialog to choose a suitable

service type.

To set the service type manually, please choose User defined as the Service Type and type them in this dialog. In addition, if you want to use the service type from defined groups or objects, please choose Group and Objects as the Service Type.

Protocol - Specify the protocol(s) which this filter rule will apply to. Source/Destination Port -

(=) – when the first and last value are the same, it indicates one port; when the first and last values are different, it indicates a range for the port and available for this service type. (!=) – when the first and last value are the same,

it indicates all

the ports except the port defined here; when the first and last

values are different, it indicates that all the ports except the range defined here are available for this service type.

(>) – the port number greater than this value is available. (<) – the port number less than this value is available for this

profile.

VigorPro5500 Series User’s Guide

Service Group/Object - Use the drop down list to choose the one that you want.

Fragments Specify the action for fragmented packets. And it is used for Data

Filter only. Don’t care -No action will be taken towards fragmented packets. Unfragmented -Apply the rule to unfragmented packets. Fragmented - Apply the rule to fragmented packets. Too Short - Apply the rule only to packets that are too short to

contain a complete header.

Pass or Block Specifies the action to be taken when packets match the rule.

Block Immediately - Packets matching the rule will be dropped

immediately. Pass Immediately - Packets matching the rule will be passed immediately. Block If No Further Match - A packet matching the rule, and that does not match further rules, will be dropped. Pass If No Further Match - A packet matching the rule, and that does not match further rules, will be passed through.

Branch to other Filter Set

If the packet matches the filter rule, the next filter rule will branch to the specified filter set. Select next filter rule to branch from the drop-down menu. Be aware that the router will apply the specified filter rule for ever and will not return to previous filter rule any more.

Log For troubleshooting needs you can specify the

Content Security Management

All the packets/connections within the range configured in the above conditions must follow the standard configured in the CSM profile selected here. For detailed information, refer to the section of CSM profile setup.

Anti-Virus Select one of the anti-virus profile settings (created in

Anti-Virus>>Profile Setting) for applying with this router. Please set at least one profile for anti-virus in Anti-Virus-> Profile Setting web page first.

Anti-Intrusion Check the Enable box to invoke anti-intrusion filter function. Anti-Spam Select one of the anti-spam profile settings (created in

Anti-Spam>>Profile Setting) for applying with this router. Please set at least one profile for anti-spam in Anti-Spam>>Profile Setting web page first.

EExxaammppllee

As stated before, all the traffic will be separated and arbitrated using on of two IP filters: call filter or data filter. You may preset 12 call filters and data filters in Filter Setup and even link them in a serial manner. Each filter set is composed by 7 filter rules, which can be further defined. After that, in General Setup you may specify one set for call filter and one set for data filter to execute first.

VigorPro5500 Series User’s Guide

33..55..44 DDooSS DDeeffeennssee

As a sub-functionality of IP Filter/Firewall, there are 15 types of detect/defense function in the DoS Defense setup. The DoS Defense functionality is disabled for default.

Click Firewall and click DoS Defense to open the setup page.

Enable Dos Defense Check the box to activate the DoS Defense Functionality. Enable SYN flood

defense

Check the box to activate the SYN flood defense function. Once detecting the Threshold of the TCP SYN packets from the Internet has exceeded the defined value, the Vigor router will start to randomly discard the subsequent TCP SYN packets for a period defined in Timeout. The goal for this is prevent the TCP SYN packets’ attempt to exhaust the limited-resource of Vigor router. By default, the threshold and timeout values are set to 50 packets per second and 10 seconds, respectively.

Enable UDP flood defense

Check the box to activate the UDP flood defense function. Once detecting the Threshold of the UDP packets from the Internet has exceeded the defined value, the Vigor router will start to randomly discard the subsequent UDP packets for a period defined in Timeout. The default setting for threshold and timeout are 150 packets per second and 10 seconds, respectively.

Enable ICMP flood defense

Check the box to activate the ICMP flood defense function. Similar to the UDP flood defense function, once if the Threshold of ICMP packets from Internet has exceeded the defined value, the router will discard the ICMP echo requests coming from the Internet. The default setting for threshold and timeout are 50 packets per second and 10 seconds, respectively.

Enable PortScan detection

VigorPro5500 Series User’s Guide

Port Scan attacks the Vigor router by sending lots of packets to many ports in an attempt to find ignorant services would respond. Check the box to activate the Port Scan detection. Whenever detecting this malicious exploration behavior by monitoring the port-scanning Threshold rate, the Vigor router will send out a warning. By default, the Vigor router sets the threshold as 150

packets per second.

Block IP options Check the box to activate the Block IP options function. The Vigor

router will ignore any IP packets with IP option field in the datagram header. The reason for limitation is IP option appears to be a vulnerability of the security for the LAN because it will carry significant information, such as security, TCC (closed user group) parameters, a series of Internet addresses, routing messages...etc. An eavesdropper outside might learn the details of your private networks.

Block Land Check the box to enforce the Vigor router to defense the Land

attacks. The Land attack combines the SYN attack technology with IP spoofing. A Land attack occurs when an attacker sends spoofed SYN packets with the identical source and destination addresses, as well as the port number to victims.

Block Smurf Check the box to activate the Block Smurf function. The Vigor

router will ignore any broadcasting ICMP echo request.

Block trace router Check the box to enforce the Vigor router not to forward any trace

route packets.

Block SYN fragment Check the box to activate the Block SYN fragment function. The

Vigor router will drop any packets having SYN flag and more fragment bit set.

Block Fraggle Attack Check the box to activate the Block fraggle Attack function. Any

broadcast UDP packets received from the Internet is blocked. Activating the DoS/DDoS defense functionality might block some legal packets. For example, when you activate the fraggle attack defense, all broadcast UDP packets coming from the Internet are blocked. Therefore, the RIP packets from the Internet might be dropped.

Block TCP flag scan Check the box to activate the Block TCP flag scan function. Any

TCP packet with anomaly flag setting is dropped. Those scanning activities include no flag scan, FIN without ACK scan, SYN FINscan, Xmas scan and full Xmas scan.

Block Tear Drop Check the box to activate the Block Tear Drop function. Many

machines may crash when receiving ICMP datagrams (packets) that exceed the maximum length. To avoid this type of attack, the Vigor router is designed to be capable of discarding any fragmented ICMP packets with a length greater than 1024 octets.

Block Ping of Death Check the box to activate the Block Ping of Death function. This

attack involves the perpetrator sending overlapping packets to the target hosts so that those target hosts will hang once they re-construct the packets. The Vigor routers will block any packets realizing this attacking activity.

Block ICMP Fragment Check the box to activate the Block ICMP fragment function. Any

ICMP packets with more fragment bit set are dropped.

Block Unknown Protocol

Check the box to activate the Block Unknown Protocol function. Individual IP packet has a protocol field in the datagram header to indicate the protocol type running over the upper layer. However, the protocol types greater than 100 are reserved and undefined at this time. Therefore, the router should have ability to detect and

VigorPro5500 Series User’s Guide

reject this kind of packets.

Warning Messages We provide Syslog function for user to retrieve message from Vigor

router. The user, as a Syslog Server, shall receive the report sending from Vigor router which is a Syslog Client.

All the warning messages related to DoS defense will be sent to user

and user can review it through Syslog daemon. Look for the keyword DoS in the message, followed by a name to indicate what kind of attacks is detected.

VigorPro5500 Series User’s Guide

33..55..55 UURRLL CCoonntteenntt FFiilltteerr

Based on the list of user defined keywords, the URL Content Filter facility in Vigor router inspects the URL string in every outgoing HTTP request. No matter the URL string is found full or partial matched with a keyword, the Vigor router will block the associated HTTP connection.

For example, if you add key words such as “sex”, Vigor router will limit web access to web sites or web pages such as “www.sex.com”, ”www.backdoor.net/images/sex/p_386.html”. Or you may simply specify the full or partial URL such as “www.sex.com” or “sex.com”.

Also the Vigor router will discard any request that tries to retrieve the malicious code. Click Firewall and click URL Content Filter to open the setup page.

Enable URL Access

Check the box to activate URL Access Control.

Control Black List (block those

matching keyword) White List (pass those

matching keyword)

Click this button to restrict accessing into the corresponding webpage with the keywords listed on the box below.

Click this button to allow accessing into the corresponding webpage with the keywords listed on the box below.

Keyword The Vigor router provides 8 frames for users to define keywords

and each frame supports multiple keywords. The keyword could be

VigorPro5500 Series User’s Guide

a noun, a partial noun, or a complete URL string. Multiple keywords within a frame are separated by space, comma, or semicolon. In addition, the maximal length of each frame is 32-character long. After specifying keywords, the Vigor router will decline the connection request to the website whose URL string matched to any user-defined keyword. It should be noticed that the more simplified the blocking keyword list, the more efficiently the Vigor router perform.

Prevent web access from IP address

Check the box to deny any web surfing activity using IP address, such as http://202.6.3.2. The reason for this is to prevent someone dodges the URL Access Control.

You must clear your browser cache first so that the URL content

filtering facility operates properly on a web page that you visited before.

Enable Restrict Web Feature

Check the box to activate the function. Java - Check the checkbox to activate the Block Java object function. The Vigor router will discard the Java objects from the Internet.

ActiveX - Check the box to activate the Block ActiveX object

function. Any ActiveX object from the Internet will be refused. Compressed file - Check the box to activate the Block Compressed file function to prevent someone from downloading any compressed file. The following list shows the types of compressed files that can be blocked by the Vigor router. .

zip, rar, .arj, .ace, .cab, .sit

Executable file - Check the box to reject any downloading behavior of the executable file from the Internet. .exe, .com, .scr, .pif, .bas, .bat, .inf, .reg Cookie - Check the box to filter out the cookie transmission from inside to outside world to protect the local user's privacy. Proxy - Check the box to reject any proxy transmission. To control efficiently the limited-bandwidth usage, it will be of great value to provide the blocking mechanism that filters out the multimedia files downloading from web pages. Accordingly, files with the following extensions will be blocked by the Vigor router.

.mov .mp3 .rm .ra .au .wmv .wav .asf .mpg .mpeg .avi .ram

Enable Excepting Subnets

Time Schedule Specify what time should perform the URL content filtering

VigorPro5500 Series User’s Guide

Four entries are available for users to specify some specific IP addresses or subnets so that they can be free from the URL Access Control. To enable an entry, click on the empty checkbox, named as ACT, in front of the appropriate entry.

facility.

33..55..66 WWeebb CCoonntteenntt FFiilltteerr

Click Firewall and click Web Content Filter to open the setup page. For this section, please refer to Web Content Filter user’s guide.

VigorPro5500 Series User’s Guide

33..66 AAnnttii--IInnttrruussiioonn

This page allows you to prevent the intrusion from hackers while accessing into Internet. It can detect the intrusion and execute basic defense.

There are more than 200 basic rules for anti-intrusion and anti-virus for this router. To acquire more rules for anti-intrusion, it is suggested for you to register your router by entering www.vigorpro.com. When you finished the registration, you can get and activate a wide range of anti-intrusion rules from the website. In addition, you will be allowed to download/update new rules (if they are released) from the websites lately (during the valid time of the license key you purchased) after completing the registration.

You are allowed to use trial version with anti-intrusion and anti-virus features for 30 days after you register for the router. And you will be noticed with an e-mail while it is going to expire.

33..66..11 BBaassiicc SSeettuupp

Basic Setup page lets you to enable the anti-intrusion service and choose the suitable level for the detection.

Anti-Intrusion Control Setup

Enable Anti-Intrusion Service

VigorPro5500 Series User’s Guide

This field will display the signature version of this router. The default signature version is “basic”. In this version, you can modify the settings for Anti-Intrusion rules in Anti-Intrusion >>Advanced Setup page. However, if you restart/reset the router, all the modified configurations for the rules will not be available and return to the default settings. Except “basic”, the modified configurations for other signature versions are available all the time after you saved them in Anti-Intrusion >>Advanced Setup page.

Check this box to enable the anti-intrusion function.

High Security Click this radio button to activate the anti-intrusion service

with overall detecting conditions. That is, the router will detect and block the incoming/outgoing packets which match all the severity rules, including high, medium and low. The degree of severity for each rule is defined in Advance Setup.

Medium Security Click this radio button to activate the anti-intrusion service

with medium detecting conditions. That is, the router will detect and block the incoming/outgoing packets which match the highest and medium severity rules. The degree of severity for each rule is defined in Advance Setup.

Low Security Click this radio button to activate the anti-intrusion service

with minimum detecting conditions. That is, the router will detect and block the incoming/outgoing packets which match the highest severity rules. The degree of severity for each rule is defined in Advanced Setup.

Enable Pass processing Click this radio button to detect if there is any intrusion

occurrence for your reference. The system will not do any advanced action for such condition.

Enable Disallow processing Click this radio button to block the incoming/outgoing packets

with possible intrusion actions transmitting through the router.

Enable Reset procession Click this radio button to break down the communication

33..66..22 AAddvvaanncceedd SSeettuupp

This page lists all the available types and allows you to adjust the rule setting for each type. The rules will be applied by the options chosen in the page of Basic Setup for Anti-Intrusion.

between your computer and specific link which might have intrusion actions.

SID/Name To find the specific type of anti-intrusion, you can type its

SID number or name in this field if you know, and then click

Search. The system will locate that type for you.

Search It can help the user to find out specific anti-intrusion rule

quickly.

VigorPro5500 Series User’s Guide

Type links Click any anti-intrusion type link to access into next page for

configuring the rules settings. Here we provide several rules for each type. The factory types and rules for anti-intrusion are shown in this page. If you want to acquire more types and rules, please go to www.vigorpro.com and finish the registration work. Later, the wide range of anti-intrusion types will be added into this page.

After you click any one of type links, you can access into the rules setup page for activating rules. We take the type of BO as an example. Below is the rules setup page for BO type.

For the detailed information about the full name, meaning of each rule and/or type, you can click the name link list on the Anti-Intrusion Rules Setup page to connect VigorPro webpage for viewing.

Enable Check to enable this rule. If you uncheck this box, the

corresponding settings for the rule will not be executed.

SID The number for each anti-intrusion rule is displayed in this

field.

Name A brief description name for the anti-intrusion rule is shown in

this field. Click the name link to access into VigorPro website for checking the detailed information for the specified antiintrusion.

Severity It means the degree of the influence for this type to the

computer, machine, network and environment. H: representing that this type will cause severest affection which must crash/destroy your computer. M: representing that this type will cause severer affection which might crash your computer. L: representing that this type will cause small affection which might not crash your computer.

window of Draytek Syslog, you have to check the log box here and enable the SysLog Access Setup from System Maintenance >> Syslog/Mail Alert.

VigorPro5500 Series User’s Guide

Action Pass - Click this radio button to detect if there is any intrusion

occurrence for your reference. The system will not do any advanced action for such condition. Disallow - Click this radio button to block the incoming/outgoing packets with possible intrusion actions transmitting through the router. Reset - Click this radio button to break down the communication between your computer and specific link which might have intrusion actions. Default - Click this radio button to execute the anti-intrusion detection according to the setting that you set in Basic Setup.

Page Type the page number in this field (if there is more than one

page of anti-virus detail view displayed on this page). Then click Go to the specified page. Or you can click

⏐

button on the right side of the Go button to access to the

⏐

>, >>, << or

home/previous/next/end page.

VigorPro5500 Series User’s Guide

33..77 AAnnttii--VViirruuss

Vigor router can offer basic virus scanning, destroying and cut off the connection between questionable link and your computer for the files transmitted through specified protocol. In addition, several types of compressed file formats such as .zip, .gzip, .bzip2 are supported and can be scanned with this router. There is no limitation in the file size for the transmitted (incoming or outgoing) file. With this feature, all the files processed with the protocol specified in Anti-Virus web page will be scanned for finding out virus while passing through the router.

Note: Files with six-layer compression (the files are compressed with six times) also can be scanned by this router.

33..77..11 PPrrooffiillee SSeettttiinngg

This page allows you to set eight profiles for anti-virus scanning. These profiles can be invoked through firewall configuration. It is recommended to build one profile at least. Thus you will have selectable anti-virus profile setting in Firewall->General Setup.

The Administration Message box allows you to fill in important notification directly for SMTP and POP3 protocols. It will be saved as a file. While receiving an e-mail, the user will receive an attached file with the content listed in this box.

To edit a profile setting, please click the number link under Profile. You can see the following screen. You can check the boxes listed below for different operation respectively. If you uncheck this box, the corresponding settings for the protocol will not be performed.

VigorPro5500 Series User’s Guide

Profile Name Type a name for the profile. Protocol Currently, only the files transmitted through the protocols

listed in this page including SMTP, POP3, IMAP, HTTP and FTP will be scanned by this router.

Action Choose the action that you want to apply to the protocols of

each operation.

Pass - Detect if there is any virus for your reference. The system will not do any advanced action for such condition.

Destroy- Destroy the infected file found by the router system. Reset - Break down the communication between your

computer and specific link which might have virus included.

Enable Virus Scan Check this box to enable the general virus scan procedure for

different protocols.

Enable Log In order to show the virus detection log on the window of

Draytek Syslog, you have to check the log box here and enable the SysLog Access Setup from System Maintenance >> Syslog/Mail Alert.

VigorPro5500 Series User’s Guide

Detect Macro Attachment The file with macro attachment will be passed/destroyed/reset

under different protocols. The system will detect it automatically if you set corresponding configuration here.

Detect Encrypted Zipped Files

Detect Suspicious Compression

Append Message This function is available for SMTP and POP3 protocols. If

File Filter Click this link to open Anti-Virus >>File Pattern List for

Block Fragmented Mail

Block Multiple Sessions Download

33..77..22 VViirruuss LLiisstt

The file zipped with encryption will be detected and then be passed/destroyed/reset according to the configuration set here.

The file with suspicious or non-support compression format will be detected and then be passed/destroyed/reset according to the configuration set here.

you check it, the message typed under the box of Administration Message will be sent out with e-mail.

viewing current settings. The file with fragmentations will be passed/destroyed/reset

under different protocols. The router cannot execute the scanning job for some mail fragmentation if you check the boxes here.

The file with multiple sessions which are created by HTTP will be detected and then be passed/destroyed/reset according to the configuration set here.

This page displays the virus list ordered by digits (0-9) and letters (A-Z). Each number after the letter link indicates the total types of the virus collected.

SID/NAME To find the specific type of anti-virus, you can type its SID

number or name in this field if you know, and then click

Search. The system will locate that rule for you.

Search Click this button to find out all the virus rules related to the

SID/NAME that you entered. The page of the searching result will be shown as the following picture.

VigorPro5500 Series User’s Guide

Click each name link to check the detailed information of the anti-virus rule.

DDeettaaiilleedd VViieeww ffoorr AAnnttii--VViirruuss

From the fourteen types of anti-virus list, click any one of them to access into next page. The detailed view list for anti-virus rule will be shown as below.

NAME A brief description name for the anti-virus rule is shown in

this field. Click the name link to access into VigorPro website for checking the detailed information for the specified anti-virus.

SID The number for each anti-virus rule is displayed in this field. Page Type the page number in this field (if there is more than one

33..77..33 FFiillee PPaatttteerrnn LLiisstt

To avoid confidential file being leaked out by someone else through network and cause severe consequence, you can specify the file name in this page and determine to destroy or scan or pass it while the file passes through the router.

To activate the File Patter List, you have to set one Anti-Virus profile on Anti-Virus>>Profile Setting. Also you can specify file names without virus appended to be ignored by anti-virus server to improve the performance.

page of anti-virus detail view displayed on this page). Then click Go to the specified page. Or you can click

⏐

button on the right side of the Go button to access to the

home/previous/next/end page.

⏐

>, >>, << or

VigorPro5500 Series User’s Guide

This page allows you to set 32 entries (rules) of file names to be filtered by the router. In such case, the file format is ignored. The router will destroy, scan or non-scan the specified filename according to the configuration that you set here.

Below is the page of File Pattern List. The priority of each entry is determined by the index number. That is, the entry of Index 1 has the highest priority in file name filtering; the entry of Index 32 has the lowest priority in filtering.

Default Action Choose one of the actions (Scan, Non-Scan, Destroy) as the

default action if the filename for one file does not meet the conditions configured in these thirty-two entries.

Action Choose the action that you want to apply to the protocols of

each operation. Destroy- Destroy the file with name specified here which is found by the router system. Non-Scan –The file will not be scanned and will not be processed by using general rules set in Anti-Virus profile. Scan – Just scan the file with name specified here which is found by the router system, and be processed by using general rules set in Anti-Virus profile.

Name Enter the keyword of the file that you want to filter. The

maximum character is 30. And the name is case-sensitive.

Move Up/Down Press OK to ensure the name you typed and then use Up or

Down link to move the order of the file pattern entry.

Destroy the file if the file name is over length

Enable Syslog/Mail Alert

Check this box to destroy the file with filename over 76 characters.

Check this box to have Syslog/Mail Alert list the information

VigorPro5500 Series User’s Guide

for Default Action

for default action.

Click OK to finish the page configuration.

VigorPro5500 Series User’s Guide

33..88 AAnnttii--SSppaamm

Many people suffer with unwanted mails coming from everywhere. Such device offers a mechanism, named Anti-Spam, to do basic scanning for filtering unnecessary mails and sorting the mails.

Below shows the menu items for Anti-Spam.

To activate function of Anti-Spam, you have to configure profile(s) for your computer first. Please open Profile Setting from Anti-Spam menu to access into the following page. There are sixteen profiles provided by this system for you to define.

Profile (1 ~16) There are sixteen profiles provided for you to define. Simply

Name List the name for the profile setting. Service Activation The Activate link can guide user into www.vigorpro.com for

Anti-Spam Authentication Message

33..88..11 PPrrooffiillee SSeettttiinngg

Simply click number under Profile item. The detailed page will be shown right away. The following graphic is the web page for the profile marked with number 1.

VigorPro5500 Series User’s Guide

click the number link under Profile, the setting page for that number will be open for you to configure.

creating account or register router for Anti-Spam. Meanwhile, it is used to activate Anti-Spam service.

As for authentication information of Anti-Spam, the process of authenticating will be displayed on this field for your reference.

Profile Name Type a name for such profile setting. Choose Protocol to Scan

Spam

Spam files usually come with protocol of SMTP or POP3. Please check the box that you want to avoid. It would be better to check both protocols.

Select an Action for Each Category

Mails would be judged and categorized into Spam or Bulk. For the one that is confirmed as spam will be processed with the rule of Spam; and the one that is probably spam will be processed with the rule of Bulk. Please set different process action for Spam and Bulk respectively. Pass – Choose this action to make all mails passing through. Tag - Choose this action to make all mails be tagged with certain words for you to identify easily. For example, type “SPAM” on the box of Message. If the subject of some mail is “license page” and it is judged as spam, then it will be shown as “***SPAM***license page” in your mail box. Such tag can help users to identify which mail is useful or useless quickly.

Select Specific Operation

Choose Action for System Timeout or Network Problem

Check the box of Log All Mail Events. All the events about the mails will be recorded on Syslog.

When the system fails due to system timeout or network problem, you can specify specific action (Pass or Tag) for the system to execute immediately. Pass – Choose this action to make all mails passing through.

VigorPro5500 Series User’s Guide

Tag - Choose this action to make all mails be tagged with certain words for you to identify easily. For example, type “timeout” on the box of Message. Then all the mails sending to your e-mail box at system timeout will be marked with “***timeout***” before the subjects of the mails. Later, these mails cab be identified easily and categorized manually.

Log Check the box to have the process record stated on Syslog. Message Type words which will be placed before the subject of mail

and help you to identify.

Clear Delete the settings configured above and reset to default

settings.

Cancel Delete the settings configured above and return to previous

page.

Click OK to finish the page configuration.

33..88..22 AAccttiivvaattiinngg AAnnttii--SSppaamm

After you have finished the profile settings, it is the time to activate the mechanism for your computer. Click the Activate link on the following page to access www.vigorpro.com.

33..99 BBaannddwwiiddtthh MMaannaaggeemmeenntt

Below shows the menu items for Bandwidth Management.

VigorPro5500 Series User’s Guide

33..99..11 SSeessssiioonnss LLiimmiitt

A PC with private IP address can access to the Internet via NAT router. The router will generate the records of NAT sessions for such connection. The P2P (Peer to Peer) applications (e.g., BitTorrent) always need many sessions for procession and also they will occupy over resources which might result in important accesses impacted. To solve the problem, you can use limit session to limit the session procession for specified Hosts.

In the Bandwidth Management menu, click Sessions Limit to open the web page.

To activate the function of limit session, simply click Enable and set the default session limit.

Enable Click this button to activate the function of limit session. Disable Click this button to close the function of limit session. Default session limit Defines the default session number used for each computer in

LAN.

Limitation List Displays a list of specific limitations that you set on this web

page.

Start IP Defines the start IP address for limit session. End IP Defines the end IP address for limit session. Maximum Number Defines the available session number for each host in the

specific range of IP addresses. If you do not set the session number in this field, the system will use the default session limit for the specific limitation you set for each index.

VigorPro5500 Series User’s Guide

Add Adds the specific session limitation onto the list above. Edit Allows you to edit the settings for the selected limitation. Delete Delete the selected settings existing on the limitation list. Index (1-15) in Schedule

Setup

33..99..22 BBaannddwwiiddtthh LLiimmiitt

The downstream or upstream from FTP, HTTP or some P2P applications will occupy large of bandwidth and affect the applications for other programs. Please use Limit Bandwidth to make the bandwidth usage more efficient.

In the Bandwidth Management menu, click Bandwidth Limit to open the web page.

You can type in four sets of time schedule for your request. All the schedules can be set previously in Application – Schedule web page and you can use the number that you have set in that web page.

To activate the function of limit bandwidth, simply click Enable and set the default upstream and downstream limit.

Enable Click this button to activate the function of limit bandwidth. Disable Click this button to close the function of limit bandwidth. Default TX limit Define the default speed of the upstream for each computer in

Default RX limit Define the default speed of the downstream for each computer

Limitation List Display a list of specific limitations that you set on this web

Start IP Define the start IP address for limit bandwidth. End IP Define the end IP address for limit bandwidth.

VigorPro5500 Series User’s Guide

LAN.

in LAN.

page.

TX limit Define the limitation for the speed of the upstream. If you do

not set the limit in this field, the system will use the default speed for the specific limitation you set for each index.

RX limit Define the limitation for the speed of the downstream. If you

do not set the limit in this field, the system will use the default speed for the specific limitation you set for each index.

Add Add the specific speed limitation onto the list above. Edit Allows you to edit the settings for the selected limitation. Delete Delete the selected settings existing on the limitation list. Index (1-15) in Schedule

Setup

33..99..33 QQuuaalliittyy ooff SSeerrvviiccee

Deploying QoS (Quality of Service) management to guarantee that all applications receive the service levels required and sufficient bandwidth to meet performance expectations is indeed one important aspect of modern enterprise network.

One reason for QoS is that numerous TCP-based applications tend to continually increase their transmission rate and consume all available bandwidth, which is called TCP slow start. If other applications are not protected by QoS, it will detract much from their performance in the overcrowded network. This is especially essential to those are low tolerant of loss, delay or jitter (delay variation).

Another reason is due to congestions at network intersections where speeds of interconnected circuits mismatch or traffic aggregates, packets will queue up and traffic can be throttled back to a lower speed. If there’s no defined priority to specify which packets should be discarded (or in another term “dropped”) from an overflowing queue, packets of sensitive applications mentioned above might be the ones to drop off. How this will affect application performance?

There are two components within Primary configuration of QoS deployment: z Classification: Identifying low-latency or crucial applications and marking them for

high-priority service level enforcement throughout the network.

z Scheduling: Based on classification of service level to assign packets to queues and

associated service types

The basic QoS implementation in Vigor routers is to classify and schedule packets based on the service type information in the IP header. For instance, to ensure the connection with the headquarter, a teleworker may enforce an index of QoS Control to reserve bandwidth for HTTPS connection while using lots of application at the same time.

One more larger-scale implementation of QoS network is to apply DSCP (Differentiated Service Code Point) and IP Precedence disciplines at Layer 3. Compared with legacy IP Precedence that uses Type of Service (ToS) field in the IP header to define 8 service classes, DSCP is a successor creating 64 classes possible with backward IP Precedence compatibility. In a QoS-enabled network, or Differentiated Service (DiffServ or DS) framework, a DS domain owner should sign a Service License Agreement (SLA) with other DS domain owners to define the service level provided toward traffic from different domains. Then each DS node in these domains will perform the priority treatment. This is called per-hop-behavior (PHB). The definition of PHB includes Expedited Forwarding (EF),

VigorPro5500 Series User’s Guide

Assured Forwarding (AF), and Best Effort (BE). AF defines the four classes of delivery (or forwarding) classes and three levels of drop precedence in each class.

Vigor routers as edge routers of DS domain shall check the marked DSCP value in the IP header of bypassing traffic, thus to allocate certain amount of resource execute appropriate policing, classification or scheduling. The core routers in the backbone will do the same checking before executing treatments in order to ensure service-level consistency throughout the whole QoS-enabled network.

However, each node may take different attitude toward packets with high priority marking since it may bind with the business deal of SLA among different DS domain owners. It’s not easy to achieve deterministic and consistent high-priority QoS traffic throughout the whole network with merely Vigor router’s effort.

In the Bandwidth Management menu, click Quality of Service to open the web page.

This page displays the QoS settings result of the WAN interface. Click the Setup link to access into next page for the general setup of WAN (1/2) interface. As to class rule, simply click the Edit link to access into next for configuration.

You can configure general setup for the WAN interface, edit the Class Rule, and edit the Service Type for the Class Rule for your request.

GGeenneerraall SSeettuupp ffoorr WWAANN IInntteerrffaaccee

When you click Setup, you can configure the bandwidth ratio for QoS of the WAN interface. There are four queues allowed for QoS control. The first three (Class 1 to Class 3) class rules can be adjusted for your necessity. Yet, the last one is reserved for the packets which are not suitable for the user-defined class rules.

VigorPro5500 Series User’s Guide

Enable the QoS Control The factory default for this setting is checked.

Please also define which traffic the QoS Control settings will apply to.

IN- apply to incoming traffic only. OUT-apply to outgoing traffic only. BOTH- apply to both incoming and outgoing traffic.

Check this box and click OK, then click Setup link again. You will see the Online Statistics link appearing on this page.

WAN Inbound Bandwidth It allows you to set the connecting rate of data input for WAN.

For example, if your ADSL supports 1M of downstream and 256K upstream, please set 10000kbps for this box. The default value is 10000kbps.

WAN Outbound Bandwidth It allows you to set the connecting rate of data output for

WAN. For example, if your ADSL supports 1M of downstream and 256K upstream, please set 256kbps for this box. The default value is 10000kbps.

Reserved Bandwidth Ratio It is reserved for the group index in the form of ratio of

reserved bandwidth to upstream speed and reserved bandwidth to downstream speed.

Enable UDP Bandwidth Control

Check this and set the limited bandwidth ratio on the right field. This is a protection of TCP application traffic since UDP application traffic such as streaming video will exhaust lots of bandwidth.

Outbound TCP ACK

Check to enable this function.

Prioritize Limited_bandwidth Ratio The ratio typed here is reserved for limited bandwidth of UDP

application.

Online Statistics Display an online statistics for quality of service for your

reference. This link will be seen only if you click OK in WAN1/WAN2 General Setup web page and click Setup again (for WAN1/WAN2) on the Bandwith

VigorPro5500 Series User’s Guide

Management>>Quality of Service.

EEddiitt tthhee CCllaassss RRuullee ffoorr QQooSS

The first three (Class 1 to Class 3) class rules can be adjusted for your necessity. To add, edit or delete the class rule, please click the Edit link of that one.

After you click the Edit link, you will see the following page. Now you can define the name for that Class. In this case, “Test” is used as the name of Class Index #1.

VigorPro5500 Series User’s Guide

For adding a new rule, click Add to open the following page.

ACT Check this box to invoke these settings. Local Address Click the Edit button to set the local IP address (on LAN) for

the rule.

Remote Address Click the Edit button to set the remote IP address (on

Lan/WAN) for the rule.

Edit It allows you to edit source address information.

Address Type – Determine the address type for the source

address. For Single Address, you have to fill in Start IP address. For Range Address, you have to fill in Start IP address and End IP address. For Subnet Address, you have to fill in Start IP address and Subnet Mask.

DiffServ CodePoint All the packets of data will be divided with different levels

and will be processed according to the level type by the system. Please assign one of the level of the data for processing with QoS control.

Service Type It determines the service type of the data for processing with

QoS control. It can also be edited. You can choose the predefined service type from the Service Type drop down list. Those types are predefined in factory. Simply choose the one that you want for using by current QoS.

By the way, you can set up to 20 rules for one Class. If you want to edit an existed rule, please select the radio button of that one and click Edit to open the rule edit page for modification.

VigorPro5500 Series User’s Guide
