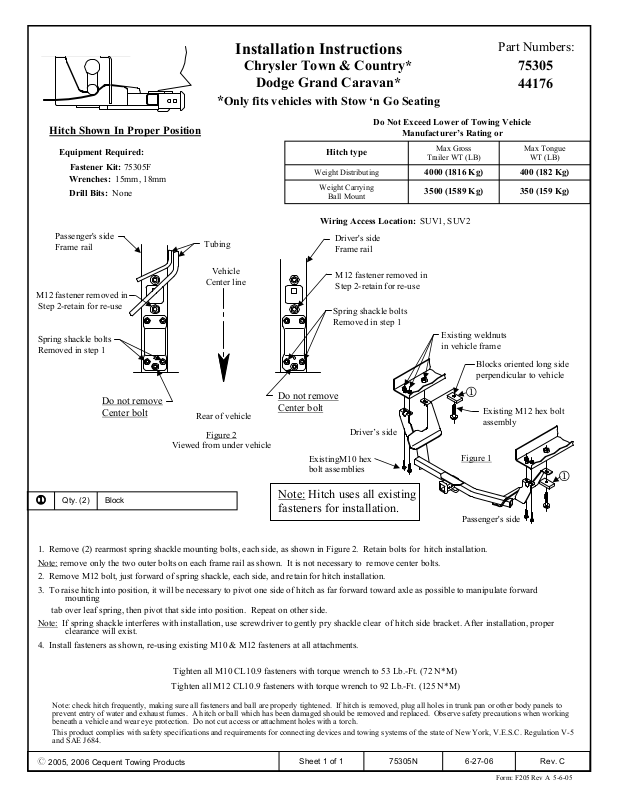

Draw-Tite 75305 User Manual
Installation Instructions
Chrysler Town & Country*
Dodge Grand Caravan*
*
Only fits vehicles with Stow ‘n Go Seating
Part Numbers:
75305
44176
Hitch Shown In Proper Position
Equipment Required:
Fastener Kit: 75305F
Wrenches: 15mm, 18mm
Drill Bits: None
Passenger's side
Frame rail
M12 fastener removed in
Step 2-retain for re-use
Spring shackle bolts
Removed in step 1
Do not remove
Center bolt
1
BlockQty. (2)
Tubing
Vehicle
Center line
Rear of vehicle
Figure 2
Viewed from under vehicle
Do Not Exceed Lower of Towing Vehicle
Manufacturer’s Rating or
Hitch type
Weight Distributing
Weight Carrying
Ball Mount
Wiring Access Location: SUV1, SUV2
Driver's side
Frame rail
M12 fastener removed in
Step 2-retain for re-use
Spring shackle bolts
Removed in step 1
Do not remove
Center bolt
Driver’s side
ExistingM10 hex
bolt assemblies
Note: Hitch uses all existing
fasteners for installation.
Max Gross
Trailer WT (LB)
Existing weldnuts
in vehicle frame
1
Figure 1
Passenger's side
Max Tongue
WT (LB)
400 (182 Kg)4000 (1816 Kg)
350 (159 Kg)3500 (1589 Kg)
Blocks oriented long side
perpendicular to vehicle
Existing M12 hex bolt
assembly
1
1. Remove (2) rearmost spring shackle mounting bolts, each side, as shown in Figure 2. Retain bolts for hitch installation.
Note:
remove only the two outer bolts on each frame rail as shown. It is not necessary to remove center bolts.
2. Remove M12 bolt, just forward of spring shackle, each side, and retain for hitch installation.
3. To raise hitch into position, it will be necessary to pivot one side of hitch as far forward toward axle as possible to manipulate forward
mounting
tab over leaf spring, then pivot that side into position. Repeat on other side.
If spring shackle interferes with installation, use screwdriver to gently pry shackle clear of hitch side bracket. After installation, proper
Note:
clearance will exist.
4. Install fasteners as shown, re-using existing M10 & M12 fasteners at all attachments.
Tighten all M10 CL10.9 fasteners with torque wrench to 53 Lb.-Ft. (72 N*M)
Tighten all M12 CL10.9 fasteners with torque wrench to 92 Lb.-Ft. (125 N*M)
Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to
prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working
beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5
and SAE J684.
z 2005, 2006 Cequent Towing Products
Form: F205 Rev A 5-6-05
Rev. C6-27-0675305NSheet 1 of 1
