Draw-Tite 75186 User Manual
Equipment Required:
Form: F205 Rev A 5
-6-
05
Fastener Kit: F75186
Wrenches: 3/4”
Drill Bits: 1/2”
Bumper
bracket
4
3

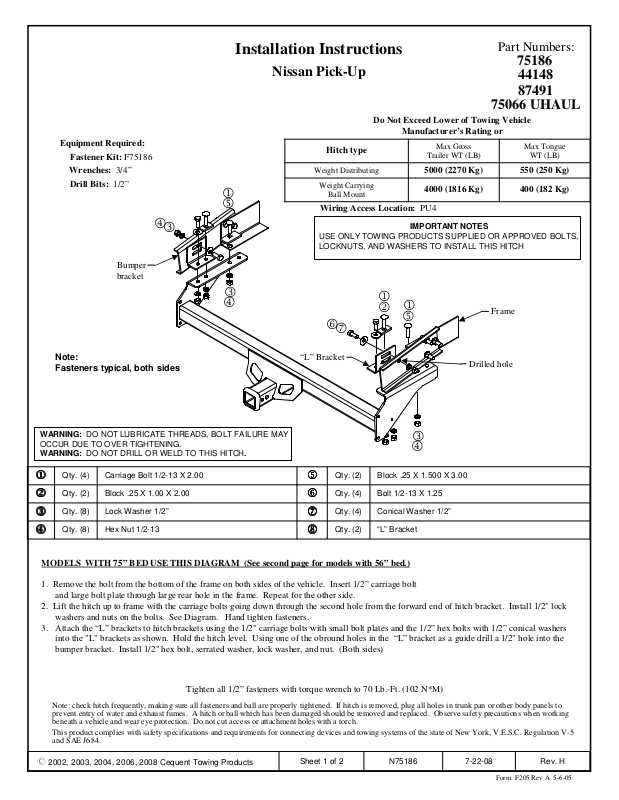

Installation Instructions
Nissan Pick-Up
Hitch type
Weight Distributing
Weight Carrying
1
5
Ball Mount
Wiring Access Location: PU4
USE ONLY TOWING PRODUCTS SUPPLIED OR APPROVED BOLTS,
LOCKNUTS, AND WASHERS TO INSTALL THIS HITCH
Part Numbers:
75186
44148
87491
75066 UHAUL
Do Not Exceed Lower of Towing Vehicle
Manufacturer’s Rating or
Max Gross
Trailer WT (LB)
IMPORTANT NOTES
Max Tongue
550 (250 Kg)5000 (2270 Kg)
400 (182 Kg)4000 (1816 Kg)
WT (LB)
3
4
6
7
Note:
Fasteners typical, both sides
WARNING: DO NOT LUBRICATE THREADS, BOLT FAILURE MAY
OCCUR DUE TO OVER TIGHTENING.
WARNING: DO NOT DRILL OR WELD TO THIS HITCH.
1111
2222
3333
4444
MODELS WITH 75” BED USE THIS DIAGRAM (See second page for models with 56” bed.)
1. Remove the bolt from the bottom of the frame on both sides of the vehicle. Insert 1/2” carriage bolt
and large bolt plate through large rear hole in the frame. Repeat for the other side.
2. Lift the hitch up to frame with the carriage bolts going down through the second hole from the forward end of hitch bracket. Install 1/2" lock
washers and nuts on the bolts. See Diagram. Hand tighten fasteners.
3. Attach the “L” brackets to hitch brackets using the 1/2" carriage bolts with small bolt plates and the 1/2” hex bolts with 1/2” conical washers
into the "L" brackets as shown. Hold the hitch level. Using one of the obround holes in the “L” bracket as a guide drill a 1/2" hole into the
bumper bracket. Install 1/2" hex bolt, serrated washer, lock washer, and nut. (Both sides)
Carriage Bolt 1/2-13 X 2.00Qty. (4)
Block .25 X 1.00 X 2.00Qty. (2)
Lock Washer 1/2”Qty. (8)
Hex Nut 1/2-13Qty. (8)
“L” Bracket
5555
6666
7777
8888
1
2
Block .25 X 1.500 X 3.00Qty. (2)
Bolt 1/2-13 X 1.25Qty. (4)
Conical Washer 1/2”Qty. (4)
“L” BracketQty. (2)
1
5
Frame
Drilled hole
3
4
Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to
prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working
beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5
and SAE J684.
z
2002, 2003, 2004, 2006, 2008 Cequent Towing Products
Tighten all 1/2” fasteners with torque wrench to 70 Lb.-Ft. (102 N*M)
Rev. H7-22-08N75186Sheet 1 of 2
Form: F205 Rev A 5
-6-
05
Use existing hole in
the frame
Use second hole as
shown
1
5
Installation Instructions
Nissan Pick-Up
1
2
Part Numbers:
75186
44148
87491
75066 UHAUL
1111
2222
3333
Note:
Fasteners
typical
Carriage Bolt 1/2-13 X 2.00Qty. (4)
Block .25 X 1.00 X 2.00Qty. (2)
, both sides
3
4
4444
5555
1
2
1
5
Frame
Use forward hole as
a guide to drill 1/2”
hole in frame
3
4
Hex Nut 1/2-13Qty. (8)
Block .25 X 1.500 X 3.00Qty. (2)
Bolt Leader Qty. (4)Lock Washer 1/2”Qty. (8)
Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to
prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working
beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5
and SAE J684.
z
2002, 2003, 2004, 2006, 2008 Cequent Towing Products
MODELS WITH 56” BED USE THIS DIAGRAM (See page one for models with 75” bed.)
1. Remove the bolt from the bottom of the frame on both sides of the vehicle. Insert 1/2” carriage bolt and
large bolt plate through large rear hole in the frame. Bolt leaders may be used to assist installation. Repeat for the other side.
2. Lift the hitch up to the frame with the carriage bolts going down through the second hole from rear in the
hitch bracket. Install 1/2" lock washers and 1/2" nuts on the bolts. See the diagram above.
3. Using the front hole in the bracket as a guide, drill a 1/2" hole in the frame. Insert a 1/2" carriage bolt
with a small bolt plate down through the frame and the hitch bracket. Bolt leaders may be used to assist installation
Install a 1/2" lock washer and 1/2" nut on the bolt. Repeat for the other side. See the diagram above.
NOTE: The above installation can be used for models with 75” beds, but longer ball mounts and
weight distributing shanks will be required.
Tighten all 1/2” fasteners with torque wrench to 70 Lb.-Ft. (102 N*M)
Rev. H7-22-08N75186Sheet 2 of 2
