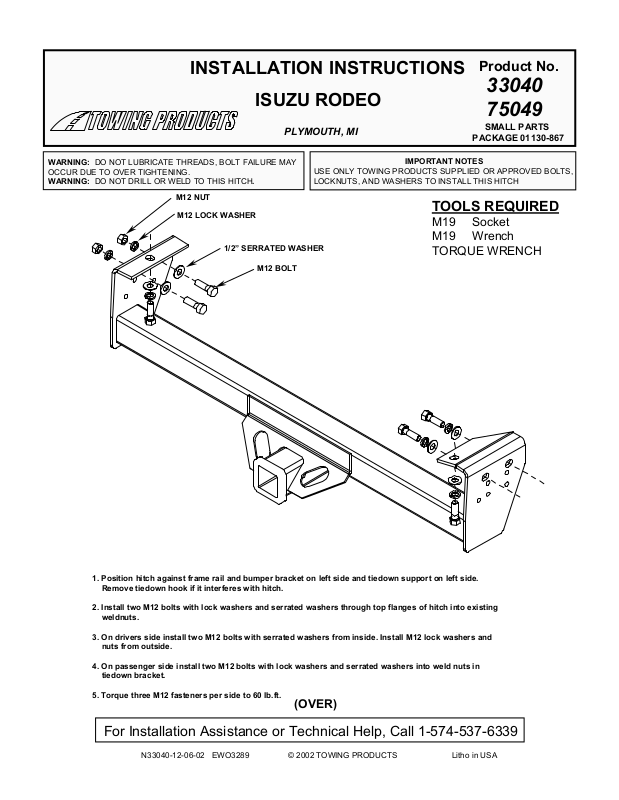

INSTALLATION INSTRUCTIONS

ISUZU RODEO

PLYMOUTH, MI

Product No.

33040 75049

SMALL PARTS

PACKAGE 01130-867

WARNING: DO NOT LUBRICATE THREADS, BOLT FAILURE MAY

OCCUR DUE TO OVER TIGHTENING.

WARNING: DO NOT DRILL OR WELD TO THIS HITCH.

M12 NUT

M12 LOCK WASHER

1/2” SERRATED WASHER

M12 BOLT

USE ONLY TOWING PRODUCTS SUPPLIED OR APPROVED BOLTS,

IMPORTANT NOTES

LOCKNUTS, AND WASHERS TO INSTALL THIS HITCH

TOOLS REQUIRED

M19 Socket M19 Wrench TORQUE WRENCH

1. Position hitch against frame rail and bumper bracket on left side and tiedown support on left side. Remove tiedown hook if it interferes with hitch.

2. Install two M12 bolts with lock washers and serrated washers through top flanges of hitch into existing weldnuts.

3. On drivers side install two M12 bolts with serrated washers from inside. Install M12 lock washers and nuts from outside.

4. On passenger side install two M12 bolts with lock washers and serrated washers into weld nuts in tiedown bracket.

5. Torque three M12 fasteners per side to 60 lb.ft.

(OVER)

For Installation Assistance or Technical Help, Call 1-574-537-6339

THIS PRODUCT COMPLIES WITH SAFETY SPECIFICATION AND REQUIREMENTS FOR THE STATE OF NEW YORK AND VESC REGULATION V-5 FOR CONNECTING DEVICES AND TOWING SYSTEMS. WEIGHT CARRYING HITCH RATING IS 5000 LB MAX GROSS TRAILER WEIGHT AND 500 LB MAX TONGUE WEIGHT. CONSULT VEHICLE OWNERS MANUAL FOR TOWING RECOMMENDATIONS AND LIMITATIONS.
