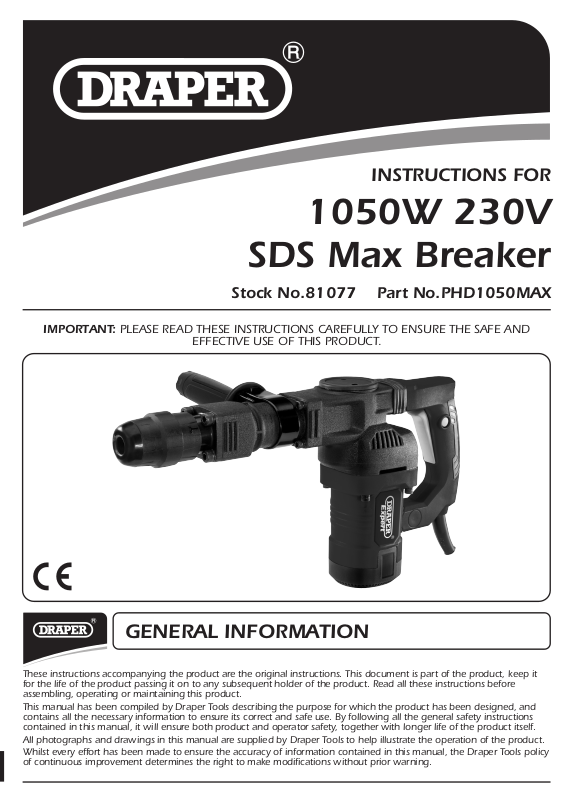

Page 1
INSTRUCTIONS FOR
1050W 230V
SDS Max Breaker
Stock No.81077 Part No.PHD1050MAX
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND
EFFECTIVE USE OF THIS PRODUCT.
GENERAL INFORMATION
These instructions accompanying the product are the original instructions. This document is part of the product, keep it
for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed, and
contains all the necessary information to ensure its correct and safe use. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools policy
of continuous improvement determines the right to make modifications without prior warning.
Page 2
1. TITLE PAGE
1.1 INTRODUCTION:
USER MANUAL FOR:
1050W 230V SDS MAX BREAKER
Stock no. 81077
Part no. PHD1050MAX
1.2 REVISIONS:
Date first published August 2016.
Date first revised September 2016
Date second revised September 2016
As our user manuals are continually updated, users should make sure that they use the very
latest version.
Downloads are available from: http://www.drapertools.com/manuals
DRAPER TOOLS LIMITED WEBSITE: drapertools.com
HURSLEY ROAD PRODUCT HELP LINE: +44 (0) 23 8049 4344
CHANDLER’S FORD GENERAL FAX: +44 (0) 23 8026 0784
EASTLEIGH
HAMPSHIRE
SO53 1YF
UK
1.3 UNDERSTANDING THIS MANUALS SAFETY CONTENT:
WARNING! Information that draws attention to the risk of injury or death.
CAUTION! Information that draws attention to the risk of damage to the product or
surroundings.
1.4 COPYRIGHT © NOTICE:
Copyright © Draper Tools Limited.
Permission is granted to reproduce this publication for personal & educational use only.
Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any other
form or means without written permission from Draper Tools Limited.
In all cases this copyright notice must remain intact.
Page 3
2. CONTENTS
2.1 CONTENTS
PAGE CONTENT
1 TITLE PAGE
1.1 INTRODUCTION ............................................................................................... 2
1.2 REVISION HISTORY........................................................................................... 2
1.3 UNDERSTANDING THIS MANUAL ................................................................... 2
1.4 COPYRIGHT NOTICE.........................................................................................2
2 CONTENTS
2.1 CONTENTS ........................................................................................................ 3
3 GUARANTEE
3.1 GUARANTEE ..................................................................................................... 4
4 INTRODUCTION
4.1 SCOPE ............................................................................................................... 5
4.2 SPECIFICATION ................................................................................................. 5
4.3 HANDLING & STORAGE ...................................................................................5
5 HEALTH & SAFETY INFORMATION
5.1 GENERAL POWER TOOL SAFETY WARNINGS ................................................. 6
5.2 ADDITIONAL SAFETY INSTRUCTIONS.............................................................. 7
5.3 CONNECTION TO THE POWER SUPPLY ........................................................... 7
6 TECHNICAL DESCRIPTION
6.1 IDENTIFICATION ............................................................................................... 8
7 UNPACKING & CHECKING
7.1 PACKAGING......................................................................................................9
7.2 WHATS IN THE BOX? ......................................................................................9
8 PREPARING THE BREAKER
8.1 AUXILIARY HANDLE......................................................................................... 10
9 BASIC HAMMER DRILL OPERATIONS
9.1 TRIGGER SWITCH.............................................................................................. 11
9.2 SDS SYSTEM...................................................................................................... 11
9.3 IMPROPER USE ................................................................................................ 12
9.4 DUST AND SWARF ........................................................................................... 12
10 MAINTENANCE
10.1 GEARBOX MAINTENANCE............................................................................... 13
11 TROUBLESHOOTING........................................................................................................... 14
12 OPTIONAL ACCESSORIES
12.1 OPTIONAL ACCESSORIES ................................................................................ 15
13 EXPLANATION OF SYMBOLS
13.1 EXPLANATION OF SYMBOLS ........................................................................... 16
14 DISPOSAL
14.1 DISPOSAL..........................................................................................................17
DECLARATION OF CONFORMITY .....................................................................................ENCLOSED
PAGE
3
Page 4
3. GUARANTEE
3.1 GUARANTEE
Draper tools have been carefully tested and inspected before shipment and are guaranteed
to be free from defective materials and workmanship.
Should the tool develop a fault, please return the complete tool to your nearest distributor
or contact Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF. England.
Telephone Sales Desk: (023) 8049 4333 or Product Help Line (023) 8049 4344.
A proof of purchase must be provided with the tool.
If upon inspection it is found that the fault occurring is due to defective materials or
workmanship, repairs will be carried out free of charge. This guarantee period covering
parts/labour is 12 months from the date of purchase except where tools are hired out when
the guarantee period is 90 days from the date of purchase. The guarantee is extended to 24
months for parts only. This guarantee does not apply to normal wear and tear, nor does it
cover any damage caused by misuse, careless or unsafe handling, alterations, accidents, or
repairs attempted or made by any personnel other than the authorised Draper warranty
repair agent.
Note: If the tool is found not to be within the terms of warranty, repairs and carriage charges
will be quoted and made accordingly.
This guarantee applies in lieu of any other guarantee expressed or implied and variations of
its terms are not authorised.
Your Draper guarantee is not effective unless you can produce upon request a dated receipt
or invoice to verify your proof of purchase within the guarantee period.
Please note that this guarantee is an additional benefit and does not affect your statutory
rights.
Draper Tools Limited.
4
Page 5
4. INTRODUCTION
4.1 SCOPE
This powerful SDS Max Breaker is ideal for most construction jobs. Suited to breaking breeze
blocks, brick, hard earth, fence post footings and concrete etc.
4.2 SPECIFICATION
Stock no. ........................................................................................................................... 81077
Part no. ................................................................................................................ PHD1050MAX
Rated voltage ........................................................................................................... 230V~50Hz
Rated input ...................................................................................................................... 1050W
Impact force .................................................................................................................. 25 Joules
Impact rate .................................................................................................................. 4300bpm
Chuck capacity .............................................................................................................. SDS Max
Sound pressure level ................................................................................................. 92±3dB(A)
Sound power level .................................................................................................. 105±3dB(A)
Vibration level:
main handle ..............................................................................................................15.0m/s²
side handle.................................................................................................................12.8m/s²
Weight (gross) ...................................................................................................................... 7kg
4.3 HANDLING & STORAGE
The environment will have a negative result on its operation if you are not careful. If the air
is damp, components will rust. If the machine is unprotected from dust and debris;
components will become clogged: And if not cleaned and maintained correctly or regularly
the machine will not perform at its best.
5
Page 6
5. HEALTH & SAFETY INFORMATION
5.1 GENERAL POWER TOOL SAFETY
WARNINGS
Warning: Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result
in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your
mains operated (corded) power tool or battery-operated
(cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
b) Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords
increase the risk of electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of
electric shock.
f) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk
of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A
moment of inattention while operating power
tools may result in serious personal injury.
b) Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will
reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch
is in the off position before connecting to power
source and/or battery pack, picking up or
carrying the tool. Carrying power tools with your
finger on the switch or energising power tools
that have the switch on invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
e) Do not overreach. Keep proper footing and
balance at all times. This enables better control of
the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery
or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these
are connected and properly used. Use of these
devices can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
b) Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must
be repaired.
c) Disconnect the plug from the power source
and/or battery pack from the power tool before
making any adjustments, changing accessories,
or storing power tools. Such preventive safety
measures reduce the risk of starting the power
tool accidentally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and
any other condition that may affect the power
tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are
caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with
sharp cutting
edges are less likely to bind and are easier
to control.
g) Use the power tool, accessories and tool
bits etc. in accordance with these
instructions, taking into account the
working conditions and the work to be
performed. Use of the power tool for
operations different from those intended
could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a
qualified repair person using only identical
replacement parts. This will ensure that the
safety of the power tool is maintained.
6
Page 7
5. HEALTH & SAFETY INFORMATION
5.2 ADDITIONAL SAFETY INSTRUCTIONS
– Wear ear protectors with Breakers. Exposure to noise can cause hearing loss.
– Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.
– Wear eye protection.
– Wear dust mask.
5.3 CONNECTION TO THE POWER SUPPLY
Make sure the power supply information on the machine’s rating plate are compatible
with the power supply you intend to connect it to.
This breaker comes supplied with a UK standard 3 pin plug fitted. It is designed for
connection to a domestic power supply rated at 230V AC.
It is a Class 2 machine (double insulated); is designed for connection to a power supply
matching that detailed on the rating label and compatible with the plug fitted.
If an extension lead is required, use an approved and compatible lead rated for this
appliance. Follow all the instruction supplied with the extension lead.
This product requires no earth connection as supplementary insulation is applied to the
basic insulation to protect against electric shock in the event of failure of the basic
insulation.
Apart from replacing the fuse in the plug, no other electrical work is recommended on this
breaker.
7
Page 8
6. TECHNICAL DESCRIPTION
6.1 IDENTIFICATION
SDS Max chuck
Gearbox access cover
On/off trigger switch
8
Trigger Lock
Moulded plug & cable
Page 9
7. UNPACKING & CHECKING
7.1 PACKAGING
Carefully remove the breaker from the packaging and examine it for any sign of damage that
may have happened during shipping. Lay the contents out and check them against the parts
shown below. If any part is damaged or missing; please contact the Draper Helpline (the
telephone number appears on the Title page) and do not attempt to use the breaker.
The packaging material should be retained at least during the guarantee period: in case the
machine needs to be returned for repair.
Warning! Some of the packaging materials used may be harmful to children. Do not leave
any of these materials in the reach of children.
If any of the packaging is to be thrown away, make sure they are disposed of correctly;
according to local regulations.
7.2 WHAT´S IN THE BOX?
As well as the breaker; there are several parts not fitted or attached to it.
Auxiliary handle/components.
1 x Flat chisel.
1 x Point chisel.
1 x Pin spanner.
Grease pot.
9
Page 10
8. PREPARING THE BREAKER
Important: Make sure that the mains voltage matches
the voltage stated on the machines rating plate.
Note: Remove the plug from the socket before carrying
out adjustment, servicing or maintenance.
8.1 AUXILIARY HANDLE – FIGS. 1 – 4
Warning: Use auxiliary handle supplied with the tool.
Loss of control can cause personal injury.
To assemble auxiliary handle:
– Fit ‘U’ bracket over front housing.
– Place bolt through locking spacer and slide
the locking spacer through 1st slot of ‘U’ bracket,
then back into 2nd slot of bracket.
– Place bracket over bolt and with forefinger
holding bolt head.
– Screw on auxiliary handle until tight.
FIG.1
FIG.2
FIG.3
– To reposition handle for side holding, simply loosen
auxiliary handle, rotate to desired position and
retighten.
10
FIG.4
Page 11
9. BASIC BREAKER OPERATIONS
Warning: Assembly must be completed prior to operating the machine.
Warning: Prior to beginning any work, carefully check the surface for the presence of electric
cable, gas or water pipes and other dangerous or damaging contents. If unsure do not
proceed.
Note: Remove the plug from the socket before carrying out adjustment, servicing or
maintenance.
9.1 TRIGGER SWITCH – FIG. 5
i To activate the breaker, press the trigger .
ii To operate the breaker for prolonged periods, press and hold the
trigger .
iii Press the switch lock button and hold.
iv Release the trigger and lock button .
Note: To stop the breaker, press the trigger once.
9.2 SDS MAX SYSTEM – FIG. 6
The tool holder clamps SDS Max bits and chisels
without the need for a chuck key.
– Pull collar back.
– Insert the bit. It may be necessary to rotate the bit to
ensure it engages correctly.
– Release the collar to lock the bit in place. Check by
pulling the bit to see if it's firmly seated.
Important: Always clean and lightly grease the tool shaft
before inserting into the chuck.
Take care that the dust protection cap is not damaged.
Allowing dust and debris inside the holder will cause
problems in the future.
To remove a bit, slide the collar to the rear and pull
out the tool.
Warning: Bit will be hot after use.
FIG.5
FIG.6
11
Page 12
9. BASIC BREAKER OPERATIONS
9.3 IMPROPER USE
The functions and use of these tools are those exclusively indicated in this manual.
9.4 DUST AND SWARF:
A correctly fitted dusk mask, suitable for the activity and in accordance to the relevant
standard, must be worn.
For work activities involving exposure to fine dust, a mask rated to at least FFP2 should be
used.
12
Page 13
10. MAINTENANCE
10.1 GEARBOX MAINTENANCE FIG. 7
Note: Remove the plug from the socket before carrying
out adjustment, servicing or maintenance.
Before each use remove the gearbox access cover to
ensure there is sufficient grease.
– Using pin spanner remove the access cover
anti-clockwise.
– If required top-up the gearbox (20 grams max.) using
a general purpose lithium based grease.
Warning: Assembly must be completed prior to
operating the machine.
The breaker does not require any special maintenance.
Regularly clean/vacuum the ventilation slots. Use only a
mild cleaner and a damp cloth to clean the tool.
FIG.7
13
Page 14
11. TROUBLESHOOTING
Note: Remove the plug from the socket before carrying out adjustment, servicing or
maintenance.
Problem Possible Cause Remedy
Motor does not start.
1. Fuse.
1. Replace/reset 13 amp time
delay fuse or circuit
breaker.
2. Brushes worn.
3. Unsure.
2. Have carbon brushes
replaced in motor.
3. Return to an authorised
service agent for diagnosis.
14
Page 15
12. OPTIONAL ACCESSORIES
For a full range of optional accessories, please refer to your local Draper Stockist.
15
Page 16
13. EXPLANATION OF SYMBOLS
13.1 EXPLANATION OF SYMBOLS
Warning!
Read instruction manuals before
operating and servicing this
equipment.
Warning!
Wear safety goggles.
Warning!
Wear ear defenders.
Warning!
Wear dust mask.
16
Class II construction
(Double insulated)
WEEE
Do not dispose of Waste Electrical
& Electronic Equipment in with
domestic rubbish
Page 17
14. DISPOSAL
14.1 DISPOSAL
– At the end of the machine’s working life, or when it can no longer be repaired, ensure
that it is disposed of according to national regulations.
– Contact your local authority for details of collection schemes in your area.
In all circumstances:
• Do not dispose of power tools with domestic waste.
• Do not incinerate.
• Do not abandon in the environment.
• Do not dispose of WEEE*
as unsorted municipal waste.
* Waste Electrical & Electronic Equipment.
17
Page 18
NOTES
18
Page 19
NOTES
19
Page 20
CONTACTS
– DRAPER TOOLS LIMITED,
Hursley Road, Chandler's Ford,
Eastleigh, Hampshire. SO53 1YF. U.K.
– Help Line: (023) 8049 4344
– Sales Desk: (023) 8049 4333
– General Enquiries: (023) 8026 6355
– Service/Warranty Repair Agent
For aftersales servicing or warranty repairs, please
contact the Draper Tools Help Line for details of an
agent in your local area.
YOUR DRAPER STOCKIST
RDLJ0817
drapertools.com
Loading...
